USER MANUAL LRE6385SW LG

Please read this owner's manual thoroughly before operating and keep it handy for reference at all times.

LRE6387ST

LRE6385SW

LRE6383SW

LRE6383BD

LRE6385ST

LRE6383ST

LRE6321ST

LRE6385SB

LRE6383SB

LRE6321SW

TABLE OF CONTENTS

3 IMPORTANT SAFETY INSTRUCTIONS

11 OvERvIEw

1 1 Accessories

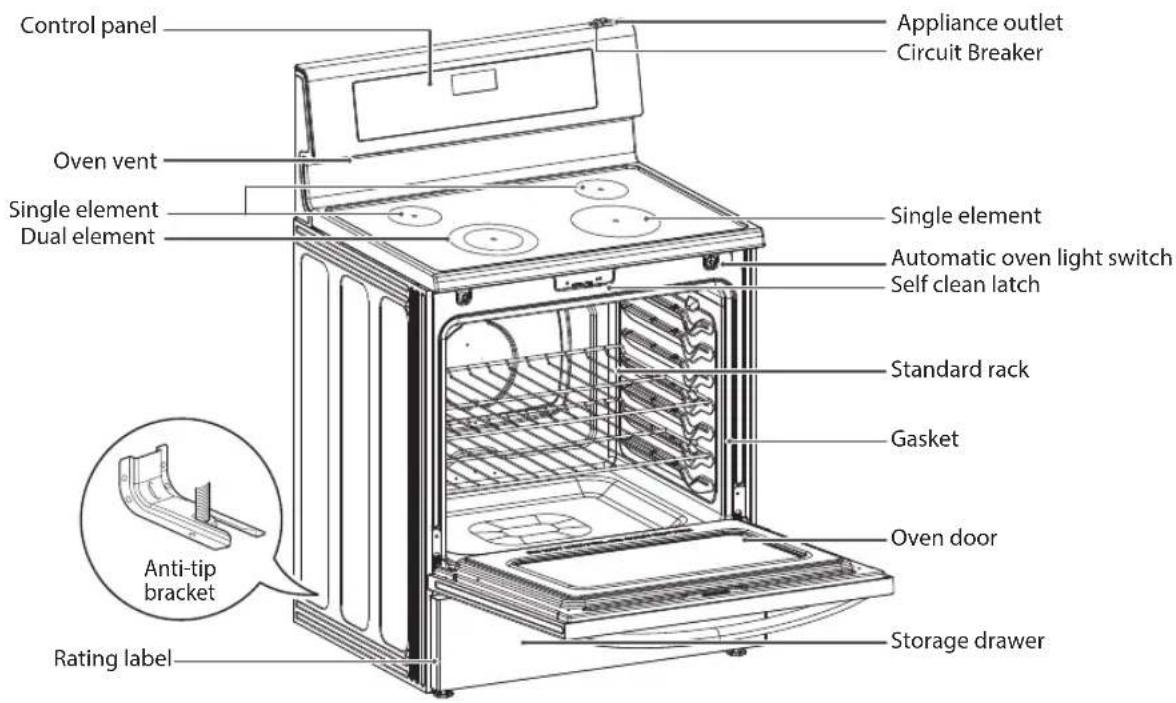

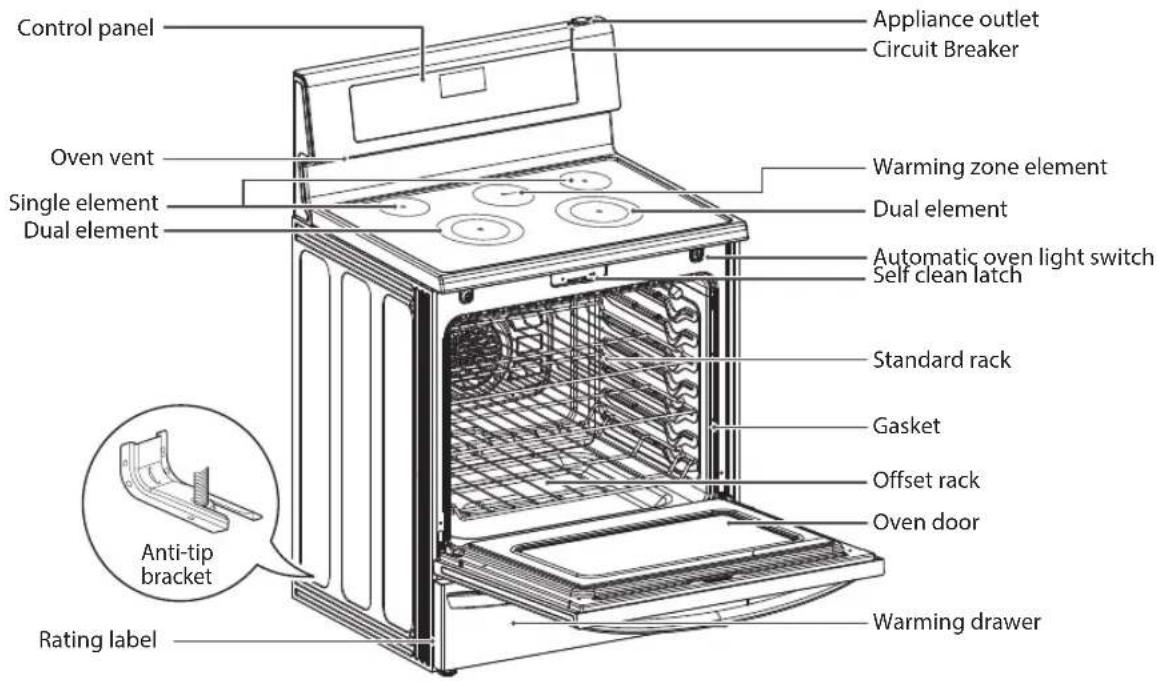

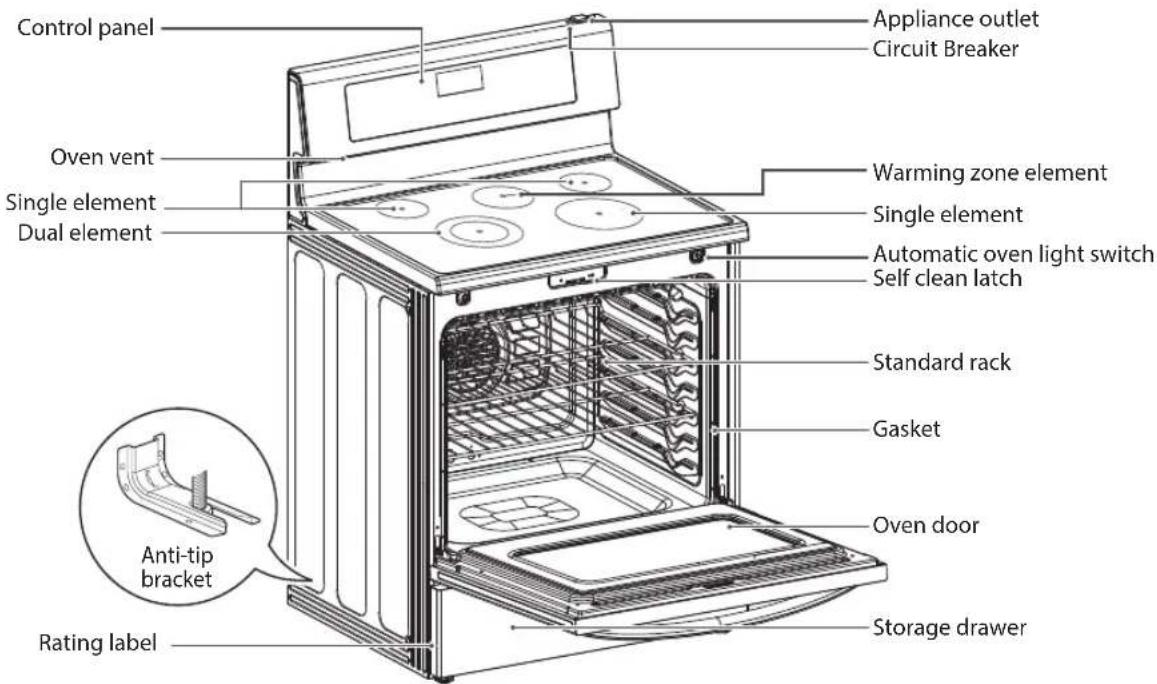

12 Range overview

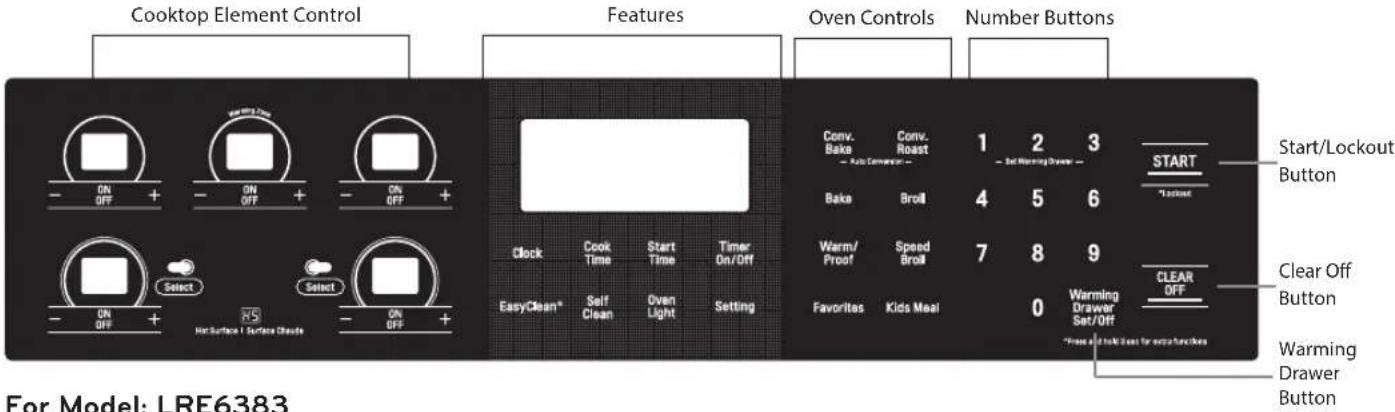

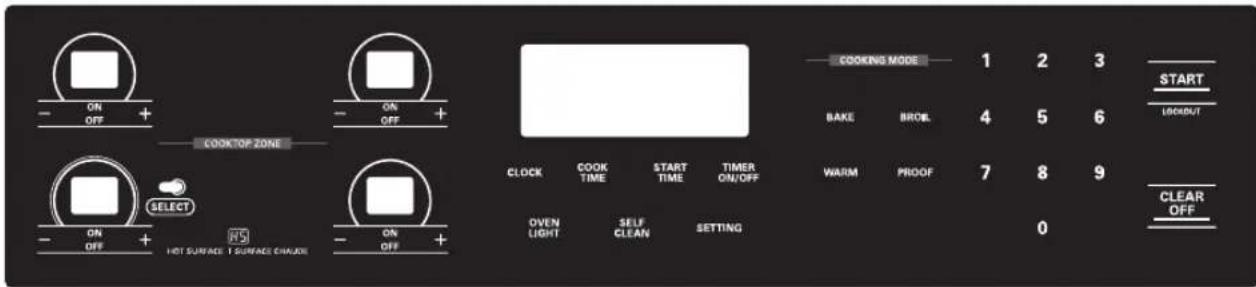

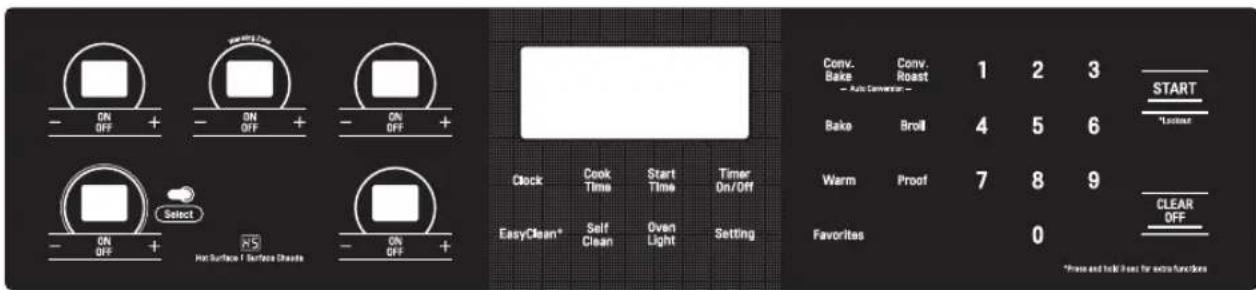

14 Control Panel overview

15 FEATURES

15 Settings

15 Clock

16 Timer on/off

16 Rapid preheat (on some models)

16 Convection auto conversion (on some models)

17 Oven temperature adjustment

17 Language

17 Preheating alarm light

17 Beeper volume

17 Fahrenheit or Celsius

17 Oven light

18 Lockout

18 Start time

19 Cook time

20 USINg ThE COOkTOP

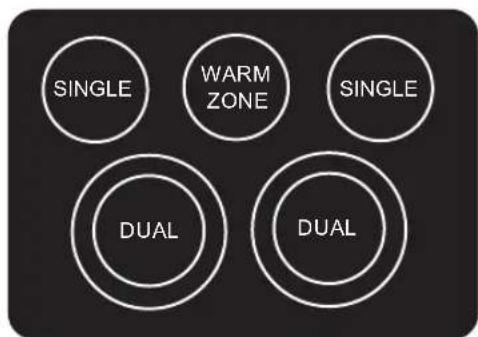

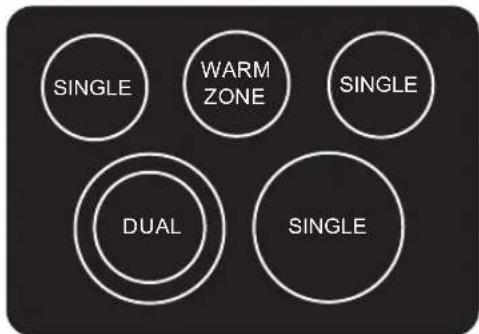

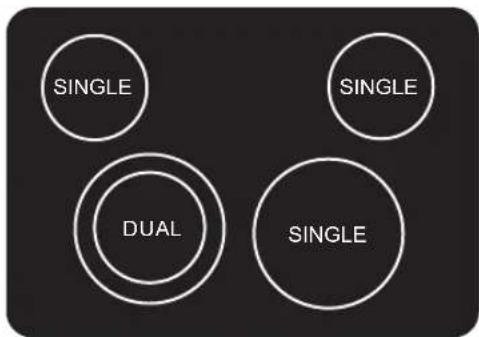

20 Cooking areas

22 Using the proper cookware

23 USINg ThE OvEN

23 Before using the oven

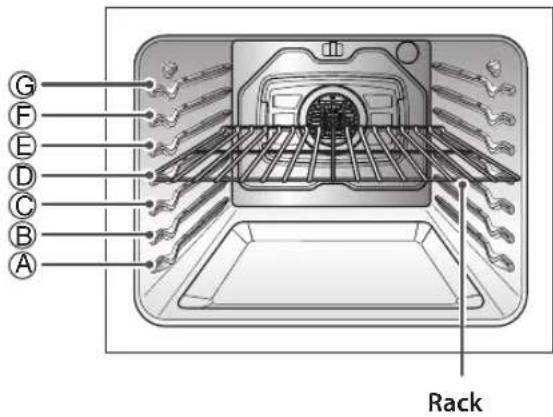

23 Removing and replacing the oven racks

24 Bake

24 Convection bake (on some models)

25 Convection roast (on some models)

26 Broil

26 Speed broil (on some models)

26 Recommended broiling guide

30 Kids meal (on some models)

30 Warm

30 Proof

31 Favorites (on some models)

31 Sabbath mode

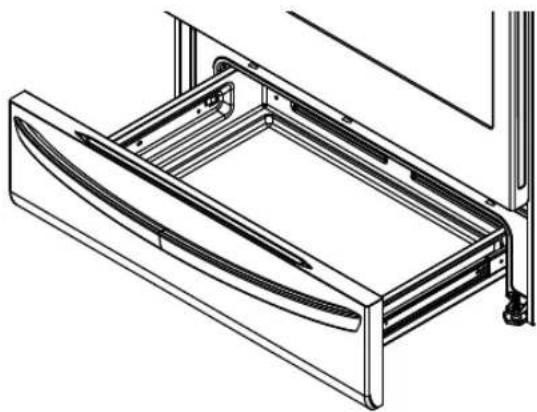

32 wARMINg dRAwER (ON SOME MOdELS)

32 Operating the warming drawer

33 CARE AND CLEANING

33 Cleaning the glass/ceramic cooktop.

34 Self clean

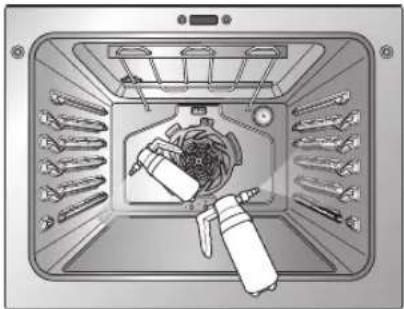

37 EasyClean ^® (on some models)

39 Cleaning the exterior

39 Changing the oven light

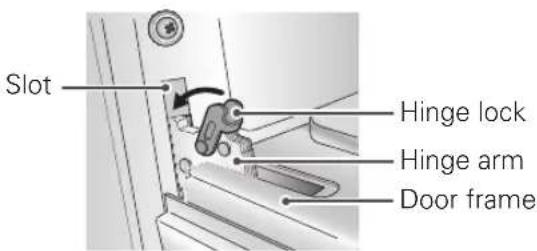

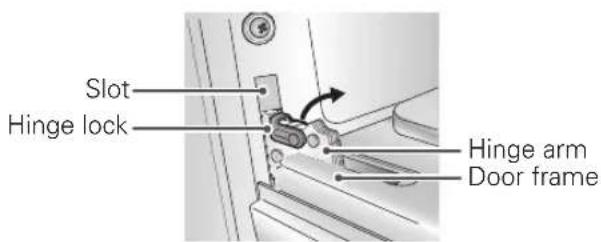

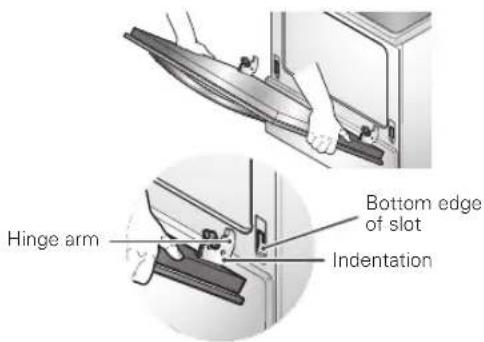

40 Removing and replacing the oven door and drawer

42 FAqs

44 TROUBLEShOOTING

47 LIMITED WARRANTY

IMPORTANT SAFETY INSTRUCTIONS

Read and follow all instructions before using your oven to prevent the risk of fire, electric shock, personal injury, or damage when using the range. This guide does not cover all possible conditions that may occur. Always contact your service agent or manufacturer about problems that you do not understand.

Download this owner's manual at: http://www.lg.com.

This is the safety alert symbol. This symbol alerts you to potential hazards that can result in property damage and/or serious bodily harm or death. All safety messages will follow the safety alert symbol and either the word WARNING or CAUTION. These words mean:

warning

Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

caution

Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

ANTI-TIP SAFETY PRECAUTIONS

warning

• It is possible for a child or adult to tip the range and be killed.

- Verify that the anti-tip device has been properly installed and engaged to the floor or wall and engaged to the leveling leg of the range.

• Assure the anti-tip device is engaged when the range is moved back.

- To check that the anti-tip bracket is properly installed: Grasp the top rear edge of the range back guard and carefully attempt to tilt it forward. Verify that the anti-tip device is engaged.

- Do not operate the range without the anti-tip device in place and engaged.

- Failure to follow these instructions can result in death or serious burns to children or adults.

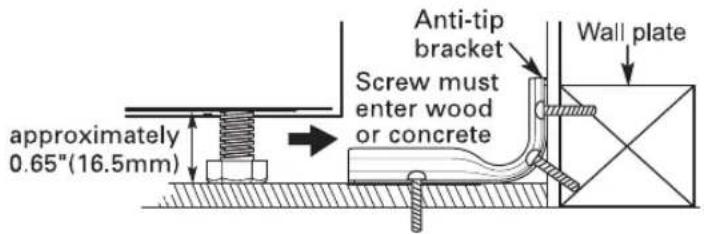

approximately 0.65"(16.5mm) Anti-tip bracket Screw must enter wood or concrete Wall plate

- Remove the warming or storage drawers and visually inspect that the rear leveling legs are fully inserted into the anti-tip bracket.

• Be certain that your appliance is properly installed and grounded by a qualified technician.
• Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be performed by a qualified technician.
  • Always disconnect power from the appliance before servicing.

SAFETY PRECAUTIONS

DO NOT TOUCH HEATING ELEMENTS OR INTERIOR SURFACES OF THE OVEN. Heating elements may be hot even though they are dark in color. Interior surfaces of an oven become hot enough to cause burns. During and after use, do not touch or let clothing or other flammable materials contact heating elements or interior surfaces of oven until they have had sufficient time to cool. Other surfaces, such as oven vent openings and surfaces near these openings, oven doors, and windows of oven doors, also get hot and may cause burns if not cooled.

• Use care when opening the oven door. Let hot air or steam escape from the oven before removing or replacing food in the oven.
• DO NOT heat unopened food containers. Pressure in the containers may cause them to burst which may result in injury.
• DO NOT force the door open. This can damage the automatic door locking system. Use care when opening the oven door after the self cleaning cycle. Stand to the side of the oven when opening the door to allow hot air or steam to escape. The oven may still be VERY HOT.
• DO NOT use harsh etching, abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface. Scratches may cause the glass to shatter.
  • Be careful when removing and lifting the door.
  • DO NOT lift the door by the handle. The door is very heavy.
  • DO NOT use utensils for removing refuse (ash, food etc.)
  • Refer to the installation manual for proper anti-tip bracket installation.
• Never remove the oven legs. The range will not be secured to the anti-tip bracket if the legs are removed.

caution

- DO NOT line the oven walls, racks, bottom, or any other part of the oven with aluminum foil or any other material. Doing so will disrupt heat distribution, produce poor baking results and cause permanent damage to the oven interior (aluminum foil will melt to the interior surface of the oven).

• Never attempt to dry a pet in the oven.

warning

- DO NOT step or sit on the oven door. Install the anti-tip bracket packed with range.

- The range could be tipped and injury might result from spilled hot liquid, food, or the range itself.

- If the range is pulled away from the wall for cleaning, service, or any other reason, ensure that the anti-tip bracket is properly re-engaged when the range is pushed back against the wall.

- Do not rest large, heavy items such as whole turkeys on the open oven door. The range could tip forward and cause injury.

• NEVER use your appliance for warming or heating the room.

- DO NOT use water on grease fires. If an oven fire occur, leave the oven door closed and turn the oven off. If the fire continues, throw baking soda on the fire or use a fire extinguisher.

- Only use dry pot holders. Moist or damp pot holders on hot surfaces may result in burns from steam. Do not let the pot holder touch hot heating elements. Do not use a towel or other bulky cloth to remove food.

- If the door glass, cooktop glass, surface, or oven heating unit of the range are damaged, discontinue use of the range and call for service.

- Do not operate the oven without the charcoal heater mesh.

- Do not allow anyone to climb, stand or hang on the door, storage drawer or cooktop. They could damage the range and even tip it over, causing severe personal injury.

REMOvE FLAMMABLE AND EXPLOSIvE MATERIAL FROM ThE APPLIANCE

warning

• Be certain that all packing materials are removed from the appliance before operating. Keep plastic, clothes, paper, and other flammable materials away from parts of the appliance that may become hot.
• Do not store or use flammable material in the oven or near or on the cooktop.
  Flammable materials include paper, plastic, pot holders, linens, wall coverings, curtains, and gasoline or other flammable vapors and liquids such as grease or cooking oil. These materials can be ignited when the oven and cooktop are in use.
• Wear Proper Apparel. Do not wear loose-fitting or hanging garments which may ignite if they contact hot surfaces and cause severe burns.
• Metal objects such as unopened cans should not be left on the surface unit or heated in the oven. Pressure in the containers may cause them to burst, resulting in injury.
• Do not use the oven for drying clothes. Only use the oven for its intended purpose.

ELECTRICAL SAFETY

• Protective Liners. Do not use aluminum foil or any other material to line the oven bottom. Improper installation of these liners may result in a risk of electric shock or fire.
• Do Not allow aluminum foil or the temperature probe to contact heating elements.
• Before replacing your oven light bulb, switch off the electrical power to the oven at the main fuse or circuit breaker panel. Failure to do so can result in severe personal injury, death, or electrical shock.

warning

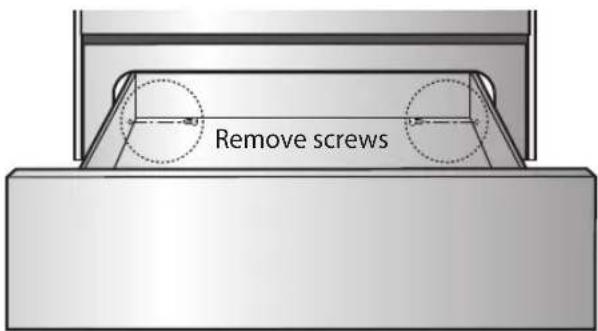

• Turn the POWER OFF before removing the warming oven drawer.
• Failure to do so can result in severe personal injury, death, or electrical shock.

PAN PLACEMENT

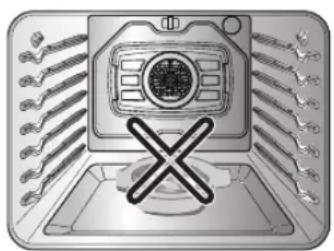

Illustration of a device with a central screen and crossed-out X symbol, surrounded by multiple wrenches (no text or labels)

• Do not place food or cookware on the bottom of the oven cavity. Doing so will cause permanent damage to the oven bottom finish.
• When cooking food in the warming drawer, always use a baking sheet or pan with 4 raised sides. This will prevent food from sliding off.

dEEP FAT FRYERS

• Use extreme caution when moving or disposing of hot grease.
  • Always heat fat slowly, and watch while is getting heat.
• If frying combinations of oils and fats, stir together before heating.
• Use a deep fat thermometer, if possible, to prevent overheating fat beyond the smoking point.
• Use the less possible amount of fat for effective shallow or deep-fat frying. Filling the pan with too much fat can cause spillovers when food is added.

SAFETY dURINGg USE

• Do not touch the oven racks while they are hot.
• If the rack must be moved while the oven is hot, do not let the potholder contact the hot heating element in the oven.
• Always use pot holders or oven mitts when removing food from the oven or the center warming element. Cookware will be hot.
• Use caution with the TIMED BAKE or DELAYED TIMED BAKE features. Use the automatic timer when cooking cured or frozen meats and most fruits and vegetables. Foods that can easily spoil, such as milk, eggs, fish, meat or poultry, should be chilled in the refrigerator first. Even when chilled, they should not stand in the oven for more than 1 hour before cooking begins, and should be removed promptly when cooking is complete. Eating spoiled food can result in sickness from food poisoning.
• If an oven fire occur, leave the oven door closed and turn the oven off. If the fire continues, throw baking soda on the fire or use a fire extinguisher.
• If an oven fire occur, DO NOT put water or flour on the fire. Flour may be explosive and water can spread a grease fire and cause personal injury.
• DO NOT use the broiler pan without the grid. DO NOT cover the grid with aluminum foil.
• Do not use plastic to cover food. Use foil or oven resistant lids only.
• If the oven is heavily soiled with oil, self clean the oven before using the oven again. The oil could cause a fire.
• Wipe up heavy soil on the bottom of the oven before using the Self Clean function.
• Use proper pan sizes. For smaller pots and pans, use the smaller heating elements. For larger pots and pans, use the larger heating elements. Select utensils that have flat bottoms large enough to cover the heating elements. The use of undersized utensils will expose a portion of the heating element to direct contact and may result in ignition of clothing.
• Never leave surface units unattended at high heat settings. Overboiling cause smoking and spillovers of grease that may ignite.
• Glazed cooking utensils. Only certain types of glass, glass/ceramic, ceramic, earthenware, or other glazed utensils are suitable for a range-top service without breaking due to the sudden change in temperature.

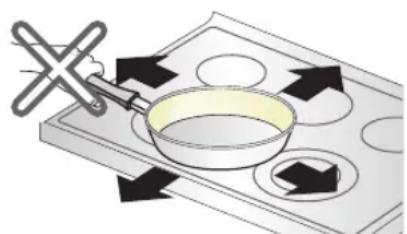

• Utensil handles should be turned inward and not extend over adjacent surface units. To reduce the risk of burns, ignition of flammable materials, and spillage due to unintentional contact with the utensil, the handle of a utensil should be positioned so that it is turned inward, and does not extend over adjacent surface units.

APPLIANCE OUTLET AND CIRCUIT BREAKERS

Circuit Breakers Appliance Outlets

The 120V appliance outlets located on the control console may be used to run portable appliances placed on countertops beside the range. The outlets operate independently and are not affected by range control settings.

note

• Do not place portable appliances on the cooktop. Damage to the portable appliance could result if the cooktop is hot.
• If the appliance outlet does not work, test your small portable appliance on a different outlet.

The circuit breakers for the appliance outlets on your range are located on top of the control console. They are rated for 15 amps, that may trip if the appliance plugged into it exceeds 15 amps. To reset the circuit breaker, press the switch located on the control console.

Childd SAFETY

warning

• Keep children and pets away from the oven.
• Accessible parts may become hot when the grill is in use.

- During normal operation (self-clean cycle, bake, etc.) DO NOT touch the hot surface between the bottom of the oven door and the top of the drawer on the front of the oven. Doing so is a burn hazard and will cause injury.

• Never let a child hang on the oven door.
• Do not allow children to crawl into the oven.

caution

• DO NOT leave small children unattended near the oven.
• During the self clean cycle, the outside of the oven can become very hot to the touch.

• NEVER leave children alone or unsupervised near the appliance when it is in use or is still hot. Children should never be allowed to sit or stand on any part of the appliance as they could be injured or burned.

• NEVER store items of interest to children in cabinets above the range. Children climbing on the range or on the oven door to reach items could be seriously injured.

• Let hot utensils cool in a safe place, out of reach of small children. Children should not be allowed to play with controls or other parts of the appliance.

gLASS/CERAMIC COOkINg SURFACES

Stand to the side of the range when opening the oven door. The hot air and steam that escape can cause burns to hands, face and eyes.

warning

• DO NOT TOUCH SURFACE UNITS OR AREAS NEAR UNITS.

• Surface units may be hot even though they are dark in color. Areas near surface units may become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials contact surface units or areas near units until they have had sufficient time to cool. This includes the cooktop and the area above the oven door.
• Do not cook on a broken cooktop. If the cooktop is broken, cleaning solutions and spillovers may penetrate the broken cooktop and create a risk of electric shock. Contact a qualified technician immediately.
• Clean cooktop with Caution. Do not use sponges or cloth to wipe spills on a hot cooking area. Use a proper metal scraper.
• DO NOT use the glass cooktop surface as a cutting board.
• DO NOT place or store items that can melt or catch fire on the glass cooktop, even when it is not being used.

• DO NOT turn surface units on before placing cookware.

• DO NOT store heavy items above the cooktop surface that could fall and damage it.
• DO NOT place aluminum foil or plastic items such as salt and pepper shakers, spoon holders, or plastic wrappings or any other material on the range when it is in use.
• Be sure you know which control pads operate each surface unit. Make sure you turned on the correct surface unit.
• NEVER cook directly on the glass. Always use cookware.
• Always place the pan in the center of the surface unit you are cooking on. NEVER leave surface units unattended at high heat setting. Proper contact of utensil to burner also will improve efficiency.

- Overboilings cause smoking and greasy spillovers that may catch on fire.

• Always turn the surface units off before removing cookware.
• DO NOT use plastic wrap to cover food.

- Plastic may melt onto the surface and be very difficult to remove.

• DO NOT touch surface units until they have cooled down.

• The surface elements may still be hot and burns may occur if the glass surface is touched before it has cooled down sufficiently.

• Immediately clean spills on the cooking area to prevent a tough cleaning chore later.

• If a cabinet storage is provided directly above cooking surface, place items that are not frequently used and can be safely stored in an area subjected to heat. Temperatures may be unsafe for volatile items such as flammable liquids, cleaners or aerosol sprays.

• When warming food do not use containers that seal. Allow venting for heat air to escape.
• Some cleaners can produce dangerous fumes if applied to a hot surface.
  • DO NOT use a steel-wool pad.
• It will scratch the surface.
  • DO NOT use scrub pads or abrasive cleaning pads.
• They may damage your glass cooktop surface.
• Cookware with rough edges or bottoms can mark or scratch the cooktop surface.
• Do not slide anything metal or glass across the cooktop.
• Do not use dirty cookware or cookware with dirt built-up on the bottom.

SAFETY whEN CLEANING

caution

• Open a window or turn on a ventilation fan or hood before self cleaning.
• Do Not Use Oven Cleaners. Commercial oven cleaner or oven liner protective coating of any kind should not be used in or around any part of the oven.
• Before self cleaning the oven. Remove broiler pan, all oven racks, meat probe and any other utensils from the oven cavity.
• Never keep pet birds in the kitchen. The health of birds is extremely sensitive to the fumes released during an oven self clean cycle. Fumes may be harmful or fatal to birds. Move birds to a well-ventilated room.
• Clean in the self clean cycle only parts listed in this manual. Before self cleaning the oven, remove the broiler pan and any utensils or foods from the oven.
• It is normal for the cooktop of the range to become hot during a self clean cycle. Therefore, touching the cooktop during a clean cycle should be avoided.
• Important Instruction. If during the self clean process some error code F is displayed, and three long beeps sound, the oven is malfunctioning in the self clean mode. Switch off the electrical power to the main fuse or breaker and have the oven serviced by a qualified technician.
  • Make sure oven lights are cool before cleaning.
• Never pour COLD water over a hot oven for cleaning. Doing so may cause the oven to malfunction.

COOk MEAT AND POULTRY ThOROUghLY

To protect against food borne illnesses, cook meat and poultry thoroughly. The USDA has indicated the following as safe minimum internal temperatures for consumption:

• Ground beef, veal, pork, or lamb: 160 °F
- Poultry: 165 °F
- Beef, veal, pork, or lamb: 145 °F
• Fish/seafood: 145°F

OvERvIEw

ACCESSORIES

Make sure that all parts are included after purchasing this product.

Accessories for cooking

Standard rack (2ea)

Offset rack (1ea)
(LRE6387, LRE6383,
LRE6385 Model only)

Accessories for installation

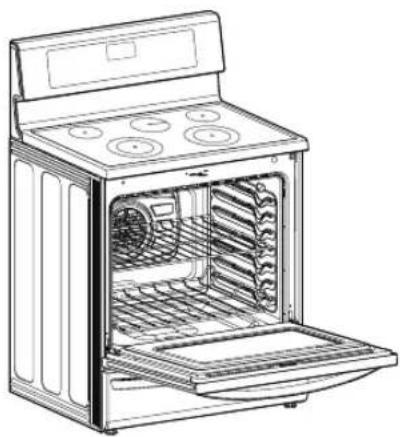

Line drawing of an open oven with cooling fans and a top panel (no text or symbols)

Electric single oven range

Template

Anti-tip (1ea) Screws (4ea)

Anchors (4ea)

Accessories for maintenance (LRE6387, LRE6385 Model Only)

Cooktop
Cleaner (1ea)

Cooktop
Cleaning pad (1ea)

Accessories for EasyClean® (LRE6383, LRE6385 Model Only)

Spray bottle (1ea)

Non-scratch Scouring Pad (1ea)

Manual

Owner's manual

Installation manual

note

• Contact LG Customer Service if any accessories are missing.
• For your safety and for extended product life, only use authorized components.
• The manufacturer is not responsible for product malfunction or accidents caused by the use of separately purchased, unauthorized components or parts.
• The images in this guide may be different from the actual components and accessories, and are subject to change by the manufacturer without prior notice for product improvement purposes.

RANgE OvERvIEw

Make sure to understand the names and function of each part.

* Throughout this manual, the features and appearance may vary depending on your model.

For Model: LRE6387, LRE6385

Control panel Appliance outlet Circuit Breaker Oven vent Single element Dual element Warming zone element Dual element Automatic oven light switch Self clean latch Standard rack Gasket Offset rack Oven door Anti-tip bracket Rating label Warming drawer

For Model: LRE6383

Control panel Appliance outlet Circuit Breaker Oven vent Single element Dual element Warming zone element Single element Automatic oven light switch Self clean latch Standard rack Gasket Oven door Anti-tip bracket Rating label Storage drawer

note

- The model and serial number can be verified at Rating label.

RANgE OvERvIEw

For Model: LRE6321

Control panel Appliance outlet Circuit Breaker Oven vent Single element Dual element Single element Automatic oven light switch Self clean latch Standard rack Gasket Anti-tip bracket Oven door Rating label Storage drawer

CONTROL PANEL OVERVIEW

For Model: LRE6387, LRE6385

Cooktop Element Control Features Oven Controls Number Buttons Start/Lockout Button Clock Cook Time Start Time Timer On/Off EasyClean* Self Clean Oven Light Setting Conv. Bake Conv. Roast 1 2 3 - Auto Converter - - Set Warning Drawer - Bake Broil 4 5 6 Warm/ Proof Spend Broil 7 8 9 Favoritas Kids Meal 0 Warming Drawer Set/Off CLEAR OFF *Press and Make Down for support functions Clear Off Button Warming Drawer Button For Model: LRE6383

ON OFF + ON OFF + ON OFF + ON OFF + ON OFF + ON OFF + ON OFF + ON OFF + 1 2 3 START Bake Roast 4 5 6 100mm Clock Cook Start Timer Time Time On/Off EasyClean* Self Oven Clean Light Setting Warm Proof 7 8 9 CLEAR Favorites 0 *Please and hold them for extra functions

For Model: LRE6321

COOKING MODE 1 2 3 START BAKE BROOL 4 5 6 LOCKOUT CLOCK COOK TIME START TIME TIMER ON/OFF WARM PROOF 7 8 9 OVEN SELF 0 LIGHT CLEAN SETTING ON OFF + ON OFF + COOK TOP ZONE SELECT - ON + - - ON + HOT SURFACE T SURFACE CHAUDI CLEAR OFF

HS (Hot Surface) Indicator

The HS indicator will appear in the display once the element is turned off or during the self clean cycle. The HS indicator will stay on until the surface has cooled to approximately 150^ / 66^ or when the self clean cycle ends.

Flashing Time

If your oven displays a flashing clock, then press the "Clock" button and reset the time, or press any button to stop flashing.

FEATURES

SETTINGS

Use the SETTING button to set Convection Auto Conversion (on some models), Oven Temperature Adjustment, Language, Preheating Alarm Light, Beeper Volume and to switch temperature scale between Fahrenheit and Celsius.

CLOCK

The clock must be set to the correct time of day in order for the automatic oven timing functions to work properly.

1. Press CLOCK.
2. Press the number buttons to enter the time.
   For example, to set the clock for 10:30, press the numbers: 1, 0, 3 and 0.
3. Press START.

note

• The time of day cannot be changed during a Timed Baking or Self Clean cycle.
• To check the time of day when the display is showing other information, simply press the CLOCK button.
• If no buttons are pressed within 25 seconds of pressing the CLOCK button, the display will revert to the original setting.
• If the display time is blinking, you may have experienced a power failure. Reset the time.

Setting the hour mode on the clock

(12 or 24 hours)

Your control is set to use a 12-hour clock. If you would prefer to have a 24-hour time clock, follow the steps below.

1. Press and hold the CLOCK button for three seconds.
2. Press the 1 button for 12-hour or the 2 button for 24-hour.
3. Press the START button to accept.

Minimum & Maximum default settings

All of the features listed have a minimum and a maximum time or temperature setting that may be entered into the control. An entry acceptance beep will sound each time a control button is pressed.

An entry error tone (two short tones) will sound if the entry of the temperature or time is below the minimum or above the maximum setting for the feature.

FEATURE MIN. TEMP.		/TIME	MAX. TEMP./ TIME	Default
CLOCK	12 Hr. 1:00	Hr. / Min. 12:59	Hr. / Min.
	24 Hr. 0:00	Hr. / Min. 23:59	Hr. / Min.
TIMER	12 Hr. 0:01	Min. 11:59 Hr. / Min.
	24 Hr. 0:01	Min. 11:59 Hr. / Min
COOK TIME	12 Hr. 0:01	Min. 11:59 Hr. / Min
	24 Hr. 0:01	Min. 11:59 Hr. / Min
CONVECTION BAKE		300°F / 150°C	550°F / 285°C 12 Hr.
CONVECTION ROAST		300°F / 150°C	550°F / 285°C 12 Hr.
BROIL		Lo - 400°F	Hi - 550°F	3 Hr.
BAKE		170°F / 75°C	550°F / 285°C	12 Hr.
PROOF				12 Hr.
WARM			170°F/75°C,3 hours
SELF CLEAN		3 Hr.	5 Hr.	4 Hr.

TIMER ON/OFF

The TIMER ON/OFF serves as an extra timer in the kitchen that will sound when the set time has run out. It does not start or stop cooking.

The TIMER ON/OFF feature can be used during any of the oven control functions.

Setting the Timer

1. To set hours and minutes:

Press the TIMER ON/OFF button once.

To set minutes and seconds:

Press the TIMER ON/OFF button twice.

1. Use the number buttons to set the timer.

For example, to set the timer for five minutes: Press the TIMER ON/OFF button once and then press the 5 button.

1. Press Timer or START button to start the timer. The time will count down and the time will show in the display.

note

If TIMER ON/OFF or START button is not pressed, the timer will return to the time of day.

1. When the set time has run out, End will appear in the display. The indicator tones will sound every 15 seconds until TIMER ON/OFF is pressed.

To Cancel the Timer

1. Press the TIMER ON/OFF button once. The display will return to the time of day.

note

If the remaining time is not shown in the display, recall the remaining time by pressing the TIMER ON/OFF button.

RAPID PREHEAT (ON SOME MODELS)

The Rapid Preheat feature can preheat your oven up to 20% faster than the normal preheat function.

Setting Rapid Preheat

1. Press the cook function button (ex. the BAKE button).
2. Using the number buttons, enter the cook time.
3. Press the START button
4. Press the RAPID PREHEAT button.

CONVECTION AUTO CONVERSION (ON SOME MODELS)

When cooking using convection cycle (Conv. bake and roast), the oven temperature is automatically reduced by 25^ F. The display will show the changed temperature. This feature is called "AUTO CONVERSION". Your range comes with this feature "ENABLED".

To DISABLE the auto conversion feature, follow below.

1. Press the SETTING button one time. "AUTO" will appear in the display.
2. Press the 1 button to ENABLE or press the 2 button to DISABLE.
3. Press the START button to accept the change.

OVEN TEMPERATURE ADJUSTMENT

You may find that your new oven cooks differently than the one it replaced. Use your new oven for a few weeks to become more familiar with it before changing the temperature settings. If after familiarizing yourself with the new oven, you still think that it is too hot or too cold, you can adjust the oven temperature yourself.

Adjusting the oven temperature

1. Press the SETTING button until "AdJU" appears in the display.
2. Using the number buttons, enter the amount of degrees that you wish to adjust the oven.
3. Press the SETTING button repeatedly to toggle between plus (+) or minus (-) to adjust the temperature either up or down.
4. Press the START button to accept the change.

note

• This adjustment will not affect the broiling or Self Clean temperatures. The adjustment will be retained in memory after a power failure. The oven temperature can be increased (+) or decreased (-) as much as 35°F or 19°C.
• Once the temperature is increased or decreased, the display will show the adjusted temperature until it readjusts.

LANGUAGE

The default language of the display is English. It can be changed to Spanish or French

1. Press the SETTING button until "Lng" appears in the display.
   Press the 1 button for English, 2 button for Spanish, or the 3 button for French.
2. Press the START button to accept the change.

PREHEATING ALARM LIGHT

When the oven reaches its set-temperature, the preheating alarm light will flash until the oven door is opened. You can activate or deactivate the preheating alarm light.

1. Press the SETTING button until "PrE" appears in the display.
2. Press the 1 button for ON or press the 2 button for OFF.
3. Press the START button to accept the change.

BEEPER VOLUME

1. Press the SETTING button until "Beep" appears in the display.
2. Press the 1 button for LOUD, 2 button for NORMAL, 3 button for LOW, and press the 4 button for MUTE.
3. Press the START button to accept the change.

note

On models with only two volume settings: Press the 1 button for NORMAL, or the 2 button for MUTE. Then press the START button to accept the change.

The oven temperature settings can either be set to Fahrenheit or Celsius. The oven defaults to Fahrenheit unless changed by the user.

1. Press the SETTING button until "UNIT" appears in the display.
2. Press the 1 button for F (Fahrenheit) or the 2 button for C (Celsius).
3. Press the START button to accept the change.

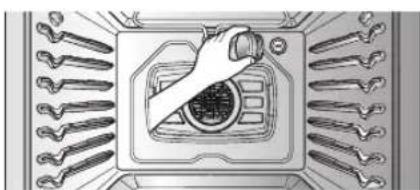

OVEN LIGHT

The interior oven light automatically turns ON when the door is opened. The oven light may also be manually turned ON or OFF by pressing the OVEN LIGHT button.

note

The oven light cannot be turned on if the Self Clean function is active.

LOCKOUT

The Lockout feature automatically locks the oven door and prevents most oven and cooktop controls from being turned on. It does not disable the clock, timer or the interior oven light.

1. Press and hold the START button for three seconds.
2. The lock melody will sound, OVEN LOCKOUT will appear in the display and DOOR LOCKED will flicker in the display.
3. Once the oven door is locked, the DOOR LOCKED indicator will stop flickering and remain on along with the lock icon 🔊.
4. To deactivate the Lockout feature, press and hold the START button for three seconds. The unlock melody will sound and UNLOCKING will appear in the display until the controls are unlocked.

START TIME (Delayed timed COOK)

The automatic timer of the DELAYED TIMED COOK function will turn the oven ON and OFF at the time you select. This feature can only be used with the: BAKE, CONVECTION BAKE and CONVECTION ROAST modes.

To set the oven to Delayed Start (example, to BAKE at 300^ F and start operating the bake mode at 4:30):

Make sure that the clock is set for the correct time of day.

1. Press the BAKE button. 350°F will appear in the display.
2. Use the oven buttons to set the temperature: Press 3, 0 and 0.
3. Press the START TIME button.
4. Set the start time: Press 4, 3 and 0 for 4:30.
5. Press the START button. A short beep will sound and the oven will begin baking.

note

• To cancel the DELAYED TIMED COOK function, press the CLEAR OFF button at any time.
• To change the cooking time, repeat steps 3-4 and press the START button.
• If your oven clock is set as a 12 hour clock, you can delay the cook time for 12 hours. If your oven clock is set as a 24 hour clock, you can delay the cook time for 24 hours.

The oven will continue to cook for the set amount of time and then turn off automatically. When the cooking time has elapsed:

• END and the time of day will show in the display.
- The cook end indicator tone will sound every 60 seconds until the CLEAR OFF button is pressed.
- When WARM is set, the warming function is activated after cooking for the set time.

caution

• Use the automatic timer when cooking cured or frozen meats and most fruits and vegetables. Foods that can easily spoil, such as milk, eggs, fish, meat or poultry, should be chilled in the refrigerator. Even when chilled, they should not stand in the oven for more than 1 hour before cooking begins, and should be removed promptly when cooking is completed.
• Eating spoiled food can result in sickness from food poisoning.

COOK TIME (TIMED COOK)

The TIMED COOK feature allows you to set the oven to cook for a specific length of time. This feature can only be used with the BAKE, CONVECTION BAKE, CONVECTION ROAST and FAVORITE modes.

Setting the TIMED COOK function (example, BAKE at 300°F for 30 minutes):

Make sure that the clock is set to the correct time of day.

1. Press the BAKE button. 350°F will appear in the display.
2. Use the number buttons to set the temperature. Press 3, 0 and 0.
3. Press the COOK TIME button. TIMED will flash. BAKE, 0:00 and 300°F will appear in the display.
4. Set the baking time: Press 3 and 0 (for 30 minutes). The baking time can be set for any amount of time between 1 minute and 11 hours and 59 minutes.
5. Press the START button. The display will show the cooking time countdown.

note

To set the WARM function to engage at the end of the timed cook cycle, repeat steps 1-4 and then press the WARM button. WARM will appear in the display. (Refer to the "WARM" section on the previous page.

The oven will continue to cook for the set amount of time and then turn off automatically. When the cooking time has elapsed:

• END and the time of day will show in the display.
- The cook end indicator tone will sound every 60 seconds until the CLEAR OFF button is pressed.
- When WARM is set, the warming function is activated after cooking for the set time.

To change the cook time while operating the oven (example, to change the cook time from 30 minutes to 1 hour and 30 minutes):

1. Press the COOK TIME button.
2. Press the number buttons to change the baking time: 1, 3, 0.
3. Press the START button to accept the change.

USING THE COOKTOP

COOKING AREAS

The cooking areas on your range are identified by permanent circles on the glass cooktop surface. For the most efficient cooking, fit the pan size to the element size.

Pans should not extend more than 1/2 to 1-inch beyond the cooking area.

When a control is turned on, a glow can be seen through the glass cooktop surface. The element will cycle on and off to maintain the preset heat setting, even on Hi.

For Model: LRE6387, LRE6385

SINGLE WARM ZONE SINGLE DUAL DUAL

For Model: LRE6383

SINGLE WARM ZONE SINGLE DUAL SINGLE

For Model: LRE6321

SINGLE SINGLE DUAL SINGLE

Hot surface indicator

HS (Hot Surface) will appear in the display once the element is turned off or during the self clean cycle. The HS indicator will stay on until the surface has cooled to approximately 150^ F ( 66^ C) or when the self clean cycle ends.

caution

It is normal for the surface elements to cycle on and off during cooking, even at higher settings. This will happen more frequently if cooking on a lower temperature setting.

Using the cooktop elements

To turn on a SINGLE element

SINGLE - ON + OFF

1. Press the ON/OFF button that controls the element that you would like to use.
2. Press the + button once to adjust the element temperature to Hi, or the - button once to adjust the element temperature to Lo.
3. Use the - / + buttons to adjust the element temperature settings. The element temperature settings are adjustable at all times.
4. To turn off the element after cooking, press the ON/OFF button once.

note

• Hi is the highest temperature available.
• Lo is the lowest temperature available.
- Press and hold the + or - buttons to quickly scroll through the temperature settings.

To turn on a DUAL element

DUAL

SELECT - ON + OFF +

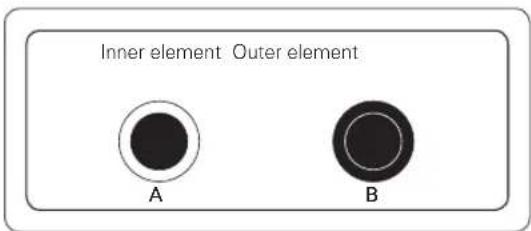

You are able to adjust the dual element according to the pot/pan size that you are using.

Inner element Outer element A B

1. Press the ON/OFF button that controls the element that you would like to use.
2. Press the SELECT button to select either the inner (smaller) or outer (larger) element function. The dual elements default to the inner element function. The light bars above the SELECT button indicate whether the element is adjusted for the inner or outer element function. One bar will display for the inner element and two bars will display for outer element.
3. Press the + button once to adjust the element temperature to Hi, or the - button once to adjust the element temperature to Lo.
4. Use the - / + buttons to adjust the element temperature settings. The element temperature settings are adjustable at all times.
5. To turn off the element after cooking, press the ON/OFF button once.

note

• Hi is the highest temperature available.
• Lo is the lowest temperature available.
- Press and hold the + or - buttons to quickly scroll through the temperature settings.

To turn on the Warming Zone (on some models)

WARM ZONE

WARNING ZONE - ON + OFF +

Use the Warming Zone to keep food warm after it has already been cooked. The warming zone is not meant for cooking food. Attempting to cook uncooked or cold food on the warming zone could result in a food borne illness.

1. Press the warming zone ON/OFF button. The warming zone indicator light will flash.
2. Press the + button once to adjust the temperature to Hi, or the - button once to adjust the temperature to Lo. Power level sequence is from - Lo, 2, 3, 4, Hi or from + Hi, 4, 3, 2, Lo.
3. Use the - / + buttons to adjust the temperature settings. The temperature settings are adjustable at all times.
4. To turn off the warming zone, press the ON/OFF button once.

caution

• Only use cookware and dishes that are safe for oven and cooktop use.
• Always use oven mitts when removing food from the cooktop and oven.
• Do not place sealed containers on the cooktop.
• DO NOT use plastic wrap to cover food while on the cooktop. Plastic may melt onto the surface and be very difficult to clean.
- When using the warming zone, food should be kept in its container and covered with a lid or aluminum foil to maintain food quality.
• DO NOT leave food on the warming zone for more than two hours.

The recommended surface cooking setting

Element Temp. Recommended Use
Single or Dual	8.5-Hi	Bring liquid to a boilStart cooking
	5.5-8.0	Hold a rapid boil, frying, deep fat fryQuickly brown or sear food
	3.5-5.0	Maintain a slow boilFry or saute foodsCook soups, sauces and gravies
	2.2-3.0	Stew or steam foodSimmer
	LO-2.0	Keep food warmMelt chocolate or butter

Element Temp. Recommended Use
Warming Zone	Hi	Fried FoodsHot BeverageSoups (liquid)
	2–4	Dinner Plate with FoodSaucesSoups (Cream)StewVegetablesMeats
	Lo	Bread/PastriesGraviesCasserolesEggs

Home canning tips

Be sure that the canner is centered over the surface unit and flat on the bottom.

• The base must not be more than 1 inch larger than the element. Use of water bath canners with rippled bottoms may extend the time required to bring the water to a boil and cooktops may be damaged.
• Some canners are designed with smaller bases for use on smooth top surfaces.
• Use the high heat setting only until the water comes to a boil or pressure is reached in the canner.
• Reduce to the lowest heat setting that maintains the boil, or pressure. If the heat is not turned down, the cooktop may be damaged.

USING THE PROPER COOKWARE

Using the proper cookware can prevent many problems, such as food taking longer to cook or achieving inconsistent results. Proper pans will reduce cooking times and cook food more evenly. Stainless steel is recommended.

Check pans for flat bottoms by using a straight edge or ruler

1. Place a ruler across the bottom of the pan.
2. Hold it up to the light.
3. No light should be visible under the ruler.

note

• Do not use a small pan on a large element. Not only does this waste energy, but it can also result in spillovers burning onto the cooking area.
• Only use flat bottomed cookware. Do not use cookware that is oversized or uneven such as round bottom woks, rippled bottom cookware, or oversized canners and griddles.
• Do not use foil or foil-type containers. Foil may melt onto the glass. Do not use the cooktop if metal has melted on it. Call an authorized Service Center.

Recommended cookware	Do not use
Flat bottom and straight sides.	Curved, grooved, or warped pan bottoms. Pans with uneven bottoms do not cook efficiently and sometimes may not boil liquid.
Heavy-gauge pans.	Very thin-gauge metal or glass pans.
Pan sizes that match the amount of food to be prepared and the size of the surface element.	Pans that are smaller or larger than the element.
Weight of handle does not tilt pan. Pan is well balanced.	Cookware with loose or broken handles. Heavy handles that tilt the pan.
Tight-fitting lids. Loose-fitting lids.
Flat bottom woks.	Woks with a ring-stand bot-tom.

USING THE OVEN

• When using an oven thermometer in the oven cavity, the temperature may differ from the actual set oven temperature.
• It is normal for the convection fan to run while preheating during a regular bake cycle.
• The convection fan motor may run periodically during a regular bake cycle.

REMOVING AND REPLACING THE OVEN RACKS

caution

• Replace oven racks before turning the oven on to prevent burns.
• DO NOT cover the racks with aluminum foil, or any other material, or place anything on the bottom of the oven. Doing so will result in poor baking and may damage the oven bottom.
  • Only arrange oven racks when the oven is cool.

Removing the racks:

1. While wearing oven mitts, grasp the oven rack.
2. Pull the rack straight out until it stops.
3. Lift up the front of the rack.
4. Pull out the rack.

Replacing the racks:

1. While wearing oven mitts, place the end of the rack on the support.
2. Tilt the front end of the rack up.
3. Push the rack in.
4. Check that the rack is properly in place.

Rack and Pan Placement

G F E D C B A Rack

If cooking on two racks:

* Place standard oven racks in positions B and D.

If cooking on three racks:

* Use standard racks in positions B and D and offset rack in position F.

Place the cookware as shown in the Multiple rack baking/Single rack baking image below. If baking with more than one pan, place the pans so that each one has at least 1" to 1 ½" of air space around them.

Two circular metallic components mounted on a grid-patterned surface (no text or symbols visible)

Standard Rack (Position B)

Two circular metallic components mounted on a grid background, no text or symbols visible

Standard Rack (Position D)

Multiple rack baking

Two circular metallic components mounted on a grid background (no text or symbols visible)

Standard Rack Single rack baking

Oven vent

• Areas near the vent may become hot during operation and may cause burns.
  • Do not block the vent opening.
• Avoid placing plastics near the vent as heat may distort or melt the plastic.
• It is normal for steam to be visible when cooking foods with high moisture.

OVEN CONTROLS

BAKE

BAKE is used to prepare foods such as pastries, breads, casseroles. The oven can be programmed to bake at any temperature from 170°F (77°C) to 550°F (288°C). The default temperature is 350°F (177°C).

Setting the BAKE function (example, 375°F):

1. Press the BAKE button.
2. Set the oven temperature using the number buttons: Press 3, 7 and 5.
3. Press the START button. The oven will start to preheat.

As the oven preheats, the temperature is displayed and rises in 5 degree increments. Once the oven reaches the set temperature, a tone will sound and the oven light will blink on and off.

1. When cooking is complete, press the CLEAR OFF button.

2. Remove food from the oven.

note

It is normal for the convection fan to operate periodically throughout a normal bake cycle. This is to ensure even baking results.

Baking Tips

• Baking time and temperature will vary depending on the ingredients, size, and shape of the baking pan used.
• Check for food doneness at the minimum recipe time.
• Use metal bakeware (with or without a nonstick finish), heatproof glass-ceramic, ceramic or other bakeware recommended for oven use.
• Dark metal pans or nonstick coatings will cook food faster with more browning. Insulated bakeware will slightly lengthen the cooking time for most foods.

note

The oven bottom has a porcelain-enamel finish. To make cleaning easier, protect the oven bottom from excessive spillovers by placing a cookie sheet on the rack below the rack you are cooking on. This is particularly important when baking a fruit pie or other foods with a high acid content. Hot fruit fillings or other foods that are highly acidic may cause pitting and damage to the porcelain-enamel surface and should be wiped up immediately.

CONVECTION BAKE (ON SOME MODELS)

The convection system uses a fan to circulate the heat evenly within the oven. Improved heat distribution allows for even cooking and excellent results while cooking with single or multiple racks.

Setting the CONVECTION BAKE function (example, 375°F):

1. Press the CONV. BAKE button. The display will flash 350^ F.
2. Set the oven temperature using the number buttons: Press 3, 7 and 5.
3. Press the START button. The display will show CONV. BAKE and the oven temperature starting at 100°F.

As the oven preheats, the display will show increasing temperatures in 5 degree increments. Once the oven reaches the set adjusted temperature, a tone will sound and the oven light will flash on and off. The display will show the auto converted oven temperature 350^ F, CONV. BAKE and the fan icon.

1. When cooking has finished or to cancel, press the CLEAR OFF button.

note

The oven fan will run while convection baking. The fan will stop when the door is open, but the heat will not turn off. In some cases, the fan may shut off during a convection bake cycle.

Convection Bake with 3 racks (LRE6387, LRE6385):

To bake with three racks during Convection Bake, use the rack positions suggested for three-rack cooking in the Rack and Pan Placement section on the previous page:

1. Press the CONV. BAKE button twice. "3 Racks" will appear in the display.
2. Set the oven temperature using the number buttons.
3. Press the START button.

Tips for Convection Baking

• Cookies and biscuits should be baked on pans with no sides or very low sides to allow heated air to circulate around the food. Food baked on pans with a dark finish will cook faster.
• When using Convection Bake with a single rack, place oven rack in position D. If cooking on two racks, place the oven racks in positions B and D. If cooking on three racks, place in positions B, D (standard rack) and F (offset rack).
• Multiple oven rack cooking may slightly increase cook times for some foods.
• Cakes, cookies and muffins will have better results when using multiple racks.

CONVECTION ROAST (ON SOME MODELS)

The CONVECTION ROAST feature is designed to give optimum roasting performance. CONVECTION ROAST combines cooking with the convection fan to roast meats and poultry. The heated air circulates around the food from all sides, sealing in juices and flavors. Foods are crispy brown on the outside while staying moist on the inside. Convection roasting is especially good for large tender cuts of meat, uncovered.

Setting the CONVECTION ROAST function (example, 375°F):

1. Press the CONV. ROAST button. The display will flash 350^ F.
2. Set the oven temperature using the number buttons: Press 3, 7 and 5.
3. Press the START button. The display will show CONV. ROAST and the oven temperature starting at 100^ F.

As the oven preheats, the display will show increasing temperatures in 5 degree increments. Once the oven reaches the set adjusted temperature, a tone will sound and the oven light will flash on and off. The display will show the auto converted oven temperature 350^ F, CONV. ROAST and the fan icon.

1. When cooking has finished or to cancel, press the CLEAR OFF button.

note

The oven fan will run while convection roasting. The fan will stop when the door is open, but the heat will not turn off. In some cases, the fan may shut off during a convection roast cycle.

Convection Roast Instructions

When preparing meats for convection roasting, use the broiler pan, grid and trivet. The broiler pan will catch grease spills and the grid will help prevent grease splatters. The warming drawer rack will allow the heat to circulate around the meat.

1. Place the oven rack on the bottom or next to the bottom rack position.
2. Place the grid in the broiler pan.
3. Place the broiler pan on the oven rack.

Metallic tray with oval cutouts and rectangular side panels (no text or symbols)

Grid (sold separately)

Illustration of a tray with a diamond-shaped object on top, no text or symbols present

Broiler Pan (sold separately)

caution

• DO NOT use the broiler pan without the grid.
• DO NOT cover the grid with aluminum foil.

BROIL

The Broil function uses intense heat from the upper heating element to cook food. BROIL works best for tender cuts of meats, fish, and thinly cut vegetables.

Some models may feature a hybrid broiler consisting of an inner broiler that utilizes a carbon heating element which provides instantaneous heat, and a traditional outer broiling element. During normal broiler operation, it is normal for either element to cycle off intermittently.

caution

• DO NOT use a broiler pan without a grid. Oil can cause a grease fire.
• DO NOT cover the grid and broiler pan with aluminum foil. Doing so will cause a fire.
  • Always use a broiler pan and grid for excess fat and grease drainage. This will help to reduce splatter, smoke, and flare-ups.

SPEED BROIL (ON SOME MODELS)

The Speed Broil setting is designed to reduce the amount of time it takes to broil foods. By utilizing the inner broil element, which provides heat instantaneously, there is no need for preheating. Speed Broil should only be used for small amounts of food that can be easily concentrated to the center of the broiler pan.

note

• When operating Speed Broil, the offset rack should be used.
• All food should be placed in the center of the broiler pan when utilizing Speed Broil.

To set the oven to BROIL / SPEED BROIL

1. Oven door must always be closed during BROIL mode.
2. Press the BROIL or SPEED BROIL button once for Hi or twice for Lo.
3. Press the START button. The oven will begin to heat.
4. If using Broil, it is best to let the oven preheat for approximately five minutes before cooking food. If using Speed Broil, no preheat is necessary.
5. When cooking is complete, or to cancel at any time, press the CLEAR OFF button.

Smoking

Due to the intense heat associated with broiling, it is normal to experience smoke during the cooking process. This smoke is a natural byproduct of searing and should not cause you to worry. If you are experiencing more smoke than you are comfortable with, use the following tips to reduce the amount of smoke in your oven.

1. Always use a broiler pan. Do not use saute pans or regular baking sheets for safety reasons.
2. NEVER use a broiler pan that is not thoroughly cleaned and at room temperature at the beginning of cooking.
3. ALWAYS run your cooktop ventilation system or vent hood during broiling.
4. Keep the interior of your oven as clean as possible. Left over debris from prior meals can burn or catch fire.
5. Avoid fatty marinades and sugary glazes. Both of these will increase the amount of smoke you experience. If you would like to use a glaze, apply it at the very end of cooking.
6. If you are experiencing significant smoke with any food item, consider:

• Lower the broiler to the LO setting.
- Lower the rack position to cook the food further away from the broiler.
- Use the HI broil setting to achieve the level of searing you desire, and then either switch to the LO broil setting, or switch to the BAKE function.

1. As a rule, fattier cuts of meat and fish will produce more smoke than leaner items.

2. Adhere to the recommended broil settings and cooking guidelines in the chart on the following page whenever possible.

RECOMMENDED BROILING GUIDE

The size, weight, thickness, starting temperature, and your preference of doneness will affect broiling times.

The following guide is based on meats at refrigerator temperature.

note

Always use a broiler pan when broiling on the HI setting or Speed Broil.

Illustration of two food preparation trays with meat and fish, no text or symbols present

Broiling chart (For speed broil model: LRE6387, LRE6385)

*offset rack

Item	Cut	Size/Thickness	Doneness	Broiler Setting	Rack Position	Time (min)
						Side 1 S	de 2
Beef Tenderloin/Filet 1"			Medium Rare	Hi	G	5:00	3:00
			Medium	Hi	G	5:00	4:00
			Medium Well	Hi	G	6:00	4:00
			Well Done	Hi	G*	6:00	5:00
		1 1/2"	Medium Rare	Hi	G	6:00	4:00
			Medium	Hi	G	7:00	4:00
			Medium Well	Hi	G*	7:00	5:00
			Well Done	Hi	G*	7:00	6:00
		2"	Medium Rare	Hi	G	7:00	5:00
			Medium	Hi	G	8:00	6:00
			Medium Well	Hi	G*	8:00	10:00
			Well Done	Hi	F	10:00	12:00
	NY Strip Steak/Strip loin	3/4" - 1"	Medium Rare	Hi	G	5:00	3:00
			Medium	Hi	G	5:00	4:00
			Medium Well	Hi	G	6:00	4:00
			Well Done	Hi	G*	6:00	5:00
		1 1/2"	Medium Rare	Hi		6:00	5:00
			Medium	Hi	G	7:00	6:00
			Medium Well	Hi	G*	8:00	10:00
			Well Done	Hi	G*	8:00	12:00
	Ribeye/Delmonico	3/4" - 1"	Medium Rare	Hi	G	5:00	3:00
			Medium	Hi	G	5:00	4:00
			Medium Well	Hi	G	6:00	4:00
			Well Done	Hi	G*	6:00	5:00
		1 2/2"	Medium Rare	Hi	G	6:00	5:00
			Medium	Hi	G	7:00	6:00
			Medium Well	Hi	G*	8:00	10:00
			Well Done	Hi	G*	8:00	12:00
	Bone-In Steaks	3/4" - 1"	Medium Rare	Hi	G	5:00	4:00
			Medium	Hi	G	6:00	5:00
			Medium Well	Hi	G*	7:00	6:00
			Well Done	Hi	G*	8:00	7:00
		1 1/2"	Medium Rare	Hi	G	8:00	8:00
			Medium	Hi	G*	10:00	8:00
			Medium Well	Hi	F	10:00	12:00
			Well Done	Hi	F	10:00	15:00

* Speed broil should only be used for small amounts of food that can be easily concentrated to the center of the broiler pan.

Broiling chart (For speed broil model: LRE6387, LRE6385)
* offset rack

Item	Cut	Size/Thickness	Doneness	Broiler Setting	Rack Position	Time (min)
						Side 1 S	de 2
Beef Skirt Steak	1/2"-3/4"		Medium Rare	Hi	G	4:00	3:00
			Medium	Hi	G	5:00	3:00
			Medium Well	Hi	G	5:00	4:00
			Well Done	Hi	G	6:00	4:00
	Flank Steak	1"	Medium Rare	Hi	G	7:00	5:00
			Medium Hi G 8:00 6:00
			Medium Well	Hi	G*	8:00	8:00
			Well Done	Hi	F	10:00	10:00
		1 1/2"	Medium Rate	Hi	G	7:00	5:00
			Medium	Hi	G*	8:00	6:00
			Medium Well	Hi	G*	8:00	8:00
			Well Done	Hi	F	10:00	10:00
	Hamburgers	3/4" thick	Medium Rare	Hi	G	5:00	3:00
			Medium	Hi	G	5:00	4:00
			Medium Well	Hi	G*	6:00	4:00
			Well Done	Hi	G*	6:00	5:00
Lamb	Bone-in Chops	6 - 8 oz., 2 bone	Medium	Hi	G*	7:00	6:00
Seafood	Salmon portion/steak, skin-on	3/4" - 1"	Broiler	Hi	G	6:00	4:00
		1 1/2"	Broiler	Hi	G	8:00	4:00
	Salmon portion/steak, skin-off	3/4" - 1"	Broiler	Hi	G	6:00	4:00
		1 1/2"	Broiler	Hi	G*	6:00	6:00
	Halibut portion, skin-off	3/4" - 1"	Broiler	Hi	G	6:00	5:00
		1 1/2"	Broiler	Hi	G*	7:00	6:00
	Shrimp, skin on	<10/lbs.	Broiler	Hi	G	4:00	3:00
		10-20/lbs.	Broiler	Hi	G	3:00	3:00
		21-30/lbs.	Broiler	Hi	G	3:00	2:00
	Shrimp, skin off	<10/lbs.	Broiler	Hi	G	4:00	2:00
		10-20/lbs.	Broiler	Hi	G	3:00	2:00
		21-30/lbs.	Broiler	Hi	G	3:00	1:00
	Lobster tail	1/3"	Broiler	Hi	G*	6:00
Pork Pork Chop 1"			Broiler	Hi	G	6:00	5:00
		12-16 oz., 1.5"	Broiler	Hi	G*	9:00	8:00
		Sausage	1/4", 1.5"	Broiler	Hi	G*	4:00
		Ham slices	1/2" thick	Broiler	Hi	G	5:00
Chicken	Breast, boneless, skinless	1/2" - 3/4"	Broiler	Hi	F	6:00	4:00
Vegetable	Asparagus spears	1/2" Thick	Broiler	Hi	G*	4:00	3:00
	Summer squash, zucchini	1/2" strips	Broiler	Hi	G*	7:00
Bakery	Toast	4 pieces	Broiler	Hi	G	0:45	0:30
	English muffin 2 split		Broiler Pan	Hi	G	1:30

* Speed broil should only be used for small amounts of food that can be easily concentrated to the center of the broiler pan.

Broiling chart (For conventional broil model: LRE6383, LRE6321)

Item	Cut	Size / Thickness	Doneness	Broiler Setting	Rack Position	Time (min)		Comments
						Side 1	Side 2
Beef	Beef Steack	1 - 1 1/2 lbs., 1" thick	Rare	Hi	F	4	2 - 3	Steaks less than 1" thick cook through before browning. Pan frying is recommended. Slash fat.
			Medium	Hi	F	5	3 - 4
			Well done	Hi	F	6	4 - 5
		2 - 2 1/2 lbs., 1 1/2" thick	Rare	Hi	D	10	4 - 6
			Medium	Hi	D	12	6 - 8
			Well done	Hi	D	14	8 - 10
	Hamburger 1lb.	(4 patties), 1/2" to 3/4" thick	Well done	Hi	G	4 - 5	3 - 4	Space evenly. Up to 8 patties may be broiled at once.
Chicken	1 Whole cut up	2 - 2 1/2 lbs.	Broiler	Hi	C	20	6 - 8	Broil skin-side-down first.
	2 Breast	1/2" - 3/4"	Broiler	Hi	E	8 - 9	5 - 6
Porks	Pork Chops	2(1/2" thick)	Well done	Hi	E	7	4 - 6	Slash fat.
		2(1" thick) about 1 lb.	Well done	Hi	D	9 - 10	6 - 8
	Ham Slices (precooked)	1/2" thick	Broiler	Hi	E	5	2 - 4	Increase time 5 to 10 minutes per side for 1 1/2" thick or home-cure ham.
Lamb	Lamb Chops	2 (1" thick) about 10 - 12 oz.	Medium	Hi	E	6	4 - 6	Slash fat
			Well done	Hi	E	8	7 - 9
		2 (1 1/2" thick) about 1 lb.	Medium	Hi	E	11	9
			Well done	Hi	E	13	9 - 11
Seafood	Salmon Steaks	2 (1" thick)	Broiler	Hi	E	7 - 8	4 - 6	Grease pan. Brush steaks with melted butter.
		4 (1" thick) about 1lb.	Broiler	Hi	D	9	4 - 6
	Fish Fillets	1/4" - 1/2" thick	Broiler	Hi	E	5	2 - 4	Handle and turn very carefully. Brush with lemon butter before and during cooking, if desired.
	Lobster Tails	2~4 10 - 12 oz. each	Broiler	Hi	C	12 - 14		Cut through back of shell. Spread open. Brush with melted butter before broiling and after half broiling time.

* This chart is only for reference. Adjust cook time according to your preference.

Broiling Tips

Beef

• Steaks and chops should always be allowed to rest for five minutes before cutting into them and eating. This allows the heat to distribute evenly through the food and creates a more tender and juicy result.
• Consider removing thick pieces of meat from the refrigerator 30 minutes prior to cooking. This will help them cook more quickly and evenly, and will produce less smoke when broiling. Please note that cooking times will likely be shorter than the times indicated in the Broiling Chart.
• For bone-in steaks or chops that have been "Frenched" (all meat removed from around the bone), wrap the exposed sections of bone in foil to reduce burning.

Seafood

• When broiling skin-on fish, always use the Medium broil setting and always broil the skin side last.
• Seafood is best consumed immediately after cooking. Allowing seafood to rest after cooking can cause the food to dry out.
• It is a good idea to rub a thin coating of oil on the surface of the broiling pan before cooking to reduce sticking, especially with fish and seafood. You can also use a light coating of non-stick pan spray.

Vegetables

- Toss your vegetables lightly in oil before cooking to improve browning.

KIDS MEAL (ON SOME MODELS)

This function is specially designed to cook popular kids' foods such as regular crust pizza, rising crust pizza, fresh pizza, chicken nuggets, french fries, and hamburger patties. When using this function, there is no need to preheat the oven prior to cooking.

Setting the KIDS MEAL function:

1. Press the KIDS MEAL button.
2. FROZEN PIZZA, REGULAR CRUST will appear in the display. Press the START button if cooking frozen regular crust pizza.
3. Press the KIDS MEAL button continuously to scroll through the different settings on the display. Select from: FROZEN PIZZA, RISING, FRESH PIZZA, CHICKEN NUGGETS, FRENCH FRIES and HAMBURGER PATTIES.
4. When the display shows the food that you would like to prepare, press the START button.
5. Press the CLEAR OFF button once the food is done cooking or to cancel.

Kids Meal Chart

Food	Recommended quantity	Shelf position	Recommended time (minutes)
Frozen pizza, Regular crust	12" D 14-20
Frozen pizza, Rising crust	12" D 18-22
Fresh pizza 12" D	15-18
Chicken nuggets	1-4 servings (3.5oz per 1 serving)	F 14-18
French fries 1-4 servings (3.5oz per 1 serving)		F 12-18
Hamburger patties	4-12 patties, 1/2" thick	F 10-14

* This chart is for reference only.

WARM

This function will maintain an oven temperature of 170^ F. The WARM function will keep cooked food warm for serving up to 3 hours after cooking has finished. The Warm function may be used without any other cooking operations or can be used after cooking has finished using TIMED BAKE or DELAYED TIMED BAKE.

Setting the WARM function:

1. Press the WARM/PROOF or WARM button.
2. Press START.
3. Press the CLEAR OFF button at any time to cancel.

To set the WARM function after timed cooking:

1. Select the cooking function.
2. Enter the oven temperature using the number buttons.
3. Press the COOK TIME button and enter the cook time using the number buttons.
4. Press the WARM/PROOF or WARM button.
5. Press the START button.
6. When cooking is finished, press the CLEAR OFF button to cancel the WARM function.

note

The WARM function is intended to keep food warm. Do not use it to cool the food down.

PROOF

Setting the PROOF function:

This feature maintains a warm oven for rising yeast leavened products before baking.

1. Use rack B or C for proofing.
2. Press the WARM/PROOF or PROOF button until PrF appears in the display.
3. Press the START button.
4. Press the CLEAR OFF button when proofing is finished.

note

• To avoid lowering the oven temperature and lengthening proofing time, do not open the oven door unnecessarily. Check bread products early to avoid over proofing.
• Do not use the proofing mode for warming food or keeping food hot. The proofing oven temperature is not hot enough to keep foods at safe temperatures. Use the WARM feature to keep food warm. Proofing will not operate when the oven is above 125°F. HOT will show in the display.

FAVORITES (ON SOME MODELS)

The FAVORITES function is used to record and recall your favorite recipe settings. You can store and recall up to three different settings.

Setting the FAVORITES function:

1. Press the FAVORITES button once for Bread, twice for Meat, and three times for Chicken. The default temperature will appear and COOK will flash in the display.

Category	Press the Favorite button	Default Temp. (may be changed and recalled)	Cook mode
Bread Press	FAVORITE once.	375°F Bake
Meat Press	FAVORITE twice.	325°F Convection	Roast
Chicken Press	FAVORITE three times.	350°F Convection	Roast

1. Press the number buttons to change the default temperature.
2. Press the START button. The preheat indicator tones will sound 1 times when the oven reaches the programmed temperature.

note

Only the oven temperature can be modified and stored. The category name and cook mode will stay the same.

SABBATH MODE

Sabbath mode is typically used on the Jewish Sabbath and Holidays. When the SABBATH mode is activated, the oven does not turn off until the SABBATH mode is deactivated. In SABBATH mode, all function buttons, except for the CLEAR OFF is inactive. Sb will appear in both the cooktop and oven displays.

note

If the oven light is turned ON and the SABBATH mode is active, the oven light will remain ON until the SABBATH mode is turned OFF. If the oven light needs to be OFF, be sure to turn the oven light OFF before activating the SABBATH mode. SABBATH mode can only be used while baking (BAKE mode).

Setting the SABBATH mode

1. Press the BAKE button.
2. Press the number buttons to enter the bake temperature.
3. Press the START button.
4. Press and hold the SETTING button for three seconds. SB and □ will appear in the display when the Sabbath mode is activated.
5. To cancel the Sabbath mode, press and hold the SETTING button for three seconds. To cancel the Bake function, press the CLEAR OFF button at any time.

Changing the temperature while in SABBATH mode

1. Press the BAKE button. (No tones will sound and the display will not change.)
2. Set the temperature using the number buttons.
3. Press the START button.

note

There is a 15 second delay before the oven will recognize the temperature change.

WARMING DRAWER (ON SOME MODELS)

Technical line drawing of a mechanical drawer or latch assembly (no text or symbols)

OPERATING THE WARMING DRAWER

The warming drawer keeps hot cooked foods at serving temperature.

All food placed in the warming drawer should be covered with a lid or aluminum foil to maintain quality. Do not use plastic wrap to cover food. Plastic may melt onto the drawer and be very difficult to clean. Use only utensils and cookware recommended for oven use in the Warming Drawer.

Setting the Warming Drawer control

1. Press the WARMING DRAWER SET/OFF button (near the number buttons). The indicator light will flash. (If no further buttons are pressed within 25 seconds, the display will clear.)
2. Use the number buttons to set the power level. 1 for LOW, 2 for MEDIUM, and 3 for HIGH.
3. When the food is ready, or to cancel, press the WARMING DRAWER SET/OFF button.

note

• The Warming Drawer will shut off automatically after three hours.
• It is not recommended to heat cold food in the Warming Drawer.

Warming Drawer food/power level recommendations

Setting Type of Food
	Rolls (Soft)Empty dinner plates
Medium[4HX7]	GravlesCasserolesEggsVegetablesBiscuitsRolls (hard)PastriesRoasts
High[62HW]	BaconHamburger pattiesPoultryPork chopsPizzaFried Foods

Different types of food may be placed in the warming drawer at the same time. For best results, do not leave food in the warming drawer for more than one hour. Do not leave smaller quantities or heat-sensitive food, such as eggs, in the warming drawer more than 30 minutes. The maximum operating time is three hours.

caution

• Do not use the warming drawer for storage of racks, broiler pans, insert pans, plates, or utensils. The warming drawer contains a heating element which may damage any items not specifically designed to be used with it and should only be used to store cookware specifically supplied by LG with your range.
• Do not put food or foil directly on the surface or base of the warming drawer. This may result in damage to your drawer and may spoil your food.
• Do not place plastic wrap in the warming drawer or use it to cover food being heated in the warming drawer. Plastic may melt onto the drawer or surrounding areas and is very difficult to remove. Use only aluminum foil or cookware that is capable of withstanding baking temperature to heat or cover your food.
• Do not use the warming drawer to heat water or any other liquids. Spilled liquids may cause an electrical short or result in severe personal injury, electric shock or death.
• Never place plastics, paper, canned foods or other combustible material into the warming drawer. These items pose a severe risk of fire, damage and injury.
• In the unlikely event that an item falls behind the warming drawer, always turn the power off and wait for the warming drawer to cool before retrieving the item. Never attempt to retrieve any items that fall behind the warming drawer without first turning the power off and ensuring the warming drawer cavity has cooled off. Failure to do so may result in severe personal injury, electric shock or death.

CARE AND CLEANING

CLEANING THE GLASS/CERAMIC COOKTOP

caution

• DO NOT use scrub pads or abrasive cleaning pads. They may damage your cooktop surface.
• For your safety, wear an oven mitt or potholder while cleaning the hot cooking surface.

Use Ceramic Cooktop Cleaner on the glass cooktop. Other creams may not be as effective or may scratch, damage or stain the cooktop surface.

To maintain and protect the surface of the glass cooktop, follow these steps:

1. Before using the cooktop for the first time, clean it with a ceramic cooktop cleaner. This helps protect the top and makes cleanup easier.
2. Daily use of ceramic cooktop cleaner will help keep the cooktop looking new.
3. Shake the cleaning cream well. Apply a few drops of cleaner directly to the cooktop.
4. Use a paper towel to clean the entire cooktop surface.
5. Rinse with clear water and use a dry cloth or paper towel to remove all cleaning residue.

note

DO NOT heat the cooktop until it has been cleaned thoroughly.

Burned-on Residue

1. While the cooktop is still hot, remove any burnt-on deposits or spilled food from the glass/ceramic cooking surface with a suitable metal razor scraper (similar to scraping paint off of a windowpane - it will not damage the decorated cooking surface). Hold the scraper at an approximate 30° angle to the cooktop.

Illustration of a hand using a tool to interact with circular components on a tray (no text or symbols visible)

note

• Do not use a dull or nicked blade.
- To prevent burns, please wear an oven mitt or pot-holder while using the metal scraper.

1. When the cooking surface has cooled down, apply a few dabs (about the size of a dime) of an approved cleaner in each burner area and work the cleaning cream over the cooktop surface with a damp paper towel.

Illustration of a hand pouring liquid into circular containers on a tray (no text or symbols)

note

Approved cleaners:

• Weiman CookTop Cleaning Cream
- (www.weiman.com)
• Cerama Bryte (www.ceramabryte.com)
• Golden Ventures Cerama Bryte
- Easy-Off 3 in 1 Glass Top Cleaner Spray (www.easyoff.us).

1. Clean with clear water and wipe the cooktop surface with a clean, dry paper towel.

Hand using a tool to clean circular indentations on a baking mat (no text or symbols visible)

IMPORTANT:

If any sugar or food containing sugar (preserves, ketchup, tomato sauce, jellies, fudge, candy, syrups, chocolate, etc.), plastic or foil melts on the cooktop, remove the molten material IMMEDIATELY with a metal razor scraper (it will not damage the decorated cooking surface) while the cooking surface is still hot to avoid the risk of damage to the glass-ceramic surface. For your safety, please wear an oven mitt or potholder while cleaning the hot cooking surface.

Metal Marks and Scratches

1. Be careful not to slide pots and pans across the cooktop. Doing so will leave metal markings on the cooktop surface. To help remove these marks, use a ceramic cooktop cleaner with a cleaning pad for ceramic cooktops.
2. If pots with a thin overlay of aluminum or copper are allowed to boil dry, the overlay may leave black discoloration on the cooktop. This should be removed immediately before heating again or the discoloration may be permanent.

caution

Cookware with rough or uneven bottoms can mark or scratch the cooktop surface.

Illustration of a cooking step with a pan and directional arrows indicating rotation (no text or symbols)

• Do not slide metal or glass across the cooktop surface.
• Do not use cookware with any dirt build up on bottom.

Cooktop Seal

To clean the cooktop seal around the edges of the glass, lay a wet cloth on it for a few minutes, then wipe clean with nonabrasive cleaners.

SELF CLEAN

The self clean cycle uses extremely hot temperatures to clean the oven cavity. While running the Self Clean cycle, you may notice smoking or an odor. This is normal; especially if the oven is heavily soiled.

During Self Clean, the kitchen should be well ventilated to minimize the odors from cleaning.

caution

• DO NOT leave small children unattended near the appliance. During the Self Clean cycle, the outside of the range can become very hot to touch.
• If you have pet birds, move them to another well-ventilated room. The health of some birds is extremely sensitive to the fumes given off during the Self Clean cycle of any range.
• DO NOT line the oven walls, racks, bottom or any other part of the range with aluminum foil or any other material. Doing so will destroy heat distribution, produce poor baking results and cause permanent damage to the oven interior (aluminum foil will melt to the interior surface of the oven).
• DO NOT force the door open. This can damage the automatic door locking system. Use care when opening the oven door after the Self Clean cycle. Stand to the side of the oven when opening the door to allow hot air or steam to escape. The oven may still be VERY HOT.

Before starting Self Clean:

• Remove the oven racks, broiler pan, broiler grid, all cookware, aluminum foil or any other material from the oven.
• The kitchen should be well ventilated to minimize the odors from cleaning.
• Wipe any heavy spillovers on the bottom of the oven.
• Make sure that the oven light bulb cover is in place and the oven light is off.
• The oven light cannot be turned on during a self clean cycle. The oven light cannot be turned on until the oven temperature has cooled below 500°F (260°C) after a self clean cycle is complete.

During the self clean cycle, the cooktop elements and warming drawer cannot be used.

note

• Remove oven racks and accessories before starting the self clean cycle.
• If oven racks are left in the oven cavity during the self clean cycle, they will discolor and become difficult to slide in and out.
• Clean the frame of the oven and door with hot soapy water. Rinse well.
• Do not clean the gasket. The fiberglass material of the oven door gasket cannot withstand abrasion. It is essential for the gasket to remain intact. If you notice it becoming worn or frayed, replace it.
• Wipe up any heavy spillovers on the oven bottom.
• Make sure that the oven light bulb cover is in place and the oven light is off.

Setting Self Clean

The Self-Clean function has cycle times of 3, 4, or 5 hours.

Self Clean Soil Guide

Soil Level Cycle Setting
Lightly soiled oven cavity 3 Hour	Self Clean
Moderately Soiled Oven Cavity 4 Hour	Self Clean
Heavily Soiled Oven Cavity 5 Hour	Self Clean

1. Remove all racks and accessories from the oven.
2. Press the SELF CLEAN button. The oven defaults to the recommended four hour self clean for a moderately soiled oven. Press twice for a five hour self clean or three times for a three hour self clean.
3. Press START.
4. Once the Self Clean is set, the oven door will lock automatically and the lock icon will display. You will not be able to open the oven door until the oven is cooled. The lock will release automatically when the oven has cooled.

caution

DO NOT force the oven door open when the lock icon is displayed. The oven door will remain locked until the oven temperature has cooled. Forcing the door open will damage the door.

Setting Self Clean with a delayed start

1. Remove all racks and accessories from the oven.
2. Press the SELF CLEAN button. The oven defaults to the recommended four hour self clean for a moderately soiled oven. Press twice for a five hour self clean or three times for a three hour self clean.
3. Press the START TIME button.
4. Use the number buttons to enter the time of day you would like the Self Clean to start.
5. Press the START button.

note

It may become necessary to cancel or interrupt a self clean cycle due to excessive smoke or fire in the oven. To cancel the Self Clean function, press the CLEAR OFF button.

during Self Clean

• The self clean cycle uses extremely hot temperatures to clean the oven cavity. While running the Self Clean cycle, you may notice smoking or an odor. This is normal, especially if the oven is heavily soiled.
• As the oven heats, you may hear sounds of metal parts expanding and contracting. This is normal and will not damage the oven.
• Do not force the oven door open when LOCKED is displayed. The oven door will remain locked until the oven temperature has cooled. Forcing the door open will damage the door.

note

• The Self Clean cycle cannot be started if the Lockout feature is active.
• Once the Self Clean cycle is set, the oven door will lock automatically. You will not be able to open the oven door until the oven is cooled. The lock will release automatically.
• Once the door has been locked, the LOCKED indicator light will stop flashing and remain on. Allow about 15 seconds for the oven door lock to activate.
• If the clock is set for a 12 hour display (default) the Delayed Self Clean can never be set to start more than 12 hours in advance.

After the Self Clean cycle

• The oven door will remain locked until oven temperature has cooled.
• You may notice some white ash in the oven. Wipe it off with a damp cloth or a soap-filled steel wool pad after the oven cools. If the oven is not clean after one clean cycle, repeat the cycle.
• If oven racks were left in the oven and do not slide smoothly after a clean cycle, wipe racks and rack supports with a small amount of vegetable oil to make them glide more easily.
• Fine lines may appear in the porcelain because it went through heating and cooling. This is normal and will not affect performance.

EasyClean® (ON SOME MOdELS)

LG's new oven with EasyClean® enamel technology gives you two cleaning options for the inside of your range. The EasyClean® feature takes advantage of LG's new enamel to help lift soils without harsh chemicals, and it runs using ONLY WATER for just 20 minutes in low temperatures to help loosen LIGHT soils before hand-cleaning.

While EasyClean ^® is quick and effective for small and LIGHT soils, the Self Clean feature can be used to remove HEAVY built up soils. The intensity and high heat of the Self Clean cycle may result in smoke which will require the opening up of windows to provide ventilation. Compared to the more intense Self Clean process, your LG oven gives you the option of cleaning with LESS HEAT, LESS TIME, and virtually NO SMOKE OR FUMES.

When needed, your range still provides the Self Clean option for longer, more thorough oven cleaning for heavier, built up soils.

BENEFITS OF EasyClean®

• Helps loosen light soils before hand-cleaning
• EasyClean® only uses water; no chemical cleaners
• Makes for a better Self Clean experience
• Delays the need for a Self Clean cycle
• Minimizes smoke and odors
• Can allow shorter Self Clean time

whEN TO USE EasyClean®

Suggested Cleaning Method	Example of Oven Soiling Soil	Pattern Types of Soils		Common Food Items That Can Soil Your Oven
EasyClean®		Small drops or spots	Cheese or other ingredients	Pizza
		Light splatter Fat/grease		Steaks, broiled
				Fish, broiled
				Meat roasted at low temperatures
Self Clean*		Medium to heavy splatter	Fat/grease	Meat roasted at high temperatures
		Drops or spots	Filling or sugar based soils	Pies
			Cream or tomato sauce	Casseroles

* The Self Clean cycle can be used for soil that has been built up over time.

CLEANING TIPS

• Allow the oven to cool to room temperature before using the EasyClean® cycle. If your oven cavity is above 150°F (65°C), "OVEN IS HOT-- PLEASE WAIT" will appear in the display, and the EasyClean® cycle will not be activated until the oven cavity cools down.
• A plastic spatula can be used as a scraper to scrape off any chunks or debris before and during oven cleaning.
• Using the rough side of a non-scratch scouring pad may help to take off burnt-on stains better than a soft sponge or towel.

• Certain non-scratch scrubbing sponges, such as those made of melamine foam, available at your local stores, can also help improve cleaning.

• The range should be level to ensure that the bottom surface of the oven cavity is entirely covered by water at the beginning of the EasyClean® cycle.

• For best results, use distilled or filtered water. Tap water may leave mineral deposits on the oven bottom.
• Soil baked on through several cooking cycles will be more difficult to remove with the EasyClean® cycle.
• Do not open the oven door during the EasyClean® cycle. Water will not get hot enough if the door is opened during the cycle.
• For hard to reach areas such as the back surface of the lower oven, it is better to use the Self Clean cycle.

EasyClean® INSTRUCTION gUIDE

1. Remove oven racks and accessories from the oven.

2. Scrape off and remove any burnt-on debris with a plastic scraper.

Suggested plastic scrapers:

- Hard plastic spatula

- Plastic pan scraper

- Plastic paint scraper

- Old credit card

1. Fill a spray bottle with 1¼ cups (10 oz or 300 ml) of water and use the spray bottle to thoroughly spray the inside surfaces of the oven.

Top-down view of a washing machine interior with multiple washers and a central fan (no text or symbols visible)

1. Use at least 14 cup (2oz or 50 ml) of the water to completely saturate the soil on both the walls and in the corners of the oven.

2. Spray or pour the remaining 1 cup (8 oz or 250 ml) of water onto the bottom center of the oven cavity. The indentation on the oven bottom should be fully covered to submerge all soils. Add water if necessary.

note

Use the "mist" setting on the spray bottle for better coverage. The entire 1 14 cup (10oz or 300 ml) of water should be used for each oven cavity cleaned. Do not spray water directly on the door. Doing so will result in water dripping to the floor.

1. Close the oven door.

Press the EasyClean® button.

Press the START button.

caution

- Some surfaces may be hot after the EasyClean® cycle. Wear rubber gloves while cleaning to prevent burns.

- During the EasyClean® cycle, the oven bottom becomes hot enough to cause burns. Wait until the cycle is over before wiping the inside surface of the oven. Failure to do so may result in burns.

- Avoid leaning or resting on the oven door glass while cleaning the oven cavity.

1. A tone will sound at the end of the 20-minute cycle. Press the CLEAR OFF button to clear the display and end the tone.

2. After the cleaning cycle and during hand-cleaning, enough water should remain on the oven bottom to completely submerge all soils. Add water if necessary. Place a towel on the floor in front of the oven to capture any water that may spill out during hand-cleaning. If you are cleaning the upper oven on a double oven range, it is also best to cover the holes in the top of the lower oven door with a towel to capture any water that may drip into the door during hand-cleaning.

3. Clean the oven cavity immediately after the EasyClean® cycle by scrubbing with a wet, non-scratch scouring sponge or pad. (The scouring side will not scratch the finish.) Some water may spill into the bottom

vents while cleaning, but it will be captured in a pan under the oven cavity and will not hurt the burner.

note

DO NOT use any steel scouring pads, abrasive pads or cleaners as these materials can permanently damage the oven surface.

1. Once the oven cavity is cleaned, wipe any excess water with a clean dry towel. Replace racks and any other accessories.

2. If some light soils remain, repeat the above steps, making sure to thoroughly soak the soiled areas. If stubborn soils remain after multiple EasyClean® cycles, run the Self Clean cycle. Be sure that the oven cavity is empty of oven racks and other accessories, and that the oven cavity surface is dry before running the Self Clean cycle. Consult the Self Clean section of your owner's manual for further details.

note

- If you forget to saturate the inside of the oven with water before starting EasyClean®, press the CLEAR OFF button to end the cycle. Wait for the range to cool to room temperature and then spray or pour water into the oven and start another EasyClean® cycle.

- The cavity gasket may be wet when the EasyClean® cycle finishes. This is normal. Do not clean the gasket.

- If mineral deposits remain on the oven bottom after cleaning, use a cloth or sponge soaked in vinegar to remove them.

CLEANING THE EXTERIOR

Painted and Decorative Trim

For general cleaning, use a cloth with hot soapy water. For more difficult soils and built-up grease, apply a liquid detergent directly onto the soil. Leave it on for 30 to 60 minutes. Rinse with a damp cloth and dry. Do not use abrasive cleaners.

Stainless Steel Surfaces (on some models)

To avoid scratches, do not use a steel wool pads.

1. Place a small amount of stainless steel appliance cleaner or polish on a damp cloth or paper towel.
2. Clean a small area, rubbing with the grain of the stainless steel if applicable.
3. Dry and buff with a clean, dry paper towel or soft cloth.
4. Repeat as necessary.

Oven door

• Use soapy water to thoroughly clean the oven door. Rinse well. DO NOT immerse the door in water.
• You may use a glass cleaner on the outside glass of the oven door. DO NOT spray water or glass cleaner on the door vents.
• DO NOT use oven cleaners, cleaning powders, or harsh abrasive cleaning materials on the outside of the oven door.
• DO NOT clean the oven door gasket. The oven door gasket is made of a woven material that is essential for a good seal. Care should be taken not to rub, damage, or remove this gasket.

caution

Do not use harsh cleaners or harsh abrasive cleaning materials on the outside of the oven door. Doing so can cause damage.

Do not hand clean oven door gasket

Remove any debris from door

Diagram of a kitchen appliance with labeled parts, showing internal components and a drain with a sink.

Broiler Pan and Grid

Illustration of a rectangular tray with oval cutouts, no text or symbols present

• Do not store a soiled broiler pan or grid anywhere in the range.
• Do not clean the broiler pan or grid in a self cleaning mode.
• Remove the grid from the pan. Carefully pour out the grease from the pan into a proper container.
• Wash and rinse the broiler pan and grid in hot water with a soap-filled or plastic scouring pad.
• If food has burned on, sprinkle the grid with cleaner while hot and cover with wet paper towels or a dishcloth. Soaking the pan will remove burned-on foods.
• Both the broiler pan and grid may be cleaned with a commercial oven cleaner or in the dishwasher.

The oven light is a standard 40-watt appliance bulb. It will turn on when the oven door is open. When the oven door is closed, press the OVEN LIGHT button to turn it on or off.

1. Unplug the range or disconnect power.
2. Turn the glass bulb cover in the back of the oven counter-clockwise to remove.
3. Turn the bulb counter-clockwise to remove it from the socket.
4. Insert the new bulb and turn it clockwise.
5. Insert the glass bulb cover and turn it clockwise.
6. Plug in the range or reconnect the power.

Illustration of a kitchen appliance with a hand holding a tool, surrounded by multiple kitchen utensils (no text or symbols)

warning

• Make sure that the oven and bulb are cool.
- Disconnect the electrical power to the range at the main fuse or circuit breaker panel. Failure to do so can result in severe personal injury, death, or electrical shock.

REMOVING AND REPLACING THE OVEN DOOR AND DRAWER

caution

• The door is very heavy. Be careful when removing and lifting the door.
  • DO NOT lift the door by the handle.
• DO NOT hit the glass with pots, pans, or any other object.
• Scratching, hitting, jarring or stressing the glass may weaken its structure, causing an increased risk of breakage at a later time.

Removing the oven door

1. Fully open the door. Pull the hinge locks down toward the door frame, to the unlocked position. A tool, such as a small flat-blade screwdriver, may be required.

Slot Hinge lock Hinge arm Door frame

Pull hinge locks down to unlock

1. Firmly grasp both sides of the door at the top. Close the door to the removal position (approximately five degrees) which is halfway between the broil stop position and fully closed.

About 5°

Removal Position

1. Lift the door up and out until the hinge arm is clear of the slot. Put the door on the floor.

Replacing the oven door

1. Firmly grasp both sides of the door at the top.

Hinge arm Bottom edge of slot Indentation

1. With the door at the same angle as the removal position, seat the indentation of the hinge arm into the bottom edge of the hinge slot. The notch in the hinge arm must be fully seated into the bottom of the slot.

Slot Hinge lock Hinge arm Door frame

Push hinge locks up to lock

1. Fully open the door. If the door will not fully open, the indentation is not seated correctly in the bottom edge of the slot.

2. Push the hinge locks down against the front frame of the oven cavity to the locked position. Close the oven door.

Removing the drawer

warning

Disconnect the electrical power to the range at the main fuse or circuit breaker panel. Failure to do so can result in severe personal injury, death, or electrical shock.

Most cleaning can be done with the drawer in place; however, the drawer may be removed if further cleaning is needed. Use warm water to thoroughly clean.

1. Fully open the drawer.

2. Remove the two screws.

Remove screws

1. Locate the glide lever on each side of the drawer. Push down on the left glide lever and pull up on the right glide lever.

Lever

Push down with finger

Lever

Pull up with finger

1. Pull the warming drawer away from the range.

Replacing the drawer

1. Pull the bearing glides to the front of the chassis glide.
2. Align the glide on each side of the drawer with the glide slots on the range.
3. Push the drawer into the range until levers "click" (approximately 2 inch).
4. Pull the drawer open again to seat bearing glides into position.
5. Replace the two screws.

FAqs

What types of cookware are recommended to use with my cook top?

• The pans must have a flat bottom and straight sides.
  • Only use heavy-gauge pans.
• The pan size must match the amount of food to be prepared and the size of the surface element.
  • Use tight fitting lids.
  • Only use flat bottom woks.

Why does "HS" appear on the cooktop display?

HS (Hot Surface) will appear in the display once the element is turned off or during the self clean cycle. The HS indicator will stay on until the surface has cooled to approximately 150^ F ( 66^ C) or when the self clean cycle ends.

Why do the heating elements appear to be turning ON and OFF when using cooktop or oven?

Depending on your cooktop element setting or the temperature selected in your oven It is A normal operation of the cooking elements to cycle on and off. This is NORMAL operation.

My new oven doesn't cook like my old one. Is there something wrong with the temperature settings?

No, Your oven has been factory tested and calibrated. For the first few uses, follow your recipe times and temperatures carefully. If you still think your new oven is too hot or too cold, you can adjust the oven temperature yourself to meet your specific cooking needs. Refer to the "Oven temperature adjustment" section in this manual for easy instructions on how to adjust your thermostat.

Is it normal to hear a clicking noise coming from the back of my oven when I am using it?

Your new range is designed to maintain a tighter control over your oven's temperature. You may hear your oven's heating elements "click" on and off more frequently on your new oven. This is a NORMAL operation.

Why is the time flashing?

This means that the product has just been plugged in, or that it has experienced a power interruption. To clear the flashing time, press any button and reset the clock if needed.

During convection cooking the fan stops when I open the door. Is that normal?

Yes, this is normal. When the door is opened, the convection fan will stop until the door is closed.

Can I use aluminum foil to catch drippings in my oven cavity?

No. If aluminum foil is placed on the bottom of the oven cavity, it will burn and you will not be able to remove it. The heater for the oven is below the oven cavity and provides direct heat to the bottom of the cavity. If you already have burnt foil on the bottom, do not worry, as it will not hinder the performance.

Can I use aluminum foil on the racks?

It is not recommended to place aluminum foil inside the oven cavity. Using foil on the racks will restrict airflow which could lead to in poor cooking results.

Can I leave my racks in the oven when running a Self Clean cycle?

No. Although it will not damage the racks, it will discolor them and may make them hard to slide in and out during use. Remove all items from the oven before starting a Self Clean cycle.

What should I do if my racks are sticky and have become hard to slide in and out?

Over time, the racks may become hard to slide in and out. Apply a small amount of olive oil to the ends of the racks. This will work as a lubricant for easier gliding.

What should I do for hard to remove stains on my cooktop?

The cooktop should be cleaned after every use to prevent permanent staining. When cooking high sugar based food, such as tomato sauce, is it recommended to clean the stain while the cooktop is still warm. Use a safety mitt when cleaning to prevent burns. Refer to the CARE AND CLEANING section of this owner's manual for further instruction.

Why aren't the function buttons working?

Make sure that the range is not in Lockout mode. The lock symbol 🙏 will show in the display if Lockout is activated. To deactivate Lockout, press and hold the START button for three seconds. The unlock melody will sound and UNLOCKING will appear in the display until the controls are unlocked.

My range is still dirty after running the

EasyClean® cycle. What else should I do?

The EasyClean ^® cycle only helps to loosen light soils in your oven range to assist in hand-cleaning of your oven.

It does not automatically remove all soils after the cycle. Some scrubbing of your oven range is required after running the EasyClean® cycle.

I tried scrubbing my oven after running

EasyClean ^® , but some soils still remain. What can I do?

The EasyClean® feature works best when the soils are fully soaked and submerged in water before running the cycle and during hand-cleaning. If soils are not sufficiently soaked in water, it can negatively affect the cleaning performance. Repeat the EasyClean® process using sufficient water. Sugar-based and certain grease soils are especially hard to clean. If some stubborn soils remain, use the Self Clean feature to thoroughly clean your oven.

Soils on my oven walls are not coming off. How can I get my walls clean?

Soils on the side and rear walls of your oven range may be more difficult to fully soak with water. Try repeating the EasyClean® process with more than the 14 cup (2 oz or 50 ml) spray recommended.

Will EasyClean ^® get all of the soils and stains out completely?

It depends on the soil type. Sugar-based and certain grease stains are especially hard to clean. Also, if stains are not sufficiently soaked in water, this can negatively affect cleaning performance. If stubborn or built-up stains remain, use the Self Clean feature. Refer to the Self Clean section of your owner's manual.

Are there any tricks to getting some of the stubborn soils out?

Scraping the soils with a plastic scraper before and during hand-cleaning is recommended. Fully saturating soils with water is also recommended.

However, certain types of soils are harder to clean than others. For these stubborn soils, the Self Clean cycle is recommended. Consult the Self Clean section of your owner's manual for details.

Is it safe for my convection fan, broil burner or heater element to get wet during EasyClean®?

Yes. The convection fan, broiler burner or heater element may get a little wet during cleaning. However, direct spray onto the broil burner and heater elements is not necessary because these are self-cleaning during regular use.

Do I need to use all 1-1/4 cups (10 oz or 300 ml) of water for EasyClean®?

Yes. It is highly recommended that 1 cup (8 oz or 250 ml) of water be sprayed or poured on the bottom and an additional 1/4cup (2 oz or 50 ml) of water be sprayed on walls and other soiled areas to fully saturate the soils for better cleaning performance.

I see "smoke" coming out of my oven range's cooktop vents during EasyClean®. Is this normal?

This is normal. This is not "smoke." It is actually water vapor (steam) from the water in the oven cavity. As the oven heats briefly during EasyClean®, the water in the cavity evaporates and escapes through the oven vents.

How often should I use EasyClean®?

EasyClean ^® can be performed as often as you wish.

EasyClean® works best when your oven is LIGHTLY soiled from such things as LIGHT grease splatter and small drops of cheese. Please refer to the EasyClean® section in your owner's manual for more information.

What is required for EasyClean®?

A spray bottle filled with 1¼ cups (10 oz or 300 ml) of water, a plastic scraper, a nonscratch scrubbing pad and a towel. You should not use abrasive scrubbers such as heavy-duty scouring pads or steel wool. Except for a towel, all of the materials you need are included in a special cleaning kit with your new range.

TROUBLEShOOTINg

BEFORE REqUESTING SERvICE

Problem Possible Causes / Solutions
Range is not level.	·Poor installation. Place an oven rack in the center of the oven. Place a level on the oven rack. Adjust leveling legs at the base of the range until the oven rack is level.·Floor is not level. Make sure that the floor is strong and stable enough to adequately support the range. If floor is sagging or sloping, contact a carpenter to correct the situation.·Kitchen cabinet alignment may make range appear unlevel. Be sure cabinets are square and have sufficient room for range clearance.
Oven control is beeping and displaying an F code error.	·Electronic control has detected the fault condition. Press CLEAR OFF to clear the display and stop beeping. Reprogram oven. If fault recurs, record fault number. Press CLEAR OFF and contact a Service agent.
	CODE Description CODE Description
	F-1 Opened Sensor F-6 Oven hot
	F-2 Shorted Sensor F-9 No heating
	F-3 Key Short Error F-10 Door Lock Fail
Surface units will not maintain a rolling boil or cooking is not fast enough.	·Improper cookware is being used. Use pans that are flat and match the diameter of the surface unit selected.·In some areas, the power (voltage) may be low. Cover pan with a lid until desired heat is obtained.
Surface units do not work properly.	·A fuse in your home may be blown or the circuit breaker tripped. Replace the fuse or reset the circuit breaker.·Cooktop controls are improperly set. Check to see that the correct control is set for the surface unit you are using.
Surface unit stops glowing when changed to a lower setting.	·This is normal. The unit is still on and hot.
Areas of discoloration on the cooktop.	·Food spillovers not cleaned before next use. See the Care and Cleaning section.·Hot surface on a model with a light-colored cooktop. This is normal. The surface may appear discolored when it is hot. This is temporary and will disappear as the glass cools.
Frequent cycling on and off of surface units.	·This is normal. The element will cycle on and off to maintain the heat setting.
Oven will not work.	·Plug is not completely inserted in the electrical outlet. Make sure that the electrical plug is plugged into a live, properly grounded outlet.·A fuse in your home may be blown or the circuit breaker tripped. Replace the fuse or reset the circuit breaker.·Oven controls improperly set. See the "Using the oven" section.·Oven is too hot. Allow the oven to cool.
Oven light does not work.	·Replace or tighten bulb. See the "Oven light" section.

Problem Possible Causes / Solutions
Oven smokes excessively during broiling.	Control not set properly. Refer to the "Using the oven" section.Meat is too close to the broil element. Reposition the rack to provide proper clearance between the meat and the element.Meat is not properly prepared. Remove excess fat from meat. Cut remaining fatty edges to prevent curling.Broiler pan is upside down and the grease is not draining. Always place the grid on the broiler pan with ribs up and slots down to allow grease to drip into the pan.Grease has built up on oven surfaces. Regular cleaning is necessary when broiling frequently.Old grease or food spatters cause excessive smoking. Clean the interior of the oven.
Food does not bake or roast properly.	Oven controls improperly set. See the "Using the oven" section.Rack position is incorrect or the rack is not level. Refer to the "Rack and Pan Placement" section.Incorrect cookware or cookware of improper size being used. Refer to the "Using the proper cookware" section.
Food does not broil properly.	Improper rack position being used. Refer to the "Removing and replacing oven racks" section.Cookware not suited for broiling.
Food does not broil properly.	Aluminum foil used on the broiling pan and grid has not been fitted properly and slit as recommended.In some areas the power voltage may be low. Preheat the broil element for 5-7 minutes. Refer to the Broiling Guide.
Displayed Time is flashing.	This is normal. This means that the product has just been plugged in, or that it has experienced a power interruption. To clear the flashing time, press any button and reset the clock if needed.
Oven temperature too hot or too cold.	Oven Sensor needs to be adjusted. Refer to the "Using the oven" section.
Scratches or abrasions on cooktop surface.	Coarse particles such as salt or sand between cooktop and utensils can cause scratches.Be sure cooktop surface and bottoms of utensils are clean before usage. Small scratches do not affect cooking and will become less visible with time.Cleaning materials not recommended for ceramic-glass cooktop have been used. Refer to the "Care and Cleaning" section.Cookware with rough bottom has been used. Use smooth, flat-bottomed cookware.
Metal marks.	Scraping of metal utensils on cooktop surface. Do not slide metal utensils on cooktop surface. Use a ceramic-glass cooktop cleaning creme to remove the marks.Refer to the "Care and Cleaning" section.
Brown streaks or specks.	Boilovers are cooked onto surface. Use a blade scraper to remove soil. Refer to the "Care and Cleaning" section.
Areas of discoloration with metallic sheen.	Mineral deposits from water and food. Remove using a ceramic-glass cooktop cleaning creme. Use cookware with clean, dry bottoms.
Oven will not self clean.	The oven temperature is too high to set a self clean operation. Allow the range to cool and reset the controls.Oven controls improperly set. Refer to the "Care and Cleaning" section.A self clean cycle cannot be started if the lockout feature is activated.
"Crackling" or "popping" sound.	This is the sound of the metal heating and cooling during both the cooking and Self Clean functions. This is normal.
Fan noise.	A convection fan may automatically turn on and off. This is normal.
Convection fan stops.	Convection fan stops during a convection bake cycle. This is normal and is done to allow for more even heating during the cycle. This is not a failure of the range and should be considered normal operation.
Excessive smoking during a self clean cycle.	Excessive soil. Press the CLEAR OFF button. Open the windows to rid the room of smoke. Wait until the self clean mode is cancelled. Wipe up the excess soil and reset.
Oven door will not open after a self clean cycle.	Oven is too hot. Allow the oven to cool.
The oven does not clean after a self clean cycle.	Oven controls not properly set. See the Self Clean section.Oven was heavily soiled. Clean up heavy spillovers before starting the self clean cycle. Heavily soiled ovens may need to self clean again or for a longer period of time.
CLEAN and door flash in the display.	The self clean cycle has been selected, but the door is not closed. Close the oven door.
LOCKED appears in the display.	The oven door is locked because the temperature inside the oven is too hot. Press the CLEAR OFF button. Allow the oven to cool
Burning or oily odor emitting from the vent.	After checking the oven's operation, turn the temperature up to 450 °F and leave the oven on for at least an hour to help remove any oil which might cause smoke and odors when first using the oven.
Oven racks are difficult to slide.	The shiny, silver-colored racks were cleaned in a self clean cycle. Apply a small amount of vegetable oil to a paper towel and wipe the edges of the oven racks with the paper towel.
Oven door remains locked after the self clean cycle.	Oven interior is still hot. Allow about one hour for the oven to cool after the completion of a self clean cycle. The door can be opened when the LOCK indicator disappears from the display.The control lock is activated.
Moisture collects on oven window or steam comes from oven vent.	This is normal when cooking foods high in moisture.Excessive moisture was used when cleaning the window.

LIMITEd wARRANTY (CANAdA)

ARBITRATION NOTICE: THIS LIMITED WARRANTY CONTAINS AN ARBITRATION PROVISION THAT REQUIRES YOU AND LG TO RESOLVE DISPUTES BY BINDING ARBITRATION INSTEAD OF IN COURT, UNLESS THE LAWS OF YOUR PROVINCE OR TERRITORY DO NOT PERMIT THAT, OR, IN OTHER JURISDICTIONS, IF YOU CHOOSE TO OPT OUT. IN ARBITRATION, CLASS ACTIONS AND JURY TRIALS ARE NOT PERMITTED. PLEASE SEE THE SECTION TITLED "PROCEDURE FOR RESOLVING DISPUTES" BELOW.

Should your LG Electric Oven ("Product") fail due to a defect in materials or workmanship under normal and proper use, during the warranty period set forth below, LG Electronics Canada, Inc. ("LGECI") will, at its option, repair or replace the Product upon receipt of proof of the original retail purchase. This limited warranty is valid only to the original retail purchaser of the Product and applies only to a Product distributed, purchased and used within Canada, as determined at the sole discretion of LGECI.

WARRANTY PERIOD: (Note: If the original date of purchase cannot be veried, the warranty will begin sixty (60) days from the date of manufacture).

Parts and Labor (internal/functional parts only) Glass Cook top Radiant Surface units

One (1) year from the date of original retail purchase One (1) year from the date of original retail purchase

• Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.
• Replacement products and parts may be new, reconditioned, refurbished, or otherwise factory remanufactured, all at the sole discretion of LGECI.
  • Proof of original retail purchase specifying the Product model and date of purchase is required to obtain warranty service under this Limited Warranty.

LGECI'S SOLE LIABILITY IS LIMITED TO THE LIMITED WARRANTY SET OUT ABOVE. EXCEPT AS EXPRESSLY PROVIDED ABOVE, LGECI MAKES NO, AND HEREBY DISCLAIMS, ALL OTHER WARRANTIES AND CONDITIONS RESPECTING THE PRODUCT, WHETHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND NO REPRESENTATIONS SHALL BE BINDING ON LGECI. LGECI DOES NOT AUTHORIZE ANY PERSON TO CREATE OR ASSUME FOR IT ANY OTHER WARRANTY OBLIGATION OR LIABILITY IN CONNECTION WITH THE PRODUCT. TO THE EXTENT THAT ANY WARRANTY OR CONDITION IS IMPLIED BY LAW, IT IS LIMITED TO THE WARRANTY PERIOD SET OUT ABOVE. UNDER NO CIRCUMSTANCES SHALL LGECI, THE MANUFACTURER OR DISTRIBUTOR OF THE PRODUCT, BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, DIRECT, INDIRECT, PUNITIVE OR EXEMPLARY DAMAGES, INCLUDING, WITHOUT LIMITATION, LOSS OF GOODWILL, LOST PROFITS, LOSS OF ANTICIPATED PROFITS, LOST REVENUE, LOSS OF USE, OR ANY OTHER DAMAGE, WHETHER ARISING DIRECTLY OR INDIRECTLY FROM ANY CONTRACTUAL BREACH, FUNDAMENTAL BREACH, TORT OR OTHERWISE, OR FROM ANY ACTS OR OMISSIONS. LGECI'S TOTAL LIABILITY, IF ANY, SHALL NOT EXCEED THE PURCHASE PRICE PAID BY YOU FOR THE PRODUCT.

This Limited Warranty gives you specific legal rights. You may also have other rights that vary from province to province depending on applicable provincial laws. Any term of this Limited Warranty that negates or varies any implied condition or warranty under provincial law is severable where it conflicts with such provincial law without affecting the remainder of this warranty's terms.

THIS LIMITED WARRANTY DOES NOT COVER:

• Service trips to i) deliver, pick up, or install or; educate on how to operate the Product; ii) correct wiring or plumbing; or iii) correct unauthorized repairs or installations of the Product;
• Damage or failure of the Product to perform during power failures and interrupted or inadequate electrical service;
• Damage or failure resulting from operating the Product in a corrosive atmosphere or contrary to the instructions outlined in the Product's owner's manual;
• Damage or failure to the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, acts of God, or any other causes beyond the control of LGECI or the manufacturer;
• Damage or failure resulting from misuse, abuse, improper installation, repair, or maintenance of the Product. Improper repair includes use of parts not authorized or specified by LGECI. Improper installation or maintenance includes installation or maintenance contrary to the Product's owner's manual;
• Damage or failure caused by unauthorized modification or alteration of the Product, or if used for other than the intended household purpose/use of the Product, or damage or failure resulting from any water leakage due to improper installation of the Product;
• Damage or failure caused by incorrect electrical current, voltage or plumbing codes;
• Damage or failure caused by use that is other than normal household use, including, without limitation, commercial or industrial use, including use in commercial offices or recreational facilities, or as otherwise outlined in the Product's owner's manual;
• Damage or failure caused by transportation and handling, including scratches, dents, chips and/or other damage to the finish of the Product, unless such damage results from defects in materials or workmanship and is reported to LGECI within one (1) week of delivery of the Products;
• Damage or missing items to any display, open box, refurbished or discounted Product;
• Refurbished Product or any Product sold "As Is", "Where Is", "With all Faults", or any similar disclaimer;
• Products with original serial numbers that have been removed, altered or cannot be readily determined at the discretion of LGECI;
• Increases in utility costs and additional utility expenses in any way associated with the Product;
• Any noises associated with normal operation of the Product;
• Replacement of light bulbs, filters, fuses or any other consumable parts
• Replacement of any part that was not originally included with the Product;
• Costs associated with removal and/or reinstallation of the Product for repairs; and
• Shelves, drawers, handle and accessories to the Product, except for internal/functional parts covered under this Limited Warranty.
• Coverage for "in Home" repairs, for products in-warranty, will be provided if the Product is within a 150 km radius from the nearest authorized service center (ASC), as determined by LG Canada. If your Product is located outside a 150 km radius from a ASC, as determined by LG Canada, it will be your responsibility to bring the Product, at your sole expense, to the ASC for in-warranty repair.

All costs and expenses associated with the above excluded circumstances, listed under the heading, This Limited Warranty Does Not Cover, shall be borne by the consumer.

TO OBTAIN WARRANTY SERVICE AND ADDITIONAL INFORMATION, PLEASE CALL OR VISIT OUR WEBSITE:

Call 1-888-542-2623 (7 A.M. to 12 A.M., 365 days a year) and select the appropriate option from the menu, or visit our website at http://www.lg.com

PROCEDURE FOR RESOLVING DISPUTES:

EXCEPT WHERE PROHIBITED AT LAW, ALL DISPUTES BETWEEN YOU AND LG ARISING OUT OF OR RELATING IN ANY WAY TO THIS LIMITED WARRANTY OR THE PRODUCT SHALL BE RESOLVED EXCLUSIVELY THROUGH BINDING ARBITRATION, AND NOT IN A COURT OF GENERAL JURISDICTION. EXCEPT WHERE PROHIBITED AT LAW, YOU AND LG BOTH IRREVOCABLY AGREE TO WAIVE THE RIGHT TO A JURY TRIAL AND TO BRING OR PARTICIPATE IN A CLASS ACTION.

Definitions. For the purposes of this section, references to "LG" mean LG Electronics Canada, Inc., its parents, subsidiaries and affiliates, and each of their officers, directors, employees, agents, beneficiaries, predecessors in interest, successors, assigns and suppliers; references to "dispute" or "claim" shall include any dispute, claim or controversy of any kind whatsoever (whether based in contract, tort, statute, regulation, ordinance, fraud, misrepresentation or any other legal or equitable theory) arising out of or relating in any way to the sale, condition or performance of the product or this Limited Warranty.

Notice of Dispute. In the event you intend to commence an arbitration proceeding, you must first notify LG in writing at least 30 days in advance of initiating the arbitration by sending a letter to LGECI Legal Team at 20 Norelco Drive, North York, Ontario, Canada M9L 2X6 (the "Notice of Dispute"). You and LG agree to engage in good faith discussions in an attempt to amicably resolve your claim. The notice must provide your name, address, and telephone number; identify the product that is the subject of the claim; and describe the nature of the claim and the relief being sought. If you and LG are unable to resolve the dispute within 30 days of LG's receipt of the Notice of Dispute, the dispute shall be resolved by binding arbitration in accordance with the procedure set out herein. You and LG both agree that, during the arbitration proceeding, the terms (including any amount) of any settlement offer made by either you or LG will not be disclosed to the arbitrator until the arbitrator determines the dispute.

Agreement to Binding Arbitration and Class Action Waiver. Upon failure to resolve the dispute during the 30 day period after LG's receipt of the Notice of Dispute, you and LG agree to resolve any claims between you and LG only by binding arbitration on an individual basis, unless you opt out as provided below, or you reside in a jurisdiction that prevents full application of this clause in the circumstances of the claims at issue (in which case if you are a consumer, this clause will only apply if you expressly agree to the arbitration). To the extent permitted by applicable law, any dispute between you and LG shall not be combined or consolidated with a dispute involving any other person's or entity's product or claim. More specifically, without limitation of the foregoing, except to the extent such a prohibition is not permitted at law, any dispute between you and LG shall not under any circumstances proceed as part of a class or representative action. Instead of arbitration, either party may bring an individual action in small claims court, but that small claims court action may not be brought on a class or representative basis except to the extent this prohibition is not permitted at law in your province or territory of jurisdiction as it relates to the claims at issue between you and LG.

Arbitration Rules and Procedures. To begin arbitration of a claim, either you or LG must make a written demand for arbitration. The arbitration will be private and confidential, and conducted on a simplified and expedited basis before a single arbitrator chosen by the parties under the provincial or territorial commercial arbitration law and rules of the province or territory of your residence. You must also send a copy of your written demand to LG at LG Electronics, Canada, Inc., Attn: Legal Department- Arbitration, 20 Norelco Drive, North York, Ontario M9L 2X6. This arbitration provision is governed by your applicable provincial or territorial commercial arbitration legislation. Judgment may be entered on the arbitrator's award in any court of competent jurisdiction. All issues are for the arbitrator to decide, except that, issues relating to the scope and enforceability of the arbitration provision and to the arbitrability of the dispute are for the court to decide. The arbitrator is bound by the terms of this provision.

Governing Law. The law of the province or territory of your purchase shall govern this Limited Warranty and any disputes between you and LG except to the extent that such law is preempted by or inconsistent with applicable federal or provincial/territorial law. Should arbitration not be permitted for any claim, action, dispute or controversy between you and LG, you and LG attorn to the exclusive jurisdiction of the courts of the province or territory of your purchase for the resolution of the claim, action, dispute or controversy between you and LG.

Fees/Costs. You do not need to pay any fee to begin an arbitration. Upon receipt of your written demand for arbitration, LG will promptly pay all arbitration filing fees unless you seek more than \$25,000 in damages, in which case the payment of these fees will be governed by the applicable arbitration rules. Except as otherwise provided for herein, LG will pay all filing, administration and arbitrator fees for any arbitration initiated in accordance with the applicable arbitration rules and this arbitration provision. If you prevail in the arbitration, LG will pay your attorneys' fees and expenses as long as they are reasonable, by considering factors including, but not limited to, the purchase amount and claim amount. Notwithstanding the foregoing, if applicable law allows for an award of reasonable attorneys' fees and expenses, an arbitrator can award them to the same extent that a court would. If the arbitrator finds either the substance of your claim or the relief sought in the demand is frivolous or brought for an improper purpose (as measured by the applicable laws), then the payment of all arbitration fees will be governed by the applicable arbitration rules. In such a situation, you agree to reimburse LG for all monies previously disbursed by it that are otherwise your obligation to pay under the applicable arbitration rules. Except as otherwise provided for, LG waives any rights it may have to seek attorneys' fees and expenses from you if LG prevails in the arbitration.

Hearings and Location. If your claim is for \25,000 or less, you may choose to have the arbitration conducted solely (1) on the basis of documents submitted to the arbitrator, (2) through a telephonic hearing, or (3) by an in-person hearing as established by the applicable arbitration rules. If your claim exceeds \25,000, the right to a hearing will be determined by the applicable arbitration rules. Any in-person arbitration hearings will be held at the nearest, most mutually-convenient arbitration location available within the province or territory in which you reside unless you and LG both agree to another location or agree to a telephonic arbitration.

Severability and Waiver. If any portion of this Limited Warranty (including these arbitration procedures) is unenforceable, the remaining provisions will continue in full force and effect to the maximum extent permitted by applicable law. Should LG fail to enforce strict performance of any provision of this Limited Warranty (including these arbitration procedures), it does not mean that LG intends to waive or has waived any provision or part of this Limited Warranty.

Opt Out. You may opt out of this dispute resolution procedure. If you opt out, neither you nor LG can require the other to participate in an arbitration proceeding. To opt out, you must send notice to LG no later than 30 calendar days from the date of the first consumer purchaser's purchase of the product by either (i) sending an e-mail to [e-mail], with the subject line: "Arbitration Opt Out;" or (ii) calling 1-800-980-2973. You must include in the opt out e-mail or provide by telephone: (a) your name and address; (b) the date on which the product was purchased; (c) the product model name or model number; and

(d) the serial number (the serial number can be found (i) on the product; or (ii) online by accessing https://www.lg.com/ca_en/support/repair-service/schedule-repair and clicking on "Find My Model & Serial Number").

In the event that you "Opt Out", the law of the province or territory of your residence shall govern this Limited Warranty and any disputes between you and LG except to the extent that such law is preempted by or inconsistent with applicable federal or provincial/territorial law. Should arbitration not be permitted for any claim, action, dispute or controversy between you and LG, you and LG agree to attorn to the exclusive jurisdiction of the courts of the province or territory of your residence for the resolution of the claim, action, dispute or controversy between you and LG.

You may only opt out of the dispute resolution procedure in the manner described above (that is, by e-mail or telephone); no other form of notice will be effective to opt out of this dispute resolution procedure. Opting out of this dispute resolution procedure will not affect the coverage of the Limited Warranty in any way, and you will continue to enjoy the full benefits of the Limited Warranty. If you keep this product and do not opt out, then you accept all terms and conditions of the arbitration provision described above.

Conflict of Terms. In the event of a conflict or inconsistency between the terms of this Limited Warranty and the End User License Agreement ("EULA") in regards to dispute resolution, the terms of this Limited Warranty shall control and govern the rights and obligations of the parties and shall take precedence over the EULA.

MANUEL DU PROPRIÉTAIRE

Illustration of a device with a central screen and a cross mark, surrounded by multiple tools (no text or symbols)

Line drawing of an open oven with cooling fans and a lid (no text or symbols)

ON OFF + ON OFF + ON OFF + ON OFF + Select H5 Non Surface / Surface Discrete ON OFF + ON OFF + Conv. Bake Conv. Roast 1 2 3 - Auto Camera - Bake Broll 4 5 6 *START *Textout Clock Cook Time Start Time Timer On/Off Warm Proof 7 8 9 - EasyClean* Self Clean Oven Light Setting Favorites 0 CLEAR OFF *Press and hold Press for extra functioners

Two circular objects on a grid background, no text or symbols visible

Grille standard
(Position B)

Two circular objects on a grid background, no text or symbols visible

Grille standard
(Position D)

Two circular objects on a grid background, no text or symbols visible

Illustration of a rectangular tray with evenly spaced oval cutouts (no text or symbols)

Illustration of a rectangular tray with a diamond-shaped cutout on top (no text or symbols)

Illustration of two meat cuts on a tray with a small diagram below showing a food item (no text or symbols)

Technical line drawing of a mechanical device with a curved frame and mounting bracket (no text or symbols)

UTILISER LE TIROIR-RÉCHAUD

Illustration of a hand using a tool to interact with circular components on a tray (no text or symbols)

REMARQUE

Illustration of a hand pouring liquid into a tray with circular patterns (no text or symbols)

REMARQUE

Hand using a tool to clean circular indentations on a tray (no text or symbols visible)

IMPORTANT :

Illustration of a cooking pan with a frying pan and a cross-shaped tool, showing directional arrows (no text or symbols)

Top-down view of an oven with multiple kitchen utensils arranged inside (no text or symbols visible)

Diagram of a kitchen appliance showing internal components with no visible text or symbols

Illustration of a rectangular plastic tray with multiple oval cutouts (no text or symbols)

Illustration of a hand pouring liquid into a container with multiple kitchen utensils arranged around it (no text or symbols)

AVERTISSEMENT

Register your product Online!

www.lg.com
