OWNER'S MANUAL

LED LCD TV / LCD TV

Please read this manual carefully before operating your set and retain it for future reference.

LS35**

LS34**

CS46**

P/NO : MFL67409503(1202-REV01)

Printed in Korea

TABLE OF CONTENTS

A-3 SETTING UP THE TV

A-3 Attaching the stand

A-5 Tidying cables

A-6 Not using the Desk-Type Stand

COMMON

LANGUAGE LIST

English

Deutsch

Français

Italiano

Español

Português

Nederlands

Ελληνικά

LANGUAGE

B-1 MAKING CONNECTIONS

B-1 Antenna connection

B-2 Satellite dish connection

B-3 Adapter connection

B-5 HDMI connection

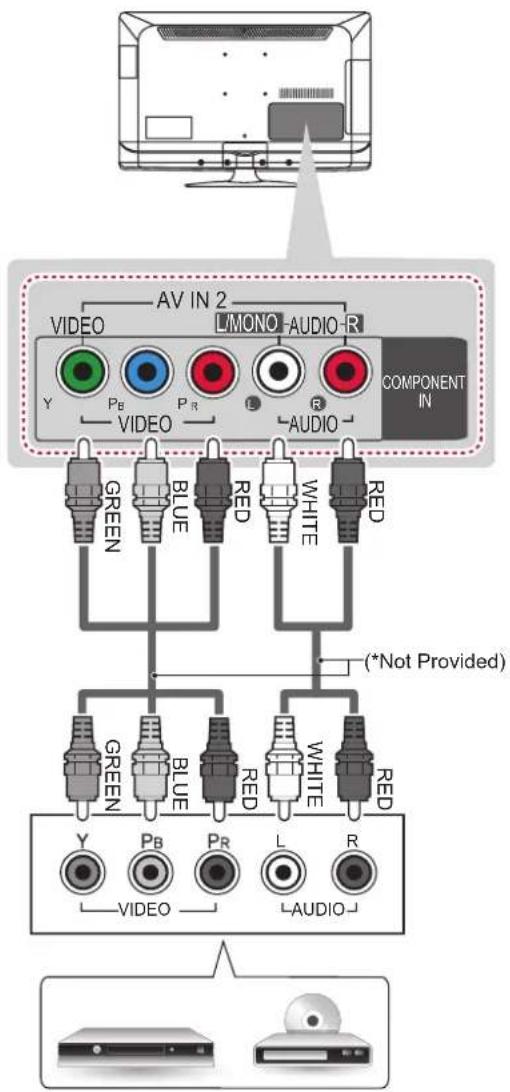

B-7 Component connection

B-9 Composite connection

B-10 USB connection

B-11 CI module connection

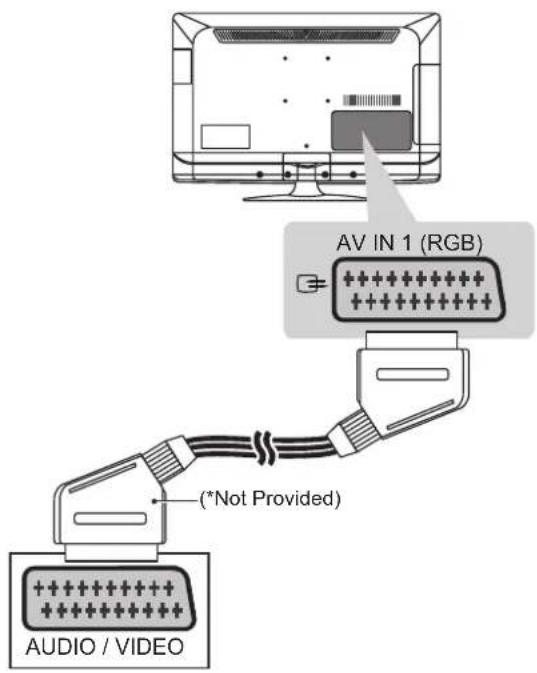

B-12 Euro Scart connection

COMMON

B-19 SPECIFICATIONS

SETTING UP THE TV

Attaching the stand

Image shown may differ from your TV. 19/22/26LS35**

1

Stand Body Stand Base

32LS35**

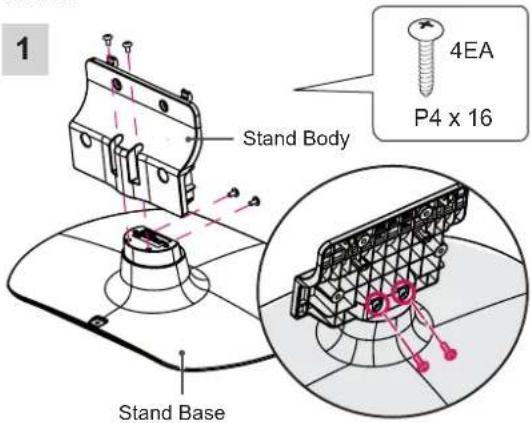

1 Stand Body Stand Base 4EA P4 x 16

Technical diagram of a car interior showing steering wheel, dashboard, and steering wheel (no text or labels)

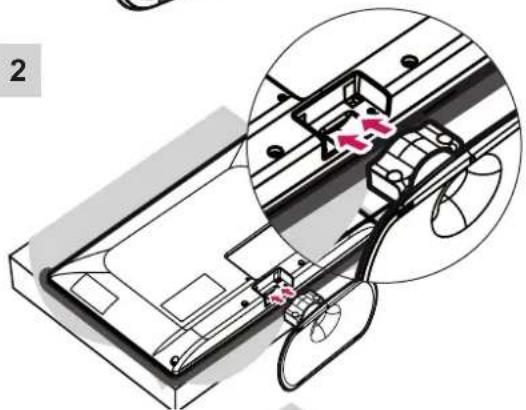

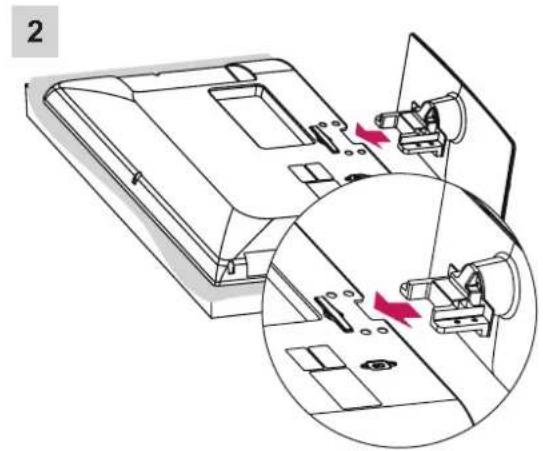

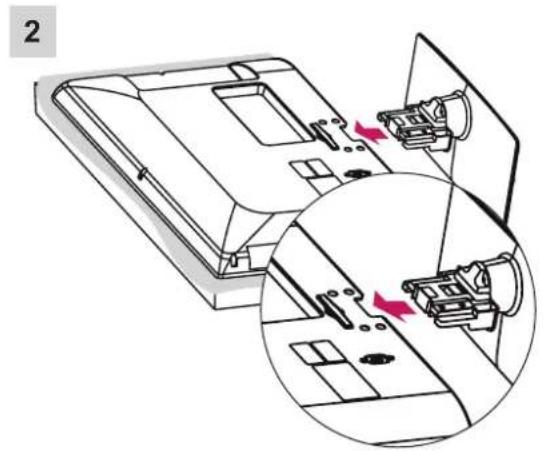

2

Technical diagram showing mechanical assembly with highlighted components and directional arrows (no text or symbols)

3

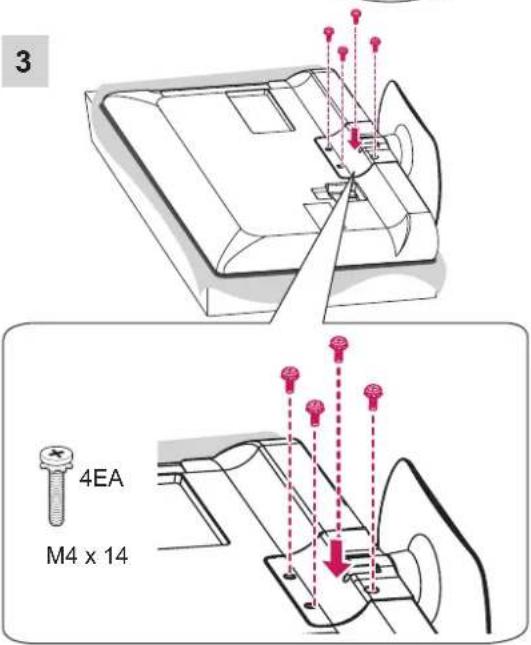

3 4EA M4 x 14

Model 19/22	LS35** 26LS35**
Standard screw P	4 x 20		M4 x 14
Number of screw	2EA 2EA

Diagram of a sewing machine needle with three red pins and a downward arrow indicating force or direction (no text or symbols)

26CS46**

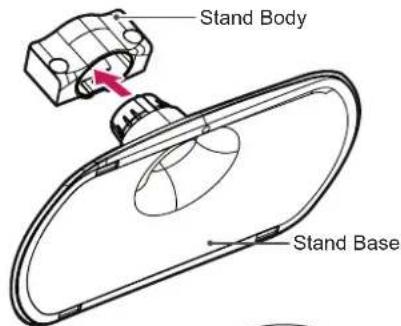

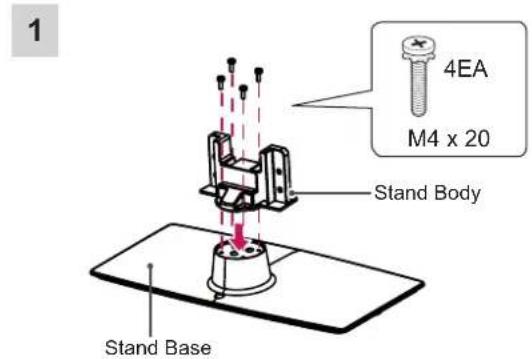

1 4EA M4 x 20 Stand Body Stand Base

32/42CS46**, 32/42LS34**

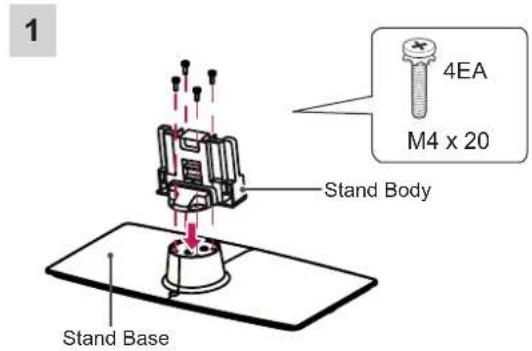

1 Stand Body Stand Base 4EA M4 x 20

Technical diagram showing a mechanical assembly with highlighted parts and directional arrows (no text or symbols)

Diagram of a computer monitor with an inset close-up showing internal components (no text or symbols)

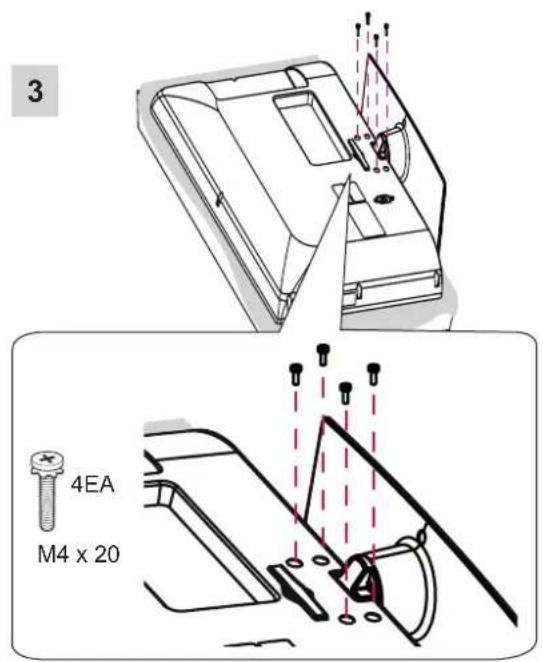

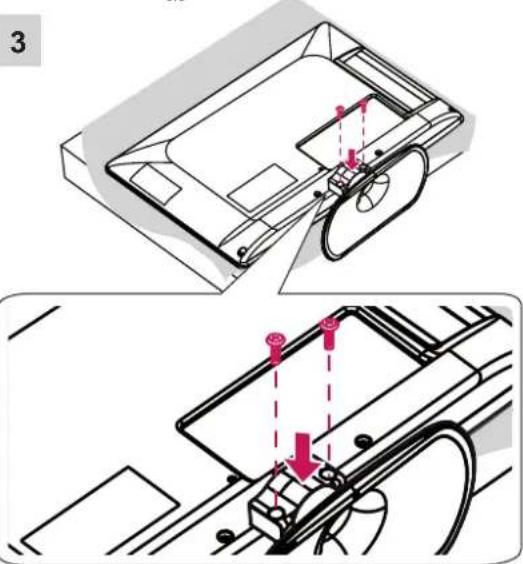

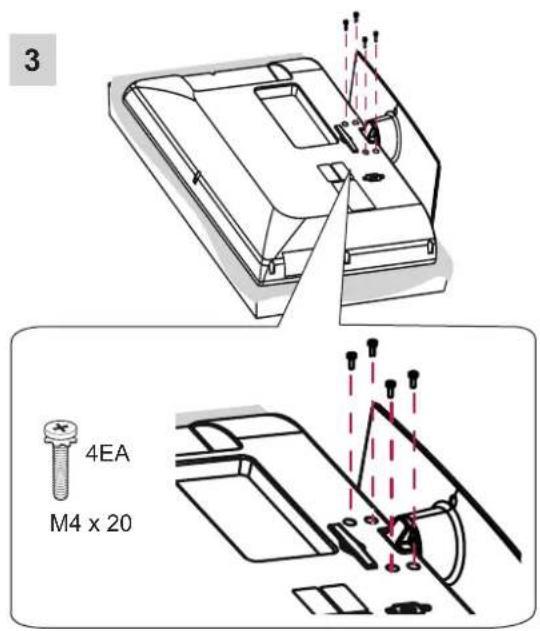

3 4EA M4 x 20

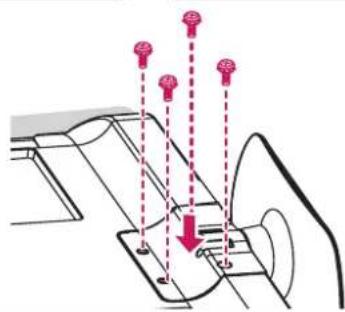

3 4EA M4 x 20

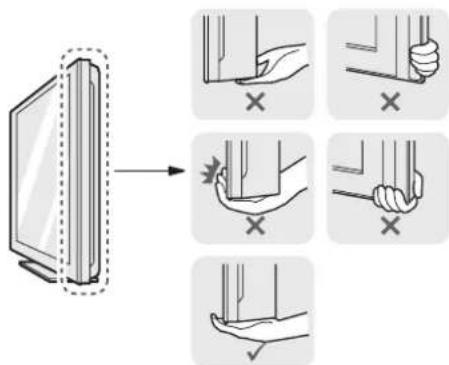

CAUTION

• When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.
• Tighten the screws firmly to prevent the TV from tilting forward. Do not over tighten.

NOTE

- Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse.

Tidying cables

Gather and bind the cables with the cable holder. (Only 19LS35**)

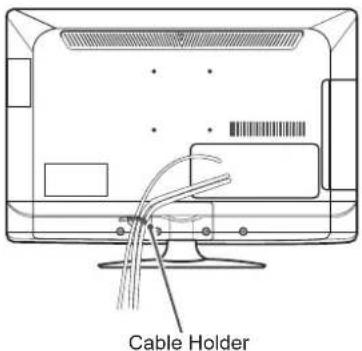

Cable Holder

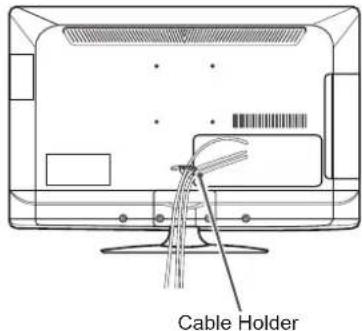

(Only 22/26LS35**)

Cable Holder

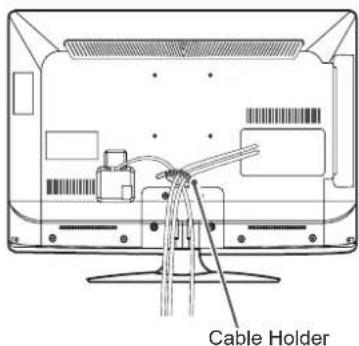

(Only 32LS35**)

Cable Holder

CAUTION

- Do not move the TV by holding the cable holder, as the cable holders may break, and injuries and damage to the TV may occur.

(Only 26/32/42CS46**, 32/42LS34**)

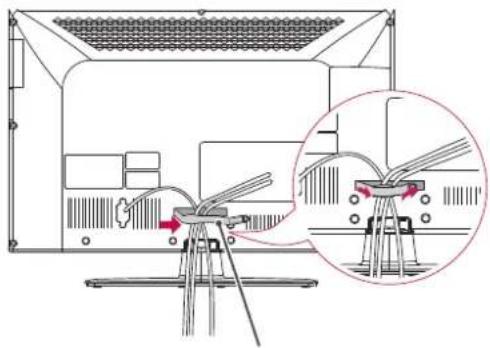

1 Gather and bind the cables with the cable management.
2 Fix the cable management firmly to the TV.

Diagram of a TV setup with a camera and tripod, showing a close-up of the camera's base (no text or symbols present)

Cable Management

CAUTION

- Do not move the TV by holding the cable management, as the cable management may break, and injure and damage to the TV may occur.

Not using the Desk-Type Stand

(Only 26/32/42CS46**, 32/42LS34**)

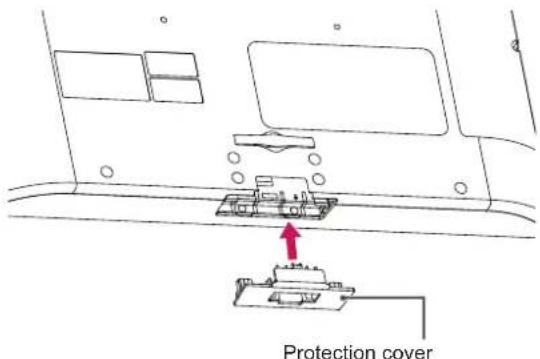

- When installing the wall mounting bracket, use the Protection cover. This will protect the opening from accumulating dust and dirt.

Push the supplied protection cover into the opening at the bottom of the TV until it locks in place.

Protection cover

OWNER'S MANUAL

LED LCD TV / LCD TV

Please read this manual carefully before operating your set and retain it for future reference.

TABLE OF CONTENTS

3 LICENSES

3 OPEN SOURCE SOFTWARE NOTICE

4 SAFETY INSTRUCTIONS

10 INSTALLATION PROCEDURE

10 ASSEMBLING AND PREPARING

10 Unpacking
14 Parts and buttons
15 Lifting and moving the TV
16 Mounting on a table
18 Mounting on a wall

19 REMOTE CONTROL

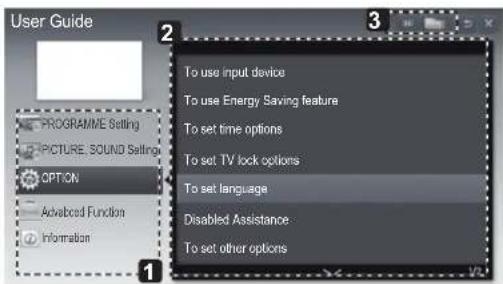

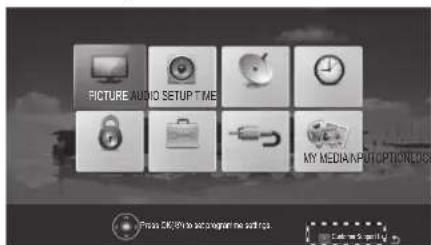

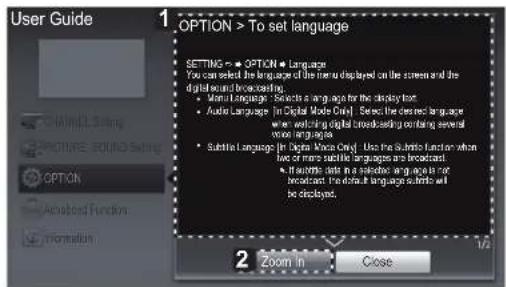

20 USING THE USER GUIDE

21 MAINTENANCE

21 Cleaning your TV
21 - Screen, frame, cabinet and stand
21 - Power cord

21 TROUBLESHOOTING

WARNING

- If you ignore the warning message, you may be seriously injured or there is a possibility of accident or death.

CAUTION

- If you ignore the caution message, you may be slightly injured or the product may be damaged.

NOTE

- The note helps you understand and use the product safely. Please read the note carefully before using the product.

LICENSES

Supported licenses may differ by model. For more information about licenses, visit www.lg.com.

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

"DivX Certified® to play DivX® video up to HD 1080p, including premium content."

"DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license."

"Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274"

OPEN SOURCE SOFTWARE NOTICE

To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource.lge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to [e-mail]. This offer is valid for three (3) years from the date on which you purchased the product.

SAFETY INSTRUCTIONS

Please read these safety precautions carefully before using the product.

WARNING

Do not place the TV and remote control in the following environments:

• A location exposed to direct sunlight
• An area with high humidity such as a bathroom
• Near any heat source such as stoves and other devices that produce heat
• Near kitchen counters or humidifiers where they can easily be exposed to steam or oil

- An area exposed to rain or wind

- Near containers of water such as vases

Otherwise, this may result in fire, electric shock, malfunction or product deformation.

Do not place the product where it might be exposed to dust.

This may cause a fire hazard.

Mains plug is the disconnecting device. The plug must remain readily operable.

Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power plug completely or wipe dust off.

You may be electrocuted due to excess moisture.

Make sure to connect the power cable to the grounded current. (Except for devices which are not grounded.)

You may be electrocuted or injured.

Fix the power cable completely.

If the power cable is not fixed completely, a fire can break out.

Ensure the power cord does not come into contact with hot objects such as a heater.

This may cause a fire or an electric shock hazard.

Do not place a heavy object, or the product itself, on power cables.

Otherwise, this may result in fire or electric shock.

Bend antenna cable between inside and outside building to prevent rain from flowing in.

This may cause water damaged inside the Product and could give an electric shock.

When mounting a TV it on the wall, make sure not to install TV by hanging power and signal cables on the back of the TV.

It may cause fire, electric shock.

	Do not plug too many electrical devices into a single multiple electrical outlet. Otherwise, this may result in fire due to over-heating.
	Do not drop the product or let it fall over when connecting external devices. Otherwise, this may result in injury or damage to the product.
	Keep the packing anti-moisture material or vinyl packing out of the reach of children.Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.
	Do not let your children climb or cling onto the TV. Otherwise, the TV may fall over, which may cause serious injury.
	Dispose of used batteries carefully to protect a child from eating them. In case that it eats them, take it to see a doctor immediately.
	Do not insert a conductor (like a metal chopstick) into one end of the power cable while the other end is connected to the input terminal on the wall. Additionally, do not touch the power cable right after plugging into the wall input terminal. You may be electrocuted.(Depending on model)
	Do not put or store inflammable substances near the product.There is a danger of explosion or fire due careless handling of the inflammable substances.
	Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the product, or inflammable objects such as paper and matches. Children must pay particular attention.Electrical shock, fire or injury can occur. If a foreign object is dropped into the product, unplug the power cord and contact the service centre.
	Do not spray water on the product or scrub with an inflammable substance (thinner or benzene). Fire or electric shock accident can occur.
	Do not allow a impact shock or any objects to fall into the product, and do not drop onto the screen with something.You may be injured or the product can be damaged.
	Never touch this product or antenna during a thunder or lighting storm.You may be electrocuted.
	Never touch the wall outlet when there is leakage of gas, open the windows and ventilate.It may cause a fire or a burn by a spark.
	Do not disassemble, repair or modify the product at your own discretion.Fire or electric shock accident can occur.Contact the service center for check, calibration or repair.
	If any of the following occur, unplug the product immediately and contact your local service centre.- The product has been impacted by shock- The product has been damaged- Foreign objects have entered the product- The product produced smoke or a strange smellThis may result in fire or electric shock.
	If you don't intend to use the product for a long time, unplug the power cable from the product.Covering dust can cause a fire, or insulation deterioration can cause electric leakage, electric shock or fire.
	Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

CAUTION

Illustration of three cartoon houses with different expressions and colors, no text or symbols present

Install the product where no radio wave occurs.

There should be enough distance between an outside antenna and power lines to keep the former from touching the latter even when the antenna falls. This may cause an electric shock.

Do not install the product on places such as unstable shelves or inclined surfaces. Also avoid places where there is vibration or where the product cannot be fully supported. Otherwise, the product may fall or flip over, which may cause injury or damage to the product.

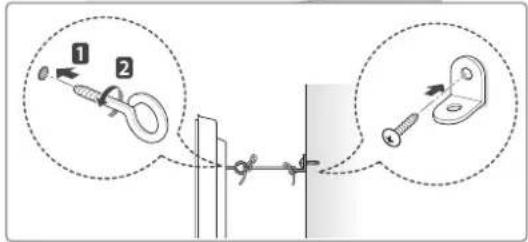

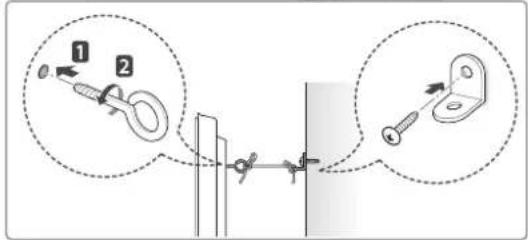

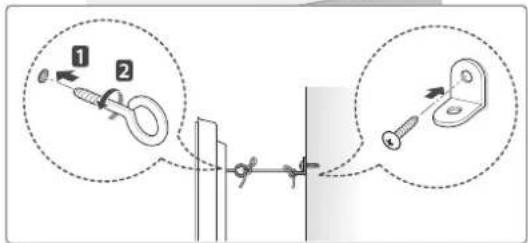

If you install the TV on a stand, you need to take actions to prevent the product from overturning. Otherwise, the product may fall over, which may cause injury.

If you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts) to the back of the product. When you install the set to use the wall mounting bracket (optional parts), fix it carefully so as not to drop.

Only use the attachments / accessories specified by the manufacturer.

When installing the antenna, consult a qualified service man. This may create a fire hazard or an electric shock hazard.

We recommend that you maintain a distance of at least 5 to 7 times the diagonal screen size when watching TV. If you watch TV for a long period of time, this may cause blurred vision.

Only use the specified type of battery. This could cause damage to the remote control.

Do not mix new batteries with old batteries. This may cause the batteries to overheat and leak.

Make sure there are no objects between the remote control and its sensor.

Signal from the remote control may be disturbed by sun light or other strong light. In this case, darken the room.

When connecting external devices such as video game consoles, make sure the connecting cables are long enough. Otherwise, the product may fall over, which may cause injury or damage the product.

	Do not turn the product On/Off by plugging-in or unplugging the power plug to the wall outlet. (Do not use the power plug for switch.)It may cause mechanical failure or could give an electric shock.
	Please follow the installation instructions below to prevent the product from overheating.- The distance between the product and the wall should be more than 10 cm.- Do not install the product in a place with no ventilation (e.g., on a bookshelf or in a cupboard).- Do not install the product on a carpet or cushion.- Make sure the air vent is not blocked by a tablecloth or curtain.Otherwise, this may result in fire.
	Take care not to touch the ventilation openings when watching the TV for long periods as the ventilation openings may become hot. This does not affect the operation or performance of the product.
Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.
	Prevent dust collecting on the power plug pins or outlet.This may cause a fire hazard.
	Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.
	Do not press strongly upon the panel with a hand or sharp object such as nail, pencil or pen, or make a scratch on it.
	Avoid touching the screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary distortion effects on the screen.
	When cleaning the product and its components, unplug the power first and wipe it with a soft cloth. Applying excessive force may cause scratches or discolouration. Do not spray with water or wipe with a wet cloth. Never use glass cleaner, car or industrial shiner, abrasives or wax, benzene, alcohol etc., which can damage the product and its panel.Otherwise, this may result in fire, electric shock or product damage (deformation, corrosion or breakage).
As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn off this unit by SWITCH.
	When unplugging the cable, grab the plug and unplug it.If the wires inside the power cable are disconnected, this may cause fire.
	When moving the product, make sure you turn the power off first. Then, unplug the power cables, antenna cables and all connecting cables.The TV set or power cord may be damaged, which may create a fire hazard or cause electric shock.
	When moving or unpacking the product, work in pairs because the product is heavy. Otherwise, this may result in injury.
	Contact the service center once a year to clean the internal parts of the product. Accumulated dust can cause mechanical failure.
	Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
	If the product feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is nothing wrong with product.
	The panel is a high technology product with resolution of two million to six million pixels. You may see tiny black dots and/or brightly coloured dots (red, blue or green) at a size of 1 ppm on the panel. This does not indicate a malfunction and does not affect the performance and reliability of the product. This phenomenon also occurs in third-party products and is not subject to exchange or refund.
	You may find different brightness and color of the panel depending on your viewing position(left/right/top/down). This phenomenon occurs due to the characteristic of the panel. It is not related with the product performance, and it is not malfunction.

Displaying a still image (e.g., broadcasting channel logo, on-screen menu, scene from a video game) for a prolonged time may cause damage to the screen, resulting in retention of the image, which is known as image sticking. The warranty does not cover the product for image sticking.

Avoid displaying a fixed image on your television's screen for a prolonged period (2 or more hours for LCD, 1 or more hours for Plasma).

Also, if you watch the TV at a ratio of 4:3 for a long time, image sticking may occur on the borders of the panel.

This phenomenon also occurs in third-party products and is not subject to exchange or refund.

Generated Sound

"Cracking" noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to tempera-ture and humidity. This noise is common for products where thermal deformation is required. Electrical circuit humming/panel buzzing: A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depending on the product.

This generated sound does not affect the performance and reliability of the product.

NOTE

• Image shown may differ from your TV.
- Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.
- The available menus and options may differ from the input source or product model that you are using.
- New features may be added to this TV in the future.
- The TV can be placed in standby mode in order to reduce the power consumption. And the TV should be turned off if it will not be watched for some time, as this will reduce energy consumption.
- The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and this will reduce the overall running cost.

INSTALLATION PROCEDURE

1 Open the package and make sure all the accessories are included.
2 Attach the stand to the TV set.
3 Connect an external device to the TV set.

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and item.

CAUTION

• Do not use any unapproved items to ensure the safety and product life span.
• Any damages or injuries by using unapproved items are not covered by the warranty.
• Some models have a thin film attached on to the screen and this must not be removed.

NOTE

• The items supplied with your product may vary depending on the model.
• Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions.
• For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV's USB port.

^* A ≤ 10 mm

*B≤18mm

	Remote control and batteries (AAA)(See p. 19) Owner's manual
	Cable holder(Depending on model)(See p. A-5)		Polishing cloth(Depending on model)Use this to remove dust from the cabinet.
	Adapter(Only 19/22/26LS35**) (See p. B-3)		Stand Screw2EA, P4 x 20(Only 19/22LS35**) (See p. A-3)
	Stand Screw2EA, M4 x 14(Only 26LS35**) (See p. A-3)		Stand Screw4EA, P4 x 164EA, M4 x 14(Only 32LS35**) (See p. A-3)
[ZA07]	Stand Screw8EA, M4 x 20(Only 26/32/42CS46**, 32/42LS34**) (See p. A-4)	[7732]	Desk-mount screw(Only 32LS35**, 26/32/42CS46**, 32/42LS34**) (See p. 16)
	Protection cover(Only 26CS46**) (See p. A-6)		Protection cover(Only 32CS46**, 32LS34**) (See p. A-6)
[4X00]	Protection cover(Only 42CS46**, 42LS34**) (See p. A-6)		Power Cord
	Isolator(Depending on model)(See p. 13)

Technical line drawing of a mechanical component with a flanged base and housing (no text or symbols)

Stand Body / Stand Base

(Only 19/22/26LS35**)

(See p. A-3)

Technical line drawing of a mechanical component with two views: top shows a bracket and bottom shows a circular base (no text or symbols)

Stand Body / Stand Base

(Only 32LS35**)

(See p. A-3)

Technical line drawing of a mechanical bracket and base plate assembly (no text or symbols)

Stand Body / Stand Base

(Only 26CS46**)

(See p. A-4)

Technical line drawing of a mechanical component with a base plate and housing (no text or symbols)

Stand Body / Stand Base

(Only 32/42CS46**, 32/42LS34**)

(See p. A-4)

NOTE

• Antenna Isolator Installation Guide

- Use this to install TV in a place where there is a voltage difference between TV Set and GND of antenna signal.

» If there is a voltage difference between TV Set and GND of antenna signal, the antenna contact might be heated and excessive heat might cause an accident.

- You can improve the safety when watching TV by efficiently removing power voltage from TV antenna. It is recommended to mount the isolator to the wall. If it cannot be mounted to the wall, mount it on the TV. Avoid disconnecting the antenna Isolator after installation.

- Before starting, be sure that the TV antenna is connected.

Connect one end of the isolator to cable/antenna jack and the other to TV set or set-top box.

"Equipment connected to the protective earthing of the building installation through the mains connection or through other equipment with a connection to protective earthing - and to a cable distribution system using coaxial cable, may in some circumstances create a fire hazard. Connection to a cable distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11)"

When applying the RF Isolator, a slight loss of signal sensitivity can occur.

Parts and buttons

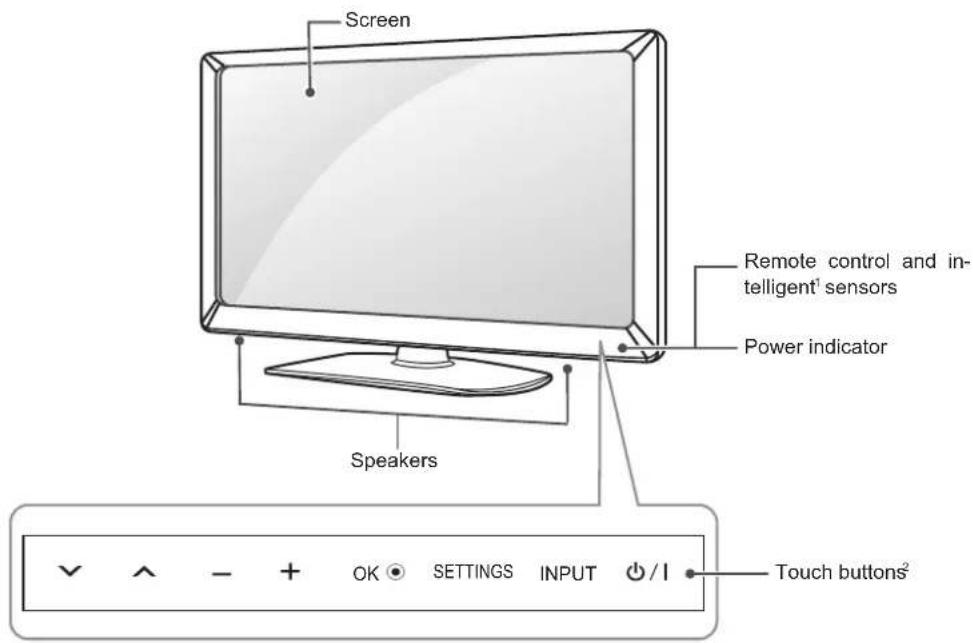

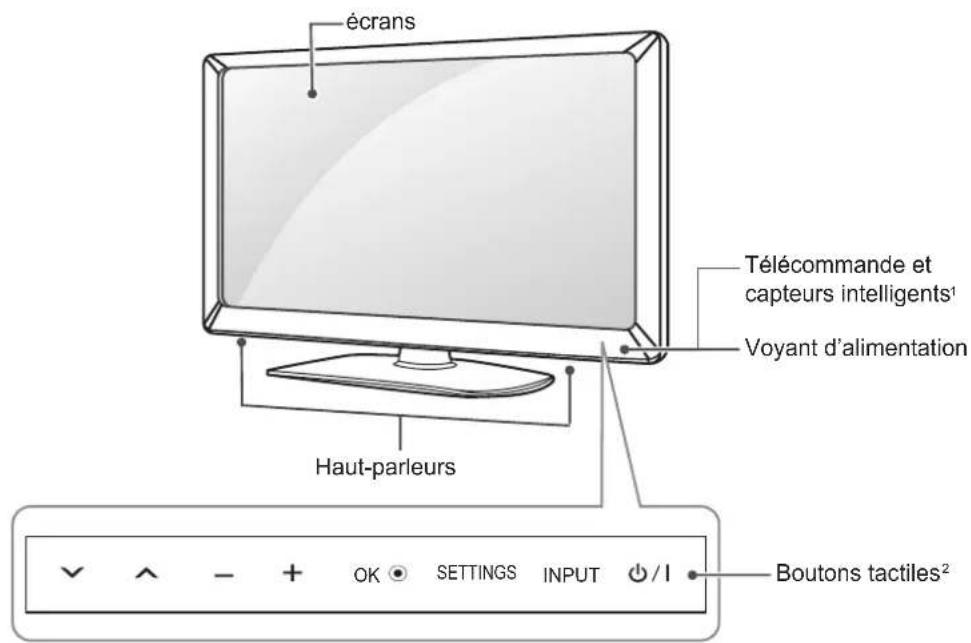

Screen Remote control and in- telligent¹ sensors Power indicator Speakers Touch buttons²

Touch Button Description
√^	Scrolls through the saved programmes.
- +	Adjusts the volume level.
OK Ⓞ	Selects the highlighted menu option or confirms an input.
SETTINGS Accesses the main menu, or saves your input and exits the menus.
INPUT Changes the input source.
∅/1	Turns the power on or off.

1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
2 All of the buttons are touch sensitive and can be operated through simple touch with your finger.

Touch Button Description
√^	Scrolls through the saved programmes.
- +	Adjusts the volume level.
OK Ⓞ	Selects the highlighted menu option or confirms an input.
SETTINGS Accesses the main menu, or saves your input and exits the menus.
INPUT Changes the input source.
∅/1	Turns the power on or off.

Lifting and moving the TV

When moving or lifting the TV, read the following to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

CAUTION

- Avoid touching the screen at all times, as this may result in damage to the screen.

• It is recommended to move the TV in the box or packing material that the TV originally came in.
• Before moving or lifting the TV, disconnect the power cord and all cables.
• When holding the TV, the screen should face away from you to avoid damage.

Prohibition sign showing a person holding a device, crossed out by a diagonal line (no text or symbols)

- Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grill area.

Diagram illustrating hand positioning and stress application on a screen, with labeled X marks indicating specific states.

- When transporting a large TV, there should be at least 2 people. - When transporting the TV by hand, hold the TV as shown in the following illustration.

Silhouette of two people holding a large screen with computer monitors (no text or symbols visible)

- When transporting the TV, do not expose the TV to jolts or excessive vibration. - When transporting the TV, keep the TV upright, never turn the TV on its side or tilt towards the left or right.

Mounting on a table

1 Lift and tilt the TV into its upright position on a table.

- Leave a 10 cm (minimum) space from the wall for proper ventilation.

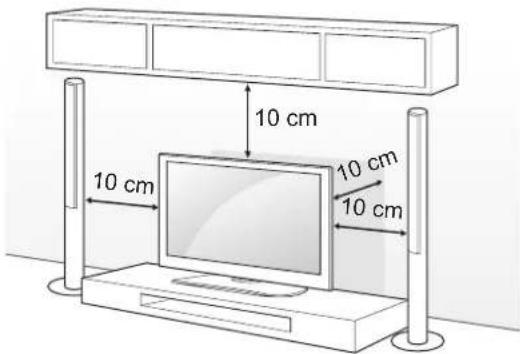

10 cm 10 cm 10 cm 10 cm

2 Connect the power cord to a wall outlet.

CAUTION

- Do not place the TV near or on sources of heat, as this may result in fire or other damage.

Securing the TV to a table

(Only 32LS35**, 26/32/42CS46**, 32/42LS34**) Fix the TV to a table to prevent from tilting forward, damage, and potential injury. To secure the TV to a table, insert and tighten the supplied screw on the rear of the stand.

Line drawing of a monitor mounted on a stand with a circular base and a pointer indicating the screen (no text or symbols present)

WARNING

- To prevent TV from falling over, the TV should be securely attached to the floor/wall per installation instructions. Tipping, shaking, or rocking the TV may cause injury.

Adjusting the angle of the TV to suit view

(Only 32/42CS46**, 32/42LS34**) Swivel 20 degrees to the left or right and adjust the angle of the TV to suit your view.

20° 20°

CAUTION

• When adjusting the angle of the product, watch out for your fingers.
  » Personal injury may occur if hands or fingers are pinched. If the product is tilted too much, it may fall, causing damage or injury.

Securing the TV to a wall

(This feature is not available for all models.)

Diagram illustrating cable mounting technique with labeled components and connection details

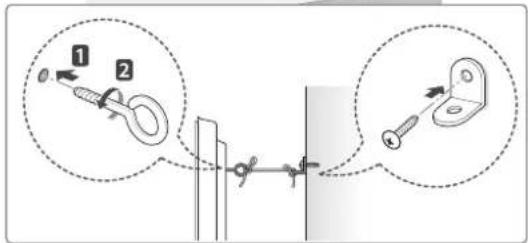

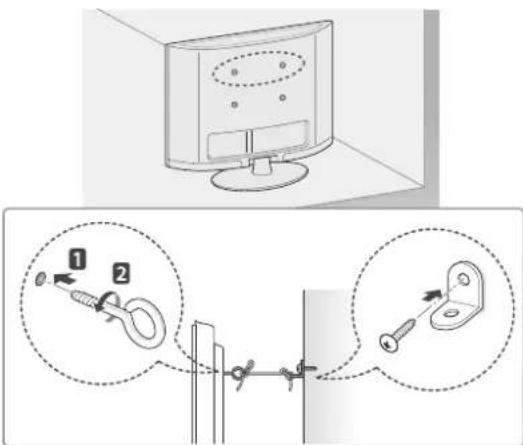

1 Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV.

- If there are bolts inserted at the eye-bolts position, remove the bolts first.

2 Mount the wall brackets with the bolts to the wall.

Match the location of the wall bracket and the eye-bolts on the rear of the TV.

3 Connect the eye-bolts and wall brackets tightly with a sturdy rope.

Make sure to keep the rope horizontal with the flat surface.

CAUTION

• Make sure that children do not climb on or hang on the TV.

NOTE

- Use a platform or cabinet that is strong and large enough to support the TV securely.

- Brackets, bolts and ropes are not provided. You can obtain additional accessories from your local dealer.

Using the Kensington security system

(Depending on model)

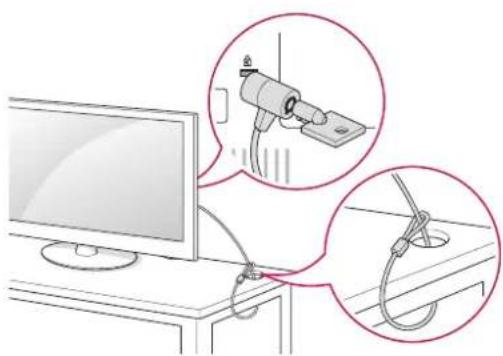

The Kensington security system connector is located at the rear of the TV. For more information of installation and using, refer to the manual provided with the Kensington security system or visit http://www.kensington.com.

Connect the Kensington security system cable between the TV and a table.

Illustration of a computer monitor connected to a cable with two magnified insets showing mechanical components (no text or symbols)

Mounting on a wall

Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the floor. When you attach the TV to other building materials, please contact qualified personnel. LG recommends that wall mounting be performed by a qualified professional installer.

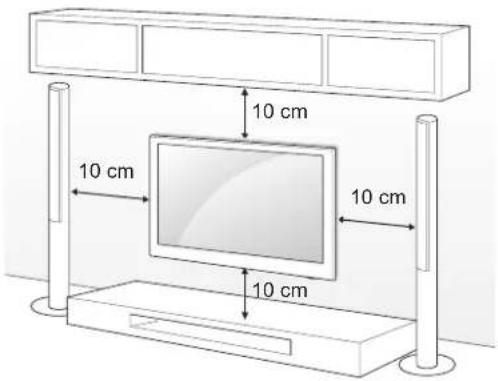

10 cm 10 cm 10 cm 10 cm

Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table.

Separate purchase(Wall Mounting Bracket)

Model	19/22/26LS35**	32LS35**, 26/32CS46**, 32LS34**
VESA (A x B)	100 x 100 200 x	100
Standard screw	M4 M4
Number of screws	4	4
Wall mount bracket	LSW100B, LSW100BG	LSW100B, LSW100BG
Model	42CS46**, 42LS34**
VESA (A x B)	200 x 200
Standard screw	M4
Number of screws	4
Wall mount bracket	LSW200B(G), LSW200BX

A B

CAUTION

• Disconnect the power first, and then move or install the TV. Otherwise electric shock may occur.
• If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury. Use an authorized LG wall mount and contact the local dealer or qualified personnel.
• Do not over tighten the screws as this may cause damage to the TV and void your warranty.
• Use the screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty.

NOTE

• Use the screws that are listed on the VESA standard screw specifications.
• The wall mount kit includes an installation manual and necessary parts.
• The wall mount bracket is not provided. You can obtain additional accessories from your local dealer.
• The length of screws may differ depending on the wall mount. Make sure to use the proper length.
• For more information, refer to the manual supplied with the wall mount.

REMOTE CONTROL

The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly.

To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the ④ and ends to the label inside the compartment, and close the battery cover.

To remove the batteries, perform the installation actions in reverse.

ENG

CAUTION

- Do not mix old and new batteries, as this may damage the remote control.

Make sure to point the remote control toward the remote control sensor on the TV.

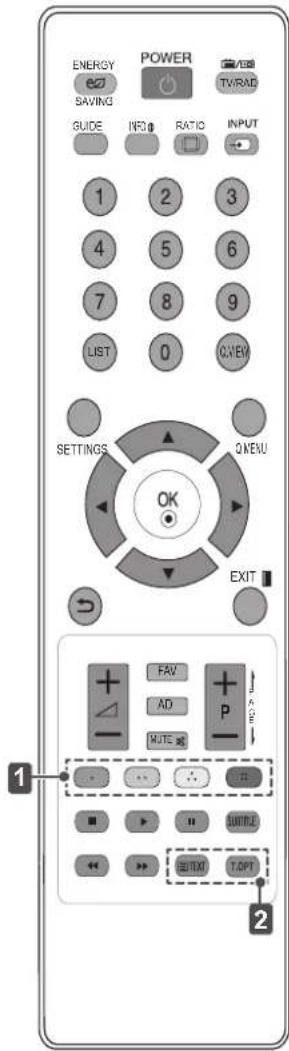

ENERGY SAVING GUIDE INFO RATIO INPUT 1 2 3 4 5 6 7 8 9 LIST 0 VIEW SETTINGS QMENU OK EXIT FAV AD NOTE P 2 SETTM TAFT

e2 ENERGY SAVINGness of the screen to reduce energy consumption.
TV / RAD Selects Radio, TV and DTV programme.
GUIDE	Shows programme guide.
INFO Views the information of the current programme and screen.
☐ RATIO	Resizes an image.
- ☐ INPUTges the input source; Turns the TV on.
LIST	Accesses the saved programme list.
Q.VIEW	Returns to the previously viewed programme.
SETTINGS	Accesses the main menus.
Q.MENU	Accesses the Quick menus.
Navigation buttons (up/down/left/right)	Scrolls through menus or options.
OK ⚙	Moves to the previous or next screen.
→	Returns to the previous level.
EXIT [ ]	Clears on-screen displays and return to TV viewing.
FAV	Accesses your favourite programme list.
AD Switches the Audio Description on or off.
←PAGE →	Moves to the previous or next screen.
1 Coloured buttons	These access special functions in some menus.( [Red, : Green, : Yellow, : Blue]
SUBTITLE	Recalls your preferred subtitle in digital mode.
Control buttons (■, ▶, II, ◀, ▶)	Controls the MY MEDIA menus, or the SIMPLINK compatible devices (USB,SIMPLINK).
2 TELETEXT BUTTONS	These buttons are used for teletext.

USING THE USER GUIDE

User Guide allows you to more easily access the detailed TV information.

1 Press SETTINGS to access the main menus.
2 Press the RED button to access the Customer Support menus.
3 Press the Navigation buttons to scroll to User Guide and press OK.

FIGURE AUDIO SETUP TIME MY MEDIA INPUT OPTION

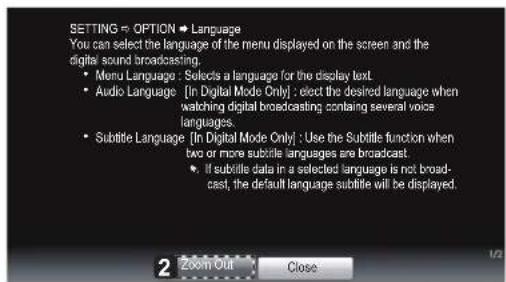

User Guide OPTION > To set language SETTING > OPTION > Language You can select the language of the mini displayed on the screen and the digital mini broadcasting. - Manual Language: Selects a language for the display tool. - Audio Language: In Digital Mode Ctrl. Select the desired language - when switching digital broadcasting containing several video languages. - Subtable Language: In Digital Mode Ctrl. Use the Subtable function when level of mini used to the languages are broadcasted. - It's complete data in a selected language is not broadcast the default language subtilo will be displayed. 2 Zoom in Close 1/2

SETTING = OPTION → Language You can select the language of the menu displayed on the screen and the digital sound broadcasting. • Menu Language : Selects a language for the display text. • Audio Language [In Digital Mode Only] : reject the desired language when watching digital broadcasting containing several voice languages. • Subtitle Language [In Digital Mode Only] : Use the Subtitle function when two or more subtitle languages are broadcast • If subtitle data in a selected language is not broad- cast, the default language subtitle will be displayed.

1 Shows the description of the selected menu. You can use ^/√ to move between pages.
② Zooms in or out the screen.

User Guide PROGRAMME Setting PICTURE, SOUND Setting OPTION Advanced Function Information To use input device To use Energy Saving feature To set time options To set TV lock options To set language Disabled Assistance To set other options

1 Allows to select the category you want.
2 Allows to select the item you want. You can use ^/∨ to move between pages.
3 Allows to browse the description of the function you want from the index.

MAINTENANCE

Cleaning your TV

Clean your TV regularly to keep the best performance and to extend the product lifespan.

CAUTION

• Make sure to turn the power off and disconnect the power cord and all other cables first.
• When the TV is left unattended and unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges.

Screen, frame, cabinet and stand

• To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.
- To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then wipe immediately with a dry cloth.

CAUTION

• Avoid touching the screen at all times, as this may result in damage to the screen.
• Do not push, rub, or hit the screen surface with your fingernail or a sharp object, as this may result in scratches and image distortions.
• Do not use any chemicals as this may damage the product.
• Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction.

Power cord

Remove the accumulated dust or dirt on the power cord regularly.

TROUBLESHOOTING

Problem Solution
Cannot control the TV with the remote control.	Check the remote control sensor on the product and try again.Check if there is any obstacle between the product and the remote control.Check if the batteries are still working and properly installed (⊕ to ⊕ to).
No image display and no sound is produced.	Check if the product is turned on.Check if the power cord is connected to a wall outlet.Check if there is a problem in the wall outlet by connecting other products.
The TV turns off suddenly.	Check the power control settings. The power supply may be interrupted.Check if the Auto sleep feature is activated in the Time settings.If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes of inactivity.

BENUTZERHANDBUCH

LED-LCD-TV / LCD-TV

Illustration of a house with a smiling computer and a wind turbine, no text or symbols present

Technical line drawing of a mechanical component with a cylindrical base and housing (no text or symbols)

(Nur 19/22/26LS35**)

(Siehe S. A-3)

Technical line drawing of a mechanical component with housing and base plate (no text or symbols)

Technical line drawing of a mechanical bracket and base plate assembly (no text or symbols)

Technical line drawing of a mechanical component with a base plate and housing (no text or symbols)

Prohibition sign showing a person holding a device inside a circle (no text or symbols)

Diagram illustrating how to adjust a screen with a lock, showing step-by-step instructions for cleaning and adjusting the screen.

Silhouette of two people holding a large rectangular device with a monitor inside (no text or symbols visible)

Line drawing of a computer monitor with a stand and screen, no text or symbols present

WARNUNG

Line drawing of a curved monitor with a circular display and mounting base (no text or symbols)

Diagram illustrating two mechanical assembly steps with labeled components and directional arrows

Illustration of a computer monitor connected to a cable with two magnified insets showing cable installation details (no text or symbols present)

Wandmontage

Illustration of three cartoon houses with different expressions: smiling, smiling, and waving (no text or symbols)

Three grayscale images showing vertical streaks against a cloudy sky, framed by a dark border (no text or symbols)

Technical line drawing of a mechanical component with a flanged base and housing (no text or symbols)

Corps du support / Base du support

(uniquement 19/22/26LS35**)

(voir p. A-3)

Technical line drawing of a mechanical component with housing and base plate (no text or symbols)

Corps du support / Base du support

(uniquement 32LS35**)

(voir p. A-3)

Technical line drawing of a mechanical bracket and base plate assembly (no text or symbols)

Corps du support / Base du support

(uniquement 26CS46**)

(voir p. A-4)

Technical line drawing of a mechanical component with a base plate (no text or symbols)

Corps du support / Base du support

(uniquement 32/42CS46**, 32/42LS34**)

(voir p. A-4)

Pièces et boutons

Prohibition sign showing a person holding a TV with a diagonal line (no text or symbols)

Diagram illustrating hand positioning and stress application on a device, with labeled X marks indicating specific states.

Silhouette of two people holding a large rectangular device with a monitor inside (no text or symbols visible)

Line drawing of a monitor with a stand and screen, no text or symbols present

AVERTISSEMENT

Line drawing of a computer monitor with a circular display and stand (no text or symbols)

Diagram showing two mechanical components with numbered parts and directional arrows indicating assembly or alignment.

Illustration of a computer monitor connected to a cable with two magnified insets showing mechanical components (no text or symbols)

Fixation du support mural

Illustration of three cartoon houses with different expressions: smiling, smiling, and waving (no text or symbols)

Technical line drawing of a mechanical component with a flanged base and housing (no text or symbols)

(Solo 19/22/26LS35**)

(Vedere pag. A-3)

Technical line drawing of a mechanical component with two views: top shows a bracket and bottom shows a circular base (no text or symbols)

Technical line drawing of a mechanical bracket and base plate assembly (no text or symbols)

Technical line drawing of a mechanical component with a base plate and housing (no text or symbols)

Prohibition sign showing a person holding a TV with no text or symbols

Diagram illustrating how to adjust or break down a screen, with hand gestures and cross symbols indicating action.

Silhouette of two people holding a rectangular device with monitor and tower (no text or symbols)

(Solo 32LS35**, 26/32/42CS46**, 32/42LS34**)

Line drawing of a monitor mounted on a stand with a circular base and a pointer indicating the screen (no text or symbols present)

AVVISO

Diagram illustrating cable installation steps with labeled components and connection details

Illustration of a computer monitor connected to a cable with two magnified insets showing mechanical components (no text or symbols present)

Montaggio a parete

Illustration of a house with a smiling computer and a wind turbine, no text or symbols present

Technical line drawing of a mechanical component with a flanged base and housing (no text or symbols)

(Solo 19/22/26LS35**)

Technical line drawing of a mechanical component with two views: top shows a bracket and bottom shows a circular base (no text or symbols)

Technical line drawing of a mechanical bracket and base plate assembly (no text or symbols)

Technical line drawing of a mechanical component with a base plate and housing (no text or symbols)

Silhouette illustration of two people holding a large rectangular device with a computer monitor inside (no text or symbols)

Prohibition sign showing a person holding a TV with a diagonal line (no text or symbols)

Diagram illustrating a device with hand gestures and corresponding close-ups of the screen, showing correct and incorrect states.

Montaje en una mesa

(Solo 32LS35**, 26/32/42CS46**, 32/42LS34**)

Line drawing of a computer monitor with a stand and screen, no text or symbols present

ADVERTENCIA

Line drawing of a computer monitor with a circular dial and stand (no text or symbols)

Diagram illustrating two mechanical assembly steps with labeled components and directional arrows

Illustration of a computer monitor connected to a hanging device and a rope, with two magnified insets showing the same setup (no text or symbols present)

MANUAL DE INSTRUÇÕES

TV LCD LED / TV LCD

Illustration of three cartoon houses with different expressions: a smiling house, a wind turbine, and a computer monitor (no text or symbols)

Three grayscale close-up panels showing vertical streaks against a cloudy sky (no text or symbols)

(Apenas 19/22/26LS35**)

(Consulte a p. B-3)

(Apenas 19/22LS35**)

(Consulte a p. A-3)

Technical line drawing of a mechanical component with a flanged base and housing (no text or symbols)

(Apenas 19/22/26LS35**)

(Consulte a p. A-3)

Technical line drawing of a mechanical component with housing and base plate (no text or symbols)

Technical line drawing of a mechanical clamp and base plate assembly (no text or symbols)

Technical line drawing of a mechanical component with a base plate (no text or symbols)

Silhouette of two people holding a large rectangular device with a monitor inside (no text or symbols visible)

Prohibition sign showing a person holding a TV with a diagonal line (no text or symbols)

Diagram illustrating hand positioning and stress application on a screen, with labeled correct and incorrect states.

Montar numa mesa

Line drawing of a monitor mounted on a stand with a circular base and a pointer indicating the screen (no text or symbols present)

AVISO

Line drawing of a curved monitor with a circular display and stand (no text or symbols)

Diagram illustrating two mechanical assembly steps with labeled components and directional arrows

Illustration of a computer monitor connected to a cable with two magnified insets showing mechanical components (no text or symbols)

Montagem numa mesa

Illustration of a house with a smiling computer monitor and a smiling house with a fan, both emitting exhaust smoke (no text or symbols)

Three-panel grayscale image showing a city skyline with vertical structures, framed by dark borders (no text or symbols)

Technical line drawing of a mechanical component with a cylindrical base and housing (no text or symbols)

(Alleen 19/22/26LS35**)

(Zie pag. A-3)

Technical line drawing of a mechanical component with housing and base plate (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly with a base plate (no text or symbols)

Technical line drawing of a mechanical component with a cylindrical base and housing (no text or symbols)

Prohibition sign showing a person holding a TV with a diagonal line (no text or symbols)

Diagram illustrating hand positioning and stress application on a device, with labeled X marks indicating specific states.

Silhouette illustration of two people holding a large rectangular object with computer monitors (no text or symbols)

Line drawing of a monitor with a stand and screen, no text or symbols present

WAARSCHUWING

Line drawing of a curved monitor with a dotted circular pattern on the screen (no text or symbols)

Diagram illustrating two mechanical assembly steps with labeled components and directional arrows

Illustration of a computer monitor connected to a cable with two magnified insets showing mechanical components (no text or symbols present)

7,295,673; 7,460,668; 7,515,710; 7,519,274"

Illustration of a house with a smiling face, wind turbine, and fan (no text or symbols)

Three grayscale frames showing vertical streaks against a cloudy sky (no text or symbols)

Technical line drawing of a mechanical component with a cylindrical base and housing (no text or symbols)

Technical line drawing of a mechanical component with housing and base plate (no text or symbols)

Technical line drawing of a mechanical bracket and base plate assembly (no text or symbols)

Technical line drawing of a mechanical component with a base plate and housing (no text or symbols)

Prohibition sign showing a person holding a TV with a diagonal line (no text or symbols)

Diagram illustrating how to change a screen with hand gestures, showing correct and incorrect states of action.

Silhouette of two people holding a large rectangular object with a computer monitor inside (no text or symbols)

Line drawing of a computer monitor with a stand and screen, no text or symbols present

ΠΡΟΕΙΔΟΠΟΙΗΣΗ

Line drawing of a curved monitor with a circular display and stand (no text or symbols)

Diagram illustrating a mechanical assembly with labeled parts and directional arrows indicating motion or assembly steps.

Illustration of a computer monitor connected to a cable with magnified insets showing mechanical components (no text or symbols)

10 €K. 10 €K. 10 €K. 10 €K.

- This section on MAKING CONNECTIONS mainly uses diagrams for the LS35** models.

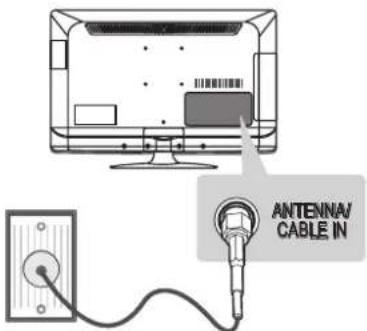

Antenna connection

ANTENNA/ CABLE IN

English

Connect the TV to a wall antenna socket with an RF cable (75 Ω).

NOTE

• Use a signal splitter to use more than 2 TVs.
• If the image quality is poor, install a signal amplifier properly to improve the image quality.
• If the image quality is poor with an antenna connected, try to realign the antenna in the correct direction.
• An antenna cable and converter are not supplied.

Deutsch

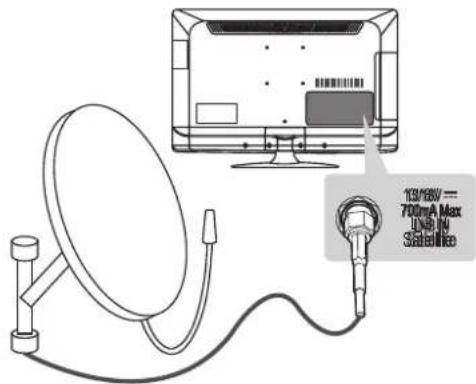

Satellite dish connection

(Only satellite models)

139/86V = 700mA Max USB/N Satellite

English

Connect the TV to a satellite dish to a satellite socket with a satellite RF cable (75 Ω).

Deutsch

(Only 19/22/26LS35**)

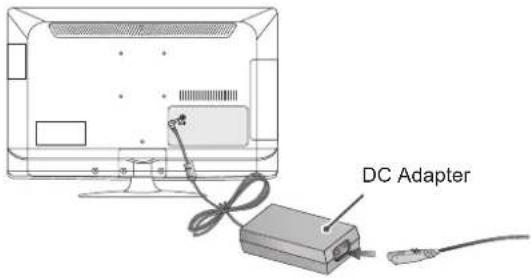

DC Adapter

English

1 Connect the antenna cable to the antenna input port on the TV.
2 Connect the DC adapter plug to the power input jack on the TV.
3 Connect the power cord to the DC adapter first, then plug the power cord into the wall power outlet.

CAUTION

- Please be sure to connect the TV to the DC power adapter before connecting the TV's power plug to a wall power outlet.

Deutsch

Transmits the digital video and audio signals from an external device to the TV. Connect the external device and the TV with the HDMI cable as shown. Choose any HDMI input port to connect. It does not matter which port you use.

NOTE

• It is recommended to use the TV with the HDMI connection for the best image quality.
• Use the latest High Speed HDMI™ Cable with CEC (Customer Electronics Control) function.
• High Speed HDMI™ Cables are tested to carry an HD signal up to 1080p and higher.
  • Supported DTV Audio: MPEG, Dolby Digital, Dolby Digital Plus, HE-AAC
• Supported HDMI Audio format : Dolby Digital, PCM (Up to 192 KHz, 32k/44.1k/48k/88k/96k/176k/192k, DTS Not supported.)

Deutsch

Component connection

AV IN 2 VIDEO L/MONO-AUDIO-R Y P_B P_R R AUDIO COMPONENT IN GREEN BLUE RED WHITE RED (*Not Provided) GREEN BLUE RED WHITE RED Y P_B P_R L R AUDIO AUDIO

DVD/ Blu-Ray / HD Cable Box

English

Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with a component cable as shown.

NOTE

- If cables are installed incorrectly, it could case the image to display in black and white or with distorted colour.

Deutsch

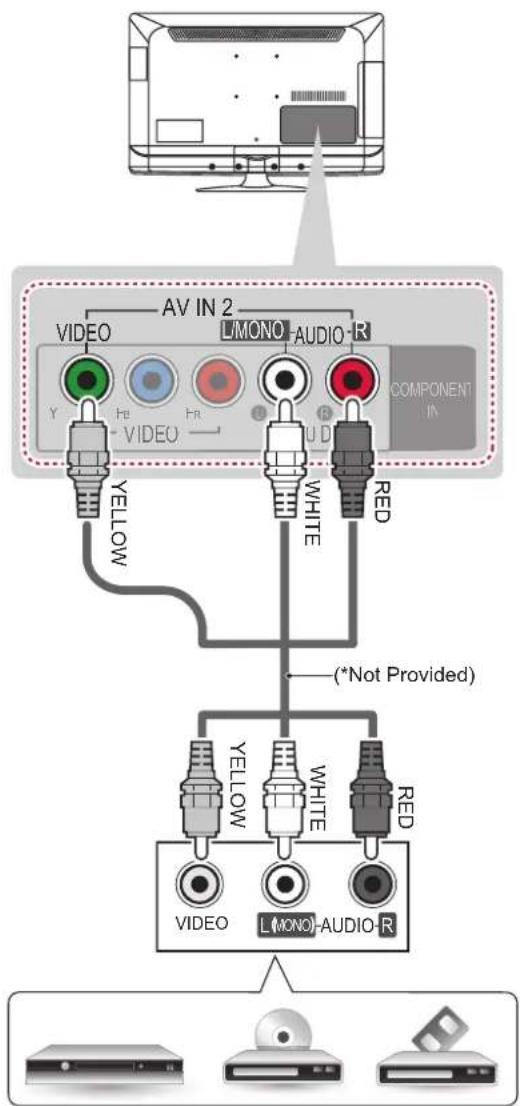

Composite connection

AV IN 2 VIDEO LMONO-AUDIO-R Y He He VIDEO COMPONENT IN YELLOW WHITE RED (*Not Provided) YELLOW WHITE RED VIDEO L(MONO)-AUDIO-R [Image Panel] [Image Panel]

DVD/ Blu-Ray / HD Cable Box / VCR

English

Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with the composite cable as shown.

Deutsch

USB USB IN (*Not Provided)

English

Connect a USB storage device such as a USB flash memory, external hard drive, or a USB memory card reader to the TV and access the My media menu to use various multimedia files.

Deutsch

• Image shown may differ from your TV.

English

View the encrypted (pay) services in digital TV mode. This feature is not available in all countries.

NOTE

- Check if the CI module is inserted into the PCMCIA card slot in the right direction. If the module is not inserted properly, this can cause damage to the TV and the PCMCIA card slot.

Deutsch

Euro Scart connection

AV IN 1 (RGB) (*Not Provided) AUDIO / VIDEO

English

Currentinput mode\Output Type	AV1(TV Out ^1 )
Digital TV Digital TV
Analogue TV, AV	Analogue TVComponent
HDMI

1 TV Out : Outputs Analogue TV or Digital TV signals.

NOTE

- Any Euro scart cable used must be signal shielded.

Deutsch

Connect various external devices to the TV and switch input modes to select an external device. For more information of external device's connection, refer to the manual provided with each device.

Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.

NOTE

• The external device connection may differ from the model.
• Connect external devices to the TV regardless of the order of the TV port.
• If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information of recording, refer to the manual provided with the connected device.
• Refer to the external equipment's manual for operating instructions.
• If you connect a gaming device to the TV, use the cable supplied with the gaming device.
• In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear.
• In PC mode, some resolution settings may not work properly depending on the graphics card.

Deutsch

Product specifications may be changed without prior notice due to upgrade of product functions.

For the power supply and power consumption, refer to the label attached to the product.

MODELS		19LS35** 22LS35** 26LS35**
		19LS3500-ZA19LS350S-ZA19LS350T-ZA	22LS3500-ZA22LS350S-ZA22LS350T-ZA22LS3510-ZB22LS3590-ZC	26LS3500-ZA26LS350S-ZA26LS350T-ZA26LS3510-ZB26LS3590-ZC26LS359S-ZC26LS359T-ZC
Dimensions(W x H x D)	With stand (mm) 451	.0 x 334.0 x 140.0 523.0 x	376.0 x 140.0 627.0 x 442	.0 x 162.0
	Without stand (mm)	451.0 x 296.0 x 31.5 523.0	x 339.0 x 31.6 627.0 x	402.0 x 30.1
Weight	With stand (kg) 2.8	3.5 5.0
	Without stand (kg) 2	6 3.2 4.7
Power Consumption		32 W 35 W 50 W
Power requirement		DC 24V, 1.2A DC 24V, 1.4A DC 24V, 1.8A
MODELS		32LS35** 26CS46** 32CS46**
		32LS3500-ZA32LS350S-ZA32LS350T-ZA32LS3510-ZB32LS3590-ZC32LS359S-ZC32LS359T-ZC	26CS460-ZA26CS460S-ZA26CS460T-ZA	32CS460-ZA32CS460S-ZA32CS460T-ZA
Dimensions(W x H x D)	With stand (mm) 755	.0 x 530.0 x 239.0 663.0	x 483.0 x 197.0 794.0 x 5	65.0 x 207.0
	Without stand (mm)	755.0 x 479.0 x 45.8 663.0	x 424.0 x 72.8 794.0 x 5	504.0 x 73.5
Weight	With stand (kg) 9.1	7.4 9.0
	Without stand (kg) 8	3 6.6 8.0
Power Consumption		60 W 100 W	110 W
Power requirement		AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz
MODELS		42CS46** 32LS34** 42LS34**
		42CS460-ZA42CS460S-ZA42CS460T-ZA	32LS3400-ZC32LS340S-ZC32LS340T-ZC	42LS3400-ZC42LS340S-ZC42LS340T-ZC
Dimensions(W x H x D)	With stand (mm) 101	7.0 x 695.0 x 261.0 795	.0 x 566,0 x 207,0 1017,0	x 695,0 x 261,0
	Without stand (mm)	1017.0 x 629.0 x 76.5 795	.0 x 504,0 x 73,5 10	17,0 x 629,0 x 76,5
Weight	With stand (kg) 15.1	9,1	14,7
	Without stand (kg) 1	3.5 8	1 13,1
Power Consumption		170 W	70 W 120 W
Power requirement		AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz

CI Module Size(W x H x D)		100.0 mm x 55.0 mm x 5.0 mm
Environment condition	Operating Temperature 0 °C to 40 °C
	Operating Humidity Less than 80 %
	Storage Temperature -20 °C to 60 °C
	Storage Humidity Less than 85 %

	Satellite Digital TV1	Digital TV2	Digital TV Analogue TV
Television system DVB-T	DVB-CDVB-S/S2	DVB-T/T2DVB-C	DVB-TDVB-CSECAM L/L3.PAL/SECAM B/G/D/K
Programme coverage VHF, UHFC-Band, Ku-Band		VHF, UHF VHF: E2 to E12, UHF :E21 to E69, CATV: S1 toS20, HYPER: S21 to S47
Maximum number ofstorable programmes	6,000 1,500
External antenna impedance 75 Ω

1 Only satellite models

2 Only DVB-T2 support models

3 Except for DVB-T2 support models

HDMI-DTV supported mode

Resolution Horizontal Frequency (kHz)		Vertical Frequency (Hz)
720x480	31.469	59.94
	31.5	60
720x576	31.25	50
1280x720	37.5	50
	44.96	59.94
	45	60
1920x1080	33.72	59.94
	33.75	60
	28.125	50
	26.97	23.97
	27	24
	33.75	30.00
	56.25	50
	67.43	59.94
	67.5	60

Component port connecting information

Component ports on the TV

Y P

B

PR

Video output ports on DVD player	Y P	B	PR
	Y B-Y	R-Y
	Y Cb Cr
	Y Pb Pr

Signal	Component
480i/576i O
480p/576p O
720p/1080i O
1080p O	(50 Hz / 60 Hz only)

HDMI-PC supported mode

Resolution Horizontal Frequency (kHz)	Vertical Frequency (Hz)
640x350 31.468	70.09
720x400 31.469	70.08
640x480 31.469	59.94
800x600 37.879	60.31
1024x768 48.36	3 60.00
1152x864 54.34	8 60.053
1360x768 47.71	2 60.015
1280x1024 63.9	81 60.020
1920x1080 67.5	0 60.00

LG

Life's Good

Please contact LG First.

If you have any inquiries or comments,

please contact LG customer information centre.

Record the model number and serial number of the TV.

Refer to the label on the back cover and quote this information to your dealer when requiring any service.

MODEL

SERIAL

DVB

Trade Mark of the DVB Digital Video Broadcasting Project (1991 to 1996)

Digital Video

Broadcasting

LG Customer Information Centre

Country	LG Service	Country	LG Service
Österreich	0 810 144 131 09	Naderland 8454
Belgie/Luxemburg	32 15 200255	Norge	800 187 40
		Polska	801 54 54 54
България	07001 5454 808	Portugal 54
Česká Rep.	810 555 810 031	Rogban 542
Danmark	8088 5758 085	Oslalvelsko
Suomi	0800 0 54 54 90	Uzprava 234
France	3220 d'eš LG ou tapez	Sverige	0770 54 54 54
Deutschland	01803 11 54 11 08	Skovsko 48 543
Еллάδα	801 11 200 900	Овгк 4 Крп 705 454
Magyarország	06 40 54 54 54	Россия 200	7676
Éire	0818 27 6955 80	Остория
Italia	199600099 0 80	Украївка 000
Беларусь	8 820 0071 1111 2	Кывхстан
Латвия	8 0003 271	Узбекистан	800 0071 0005
Литва	8 800 30 800	Кыргызстан

www.lg.com
