DrinkMixer 307767 - Blender Arendo - Free user manual and instructions

Product type	Beverage mixer (blender) with removable cup
Brand	Arendo
Model	DrinkMixer 307767
Power supply	220-240 V~, 50/60 Hz
Max power consumption	100 W
Max filling capacity	500 ml
Max useful capacity	250 ml
Cup material	Stainless steel
Level indicator	Yes, on the cup
Non-slip feet	Yes
Number of speeds	2 (positions I and II)
Safety switch	Yes, prevents starting if cup is not in place
Height adjustment	Yes, adjustment button
Max continuous operation time	1 minute
Recommended pause	1 minute between each use
Cleaning the housing	With a slightly damp cloth, do not immerse
Cleaning the mixing foot	By mixing water in the cup
Recommended uses	Coffee, cocktails, sauces, baby food, milkshakes
Package contents	Blender, stainless steel cup, quick start guide
Safety	Safety switch; do not use with wet hands; keep out of reach of children

Frequently Asked Questions - DrinkMixer 307767 Arendo

How to turn on the DrinkMixer 307767?

Make sure the on/off switch is set to '0', plug in the appliance, fill the cup, place it on the stand and lower the mixer so that the safety switch is pressed. Then set the switch to 'I' (speed 1) or 'II' (speed 2).

Can I use the mixer for more than one minute?

No, the appliance is designed for short-term use of maximum one minute. After each cycle, let it cool down for at least one minute to avoid overheating.

What to do if the mixer does not start?

Check that the cup is correctly inserted and that the safety switch (4) is properly pressed by the cup. Also ensure that the on/off switch is set to 'I' or 'II' and that the plug is connected.

How to clean the mixer?

Unplug the appliance before cleaning. Clean the housing with a slightly damp cloth without immersing. For the mixing foot, fill the cup with water and run mixing for a few seconds. Dry thoroughly.

What is the maximum capacity of the cup?

The maximum filling volume is 500 ml, but the recommended useful quantity for good mixing is 250 ml. Do not exceed these limits to avoid splashes.

Is the cup made of glass or plastic?

The supplied cup is made of stainless steel, making it robust and easy to clean.

Can I blend hot foods or ice cubes?

It is not recommended to blend very hot foods or ice cubes. Hot foods can create pressure, and ice cubes may damage the blades or motor. Let hot foods cool before blending.

How to replace the power cord if damaged?

The cord must be replaced by the manufacturer, its service agent or a similarly qualified person to avoid any hazard. Do not attempt to repair it yourself.

Is the appliance under warranty?

The manual states that any repair not carried out by the original supplier voids warranty rights. Contact Arendo or WD Plus GmbH for any warranty questions.

Can I use the mixer without the cup?

No, never operate the mixer without the cup. The cup is necessary to activate the safety switch and avoid contact with rotating parts.

USER MANUAL DrinkMixer 307767 Arendo

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

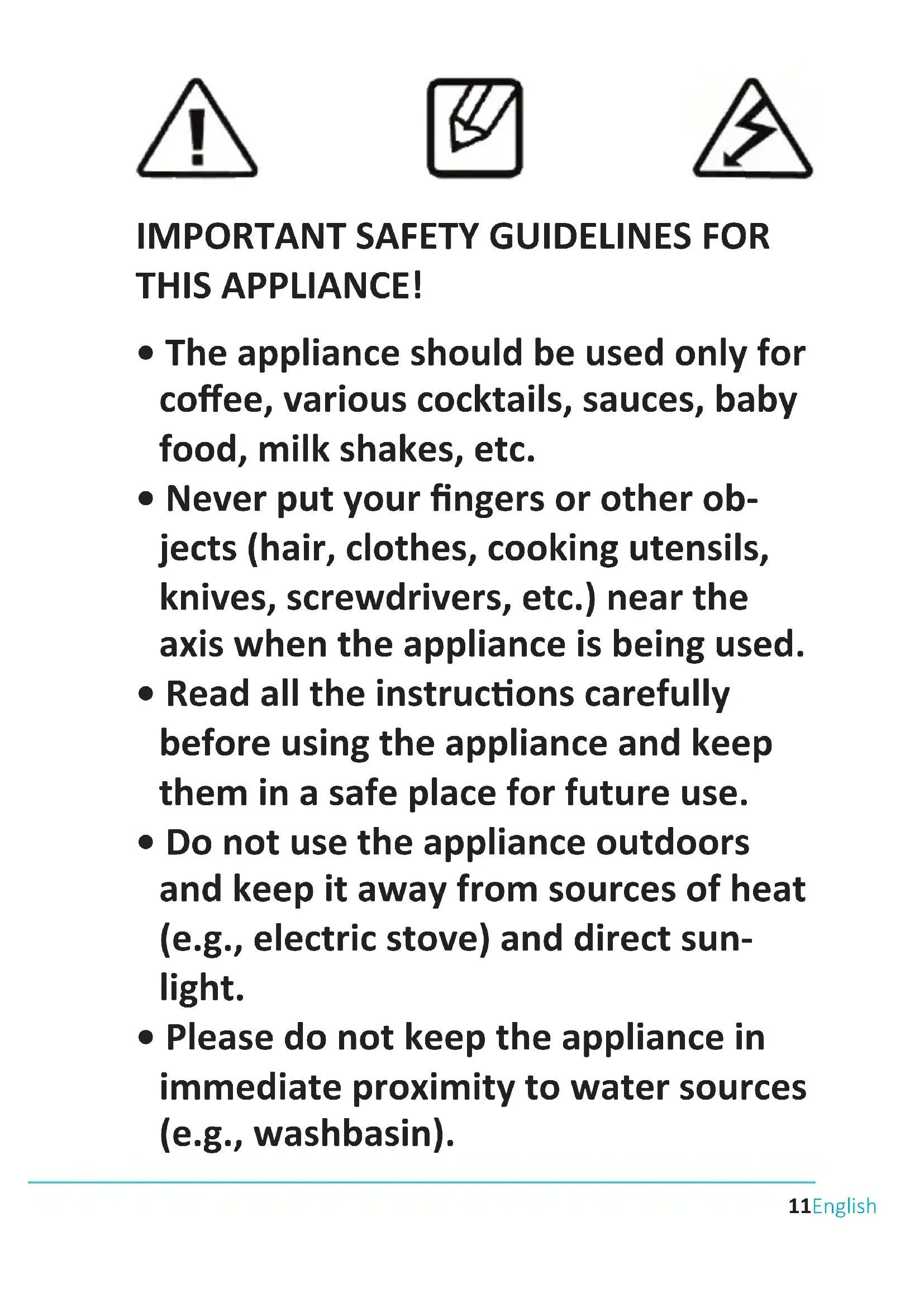

IMPORTANT SAFETY GUIDELINES FOR THIS APPLIANCE!

• The appliance should be used only for coffee, various cocktails, sauces, baby food, milk shakes, etc.

• Never put your fingers or other objects (hair, clothes, cooking utensils, knives, screwdrivers, etc.) near the axis when the appliance is being used.

• Read all the instructions carefully before using the appliance and keep them in a safe place for future use.

• Do not use the appliance outdoors and keep it away from sources of heat (e.g., electric stove) and direct sunlight.

• Please do not keep the appliance in immediate proximity to water sources (e.g., washbasin).

• Do not use this appliance with wet hands.

• Keep it on an suitable surface so that it does not tip over.
• Disconnect the power plug from the mains socket when the appliance is not being used or for cleaning.
• Operate the product only with the voltage specified on the type plate of the appliance.
• Do not move the appliance when it is being operated.
• Children should be supervised to ensure that they do not play with the appliance.
• This appliance is not intended to be used, cleaned or maintained by people (including children up to the age of 8 years) with reduced physical,

sensory or mental abilities or lack of experience and/or knowledge. Unless they are supervised by a person who is responsible for their safety or have received instructions from this person about how to use the appliance and have understood the risks involved.

• In the interest of child safety, please do not leave any packaging material (plastic bags, cardboard, polystyrene, etc.) lying around.
• If the power cable is damaged, it should be replaced by the manufacturer, his specialist dealer, or an equally qualified person, so as to prevent any risk.
• Do not overfill the shaker, otherwise water may spurt out.

arend

• Children should use or clean the appliance only under supervision or guidance.
• Cleaning and user maintenance should not be carried out by children, unless they are 8 years of age or older and are supervised. Keep the appliance and its connection cable out of reach of children less than 8 years.
• Never stop the mixer with your hand.

Thank you for purchasing a product from Arendo. Please read the following quick guide carefully so that you can enjoy your purchased appliance for a long time.

1. Scope of delivery

• Beverage mixer
• Stainless steel blender jug
  Quick guide

2. Technical data

Power supply 220-240V AC,	50/60 Hz
Power consumption max. 100 W
Filling quantity	• max. usable quantity: 250ml • max. filling quantity: 500ml
Features • Anti-slip feet	• Cup with fill level indicator • Stainless steel (stainless steel mixing cup)

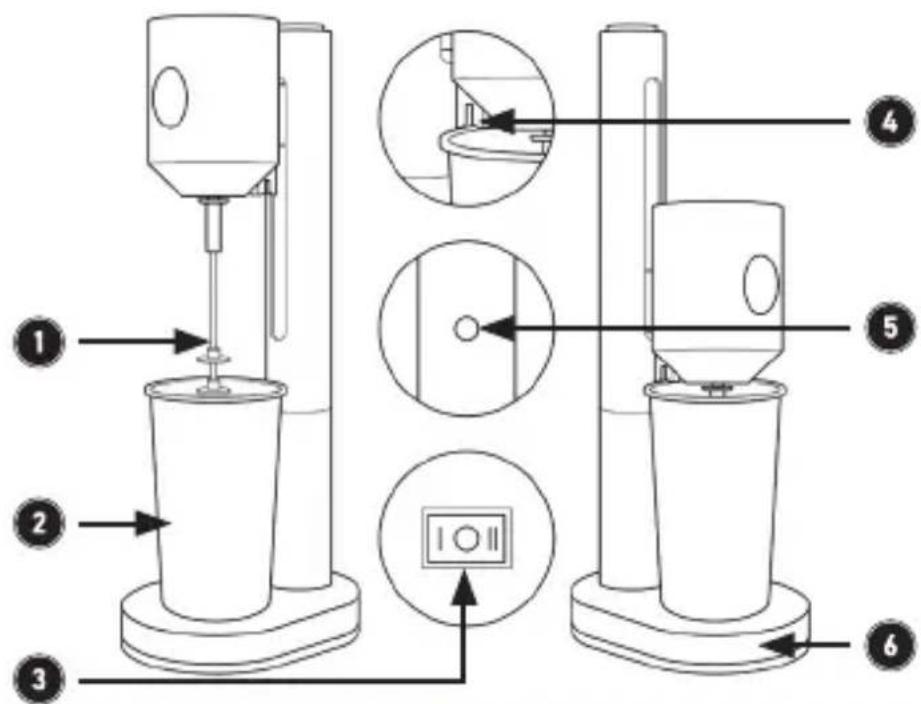

3. Product details

1 Beater
2 Blender jug
3 On/off switch
4 Safety switch
5 Height adjustment
6 Base

4. Before first use

• Ensure that the packaging of this appliance has been disposed of properly.
• Keep all small parts and plastic bags away from babies and children.
• After removing the appliance from the packaging, clean it with a damp cloth. Make sure that no water gets into the appliance and never immerse the appliance in water to clean it!
• Ensure that the rated voltage of the connected socket corresponds to that specified on the rating plate of the appliance.
• Place the product on a flat and dry surface.
• Ensure that all parts of the appliance are correctly assembled before using the appliance.
• Do not switch on the drink mixer without the cup. Never touch rotating parts of the appliance!
• Before using the appliance, lay out the cable completely and make sure that it is not damaged.
• The appliance is only intended for short-term operation of 1 minute. Do not use it for longer than 1 minute in continuous operation.
• Make sure that you always take a break of 1 minute between each use.

5. Commissioning

Remove the appliance from the packaging and remove all packaging material. Check that the supplied appliance is complete. Ensure that the On/Off switch is in the 'Off' position (0) before connecting the mains plug to a suitable and properly connected socket.

Fill the stainless steel beaker supplied with the desired ingredients and set the on/off switch to 'I' or 'II' to select the desired speed level.

Insert the cup into the holder and press the height adjustment button. Place the blender on the beaker so that the safety switch (4) is always pressed by the beaker. The blending process will not start if the safety switch is not pressed!

Finally, set the on/off switch to '0' and allow the appliance to cool down for approx. 1 minute. Keep the drink mixer dry at all times.

Caution! The appliance should not be switched on for longer than 1 minute each time it is used in order to avoid overheating!

6. Cleaning and care

Make sure that you switch off the appliance completely and disconnect the plug from the socket before you start cleaning and maintenance.

Never immerse the product in water or other liquids! Clean the blender housing with a damp cloth. To clean the blender jug, fill the jug with a little water and start the blending process.

If you want to store the appliance, allow it to cool down completely.

7. Safety instructions and disclaimer

Never attempt to open the appliance to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not approved for outdoor use; only use it in dry conditions. Protect it from high humidity, water and snow. Keep the device away from high temperatures. Do not expose the device to sudden temperature changes or strong vibrations, as this could damage the electronic components.

Check the device for damage before use. The appliance should not be used if it has been knocked or damaged in any other way. Please observe the national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy.

Keep it out of the reach of children or mentally impaired persons. Any repair or modification to the appliance that is not carried out by the original supplier will invalidate the warranty or guarantee. The appliance may only be used by persons who have read and understood these instructions. The device specifications may change without prior notice.

8. Disposal instructions

According to the European WEEE Directive, electrical and electronic devices may not be disposed of with household waste. Their components must be recycled or disposed of separately, as toxic and hazardous components can cause lasting damage to the environment if disposed of incorrectly.

As a consumer, you are obliged under the Electrical and Electronic Equipment Act (ElektroG) to return electrical and electronic equipment free of charge at the end of its life to the manufacturer, the point of sale or to public collection centres set up for this purpose. Details are regulated by the respective state law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating, recycling and disposing of old appliances in this way, you are making an important contribution to protecting our environment. For information on authorised collection points in your area, please contact your local city or municipal administration.

WEEE Directive 2012/19/EU

WEEE Register No.: DE 67896761

Hereby, the company WD Plus GmbH declares that the device 307212 / 307767 is in compliance with the essential requirements and other relevant provisions. You can obtain a complete declaration of conformity from WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover, Germany
