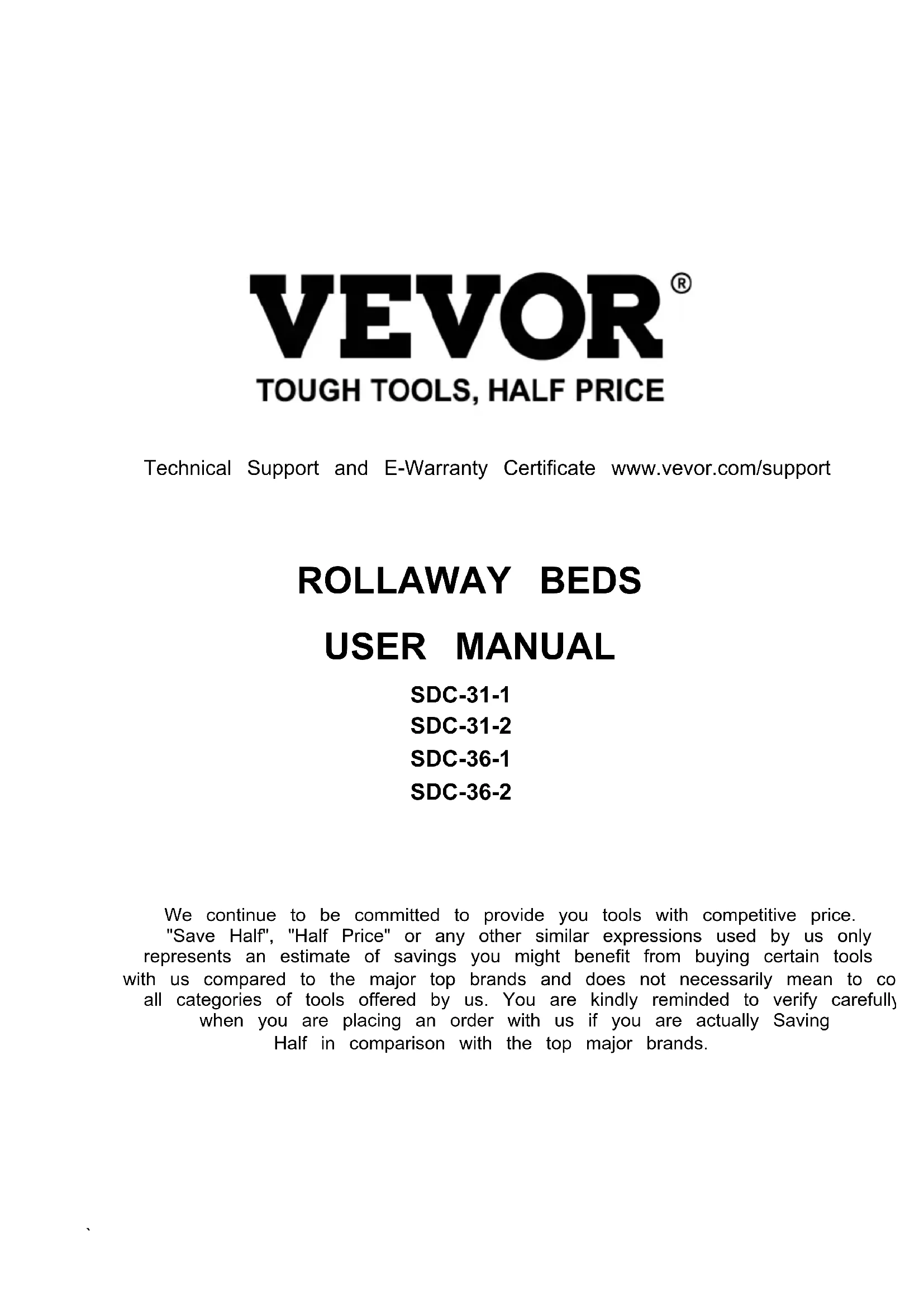

USER MANUAL SDC312 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ROLLAWAY BEDS

USER MANUAL

SDC-31-1

SDC-31-2

SDC-36-1

SDC-36-2

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL:SDC-31-1 SDC-31-2 SDC-36-1 SDC-36-2

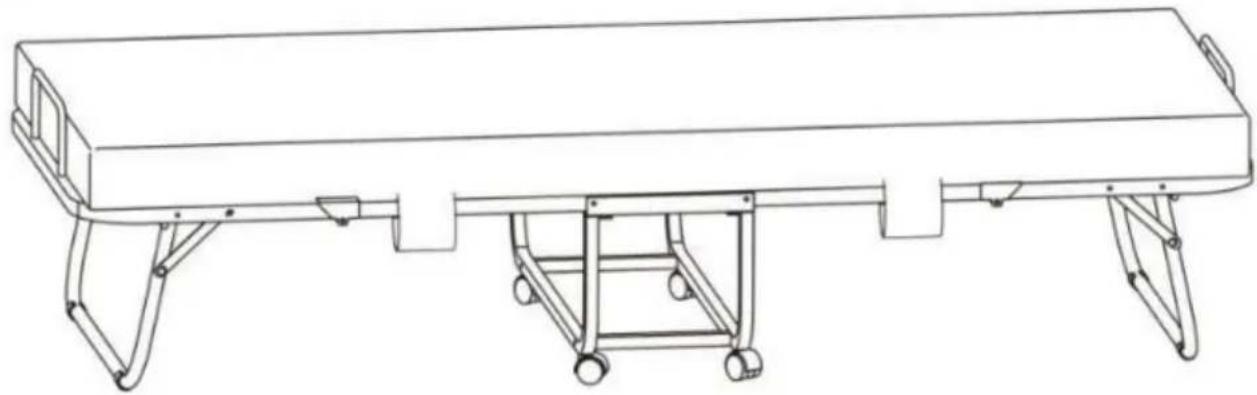

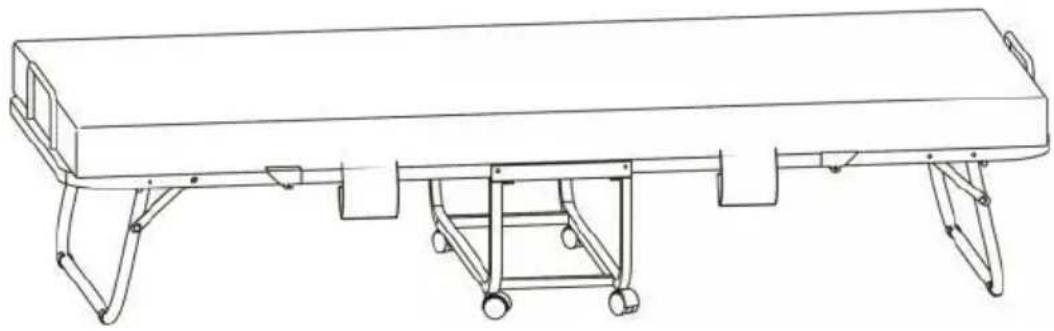

Line drawing of a long rectangular table with support legs and wheels (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so ca result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly may create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Rollaway Beds.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unw and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or item.
3. Do not exceed specified weight capacities.
4. Use only on a flat, level, hard, and smooth surface that can safe support a fully loaded Rollaway Beds.
5. Use as intended only.
6. Inspect before every use; do not use if parts are loose or damage

SAVE THIS MANUAL

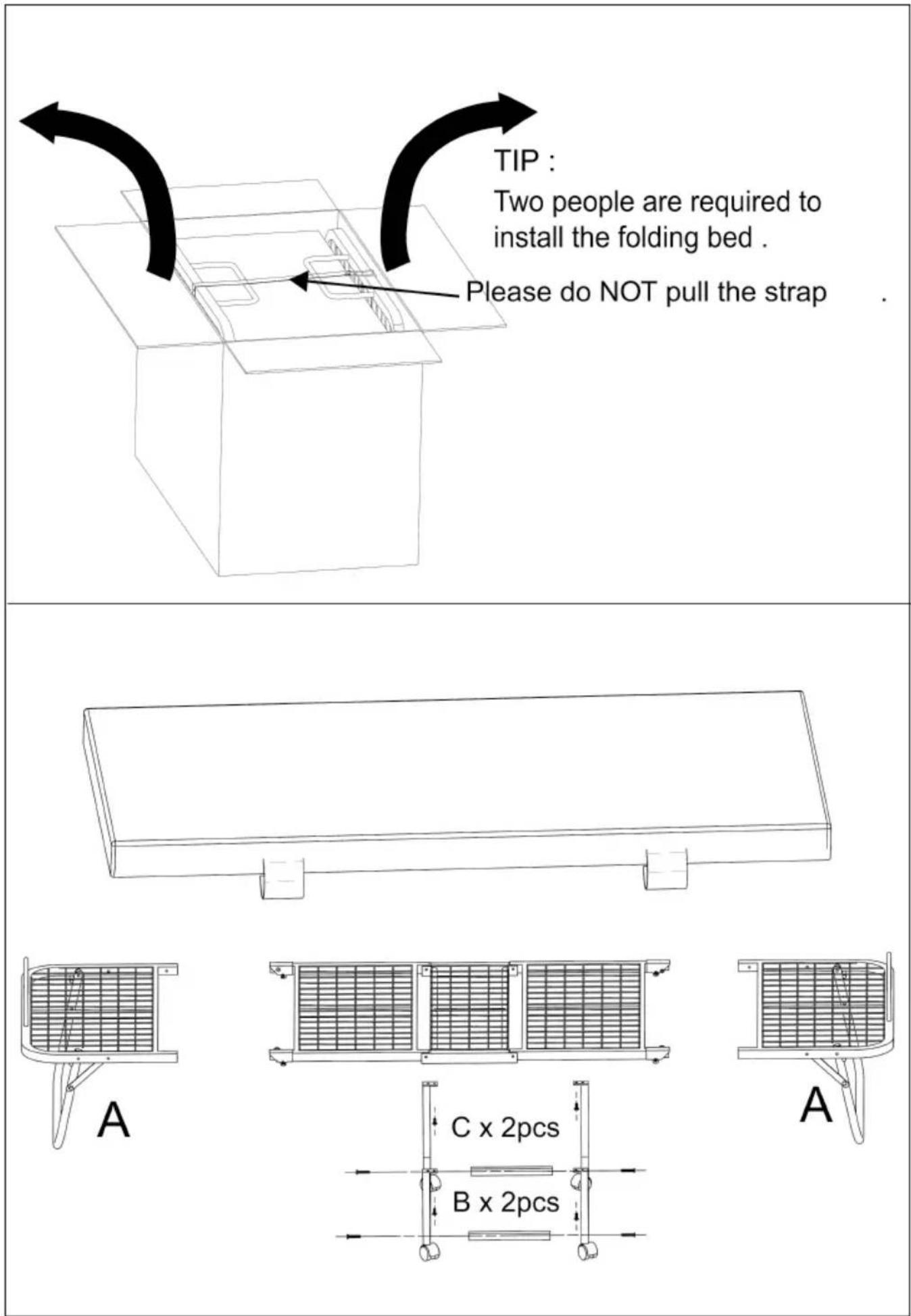

TIP : Two people are required to install the folding bed . Please do NOT pull the strap . A C x 2pcs B x 2pcs A

PARTS LIST

Mattress

Open packing bag, leave the matt ress to expand. Sometimes it only takes a few hours, but other times it can take up to 48 hours to fully expand.

Mattress recovery schedule

Simple line drawing of a rectangular object with two side clips, no text or symbols present

Recovery time	Recovery ratio
1 hour	90 %
3 hours	94 %
24 hours	97 %
48 hours	98 %

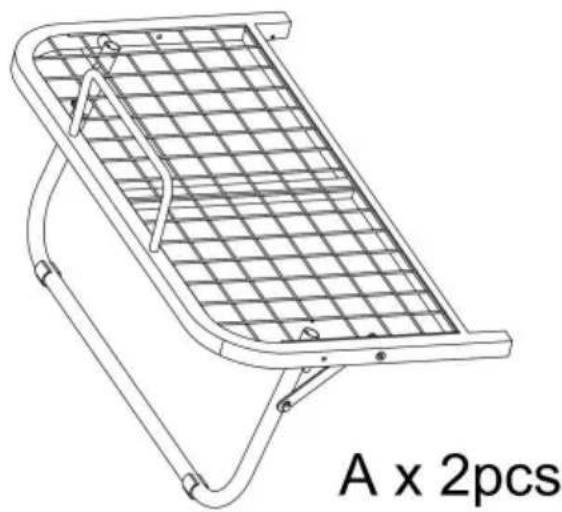

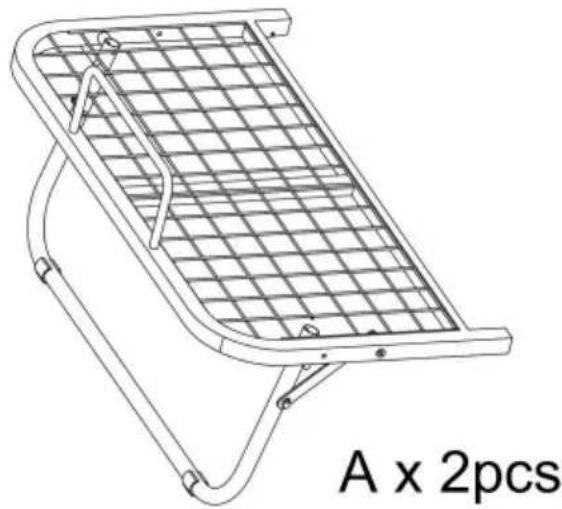

Line drawing of a folding chair with grid pattern and adjustable arm (no text or symbols)

B x 2pcs

Pure 3D wireframe diagram of a bent pipe or bracket (no text or symbols)

Line drawing of four cylindrical mechanical components with flanges (no text or symbols)

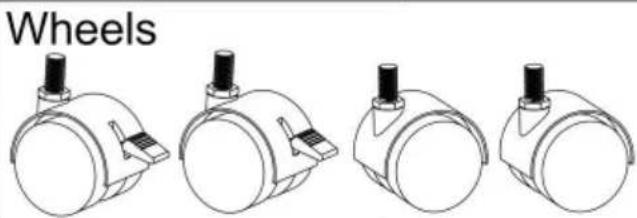

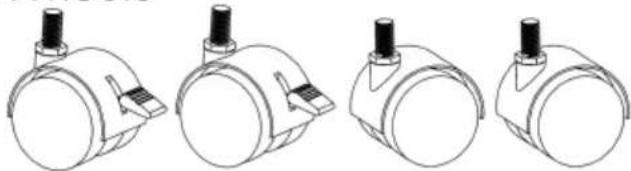

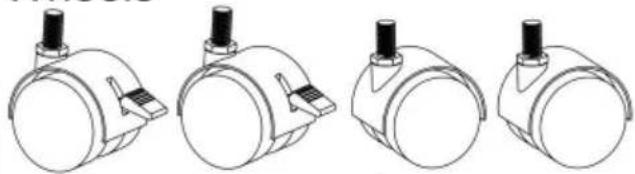

Wheels

Four technical line drawings of a mechanical component with mounting holes and internal features (no text or symbols)

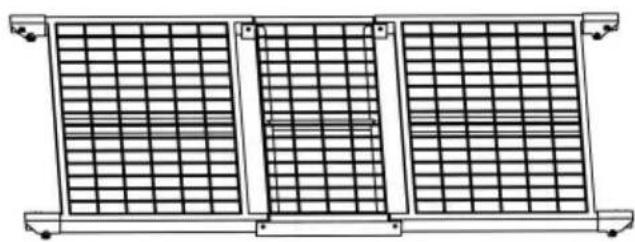

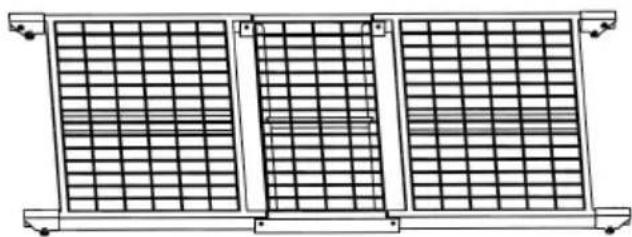

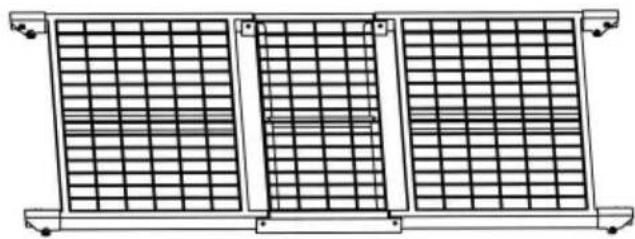

Technical line drawing of a three-panel solar panel structure (no text or symbols)

Simple line drawing of a 2pcs cylindrical object (no text or symbols on the object itself)

①x 4pcs

M6 x 35

② x 8pcs

M6 x 15

③

4mm Allen Key

Line drawing of a double-ended wrench (no text or symbols)

Simple line drawing of a bent pipe or rod with no text or symbols

5mm Allen Key (Used for tighentening the wheels and special screws.)

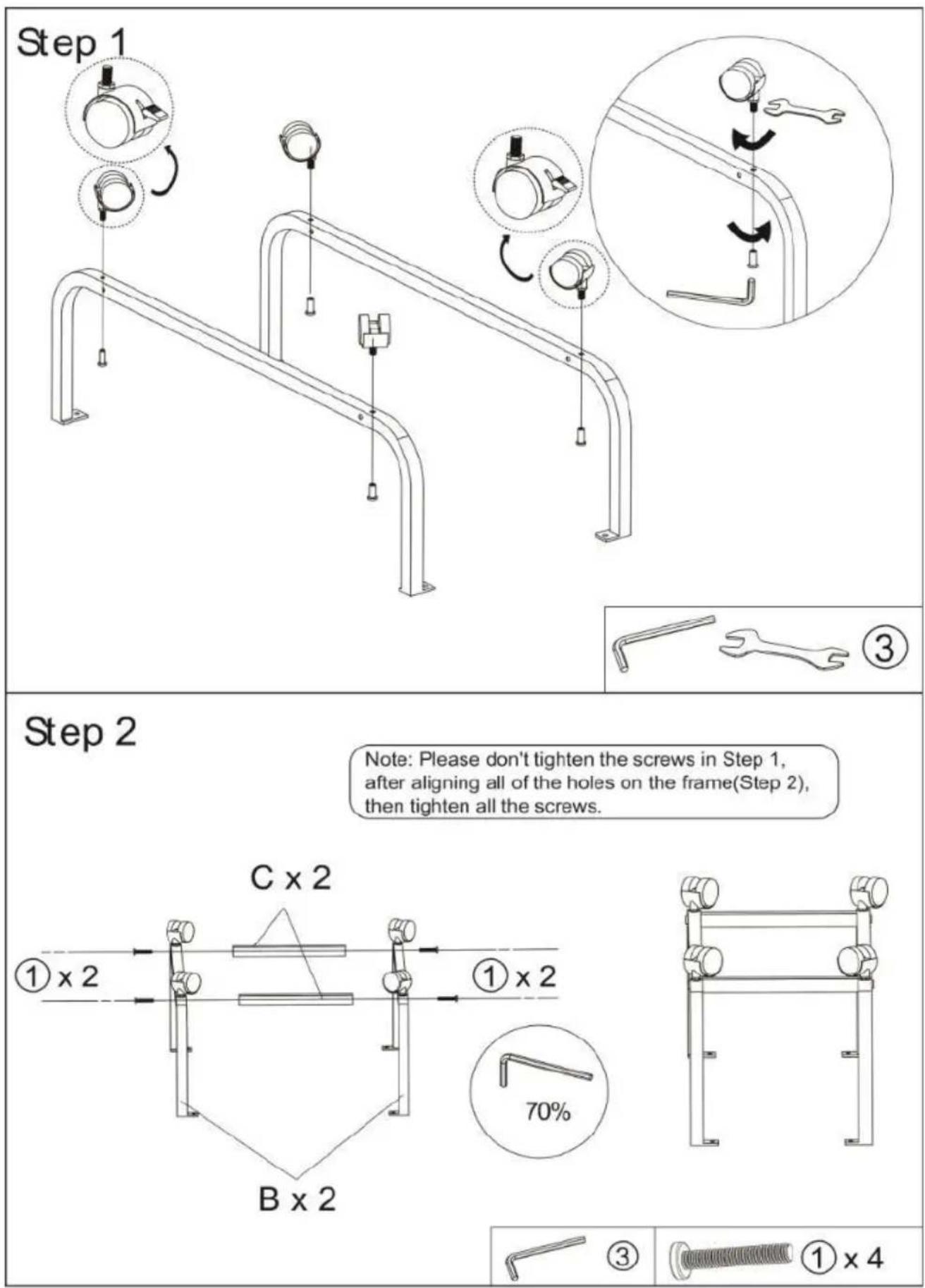

ASSEMBLY STEP

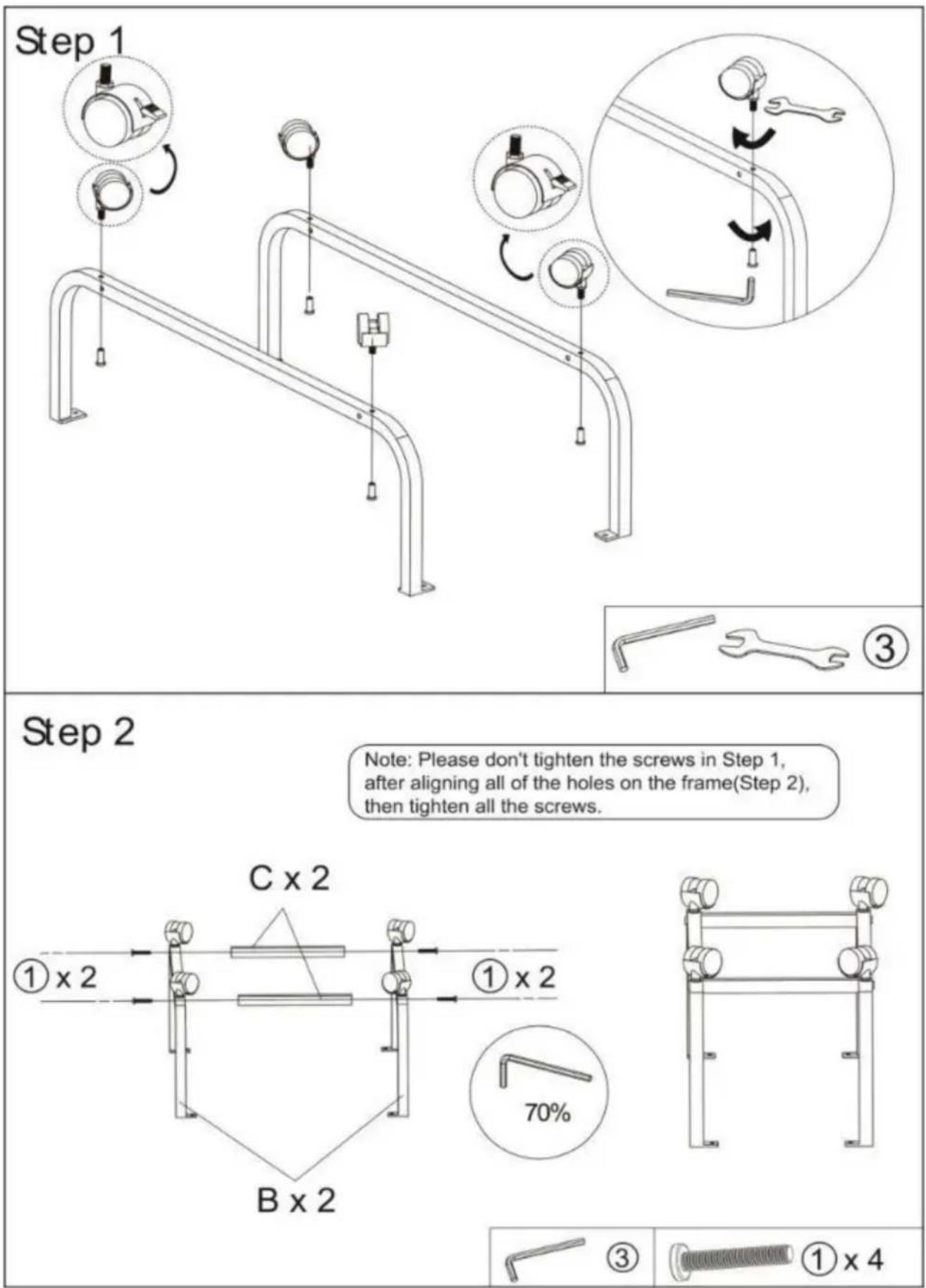

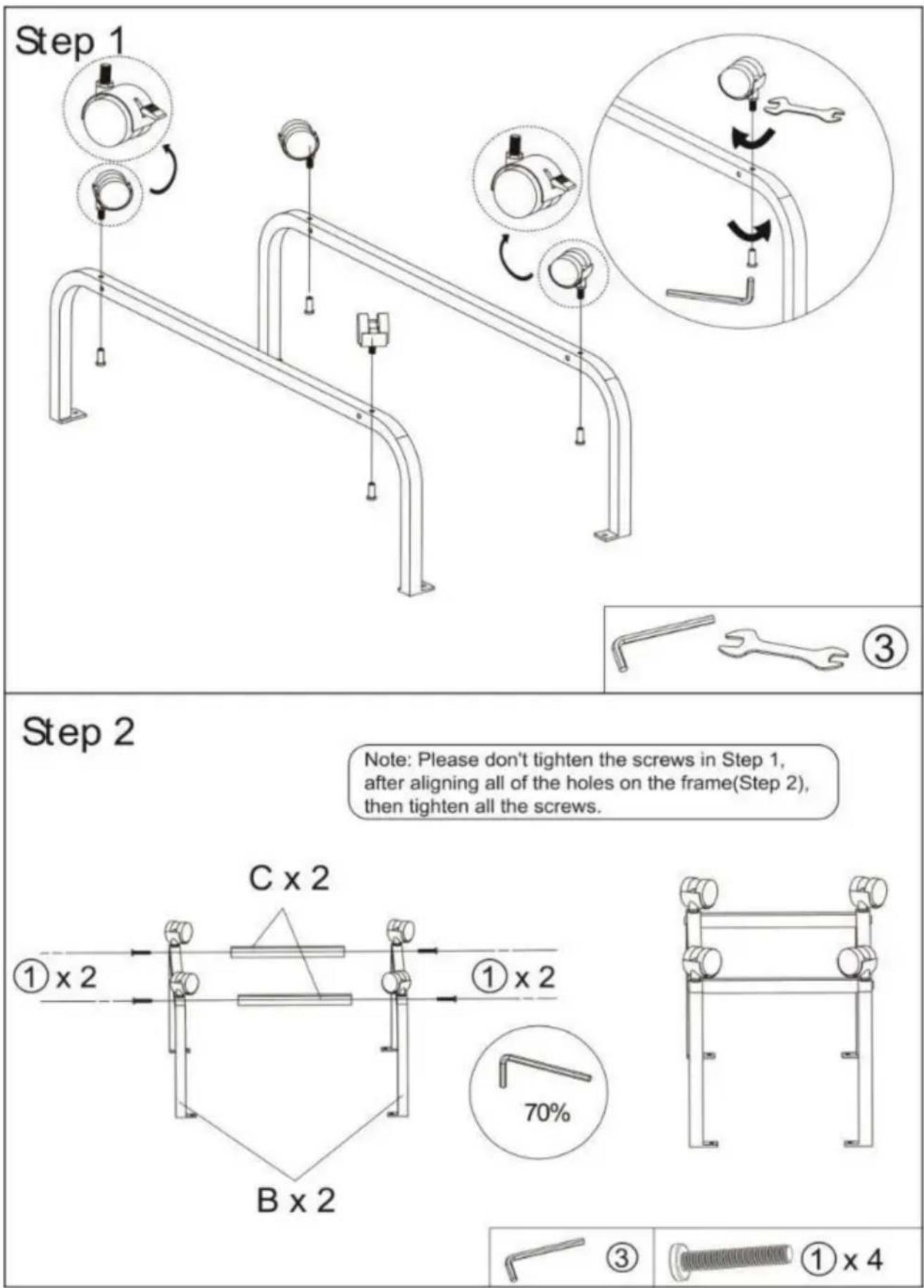

Note: Please don't tighten the screws in Step 1, after aligning all of the holes on the frame(Step 2), then tighten all the screws.

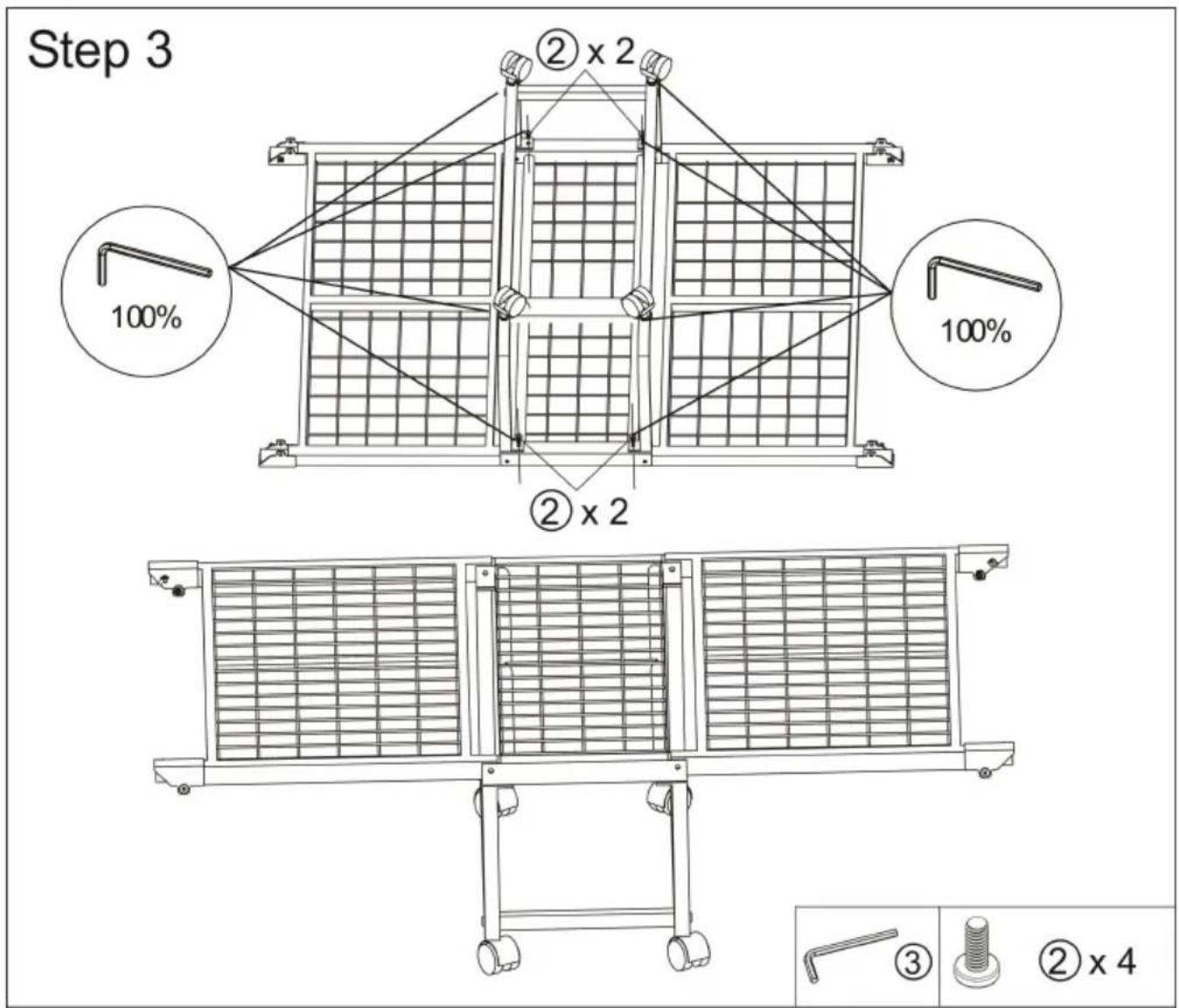

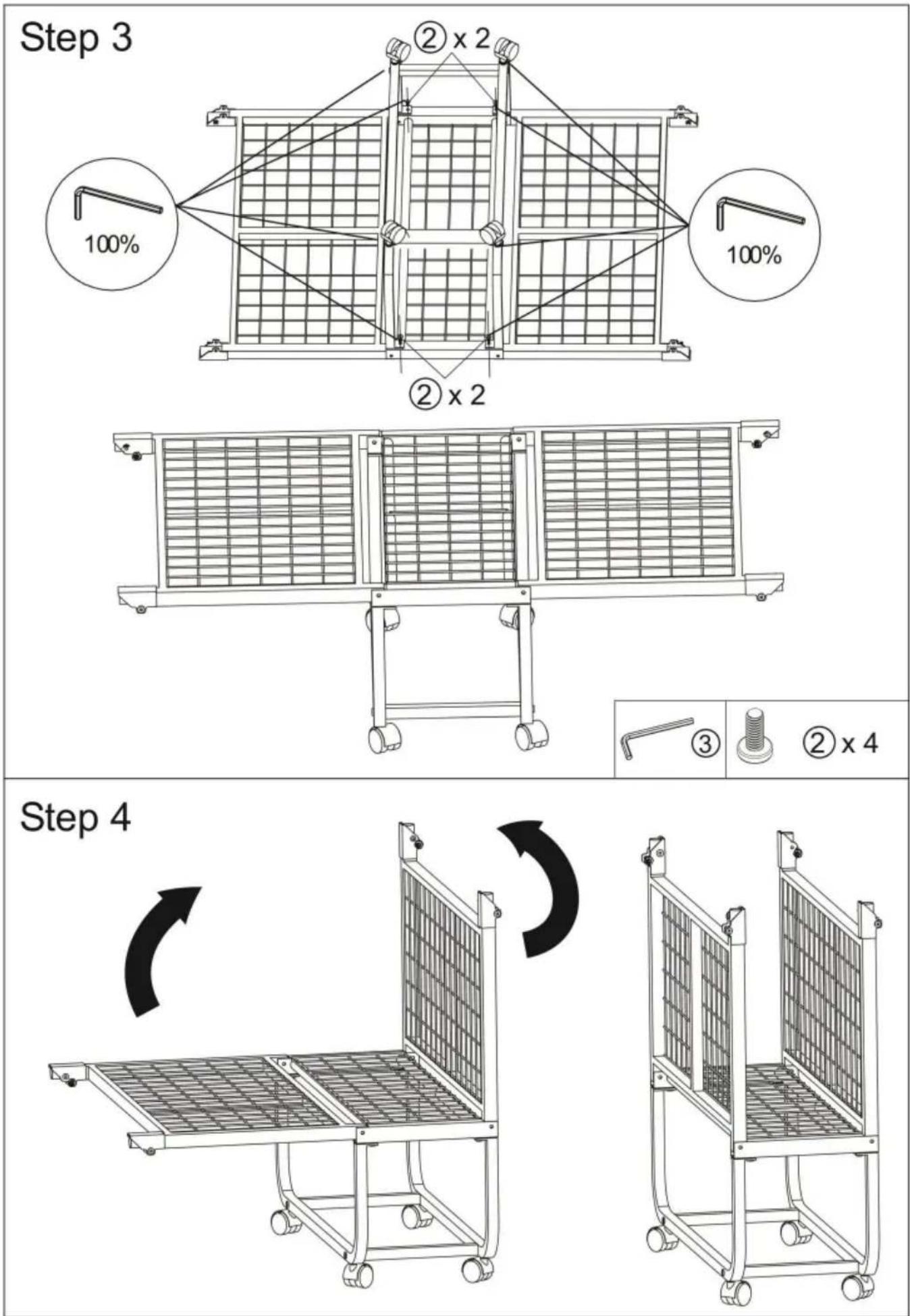

Step 3 ② x 2 100% ② x 2 100% ③ ② x 4

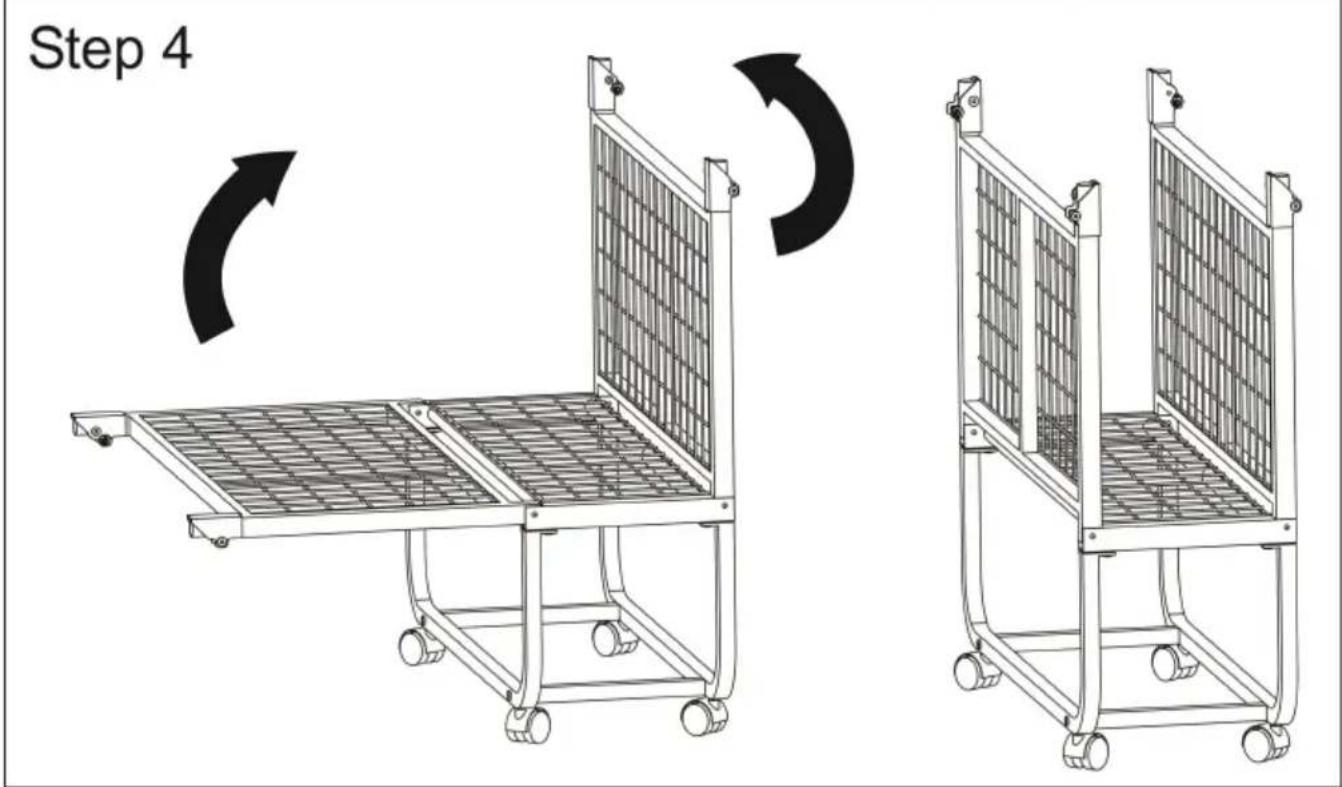

Step 4

Step 5

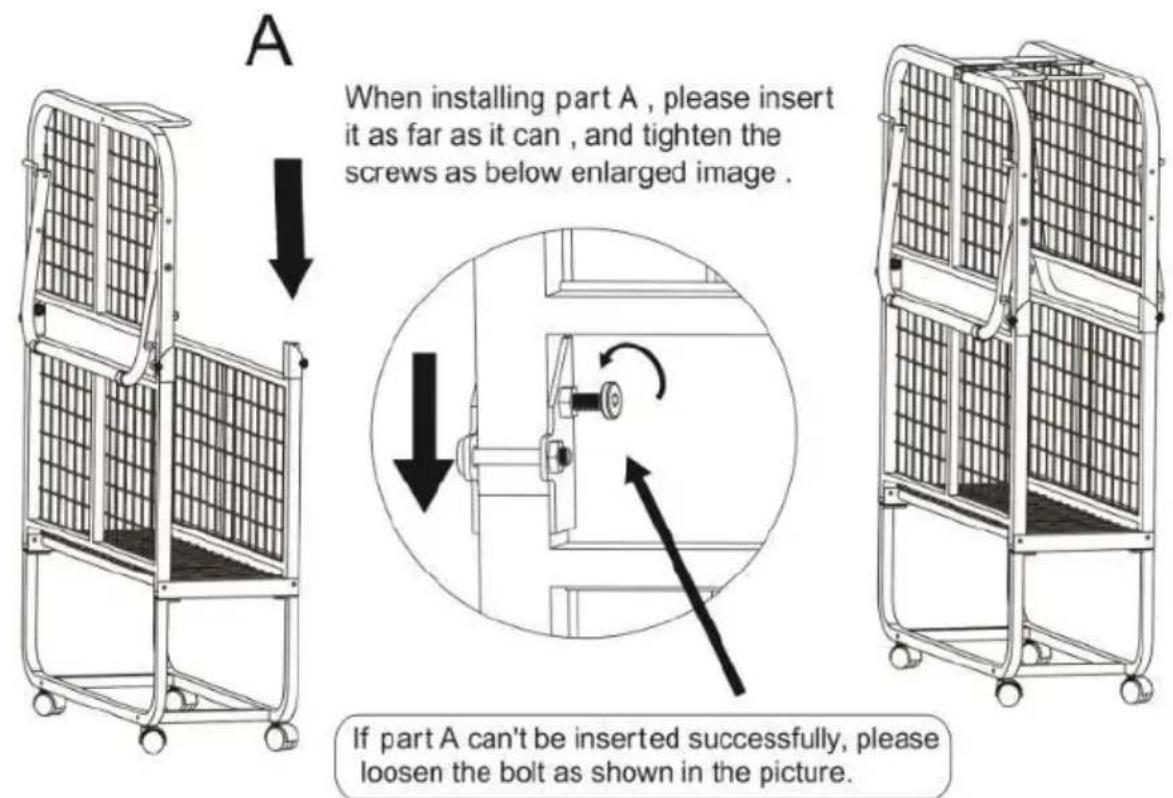

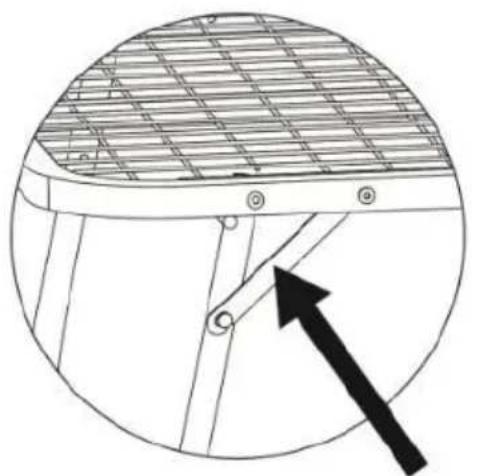

When installing part A, please insert it as far as it can, and tighten the screws as below enlarged image.

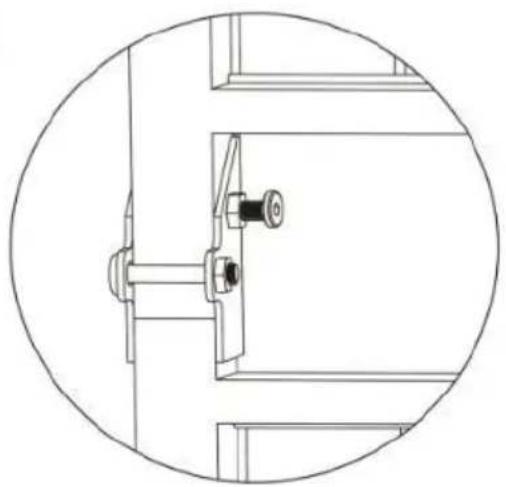

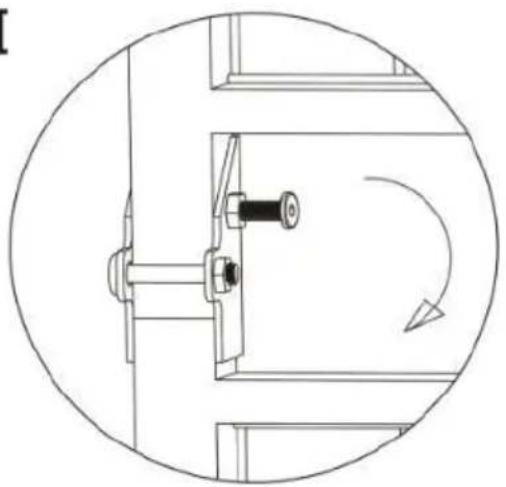

If part A can't be inserted successfully, please loosen the bolt as shown in the picture.

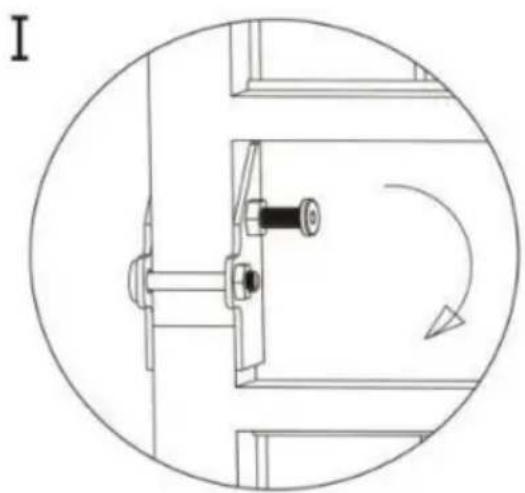

I

Technical line drawing of a mechanical assembly with a circular outline and an arrow indicating rotation (no text or symbols)

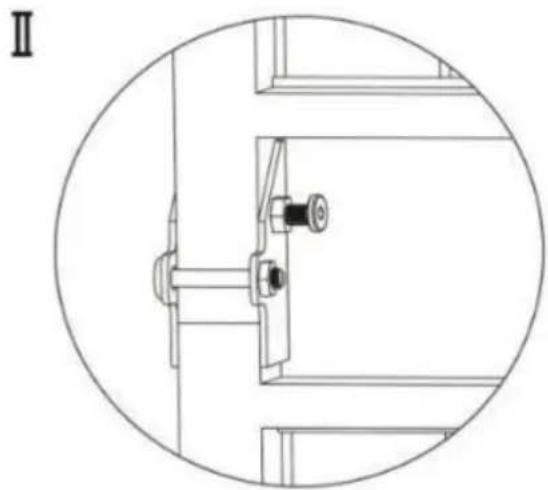

II

Technical line drawing of a mechanical assembly with a circular outline (no text or symbols)

3

2×4

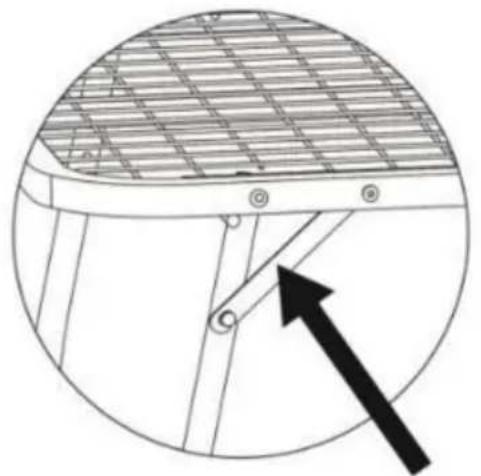

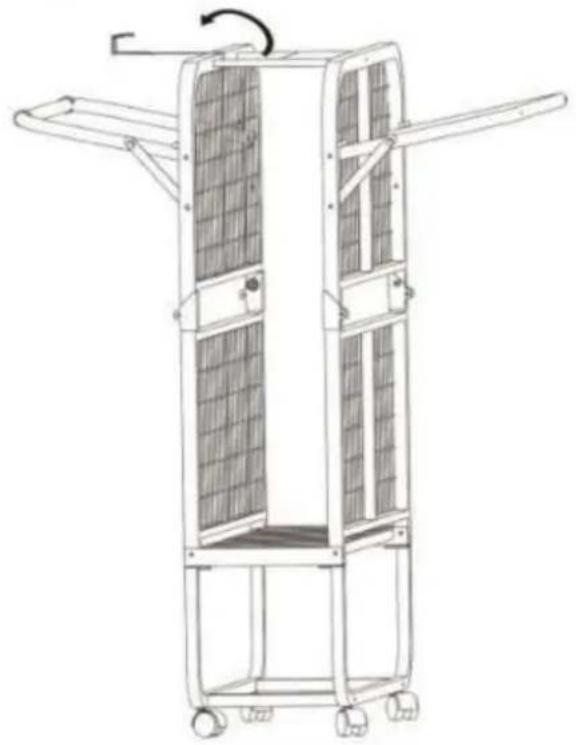

Step 6

Line drawing of a mechanical device with internal panel structure and wheels (no text or symbols)

Diagram of a structural component with grid pattern and directional arrow (no text or symbols)

CAUTION

This step is necessary.

Otherwise it will cause component deformation.

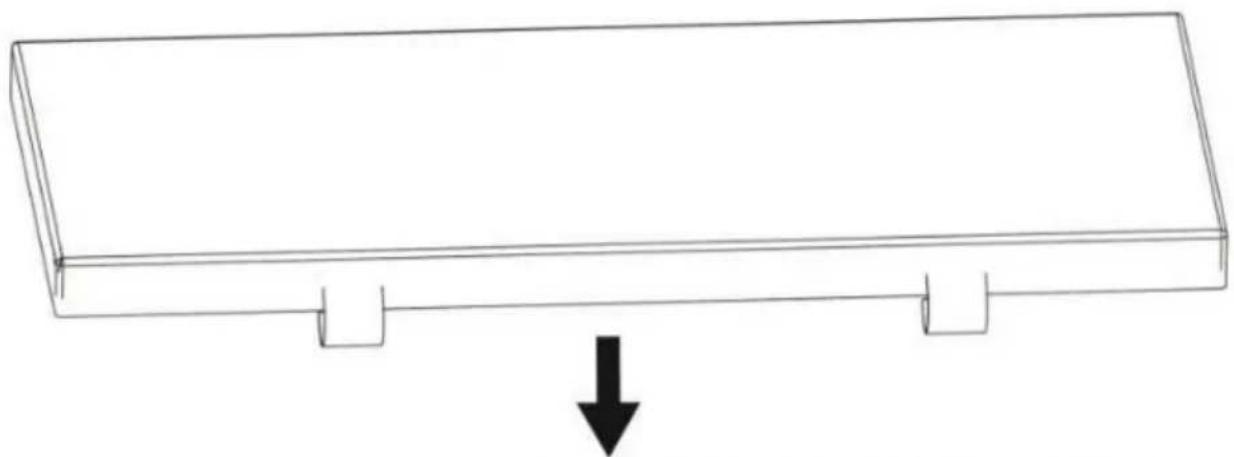

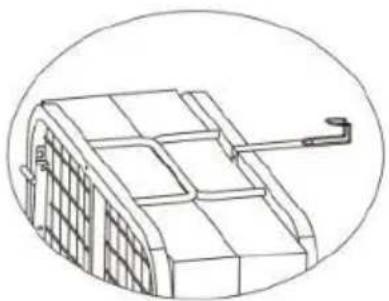

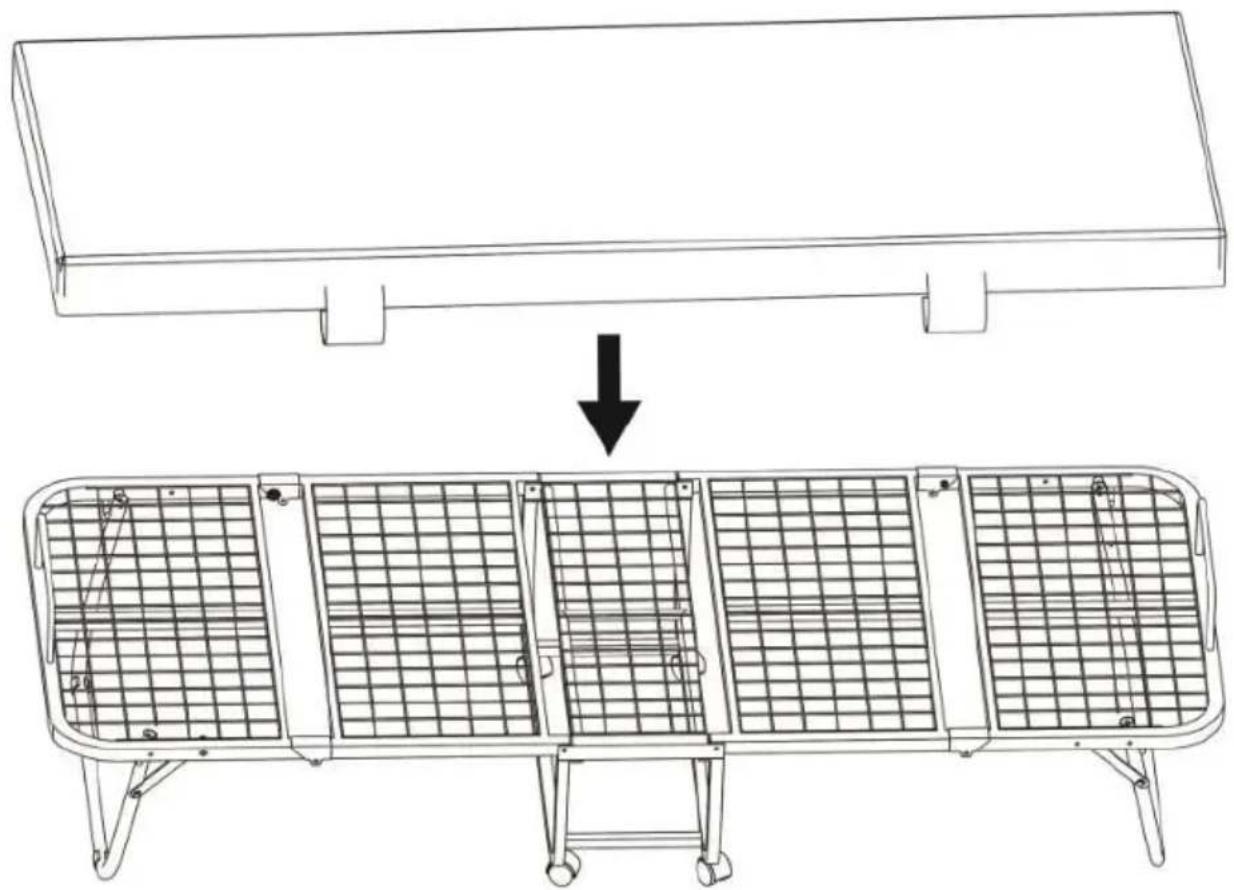

Step 7

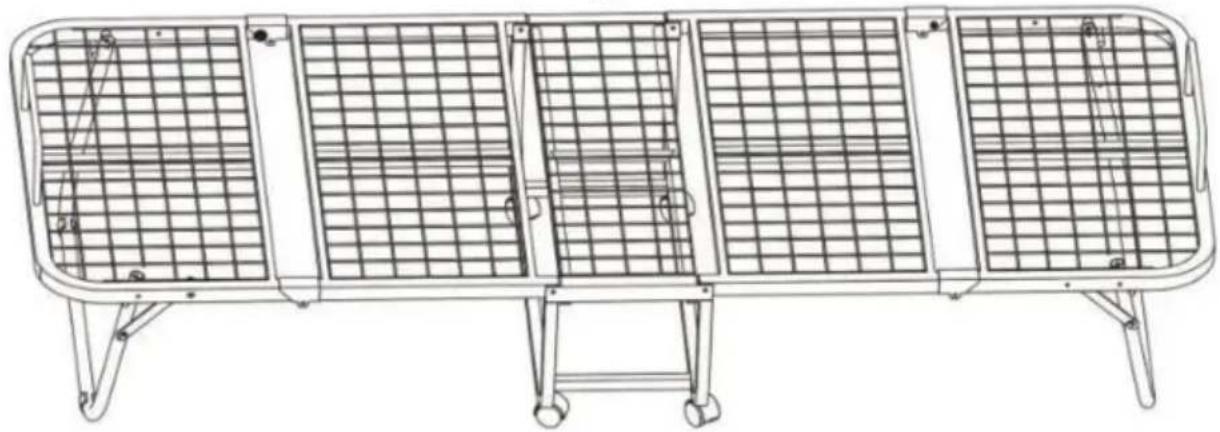

Line drawing of a folding table with grid panels and a rectangular panel, showing structural change (no text or symbols)

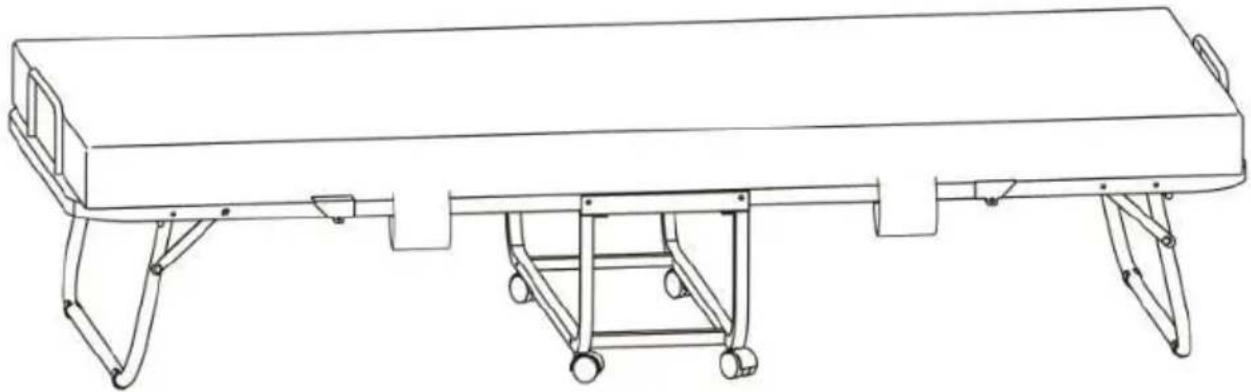

Step 8

Line drawing of a simple rectangular mechanical device with four legs and wheels, no text or symbols present.

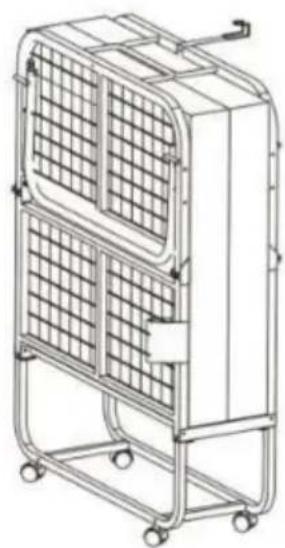

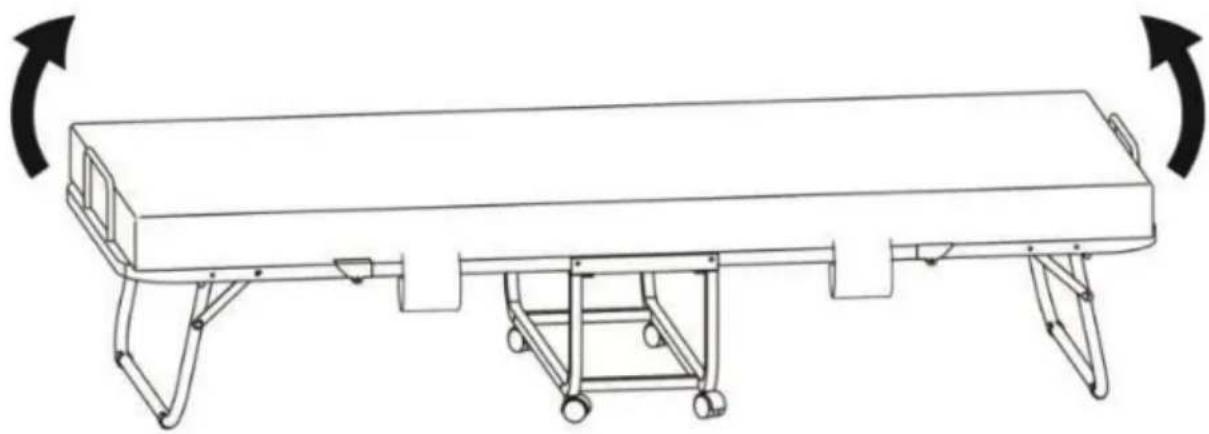

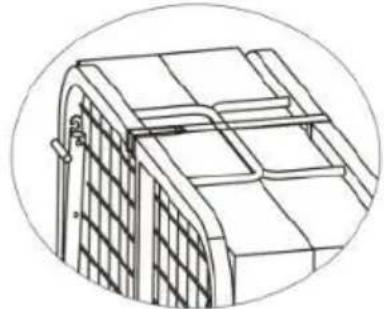

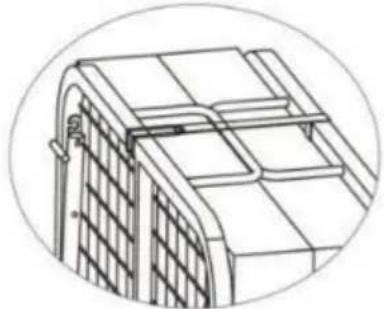

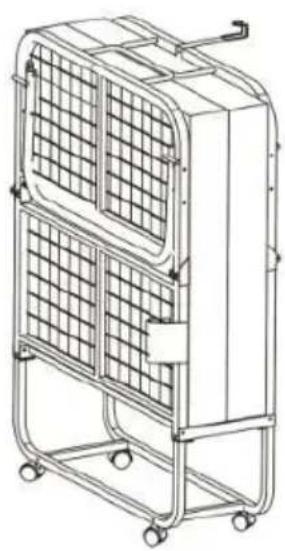

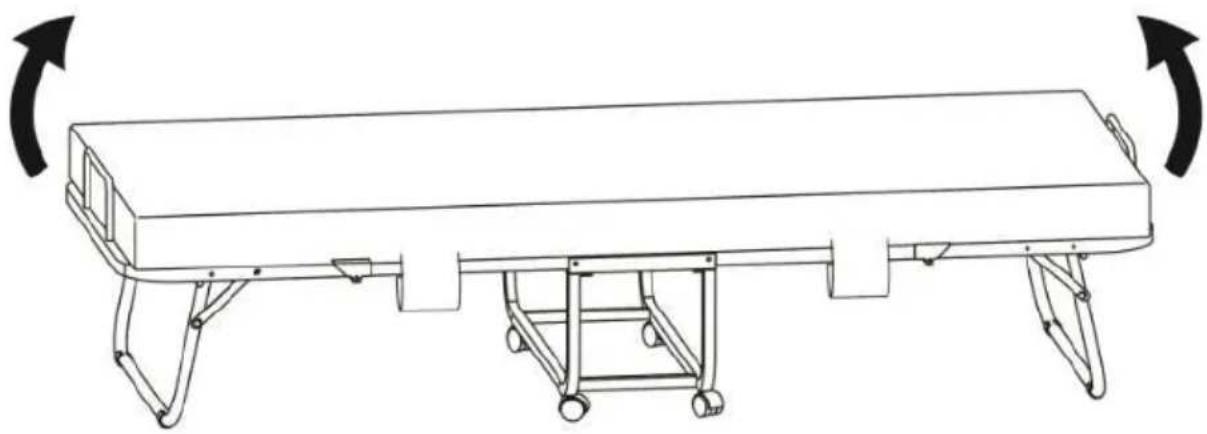

Step 9

Line drawing of a rectangular mechanical device with two curved arrows indicating rotational motion (no text or symbols)

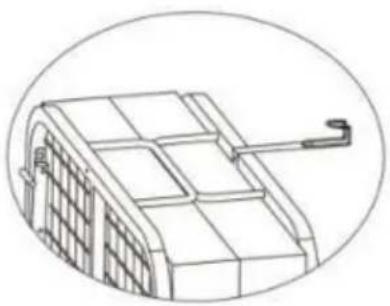

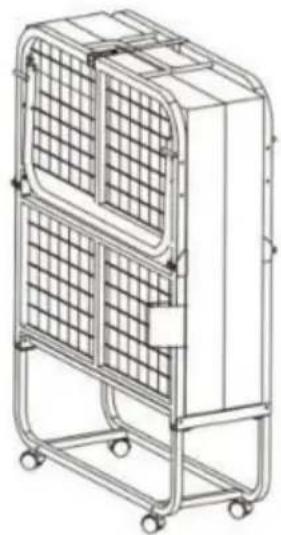

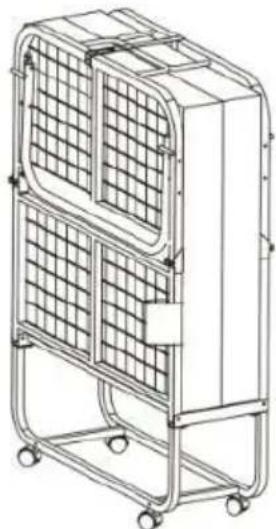

When moving the folding bed, please do NOT pull the strap.

Line drawing of a multi-tiered industrial cart or storage unit with grid panels and wheels (no text or symbols)

Line drawing of a house with arched windows and a chimney (no text or symbols)

Line drawing of a multi-tiered industrial machine with grid panels and wheels (no text or symbols)

Line drawing of a building facade with grid patterns and structural elements (no text or symbols)

PRODUCT PARAMETER

Model	Safe Loading Weight	Product Size
SDC-31-1	300 lbs	1900*810*430 mm
SDC-31-2		1900*810*460 mm
SDC-36-1	450 lbs	1900*965*430 mm
SDC-36-2		1900*965*460 mm

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX
