USER MANUAL Cardio Fit V30 TUNTURI

Download Free Tunturi Training App

Attention, Achtung, Attention, Attentie, Attenzione, Atencion, Giv akt, Huomio

• Please read this assembly manual carefully prior to assembling this product.

• Lesen Sie sich vor der Montage des Produkts these Montageanleitung sorgfaltig durch.

• Veuillez dire attentivement le present manuel d'assemblage avant de monter ce produit.
• Lees deze montagehandleiding zorgvuldig voordat u dit product in elkaar gaat zetten.
• Leggere attentamente quello manuale di montaggio prima di montare il prodotto.
• Antes de montar este producto, lea atentamente estemanual de montaje.
• Läs den HAR monteringshandboken noggrant fore användning av den HARprodukten.
• Lue tāmā asennusohje huolellisesti ennen tāmān tuotteen asennusta.

A

B

Cardio Fit V30 Vibration Plate

C

	Program	15min	14min	13min	12min	11min	10min	9min	8min	7min	6min	5min	4min	3min	2min	1min
Low speed	P0	4	8	10	12	17	20	24	20	17	6	12	17	20	24	20
	P1	2	4	6	8	10	13	15	12	9	8	8	10	13	15	12
	P2	8	14	8	14	8	20	8	14	8	14	14	8	20	8	14
Medium speed	P3	12	23	29	38	49	56	68	76	48	29	38	49	56	68	76
	P4	9	13	16	21	24	35	67	50	38	30	21	24	35	67	50
	P5	23	55	23	55	23	55	23	55	23	55	55	23	35	23	55
	P6	11	11	25	25	38	38	48	48	25	25	25	38	38	48	48
High Speed	P7	30	30	50	50	70	70	40	40	60	60	50	70	70	40	40
	P8	55	40	55	40	50	77	80	65	65	99	40	50	77	80	65
	P9	40	85	75	65	25	96	78	60	65	80	65	25	96	78	60

D

USER MANUAL ON OUR WEBSITE

To reduce the impact on the environment, you will only find the assembly steps in this manual. To learn how to use and maintain this product, please download the user manual from:

manuals.tunturi.com

Index

Welcome. 5

Safety Precautions environment for

use 5

Explanation of illustrations. 6

Description illustration A. 6

Description illustration B. 6

Description illustration C. 6

Description illustration D. 7

Additional environmental information .7

Additional resistance ropes. 7

Remote control. 7

Cleaning and maintenance. 8

Warranty. 8

Declaration of the manufacturer .... 8

Disclaimer 8

Welcome

Important Safety Instructions

This manual is an essential part of your training equipment please read all instructions in this manual before you start using this equipment. The following precautions must always be followed:

Safety Precautions environment for use

• Do not use the vibration plate in humid or dusty environment to avoid electric shock or break down of the mechanical parts.
• Do not use the vibration plate when indoortemperature is over 40^
• Do not use the vibration plate in the open air or under the direct sunlight.
• Place the vibration plate on flat floor.

DANGER

• Please wait for one hour before using the vibration plate when it is moved from low to high temperature, to prevent water vapour from condensing on the machine and resulting in any failure.

People with health conditions below are not suggested to use the vibration plate.

• It is strongly advised to consult your doctor before use, especially for patients who are under treatment or do not feel well.
• Patients with malignant tumour.
• Pregnant women or in menstrual period.
• People with heart disease, osteoporosis patients.
• People heart pacemaker or other medical electronic instrument implanted.
• People with artificial limb;
  People who are sensitive to vibration and strenuous exercise.

© Notices during operation

• Before use, please undress watch, bangle, cell phone or other valuable objects, and keys, knife or other incisive objects to avoid damage or body injury.
• Do not smoke while using the vibration plate.
• Do not use the vibration plate together with other medical equipments.
• Do not use the vibration plate for medical treatment purpose.
• Do not use the vibration plate right after a meal or drink.
• While using, please keep children and/ or pets away from the vibration plate.
• It is forbidden to put fingers or other body parts into the gap between the middle cover and base cover.
• Supervision is needed for child under 10 years and the aged over 60 years during using the vibration plate.
• The load capability of the vibration plate is 150kg (330lbs), people over this weight are not suggested to use the vibration plate.
• This vibration plate is only limited for one-person use.

WARNING

• Unauthorized dismantle, disassembly or renovation is not allowed to prevent electrical shock or any malfunctions. Please contact manufacturer or local dealer immediately if there is any service work needed.

Stop using the vibration plate and unplug power cord from the power supply immediately under below conditions.

• Water or other liquid is accidentally splashed onto the vibration plate or controller.
• Any accessory is found damaged or internal component is exposed.
• Feel abnormal or severe pain during use.
• Power failure.
• Thundering or lighting weather.

Plug and power cord

• Check if the voltage complies with the one specified for the vibration plate.
• Do not retract the power plug with wet hand to prevent electric shock.
• Hold the plug rather than the power cord to pull out the power cord.

• Turn off the power switch and remove the plug from the power supply in case of electrical failure or if not in use for a long time.

• Stop using the vibration plate if the power cord has any damage, turn off the power switch, pull the plug, and replace the power cord or contact technicians for repair.

• Do not run the mains cable underneath the equipment. Do not run the mains cable underneath a carpet. Do not place any objects on the mains cable.

Grounding Instructions

This product must be grounded. If the equipment electrical system should malfunction or breakdown grounding provides a path of least resistance for electric current, reducing the risk of electric shock. This product is equipped with a cord having an equipment-grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING

• Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product if it will not fit the outlet; have a proper outlet installed by a qualified electrician.

Explanation of illustrations

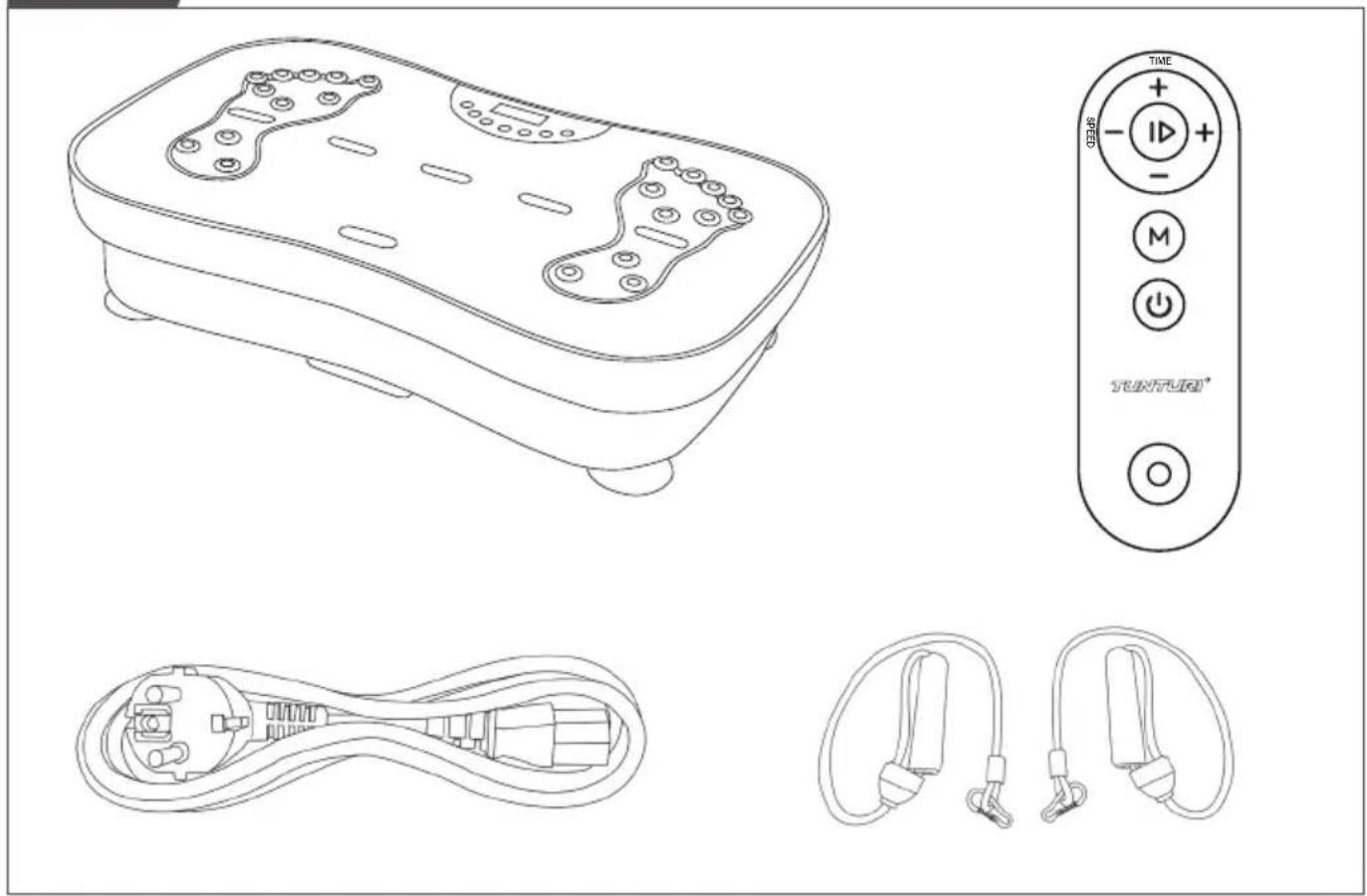

Description illustration A

The illustration shows what components and parts you should find when un-boxing your product.

NOTE

• Small parts can be hidden/ packed in hollow spaces in the Styrofoam product protection
  If a part is missing, contact your dealer.

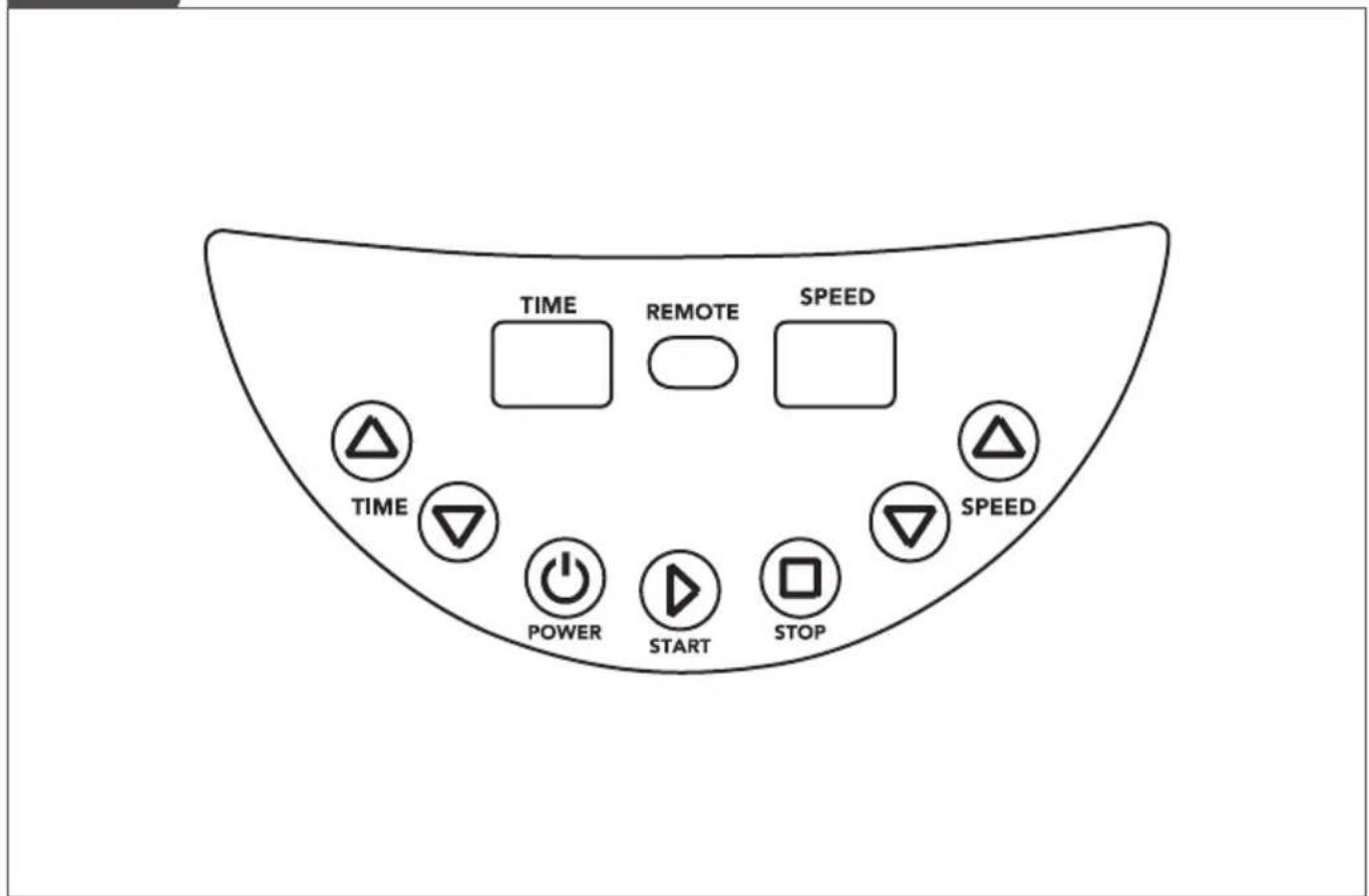

Description illustration B

The illustration shows the control panel button overlay.

Description illustration C

The illustrations show the pre programmed program profiles.

Description illustration D

To fit/ Replace the batteries.

See: Remote control.

Additional environmental information

Packaging disposal

Government guidelines ask that we reduce the amount of waste material disposed of in land fill sites. We therefore ask that you dispose of all packaging waste responsibly at public recycling centres.

End of life disposal

We at Tunturi hope you enjoy many years of enjoyable use from your fitness trainer. However, a Time will come when your fitness trainer will come to the end of its useful life. Under 'European WEEE Legislation you are responsible for the appropriate disposal of your fitness trainer to a recognised public collection facility.

Additional resistance ropes

Your trainer comes with additional resistance ropes that can be used to intensify or vary your workout as you please.

WARNING

• The additional resistance ropes can only be used when standing on the equipment, this to avoid lifting the complete machine and therewith risking machine damage of the impact when the machine comes down again.

Attach the additional resistance ropes

• Take the carabiner closure of the additional resistance rope and attach this to one of the rings/brackets on the bottom left or right side of your trainer
• Only one additional resistance rope can be attached to each of the two available rings.
• Remove the bungee in the reverse following order.

Adjust the resistance ropes length

To adjust the resistance ropes to your body length it is recommended to adjust the length accordingly.

• To adjust the length of the resistance rope, push the rope through the slider on the hand-grip side, and pull it tight again through the handle.

Remote control

The remote control comes without batteries, and needs to be purchased and installed prior to use. The remote control requires 1 pcs. of CR2032 size battery.

To fit/ Replace the batteries

• Remove the cover.
  Located on the back side.
• Remove the old batteries.

Only valid when replacing the batteries for fresh ones.
- Insert the new batteries.

Make sure that batteries match the (+) and (-) polarity markings.

• Mount the cover.

NOTE

• Empty batteries should always be recycled per your Local legal regulations to save the environment.

WARNING

• Do not expose batteries to big temperature changes to prevent the batteries from leaking.
• To prevent your batteries from leaking, take them out if you plan on not using your device for longer periods of time.

Button functions

The button functions for the remote control are corresponding with the main unit display buttons, and therefore have the same functionality.

The Remote control works on an infrared protocol. Therefore it requires an unblocked air space between remote control's transmitter and console receiver for proper functionality.

Cleaning and maintenance

WARNING

• Before cleaning, ensure the power switch is turned off, and the attaching plug is pulled out of the socket.
• The rubber protective top mat and covers can be cleaned with a wet cloth containing detergent, and the detergent should be removed with a cloth notice
• Do not clean the vibration plate with corrosive detergent such as benzene or thinner, as it may cause fading, corrosion or crack on the vibration plate's shell.
• Do not splash water into the vibration plate to avoid short circuit.
• Cleaning and user maintenance shall not be made by children without supervision.

Change of fuse: turn the fuse base in the direction of the arrow (counter-clockwise), and replace the fuse with a clockwise screw back.

Warranty

Tunturi purchaser's warranty

Warranty terms

The consumer is entitled to the applicable legal rights stated in the national legislation concerning the commerce of consumer goods. This warranty does not restrict these rights. The Purchaser's Warranty is only valid if the item is used in an environment approved by Tunturi New Fitness BV, and is maintained as instructed for that particular equipment. The product-specific approved environment and maintenance instructions are stated in the "user manual" of the product. The "user manual" can be downloaded from our website.

http://manuals.tunturi.com

Declaration of the manufacturer

Tunturi New Fitness BV declares that the Cardio Fit V30 Vibration plate is in conformity with the following standards and directives:

• Low Voltage Directive (2014/35/EU)
• Electromagnetic Compatibility Directive (2014/30/EU)
• RoHS Directive (2011/65/EU)
• General Product Safety Regulation (GPSR) - (EU) 2023/988
• Battery Regulation (EU) 2023/1542.

The full text of the EU declaration of conformity is available at the following internet address: https://doc.tunturi.com

Tunturi New Fitness BV

Purmerweg 1

1311 XE Almere

The Netherlands

Disclaimer

© 2025 Tunturi New Fitness BV

All rights reserved.

• The product and the manual are subject to change.
• Specifications can be changed without further notice.
• Check our website for the latest user manual version.
