USER MANUAL Nova Spark Ghost
The occupation of the connection-cables is as follows:
| Cable | Pin | International | |
| Brown | Live | L | |
| Blue | Neutral | N | |
| Yellow/Green | Earth |  | |
EN- Instructions for use
This manual, as well as the cardboard and plastic packaging, should be recycled in the yellow bin.
WARNING!
Before using your equipment, we recommend that you read all the instructions in this manual.
DANGER!
Risk of electric shock.
It is important to use the supplied power cord (cord with ground).
Always unplug the device before performing any technical work or maintenance.
Do not connect this device to a variable power supply such as a "dimmer pack."
To reduce and avoid any risk of electric shock or fire, do not use this device in a damp environment or in the rain. Always unplug the device before cleaning it.
WARNING!
Risk of burns.
It is important to avoid contact with the device while it is in operation and for at least 30 minutes after use. The exterior of the device may become very hot. Never block the spark outlet with your hands or any objects.
DANGER!
This device presents a significant risk of injury. It is important to handle and use this device in a professional
manner.
The device must be installed by a qualified person and must be placed out of reach of the public.
In the event of a malfunction, stop the device immediately. Do not attempt to repair it yourself. Contact your dealer or a qualified repair technician. There are no user-replaceable parts.
Please note that this machine is not intended for continuous use. The maximum operating time is 20 seconds and can be repeated but must not be exceeded to avoid overheating the machine.
It is important to ensure that no objects fall into the opening from which sparks escape, as this may cause irreversible damage to the appliance. The same applies to the powder container.
Please check this before each use.
Never use this machine near a flammable surface or object/liquid.
Make sure the powder container is properly closed before using your machine (fire hazard).
Make sure that sparks do not come into contact with any objects.
Never block the spark projection opening.
Ensure that the machine is operated in a well-ventilated area.
The machine is equipped with an internal temperature detection system in the air duct.
If the fan stops working and hot metal powder falls to the bottom of the air duct, the system will automatically stop all machine operations within 10 seconds to prevent fire.
During this protective shutdown, the main indicator light flashes slowly, indicating a high temperature, and the system shuts down completely.
⚠️If the machine enters protection mode, immediately disconnect the power supply and wait at least 5 minutes to allow the machine to cool completely.
Once cooling is complete, reconnect the power supply and restart the machine to determine if it can resume normal operation.
- Introduction
Congratulations on purchasing this Mac Mah device.
This professional appliance is equipped with the latest technological advances and has been designed for professional use. Its quality and reliability are the result of careful manufacturing and precise specifications.
CE This device complies with current European standards: EN 2014/30/EU, EN 2011/65/EU, EN 2014/35/EU.
- Product description
Cold spark machine
For use with Ghost's Spark Powder 50 only. Use with any other type of granule is not recommended.
Heating time: 3 to 4 minutes
Heating element: 500W
Continuous spark production for up to 20 seconds
Maximum output: 2 to 3 meters projection
Controlled by remote control (supplied)
Fuse: 3A/230V
Power supply: AC220-240V, 50/60 Hz
Power consumption: 500W
Product dimensions: 190 x 155 x 145 mm
Gross weight: 4 kg
Net weight: 3.2 kg
- Mains power cable connection
The occupation of the connection-cables is as follows:
| Cable | Pin | International |
| Brown | Live | L |
| Blue | Neutral | N |
| Yellow/Green | Earth |  |
The earth or "ground" must always be connected. Power cables must be approved and comply with the IEC standard.
- Main indicator light (on the machine)
Indicator light off:
The machine is in standby mode and cannot operate or produce sparks.
Fast flashing:
The machine is in heating mode. (after starting heating with the remote control)
Slow flashing:
The machine is in overheating protection mode.
Steady light:
The machine is ready to operate and may spray sparks.


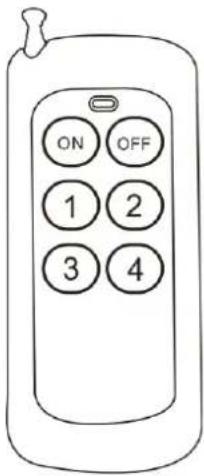

ON OFF 1 2 3 4○ Remote control operation
ON. The machine is heating up. The green LED indicator on the side of the machine flashes.
OFF. Heating stopped. The indicator LED on the side of the machine turns off.
-
Sparks are projected for 5 seconds when the machine has reached the correct temperature. The indicator LED is lit continuously.
-
Sparks are emitted for 10 seconds when the machine has reached the correct temperature. The indicator LED is lit continuously.
-
Spark projection for 20 seconds when the machine has reached the correct temperature. The indicator LED is lit continuously.
-
Cleaning function. To clean residual powder. This function can only be used when the machine is not heating (OFF). Press and hold button 4.
• Care and maintenance
○ Cleaning
The outside of the appliance must be cleaned regularly. If the appliance is installed in a dusty environment, regular maintenance is very important. Unplug the appliance before cleaning!
Use a soft, clean cloth. Always dry the cleaned parts thoroughly.
DANGER!
Risk of electric shock.
• Always unplug the device before performing any technical work or maintenance.
Here are some suggestions if you encounter problems with your device.
• The appliance does not work at all.
- Check the power cord and fuse.
○ Make sure your outlet is working.
• There are no sparks
- Check that there is enough powder in the tank
- Perform an internal cleaning using the Clean function.
- Check that the machine has reached the correct temperature (LED is steady)
• Technical specifications
| Power | 500W |
| Power | AC220V - 240V 50/60 Hz |
| Fuse | 3A |
| Heating time | 3 to 4 minutes |
| Operation | HF remote control |
| Powder tank capacity | 40 grams max. |
| Product dimensions | 190 x 155 x 145 mm |
| Carton dimensions | 285 x 190 x 185 mm |
| Gross/net weight | 4 kg |
Warnings and safety information
1) After a single long shot, the machines should be allowed to cool down for a short time.
2) After using the machines, do not immediately turn off the power.
The heat dissipation fan must be able to exhaust the air inside when the device is powered on.
Otherwise, internal heat will quickly be transferred to the surface of the housing.
3) Operators and all objects must be kept 3-5 meters away from the cold spark machine.
4) Ensure that the device is turned off before refilling consumables.
5) If consumables accidentally catch fire, use sand to extinguish the flames; do not use water.
6) Store consumables in a cool, dry, and sealed environment.
7) Damage caused by misuse or human factors is not covered by the warranty. warranty.
The occupation of the connection-cables is as follows:
| Cable | Pin | International |
| Brown | Live | L |
| Blue | Neutral | N |
| Yellow/Green | Earth |
The occupation of the connection-cables is as follows:
| Cable | Pin | International |
| Brown | Live | L |
| Blue | Neutral | N |
| Yellow/Green | Earth | |
Simplified declaration of conformity
The undersigned, MSC Distribution, declares that the radio equipment of type NOVA SPARK and brand GHOST complies with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following Internet address: https://www.msc-distribution.com/certifications/
