USER MANUAL TS65 FLQLEDSMV15 TELE System

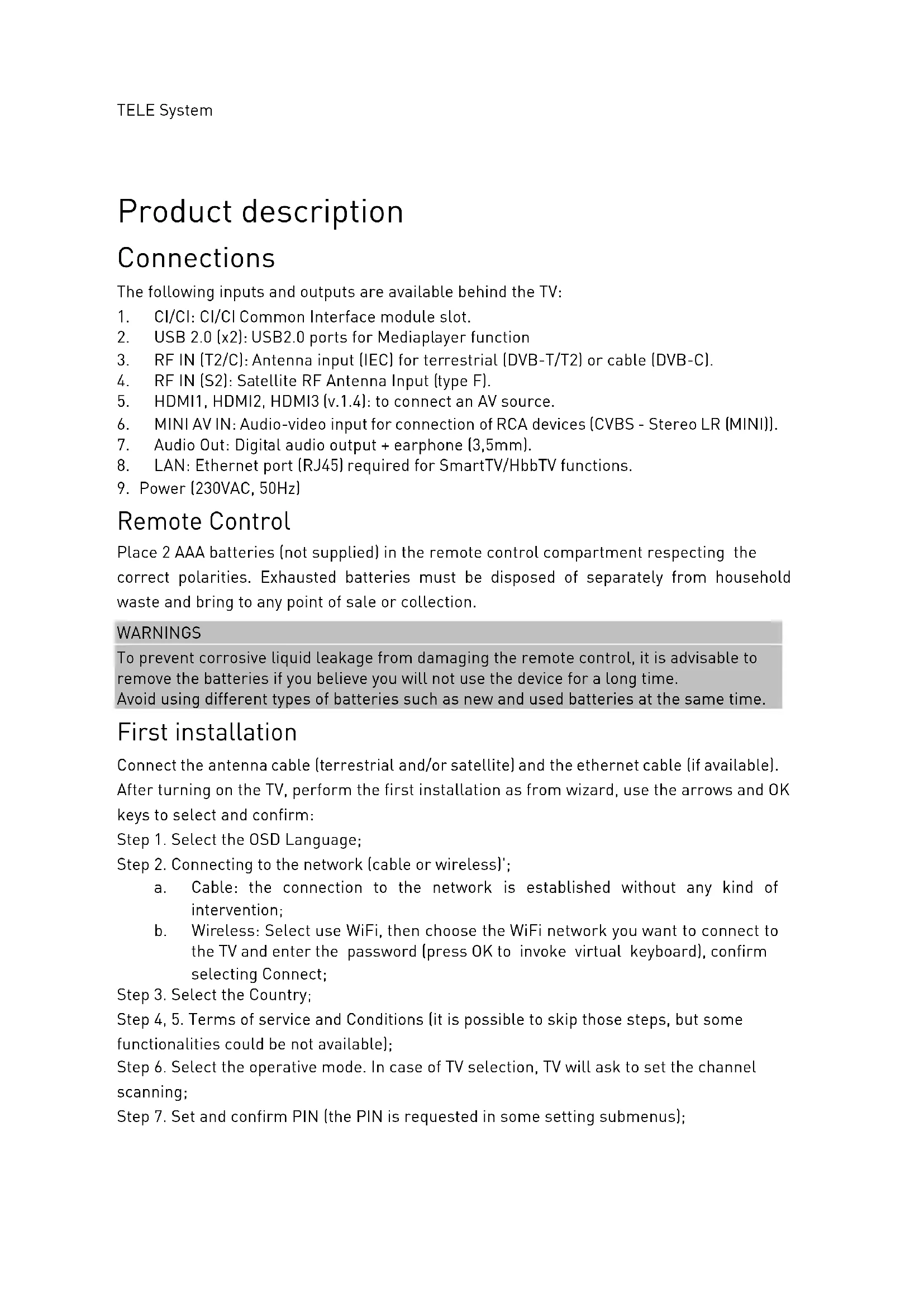

Product description Connections The following inputs and outputs are available behind the TV:

3. RF IN (T2/C): Antenna input (IEC) for terrestrial (DVB-T/T2) or cable (DVB-C).

6. MINI AV IN: Audio-video input for connection of RCA devices (CVBS - Stereo LR (MINI)).

Remote Control Place 2 AAA batteries (not supplied) in the remote control compartment respecting the correct polarities. Exhausted batteries must be disposed of separately from household waste and bring to any point of sale or collection. WARNINGS To prevent corrosive liquid leakage from damaging the remote control, it is advisable to remove the batteries if you believe you will not use the device for a long time. Avoid using different types of batteries such as new and used batteries at the same time. First installation Connect the antenna cable (terrestrial and/or satellite) and the ethernet cable (if available). After turning on the TV, perform the first installation as from wizard, use the arrows and OK keys to select and confirm: Step 1. Select the OSD Language; Step 2. Connecting to the network (cable or wireless)'; a. Cable: the connection to the network is established without any kind of intervention; b. Wireless: Select use WiFi, then choose the WiFi network you want to connect to the TV and enter the password (press OK to invoke virtual keyboard), confirm selecting Connect; Step 3. Select the Country; Step 4, 5. Terms of service and Conditions (it is possible to skip those steps, but some functionalities could be not available); Step 6. Select the operative mode. In case of TV selection, TV will ask to set the channel scanning; Step 7. Set and confirm PIN (the PIN is requested in some setting submenus);ENGLISH

WARNINGS The system does not accept the value "0000" as the password. Step 8. TV asks the channel scanning (terrestrial and/or satellite). Please refer to par. 1.1 . Main functions

1.1 Channel scanning

In order to enter in Channel Search menu: Menu – Settings – Channel – Auto Scan (enter PIN):

1) Select the source from the Antenna Type (Earth, Cable, or Satellite). Multiple selection

a) Select the operator (if available in the selected country) b) Select antenna system (Single LNB, DiSEqC, Unicable) c) Select satellite (ITALY default value: Hotbird 13°East)

a) Select the channel ordering (LCN) b) Scanning mode: DTV

NOTE If you choose to use the LCN (terrestrial) or TivùSat (satellite) function, a channel list with a predefined sort order will be created at the end of the search. Viewing encrypted channels requires the use of a dedicated conditional access module (CAM) and its smart-card (CA) to be purchased separately.

At the end of the scan a channel list will be created (for each front-end), pressing CH.LIST button, the user can navigate and edit the channel list; for example, create a FAV list, add some channels to HOMEPAGE, filter the channel list and edit it (moving or deleting). If both terrestrial and satellite channels has been scanned and saved, via channel list it is possible to move from a TV mode (terrestrial) to the other (satellite): press LEFT arrow key, the available options will be listed, hold button OK pressed for 3 sec and confirm the wanted one, back to the channel list with RIGHT arrow key and select a wanted channel for its watching. The Channel list menu is available also from OSD user menu (menu button).

1.3 Antenna system configuration (Sat)

The default settings include the configuration of a single LNB fixed antenna system, receiving the signal from the Hotbird 13-E satellite. In the case of different antenna system, you need to change the configuration, modifing the parameters in the Channels/Scan/LNB menu.TELE System

The TV is compatible with universal single converter, multi-satellite DiSEqC (1.0 - 1.2) and multi-user SCR/dCSS/Unicable systems. Incorrect antenna configuration can result in some or all channels not loading. we recommend that you contact a professional installer for installation. The Signal Level and Quality indicators refer to the selected satellite Trasponder on the screen. Make sure that it is valid/updated and really active. It is not recommended to connect the TV to the satellite signal via the via-the-radar antenna connector (LNB Out/Loop Through) of an external satellite receiver because both devices cannot operate at the same time. In the case of a system with LNB SCR: each TV/receiver connected to the same system must use a different SCR channel. To connect multiple receiving devices to an SCR system, do not use the loop through antenna connection of an external satellite receiver, but use a dedicated external signal party.

1.4 Smart (Home) mode

The Home menu, also accessible directly from the Home button of the remote control, allows you to access the following features: - Application management and use; - Navigation browser, - Selection of input sources/modes: - Access to the system settings WARNINGS To take advantage of SMART TV features, you need to connect your TV to the internet.

1.5 Factory reset (reset)

Resets all settings to the initial condition. Accessible from the Home menu > Settings > Support > Reset to Factory Default > enter PIN. The user can keep the channel list with the personal preference/modification and /or the FAVORITE list flagging the option before the restoring. WARNING Restoring factory settings clears all customizations made by the user, including stored channels, downloaded applications, and changed settings. In addition, confirming the reset, the TV will perform a full system restart, then display the first installation wizard on screen

The extended user manual is available in MENU > Setting > Support > E-Manual. The digital version is reachable via QR code (on the top-right corner) for the reading or downloading on your mobile device.ENGLISH

with supports 1446 x 893 x 270 mm (WxHxD) without supports 1446 x 829 x 79 mm (WxHxD) Standard wall bracket VESA 300*200 Included Accessories x1 standard remote control, x1 EASY RCU, x1 instruction manual Simplified EU conformity declaration The manufacturer, TELE System Digital s.r.l., states that the radio equipment type of SMART TV named TS65FLQLEDSMV15 complies with the 2014/53/EU directive. The full text of the EU compliance declaration is available at the following Internet address: https://www.telesystem.it/CEFRANÇAIS Entrées et sorties
