USER MANUAL XS Offroad Fighter Carson

Stadium Fighter / Off Road Fighter

ASSEMBLED READY-TO-RUN MODEL

Achtung - Attention - Attention

Attenzione - Atención - Pas op 02

Before using your product for the first time or ordering any spare parts, check that your manual is fully up-to-date. This manual contains the technical appendices, important instructions for correct start-up and use and product information, all fully up-to-

date before going to press. The contents of this manual and the technical data of the product can change without prior notice.

For the latest version of your manual, see: www.carson-modelsport.com

FR // Remarque importante

Four identical cylindrical batteries with plus and minus signs, arranged horizontally (no text or symbols beyond polarity indicators)

Batterien

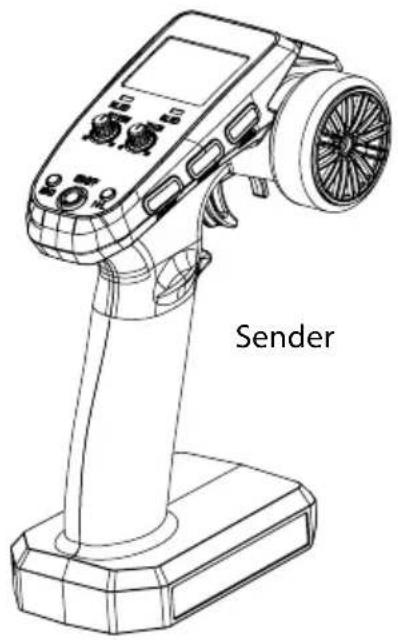

Line drawing of a handheld device with a labeled 'Sender' component (no other text or symbols)

USB-Ladegerät

Simple line drawing of a rectangular object with three horizontal lines extending from its top, resembling a connector or cable (no text or symbols)

Akkupack

Line drawing of a hand using a tool to cut or mark a car wheel (no text or symbols)

Diagram of a car chassis with an upward arrow indicating motion or force, showing no text or symbols.

AUFLADEN DES FAHRAKKUS

Diagram showing a lamp connected to a device with a switch, indicating light and power connections.

LiPo 7.4 V 1500 mAh

Line drawing of a hand holding a mechanical component inside a device casing (no text or symbols)

Diagram showing hands installing a component with labeled terminals and polarity indicators, including a zoomed-in view of the terminal panel.

BINDING

Diagram of a vehicle's front view showing two tires and a steering wheel (no text or symbols)

We congratulate you for buying this CARSON product, which is designed and manufactured using state of the art technology.

According to our policy of continued development and product improvement we reserve the right to make changes in specifications regarding equipment, material and design at any time without notice.

Specifications or designs of the actual product may vary from those shown in this manual or on the box.

The manual forms part of this product. Should you ignore the operating and safety instructions, the warranty will be void.

Keep this guide for future reference.

Limited Warranty

This product is warranted by CARSON against manufacturing defects in materials and workmanship under normal use for 24 months from the date of purchase from authorised franchisees and dealers. In the event of a product defect during the warranty period, return the product along with your receipt as proof of purchase to any CARSON store.

CARSON will, at its option, unless otherwise provided by law:

(a) Correct the defect by repairing the product without charging for parts and labour;
(b) Replace the product with one of the same or similar design.

All replacement parts and products, and products on which a refund is made, become the property of CARSON. New or reconditioned parts and products may be used in the performance of warranty services.

Repaired or replaced parts and products are warranted for the remainder of the original warranty period. You will be charged for repair or replacement of the product made after the expiration of the warranty period.

The Warranty does not cover:

• Damage or failure caused by or attributable to acts of God, abuse, accident, misuse, improper or abnormal usage, failure to follow instructions, improper installation or maintenance, alteration, lightning or other incidence of excess voltage or current;
• Damage caused by losing control of your model;
• Any repairs other than those provided by a CARSON authorised service facility;
• Consumables such as fuses or batteries;
• Cosmetic damage;
• Transportation, shipping or insurance costs; or
• Costs of product removal, installation, set-up service adjustment or reinstallation;
• Any changes to plugs and cables, open the housing and damage the sticker.

This warranty gives you specific legal rights, and you may also have other rights which may vary according to the country of purchase.

Declaration of conformity

TAMIYA-CARSON Modellbau GmbH & Co. KG hereby declares that the radio equipment type 500404252 / 500404253 / 500404254 / 500404255 conforms to Directive 2014/53/EU. The complete text for the EU declaration of conformity is available at the following Internet address.

The meaning of the symbol on the product, packaging or instructions. Electrical appliances are valuable products and should not be thrown in the dust bin when they reach the end of their serviceable life! Help us to protect the environment and conserve resources and bring this device to a corresponding disposal point/dealer free of charge. For disposal-related queries, contact the organisation responsible for waste disposal or your specialist retailer. The end user is responsible for deleting personal data on old devices.

Before use, read this manual carefully!

CONTENTS

Preface ....11

Included Items Accessories....12

Safety Precautions....13

Safety Precautions lithium batteries.... 14

Chassis....15

Removing the Body....15

Charge battery pack.... 16

Inserting the drive battery 16

Your Transmitter 16

Installing the transmitter batteries....17

Binding 17

Servo Reverse....18

How to Control Your Model.... 18

Troubleshooting....18

Exploded View 32

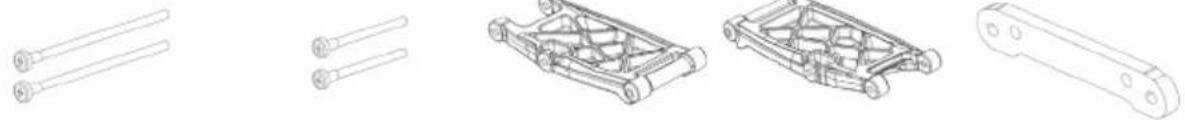

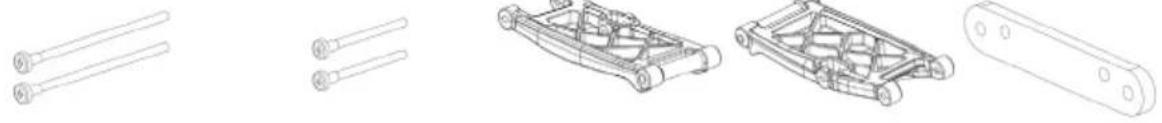

Spare Parts 35

INCLUDED ITEMS ACCESSORIES

Four identical cylindrical batteries with plus and minus signs, arranged horizontally (no text or symbols beyond polarity indicators)

Batteries

Line drawing of a transmittler device with control panel and fan (no text or symbols on the device itself)

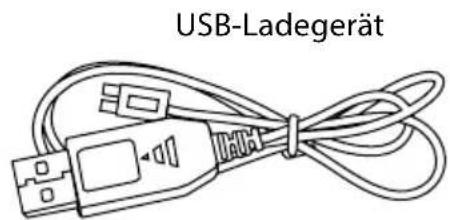

USB Charger

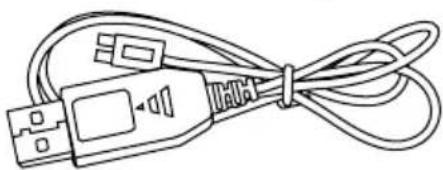

Line drawing of a USB cable with connectors and connector (no text or symbols)

Simple line drawing of a rectangular object with three horizontal lines extending from its top, resembling a connector or cable (no text or symbols)

Driving battery pack

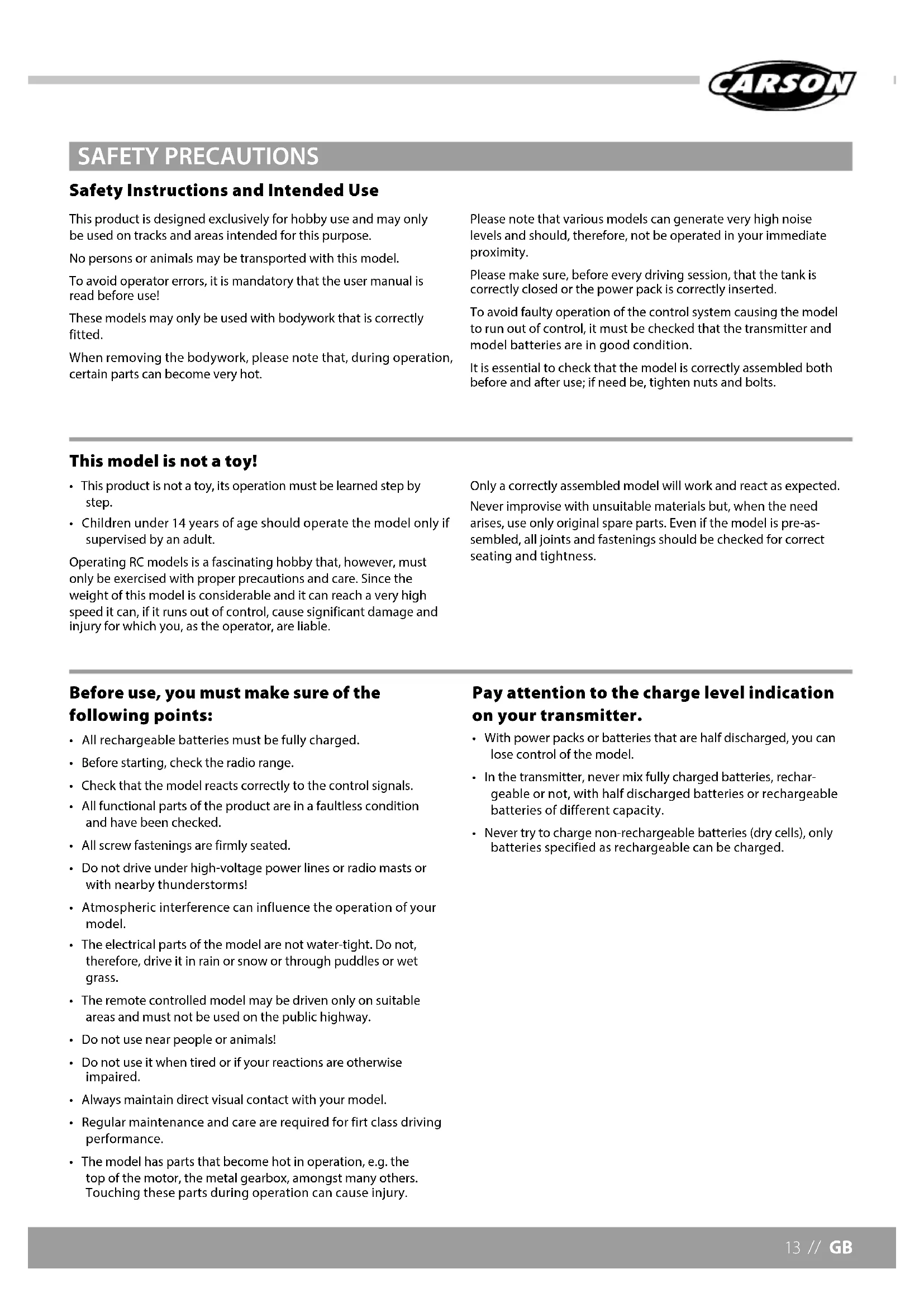

SAFETY PRECAUTIONS

Safety Instructions and Intended Use

This product is designed exclusively for hobby use and may only be used on tracks and areas intended for this purpose.

No persons or animals may be transported with this model.

To avoid operator errors, it is mandatory that the user manual is read before use!

These models may only be used with bodywork that is correctly fitted.

When removing the bodywork, please note that, during operation, certain parts can become very hot.

Please note that various models can generate very high noise levels and should, therefore, not be operated in your immediate proximity.

Please make sure, before every driving session, that the tank is correctly closed or the power pack is correctly inserted.

To avoid faulty operation of the control system causing the model to run out of control, it must be checked that the transmitter and model batteries are in good condition.

It is essential to check that the model is correctly assembled both before and after use; if need be, tighten nuts and bolts.

This model is not a toy!

• This product is not a toy, its operation must be learned step by step.
• Children under 14 years of age should operate the model only if supervised by an adult.

Operating RC models is a fascinating hobby that, however, must only be exercised with proper precautions and care. Since the weight of this model is considerable and it can reach a very high speed it can, if it runs out of control, cause significant damage and injury for which you, as the operator, are liable.

Only a correctly assembled model will work and react as expected. Never improvise with unsuitable materials but, when the need arises, use only original spare parts. Even if the model is pre-assembled, all joints and fastenings should be checked for correct seating and tightness.

Before use, you must make sure of the following points:

• All rechargeable batteries must be fully charged.
  • Before starting, check the radio range.
• Check that the model reacts correctly to the control signals.
• All functional parts of the product are in a faultless condition and have been checked.
• All screw fastenings are firmly seated.
• Do not drive under high-voltage power lines or radio masts or with nearby thunderstorms!
• Atmospheric interference can influence the operation of your model.
• The electrical parts of the model are not water-tight. Do not, therefore, drive it in rain or snow or through puddles or wet grass.
• The remote controlled model may be driven only on suitable areas and must not be used on the public highway.
• Do not use near people or animals!
• Do not use it when tired or if your reactions are otherwise impaired.
  • Always maintain direct visual contact with your model.
• Regular maintenance and care are required for first class driving performance.
• The model has parts that become hot in operation, e.g. the top of the motor, the metal gearbox, amongst many others. Touching these parts during operation can cause injury.

Pay attention to the charge level indication on your transmitter.

• With power packs or batteries that are half discharged, you can lose control of the model.
• In the transmitter, never mix fully charged batteries, rechargeable or not, with half discharged batteries or rechargeable batteries of different capacity.
• Never try to charge non-rechargeable batteries (dry cells), only batteries specified as rechargeable can be charged.

SAFETY PRECAUTIONS LITHIUM BATTERIES

1. General

Lithium batteries (accumulators) are energy storage devices with a high energy density and can present risks. For this reason, particular care is needed when charging, discharging, storing and handling.

Read these instructions very carefully before first using the battery. Do not fail to take note of the warning notices and instructions for use.

Misuse can lead to risks such as explosion, overheating or fire.

Failure to observe the instructions for use leads to early failure and other defects.

The instructions should therefore be kept in a safe place and it is essential that they are handed over to the second user if the batteries are passed on.

2. Warning notices

• Avoid short-circuits. A short-circuit may well destroy the product. Cables and connections must be well insulated.
• It is essential when connecting the battery to ensure that the polarity is correct.
• Original plug connectors and cables may not be cut off or changed - if need be, use an adapter cable.

- Do not expose the battery to excessive heat or cold or to direct sunlight. Do not throw in the fire. Do not place the battery in contact with water or other liquids.

- Charge the battery only with charging units intended for the purpose and always use the balancer connection. It is only by using the balancer connection that optimum charging can be ensured. If this connection is not used, charging is subject to the risks mentioned above. Before charging, always first allow the battery to cool to ambient temperature. Never charge while hot.

- When charging, place the battery on a non-flammable, heat-resistant support. There should be no flammable or readily ignited objects in the vicinity of the battery.

- During charging or operation, never leave the battery unsupervised.

- Do not fail to keep to the recommended charge/discharge current.

- The battery casing must not be damaged. It is essential to avoid damage by sharp objects such as knives or the like, from dropping, impact, bending etc. Damaged batteries may no longer be used.

- Batteries are not toys. They should be kept away from children.

3. Charging instructions

Lithium batteries are charged according to the CC-CV procedure. CC stands for "constant current", which is applied during the first phase of charging. Once the battery reaches the maximum voltage configured in the charger, it switches to CV (constant voltage) for the second phase of charging. The battery voltage no longer increases. The charging current now falls continuously until the battery is fully charged. The maximum charging current for the battery is 1C (C=nominal capacity of the battery, e.g. for a battery with a nominal capacity of 2700 mA, the maximum charging current for the battery is 2700 mA (2.7 A)). Never charge several batteries together from a single charger. Differing states of charge and capacities can lead to overcharging and destruction.

4. Storage instructions

Lithium batteries should be stored charged to 20-50 % of their capacity and at a temperature of 15-18 °C. If the cell voltage falls below 3 V, they should be recharged. Deep discharge and storage when discharged (call voltage <3 V) will render the battery unusable.

5. General terms of guarantee

There is a legal guarantee for production and material faults as applicable at the time of dispatch. No liability is accepted for normal wear and tear. This guarantee does not apply for defects attributable to improper use, inadequate maintenance, third-party interference or mechanical damage. This applies, in particular, to used batteries and batteries clearly showing signs of use.

Damage and loss of performance due to improper handling and/or overload are not product faults. Batteries are consumables and subject to a certain ageing. This is influenced by factors such as the charge/discharge currents, the charging procedure, the operating and storage temperatures and the state of charge during storage. The ageing shows itself in, among other things, an irreversible loss of capacity. In the model field, where batteries are frequently used to supply motors, very high currents can flow from time to time.

6. Exclusion of liability

Since we are unable to have any control over charge/discharge, handling, compliance with assembly and operating instructions, battery replacement and its care and maintenance, Tamiya / Carson can accept no liability for loss, damage or costs incurred.

Any claim for damages that may result from operation, failure or faulty operation or that is in any way related thereto will therefore be refused. We accept no liability for personal injury or material damage and their consequences that arise from our delivery.

7.Disposal instructions

Batteries are hazardous waste. Damaged or unusable cells must be disposed of in the correct manner.

No liability for printing errors, we reserve the right to make changes!

CHASSIS

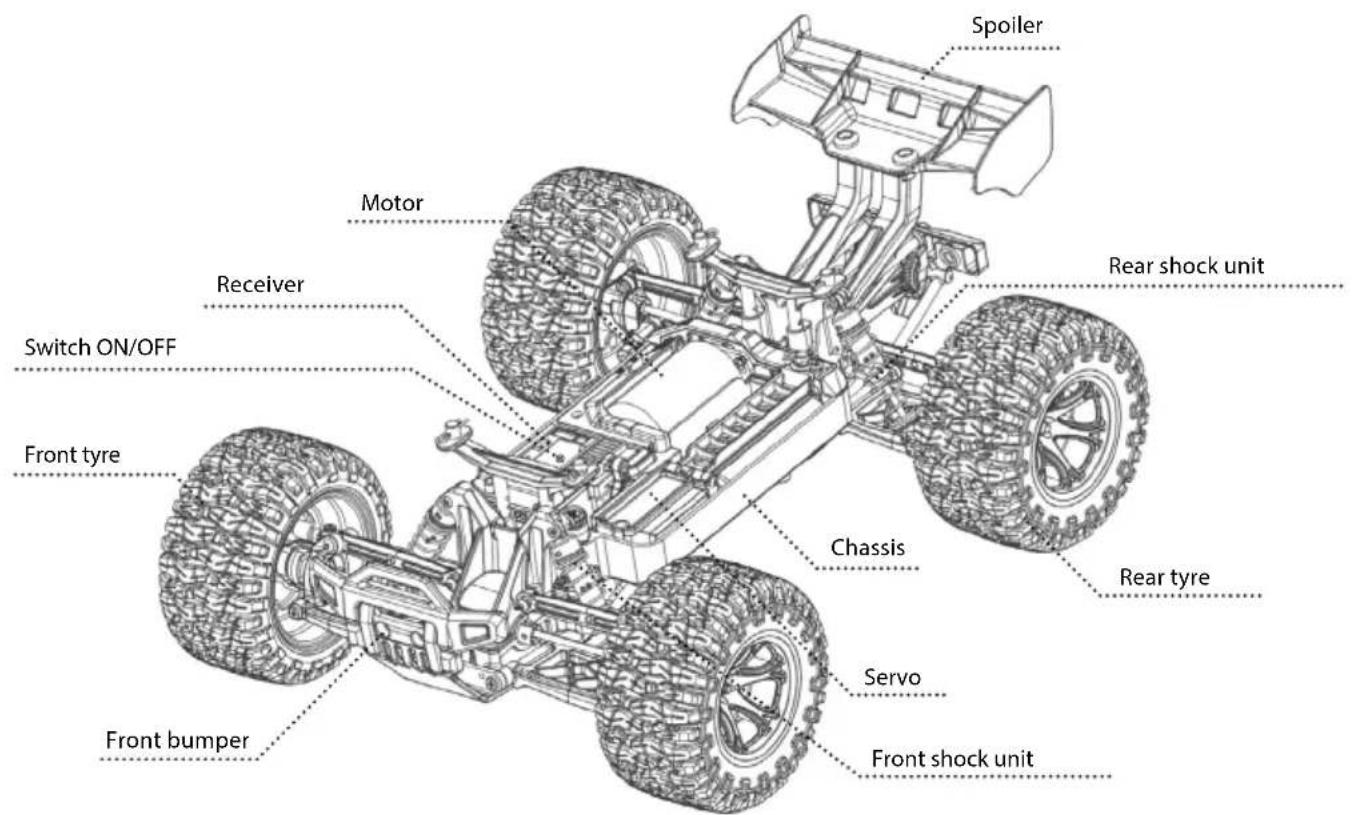

Spoiler Motor Receiver Switch ON/OFF Front tyre Chassis Rear shock unit Rear tyre Servo Front bumper Front shock unit

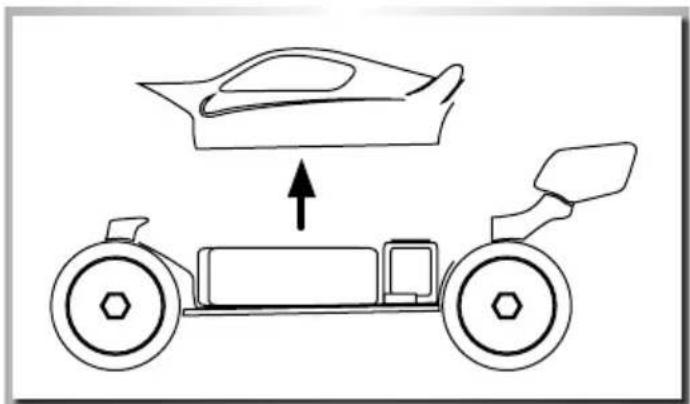

REMOVING THE BODY

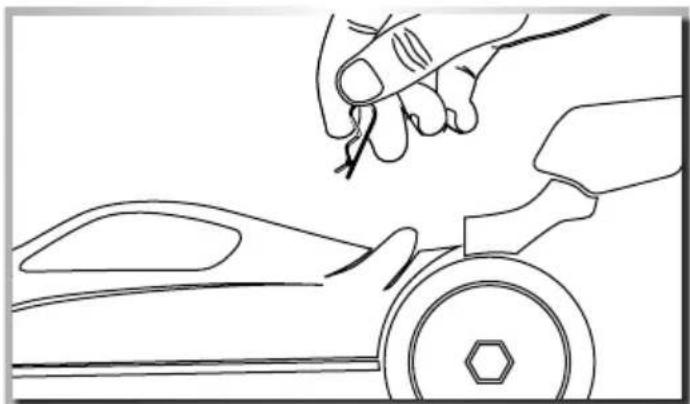

- Remove hook pin and - Take body off.

Line drawing of a hand using a tool to cut a car wheel (no text or symbols)

Diagram of a car chassis with an upward arrow indicating motion or force, showing no text or symbols.

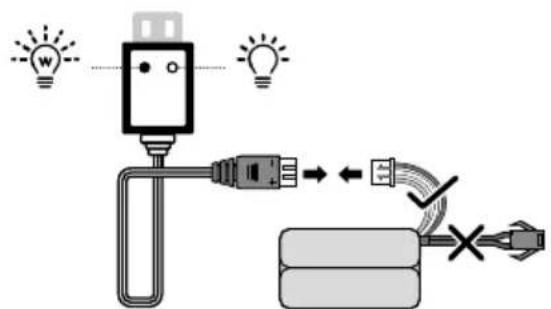

CHARGE BATTERY PACK

Diagram showing light bulb connection to a device with fuse, switch, and cable termination

LiPo 7.4 V 1500 mAh

2h LED green LED red

INSERTING THE DRIVE BATTERIES

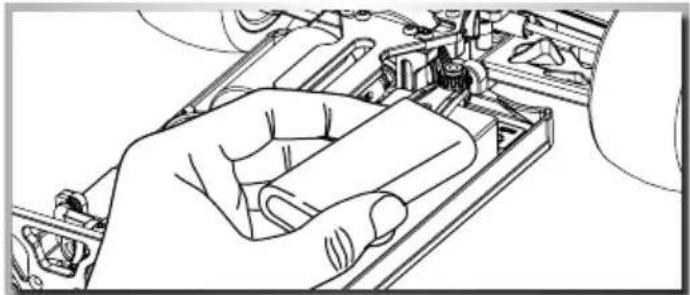

1 Insert the batteries
2 Put the battery plate on it and
3 Fix it with the battery holder

Advice

• Non-rechargeable batteries are not to be recharged.
- Rechargeable batteries are to be removed from the toy before being charged.
- Rechargeable batteries are only to be charged under adult supervision.
- Batteries are to be inserted with the correct polarity.
- Exhausted batteries are to be removed from the toy.

Line drawing of a hand holding a mechanical component inside a device casing (no text or symbols)

• The supply terminals are not to be short-circuited.
• Regular examination of transformer or battery charger for any damage to their cord, plug, enclosure and other parts.

YOUR TRANSMITTER

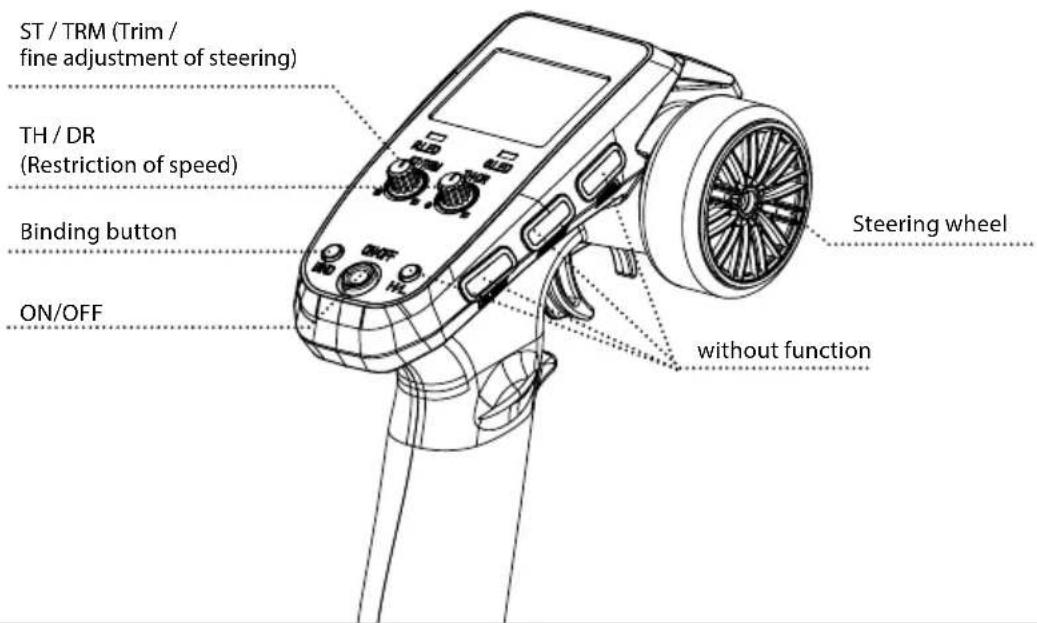

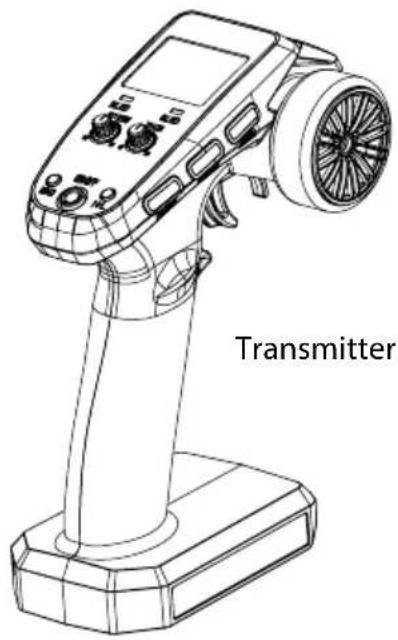

Transmitter overview

ST / TRM (Trim / fine adjustment of steering) TH / DR (Restriction of speed) Binding button ON/OFF Steering wheel without function

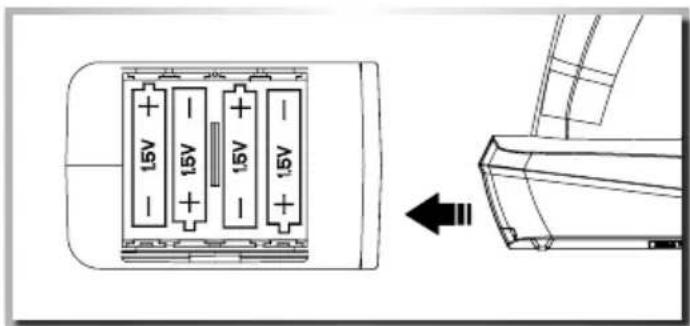

INSTALLING THE TRANSMITTER BATTERIES

1.5V 1.5V 1.5V 1.5V

1. Open the battery compartment lid on the underside of the transmitter.
2. Insert fully charged rechargeable batteries or new AA batteries observing the correct polarity. Close the cover on the battery compartment again. Ensure that the cover clicks properly into place. Check that it is in its correct position.

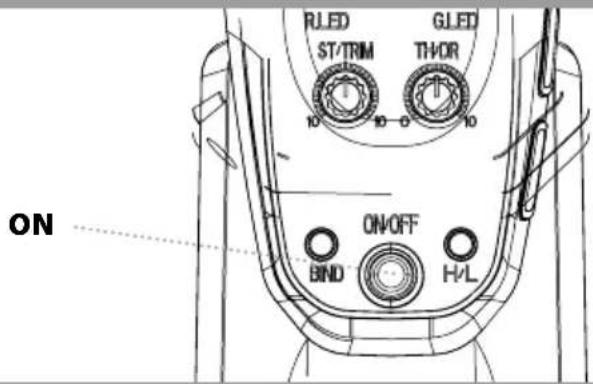

TURN ON THE RC SYSTEM

CAUTION!

Always turn the transmit - ter's power switch ON first!

Please change batteries when LED status flashes on transmitter!!!

R/LED ST/TRM G/LED TH/OR 10 10 10 ON ON/OFF BIND H/L

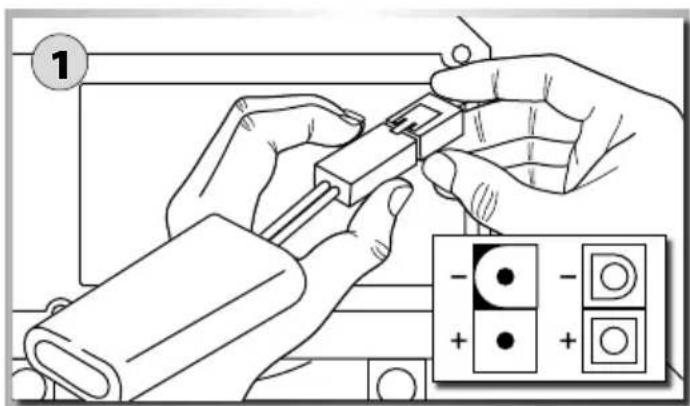

1 Connect the rechargeable battery for the driving.
2 Switch on the receiver.
3 Put the body on and fix it with the body split pins.

ON/OFF

Diagram showing hands installing a component with labeled terminals and polarity indicators, including a zoomed-in view of the terminal panel.

BINDING

Connecting transmitter and receiver:

The vehicle is ready to drive when it leaves the factory. In normal circumstances, therefore, the binding function is not necessary!

The binding function should only be used if there are any connection problems between the vehicle and the transmitter or if the transmitter/receiver is replaced.

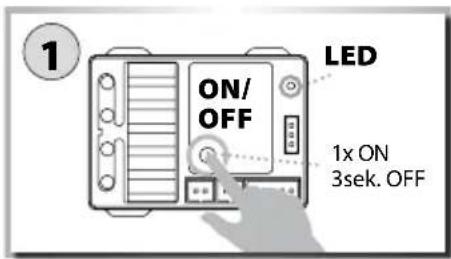

1 ON/ OFF LED 1x ON 3sek. OFF

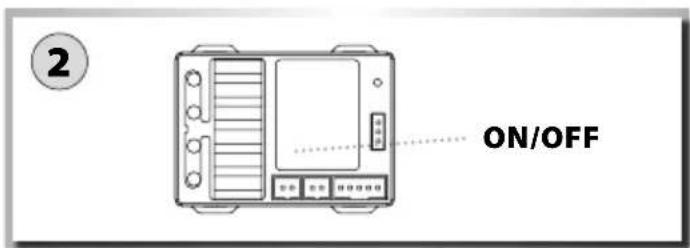

Switch on the receiver. The LED on the receiver then flashes rapidly!

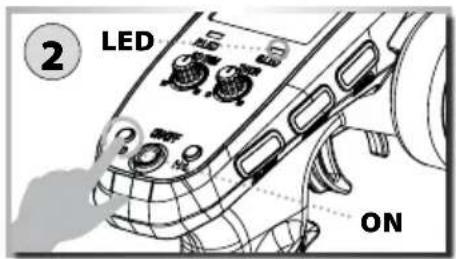

2 LED ON

Press and hold down the Binding button on the transmitter and then switch on the transmitter. The LED flash green.

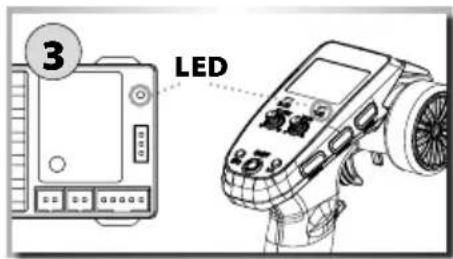

3 LED

The binding process is completed when the LED on the receiver is permanently and on the transmitter green illuminated.

SERVO REVERSE

Push and hold the „BIND“ Button for 3 second. Now is flash the green LED.

BIND

ON/OFF BIND H/L

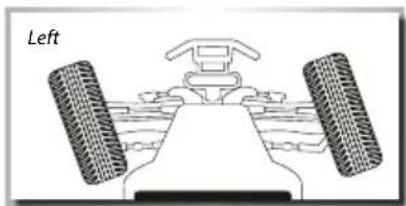

HOW TO CONTROL YOUR MODEL

• Raise the tyres off the ground
• Turn the steering wheel to the right and left as far as it will go. The wheels are to follow the steering direction.
  • To regulate the driving speed, actuate the throttle/brake
• Raise the tyres off the ground
• Turn the steering wheel to the right and left as far as it will go. The wheels are to follow the steering direction.
• To regulate the driving speed, actuate the throttle/brake
• backwards (forward driving, accelerating) or
• forwards (braking, reversing)

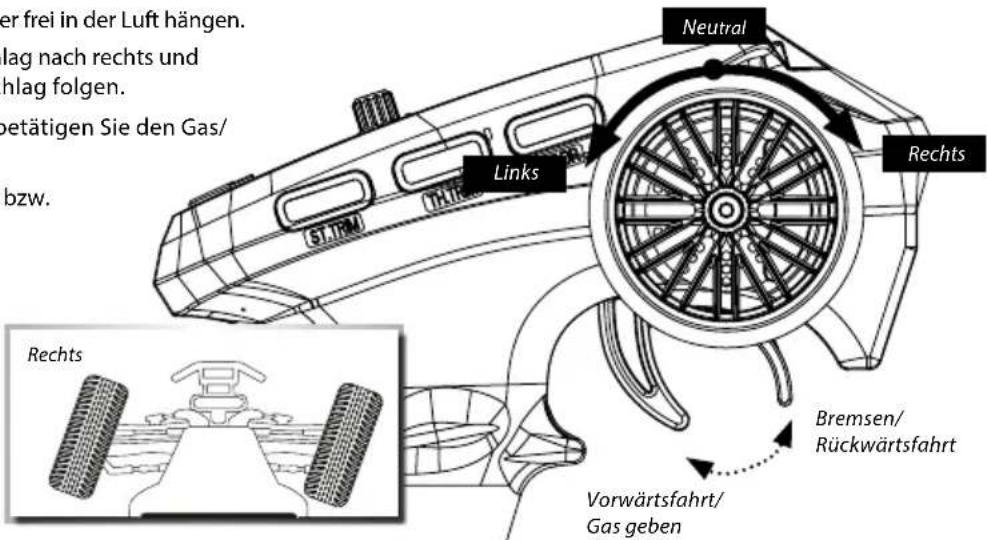

Diagram of a vehicle's front view showing steering wheel, dashboard, and rear wheels (no text or symbols)

left as far as it will go. The on. the throttle/brake (ing) or Neutral Left Right driving forward, to give speed right braking, reverse movement

TROUBLESHOOTING

Problem Cause Correction
Model doesn’t move Transmitter or chassis power switch is not "ON"	Switch power on receiver or transmitter
	Polarity or battery type is wrong Check polarity and type of battery
	Batteries have run down Change batteries or charge them
Loss of control	Batteries have run down	Change batteries or charge them
	Antenna is missing or not attached properly Attach receiver antenna
Doesn’t run straight	Steering trim is not adjusted correctly	Make adjustment
	Front and rear wheel nuts are too lose Tighten wheel nuts
Doesn’t stop	Throttle trim is not adjusted correctly	Make adjustment
Doesn’t reverse / forward	Throttle trim is not adjusted correctly	Make adjustment
	Wrong action	Control properly
Running too slowly	Batteries have run down	Change batteries or charge them
	Motor has lost power	Change to spare motor
	Rear wheel nuts are too lose	Tighten wheel nuts
	Dust or foreign objects are inside gears	Turn the power switch "OFF" and clean out gears

Cher client

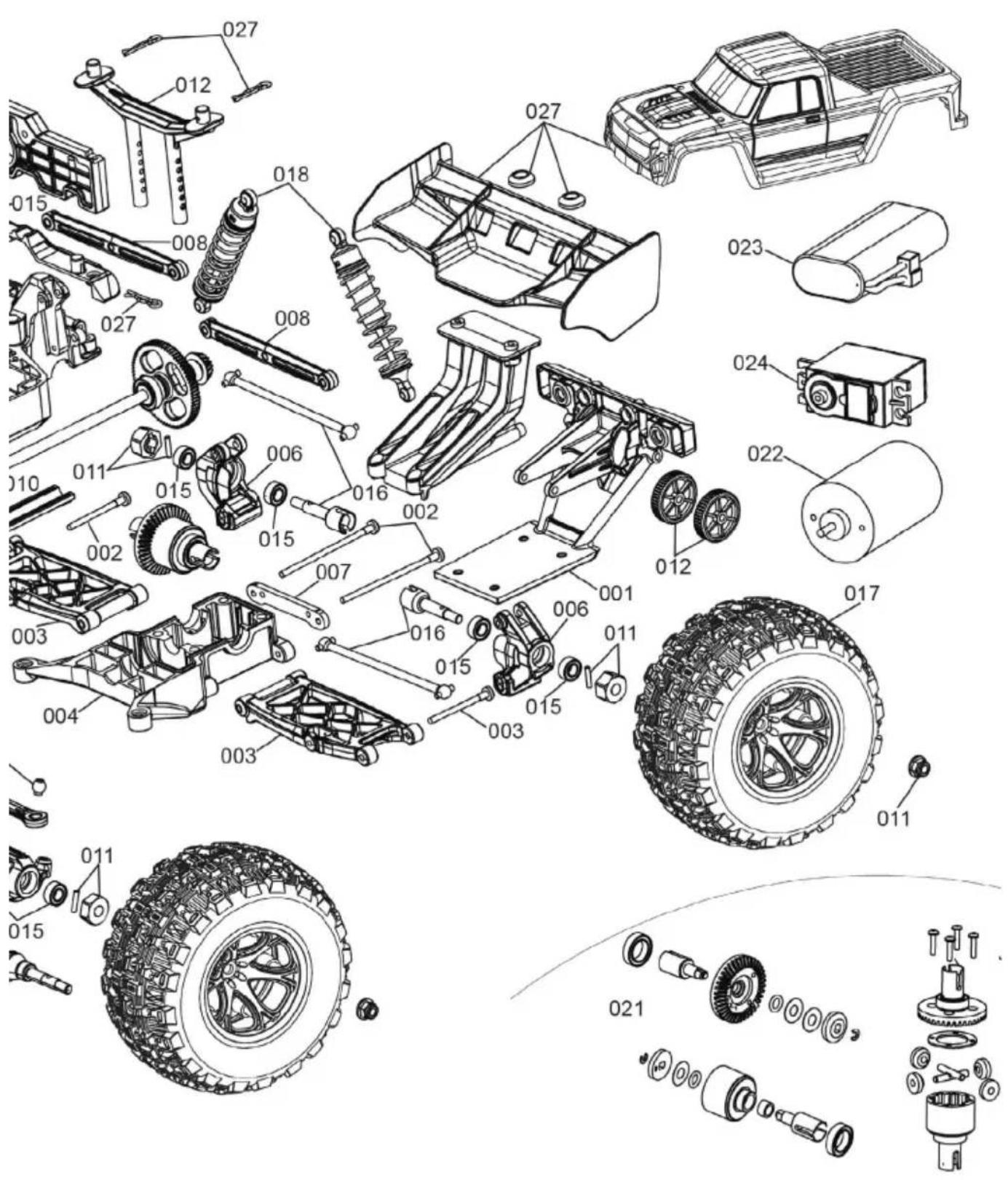

Exploded view diagram of a mechanical assembly with numbered parts for identification

Exploded view diagram of a vehicle's internal components with numbered parts for identification

ERSATZTEILE • SPARE PARTS

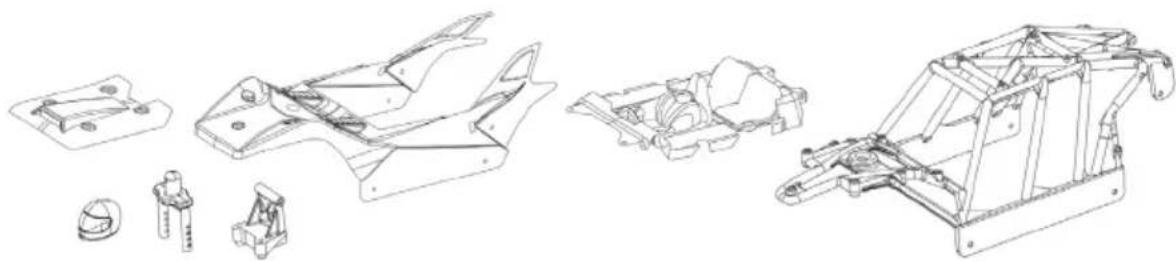

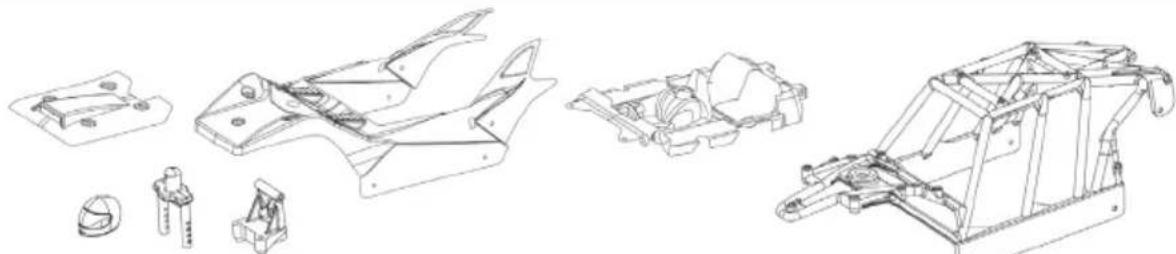

500405923 Stoßfänger, Spoil.-Halt., Getriebe-Box v+h Bumper, Wingholder, gear box f+r

Expl. 001+004

Five technical line drawings of mechanical components, showing exploded and assembled views (no text or symbols)

500405924 Querlenker (2), Querl.-Halter, Querl.-Schr. v Lower arms kit front (2)

Expl. 003+002+007

Technical line drawings of mechanical components including rods, gears, and housing (no text or symbols)

500405925 Querlenker (2), Querl.-Halter, Querl.-Schr. h Lower arms kit rear (2)

Expl. 003+002+007

Technical line drawings of mechanical components including rods, gears, and housing (no text or symbols)

500405926 Achsschenkel-Set (2) vorne Expl. 005 Upright set front (2)

Four technical line drawings of mechanical components, no text or symbols present

500405927 Achsschenkel (2) hinten Expl. 006 Rear hub carrier (2)

Technical line drawing of two mechanical components (no text or symbols)

500405928 Radmitnehmer-Expl.011 Radmutter-Set (4) / Wheel Hex, nut, pin kit f+r

Technical line drawings of various bolt and nut components (no text or labels)

ERSATZTEILE • SPARE PARTS

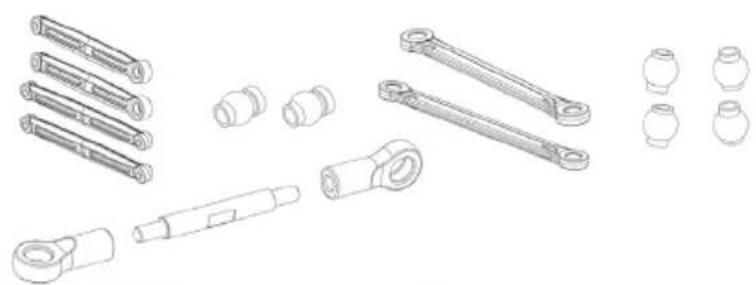

500405929 Querlenker (4) oben, Gestänge-Set Expl. 008+009 Lower arms kit rear (2)

Technical line drawings of mechanical components including cylindrical, ring, and housing parts (no text or labels)

500405930 Chassis und Abdeckung Expl. 010 Chassis with shaft cover

Technical line drawing of a mechanical assembly with two parallel rods (no text or symbols)

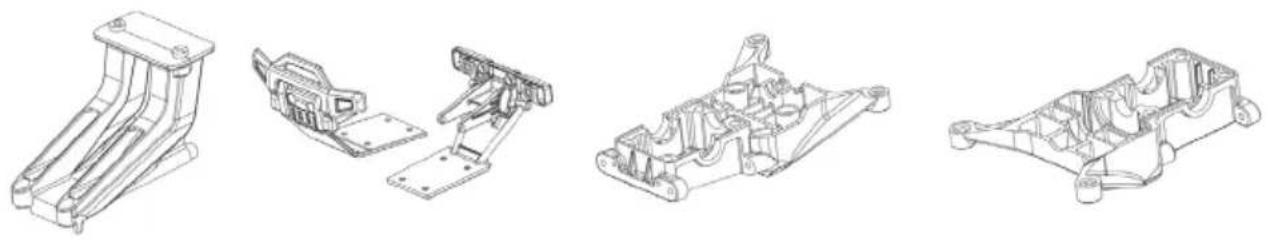

500405931 Motorabd., Akkuhalter, Kar.-Halter, Wheelie-Roll./Expl.012 Motorcov., Batt.-holder, Wheelie-Wheels

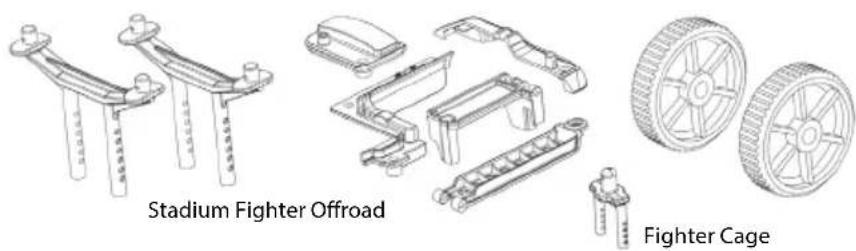

Stadium Fighter Offroad Fighter Cage

500405933 Motor-Halteplatte Expl. 014 Motor mount and holder

Technical line drawings of two mechanical components (no text or symbols)

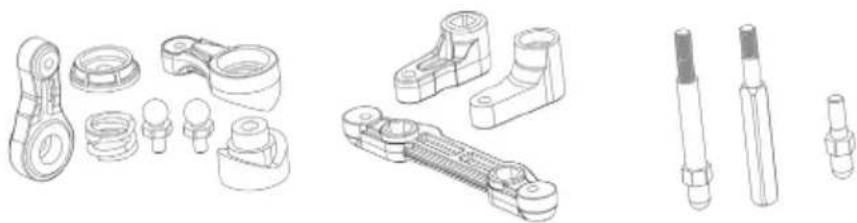

500405932 Servo Saver- Lenkhebel-Set, Expl. 013 Servohebel / Servo Saver set, steering plate, post

Technical line drawings of mechanical components including bolts, gears, and shafts (no text or labels)

500405934 Motorritzel 21Z Expl. 015 Pinion gear 21T

500405935 Kugellager-Lager-Set Expl. 015 Bearing set

Illustration of various ball bearing components (no text or symbols)

500405936 Antriebswellen vorne (2) Expl. 019 Front drive shafts (2)

Technical line drawing of two mechanical shaft components (no text or symbols)

Line drawing of mechanical components including a cylindrical tool and four articulated arms (no text or symbols)

ERSATZTEILE • SPARE PARTS

500405938 Stoßdämpfer Set (4) 82mm Expl. 018 Oil Shocks-kit (4) 82mm

Four identical mechanical springs with threaded ends, shown in a row (no text or symbols)

500405939 Hauptzahnrad Set Expl. 020 Main gear set

Technical line drawing of a mechanical shaft with flanged end (no text or symbols)

500405940 Differenzial (1) vo/hi Expl. 021 Differential front/rear complete

Line drawing of a pickup truck chassis (no text or symbols)

Technical line drawing of a mechanical housing or enclosure component (no text or symbols)

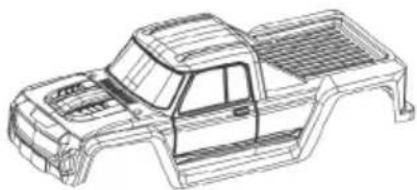

500800110 Karosserie-Set Stadium Fighter orange Expl. 027 Body parts Set Stadium Fighter

Expl. 027

Line drawing of a pickup truck chassis (no text or symbols)

Technical line drawing of a mechanical housing or enclosure with internal compartments and mounting holes (no text or symbols)

50080 0111 Karosserie-Set Offroad Fighter Cage türkis Body parts Set Offroad Fighter Cage

Expl. 028+029

Technical line drawings of automotive chassis components (no text or labels)

Offroad Fighter Cage

ERSATZTEILE • SPARE PARTS

500800112 Karosserie-Set Offroad Fighter Cage rot Body parts Set Offroad Fighter Cage

Expl.

028+029

Technical line drawings of automotive components including chassis, frame, and engine assembly (no text or labels)

500900200 Räder (4) Expl. 017 Wheel Set (4)

Four identical tire illustrations shown in a 2x2 grid, no text or symbols present.

500906107 Motor 550 Expl. 022 Motor 550 brushed

Simple line drawing of a cylindrical mechanical component with a central pin and mounting holes (no text or symbols)

500608271 7,4V/1800mAh Akku Li-ION T-Plug Expl. 023 7,4V/1800mAh Battery Li-ION T-Plug

Simple line drawing of a cylindrical object with a connecting rod (no text or symbols)

500502054 Lenkservo CS-3,5 Expl. 024 Steering servo CS-3,5

Technical line drawing of a mechanical component with no visible text or symbols

404252-11 Sender REFLEX-XS Expl. 026 Transmitter REFLEX-XS

Line drawing of a mechanical component with no visible text or symbols

404252-12 ESC/RX-Einheit REFLEX-XS T-Plug Expl. 025 ESC/RX unit REFLEX-XS T-Plug

Line drawing of a handheld industrial device with fan and base (no text or symbols)

NOTIZEN / NOTES

NOTIZEN / NOTES

CARSON
