USER MANUAL Mira 306230 Arendo

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

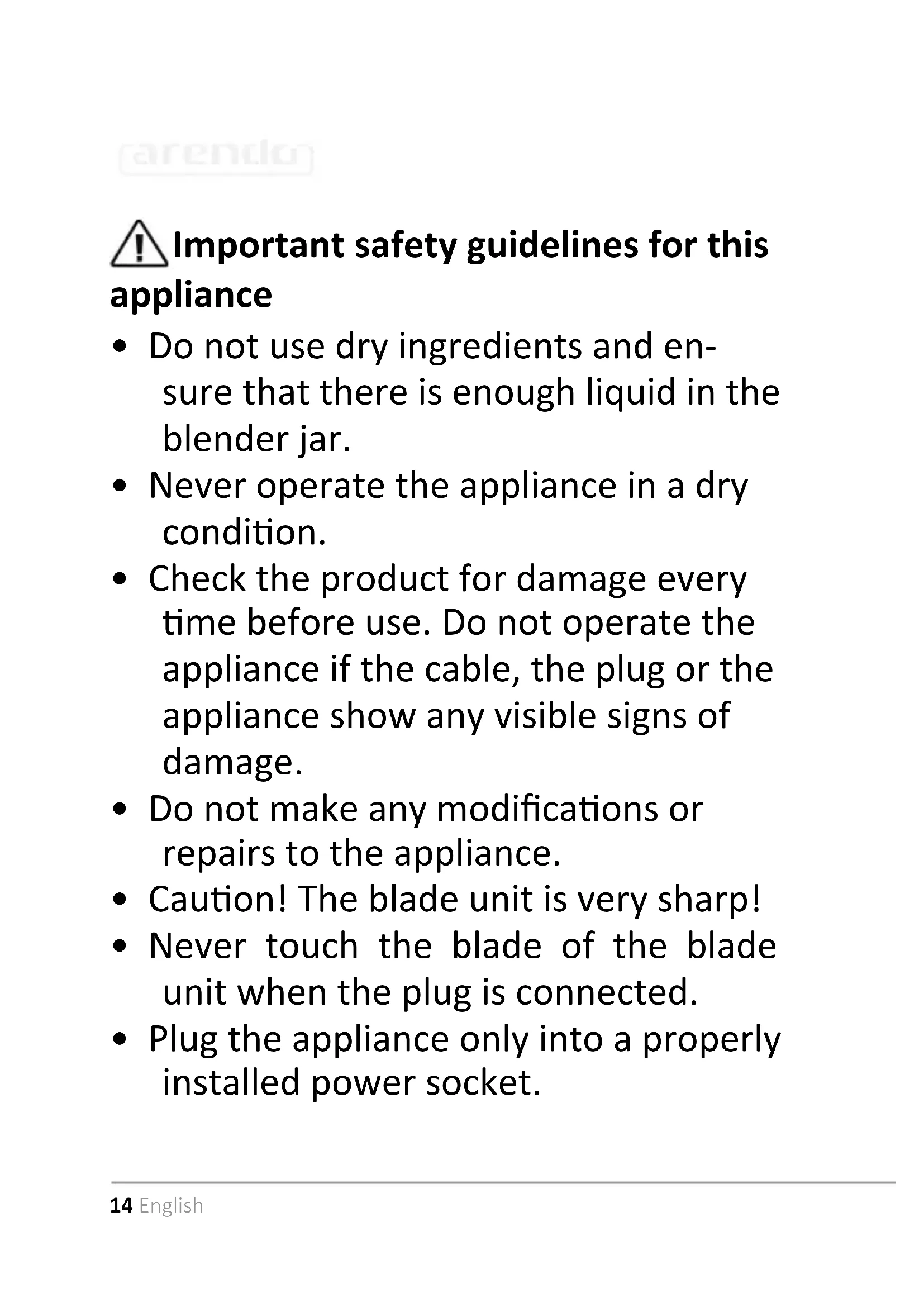

Important safety guidelines for this appliance

• Do not use dry ingredients and ensure that there is enough liquid in the blender jar.
• Never operate the appliance in a dry condition.
• Check the product for damage every time before use. Do not operate the appliance if the cable, the plug or the appliance show any visible signs of damage.
• Do not make any modifications or repairs to the appliance.
• Caution! The blade unit is very sharp!
• Never touch the blade of the blade unit when the plug is connected.

• Plug the appliance only into a properly installed power socket.

• Never leave the blender unattended and choose a location in which the appliance is out of reach of animals and/ or children.

• Children should not play with the appliance.
• This appliance can be operated by children from 8 years of age and above, as well as by people with reduced physical, sensory or mental capacities or who lack knowledge or experience, if they have been supervised or instructed regarding safe use of the appliance, and understand the resultant dangers.
• Keep the blender out of reach of children under 8 years of age.

• Keep it on an suitable surface to avoid injuries when mixing.

• Disconnect the power plug from the mains socket when the appliance is not being used or for cleaning.

• Ensure that the power cable does not come into contact with any hot surfaces.
• If you want to pull out the plug from the socket, pull by holding the plug and not the cable.
• Never touch the plug with wet hands.
• Protect the appliance against fire.
• Do not immerse the cable, the plug or the entire appliance in water or any other liquids.
• The appliance should not be used by children. Keep this appliance and the power plug out of reach of children.
• Switch off the appliance and pull the power plug when you want to replace

any accessories or to move the appliance to another location.

• Remove the power plug from the socket when the appliance is not being used, during cleaning and assembly.
• If the power cord is damaged, this must be replaced by the manufacturer or by a qualified person in the event of a defect, in order to prevent damage.
• Never insert body parts, or objects which are not defined for it, in the blender.
• If the blade unit is blocked and does not move, always disconnect the plug from the socket before removing the objects that are blocking the blade.

• The appliance is intended for personal use only.

• Switch off the appliance and disconnect the plug if you want to remove accessories, such as the blade unit.

• Before using the product, first check that the delivered item is complete, accurate and undamaged.
• Check if the product and the components are intact and if the appliance is working properly when using it for the first time
• Do not operate the appliance unattended and check it for damage and proper assembly before using it each time.
• Do not mix any hard ingredients, such as nuts or coffee beans!

Thank you for choosing an Arendo product. Please read the following user manual carefully so as to get the most from the product you have purchased. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Hand blender
• Chopper
  Whisk
• User manual

2. Technical data

Power supply 220V-240 V AC 50Hz
Power consumption max. 1500 W
Protection class II
Recommended operating time about 30 seconds
Recommended interval after operation > 3 minutes
Chopper capacity max. 500 ml
Ambient temperature 0-40°C
Features • Variable speed control	• 2 speed levels • ergonomic handle • Detachable blender unit for easy cleaning and storage • Stainless steel (rust-proof)

Note: The appliance is designed only for brief periods of operation. Allow the appliance to cool down for about 3 minutes after about 30 seconds of continuous operation before reusing it!

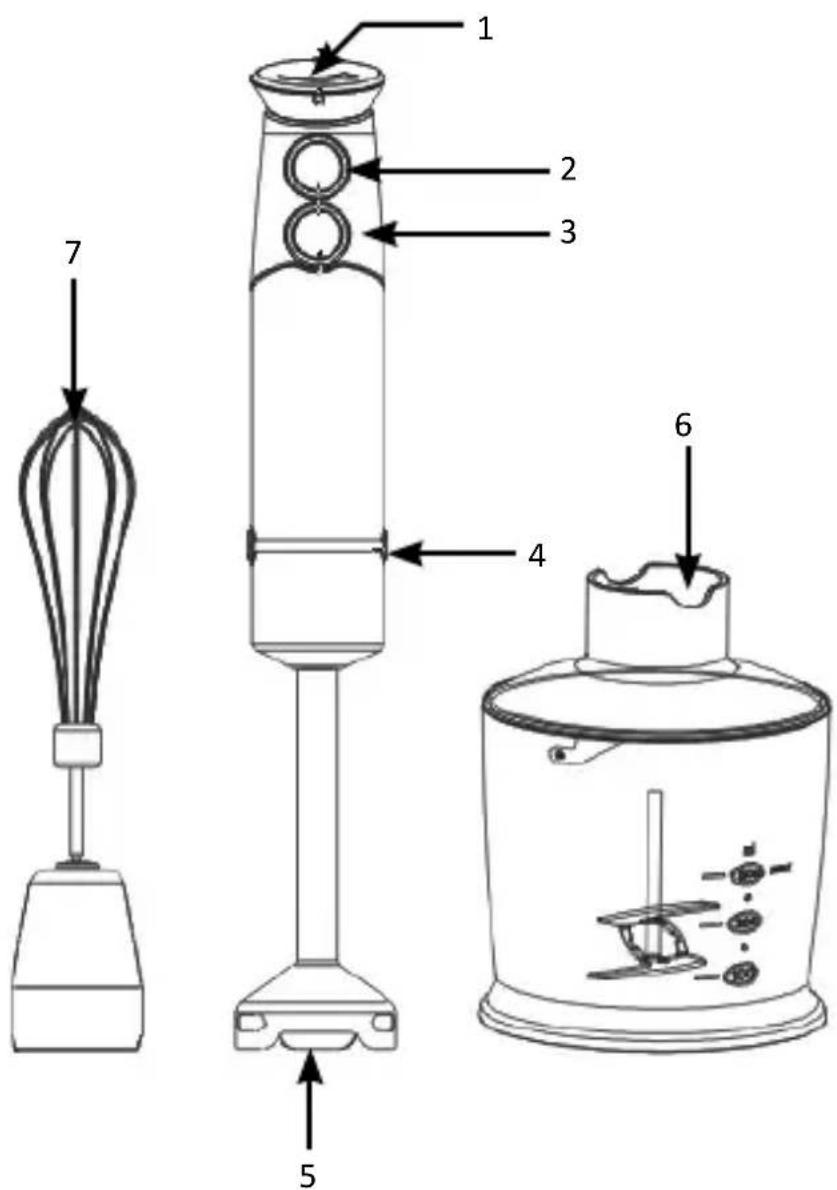

3. Product details

Number Description
1 Variable speed control
2 ON / OFF button
3 Turbo speed button
4 "Release" button to unlock the attachments
5 Blade unit/Blender
6 Chopper
7 Whisk

4. Preparation

Check if the product and the components are intact and if the appliance is working properly when using it for the first time

Thoroughly clean the parts that come into contact with food before using the appliance for the first time. Allow hot ingredients to cool down before blending (max. Temperature 60^ C). Cut large ingredients into 2 cm pieces before blending. Use the appliance only on a flat surface.

5. Usage

This appliance is intended, for example, for the following applications:

• Blending fluids, e.g., dairy products, sauces, fruit juices, soups, mixed drinks and shakes.
  Pureeing cooked ingredients, e.g., for making baby food.

6. Mounting the attachments

1. Mount the desired attachment to the motor unit by loosening the previous attachment using the "Release Button" (4) then mounting the desired attachment.
2. To do so, place the desired attachment below the "Release button" (4) and connect it by plugging, making sure to match it with the notch on the blender with the motor unit until it audibly clicks into place.

Using the whisk / blender

1. Mount either the whisk or blender (depending on the desired use) on the motor unit as described in "Mounting the attachments".
2. Add the desired ingredients to the selected container.
3. Immerse the blender / whisk completely in the ingredients and hold the motor unit firmly.
4. Start carefully at low speed by pressing and holding the "ON/OFF" button (2), or alternatively, the turbo button (3) for maximum power.
5. Alternatively, you can set the desired speed for the "ON/OFF" button manually using the variable speed control (1).
6. Move the appliance slowly up and down and in circles to blend the ingredients.

Ensure that the container is not damaged when chopping.

Do not operate the appliance unattended and check it for damage and proper assembly before using it each time. If the appliance is blocked, disconnect the mains plug and remove the blockage.

Using the chopper

1. Add the desired ingredients to the selected container.
2. Mount the chopper on the motor unit as described in "Mounting the attachments".
3. Start carefully at low speed by pressing and holding the "ON/OFF" button (2), or alternatively, the turbo button (3) for maximum power.
4. Alternatively, you can set the desired speed for the "ON/OFF" button manually using the variable speed control (1).

Ensure that the container is not damaged when chopping.

Do not operate the appliance unattended and check it for damage and proper assembly before using it each time. If the appliance is blocked, disconnect the mains plug and remove the blockage.

7. Cleaning and Care

Do not immerse the motor unit in water.

• Disconnect the mains plug before cleaning.
• Dismantle all the parts.
• Wipe the motor unit with a damp cloth.
• Clean the hand blender, the chopper and whisk in warm water with a little detergent.

Note: The blade unit can also be cleaned while it is attached to the motor unit by immersing the unit in warm water with some dishwashing liquid and running the appliance for some time.

Ensure that the motor unit does not get wet and do not immerse it in water! Dry the motor unit and store it for later use.

8. Safety instructions and disclaimer

Never try to open the appliance to repair or make modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The appliance is not approved for outdoor use. Therefore please use it only in dry surroundings. Protect it from high humidity, water and snow. Do not expose the appliance to high temperatures. Do not expose the appliance to sudden changes in temperature or strong vibrations, as this could damage the electronic components.

Check the appliance for damage before using it. The appliance should not be used if it has been subject to impact or has been damaged in any other manner. Please comply with the local regulations and restrictions. Do not use the appliance for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repairs or modifications to the appliance not carried out by the original supplier will void any warranty and guarantee claims. The appliance should only be used by those who have read and understood this user manual. The specifications of the appliance may be changed without any special prior notification.

9. Disposal instructions

In line with the European WEEE directive, electrical and electronic appliances should not be disposed of along with domestic waste. Their components have to be sent separately for recycling or disposal, as improper disposal of toxic and dangerous components may permanently damage the environment.

According to the Electrical and Electronic Equipment Act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic appliances to the manufacturer, the point of sale, or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used appliances, you make an important contribution towards protecting our environment. For information on authorised collection points in your area, please contact your local city or municipal administration.

WEEE directive 2012/19/EU

WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the appliance 306230 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover

(IT) +49511/13221740

(ES) +49511/13221750

MO-FR 9:30am - 18pm CET

www.arendo.de
