USER MANUAL Fly Away Twister LED Eurom

Fly Away Twister LED

User Manual

NL 3

EN 6

DE 9

FR 12

SV 15

RO 18

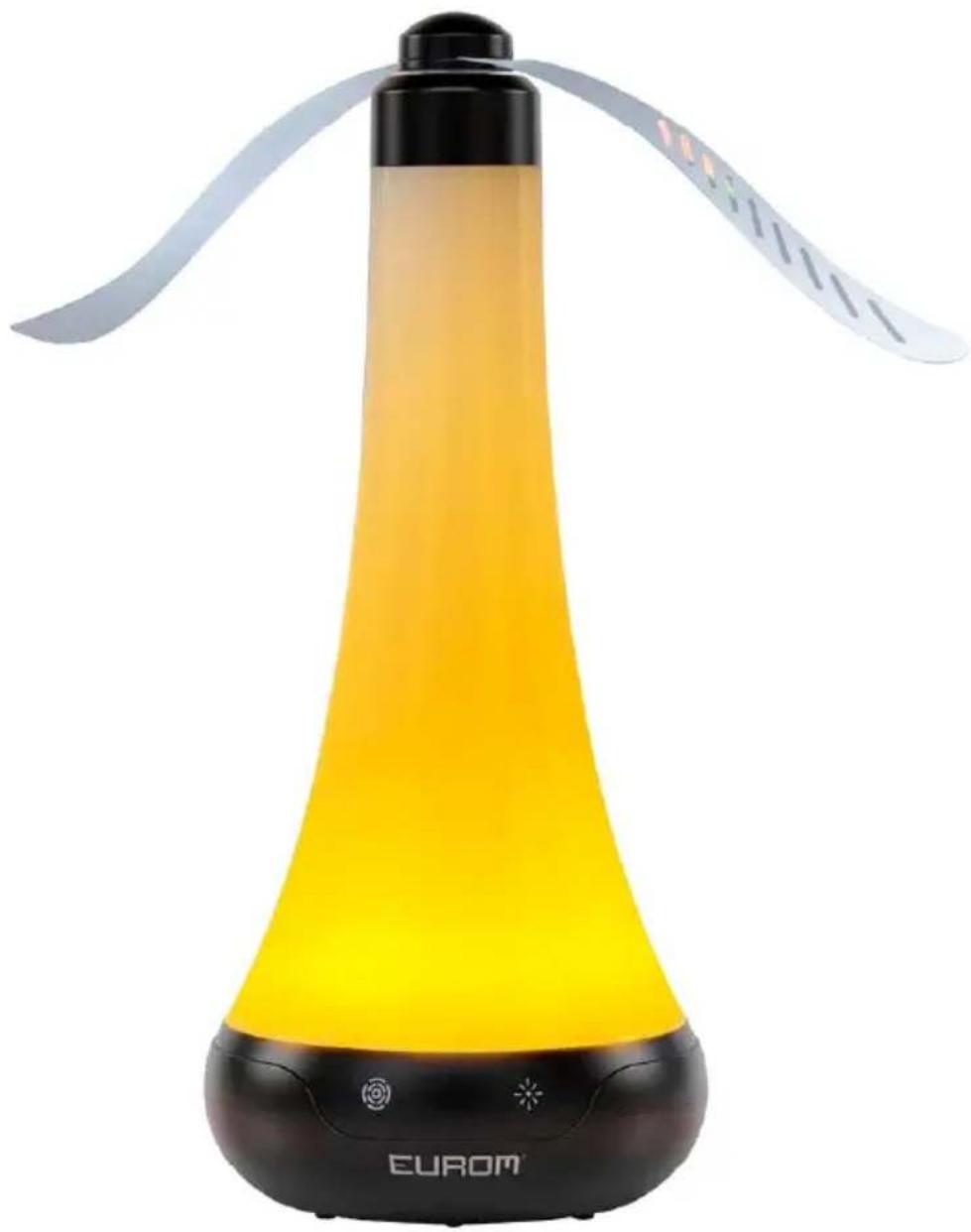

Yellow and black electronic device with a propeller, labeled 'EUROM' at the base (no other text or symbols visible)

Model: Fly Away Twister LED

Product code: 210804

Date: 03/08/2023

Version: v2.0

EUROM®

POWERFUL PRODUCTS SINCE 1974

3 pcs AA 1,5V batteries (excluded)

EUROM - KOKOSSTRAAT 20 - 8281 JC - GENEMUIDEN - THE NETHERLANDS

Technical diagram of a device with numbered parts, showing internal components and labeled parts.

Diagram of battery pack assembly with labeled components and polarity indicators

① MCTG 米

Afbeelding 3 / Figure 3 / Abbildung 3 / Figure 3 / Figur 3 / Imaginea 3

Thank you for choosing this EUROM device. You have purchased a quality device that you will enjoy for many years. Using this device with respect and care will reduce the risk of personal injury or material damage.

CAUTION

It is important to read and understand this manual before assembling, installing and using the device.

Introduction

The following symbols and terms are used in this manual to alert the reader on safety issues and important information:

WARNING

Indicates a hazardous situation which, if the safety instructions are not followed, can lead to injuries to the operator or bystanders and light and/or moderate damage to the product or to the environment.

CAUTION

Indicates a hazardous situation which, if the safety instructions are not followed, can lead to light and/or moderate damage to the product or to the environment.

Warranty

EUROM offers a 24-month warranty on this device from the date of purchase. The warranty does not cover wear and tear from normal use. The warranty expires if a defect is the result of unintentional or careless use of the device. The manufacturer, importer and supplier are not liable for incorrect connections.

Identification

See Figure 1.

Description

This EUROM device (Figure 2) is an easy-to-use electric device that repels flying insects. The two soft blades rotate safely and silently. Place the device near food and drinks. The device can be used indoors and outdoors. The yellow light is great for repelling mosquitoes. The white light can be used as regular lighting. This device also has a hanging bracket at the bottom. This also allows you to hang the device above your food and drink.

See Figure 2 for the main parts.

1. Soft blades (2x)

2. Lighting area

3. Touch button light setting (no light/white (daylight)/yellow light)

4. Touch button ON/OFF mode

5. ON/OFF main switch

6. Batterie compartment*
7. Suspension bracket

*Batteries not included

Safety

Please read and understand these safety instructions. Incorrect use can cause injury and will void EUROM's warranty.

• This device is not a toy; keep children out of reach.
- Never leave the device unattended while it is in operation.
- When the soft blades are obstructed, the device stops automatically.

General safety instructions

WARNING

• Prevent splashing liquids on or in the device.
• Do not immerse any part of the device in liquids.
• Do not expose the device to strong vibrations or mechanical stress.

Safety during operation

WARNING

Do not use the device:

• if any parts are dirty or wet;
• near or in a dusty and dirty environment;
• near flammable materials, liquids or fumes;
• near other heat sources and open fire;
• if it is damaged;
• if it is covered or blocked.

Assembly and installation

1. Remove the screw from the battery cover (Figure 3, pos. 2).
2. Insert three AA 1.5 V batteries (not included) as indicated in the battery compartment (Figure 3). Make sure to insert the batteries correctly.
3. Replace the battery cover and tighten it with the screw.

Operation

1. Turn the device on (Figure 2, pos. 5).
2. Place the device near food and drinks on a flat, level and sturdy surface.
3. Touch button (Figure 2, pos. 3) for the desired light setting (no light/white (daylight)/yellow light).
4. Touch button (Figure 2, pos. 4) to turn on the blades.

After operation

1. Turn the device off (Figure 2, pos. 4 and pos. 5).
2. Remove the batteries (Figure 3, pos. 2).

Maintenance and cleaning

WARNING

Do not perform any repairs or modifications to this device. There are no user-serviceable parts.

WARNING

Make sure the device is turned off.

It is recommended to clean the device after each use and prior to storage.

1. Wipe the device with a damp, clean, soft, lint-free cloth or a soft brush.
2. Let the device dry completely prior to use and storage.

Disposal

The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equipment (WEEE). Such products may contain dangerous and hazardous substances. These products must be returned to a designated collection point for the recycling of WEEE and must not be disposed as unsorted municipal waste. By doing so, you will help to conserve resources and protect the environment. Contact your local authorities for more information. Children must not play with plastic bags and packaging material, due to possible injury or danger of suffocation. Store such material safely or dispose of in a environmental friendly way. Used batteries must be disposed of properly. Battery selling stores and municipal collection points offer special containers for battery disposal.
