DO248SB - Cleansing electric brush DOMO - Free user manual and instructions

Product type	Rechargeable electric cleaning brush
Brand	DOMO
Model	DO248SB
Power supply	Built-in rechargeable battery, charges via USB-C cable (power adapter not included)
Charging time	Not specified, full charge recommended before first use
Speeds	2 speeds (medium and high), selection via on/off button
Included accessories	White sponge, yellow sponge, green scouring pad, blue scouring pad, Velcro holder, pointed brush, flat brush
Indicator light	Green (operating), red flashing (low battery), red/green slow flashing (error)
Protection	Overload protection (automatic shutdown if excessive pressure)
Waterproofing	Not submersible, silicone seal on charging port to protect from water
Intended use	Household cleaning: tiles, grout, pots, oven, shoes, glass, etc.
Maintenance	Wipe with a damp cloth, do not immerse, do not use abrasive detergents
Battery	Non-removable battery, recycle at end of life according to local regulations
Warranty	2 years from purchase date, suspended during repair
Customer service	[phone], [e-mail], hours: Mon-Thu 8:30am-5pm, Fri 8:30am-4:30pm
Dimensions (estimated)	Approximately 30 cm x 10 cm x 5 cm (not provided)
Weight (estimated)	Approximately 400 g (not provided)

Frequently Asked Questions - DO248SB DOMO

How do I charge the DO248SB brush?

Open the silicone tab at the bottom of the device, plug the supplied USB-C cable into the charging port, then connect the other end to a USB charger (power adapter not included). The red light indicates charging, green when complete. Make sure the device and your hands are dry.

What accessories are included with the brush?

The set includes: white sponge (general use), yellow sponge (delicate), green scouring pad (heavy), blue scouring pad (medium), Velcro holder for sponges, pointed brush (corners/faucets), and flat brush (tiles).

How do I change accessories?

First turn off the device with the on/off button. Pull firmly on the accessory to remove it (tilt downwards for less effort). To install, push the accessory onto the drive until it clicks. For sponges, first attach them to the Velcro holder.

Is the brush waterproof?

No, the device should not be submerged. The silicone tab protects the charging port but it is not completely waterproof. Clean the device with a damp cloth and dry it thoroughly.

What if the light is flashing red?

A flashing red light means the battery is low. Recharge the device following the charging instructions. If the light flashes slowly in red or green, it may indicate an error (contact customer service).

Why does the brush stop automatically?

The device is equipped with overload protection. If you apply too much pressure on the surface, the motor stops to protect the gears. Release the pressure and restart the device.

How do I clean the brush after use?

Unplug the device. Wipe it with a damp cloth and dry it. Never use abrasive or harsh detergents. Wash the accessories separately in warm water and let them dry.

Is the battery removable?

No, the battery is built-in and non-removable. At the end of its life, do not dispose of the device with household waste. Take it to a collection point for electronic waste (WEEE).

What is the warranty period?

The warranty is 2 years from the date of purchase. It covers manufacturing defects. Proof of purchase is required. Damage due to misuse is not covered.

Can I use the brush on delicate surfaces?

Yes, choose the appropriate accessory: use the sponges for glass, mirrors, or paint. The green and blue scouring pads are for tough surfaces like pots or the oven. Test on a small area first.

USER MANUAL DO248SB DOMO

Product photo of a turquoise electric brush with black brushes, five colored circular brushes (yellow, blue, green, white) arranged beside it, and a USB cable (no text or symbols visible)

EN Instruction booklet Rechargeable cleaning brush

Read all instructions carefully.

Save this instruction manual for future reference.

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Five colored 3D-rendered objects labeled 1 to 5, arranged in a row (no text or symbols on objects)

Laadkabel USB-C 11 12 9 DOMO 10

Two views of a mechanical component with textured surfaces, labeled 6 and 7 (no text or symbols on the parts themselves)

Teal-colored handheld tool with black handle and label (no visible text or symbols)

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

⚠AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Five colored 3D-rendered objects labeled 1 to 5, arranged in a row (no text or symbols on objects)

Cable de recharge USB C 11 12 9 DOMO 10

Two 3D-printed mechanical components with textured surfaces, labeled 6 and 7 (no text or symbols on the parts themselves)

Teal-colored handheld tool with black handle and labeled part (8), no visible text or symbols on body

AVANT LA PREMIÈRE UTILISATION

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Two 3D-printed mechanical components with textured surfaces, labeled 6 and 7 (no text or symbols on the parts themselves)

Teal-colored handheld tool with black handle and label, no visible text or symbols

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

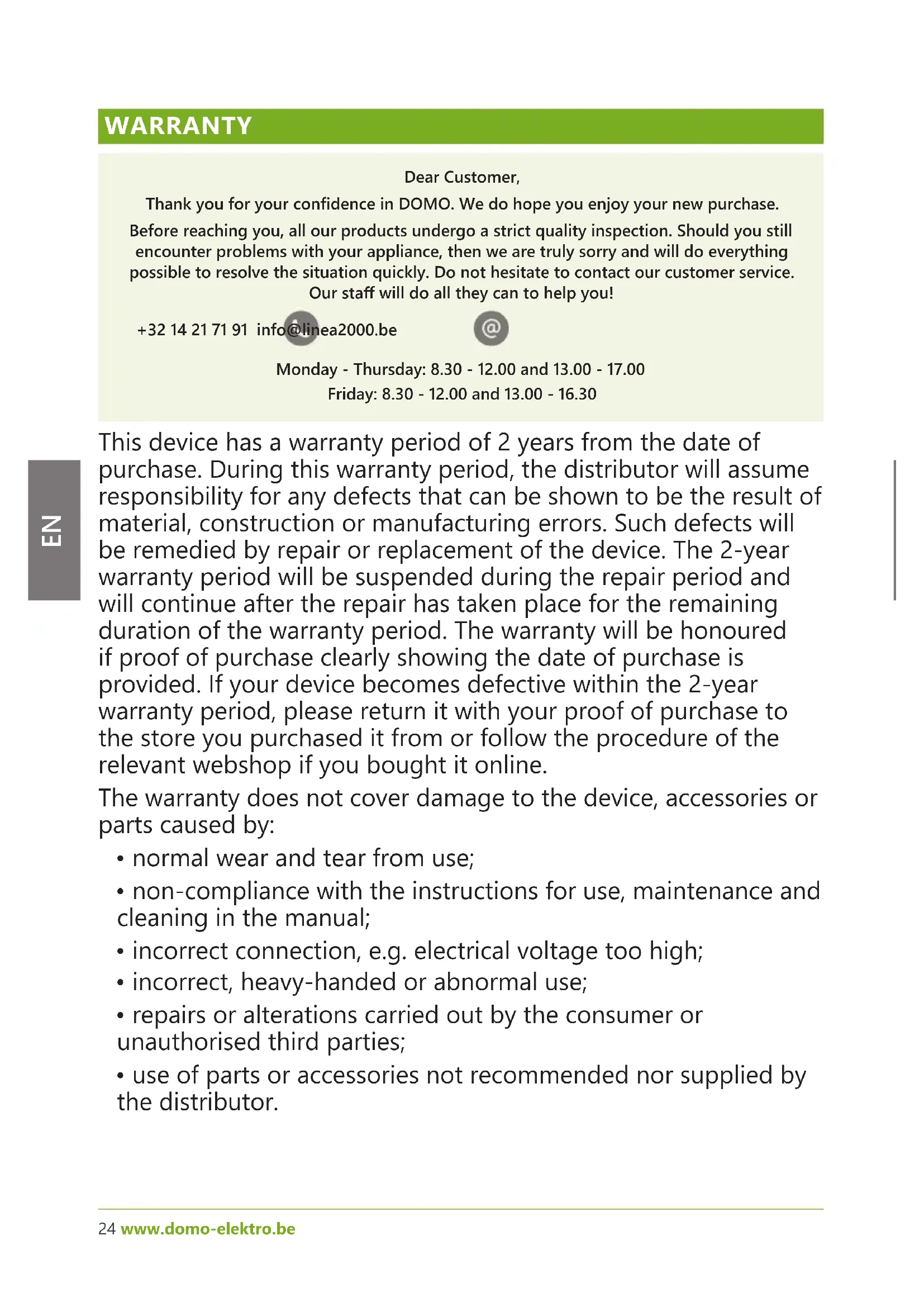

Thank you for your confidence in DOMO. We do hope you enjoy your new purchase. Before reaching you, all our products undergo a strict quality inspection. Should you still encounter problems with your appliance, then we are truly sorry and will do everything possible to resolve the situation quickly. Do not hesitate to contact our customer service. Our staff will do all they can to help you!

[phone] [e-mail]

Monday - Thursday: 8.30 - 12.00 and 13.00 - 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This device has a warranty period of 2 years from the date of purchase. During this warranty period, the distributor will assume responsibility for any defects that can be shown to be the result of material, construction or manufacturing errors. Such defects will be remedied by repair or replacement of the device. The 2-year warranty period will be suspended during the repair period and will continue after the repair has taken place for the remaining duration of the warranty period. The warranty will be honoured if proof of purchase clearly showing the date of purchase is provided. If your device becomes defective within the 2-year warranty period, please return it with your proof of purchase to the store you purchased it from or follow the procedure of the relevant webshop if you bought it online.

The warranty does not cover damage to the device, accessories or parts caused by:

• normal wear and tear from use;
• non-compliance with the instructions for use, maintenance and cleaning in the manual;
- incorrect connection, e.g. electrical voltage too high;
- incorrect, heavy-handed or abnormal use;
• repairs or alterations carried out by the consumer or unauthorised third parties;
- use of parts or accessories not recommended nor supplied by the distributor.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

• Read all instructions carefully.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

• This appliance is only suitable for use in domestic and similar environments, such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.
- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance.
- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.
- All repairs should be carried out by the manufacturer or its aftersales service.

▲ELECTRICAL WARNINGS

- For safety reasons, never use the appliance if the cord, plug, or appliance itself is damaged, or after a malfunction of the appliance. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

• Do not place near flammable materials, gases or explosives.
• Do not use or store this appliance outdoors.
• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

• Do not use this appliance for other than intended use.
• Never leave the appliance unattended while it is functioning.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠️ CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
• Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠PRODUCTSPECIFIC WARNINGS

• Keep hair, loose clothing, fingers and other body parts away from moving parts.
• This product contains a rechargeable battery. Batteries must be recycled in accordance with local laws and regulations when they are no longer of use. Do not pierce the battery or expose it to high temperatures; this may cause the battery to explode.

• Under extreme circumstances, there could be leakage of the battery.

• If the liquid from the battery comes into contact with the skin, remove all contaminated clothing and immediately wash the skin profusely with soap and water or take a shower. Contact a physician immediately if you continue to feel a burning sensation.

• If the liquid comes into contact with the eyes, rinse abundantly with water for at least 15 minutes until the irritation subsides and contact a doctor immediately.
• When inhaling any fumes that were released, immediately move into the fresh air and take a deep breath in and out.

Contact a doctor immediately if you experience shortness of breath, dizziness, or headaches.

- If a battery or the liquid from a battery is swallowed, seek medical assistance immediately. Try not to induce vomiting and do not eat or drink anything.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

All images and descriptions in this manual are purely indicative and may differ slightly from the actual device.

PARTS

1. Sponge white
2. Sponge yellow
3. Scouring pad green
4. Scouring pad blue
5. Velcro holder
6. Pointed brush
7. Flat brush
8. Drive
9. On/off button
10. Indicator light
11. Charging port
12. Charging cable USB-C

11 12 9 DOMO 10

1 2 3 4 5

Two views of a mechanical component with textured surfaces, labeled 6 and 7 (no text or symbols on the parts themselves)

Teal-colored handheld tool with black handle and label (no visible text or symbols)

BEFORE THE FIRST USE

Charge the battery before first use. See use > charging.

USE

⚠️ Make sure the silicon charging port tab is closed before using the device. The device may be damaged if water enters.

1. Choose the attachment you want to use depending on the job to be done:

2. Flat brush: perfect for floor and wall tiles

3. Pointed brush: for hard-to-reach places such as corners of tiles, taps, rims, etc.
4. Scouring pad (green and blue): pots, pans, oven, stove, etc.

5. Sponge (white and yellow): shoes, paint, glass, mirrors, cutlery, etc.

6. Place the attachment on the drive and press it firmly until you hear a click. When using the sponges, place the sponge on the Velcro holder first and then place the holder on the drive.

7. Press the power button to operate the device, change speed or turn it off (medium-fast-off).

8. Clean the surface with some water and detergent. There is no need to exert force on the device, the brush will do the work for you.

9. Switch the device off using the on/off button before removing an attachment. Remove the drive attachment by pulling it away from the device; you need less force with a downward movement.

INDICATOR LIGHT

Indicator light Status
Green In operation
Flashing red Empty battery
Red slow flashing/green flashing Error alert

Charging indicator light Status
Red Loading
Green Battery charged

CHARGING

⚠️Make sure the device and your hands are completely dry.

Open the silicon tab on the bottom of the device. Plug the USB-C cable into the charging port. Connect the other end to a USB charging point or an adapter (not included) and wall socket.

Tip: Charge the device at room temperature, a colder ambient charging temperature will affect the operating time.

CLEANING AND MAINTENANCE

Wipe the appliance clean with a damp cloth. Dry the device fully.

⚠️Do not immerse unit, cord, or plug in water or other liquid.
⚠️Never use aggressive or abrasive cleaning agents.

PROBLEMS AND SOLUTIONS

PROBLEMS SOLUTIONS
The appliance stops working. The device has overload protection. It will switch off automatically to protect the gears if you put too much pressure on the device. Do not press too hard during use, let the device do the work.
The indicator light is flashing red. The battery is low. Charge the device.
The attachment will not come loose from the device.	The attachments are firmly secured to ensure they do not come loose during use. Remove the attachment by pulling it firmly; with a downward movement you need to use less force.

GUIDELINES

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

NON-REMOVABLE BATTERY

The appliance is battery-operated, and the battery must not be disposed of with household waste, even after use. You can take the appliance to a collection point for discarded electrical appliances (Recupel) in your neighbourhood (container park, specialist shop, etc.). Batteries contain substances that are dangerous to human health and to the environment.

This appliance conforms to all European requirements in the areas of safety, health, and environmental protection.

The EU declaration concerning this appliance can be requested at any time from [e-mail]

GARANTIA

Estimado cliente,

Five colored 3D-rendered objects with numbered labels (1–5), no text or symbols present.

11 12 9 DOMO 10

6 7 8

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Five colored 3D-rendered objects labeled 1 to 5, arranged in a grid (no text or symbols on objects)

Two 3D-printed mechanical components with textured surfaces, labeled 6 and 7 (no text or symbols on the parts themselves)

Teal-colored handheld device with black handle and label (no visible text or symbols)

PRIMA DELL'USO

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Five colored oval-shaped objects labeled 1 to 5, arranged in a row (no text or symbols on objects)

2. Nabijecí kabel USB-C 11 12 9 DOMO 10

6 7 8

PŘED PRVNÍM POUŽITÍM

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Five colored 3D-rendered objects labeled 1 to 5, arranged in a row (no text or symbols on objects)

2. Nabijach kabel USB C 11 12 9 DOMO 10

Two 3D-printed mechanical components with textured surfaces, labeled 6 and 7 (no text or symbols on the parts themselves)

Teal-colored handheld tool with black handle and label (no visible text or symbols)

PRED PRVÝM POUŽITÍM

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)
