USER MANUAL KCS12A30A Friedrich

Room Air Conditioners

Line drawing of a portable air conditioner unit with control panel and remote control (no text or symbols)

Q Chassis Models

Kühl

115-Volt: KCQ05, KCQ06, KCQ08

Kühl+

115-Volt: KEQ08

Cool & Electric Heat

Thank you for your decision to purchase the Friedrich High Efficiency Air Conditioner. Your new Friedrich has been carefully engineered and manufactured to give you many years of dependable, efficient operation, maintaining a comfortable temperature and humidity level. Many extra features have been built into your unit to assure quiet operation, the greatest circulation of cool, dry air, and the most economic operation.

THANK YOU, on behalf of our entire company, for making such a wise purchase.

FRIEDRICH AIR CONDITIONING CO. SIN ANTONIO, TX Assembled in Mexico MGC NUMBER3 POBINA-A SERV. NUMBER AALY00218 VOLTS 50 Hz/1Pa

Register your air conditioner

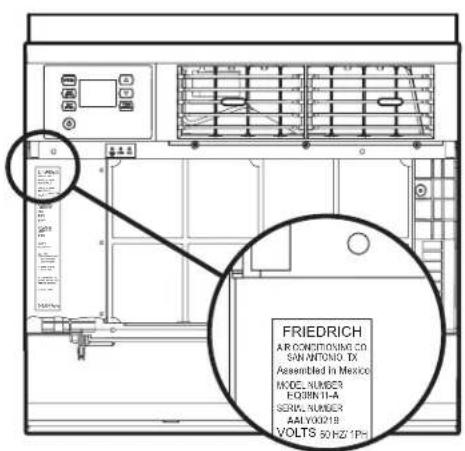

Model information can be found on the name plate behind the front cover.

Please complete and mail the owner registration card furnished with this product, or register online at www.friedrich.com.

For your future convenience, record the model information here.

MODEL NUMBER

SERIAL NUMBER

PURCHASE DATE

Table of Contents

Safety Precautions 4

Unpacking Instructions 5

WARNING: Before Operating Your Unit 6

Standard Filter Cleaning / Installation Instructions 7

Premium Carbon Filter Installation Instructions 8

Control Panel Operation 9

New Kühl Control Options 22

Control Panel Operation Instructions 2

Wi-Fi Set-Up Instructions 23

Remote Control Operation 24

Remote Effectiveness 24

Airflow Selection and Adjustment 23

Installation Instructions 24

Installation Hardware and Accessory Details 27

Standard Window Installation 28

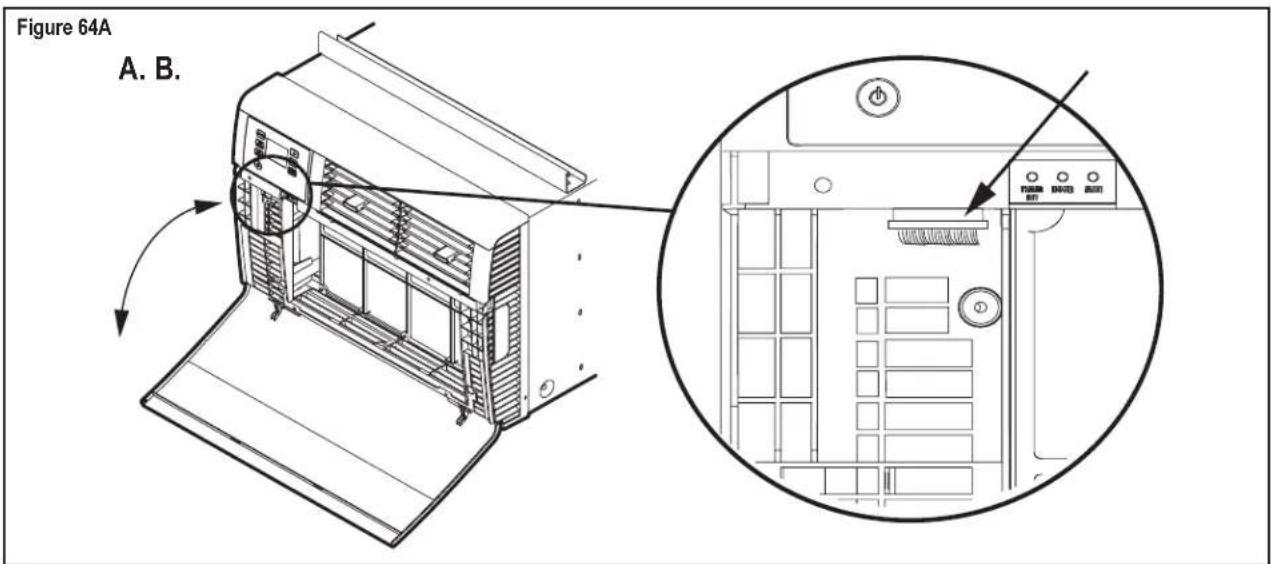

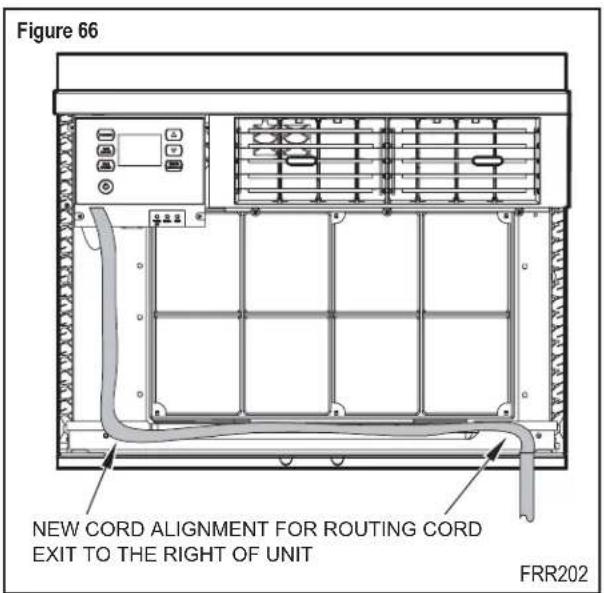

Cord Routing Change 3

Thru-the-Wall Installation 34

Final Inspection & Start-up Checklist 3&

Routine Maintenance 37

Service and Assistance 37

Available Accessories 37

Troubleshooting Tips 38

Warranty 40

Safety Precautions

Your safety and the safety of others is very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is a safety Alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

WARNING

All safety messages will follow the safety alert symbol with the word "WARNING" or "CAUTION". These words mean:

CAUTION

Indicates a hazard which, if not avoided, can result in severe personal injury or death and damage to product or other property.

Indicates a hazard which, if not avoided, can result in personal injury and damage to product or other property.

NOTICE

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what will happen if the instructions are not followed.

Indicates property damage can occur if instructions are not followed.

WARNING

Refrigeration system under high pressure

Do not puncture, heat, expose to flame or incinerate.

Only certified refrigeration technicians should service this equipment.

R410A systems operate at higher pressures than R22 equipment. Appropriate safe service and handling practices must be used.

Only use gauge sets designed for use with R410A.

Do not use standard R22 gauge sets.

THINK

SAFETY FIRST

WARNING AVEATISSEMENT ADVERTENCIA

Do not remove, disable or bypass this unit's safety devices. Doing so may cause fire, Doing so may cause fire, injuries, or death.

ISSEMENT ADVERTEMIA

Unpacking Instructions

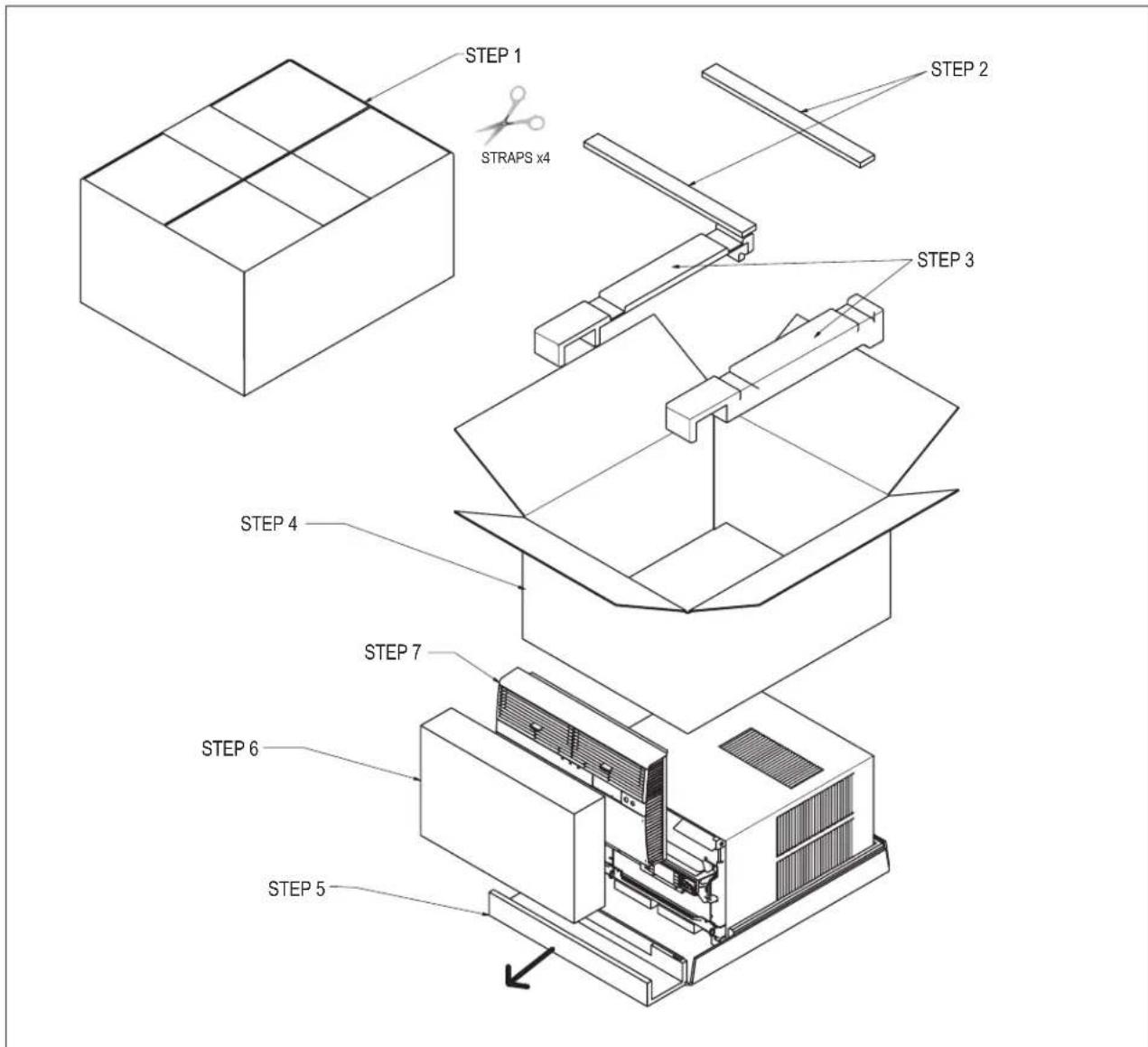

STEP 1. Cut all 4 packing straps.

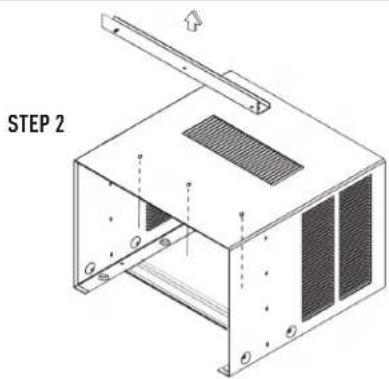

STEP 2. Remove wooden shipping bar dividers.

STEP 3. Remove top foam pads.

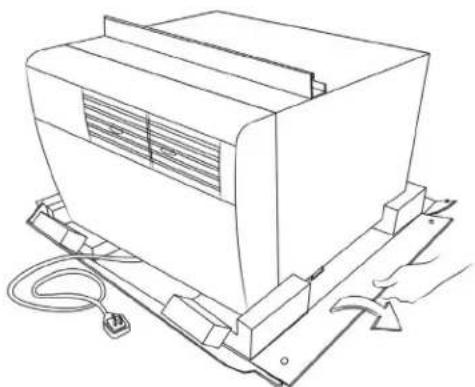

STEP 4. Slowly remove outer box, careful not to loosen decorative front.

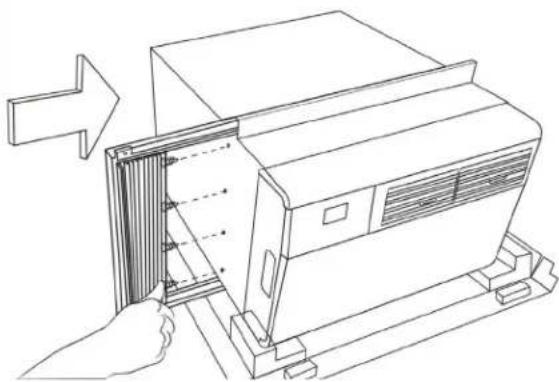

STEP 5. Slide the front forward.

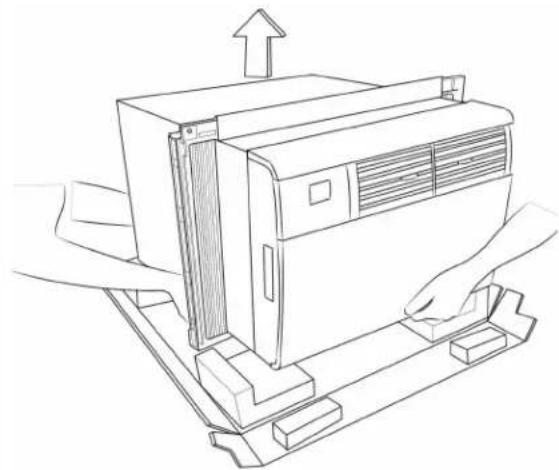

STEP 6. Carefully lift decorative front box from foam front support.

STEP 7. Remove decorative front and set safely aside.

STEP 1 STRAPS x4 STEP 2 STEP 3 STEP 4 STEP 7 STEP 6 STEP 5

WARNING: Before Operating Your Unit

Make sure the wiring is adequate for your unit.

If you have fuses, they should be of the time delay type. Before you install or relocate this unit, be sure that the amperage rating of the circuit breaker or time delay fuse does not exceed the amp rating listed in Table 1.

DO NOT use an extension cord.

The cord provided will carry the proper amount of electrical power to the unit; an extension cord may not.

Make sure that the receptacle is compatible with the air conditioner cord plug provided.

Proper grounding must be maintained at all times. Two prong receptacles must be replaced with a grounded receptacle by a certified electrician.

The grounded receptacle should meet all national and local codes and ordinances. You must use the three prong plug furnished with the air conditioner. Under no circumstances should you remove the ground prong from the plug.

Test the power cord.

All Friedrich room air conditioners are shipped from the factory with a Leakage Current Detection Interrupter (LCDI) equipped power cord. The LCDI device on the end of the cord meets the UL and NEC requirements for cord connected air conditioners.

To test your power supply cord:

1. Plug power supply cord into a grounded 3 prong outlet.
2. Press RESET (see Figure 1).
3. Press TEST, listen for click; the RESET button trips and pops out.
4. Press and release RESET (Listen for click; RESET button latches and remains in). The power cord is ready for use.

NOTICE

Do not use the LCDI device as an ON/OFF switch.

Failure to adhere to this precaution may cause premature equipment malfunction.

Table 1
MODEL	CIRCUIT RATING OR TIME DELAY FUSE		REQUIRED WALL RECEPTACLE
	AMP VOLT NEMA NO.
KCQ05 • KCQ06KCQ08 • KCQ10KEQ08	15 125	5-15P

WARNING
	Electrical Shock Hazard Make sure your electrical receptacle has the same configuration as your air conditioner's plug. If different, consult a Licensed Electrician. Do not use plug adapters. Do not use an extension cord. Do not remove ground prong. Always plug into a grounded 3 prong outlet. Failure to follow these instructions can result in death, fire, or electrical shock.

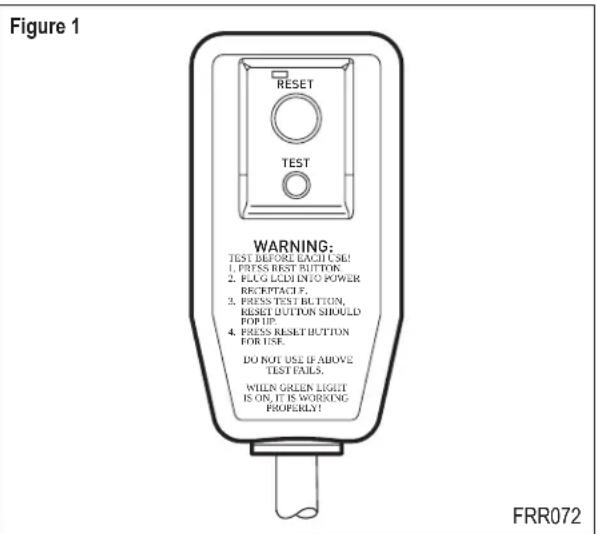

Figure 1 RESET TEST WARNING: TEST BEFORE EACH USE! 1. PRESS BEST BUTTON. 2. PLCG LCD INTO POWER RECEPTACIF. 3. PRESS TEST BUTTON, RESET BUTTON SHOULD FOR UP. 4. PRESS RESET BUTTON FOR USE. DO NOT USE IF ABOVE TEST FAILS. WHEN GREEN LIGHT IS ON, IT IS WORKING PROPERLY! FRR072

Standard Filter Cleaning / Installation Instructions

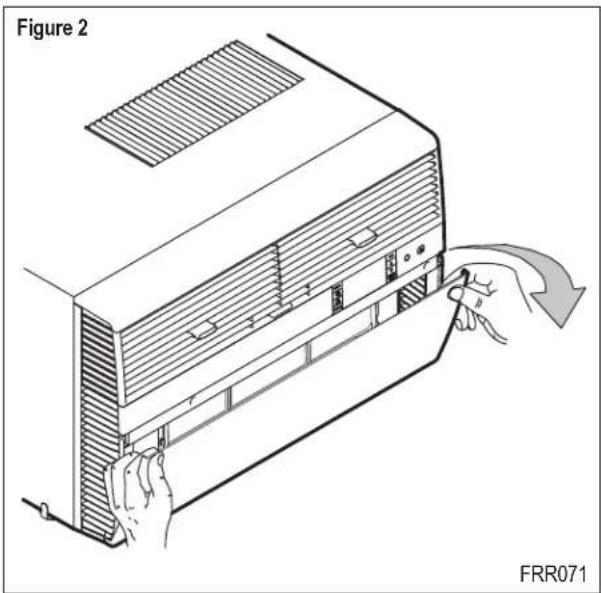

STEP 1. Swing the door open and remove the filter by grasping the filter grip and pushing the filter holder upward and outward.

Figure 2 FRR071

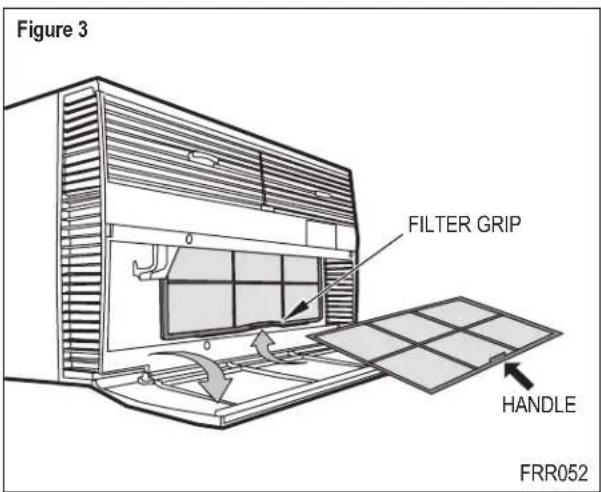

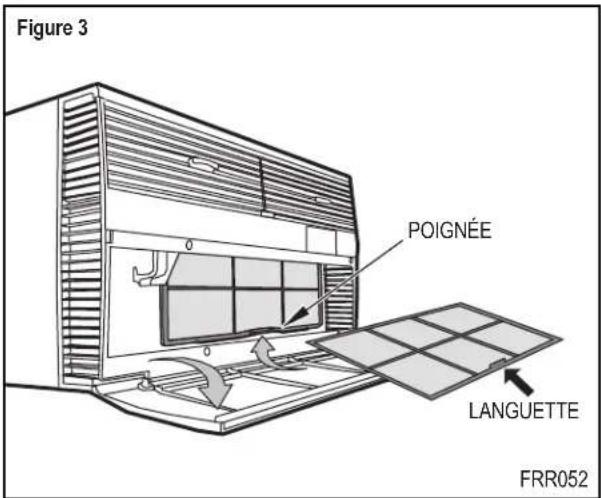

Figure 3 FILTER GRIP HANDLE FRR052

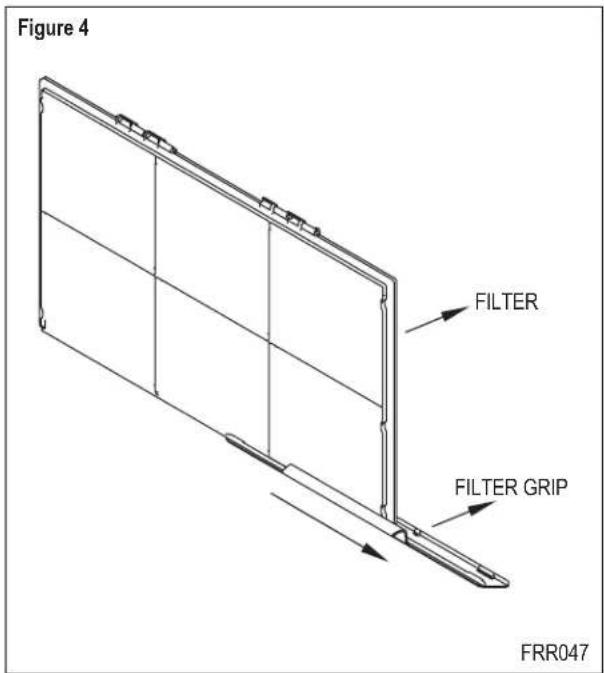

STEP 2. Slide the filter grip out from the filter as shown in Figure 4.

NOTE: Make sure the front frame with the mesh filter is facing you.

Figure 4 FILTER FILTER GRIP FRR047

STEP 3. Swing the front frame open. Clean the front frame by washing the dirt from the filter. Use a mild soap solution if necessary. Allow filter to dry.

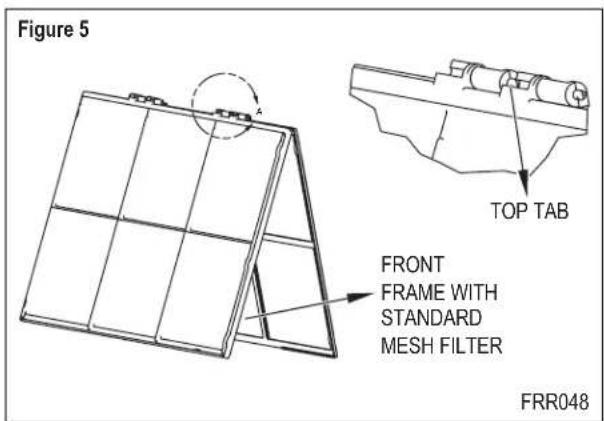

Figure 5 FRONT FRAME WITH STANDARD MESH FILTER TOP TAB FRR048

STEP 4. Install the filter grip back into the filter by sliding it into the filter.

NOTE: The filter handle slides into the frame in only one direction. If the tab in the frame stops the handle from sliding in, slide the handle from the other direction. DO NOT FORCE THE HANDLE INTO THE FRAME.

STEP 5. Install the filter back into the unit. Follow the instructions on the inside of the front door.

Premium Carbon Filter Installation Instructions

STEP 1. Remove the filter from the unit as per the instructions on the inside of the filter door.

STEP 2. Hold the filter at the top and slide the grip out as shown in Figure 4.

STEP 3. If you already have a carbon filter installed remove the dirty filter by laying the filter down and swinging open the front frame as shown in Figure 6.

NOTE: Make sure the frame with the mesh is facing toward you.

STEP 4. Place the new carbon filter on the top of the back filter frame. The carbon filter has been cut to the correct dimension and should fit within the frame as shown in Figure 7.

NOTE: The carbon filter is not a reusable filter, and needs to be replaced every three months for optimum efficiency.

STEP 5. Slide the filter handle back on to hold the frames together and slide the assembly into the unit as per the instructions on the door.

NOTE: The filter handle slides into the frame in only one direction. If the tab in the frame stops the handle from sliding in, slide the handle from the other direction. DO NOT FORCE THE HANDLE INTO THE FRAME.

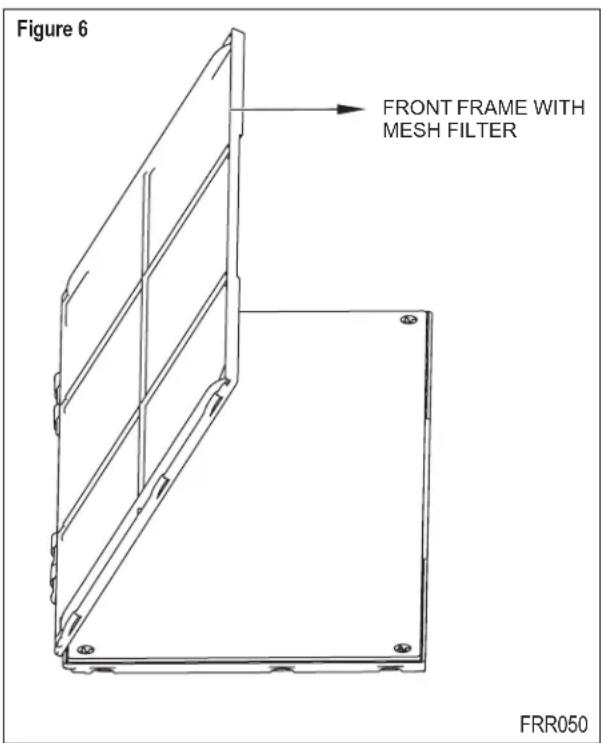

Figure 6 FRONT FRAME WITH MESH FILTER FRR050

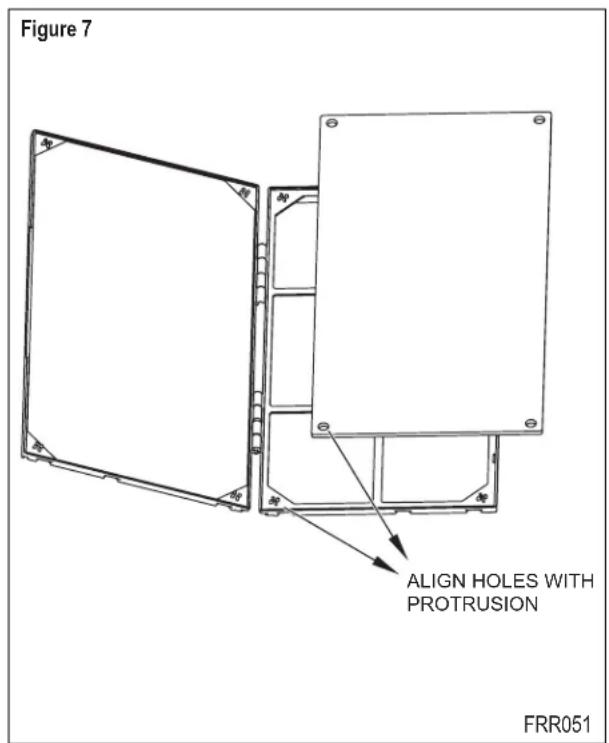

Figure 7 ALIGN HOLES WITH PROTRUSION FRR051

Control Panel Operation

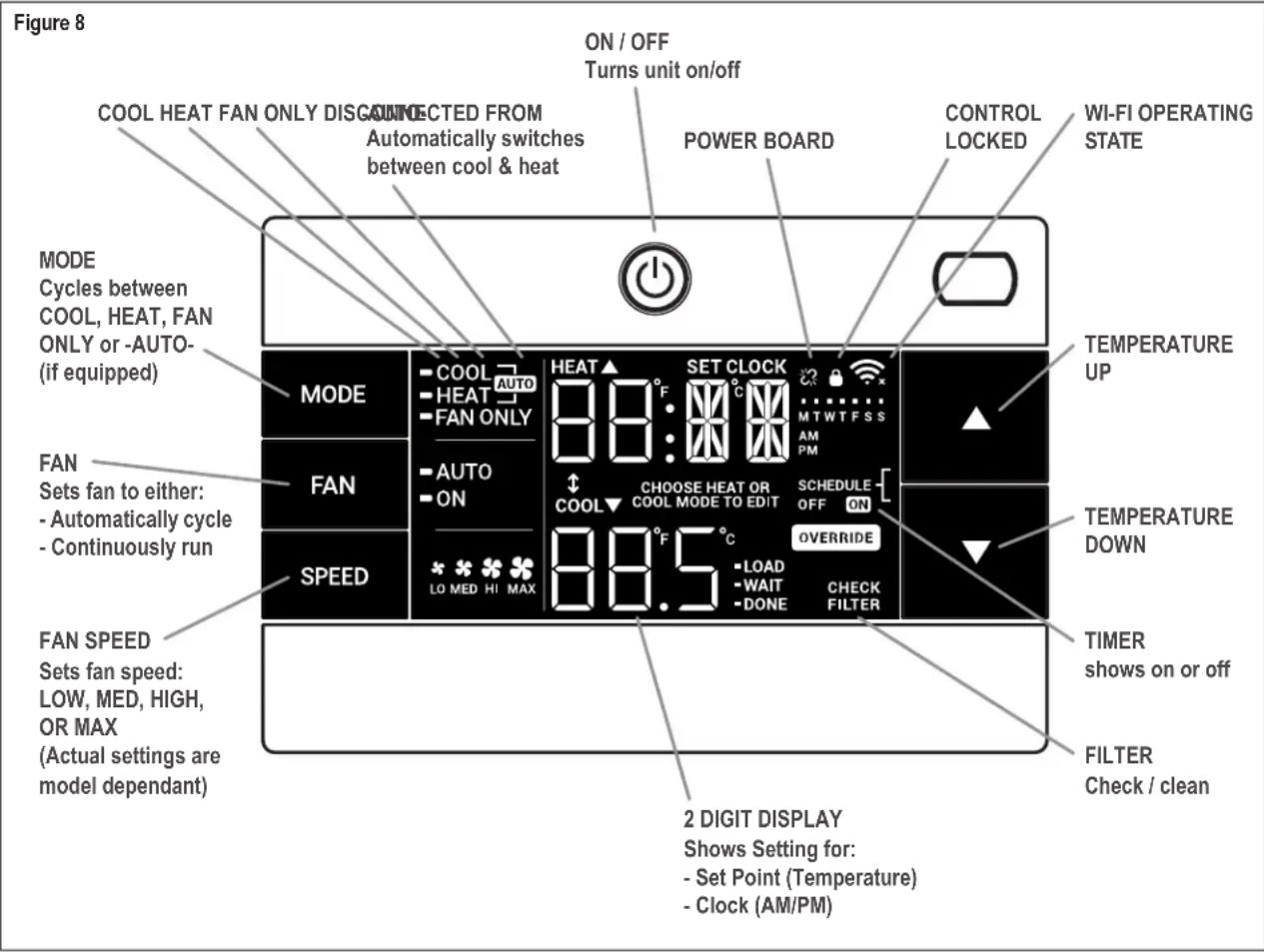

All of the control panel function buttons and mode icons can be viewed in Figure 8.

Power On – Press the button to turn on the air conditioner. The power button illuminates to indicate that the power is on. The backlight on the power switch will automatically turn off after 20 seconds of inactivity. The remote control can also be used to turn power ON / OFF (see Remote Control).

Display - The display is a high efficiency LCD with a built-in backlight. After 20 seconds of inactivity, the display switches off. Touching any button automatically changes the display to full brightness.

There are three control push buttons on each side of the display.

Figure 8 COOL HEAT FAN ONLY DISCONNECTED FROM Automatically switches between cool & heat ON / OFF Turns unit on/off POWER BOARD CONTROL LOCKED WI-FI OPERATING STATE MODE Cycles between COOL, HEAT, FAN ONLY or -AUTO- (if equipped) FAN Sets fan to either: - Automatically cycle - Continuously run SPEED MODE COOL AUTO HEAT SET CLOCK 88:0 °F °C MTWTFSS AM PM COOL CHOOSE HEAT OR COOL MODE TO EDIT SCHEDULE OFF ON OVERRIDE LO MED HI MAX LOAD WAIT DONE CHECK FILTER TEMPERATURE UP TEMPERATURE DOWN FAN SPEED Sets fan speed: LOW, MED, HIGH, OR MAX (Actual settings are model dependant) 2 DIGIT DISPLAY Shows Setting for: - Set Point (Temperature) - Clock (AM/PM) FILTER Check / clean

Control Panel Operation

Accessing Sub-Menus

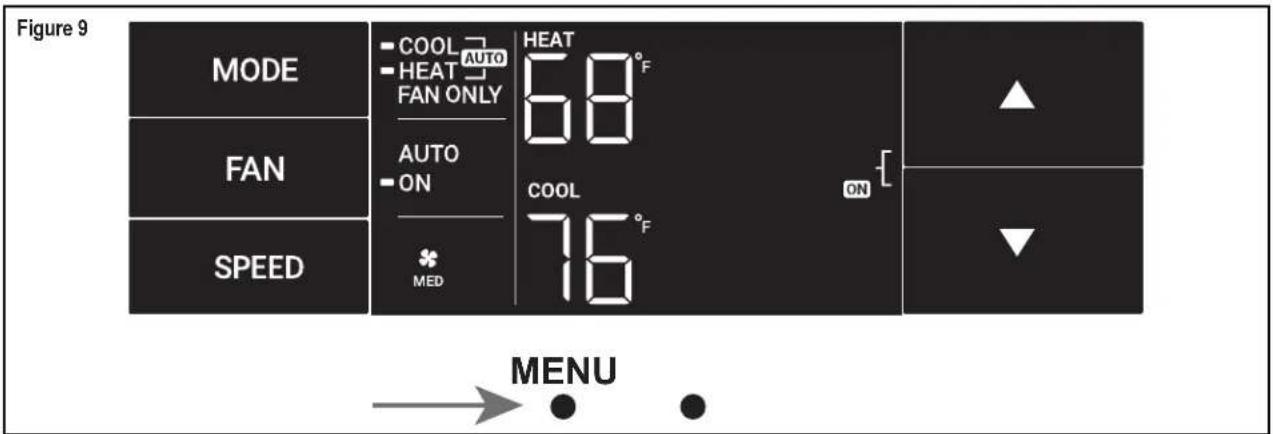

The leftmost MENU button accesses the sub-menu. See Figure 9.

The arrow buttons navigate the 6 menu options (See Figure 10):

-LIM-LOCK

-TM-CnCT

-F-C -diAG

The rightmost button exits the menu. See Figure 11.

Figure 9 MODE FAN SPEED COOL AUTO HEAT FAN ONLY AUTO ON MED HEAT 68°F COOL 76°F ON MENU

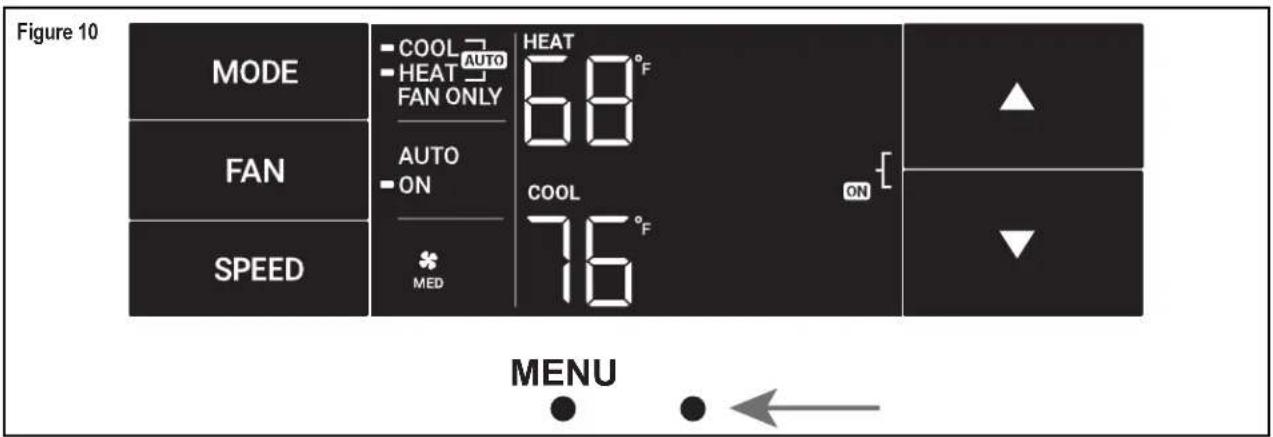

Figure 10 MODE FAN SPEED COOL AUTO HEAT FAN ONLY AUTO ON MED HEAT 68°F COOL 76°F ON MENU

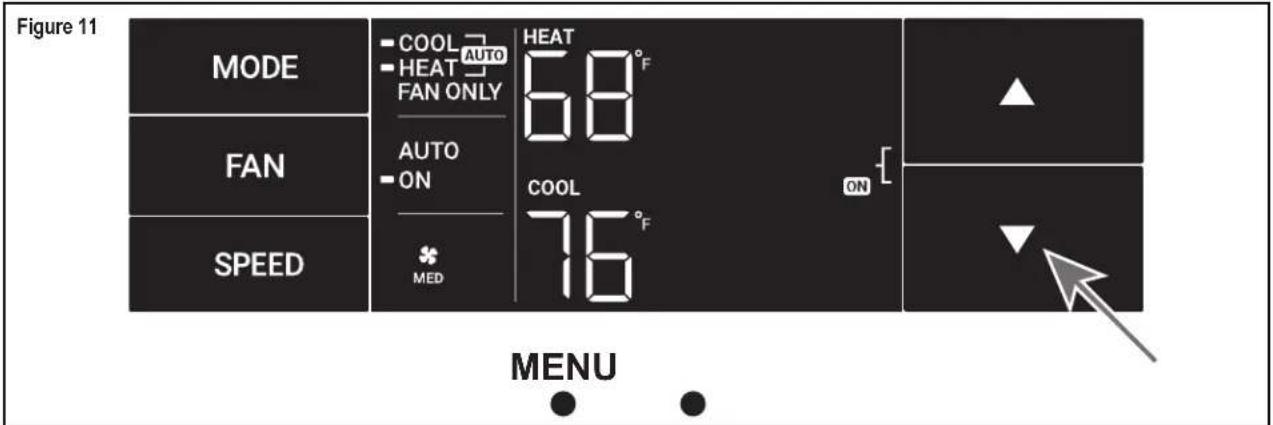

Figure 11 MODE COOL AUTO HEAT FAN ONLY 68°F AUTO ON SPEED MED COOL 76°F ON MENU

Control Panel Operation

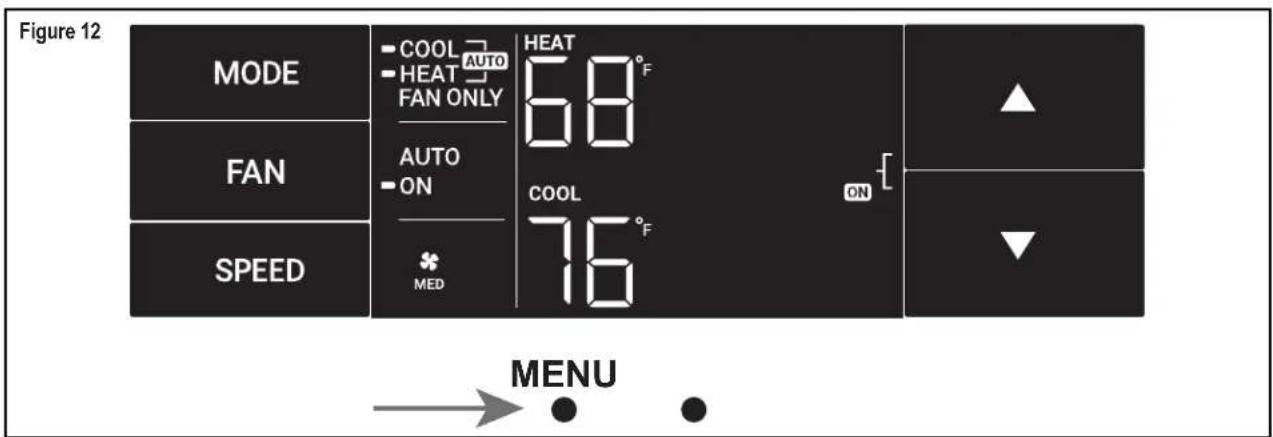

Navigating Inside the Sub-Menus

The leftmost MENU button moves you forward through the sub-menu. See Figure 12.

The rightmost button moves you backward once inside the LIM and TM menus. See Figure 13.

Figure 12 MODE FAN SPEED COOL AUTO HEAT FAN ONLY AUTO ON MED HEAT 68°F COOL 76°F ON MENU

Figure 13 MODE FAN SPEED COOL AUTO HEAT FAN ONLY AUTO ON MED HEAT 68°F COOL 76°F ON MENU

Control Panel Operation

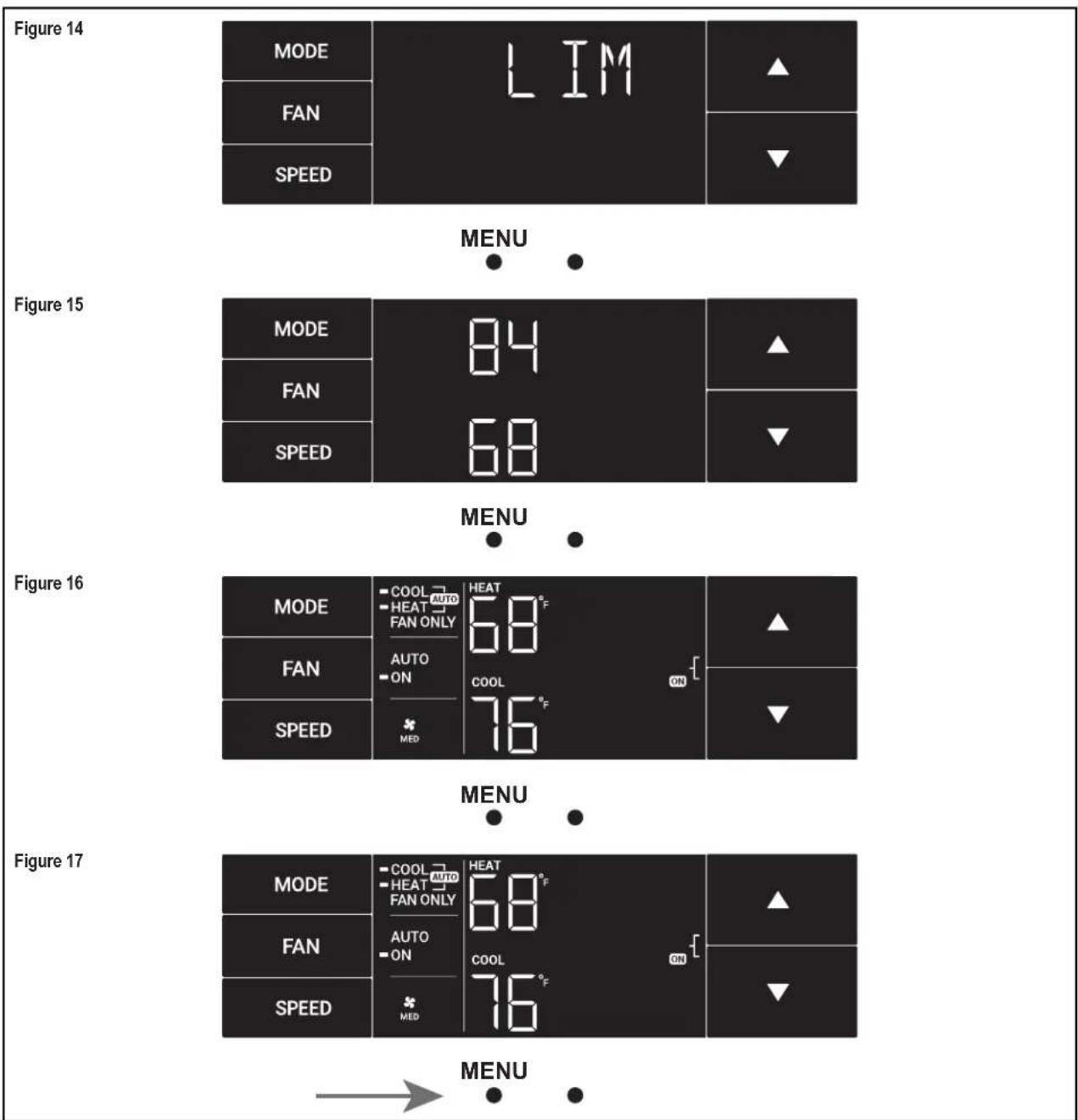

The LIM Menu

This is the limit menu. See Figure 14.

Upon entering the menu, the first option will be to set the lower setpoint limit using the arrow buttons. See Figure 15.

Then you can set the higher setpoint limit using the arrow buttons. See Figure 16.

Pressing the leftmost button completes the limit setting. See Figure 17.

Control Panel Operation

The TM Menu

This is the TM menu used to set a timer. See Figure 18.

In the menu, you set the current time using the arrow buttons. See Figure 19. (Note: These two "set clock" steps will be skipped if the unit is already connected to Wi-Fi.)

First, set the hour.

Using the leftmost button, you switch to the minutes and complete setting the time. See Figure 20.

You select your mode. Either cool, heat, or auto. Toggle these using the arrow buttons. See Figure 21. (Note: cooling-only models skip this step.)

The process is the same for all three modes. Auto mode will be shown as the example.

Figure 18

Control Panel Operation

The TM Menu continued

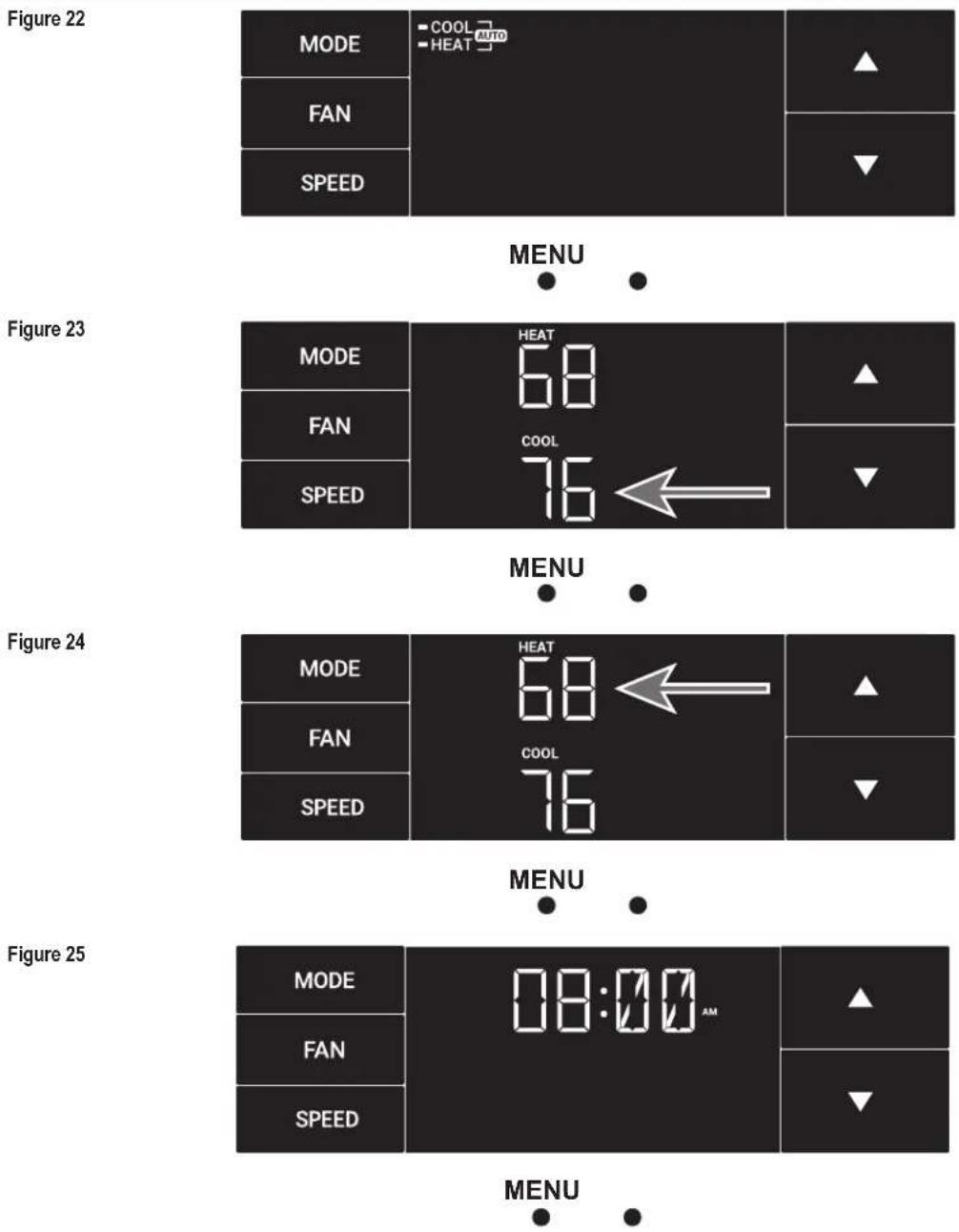

Auto mode selected. See Figure 22.

Set the cool setpoint for your first timer period using the arrow buttons. The cooling mode timer only sets the cool setpoint. See Figure 23.

Next, set the heat setpoint for your first timer period. The heating mode timer only sets the heat setpoint. See Figure 24.

Note: The auto mode timer sets both the cool and heat setpoint.

Set the time to start the first timer period. See Figure 25.

Figure 22 MODE FAN SPEED COOL AUTO HEAT MENU Figure 23 MODE FAN SPEED HEAT 68 COOL 76 ← MENU Figure 24 MODE FAN SPEED HEAT 68 ← COOL 76 MENU Figure 25 MODE FAN SPEED 08:00 AM MENU

Control Panel Operation

The TM Menu continued

Set the cool setpoint for the second scheduled timer. See Figure 26.

Set the heat setpoint for the second timer.

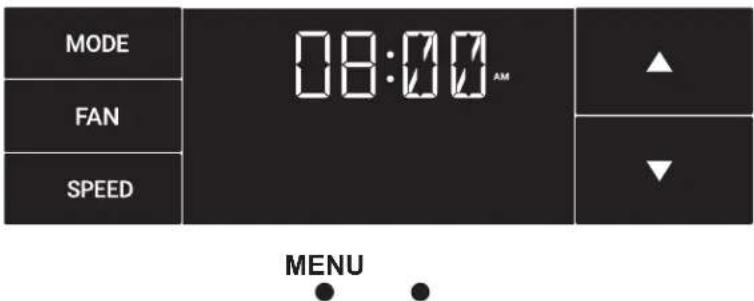

Set the time to start the second timer period. See Figure 27.

Press the leftmost button to complete the time timer setup. See Figure 28.

Figure 26

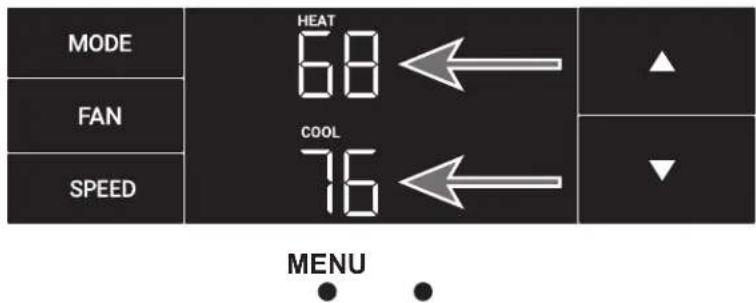

MODE FAN SPEED HEAT 68 COOL 76 MENU

Figure 27

MODE FAN SPEED 08:00 AM MENU

Figure 28

MODE COOL AUTO HEAT FAN ONLY 68°F AUTO ON SPEED 76°F ON MENU

Control Panel Operation

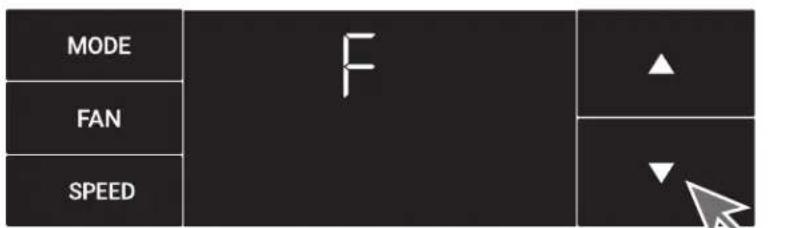

The F-C Menu

This menu is used to toggle between Fahrenheit and Celsius.

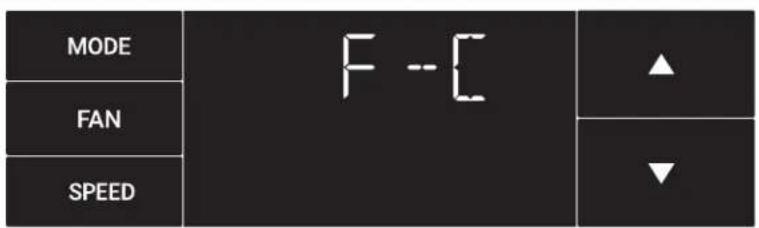

This is the Fahrenheit/ Celsius Menu. See Figure 29.

Using the arrow buttons on the right side switches it from Fahrenheit to Celsius. See Figures 30 and 31.

Figure 29

MODE F - C FAN SPEED

MENU

Figure 30

MODE F FAN SPEED

MENU

Figure 31

MODE FAN SPEED

MENU

Control Panel Operation

The Lock Menu

This menu is used to lock the changing setting with a password.

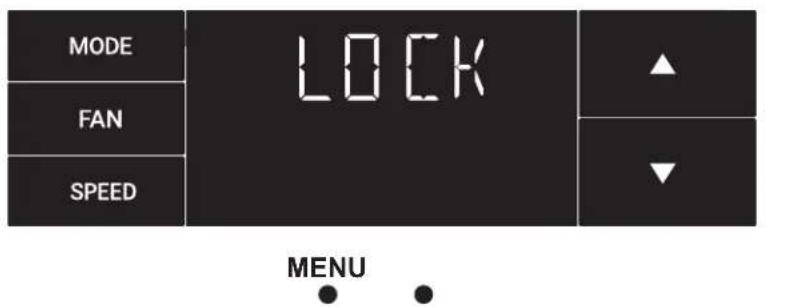

This is the Lock Menu. See Figure 32.

The default is the off setting. Use the arrows to toggle between off and on. See Figure 33.

This is LOCK on. See Figure 34.

Set the first digit of the password using the arrow buttons. Use the leftmost button to proceed to the next digit. See Figure 35.

Figure 32

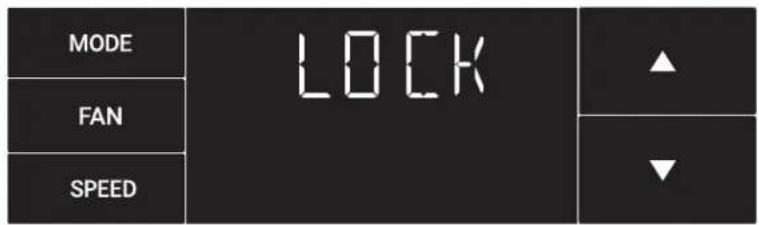

MODE FAN SPEED LOCK ▲ ▼

MENU

Figure 33

MODE FAN SPEED OFF

MENU

Figure 34

MODE FAN SPEED

MENU

Figure 35

MODE FAN SPEED 00 00 ▲ ▼

Control Panel Operation

The Lock Menu continued

Set the second digit of the password using the same method. See Figure 36.

Set the third digit of the password using the same method. See Figure 37.

Set the fourth digit of the password using the same method. See Figure 38.

Press the leftmost button to complete the password process. See Figure 39.

Figure 36

MENU

Figure 37

MENU

Figure 38

MENU

Figure 39

MENU

Control Panel Operation

The Lock Menu continued

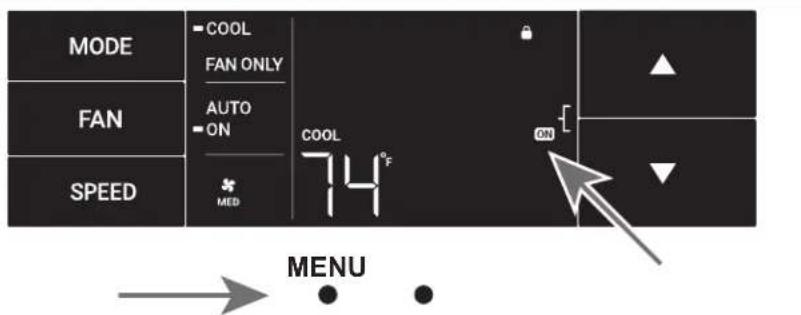

The ON on the right side of the display shows the lock function is active. To go back into the menu, select the leftmost button again. See Figure 40.

Enter the password in the same manner it was created. See Figure 41.

Entering the correct password will give the user access to all of the submenus. See Figure 42.

Accessing the lock menu will allow you to toggle lock OFF if needed. See Figure 43.

Figure 40

MODE COOL FAN ONLY AUTO ON SPEED MED COOL 74°F ON MENU

Figure 41

MODE FAN SPEED 12:34 MENU

Figure 42

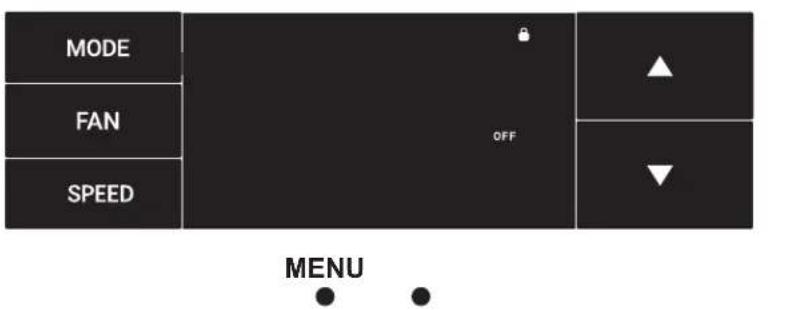

MODE FAN SPEED LOCK MENU

Figure 43

MODE FAN SPEED OFF MENU

Control Panel Operation

The CnCT Menu

This menu is used to turn on Wi-Fi connection.

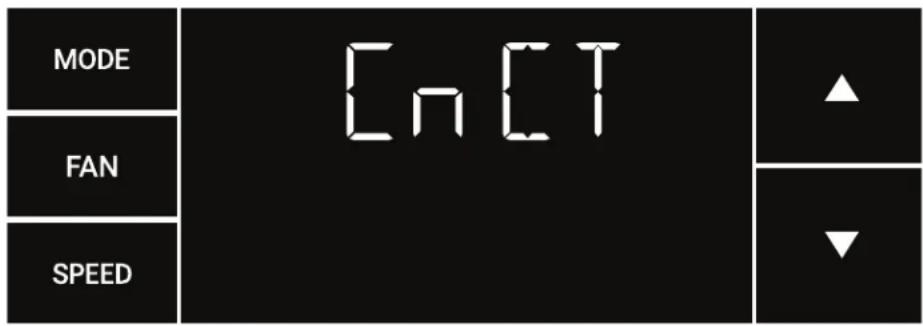

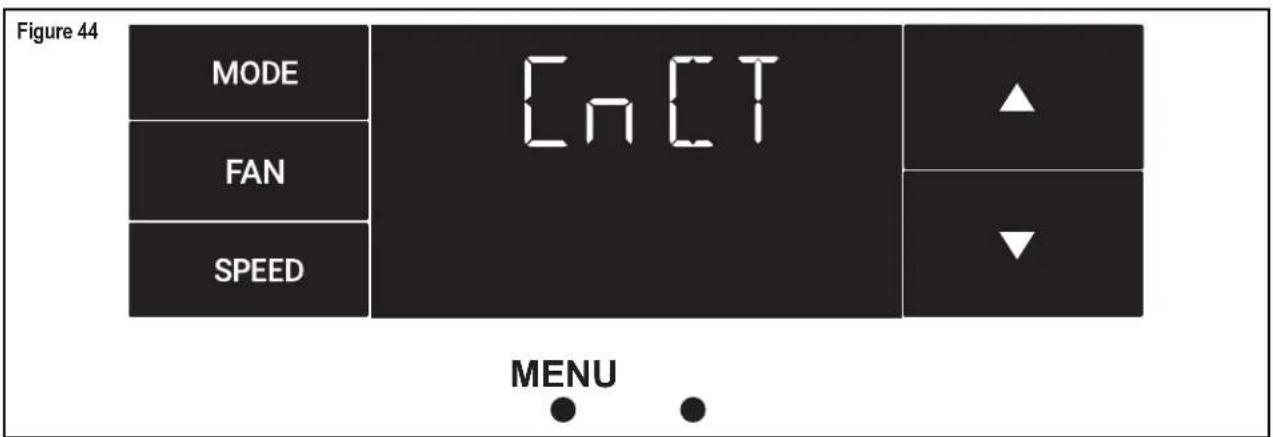

This is the CnCT menu. Pressing the leftmost button will activate Wi-Fi. See Figure 44.

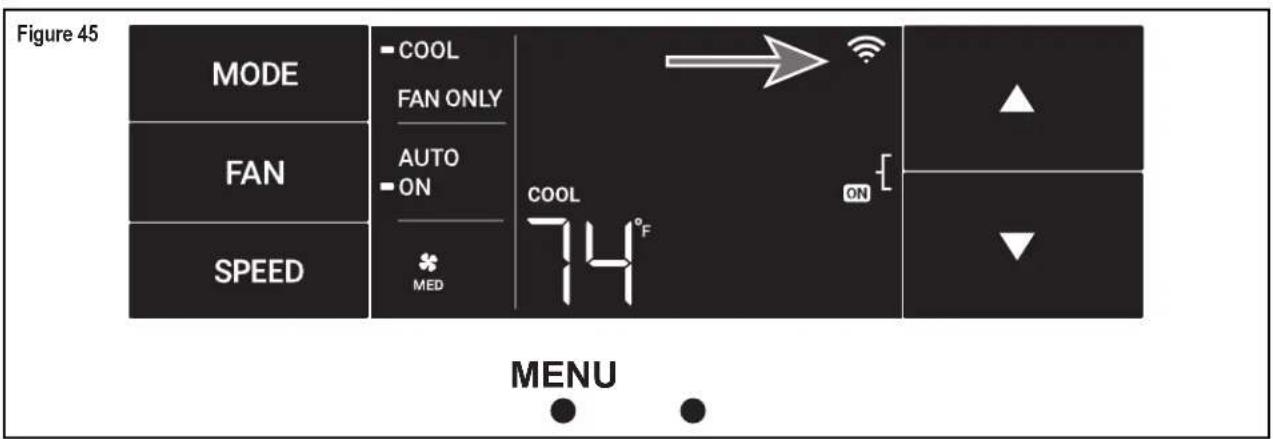

The Wi-Fi symbol in the top right corner of the display shows Wi-Fi connection is on. See Figure 45.

Figure 44 MODE FAN SPEED EnCT MENU

Figure 45 MODE FAN SPEED COOL FAN ONLY AUTO ON MED COOL 74°F ON MENU

Control Panel Operation

The diAG Menu

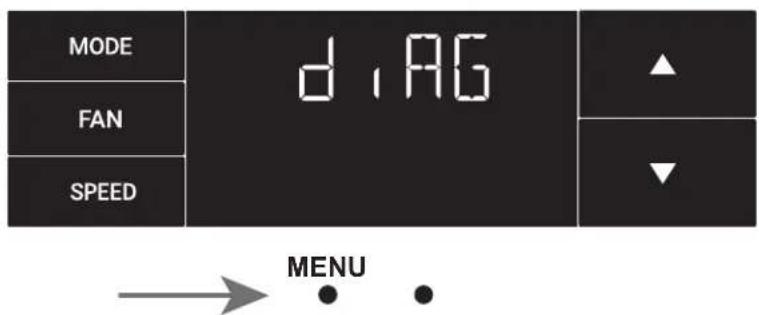

This menu is used to access the diagnostic codes. See Figure 46.

Selecting this sub-menu shows the E that represents "Error."

See Figure 47.

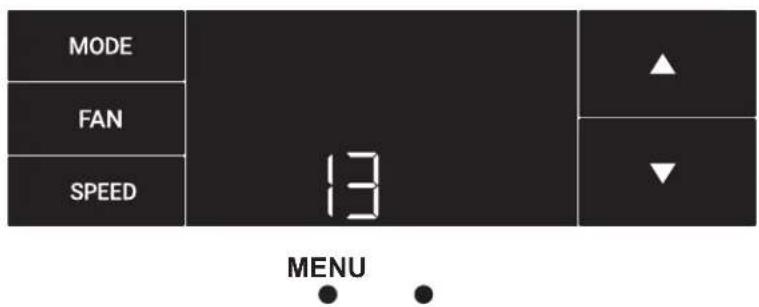

Toggle through the error codes using the arrow keys. See Figure 48.

Figure 46

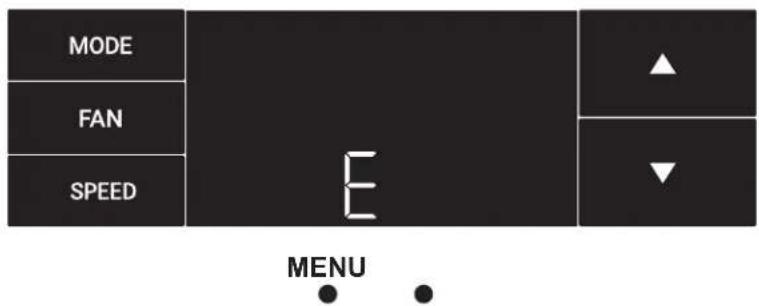

MODE FAN SPEED d, AG MENU

Figure 47

MODE FAN SPEED E MENU

Figure 48

MODE FAN SPEED 13 MENU

New Kühl Control Options

The new Kühl gives you a variety of options for control, programming, and scheduling including wireless capabilities.

Wireless Programming and Control:

Friedrich Connect allows you to conveniently control, program, and monitor your air conditioning unit remotely from a smartphone or computer.

Pre-Programmed Scheduling Options:

Your unit's digital control comes equipped with a 24-hour timer.

24-Hour Timer

The 24-hour timer allows you to set 2 temperature changes at pre-set times or a unit control panel.

Customizable Programming Options:

Customizable timers, with up to four temperature adjustments per day, can be set using Friedrich Connect for one or multiple units.

See www.friedrich.com for complete details on Friedrich Connect.

Control Panel Operation Instructions

SYSTEM - The MODE button allows you to sequentially select up to four modes of operation:

AUTO Available on select models

COOL

HEAT Available on select models

FAN ONLY

AUTO FAN (No Cooling Demand)

When in AUTO mode, the fan only operates when the system has a demand to cool or heat the room.

In the ON fan mode, the fan operates all the time. The system periodically cools or heats the fan's airflow but the flow of air does not stop.

UP and DOWN Arrows - Pressing either an UP or DOWN button changes the system's setpoint (desired room temperature). These buttons are also used to make system parameter changes later in this manual.

One press equals 1 degree of change in Fahrenheit mode. One press equals 0.5 degree change in Celsius mode.

TIMER

The timer can be engaged or disengaged from the control panel. This is done by pressing or holding the UP and DOWN arrows simultaneously for three seconds.

OTHER FUNCTIONS

°F-°C Select

To switch from degrees Fahrenheit (F) to Celsius (C), press the MENU button and enter the F-C sub-menu.

FAN SPEED - Depending on your model, the FAN SPEED button allows you to toggle between three or four modes of operation: LOW, MEDIUM, HIGH and MAX.

Alerts

When the filter needs to be cleaned or replaced, the CHECK FILTER icon displays.

The alert can be dismissed by pressing the FAN MODE and TIME for 3 seconds.

Lock Control Panel

To lock/unlock the front panel controls, navigate to the "LOCK" sub-menu found after clicking the MENU button. The lock requires a four digit pass code to lock/unlock the unit. This pass code will be required to enter the menu to unlock the unit. The LOCK icon illuminates to indicate the locked status.

The LOCK icon disappears to indicate unlocked status.

External Control Status

The Wi-Fi icon illuminates to indicate that the system is receiving a Wi-Fi connection. The Wi-Fi icon also provides information about the signal strength.

ADVANCED FUNCTIONS

The functions mentioned in the following section may or may not be available depending on the air conditioner model.

Modify the TIMER Function

Navigate to the TIME menu to set the timer.

Wi-Fi Set-Up Instructions

Below are the set-up instructions for Wi-Fi to use your unit wirelessly.

Follow the instructions below:

STEP 1. Using a mobile device such as a smartphone or laptop, navigate to www.FriedrichConnect.com.

STEP 2. Sign-in using your username and password.

STEP 3. Click the "Add Device" button.

STEP 4. Select the time zone the device is located in and click the "Next" button.

STEP 5. To start the setup process click the menu button on the home screen of your Kühl model.

STEP 6. Using the up and down arrows, navigate to the CnCT screen (Figure 49).

STEP 7. Click the menu button, this will begin the setup process for your Friedrich Connect enabled device.

STEP 8. Click the "Next" button on your mobile device.

STEP 9. Follow the on-screen steps to finish adding the device to your account.

Figure 49

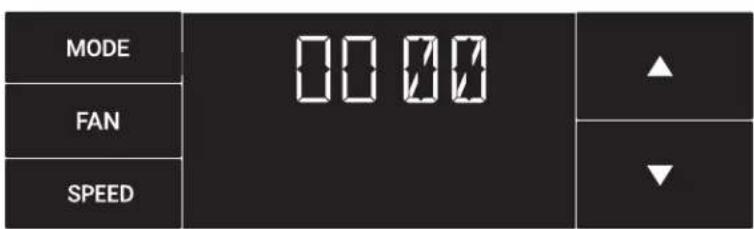

MODE FAN SPEED ENCT ▲ ▼

Figure 50

MODE	COOL HEAT FAN ONLY	COOL▼ 72	▲
FAN	AUTO ON
SPEED	HI		▼

Remote Control Operation

Remote Control - Refer to Figure 51 during operation description.

Getting Started - Install two (2) AAA batteries in the battery compartment located on the back of the unit.

Operation - The remote control should be within 25 feet of the air conditioner for operation (refer to Figure 51 for effectiveness). Press the power button to turn the remote on. The remote will automatically power off after 15 seconds if the buttons are not being pressed. The remote must be on to control the unit.

POWER Button - Turns remote and unit on and off.

SYSTEM Button - Allows the user to sequentially select the following: AUTO, COOL, HEAT, and FAN ONLY operations. When the button is pressed, the display indicates which mode has been selected via a display message. Note that when the heating function is not available, the system will automatically skip the HEAT mode.

FAN MODE Button - Selects between automatic (AUTO FAN) or CONTINUOUS operation. In the AUTO FAN mode, the fan only turns on and off when the compressor operates or the heat function is enabled.

NOTE: AUTO FAN is not available in the FAN ONLY Mode, the display indicates CONTINUOUS. In the CONTINUOUS mode, fan speed is determined by your selection on the FAN SPEED button.

FAN SPEED Button - Used to sequentially select new fan speed, plus AUTO operation. When the FAN SPEED button is pressed, the fan speed icon (triangle) changes to indicate the new speed level. Fan speed automatically varies depending on the set temperature on the control panel and the actual room temperature. For example, if there is a big difference between your set temperature and the actual room temperature, the system fan speed increases to HIGH. It remains at this speed until the room temperature matches the set temperature.

UP and DOWN Arrows - Pressing either the UP or DOWN button changes the desired room temperature. The factory preset lower and upper limits are 60 °F (16 °C) and 99 °F (37 °C). These buttons are also used to navigate between function options when using the User Menu or Maintenance Mode.

Remote Effectiveness

Handheld Remote - Has an operating range of up to 25 ft. The infrared remote control signal must have a clear path to transmit the command to the air conditioning unit. The remote signal has some ability to "bounce" off of walls and furniture similar to a television remote control. The diagram below shows the typical operating range of the control in a standard room with 8 ft high ceilings.

Figure 51 SIDE VIEW TOP VIEW FRR080

Airflow Selection and Adjustment

Airflow direction adjustment

The airflow path may be adjusted to distribute air independently from the left or right side of the discharge opening. Each of the banks of louvers can be directed left, right, up, or down in order to achieve the most optimum airflow positioning.

To adjust airflow direction, grab the lever in the center of the louver bank and move it in the direction that you would like the air to be directed. Please note that it is normal that airflow may be stronger out of one side of the louvers than the other.

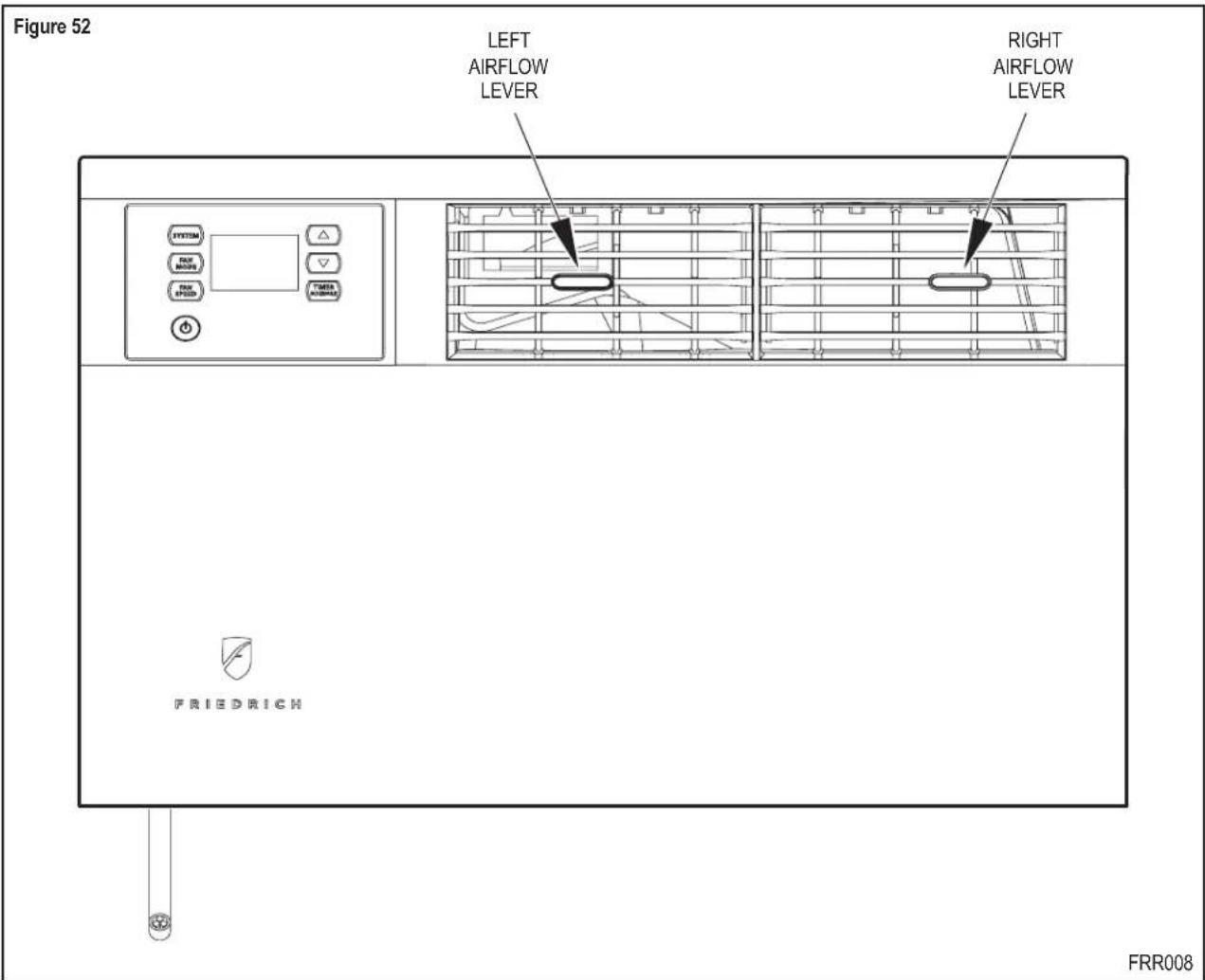

Figure 52 LEFT AIRFLOW LEVER RIGHT AIRFLOW LEVER FRIEDRICH FRR008

Installation Instructions

READ THIS FIRST! Electrical Requirements

WARNING

Electrical Shock Hazard

Make sure your electrical receptacle has the same configuration as your air conditioner's plug. If different, consult a Licensed Electrician.

Do not use plug adapters.

Do not use an extension cord.

Do not remove ground prong.

Always plug into a grounded 3 prong outlet.

Failure to follow these instructions can result in death, fire, or electrical shock.

IMPORTANT: Before you begin the actual installation of your air conditioner, check your local electrical codes and the information below. Your air conditioner must be connected to a power source with the same alternating current (A.C.) voltage and amperage as marked on the name plate located on the chassis. Only A.C. can be used. Direct Current (D.C.) cannot be used.

CIRCUIT PROTECTION – Use on single outlet circuit only. An overloaded circuit will invariably cause malfunction or failure of an air conditioner; therefore, it is necessary that the electrical protection is adequate. Due to momentary high current demand when the air conditioner starts, use a "TIME DELAY" fuse or a HACR type circuit breaker. Consult your dealer or power company if in doubt.

Refer to the electrical name plate located on the air conditioner chassis (see Page 2) to determine the correct fuse or circuit breaker amperage for your model (see Table 1 on Page 6 for electrical receptacle types).

The power cord has a plug with a grounding prong and a matching receptacle is required.

The following instructions are for standard chassis model groups distinguished by the first three letters of the model designations cabinet sizes listed in Table 2.

Table 2
MODEL DESIGNATION CABINET SIZE (H x W x D)
SMALL CHASSIS –KCS, KES, KHS	15^15/16" × 25^15/16" × 29"(405 mm × 660 mm × 737 mm)
MEDIUM CHASSIS –KCM, KEM, KHM	17^15/18" × 25^15/18" × 29"(455 mm × 660 mm × 737 mm)
LARGE CHASSIS –KCL, KEL, KHL	20^3/16" × 28" × 35^1/2"(513 mm × 711 mm × 851 mm)

WARNING

Black and white icon depicting a hand holding a device with multiple square components (no text or symbols)

MOVING PARTS HAZARDS

• Do not operate unit out of sleeve or with front grille removed.
• Do not place hands in blower or fan blade areas.

Failure to do so can result in serious injury.

CAUTION

Excessive Weight Hazard

Use two or more people when installing your air conditioner.

Failure to do so can result in back or other injury.

Recommended Tools

1. Power Drill
2. ^5/_32 " Drill Bit
3. Gloves
4. Carpenters Level
5. ^5/_16 " Wrench
6. ^1/4 " Wrench

7. 2 Phillips Screw Driver

8. Putty Knife or (wood stir stick)

Line drawing of a handheld electric drill with two labeled parts (1 and 2), no text or symbols present.

Two wrench illustrations labeled 5 and 6, shown side by side without any text or symbols on the tools themselves.

Line drawing of a pair of gloves with a bandage, labeled '3' (no text or symbols on the gloves themselves)

Technical line drawings of two screwdriver tools labeled 7 and 8 (no text or symbols on the devices themselves)

ITEMS NOT TO SCALE

Installation Hardware and Accessory Details

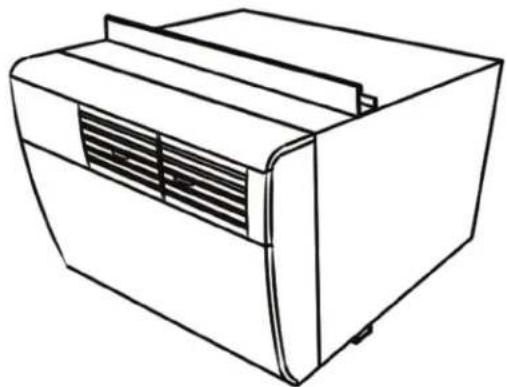

Line drawing of a rectangular electronic device with ventilation slots and a handle (no text or symbols)

A

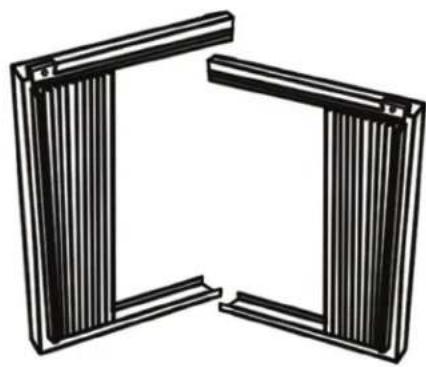

Pure diagram of two identical L-shaped metal frame structures without any text or symbols

B

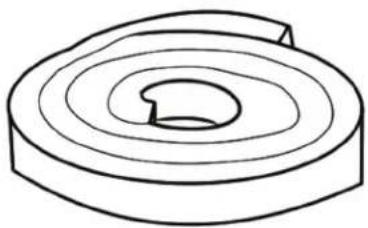

Simple line drawing of a spiral mechanical component with a central hole (no text or symbols)

C

D

E

Line drawing of a screw with a fastener, labeled 'F G' (no other text or symbols)

Installation Hardware
ITEM NO	DESCRIPTION QTY.
A	Q KÜHL UNIT	1
B	Q SIDE CURTAINS (INCLUDES 8 PUSH PINS)	2
C	WINDOW SEAL GASKET	1
D	SHELL GASKET (ADHESIVE-BACK)for replacement installations only	1

Installation Hardware
ITEM NO	DESCRIPTION QTY.
E	SCREW #8 x 1⁄2" (BLUE BAG)	6
F	SCREW #8 x 1 1⁄4" (GREY BAG)	5
G	SPARE PUSH PINS	4

NOTE: Protective clothing and gear should be worn & used while installing the unit (e.g. protective eye wear, gloves, boots, etc...)

FOR WINDOW INSTALLATIONS, PROCEED TO THE NEXT PAGE. FOR THRU-THE-WALL INSTALLATIONS, SKIP TO PAGE 34.

Standard Window Installation

WARNING

Falling Object Hazard

Not following Installation Instructions for mounting your air conditioner can result in property damage, injury, or death.

STEP 1. Fold down the sides of the carton bottom tray (Figure 53).
Figure 53

Line drawing of an air conditioner unit with cooling panel and attached circuit board (no text or symbols)

STEP 2. Install side curtains (B in parts list) on both sides of the unit. Press in the attached push pins (4 on each side) to secure curtains to the sleeve (Figure 54).

Figure 54

Line drawing of a computer unit being inserted into a rack, with an arrow indicating the process (no text or symbols present)

STEP 3. Once both curtains have been installed, slide hands underneath the unit to lift and carry to the window, as shown in Figure 55 below. Obtain assistance as needed.
Figure 55

Line drawing of a computer monitor with hands operating it, showing no text or symbols

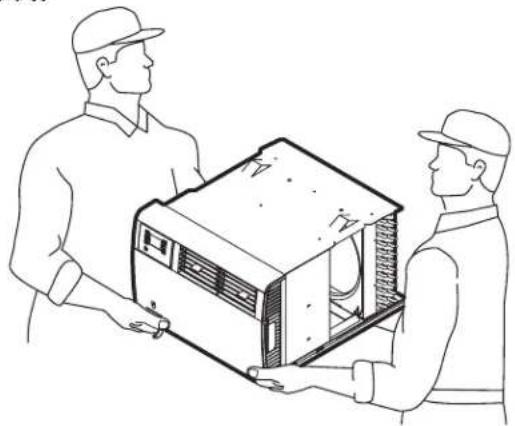

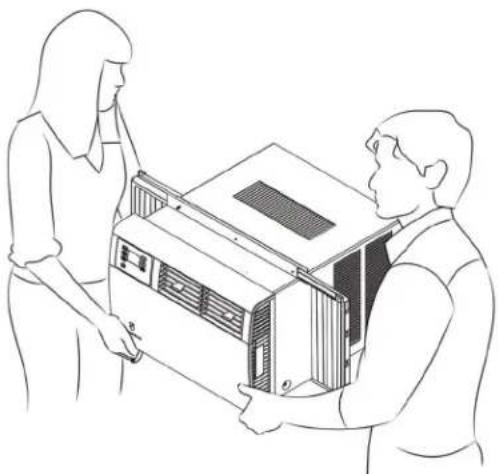

Line drawing of two people exchanging a large air conditioner unit (no text or symbols)

CAUTION

Excessive Weight Hazard

Use two or more people when installing your air conditioner.

Failure to do so can result in back or other injury.

NOTE: WHEN REMOVING UNIT FROM SLEEVE AND CARRYING OR HANDLING UNIT, OBTAIN ASSISTANCE OR HELP AS NECESSARY TO SUPPORT UNIT FROM BOTTOM (BASEPAN), MAINTAINING CLEARANCE FROM ALL OBSTACLES.

Standard Window Installation continued

STEP 4. Place unit in window with the bottom support rail up against the back edge of the window sill. Center and close window sash onto upper support rail. The unit should be level or slightly tilted outside (Figure 56). NOTE: Depending on the type of window, install the appropriate security lock as recommended by manufacturer.

Figure 56

Line drawing of a cabinet or storage unit with doors and ventilation slots (no text or symbols)

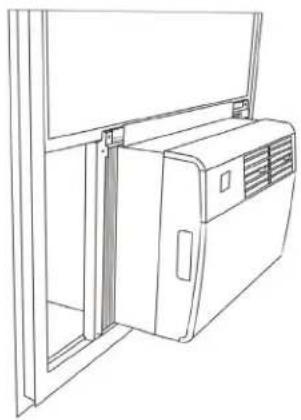

STEP 5. Extend side curtains to fill window. Secure outer top corner of each curtain (left and right) to window jamb and/or window sash using supplied screws. Two sizes of screws (E and F in parts list) and 2 different screw hole locations have been provided to accommodate varying window types (Figure 57).

Figure 57

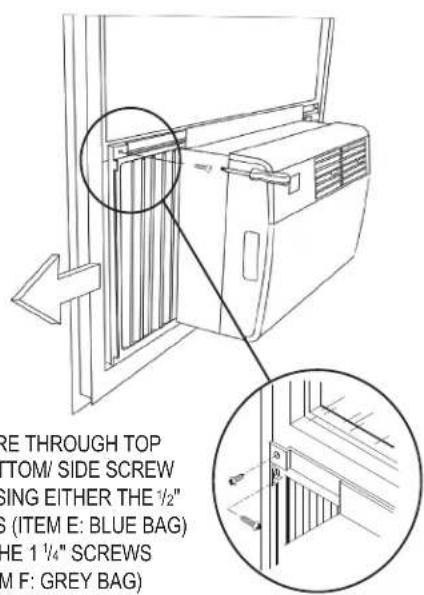

RE THROUGH TOP TOM/ SIDE SCREW SING EITHER THE 1/2" (ITEM E: BLUE BAG) THE 1 1/4" SCREWS M F: GREY BAG)

If you desire a more permanent installation, you can secure your curtains using both screw holes and your unit sleeve directly to the lower window stool using the instruction Steps 5.1–5.3 shown next. If you choose the standard installation already covered in Steps 1–5, then you can proceed to Step 6 on Page 31.

STEP 5.1. Pull unit from sleeve, using the side handles located on either side of the decorative front. Obtain assistance as needed. Place unit out of the way on a secure, flat surface (Figure 58).

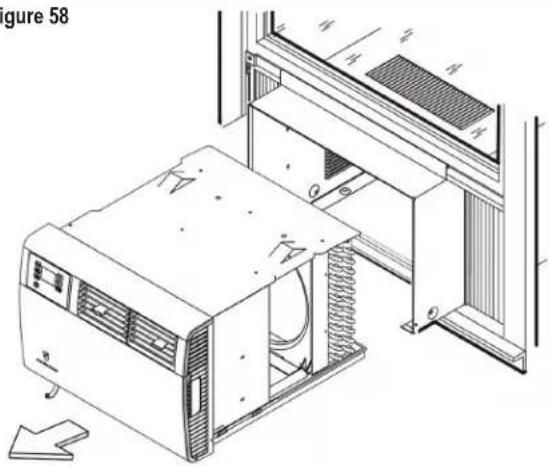

Figure 58

Technical line drawing of an air conditioner unit with cooling panel and ventilation system (no text or symbols)

NOTE: WHEN REMOVING UNIT FROM SLEEVE AND CARRYING OR HANDLING UNIT, OBTAIN ASSISTANCE OR HELP AS NECESSARY TO SUPPORT UNIT FROM BOTTOM (BASEPAN), MAINTAINING CLEARANCE FROM ALL OBSTACLES (Figure 59).

Figure 59

Illustration of two workers exchanging a device with a rack inside (no text or symbols)

CAUTION

Cut/Sever

Although great care has been taken to minimize sharp edges in the construction of your unit, use gloves or other hand protection when handling unit Failure to do so can result in minor to moderate personal injury.

Standard Window Installation continued

STEP 5.2. Once unit is removed from sleeve, secure sleeve to window stool through screw hole in the bottom center of sill channel using 1 supplied 1¼" screw (F in parts list) (see Figure 60 A-A).

In Step 5, the window curtains were secured using 1 supplied screw per curtain (2 screws total). For a more permanent application, you may secure each curtain with an additional screw through the remaining screw hole, insuring each window curtain is secured to window jamb and sash with 2 screws each (4 screws total). Two sizes of screws (E and F in parts list) have been provided to accommodate varying window types (see Figure 60).

NOTE: Securing the curtains using both screw hole locations may not work in certain window types. For those applications, use only 1 screw per curtain and install the appropriate security lock as recommended by window manufacturer.

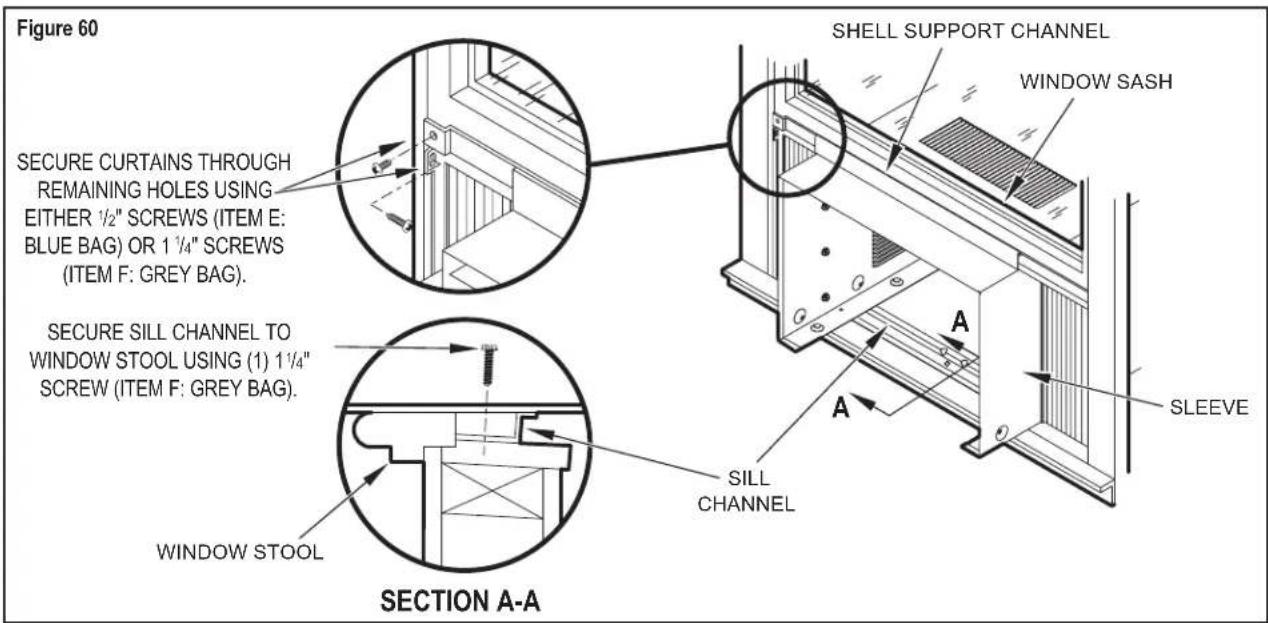

Figure 60 SECURE CURTAINS THROUGH REMAINING HOLES USING EITHER 1/2" SCREWS (ITEM E: BLUE BAG) OR 1 1/4" SCREWS (ITEM F: GREY BAG). SECURE SILL CHANNEL TO WINDOW STOOL USING (1) 1 1/4" SCREW (ITEM F: GREY BAG). WINDOW STOOL SECTION A-A SHELL SUPPORT CHANNEL WINDOW SASH A SILK CHANNEL A SLEEVE

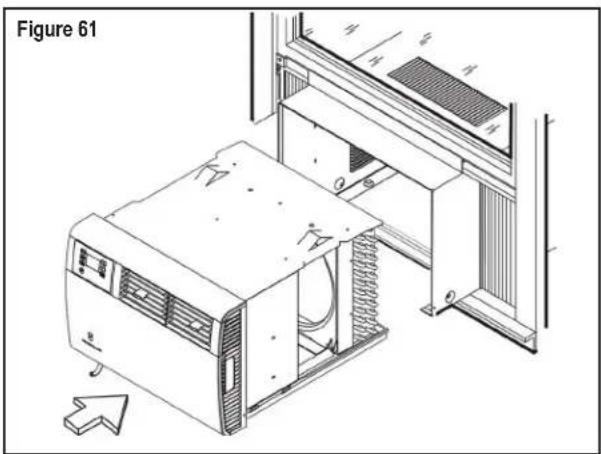

STEP 5.3. Inspect unit prior to inserting back into sleeve. Manually rotate fan to see that it turns freely. Make sure electrical cord is positioned in the front of unit and out of the way when inserting it back into the sleeve.

Insert unit back into sleeve by positioning onto bottom rails of sleeve and pushing back into place. Obtain assistance as needed (see Figure 61).

Technical line drawing of an air conditioner unit with cooling fan and ventilation system (no text or symbols)

CAUTION Excessive Weight Hazard Use two or more people when installing your air conditioner. Failure to do so can result in back or other injury.

NOTE: WHEN REMOVING UNIT FROM SLEEVE AND CARRYING OR HANDLING UNIT, OBTAIN ASSISTANCE OR HELP AS NECESSARY TO SUPPORT UNIT FROM BOTTOM (BASEPAN), MAINTAINING CLEARANCE FROM ALL OBSTACLES.

Standard Window Installation continued

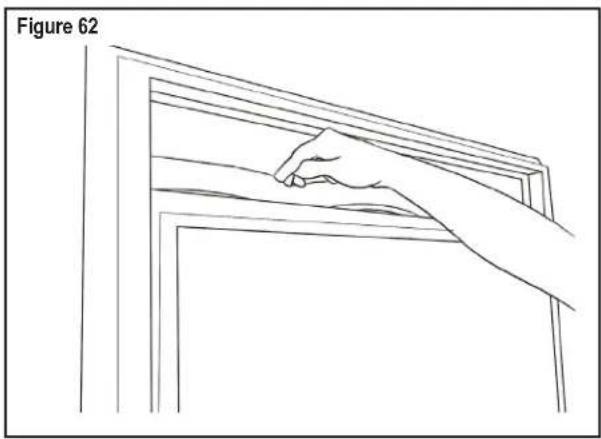

STEP 6. Cut the window seal gasket (C in parts list) to match the window width and insert it between the window sashes as shown in Figure 62.

Line drawing of a hand gripping a stack of papers or documents (no text or symbols)

STEP 7. Plug in unit.

Now that installation is complete, your unit is ready to operate! Simply plug in the power cord and follow the operation steps outlined in this manual or your QuickStart Guide.

CIRCUIT PROTECTION - If the air conditioner is circuit protected by a fuse, use a "TIME DELAY" fuse or HACR type circuit breaker due to momentary high current demand when your air conditioner is started. Before operating your unit, verify the ampere rating of the time-delay fuse or circuit breaker which protects your unit. The ampere rating of the time-delay fuse or circuit breaker shall be 15 amps.

WARNING Electrical Shock Hazard Make sure your electrical receptacle has the same configuration as your air conditioner's plug. If different, consult a Licensed Electrician. Do not use plug adapters. Do not use an extension cord. Do not remove ground prong. Always plug into a grounded 3 prong outlet. Failure to follow these instructions can result in death, fire, or electrical shock.

EntryGard™ Security Lock

For additional safety, your unit is equipped with EntryGard ^™ protection, a feature that helps prevents kick-in intrusions. To engage this feature, use 2 supplied 12 screws (E in parts list) to secure decorative front cover to sleeve. See the top image in Figure 63 for screw hole locations.

Cord Routing Change Unplug unit.

Your Kühl Q unit will come with the power cord already installed and routed to the left side of the unit.

For convenience and optimum appearance the direction of the power cord can be changed from left to right by following the procedure below. Select the exit location on the left or right based on proximity to the power outlet (Figure 63).

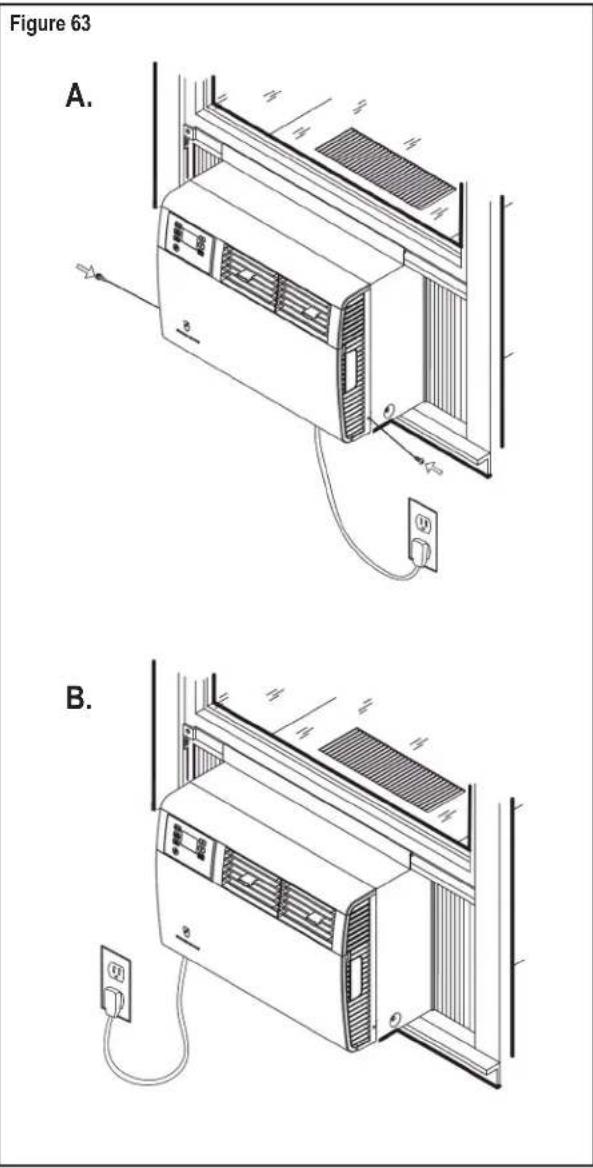

Figure 63 A. B.

Standard Window Installation continued

Cord Routing Change continued

STEP 1. Remove the decorative front cover. See A through D and Figures 64A and 64B below.
STEP 2. Route the cord along bottom inside of the unit (see Figures 65 and 66), under the lower left mounting screw embossments and exit the cord through right side cord opening (see Figure 66) of the decorative front cover. Decorative front cover will keep cord in place.
STEP 3. Reinstall the 4 screws removed earlier to secure decorative front cover with cord exiting to the front bottom of the unit (4 screws retained from Step 1).

WARNING Electrical Shock Hazard Make sure your electrical receptacle has the same configuration as your air conditioner's plug. If different, consult a Licensed Electrician. Do not use plug adapters. Do not use an extension cord. Do not remove ground prong. Always plug into a grounded 3 prong outlet. Failure to follow these instructions can result in death, fire, or electrical shock.

Figure 64A A. B.

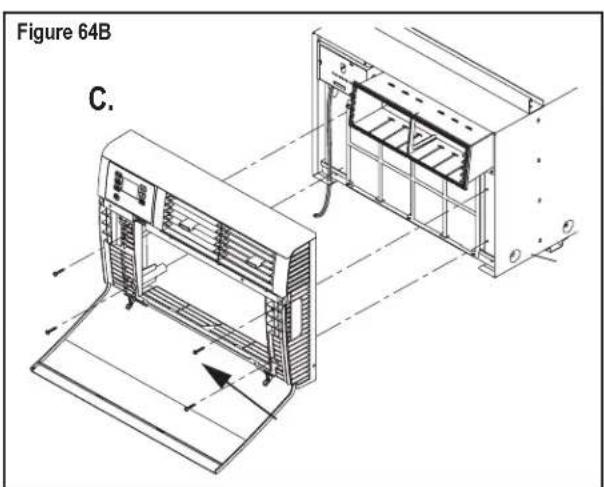

Figure 64B C.

A. Open the decorative front cover.
B. Locate and disconnect electronic control power cable harness.
C. Remove 4 screws attaching decorative front cover. Save to reinstall later.
D. Remove decorative front cover. Store in a safe place to reinstall later.

Standard Window Installation continued

Cord Routing Change continued

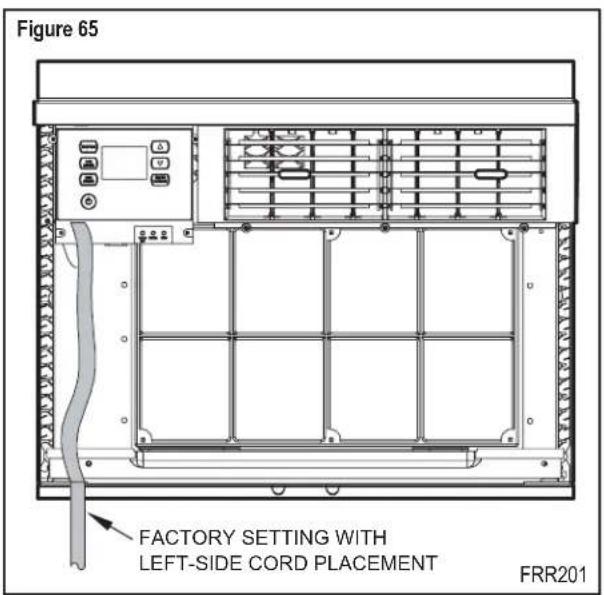

Figure 65 FACTORY SETTING WITH LEFT-SIDE CORD PLACEMENT FRR201

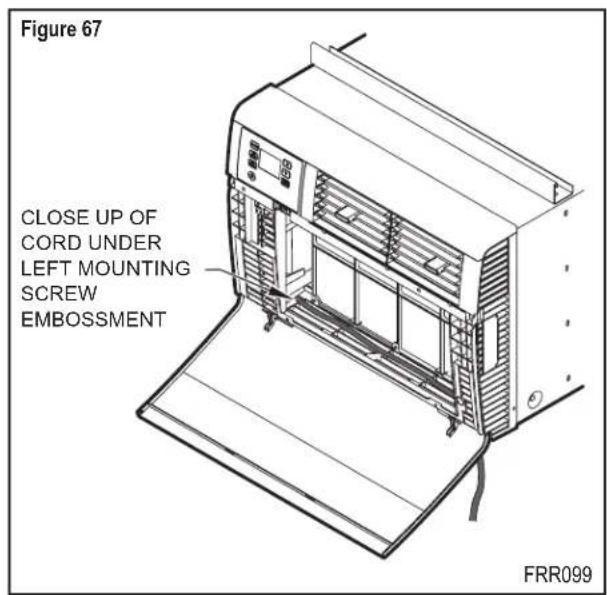

Figure 67 CLOSE UP OF CORD UNDER LEFT MOUNTING SCREW EMBOSSMENT FRR099

Figure 66 NEW CORD ALIGNMENT FOR ROUTING CORD EXIT TO THE RIGHT OF UNIT FRR202

Thru-the-Wall Installation

WARNING

Falling Object Hazard

Not following Installation Instructions for mounting your air conditioner can result in property damage, injury, or death.

EXPANSION ANCHOR BOLT

MOLLY OR TOGGLE BOLT

Figure 68

STEP 1

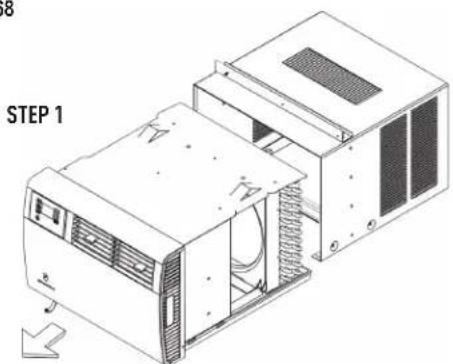

STEP 1. After removing the unit from shipping carton, slide chassis out of sleeve (Figure 68).

STEP 2. Remove shell channel from top of the sleeve (Figure 69).

NOTE: Not applicable to heat pump models sold without quick mounting sleeve.

STEP 3. Layout - Cut and frame-in an opening in the desired wall area using the illustration as a guide (Figure 70).

STEP 4. Place the sleeve in the framed opening.

NOTE: Not applicable to heat pump models sold without quick mounting sleeve.

STEP 5. Position the front edge to extend into the room 14 " minimum at top of sleeve and 1" minimum at bottom (Figure 71).

STEP 6. Secure each side of the sleeve with supplied 1¼" screw (F in parts list) or nails through the holes in the sides.

NOTE: Alternate fasteners which may be used for securing the unit sleeve to a wall, including masonry walls, are not furnished (available at local hardware stores).

Figure 69

STEP 2

Figure 70

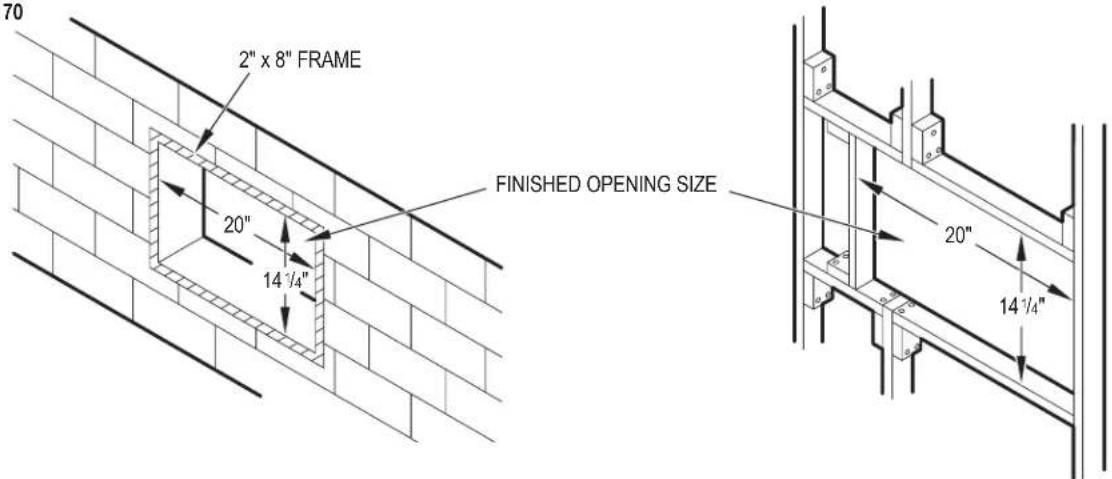

2" x 8" FRAME FINISHED OPENING SIZE 20" 14 1/4" 20" 14 1/4"

CONCRETE BLOCK CONSTRUCTION FRAME CONSTRUCTION

FRR091

Thru-the-Wall Installation continued

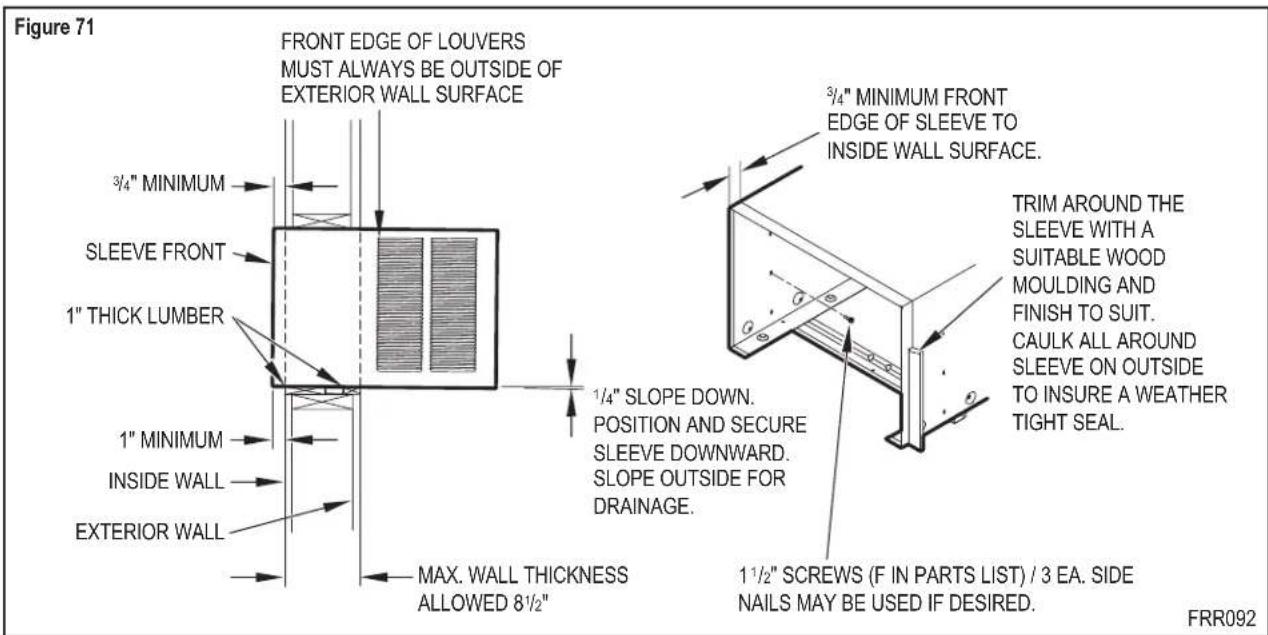

Figure 71 FRONT EDGE OF LOUVERS MUST ALWAYS BE OUTSIDE OF EXTERIOR WALL SURFACE 3/4" MINIMUM SLEEVE FRONT 1" THICK LUMBER 1" MINIMUM INSIDE WALL EXTERIOR WALL MAX. WALL THICKNESS ALLOWED 8½" 3/4" MINIMUM FRONT EDGE OF SLEEVE TO INSIDE WALL SURFACE. 1/4" SLOPE DOWN. POSITION AND SECURE SLEEVE DOWNWARD. SLOPE OUTSIDE FOR DRAINAGE. 1½" SCREWS (F IN PARTS LIST) / 3 EA. SIDE NAILS MAY BE USED IF DESIRED. TRIM AROUND THE SLEEVE WITH A SUITABLE WOOD MOULDING AND FINISH TO SUIT. CAULK ALL AROUND SLEEVE ON OUTSIDE TO INSURE A WEATHER TIGHT SEAL. FRR092

STEP 7. Cut two pieces of standard 1" lumber (supplied by installer) to the length and width required. Place in front and back of bottom sill channel as shown in Figure 71. Secure with nails (supplied by installer).
STEP 9. Complete the installation by following Steps 5.3 through 7 of Standard Window Installation (Pages 30, 31). Window seal gasket mentioned in Step 6 will not be required.

STEP 8. Seal all holes in the sleeve with caulking compound (supplied by installer).
IMPORTANT: Before operating your unit, read CIRCUIT PROTECTION of Standard Window Instructions under Step 7 (Page 31).

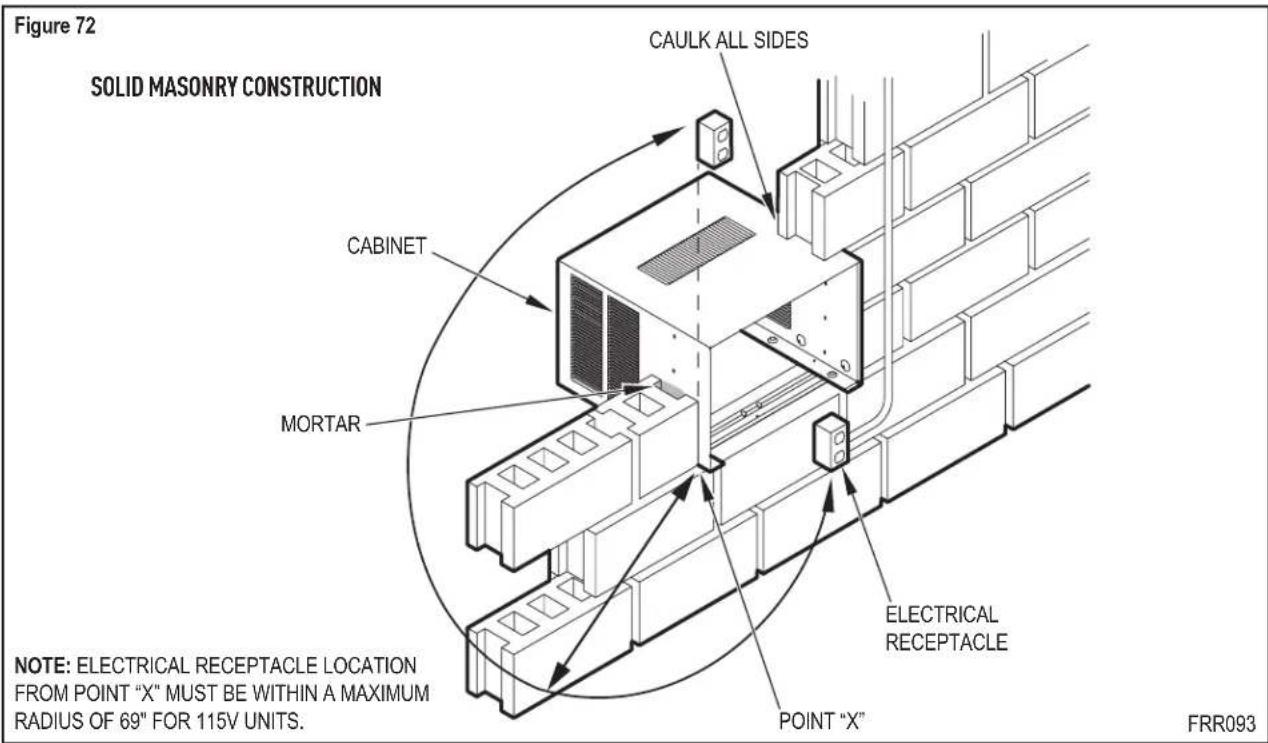

Figure 72 SOLID MASONRY CONSTRUCTION CAULK ALL SIDES CABINET MORTAR ELECTRICAL RECEPTACLE POINT "X" NOTE: ELECTRICAL RECEPTACLE LOCATION FROM POINT "X" MUST BE WITHIN A MAXIMUM RADIUS OF 69" FOR 115V UNITS. FRR093

Final Inspection & Start-up Checklist

Inspect and ensure that all components and accessories have been installed properly and that they have not been damaged during the installation progress.
Check the condensate water drain(s) to ensure that they are adequate for the removal of condensate water, and that they meet the approval of the end user.
◆ Ensure that all installation instructions concerning clearances around the unit have been adhered to. Check to ensure that the unit air filter, indoor coil, and outdoor coil are free from any obstructions.
◆ Ensure that the circuit breaker(s) or fuse(s) and supply circuit wire size have been sized correctly. If the unit was supplied with a power supply cord, insure that it is stored properly.
◆ Ensure that the entire installation is in compliance with all applicable national and local codes and ordinances having jurisdiction.
◆ Secure components and accessories, such as a decorative front cover.
◆ Start the unit and check for proper operation of all components in each mode of operation.
◆ Instruct the owner or operator of the units operation, and the manufacturer's Routine Maintenance.

NOTE: A log for recording the dates of maintenance and/or service is recommended.

Present the owner or operator of the equipment with the Installation & Operation Manual, all accessory installation instructions, and the name, address, and telephone number of the Authorized Friedrich Warranty Service Company in the area for future reference if necessary.

This is a warm weather appliance.

Your air conditioner is designed to cool in warm weather when the outside temperature is above 60 °F (15.6 °C) and below 115 °F (46.1 °C), so it won't cool a room if it is already cool outside. If you want to cool a room in the spring or fall, select the FAN ONLY mode and set the Fresh Air/ Exhaust air control to Fresh Air. This will bring in a supply of cooler outside air.

Condensation is normal

Air conditioners actually pump the heat and humidity from your room to the outside. Humidity becomes water, and your air conditioner will use most of the water to keep the outside coil cool. If there is excessive humidity, there may be excess water that will drip outside. This is normal operation.

Frosting

This usually occurs because of insufficient airflow across the coils, a dirty filter, cool damp weather, or all these. Set the SYSTEM mode to FAN ONLY and the frost will disappear. Setting the thermostat a little warmer will probably prevent the frosting from recurring.

Noises

All air conditioners make some noise. Friedrich units are designed to operate as quietly as possible. An air conditioner mounted in a wall is quieter than one mounted in a window. It is important to ensure that the chassis seal gasket (Item C) is properly installed (refer to Installation instructions).

Heat pumps operate differently

If your unit is a "KH", or heat pump model, there are some things that you will want to be aware of. Some functions of a heat pump differ from your unit when it is used for heating:

1. It is normal for ice to form on the outdoor coil of the heat pump. Moisture in the outside air, passing over the coil when very cold, will form ice.
2. If the outdoor temperature drops below 37 °F ( 3 °C ), your heat pump will automatically turn on the electric resistance heat. When the temperature rises to 40 °F ( 4 °C ), the compressor will resume the heat pump operation. If your unit is a 115 volt model (KHS10), it is designed for use in warmer climates and does not have an electrical heat feature, and will not provide adequate heat below 37 °F ( 2.8 °C ).

Control Panel Battery Change Procedure

Remove the grille, by loosening four (4) captive screws (Figure 73). In the upper left corner, remove one (1) screw on the battery retaining door (Figure 74). Remove and replace the battery (CR2450). Reinstall the battery retaining door. Align the grille guide pins then tighten the four (4) captive screws. Before closing the grille panel door, check the filter. Clean or replace it as necessary.

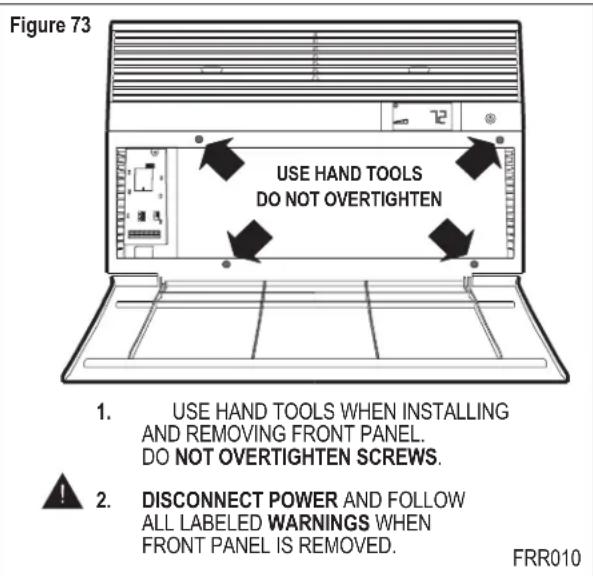

Figure 73 USE HAND TOOLS DO NOT OVERTIGHTEN 1. USE HAND TOOLS WHEN INSTALLING AND REMOVING FRONT PANEL. DO NOT OVERTIGHTEN SCREWS. 2. DISCONNECT POWER AND FOLLOW ALL LABELED WARNINGS WHEN FRONT PANEL IS REMOVED. FRR010

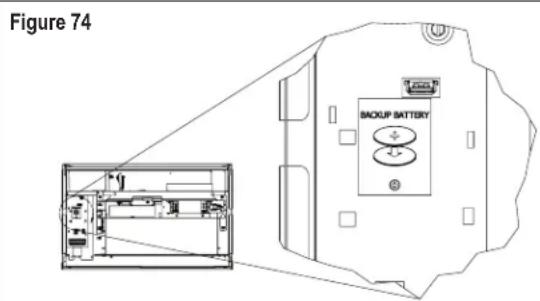

Figure 74 BACKUP BATTERY

Routine Maintenance Service and Assistance

To ensure proper unit operation, the air filter should be cleaned at least monthly, and more frequently if conditions warrant. The unit must be turned off before the filter is cleaned.

To Remove, Wash and Replace Filter

Lower front panel (see Figure 2). Use handle on filter to flex filter up and out of retainer. Remove filter from unit (see Figure 3). Clean filter monthly or more frequently if needed. Refer to accessories section for filter options.

Coils & Chassis

NOTE: Do not use a caustic cleaning agent on coils or base pan. Use a biodegradable cleaning agent and degreaser. The use of harsh cleaning materials may lead to deterioration of the aluminum fins or the coil end plates.

The indoor coil and outdoor coils and base pan should be inspected periodically (annually or semi-annually) and cleaned of all debris (lint, dirt, leaves, paper, etc.) as necessary. Under extreme conditions, more frequent cleaning may be required. Clean the coils and base pan with a soft brush and compressed air or vacuum. A pressure washer may also be used; however, you must be careful not to bend the aluminum fin pack. Use a sweeping up and down motion in the direction of the vertical aluminum fin pack when pressure cleaning coils.

NOTE: It is extremely important to insure that none of the electrical and/or electronic parts of the unit get wet. Be sure to cover all electrical components to protect them from water or spray.

Decorative Front

Use a damp (not wet) cloth when cleaning the control area to prevent water from entering the unit, and possibly damaging the electronic control.

The decorative front and the cabinet can be cleaned with warm water and a mild liquid detergent. Do NOT use solvents or hydrocarbon based cleaners such as acetone, naphtha, gasoline, benzene, etc.

The indoor coil can be vacuumed with a dusting attachment if it appears to be dirty. DO NOT BEND FINS. The outdoor coil can be gently sprayed with a hose if you can get to it. If not, you might call your dealer for a more thorough cleaning when needed.

The air filter should be inspected weekly and cleaned if needed by vacuuming with a dust attachment or by cleaning in the sink using warm water and a mild dishwashing detergent. Dry the filter thoroughly before reinstalling. Use caution, the coil surface can be sharp.

Fan Motor & Compressor

The fan motor & compressor are permanently lubricated, and require no additional lubrication.

Wall Sleeve

Inspect the inside of the wall sleeve and drain system periodically (annually or semi-annually) and clean as required. Under extreme conditions, more frequent cleaning may be necessary. Clean both of these areas with an antibacterial and antifungal cleaner. Rinse both items thoroughly with water and ensure that the drain outlets are operating correctly. Check the sealant around the sleeve and reseal areas as needed.

Before calling for service, please check the "Troubleshooting Tips" section on Pages 38 and 39. This may help you to find the answer to your problem, avoid unnecessary service calls, and save you the cost of a service call if the problem is not due to the product itself. If you have checked the "Basic Troubleshooting" section and still need help, it is available as follows:

You can find the name of your local Authorized Service Provider by visiting our website at www.friedrich.com.

If you require further assistance

You can call the Customer Support Call Center at 1-800-541-6645.

Before calling, please make sure that you have the complete model and serial number, and date of purchase of your equipment available. By providing us with this information, we will be better able to assist you.

Our specialists are able to assist you with:

◆ Specifications and Features of our equipment.
◆ Referrals to dealers, and distributors.
◆ Use and Care Information.
◆ Recommended maintenance procedures.
◆ Installation information.
◆ Referrals to Authorized Service Providers and Parts depots.

Available Accessories

DC-2 Drain Kit – Part No. 01900235

In some installations, excess condensate water caused by extremely humid conditions, may result in an undesirable water drip such as on a patio or over an entryway. MODEL DC-2 DRAIN KIT (Part No. 01900-235) can be installed to drain excess condensation to an alternate location.

Carbon Filter Kits

The kits vary depending on the chassis size (small, medium, large). Each kit contains three (3) filters.

KWCFS - Carbon filter kit for small chassis models.

KWCFM - Carbon filter kit for medium chassis models.

KWCFL – Carbon filter kit for large chassis models.

FriedrichLink™ Adapter Accessory

KWIFI – FriedrichLink™ Adapter Accessory for wireless control and additional programming options.

Decorative Color Front Panel Kits

The kits vary depending on the chassis size (small, medium, large).

KWBGE(S/M/L)A – S/M/L Decorative Front Cover in Classic Beige

KWBLK(S/M/L)A - S/ M/ L Decorative Front Cover in Black Onyx

KWBLU(S/M/L)A - S/M/L Decorative Front Cover in Cobalt Blue

KWPNK(S/M/L)A – S/ M/ L Decorative Front Cover in Pink Diamond

KWRED(S/M/L)A - S/M/L Decorative Front Cover in Deep Red

KWWHT(S/M/L)A - S/ M/ L Decorative Front Cover in Designer White

Window Installation Kits (Standard in Kühl Models without Heat)

KWIKS – For all KES and KHS models.

KWIKM – For all KEM and KHM models.

KWIKL – For all KEL and KHL models.

See www.friedrich.com for additional accessories for your unit.

Troubleshooting Tips

COMPLAINT CAUSE	SOLUTION
Unit does not operate.	The unit is turned to the off position, or the thermostat is satisfied.	Turn the unit to the on position and raise or lower temperature setting (as appropriate) to call for operation.
	The LCDI power cord is unplugged.	Plug into a properly grounded 3 prong receptacle.See "Electrical Rating Tables" on Page 6 for the proper receptacle type for your unit.
	The LCDI power cord has tripped (Reset button has popped out).	Press and release RESET (Listen for click. Reset button latches and remains in.) to resume operation.
	The circuit breaker has tripped or the supply circuit fuse has blown.	Reset the circuit breaker, or replace the fuse as applicable. If the problem continues, contact a licensed electrician.
	There has been a local power failure.	The unit will resume normal operation once power has been restored.
Unit Trips Circuit Breaker or Blows Fuses.	Other appliances are being used on the same circuit.	The unit requires a dedicated outlet circuit, not shared with other appliances.
	An extension cord is being used.	Do NOT use an extension cord with this or any other air conditioner.
	The circuit breaker or time-delay fuse is not of the proper rating.	Replace with a circuit breaker or time-delay fuse of the proper rating. See "Electrical Rating Tables" on Page 6 for the proper circuit breaker/ fuse rating for your unit. If the problem continues, contact a licensed electrician.
LCDI Power Cord Trips (Reset Button Pops Out).	The LCDI power cord can trip (Reset button pops out) due to disturbances on your power supply line.	Press and release RESET (Listen for click. Reset button latches and remains in.) to resume normal operation.
	Electrical overload, overheating, or cord pinching can trip (Reset button pops out) the LCDI power cord.	Once the problem has been determined and corrected, press and release RESET (Listen for click. Reset button latches and remains in.) to resume normal operation.
	NOTE: A damaged power supply cord must be replaced with a new power supply cord obtained from the product manufacturer and must not be repaired.
Unit Does Not Cool/ Heat Room Sufficiently, or Cycles On And Off Too Frequently.	The return/ discharge air grille is blocked.	Ensure that the return and/ or discharge air paths are not blocked by curtains, blinds, furniture, etc.
	Windows or doors to the outside are open.	Ensure that all windows and doors are closed.
	The temperature is not set at a cool enough/ warm enough setting.	Adjust the Temperature control to a cooler or warmer setting as necessary.
	The filter is dirty or obstructed.	Clean the filter, (see Routine Maintenance), or remove obstruction.
	The indoor coil or outdoor coil is dirty or obstructed.	Clean the coils, (see Routine Maintenance), or remove obstruction.
	There is excessive heat or moisture (cooking, showers, etc.) in the room.	Be sure to use exhaust vent fans while cooking or bathing and, if possible, try not to use heat producing appliances during the hottest part of the day.
	The temperature of the room you are trying to cool is extremely hot.	Allow additional time for the air conditioner to cool off a very hot room.

Troubleshooting Tips continued

COMPLAINT CAUSE	SOLUTION
Unit Does Not Cool/ Heat Room Sufficiently, or Cycles On And Off Too Frequently (continued).	The outside temperature is below 60 °F (16 °C).	Do not try to operate your air conditioner in the cooling mode when the outside temperature is below 60 °F (16 °C). The unit will not cool properly, and the unit may be damaged.
	The digital control is set to fan cycling mode.	Since the fan does not circulate the room air continuously at this setting, the room air does not mix as well and hot (or cold) spots may result. Using the continuous fan setting is recommended to obtain optimum comfort levels.
	The air conditioner has insufficient cooling capacity to match the heat gain of the room.	Check the cooling capacity of your unit to ensure it is properly sized for the room in which it is installed. Room air conditioners are not designed to cool multiple rooms.
	The air conditioner has insufficient heating capacity to match the heat loss of the room.	Check the heating capacity of your unit. Air conditioners are sized to meet the cooling load, and heater size is then selected to meet the heating load. In extreme northern climates, room air conditioners may not be able to be used as a primary source of heat.
Unit Runs Too Much.	This may be due to an excessive heat load in the room.	If there are heat producing appliances in use in the room, or if the room is heavily occupied, the unit will need to run longer to remove the additional heat.
	It may also be due to an improperly sized unit.	Be sure to use exhaust vent fans while cooking or bathing and, if possible, try not to use heat producing appliances during the hottest part of the day.
	This may be normal for higher efficiency (EER) air conditioners.	The use of higher efficiency components in your new air conditioner may result in the unit running longer than you feel it should. This may be more apparent, if it replaced an older, less efficient, model. The actual energy usage, however, will be significantly less when compared to older models.
	You may notice that the discharge air temperature of your new air conditioner may not seem as cold as you may be accustomed to from older units. This does not; however, indicate a reduction in the cooling capacity of the unit.	The energy efficiency ratio (EER) and cooling capacity rating (Btu/ h) listed on the unit's rating plate are both agency certified.

FRIEDRICH

Friedrich Air Conditioning Company

10001 Reunion Place, Suite 500

San Antonio, TX 78216

1-800-541-6645

www.friedrich.com

ROOM AIR CONDITIONERS

LIMITED WARRANTY

FIRST YEAR

ANY PART: If any part supplied by FRIEDRICH fails because of a defect in workmanship or material within twelve months from date of original purchase, FRIEDRICH will repair the product at no charge, provided room air conditioner is reasonably accessible for service. Any additional labor cost for removing inaccessible units and/or charges for mileage related to travel by a Service Agency that exceeds 25 miles one way will be the responsibility of the owner. This remedy is expressly agreed to be the exclusive remedy within twelve months from the date of the original purchase.

SECOND THROUGH FIFTH YEAR

SEALED REFRIGERANT SYSTEM: If the Sealed Refrigeration System (defined for this purpose as the compressor, condenser coil, evaporator coil, reversing valve, check valve, capillary, filter drier, and all interconnecting tubing) supplied by FRIEDRICH in your Room Air Conditioner fails because of a defect in workmanship or material within sixty months from date of purchase, FRIEDRICH will pay a labor allowance and parts necessary to repair the Sealed Refrigeration System; PROVIDED FRIEDRICH will not pay the cost of diagnosis of the problem, removal, freight charges, and transportation of the air conditioner to and from the Service Agency, and the reinstallation charges associated with repair of the Sealed Refrigeration System. All such cost will be the sole responsibility of the owner. This remedy is expressly agreed to be the exclusive remedy within sixty months from the date of the original purchase.

APPLICABILITY AND LIMITATIONS: This warranty is applicable only to units retained within the Fifty States of the U.S.A., District of Columbia, and Canada. This warranty is not applicable to:

1. Air filters or fuses.

2. Products on which the model and serial numbers have been removed.

3. Products which have defects or damage which results from improper installation, wiring, electrical current characteristics, or maintenance; or caused by accident, misuse or abuse, fire, flood, alterations and/or misapplication of the product and/or units installed in a corrosive atmosphere, default or delay in performance caused by war, government restrictions or restraints, strikes, material shortages beyond the control of FRIEDRICH, or acts of God.

OBTAINING WARRANTY PERFORMANCE: Service will be provided by the FRIEDRICH Authorized Dealer or Service Organization in your area. They are listed in the Yellow Pages. If assistance is required in obtaining warranty performance, write to: Room Air Conditioner Service Manager, Friedrich Air Conditioning Co.

LIMITATIONS: THIS WARRANTY IS GIVEN IN LIEU OF ALL OTHER WARRANTIES. Anything in the warranty notwithstanding, ANY IMPLIED WARRANTIES OF FITNESS FOR PARTICULAR PURPOSE AND/ OR MERCHANTABILITY SHALL BE LIMITED TO THE DURATION OF THIS EXPRESS WARRANTY. MANUFACTURER EXPRESSLY DISCLAIMS AND EXCLUDES ANY LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGE FOR BREACH OF ANY EXPRESSED OR IMPLIED WARRANTY.

NOTE: Some states do not allow limitations on how long an implied warranty lasts, or do not allow the limitation or exclusion of consequential or incidental damages, so the foregoing exclusions and limitations may not apply to you.

OTHER: This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

PROOF OF PURCHASE: Owner must provide proof of purchase in order to receive any warranty related services.

All service calls for explaining the operation of this product will be the sole responsibility of the consumer.

All warranty service must be provided by an Authorized FRIEDRICH Service Agency, unless authorized by FRIEDRICH prior to repairs being made.

THIS PAGE LEFT INTENTIONALLY BLANK.

THIS PAGE LEFT INTENTIONALLY BLANK.

THIS PAGE LEFT INTENTIONALLY BLANK.

FRIEDRICH

Friedrich Air Conditioning Co.

10001 Reunion Place, Suite 500 • San Antonio, Texas 78216

1-800-541-6645

www.friedrich.com

Printed in the U.S.A.

FRIEDRICH

Line drawing of a portable air conditioner unit with control panel and remote control (no text or symbols)

Do not remove, disable or bypass this unit's safety devices. Doing so may cause fire, Doing so may cause fire, injuries, or death.

Figure 2 FRR071

Figure 3 POIGNÉE LANGUETTE FRR052

COOL HEAT FAN ONLY DISCONNECTED FROM Automatically switches between cool & heat ON / OFF Turns unit on/off POWER BOARD CONTROL LOCKED WI-FI OPERATING STATE MODE Cycles between COOL, HEAT, FAN ONLY or -AUTO- (if equipped) FAN Sets fan to either: - Automatically cycle - Continuously run SPEED MODE COOL AUTO HEAT SET CLOCK 88.5 °F MTWTFSS AM PM COOL CHOOSE HEAT OR COOL MODE TO EDIT SCHEDULE OFF ON OVERRIDE LOAD WAIT DONE CHECK FILTER TEMPERATURE UP TEMPERATURE DOWN FAN SPEED Sets fan speed: LOW, MED, HIGH, OR MAX (Actual settings are model dependant) 2 DIGIT DISPLAY Shows Setting for: - Set Point (Temperature) - Clock (AM/PM) FILTER Check / clean

MODE F FAN SPEED

MENU

Figure 31

MODE FAN SPEED

MENU

MODE FAN SPEED

MENU

Figure 35

MODE FAN SPEED 00:00' ▲ ▼

The following instructions are for standard chassis model groups distinguished by the first three letters of the model designations cabinet sizes listed in Table 2.

Tableau 2
TYPE DE BOÎTIER DIMENSIONS (H x L x P)
PETIT –KCS, KES, KHS	15^1/16" × 25^15/16" × 29"(405 mm × 660 mm × 737 mm)
MOYEN –KCM, KEM, KHM	17^1/16" × 25^15/16" × 29"(455 mm × 660 mm × 737 mm)
GRAND –KCL, KEL, KHL	20^3/16" × 28" × 35^1/2"(513 mm × 711 mm × 851 mm)

AVERTISSEMENT

Abstract black-and-white graphic of a hand holding a stylized object with geometric shapes (no text or symbols)

Line drawing of a handheld electric drill with two labeled parts (1 and 2), no text or symbols present.

Line drawing of two gloves with a textured sleeve, labeled 'ARTI' at the bottom (no other text or symbols)

Two technical line drawings of screwdrivers, labeled 7 and 8 (no text or symbols on the diagrams)

Line drawing of a rectangular electronic device with ventilation slots and a handle (no text or symbols)

A

Pure diagram of two L-shaped metal frame structures without any text, numbers, or symbols

B

Simple line drawing of a spiral mechanical component with a central hole (no text or symbols)

C

D

E

Line drawing of a screw with a circular head and cross symbol, labeled 'F' (no text or symbols on the screw itself)

G

Line drawing of a portable air conditioner unit with cooling panel and attached circuit board (no text or symbols)

Line drawing of a computer unit being inserted into a rack, with an arrow indicating the process (no text or symbols present)

Line drawing of a computer monitor with hands operating it, showing no text or symbols

Line drawing of two people exchanging a large air conditioner unit (no text or symbols)

ATTENTION

Poids excessif

Figure 61

Line drawing of a hand gripping a stack of papers or documents (no text or symbols)

Technical line drawing of a server rack unit with internal panel structure (no text or symbols)

Technical line drawing of an industrial HVAC unit with ventilation ducts and a labeled section 'ÉTAPE 1' (no other text or symbols)

Friedrich Air Conditioning Company

10001 Reunion Place, Suite 500

San Antonio, TX 78216

1-800-541-6645

www.friedrich.com

GARANTIE LIMITÉE

CLIMATISEURS INDIVIDUELS

PREMIÈRE ANNÉE

Friedrich Air Conditioning Co.

10001 Reunion Place, Suite 500 • San Antonio, Texas 78216

1-800-541-6645

www.friedrich.com

Imprimé au Mexique

FRIEDRICH

Line drawing of a portable air conditioner unit with control panel and remote control (no text or symbols)

Modelos Q

Kühl

115-Volt: KCQ05, KCQ06, KCQ08

Kühl +

115-Volt: KEQ08

calor frio y electrico

Do not remove, disable or bypass this unit's safety devices. Doing so may cause fire, Doing so may cause fire, injuries, or death.

PASO 1 CORREAS x4 PASO 2 PASO 3 PASO 4 PASO 7 PASO 6 PASO 5

MODE F FAN SPEED

MENU

Figura 31

MODE FAN SPEED

MENU

MODE FAN SPEED

MENU

Figura 35

MODE FAN SPEED

MODE FAN SPEED E

Figura 48

MODE FAN SPEED 13 ▲ ▼

Abstract black-and-white graphic of a hand holding a stylized object with geometric shapes (no text or symbols)

Line drawing of a handheld electric drill with two labeled parts (1 and 2), no text or symbols present.

Two wrench illustrations labeled 5 and 6, showing different types of workpiece (no text or symbols on the wrench itself)

Line drawing of a pair of gloves with a strap, labeled '3' (no text or symbols on the gloves themselves)

Technical line drawings of two screwdriver tools labeled 7 and 8 (no text or symbols on the devices themselves)

LAS ILUSTRACIONES NO ESTAN A ESCALA

Line drawing of a rectangular electronic device with ventilation slots and a handle (no text or symbols)

A

Pure diagram of two identical L-shaped metal frame structures without any text or symbols

B

Simple line drawing of a spiral mechanical component with a central hole (no text or symbols)

C

D

E

Line drawing of a screw with a circular head and cross symbol, labeled 'F' (no text or symbols on the screw itself)

G

Line drawing of a portable air conditioner unit with cooling fins and attached circuit board (no text or symbols)

Line drawing of a computer unit being inserted into a rack, with an arrow indicating the process (no text or symbols present)

Line drawings showing two different household appliances: one with a computer unit and another with a fan or fan installing a rack (no text or symbols present)

PRECAUCIÓN

Line drawing of a cabinet or rack unit with doors and ventilation slots (no text or symbols)

Technical line drawing of an air conditioning unit with cooling fan and ventilation system (no text or symbols)

AVISO: AL RETIRAR LA UNIDAD DEL MANGUITO Y LLEVAR O MANIPULAR LA UNIDAD, OBTENGA ASISTENCIA O AYUDA NECESARIA PARA APOYAR LA UNIDAD DE ABAJO (BASEPAN), MANTENER EL DESPACHO DE TODOS LOS OBSTÁCULOS (Figura 59).

Figura 59

Illustration of two workers exchanging a device with a rack inside (no text or symbols)

PRECAUCIÓN

Peligro de cortarse

Technical line drawing of an air conditioner unit with cooling fan and ventilation system (no text or symbols)

Line drawing of a hand gripping a stack of papers or documents (no text or symbols)

Technical line drawing of a PASO 1 air conditioner unit with cooling fan and ventilation slots (no text or symbols on the diagram itself)

20" 14 1/4"

FRR091

Heat pumps operate differently

Friedrich Air Conditioning Company

10001 Reunion Place, Suite 500

San Antonio, TX 78216

1-800-541-6645

www.friedrich.com

Friedrich Air Conditioning Co.

10001 Reunion Place, Suite 500 • San Antonio, Texas 78216

1-800-541-6645

www.friedrich.com

Impreso en Mexico
