Brand	Salta
Model	Center Backboard 5135
Product type	Basketball backboard with wall mounting system
Usage	Domestic, children from 6 years
Hoop height	305 cm (10 ft)
Minimum clearance	1.98 m (6 ft 6 in) under the backboard
Assembly	Requires two competent adults
Mounting	Wall-mounted, on solid wood or brick/concrete
Maintenance	Clean with clear or soapy water; monthly corrosion inspection; repaint with anti-rust paint if necessary
Safety	Do not hang on the hoop; adult supervision required; check stability before each use
Warranty	See www.salta.com; valid on material and manufacturing defects

Frequently Asked Questions - Center Backboard 5135 Salta

How to assemble the Salta Center Backboard 5135 basketball backboard?

Assembly must be done by two competent adult persons. Follow the step-by-step instructions, identifying parts using the parts list. Use a ladder with caution if necessary. Firmly mount the wall bracket on a solid wood or brick/concrete wall, respecting the indicated hole spacing.

What is the hoop height for this backboard?

The hoop height is fixed at 305 cm (10 ft) above the playing surface, according to regulations. Ensure the lower mounting holes are positioned approximately 291.5 cm from the ground.

Can I mount the backboard on a wooden wall?

Yes, on a solid wood wall. Drill pilot holes, then attach the wall bracket with M10 lag screws, lock washers and flat washers. Tighten securely.

How do I maintain my basketball system?

Inspect once a month for signs of corrosion, loose parts or excessive wear. Clean with clear or soapy water (no detergents). Repaint with outdoor anti-rust enamel paint if necessary. Immediately replace any part where rust has penetrated.

What to do if rust appears on the pole?

If rust has penetrated the pole, replace it immediately. For surfaces, remove rust with emery cloth, clean, dry, then apply two coats of glossy anti-rust enamel paint.

From what age can children use this backboard?

This product is deemed suitable for children aged 6 years or older, for domestic use. Adult supervision is required at all times.

Is it possible to adjust the hoop height?

No, this model is designed for a fixed height of 305 cm. The wall mounting system does not allow height adjustment.

Should I supervise children during play?

Yes, adult supervision is required at all times. Ensure players know and follow safety rules, especially not hanging on the hoop and keeping the face away from the backboard.

How to clean the backboard and net?

Wash the system with clear or soapy water. Do not use harsh detergents. Rinse and dry. Check that the net does not present a strangulation risk.

What to do if a part is damaged?

Inspect all parts regularly. Immediately replace any worn or damaged parts with original Salta spare parts. Playing on damaged equipment is prohibited as it presents a risk of serious injury.

USER MANUAL Center Backboard 5135 Salta

Warning! Choking hazard, small parts. Two capable adults required for assembly. Read this manual prior to assembling and using this unit. Failure to follow operating instructions could result in unjury or damage to property. Retain this manual for future reference.

WARNING: CHOKING HAZARD - Small parts. Not for children under 3 years.

Warning! Choking hazard, small parts. Two capable adults required for assembly. Read this manual prior to assembling and using this unit. Failure to follow operating instructions could result in unjury or damage to property. Retain this manual for future reference.
Wannl Erstickungsgafhr, kine Teile. Zur Montage sind zwei kompetente Erwachene erfordlich. Gebrauchsanleitung lesen und befolgen vor Montage und Gebrauch dieser Basketballeinheit. Die Nichtbeachtung der Gebrauchsanleitung kann zu Personen- oder Sachschemfen fahren. Gebrauchsanleitung zum spateren Gebrauch aufbewahren.
Waarschuwing! Verstildingsgevaar, kine anderden. Voor de montage zin twe capable volwassenen nodig. Lees deze handleding voordat u dit appraat monteert en gebruikt. Het Niet naieven van de beclingeninstuctries kan leiden tot letsei materielle schade. Bewaar deze handleding voor toekomstig gebruik.
Avertissement! Risque d'etrefflement, peites piées. Deux personnes âultes competentes sont requises pour l'assemblage. Liseze ce mode d'emploi avant d'assembler et d'utiliser ce système. Le non-respect des instructions d'utilisation peut entrainer des blessures ou des dommages matériels. Consérezce ce mode d'emploi pour pouvoir le consulter ultérieurement
Advassell Kvaingstare, sm dele. Der krazes to kompetente vokne til monteringen. Lss denne vejledning, for du samler og bruger denne enched. Huis bejeningvejledningen ilke falgnes, kan det resutere I personskde ciffer materiel skade. Gem denne brugsevejdning til fremtdig reference.
Varoitus Tukehtumivara, piienia osia. Kaki osaava aikista tarvitaan kokoonpano. Lue tams kaytoohje ennen tamn laitee kokomastja kajto. Kaoyjodken noudattamatta jettaminen vo johtaa lokaantumisen ta omaisuusvhinkoinh. Sallya tama kajtupos myogempa tavetta varten.
Adversell Kelningsfere, sma deler. Det kreves to kompetente voksne for montering. Les donne brukerhandboken for denenne enhent monetes og taik. Unniatise ave folge brauansinienkan fare ti personskader erler skade pe iendom. Ta godt varpe hancboken fer fremtidig bred.
Varning! Kwäningsnisk, sma dolar Tva vuxna personer behovs for montering. Las denna bruksanvisning innen du monterer och anvander ehenten. Om bruksanvisingen inte folgs kan det leda till personskador erler skador pa egodom. Spara denna bruksanvising for framtida referen.
Ostrzezenien lstnicy rzyka zadawienia malymi czeciarni Da montaz potrzbene sa dwie kompetente osoby domiste. Przed montazern uzytkowieniem tego sprzemu neleye przeczta niewszy podrecznik. Neprezstrzegenie instrukcji moe groic urazami lub uzskodzenien mienia. Zachowac niewszy podrecznik na przyszlofsc.

VIDEO INSTRUCTIONS

SCAN OR GO TO WWW.SALTA.COM/QR

SALTA.COM

PACK CONTENTS / PACKUNGSHALT

Reference number Referenznummer	Part number Teilenummer	Item image Artikelbild	5135
1/	SCEBO010		1x
2/	SCEBO020		1x
3/	SCEBO021		1x
4/	SCEBO505		2x
5/	SCEBO510		2x
6/	SCEBO600		1x
7/	SCEBO604		2x
8/	SCEBO820	M8x16mm	2x
9/	SCEBO824	M8x40mm	4x
10/	SCEBO826	M8x50mm	2x
11/	SCEBO836	M8x120mm	2x
12/	SCEBO880	M10x80mm	4x

24561011

1x

2x

2x

1x

2x

2x

8

2x

Ready to play!

Bereit zuspielén!

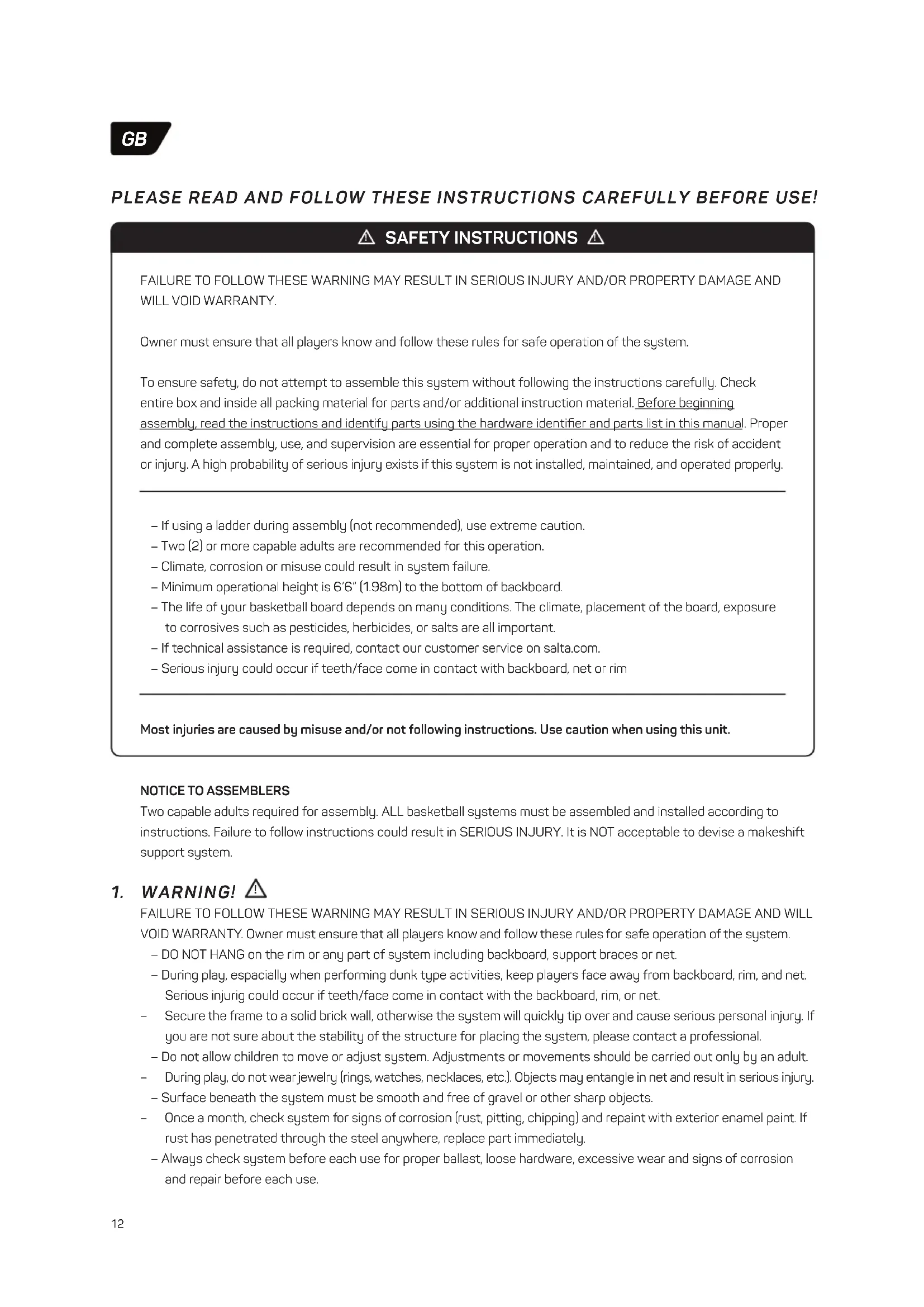

GB User manual 12

Owner must ensure that all players know and follow these rules for safe operation of the system.

To ensure safety, do not attempt to assemble this system without following the instructions carefully. Check entire box and inside all packing material for parts and/or additional instruction material. Before beginning assembly, read the instructions and identify parts using the hardware identifier and parts list in this manual. Proper and complete assembly, use, and supervision are essential for proper operation and to reduce the risk of accident or injury. A high probability of serious injury exists if this system is not installed, maintained, and operated properly.

• If using a ladder during assembly (not recommended), use extreme caution.
• Two (2) or more capable adults are recommended for this operation.
  Climate, corrosion or misuse could result in system failure.
• Minimum operational height is 6^6^ [1.98m] to the bottom of backboard.
• The life of your basketball board depends on many conditions. The climate, placement of the board, exposure to corrosives such as pesticides, herbicides, or salts are all important.
• If technical assistance is required, contact our customer service on salta.com.
• Serious injury could occur if teeth/face come in contact with backboard, net or rim

Most injuries are caused by misuse and/or not following instructions. Use caution when using this unit.

NOTICE TO ASSEMBLERs

Two capable adults required for assembly. ALL basketball systems must be assembled and installed according to instructions. Failure to follow instructions could result in SERIOUS INJURY. It is NOT acceptable to devise a makeshift support system.

1. WARNING!

FAILURE TO FOLLOW THESE WARNING MAY RESULT IN SERIOUS INJURY AND/OR PROPERTY DAMAGE AND WILL VOID WARRANTY. Owner must ensure that all players know and follow these rules for safe operation of the system.

• DO NOT HANG on the rim or any part of system including backboard, support braces or net.

• During play, espacially when performing dunk type activities, keep players face away from backboard, rim, and net. Serious injurig could occur if teeth/face come in contact with the backboard, rim, or net.

• Secure the frame to a solid brick wall, otherwise the system will quickly tip over and cause serious personal injury. If you are not sure about the stability of the structure for placing the system, please contact a professional.

• Do not allow children to move or adjust system. Adjustments or movements should be carried out only by an adult.
  During play, do not wear jewelry (rings, watches, necklaces, etc.). Objects may entangle in net and result in serious injury.
• Surface beneath the system must be smooth and free of gravel or other sharp objects.
  Once a month, check system for signs of corrosion (rust, pitting, chipping) and repaint with exterior enamel paint. If rust has penetrated through the steel anywhere, replace part immediately.

• Always check system before each use for proper ballast, loose hardware, excessive wear and signs of corrosion and repair before each use.

• Check system before each use for instability.

• Never play on damaged equipment.
  Risk of strangulation with the net.
• Adult supervision required.
  -Only for domestic use.
• The product has been deemed appropriate for children of 6 years of age based on its attributes.

2. PLACEMENT OF THE UNIT

Proper mounting height:

The wall mount brackets have 4 holes to receive wall mounting fasteners. The mounting holes are positioned as shown in the pattern above. Mark the location of the two bottom holes approximately 291,5cm (114,5 inches) above the playing surface. The rim height will be 305~cm (10 ft). You may adjust the height according to your needs.

Mounting to different structures

Solid wood:

Drill 1/8 pilot hole at all four marks. Thread M10 lag bolt through lock washer, M10 flat washer, and wall mount bracket and into each pilot hole. Tighten securely.

Solid brick/concrete:

Drill 7/16" pilot hole at all four marks. Tap wall anchors into each hole with hammer. Thread M10 lag bolt through lock washer, M10 flat washer, and wall mount bracket and into each pilot hole. Tighten securely.

For correct placement of the unit, we recommend the following steps:

• Ensure a clearance of at least 2 meters around and above the perimeter of the unit. Please ensure that no hazardous objects or structure are near the unit such as electrical power wiring, walls, fences, etc.
• The required minimum height from the playing surface is at least 2 meter (6ft 6 in).

If you do not follow these guidelines, you increase the risk of someone getting injured.

GB

The life of your basketball system depends on many variables. The climate, exposure to corrosives such as salt, pesticides or herbicides, and excessive use, or misuse can all contribute to pole failure, which may cause property damage and/or personal injury. Check your basketball system frequently for loose hardware, excessive wear, and signs of corrosion. For safety reasons, and to prolong the life of your basketball system, you must take the following preventative measures:

1. Check all nuts and bolts for tightness and tighten when required.
2. Check all parts of excessive wear and tear. If necessary, replace any parts that have been worn or damaged through usage.
3. Do not use detergent products to care for the system. Wash with clear or soapy water.
4. Check all coverings and sharp edges and replace when required.
5. Check all poles for visible rust, chips, or cracked paint. If either is present, do the following:

A. Use an emery cloth to completely remove any rust or chipped paint.
B. Clean the area with a damp cloth and allow it to dry.
C. Spray two coats of rust preventative, high gloss enamel paint on the area.

IF RUST HAS PENETRATED THROUGH THE FRAME ANYWHERE, REPLACE THE FRAME IMMEDIATELY!

4. WARRANTY

For warranty information please check our website; www.salta.com. Warranty can be claimed by presenting the original invoice. The warranty applies only to the material and constructions defects with respect to the product or its components. The warranty lapses if:

• The product is used incorrect or negligent or in an inappropriate way.
• The product is not installed according to the instructions / maintenance.
• Defects caused by external influences (e.g. climate influences such as normal weathering by UV rays or normal wear and tear or exposure to corrosives such as pesticides, herbicides, or salts are all important).
• Changes or modifications to the system are not permitted.
• The product is used for public or the recreational market.
• Defective parts have been replaced by not original Salta spare parts.

5. SUGGESTED TOOLS

Two (2) capable adults

Safety glasses

Sawhorse or support table

LEES ZORGVULDIG VOOR GEBRUK EN VOLG DE INSTRUCTIES OPI!

VEILIGHEIDSINSTRUCTIES

HET NIET OPVOLGEN VAN DEZE WAARSCHUWING KAN LEIDEN TOT ERNSTIG LETSEL EN/OF MATERIELE SCHADE EN MAAKT DE GARANTIE ONGELDIG.
