USER MANUAL Complete C3 Active PowerLine MIELE

Illustration of a vacuum cleaner sweeping grass with a tiled floor below (no text or symbols)

de Gebrauchsanweisung Bodenstaubsauger
en Vacuum cleaner operating instructions
fr Mode d'emploi aspirateur traîneau
it Istruzioni d'uso aspirapolvere a traino
nl Gebruiksaanwijzing stofzuigers

de 4
en 36
fr 68
it 100
nl 128

Labeled diagram of a vacuum cleaner with numbered parts for identification

Simple 3D cube with three white Y-shaped cutouts on one face (no text or symbols)

3 D 4 U

Warning and Safety instructions.... 36

Guide to the appliance 44

Caring for the environment 46

Notes on the European Regulation (EU) No. 666/2013 48

Illustrations 48

Connection.... 48

Using the supplied accessories 50

Use 50

Setting down, transportation and storage 55

Park system for pauses during vacuuming 55

Maintenance 55

Purchasing accessories 56

Dustbag airflow indicator 56

Removing the dustbag 57

Replacing the motor protection filter 57

When to replace the exhaust filter.... 58

Replacing the AirClean exhaust filter 58

Replacing the AirClean Plus 50, Silence AirClean 50, Active AirClean 50 and HEPA AirClean 50 exhaust filters 59

Replacing one type of exhaust filter with another 59

Maintenance indicator with reset button 59

When to replace the battery in the radio-control handle.... 60

How to change the battery in the radio-control handle 60

When to replace the battery in the LED handle.... 61

How to change the battery in the LED handle 61

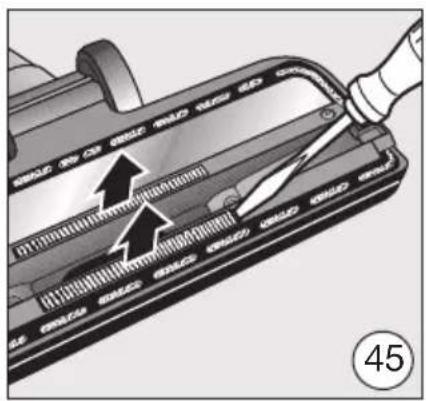

Replacing the thread lifters 61

Cleaning and care 61

Problem solving guide 62

Technical data.... 62

EU Conformity declaration 63

UK Conformity declaration.... 63

Service.... 64

Contact in case of malfunction 64

Warranty 64

Warranty in the UAE 64

Optional accessories 64

Electrical connection for the UK.... 66

Electrical connection AU, NZ 66

WARNING AU/NZ! Keep batteries out of reach en.

Coin or button batteries containing lithium can cause severe or fatal injuries within 2 hours of being swallowed or placed inside any part of the body. Non-lithium batteries can also cause serious injuries if swallowed or placed inside any part of the body. Even flat batteries can still be dangerous. If you suspect a child has swallowed a battery or placed a battery inside any part of their body, seek medical advice immediately (Australia: Poisons Information Centre, Tel. 13 11 26; NZ: National Poisons Centre, Tel. [phone]). Examine devices and make sure the battery compartment is correctly secured, e.g. that the screw or other mechanical fastener is tightened. Do not use if compartment is not secure. Used batteries must be kept away from children while awaiting disposal and must be disposed of in a safe manner.

This vacuum cleaner conforms to current safety requirements. Inappropriate use can lead to personal injury and damage to property.

Please read the operating instructions before using the vacuum cleaner for the first time. They contain important information on the safety, use and maintenance of the vacuum cleaner. This will prevent both personal injury and damage to the appliance.

In accordance with standard IEC 60335-1, Miele expressly and strongly advises that you read and follow the instructions in the “Connection” chapter as well as the safety instructions and warnings.

Miele cannot be held liable for injury or damage caused by non-compliance with these instructions.

Keep these operating instructions in a safe place and pass them on to any future owner.

Always disconnect the vacuum cleaner from the power supply when you have finished using it, before changing any accessories, as well as for maintenance work, cleaning and troubleshooting. Switch off at the wall socket and unplug it.

Correct application

This vacuum cleaner is intended for cleaning flooring in domestic households and similar residential environments. This vacuum cleaner is not suitable for use on construction sites.
This vacuum cleaner can be used for all normal cleaning of carpets, rugs and robust hard flooring.
This vacuum cleaner is not intended for outdoor use.
This vacuum cleaner is intended for use at altitudes of up to 4000 m above sea level.
The vacuum cleaner must only be used to vacuum dry floor surfaces. Do not vacuum people or animals. Any other types of use, modifications or alterations are not permitted.
The vacuum cleaner can only be used by people (including children) with reduced physical, sensory, or mental capabilities, or lack of experience or knowledge, if they are supervised whilst using it or have been shown how to use it in a safe way and understand and recognise the consequences of incorrect operation.

Safety with children

Danger of suffocation. Packaging, e.g. plastic wrappings, must be kept out of the reach of babies and children. Whilst playing, children could become entangled in packaging or pull it over their head and suffocate.

Children under 8 years of age must be kept away from the vacuum cleaner unless they are constantly supervised.

Children aged 8 and older may only use the vacuum cleaner without supervision if they have been shown how to use it in a safe manner. Children must be able to understand and recognise the possible dangers caused by incorrect operation.
Children must not be allowed to clean or maintain the vacuum cleaner unsupervised.
▶ Please supervise children in the vicinity of the vacuum cleaner and do not let them play with it.
▶ Models with LEDs or radio controls on the handle: Keep batteries out of the reach of children.

Technical safety

Before using the vacuum cleaner and its accessories, check for any visible signs of damage. Do not use a damaged appliance.
▶ Compare the connection data on the data plate of the vacuum cleaner (mains voltage and frequency) with that of the mains electricity supply. This data must match exactly. Without modifications, the vacuum cleaner is suitable for 50 Hz or 60 Hz.
The mains electrical plug must be fitted with an appropriate fuse.
▶ AU/NZ: The mains electrical outlet must be fitted with an appropriate circuit breaker.

▶ Temporary or permanent operation on an autonomous power supply system or a power supply system that is not synchronised with the mains power supply (e.g. island networks, back-up systems) is possible. A prerequisite for operation is that the power supply system complies with the specifications of EN 50160 or an equivalent standard.

The function and operation of the protective measures provided in the domestic electrical installation and in this Miele product must also be maintained in isolated operation or in operation that is not synchronised with the mains power supply, or these measures must be replaced by equivalent measures in the installation. As described, for example, in the current version of BS OHSAS 18001–2 ISO 45001.

▶ AU/NZ: Temporary or permanent operation with a self-sufficient or non-mains synchronous energy supply system (e.g. isolated networks, back-up systems) is possible. A requirement for the operation is that the energy supply system complies with all current local and national requirements that apply to stand-alone, solar and/or battery systems.

The protective measures provided in the domestic installation and in this Miele product must also be assured in their function and operation in isolated operation or in non-mains synchronous operation, or replaced with equivalent measures in the installation.

While the vacuum cleaner is under warranty, repairs should only be undertaken by a Miele authorised service technician. Otherwise the warranty will be invalidated.

Do not use the vacuum cleaner if the cable is damaged. If the cable is damaged it must be replaced together with a complete cable rewind. For safety reasons this must only be done by Miele Service or a Miele authorised service technician.

Do not pull or carry the vacuum cleaner by the cable, and be careful not to damage the cable when withdrawing the plug from the socket. Keep the cable away from sharp edges and do not let it get squashed, for example, under a door. Avoid running the vacuum cleaner over the cable. This could damage the cable, plug or socket. The appliance must not be used if any of these have suffered damage.

▶ Repairs should only be carried out by a Miele authorised service technician. Repairs and other work by unqualified persons can cause considerable danger to users.

Cleaning

Do not let the vacuum cleaner get wet. Clean only with a dry cloth or slightly damp cloth when disconnected from the mains supply.

Correct use

▶ To avoid the risk of damage, do not use the vacuum cleaner without the dustbag, dust compartment filter and exhaust filter in place.

The dust compartment cover will not close without a dustbag fitted. Do not force it.

Before closing the dust compartment lid, make sure that the dustbag has been inserted so that it has clicked into position.
Do not vacuum up anything which has been burning or is still glowing e.g. cigarettes, ashes or coal, whether glowing or apparently extinguished.
Do not use the vacuum cleaner to vacuum toner dust. Toner, such as that used in printers and photocopiers, can conduct electricity.
Do not use the vacuum cleaner to vacuum up any water, liquid or damp dirt. Wait until any freshly cleaned or shampooed rugs or carpets are completely dry before attempting to vacuum.
Do not vacuum up any inflammable or combustible liquids or gases and do not vacuum in areas where such substances are stored.
Do not vacuum at head height and do not let the suction get anywhere near a person's head.
▶ Important information on the handling of batteries (for models with LEDs or radio controls on the handle):

- Do not short-circuit or recharge batteries, or throw them into a fire.

- Disposing of batteries: Remove the batteries from the handle and dispose of them in a municipal recycling facility. Do not dispose of batteries with normal household waste.

Accessories and spare parts

▶ To avoid the risk of injury when vacuuming with a Miele Turbobrush, do not touch the rotating roller brush.
It is not advisable to vacuum directly with the handle, i.e. without an accessory attached as the rim could get damaged and you could hurt yourself on sharp edges.
▶ Miele can only guarantee the safety of the appliance when genuine Miele replacement parts are used. Faulty components must only be replaced with genuine Miele replacement parts.
Only use dustbags, filters and accessories bearing the “ORIGINAL Miele” logo on the packaging. The manufacturer cannot otherwise guarantee the safety of the product.

Transport

The packaging material protects the vacuum cleaner from transport damage. We recommend you keep the packaging for transport purposes.

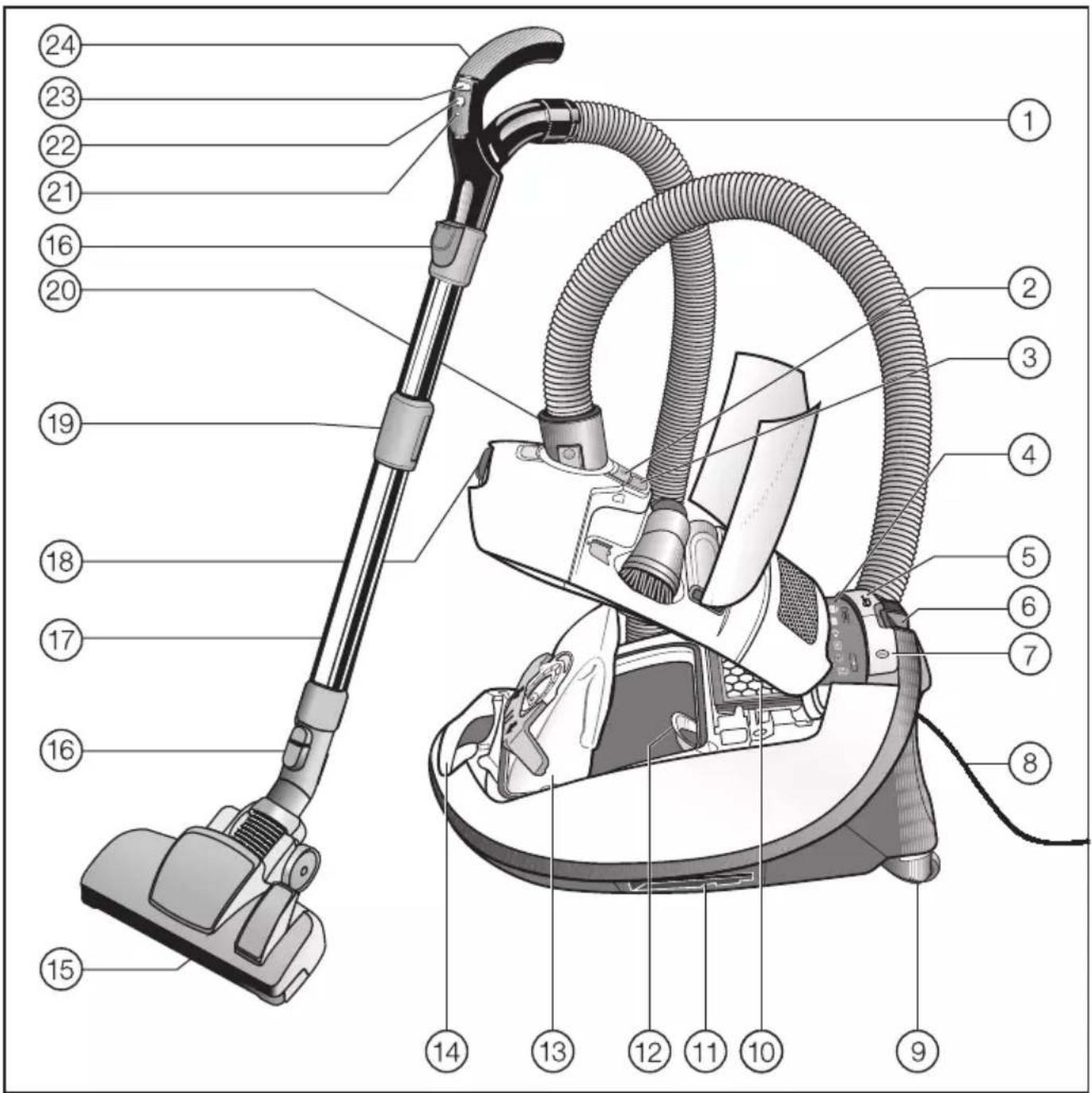

en - Guide to the appliance

Labeled diagram of a vacuum cleaner with numbered parts for identification

① Suction hose*
② Release catch for accessories compartment
③ Airflow indicator
④ Indicator field*
⑤ Footswitch for automatic cable rewind
⑥ Park system for pauses during vacuuming*
⑦ On/Off footswitch ①
⑧ Mains cable
⑨ Swivel castors*
⑩ Original Miele exhaust filter*
⑪ Park system for storage (on both sides of the vacuum cleaner)
⑫ Motor protection filter
⑬ Genuine Miele dustbag
⑭ Carrying handle
⑮ Floorhead*
⑯ Release catches
⑰ Telescopic suction tube
⑱ Dust compartment lid release catch
⑲ Telescopic suction tube release mechanism
⑳ Hose connector
②1 LED*
② Standby button for short pauses in vacuuming*
②3 Suction power selector buttons +/-*
⑳ Handle (some models have an air inlet valve in the handle)*

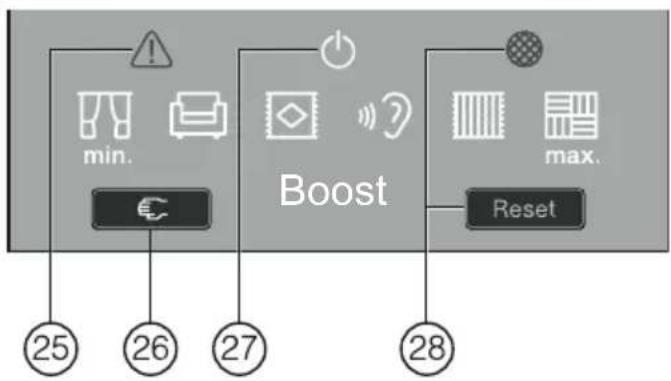

⑲ Overheating protection warning light ⚠*
⑳ Restart button*
⑳ Standby indicator light*
⑳ Maintenance indicator with reset button*

* These features depend on the model and may vary or may not be available on your vacuum cleaner.

Disposing of sales packaging

The packaging material protects the vacuum cleaner from transport damage. The packaging materials used are selected from materials which are environmentally friendly for disposal and can therefore be recycled.

Recycling the packaging material reduces the use of raw materials in the manufacturing process and also reduces the amount of waste in landfill sites. Ensure that any plastic wrappings, bags, etc. are disposed of safely and kept out of the reach of babies and young children. Danger of suffocation.

Disposing of the dustbag and filters

Dustbags and filters are made from environmentally friendly materials, and can be disposed of with the normal household waste, as long as they have been used exclusively for general household dust.

Disposing of your old appli- ance

Before disposing of your old appliance remove the dustbag and filters and dispose of them with your household waste.

Electrical and electronic appliances often contain valuable materials. They also contain specific materials, compounds and components, which were essential for their correct function and safety. These could be hazardous to human health and to the environment if disposed of with your domestic waste or if handled incorrectly. Please do not, therefore, dispose of your old appliance with your household waste.

Please dispose of it at your local community waste collection / recycling centre for electrical and electronic appliances, or contact your dealer or Miele for advice. You are also responsible (by law, depending on country) for deleting any personal data that may be stored on the appliance being disposed of. Please ensure that your old appliance poses no risk to children while being stored prior to disposal.

Disposing of old batteries

In many cases, electrical and electronic appliances contain batteries which must not be disposed of with household waste after use. You are legally obliged (depending on country) to remove any old batteries which are not securely enclosed by the vacuum cleaner and to take them to a suitable collection point (e.g. retailer) where they can be handed in free of charge. Insulate the metal contacts with adhesive tape to prevent short circuits. Batteries may contain substances which can be hazardous to human health and the environment. Used batteries must be kept away from children while awaiting disposal and must be disposed of in a safe manner.

The labelling on the battery will provide further information. The bin symbol with a cross through it means that the batteries must not be disposed of in household waste. A bin with a cross through it which also has one or more chemical symbols on it indicates that the battery contains lead (Pb), cadmium (Cd) and/or mercury (Hg).

Old batteries contain valuable raw materials which can be recycled. Disposing of batteries separately makes them easier to handle and recycle.

Notes on the European Regulation (EU) No. 666/2013

This vacuum cleaner is a domestic vacuum cleaner and is classified as a universal vacuum cleaner in accordance with the above-mentioned regulation.

These operating instructions and additional information are available to download from the Miele website at www.miele.com.

The annual energy consumption stated in the regulation describes the indicative annual energy consumption (kWh per year), based on 50 cleaning cycles. Actual energy consumption depends on how the vacuum cleaner is used.

All tests and calculations were carried out according to the following harmonised standards applicable at the time in due consideration of the published regulation guidelines of the European Commission from September 2014: a) EN 60312-1 Vacuum cleaners for household use – Part 1: Dry vacuum cleaners – Methods for measuring the performance.

b) EN 60704-2-1 Household and similar electrical appliances – Test code for the determination of airborne acoustical noise – Part 2-1: Particular requirements for vacuum cleaners. c) EN 60335-2-2 Household and similar electrical appliances – Safety – Part 2-2: Particular requirements for vacuum cleaner and water suction appliances.

Not all floorheads and accessories supplied with the vacuum cleaner are intended for intensive cleaning of carpets or hard floors as described in the regulation. The following floorhead and setting were used to determine the values:

For energy consumption and cleaning class on carpet and hard floors and sound power level on carpet, the adjustable floorhead was used with the brush retracted (press the ◇ foot-switch).

The data given in the regulation refers exclusively to the combinations and settings of the floorhead on the different floor surfaces described here.

Only original Miele dustbags, motor protection filters and exhaust filters were used for all measurements.

Illustrations

The illustrations referred to in the text are shown on the fold-out pages at the end of these operating instructions.

Connection

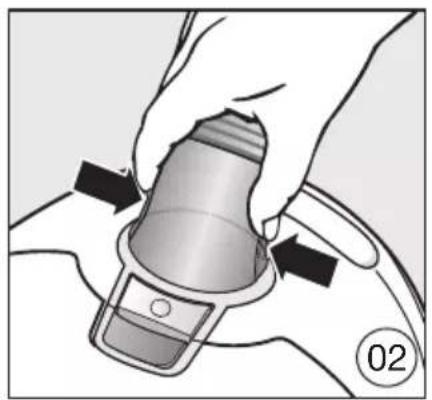

Attaching the suction hose (Fig. 01 + 02)

■ Insert the hose connector into the suction opening on the vacuum cleaner until it clicks into position. To do this, line up the guides on the two pieces.
■ If you want to separate the pieces again, press the release catches at the side of the hose connector, and pull the suction hose out of the suction opening.

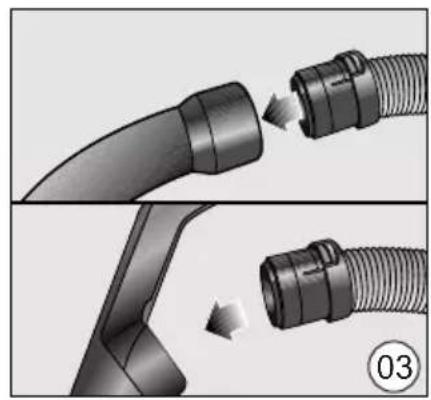

Connecting the suction hose to the handle (Fig. 03)

■ Insert the suction hose into the handle until it clicks into position.

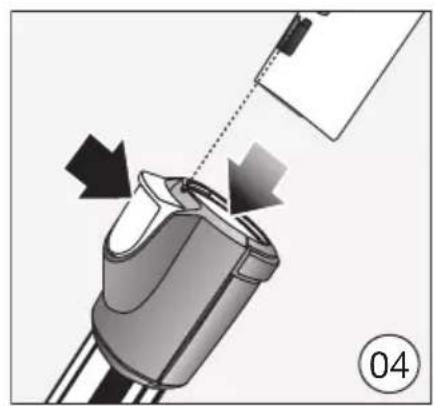

Connecting the handle to the suction tube (Fig. 04)

■ Insert the handle into the suction tube until it clicks into position. To do this, line up the guides on the two pieces.
■ To detach the handle from the suction tube, press the release catch and pull the handle out of the suction tube, twisting it slightly as you do so.

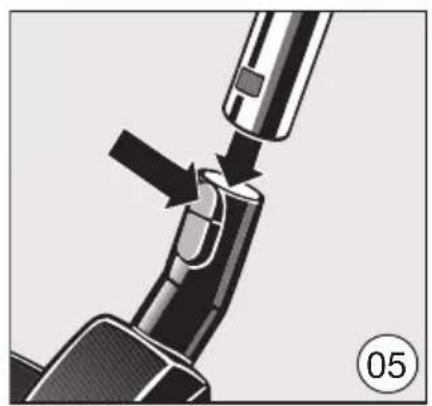

Connecting the telescopic tube to the floorhead (Fig. 05)

■ Push the telescopic tube into the floorhead and turn it clockwise or anti-clockwise until it clicks into position.
■ To detach the floorhead from the suction tube press the release button and pull the suction tube away from the floorhead, twisting it slightly as you do so.

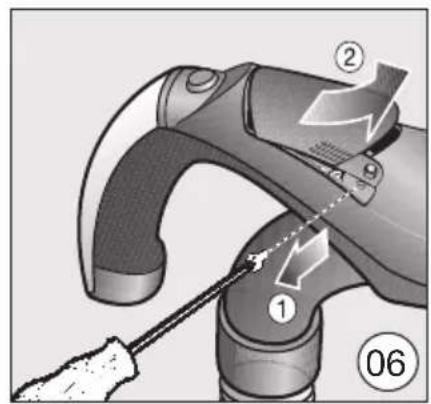

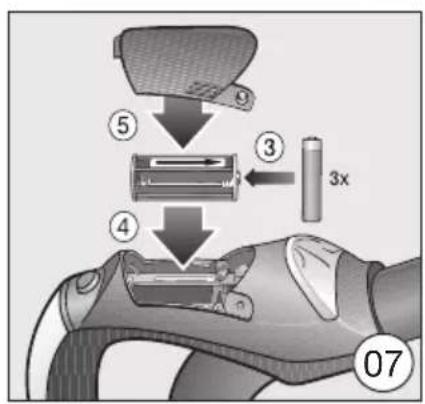

Inserting batteries into the LED handle (Fig. 06 + 07)

(depending on model)

① Loosen the screw on the cover.
② Press in the sides of the cover to release the retainers and remove the cover.
③ Take out the battery holder and insert the 3 batteries supplied. Make sure the polarity is correct.

④ Refit the battery holder. Arrows are marked on the battery holder and battery compartment as a fitting aid. They should point in the same direction.
⑤ Replace the cover and tighten the screw back up again.

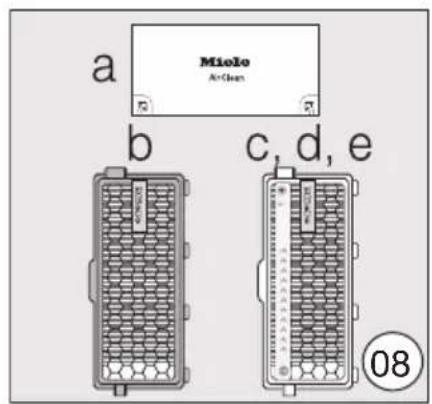

Activating the timestrip® filter change indicator on the exhaust filter

Depending on the model, your vacuum cleaner will be fitted as standard with one of the following exhaust filters (Fig. 08):

a AirClean
b AirClean Plus 50 (light blue)
c Silence AirClean 50 (grey)
d Active AirClean 50 (black)
e HEPA AirClean 50 (white)

If your vacuum cleaner is fitted with exhaust filter c, d or e, you need to activate the timestep® filter change indicator.

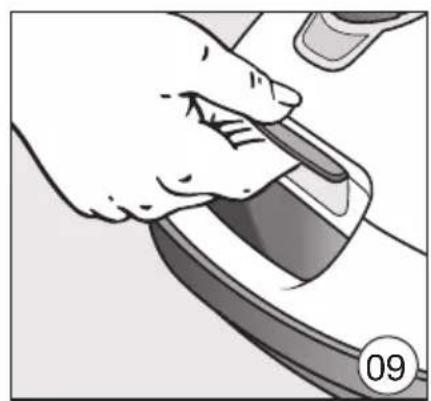

■ Press the release catch in the recessed grip for the dust compartment lid and raise the lid as far as it will go (Fig. 09).

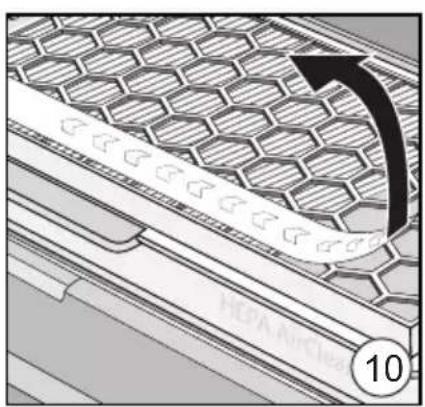

■ Remove the indicator strip (Fig. 10).

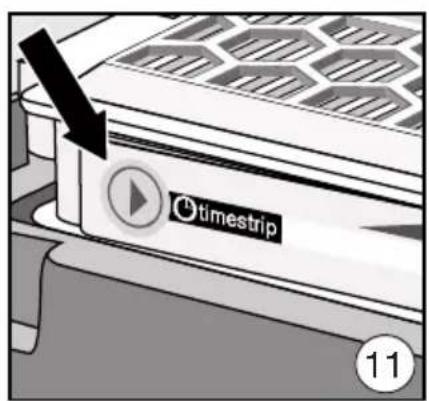

■ Press the timestep® filter change indicator (Fig. 11).

After approx. 10–15 seconds, a thin red line will appear in the left-hand side of the display (Fig. 12).

⚠️ Damage due to contamination in the dust compartment

Large quantities of dust may enter the dust compartment and damage components if the dustbag has not clicked into position.

Before closing the dust compartment lid, make sure that the dustbag has been inserted so that it has clicked into position.

■ Close the dust compartment lid securely, making sure it clicks into position. Take care not to trap the dust-bag when doing so.

How the exhaust filter timestep® change indicator works

The exhaust filter timestep® change indicator shows the remaining functional life of the exhaust filter. After approx. 50 operating hours the display will be completely filled with red (Fig. 13). 50 operating hours equates to approximately one year of use.

Using the supplied accessories (Fig. 14)

① Crevice nozzle

For cleaning in folds, crevices or corners.

② Dusting brush

For cleaning skirting boards, as well as ornate, carved or particularly delicate objects.

The head can be swivelled to adjust the angle.

③ Upholstery nozzle

For cleaning upholstery, mattresses, cushions, curtains, etc.

Certain models are supplied as standard with a turbobrush which is not illustrated.

The turbobrush is supplied with its own set of operating instructions.

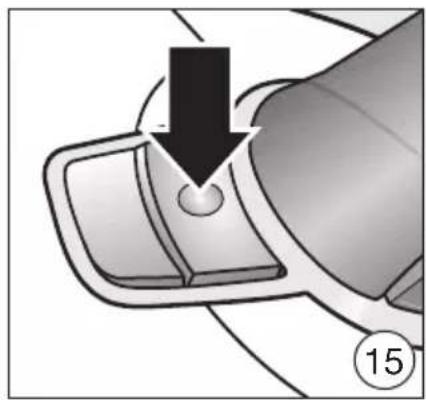

Removing accessories (Fig. 15)

■ Press the release button on the accessories compartment lid.

The accessories compartment will then open.

■ Take out the accessory you require.

■ Press down firmly on the lid to close it.

Use

Adjusting the dusting brush integrated in the Eco Comfort handle (Fig. 16)

Some models are equipped with an Eco Comfort handle.

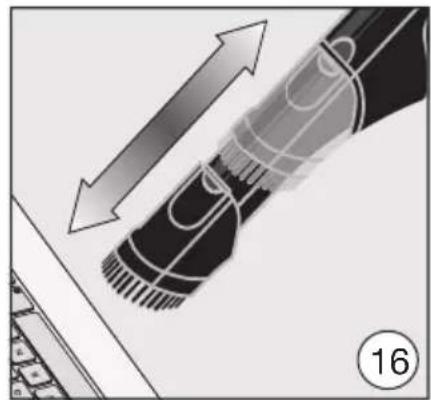

The dusting brush is suitable for vacuuming scratch-resistant surfaces, e.g. keyboards or vacuuming up crumbs.

■ Press the release button on the dusting brush and push the brush out until it clearly engages in position.

■ When you have finished dusting press the release button and push the brush back into its original position until it clicks into place.

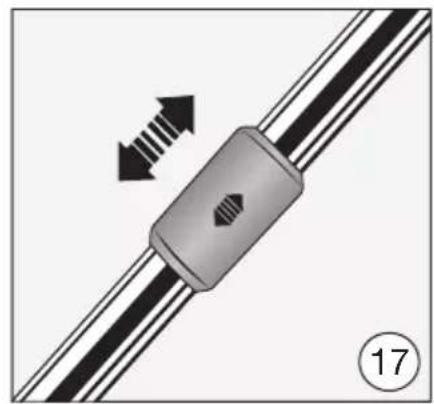

Adjusting the telescopic suction tube (Fig. 17)

One part of the telescopic suction tube is packed inside the other, and it can be adjusted to suit your height for comfortable vacuuming.

■ Grasp the release mechanism and adjust the telescopic suction tube to the required length.

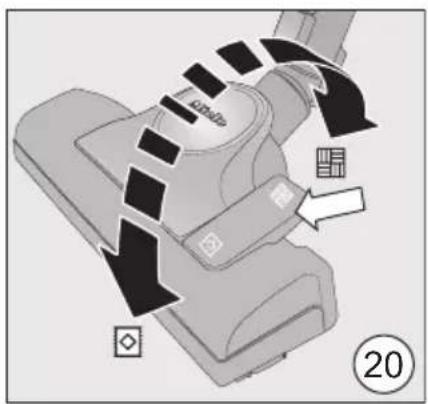

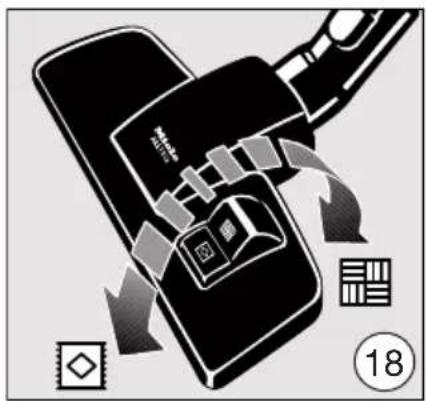

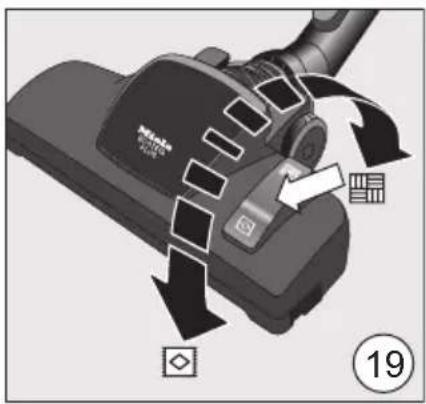

Adjusting the floorhead (Fig. 18, 19 + 20)

Depending on the model, your vacuum cleaner will be fitted as standard with one of the floorheads illustrated.

This vacuum cleaner can be used for daily cleaning of carpets, rugs and robust hard floors.

Miele offers a range of other floorheads, brushes and accessories for other types of flooring and special applications (see "Optional accessories").

Please observe the flooring manufacturer's cleaning and care instructions.

Clean even hard floors which are not susceptible to scratching, as well as flooring with gaps or deep crevices in it with the brush protruding:

■ Press the 📁 footswitch.

Vacuum carpets and rugs with the brush retracted:

■ Press the ◇ footswitch.

If the suction power of the adjustable floorhead seems too high, reduce the suction until the floorhead is easier to manoeuvre (see “Use” – “Regulating the suction power”).

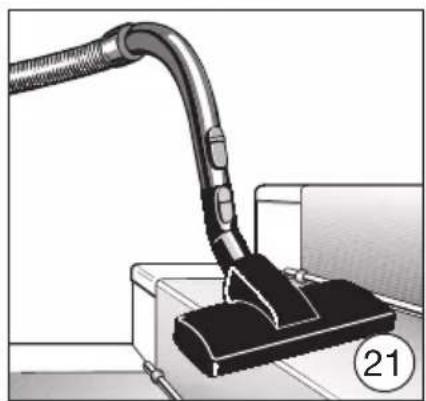

Adjustable floorhead (Fig. 21)

The adjustable floorhead can also be used for vacuuming the stairs.

⚠️ Risk of injury caused by falling vacuum cleaner.

You may be injured if the vacuum cleaner should fall from the stairs.

When vacuuming stairs, it is best to start at the bottom of the stairs and move upwards.

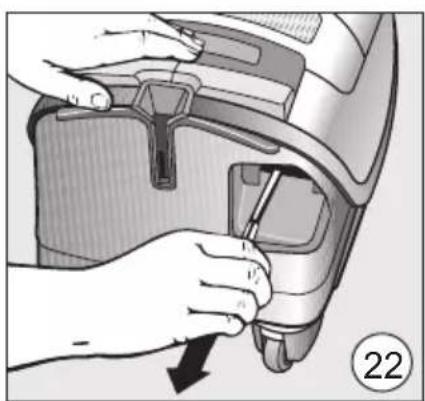

Unwinding the mains cable (Fig. 22)

■ Pull the mains cable out to the required length.

■ Insert the plug into the socket.

⚠️ Risk of damage due to overheating.

The mains cable may overheat after a long period of use.

If vacuuming for longer than 30 minutes, the cable must be pulled out all the way.

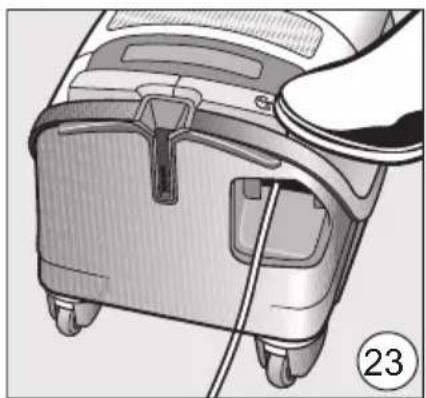

Rewinding the cable (Fig. 23)

■ Switch off at the wall socket and unplug it.

■ Step briefly on the cable rewind foot-switch.

The cable will then retract itself fully into the vacuum cleaner.

If you do not want the cable to retract completely into the vacuum cleaner you can stop it before it does. To do this, take hold of the cable whilst retracting it and give it a short pull when you want the rewinding to end.

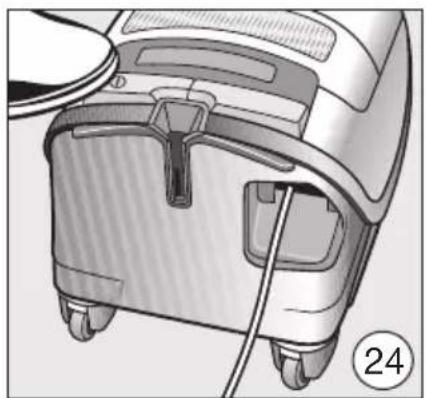

Switching on and off (Fig. 24)

■ Press the On/Off footswitch ①.

To regulate the suction power

The suction power can be regulated to suit the type of flooring being cleaned. Reducing the suction power reduces the amount of effort required to manoeuvre the floorhead.

The vacuum cleaner has symbols on the controls which indicate the type of use the settings are suitable for.

The setting selected will light up yellow.

Curtains, fabric
Upholstery, cushions
◇ Cut pile carpets, rugs and runners
Energy-saving vacuuming. This setting is also very quiet
Loop pile carpet and rugs
Hard flooring and heavily soiled carpets and rugs

When using the adjustable floorhead, if the suction seems too high, reduce the suction power until the floorhead is easier to manoeuvre.

Depending on the model, your vacuum cleaner will be fitted as standard with one of the following suction power selectors.

• Footswitches
• Footswitch with the option of selecting interim suction power levels
• Footswitch with Boost function
• Radio-control handle
• Radio-control handle with Boost function

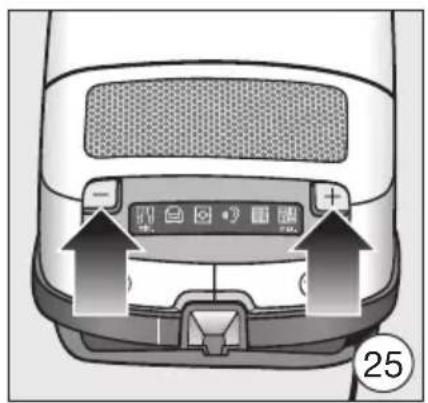

Foot controls (Fig. 25)

The first time the vacuum cleaner is switched on, the highest setting will be selected automatically.

After that the vacuum cleaner will switch on at the setting which was used previously.

■ Press the + foot control to select a higher setting.
■ Press the - foot control to select a lower setting.

Footswitches with the option of selecting interim suction power levels

Some models also offer the option of selecting power levels in between the standard 6 settings.

To activate this function

■ Press the + footswitch until the maximum power level has been reached.
- Keep the – footswitch pressed until the symbol for the lower power level starts to flash.
■ Then release the footswitch.

You can also activate this function from the lowest power level. To do so press and hold the + footswitch, until the symbol for the higher power level starts to flash.

To select an interim power setting

- Press the – or + footswitch until the required power level has been reached.

After a minute without touching a control, the suction power interim setting will be saved to the next highest or lowest setting. The flashing will stop.

The next time the vacuum cleaner is used it will switch on with the saved interim suction power level.

This setting will be deleted if you then select one of the standard 6 power levels.

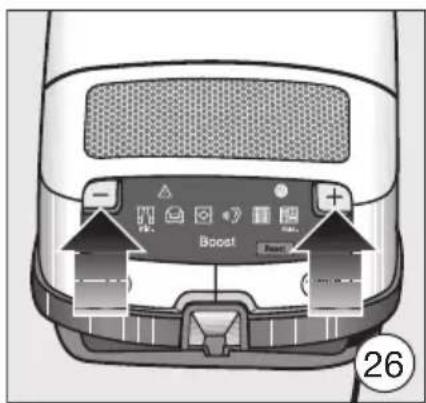

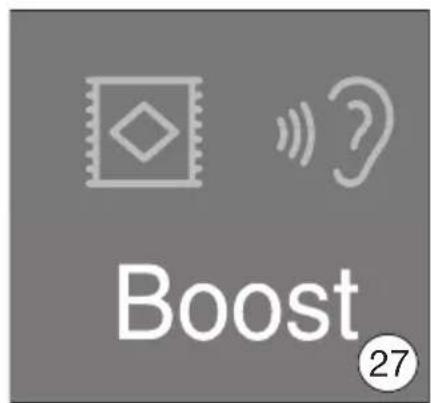

Footswitch with Boost function (Fig. 26 + 27)

Some models also feature a Boost power function. This function uses increased power for a short period for vacuuming both fine and coarse stubborn soiling.

■ Press the + footswitch until the maximum power level has been reached.
■ Then press the + footswitch again.

This activates the Boost function for 20 seconds. The Boost indicator will light up yellow.

You now have the following options:

■ Press the - footswitch before the 20 seconds have elapsed.

This switches the Boost function off and activates maximum power.

■ Press the + footswitch again once the 20 seconds have elapsed.

This activates the Boost function a second time for 20 seconds. It can be activated three times in a row. After that, a pause of one minute is required before reactivating it.

Using the Boost power level changes the actual power consumption (see "Notes on the European Regulation (EU) No. 666/2013").

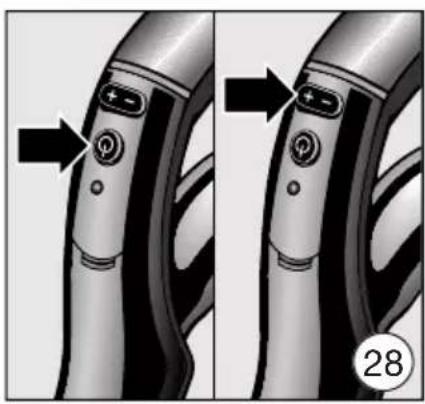

Radio-control handle (Fig. 28)

When the vacuum cleaner is switched on with the On/Off foot control ①, the Standby indicator ⏻ on the vacuum cleaner will light up yellow.

■ Press the Standby button ⏻ on the handle.

The Standby indicator ⏻ on the vacuum cleaner will go out.

The first time the vacuum cleaner is switched on, the highest setting will be selected automatically.

After that the vacuum cleaner will switch on at the setting which was used previously.

■ Press the + button to select a higher suction power level.
■ Press the - button to select a lower suction power level.

Radio-control handle with Boost function

Some models also feature a Boost power function. This function uses increased power for a short period for vacuuming both fine and coarse stubborn soiling.

■ Press the + control until the maximum power level has been reached.
■ Then press the + control again.

This activates the Boost function for 20 seconds. The Boost indicator on the vacuum cleaner will light up yellow

You now have the following options:

■ Press the - control before the 20 seconds have elapsed

This switches the Boost function off and activates maximum power.

■ Press the + control again once the 20 seconds have elapsed

This activates the Boost function for another 20 seconds. It can be activated three times in a row. After that a pause of one minute is required before reactivating it.

Using the Boost power level changes the actual power consumption (see "Notes on the European Regulation (EU) No. 666/2013").

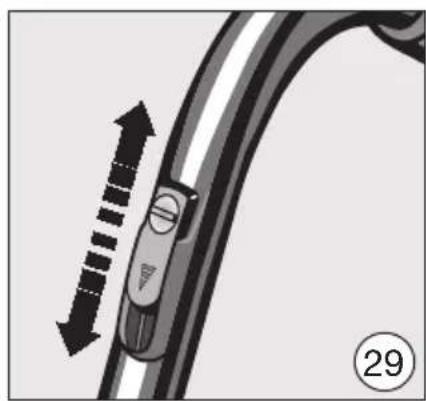

Opening the air inlet valve (Fig. 29 + 30)

(not on models with LEDs or radio controls on the handle, or Eco Comfort handles)

It is easy to reduce the suction power for a short time, e.g. to prevent rugs or other objects being sucked into the vacuum cleaner.

■ Open the air inlet valve on the handle far enough to reduce the suction power.

The floorhead will be easier to manoeuvre.

During vacuuming

■ When vacuuming, pull the cleaner behind you on its wheels. You can stand it upright for vacuuming stairs and curtains etc.

Interrupting operation (Fig. 28)

(for models with radio controls on the handle)

The vacuum cleaner can be paused for short breaks whilst vacuuming.

■ Press the Standby button ⏻ on the handle.

⚠️ The Standby button is designed to pause the vacuum cleaner for short periods of time whilst vacuuming. Do not leave the vacuum cleaner in Standby mode for long periods. This can cause overheating and damage.

An LED will indicate each time a button is pressed on the handle.

At the end of the pause you can do one of the following:

■ Press the Standby button ⏻ again to switch the vacuum cleaner back on at the setting you were using before pausing it.
■ Press the + button to switch the vacuum cleaner back on using the highest power setting.
■ Press the - button to switch the vacuum cleaner back on using the lowest power setting.

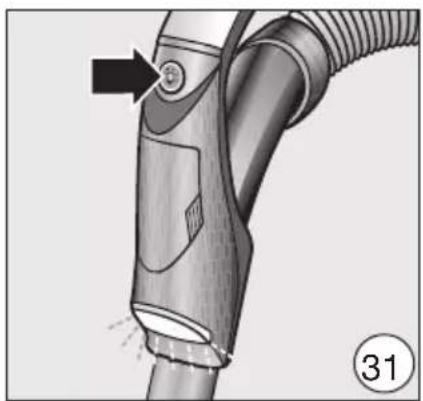

Illuminating the work area (Fig. 31)

(for models with the LED handle)

Your vacuum cleaner is equipped with an LED on the handle to illuminate the work area.

■ Press the ⚙ button on the LED handle.

The lighting will switch itself off automatically after approx. 30 seconds.

Setting down, transportation and storage

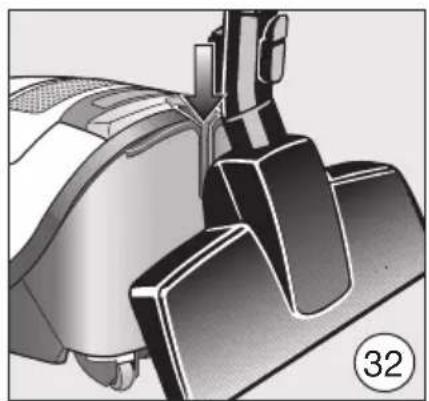

Park system for pauses during vacuuming (Fig. 32)

The Park system allows you to conveniently park the suction tube and floorhead during pauses.

■ Slot the floorhead or floorbrush into the parking attachment on the vacuum cleaner.

If your vacuum cleaner is on a sloping surface, e.g. a ramp, retract the telescopic tube fully.

Park system On/Off switch

Some models are fitted with an On/Off switch in the park system.

The vacuum cleaner switches off automatically when the floorhead is slotted into the park system with the park attachment. When the floorhead is removed the vacuum cleaner will switch back on automatically and will operate with the previously selected setting (not applicable for models with radio control handles).

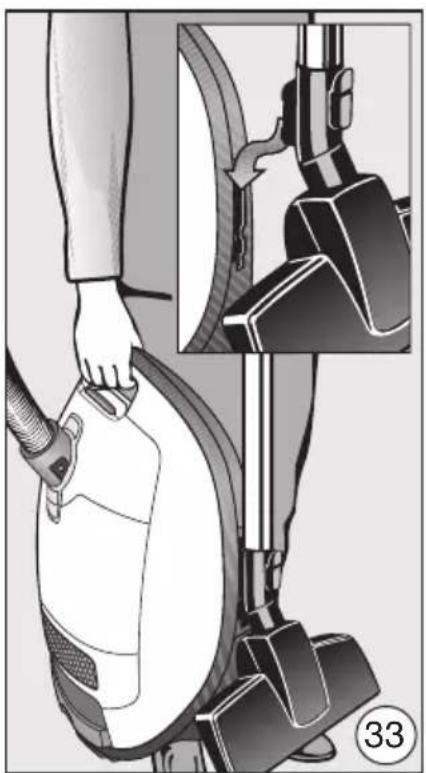

Park system for storage (Fig. 33)

Risk of electric shock from mains

voltage.

The mains voltage is applied to the appliance even if it is switched off.

After use, switch the appliance off at the wall socket and unplug it.

■ Stand the vacuum cleaner upright.
■ Retract the telescopic tube fully.

■ Slot the floorhead downwards into one of the parking attachments on the side of the vacuum cleaner.

This makes the vacuum cleaner easier to carry or store.

Maintenance

Risk of electric shock from mains ie.

The mains voltage is applied to the appliance even if it is switched off.

Before carrying out any maintenance work, switch the appliance off at the wall socket and unplug it.

The Miele filtration system consists of 3 accessories:

• Original Miele dustbag (type GN)
• Motor protection filter
• Original Miele exhaust filter

These accessories will need to be replaced from time to time to ensure that your vacuum cleaner performs efficiently.

We recommend using only genuine Miele accessories bearing the “ORIGINAL Miele” logo on the packaging. Only these will guarantee the optimum performance of your vacuum cleaner and the best possible cleaning results.

Dustbags with the “ORIGINAL Miele” logo on the packaging are not made from paper or paper-based materials and nor do they have a cardboard collar. This is why Miele dustbags are particularly long-lasting and reliable.

Please note that faults and damage caused by use of accessories which do not bear the “ORIGINAL Miele” logo on the packaging are not covered by the vacuum cleaner warranty.

Purchasing accessories

Original Miele accessories are available from the Miele webshop, the Miele Customer Service Department and from your Miele dealer.

Original Miele accessories are identified by the “ORIGINAL Miele” logo on the packaging.

ORIGINAL Miele

With 3D4U, Miele also offers free accessories to download for your 3D printer (www.miele.com, Service, 3D4U).

3 D 4 U

Every packet of original Miele dustbags contains 4 dustbags, one AirClean exhaust filter and one motor protection filter. Original Miele multipacks contain 16 dustbags, 4 AirClean exhaust filters and 4 motor protection filters (available depending on country).

Original Miele exhaust filters can also be purchased separately from the Miele Customer Service Department or your Miele dealer. Please quote the model number of your vacuum cleaner when ordering to make sure you get the correct filter. You can also order these filters via the Miele webshop.

Dustbag airflow indicator (Fig. 34)

Change the dustbag when the airflow indicator turns red, or sooner if it is no longer effective (see possible reasons for this below).

Blocked pores reduce the suction power of the vacuum cleaner. Dispose of the dustbag when it is full. Do not attempt to re-use the dustbag.

To check the airflow indicator

■ Attach the standard adjustable floorhead to the vacuum cleaner.
■ Switch the vacuum cleaner on and select the highest power setting.
■ Lift the floorhead off the floor a little.

How the airflow indicator works

The airflow indicator is set for normal household dust. This generally contains a mixture of dust, hair, threads, carpet fluff, grit etc.

However, if the cleaner has been used to vacuum up fine dust, such as plaster, brick dust, cement or flour, the pores of the dustbag will become blocked very quickly.

This affects the air permeability of the bag, and the marker will indicate that the bag is “full” even when it is not. The dustbag must be replaced if this is the case.

If, on the other hand, a large amount of hair and carpet fluff which typically contains a lot of air is vacuumed up, the indicator may fail to react even though the bag is full. You should still change it. Both these extremes can occur.

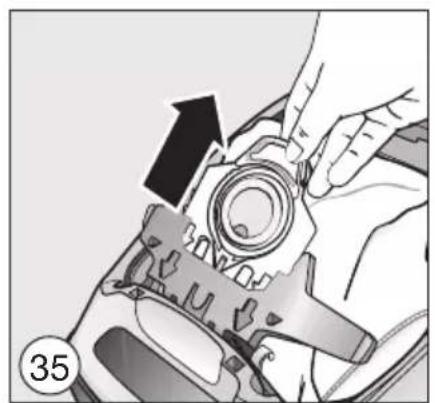

Removing the dustbag (Fig. 35)

■ Press the release catches at the side of the hose connector and pull the hose out of the suction opening (Fig. 02).
■ Lift the release catch for the dust compartment lid and raise the lid as far as it will go (Fig. 09).

The dustbag has a flap which closes automatically when the dust compartment lid is raised to prevent any dust escaping.

■ Pull the dustbag out by the grip on the collar.

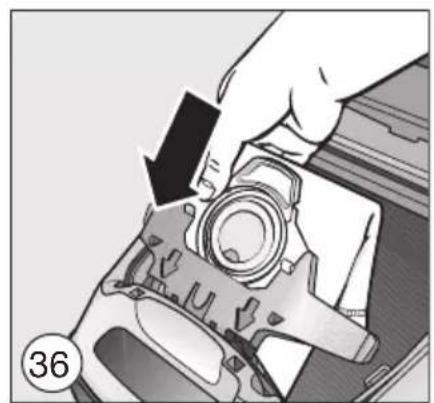

Fitting a dustbag (Fig. 36)

■ Fit the new dustbag into the holder until it clicks into position. Leave the dustbag folded up when you take it out of the box.
■ Close the dust compartment lid securely, making sure it clicks into position. Take care not to trap the dust-bag when doing so.

A safety device prevents the lid closing without a dustbag in place. Do not force it.

■ Insert the hose connector into the suction opening on the vacuum cleaner until it clicks into position. To do this, line up the guides on the two pieces (Fig. 01).

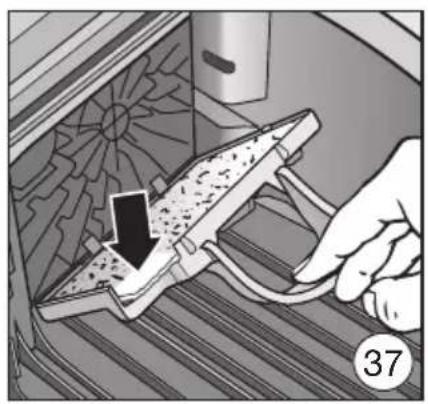

Replacing the motor protection filter (Fig. 37)

Replace the motor protection filter whenever you start a new packet of dustbags.

Every packet of original Miele dustbags contains a motor protection filter. Multipacks contain 4 motor protection filters.

■ Open the dust compartment lid (Fig. 09).
■ Pull the dustbag out by the grip on the collar (Fig. 35).
■ Lift up the filter frame until it clicks and remove the old motor protection filter. Hold the filter by the clean, unsoiled section to remove it (Fig. 37).
■ Replace with a new motor protection filter.
■ Close the filter frame.

■ Fit the dustbag into the holder until it clicks into position (Fig. 36).
■ Close the dust compartment lid securely, making sure it clicks into position. Take care not to trap the dust-bag when doing so.

When to replace the exhaust filter

Depending on the model, your vacuum cleaner will be fitted as standard with one of the following exhaust filters (Fig. 08):

a AirClean

Replace this filter every time you start a new packet of Miele dustbags. Every packet of original Miele dustbags contains one AirClean exhaust filter. Multipacks contain 4 AirClean filters.

b AirClean Plus 50 (light blue)

Replace this filter after approx. one year. Make a note of the date on the exhaust filter.

c Silence AirClean 50 (grey)

d Active AirClean 50 (black)

e HEPA AirClean 50 (white)

Replace these filters when the timestrip® filter change indicator is completely red (Fig. 13). The indicator lights up after approximately 50 hours of operation, which is equivalent to about a year of average use. You can continue vacuuming when the light comes on. However, the suction power will be reduced as will the effectiveness of the filter if it is not replaced in good time.

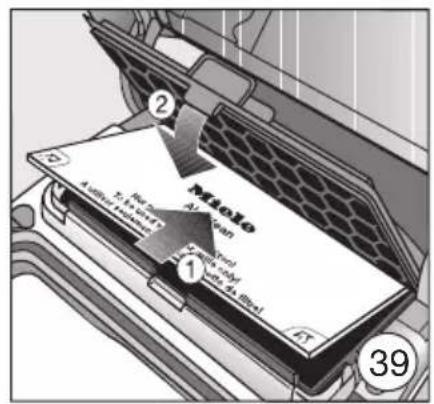

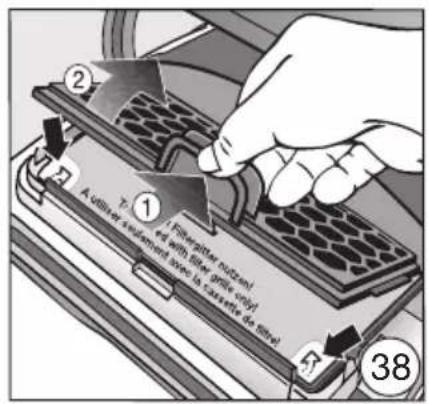

Replacing the AirClean exhaust filter (Fig. 38 + 39)

Do not use more than one exhaust filter at a time.

■ Open the dust compartment lid (Fig. 09).
■ Press the release catch on the filter grille and open the grille until it clicks (Fig. 38).
■ Grasp the used AirClean exhaust filter by one of the clean, unsoiled sections and take it out (Fig. 38).
■ Replace it with a new AirClean exhaust filter (Fig. 39).

If you wish to fit an AirClean Plus 50, Silence AirClean 50, Active AirClean 50 or HEPA AirClean 50 exhaust filter, see the “Replacing one type of exhaust filter with another” section.

■ Close the filter grille (Fig. 39).

⚠️ Damage due to contamination in the dust compartment Large quantities of dust may enter the dust compartment and damage components if the dustbag has not clicked into position. Before closing the dust compartment lid, make sure that the dustbag has been inserted so that it has clicked into position.

■ Close the dust compartment lid securely, making sure it clicks into position. Take care not to trap the dust-bag when doing so.

Replacing the AirClean Plus 50, Silence AirClean 50, Active AirClean 50 and HEPA AirClean 50 exhaust filters (Fig. 40 + 41)

Do not use more than one exhaust filter at a time.

■ Open the dust compartment lid (Fig. 09).

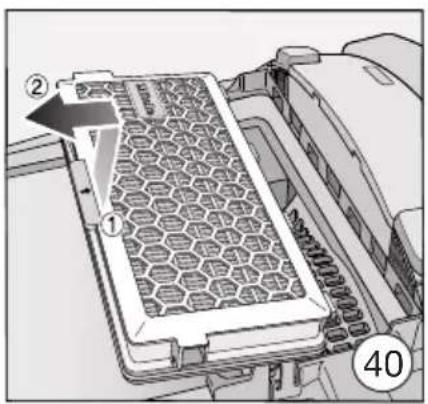

■ Lift the exhaust filter and remove it (Fig. 40).

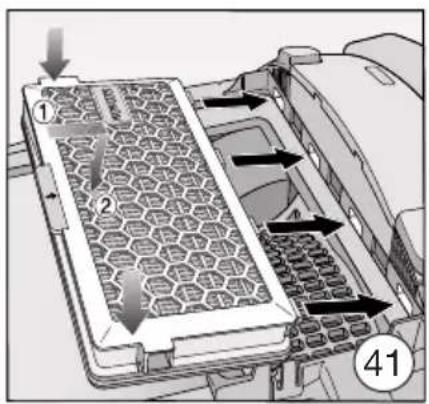

■ Insert a new exhaust filter, making sure it goes in properly, then press it down into position (Fig. 41).
If you are using exhaust filter c, d or e, you must also activate the timestep® filter change indicator (Fig. 11).

After approx. 10–15 seconds, a thin red line will appear in the left-hand side of the display (Fig. 12).

If you wish to fit an AirClean exhaust filter, see “Replacing one type of exhaust filter with another”.

⚠️ Damage due to contamination in the dust compartment

Large quantities of dust may enter the dust compartment and damage components if the dustbag has not clicked into position.

Before closing the dust compartment lid, make sure that the dustbag has been inserted so that it has clicked into position.

■ Close the dust compartment lid securely, making sure it clicks into position. Take care not to trap the dust-bag when doing so.

Replacing one type of exhaust filter with another (Fig. 08)

Depending on the model, your vacuum cleaner will be fitted as standard with one of the following exhaust filters:

a AirClean
b AirClean Plus 50 (light blue)
c Silence AirClean 50 (grey)
d Active AirClean 50 (black)
e HEPA AirClean 50 (white)

Do not use more than one exhaust filter at a time.

When changing the filter, please note

1. If you wish to replace exhaust filter a with filter b, c, d or e, it is essential that you remove the filter grille before you fit the new exhaust filter.
   If you are using exhaust filter c, d or e, you must also activate the timestep® filter change indicator (Fig. 11).

2. If you wish to replace exhaust filter b, c, d or e with filter a, it is essential that you also fit the filter grille* (Fig. 39).

* Filter grille – see “Optional accessories”

Maintenance indicator with reset button (Fig. 42)

Some models are fitted with a maintenance indicator.

The indicator lights up after approximately 50 hours of operation, which is equivalent to about a year of average

use. The level of soiling of the motor protection filter and the exhaust filter must be checked at this point.

The indicator must be reset each time the filters are replaced. The vacuum cleaner must be switched on to do this.

■ Press the reset button.

The maintenance indicator will go out and reset to zero.

The indicator can only be reset by pressing the reset button after the light has come on. Pressing the button at any other time will have no effect.

When to replace the battery in the radio-control handle

Change the battery approximately every 18 months. One 3 V battery (CR 2032) is required.

The vacuum cleaner can still be used when the battery has run out or if there is no battery fitted.

■ Switch the vacuum cleaner on using the On/Off footswitch ① (Fig. 24).

The standby indicator ⏻ on the vacuum cleaner will light up yellow.

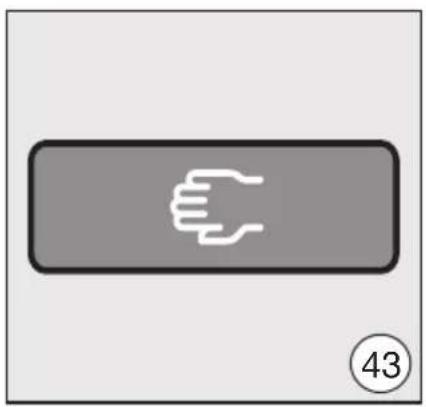

■ Press the restart button on the vacuum cleaner (Fig. 43).

The vacuum cleaner can continue to be used, but only at maximum suction power.

⚠️ ⚠️ WARNING! Keep batteries out of reach of children.

Coin or button batteries containing lithium can cause severe or fatal injuries within 2 hours of being swallowed or placed inside any part of the body. Non-lithium batteries can also cause serious injuries if swallowed or placed inside any part of the body. Even flat batteries can still be dangerous. If you suspect a child has swallowed a battery or placed a battery inside any part of their body, seek medical advice immediately (Australia: Poisons Information Centre, Tel. 13 11 26; NZ: National Poisons Centre, Tel. [phone]). Examine devices and make sure the battery compartment is correctly secured, e.g. that the screw or other mechanical fastener is tightened. Do not use if compartment is not secure. Used batteries must be kept away from children while awaiting disposal and must be disposed of in a safe manner.

How to change the battery in the radio-control handle (Fig. 44)

■ Undo the screw on the battery compartment cover using a cross-tip screwdriver and then remove the cover.

■ Replace the battery with a new one. Make sure the polarity is correct.

■ Replace the cover and tighten the screw back up again.

■ Dispose of the old battery in a municipal recycling facility.

When to replace the battery in the LED handle

Replace the batteries when necessary. 3 1.5 V batteries (AAA) are required.

How to change the battery in the LED handle (Fig. 06 + 07)

① Loosen the screw on the cover.
② Press in the sides of the cover to release the retainers and remove the cover.
③ Take out the battery holder and insert the 3 batteries supplied. Make sure the polarity is correct.
④ Refit the battery holder. Arrows are marked on the battery holder and battery compartment as a fitting aid. They should point in the same direction.
⑤ Replace the cover and tighten the screw back up again.

Replacing the thread lifters (Fig. 45)

(not possible on EcoTeQ Plus floorheads)

The thread lifters on the suction inlet to the floorhead can be replaced. Replace the thread lifters if the pile has worn down.

■ Lever the thread lifters from the slots. To do so use a suitable tool, e.g. a flat blade screwdriver.
■ Fit new thread lifters.

Replacement parts are available from your Miele dealer or from the Miele Spare Parts Dept.

Cleaning and care

⚠️ Risk of electric shock from mains voltage.

The mains voltage is applied to the appliance even if it is switched off.

Before cleaning, switch the appliance off at the wall socket and unplug it.

Vacuum cleaner and accessories

⚠️ Risk of electric shock from mains voltage.

If moisture gets into the vacuum cleaner, there is a risk of electric shock.

Do not let the vacuum cleaner get wet.

The vacuum cleaner and all plastic accessories can be cleaned with a proprietary cleaner suitable for plastic.

⚠️ Damage due to unsuitable cleaning agents.

All surfaces are susceptible to scratching. Contact with unsuitable cleaning agents can alter or discolour the external surfaces.

Do not use abrasive cleaning agents, glass cleaning agents, all-purpose cleaners or oil-based conditioning agents.

Dust compartment

The dust compartment can, if necessary, be cleaned using a dry duster, brush or, if available, a second vacuum cleaner to vacuum the dust out.

Problem solving guide

Many malfunctions and faults that can occur in daily operation can be easily remedied. Time and money will be saved because a service call will not be needed.

The following guide may help you to find the reason for a malfunction or a fault, and to correct it.

Problem Cause and remedy

The vacuum cleaner switches off automatically. On certain models, the overheating protection warning light ⚠ also comes on.

A temperature limiter switches the vacuum cleaner off automatically if it gets too hot.This can occur if, for instance, large articles block the suction tube or when the dustbag is full or contains particles of fine dust. A heavily soiled motor protection or exhaust filter can also be the cause of overheating.■ Switch the vacuum cleaner off immediately using the On/Off footswitch ⭕. Switch off at the wall socket and unplug it.After removing the cause, wait for approximately 20–30 minutes to allow the vacuum cleaner to cool down. It can then be switched on again.

Technical data

(for models with radio controlled handle)

Frequency band 433.05 MHz - 434.79 MHz

Maximum transmitting power < 10 W

EU Conformity declaration

Miele hereby declares that this vacuum cleaner complies with Directive 2014/53/EU.

The complete text of the EU declaration of conformity is available from one of the following internet addresses:

- Products, Download from www.miele.ie

- For service, information, operating instructions etc: go to www.miele.ie/domestic/customer-information-385.htm and enter the name of the product or the serial number

UK Conformity declaration

Miele hereby declares that this vacuum cleaner complies with UK Radio Equipment Regulations 2017, as amended.

The complete text of the UK declaration of conformity is available from one of the following internet addresses:

- Products, Download from www.miele.co.uk

- For service, information, operating instructions etc: go to www.miele.co.uk and enter the name of the product or the serial number

Service

Contact in case of malfunction

In the event of any faults which you cannot remedy yourself, please contact your Miele Dealer or Miele Service.

Contact information for Miele Service can be found at the end of this document.

Please note that telephone calls may be monitored and recorded for training purposes and that a call-out charge will be applied to service visits where the problem could have been resolved as described in this booklet.

Warranty

For information on the appliance warranty specific to your country, please contact Miele. See end of this document for address.

In the UK, your appliance warranty is valid for 2 years from the date of purchase. However, you must activate your cover by calling 0330 160 6640 or registering online at www.miele.co.uk.

Warranty in the UAE

The appliance warranty is valid for 2 years from date of purchase. For more information on country specific warranty terms and conditions, please contact Miele Customer Service. See end of this document for contact details.

Optional accessories

Please observe the flooring manufacturer's cleaning and care instructions.

These and many other products can be ordered from the Miele webshop, the Miele Customer Service Department or your Miele dealer.

Certain models are supplied as standard with one or more of the following accessories.

Floorheads / brushes

(only available in selected countries)

TurboTeQ Turbobrush (STB 305-3)

This brush is ideal for cleaning cut pile carpet.

Hard floorbrush (SBB 235-3)

This brush is designed for use on hard flooring such as tiled or stone floors.

Parquet Twister floorbrush with swivel action (SBB 300-3)

With natural bristles for vacuuming smooth hard floors and small gaps.

Parquet Twister XL floorbrush with swivel action (SBB 400-3)

With natural bristles for quickly vacuuming smooth hard floors and small gaps.

Other accessories

(only available in selected countries)

Turbo Mini hand turbobrush (STB 101)

For vacuuming upholstery, mattresses or car seats, etc.

Universal brush (SUB 20)

For dusting books, shelves, etc.

Radiator brush (SHB 30)

For dusting radiators, narrow shelves and crevices.

Mattress nozzle (SMD 10)

For vacuuming upholstery, mattresses, cushions, curtains, covers etc.

Crevice nozzle, 300 mm (SFD 10)

Extra long crevice nozzle for cleaning in folds, crevices and corners.

Crevice nozzle, 560 mm (SFD 20)

Flexible crevice nozzle for vacuuming hard to reach places.

XL upholstery nozzle (SPD 20)

Wide upholstery nozzle for cleaning upholstery, mattresses and cushions.

Comfort handle with lighting (SGC 20)

(cannot be used on models with the Eco Comfort handle)

Lights up the area being vacuumed.

Filters

AirClean Plus 50 exhaust filter (SF-AP 50)

Effective filtration for particularly clean room air.

Exhaust filter Silence AirClean 50 (SF-SA 50)

For a significant reduction in noise whilst vacuuming.

Active AirClean 50 exhaust filter (SF-AA 50)

For a significant reduction of unpleasant odours. Ideal for households with pets or smokers

HEPA AirClean 50 exhaust filter (SF-HA 50)

Effectively filters fine dust and allergens. Ideal for people allergic to house dust.

Filter grille

This is required if you wish to replace an AirClean Plus 50, Silence AirClean 50, Active AirClean 50 or HEPA AirClean 50 filter with an AirClean filter.

Electrical connection for the UK

All electrical work should be carried out by a suitably qualified and competent person in strict accordance with current national and local safety regulations (BS 7671 in the UK). The voltage and frequency are given on the data plate located underneath the vacuum cleaner. Please ensure that these match the household mains supply. The fuse rating is quoted on the plug. The appliance is supplied with a cable and moulded plug ready for connection to a 230-240 V/50 Hz a.c. single phase supply.

Electrical connection AU, NZ

All work should be carried out by a suitably qualified and competent person in strict accordance with national and local safety regulations. The voltage and rated load are given on the data plate located underneath the vacuum cleaner. Please ensure that these match the household mains supply. The appliance is supplied with a cable and moulded plug ready for connection to a 230V/50Hz AC single phase supply.

Test Marks Electrical safety

RCM Mark

Electrically sup-

pressed

AS/NZS CISPR

according to

14.1

Labeled diagram of a vacuum cleaner with numbered parts for identification

a) EN 60312-1 Vacuum cleaners for household use - Part 1: Dry vacuum cleaners - Methods for measuring the performance
b) EN 60704-2-1 Household and similar electrical appliances - Test code for the determination of airborne acoustical noise - Part 2-1: Particular requirements for vacuum cleaners
c) EN 60335-2-2 Household and similar electrical appliances - Safety - Part 2-2: Particular requirements for vacuum cleaner and water suction appliances

Labeled diagram of a vacuum cleaner with numbered parts for identification

Simple 3D cube with three white Y-shaped cutouts on one face (no text or symbols)

3 D 4 U

Labeled diagram of a vacuum cleaner with numbered parts for identification

a) EN 60312-1 Vacuum cleaners for household use – Part 1: Dry vacuum cleaners – Methods for measuring the performance
b) EN 60704-2-1 Household and similar electrical appliances – Test code for the determination of airborne acoustical noise – Part 2-1: Particular requirements for vacuum cleaners
c) EN 60335-2-2 Household and similar electrical appliances – Safety – Part 2-2: Particular requirements for vacuum cleaner and water suction appliances

⚠️ Schade door oververhitting.

Gray 3D cube icon with white Y-shaped cutout, no text or symbols present

Controle of de stofzuigerzak vol is

e HEPA AirClean 50 (wit)

e HEPA AirClean 50 (wit)

Miele Co. Ltd., Fairacres, Marcham Road, Abingdon, Oxon, OX14 1TW

Tel: [phone], Internet: www.miele.co.uk/service, E-mail: [e-mail]

Australia

Miele Australia Pty. Ltd.

ACN 005 635 398

ABN 96 005 635 398

Level 4, 141 Camberwell Road

Hawthorn East, VIC 3123

Tel: [phone]

Internet: www.miele.com.au

China Mainland

Miele Electrical Appliances Co., Ltd.

1-3 Floor, No. 82 Shi Men Yi Road

Jing' an District

200040 Shanghai, PRC

Tel: [phone]

Fax: [phone]

E-mail: [e-mail],

Kowloon Bay, Hong Kong

Tel: [phone]

Fax: [phone]

Email:

[e-mail]

Website: www.miele.hk

India

Miele India Pvt. Ltd.

1st Floor, Copia Corporate Suites,

Commercial Plot 9,

Mathura Road, Jasola,

New Delhi - 110025

E-mail: [e-mail]

Website: www.miele.in

Ireland

Miele Ireland Ltd.

2024 Bianconi Avenue

Citywest Business Campus

Dublin 24

Tel: [phone]

Fax: [phone]

E-Mail: [e-mail]

Internet: www.miele.ie

Malaysia

Miele Sdn Bhd

Suite 12-2, Level 12

Menara Sapura Kencana

Petroleum

Solaris Dutamas No. 1

Jalan Dutamas 1

50480 Kuala Lumpur, Malaysia

Phone: [phone]

Fax: [phone]

New Zealand

Miele New Zealand Limited

IRD 98 463 631

8 College Hill

Freemans Bay, Auckland 1011

New Zealand

Tel: [phone]

Internet: www.miele.co.nz

Singapore

Miele Pte. Ltd.

29 Media Circle

11-04 ALICE@Mediapolis

Singapore 138565

sTel: [phone]

Fax: [phone]

E-Mail: [e-mail]

Internet: www.miele.sg

South Africa

Miele (Pty) Ltd.

63 Peter Place

Bryanston 2194

P.O. Box 69434

Bryanston 2021

Tel: [phone]

Fax: [phone]

E-mail: [e-mail]

Internet: www.miele.co.za

Thailand

Miele Appliances Ltd.

BHIRAJ TOWER at EmQuartier

43rd Floor Unit 4301-4303

689 Sukhumvit Road

North Klongton Sub-District

Vadhana District

Bangkok 10110, Thailand

United Arab Emirates

Miele Appliances Ltd.

Showroom 1

Eiffel 1 Building

Sheikh Zayed Road, Umm Al She

P.O. Box 114782 - Dubai

Tel. [phone]

Fax. [phone]

800-MIELE (64353)

Close-up of a robotic arm interacting with a device, showing a circular component and a pointer (no text or symbols visible)

Illustration of a hand holding a mechanical component with directional arrows indicating motion (no text or symbols)

Two-step illustration of a cable being inserted into a connector, showing the process with arrows indicating direction (no text or symbols)

Diagram of a device with arrows indicating motion or force, no visible text or symbols

Close-up of a mechanical component with a tool inserted, showing a curved joint and directional arrows (no text or symbols)

Diagram of a robotic arm with labeled parts and directional arrows indicating movement or force

⑤ ④ ③ 3x 07

Miole AirClean a b c, d, e 08

Hand pressing down on a curved mechanical component (no text or symbols visible)

Diagram of a mechanical component with hexagonal lattice structure and directional arrow, no readable text or symbols

timestep 11

timestep 12

strip replace 13

Three labeled mechanical components (no text or symbols present)

Close-up of a hand pressing a button on a car's side panel, with a black arrow indicating the action (no text or symbols present)

Illustration of a robotic arm interacting with a laptop, showing motion arrows (no text or symbols)

Diagram of a mechanical component with directional arrows indicating motion or force, no text or symbols present

Kinde Pulsor 19

Diagram showing a mechanical device with directional arrows and labeled components, including a grid and directional indicators.

Illustration of a vacuum cleaner attached to a device, showing mechanical components and a numbered label (21) in the corner.

Person using a tool to adjust or install a device component, no visible text or symbols

Illustration of a hand using a vacuum cleaner to lift a small electronic device with visible wiring (no text or symbols)

Illustration of a portable electric stove with wheels and a power cord, no text or symbols present

Diagram of a car front panel with directional arrows and control buttons, labeled with numbers 25 and +.

Boost 26

Boost 27

Close-up of a hand holding a device with two buttons and a plus/minus signs, showing mechanical components (no text or symbols)

Diagram of a car wheel with directional arrows indicating motion or force (no text or symbols)

Close-up of a mechanical component with directional arrows and a numbered circle (30), no visible text or symbols.

Technical illustration of a handheld vacuum cleaner with a hose and nozzle, showing mechanical components and a black arrow indicating motion (no text or symbols present)

Mechanical component diagram showing a clamping mechanism with no visible text or symbols

Illustration of a person using a vacuum cleaner with an inset close-up showing the device (no text or symbols present)

Illustration of a computer mouse with a screen showing a logo and an arrow pointing to it, marked with number 34 (no text or symbols on the mouse itself)

Mechanical assembly diagram showing a hand adjusting a component with an arrow indicating direction (no text or symbols present)

Close-up of a hand adjusting a mechanical component with an arrow indicating the process (no visible text or symbols)

Illustration of a hand using a tool to clean or install a fan component, with no visible text or symbols.

① A unit or embedded layer in cassette as filter ② ③ 38

MAOLO A solid, 2x 100% 1 39

Technical diagram of a mechanical component with numbered parts and label 40

Diagram of a device interior with numbered components and directional arrows indicating flow or movement

max. Reset 42

Gray rectangular button with a white hand icon and number 43 in the corner (no text or symbols on the button itself)

Diagram illustrating tire repair process with numbered steps: adding a tire, adding a nut, and adding a weight.

ON/O ON ON/O ON/O ON/O ON/O ON/O ON/O ON/O ON/O ON/O ON/O ON/O ON/O ON/O ON/O 45

Miele

Deutschland:

Miele & Cie. KG
