USER MANUAL RO4 476DWM71S CANDY

METTERE LA MACCHINA IN PAUSA

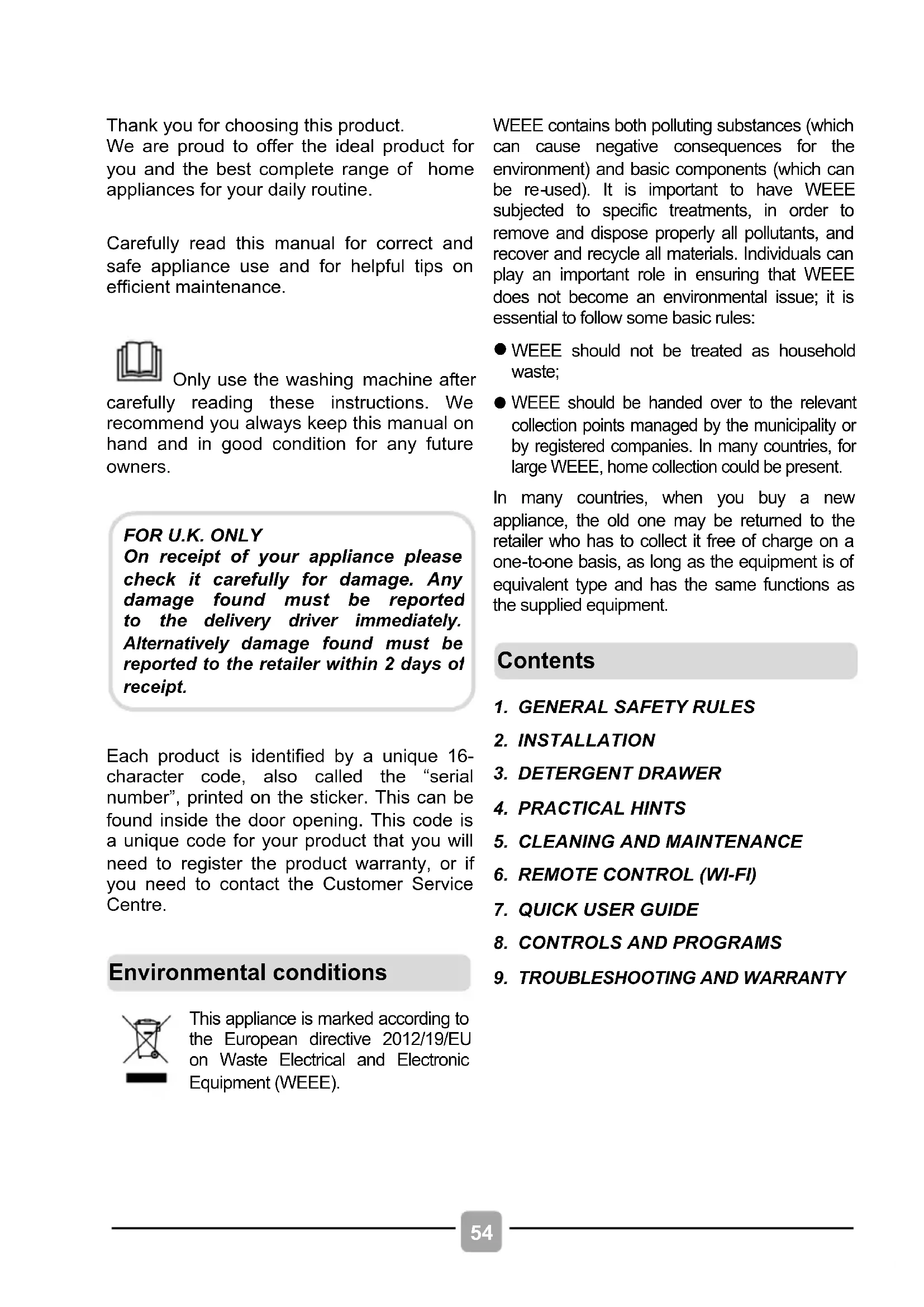

Thank you for choosing this product. We are proud to offer the ideal product for you and the best complete range of home appliances for your daily routine.

Carefully read this manual for correct and safe appliance use and for helpful tips on efficient maintenance.

Only use the washing machine after carefully reading these instructions. We recommend you always keep this manual on hand and in good condition for any future owners.

Each product is identified by a unique 16- character code, also called the “serial number”, printed on the sticker. This can be found inside the door opening. This code is a unique code for your product that you will need to

register the product warranty, or if you need to contact the Customer Service Centre.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re

used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials. Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

WEEE should not be treated as household waste;

WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one -to- one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

CLEANING AND MAINTENANCE

TROUBLESHOOTING AND WARRANTY

Contents Environmental conditions

On receipt of your appliance please check it carefully for damage. Any damage found must be reported to the delivery driver immediately. Alternatively damage found must be reported to the retailer within 2 days of receipt.55

RULES This appliance is intended to be used in household and similar applications such as: - Staff kitchen areas in shops, offices and other working environments; - Farm houses; - By clients in hotels, motels and other residential type environments; - Bed and breakfast type environments. A different use of this appliance from household environment or from typical housekeeping functions, as commercial use by expert or trained users, is excluded even in the above applications. If the appliance is used in a manner inconsistent with this it may reduce the life of the appliance and may void the manufacturer’s warranty. Any damage to the appliance or other damage or loss arising through use that is not consistent with domestic or household use (even if located in a domestic or household environment) shall not be accepted by the manufacturer to the fullest extent permitted by law. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children should be supervised to ensure that they do not play with the appliance. Children of less than 3 years should be kept away unless continuously supervised.

If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent. Only use the hose-sets supplied with the appliance for the water supply connection (do not reuse old hose-sets).

Water pressure must be between

Make sure carpets or rugs do not obstruct the base or any of the ventilation openings. After installation, the appliance must be positioned so that the plug is accessible. The maximum load capacity of dry clothes depends on the model used (see control panel).

To consult the product technical specification please refer to the manufacturer website.56

The technical details (supply voltage and power input) are indicated on the product rating plate

Make sure that the electrical system is earthed, complies with all applicable law and that the (electricity) socket is compatible with the plug of the appliance. Otherwise, seek qualified professional assistance.

The use of converters, multiple sockets or extension cords is strongly advised against

Before cleaning or maintaining the washing machine, unplug the appliance and turn off the water tap.

Do not pull on the power cord or appliance to unplug the machine.

Make sure there is no water in the drum before opening the door.

Do not expose the washing machine to rain, direct sunlight or other weather elements. Protect from possible freezing. When moving, do not lift the washing machine by the knobs or detergent drawer; during transport, never rest the door on the trolley. We recommend two people lift the washing machine. In the event of fault and/or malfunction, turn off the washing machine, close the water tap and do not tamper with the appliance. Immediately contact the Customer Service Centre and only use original spare parts. Failure to observe these instruction may jeopardise appliance safety.

water may reach very high temperatures during the wash cycle. Electrical connections and safety instructions57

transportation screws (A) on the back and remove the

flat washers, rubber bungs and plastic spacer tubes (B) as illustrated in figure 1

If the washing machine is built

transportation screws (A) and remove the

flat washers, rubber bungs and plastic spacer tubes (B)

During the removal of the screws occasionally spacer tubes fall inside the product, these can be remove by tilting the product forward and recovering them from the floor or inside the base of the machine.

Cover the open transportation screw holes with the

plastic caps included in the instruction bag.

Place the corrugated plastic sheet, found on top of the appliance during the unpacking process* , into the base of the appliance as shown in figure 2 (according to the model, consider version A, B or C).

In some models, the corrugated plastic sheet is not provided.

keep packaging materials away from children.58

Connect the water hose to the water supply tap (fig. 3) only using the hose supplied with the appliance (do not reuse old hose-sets).

SOME MODELS may include one or more of the following features:

HOT&COLD (fig. 4): water mains connection settings with hot and cold water for higher energy savings.

Connect the grey tube to the cold water tap and the red one to the hot water tap. The machine ca n be connected to the cold water tap only: in this case, some programs may start a few minutes later.

AQUASTOP (fig. 5): a device located on the supply tube that stops water flow if the tube deteriorates; in this case, a red mark will appear in the window “A ” and the tube must be replaced. To unscrew the nut, press the one-way lock device "B".

GUARD (fig. 6): Should water leak from the primary internal tube "A" , the transparent containment sheath "B " will contain water to permit the washing cycle to complete. At the end of the cycle, contact the Customer Service Centre to replace the supply tube.

Hydraulic connections59

The washing machine should be installed in its final position such that the water fill hose is not kinked or trapped. The corrugated drain hose should be inserted into suitable drain pipe of between 50 cm and 85 cm heig ht above the floor using the curved drain hose support. If an under sink connection is used the drain hose must be routed above the sink overfill opening to prevent back siphoning. Care must be taken to avoid kinking or trapping the drain hose (fig. 7)

Level the appliance using the feet as illustrated in figure 8:

turn the nut clockwise to release the screw;

rotate the foot to raise or lower it until it touches to the floor;

lock the foot, screwing in the nut, until it

tightens against to the bottom of the washing machine.

Plug in the appliance.

contact the Customer Service Centre should the power cord need replacement. Installation faults are not covered

the manufacturers warranty. Setting60

The detergent draw is split into 3 compartments as illustrated in figure 9: compartment "1": for prewash detergent; compartment “ ”: for special additives, softeners, starch fragrances, etc.;

compartment "2": for washing detergent. A liquid detergent cup is also included IN SOME MODELS (fig. 10). To use it, place it in compartment "2". This way, liquid detergent will only enter the drum at the right time. The cup can also be used for bleach when the “Rinse” program is selected.

SOME MODELS are provided with the automatic dosage, this carries out a precise measurement of detergent and softener. In this case, refer to the specific section in the CONTROLS AND PROGRAMS chapter for details.

some detergents are not designed for use in the dispenser drawer but are supplied with their o wn dispenser that is placed in the drum directly.

only use liquid products; the washing machine is set to automatically dose additives at each cycle during the last rinse.61

When sorting laundry, make sure: - have eliminated metallic objects such as hair clips, pins, coins, from laundry; - to have buttoned pillow cases, closed zips, tied loose belts and long robe ribbons; - to have removed rollers, hooks or clips from curtains; - to have carefully read clothing washing labels; - to have removed any persistent stains using specific detergents. When washing rugs, bedcovers or other heavy clothing, we recommend you avoid the spinning cycle. To wash wool, make sure the item can be machine washed. Check the fabric label. Leave the appliance’s door slightly open between washes, to prevent possible bad smells developing inside the machine.

Tips on how to save money and not damage the environment when using your appliance. Load the machine to the highest capacity shown in the programme table for each programme - this will allow you to SAVE energy and water. Noise and residual laundry moisture are affected by spin speed: a faster spin is associated with greater noise and lower residual moisture in the laundry. The most efficient programmes in terms of combined use of water and energy are usually the longer-lasting ones with lower temperature. Maximise the load size Achieve the best use of energy, water, detergent and time by using the recommended maximum load size. Save up to 50% energy by washing a full load instead of 2 half loads. Do you need to pre-wash? For heavily soiled laundry only! SAVE detergent, time, water and between 5 to 15% energy consumption by NOT selecting Prewash for slight to normally soiled laundry. Is a hot wash required? Pretreat stains with stain remover or soak dried in stains in water before washing to reduce the necessity of a hot wash programme. Save energy by using a low temperature wash programme. Before using a drying programme (WASHER-DRYERS) SAVE energy and time by selecting a high spin speed to reduce the water content in laundry before using a drying programme.

Below is a short guide with tips and advice on the use of detergent.

Only use detergents suitable for machine washing. Select your detergent according to the type of fabric (cotton, delicates, synthetics, wool, silk, etc.), the colour, the type and level of soiling and the programmed washing temperature. To use the right amount of detergent, softener or any other additives, carefully follow the manufacturer’s instructions every time: correctly using the appliance with the right dose allows you to avoid waste and to reduce the environmental impact. Dosing the detergent Useful advice for saving Load tips62

Too much detergent leads to excessive foam, which prevents the cycle being carried out correctly. It could also affect the quality of the washing and rinsing.

The use of ecological detergents without phosphates may cause the following effects: - cloudier rinse drain water: This effect is tied to the suspended zeolites which do not have negative effects on rinse efficiency. - white powder (zeolites) on laundry at the end of the wash: this is normal, the powder is not absorbed by fabric and does not change its colour. To remove the zeolites, select a rinse programme. In the future consider using slightly less detergent. - foam in the water at last rinse: this does not necessary indicate poor rinsing. Consider using less detergent in future washes. - abundant foam: This is often due to the anionic surfactants found in the detergents which are hard to eliminate from laundry. In this case, do not re-rinse to eliminate these effects: it will not help at all. We suggest conducting a maintenance wash using a proprietary cleaner. If the problem persists or if you suspect a malfunction, immediately contact an Authorised Customer Service Centre.

For washing wool or silk, only use detergents specifically formulated for these fabrics. For washing at temperatures below 40°C we recommend the use of liquid detergents or detergents specifically labeled as suitable for low temperature washing. For washes between 40°C and 60°C the typ e of detergent used needs to be appropriate for the type of fabric and level of soiling. Normal powders are suitable for “white” or colour fast fabrics with high soiling, while liquid detergents or “colour protecting” powders are suitable for coloured fabr ics with light levels of soiling. When washing heavily soiled whites, we recommend using cotton programs

60°C or above and a normal washing powder (heavy duty) that contains bleaching agents that at medium/high temperatures provide excellent results.63

MAINTENANCE Looking after your appliance correctly can extend its lifespan.

Disconnect the machine from the power supply. Clean the appliance’s external cabinet, using a damp cloth and AVOIDING

It is advisable to regularly clean the detergent drawer to avoid the accumulation of detergent and additive residues. Remove the drawer gently but firmly. Clean the drawer under running water and put it back into its compartment.

Pull out the drawer completely by pressing the release button, paying attention to the leakage of detergent residues.

Fill the drawer with hot water.

Shake the drawer in order to let the water flow in all the compartments.

Empty the drawer from excess water and reinsert it completely.

DO NOT use acid products (for example vinegar) or aggressive detergents to clean the drawer, in order to avoid damaging the seals and/or internal parts of the appliance.

Before proceeding with cleaning, all the compartments must be empty. Drawer cleaning

The appliance has a special filter that traps larger residues that could block the draining system, such as buttons or coins (depending on the model, consider version A or B). We recommend checking and cleaning the filter 5 or 6 times a year. Disconnect the machine from the power supply. Ensure all the water has been emptied from the drum. Before unscrewing the filter, we recommend you place an absorbent cloth under it to keep the floor dry. A small amount of water will come out of the filter as you remove it - this is normal. Turn the filter counter-clockwise to the limit stop. Remove and clean the filter; when finished, replace it turning it clockwise. The filter handle will be locked when it is not possible to turn any further and the handle is horizontal. Smearing a small amount of liquid soap on the filter seal will help refitting. Repeat the previous steps in reverse order to reassemble all parts.

If the appliance is kept in a non-heated room for long periods of time, all water residues must be completely removed from the pipes. Disconnect the machine from the power supply socket.

Detach the tube from the drainage system and clip on the rear of the machine and lower it, fully draining water into a bowl. Secure the drain tube with the drainage system and clip on the rear of the machine when finished. Keep the door glass and gasket clean.

DOSING SYSTEM: should you need to tilt or move the machine, remove the detergent drawer before proceeding, keeping it horizontal so as to avoid any leakage. Suggestions for moves or prolonged disuse

Cleaning the pump filter65

This appliance is equipped with Wi-Fi technology that allows you to control it remotely via App.

APPLIANCE PAIRING (ON APP)

Download the hOn App on your device by framing the following QR code:

or by the link: go.haier-europe.com/download-app

Open the App, create the user profile (or log- in if it is already created previously) and pairing the appliance following the instructions on the device display.

Check that the router is switched on and connected to the Internet.

Turn the SMART RING (programme selection ring) to the REMOTE CONTROL (Wi-Fi) position : the door will lock and the controls on the control panel will be disabled.

Start the cycle using the app. When the cycle has been completed, turn off the machine by turning the SMART RING

the OFF position to unlock the door.

To exit REMOTE CONTROL mode while a cycle is underway, turn the SMART RING to any position other than REMOTE CONTROL (Wi-Fi), without going through the OFF . The control panel on the appliance will be operative once again, and if the cycle is paused, you will be able to open the door once the DOOR LOCKED indicator light switches off.

With the door closed, turn the SMART RING to the REMOTE CONTROL (Wi- Fi) position to control the appliance using the app once again. If there is a cycle underway, it will continue.

For safety reasons, in some wash cycle phases, the door can be opened on ly if the level of the water is below its lower edge and if the temperature is less than 45°C. If these conditions are met, wait for the DOOR LOCKED light to switch off before opening the door. The frequency of the home Wi-Fi network has to be set on the 2.4 GHz band. You can not configure the machine if your home network is set to the 5 GHz band. Get all the details of the Wi-Fi functions by browsing the App in DEMO mode. The App is available for devices running both Android and iOS, both for tablets and for smartphones.66

This appliance automatically adjusts the level of the water to the type and quantity of washing. This system gives a reduction in energy consumption and a saving in washing times.

Turn on the appliance and select the required program. Adjust the washing settings if necessary and select the required options.

Press the programme start button. The end of the programme will be indicated by a message on the display (on some models, all the indicator lights on the stage will light up). Turn off the appliance. For any type of wash, see the program table and follow the operating sequence as indicated.

Water pressure: min 0.05 Mpa / max 1 Mpa (0.05 MPa dispenses approximately 1 litre of water in 10 seconds) Spin r.p.m.: See rating plate. Power input / Power current fuse amp / Supply voltage: See rating plate.

SMART RING (programme selection ring)

Technical data DRYING (WASHER-DRYERS only) If you would like the drying cycle to begin automatically after washing, select the washing programme required and select the drying cycle. Or you can finish the wash and then select the drying programme. Program selection67

When the SMART RING is turned, the appliance will be turned on and the display will show the description and parameters of the selected programme. At the end of the cycle, remember to switch off the appliance by turning the SMART RING to the OFF position, then unplug the appliance and turn off the water supply.

- Language setting After connecting the machine to the network and turning it on, press the "TEMPERATURE SELECTION" or "SPIN SELECTION" button to display the available languages. Select the desired language pressing the START/PAUSE button. - Change the language

If you want to change the setting language you will have to press simultaneously "DELAY START" and "EASY IRON" buttons for about 5 seconds. The word ENGLISH will appear on the display and it will be possible to choose a new language (by pressing "TEMPERATURE SELECTION" or "SPIN SELECTION" button). Press START/PAUSE button to confirm your choice.

After switching on the appliance, wait a few seconds for the programme to start running. PROGRAMME DURATION When a programme is selected the display automatically shows the cycle duration, which can vary, depending on the options selected. Once the programme has started you will be kept informed constantly of the time remaining to the end of the wash. The appliance calculates the time to the end of the selected programme based upon a standard loading, during the cycle, the appliance corrects the time to that applicable to the size and composition of the load. PROGRAMME END "END" will appear in the display at the end of the program and the DOOR LOCKED light will go off, it is now possible to open the door. At the end of the cycle, turn off the washing machine by turning the SMART RING to the OFF position.

The SMART RING must ALWAYS be put in the OFF position at the end of the washing cycle before you can select a new washing cycle. Only the options compatible with the set programme can be selected. Close the porthole BEFORE pressing the START/PAUSE button. START/PAUSE button First starting SMART RING (ring for selecting programmes)

the plug because the machines calibrates the systems during the first seconds: touching the buttons, the machine couldn’t work property. In this case, remove the plug and repeat the operation.68

While a cycle is running, the machine can be paused by simply pressing the START/PAUSE button.

Press the START/PAUSE button again to re-start the programme from the cycle phase where it left off.

CANCELLING THE SET PROGRAMME

To cancel the programme, turn the SMART RING to the OFF position. Wait until the DOOR LOCKED light has gone out before opening the door.

This button allows you to pre-programme the wash cycle to delay the start of the cycle for up to 24 hours. To delay the start use the following procedure: - Select the required programme. - Press the button once to activate the delay start and then press it again (or hold it) to set the desired delay. The delay increases each time the button is pressed up to 24 hours, at which point pressing the button again will reset the delay start to zero. - Confirm by pressing the START/PAUSE button. The delay countdown will begin and when it has finished the programme will start automatically. You can cancel the start delay by turning the SMART RING to the OFF position. If there is a break in the power supply whilst the machine is operating, when the power is restored, the machine will restart from the beginning of the phase it was in when the power was lost.

This button allows you to choose between three different options: - PREWASH This option allows you to make a prewash and it is particularly useful for heavily soiled loads (can be used only on some programmes as shown in the table of programmes). We recommend you use only 20% of the recommended quantities shown on the detergent pack. - EXTRA RINSE This option allows you to add one rinse at the end of the washing cycle and is useful for people with delicate and sensitive skin, for which a small amount of detergent residue can cause irritations or allergies. It is advisable to also use this function for the children clothes and for the washing of heavily soiled items, which requires a lot of detergent to be used, or for the washing of toweling items whose fibres mostly have the tendency to hold the detergent. - HYGIENE + Activated when you set 60°C of temperature. This option allows deep cleaning of your clothes by maintaining the same temperature for the whole wash. OPTIONS button The following options must be selected before pressing the START/ PAUSE button. DELAY START button For safety reasons, in some wash cycle phases, the door can be opened only if the level of the wate r is below its lower edge and if the temperature is less than 45°C. If these conditions are met, wait for the DOOR LOCKED light to switch off before opening the door.69

This button can be used to select three different functions, depending on the selected programme: - STAIN LEVEL button Once the programme has been selected the wash time set for that programme will be automatically shown. This option allows you to choose between 3 levels of wash intensity modifying the length of the programme, depending on how much the fabrics are soiled (can only be used on some programmes as shown in the table of programmes). - ALTERNATIVE PROGRAMME SELECTION Where shown in the table, this option permits selection of an alternative to the pre-set programme (in the case of the RAPID (14'/30'/44') programme, it allows you to choose one of the three available durations). - STEAM LEVEL After selecting the EASY IRON PLUS programme, you can use this button to choose between three steam treatments of different intensities, designed for dry or wet garments and depending on the type of fabric:

- COTTON (default selection) This programme is used for cotton garments. On wet fabrics (e.g., after washing), it is suitable for relaxing creases after spinning; on dry fabrics it is instead designed to achieve the ideal humidity level for easier ironing. - SYNTHETIC (press button once) This programme is used for synthetic garments. On wet fabrics (e.g., after washing), it is suitable for relaxing creases after spinning; on dry fabrics it is instead designed to achieve the ideal humidity level for easier ironing. - DELICATES (press button twice) With the help of steam, the cycle refreshes and relaxes creases in garments after use. The programme consists of an initial phase in which the steam acts and a final phase in which the excess humidity is removed for immediate use. The cycle is suitable for dry fabrics.

This button allows you to change the temperature of the wash cycles. It is not possible to raise the temperature over the maximum allowed for the programme, in order to protect the fabrics.

If you want carry out a cold wash all the indicators must be off.

By pressing this button, it is possible to reduce the maximum speed, and if you wish, the spin cycle can be cancelled. If the label does not indicate specific information, it is possible to use the maximum spin expected in the program.

To reactivate the spin cycle press the button until you reach the spin speed you would like to set. To prevent damage to the fabrics, it is not possible to increase the speed over the maximum allowed for the programme. SPIN SELECTION button TEMPERATURE SELECTION button

STEAM LEVEL button If an option is selected that is not compatible with the selected programme then the option indicator light first flashes and then goes off.70 It is possible to modify the spin speed without pausing the machine.

(Available on some programmes only) This function allows you to minimize creases as much as possible, eliminating the intermediate spins or reducing the intensity of the last one.

Pressing simultaneously the buttons "TEMPERATURE SELECTION" and "SPIN SELECTION" for about 3 seconds, the machine allows you to lock the keys. In this way, you can avoid making accidental or unwanted changes if a button on the display is pressed accidently during a cycle. The key lock can be simply cancelled by pressing the two buttons simultaneously again or turning off the appliance.

The display’s indicator system allows you to be constantly informed about the status of the machine.

This show the washing temperature of the selected programme that can be changed (where allowed) by the relevant button. If you want carry out a cold wash all the indicators must be off.

2) SPIN SPEED INDICATOR LIGHTS

This show the spin speed of the selected programme, you can reduce or omit by the relevant button.

3) DOOR LOCKED INDICATOR LIGHT

The indicator light is illuminated when the door is fully closed.

When START/PAUSE is pressed on the machine with the door closed, the indicator will flash momentarily and then illuminate.

If the door is not properly closed, the light will continue to flash for about 7 seconds , after which the start command will be automatically delete. In this case, close the door in the proper way and press the

EASY IRON button The machine is fitted with a special electronic device, which prevents the spin cycle should the load be unbalanced. This reduces the noise and vibration in the machine and so prolongs the life of your machine.

An over dosing of detergent can cause excessive foaming. If the appliance detects the presence of excessive foam, it may exclude the spinning phase or extend the duration of the program

and increase water consumption.71

Wait until the DOOR LOCKED light has gone out before opening the door.

4) Kg Detector (function active only on

certain programmes) During the first minutes of the cycle, the "Kg Detector" indicator remain on while the intelligent sensor will weigh the laundry and adjust the cycle time, water and electricity consumption accordingly.

Through every wash phase "Kg Detector" allows to monitor information on the wash load in the drum and in the first minutes of the wash it: - adjusts the amount of water required; - determines the length of the wash cycle; - controls rinsing according to the type of fabric selected to be washed it; - adjusts the rhythm of drum rotation for the type of fabric being washed; - recognizes the presence of lather, increasing, if necessary, the amount of water during rinsing; - adjusts the spin speed according to the load, thus avoiding any imbalance.

5) KEY LOCK INDICATOR LIGHT

The indicator light shows that the keys are locked.

6) OPTIONS INDICATOR LIGHTS

The indicator lights show the option that can be selected by the relevant button.

7) STAIN LEVEL INDICATORS LIGHTS

Once the programme has been selected, the indicator light will automatically show the stain level set for that programme. Selecting a different stain level the relevant indicator will light up.

8) EASY IRON INDICATOR LIGHT

The indicator light shows the selection of the relevant option.

9) Wi-Fi INDICATOR LIGHT

On models equipped with Wi-Fi, it indicates the status of the connection. It could be: - FIXED ON: remote control enabled. - SLOW FLASHING: remote control disabled. - QUICK FLASHING FOR 3 SECONDS, THEN OFF: the machine cannot connect to the home Wi-Fi network or has not yet been associated with the App.

- SLOW BLINKING FOR 3 TIMES, THEN

OFF FOR 2 SECONDS: reset of the Wi-Fi network (during the association with the App).

- ON FOR 1 SECOND, THEN OFF FOR 3

SECONDS: the door is open. Remote control cannot be activated.72

REMOTE CONTROL (Wi-Fi) Position that you have to select when you want to enable remote control through the App (via Wi-Fi).

Please read these notes:

Maximum load capacity of dry clothes, according to the model used (see control panel).

(Only for models with liquid detergent compartment) When only a limited number of articles have stains which require treatment with liquid bleaching agents, preliminary removal of stain can be carried out in the washing machine. Pour the bleach into the liquid bleach container, inserted into the compartment marked "2" in the detergent drawer, and set the special programme RINSE. When this phase has terminated, switch off the appliance, add the rest of the fabrics and proceed with a normal wash on the most suitable programme.

When a programme is selected, on the display is shown the display shows the recommended wash temperature that can be reduced (where allowed) by the relevant button.

For the programmes shown you can adjust the duration and intensity of the wash using the STAIN LEVEL button.

In the programmes specified, the

LEVEL button may be used to select an alternative to the pre-set programme (in the case of the

programme, it allows you to choose one of the three available durations).

In the case that the machine has an explicit energy declaration: it means that this machine is more efficient than the limit value of the energy efficiency class " A" as indicated on frontal drawer, according to del egated EU-Regulation 2019/2014.74

To clean different types of fabrics and various levels of dirt, the washing machine has specific programs to meet every need of washing (see table of programmes).

The perfect combination of time saving and performance. This programme allows for a thorough laundry washing cycle in just 39 minutes. Recommended for washing garments with average levels of soiling.

This programme offers the best possible combination of high temperature, time and cleaning action to guarantee maximum sanitising power against bacteria in only 59 minutes. Recommended for cotton laundry, it washes at a temperature of 60°C and is best used with small loads.

button to choose one of the two available programmes:

This programme offers you the freedom to wash all kinds of fabrics and non

colours together, with a full load, obtaining excellent results in only 59 minutes. With washing at medium temperature, this programme is recommended for laundry that is not particularly dirty.

*Preset temperature of 20°C (modifiable by the relevant button). The washing cycle is also suitable for washing cotton fabrics.

This programme guarantees excellent results for cotton laundry. This option was designed to cut washing time at medium temperatures for medium

soiled cotton laundry. Fill the machine only halfway for best results.

This programme uses a steam treatment to relax creases and achieve the ideal degree of humidity for easier ironing. Three different intensity levels can be selected via the button, designed for

dry or wet garments and depending on the type of fabric.

Developed to wash and treat delicate garments and precious fabrics. This programme washes at a low temperature for 59 minutes. Recommended for small loads.

Saving without compromising! This new programme may be used to obtain excellent results while saving water, energy, detergent and time. This option washes at a medium temperature suitable for any kind of fabric. Recommended for small loads and lightly soil ed items. Use the STAIN LEVEL/

ALTERNATIVE PROGRAMME SELECTION/

STEAM LEVEL button to choose one of the three available durations.

button to choose one of the two availab

RINSE This program performs 3 rinses with an intermediate spin (which can be reduced or

New, coloured garments should be washed separately for at least 5 or 6 washes.

Certain large dark items such as jeans and towels should always be washed separately.

Choose programme in accordance with the laundry instructions appearing

on labels, especially the maximum recommended temperature. Description of programmes75

excluded by using the appropriate button). It is used for rinsing any type of fabric, for example after a wash carried out by hand.

DRAIN & SPIN The program completes the drain and a maximum spin. It is possible to delete or reduce the spin through the SPIN SELECTION button.

This programme performs a wash cycle dedicated to the wool fabrics that can be washed in a washing machine, the articles to be washed by hand or laundry items made from silk or specified as "Wash as Silk" on the fabric la bel.

This programme allows you to wash different type’s fabrics and different colours all together. The rotation movement of the drum and the water levels are optimized, both during the washing the rinsing phase. The accurate spin action, ensures a reduced formation of creases in the fabrics. COTTONS

This programme is suitable for washing coloured cotton garments at 40°C or for ensuring the highest degree of cleanliness for cotton resistant laundry washing at 60°C or 90°C. The final spin is at maximum speed that ensures excellent water removal.

The ECO 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40°C or 60°C, together in the same cycle. This programme is used to assess the compliance with the EU Ecodesign legislation (environmentally friendly products des ign).

This innovative programme is capable to adapt automatically the cleaning action to the capacity and typology of the load for the best results without any worries. The new Quick & Clean technology, through a perfect mix of water and detergent, guarantees excellent results at a 30°C.

The action of the steam at the end of the cycle helps

to deeply relax the fibers of your clothes and makes ironing easier.

REMOTE CONTROL (Wi -Fi) Position that you have to select when you want to enable / disable remote control through the App, via Wi

Fi. In this case, the start of cycle will take place through the App commands. More details in the REMOTE CONTROL (Wi -Fi) section.76

9. TROUBLESHOOTING AND WARRANTY

If you believe the washing machine is not working correctly, consult the quick guide provided below which includes some practical tips on how to fix the most common problems.

Error shown Possible causes and practical solutions E2 (with display) 2 flashes of the LEDs (without display) The machine cannot load water. Make sure the water supply tap is open. Make sure the water supply hose isn’t bent, kinked or trapped. Make sure the drain pipe is at the proper height (see installation section). Close the water supply tap, unscrew the filler hose from the back of the washing machine and make sure the “anti-sand” filter is clean and not blocked. Check that the filter is not clogged or that there are no foreign bodies inside the filter compartment that can obstruct the proper flow of water. E3 (with display) 3 flashes of the LEDs (without display) The washing machine does not drain water. Check that the filter is not clogged or that there are no foreign bodies inside the filter compartment that can obstruct the proper flow of water. Make sure the drain hose isn’t bent, kinked or trapped. Make sure the home drainage system is not blocked and is allowing water to flow through without obstruction. Try to drain the water in the sink. E4 (with display) 4 flashes of the LEDs (without display) There is too much foam and/or water. Ensure the correct amount of detergent is being used and the detergent is designed for use in a washing machine. E7 (with display) 7 flashes of the LEDs (without display) Door problem. Make sure the door is correctly closed. Make sure the clothes inside the drum are not preventing the door from closing fully. If the door is locked, turn off and unplug the washing machine from the electrical supply socket, wait 2-3 minutes and reopen the door. Any other code Turn off and unplug the washing machine, wait a minute. Turn on the machine and restart a program. If the error occurs again contact an Authorised Customer Service Centre directly.

Models with a display: the error is shown by a number preceded by the letter “E” (example: E2 = Error 2). Models without display: an error is shown by a sequence of flashes of every LED. The error code is shown by the number of flashes followed by a pause of 5 seconds (example: two flashes – pause 5 seconds – two flashes – repeating = Error 2).77

Problem Possible causes and practical solutions The washing machine does not work / start Make sure the product is plugged into a working supply socket. Make sure power is on. Make sure the wall socket is working, testing it with another appliance such as a lamp. The door may not be correctly closed: open and close it again. Check whether the required program was correctly selected and the start button pressed. Make sure the washing machine is not in pause or time delay mode. Water leaked on the floor near the washing machine This may be due to a leak from the seal between the tap, supply hose and fill valve; in this case, replace it and tighten the hose connections correctly. Make sure the front filter is correctly closed. The washing machine does not spin The machine is fitted with a detection system that protects the load and product from damage if the load is not balanced before spinning. This may result in:-

• The machine attempts to balance the load, increasing the time of spin.

• Reduction of the speed of spin to decrease vibrations and noise.

• The spin cycle aborting to protect the machine and load. If this is experienced remove the load de-tangle it, reload it and restart the spin program. This could be due to the fact that water has not been completely drained: wait a few minutes. If the problem persists, see Error 3 section. Some models include a "no spin" function: make sure it is not selected. Check which options are selected and their effect on the spin cycle. Excessive detergent can impede the spin cycle, ensure the correct amount of detergent is being used. Strong vibrations / noises are heard during the spin cycle The washing machine may not be fully levelled: if necessary, adjust the feet as indicated in the specific section. Make sure transport screws, rubber bungs and spacer tubes were removed. Make sure there are no foreign objects inside the drum (coins, hinges, buttons, etc…).

The standard manufacturer warranty covers faults caused by electrical or mechanical faults in the product due to an act or omission of the manufacturer. If a fault is found to be caused by factors outside the product supplied, miss-use or as a result of the instructi ons on use not being followed, a charge may be applied.78

Except for the list of spare parts available on our website, under no circumstances should you repair or attempt to repair the appliance yourself or have the appliance repaired by inexperienced and / or unqualified persons. Repairs carried out by inexperienced and / or unqualified persons can cause injury or serious malfunction of the equipment and damage to property. It is advisable to contact our Authorized Technical Assistance Centres.

We recommend that you always use original spare parts, which can be

obtained from our customer service for a period of at least 10 years from the moment the appliance is put into circulation within the European Economic Area.

From 1 March 2021, energy and environmental information relating to the energy labelling of household appliances and the specifications for their eco

design are visible in Europe in the product database (EPREL) at the following link https://eprel.ec.europa.eu/

or through the QR code located on the energy label.

mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.

The manufacturer declines all responsibility for any printing errors in the booklet included with this product. Moreover, it also reserves the right to make any changes deemed useful to its products without changing their essential characteristics.

Warranty The product is guaranteed under the terms and conditions stated on the certificate included with the product. The certificate has to be stored so as to be shown to the Authorized Customer Service Centre in case of need. You can also check the warranty conditio ns on our web site. To obtain assistance, please fill in the form on- line or contact us at the number indicated on the support page of our web site.

The manufacturer cannot be held responsible for any damage to things and people and / or for safety issues resulting from repairs not carried out by an Authorized Technical Assistance Centre or by a service provider authorised by the manufacturer in accordance with company guidelines relating to the repair and maintenance of its produ cts. Any damage caused to the product by unauthorized personnel during a repair attempt will not be covered by the conventional warranty.79
