Brand	Blaupunkt
Model	BP1008
Product type	Electric convection heater
Maximum power	2000 W
Heat levels	3 (750 W, 1250 W, 2000 W)
Power supply	220-240 V ~ 50 Hz
Dimensions (L x P x H)	53,5 x 19,6 x 38,5 cm
Heating type	Convection
Integrated fan	Yes, turbo (independent of heating elements)
Thermostat	Adjustable, automatic shut-off at desired temperature
Overheat protection	Yes, double protection
On/Off switch	Yes, with indicator light
Integrated handles	Yes
Usage	Indoor only
Installation	Feet to be mounted with 4 self-tapping screws provided
Cleaning	Unplug and let cool, wipe with a damp cloth, do not use abrasive detergents
Power cord	Replaceable only by a qualified professional
Warranty	2 years (according to certificate conditions)
Compliance	Directive 2004/108/EC, standards EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3
Recycling	Do not dispose of with household waste, selective collection according to WEEE
Manufacturing	Made in China for Blaupunkt
Distributor	Ramsons S.A., Seville, Spain

Frequently Asked Questions - BP1008 BLAUPUNKT

How to install the feet of the BP1008 heater?

The feet are provided separately in the box. They must be attached to the bottom of the heater by fixing them with the 4 self-tapping screws provided. Make sure the feet are properly placed in the side grooves before screwing.

How to adjust the different heat levels?

Use the two rocker switches on the side panel. For 750 W power, turn on one switch; for 1250 W, turn on the other; for 2000 W, turn on both. The switches light up when the heating elements are active.

How does the thermostat work?

Turn the thermostat knob fully clockwise for maximum heat. Once the desired room temperature is reached, slowly turn the knob counterclockwise until you hear a click: the heating elements turn off. The heater then automatically maintains that temperature.

Can I use the fan without heating?

Yes, the fan can be used independently of the heating elements. Activate it with the switch bearing the fan symbol. It only works if the thermostat is in the 'on' position. When the heating elements are off, it blows cold air.

What to do if the heater emits odor or smoke on first use?

This is normal during first use or after a long period of inactivity. Let the heater run for a few moments: the odor and smoke will disappear on their own.

How to clean the heater?

Always unplug the appliance and let it cool. Wipe the outside with a damp cloth, then dry with a dry cloth. Do not use abrasive detergents and avoid water entering the interior.

Where not to place the heater?

Do not place the heater on long-pile carpets, near curtains or furniture, directly under a power outlet, or near a bath, shower, or pool. Make sure it is on a stable and flat surface.

What to do if the power cord is damaged?

The cord must be replaced exclusively by the manufacturer, its after-sales service, or similarly qualified persons to avoid any hazard. Do not use the appliance with a damaged cord.

What is the warranty period and how to activate it?

The warranty is 2 years from the date of purchase. To be valid, the warranty certificate must be filled in, signed, and stamped by the seller, and presented with the purchase invoice to an authorized technical service.

How to recycle the heater at end of life?

In accordance with the WEEE Directive 2002/96/EC, do not dispose of the appliance with household waste. Take it to a selective collection point for recycling electrical and electronic equipment.

USER MANUAL BP1008 BLAUPUNKT

Enjoy it.

WELCOME

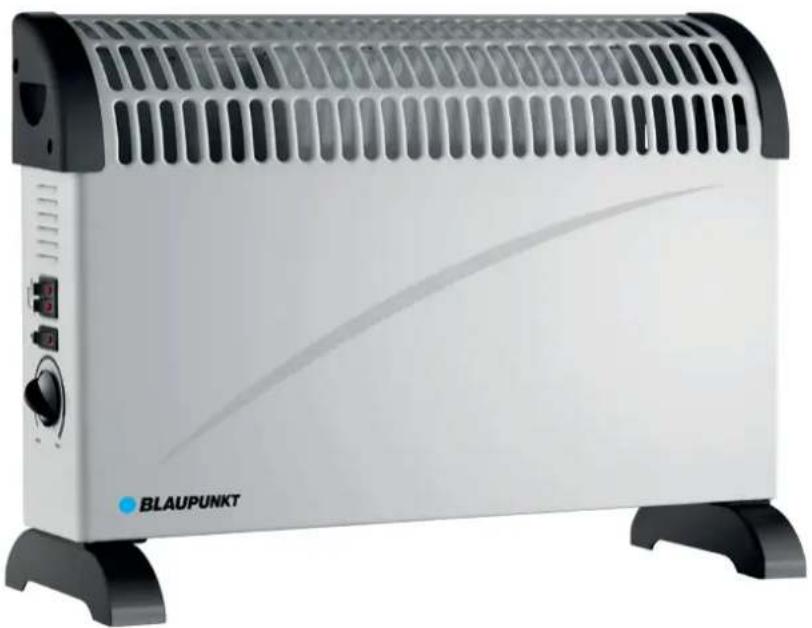

CONVECTOR HEATER WITH TURBO FAN

USER MANUAL

Enjoy it.

WELCOME

Thank you for purchasing the new Electric Convection Heater BP1008. In order to fully benefit from this product, please read the following instructions carefully and store this user manual in a safe place for future reference.

SAFETY INSTRUCTIONS

1. Do not use the heater unless the feet are correctly attached.
2. Ensure the power supply to the socket into which the heater is plugged is in accordance with the rating label on the heater and that the socket is earthed.
3. Keep the power cord away from the hot body of the heater.
4. Warning: Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
5. Warning: In order to avoid overheating, do not cover the heater.
6. This product is only to be used indoors.
7. Do not place the heater on carpets having a very deep pile.
8. Always ensure that the heater is placed on a firm level surface.
9. Do not place the heater close to curtains or furniture in order to avoid a fire hazard.
10. Warning: The heater is not located immediately below a socket-outlet.
11. Do not insert any object through the heat outlet or air grilles of the heater.
12. Do not use the heater in areas where flammable liquids are stored or where flammable fumes may be present.
13. Always unplug the heater when moving it from one location to another.
14. Warning: If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person in order to avoid a hazard.
15. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
16. Children should be supervised to ensure that they do not play with the appliance.

ASSEMBLY OF THE HEATER

Before using the heater, the feet (supplied separately in the carton) must be fitted to the unit. These are to be attached to the base of the heater using the 4 self-tapping screws provided, taking care to ensure that they are located correctly in the bottom ends of the heater side moldings.

Note: It is normal when the heater is turned on for the first time or when it is turned on after not having been used for a long period that it may emit some smell and fumes. This will disappear when the heater has been on for a short while.

• Choose a suitable location for the heater, taking into account the safety instructions above.
• Insert the plug of the heater into a suitable socket.
• Turn the thermostat knob fully in a clockwise direction to the maximum setting.

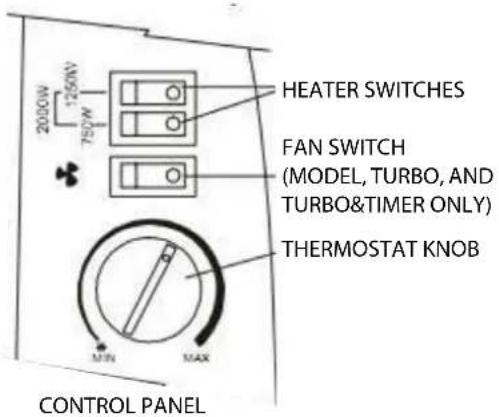

• Turn on the heating elements by means of the rocker switches on the side panel.
• When the heating elements are on, the switches will illuminate.
• For maximum heat output, both switches should be on.
• When the desired room temperature has been reached, the thermostat knob should be turned

slowly anti-clockwise until the thermostat is heard to click off and the lights on the elements switches turn off as well.

After this, the heater will keep the air temperature in the room at the set temperature by switching on and off automatically.

The BP1008 also incorporates an internal fan (Turbo), which can be switched on independent of the heating elements.

Fan Operation:

• This is operated by means of the switch with the fan symbol alongside it.
• The fan will only operate with the thermostat in the "on" position and can be used when the heating elements are "on" to blow warm air into the room.
• In warm conditions, the fan can be used with the heating elements "off" to blow cool air into the room.

CLEANING THE HEATER

Always unplug the heater from the wall socket and allow it to cool down before cleaning. Clean the outside of the heater by wiping with a damp cloth and buff with a dry cloth. Do not use any detergents or abrasives and do not allow any water to enter the heater.

STORING THE HEATER

When the heater is not used for a long period, it should be protected from dust and stored in a clean dry place.

SPECIFICATIONS

Electric convection heater 2000W

Perfect for any indoor use or room

Turbo fan function

Adjustable thermostat

Temperature adjustment with 3 heat settings: 750-1250-2000W.

Dual overheat protection

On/Off switch with indicator light

Integrated handles

Dimensions: 53.5 x 19.6 x 38.5 cm.

Weight: 2.5 Kg.

GUARANTEE DOCUMENT

Thank you for purchasing this BLAUPUNKT product. This device has been meticulously checked in all its components, so we guarantee its correct operation. However, for this to be the case, we need YOU

to read the instruction book carefully, as this will contribute to the best performance of this article.

R.S.A guarantees to the buyer of this product a total guarantee of TWO YEARS, governed by the established conditions whose regulation is found in Royal Legislative Decree 1/2007 of 16 December, which approves the revised text of the General Law for the Defense of Consumers and Users (articles 114 to 127). R.S.A is committed to repairs being completely free, including labor and spare parts.

The Technical Assistance Service will resolve any repairs that may be required by this apparatus.

Carefully review the INSTRUCTION BOOK included, on the use, maintenance and conservation of the device.

Any anomaly that could occur due to the non-observance of such instructions will not be protected for the guarantee.

The date of sale of the device, for the purposes of warranty period, will be that which appears on the purchase invoice.

Guarantee operation: As regards all those compliance defects detected by the technical assistance, which are manifested within six months of the delivery of the goods, it is assumed that they already existed on that date, the intervention will be completely free, (unless this hypothesis is incompatible with the nature or nature of the conformity defect).

During the following eighteen months, it must be the user who demonstrates. That the lack of conformity It was coming at the time of delivery.

MANUFACTURED CHINA FOR BLAUPUNKT

DECLARATION OF CONFORMITY

Manufacturer Name: RAMSONS, S.A.

Adress: Pedro Muñoz Torres n° 1

Post Code: 41006

SEVILLA

We declare under our responsibility that the product:

Product Description:

CONVECTOR

Model:

BP1008

Brand:

BLAUPUNKT

It complies with the European Union legislation in compliance with the 2004/108/EU guidelines

The standards apply: EN 55014-1: 2006+A1:+A2:

EN 55014-2: 1997+A1:+A2:

EN 61000-3-2:2006+A1:+A2:

EN 61000-3-3:2013

Name: Vivek Sadhwani

Position: manager

Date:

Signature:

Ramsons, S.A,

Pedro Muñoz Torres N° 1 NAVES HYTASA 41006 SEVILLA

Tel. [phone] • Fax. [phone]

USER

DATE OF SALE

Seller's signature and stamp

IMPORTANT: To make the guarantee effective, the SELLER must fill out, sign and stamp this Certificate.

To receive assistance under the conditions set forth in this certificate, please submit to the Technical Service Authorized, this document next to the Purchase Invoice

INFORMATION ON RECYCLING

Disposal of the old appliance, the European Directive 2002/96/EC on waste electrical and electronic equipment (WEEE), establishes that old appliances cannot be thrown as municipal waste without normal classification. Appliances have to be collected separately to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The symbol "container with wheels" crossed out on the product reminds you of the obligation that when you dispose of the device it must be collected separately.

Consumers should contact the local or retail authority to obtain information about the correct disposal of your old device.

BP 1008

Enjoy it.

WELCOME

USING THE RADIATOR

DECLARATION OF CONFORMITY

Manufacturer's name: RAMSONS, S.A.

INSTRUCTION MANUAL

Enjoy it.

WELCOME

Name: Vivek Sadhwani

Date: 10 June 2020

Signature:

Ramsons, S.A,

Pedro Muñoz Torres N° 1 NAVES HYTASA 41006 SEVILLA

Tel. [phone] • Fax. [phone]

USER

DATE OF SALE

SIGNATURE AND SELLER'S STAMP
