AF129329.3 - Deep fryer Emerio - Free user manual and instructions

USER MANUAL AF129329.3 Emerio

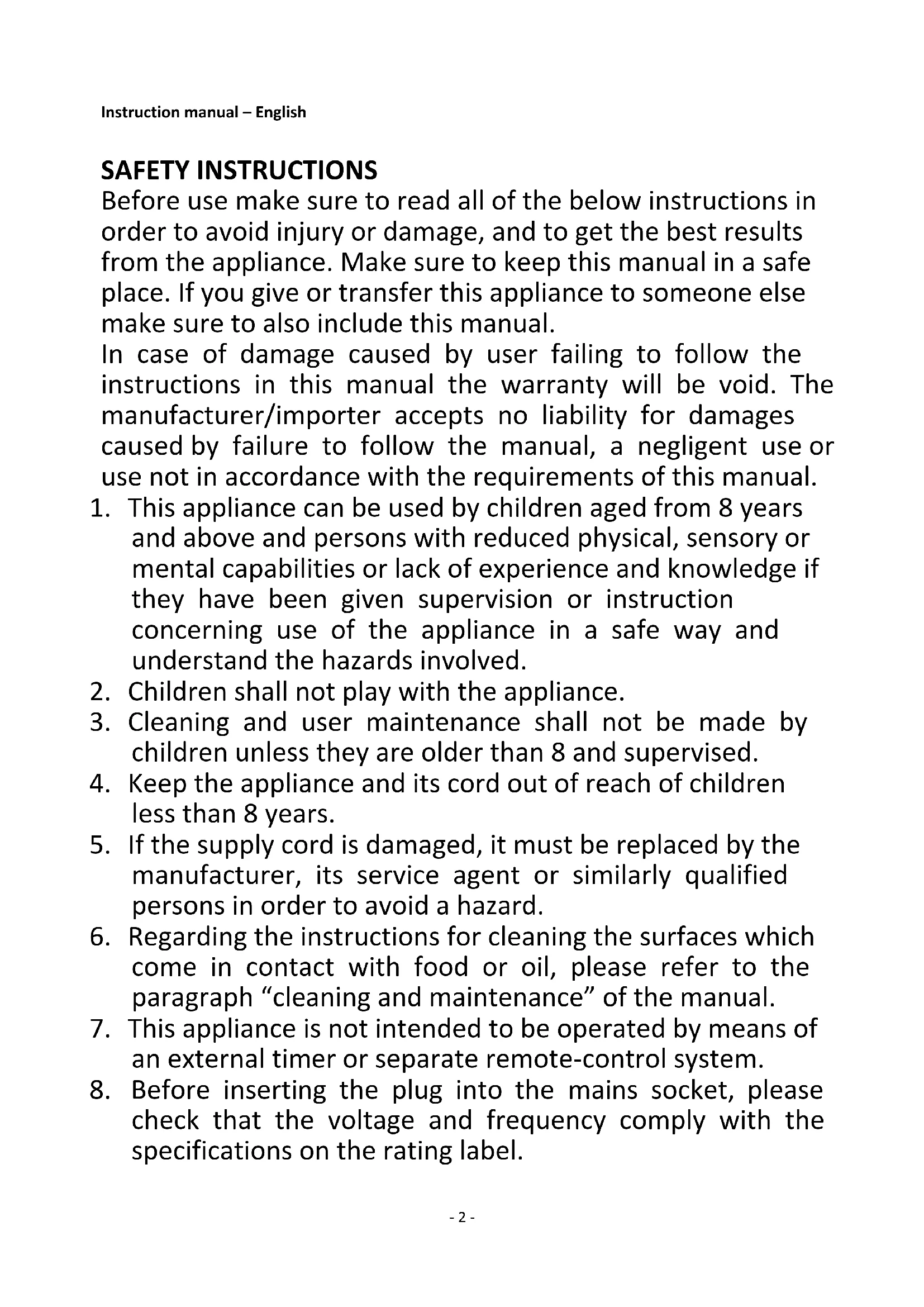

1. This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by

children unless they are older than 8 and supervised.

4. Keep the appliance and its cord out of reach of children

5. If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

6. Regarding the instructions for cleaning the surfaces which

come in contact with food or oil, please refer to the paragraph “cleaning and maintenance” of the manual.

7. This appliance is not intended to be operated by means of

an external timer or separate remote-control system.

8. Before inserting the plug into the mains socket, please

check that the voltage and frequency comply with the specifications on the rating label.- 3 -

9. Disconnect the mains plug from the socket when the

appliance is not in use and before cleaning.

10. If an extension cord is used it must be suited to the power

consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.

11. Ensure that the mains cable is not hung over sharp edges

and keep it away from hot objects and open flames.

12. Do not immerse the appliance or the mains plug in water

or other liquids. There is danger to life due to electric shock!

13. To remove the plug from the plug socket, pull the plug. Do

not pull the power cord.

14. Do not touch the appliance if it falls into water. Remove

the plug from its socket, turn off the appliance and send it to an authorized service center for repair.

15. Do not plug or unplug the appliance from the electrical

outlet with a wet hand.

16. Never attempt to open the housing of the appliance, or to

repair the appliance yourself. This could cause electric shock.

17. Never leave the appliance unattended during use.

18. This appliance is not designed for commercial use.

19. Do not use the appliance for other than intended use.

20. Do not wind the cord around the appliance and do not

21. Place the appliance on a stable, level surface from which

22. Please prevent the product to be exposed to excessive

23. Clean the product itself with a slightly damp cloth.

24. Do not operate the machine without supervision, if you

should leave the workplace, always switch the machine off or remove the plug from socket (pull the plug itself, not the lead).- 4 -

25. Do not place the appliance against a wall or against other

appliance. Leave at least 10cm free space on the back and sides and above the appliance.

26. During hot air frying, hot steam is released through the air

outlet openings. Keep your hands and face at a safe distance from the steam and from the air outlet openings. Also be careful of hot steam and air when you remove the pan from the appliance.

27. Immediately unplug the appliance if you see dark smoke

coming out of the appliance. Wait for the smoke emission to stop before you remove the pan from the appliance.

28. Make sure before each use of the appliance that the

heating element and surroundings are clean and clear from any food remainders in order to ensure a flawless function.

29. Caution, hot surface.

WARNING!! Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

30. Hot air comes out of the air vent at the back side of the

appliance. Be sure to keep sufficient distance to materials, like glass, that are sensitive to heat.

31. If you use products with non-stick surfaces, please make

sure no birds are in the same room and that the room can be completely closed off and well-ventilated.- 5 - AF-129329.3 EN

BEFORE USE First read all instructions before use and retain the manual for later reference. Only plug this appliance into an earthed socket. Before first use, remove the packing materials. Clean the basket and frying grill. (See “cleaning and maintenance”) Wipe inside and outside of the appliance with a soft cloth. Make sure that the electrical parts remain dry. This appliance heats food at all directions and most of the ingredients do not need any oil. Operate the appliance before first use for approximately 10 minutes in order to burn off production residues. Make sure there is good ventilation. The appliance may emit some smoke and a characteristic smell when you switch it on for the first time. This is normal and will stop soon. Note: Always use the frying grill with the silicone feet attached. They will help to stabilize the frying grill in the basket during cooking. USE

1. Place the appliance on a dry, stable and heat-resistant surface.

2. Since the appliance becomes hot during use, make sure that it is not too close to other objects.

3. Pull out the basket from the appliance by the basket handle. Put the frying grill into the basket.

4. Place the ingredients into the basket. (Do not exceed the MAX level indicated inside the basket.) Slide the

basket into the appliance. Make sure they are placed correctly and closed completely. Caution: Do not fill the basket with oil or any other liquid. Do not touch the basket during use or after use in short time as it gets very hot. Only hold the basket by the handle.

5. Connect the power plug to a suitable outlet. The machine is now standby.

6. Press the “Temp/Timer” button, you can switch the setting for temperature or timer; current

temperature or timer will show on the Timer / temperature display; Press “+” or “-” button to set your desired temperature (5 degrees / press) and time (1 minute / press) for the ingredients. You can also long press “+” or “-” for rapid adjustment.

7. You can also press the function button to directly choose your desired setting among the default menus. If

you wish to adjust the time and temperature a little, please press “Temp/Timer” button and “+” or “-” button to make adjustment.

8. Press the Start/Cancel button once or wait for a few seconds after setting, the appliance starts working.

9. When the whole cooking process is finished, the timer will ring. You can press the “Start/Cancel” button

during the operation to stop working. Long press the “Start/Cancel” button can cancel the set program.

10. Pull out the basket from the appliance by the basket handle. Check if the ingredients are ready. If not,

simply slide the basket back into the appliance. Set the temperature and the timer to a few extra minutes. Then press the “Start/Cancel” button to run the machine again. NOTE: You can also pull out the basket to check and shake the ingredients during cooking process. When you slide back the basket, the machine will continue to work with the selected setting.

11. To remove ingredients (e.g. beef, chicken, meat) with original oil and will have excess oil collected on the

bottom of the basket during frying, please use tongs to pick ingredients one by one; To remove ingredients (e.g. chips, vegetable) with no excess oil collected on the bottom of the basket during frying, please pull out the basket, and pour ingredients to tableware. Note: The basket and the ingredients are hot after frying. Depending on the type of the ingredients in the appliance, steam may escape from the pan.

12. After the cooking is done, the appliance is instantly ready for preparing another batch of ingredients if

needed. Reservation Function This appliance has a reservation function.

1) Set your desired program.

2) Press the “Delay Time” button, then press “+” or “-” to set the delay time from 10 minutes to 24 hours.- 7 -

3) Wait for a few seconds, the appliance will start countdown. The remaining time will be displayed on the

display. FRYING TIPS

1. The optimal amount for crispy fries is 750 grams.

2. Add 3 more minutes to the preparation time when the appliance is cold, or you can also let the appliance

preheat approx. 4 minutes without any ingredients inside.

3. Some ingredients require shaking halfway through the reparation time. To shake or turn over the

ingredients, pull the basket out of the appliance by the handle and shake it or turn over the ingredients by fork (or tongs). Then slide the basket back into the appliance.

4. You can also use the fryer to reheat ingredients. To reheat ingredients, set the temperature to 150°C for

5. Products with crust of dry breadcrumbs will get crispier by spraying them with a little vegetable oil.

6. Place a baking tin or an oven dish in the appliance if you want to bake a cake or quiche or other fragile

7. Do not prepare extremely greasy ingredients such as sausages in the appliance.

1. Do not immerse the housing in water or rinse it under the tap.

2. Avoid any liquid entering the appliance to prevent from electric shock or short circuit.

3. Keep all ingredients in the basket to prevent any contact with heating elements.

4. Do not cover the air inlet and the outlet when the appliance is working. Leave at least 10cm free space

around and above the appliance.

5. Filling the basket with oil may cause a fire hazard!

6. Do not touch the inside of the appliance when it is in operation.

7. Be careful of the hot steam and air when you remove the basket from the appliance.

8. During operation, hot steam is released through the air outlet. Keep your hands and face at a safe distance

from the steam and the air outlet.

9. Immediately turn off and unplug the appliance if you see any dark smoke coming out of the appliance,

which means the food is overcooked or the appliance broke down.

CLEANING AND MAINTENANCE

1. Before handling or cleaning the appliance, let it cool down for approximately 30 minutes. Clean the

appliance on all the inside and outside regularly.

2. Clean the outside and inside of the appliance with a damp cloth and dry with a soft, clean cloth.

3. Never use abrasive cleaners or sponges.

4. Remove the basket to let the appliance cool down more quickly. Clean the basket and frying grill in hot

water with a washing liquid and a non-abrasive sponge. Dry well before use.

5. Clean the heating element inside of the housing (You can see it after pull out the basket) with a cleaning

brush to remove any food residues. Note: The basket and frying grill are dishwasher safe. TROUBLE SHOOTING Problem Possible cause Solution The appliance does not work. The appliance is not plugged in. Put the mains plug in an earthed wall socket. The ingredients are not fried completely. The amount of the food in the basket is too high. Put smaller batches of ingredients in the basket. Smaller batches are fired more evenly.- 8 - The temperature is too low or the time is not enough. Press “+” to adjust the temperature to the requied temperature or cook extra time. The ingredients are fried unevenly. Different types of food may need to be shaken halfway during cooking. Shake food halfway during the cooking time. Fried snacks are not crispy You used a type of snacks which shall be cooked in a traditional deep fryer. Use oven snackes or lightly brush some oil onto the snacks for a crisper result. White smoke comes out from the appliance. You are preparing greasy ingredients. When you fry greasy ingredients, oil will leak into the pan. The oil preoduces white smoke and the pan may heat up. This does not affect the cooking result or hurt the appliance. The basket still contains grease residues from previous use. Clean the basket properly after each use. Fresh fries are fried unevenly. Haven’t use the right potato type. Use fresh potatoes and make sure that they stay firm during frying Haven’t rinse the potato sticks properly before frying. Rinse the potato sticks properly to remove starch from the outside of the sticks. Fresh fries are not crispy The crispiness of the fries depends on the amount of oil and water in the fries Make sure the potato sticks have been dried properly before adding the oil. Cut the potato sticks smaller for a crispier result Add slightly more oil for a crisper result

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase. Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can’t claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.
