| Product type | Electric pest control device |
| Brand | Perel |
| Model | GIK09N1 |
| Dimensions (L x W x H) | 484 x 100 x 311 mm |
| Weight | 2.64 kg |
| Power supply | 220-240 V~, 50/60 Hz |
| Power consumption | 32 W |
| Grid voltage | 2500-2800 V |
| Maximum coverage | 100 m² |
| Lamp type | UV-A, 2 x 15 W |
| Number of lamps | 2 |
| Switch | On/Off |
| Collection tray | Integrated, removable for cleaning |
| Installation | Wall-mounted or suspended |
| Recommended use area | Dry indoor, well-ventilated |
| Maintenance | Unplug and discharge before cleaning; use a plastic brush for the grid |
| Safety precautions | High voltage - do not touch the grid; do not insert metal objects; keep out of reach of children |
| Lamp replacement | Only by a qualified technician |
| Warranty | 24 months (see conditions) |
| Included accessories | User manual, power cable |
Frequently Asked Questions - GIK09N1 Perel
User questions about GIK09N1 Perel
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Pest control in PDF format for free! Find your manual GIK09N1 - Perel and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. GIK09N1 by Perel.
USER MANUAL GIK09N1 Perel
GIK07N1/GIK08N1/GIK09N1/GIK16N1

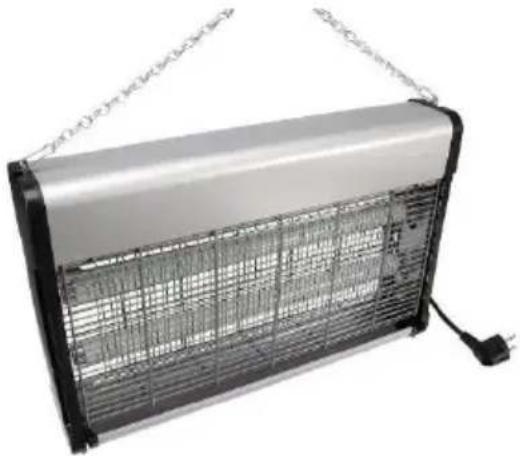

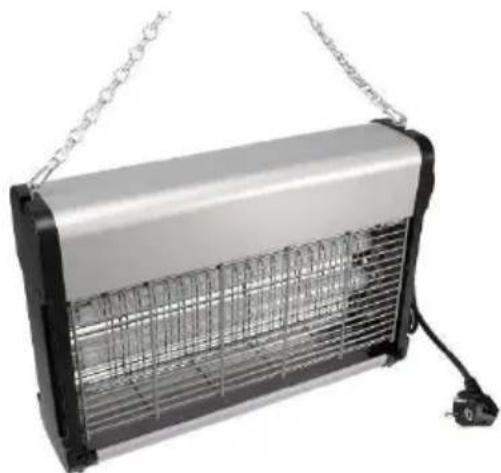

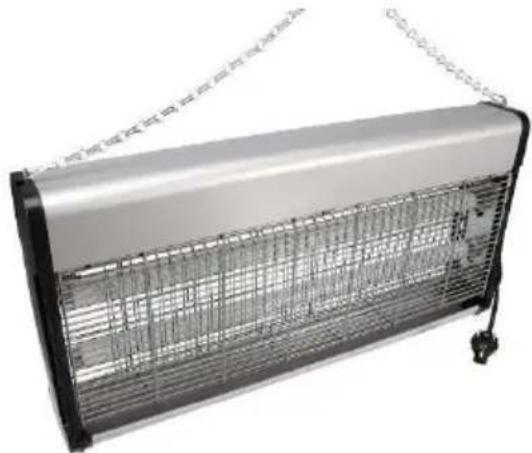

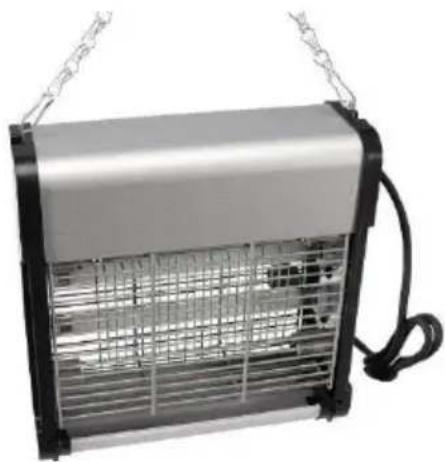

USER MANUAL 3
HANDLEIDING 9
MODE D'EMPLOI 15
MANUAL DEL USUARIO 21
1. Introduction
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.
2. Safety Instructions
Read and understand this manual and all safety signs before using this appliance.
Danger – High voltage. Risk of electroshock. Never insert metal objects in the appliance.
- This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.
- Keep this device away from rain, moisture, splashing and dripping liquids. Never put objects filled with liquids on top of or close to the device.
• Always disconnect mains power when the device is not in use or when servicing or maintenance activities are performed. Handle the power cord by the plug only.
- All cords and cables should be routed so that they will not be walked on or pinched by items placed upon or against them. Pay particular attention to the point where they exit the unit.
- Remove all flammable materials close to the device before switching on.
- Do not install the device on a flammable surface (linoleum, carpet, wood, paper, cardboard, plastic, etc.).
- Protect this device from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.
- Do not remove the cover under any conditions. There are no user-serviceable parts inside. Never operate this device when its cover is removed.
- Do not operate a visibly damaged device. Do not attempt to operate this device if the power cord has been frayed or broken.
• Always mount this device in a safe and stable manner. Mount this device in an area that will allow proper ventilation. Allow about 15 cm between this device and a wall.
- This device should only be serviced by qualified service personnel.
- Familiarise yourself with the functions of the device before actually using it.
• Always make sure to connect the device to an alternating current matching the value stated on the device.
• Always install the device in a well-ventilated location.
- Keep this device away from dust and extreme temperatures. Make sure the ventilation openings are clear at all times. For sufficient air circulation, leave at least 2.5 cm in front of the openings.
- Never connect the device to a dimmer or rheostat.
- Never carry or move the device from the power cord or any other moving part. Always use the bracket.
- In the event of an operating problem, stop using the device immediately.
- Never try to repair the device. There are no user-serviceable parts inside the device. Refer to an authorized dealer for service and/or spare parts.
- This device is not designed for permanent operation: regular operation breaks will prolong its live.
Warnings Regarding Servicing
No user-serviceable parts inside. Non user-replaceable light source. The light source in this device shall only be replaced by a qualified person.
- Disconnect from the mains before servicing, cleaning and opening. Wait two minutes to avoid risk of contact with high voltage.
- An electric shock hazard may exist if water from a garden hose is directed at the appliance.
- Keep this appliance away from children and unauthorized users.
- The appliance is not to be used in locations where flammable vapour or explosive dust is likely to exist.
- If the external flexible cable or cord of this device is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
3. General Guidelines
- Refer to the Velleman ® Service and Quality Warranty on the last pages of this manual.
- All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
- Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
- Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
- Nor Velleman Group nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical...) arising from the possession, use or failure of this product.
- Keep this manual for future reference.
4. Overview
Refer to the illustrations on page 2 of this manual.
| 1 | starter |
| 2 | on-off switch |
| 3 | high-voltage grid |
| 4 | UV lamp |
| 5 | insect collector |
5. Operation
Flying insects are attracted by the UV light, which is mounted behind a high-voltage electrical grid. When touching the grid, the insects are electrocuted and fall into the collector.
- Place or hang the insect killer in a dry location. Make sure the on-off switch is in the OFF position and plug the power cord into a suitable mains outlet.
- Switch on the insect killer by moving the on-off switch to the ON position.
6. Cleaning and Maintenance
Caution - Risk of electroshock. Never touch the metal grid with your bare hands.
The cleaning frequency depends on the intensity of use. Check the tray of the device at least once a week. Clean more often if necessary.
Discharging the Device before Maintenance
- Unplug the device from the mains and wait for 5 minutes.
- Use a screwdriver with an insulated handle. Make sure you hold the screwdriver by the handle only.
- Short-circuit the two wires of the inner metal grid by gently touching them simultaneously with the metal shaft of the screwdriver. This may cause a spark.
- Repeat until no more sparks appear.
Cleaning the Device
- Make sure the power switch is in the OFF position and the power plug is disconnected from the mains outlet before starting any maintenance activity.
- Discharge the device.
- Slide the insect collector tray out of the device to dispose of dead insects.
- Clean the insect killer regularly with a dry, clean cloth. Do not submerge in any liquid.
- Make sure that no dust accumulates on the UV lamps, as this will greatly reduce their effectiveness.
- Only use a plastic brush to clean the high-voltage grid. Brush gently to avoid damage.
7. Technical Specifications
GIK07N1
input voltage 220-240 V\~, 50/60 Hz power consumption 14 W grid voltage 2500-2800 V effective area 30 m² lamp UV-A tube 2 x 6 W dimensions 255 x 100 x 263 mm weight 1.49 kg
GIK08N1
input voltage .... 220-240 V\~, 50/60 Hz power consumption .... 21 W grid voltage .... 2500-2800 V effective area .... 80 m² lamp .... UV-A tube 2 x 10 W dimensions .... 380 x 100 x 263 mm weight .... 2.07 kg
GIK09N1
input voltage .... 220-240 V\~, 50/60 Hz power consumption .... 32 W grid voltage .... 2500-2800 V effective area .... 100 m² lamp .... UV-A tube 2 x 15 W dimensions .... 484 x 100 x 311 mm weight .... 2.64 kg
GIK16N1
input voltage .... 220-240 V\~, 50/60 Hz power consumption .... 41 W grid voltage .... 2500-2800 V effective area .... 150 m² lamp .... UV-A tube 2 x 20 W dimensions .... 635 x 100 x 311 mm weight .... 3.1 kg
Use this device with original accessories only. Velleman Group nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.
© COPYRIGHT NOTICE
The copyright to this manual is owned by Velleman Group nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
HANDLEIDING
1. Inleiding
Velleman® Service and Quality Warranty
Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.
All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).
General Warranty Conditions Concerning Consumer Products (for EU):
- All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.
- Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.
You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.
• Not covered by warranty:
- all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;
- consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);
- flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;
- flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions;
- damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);
- damage resulting from an inappropriate packing and shipping of the article;
- all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.
- Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.
- Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.
• Repairs occurring after warranty expiration are subject to shipping costs.
- The above conditions are without prejudice to all commercial warranties.
The above enumeration is subject to modification according to the article (see article's manual).
