DA90415 - Lamp Digitus - Free user manual and instructions

Brand	Digitus
Model	DA90415
Product type	LED Monitor Lamp
Power supply	5 V DC / 1 A (via USB cable)
Rated power	5 W
Color temperature	3000 K – 6500 K (adjustable in 5 levels)
Brightness	Adjustable in 5 levels
Central luminous flux	≥ 800 lux at 300 mm
Color Rendering Index (CRI)	> 80
Lifetime	25,000 hours
Material	ABS plastic and aluminum alloy
Mounting	Clamp mounting, maximum width 45 mm
Tilt	Up to 170°
Memory function	Yes (remembers last brightness and temperature setting)
Control	Touch (switch, brightness, color temperature)
Flicker-free lighting	Yes
USB cable length	Approximately 1.5 m
Approximate dimensions (W x D x H)	450 x 100 x 50 mm
Approximate weight	200 g
Package contents	1 lamp, 1 USB cable (USB A to Micro B), 1 installation guide
Compatibility	Computers, power banks with USB port
Certification	CE

Frequently Asked Questions - DA90415 Digitus

How to install the lamp on my monitor?

Attach the lamp's clamp to the top edge of the monitor, ensuring the monitor thickness does not exceed 45 mm. Plug the provided USB cable into a USB port (computer or power bank).

How to adjust brightness and color temperature?

Use the touch controls on the stand: long press the brightness button (4) to adjust the 5 levels, and long press the TC button (6) to adjust the 5 color temperatures.

Does the lamp have a memory function?

Yes, the lamp automatically remembers the last brightness and color temperature level selected for the next use.

What type of cable is included?

A USB cable of type USB A (plug) to Micro B (charge) is included in the package.

Can I use the lamp with a power bank?

Yes, the lamp is compatible with power banks, as long as they provide at least 1 A at 5 V.

Does the lamp flicker?

No, the LED monitor lamp is designed to be flicker-free, which reduces eye strain.

How to clean the lamp?

Turn off and unplug the lamp. Clean it with a soft, dry cloth. Do not use abrasive or liquid cleaners.

What is the lamp's lifespan?

The lifespan is estimated at 25,000 hours, approximately 20 years for 5 hours of daily use.

Is the lamp compatible with all monitors?

It fits most flat monitors, provided the top edge thickness does not exceed 45 mm.

What to do if the lamp does not turn on?

Check the USB cable connection and ensure the USB port provides at least 1 A. Test with another port or a power bank. If the problem persists, contact the manufacturer.

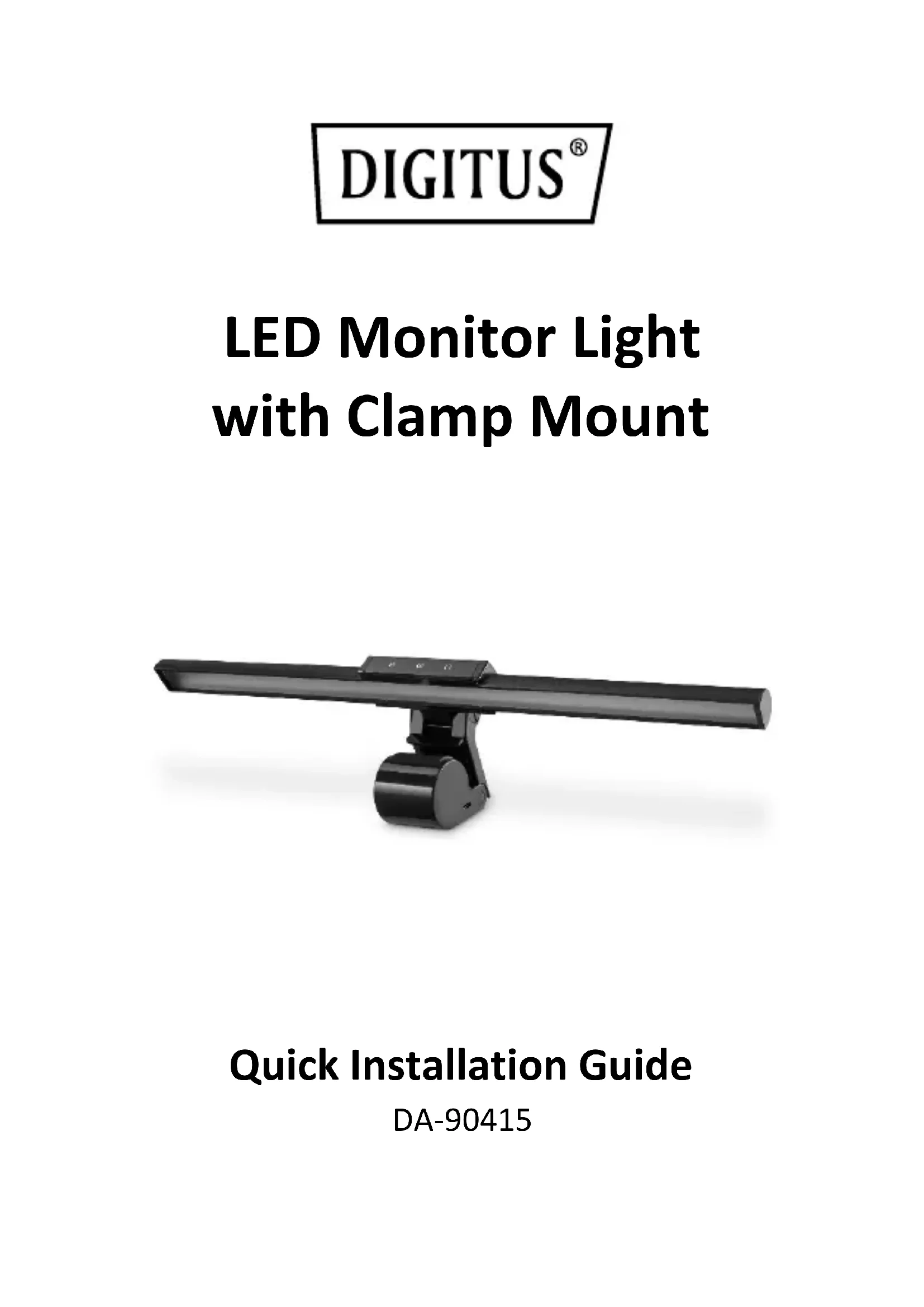

USER MANUAL DA90415 Digitus

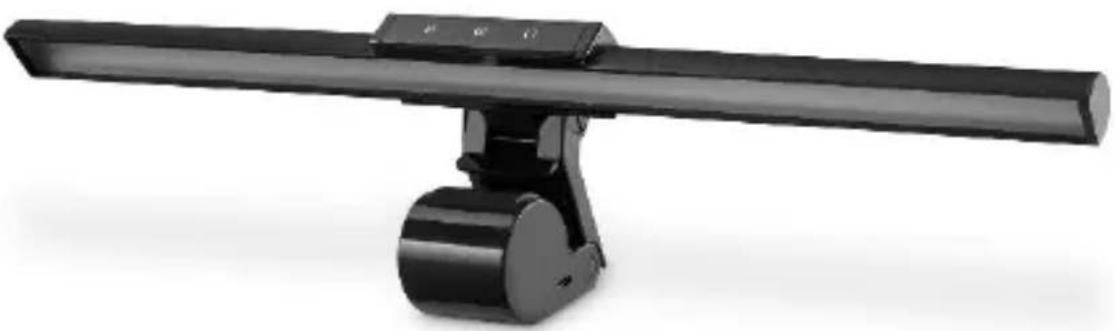

LED Monitor Light with Clamp Mount

Black industrial electronic device with a cylindrical base and rectangular top, no visible text or symbols

Quick Installation Guide

DA-90415

1. Product Introduction

The DIGITUS® LED Light delivers the right lighting conditions in all situations. Choose between cold working light or warm cozy light at different increments and of course in different brightness levels – all conveniently adjustable via touch control. The last light setting remains saved until the next use and does not need to be reconfigured. Installation is carried out with a simple clamp mount on the display, power supply is provided via an enclosed USB connection cable. The minimalist light body sets stylish and sophisticated accents on any desk.

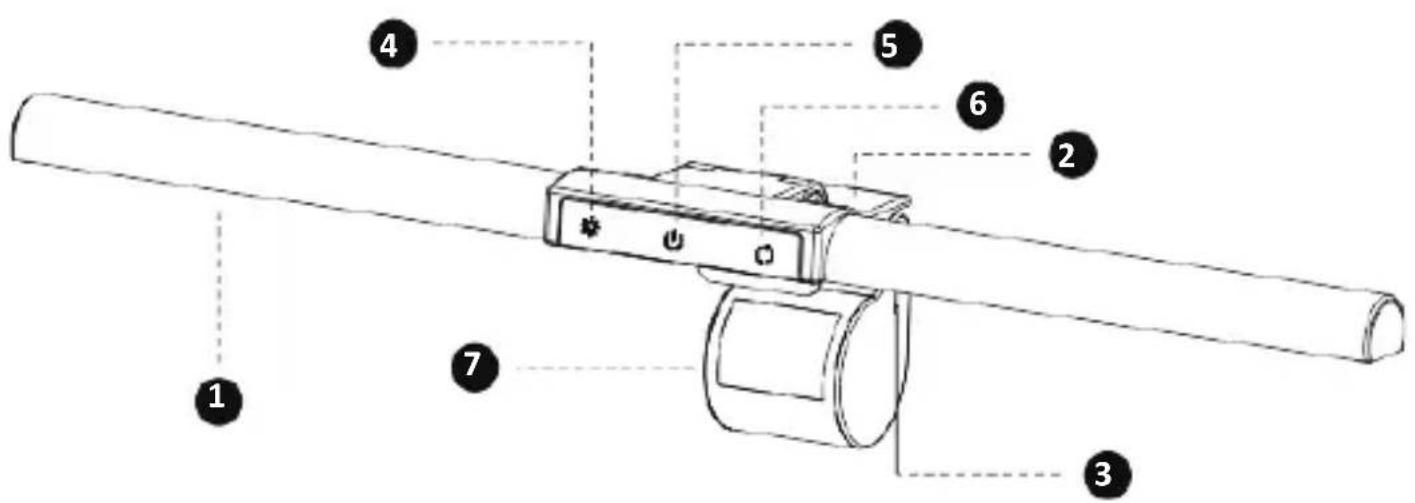

2. Product Diagram

Technical diagram of a mechanical device with numbered components and control buttons

1 Lamp
② Lamp bracket
③ USB charging port
4 Dimming: Long press to adjust 5 levels of brightness
5 Power Switch: Touch the switch to turn on/off the lamp
6 CCT: Long press to adjust 5 levels of color temperature
⑦ Lamp Base

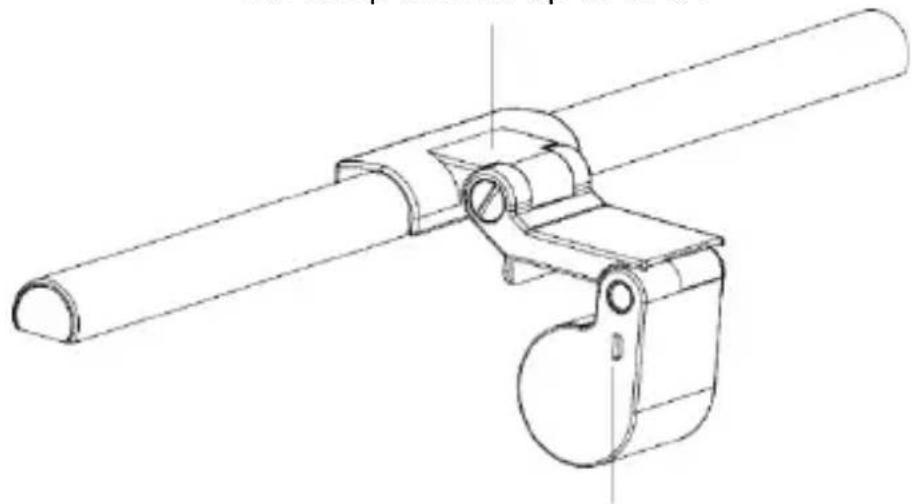

3. Operation

The lamp can tilt up to 170^ .

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

• USB power supply, supports computer/portable power bank, etc.
• Power input: 5V / 1A ( ≥ 1A)
- For desktop computers, please use the rear USB power supply of the host.

Technical line drawing of a mechanical component with dimension lines (no text or symbols)

• The maximum width of the bracket is 45 mm.
• The lamp easily clamps on the screen through the rotating clip.

Memory: The lamp will automatically remember your previous brightness, when turned on.

4. Advantages of LED Screen Bar

Simple line drawing of a leaf inside a circle (no text or symbols)

Eco-friendly

It provides a safe, comfortable and consistent light which is also environmentally friendly.

Simple line drawing of a logic gate symbol (no text or labels)

Low power consumption

It consumes 75% less power than a typical incandescent light.

Simple circular diagram with a central vertical line and six radiating lines, no text or symbols present.

Long lifespan

It lasts 40 times longer than a typical incandescent bulb. (Used 5 hrs per day, it will last up to 20 years.)

Simple line drawing of an eye inside a circle (no text or symbols)

Flicker free

LED screen bar lamp does not flicker like traditional lighting source, thus causing less eye strain.

5. Specifications

Operating voltage	DC 5V / 1A
Power	5W
Color temperature	3000K – 6500K
Center luminous flux	≥ 800 lux @ 300 mm
Color rendering index	>80
Lifespan	25000 hrs
Material	ABS plastic, aluminium alloy

6. Package Content

• 1x LED Monitor Light with Clamp Mount
• 1x USB connection cable (USB A - Micro B)
- 1x QIG

Hereby Assmann Electronic GmbH declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address.

www.assmann.com

Assmann Electronic GmbH

Auf dem Schüffel 3

58513 Lüdenscheid

Germany

CE

DIGITUS®
