USER MANUAL GHS 5008TED CH Güde

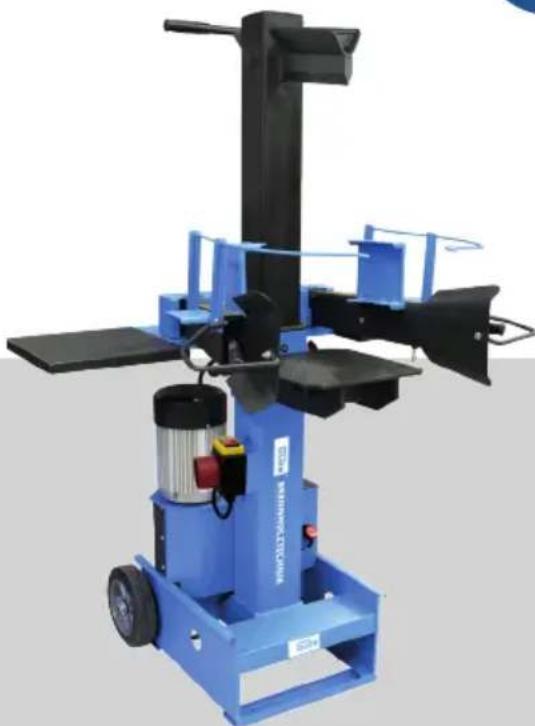

Blue industrial machine with mechanical arms and control panel (no visible text or symbols)

GHS 500/8TE CH

02052CH

Blue industrial machine with mechanical arms and control panel (no visible text or symbols)

GHS 500/8TED CH

02053CH

GÜDE GmbH & Co. KG

Birkichstrasse 6

74549 Wolpertshausen

Deutschland

Güde

ENGLISH Please read the instructions carefully before starting the machine.

English TECHNICAL DATA | SAFETY INSTRUCTIONS | SPECIFIED CONDITIONS OF USE | EMERGENCY PROCEDURE | CHARGING EQUIPMENT | BATTERY | WORK INSTRUCTIONS | SYMBOLS | DISPOSAL | GUARANTEE | SERVICE ____24

Français CARACTÉRISTIQUES TECHNIQUES | I NSTRUCTIONS DE SÉCURITÉ | UTILISATION CONFORME À LA DESTINATION | CONDUITE EN CAS D'URGENCE | DISPOSITIF DE CHARGE | BATTERIA | CONSIGNES DE TRAVAIL | SYMBOLES | LIQUIDATION | GARANTIE | SERVICE ____ 30

Scanned document with Chinese text and a blue circular logo, likely a form or report section

1

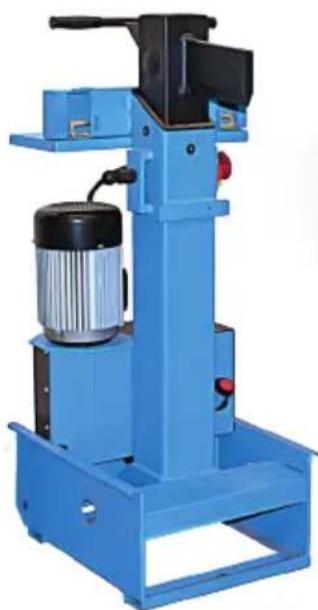

Blue industrial machine with motor and control panel (no visible text or symbols)

2

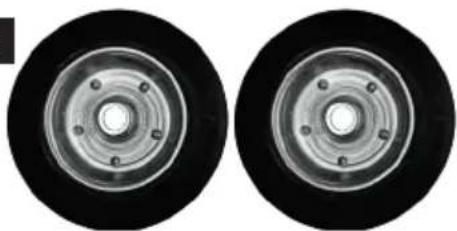

Two identical circular mechanical components with central bore and flanges, shown from top and bottom views (no text or symbols visible)

Simple line drawing of a tool with three circular components and a handle (no text or symbols)

4

Close-up of a dark, textured rectangular object with two protruding rods (no visible text or symbols)

5

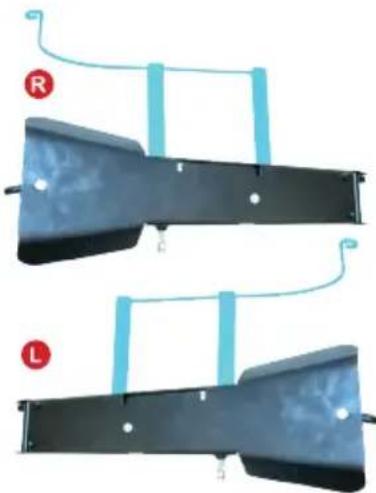

Two identical views of a metal frame with mounting holes and a curved handle, labeled R and L (no text or symbols on the frame itself)

7

Two blue plastic mechanical components with mounting flanges and a red indicator lights labeled L and R (no text or symbols on the components themselves)

9

Two identical dark blue rectangular panels with no visible text, numbers, or symbols.

11

6

8

10

Four identical metallic cylindrical pins arranged vertically, each with a separate circular top and bottom (no text or symbols visible)

DE	Montage	RO	Montaj
GB	Assembly	PL	Montaž
FR	Montage	ES	Montaje
IT	Montaggio
NL	Montage
CZ	Montáž
SK	Montáž
HU	Szerelés

2-4

DE	Inbetriebnahme	RO	Punerea în funcțiune
GB	Starting-up the machine	PL	Uruchomienie
FR	mise en service	ES	Puesta en servicio
IT	Messa in funzione
NL	Inbedrijfstelling
CZ	Uvedení do provozu
SK	Uvedenie do prevádzky
HU	Üzembe helyezés

5-10

DE	Betrieb	RO	Functionare
GB	Operation	PL	Eksploatacja
FR	Fonctionnement	ES	Funcionamiento
IT	Esercizio
NL	Gebruik
CZ	Provoz
SK	Prevádzka
HU	Üzemeltetés

11-15

DE	Reinigung / Wartung	RO	Curățare / Întreținere
GB	Cleaning / Maintenance	PL	Czyszczenie / konserwacja
FR	Nettoyage / Entretien	ES	Puesta en servicio
IT	Pulizia / Manutenzione
NL	Schoonmaken / Onderhoud
CZ	Čištění / Údržba
SK	Čistenie / Údrzba
HU	Tisztítás / Karbantartás

16

DE	Transport / Lagerung	RO	Transport / Depozitare
GB	transport / storage	PL	Transport / przechowywanie
FR	Transport / Stockage	ES	Transporte/Almacenamiento
IT	Trasporto / Stoccaggio
NL	Transport / Bewaring
CZ	Přeprava / Uložení
SK	Transport / Uloženie
HU	Szállítás / Tárolás

17

1	DE Montage	RO Montaj
	GB Assembly	PL Montaž
	FR Montage	ES Montaje
	IT Montaggio
	NL Montage
	CZ Montáž
	SK Montáž
	HU Szerelés

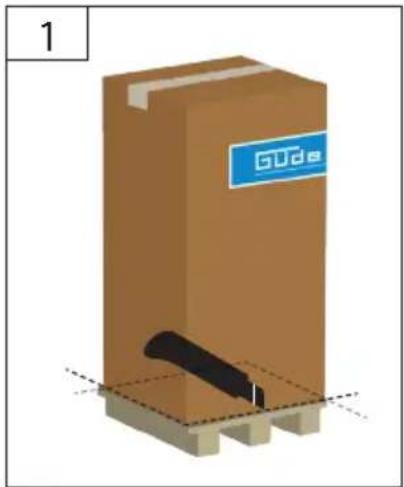

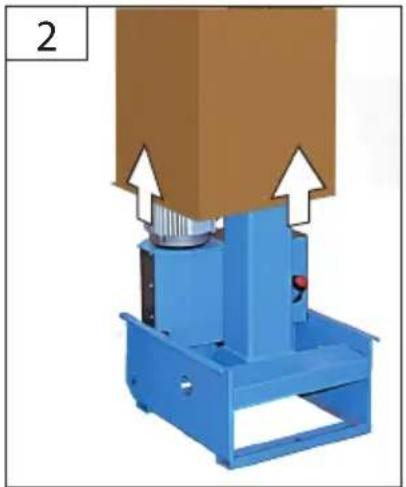

3D illustration of a brown cardboard box with a black tool inserted, labeled 'Guds' (no text or symbols on the box itself)

Mechanical assembly diagram showing a blue base with a brown component and directional arrows indicating motion (no text or symbols)

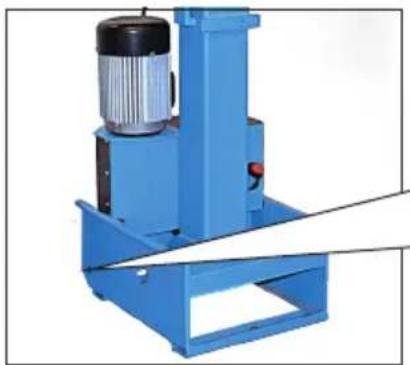

Blue industrial machine with a cylindrical motor and base mount, no visible text or symbols

3

4

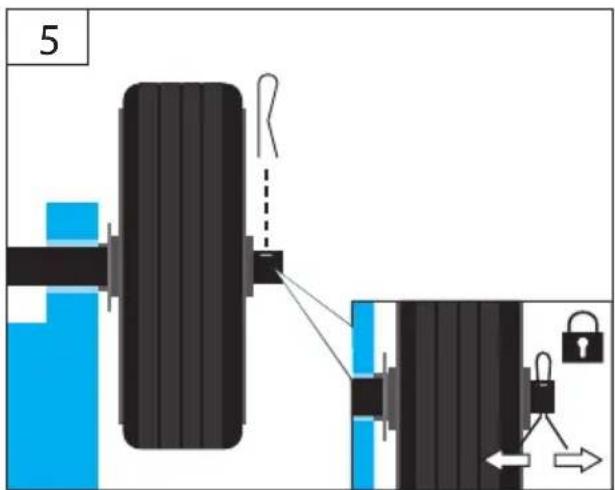

5

DE Montage

RO Montaj

GB Assembly

PL Montaż

FR Montage

ES Montaje

IT Montaggio

NL Montage

CZ Montáž

SK Montáž

HU Szerelés

1

6

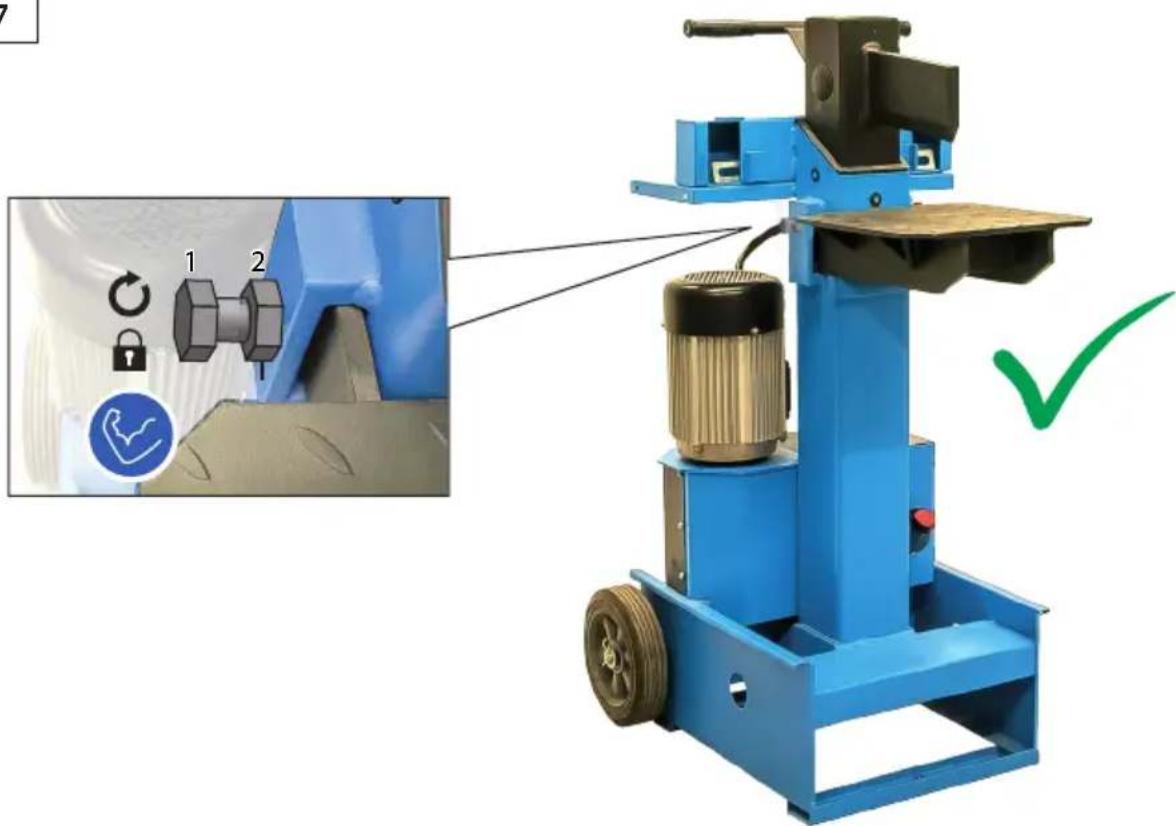

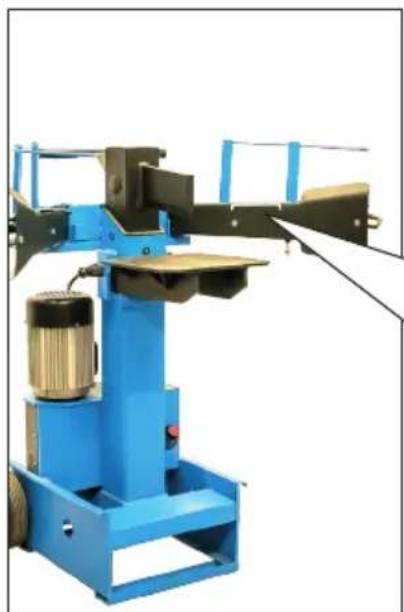

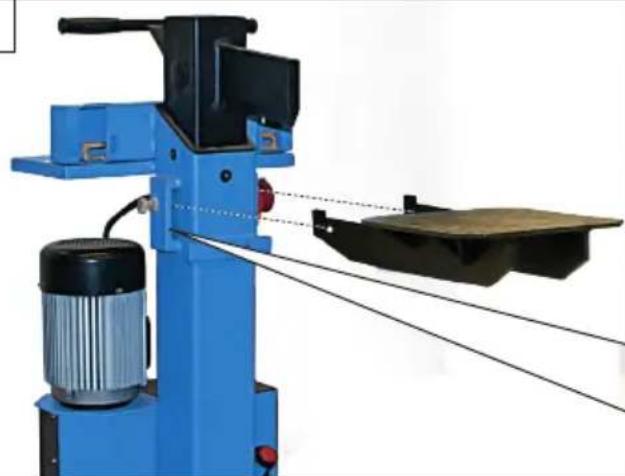

Industrial machine with blue frame and black handle, connected to a metal tray (no visible text or symbols)

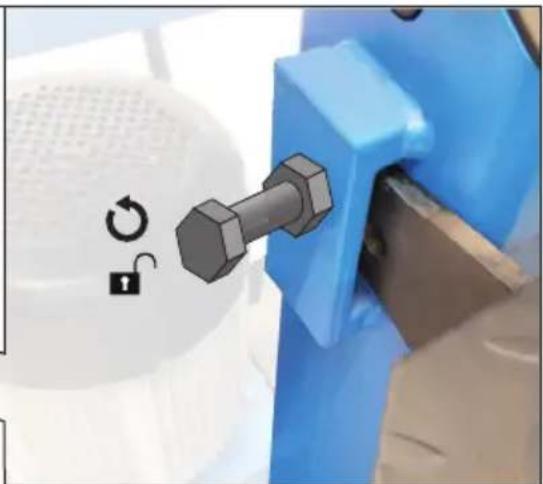

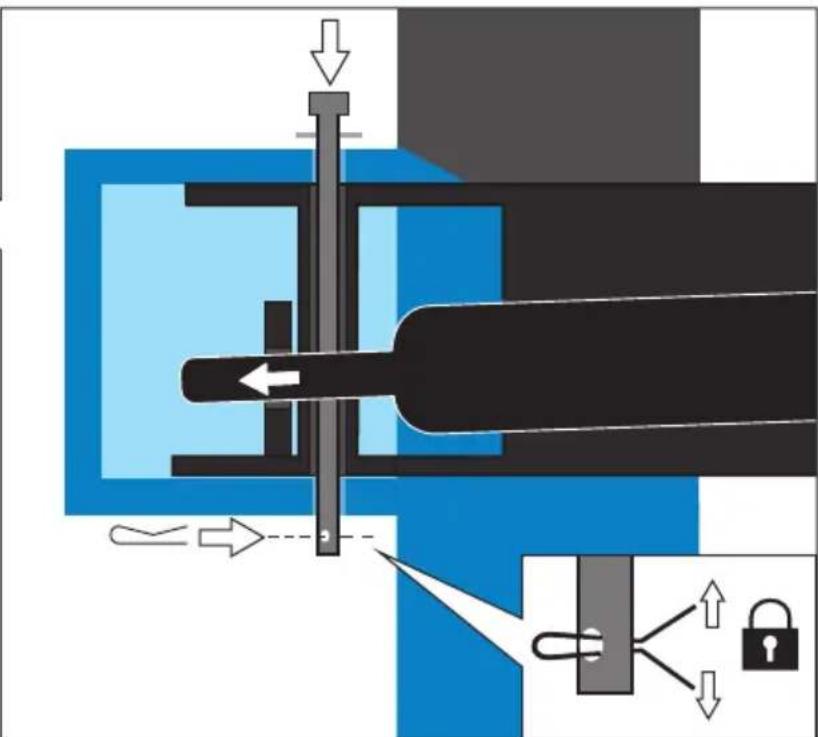

Close-up of a blue industrial machine tool interacting with a lock and refresh symbol (no text or labels visible)

7

Diagram of a blue industrial machine with labeled parts and a checkmark indicating inspection or approval.

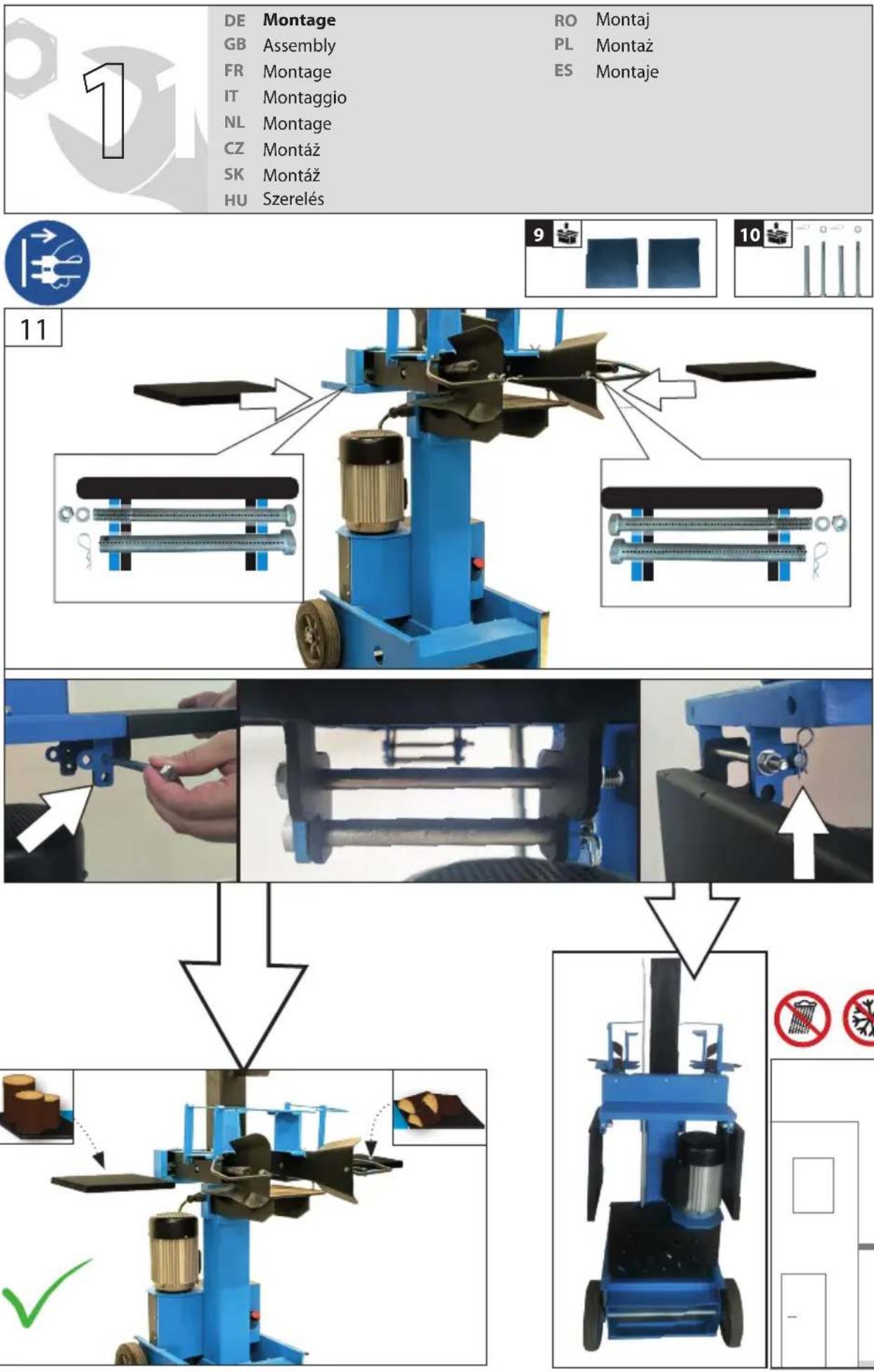

1	DE Montage	RO Montaj
	GB Assembly	PL Montaž
	FR Montage	ES Montaje
	IT Montaggio
	NL Montage
	CZ Montáž
	SK Montáž
	HU Szerelés

Two identical mechanical components with vertical supports and a small inset image labeled '5' (no text or symbols on the components themselves)

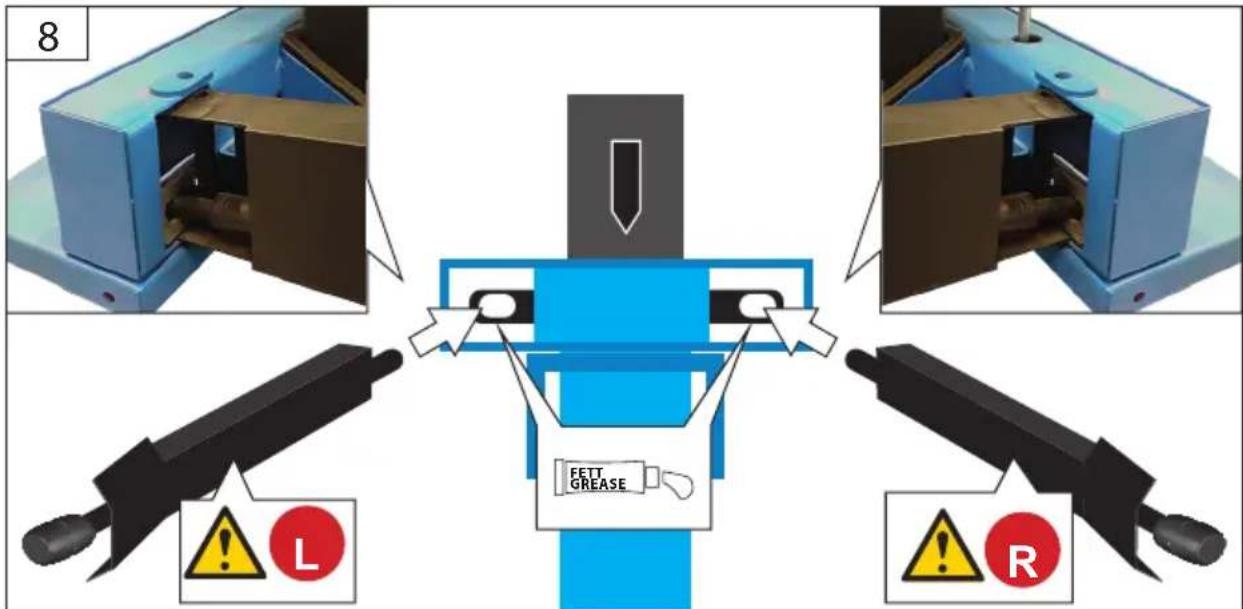

8 FETT GREASE L R

Blue industrial machine with motor and wheels, no visible text or symbols

Technical diagram illustrating a mechanical or hydraulic system with directional arrows and labeled components, including a lock and valve mechanism.

DE Montage

GB Assembly

FR Montage

IT Montaggio

NL Montage

CZ Montáž

SK Montáž

HU Szerelés

RO Montaj

PL Montaż

ES Montaje

Industrial machine with blue frame and black handle, no visible text or symbols

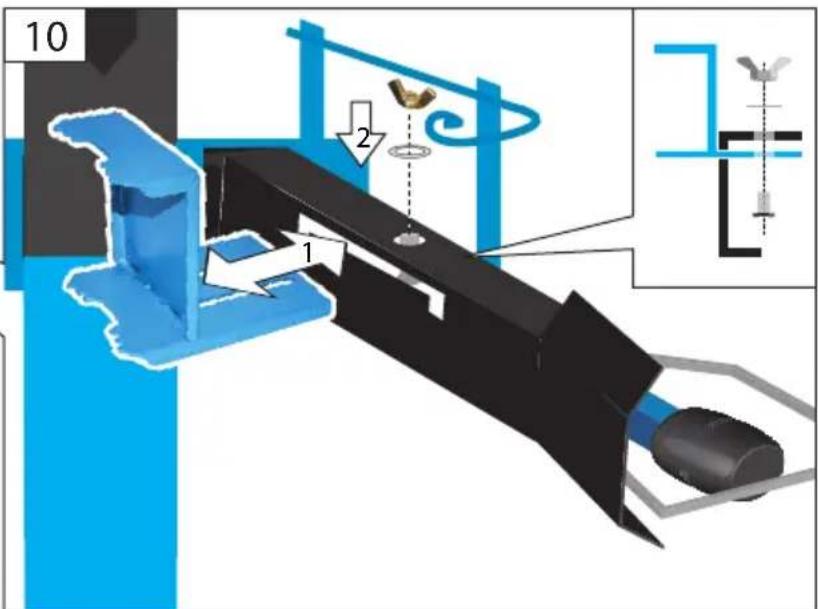

10 1 2

Diagram illustrating a tree cutting process with warning symbol and checkmark, showing gear and circular cutout

Diagram of a mechanical or electrical component with two vertical supports and a central circular structure, no visible text or symbols.

DE Montage GB Assembly FR Montage IT Montaggio NL Montage CZ Montáž SK Montáž HU Szerelés RO Montaj PL Montaž ES Montaje 11 9 10

Diagram comparing a machine tool and a waste bin with environmental compliance indicators for food processing.

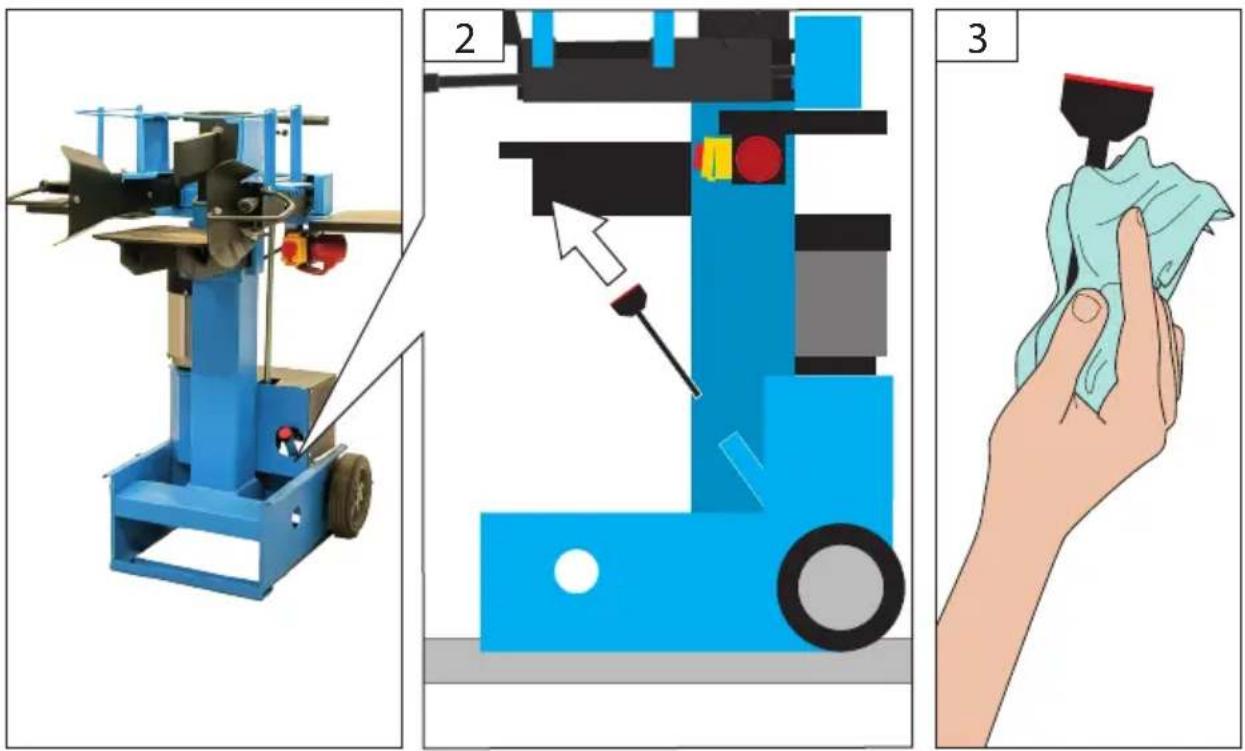

DE Ölstand kontrollieren

GB Oil level inspection

1 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

Technical diagram illustrating three stages of a mechanical device: tool, presser, and cleaning with a cloth.

DE Ölstand kontrollierenGB Oil level inspectionFR Contrôle du niveau d'huileIT Controllo livello d'olioNL Oliepeil controlerenCZ Kontrola stavu olejeSK Kontrola stavu olejaHU Olajszint ellenőrzése

RO Verificarea stării uleiuluiPL Skontrolować stan olejuES Comprobar el nivel de aceite

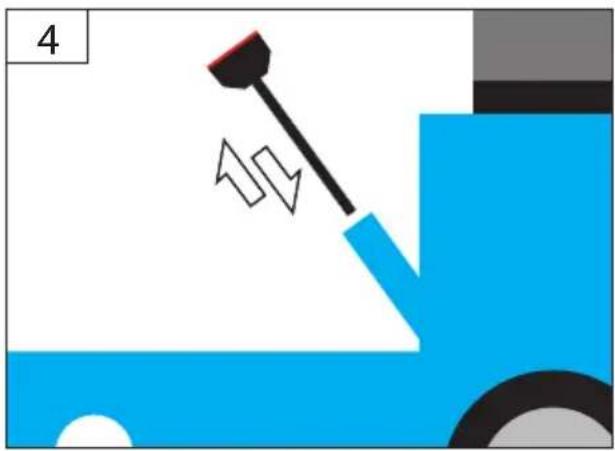

Illustration of a blue car with a hammer and gear, showing motion lines (no text or symbols)

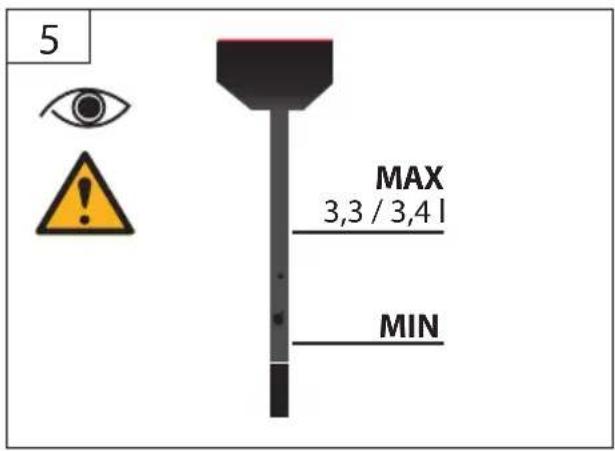

5 MAX 3,3 / 3,4 l MIN

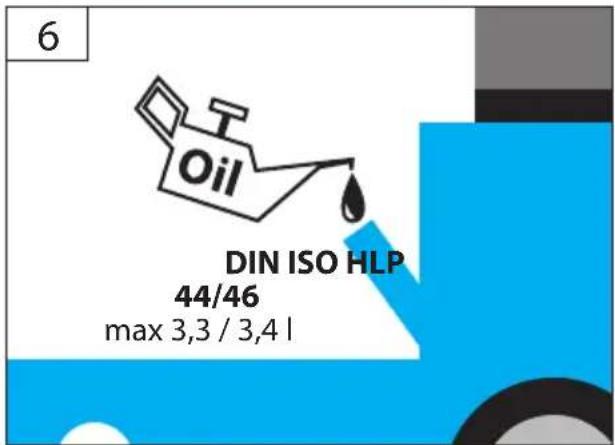

6 Oil DIN ISO HLP 44/46 max 3,3 / 3,4 l

Illustration of a blue toy car with a hammer and gear, no text or symbols present

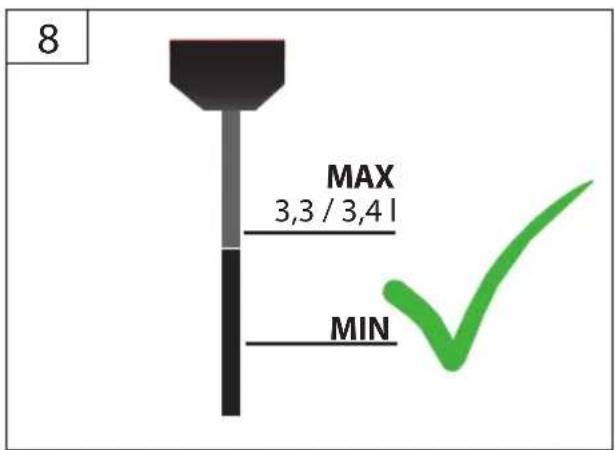

8 MAX 3,3 / 3,41 MIN

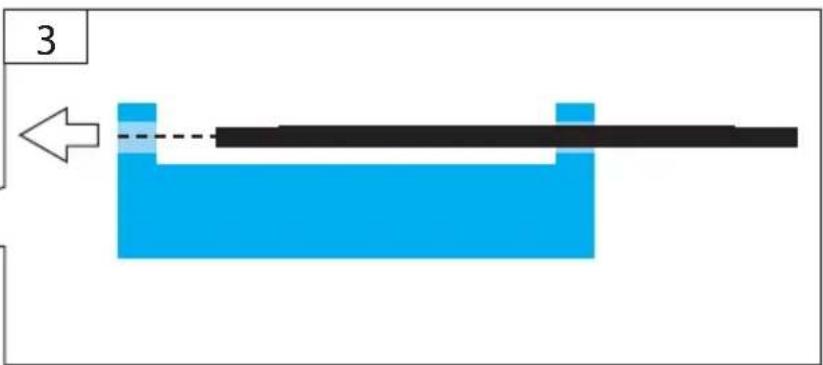

GB Gap length setting

Cross-sectional diagram of a mechanical assembly with blue and black components (no text or labels)

2
STOP

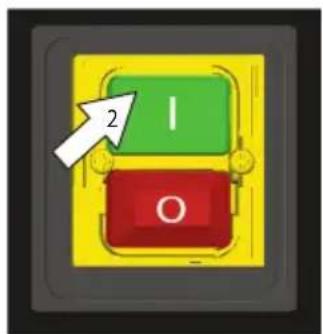

Close-up of a computer control panel with green and red buttons and a white arrow pointing to one (no text or symbols)

Cross-sectional diagram of a mechanical device with blue and black components, no visible text or symbols

3

4

Pure diagram of mechanical components without any text, numbers, or symbols

5

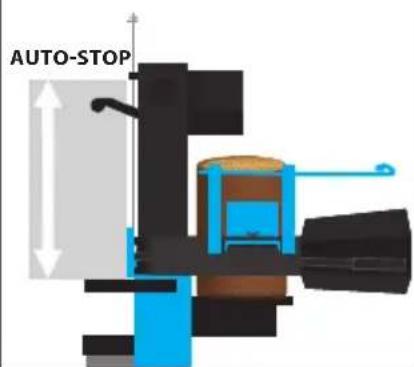

AUTO-STOP

	DE	Betrieb	RO	Functionare
	GB	Operation	PL	Eksploatacja
	FR	Fonctionnement	ES	Funcionamiento
	IT	Esercizio
	NL	Gebruik
	CZ	Provoz
	SK	Prevádzka
	HU	Üzemeltetés

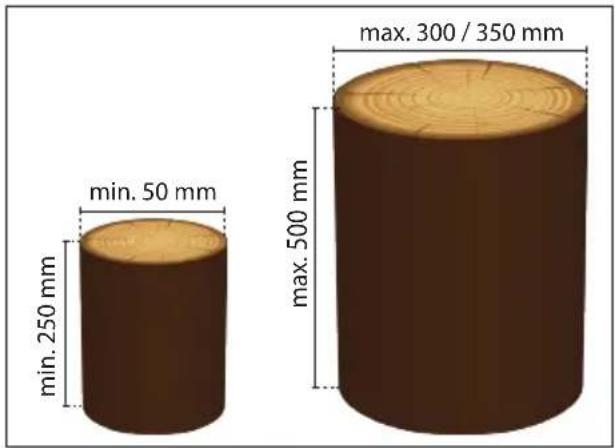

min. 250 mm min. 50 mm max. 300 / 350 mm max. 500 mm

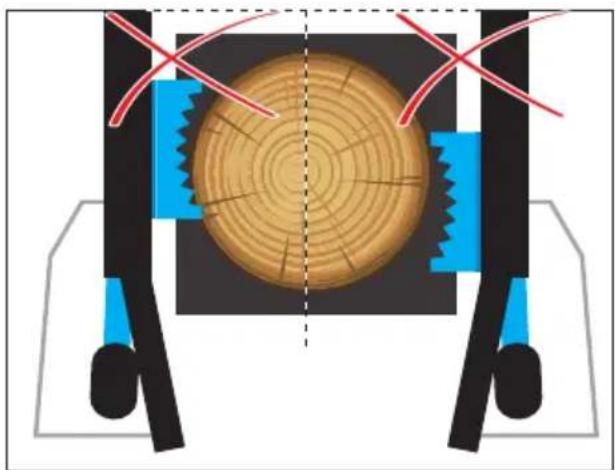

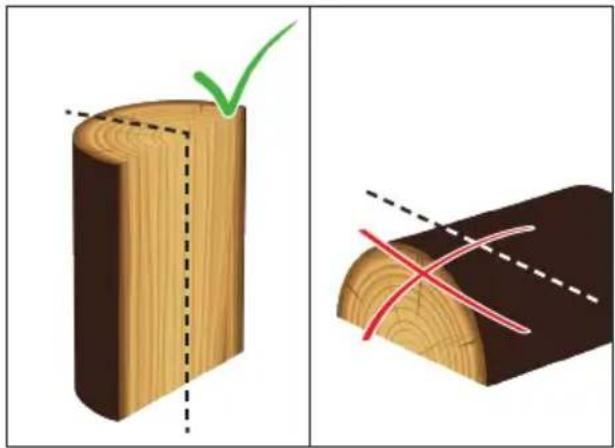

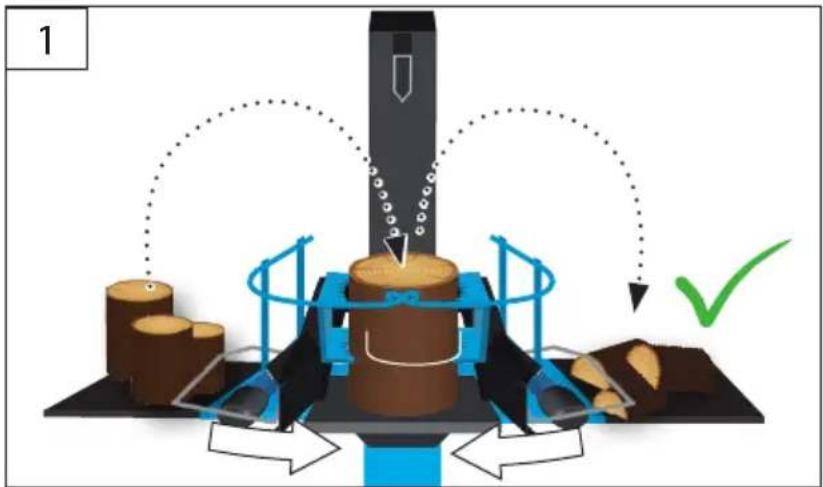

Two-panel illustration showing a wooden log with a green checkmark and a cross-section of a tree cut (no text or symbols)

Two-panel image showing a brown cylinder with checkmark and red X marks, likely illustrating correct and incorrect scoring methods.

Illustration of a blue forklift with a black handle and green checkmark indicating alignment (no text or symbols)

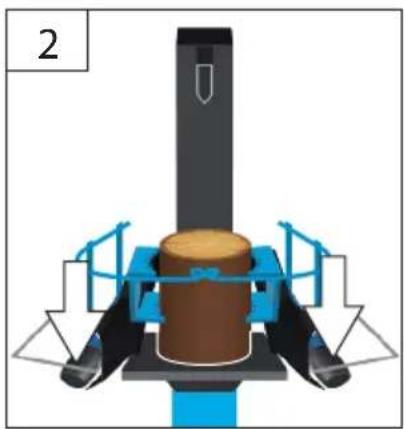

DE Betrieb

RO Functionare

GB Operation

PL Eksploatacja

FR Fonctionnement

ES Funcionamiento

IT Esercizio

NL Gebruik

cz Provoz

SK Prevádzka

HU Üzemeltetés

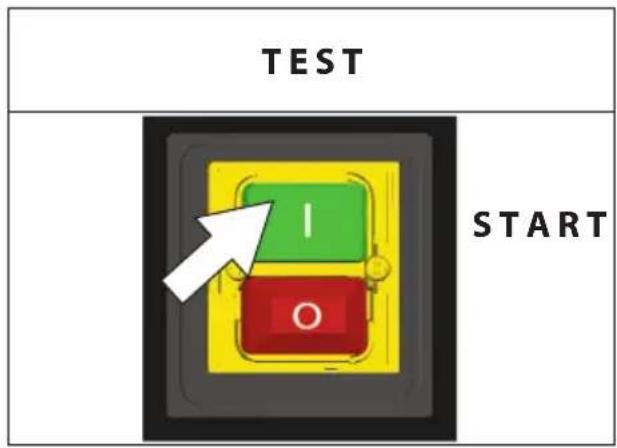

START 3 STOP

GHS 500/8TED CH

A

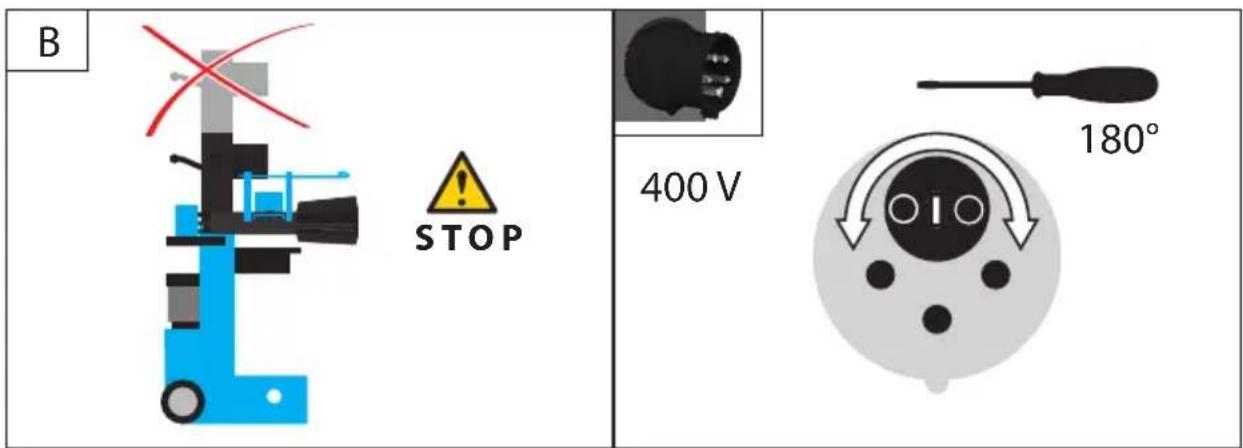

B STOP 400 V 180°

START

Mechanical assembly diagram showing a central vertical component with flanged arms and blue railings, no text or symbols present.

1 2 O

1min

Pure mechanical assembly diagram without any text, numbers, or symbols

Diagram of a blue forklift with mechanical components, no text or symbols present

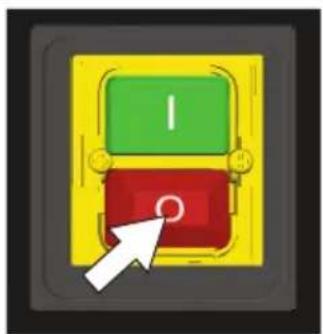

STOP

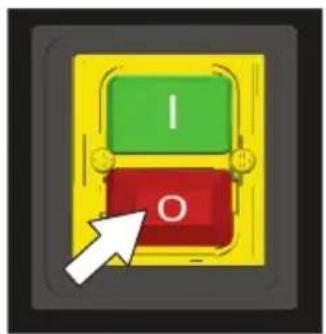

Simple diagram of a yellow and red button with a white arrow pointing to the center (no text or symbols)

DE Betrieb

GB Operation

FR Fonctionnement

IT Esercizio

NL Gebruik

CZ Provoz

SK Prevádzka

HU Üzemeltetés

RO Functionare

PL Eksploatacja

ES Funcionamiento

START 3 STOP

Safety warning sign with hazard symbol, forklift, and human figure checkmark

Symbolic illustration of a robotic arm crossed with a red diagonal line, representing interference or rejection (no text present)

Mechanical assembly diagram showing a cylindrical component mounted on a base with blue supports and arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a cylindrical component being processed by a valve, with no visible text or symbols.

Mechanical assembly diagram showing a rotating component with directional arrows (no text or symbols)

Mechanical assembly diagram showing a rotating component with directional arrows and base components (no text or symbols)

Mechanical assembly diagram showing a central rotating component with surrounding blue components and directional arrows (no text or symbols)

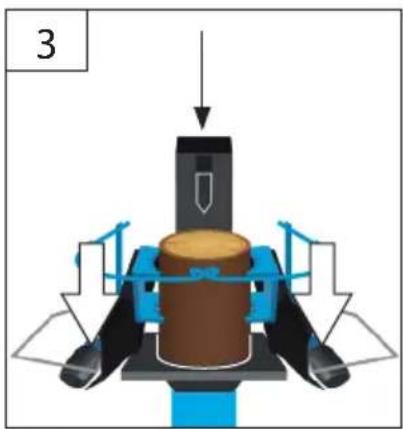

3

Mechanical assembly diagram showing a central cylindrical component with four arms and blue supports, no text or symbols present.

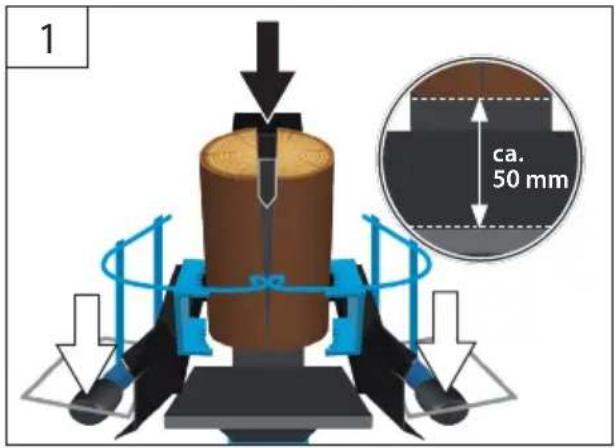

1 ca. 50 mm

Mechanical assembly diagram showing a cylindrical component mounted on a base with directional arrows indicating motion (no text or symbols)

STOP

3

Diagram of a mechanical device with multiple blades and a central cylindrical component, no text or symbols present

GB Cleaning / Maintenance

FR Nettoyage / Entretien

GB transport / storage

FR Transport / Stockage

NL Transport / Bewaring

Technical illustration of a mechanical device with blue and gray components, showing assembly and lock mechanism (no text or symbols)

2

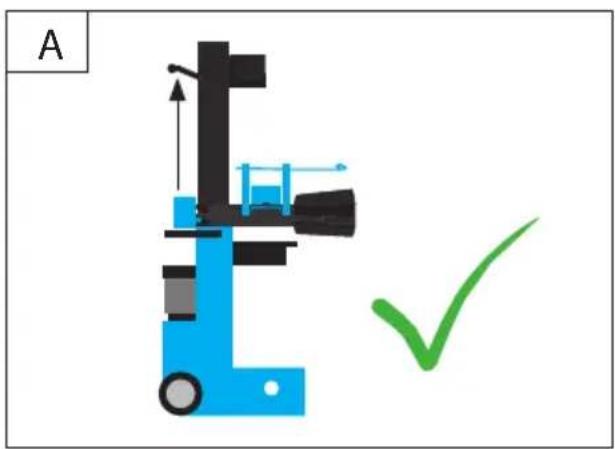

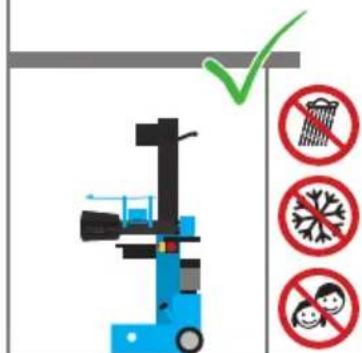

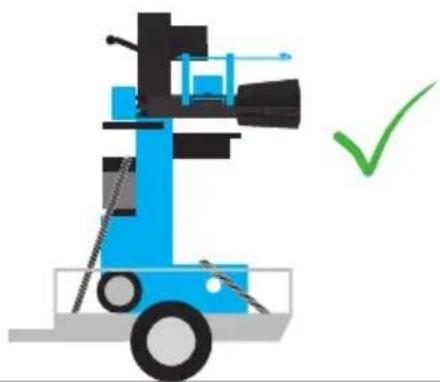

Illustration of a blue industrial machine with a green checkmark indicating approval (no text or symbols present)

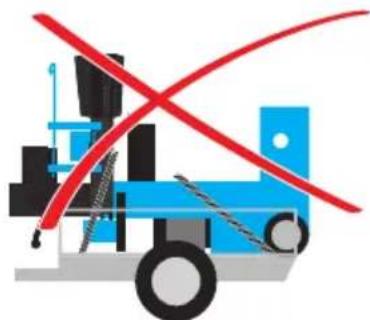

Illustration of a blue forklift with red diagonal lines indicating restriction or rejection (no text or symbols)

Simple illustration of a blue pipe pouring liquid into black droplets (no text or symbols)

3

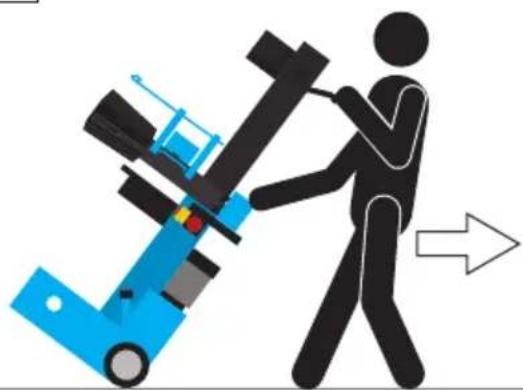

Silhouette of a person pushing a blue toy car with a right-pointing arrow, no text or symbols present

4

Safety warning illustration showing a forklift with three circular icons indicating no litter, snowflake, and cartoon characters.

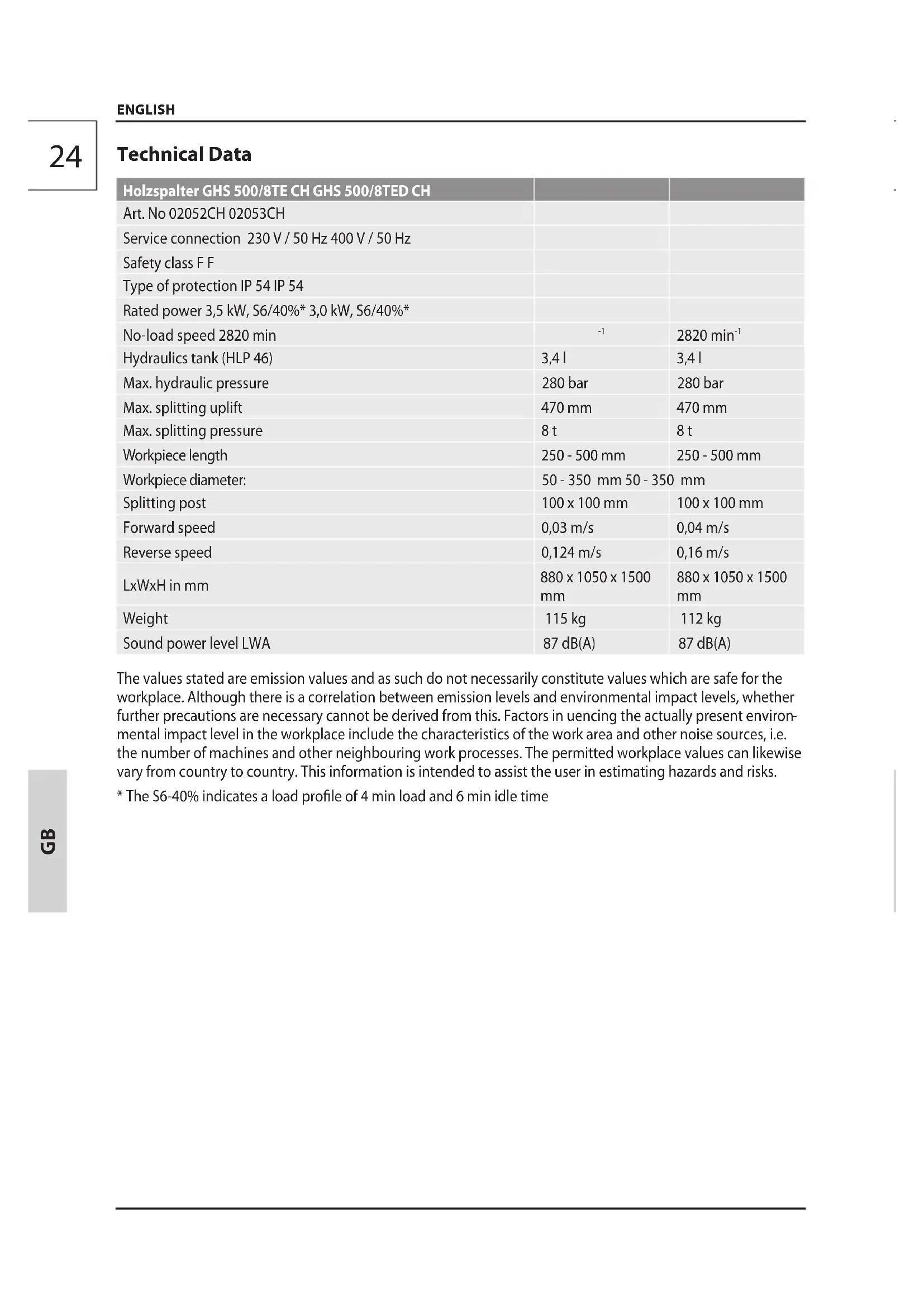

Technische Daten

The values stated are emission values and as such do not necessarily constitute values which are safe for the workplace. Although there is a correlation between emission levels and environmental impact levels, whether further precautions are necessary cannot be derived from this. Factors in uencing the actually present environmental impact level in the workplace include the characteristics of the work area and other noise sources, i.e. the number of machines and other neighbouring work processes. The permitted workplace values can likewise vary from country to country. This information is intended to assist the user in estimating hazards and risks.

* The S6-40% indicates a load profile of 4 min load and 6 min idle time

Read and understand the operating instructions before using the appliance. Familiarise with the

control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.

The operator is responsible for accidents or risks to third parties.

Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

In case of any doubts about connection and operation refer please to our customer center

The operating personnel must be adequately trained in the use, adjustment and operation of the device.

Specified Conditions Of Use

The wood splitter has only been designed to split wood in the fibre direction. Respecting technical data and safety precautions.

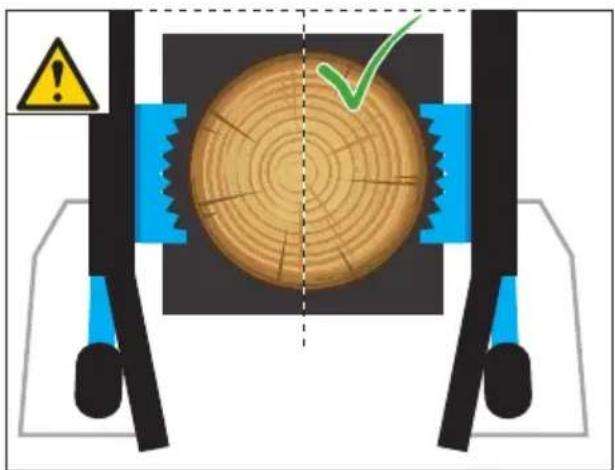

When splitting, it is essential to make sure the split wood contacts the checkered sheet of the splitting desk.

The machine may only be used if it is fully assembled.

Operation of a machine that is not fully assembled is strictly prohibited.

The device must not be used without the attach - ment tables.

It is essential to follow instructions for installation, operation, repairs, etc. to prevent hazards and damage.

Please do not forget that this machine, as designed, is not intended for industrial use.

Make sure there are no persons in the working area during operation or make sure such persons keep a sufficient safety distance.

This appliance is not intended for use by children.

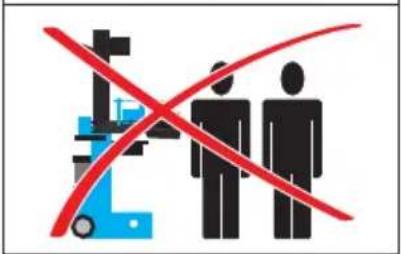

The wood splitter has been designed to be operated by 1 person. The machine must never be operated by two or more persons.

Wood splitter being operated by two persons, with one holding a piece of wood and the other controlling the clamps is strictly prohibited.

Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

Residual risks

Dry and dried-up wood may jump up when being split and injure the face of the operator. Adequate protective clothes to be worn!

⚠ Wooden pieces produced during splitting may fall down and injure legs of the operator.

When splitting wood, parts of body may be crushed or separated due to hydraulic knife lowering.

There is a risk of branchy wood getting stuck when being split. Please be advised that wood being separated is under heavy pressure and your fingers may get squeezed in the gap.

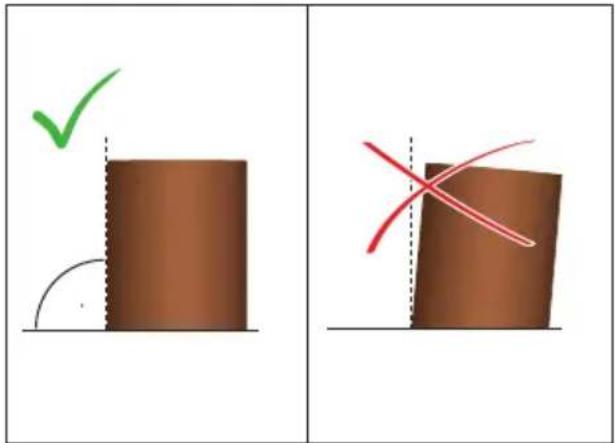

Caution! Pieces of wood cut at the right angle to be split only! Diagonally cut pieces of wood may slip when cutting!

General Power Tool Safety Warnings WARNING Read all safety warnings and all

instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term „power tool“ in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Safety in the place of work

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCprotected supply. Use of an RCD reduces the risk of electric shock.
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves

3) Safety of persons

away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Use and treatment of electric tools

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Safety Instructions

Using the wood splitter may lead to some hazards. Therefore, the machine may only be handled by instructed and experienced persons.

Wear suitable protective clothing such as sturdy shoes with non-slip sole, robust long trousers, gloves, safety glasses and hearing protection! Do not wear loose clothing or jewels. Hear, clothing and gloves must be out of reach of moving parts as they could get caught by the rotating parts. Do not use the appliance when barefooted or in open sandals. In the event of a blockage, switch off the machine immediately. Disconnect the power plug and remove the jammed piece of wood.

Mains Connection

⚠ WARNING! Electric shock! There is a risk of an injury caused by electric shock!

Operation is only allowed with a safety switch against stray current (RCD max. stray current of 30mA).

Check the voltage. Technical data given on the type label must correspond with electric network voltage. Insert the plug of the electrical cable in a socket of suitable shape, voltage and frequency complying with current regulations.

Only for 400 volt machines: It is essential to respect the engine rotation direction (see the arrow on the engine) as operation in wrong direction would damage the oil pump. Warranty claims cannot apply in such a case. Change the rotation direction by turning the connector polarity if necessary.

Pursuant to the provisions of „CE“ professional associations, etc., all splitters are fitted with an undervoltage release in the switch. This will prevent accidental repeated starting in case of current interruption due to power failure, accidental unplugging, defective fuse, etc. The machine must necessarily be turned on again by repeated pressing of the green switch.

Wilful holding or blocking of the switch, unless being a neutral, will automatically lead to switch failure. The warranty will not apply in such a case that must naturally be checked.

Work preparation

Before putting the machine into operation, working of the safety guards (two-lever operation system, in particular) must be checked.

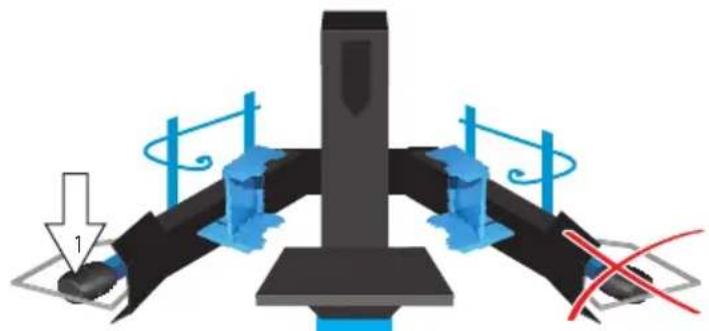

- Put both control levers down and the splitter knife down, app. 5 cm above the desk.

• One control lever to be released at all times, with the splitter knife remaining in the selected position.

Carry out a visual inspection before switching the appliance on.

• Proper function of the on and off button, incl. the emergency switch.

- Before starting work, check hydraulic lines and hoses for leaks.

- Check especially the safety equipment, electrical control elements, power lines and screw couplings for any damage and if they are tightened appropriately.

The appliance must not be used if damaged or safety equipment is defective. Replace any worn-out and damaged parts.

CAUTION! Whenever the machine is to be put into operation, make sure the splitter desk is firmly and safely fitted to the machine.

Working area

For safe wood splitting, it is essential that the working area is flat and slip-resistant and that a sufficient space for moving is provided. To take the wood splitter to your home, it is necessary there are no obstacles in the way, i.e. no risk of tripping. Adequate lighting of the working area needs to be provided.

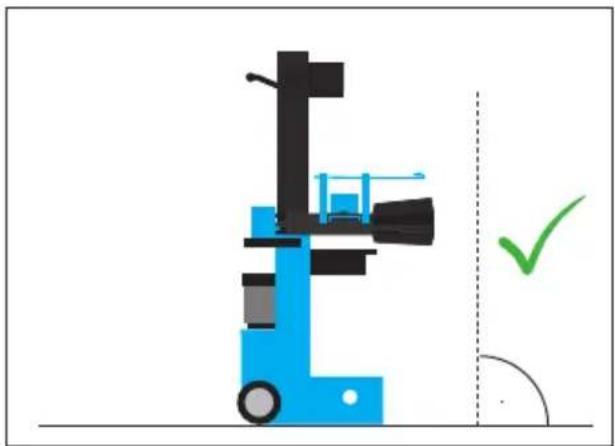

When being operated, the machine must stand on a horizontal and flat surface and the floor around the machine must be flat, well-maintained and with no waste, such as sawdust and cuttings.

Operation

1. Pick up unsplit wood from the left attachment table
2. Put wood on the splitting table

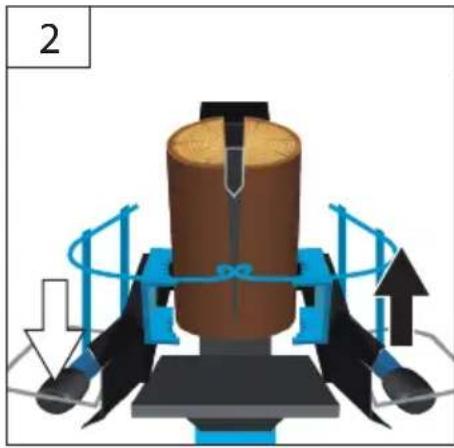

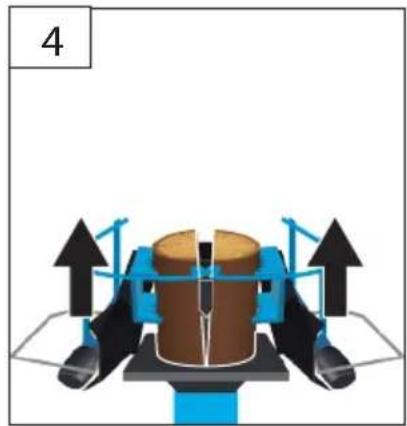

3. Secure the wood with the holding claws.
4. Start splitting process (operate lever)

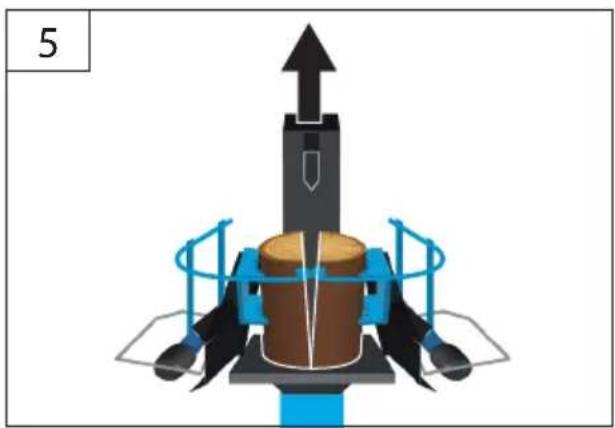

5. Split the wood once all the way through

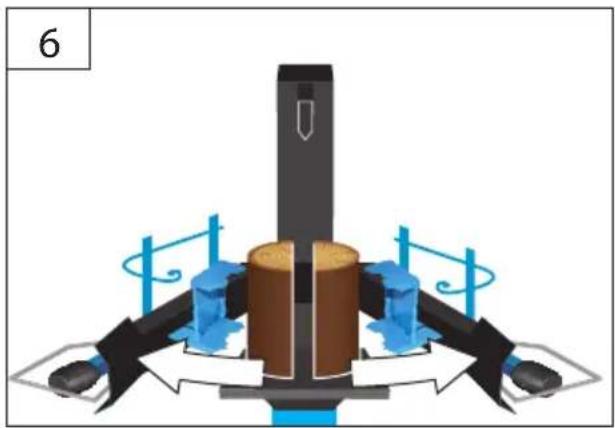

6. Place split wood on the right attachment table
7. Split the wood a second time, if necessary

When splitting intergrown wood, trunk sections of irregular shape, etc., there may be risks of parts being thrown out, blocked or crushed.

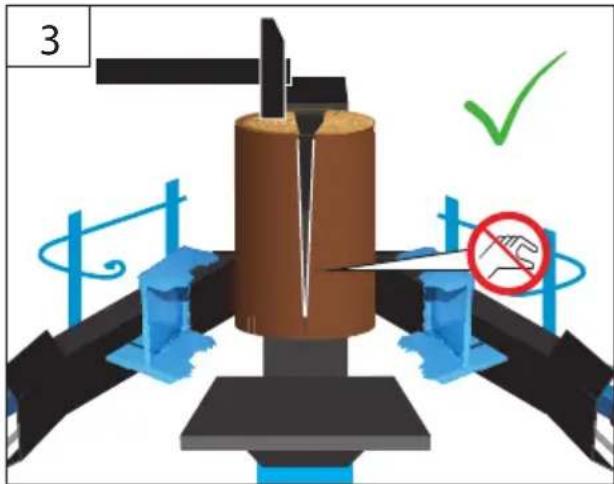

Never reach into the gap area.

Power supply must be interrupted by pressing the red button on the switch and unplugging the machine for any repair or servicing work or when leaving the wood splitter. Turning to the Off position is not enough to interrupt the power supply.

Handling equipment to be used only when handling the machine. Make sure the device cannot roll away, fall over or tip over with suitable fastening devices. The machine must be secured to the ground with suitable fasteners. (e.g. ground nails)

The machine may only be used if it is fully assembled. Operation of a machine that is not fully assembled is strictly prohibited.

Long wood must never be placed on the lower foot for splitting. Always use the splitting table for splitting.

Emergency procedure

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. If you seek help, state the following pieces of information: 1. Accident site, 2. Accident type, 3. Number of injured persons, 4. Injury type(s)

Maintenance

Unplug the machine before any work on it.

Switch off the apparatus, disconnect it from mains by unplugging and allow it to cool down before setting up, retrofitting, cleaning, performing maintenance, storing or transporting the apparatus.

The hydraulic hoses and connections must be checked if tight enough after app. 4 hours of operation and tightened if necessary.

If the device is defective, the repair has to be made exclusively by the customer service.

Use only original accessories and original spare parts. If necessary, a list of spare parts can be found at www.guede.com.

Never clean the machine and its components with solvents, flammable or toxic liquids. Us only a damp cloth making.

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

Disposal

Any damaged or disposed devices must be delivered to appropriate collection centres.

The device contains hydraulic fluid. Hydraulic fluids pose a hazard to groundwater. Uncontrolled draining or improper disposal is punishable by law.

Symbols

CAUTION! WARNING

WARNING! Read the Operating Instructions

Caution!
Unplug the machine before any servicing or repair!

Wear eye protective goggles!
Wear ear protectors!

Safety gloves to be used!

Wear safety shoes with steel reinforcement!

Use of crane

Caution! Moving parts of the machine!
Danger! Keep away from moving machine parts!

To be operated by 1 person only!

Do not touch in the splitting area!

Protect against humidity. Never expose tool to rain.

Dangerous voltage

Warning against hand injuries

Warning against thrown-off items
Keep distance of persons
Observe to keep out of dangerous zone

Rotation direction

2 people are needed for implementation.

Any damaged or disposed devices must be delivered to appropriate collection centres.

Remove all undesirable items, e.g. nails and wire, before working

Guarantee

Warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device.

Warranty applies exclusively to failures due to defective material or workmanship. An original sale slip with indication of date of sale must be presented in case of claiming for the warranty rights.

Warranty does not cover unprofessional use such as device overload, violent use, damage caused by third party or foreign materials, failure to comply with operations

and assembly manual, and normal wear and tear.

Important information for the customer

Please be sure to know that returning the product in or after the warranty period must be made in the original packaging.

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label.

Tel.: [phone] / 700-360

Fax: [phone]

E-Mail: [e-mail]

Failure removal

Failures Causes	Removal
Engine does not start	No power in the socket	Check the fuse
	Defective electric extension cable	Pull the plug out, check it, replace it
	Wrong connecting cable	5-wire connection at 2.5 mm2 cross section
	Defective condenser switch	Have the machine checked by a professional electrician
Wrong engine rotation direction	Wrong connection	Use a screwdriver to turn the phase-changing switch in the power supply
Splitting knife is not moving	Adjust the two-hand control and starting levers	Defective control valve - to be replaced in a service centre only
Splitter has no power	Wrong rotation direction	Have the rotation direction changed by a professional
	Few hydraulic oil	Hydraulic oil to be added
	Trigger is bent; hydraulic piston on the valve is not fully seated	Check all screws on the triggerAdjust the trigger so that the hydraulic piston on the valve is fully seated
	Wood has many knobs and the splitting knife is getting stuck	Lubricate the splitting knife
	Control arm is bent	Put the control arm back to the starting position
The green supply button does not hold after being pressed	Defective fuse, etc.	Check the cable
	2-phase running
Hydraulic pump is whistling, splitting knife running jerkily	Oil loss, bottom contamination	Tighten the screws Replace the hose
	Few hydraulic oil	Hydraulic oil to be added

OPGELET! WAARSCHUWING

Translation of the EC-Declaration of Conformity

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives.

In case of any change to the appliance not discussed with us the Declaration expires.

Notified Body Name: No: Adress:

Type Ex. Cert.-No.:

97/68/EC_&2016/1628/EU
Emission No.:
2000/14/EC_2005/88/EC
