USER MANUAL GE614ST SAMSUNG

A9R9E41.pdf 1 2011-03-22 오후 6:22:50 www.samsung.com/ae/support (English) www.samsung.com/ae_ar/support (Arabic)

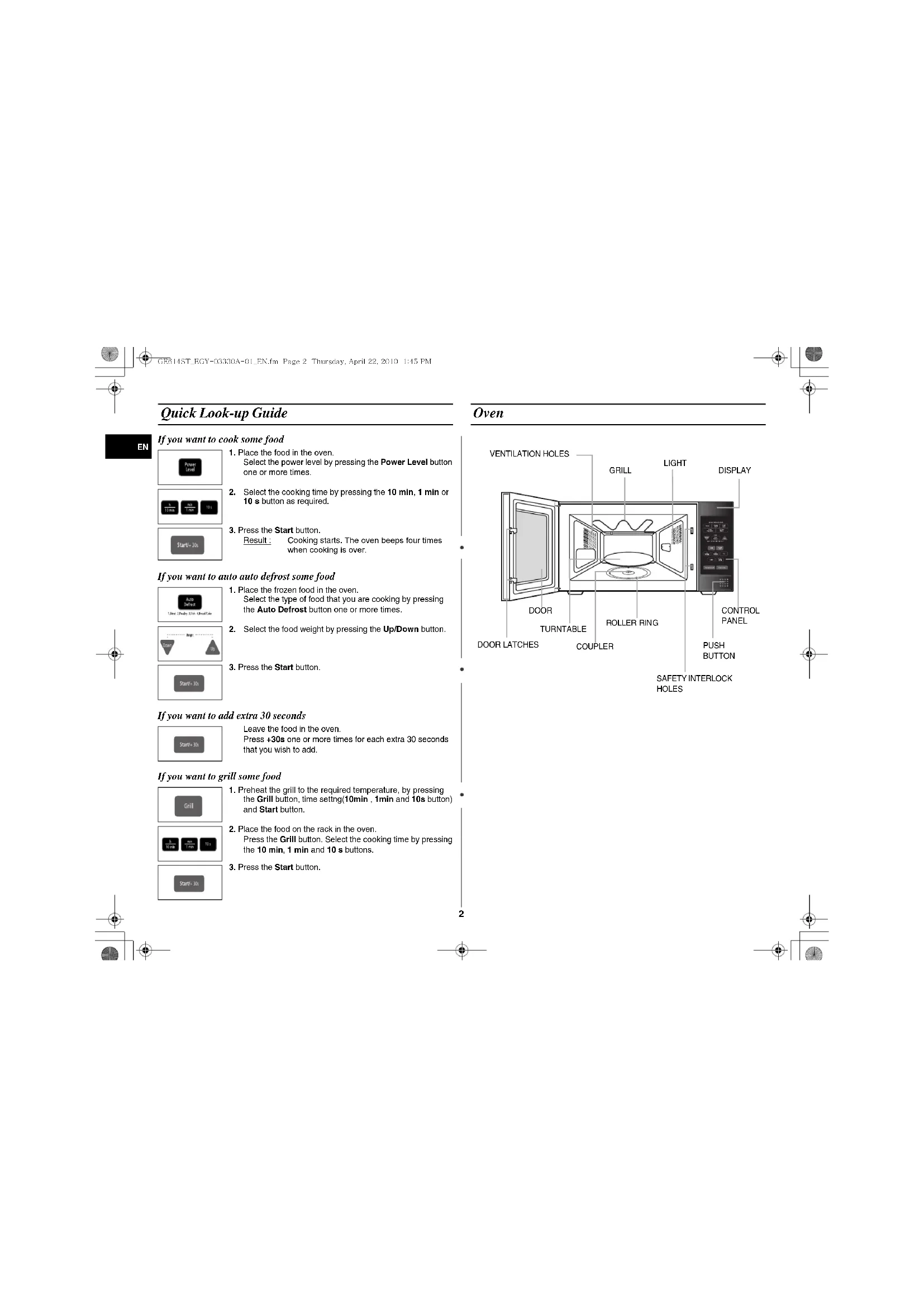

Quick Look-up Guide If you want to cook some food If you want to auto auto defrost some food If you want to add extra 30 seconds If you want to grill some food Oven

1. Place the food in the oven.

Select the power level by pressing the Power Level button one or more times.

2. Select the cooking time by pressing the 10 min, 1 min or

10 s button as required.

3. Press the Start button.

Result : Cooking starts. The oven beeps four times when cooking is over.

1. Place the frozen food in the oven.

Select the type of food that you are cooking by pressing the Auto Defrost button one or more times.

2. Select the food weight by pressing the Up/Down button.

3. Press the Start button.

Leave the food in the oven. Press +30s one or more times for each extra 30 seconds that you wish to add.

1. Preheat the grill to the required temperature, by pressing

the Grill button, time settng(10min , 1min and 10s button) and Start button.

2. Place the food on the rack in the oven.

Press the Grill button. Select the cooking time by pressing the 10 min, 1 min and 10 s buttons.

Control Panel Accessories Depending on the model that you have purchased, you are supplied with several accessories that can be used in a variety of ways. DO NOT operate the microwave oven without the roller ring and turntable. 1. INSTANT REHEAT/COOK SELECTION 2. UP/DOWN BUTTON (Weight)3. GRILL MODE SELECTION 4. TIME SETTING5. CLOCK SETTING 6. PAUSE/CANCEL BUTTON 7. AUTO DEFROST FEATURE 8. COMBI MODE SELECTION9. MICROWAVE/POWER LEVEL MODE SELECTION10. START BUTTON

1. Coupler, already placed over the motor shaft in the base of the oven.Purpose :The coupler rotates the turntable.2. Roller ring, to be placed in the centre of the oven.Purpose :The roller ring supports the turntable.3. Turntable, to be placed on the roller ring with the centre fitting to the coupler.Purpose :The turntable serves as the main cooking surface; it can be easily removed for cleaning.4. Metal rack, to be placed on the turntable.Purpose :The metal rack can be used to cook two dishes at the same time. One dish may be placed on the turntable and the otherdish on the rack. The metal rack can be used in grill andcombination cooking.nl]X[z{lnTWZZZWhTWXluUGGwGZGG{SGhGYYSGYWXWGGXa[\Gwt4

Using this Instruction Booklet You have just purchased a SAMSUNG microwave oven. Your Owner’s Instructions contain much valuable information on cooking with your microwave oven:

• Suitable accessories and cookware

• Useful cooking tips Inside the cover you will find a quick look-up guide explaining four basic cooking operations:

• Auto Power Defrosting of food

• Adding extra cooking time At the front of the booklet you will find illustrations of the oven, and more importantly the control panel, so that you can find the buttons more easily. The step-by-step procedures use three different symbols.

Failure to observe the following safety precautions may result in harmful exposure to microwave energy. (a) Under no circumstances should any attempt be made to operate the oven with the door open or to tamper with the safety interlocks (door latches) or to insert anything into the safety interlock holes. (b) Do not place any object between the oven door and front face or allow food or cleaner residues to accumulate on sealing surfaces. Ensure that the door and door sealing surfaces are kept clean by wiping after use first with a damp cloth and then with a soft dry cloth. (c) Do not operate the oven if it is damaged until it has been repaired by a qualified microwave service technician trained by the manufacturer. It is particularly important that the oven door closes properly and that there is no damage to the: (1) Door (bent) (2) Door hinges (broken or loose) (3) door seals and sealing surfaces (d) The oven should not be adjusted or repaired by anyone other than a properly qualified microwave service technician trained by the manufacturer. Safety Precautions IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE. Before cooking food or liquids in your microwave oven, please check that the following safety precautions are taken.

• Only use utensils that are suitable for use in microwave ovens; DO NOT use any metallic containers, Dinnerware with gold or silver trimmings, Skewers, forks, etc. Remove wire twist ties from paper or plastic bags. Reason : Electric arcing or sparking may occur and may damage the oven.

• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition; Do not use your microwave oven to dry newspapers or clothes

• If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames;

• Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container; To prevent this situation ALWAYS allow a standing time of at least 20 seconds after the oven has been switched off so that the temperature can equalize. Stir during heating, if necessary, and ALWAYS stir after heating. In the event of scalding, follow these FIRST AID instructions:

• Immerse the scalded area in cold water for at least 10 minutes.

• Cover with a clean, dry dressing.

• Do not apply any creams, oils or lotions.

NEVER fill the container to the top and choose a container that is wider at the top than at the bottom to prevent the liquid from boiling over. Bottles with narrow necks may also explode if overheated. NEVER heat a babys bottle with the teat on, as the bottle may explode if overheated.

• The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns;

• Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended; Also do not heat airtight or vacuum-sealed bottles, jars, containers, nuts in shells, tomatoes etc.

• The oven should be cleaned regularly and any food deposits removed;

• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation;

DO NOT cover the ventilation slots with cloths or paper. They may catch fire as hot air is evacuated from the oven. The oven may overheat and automatically switch itself off. It will remain inoperable until it has cooled sufficiently.

ALWAYS use oven gloves when removing a dish from the oven to avoid unintentional burn.

DO NOT touch heating elements or interior oven walls until the oven be cooled down.

Safety Precautions(continued)

• Do not immerse the power cable or plug in water and keep the power cable away from heated surfaces.Do not operate this appliance if it has a damaged power cable or plug.• Stand at arms length from the oven when opening the door.Reason: The hot air or steam released may cause scalding.• You may notice a Clicking sound during operation(especially when the oven is defrosting).Reason: This sound is normal when the electrical power output is changing. DO NOT operate the microwave oven when it is empty. The power will be cut off automatically for safety. You can operate normally after letting it stand for over 30 minutes.It is best to leave a glass of water inside the oven at all times.The water will absorb the microwaves energy if the oven accidently started. IMPORTANT
• Young children should NEVER be allowed to use or play with the microwave oven. Nor should they be left unattended near the microwave oven when it is in use. Items of interest to children should not be stored or hidden just above the oven.• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. • Children should be supervised to ensure that they do not play with the appliance. • During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven. DO NOT use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.(If provided)

If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

It is hazardous for anyone other than a comperent person to carry out any service or repair operation which involves the removal of a cover which gives protection against exposure to microwave energy.

Liquids and other foods must not be heated in sealed containers since they are liable to explode.

Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

Accessible parts may become hot during use. Young children should be kept away.• The microwave oven shall not be placed in a cabinet Installing Your Microwave Oven Place the oven on a flat level surface 85cm above the floor. The surface should be strong enough to safety bear the weight of the oven. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent. For your personal safety, plug the cable into a 3-pin, 230 Volt, 50Hz, AC earthed socket. If the power cable of this appliance is damaged, it must be replaced by a special cable. Do not install the microwave oven in hot or damp surroundings like next to a traditional oven or radiator. The power supply specifications of the oven must be respected and any extension cable used must be of the same standard as the power cable supplied with the oven. Wipe the interior and the door seal with a damp cloth before using your microwave oven for the first time. 1. When you install your oven, make sure there is adequate ventilation for your oven by leaving at least 10 cm (4 inches) of space behind and, on the sides of the oven and 20 cm (8 inches) of space above.2. Remove all packing materials inside the oven.Install the roller ring and turntable. Check that the turntable rotates freely.3. This microwave oven has to be positioned so that plug is accessible. 20cm above 10cm behind 10cm on the side85cm ofthe floor nl]X[z{lnTWZZZWhTWXluUGGwG\GG{SGhGYYSGYWXWGGXa[\Gwt6

Setting the Time Your microwave oven has an inbuilt clock. When power is supplied, :0, 88:88 or 12:00 is automatically displayed on the display. Please set the current time. The time can be displayed in either the 24-hour or 12- hour notation. You must set the clock:

• When you first install your microwave oven

• After a power failure Do not forget to reset the clock when you switch to and from summer and winter time. What to Do if You are in Doubt or Have a Problem If you have any of the problems listed below try the solutions given. This is normal.• Condensation inside the oven• Air flow around the door and outer casing• Light reflection around the door and outer casing• Steam escaping from around the door or vents The oven does not start when you press the Start button.
• Is the door completely closed? The food is not cooked at all• Have you set the timer correctly and/or pressed the Start button?• Is the door closed?• Have you overloaded the electric circuit and caused a fuse to blow or a breaker to be triggered? The food is either overcooked or undercooked• Was the appropriate cooking length set for the type of food?• Was an appropriate power level chosen? Sparking and cracking occur inside the oven (arcing)• Have you used a dish with metal trimmings?• Have you left a fork or other metal utensil inside the oven?• Is aluminium foil too close to the inside walls? The oven causes interference with radios or televisions• Slight interference may be observed on televisions or radios when the oven is operating. This is normal.To solve this problem, install the oven away from televisions, radios and aerials.• If interference is detected by the oven’s microprocessor, the display may be reset.To solve this problem, disconnect the power plug and reconnect it. Reset the time. If the above guidelines do not enable you to solve the problem, contact your local dealer or SAMSUNG after-sales service.

1. To display the time Then press the in the... Clock button... 24-hour notation Once12-hour notation Twice

2. Set the hour with the h button and the minutes with the

3. When the right time is displayed, press the Clock button

again to start the clock.Result :The time is displayed whenever you are not using the microwave oven.nl]X[z{lnTWZZZWhTWXluUGGwG]GG{SGhGYYSGYWXWGGXa[\Gwt7

Cooking / Reheating The following procedure explains how to cook or reheat food. ALWAYS check your cooking settings before leaving the oven unattended. First, place the food in the centre of the turntable. Then, close the door Never switch the microwave oven on when it is empty. If you wish to heat a dish for a short period of time at maximum power(900W), simply press the +30s button once for each 30 seconds of cooking time. The oven starts immediately. Power Levels You can choose among the power levels below. If you select higher power level, the cooking time must be decreased. If you select lower power level, the cooking time must be increased. Stopping the Cooking You can stop cooking at any time to check the food. You can also cancel any setting before starting by simply pressing Pause/Cancel button.

1. Press the Power Level button.

Result :The 900W (maximum cooking power) indications are displayed: Select the appropriate power level by pressing the Power Level button again until the corresponding wattage is displayed. Refer to the power level table.

2. Set the cooking time by pressing the 10 min, 1 min and

3. Press the Start button.

Result :The oven light comes on and the turntable starts rotating.1) Cooking starts and when it has finished the oven beeps four times.2) The end reminder signal will beep 3 times(once every minute).3) The current time is displayed again.Power Level OutputMWO GRILL HIGH MEDIUM HIGHMEDIUMMEDIUM LOWDEFROST LOW / KEEP WARMGRILLCOMBI ICOMBI IICOMBI III900 W600 W450 W300 W180 W100 W 600 W450 W300 W1300 W1300 W1300 W1300 W1. To stop temporarily;Open the door.Result :Cooking stops. To resume cooking, close the door and press Start again. 2. To stop completely;Press the Pause/Cancel button Result :The cooking stops. If you wish to cancel the cooking settings, press the Pause/Cancel button again.nl]X[z{lnTWZZZWhTWXluUGGwG^GG{SGhGYYSGYWXWGGXa[\Gwt8

Adjusting the Cooking Time You can increase the cooking time by pressing the +30s button once for each 30 seconds to be added. Using the Instant Reheat/Cook Feature With the Instant Reheat and Cook feature, the cooking time is set automaticallyand you do not have to press the button. You can adjust the number of servings by pressing the appropriate Instant Reheat and Cook button there quired number of times. First, place the food in the centre of the turntable and close the door. Example: Press the Drinks button three times to reheat three cups of coffee. Refer to the table on the opposite page for turther details.?Use only recipients that are microwave-safe. Use only recipients that are microwave-safe. Using the Dual Cook Feature Your Samsung microwave oven can cook two different foods at the same timeusing the Dual Cook Feature. Example: Press the Dual Cook button two times to reheat cook 2x400~450g of READYMEAL. Refer to the table below. When using Dual Cook (heating 2 levels of food), always use the rack.Always use the metal rack, which should be put on the turntable. Press the +30s button once for each 30 seconds to be added.Press the Instant Reheat and Cook button which you want the required number of times.Press the +30s button once for each 30 seconds to be added.Result :1) The oven beeps four times.2) The end reminder signal will beep 3 time (once every minute).3) The current time is displayed again, after open door and press the cancel button.

1. Place two READYMEALS in the oven, one on the

turntable and the other on the metal rack, which is placed on the turntable.

2. Press the Dual Cook button.

3. Press the +30s button once for each 30 seconds to be

Instant Reheat / Cook Settings The following table presents the various Instant Reheat & Cook Programmes, quantities, standing times and appropriate recommendations. Using the Auto Defrost Feature The Auto Defrost feature enables you to defrost meat, poultry, fish. The defrost time and power level are set automatically. You simply select the programme and the weight. Use only dishes that are microwave-safe. First, place the frozen food in the centre of the turntable and close the door. You can also defrost food manually. To do so, select the microwave cooking/reheating function with a power level of 180W. Refer to the section entitled “ Cooking/Reheating” on page 7 for further details. Code / Food Portion Standing Time Recommendations1. Drinks(Chilled)Coffee, milk, tea, water150 ml(1cup)300 ml(2cups)450 ml(3cups)600 ml(4cups)1-2 mins Pour the liquid into ceramic cups and reheat uncovered. Place 1 cup in the centre, 2 cups opposite of each other and 3 or 4 cups in a circle. Leave them to stand in the microwave oven. Stir the drinks before and after standing time and be careful while taking the cups out (see safety instructions for liquids).2. Ready Meal(Chilled)300-350 g400-450 g500-550 g3 mins. Put the meal on a ceramic plate and cover it with microwave cling film. This programme is suitable for the meals consisting of 3 compo-nents (e.g. meat with sauce, vegetables andside dishes like potatoes, rice or pasta). Dual Cook2 x 300 - 350 g2 x 400 - 450 g2 mins. Put each meal on a ceramic plate and cover it with microwave cling film. This programme is suitable for the meals consisting of 3 compo-nents (e.g. meat with sauce, vegetables and side dishes like potatoes, rice or pasta). Place one plate on the turntable and the other one the rack.4. Fresh vegetables200-250 g300-350 g400-450 g500-550 g600-650 g700-750 g3 mins. Weigh the vegetables after washing, cleaning and cutting into a similar size. Put them into a glass bowl with lid. Add 45 ml (3 tablespoons) water when cooking 200-450 g, add 60 ml (4 tablespoons) for 500-650 g and add 75 ml (5 tablespoons) for 700-750 g. Stir after cooking. (When cooking bigger quantities, stir once during cooking.)5. Chicken pieces200-300 g(1 pc)400-500 g(2 pcs)600-700 g(2-3 pcs)800-900 g(3-4 pcs) - Brush the chicken pieces with oil and spice them with pepper, salt and paprika. Put them on the high rack with the skin-side down. Turn over when the oven beeps.1. Select the type of food that you are cooking by pressing the Auto Defrost button one or more times.(Refer to the table on the next page for further details)

2. Select the food weight by pressing the Up/Down button.

It is possible to set up to a maximum of 2000g3. Press the Start button.Result : Defrosting begins. The oven beeps halfway through defrosting to remind you to turn the food over. Press Start button again to finish defrosting.nl]X[z{lnTWZZZWhTWXluUGGwG`GG{SGhGYYSGYWXWGGXa[\Gwt10

Auto Power Defrost Settings The following table presents the various Auto Power Defrost programmes, quantities, standing times and appropriate recommendations. Remove all kinds of package material before defrosting. Place meat, poultry and fish on a ceramic plate. Choosing the Heating Element Position The heating element is used when grilling. There is only one position listed. We need to tell consumers when it should be placed in the vertlcal position.

• Horizontal position for grilling or combined microwave + grill cooking Only change the position of the heating element when it is cold and do not apply excessive force when placing it in the vertical position. Choosing the Accessories Use microwave-safe recipients; do not use plastic containers, dishes, paper cups, towels, etc. For further details on suitable cookware and utensils, refer to the Cookware Guide on page 13. Code / Food Portion Standing Time Recommendations1. Meat 200 - 2000 g 20-60 min. Shield the edges with aluminium foil. Turn the meat over when the oven beeps. This programme is suitable for beef, lamb, pork, steaks, chops and minced meat.2. Poultry 200 - 2000 g 20-60 min. Shield the leg and wing tips with aluminium foil. Turn the poultry over when the oven beeps. This programme is suitable for whole chicken and chicken portions.3. Fish 200 - 2000 g 20-50 min. Shield the tail of the whole fish with aluminium foil. Turn the fish over when the oven beeps. This programme is suitable for whole fishes and fish fillets.4. Bread/ Cake 125 - 1000 g 5-20 min. Put bread on a piece of kitchen paper and turn over, as soon as the oven beeps. Place cake on a ceramic plate and if possible, turn over, as soon as the oven beeps. (Oven keeps operating and is stopped, when you open the door. This programme is suitable for all kinds of bread, sliced or whole, as well as for bread rolls and baguettes. Arrange bread rolls in a circle. This programme is suitable for all kinds of yeast cake, biscuit, cheese cake and puff pastry. It is not, suitable for short/crust pastry, fruit and cream cakes as well as for cake with chocolate topping.If you wish to select the combined cooking mode (grill and microwave), use only dishes that are microwave-safe and oven-proof. Metallic cookware or utensils may damage your oven. To set the heating element to the...Then...Horizontal position (grill or combined microwave + grill) Pull the heating element towards you Push it upwards until it is parallel with the roof of the oven When cleaning the upper part inside the cavity, it will be convenient to turn heater downward by 45° and clean it. nl]X[z{lnTWZZZWhTWXluUGGwGXWGG{SGhGYYSGYWXWGGXa[\Gwt11

Grilling The grill enables you to heat and brown food quickly, without using microwaves. To this aim, a grill rack is supplied with your microwave oven. Do not worry if the heater turns off and on while grilling. This system is designed to prevent overheating of the oven. Always use oven gloves when touching the dishes in the oven, as they will be very hot. Check that the heating element is in the horizontal position. Combining Microwave and the Grill You can also combine microwave cooking with the grill, to cook quickly and brown at the same time. ALWAYS use microwave-safe and oven-proof cookware. Glass or ceramic dishes are ideal as they allow the microwaves to penetrate the food evenly. ALWAYS use oven gloves when touching the recipients in the oven, as they will be very hot. The maximum microwave power for the combined microwave and grill mode is 600W.

1. Preheat the grill to the required temperature, by pressing the Grill button and set the preheat time by pressing the

10 min, 1 min and 10 s button.

2. Open the door and place the food on the rack.Close the door.

3. Press the Grill button.

Result :The follwing indications are displayed:

4. Set the Grilling time by pressing the 10 min, 1 min and

10 s button.The maximum grilling time is 60 minutes.

5. Press the Start button.

Result :Grill cooking start. When it has finished.1) The oven beeps four times.2) The end reminder signal will beep 3 times (once every minute).3) The current time is displayed again.1. Make sure that the heating element is in the horizontal position; refer to page 10 for further details.2. Open the oven door.Place the food on the rack and the rack on the turntable.Close the door.

3. Press the Combi button.

Result :The following indications are displayed:(microwave and grill mode)600W (out power) Select the appropriate power level by pressing the Combi button again until the corresponding power level is displayed. You cannot set the temperature of the grill.

4. Set the cooking time by pressing the 10 min, 1 min and

10 s button as required.The maximum cooking time is 60 minutes.

5. Press the Start button.

Result :Combination cooking starts. When it has finished1) The oven beeps four times.2) The end reminder signal will beep 3 times (once every minute).3) The current time is displayed again. nl]X[z{lnTWZZZWhTWXluUGGwGXXGG{SGhGYYSGYWXWGGXa[\Gwt12

Switching the Beeper Off You can switch the beeper off whenever you want. Safety-Locking Your Microwave Oven Your microwave oven is fitted with a special Child Safety programme, which enables the oven to be “locked” so that children or anyone unfamiliar with it cannot operate it accidentally. The oven can be locked at any time.

1. Press the Pause/Cancel and Start buttons at the same

time. Result : The following indication is displayed. The oven does not beep each time you press a button.

2. To switch the beeper back on, press the Pause/Cancel

and Start buttons again at the same time. Result : The following indication is displayed. The oven operates with the beeper on again.

1. Press the Pause/Cancel and Clock buttons at the same

time. Result : The oven is locked (no funtions can be selected). The display shows “L”.

2. To unlock the oven, press the Pause/Cancel and Clock

buttons again at the same time. Result : The oven can be used normally. nl]X[z{lnTWZZZWhTWXluUGGwGXYGG{SGhGYYSGYWXWGGXa[\Gwt13

Cookware Guide To cook food in the microwave oven, the microwaves must be able to penetrate the food, without being reflected or absorbed by the dish used. Care must therefore be taken when choosing the cookware. If the cookware is marked microwave-safe, you do not need to worry. The following table lists various types of cookware and indicates whether and how they should be used in a microwave oven.

:Recommended :Use Caution :Unsafe Cookware Microwave- Safe Comments Aluminium foil

Can be used in small quantities to protect areas against overcooking. Arcing can occur if the foil is too close to the oven wall or if too much foil is used. Browning plate Do not preheat for more than eight minutes. China and earthenware

Porcelain, pottery, glazed earthenware and bone china are usually suitable, unless decorated with a metal trim. Disposable polyester cardboard dishes

Some frozen foods are packaged in these dishes. Fast-food packaging

• Polystyrene cups containers

• Paper bags or newspaper

• Recycled paper or metal trims

Can be used to warm food. Overheating may cause the polystyrene to melt. May catch fire. May cause arcing. Glassware

Can be used, unless decorated with a metal trim. Can be used to warm foods or liquids. Delicate glass may break or crack if heated suddenly. Must remove the lid. Suitable for warming only. Metal

• Freezer bag twist ties

May cause arcing or fire. Paper

• Plates, cups, napkins and Kitchen paper

For short cooking times and warming. Also to absorb excess moisture. May cause arcing. Plastic

Particularly if heat-resistant thermoplastic. Some other plastics may warp or discolour at high temperatures. Do not use Melamine plastic. Can be used to retain moisture. Should not touch the food. Take care when removing the film as hot steam will escape. Only if boilable or oven-proof. Should not be airtight. Prick with a fork, if necessary. Wax or grease-proof paper

Pasta 250g 375g 900W 10-11 12-14 5 Add 1000 ml hot water. Add 2000 ml cold water. 1 Small pack (80 g) 1 Big pack (120 g) Rice : Use a large glass pyrex bowl with lid - rice doubles in volume during cooking. Cook covered. After the cooking time is over, stir before standing time and add salt or add herbs and butter. Remark: the rice may not have absorbed all water after the cooking time is finished. Pasta : Use a large glass pyrex bowl. Add boiling water, a pinch of salt and stir well. Cook uncovered. Stir occasionally during and after cooking. Cover during standi ng time and drain thoroughly afterwards.

Cooking Guide MICROWAVES Microwave energy actually penetrates food, attracted and absorbed by its water, fat and sugar content. The microwaves cause the molecules in the food to move rapidly. The rapid movement of these molecules creates friction and the resulting heat cooks the food. COOKING Cookware for microwave cooking: Cookware must allow microwave energy to pass through it for maximum efficiency. Microwaves are reflected by metal, such as stainless steel, aluminium and copper, but they can penetrate through ceramic, glass, porcelain and plastic as well as paper and wood. So food must never be cooked in metal containers. Food suitable for microwave cooking: Many kinds of food are suitable for microwave cooking, including fresh or frozen vegetables, fruit, pasta, rice, grains, beans, fish, and meat. Sauces, custard, soups, steamed puddings, preserves, and chutneys can also be cooked in a microwave oven. Generally speaking, microwave cooking is ideal for any food that would normally be prepared on a hob. Melting butter or chocolate, for example (see the chapter with tips, techniques and hints). Covering during cooking To cover the food during cooking is very important, as the evaporated water rises as steam and contributes to cooking process. Food can be covered in different ways: e.g. with a ceramic plate, plastic cover or microwave suitable cling film. Standing times After cooking is over, standing time for the food is important to allow the temperature to even out within the food. Cooking Guide for frozen vegetables Use a suitable glass pyrex bowl with lid. Cook covered for the minimum time - see table. Continue cooking to get the result you prefer. Stir twice during cooking and once after cooking. Add salt, herbs or butter after cooking. Cover during standing time. Cooking Guide for rice and pasta Food Portion Power Time (min.) Standing Time(min.) Instructions Spinach 300g 600W 9½- 10½ 2-3 Add 15 ml (1 tablespoon) cold water. Broccoli 300g 600W 8½-9½ 2-3 Add 30 ml (2 tbsp.) cold water. Peas 300g 600W 7½-8½ 2-3 Add 15 ml (1 tbsp.) cold water. Green Beans 300g 600W 8-9 2-3 Add 30 ml (2 tbsp.) cold water. Mixed Vegetables (carrots/peas/ corn) 300g 600W 7½-8½ 2-3 Add 15 ml (1 tbsp.) cold water. Mixed Vegetables (Chinese style) 300g 600W 8½-9½ 2-3 Add 15 ml (1 tbsp.) cold water. Food Portion Power Time (min.) Standing Time(min.) Instructions nl]X[z{lnTWZZZWhTWXluUGGwGX[GG{SGhGYYSGYWXWGGXa[\GwtInstant NoodleUse a glass pyrex bowl. Put the noodle and add room temperature 350 ml water in bowl. Cook covered with wrap and pierce at several times. After cooking, drain water and mix instant noodle spices.15

Cooking Guide(continued) Cooking Guide for fresh vegetables Use a suitable glass pyrex bowl with lid. Add 30-45 ml cold water (2-3 tbsp.) for every 250 g unless another water quantity is recommended - see table. Cook covered for the minimum time - see table. Continue cooking to get the result you prefer. Stir once during and once after cooking. Add salt, herbs or butter after cooking. Cover during a standing time of 3 minutes. Hint: Cut the fresh vegetables into even sized pieces. The smaller they are cut, the quicker they will cook. All fresh vegetables should be cooked using full microwave power (900 W). REHEATING Your microwave oven will reheat food in a fraction of the time that conventional ovens hobs normally take. Use the power levels and reheating times in the following chart as a guide. The times in the chart consider liquids with a room temperature of about +18 to +20°C or a chilled food with a temperature of about +5 to +7°C. Arranging and covering Avoid reheating large items such as joint of meat - they tend to overcook and dry out before the centre is piping hot. Reheating small pieces will be more successful. Power levels and stirring Some foods can be reheated using 900 W power while others should be reheated using 600 W, 450 W or even 300 W. Check the tables for guidance. In general, it is better to reheat food using a lower power level, if the food is delicate, in large quantities, or if it is likely to heat up very quickly (mince pies, for example). Stir well or turn food over during reheating for best results. When possible, stir again before serving. Take particular care when heating liquids and baby foods. To prevent eruptive boiling of liquids and possible scalding , stir before, during and after heating. Keep them in the microwave oven during standing time. We recommend putting a plastic spoon or glass stick into the liquids. Avoid overheating (and therefore spoiling) the food. It is preferable to underestimate cooking time and add extra heating time, if necessary. Heating and standing times When reheating food for the first time, it is helpful to make a note of the time taken for future reference. Always make sure that the reheated food is piping hot throughout. Allow food to stand for a short time after reheating - to let the temperature even out. The recommended standing time after reheating is 2-4 minutes, unless another time is recommended in the chart. Take particular care when heating liquids and baby food. See also the chapter with the safety precautions. REHEATING LIQUIDS Always allow a standing time of at least 20 seconds after the oven has been switched off to allow the temperature to even out. Stir during heating, if necessary, and ALWAYS stir after heating. To prevent eruptive boiling and possible scalding, you should put a spoon or glass stick into the beverages and stir before, during and after heating. Food Portion Time (min.) Standing Time (min.) Instructions Broccoli 250g 500g 3½-4 7-7½ 3 Prepare even sized florets. Arrange the stems to the centre. Brussels Sprouts 250g 5½-6 3 Add 60-75 ml (5-6 tbsp.) water. Carrots 250g 4-4½ 3 Cut carrots into even sized slices. Cauliflower 250g 500g 4-4½ 7½-8½ 3 Prepare even sized florets. Cut big florets into halves. Arrange stems to the centre. Courgettes 250g 3½-4 3 Cut courgettes into slices. Add 30 ml (2 tbsp.) water or a knob of butter. Cook until just tender. Egg Plants 250g 2½-3 3 Cut egg plants into small slices and sprinkle with 1 tablespoon lemon juice. Leeks 250g 3½-4 3 Cut leeks into thick slices. Mushrooms 125g 250g 1-1½ 2-2½ 3 Prepare small whole or sliced mushrooms. Do not add any water. Sprinkle with lemon juice. Spice with salt and pepper. Drain before serving. Onions 250g 4-4½ 3 Cut onions into slices or halves. Add only 15 ml (1 tbsp.) water. Pepper 250g 3½-4 3 Cut pepper into small slices. Potatoes 250g 500g 3-4 7-8

Turnip Cabbage 250g 350g 4½-5 3 1-2 Cut turnip cabbage into small cubes. Weigh the peeled potatoes and cut them into similar sized halves or quarters. 12½-13 Boiled Yam Peel and cut yam 3 cm thick and put on pyrex bowl. Add room temperature 250 ml water in bowl. Cook covered with wrap and pierce at several times. After cooking, drain water and serve. nl]X[z{lnTWZZZWhTWXluUGGwGX\GG{SGhGYYSGYWXWGGXa[\Gwt16

Cooking Guide(continued)

BABY FOOD: Empty into a deep ceramic plate. Cover with plastic lid. Stir well after reheating! Let stand for 2-3 minutes before serving. Stir again and check the temperature. Recommended serving temperature: between 30-40°C. BABY MILK: Pour milk into a sterilised glass bottle. Reheat uncovered. Never heat a baby's bottle with teat on, as the bottle may explode if overheated. Shake well before standing time and again before serving ! Always carefully check the temperature of baby milk or food before giving it to the baby. Recommended serving temperature: about 37°C. REMARK: Baby food particularly needs to be checked carefully before serving to prevent burns. Use the power levels and times in the next table as a guide lines for reheating. Reheating Liquids and Food Use the power levels and times in this table as a guide lines for reheating. Guide for Dual Reheating Use the power levels and times in this table as a guide lines for reheating. Food Portion Power Time (min.) Standing Time (min.) Instructions Drinks (Coffee, tea and water) 150ml (1 cup) 300ml (2 cups) 450ml (3cups) 600ml (4 cups) 900W 1-1½ 1½ -2 2½ -3 3½ -4 1-2 Pour into cups and reheat uncovered: 1 cup in the centre, 2 cups opposite of each other, 3 cups in a circle. Keep in microwave oven during standing time and stir well. Soup (chilled) 350g 450g 550g 900W 3-3½ 3½-4½ 4-5 2-3 Pour into a deep ceramic plate or deep ceramis bowl. Cover with plastic lid. Stir well after reheating. Stir again before serving. Stew (chilled) 350g 600W 5 -6 2-3 Put stew in a deep ceramic plate. Cover with plastic lid. Stir occasionally during reheating and again before standing and serving. Pasta with sauce (chilled) 350g 600W 4½ -5½ 3 Put pasta (e.g. spaghetti or egg noodles) on a flat ceramic plate. Cover with microwave cling film. Stir before serving. Filled pasta with sauce (chilled) 350g 600W 5-6 3 Put filled pasta (e.g. ravioli, tortellini) in a deep ceramic plate. Cover with plastic lid. Stir occasionally during reheating and again before standing and serving. Plated Meal (chilled) 350g 450g 550g 600W 4½ -5½ 5½ -6½ 7-8 3 Plate a meal of 2-3 chilled components on a ceramic dish. Cover with microwave cling-film. Food Portion Power Time (min.) Standing Time (min.) Instructions Chicken Curry & Rice (chilled) 2x350g 900W 6-7 3 Plate two meals of each 2 chilled components on two ceramic plates dishes. Cover with microwavecling- film. Put one plate directly on theturn table, other on the rack. Plate Meal (chilled) 2x350g 900W 5½-6½ 3 Plate two meals of 2-3 chilled com-ponents on two flat ceramic plates. Cover with microwave cling-film. Put one plate directly on the turntable, other on the rack. Food Portion Power Time (min.) Standing Time (min.) Instructions nl]X[z{lnTWZZZWhTWXluUGGwGX]GG{SGhGYYSGYWXWGGXa[\Gwt17

Cooking Guide(continued) Reheating Baby Food and Milk Use the power levels and times in this table as guide lines for reheating. DEFROSTING Microwaves are an excellent way of defrosting frozen food. Microwaves gently defrost frozen food in a short period of time. This can be of great advantage, if unexpected guests suddenly show up. Frozen poultry must be thoroughly thawed before cooking. Remove any metal ties and take it out of any wrapping to allow thawed liquid to drain away. Put the frozen food on a dish without cover. Turn over half way, drain off any liquid and remove any giblets as soon as possible. Check the food occasionally to make sure that it does not feel warm. If smaller and thinner parts of the frozen food start to warm up, they can be shield by wrapping very small strips of aluminium foil around them during defrosting. Should poultry start to warm up on the outer surface, stop thawing and allow it to stand for 20 minutes before continuing. Leave the fish, meat and poultry to stand in order to complete defrosting. The standing time for complete defrosting will vary depending on the quantity defrosted. Please refer to the table below. Hint: Flat food defrosts better than thick and smaller quantities need less time than bigger ones. Remember this hint while freezing and defrosting food. For defrosting of frozen food with a temperature of about -18 to - 20 °C, use the following table as a guide. Food Portion Power Time Standing Time (min.) Instructions Baby food (vegetables + meat) 190g 600W 30sec. 2-3 Empty into ceramic deep plate. Cook covered. Stir after cooking time. Stand for 2-3 minutes. Before serving, stir well and check the temperature carefully. Baby porridge (grain + milk + fruit) 190g 600W 20sec. 2-3 Empty into ceramic deep plate. Cook covered. Stir after cooking time. Stand for 2-3 minutes. Before serving, stir well and check the temperature carefully. Baby milk 100ml 200ml 300W 30-40sec. 1 min. to 1min. 10 sec 2-3 Stir or shake well and pour into a sterilised glass bottle. Place into the centre of turn- table. Cook uncovered. Shake well and stand for at least 3 minutes. Before serving, shake well and check the temperature carefully. nl]X[z{lnTWZZZWhTWXluUGGwGX^GG{SGhGYYSGYWXWGGXa[\Gwt18

Cooking Guide(continued) All frozen food should be defrosted using defrosting power level (180 W). GRILL The grill-heating element is located underneath the ceiling of the cavity. It operates while the door is closed and the turntable is rotating. The turntable's rotation makes the food brown more evenly. Preheating the grill for 4 minutes will make the food brown more quickly. Cookware for grilling: Should be flameproof and may include metal. Do not use any type of plastic cookware, as it can melt. Food suitable for grilling: Chops, sausages, steaks, hamburgers, bacon and gammon rashers, thin fish portions, sandwiches and all kinds of toast with toppings. IMPORTANT REMARK: Whenever the grill only mode is used, make sure that the grill-heating element is under the ceiling in the horizontal position and not on the back-wall in the vertical position. Please remember that food must be placed on the high rack, unless another instruction is recommended. MICROWAVE + GRILL This cooking mode combines the radiant heat that is coming from the grill with the speed of microwave cooking. It operates only while the door is closed and the turntable is rotating. Due to the rotation of the turntable, the food browns evenly. Three combination modes are available with this model: 600 W + Grill, 450 W + Grill and 300 W + Grill. Cookware for cooking with microwave + grill Please use cookware that microwaves can pass through. Cookware should be flameproof. Do not use metal cookware with combination mode. Do not use any type of plastic cookware, as it can melt. Food suitable for microwave + grill cooking: Food suitable for combination mode cooking include all kinds of cooked food which need reheating and browning (e.g. baked pasta), as well as foods which require a short cooking time to brown the top of the food. Also, this mode can be used for thick food portions that benefit from a browned and crispy top (e.g. chicken pieces, turning them over half way through cooking). Please refer to the grill table for further details. IMPORTANT REMARK: Whenever the combination mode (microwave + grill) is used, make sure that the grill heating element is under the ceiling in the horizontal position and not on the back-wall in the vertical position. The food should be placed on the high rack, unless another instruction is recommended. Otherwise it has to be placed directly on the turntable. Please refer to the instructions in the following chart. The food must be turned over, if it is to be browned on both sides. Food Portion Time (min.) Standing Time (min.) Instructions Meat Minced beef 200g 400g 7½ -8½ 14-16 5-30 Place the meat on a flat ceramic plate. Shield thinner edges with aluminium foil. Turn over after half of defrosting time! Poultry Chicken pieces Whole chicken 500g (2 pcs) 1000g 16-18 31-33 15-60 First, put chicken pieces first skin-side down, whole chicken first breast-side-down on a flat ceramic plate. Shield the thinner parts like wings and ends with aluminium foil. Turn over after half of defrosting time! Fish Fish fillets/ Whole fish 200g 400g 7-8 14-15 10-25 Put frozen fish in the middle of a flat ceramic plate. Arrange the thinner parts under the thicker parts. Shield narrow ends with aluminium foil. Turn over after half of defrosting time! Fruits Berries 250g 7½ -8½ 5 - 10 Spread fruits on a flat, round glass dish (with a large diameter). Bread Bread rolls (each ca 50 g) Toast/ Sandwich 2 pcs 4 pcs 250g ½-2 3-3½ 6-6½

5 - 20 Arrange rolls in a circle or

bread horizontally on kitchen paper in the middle of turntable. Turn over after half of defrosting time! nl]X[z{lnTWZZZWhTWXluUGGwGX_GG{SGhGYYSGYWXWGGXa[\Gwt19

Cooking Guide(continued) Grill Guide for fresh food Preheat the grill with the grill-function for 4 minutes. Use the power levels and times in this table as guide lines for grilling. Fresh Food Portion Power 1. Side Time (min)

Time (min.) Instructions Toast Slices 4 pcs (each 25g) Grill only 4-5 3½-4½ Put the toast slices side by side on the rack. Bread Rolls (already baked) 2-4 pieces Grill only 2-3 1-2 Put bread rolls first with the bottom side up on the rack. Grilled Bread (chilled) 200g (1pc) 400g (4pcs) 300 W + Grill 5-6 -- Put the baguette diagonally on baking paper on the rack. After grilling stand for 2-3 minutes. Grilled Tomatoes 200g (2pc) 400g (4pc) 300 W + Grill 4½-5½ 7½-8½ -- Cut tomatoes into halves. Put some cheese on top. Arrange in a circle in a flat glass pyrex dish. Place it on the rack. Tomato- Cheese Toast 4pc (300g) 300 W + Grill 5-6 -- Toast the bread slices first. Put the toast with topping on the rack. Stand for 2-3 minutes. Toast Hawaii (pineapple, ham, cheese slices) 2 pcs (300g) 300 W + Grill 6-7 -- Toast the bread slices first. Put the toast with topping on the rack. Put 2 toasts opposite directly on the rack. Stand for 2-3 minutes. Baked Potatoes 250g 500g 600 W + Grill 4½-5½ 6½-7½ -- Cut potatoes into halves. Put them in a circle on the rack with the cut side to the grill. Gratin Potatoes/ vegetables (chilled) 400g 450 W + Grill 13-15 -- Put the fresh gratin into a small glass pyrex dish. Put the dish on the rack. After cooking stand for 2-3 minutes. Chicken Pieces 850g(4 pc) 450 W + Grill 11-12 9-10 Brush chicken pieces with oil and spices. Put them in a circle with the bones to the middle. Stand for 2-3 minutes. Lamb Chops (medium) 400g (4pc) Grill only 13-15 12-14 Brush the lamb chops with oil and spices. Lay them in a circle on the rack. After grilling stand for 2-3 minutes. Baked Apples 2 apples (ca. 400g) 450 W + Grill 6-7 -- Core the apples and fill them with raisins and jam. Put some almond slices on top. Put apples on a flat glass pyrex dish. Place the dish on the rack. Fresh Food Portion Power 1. Side Time (min)

Cooking Guide(continued) SPECIAL HINTS MELTING BUTTERPut 50 g butter into a small deep glass dish. Cover with plastic lid.Heat for 30-40 seconds using 900 W, until butter is melted.MELTING CHOCOLATEPut 100 g chocolate into a small deep glass dish.Heat for 3-5 minutes, using 450 W until chocolate is melted.Stir once or twice during melting. Use oven gloves while taking out!MELTING CRYSTALLIZED HONEYPut 20 g crystallized honey into a small deep glass dish.Heat for 20-30 seconds using 300 W, until honey is melted.MELTING GELATINELay dry gelatine sheets (10 g) for 5 minutes into cold water.Put drained gelatine into a small glass pyrex bowl.Heat for 1 minute using 300 W.Stir after melting.COOKING GLAZE/ICING (FOR CAKE AND GATEAUX)Mix instant glaze (approximately 14 g) with 40 g sugar and 250 ml cold water.Cook uncovered in a glass pyrex bowl for 3 ½ to 4 ½ minutes using 900 W,until glaze/icing is transparent. Stir twice during cooking.COOKING JAMPut 600 g fruits (for example mixed berries) in a suitable sized glasspyrex bowl with lid. Add 300 g preserving sugar and stir well.Cook covered for 10-12 minutes using 900 W.Stir several times during cooking. Empty directly into small jamglasses with twist-off lids. Stand on lid for 5 minutes.COOKING PUDDINGMix pudding powder with sugar and milk (500 ml) by following themanufacturers instructions and stir well. Use a suitable sized glass pyrexbowl with lid. Cook covered for 6 ½ to 7 ½ minutes using 900 W.Stir several times well during cooking.BROWNING ALMOND SLICESSpread 30 g sliced almonds evenly on a medium sized ceramic plate.Stir several times during browning for 3 ½ to 4 ½ minutes using 600 W.Let it stand for 2-3 minutes in the oven. Use oven gloves while taking out! Cleaning Your Microwave Oven The following parts of your microwave oven should be cleaned regularly to prevent grease and food particles from building up:

• Inside and outside surfaces

• Turntable and Roller rings ALWAYS ensure that the door seals are clean and the door closes properly. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the of the appliance and possibly result in a hazardous situation.

1. Clean the outside surfaces with a soft cloth and warm, soapy water.Rinse and

2. Remove any splashes or stains on the inside surfaces or on the roller ring with

a soapy cloth. Rinse and dry.3. To loosen hardened food particles and remove smells, place a cup of diluted lemon juice on the turntable and heat for ten minutes at maximum power.4. Wash the dishwasher-safe plate whenever necessary. DO NOT spill water in the vents. NEVER use any abrasive products or chemical solvents.Take particular care when cleaning the door seals to ensure that no particles:

• Prevent the door from closing correctly Clean the microwave oven cavity right after each use with a mild detergent solution, but let the microwave oven cool down before cleaning in order to avoid injury. When cleaning the upper part inside the cavity, it will be convenient to turn heater downward by 45° and clean it.nl]X[z{lnTWZZZWhTWXluUGGwGYWGG{SGhGYYSGYWXWGGXa[\Gwt21

Storing and Repairing Your Microwave Oven A few simple precautions should be taken when storing or having your microwave oven serviced. The oven must not be used if the door or door seals are damaged:

• Distorted or bent oven casing Only a qualified microwave service technician should perform repair NEVER remove the outer casing from the oven. If the oven is faulty and needs servicing or you are in doubt about its condition:

• Unplug it from the wall socket

• Contact the nearest after-sales service centre If you wish to store your oven away temporarily, choose a dry, dust-free place. Reason: Dust and damp may adversely affect the working parts in the oven. This microwave oven is not intended for commercial use. Technical Specifications SAMSUNG strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice. Model GE614ST / GE614WPower source230V ~ 50 HzPower consumptionMicrowave Grill Combined mode1500 W1300 W2800 WOutput power100 W/900 W - 6 Level (IEC-705)Operating frequency2450 MHzMagnetronOM75P(31)Cooling methodCooling fan motorDimensions (W x H x D)Outside Oven cavity556 x 313 x 450 mm375 x 262 x 392 mmVolume40 literWeight Net 20 kg approxnl]X[z{lnTWZZZWhTWXluUGGwGYXGG{SGhGYYSGYWXWGGXa[\Gwt22
