Product type	Combination microwave (microwave + grill)
Brand	Samsung
Model	MG402MADXBB
Power supply	230 V - 50 Hz
Input power (microwave)	1500 W
Microwave output power	900 W (6 levels: 100/180/300/450/600/900 W)
Grill power	1300 W
Combined microwave + grill power	2800 W (max)
Operating frequency	2450 MHz
Capacity	40 liters
External dimensions (W x H x D)	555 x 313 x 459 mm
Internal dimensions (W x H x D)	375 x 262 x 392 mm
Net weight	19 kg
Control type	Electronic with digital display
Turntable	Yes, removable
Main functions	Cook/Reheat, Auto Defrost, Grill, Combination cooking, Dual cook, Instant Reheat/Cook, +30s, Child lock
Sound signal off	Yes, possible
Maintenance and cleaning	External cleaning with soft cloth and soapy water; interior with lemon water; turntable dishwasher safe
Safety	Child lock, auto shut-off when empty, anti-spark protection
Included accessories	Guide ring, turntable, metal rack
Warranty	Standard manufacturer warranty (excluding service travel for explanations)

Frequently Asked Questions - MG402MADXBB SAMSUNG

How to set the microwave clock?

To set the clock, press the Clock button once or twice depending on the desired format (12h or 24h). Use the h and min buttons to set the time. Press Clock again to confirm.

How to use the auto defrost function?

Place frozen food in the oven. Press Auto Defrost several times to select the category (meat, poultry, fish, bread). Set the weight with the Up/Down buttons (max 2000 g). Press Start. Turn the food over when the beep sounds.

How to grill food?

Preheat the grill by pressing Grill, set the preheat time (3-4 min recommended) and press Start. Place the food on the rack, close the door, press Grill, set the cooking time (max 60 min) and start with Start. Use oven mitts as the dish becomes very hot.

What to do if sparks occur inside the oven?

Sparks (arcing) can be caused by metal containers, gold/silver decorations, or aluminum foil too close to the walls. Immediately stop the oven and remove any metal objects. Use only microwave-safe utensils.

How to clean the microwave oven?

Clean the exterior with a soft cloth and warm soapy water. For the interior, place a cup of lemon water and heat for 10 minutes at full power to loosen residues. The turntable is dishwasher safe. Wipe the door seals regularly.

How to activate the child lock?

Press the Pause/Cancel and Clock buttons simultaneously. The 'L' symbol appears on the screen. To deactivate, press the same combination again.

Which containers can I use in this microwave?

Use containers made of glass, ceramic, porcelain without metal decorations, microwave-safe plastic, paper towels. Avoid metal, large amounts of aluminum foil, and paper bags or newspaper. For combination mode, containers must withstand the heat of the grill.

How to set the cooking power?

Press Power Level several times to cycle through levels: 900 W (high), 600 W, 450 W, 300 W, 180 W (defrost), 100 W. Select the desired level, then set the time with the 10 min, 1 min, and 10 s buttons. Start with Start.

How to stop the cooking in progress?

To pause momentarily, open the door. To resume, close the door and press Start. To cancel completely, press Pause/Cancel once or twice depending on the step.

Why is my oven not heating?

Check that the door is properly closed. Make sure the time and power are set. Check the circuit breaker or fuse. If the oven was used empty, it may have shut off automatically for 30 minutes. Contact customer service if the problem persists.

USER MANUAL MG402MADXBB SAMSUNG

Diagram of a microwave oven with labeled components and internal structure, showing open door, oven, and control panel.

1. القرص الدوار

٨ أداة التدوير

Labeled diagram of a microwave oven with numbered components for identification

1. ORIFICES DE VENTILATION
2. GRIL
3. ÉCLAIRAGE
4. ÉCRAN
5. LOQUETS DE LA PORTE

6. PORTE

7. PLATEAU TOURNANT

8.COUPLEUR

1. ANNEAU DE GUIDAGE

2. ORIFICES DU SYSTÈME DE VERROUILLAGE DE SÉCURITÉ

11.BOUTON-POUSSOIR D'OUVERTURE DE LA PORTE

1. TABLEAU DE COMMANDE

TABLEAU DE COMMANDE

1 2 3 4 5 6 7 Auto Defrost - 1. Heat 0. Fan 3. Laundry 4. Bread/Cats Weight + Instant Runout & Cook Drinks Ready Meats Dual Cook Fresh Vegetables Chicken Pieces Grill Comb 1: 2: 3 5 min 1 min 10 s Power Level Clock Pause/ Cancel + 30 s Start grill 8 9 10 11

1. FONCTION DE DECONGELATION AUTOMATIQUE
2. BOUTON HAUT/BAS (poids)
3. SÉLECTION DE LA CUISSON ET DU RÉCHAUFFAGE IMMÉDIATS
4. SÉLECTION DU MODE GRIL
5. RÉGLAGE DU TEMPS

6. SÉLECTION DU MODE MICRO-ONDES/PUISSANCE

7. BOUTON PAUSE/ANNULER

8. SÉLECTION DU MODE DE CUISSON COMBINÉE
9. RÉGLAGE DE L'HORLOGE
10. BOUTON +30s
11. BOUTON DÉPART

ACCESSOIRES

DES QUESTIONS OU DES COMMENTAIRES?

PAYS	TÉLÉPHONE	OU SUR INTERNET
U.A.E 800-SAMSUNG (726-7864)		www.samsung.com/ae/support (English)www.samsung.com/ae_ar/support (Arabic)
OMAN 800-SAMSUNG(726-7864)
KUWAIT 183-2255 (183-CALL)
BAHRAIN 8000-4726
QATAR 800-2255 (800-CALL)
EGYPT 08000-72678616580		www.samsung.com/eg/support
ALGERIA 021 36 11 00		www.samsung.com/n_africa/support
PAKISTAN 0800-Samsung (72678)		www.samsung.com/pk/support
TUNISIA 80-1000-12		www.samsung.com/n_africa/support
JORDAN	0800-2227306 5777444	www.samsung.com/Levant/support (English)
SYRIA	18252273
IRAN	021-8255	www.samsung.com/iran/support
MOROCCO	080 100 2255	www.samsung.com/n_africa/support
SAUDI ARABIA	920021230	www.samsung.com/sa/supportwww.samsung.com/sa_en/support (English)
TURKEY	444 77 11	www.samsung.com/tr/support
NIGERIA	0800-726-7864	www.samsung.com/africa_en/support
GHANA	0800-100770302-200077
Cote D’ Ivoire	8000 0077	www.samsung.com/africa_fr/support
SENEGAL	800-00-0077
CAMEROON	7095-0077
KENYA	0800 545 545	www.samsung.com/support
UGANDA	0800 300 300
TANZANIA 0685 88 99 00
RWANDA 9999
BURUNDI	200
DRC	499999
SUDAN 1969
SOUTH AFRICA	0860 SAMSUNG (726 7864)
BOTSWANA	8007260000
NAMIBIA	08 197 267 864
ZAMBIA	0211 350370
MOZAMBIQUE	847267864 / 827267864

DE68-04085C-02

MG402MADXBB

Microwave Oven

Owner's Instructions & Cooking Guide

imagine the possibilities

Thank you for purchasing this Samsung product.

Please be advised that the Samsung warranty does NOT cover service calls to explain product operation, correct improper installation, or perform normal cleaning or maintenance.

100% Recycled Paper

This manual is made with 100% recycled paper.

CONTENTS QUICK LOOK-UP GUIDE

Quick look-up guide 2
Oven 3
Control panel....4
Accessories....4
Using this instruction booklet....5
Important safety information 5
Legend for symbols and icons....5
Precautions to avoid possible exposure to excessive microwave energy. .5
Installing your microwave oven 9
Setting the time....9
What to do if you are in doubt or have a problem....10
Cooking/Reheating....10
Power levels 11
Adjusting the cooking time....11
Stopping the cooking 11
Using the instant reheat/cook feature ....12
Using the dual cook feature....12
Instant reheat/cook settings....13
Using the auto defrost feature....14
Auto power defrost settings....14
Choosing the heating element position....15
Choosing the accessories....15
Grilling 15
Switching the beeper off....16
Safety-locking your microwave oven....16
Combining microwave and the grill 16
Cookware guide....17
Cooking guide....18
Cleaning your microwave oven 25
Storing and repairing your microwave oven....26
Technical specifications 26

If you want to cook some food.

1. Place the food in the oven. Select the power level by pressing the Power Level button one or more times.
2. Select the cooking time by pressing the 10 min, 1 min or 10 s button as required.
3. Press the Start button.
   Result: Cooking starts. The oven beeps four times when cooking is over.

If you want to auto defrost some food.

1. Place the frozen food in the oven. Select the type of food that you are cooking by pressing the Auto Defrost button one or more times.

2. Select the food weight by pressing the Up/Down button.

3. Press the Start button.

If you want to add extra 30 seconds.

Leave the food in the oven. Press +30s one or more times for each extra 30 seconds that you wish to add.

Power Level x 18 min min 1 min 10% Start

If you want to grill some food.

1. Preheat the grill to the required temperature, by pressing the Grill button, time setting (10 min, 1 min and 10 s button) and Start button.
2. Place the food on the rack in the oven. Press the Grill button. Select the cooking time by pressing the 10 min, 1 min and 10 s buttons.
3. Press the Start button.

OVEN

1 2 3 4 5 6 7 8 9 10 11 12

1. VENTILATION HOLES
2. GRILL
3. LIGHT
4. DISPLAY
5. DOOR LATCHES
6. DOOR

7.TURNTABLE
8.COUPLER
9. ROLLER RING
10. SAFETY INTERLOCK HOLES
11. OPEN DOOR PUSH BUTTON
12. CONTROL PANEL

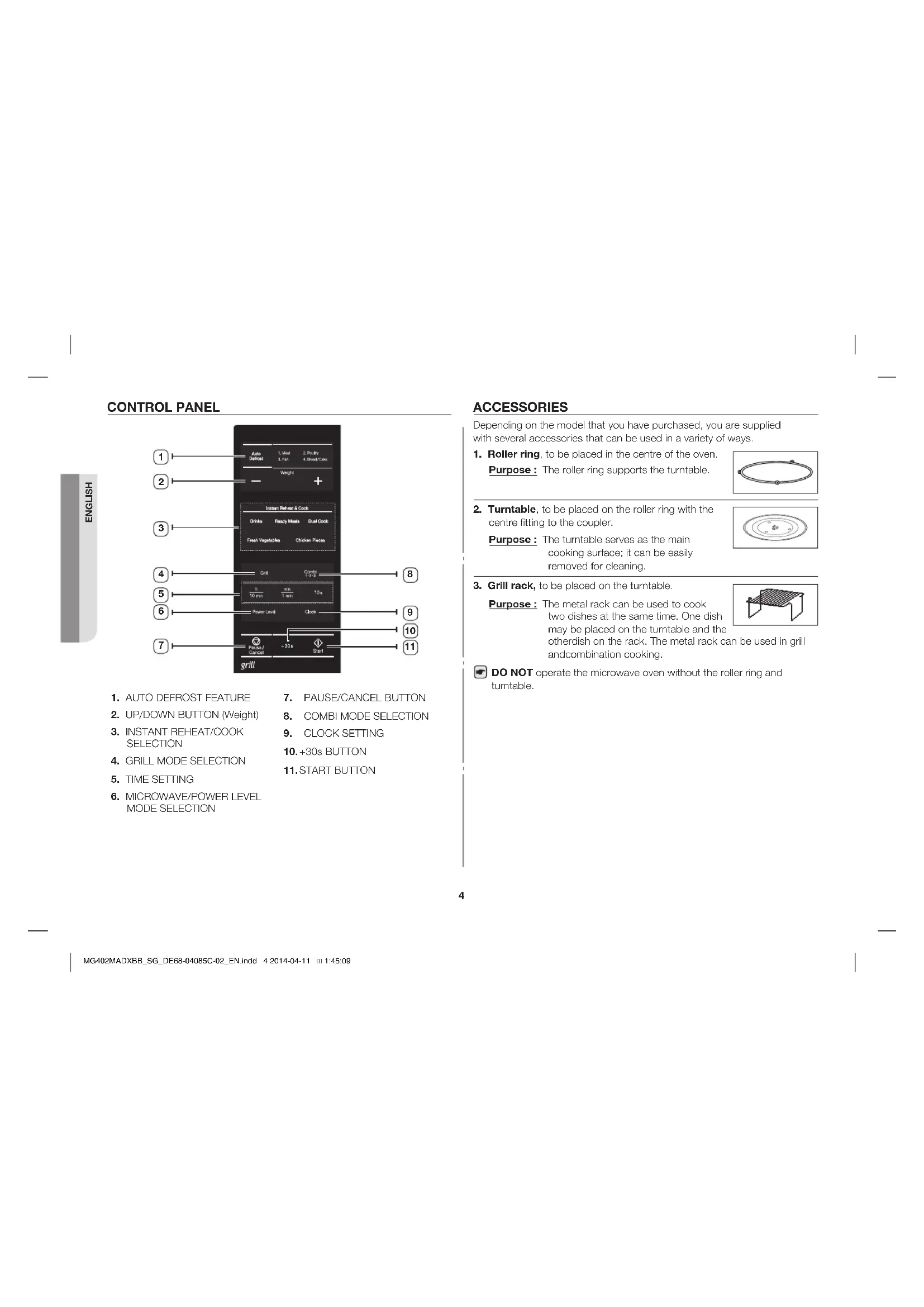

CONTROL PANEL

1 2 3 4 5 6 7 Auto Deferral 1. Max 2. Min 3. Proday 4. Bread Plate Weight + Instant Refresh & Cook Drinks Ready Meats Dual Cook Fresh Vegetables Chicken Pieces Grill Comb 10 min 10 min Power Level Clock + 30 s Start Puzzle/ Cancel grill

1. AUTO DEFROST FEATURE
2. UP/DOWN BUTTON (Weight)
3. INSTANT REHEAT/COOK SELECTION
4. GRILL MODE SELECTION
5. TIME SETTING

6. MICROWAVE/POWER LEVEL MODE SELECTION

7. PAUSE/CANCEL BUTTON

8. COMBI MODE SELECTION
9. CLOCK SETTING
   10.+30s BUTTON
10. START BUTTON

ACCESSORIES

Depending on the model that you have purchased, you are supplied with several accessories that can be used in a variety of ways.

1. Roller ring, to be placed in the centre of the oven.

Purpose: The roller ring supports the turntable.

1. Turntable, to be placed on the roller ring with the centre fitting to the coupler.

Purpose: The turntable serves as the main cooking surface; it can be easily removed for cleaning.

1. Grill rack, to be placed on the turntable.

Purpose: The metal rack can be used to cook two dishes at the same time. One dish may be placed on the turntable and the other dish on the rack. The metal rack can be used in grill and combination cooking.

DO NOT operate the microwave oven without the roller ring and turntable.

USING THIS INSTRUCTION BOOKLET

You have just purchased a SAMSUNG microwave oven. Your Owner's Instructions contain valuable information on cooking with your microwave oven:

• Safety precautions
• Suitable accessories and cookware
  • Useful cooking tips
• Cooking tips

IMPORTANT SAFETY INFORMATION

IMPORTANT SAFETY INSTRUCTIONS.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Before using the oven, confirm that the following instructions are followed.

• Use this appliance only for its intended purpose as described in this instruction manual. Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your appliance.
• Because these following operating instructions cover various models, the characteristics of your microwave oven may differ slightly from those described in this manual and not all warning signs may be applicable. If you have any questions or concerns, contact your nearest service centre or find help and information online at www.samsung.com.
• This microwave oven is supposed for heating food. It is intended for domestic home-use only. Do not heat any type of textiles or cushions filled with grains, which could cause burns and fire. The manufacturer cannot be held liable for damage caused by improper or incorrect use of the appliance.
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possible result in a hazardous situation.

LEGEND FOR SYMBOLS AND ICONS

WARNING

CAUTION

Hazards or unsafe practices that may result in severe personal injury or death.

Hazards or unsafe practices that may result in minor personal injury or property damage.

Warning; Fire hazard Warning; Hot surface

Warning; Electricity Warning; Explosive material
Do NOT attempt. Follow directions explicitly.
Do NOT disassemble. Unplug the power plug from the wall socket.
Do NOT touch. Important Make sure the machine is grounded to prevent electric shock.
Call the service center for help. Note

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY.

Failure to observe the following safety precautions may result in harmful exposure to microwave energy.

(a) Under no circumstances should any attempt be made to operate the oven with the door open or to tamper with the safety interlocks (door latches) or to insert anything into the safety interlock holes.
(b) Do NOT place any object between the oven door and front face or allow food or cleaner residues to accumulate on sealing surfaces. Ensure that the door and door sealing surfaces are kept clean by wiping after use first with a damp cloth and then with a soft dry cloth.
(c) Do NOT operate the oven if it is damaged until it has been repaired by a qualified microwave service technician trained by the manufacturer. It is particularly important that the oven door closes properly and that there is no damage to the:

(1) Door (bent)
(2) Door hinges (broken or loose)
(3) Door seals and sealing surfaces

(d) The oven should not be adjusted or repaired by anyone other than a properly qualified microwave service technician trained by the manufacturer.

Samsung will charge a repair fee for replacing an accessory or repairing a cosmetic defect if the damage to the unit and/or damage to or loss of the accessory was caused by the customer. Items this stipulation covers include:

(a) A Dented, Scratched, or Broken Door, Handle, Out-Panel, or Control Panel.

(b) A Broken or missing Tray, Guide Roller, Coupler, or Wire Rack.

IMPORTANT SAFETY INSTRUCTIONS

Make sure that these safety precautions are obeyed at all times.

WARNING
	Only qualified staff should be allowed to modify or repair the microwave oven.	√	√	√
	Do not heat liquids and other food in sealed containers for microwave function.	√	√	√
	For your safety, do not use high-pressure water cleaners or steam jet cleaners.	√	√	√
	Do not install this appliance; near heater, inflammable material; in a humid, oily or dusty location, in a location exposed to direct sunlight and water or where gas may leak; on un level ground.	√	√	√
	This appliance must be properly grounded in accordance with local and national codes.	√	√	√
	Remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth on a regular basis.	√	√	√
	Do not pull or excessively bend or place heavy objecton the power cord.	√	√	√
	In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate immediately without touching the power plug.	√	√	√
	Do not touch the power plug with wet hands.	√	√	√
	Do not turn the appliance off by unplugging the power plug while an operation is in progress.	√	√	√
	Do not insert fingers or foreign substances, If any foreign substance such as water has entered the appliance, unplug the power plug and contact your nearest service centre.	√	√	√
	Do not apply excessive pressure or impact to the appliance.	√	√	√
	Do not place the oven over a fragile object such as a sink or glass object. (Counter top model only)	√	√

	Do not use benzene, thinner, alcohol, steam cleaner or high pressure cleaner to clean the appliance.	√	√	√	√
	Ensure that the power voltage, frequency and current are the same as those of the product specifications.	√	√		√
	Plug the power plug into the wall socket firmly. Do not use a multiple plug adapter, an extension cord or an electric transformer.	√	√	√
	Do not hook the power cord on a metal object, insert the power cord between the objects or behind the oven.	√	√	√
	Do not use a damaged power plug, damaged power cord or loose wall socket. When the power plug or power cord is damaged, contact your nearest service centre.	√	√	√	√
	Appliances are not intended to be operated by means of an external timer or separate remote-control system.	√	√
	Do not pour or directly spray water onto the oven.	√	√
	Do not place objects on the oven, inside or on the door of the oven.	√	√	√
	Do not spray volatile material such as insecticide onto the surface of the oven.	√	√
	Children should be supervised to ensure that they do not play with the appliance	√	√	√	√
	The appliance is not intended for installing in road vehicles, caravans and similar vehicles etc.	√	√	√	√
	Do not store flammable materials in the oven. Take special care when heating dishes or drinks that contain alcohol as alcohol vapours may contact a hot part of the oven.	√		√	√
	The microwave oven is intended to be used on the counter or counter top use only, the microwave oven shall not be placed in a cabinet. (Counter top model only)	√	√	√	√
	WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.	√	√	√	√

WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.	√	√	√	√
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.	√	√	√	√
WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.	√	√	√	√
WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.	√	√	√	√
WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.	√	√	√
WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.	√		√	√
WARNING: Accessible parts may become hot during use. To avoid burns young children should be kept away.	√		√
WARNING: Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container; To prevent this situation ALWAYS allow a standing time of at least 20 seconds after the oven has been switched off so that the temperature can equalize. Stir during heating, if necessary, and ALWAYS stir after heating.In the event of scalding, follow these FIRST AID instructions:Immerse the scalded area in cold water for at least 10 minutes.Cover with a clean, dry dressing.Do not apply any creams, oils or lotions.	√	√	√	√

	Do not put the tray or rack in water shortly after cooking because it may cause breakage or damage of the tray or rack.			√
	Do not operate the microwave oven for deep fat frying because the oil temperature cannot be controlled. This could result in a sudden boil over of the hot liquid.	√		√
	During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.	√		√
	WARNING: The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns;		√
	The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.	√	√	√
	This oven should be positioned proper direction and height permitting easy access to cavity and control area.	√	√	√
	Before using the your oven first time, oven should be operated with the water during 10 minute and then used.	√	√	√
	This microwave oven has to be positioned so that plug is accessible. If the oven generates a strange noise, a burning smell, or smoke is emitted, unplug the power plug immediately and contact your nearest service center.	√	√	√
	during cleaning conditions the surfaces may get hotter than usual and children should be kept away (Cleaning function model only)		√	√
	Excess spillage must be removed before cleaning and utensils, which state in cleaning manual can be left in the oven during cleaning. (Cleaning function model only)	√	√	√
	Appliance should allow to disconnection of the appliance from the supply after installation. The disconnection may be achieved by having the plug accessible or by incorporating a switch in the fixed wiring in accordance with the wiring rules. (Built-in model only.)	√	√	√
	If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.	√
	WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.	√
	The temperature of accessible surfaces may be high when the appliance is operating.	√
	The door or the outer surface may get hot when the appliance is operating.	√

CAUTION
	Only use utensils that are suitable for use in microwave ovens;DO NOT use any metallic containers, Dinnerware with gold or silver trimmings, Skewers, forks, etc.Remove wire twist ties from paper or plastic bags.Reason: Electric arcing or sparking may occur and may damage the oven.	√		√	√
	When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition;	√		√
	Do not use your microwave oven to dry papers or clothes.	√		√	√
	Use shorter times for smaller amounts of food to prevent overheating and burning food.	√		√	√
	If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames;	√		√	√
	The oven should be cleaned regularly and any food deposits removed;	√	√		√
	Do not immerse the power cable or power plug in water and keep the power cable away from heat.	√	√

	Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended. Also do not heat airtight or vacuum-sealed bottles, jars, containers, nuts inshells, tomatoes etc.		√	√
	Do not cover the ventilation slots with cloth or paper. They may catch fire as hot air escapes from the oven. The oven may also overheat and switch itself off automatically, and will remain off until it cools sufficiently.	√	√
	Always use oven mitts when removing a dish from the oven to avoid unintentional burns.		√
	Do not touch heating elements or interior oven walls until the oven has cooled down.		√
	Stir liquids halfway during heating or after heating ends and allow the liquid stand at least 20 seconds after heating to prevent eruptive boiling.		√
	Stand at arms length from the oven when opening the door to avoid getting scalded by escaping hot air or steam.		√
	Do not operate the microwave oven when it is empty. The microwave oven will automatically shut down for 30 minutes for safety purposes. We recommend placing a glass of water inside the oven at all times to absorb microwave energy in case the microwave oven is started accidentally.	√		√
	Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.	√		√
	Install the oven in compliance with the clearances stated in this manual (see Installing Your Microwave Oven)	√	√
	Take care when connecting other electrical appliances to sockets near the oven.	√	√	√

Place the oven on a flat level surface 85cm above the floor. The surface should be strong enough to safety bear the weight of the oven.

1. When you install your oven, make sure there is adequate ventilation for your oven by leaving at least 10 cm (4 inches) of space behind and, on the sides of the oven and 20 cm (8 inches) of space above.

1. Remove all packing materials inside the oven. Install the roller ring and turntable. Check that the turntable rotates freely.

1. This microwave oven has to be positioned so that plug is accessible.

If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent. For your personal safety, plug the cable into a 3-pin, 230 Volt, 50 Hz, AC earthed socket. If the power cable of this appliance is damaged, it must be replaced by a special cable.
Do not install the microwave oven in hot or damp surroundings like next to a traditional oven or radiator. The power supply specifications of the oven must be respected and any extension cable used must be of the same standard as the power cable supplied with the oven. Wipe the interior and the door seal with a damp cloth before using your microwave oven for the first time.

SETTING THE TIME

Your microwave oven has an inbuilt clock. When power is supplied, "0", "88:88" or "12:00" is automatically displayed on the display. Please set the current time. The time can be displayed in either the 24-hour or 12-hour notation. You must set the clock;

- When you first install your microwave oven - After a power failure

Do not forget to reset the clock when you switch to and from summer and winter time.

1. To display the time in the...

24-hour notation

12-hour notation

Then press the Clock (button once or twice.

1. Set the hour with the h button and the minutes with the min button.
2. When the right time is displayed, press the Clock button again to start the clock.

Result: The time is displayed whenever you are not using the microwave oven.

WHAT TO DO IF YOU ARE IN DOUBT OR HAVE A PROBLEM

If you have any of the problems listed below try the solutions given.

This is normal.

• Condensation inside the oven.
• Air flow around the door and outer casing.
• Light reflection around the door and outer casing.
• Steam escaping from around the door or vents.

The oven does not start when you press the Start button.

• Is the door completely closed?

The food is not cooked at all.

• Have you set the timer correctly and/or pressed the Start button?
• Is the door closed?
- Have you overloaded the electric circuit and caused a fuse to blow or a breaker to be triggered?

The food is either overcooked or undercooked.

• Was the appropriate cooking length set for the type of food?
• Was an appropriate power level chosen?

Sparking and cracking occur inside the oven (arcing).

• Have you used a dish with metal trimmings?
• Have you left a fork or other metal utensil inside the oven?
• Is aluminum foil too close to the inside walls?

The oven causes interference with radios or televisions.

• Slight interference may be observed on televisions or radios when the oven is operating. This is normal. To solve this problem, install the oven away from televisions, radios and aerials.
• If interference is detected by the oven's microprocessor, the display may be reset. To solve this problem, disconnect the power plug and reconnect it. Reset the time.

The light bulb is not working.

- The Light bulb should not be replaced in person for safety reasons. Please contact nearest authorised Samsung customer care, to arrange for a qualified engineer to replace the bulb.

Smoke and bad smell when initial operating.

- It's a temporary condition by new component heating. Smoke and smell will disappear completely after 10 minutes operation. To remove smell more quickly, please operate microwave oven with putting lemon formation or lemon juice in the cabinet.

If the above guidelines do not enable you to solve the problem, then contact your local SAMSUNG customer service centre. Please have the following information read;

• The model and serial numbers, normally printed on the rear of the oven
• Your warranty details
  • A clear description of the problem

Then contact your local dealer or SAMSUNG aftersales service.

COOKING/REHEATING

The following procedure explains how to cook or reheat food. ALWAYS check your cooking settings before leaving the oven unattended. First, place the food in the centre of the turntable. Then, close the door.

1. Press the Power Level button.

Result: The 900 W (maximum cooking power) indications are displayed:

Select the appropriate power level by pressing the Power Level button again until the corresponding wattage is displayed. Refer to the power level table.

1. Set the cooking time by pressing the 10 min, 1 min and 10 s button.

1. Press the Start button.

Result: The oven light comes on and the turntable starts rotating.

1) Cooking starts and when it has finished the oven beeps four times.

2) The end reminder signal will beep 3 times(once every minute).
3) The current time is displayed again.

Never switch the microwave oven on when it is empty.
If you wish to heat a dish for a short period of time at maximum power (900 W), simply press the +30s button once for each 30 seconds of cooking time. Then press start button.

POWER LEVELS
You can choose among the power levels below.

Power level	Output
	MWO GRILL
HIGH 900 W -
MEDIUM HIGH 600 W -
MEDIUM 450 W -
MEDIUM LOW 300 W -
DEFROST (###)	180 W -
LOW/KEEP WARM 100 W -
GRILL - 1300 W
COMBI I (###)	600 W 1300 W
COMBI II (###)	450 W 1300 W
COMBI III (###)	300 W 1300 W

If you select higher power level, the cooking time must be decreased.
If you select lower power level, the cooking time must be increased.

ADJUSTING THE COOKING TIME

You can increase the cooking time by pressing the +30s button once for each 30 seconds to be added. Press the +30s button once for each 30 seconds to be added.

STOPPING THE COOKING

You can stop cooking at any time to check the food.

1. To stop temporarily; Open the door.

Result: Cooking stops. To resume cooking, close the door and press Start again.

1. To stop completely; Press the Pause/Cancel button.

Result: The cooking stops. If you wish to cancel the cooking settings, press the Pause/Cancel button again.

You can also cancel any setting before starting by simply pressing Pause/Cancel button.

USING THE INSTANT REHEAT/COOK FEATURE

With the Instant Reheat and Cook feature, the cooking time is set automatically and you do not have to press the button. You can adjust the number of servings by pressing the appropriate Instant Reheat and Cook button there quired number of times.

First, place the food in the centre of the turntable and close the door.

1. Press the Instant Reheat and Cook button which you want the required number of times.

1. Press the Start button.

Result :

1) The oven beeps four times.
2) The end reminder signal will beep 3 time (once every minute).
3) The current time is displayed again, after open door and press the cancel button.

Example: Press the Drinks button three times to reheat three cups of coffee. Refer to the table on the opposite page for further details. Use only recipients that are microwave-safe.

Use only recipients that are microwave-safe.

USING THE DUAL COOK FEATURE

Your Samsung microwave oven can cook two different foods at the same time using the Dual Cook Feature.

1. Place two READYMEALS in the oven, one on the turntable and the other on the metal rack, which is placed on the turntable.

1. Press the Dual Cook button.

1. Press the Start button.

Result: When it has finished:

1) The oven beeps four times.
2) The end reminder signal will beep 3 time (once every minute).
3) The current time is displayed again.

Example: Press the Dual Cook button two times to reheat cook 2 x 400\~450 g of READYMEAL. Refer to the table below.

When using Dual Cook (heating 2 levels of food), always use the rack. Always use the metal rack, which should be put on the turntable.

INSTANT REHEAT/COOK SETTINGS
The following table presents the various Instant Reheat & Cook Programmes, quantities, standing times and appropriate recommendations.

Code/Food Portion Standing		time	Recommendations
1. Drinks (Chilled) Coffee, Milk, Tea, Water	150 ml (1 cup) 300 ml (2 cups) 450 ml (3 cups) 600 ml (4 cups)	1-2 min. Pour the liquid into ceramic cups and reheat uncovered. Place 1 cup in the centre, 2 cups opposite of each other and 3 or 4 cups in a circle. Leave them to stand in the microwave oven. Stir the drinks before and after standing time and be careful while taking the cups out (see safety instructions for liquids).
2. Chilled Ready Meal	300-350 g 400-450 g 500-550 g	3 min. Put the meal on a ceramic plate and cover it with microwave cling film. This programme is suitable for the meals consisting of 3 compo-nents (e.g. meat with sauce, vegetables andside dishes like potatoes, rice or pasta).
3. Dual Cook 2 x	300 - 350 g 2 x 400 - 450 g	2 min. Put each meal on a ceramic plate and cover it with microwave cling film. This programme is suitable for the meals consisting of 3 compo-nents (e.g. meat with sauce, vegetables and side dishes like potatoes, rice or pasta). Place one plate on the turntable and the other one the rack.

Code/Food Portion Standing		time	Recommendations
4. Fresh Vegetables	200-250 g300-350 g400-450 g500-550 g600-650 g700-750 g	3 min. Weigh the vegetables after washing, cleaning and cutting into a similar size. Put them into a glass bowl with lid. Add 45 ml (3 tablespoons) water when cooking 200-450 g, add 60 ml (4 tablespoons) for 500-650 g and add 75 ml (5 tablespoons) for 700-750 g. Stir after cooking. (When cooking bigger quantities, stir once during cooking.)
5. Chicken Pieces	200-300 g(1 pc)400-500 g(2 pcs)600-700 g(2-3 pcs)800-900 g(3-4 pcs)	- Brush the chicken pieces with oil and spice them with pepper, salt and paprika. Put them on the high rack with the skin-side down. Turn over when the oven beeps.

USING THE AUTO DEFROST FEATURE

The Auto Defrost feature enables you to defrost meat, poultry, fish.

The defrost time and power level are set automatically

You simply select the programme and the weight.

Use only dishes that are microwave-safe.

First, place the frozen food in the centre of the tumtable and close the door.

1. Select the type of food that you are cooking by pressing the Auto Defrost button one or more times. (Refer to the table on the next page for further details)

1. Select the food weight by pressing the Up/Down button. It is possible to set up to a maximum of 2000 g.

1. Press the Start button.

Result :

• Defrosting begins.
- The oven beeps halfway through defrosting to remind you to turn the food over.
- Press Start button again to finish defrosting.

You can also defrost food manually. To do so, select the microwave cooking/reheating function with a power level of 180 W. Refer to the section entitled "Cooking/Reheating" on page 10 for further details.

AUTO POWER DEFROST SETTINGS

The following table presents the various Auto Power Defrost programmes, quantities, standing times and appropriate recommendations. Remove all kinds of package material before defrosting. Place meat, poultry and fish on a ceramic plate.

Code/ Food	Serving size Standing Time	Recommendations
1. Meat 200-2000 g 20-60 min. Shield the edges with aluminium foil.Turn the meat over when the oven beeps. This programme is suitable for beef, lamb, pork, steaks, chops and minced meat.
2. Poultry 200-2000 g 20-60 min. Shield the leg and wing tips with aluminium foil. Turn the poultry over when the oven beeps. This programme is suitable for whole chicken and chicken portions.
3. Fish 200 2000 g 20-50 min. Shield the tail of the whole fish with aluminium foil. Turn the fish over when the oven beeps. This programme is suitable for whole fishes and fish fillets.
4. Bread/ Cake 125-1000 g 5-20 min. Put bread on a piece of kitchen paper and turn over, as soon as the oven beeps. Place cake on a ceramic plate and if possible, turn over, as soon as the oven beeps. (Oven keeps operating and is stopped, when you open the door. This programme is suitable for all kinds of bread, sliced or whole, as well as for bread rolls and baguettes. Arrange bread rolls in a circle. This programme is suitable for all kinds of yeast cake, biscuit, cheese cake and puff pastry. It is not, suitable for short/crust pastry, fruit and cream cakes as well as for cake with chocolate topping.

CHOOSING THE HEATING ELEMENT POSITION

The heating element is used when grilling. There is only one position listed. We need to tell consumers when it should be placed in the vertical position.

• Horizontal position for grilling or combined microwave + grill cooking.

Only change the position of the heating element when it is cold and do not apply excessive force when placing it in the vertical position.

To set the heating element to the...	Then...
Horizontal position (grill or combined microwave + grill).	Pull the heating element towards you.Push it upwards until it is parallel with the roof of the oven.

When cleaning the upper part inside the cavity, it will be convenient to turn heater downward by 45° and clean it.

CHOOSING THE ACCESSORIES

Use microwave-safe recipients; do not use plastic containers, dishes, paper cups, towels, etc.

If you wish to select the combined cooking mode (grill and microwave), use only dishes that are microwave-safe and oven-proof.

For further details on suitable cookware and utensils, refer to the Cookware Guide on page 19.

GRILLING

The grill enables you to heat and brown food quickly, without using microwaves. To this aim, a grill rack is supplied with your microwave oven.

1. Preheat the grill to the required temperature, by pressing the Grill button and set the preheat time by pressing the 10 min, 1 min and 10 s button.

1. Open the door and place the food on the rack. Close the door.

1. Press the Grill button. Result: The following indications are displayed:

1. Set the Grilling time by pressing the 10 min, 1 min and 10 s button. The maximum grilling time is 60 minutes.

1. Press the Start button. Result: Grill cooking start. When it has finished.

1) The oven beeps four times.
2) The end reminder signal will beep 3 times (once every minute).
3) The current time is displayed again.

Do not worry if the heater turns off and on while grilling. This system is designed to prevent overheating of the oven.
Always use oven gloves when touching the dishes in the oven, as they will be very hot.
Check that the heating element is in the horizontal position.

COMBINING MICROWAVE AND THE GRILL

You can also combine microwave cooking with the grill, to cook quickly and brown at the same time.

ALWAYS use microwave-safe and oven-proof cookware. Glass or ceramic dishes are ideal as they allow the microwaves to penetrate the food evenly.

ALWAYS use oven gloves when touching the recipients in the oven, as they will be very hot.

1. Make sure that the heating element is in the horizontal position; refer to page 15 for further details.

1. Open the oven door. Place the food on the rack and the rack on the turntable. Close the door.

1. Press the Combi button.

Result: The following indications are displayed: Combi (microwave and grill mode) 600 W (out power)

Select the appropriate power level by pressing the Combl button again until the corresponding power level is displayed.

You cannot set the temperature of the grill.

1. Set the cooking time by pressing the 10 min, 1 min and 10 s button as required. The maximum cooking time is 60 minutes.

1. Press the Start button.

Result: Combination cooking starts. When it has finished.

1) The oven beeps four times.
2) The end reminder signal will beep 3 times (once every minute).
3) The current time is displayed again.

The maximum microwave power for the combined microwave and grill mode is 600 W.

SWITCHING THE BEEPER OFF

You can switch the beeper off whenever you want.

1. Press the Pause/Cancel and Start buttons at the same time.

Result :

• The following indication is displayed.

- The oven does not beep each time you press a button.

1. To switch the beeper back on, press the Pause/Cancel and Start buttons again at the same time.

Result :

• The following indication is displayed.

• The oven operates with the beeper on again.

Your microwave oven is fitted with a special Child Safety programme, which enables the oven to be "locked" so that children or anyone unfamiliar with it cannot operate it accidentally.

The oven can be locked at any time.

1. Press the Pause/Cancel and Clock buttons at the same time.

Result :

• The oven is locked (no functions can

be selected).

• The display shows "L".

1. To unlock the oven, press the Pause/Cancel and Clock buttons again at the same time.

Result: The oven can be used normally.

COOKWARE GUIDE

To cook food in the microwave oven, the microwaves must be able to penetrate the food, without being reflected or absorbed by the dish used. Care must therefore be taken when choosing the cookware. If the cookware is marked microwave-safe, you do not need to worry. The following table lists various types of cookware and indicates whether and how they should be used in a microwave oven.

Cookware Microwave-safe	Comments
Aluminum foil	√ ×Can be used in small quantities to protect areas against overcooking.Arcing can occur if the foil is too close to the oven wall or if too much foil is used.
Browning plate	√Do not preheat for more than eight minutes.
China and earthenware	√Porcelain, pottery, glazed earthenware and bone china are usually suitable, unless decorated with a metal trim.
Disposable polyester cardboard dishes	√Some frozen foods are packaged in these dishes.
Fast-food packaging
Polystyrene cups containers	√Can be used to warm food.Overheating may cause the polystyrene to melt.
Paper bags or newspaper	×May catch fire.
Recycled paper or metal trims	×May cause arcing.
Glassware
Oven-to-tableware	√Can be used, unless decorated with a metal trim.
Fine glassware	√Can be used to warm foods or liquids. Delicate glass may break or crack if heated suddenly.

Cookware Microwave- safe	Comments
Glass jars	√ Must remove the lid. Suitable for warming only.
MetalDishesFreezer bag twist ties	✗ May cause arcing or fire.
	✗
PaperPlates, cups, napkins and kitchen paperRecycled paper	√ For short cooking times and warming. Also to absorb excess moisture.May cause arcing.
	✗
PlasticContainersCling filmFreezer bags	√ Particularly if heat-resistant thermoplastic. Some other plastics may warp or discolour at high temperatures. Do not use Melamine plastic.Can be used to retain moisture.Should not touch the food. Take care when removing the film as hot steam will escape.Only if boilable or oven-proof.Should not be airlight. Prick with a fork, if necessary.
	√
	√ ✗
Wax or grease-proof paper	√ Can be used to retain moisture and prevent spattering.

√ : Recommended

√X : Use Caution

x : Unsafe

COOKING GUIDE

MICROWAVES

Microwave energy actually penetrates food, attracted and absorbed by its water, fat and sugar content.

The microwaves cause the molecules in the food to move rapidly. The rapid movement of these molecules creates friction and the resulting heat cooks the food.

COOKING

Cookware for microwave cooking:

Cookware must allow microwave energy to pass through it for maximum efficiency. Microwaves are reflected by metal, such as stainless steel, aluminium and copper, but they can penetrate through ceramic, glass, porcelain and plastic as well as paper and wood. So food must never be cooked in metal containers.

Food suitable for microwave cooking:

Many kinds of food are suitable for microwave cooking, including fresh or frozen vegetables, fruit, pasta, rice, grains, beans, fish, and meat. Sauces, custard, soups, steamed puddings, preserves, and chutneys can also be cooked in a microwave oven. Generally speaking, microwave cooking is ideal for any food that would normally be prepared on a hob. Melting butter or chocolate, for example (see the chapter with tips, techniques and hints).

Covering during cooking

To cover the food during cooking is very important, as the evaporated water rises as steam and contributes to cooking process. Food can be covered in different ways: e.g. with a ceramic plate, plastic cover or microwave suitable cling film.

Standing times

After cooking is over food the standing time is important to allow the temperature to even out within the food.

Cooking Guide for frozen vegetables

Use a suitable glass pyrex bowl with lid. Cook covered for the minimum time - see table. Continue cooking to get the result you prefer. Stir twice during cooking and once after cooking. Add salt, herbs or butter after cooking. Cover during standing time.

Food Portion Power Time		(min.)	Standing time (min.)	Instructions
Spinach 300 g 600 W 912 -10 12 2-3 Add	15 ml (1			tablespoon) cold water.
Broccoli 300 g 600 W 812 -9 12 2-3 Add 30 ml (2				tbsp.) cold water.
Peas 300 g 600 W 712 -8 12 2-3 Add 15 ml (1				tbsp.) cold water.
Green beans 300 g 600 W 8-9 2-3 Add 30 ml (2				tbsp.) cold water.
Mixed vegetables (carrots/peas/com)	300 g 600 W 712 -8 12	2-3 Add 15 ml (1		tbsp.) cold water.
Mixed vegetables (chinese style)	300 g 600 W 812 -9 12	2-3 Add 15 ml (1		tbsp.) cold water.

Cooking Guide for rice and pasta

Rice: Use a large glass pyrex bowl with lid - rice doubles in volume during cooking. Cook covered. After the cooking time is over, stir before standing time and salt or add herbs and butter. Remark: the rice may not have absorbed all water after the cooking time is finished.

Pasta: Use a large glass pyrex bowl. Add boiling water, a pinch of salt and stir well. Cook uncovered. Stir occasionally during and after cooking. Cover during standing time and drain thoroughly afterwards.

Food Portion Power Time			(min.)	Standing time (min.)	Instructions
White rice (parboiled)	250 g 900 W 14-15 5 Add 500 ml cold water.
	375 g 16 12 -17 12 Add 750 ml cold water.
Brown rice (parboiled)	250 g 900 W 19-20 5 Add 500 ml cold water.
	375 g Add 750 ml cold water.
Mixed rice (rice + wild rice)	250 g 900 W 15-16 5 Add 500 ml cold water.
	375 g 17 12 -18 12 Add 750 ml cold water.
Mixed corn (rice + grain)	250 g 900 W 16-17 5 Add 400 ml cold water.
	375 g 20-21 Add 550 ml cold water.
Pasta	250 g 900 W 10-11 5 Add 1000 ml hot water.
	375 g 12-14 Add 2000 ml cold water.
Indomie 1 Small pack (80 g) 1 Big pack (120 g)		900 W 7 12 -8 10-10 12		-	Use a glass pyrex bowl. Put the noodle and add room temperature 350 ml water in bowl. Cook covered with wrap and pierce at several times. After cooking, drain water and mix indomie spices.

Cooking Guide for fresh vegetables

Use a suitable glass pyrex bowl with lid. Add 30-45 ml cold water (2-3 tbsp.) for every 250 g unless another water quantity is recommended - see table. Cook covered for the minimum time - see table. Continue cooking to get the result you prefer. Stir once during and once after cooking. Add salt, herbs or butter after cooking.

Cover during a standing time of 3 minutes.

Hint: Cut the fresh vegetables into even sized pieces. The smaller they are cut, the quicker they will cook.

All fresh vegetables should be cooked using full microwave power (900 W).

Food	Portion	Time (min.)	Standing time (min.)	Instructions
Broccoli 250 g	500 g	3 12 -47-7 12	3	Prepare even sized florets.Arrange the stems to the centre.
Brussels sprouts	250 g	5 12 -6 12 3		Add 60-75 ml (5-6 tbsp.) water.
Carrots	250 g	4-4 12	3	Cut carrots into oven sized slices.
Cauliflower	250 g500 g	4-4 12 7 12 -8 12	3	Prepare even sized florets. Cut big florets into halves. Arrange stems to the centre.
Courgettes	250 g	3 12 -4	3	Cut courgettes into slices. Add 30 ml (2 tbsp.) water or a knob of butter. Cook until just tender.
Egg plants	250 g	2 12 -3	3	Cut egg plants into small slices and sprinkle with 1 tablespoon lemon juice.
Leeks	250 g	3 12 -4	3	Cut leeks into thick slices.
Mushrooms 125 g	250 g	1-1 12 2-2 12	3	Prepare small whole or sliced mushrooms. Do not add any water. Sprinkle with lemon juice. Spice with salt and pepper. Drain before serving.
Onions	250 g	4-4 12	3	Cut onions into slices or halves.Add only 15 ml (1 tbsp.) water.
Pepper	250 g	3 12 -4	3	Cut pepper into small slices.
Potatoes	250 g500 g	3-47-8	3	Weigh the peeled potatoes and cut them into similar sized halves or quarters.
Turnip cabbage	250 g	4 12 -5	3	Cut turnip cabbage into small cubes.

Food Portion Time	(min.)	Standing time (min.)	Instructions
Boiled Yam 350 g	12 12 -13	1-2	Peel and cut yarn 3 cm thick and put on pyrex bowl. Add room temperature 250 ml water in bowl. Cook covered with wrap and pierce at several times. After cooking, drain water and serve.

REHEATING

Your microwave oven will reheat food in a fraction of the time that conventional ovens hobs normally take.

Use the power levels and reheating times in the following chart as a guide. The times in the chart consider liquids with a room temperature of about +18 to +20 °C or a chilled food with a temperature of about +5 to +7 °C.

Arranging and covering

Avoid reheating large items such as joint of meat – they tend to overcook and dry out before the centre is piping hot. Reheating small pieces will be more successful.

Power levels and stirring

Some foods can be reheated using 900 W power while others should be reheated using 600 W, 450 W or even 300 W.

Check the tables for guidance. In general, it is better to reheat food using a lower power level, if the food is delicate, in large quantities, or if it is likely to heat up very quickly (mince pies, for example).

Stir well or turn food over during reheating for best results. When possible, stir again before serving.

Take particular care when heating liquids and baby foods. To prevent eruptive boiling of liquids and possible scalding, stir before, during and after heating. Keep them in the microwave oven during standing time. We recommend putting a plastic spoon or glass stick into the liquids. Avoid overheating (and therefore spoiling) the food.

It is preferable to underestimate cooking time and add extra heating time, if necessary.

Heating and standing times

When reheating food for the first time, it is helpful to make a note of the time taken – for future reference.

Always make sure that the reheated food is piping hot throughout.

Allow food to stand for a short time after reheating - to let the temperature

even out.

The recommended standing time after rehealing is 2-4 minutes, unless another time is recommended in the chart.

Take particular care when heating liquids and baby food. See also the chapter with the safety precautions.

REHEATING LIQUIDS

Always allow a standing time of at least 20 seconds after the oven has been switched off to allow the temperature to even out. Stir during heating, if necessary, and ALWAYS stir after heating. To prevent eruptive boiling and possible scalding, you should put a spoon or glass stick into the beverages and stir before, during and after heating.

REHEATING BABY FOOD

BABY FOOD: Empty into a deep ceramic plate. Cover with plastic lid. Stir well after reheating!

Let stand for 2-3 minutes before serving. Stir again and check the temperature.

Recommended serving temperature: between 30-40 °C.

BABY MILK: Pour milk into a sterilised glass bottle. Reheat uncovered. Never heat a baby's bottle with teat on, as the bottle may explode if overheated. Shake well before standing time and again before serving! Always carefully check the temperature of baby milk or food before giving it to the baby. Recommended serving temperature: ca. 37 °C.

REMARK: Baby food particularly needs to be checked carefully before serving to prevent burns.

Use the power levels and times in the next table as a guide lines for reheating.

Reheating baby food and milk
Use the power levels and times in this table as guide lines for reheating.

Food Portion	Power	Time	Standing	time (min.)	Instructions
Baby Food (Vegetables + Meat)	190 g	600 W	30 sec. 2-3	Empty into ceramic deep plate. Cook covered. Stir after cooking time. Stand for 2-3 minutes.Before serving, stir well and check the temperature carefully.
Baby Porridge (Grain + Milk + Fruit)	190 g	600 W	20 sec. 2-3	Empty into ceramic deep plate. Cook covered. Stir after cooking time. Stand for 2-3 minutes.Before serving, stir well and check the temperature carefully.
Baby Milk	100 ml200 ml	300 W	30-40 sec. 1 min. to 1 min. 10 sec	2-3	Stir or shake well and pour into a sterilized glass bottle. Place into the centre of turn table. Cook uncovered. Shake well and stand for at least 3 minutes.Before serving, shake well and check the temperature carefully.

Reheating Liquids and Food
Use the power levels and times in this table as a guide lines for reheating.

Food Portion	Power Time		(min.)	Standing time (min.)	Instructions
Drinks(coffee, tea and water)	150ml(1 cup)300ml(2 cups)450ml(3 cups)600ml(4 cups)	900 W 1-1 12 1-2 Pour into cups and 1 12 -22 12 -33 12 -4	1 12 -22 12 -33 12 -4	reheat uncovered: 1cup in the centre, 2cups opposite of each other, 3 cups in a circle.Keep in microwave oven during standing time and stir well.
Soup(chilled)	350 g 900 W 3-3 12 450 g 3 12 -4 12 550 g 4-5	2-3 Pour intoa deep			ceramic plate or deepceramis bowl.Cover with plastic lid.Stir well after reheating.Stir again before serving.
Stew(chilled)	350 g 600 W 5-6 2-3Put stew intra deep				ceramic plate.Cover with plastic lid.Stir occasionally during reheating and again before standing and serving.
Pasta with sauce(chilled)	350 g 600 W 4 12 -5 12 3 Put pasta(e.g. spaghetti or egg noodles) on a fiat ceramic plate. Cover with microwave cling film. Stir before serving.
Filled pastawith sauce(chilled)	350 g 600 W 5-6 3Put filled pasta(e.g.				ravioli, tortellini) in adeep ceramic plate.Cover with plastic lid.Stir occasionally during reheating and again before standing and serving.

ENGLISH

Food Portion	Power Time	(min.)	Standing time (min.)	Instructions
Plated Meal(chilled)	350 g 600 W 412 -5450 g 512 - 612 550 g 7-8	12 Plate a meal of 2-3		chilled components on a ceramic dish.Cover with microwave cling-film.
Chicken Curry& Rice(chilled)	2x350 g 900 W 6-7	8 Plate two meals of each		2 chilled components on two ceramic plates dishes. Cover with microwave clingfilm.Put one plate directly on the turn table, other on the rack.
Plate Meal(chilled)	2x350 g 900 W 512 - 612 3			Plate two meals of 2-3 chilled com-ponents on two flat ceramic plates. Cover with microwave cling-film. Put one plate directly on the turntable, other on the rack.

MANUAL DEFROSTING

Microwaves are an excellent way of defrosting frozen food. Microwaves gently defrost frozen food in a short period of time. This can be of great advantage, if unexpected guests suddenly show up.

Frozen poultry must be thoroughly thawed before cooking. Remove any metal ties and take it out of any wrapping to allow thawed liquid to drain away.

Put the frozen food on a dish without cover. Turn over half way, drain off any liquid and remove any giblets as soon as possible.

Check the food occasionally to make sure that it does not feel warm. If smaller and thinner parts of the frozen food start to warm up, they can be shield by wrapping very small strips of aluminium foil around them during defrosting.

Should poultry start to warm up on the outer surface, stop thawing and allow it to stand for 20 minutes before continuing.

Leave the fish, meat and poultry to stand in order to complete defrosting. The standing time for complete defrosting will vary depending on the quantity defrosted. Please refer to the table below.

Hint: Flat food defrosts better than thick and smaller quantities need less time than bigger ones. Remember this hint while freezing and defrosting food.

For defrosting of frozen food with a temperature of about -18 to -20 °C, use the following table as a guide.

All frozen food should be defrosted using defrosting power level (180 W).

Food Portion Time		(min.)	Standing time (min.)	Instructions
MeatMinced beef 200 g	400 g	7 12 -8 12 14-16	5-30 Place	the meat on a flat ceramic plate. Shield thinner edges with aluminium foil. Tum over after half of defrosting time!
PoultryChicken pieces 500 gWhole chicken 1000 g	(2 pcs)g 31-33	16-18 15	60 First, put	chicken piecesfirst skin-side down, whole chicken first breast-side-down on a flat ceramic plate.Shield the thinner partslike wings and ends with aluminium foil. Turn over after half of defrosting time!
FishFish fillets/Whole fish	200 g 7-8400 g 14-15	10-25 Put	frozen fish in the middle	of a flat ceramic plate.Arrange the thinner parts under the thicker parts.Shield narrow ends with aluminium foil. Turn over after half of defrosting time!
FruitsBerries 250 g 7 12 -8 12	5-10 Spread fruits on a flat, round			glass dish (with a large diameter).
BreadBread rolls (each ca 50 g)Toast/Sandwich 250 g 6-6 12	2 pcs4 pcs	12 -23-3 12	5-20 Arrange rolls in a circle or bread horizontally on kitchen paper in the middle of turntable. Tum over after half of defrosting time!

GRILL

The grill-heating element is located underneath the ceiling of the cavity. It operates while the door is closed and the turntable is rotating. The turntable's rotation makes the food brown more evenly. Preheating the grill for 3-4 minutes will make the food brown more quickly.

Cookware for grilling:

Should be flameproof and may include metal. Do not use any type of plastic cookware, as it can melt.

Food suitable for grilling:

Chops, sausages, steaks, hamburgers, bacon and gammon rashers, thin fish portions, sandwiches and all kinds of toast with toppings.

Important remark:

Whenever the grill only mode is used, make sure that the grill-heating element is under the ceiling in the horizontal position and not on the back-wall in the vertical position. Please remember that food must be placed on the high rack, unless another instruction is recommended.

MICROWAVE + GRILL

This cooking mode combines the radiant heat that is coming from the grill with the speed of microwave cooking. It operates only while the door is closed and the turntable is rotating. Due to the rotation of the turntable, the food browns evenly. Three combination modes are available with this model: 600 W + Grill, 450 W + Grill and 300 W + Grill.

Cookware for cooking with microwave + grill

Please use cookware that microwaves can pass through. Cookware should be flameproof. Do not use metal cookware with combination mode. Do not use any type of plastic cookware, as it can melt.

Food suitable for microwave + grill cooking:

Food suitable for combination mode cooking include all kinds of cooked food which need reheating and browning (e.g. baked pasta), as well as foods which require a short cooking time to brown the top of the food. Also, this mode can be used for thick food portions that benefit from a browned and crispy top (e.g. chicken pieces, turning them over half way through cooking). Please refer to the grill table for further details.

Important remark:

Whenever the combination mode (microwave + grill) is used, make sure that the grill heating element is under the ceiling in the horizontal position and not on the back-wall in the vertical position. The food should be placed on the high rack, unless another instruction is recommended. Otherwise it has to be placed directly on the turntable. Please refer to the instructions in the following chart.

The food must be turned over, if it is to be browned on both sides.

ENGLISH
Grill Guide for fresh food
Preheat the grill with the grill-function for 3-4 minutes. Use the power levels and times in this table as guide lines for grilling.

Fresh food Portion Power		1st side	time(min.)	2nd side time(min.)	Instructions
Toast slices 4 pcs(each 25 g)		Grill only	4-5 312	412 Put the	toast slices side by side on the rack.
Bread rolls(already baked)	2-4 pieces Grill only		2-3 1-2	Put bread rolls first withthe bottom side up onthe rack.
Grilled Bread(chilled)	200 g(1 pc)400 g(4 pcs)	300 W+ Grill	5-6 - Put the baguette	diagonally on bakingpaper on the rack.After grilling stand for2-3 minutes.
Grilledtomatoes	200 g(2 pcs)400 g(4 pcs)	300 W+ Grill	412-512 - 712-812	Cut tomatoes intohalves. Put somecheese on top. Arrangein a circle in a flat glasspyrox dish. Place it onthe rack.
TomatoCheese Toast	4 pcs(300 g)	300 W+ Grill	5-6 - Toast the bread slicesfirst. Put the toast withtopping on the rack.Stand for 2-3 minutes.
Toast hawaii(pineapple,ham, cheeseslices)	2 pcs(300 g)	300 W+ Grill	6-7 - Toast the bread slicesfirst. Put the toast withtopping on the rack.Put 2 toasts oppositedirectly on the rack.Stand for 2-3 minutes.
Bakedpotatoes	250 g 600W+ Grill500 g 612-712		412-512 -	Cut potatoes intohalves. Put them in acircle on the rack withthe cut side to the grill.

Fresh food Portion Power		1st side	time(min.)	2nd side time(min.)	Instructions
Gratin Potatoes/vegetables(chilled)	400 g 450	W+ Grill	13-15 -	Put the fresh	gratin intoa small glass pyrex dish.Put the dish on the rack.After cooking stand for2-3 minutes.
Chicken pieces	850 g(4 pcs)	450 W+ Grill	11-12 9	10 Brush chicken pieceswith oil and spices. Put them in a circle with the bones to the middle.Stand for 2-3 minutes.
Lamb Chops(medium)	400 g(4 pcs)	Grill only	13-15 12	14 Brush the lamb chopswith oil and spices. Lay them in a circle on the rack. After grilling stand for 2-3 minutes.
Baked Apples	2 apples(ca. 400 g)	450 W+ Grill	6-7 -	Core the apples and fill them with raisins and jam. Put some almond slices on top.Put apples on a flat glass pyrex dish. Place the dish on the rack.

SPECIAL HINTS

MELTING BUTTER

Put 50 g butter into a small deep glass dish. Cover with plastic lid. Heat for 30-40 seconds using 900 W, until butter is melted.

MELTING CHOCOLATE

Put 100 g chocolate into a small deep glass dish. Heat for 3-5 minutes, using 450 W until chocolate is melted. Stir once or twice during melting. Use oven gloves while taking out!

MELTING CRYSTALLIZED HONEY

Put 20 g crystallized honey into a small deep glass dish. Heat for 20-30 seconds using 300 W until honey is melted.

MELTING GELATINE

Lay dry gelatine sheets (10 g) for 5 minutes into cold water. Put drained gelatine into a small glass pyrex bowl. Heat for 1 minute using 300 W. Stir after melting.

COOKING GLAZE/ICING (FOR CAKE AND GATEAUX)

Mix instant glaze (approximately 14 g) with 40 g sugar and 250 ml cold water. Cook uncovered in a glass pyrex bowl for 3½ to 4½ minutes using 900 W, until glaze/icing is transparent. Stir twice during cooking.

COOKING JAM

Put 600 g fruits (for example mixed berries) in a suitable sized glass pyrex bowl with lid. Add 300 g preserving sugar and stir well. Cook covered for 10-12 minutes using 900 W. Stir several times during cooking. Empty directly into small jam glasses with twist-off lids. Stand on lid for 5 minutes.

COOKING PUDDING

Mix pudding powder with sugar and milk (500 ml) by following the manufacturers instructions and stir well. Use a suitable sized glass pyrex bowl with lid. Cook covered for 6½ to 7½ minutes using 900 W. Stir several times well during cooking.

BROWNING ALMOND SLICES

Spread 30 g sliced almonds evenly on a medium sized ceramic plate. Stir several times during browning for 3½ to 4½ minutes using 600 W. Let it stand for 2-3 minutes in the oven. Use oven gloves while taking out!

The following parts of your microwave oven should be cleaned regularly to prevent grease and food particles from building up:

• Inside and outside surfaces
• Door and door seals
• Turntable and Roller rings

ALWAYS ensure that the door seals are clean and the door closes properly.
Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

1. Clean the outside surfaces with a soft cloth and warm, soapy water. Rinse and dry.

2. Remove any splashes or stains on the inside surfaces or on the roller ring with a soapy cloth. Rinse and dry.

3. To loosen hardened food particles and remove smells, place a cup of diluted lemon juice on the turntable and heat for ten minutes at maximum power.

4. Wash the dishwasher-safe plate whenever necessary.

DO NOT spill water in the vents. NEVER use any abrasive products or chemical solvents. Take particular care when cleaning the door seals to ensure that no particles:

• Accumulate
  • Prevent the door from closing correctly

Clean the microwave oven cavity right after each use with a mild detergent solution, but let the microwave oven cool down before cleaning in order to avoid injury.

When cleaning the upper part inside the cavity, it will be convenient to turn heater downward by 45^ and clean it.

STORING AND REPAIRING YOUR MICROWAVE OVEN

A few simple precautions should be taken when storing or having your microwave oven serviced.

The oven must not be used if the door or door seals are damaged:

- Broken hinge

• Deteriorated seals

• Distorted or bent oven casing

Only a qualified microwave service technician should perform repair.

NEVER remove the outer casing from the oven. If the oven is faulty and needs servicing or you are in doubt about its condition:

• Unplug it from the wall socket
- Contact the nearest after-sales service centre

If you wish to store your oven away temporarily, choose a dry, dust-free place.

Reason : Dust and damp may adversely affect the working parts in the oven.

This microwave oven is not intended for commercial use.

TECHNICAL SPECIFICATIONS

SAMSUNG strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice.

Model MG402MADXBB
Power source 230 V - 50 Hz
Power consumption
Microwave	1500 W
Grill	1300 W
Combined mode	2800 W
Output power 100 W / 900 W - 6 Level (IEC-705)
Operating frequency 2450 MHz
Magnetron OM75P(31)
Cooling method Cooling fan motor
Dimensions (W x H x D)
Outside	555 x 313 x 459 mm
Oven cavity	375 x 262 x 392 mm
Volume 40 liter
Weight
Net 19 kg approx

MEMO MEMO

SAMSUNG

QUESTIONS OR COMMENTS

COUNTRY	CALL	OR VISIT US ONLINE AT
U.A.E 800-SAMSUNG (726-7864)		www.samsung.com/ae/support (English)www.samsung.com/ae_ar/support (Arabic)
OMAN 800-SAMSUNG(726-7864)
KUWAIT 183-2255 (183-CALL)
BAHRAIN 8000-4726
QATAR 800-2255 (800-CALL)
EGYPT 08000-72678616580		www.samsung.com/eg/support
ALGERIA 021 36 11 00		www.samsung.com/n_africa/support
PAKISTAN 0800-Samsung (72678)		www.samsung.com/pk/support
TUNISIA 80-1000-12		www.samsung.com/n_africa/support
JORDAN	0800-2227306 5777444	www.samsung.com/Levant/support (English)
SYRIA	18252273
IRAN	021-8255	www.samsung.com/iran/support
MOROCCO	080 100 2255	www.samsung.com/n_africa/support
SAUDI ARABIA	920021230	www.samsung.com/sa/supportwww.samsung.com/sa_en/support (English)
TURKEY	444 77 11	www.samsung.com/tr/support
NIGERIA	0800-726-7864	www.samsung.com/africa_en/support
GHANA	0800-100770302-200077
Cote D’Ivoire	8000 0077	www.samsung.com/africa_fr/support
SENEGAL	800-00-0077
CAMEROON	7095-0077
KENYA	0800 545 545	www.samsung.com/support
UGANDA	0800 300 300
TANZANIA 0685 88 99 00
RWANDA 9999
BURUNDI	200
DRC	499999
SUDAN 1969
SOUTH AFRICA	0860 SAMSUNG (726 7864)
BOTSWANA	8007260000
NAMIBIA	08 197 267 864
ZAMBIA	0211 350370
MOZAMBIQUE	847267864 / 827267864

DE68-04085C-02
