PR303IKP - Hob PRIMO - Free user manual and instructions

Product Type	Induction Hob
Brand	PRIMO
Model	PR303IKP
Number of Cooking Zones	2
Left zone - maximum power	2000 W
Right zone - maximum power	1500 W
Total power	3500 W
Power levels	10 (left), 8 (right)
Temperature levels	10 per zone
Timer	1 to 180 minutes
Child lock	Yes - key lock
Automatic shut-off	After 2 hours of inactivity
Pan detection	Yes - beep if absent or incompatible
Residual heat indicator	Yes - display "H"
Hob material	Ceramic glass
Control type	Touch (on/off, mode) + rotary knobs
Display	LED - power or temperature
Maintenance	Ceramic glass cleaner and scraper
Manufacturer's warranty	2 years
Customer service	[phone] - aprimo-elektro.be
Power supply	220-240 V ~ 50/60 Hz (check on appliance)

Frequently Asked Questions - PR303IKP PRIMO

The hob does not turn on, what should I do?

Check that the plug is properly inserted and that the power outlet works (try another appliance). Hold down the On/Off key until the indicator lights up.

The keys do not respond, why?

The child lock may be activated: deactivate it by holding the corresponding button for a few seconds. Otherwise, wipe the keys with a dry non-abrasive cloth if droplets cover them.

My pots make a cracking sound, is this normal?

Yes, this noise is due to the material of the pot. As long as it is magnetic and induction-compatible, there is no problem.

The appliance hums during use, is this normal?

Yes, this is the normal preheating of the hob. The noise may stop and start again, this is not a concern.

The fan continues to run after switching off, is this normal?

Yes, the fan cools the appliance after use. Do not unplug the hob until the fan has completely stopped.

The appliance emits a beep during cooking, what does it mean?

This indicates that the pot is not correctly centered on the zone, its diameter is too small, or it is not suitable for induction. Reposition it or use a compatible container.

The hob suddenly turns off, why?

Check if the timer was set (it turns off the hob automatically). Also check the fuses and the power outlet. If nothing works, a technical error is possible.

What does error code E0 mean?

Error code E0 appears when there is no pot on the zone, the pot is not suitable for induction, or it is poorly centered. Place a compatible and well-centered container.

How to clean the ceramic glass hob?

Use a special ceramic glass cleaner and a soft cloth. For stubborn stains, use an inclined scraper being careful not to scratch the surface. Clean after each use on a warm or cold hob.

How to activate and deactivate the child lock?

Press the child lock button to activate it (the indicator lights up). Hold the same button for a few seconds to deactivate it. Once activated, only the On/Off key remains functional.

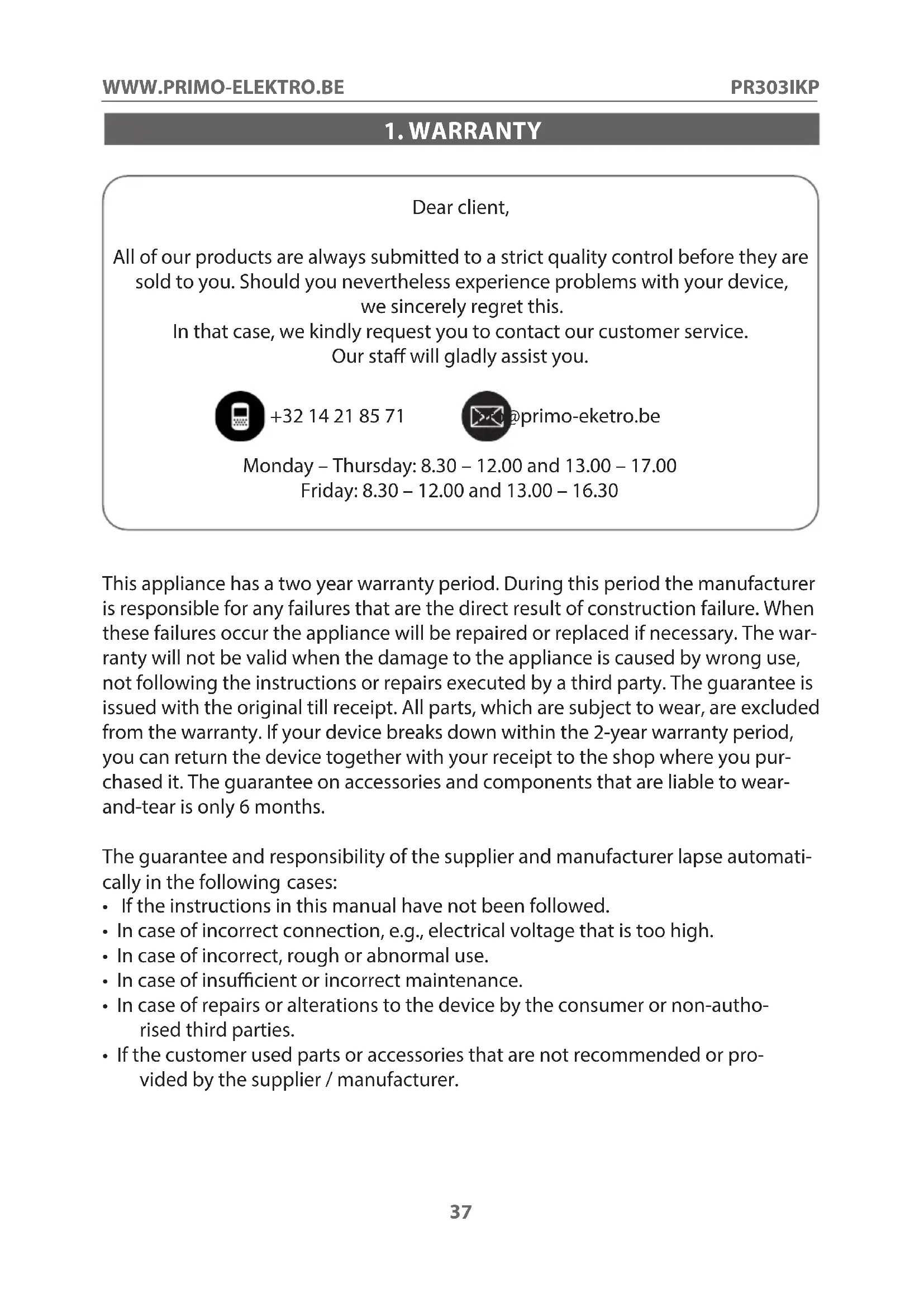

USER MANUAL PR303IKP PRIMO

(L: 2000W / R:1500W)

(L: 2000W / R:1500W)

All of our products are always submitted to a strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service. Our staff will gladly assist you.

[phone]

@primo-eketro.be

Monday - Thursday: 8.30 - 12.00 and 13.00 - 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it. The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
• In case of incorrect connection, e.g., electrical voltage that is too high.
• In case of incorrect, rough or abnormal use.
• In case of insufficient or incorrect maintenance.
• In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

2. SAFETY INSTRUCTIONS

To ensure safety, you must read this manual thoroughly. This appliance is made for domestic use and should only be used according to the instructions described below.

• This device may be used by children from the age of 8 years and by persons with a physical sensory or mental limitations or lack of experience and knowledge if these persons are supervised have been given supervision or instruction concerning the use of the appliance in a safe manner and that they also know the hazards involved in using the device.
• Children must not play with the appliance.
• Maintenance and cleaning of the appliance must not be done by children, unless they are older than 8 years of age and are supervised.
• Keep the appliance and cord out of the reach of children under the age of 8.
• If the electrical cord is damaged, it must replaced by the manufacturer, its after-sales service or a similarly qualified person person in order to avoid any accident.
• Caution : the appliance must not be used with an external timer or remote control.

Attention : the unit must not be used with an external timer or a separate remote control.

• This device is suitable for use in the household envi

ronment and in similar environments such as :

• Kitchen corner for staff of stores, offices and other similar professional environments.

-Farm houses.
- Hotel and motel rooms and other environments with a residential character.
- Guest rooms, or similar.

• The unit may become hot during use. Keep the electric cord away from hot parts and do not cover the unit.
• Beware of sharp edges. If the top of the apparatus is damaged or cracked, do not use the appliance may no longer be used. Do not place any heavy or sharp objects on the appliance.
• Do not place metallic or magnetic objects on the appliance. These will also be heated by the induction.
• Before use, check that the voltage indicated on the appliance corresponds to the voltage of the electricity network in your home.
• Do not leave the cord hanging on a hot surface or over the edge of a edge of a table or countertop.
• The use of accessories not recommended or sold by the manufacturer can cause fire, electric shock or injury.
• Unplug the unit from the wall outlet when not in use before the appliance is not in use, before assemble or disassemble parts and before cleaning. First, set all buttons to the 'off' position and pull the plug out of the socket at the outlet. Never pull on the cord to

pull the plug from the outlet.

• Do not leave a working appliance unattended left behind.
• Never place this appliance on or near a gas fire or electric fire or in a place where it can come into contact with a warm appliance.
• Do not use the appliance outdoors.
• Use the appliance only for its intended purpose.
• Always use the appliance on a solid, dry, even surface.
• Only use the appliance for domestic only.
• The manufacturer is not responsible for accidents resulting from improper use of the appliance or from failure to observe the rules specified in this manual.
• All repairs other than normal maintenance of the appliance must be carried out by the manufacturer or his after-sales service.
• Do not immerse the appliance, electric cord or plug in water or any other plug in water or any other liquid.
• Do not allow children to touch the electrical cord or children from touching the electrical cord or plug.
• Before first use, remove all packaging materials and any promotional stickers.
• Never place the appliance on a metal or flammable surface e.g. tablecloth, pad, etc.

• Make sure that the ventilation openings of the device are not covered. This can cause overheating.

• Keep a minimum distance of 10cm around the appliance from walls, cupboards and other objects.

• Do not place the device in the vicinity of devices which are subject to magnetic fields e.g. radio, TV, etc.
• Do not place the cooking plate in the immediate vicinity of an open flame, heater or other sources of heat.
• Always make sure that the electric cord is not damaged or crushed under the appliance.
• Do not use the appliance if it is not working properly or if it is damaged.

SAVE THIS MANUAL FOR FUTURE REFERENCE

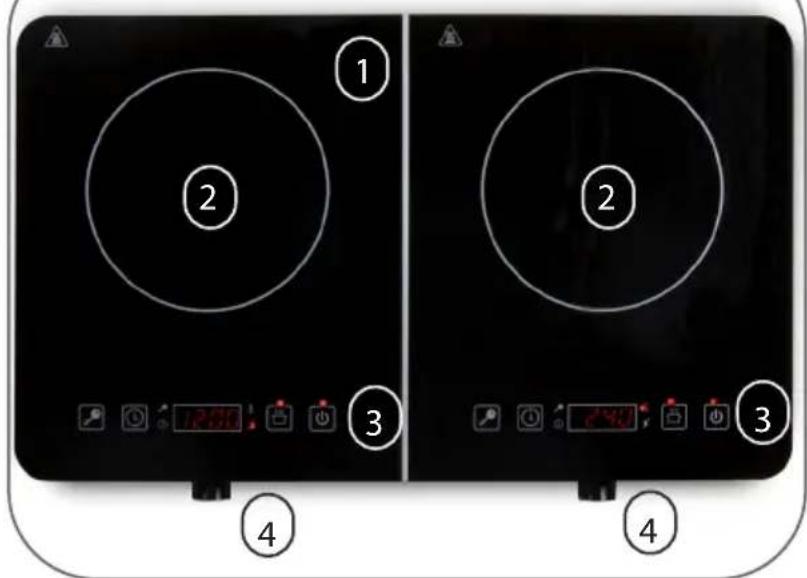

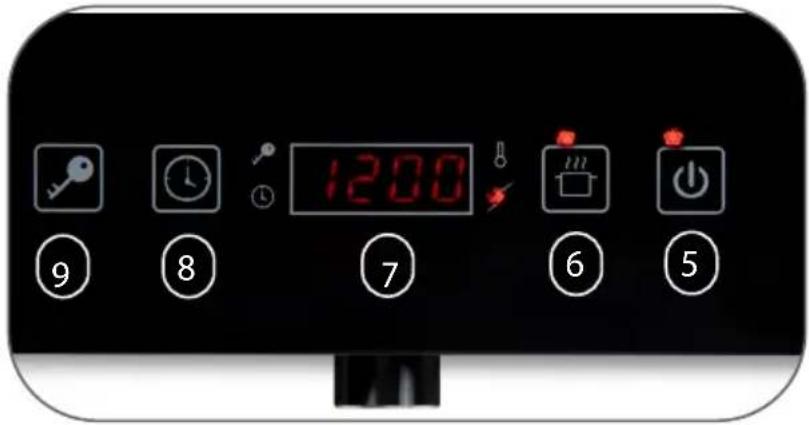

3.PARTS

1. Ceramic glass plate
2. Cooking zones (L: 2000W / R:1500W)
3. Control panel
4. Dials
5. On/off button
6. Mode knob
7. Display
8. Timer: 3 hours
9. Childproof lock

4. BEFORE THE FIRST USE

The device has no push buttons but works via touch control. That means you don't have to put any pressure on the buttons. Rest your finger on the on/off button for a moment, and you will see that the device is operating. The placement of your finger is important for this.
Not all cooking pots are suitable for induction. Pots and pans with the induction symbol will work on this hob. Pots and pans that have a magnetic bottom can also be used. You can easily test this by holding a magnet against the bottom of the cooking pot or pan.

• When this symbol flashes on the display, the pot is not

suitable, or there is no magnetic contact with the pot. The following materials cannot be used: stainless steel, aluminium, copper without a magnetic base, glass, porcelain or pottery. Do not use cooking pots with a damaged bottom, a convex (or concave) bottom or pots with a diameter of less than 12cm or larger than 26cm .

Always lift the cooking pot. Do not slide the cooking pot

over the hob. This will cause scratches and damage

to the appliance. Do not drop the pot (or other weight)

onto the hob.

5. USE

When you place the plug in the outlet, you will hear a signal.

CONNECTING

• Press and hold the on-off button to turn the cooking plate on. The on/off indicator light illuminates. The device switches off automatically if
• you haven't entered a setting after 1 minute.
• The appliance emits an audible signal for 30 seconds if the correct cooking pot is not on the hob and will then switch off automatically after 90 seconds.
• Press the 'mode' button to start heating.
• Use the dial until the desired setting appears. The 'power' indicator light will light up. The display will show the settings in wattage (W). You can choose from 8 to 10 different settings, depending on the left or right side.
• Press the 'mode' button again to display the desired settings in temperature (^) . The 'thermometer' indicator will light up.

Left burner

Levels	1	2	3	4	5	6	7	8	9	10
Display Power (W)	200	400	600	800	1000	1200	1400	1600	1800	2000
Display Temperature (℃)	60	80	100	120	140	160	180	200	220	240

Right burner

Levels 1 2 3	4 5 6 7	8
Display Power (W)	200	400 60	0 800	1000	200 14	0 1500
Display Temperature (°C)	60 80	0 100	120 14	0 160	180 200	220 240

• The selected setting is shown on the display.
• Press the power button again to turn the unit off.
• Attention: The device switches off automatically after 2 hours.

TIMER

• Press the timer button to get the timer between 1 minute and 180 minutes (= 3 hours). A clock that you can set appears on the screen. Turn the dial to set the desired time. The time will increase or decrease per minute.
• You can press and hold the timer dial for two seconds to reset the timer to 0.
• When the desired time is set, the timer will appear on the screen alternating with the selected power/temperature setting. The indicator light above the timer also illuminates to indicate that the timer is set.
• When the time is up, the appliance emits an audible signal and automatically switches off the element for which the timer is set.

CHILDPROOF LOCK

• Press this button to engage the lock. The indicator light indicates that the lock is switched on. Only the on-off button works when this feature is enabled. Other buttons will not respond.
• Press and hold this button for a few seconds to turn this function off again.

SWITCH OFF

• Press the on/off button again to turn off the appliance. The ventilation stays on for a while to cool down.
• Caution: Do not touch the cooking zone when 'H' appears on the screen, as this means that the hob is still warm.

Power Suitable	for...
200 - 400W • Slow heating of small quantities • Melting chocolate, butter, ... • Simmer slowly
600 - 800W • reheating • Slow cooking • Baking pancakes
1000 - 1200W • Sautéing vegetables • Cooking pasta
1400 - 2000W • Wok • Searing • Cooking liquids

6. CLEANING AND MAINTENANCE

• Remove the plug from the wall socket. Do not use aggressive cleaning agents and make sure that no water can penetrate into the appliance. To prevent electrocution, never immerse the appliance, plug or cord in water or any other liquid.
• To prevent the dirt from sticking too strongly, we recommend that you clean the vitroceramic surface after each use when it is still lukewarm or has just cooled down. With a cleaning agent for vitroceramic glass, you can remove all traces of water and lime as well as all grease splashes.
• A scraper is ideal for large and stubborn stains. Hold the scraper at an angle and loosen the dirt by rubbing the vitroceramic glass with the knife side. Molten material such as plastic must be scraped away immediately when it is still warm. Be careful not to burn yourself! If the hob has already cooled down, you will need to reheat it. When it has cooled down afterwards, clean it as described above.
• Wipe off the surface with a damp cloth or use a mild, non-abrasive soap solution.
• Make sure that the bottom of the cookware does not scrape across the surface of the ceramic field.

• Make sure that the device was properly cleaned before storing it in a dry place.

• FREQUENTLY ASKED QUESTIONS

Problem Solution
The cooktop cannot be turned on.	Is the plug in the socket? Are any other electrical appli- ances working at this outlet? Press and hold ⊙ until the light comes on.
The buttons are not responding.	·Is the child lock on? Turn off the child lock as de- scribed in this manual. ·There are droplets on the buttons. Dry the buttons with a dry non-abrasive cloth.
Some pots or pans make a crackling sound.	This is due to the composition of the cooking pot. Still, this is not a problem, as long as the material is magnetic, and suitable for induction.
The unit makes a buzzing noise during use.	This is normal and is typical of induction heating. The ap- pliance is warming up. It is also normal that the sound will occasionally stop, and then resume.
The fan at the bot- tom of the unit continues to run.	This is normal. The fan ensures that the appliance cools down sufficiently during and after use. Even if you have turned the appliance off, the fan will continue to cool. Do not unplug the appliance until the fan has stopped running.
The hob unexpectedly shut down.	·Did you set the timer? When the time is up, the unit will automatically shut down. ·Has the fuse blown? Are there any other electrical appiances working on this outlet? ·A technical error has occurred.
Error code E0 • There is no pot or pan on the cooking plate. ·The pot or pan used is not suitable for induction. ·The pot is not placed in the middle of the element.
Error code E01 - E02 -E03	Contact our customer service.

8. ENVIRONMENTAL GUIDELINES

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.
