Product type	Hammer drill
Brand	Hilti
Model	TE 622
Intended use	Drilling and chiseling in concrete, masonry, stone, and wood
Power consumption	1050 W
Weight (according to EPTA 01/2003)	6.3 kg
Power supply	Mains 220-240 V / 50-60 Hz
Power cable length	4 m
Chuck	SDS-Plus
Operating modes	Rotation, hammering, rotation + hammering, chiseling
Number of speeds	1
No-load speed	0-450 rpm
Full-load impact rate	0-2100 impacts/min
Impact energy per impact (according to EPTA)	5.5 J
Max. drilling diameter in concrete	28 mm
Max. drilling diameter in wood	32 mm
Max. drilling diameter in steel	13 mm
Protection class	II (double insulation)
Operating temperature	-17 °C to +60 °C
Storage temperature	-20 °C to +70 °C
Cleaning	Brush ventilation slots, clean housing with a slightly damp cloth
Manufacturer warranty	Consult your local Hilti partner

Frequently Asked Questions - TE 622 HILTI

How to change the chuck of the Hilti TE 622?

The SDS-Plus chuck is changed by unscrewing the fixing screw inside the chuck. Use an appropriate Allen key to loosen the screw, then pull the chuck off. The new chuck is installed in reverse order.

What are the operating modes of the TE 622?

The hammer offers four modes: rotation only for drilling in wood or steel, hammering only for chiseling, rotation with hammering for drilling in concrete, and chiseling with adjustable chisel position.

How to adjust the drilling depth?

Use the depth stop provided. Insert the rod into the hole on the side of the tool, then tighten the thumbscrew to set the desired depth.

Is the TE 622 suitable for drilling in metal?

Yes, in rotation-only mode (without hammering) and with a suitable drill bit, the TE 622 can drill in steel up to 13 mm in diameter.

How to maintain the Hilti TE 622 hammer drill?

Clean the ventilation slots regularly with a dry brush. After each use, wipe the housing with a damp cloth. Have the carbon brushes checked and the mechanism lubricated by an authorized Hilti service center after 200 hours of operation.

What to do if the tool overheats?

Stop the tool immediately and unplug it. Let it cool for at least 30 minutes. Check that the ventilation slots are not blocked. If the problem persists, contact Hilti customer service.

Can I use drill bits other than SDS-Plus?

No, the chuck is designed only for SDS-Plus bits. Using other types of drill bits may damage the tool and pose a safety risk.

How to replace the power cable?

Replacement must be done by a professional. Unplug the tool, open the housing after removing the screws, disconnect the wires and replace with an identical cable. Screw back and test. If you are not qualified, entrust it to Hilti customer service.

What is the power of the Hilti TE 622?

The TE 622 has a power consumption of 1050 W and an impact energy of 5.5 J, allowing it to drill in concrete up to 28 mm in diameter.

Where can I find spare parts for the TE 622?

Spare parts are available from authorized Hilti dealers or at www.hilti.group. Always use original parts to ensure safety and performance.

USER MANUAL TE 622 HILTI

de Original-Bedienungsanleitung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . en Original operating instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . nl Originele handleiding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . fr Mode d'emploi original . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . es Manual de instrucciones original 54 pt Manual de instruções original . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . it Manuale d'istruzioni originale 82 da Original brugsanvisning 95 sv Originalbruksanvisning 108 no Original bruksanvisning 121 fi Alkuperäiset ohjeet 134 et Originaalkasutusjuhend 147 Iv Originālā lietošanas instrukcija 160 It Originali naudojimo instrukcija 173 pl Oryginalna instrukcja obsługi 186 cs Originální návod k obsluze 200 sk Originálny návod na obsluhu 213 hu Eredeti használati utasítás 226 sl Originalna navodila za uporabo 240 hr Originalne upute za uporabu 253 sr Originalno uputstvo za upotrebu 266 ru Перевод оригинального руководства по эксплуатации 279 uk Оригінальна інструкція з експлуатації 295 kk Тупнуска пайдалану бойынша нускаулык 310 bg Оригинално Ръководство за експлоатация 324 ro Manual de utilizare original 338 el Πρωτότυπες οδηγίες χρήσης 352 tr Orijinal kullanım kılavuzu 367 ja オリジナル取扱説明書 380 ko 오리지널 사용 설명서 393 zh 原廠操作說明 406 cn 原版操作说明 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ar 432 دليل الاستعمال الأصلى he 446

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr (VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
壳体Housing	o	o	o	o	o	o
橡胶脚Rubber foot	o	o	o	o	o	o
电子元件(PCBs)Electronics (PCBs)	x	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
电气连接线Wiring	o	o	o	o	o	o
电池接口Battery interface	o	o	o	o	o	o
电源接口包括插头Supply cord incl. plug	x	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr (VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
壳体Housing	o	o	o	o	o	o
橡胶脚Rubber foot	o	o	o	o	o	o
电子元件(PCBs)Electronics (PCBs)	x	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
电气连接线Wiring	o	o	o	o	o	o
电池接口Battery interface	o	o	o	o	o	o
电源接口包括插头Supply cord incl. plug	x	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Original operating instructions

1 Information about the operating instructions

1.1 About these operating instructions

• Warning! Read and understand all accompanying documentation, including but not limited to instructions, safety warnings, illustrations, and specifications provided with this product. Familiarize yourself with all the instructions, safety warnings, illustrations, specifications, components, and functions of the product before use. Failure to do so may result in electric shock, fire, and/or serious injury. Save all warnings and instructions for future reference.
• MILTI products are designed for professional users and only trained, authorized personnel are permitted to operate, service and maintain the products. This personnel must be specifically informed about the possible hazards. The product and its ancillary equipment can present hazards if used incorrectly by untrained personnel or if used not in accordance with the intended use.
• The accompanying documentation corresponds to the current state of the art at the time of printing. Please always check for the latest version on the product's page on Hilti's website. To do this, follow the link or scan the QR code in this documentation, marked with the symbol .
• Ensure that these operating instructions are with the product when it is given to other persons.

1.2 Explanation of symbols

1.2.1 Warnings

Warnings alert persons to hazards that occur when handling or using the product. The following signal words are used:

DANGER

DANGER !

- Draws attention to imminent danger that will lead to serious personal injury or fatality.

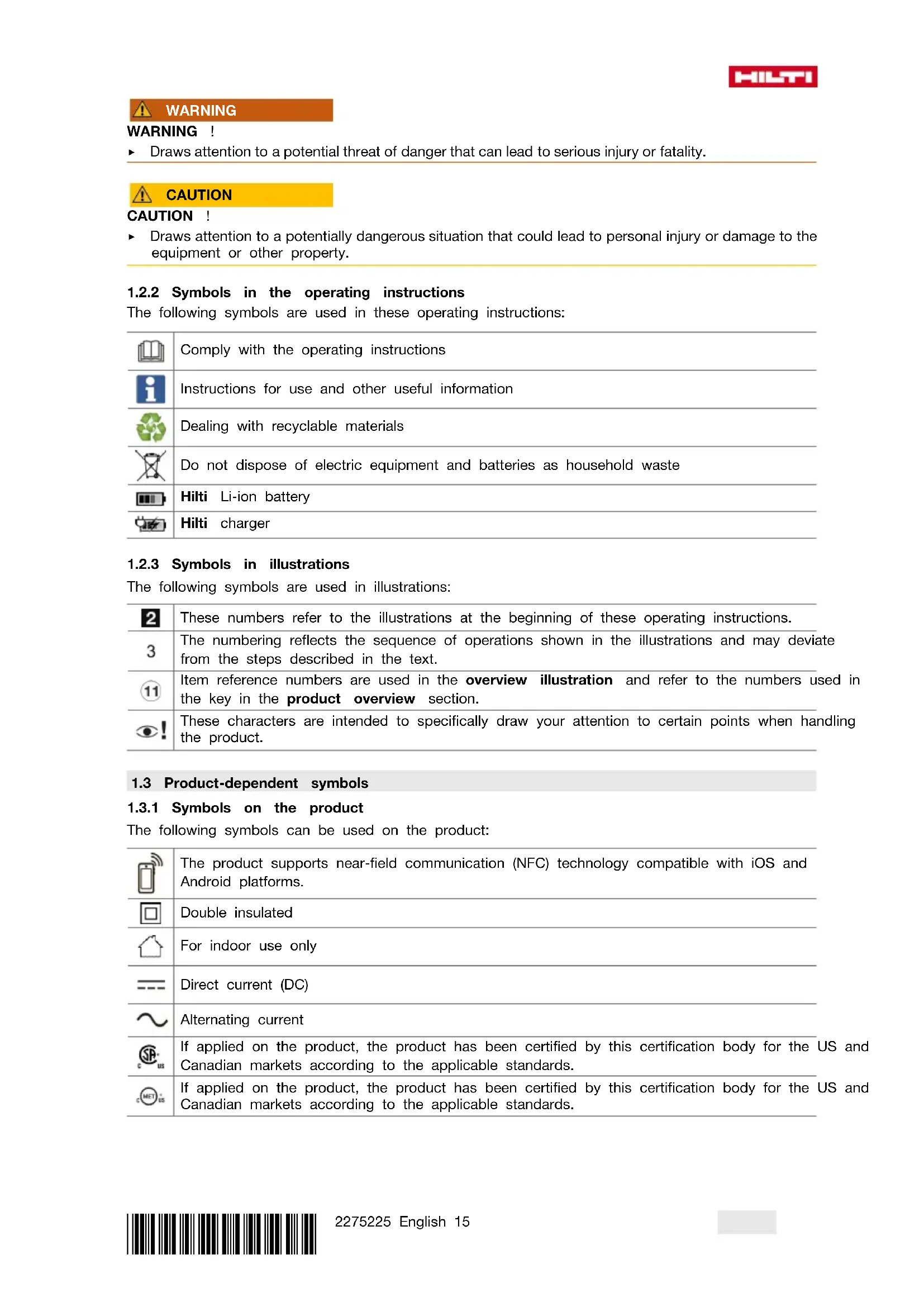

WARNING

WARNING!

- Draws attention to a potential threat of danger that can lead to serious injury or fatality.

CAUTION

CAUTION !

- Draws attention to a potentially dangerous situation that could lead to personal injury or damage to the equipment or other property.

1.2.2 Symbols in the operating instructions

The following symbols are used in these operating instructions:

Comply with the operating instructions

Instructions for use and other useful information

Dealing with recyclable materials

Do not dispose of electric equipment and batteries as household waste

Hilti Li-ion battery

Hilti charger

1.2.3 Symbols in illustrations

The following symbols are used in illustrations:

These numbers refer to the illustrations at the beginning of these operating instructions.

The numbering reflects the sequence of operations shown in the illustrations and may deviate from the steps described in the text.

Item reference numbers are used in the overview illustration and refer to the numbers used in the key in the product overview section.

These characters are intended to specifically draw your attention to certain points when handling the product.

1.3 Product-dependent symbols

1.3.1 Symbols on the product

The following symbols can be used on the product:

The product supports near-field communication (NFC) technology compatible with iOS and Android platforms.

Double insulated

For indoor use only

Direct current (DC)

Alternating current

If applied on the product, the product has been certified by this certification body for the US and Canadian markets according to the applicable standards.

If applied on the product, the product has been certified by this certification body for the US and Canadian markets according to the applicable standards.

2 Safety

2.1 General safety instructions

WARNING Study all safety instructions and other instructions, images and technical data with which this power tool is provided. Failure to observe the instructions below can result in electric shock, fire and/or serious injury.

Keep all safety instructions and instructions for future reference.

▶ Persons (including children) with reduced physical, sensory or mental abilities or lack of experience and knowledge are not permitted to use this product. ▶ Do not allow children to play with the product. - Install the charger in such a way that a battery inserted into it cannot fall out.

2.2 Battery charger use and care

To avoid injury, use the charger only to charge Hilti Li-ion batteries approved for use with this charger. The location at which the charger is used should be clean, cool, dry and protected from frost. The charger must be able to emit heat while in operation. The air vents must therefore remain unobstructed. Do not operate the charger inside a closed container. - Maintain the product carefully. Make sure that no parts are broken or damaged in such a way that the product no longer functions correctly. If parts are damaged or broken, have the product repaired prior to further use. ▶ Use chargers and the corresponding batteries in accordance with these instructions and as is specified for this particular model. Use of chargers for applications different from those intended could result in hazardous situations. ▶ Recharge the batteries only with the chargers specified by the manufacturer. A charger that is suitable for a certain type of battery may present a risk of fire when used with other types of battery. - When not in use, keep the battery and the charger away from paper clips, coins, keys, nails, screws or other small metal objects that could cause a short circuit at the battery terminals or the charging contacts. A short circuit between the battery terminals or charging contacts may cause injuries (burns) and result in fire. - Do not store the battery on the charger. Always remove the battery from the charger when the charging operation has completed.

2.3 Careful handling and use of batteries

• Comply with the following safety instructions for the safe handling and use of Li-ion batteries. Failure to comply can lead to skin irritation, severe corrosive injury, chemical burns, fire and/or explosion. ▶ Use only batteries that are in perfect working order. ▶ Treat batteries with care in order to avoid damage and prevent leakage of fluids that are extremely harmful to health!
• Do not under any circumstances modify or tamper with batteries!
• Do not disassemble, crush or incinerate batteries and do not subject them to temperatures over 80 °C (176 °F). ▶ Never use or charge a battery that has suffered an impact or been damaged in any other way. Check your batteries regularly for signs of damage. ▶ Never use recycled or repaired batteries. ▶ Never use the battery or a battery-operated power tool as a striking tool. ▶ Never expose batteries to the direct rays of the sun, elevated temperature, sparking, or open flame. This can lead to explosions. Do not touch the battery poles with your fingers, tools, jewelry, or other electrically conductive objects. This can damage the battery and also cause material damage and personal injury.
• Keep batteries away from rain, moisture and liquids. Penetrating moisture can cause short circuits, electric shock, burns, fire and explosions. ▶ Use only chargers and power tools approved for the specific battery type. Read and follow the relevant operating instructions.
• Do not use or store the battery in explosive environments.

If the battery is too hot to touch, it may be defective. Put the battery in a place where it is clearly visible and where there is no risk of fire, at an adequate distance from flammable materials. Allow the battery to cool down. If it is still too hot to touch after an hour, the battery is faulty. Consult Hilti Service or read the document entitled "Instructions on safety and use for Hilti Li-ion batteries".

Observe the special guidelines applicable to the transport, storage and use of lithium-ion batteries. Read the instructions on safety and use of Hilti Li-ion batteries that you can access by scanning the QR code at the end of these operating instructions.

3 Description

3.1 Product overview

① Battery

② Battery status indicator

③ Battery release button

④ Charger operating status indicator

⑤ Holes for wall-mounting

⑥ Air exit

⑦ Air intake

⑧ Battery interface

3.2 Intended use

The product described is a portable battery charger for Hilti Li-ion batteries with a rated voltage of 21.6 volts. It is designed to be connected to power outlets providing an AC (alternating current) voltage of 100 to 127 volts or 220 to 240 volts (depending on country-specific version).

The charger can be set on a flat surface or mounted on the wall.

• The Hilti Li-ion batteries approved for use with this product can be found in this list. • Not all batteries are available in all markets.

Product information

Charger C 6-22 | C 8-22
Generation 01
Serial no. 1 - 999999999999

3.3 Operating status indicator of the charger

Status Meaning
LED shows green. Charger is ready for use.
LED doesn’t light.	Charger is not ready for use.

3.4 Status indicators of the Li-ion battery during charging

When a Hilti Nuron Li-ion battery is connected to a Hilti charger, the status indicator of the battery shows the state of charge and also fault messages, if applicable.

Status Meaning
One (1) LED slow-flashes green	The battery is being charged, state of charge: ≤ 20 %
One (1) LED shows green, one (1) LED slow-flashes green	The battery is being charged, state of charge: 21 % to 40 %
Two (2) LEDs show green, one (1) LED slow-flashes green	The battery is being charged, state of charge: 41 % to 60 %
Three (3) LEDs show green, one (1) LED slow-flashes green	The battery is being charged, state of charge: 61 % to 80 %
Four (4) LEDs show green The battery is being charged, state of charge: ≥ 80 %
No LED showing The battery is fully charged, charging has ended.
One (1) LED quick-flashes yellow, then one or more LEDs show green	Charging interrupted. The battery might be outside the permissible temperature range.Charging resumes automatically as soon as the applicable parameters return to specification. If necessary, bring the battery to the recommended charging temperature.
One (1) LED quick-flashes red The Li-ion battery	is locked and cannot be used.Consult Hilti Service.

3.5 Indicators showing the state of health of the Li-ion battery

Hilti recommends checking the state of health of the Li-ion battery every time before charging.

To check the battery's state of health, press the release button of the battery and hold it down for longer than three seconds. The system does not detect a potential malfunction of the battery due to misuse, for example battery dropped or pierced, external heat damage, etc.

Status Meaning
All LEDs show in sequence, followed by one (1) LED showing constantly green.	The battery can remain in use.
All LEDs show in sequence, followed by one (1) LED quick-flashing yellow.	The check to ascertain the battery's state of head did not complete. Repeat the procedure, or cons Hilti Service.
All LEDs show in sequence, followed by one (1) LED showing constantly red.	If a connected product can still be used, the remaining battery capacity is below 50%. If a connected product can no longer be used, battery has reached the end of its useful life and has to be replaced. Consult Hilti Service.

3.6 Items supplied

Charger, operating instructions.

Other system products approved for use with this product can be found at your local Hilti Store or at: www.hilti.group

4 Technical data

	C 6-22 C 8-22
Weight in accordance with EPTA Proude 01	0.84 kg(1.852 lb)	1.45 kg(3.197 lb)
Rated output voltage	10.8 V ... 21.6 V 10.8 V ...	21.6 V
Maximum output power	240 W 450 W
Storage temperature	-20 °C ... 70 °C(-4.0 °F ... 158.0 °F)	-20 °C ... 70 °C(-4.0 °F ... 158.0 °F)
Ambient temperature for operation	-17 °C ... 60 °C(1.4 °F ... 140.0 °F)	-17 °C ... 60 °C(1.4 °F ... 140.0 °F)

5 Operation

WARNING

A damaged supply cord presents a hazard! If the supply cord or extension cord is damaged while work is in progress, immediately disconnect the product and the cord from the electricity supply. Do not touch the damaged part of the cord!

▶ Regularly check all supply cords. - Replace defective extension cords. ▶ Otherwise, contact Hilti Service.

Use of a ground fault circuit interrupter (residual current device, RCD) with a maximum tripping current of 30 mA is recommended.

5.1 Switching on charger and charging battery

WARNING

Explosion hazard if any attempt is made to charge unapproved batteries. Injuries and damage to the charger can result.

• Do not attempt to charge non-rechargeable batteries. ▶ Use only Hilti-approved batteries with this charger.

CAUTION

Short-circuit due to moisture or dampness Damage to the product is the result.

▶ Use the product only indoors. - Keep the product away from moisture and dampness.

1. Plug the supply cord into the power outlet.

▶ The LED shows green.

1. Engage the battery on the battery interface.

▶ The battery is charging.

1. When the battery is fully charged, remove it from the charger.

6 Care and maintenance

WARNING

Electric shock hazard! Attempting care and maintenance with the supply cord connected to a power outlet can lead to severe injury and burns.

▶ Always unplug the supply cord before carrying out care and maintenance tasks.

Care

• Carefully remove stubborn dirt from the tool.
• Clean the air vents carefully with a dry brush.
• Use only a slightly damp cloth to clean the casing. Do not use cleaning agents containing silicone as they can attack the plastic parts.

Maintenance

• Check all visible parts and controls for signs of damage at regular intervals and make sure that they all function correctly.
• Do not operate the product if signs of damage are found or if parts malfunction. Have it repaired immediately by Hilti Service. After cleaning and maintenance, fit all guards or protective devices and check that they function correctly.

To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare parts, consumables and accessories approved by Hilti for use with the product can be found at your local Hilti Store or online at: www.hilti.group.

6.1 Replacing the supply cord

DANGER

Risk of injury! Risk of electric shock.

The product may be serviced and repaired only by authorized, trained personnel! This personnel must be specially informed of any possible hazards.

If it is damaged, the supply cord has to be replaced.

Comply with the country-specific regulations for electrical safety.

1. Unplug the charger's supply cord from the power outlet.
2. Pull the rubberized foot out of the cover and remove the securing screw exposed by removal of the rubberized foot.

Materials

Torx ® screwdriver T10

1. Flip the cover open.
2. Take a photo or draw a sketch so that you will be able to recall the routing and conductor-to-terminal assignment of the supply cord.
3. Carefully depress one of the terminal clips with a flat screwdriver to release the conductor. Disengage the conductor from the terminal clip. Repeat this step for the second conductor and then remove the faulty power cord.
4. Install the new supply cord. Depress one terminal clip with a flat screwdriver and insert the end of the conductor into the terminal clip. Release the terminal clip and check that the conductor is secure in the terminal clip. Repeat this step for the second conductor.

Materials

Supply cord C 6-22

2289588 (EU, 220-240V)

2289589 (US, 110-120V)

Select the supply cord of a type suitable for use with this charger from this table or contact Hilti Service.

1. Seat the supply cord in the cable guide exactly as the original cable was routed prior to replacement. Use the photo taken beforehand or the sketch you drew as reference.
2. Flip the cover closed and re-install the securing screw.
3. Push the rubberized foot back into the cover.
4. Plug the supply cord into a power outlet and check that the charger is in full working order.

▶ LED shows: Charger is in full working order.

▶ LED does not light up: Charger is not in full working order.

▶ Contact Hilti Service.

7 Transport and storage

Transport

▶ Make sure that the equipment is held securely throughout all transport operations. ▶ After transporting, always check all visible parts and controls for signs of damage and make sure that they all function correctly.

Storage

▶ Always store this product with the electric supply cable unplugged from the electricity supply. - Store this product in a dry place, where it cannot be accessed by children or unauthorized persons. ▶ After a long period of storage, always check all visible parts and controls for signs of damage and make sure that they all function correctly.

8 Troubleshooting

If the trouble you are experiencing is not listed in this table or you are unable to remedy the problem by yourself, contact Hilti Service.

Malfunction Possible cause	Action to be taken
LED doesn’t light. Supply cord not connected to electricity supply.		Plug the supply cord into the power outlet.
		Product malfunction. ▶ Unplug the product and then plug it back in. If the LED remains off, consultHilti Service.
		Supply cord faulty.	Replace the supply cord.→ page 20
		The charger is defective.	Have the product repaired byHilti Service.

9 Disposal

Most of the materials from which Hilti tools and appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, your old tools, machines or appliances can be returned to Hilti for recycling. Ask Hilti Service or your Hilti representative for further information.

- Do not dispose of power tools, electronic equipment or batteries as household waste!

10 FCC statement (applicable in US) / IC statement (applicable in Canada)

This device complies with Part 15 of the FCC Rules and RSS-210 of IC. Operation is subject to the following two conditions:

1. this device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

11 Manufacturer's warranty

▶ Please contact your local Hilti representative if you have questions about the warranty conditions.

C 6-22 (01)

RoHS (Restriction of Hazardous Substances)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr (VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
壳体Housing	o	o	o	o	o	o
橡胶脚Rubber foot	o	o	o	o	o	o
电子元件(PCBs)Electronics (PCBs)	x	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
电气连接线Wiring	o	o	o	o	o	o
电池接口Battery interface	o	o	o	o	o	o
电源接口包括插头Supply cord incl. plug	x	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

This table is valid for the China market.

Declaration of the Presence Condition of the Restricted Substances Marking

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	o	o	o	o	o	o
橡膠腳Rubber foot	o	o	o	o	o	o
電子產品(PCB)Electronics (PCBs)	-	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
電力連接線Wiring	o	o	o	o	o	o
電池接口Battery interface	o	o	o	o	o	o
電源接口包括插頭Supply cord incl. plug	-	o	o	o	o	o
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

This table is valid for the Taiwan market.

C 8-22 (01)

Hazardous substances material disclosure according to SJ/T 11364-2014 Product type: Battery Charger Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr (VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
壳体Housing	o	o	o	o	o	o
橡胶脚Rubber foot	o	o	o	o	o	o
电子元件(PCBs)Electronics (PCBs)	x	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
电气连接线Wiring	o	o	o	o	o	o
电池接口Battery interface	o	o	o	o	o	o
电源接口包括插头Supply cord incl. plug	x	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X: 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

This table is valid for the China market.

Declaration of the Presence Condition of the Restricted Substances Marking

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	o	o	o	o	o	o
橡膠腳Rubber foot	o	o	o	o	o	o
電子產品(PCB)Electronics (PCBs)	-	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
電力連接線Wiring	o	o	o	o	o	o
電池接口Battery interface	o	o	o	o	o	o
電源接口包括插頭Supply cord incl. plug	-	o	o	o	o	o
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2.“○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

This table is valid for the Taiwan market.

13 Hilti Li-ion batteries

Instructions for safety and use

This documentation uses the term battery to describe rechargeable Hilti Li-ion battery packs containing several Li-ion cells joined together. These batteries are to be used in Hilti power tools exclusively. Use only genuine Hilti batteries!

Description

Hilti batteries have cell-management and cell-protection systems.

The batteries are composed of cells that contain lithium-ion storage materials capable of providing high specific energy density. Li-ion cells have a minimal memory effect, but they are very susceptible to external impact, deep discharge, and high temperatures.

The products approved for use with Hilti batteries can be found in your Hilti Store or at: www.hilti.group

Safety

• Comply with the following safety instructions for the safe handling and use of Li-ion batteries. Failure to comply can lead to skin irritation, severe corrosive injury, chemical burns, fire and/or explosion. ▶ Treat batteries with care in order to avoid damage and prevent leakage of fluids that are extremely harmful to health!
• Do not under any circumstances modify or tamper with batteries!
• Do not disassemble, crush or incinerate batteries and do not subject them to temperatures over 80 °C. ▶ Never use or charge a battery that has suffered an impact or been damaged in any other way. Check your batteries regularly for signs of damage. ▶ Never use recycled or repaired batteries.

HILTI

▶ Never use the battery or a battery-operated power tool as a striking tool. ▶ Never expose batteries to direct sunlight, elevated temperature, sparking, or open flame. This can lead to explosions. Do not touch the battery poles with your fingers, tools, jewelry, or other electrically conductive objects. This can damage the battery and also cause material damage and personal injury. - Keep batteries away from rain, moisture, and liquids. Penetrating moisture can cause short circuits, electric shock, burns, fire, and explosions. ▶ Use only chargers and power tools approved for the specific battery type. Read and follow the relevant operating instructions. - Do not use or store the battery in explosive environments. If the battery is too hot to touch, it may be defective. Put the battery in a place where it is clearly visible and where there is no risk of fire, at an adequate distance from flammable materials. Allow the battery to cool down. If it is still too hot to touch after an hour, the battery is faulty. Follow the instructions in the section headed "What to do in case of a battery fire."

What to do in case of damaged batteries

▶ Always contact Hilti when a battery is damaged. ▶ Never use a battery that is leaking fluid. - Avoid direct eye and/or skin contact with fluid leaking from a battery. Always wear protective gloves and eye protection when undertaking tasks involving battery fluid. ▶ Use a chemical spill cleanup kit to remove leaked battery fluid. Comply with the locally applicable cleanup regulations for battery fluid. To store a damaged battery, place the battery in a non-flammable container and cover the battery with dry sand, chalk powder (CaCO3), or silicate (Vermiculite). Then seal the lid air-tight and store the container away from flammable gases, liquids, or objects. - Dispose of the container at your Hilti Store, or consult your local governmental garbage disposal or public health and safety resources for disposal instructions. Comply with the locally applicable regulations for transporting damaged batteries!

What to do in case of dysfunctional batteries

▶ Watch for abnormal battery behavior, such as faulty charging, unusually long charging times, noticeable power loss, unusual LED activity, or leaking fluids. These are signs of an internal problem. ▶ If you suspect an internal battery problem, contact Hilti Service. ▶ A battery that no longer works, cannot be recharged, or leaks fluid has to be disposed of correctly. See the section headed "Maintenance and disposal."

What to do in case of a battery fire

WARNING

Battery fire hazard! A burning battery releases hazardous and potentially explosive liquids and fumes that can lead to corrosion injuries, burns, or explosions.

▶ Wear your personal protective equipment when you tackle a battery fire.

• Provide sufficient venting to permit hazardous and potentially explosive fumes to escape. Leave the room immediately in case of intense smoke emission.
• Consult a doctor in case of any skin or respiratory irritation.
• Alert the fire service before you start tackling the fire. ▶ Use only water to tackle a battery fire and keep as far from the fire as effective extinguishing permits. Powder fire extinguishers and fire blankets are ineffective with Li-ion batteries. Fire in nearby materials can be extinguished with appropriate extinguishing agents.
• Do not try to move large quantities of burning batteries. Instead, isolate the batteries by removing unaffected materials from the immediate vicinity.

In the case of a battery that does not cool down, or a smoking or burning battery:

• Scoop the battery up with a shovel and drop it into a bucket of water, which will reduce the risk of igniting adjacent cells that have not yet reached run-away temperature. Leave the battery in the bucket for at least 24 hours until it has cooled down completely. ▶ See the section headed What to do in case of damaged batteries.

Shipping and storage

• Ambient operating temperature to be kept between -17°C and +60°C / 1°F and 140°F. Storage temperature to be kept between -20°C and +40°C / -4°F and 104°F.
• Do not store batteries on the charger. Always remove the battery from the charger when the charging operation has completed.
• Store batteries in a cool and dry place. Cool storage will increase battery life. Never store batteries where they are exposed to direct sunlight, on sources of heat or behind glass.
• Do not send batteries through the mail. Consult your shipper for instructions on how to ship undamaged batteries. ▶ Never transport batteries in bulk form (loose, unprotected). During transport, batteries should be protected from excessive shock and vibration and isolated from any conductive materials or other batteries that may come in contact with the terminals and cause a short circuit. Comply with the locally applicable regulations for transporting batteries.

Maintenance and disposal

• Keep the battery free of oil and grease. Do not permit dust or dirt to accumulate unnecessarily on the battery. Clean the battery with a dry, soft brush or a clean, dry rag. ▶ Never use a battery with clogged ventilation slots. Clean the ventilation slots carefully using a dry, soft brush. ▶ Prevent unnecessary exposure of the battery to dust or debris and never subject the battery to soaking moisture (e.g., submerged in water or left out in the rain). If a battery is exposed to soaking moisture, treat it as a damaged battery and isolate it in a non-flammable container.

▶ See the section headed What to do in case of damaged batteries.

- Improper disposal may cause health hazards from leaking gases or fluids. Dispose of the battery at your Hilti Store, or consult your local governmental garbage disposal or public health and safety resources for disposal instructions. Comply with the locally applicable regulations for transporting damaged batteries!

- Do not dispose of batteries as household waste.

- Dispose of your battery out of the reach of children. Cover the terminals with a non-conductive material (such as electrical tape) to prevent short circuiting.

3.2 Correct use

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr (VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
壳体Housing	o	o	o	o	o	o
橡胶脚Rubber foot	o	o	o	o	o	o
电子元件(PCBs)Electronics (PCBs)	x	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
电气连接线Wiring	o	o	o	o	o	o
电池接口Battery interface	o	o	o	o	o	o
电源接口包括插头Supply cord incl. plug	x	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr (VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
壳体Housing	o	o	o	o	o	o
橡胶脚Rubber foot	o	o	o	o	o	o
电子元件(PCBs)Electronics (PCBs)	x	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
电气连接线Wiring	o	o	o	o	o	o
电池接口Battery interface	o	o	o	o	o	o
电源接口包括插头Supply cord incl. plug	x	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr (VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
壳体Housing	o	o	o	o	o	o
橡胶脚Rubber foot	o	o	o	o	o	o
电子元件(PCBs)Electronics (PCBs)	x	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
电气连接线Wiring	o	o	o	o	o	o
电池接口Battery interface	o	o	o	o	o	o
电源接口包括插头Supply cord incl. plug	x	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	o	o	o	o	o	o
橡膠腳Rubber foot	o	o	o	o	o	o
電子產品(PCB)Electronics (PCBs)	-	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
電力連接線Wiring	o	o	o	o	o	o
電池接口Battery interface	o	o	o	o	o	o
電源接口包括插頭Supply cord incl. plug	-	o	o	o	o	o
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr (VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
壳体Housing	o	o	o	o	o	o
橡胶脚Rubber foot	o	o	o	o	o	o
电子元件(PCBs)Electronics (PCBs)	x	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
电气连接线Wiring	o	o	o	o	o	o
电池接口Battery interface	o	o	o	o	o	o
电源接口包括插头Supply cord incl. plug	x	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr (VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
壳体Housing	o	o	o	o	o	o
橡胶脚Rubber foot	o	o	o	o	o	o
电子元件(PCBs)Electronics (PCBs)	x	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
电气连接线Wiring	o	o	o	o	o	o
电池接口Battery interface	o	o	o	o	o	o
电源接口包括插头Supply cord incl. plug	x	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr (VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
壳体Housing	o	o	o	o	o	o
橡胶脚Rubber foot	o	o	o	o	o	o
电子元件(PCBs)Electronics (PCBs)	x	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
电气连接线Wiring	o	o	o	o	o	o
电池接口Battery interface	o	o	o	o	o	o
电源接口包括插头Supply cord incl. plug	x	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	o	o	o	o	o	o
橡膠腳Rubber foot	o	o	o	o	o	o
電子產品(PCB)Electronics (PCBs)	-	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
電力連接線Wiring	o	o	o	o	o	o
電池接口Battery interface	o	o	o	o	o	o
電源接口包括插頭Supply cord incl. plug	-	o	o	o	o	o
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr (VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
壳体Housing	o	o	o	o	o	o
橡胶脚Rubber foot	o	o	o	o	o	o
电子元件(PCBs)Electronics (PCBs)	x	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
电气连接线Wiring	o	o	o	o	o	o
电池接口Battery interface	o	o	o	o	o	o
电源接口包括插头Supply cord incl. plug	x	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X: 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	o	o	o	o	o	o
橡膠腳Rubber foot	o	o	o	o	o	o
電子產品(PCB)Electronics (PCBs)	-	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
電力連接線Wiring	o	o	o	o	o	o
電池接口Battery interface	o	o	o	o	o	o
電源接口包括插頭Supply cord incl. plug	-	o	o	o	o	o
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2.“○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3.“一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr (VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
壳体Housing	o	o	o	o	o	o
橡胶脚Rubber foot	o	o	o	o	o	o
电子元件(PCBs)Electronics (PCBs)	x	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
电气连接线Wiring	o	o	o	o	o	o
电池接口Battery interface	o	o	o	o	o	o
电源接口包括插头Supply cord incl. plug	x	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr (VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
壳体Housing	o	o	o	o	o	o
橡胶脚Rubber foot	o	o	o	o	o	o
电子元件(PCBs)Electronics (PCBs)	x	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
电气连接线Wiring	o	o	o	o	o	o
电池接口Battery interface	o	o	o	o	o	o
电源接口包括插头Supply cord incl. plug	x	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr (VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
壳体Housing	o	o	o	o	o	o
橡胶脚Rubber foot	o	o	o	o	o	o
电子元件(PCBs)Electronics (PCBs)	x	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
电气连接线Wiring	o	o	o	o	o	o
电池接口Battery interface	o	o	o	o	o	o
电源接口包括插头Supply cord incl. plug	x	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	o	o	o	o	o	o
橡膠腳Rubber foot	o	o	o	o	o	o
電子產品(PCB)Electronics (PCBs)	-	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
電力連接線Wiring	o	o	o	o	o	o
電池接口Battery interface	o	o	o	o	o	o
電源接口包括插頭Supply cord incl. plug	-	o	o	o	o	o
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr (VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
壳体Housing	o	o	o	o	o	o
橡胶脚Rubber foot	o	o	o	o	o	o
电子元件(PCBs)Electronics (PCBs)	x	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
电气连接线Wiring	o	o	o	o	o	o
电池接口Battery interface	o	o	o	o	o	o
电源接口包括插头Supply cord incl. plug	x	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X: 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	o	o	o	o	o	o
橡膠腳Rubber foot	o	o	o	o	o	o
電子產品(PCB)Electronics (PCBs)	-	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
電力連接線Wiring	o	o	o	o	o	o
電池接口Battery interface	o	o	o	o	o	o
電源接口包括插頭Supply cord incl. plug	-	o	o	o	o	o
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2.“○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

① Battery ② Battery status indicator ③ Battery release button ④ Charger operating mode indicator ⑤ Wall mounting hole ⑥ Air outlet ⑦ Air inlet ⑧ Battery interface

3.2 Intended use

- Contact Hilti service.

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

This table applies to the Taiwan market.

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

This table applies to the Taiwan market.

13 Hilti Li-Ion batteries

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr (VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
壳体Housing	o	o	o	o	o	o
橡胶脚Rubber foot	o	o	o	o	o	o
电子元件(PCBs)Electronics (PCBs)	x	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
电气连接线Wiring	o	o	o	o	o	o
电池接口Battery interface	o	o	o	o	o	o
电源接口包括插头Supply cord incl. plug	x	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	o	o	o	o	o	o
橡膠腳Rubber foot	o	o	o	o	o	o
電子產品(PCB)Electronics (PCBs)	-	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
電力連接線Wiring	o	o	o	o	o	o
電池接口Battery interface	o	o	o	o	o	o
電源接口包括插頭Supply cord incl. plug	-	o	o	o	o	o
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr (VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
壳体Housing	o	o	o	o	o	o
橡胶脚Rubber foot	o	o	o	o	o	o
电子元件(PCBs)Electronics (PCBs)	x	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
电气连接线Wiring	o	o	o	o	o	o
电池接口Battery interface	o	o	o	o	o	o
电源接口包括插头Supply cord incl. plug	x	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X: 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供 “X” 标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	o	o	o	o	o	o
橡膠腳Rubber foot	o	o	o	o	o	o
電子產品(PCB)Electronics (PCBs)	-	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
電力連接線Wiring	o	o	o	o	o	o
電池接口Battery interface	o	o	o	o	o	o
電源接口包括插頭Supply cord incl. plug	-	o	o	o	o	o
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2.“○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr (VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
壳体Housing	o	o	o	o	o	o
橡胶脚Rubber foot	o	o	o	o	o	o
电子元件(PCBs)Electronics (PCBs)	x	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
电气连接线Wiring	o	o	o	o	o	o
电池接口Battery interface	o	o	o	o	o	o
电源接口包括插头Supply cord incl. plug	x	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	o	o	o	o	o	o
橡膠腳Rubber foot	o	o	o	o	o	o
電子產品(PCB)Electronics (PCBs)	-	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
電力連接線Wiring	o	o	o	o	o	o
電池接口Battery interface	o	o	o	o	o	o
電源接口包括插頭Supply cord incl. plug	-	o	o	o	o	o
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

This table applies to the Taiwan market.

C 8-22 (01)

Hazardous substances material disclosure according to SJ/T 11364-2014. Product type: Battery Charger. Products: C8-22 01.

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr (VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
壳体Housing	o	o	o	o	o	o
橡胶脚Rubber foot	o	o	o	o	o	o
电子元件(PCBs)Electronics (PCBs)	x	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
电气连接线Wiring	o	o	o	o	o	o
电池接口Battery interface	o	o	o	o	o	o
电源接口包括插头Supply cord incl. plug	x	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X: 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

This table applies to the China market.

Declaration of the Presence Condition of the Restricted Substances Marking

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	o	o	o	o	o	o
橡膠腳Rubber foot	o	o	o	o	o	o
電子產品(PCB)Electronics (PCBs)	-	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
電力連接線Wiring	o	o	o	o	o	o
電池接口Battery interface	o	o	o	o	o	o
電源接口包括插頭Supply cord incl. plug	-	o	o	o	o	o
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2.“○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

This table applies to the Taiwan market.

13 Hilti lithium-ion batteries

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger

Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr (VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
壳体Housing	o	o	o	o	o	o
橡胶脚Rubber foot	o	o	o	o	o	o
电子元件(PCBs)Electronics (PCBs)	x	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
电气连接线Wiring	o	o	o	o	o	o
电池接口Battery interface	o	o	o	o	o	o
电源接口包括插头Supply cord incl. plug	x	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger. Products: C8-22 01.

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr (VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
壳体Housing	o	o	o	o	o	o
橡胶脚Rubber foot	o	o	o	o	o	o
电子元件(PCBs)Electronics (PCBs)	x	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
电气连接线Wiring	o	o	o	o	o	o
电池接口Battery interface	o	o	o	o	o	o
电源接口包括插头Supply cord incl. plug	x	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr (VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
壳体Housing	o	o	o	o	o	o
橡胶脚Rubber foot	o	o	o	o	o	o
电子元件(PCBs)Electronics (PCBs)	x	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
电气连接线Wiring	o	o	o	o	o	o
电池接口Battery interface	o	o	o	o	o	o
电源接口包括插头Supply cord incl. plug	x	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	o	o	o	o	o	o
橡膠腳Rubber foot	o	o	o	o	o	o
電子產品(PCB)Electronics (PCBs)	-	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
電力連接線Wiring	o	o	o	o	o	o
電池接口Battery interface	o	o	o	o	o	o
電源接口包括插頭Supply cord incl. plug	-	o	o	o	o	o
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr (VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
壳体Housing	o	o	o	o	o	o
橡胶脚Rubber foot	o	o	o	o	o	o
电子元件(PCBs)Electronics (PCBs)	x	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
电气连接线Wiring	o	o	o	o	o	o
电池接口Battery interface	o	o	o	o	o	o
电源接口包括插头Supply cord incl. plug	x	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X: 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供 “X” 标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	o	o	o	o	o	o
橡膠腳Rubber foot	o	o	o	o	o	o
電子產品(PCB)Electronics (PCBs)	-	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
電力連接線Wiring	o	o	o	o	o	o
電池接口Battery interface	o	o	o	o	o	o
電源接口包括插頭Supply cord incl. plug	-	o	o	o	o	o
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2.“○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

This table applies to the Taiwan market.

C 8-22 (01)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

This table applies to the Taiwan market.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr (VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
壳体Housing	o	o	o	o	o	o
橡胶脚Rubber foot	o	o	o	o	o	o
电子元件(PCBs)Electronics (PCBs)	x	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
电气连接线Wiring	o	o	o	o	o	o
电池接口Battery interface	o	o	o	o	o	o
电源接口包括插头Supply cord incl. plug	x	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr (VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
壳体Housing	o	o	o	o	o	o
橡胶脚Rubber foot	o	o	o	o	o	o
电子元件(PCBs)Electronics (PCBs)	x	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
电气连接线Wiring	o	o	o	o	o	o
电池接口Battery interface	o	o	o	o	o	o
电源接口包括插头Supply cord incl. plug	x	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X: 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr (VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
壳体Housing	o	o	o	o	o	o
橡胶脚Rubber foot	o	o	o	o	o	o
电子元件(PCBs)Electronics (PCBs)	x	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
电气连接线Wiring	o	o	o	o	o	o
电池接口Battery interface	o	o	o	o	o	o
电源接口包括插头Supply cord incl. plug	x	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	o	o	o	o	o	o
橡膠腳Rubber foot	o	o	o	o	o	o
電子產品(PCB)Electronics (PCBs)	-	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
電力連接線Wiring	o	o	o	o	o	o
電池接口Battery interface	o	o	o	o	o	o
電源接口包括插頭Supply cord incl. plug	-	o	o	o	o	o
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	o	o	o	o	o	o
橡膠腳Rubber foot	o	o	o	o	o	o
電子產品(PCB)Electronics (PCBs)	-	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
電力連接線Wiring	o	o	o	o	o	o
電池接口Battery interface	o	o	o	o	o	o
電源接口包括插頭Supply cord incl. plug	-	o	o	o	o	o
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2.“○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

① Battery pack ② Battery pack status indicator ③ Battery pack release button ④ Charger operating status indicator ⑤ Wall mounting holes ⑥ Air outlet ⑦ Air inlet ⑧ Battery pack interface

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr (VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
壳体Housing	o	o	o	o	o	o
橡胶脚Rubber foot	o	o	o	o	o	o
电子元件(PCBs)Electronics (PCBs)	x	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
电气连接线Wiring	o	o	o	o	o	o
电池接口Battery interface	o	o	o	o	o	o
电源接口包括插头Supply cord incl. plug	x	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

This table is only valid for the Chinese market.

Declaration of the Presence Condition of the Restricted Substances Marking

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

① Battery ② Battery status display ③ Battery release button ④ Charger operating status display ⑤ Wall mounting holes ⑥ Air outlet ⑦ Air inlet ⑧ Battery connection

3.2 Intended use

The described product is a mobile charger for Hilti Li-ion batteries with a nominal voltage of 21.6 volts. Depending on the national version, it is intended for connection to sockets of 100 V to 127 V or 220 to 240 V alternating current.

You can place the charger on a flat surface or mount it on a wall.

• Hilti lithium-ion batteries approved for this product can be found in this list.
• Not all batteries are available in all markets.

Product information

Punjač C 6-22 | C 8-22
Generacija 01
Serijski br.	1 - 999999999999

3.3 Charger operating status display

Stanje	Značenje
LED lampica svetli zeleno.	Punjač je spreman za rad.
LED lampica ne svetli.	Punjač nije spreman za rad.

3.4 Li-ion battery displays during the charging process

When a Hilti Nuron Li-Ion battery is connected to a Hilti charger, the battery status display shows the charging status and any error messages.

Stanje Značenje
Jedna (1) LED dioda treperi polako zeleno Akumulatorska baterija se puni, nivo napunjenosti: ≤ 20%
Jedna (1) LED lampica svetli zeleno, a jedna (1) LED lampica polako treperi zeleno	Akumulatorska baterija se puni, nivo napunjenosti: 21% do 40%
Dve (2) LED lampice svetle zeleno, a jedna (1) LED lampica polako treperi zeleno	Akumulatorska baterija se puni, nivo napunjenosti: 41% do 60%
Tri (3) LED lampice svetle zeleno, jedna (1) LED lampica polako treperi zeleno	Akumulatorska baterija se puni, nivo napunjenosti: 61% do 80%
Četiri (4) LED lampice svetle zeleno Akumulatorska baterija se puni, nivo napunjenosti: ≥ 80%
Ne svetli nijedna LED lampica Akumulatorska baterija je potpuno napunjena, postupak punjenja je okončan.
Jedna (1) LED lampica brzo treperi žuto, zatim jedna li više LED lampica svetli zeleno	Postupak punjenja je prekinut. Akumulatorska baterija se možda nalazi van dozvoljenog opsega temperature.Postupak punjenja se automatski nastavlja čim se ponovo ostvare potrebni parametri. Ukoliko je potrebno, akumulatorsku bateriju dovedite na preporučenu radnu temperaturu.
Jedna (1) LED dioda treperi brzo crveno Li-Ion akumulatorska baterija je blokirana i više ne može da se upotrebljava. Obratite se Hilti servisu.

3.5 Li-Ion battery status displays

Hilti recommends checking the battery status before each charging process.

To read the battery status, press and hold the battery release button for more than three seconds. The system does not recognize potential battery malfunctions due to misuse, such as drops, punctures, or external heat damage.

Stanje Značenje
Sve LED diode svetle kao radno svetlo i jedna LED dioda nakon toga svetli konstantno zeleno.	1AkuMulatorska baterija može dalje da se koristi.
Sve LED diode svetle kao radno svetlo i nakon jedna (1) LED dioda brzo treperi žuto.	togat prikaza stanja akumulatorske baterije nije mo-gao da izvrši. Ponovite postupak ili se obratite Hilti servisu.
Sve LED diode svetle kao radno svetlo i jedna LED dioda nakon toga svetli konstantno crveno.	1Ako priključeni proizvod može i dalje da se koristi, preostali kapacitet baterije je manji od 50%. Ako priključeni proizvod više ne može da se koristi, akumulatorska baterija je na kraju svog roka trajanja i potrebno je da se zameni. Obratite se Hilti servisu.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr (VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
壳体Housing	o	o	o	o	o	o
橡胶脚Rubber foot	o	o	o	o	o	o
电子元件(PCBs)Electronics (PCBs)	x	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
电气连接线Wiring	o	o	o	o	o	o
电池接口Battery interface	o	o	o	o	o	o
电源接口包括插头Supply cord incl. plug	x	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

This table applies to the Chinese market.

Declaration of the Presence Condition of the Restricted Substances Marking

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	o	o	o	o	o	o
橡膠腳Rubber foot	o	o	o	o	o	o
電子產品(PCB)Electronics (PCBs)	-	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
電力連接線Wiring	o	o	o	o	o	o
電池接口Battery interface	o	o	o	o	o	o
電源接口包括插頭Supply cord incl. plug	-	o	o	o	o	o
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

This table applies to the Taiwanese market.

C 8-22 (01)

RoHS (Restriction of Hazardous Substances Directive)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls(PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
壳体Housing	o	o	o	o	o	o
橡胶脚Rubber foot	o	o	o	o	o	o
电子元件(PCBs)Electronics (PCBs)	x	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
电气连接线Wiring	o	o	o	o	o	o
电池接口Battery interface	o	o	o	o	o	o
电源接口包括插头Supply cord incl. plug	x	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X: 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

This table applies to the Chinese market.

Declaration of the Presence Condition of the Restricted Substances Marking

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	o	o	o	o	o	o
橡膠腳Rubber foot	o	o	o	o	o	o
電子產品(PCB)Electronics (PCBs)	-	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
電力連接線Wiring	o	o	o	o	o	o
電池接口Battery interface	o	o	o	o	o	o
電源接口包括插頭Supply cord incl. plug	-	o	o	o	o	o
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2.“○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

This table applies to the Taiwanese market.

13 Hilti Li-Ion rechargeable batteries

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	o	o	o	o	o	o
橡膠腳Rubber foot	o	o	o	o	o	o
電子產品(PCB)Electronics (PCBs)	-	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
電力連接線Wiring	o	o	o	o	o	o
電池接口Battery interface	o	o	o	o	o	o
電源接口包括插頭Supply cord incl. plug	-	o	o	o	o	o
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	o	o	o	o	o	o
橡膠腳Rubber foot	o	o	o	o	o	o
電子產品(PCB)Electronics (PCBs)	-	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
電力連接線Wiring	o	o	o	o	o	o
電池接口Battery interface	o	o	o	o	o	o
電源接口包括插頭Supply cord incl. plug	-	o	o	o	o	o
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2.“○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr (VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
壳体Housing	o	o	o	o	o	o
橡胶脚Rubber foot	o	o	o	o	o	o
电子元件(PCBs)Electronics (PCBs)	x	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
电气连接线Wiring	o	o	o	o	o	o
电池接口Battery interface	o	o	o	o	o	o
电源接口包括插头Supply cord incl. plug	x	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr (VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
壳体Housing	o	o	o	o	o	o
橡胶脚Rubber foot	o	o	o	o	o	o
电子元件(PCBs)Electronics (PCBs)	x	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
电气连接线Wiring	o	o	o	o	o	o
电池接口Battery interface	o	o	o	o	o	o
电源接口包括插头Supply cord incl. plug	x	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X: 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供 “X” 标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr (VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
壳体Housing	o	o	o	o	o	o
橡胶脚Rubber foot	o	o	o	o	o	o
电子元件(PCBs)Electronics (PCBs)	x	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
电气连接线Wiring	o	o	o	o	o	o
电池接口Battery interface	o	o	o	o	o	o
电源接口包括插头Supply cord incl. plug	x	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

3.2 Correct Use

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr (VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
壳体Housing	o	o	o	o	o	o
橡胶脚Rubber foot	o	o	o	o	o	o
电子元件(PCBs)Electronics (PCBs)	x	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
电气连接线Wiring	o	o	o	o	o	o
电池接口Battery interface	o	o	o	o	o	o
电源接口包括插头Supply cord incl. plug	x	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

This table applies to the Chinese market.

Declaration of the Presence Condition of the Restricted Substances Marking

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	o	o	o	o	o	o
橡膠腳Rubber foot	o	o	o	o	o	o
電子產品(PCB)Electronics (PCBs)	-	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
電力連接線Wiring	o	o	o	o	o	o
電池接口Battery interface	o	o	o	o	o	o
電源接口包括插頭Supply cord incl. plug	-	o	o	o	o	o
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

This table applies to the Taiwanese market.

C 8-22 (01)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	o	o	o	o	o	o
橡膠腳Rubber foot	o	o	o	o	o	o
電子產品(PCB)Electronics (PCBs)	-	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
電力連接線Wiring	o	o	o	o	o	o
電池接口Battery interface	o	o	o	o	o	o
電源接口包括插頭Supply cord incl. plug	-	o	o	o	o	o
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2.“○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

This table applies to the Taiwanese market.

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

This table applies to the Korean market.

Hazardous substances material disclosure according to SJ/T 11364-2014. Product type: Battery Charger. Products: C8-22 01.

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr (VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
壳体Housing	o	o	o	o	o	o
橡胶脚Rubber foot	o	o	o	o	o	o
电子元件(PCBs)Electronics (PCBs)	x	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
电气连接线Wiring	o	o	o	o	o	o
电池接口Battery interface	o	o	o	o	o	o
电源接口包括插头Supply cord incl. plug	x	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

This table applies to the Chinese market.

Declaration of the Presence Condition of the Restricted Substances Marking

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

This table applies to the Taiwan market.

13 Hilti lithium-ion battery

Safety and usage instructions

24F., No. 16, Xinzhan Rd., Banqiao Dist., New Taipei City 220, Taiwan (R.O.C.)

Tel. [phone]

12 Other information

C 6-22 (01)

RoHS (Restriction of Hazardous Substances Directive)

Hazardous substances material disclosure according to SJ/T 11364-2014. Product type: Battery Charger. Products: C6-22 01.

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr (VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
壳体Housing	o	o	o	o	o	o
橡胶脚Rubber foot	o	o	o	o	o	o
电子元件(PCBs)Electronics (PCBs)	x	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
电气连接线Wiring	o	o	o	o	o	o
电池接口Battery interface	o	o	o	o	o	o
电源接口包括插头Supply cord incl. plug	x	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

This table applies to the Chinese market.

Substance Content Declaration

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	o	o	o	o	o	o
橡膠腳Rubber foot	o	o	o	o	o	o
電子產品(PCB)Electronics (PCBs)	-	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
電力連接線Wiring	o	o	o	o	o	o
電池接口Battery interface	o	o	o	o	o	o
電源接口包括插頭Supply cord incl. plug	-	o	o	o	o	o
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

This table applies to the Taiwan market.

C 8-22 (01)

RoHS (Restriction of Hazardous Substances Directive)

Hazardous substances material disclosure according to SJ/T 11364-2014. Product type: Battery Charger. Products: C8-22 01.

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls(PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
壳体Housing	o	o	o	o	o	o
橡胶脚Rubber foot	o	o	o	o	o	o
电子元件(PCBs)Electronics (PCBs)	x	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
电气连接线Wiring	o	o	o	o	o	o
电池接口Battery interface	o	o	o	o	o	o
电源接口包括插头Supply cord incl. plug	x	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X: 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供 “X” 标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

This table applies to the Chinese market.

Substance Content Declaration

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	o	o	o	o	o	o
橡膠腳Rubber foot	o	o	o	o	o	o
電子產品(PCB)Electronics (PCBs)	-	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
電力連接線Wiring	o	o	o	o	o	o
電池接口Battery interface	o	o	o	o	o	o
電源接口包括插頭Supply cord incl. plug	-	o	o	o	o	o
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2.“○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

This table applies to the Taiwan market.

13 Hilti lithium battery

Operating and usage instructions

3.2 Compliant use

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	o	o	o	o	o	o
橡膠腳Rubber foot	o	o	o	o	o	o
電子產品(PCB)Electronics (PCBs)	-	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
電力連接線Wiring	o	o	o	o	o	o
電池接口Battery interface	o	o	o	o	o	o
電源接口包括插頭Supply cord incl. plug	-	o	o	o	o	o
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

This table applies to the Taiwan market.

RoHS (Restriction of Hazardous Substances Directive)

Hazardous substances material disclosure according to SJ/T 11364-2014. Product type: Battery Charger. Products: C8-22 01.

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls(PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
壳体Housing	o	o	o	o	o	o
橡胶脚Rubber foot	o	o	o	o	o	o
电子元件(PCBs)Electronics (PCBs)	x	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
电气连接线Wiring	o	o	o	o	o	o
电池接口Battery interface	o	o	o	o	o	o
电源接口包括插头Supply cord incl. plug	x	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X: 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供 “X” 标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

This table applies to the mainland China market.

Declaration of the Presence Condition of the Restricted Substances Marking

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	o	o	o	o	o	o
橡膠腳Rubber foot	o	o	o	o	o	o
電子產品(PCB)Electronics (PCBs)	-	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
電力連接線Wiring	o	o	o	o	o	o
電池接口Battery interface	o	o	o	o	o	o
電源接口包括插頭Supply cord incl. plug	-	o	o	o	o	o
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2.“○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” – indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3.“一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

This table applies to the Taiwan market.

13 Hilti lithium-ion batteries

Instructions for use and operation

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger

Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr (VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
壳体Housing	o	o	o	o	o	o
橡胶脚Rubber foot	o	o	o	o	o	o
电子元件(PCBs)Electronics (PCBs)	x	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
电气连接线Wiring	o	o	o	o	o	o
电池接口Battery interface	o	o	o	o	o	o
电源接口包括插头Supply cord incl. plug	x	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	o	o	o	o	o	o
橡膠腳Rubber foot	o	o	o	o	o	o
電子產品(PCB)Electronics (PCBs)	-	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
電力連接線Wiring	o	o	o	o	o	o
電池接口Battery interface	o	o	o	o	o	o
電源接口包括插頭Supply cord incl. plug	-	o	o	o	o	o
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

C 8-22 (01)

Hazardous substances material disclosure according to SJ/T 11364-2014. Product type: Battery Charger. Products: C8-22 01.

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr (VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
壳体Housing	o	o	o	o	o	o
橡胶脚Rubber foot	o	o	o	o	o	o
电子元件(PCBs)Electronics (PCBs)	x	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
电气连接线Wiring	o	o	o	o	o	o
电池接口Battery interface	o	o	o	o	o	o
电源接口包括插头Supply cord incl. plug	x	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號(型式): Type designation: C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	o	o	o	o	o	o
橡膠腳Rubber foot	o	o	o	o	o	o
電子產品(PCB)Electronics (PCBs)	-	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
電力連接線Wiring	o	o	o	o	o	o
電池接口Battery interface	o	o	o	o	o	o
電源接口包括插頭Supply cord incl. plug	-	o	o	o	o	o
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “一”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

3.2

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Battery Charger 型號(型式): C 6-22 01Equipment name: Type designation:
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name: Battery Charger 型號(型式): C 8-22 01Type designation:
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.
