USER MANUAL Smart Fryer AF123543 Emerio

Black and white photo of a modern air fryer with control panel (no visible text or symbols)

Abstract black logo design with three curved shapes and a registered trademark symbol (no text or labels)

Smart Fryer

(EN)

(DE)

(FR)

(SE)

(NL)

(PL)

(RU)

EAC C E

Content – Inhalt – Teneur – Innehåll – Inhoud – Treść – Содержание

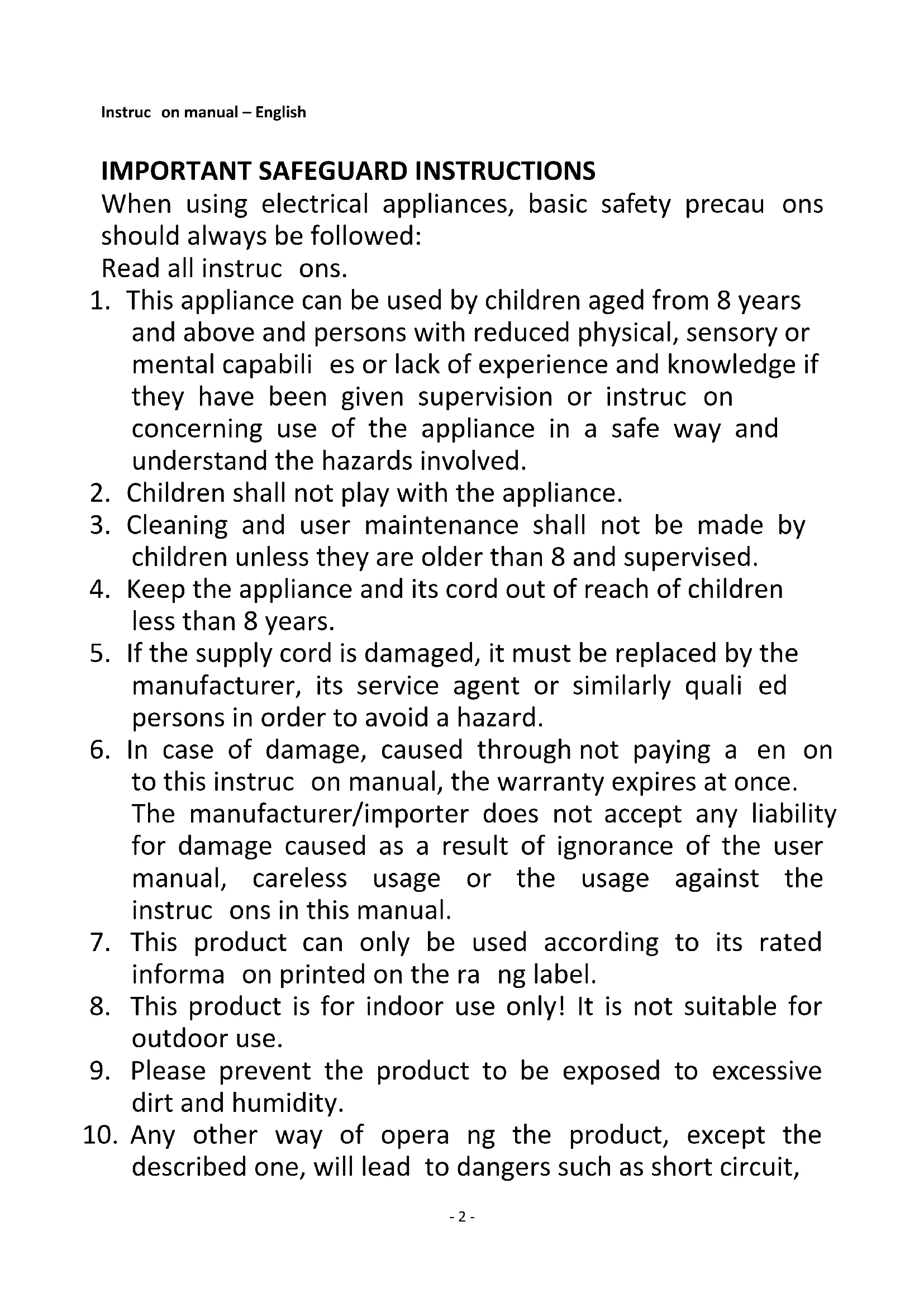

Instruc on manual – English....- 2 -

When using electrical appliances, basic safety precautions should always be followed:

Read all instruc ons.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruct on concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

4. Keep the appliance and its cord out of reach of children less than 8 years.

5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

6. In case of damage, caused through not paying a en on to this instruc on manual, the warranty expires at once. The manufacturer/importer does not accept any liability for damage caused as a result of ignorance of the user manual, careless usage or the usage against the instruc ons in this manual.

7. This product can only be used according to its rated informa on printed on the ra ng label.

8. This product is for indoor use only! It is not suitable for outdoor use.

9. Please prevent the product to be exposed to excessive dirt and humidity.

10. Any other way of operating the product, except the described one, will lead to dangers such as short circuit,

re or else. It is not allowed to modify this product in any way and the housing has not to be opened, otherwise the product will not be any longer in compliance with its safety class.

1. Never connect or disconnect the plug with wet hands.
2. Never unplug the plug by pulling the power supply cord. Always pull the plug itself.
3. During installa on/cleaning, please pay a en on that the power supply cord will not be squeezed or damaged.
4. Always disconnect the appliance from the mains and allow the product to cool down to room temperature: before storing away the appliance; before cleaning or maintenance; a er use; if you are not going to use it for a long period of me.
5. Clean the product itself with a slightly damp cloth.
6. Never replace a damaged power supply cord by yourself. In such case, or in case of malfunc on, contact an authorized electrician/service centre for examina on, repair or adjustment because special tools are required.
7. Make sure that the power supply cord does not come into contact with any parts, which generate excessive heat.
8. If you assume that the operating of the product without danger is not any longer possible please make sure that the product will be disconnected and not used any longer. The safe operation of this product is not any longer possible, if: the product or the power supply cord is damaged in any way; the product does not work any longer; a er a longer storage under unfavourable conditions; a er heavy damage through transporta on.
9. Never immerse the plug or the appliance in water or other liquid.
10. Never place the appliance directly into corners and under ammable materials such as curtains, cupboards etc.

11. Never leave the appliance una ended during use.

12. The machine should not be operated by means of an external mer-switch or by means of a separate system with remote control.

13. This appliance is not designed for commercial use.
14. WARNING!!

Yellow triangular warning sign with black smoke symbol indicating steam or heat release

Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

1. Regarding the instructions for cleaning the surfaces which come in contact with food or oil, please refer to the paragraph “CLEANING AND MAINTENANCE” of the manual.
2. Hot air comes out of the air vent at the back side of the appliance. Be sure to keep sufficient distance to materials, like glass, that are sensitive to heat.
3. If you use products with non-s ck surfaces, please make sure no birds are in the same room and that the room can be completely closed o and well-ven lated.

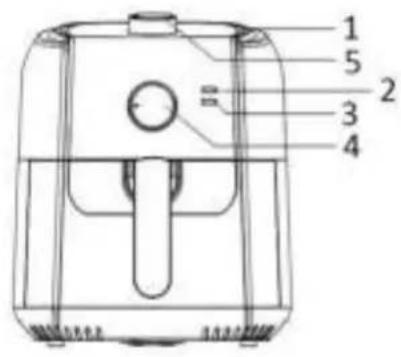

PARTS DESCRIPTION

1 2 3 4 5

10

6 7 9 8

1. Air inlet
2. Hea ng light
3. Power light
4. Timer knob
5. Temperature control knob

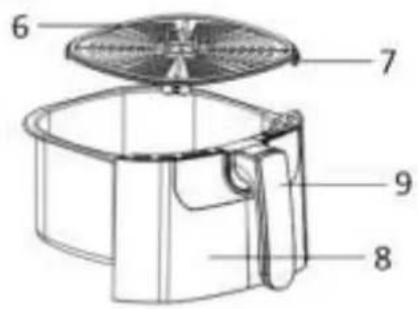

6. Frying grill
7. Silicone case
8. Basket
9. Basket handle

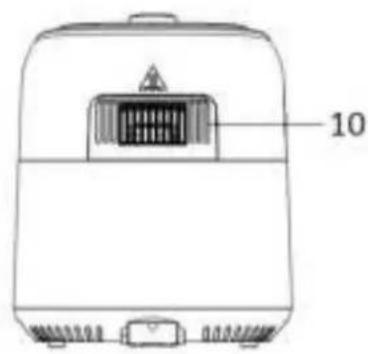

10. Air outlet

BEFORE USE

First read all instruc ons before use and retain the manual for later reference. Only plug this appliance into an earthed socket. Before rst use, remove the packing materials. Clean the basket and frying grill. (See "CLEANING AND MAINTENANCE") Wipe inside and outside of the appliance with a so cloth. Make sure that the electrical parts remain dry. This appliance heats food at all direc ons and most of the ingredients do not need any oil.

NOTE: Always use the frying grill with the silicone cases covered. They will help to stabilize the frying grill in the basket during cooking.

USE

1. Place the appliance on a dry, stable and heat-resistant surface.
2. Since the appliance becomes hot during use, make sure that it is not too close to other objects.
3. Pull out the basket from the appliance by the basket handle. Put the frying grill into the basket.

4. Place the ingredients into the basket. (Do not exceed the MAX level indicated inside the basket.) Slide the basket into the appliance. Make sure they are placed correctly and closed completely. Otherwise the appliance will not work. Cau on: Do not touch the basket during use or a er use in short me as it gets very hot. Only hold the basket by the handle.

5. Connect the power plug to a suitable outlet.

6. Set the temperature control knob to the required temperature setting, which is suitable for what you are frying. Consult the temperature table.

7. Turn the mer knob to choose the appropriate frying me and the appliance is switched on.

8. The power light illuminates when the appliance is switched on. The heating light comes on and goes out from me to me during the hot air frying process. This indicates that the heating element is switched on and o to maintain the set temperature.

9. When the cooking is nished, you will hear the mer bell rings. You can also switch o the appliance manually by turning the timer knob to "0".

10. Pull out the basket from the appliance by the basket handle. Check if the ingredients are ready. If not, simply slide the basket back into the appliance and set the to a few extra minutes.

11. Note: The basket and the ingredients are hot a er frying. Depending on the type of the ingredients in the appliance, steam may escape from the basket.

12. Empty the basket, pu ng the food into a bowl or onto a plate. To remove large or fragile ingredients, li the ingredients out of the basket by a pair of tongs.

To remove ingredients (e.g. beef, chicken, meat, any ingredients with original oil and will have excess oil from ingredients collected on the bo-om of the basket), please use tongs to pick ingredients one by one. To remove ingredients (e.g. chips, vegetable or ingredients with no excess oil from the ingredients), please pull out the basket, and pour ingredients to tableware.

1. A er the cooking is done, the appliance is instantly ready for preparing another batch of ingredients if needed.

FRYING TIPS

1. The op mal amount for crispy fries is 750 grams.
2. Add 2 minutes to prepare on me if the appliance is cold. Preheat the appliance without any ingredients inside. Turn the mer knob to more than 2 minutes and wait un l the heating light goes out. Then ll the basket with ingredients and turn the mer knob to the required me.
3. Shake or turn smaller ingredients halfway. By this way food will be fried evenly. Pull the basket out of the appliance by the handle and shake it. Then slide the basket back into the appliance.
4. You can also use the fryer to reheat ingredients.
5. Ingredients with crust of dry breadcrumbs will get crispier by spraying them with a li le vegetable oil.
6. Place a baking n or an oven dish (a er removing the frying grill) in the appliance if you want to bake a cake or quiche or other fragile ingredients.

CAUTION:

1. Do not immerse the housing in water or rinse it under the tap.
2. Avoid any liquid entering the appliance to prevent from electric shock or short circuit.
3. Keep all ingredients in the basket to prevent any contact with heating elements.
4. Do not cover the air inlet and the outlet when the appliance is working. Leave at least 10cm free space around and above the appliance.
5. Filling the basket with oil may cause a re hazard!
6. Do not touch the inside of the appliance when it is in opera on.
7. Be careful of the hot steam and air when you remove the basket from the appliance.
8. During opera on, hot steam is released through the air outlet. Keep your hands and face at a safe distance from the steam and the air outlet.
9. Immediately turn o and unplug the appliance if you see any dark smoke coming out of the appliance, which means the food is overcooked or the appliance broke down.
10. Before handling or cleaning the appliance, let it cool down for approximately 30 minutes.

FRYING TABLE

This table shows the food product quan es and required temperature and frying mes. If the instruc ons on the product pack deviate from the values shown in this table, the instruc ons on the pack should be followed.

Type	Minimum-Maximum food ingredients amount (g)	Time (minutes)	Temperature (°C)	Overturning	Addi onal informa on
Chips	600-900	18-25	200	Overturning
rib	350-450	15-20	180	Overturning
Shrimp	150-250	15-20	160	Overturning
Cake	550-6508-10 cups	20-30	160	Overturning
Drums ck	700-90010-13 PCS	20-25	180	Overturning	Adding 1/2 spoon of oil
Beef steak	4503-5 pcs	15-25	160	Overturning	Adding 1/2 spoon of oil
Fish	200-300	15-20	180	Overturning

CLEANING AND MAINTENANCE

1. Clean the appliance on all the inside and outside regularly.
2. Clean the outside and inside of the appliance with a damp cloth and dry with a so clean cloth.
3. Never use abrasive cleaners or sponges.
4. Remove the basket to let the appliance cool down more quickly. Clean the basket and frying grill in hot water with a washing liquid and a non-abrasive sponge. Dry well before use.
5. Clean the heating element inside of the housing (You can see it a er pulling out the basket) with a cleaning brush to remove any food residue.

Note: The basket and frying grill are dishwasher safe.

TROUBLE SHOOTING

Problem	Possible cause	Solu on
The appliance does not work.	The appliance is not plugged in.	Put the mains plug in an earthed wall socket.
	You have not set the mer.	Turn the mer knob to the required prepara on me to switch on the appliance.
The ingredients are not fried completely.	The amount of the food in the basket is over.	Put smaller batches of ingredients in the basket. Smaller batches are fried more evenly.
	The temperature is too low.	Turn the temperature control knob to the required temperature.
The ingredients are fried unevenly.	Di erent types of food may need to be shaken halfway.	Shake food halfway.
Basket cannot be slid into the housing properly.	Too much food in the basket.	Put less amount of food in the basket.
White smoke comes out from the appliance.	You are preparing greasy ingredients.	When you fry greasy ingredients, oil will leak into the basket. The oil produces white smoke and the basket may heat up. This does not a ect the cooking result or hurt the appliance.
	The basket s ll contains grease residue from previous use.	Clean the basket properly a er each use.

TECHNICAL DATA

Operang voltage: 220-240V \~ 50-60Hz

Power consump on: 1400W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during produc on or transporta on, please return the device to your dealer. In addi on to statutory legal rights, the purchaser has an op on to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the ongoing of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequent damages then we will not be liable.

Neither can we hold responsible for material damage or personal injury caused by improper use or if the instruction on manual are not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Direc ve 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used

device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Emerio Holland B.V.

Zomervaart 1A

2033 DA Haarlem

The Netherlands

Customer service:

T: [phone]

E: [e-mail]
