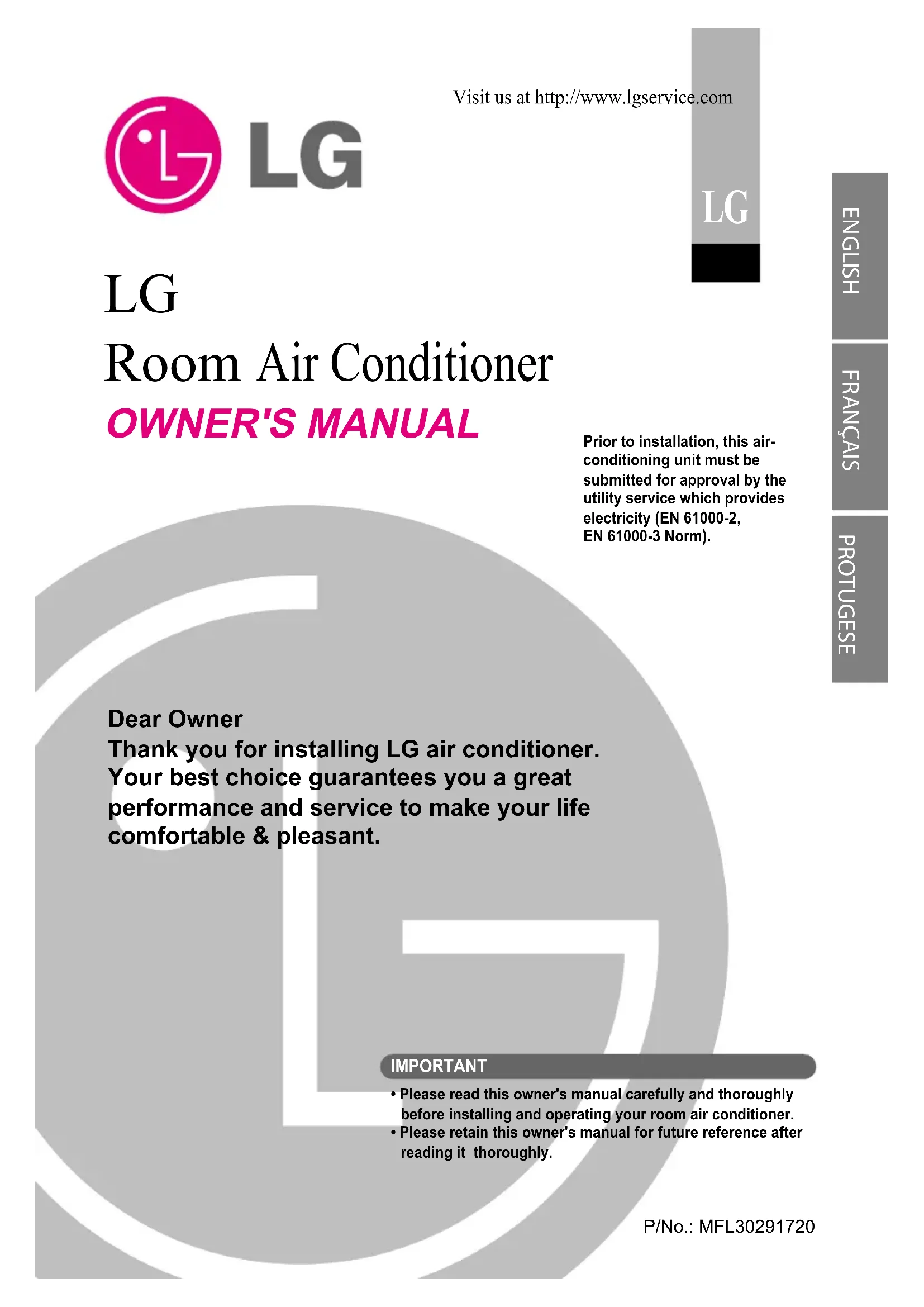

USER MANUAL S24LS LG

Visit us at http://www.lgservice.comIMPORTANT• Please read this owner's manual carefully and thoroughlybefore installing and operating your room air conditioner.• Please retain this owner's manual for future reference afterreading it thoroughly.Prior to installation, this air-conditioning unit must besubmitted for approval by theutility service which provideselectricity (EN 61000-2,EN 61000-3 Norm). Dear Owner Thank you for installing LG air conditioner. Your best choice guarantees you a great performance and service to make your life comfortable & pleasant. P/No.: MFL30291720

Write the model and serial numbers here: Model # Serial # You can find them on a label on the side of each unit. Dealer's Name Date Purchased ■ Staple your receipt to this page in the event you need it to prove date of purchase or for warranty issues.

Inside you will find many helpful hints on how to use and maintain your air conditioner properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your air conditioner. You'll find many answers to common problems in the chart of troubleshooting tips. If you review our chart of Troubleshooting Tips first, you may not need to call for service at all. PRECAUTION

• Contact the authorized service technician for repair or maintenance of this unit.

• Contact the installer for installation of this unit.

• The air conditioner is not intended for use by young children or invalids without supervision.

• Young children should be supervised to ensure that they do not play with the air conditioner.

• When the power cord is to be replaced, replacement work shall be performed by authorized personnel only using only genuine replacement parts. A. Safety Precautions ..............................3 B. Electrical Safety...................................6 Temporary Use of an Adapter ...............6 Temporary Use of an Extension Cord ...6 Symbols used in this Manual.................6 C. Operating Instructions........................7 Remote Controller..................................7 Wireless Remote Controller...................8 D. Maintenance and Service..................12 Indoor Unit...........................................12 Outdoor Unit ........................................12 Operation Tips!....................................13 Troubleshooting Tips............................14Owner's Manual 3 Safety Precautions ENGLISH Safety Precautions To prevent injury to the user or other people and property damage, the following instructions must be followed. ■ Incorrect operation due to ignoring instruction will cause harm or damage. The seriousness is classified by the following indications. ■ Meanings of symbols used in this manual are as shown below. This symbol indicates the possibility of death or serious injury. This symbol indicates the possibility of injury or damage. Be sure not to do. Be sure to follow the instruction. Always use a power plug and socket with a ground terminal.

• There is a risk of electric shock. Do not use a defective or underrated circuit breaker. Use the correctly rated breaker and fuse.

• There is risk of fire or electric shock . Do not use a multi consent. Always use this appliance on a dedicated cicuit and breaker.

• Otherwise it can cause electric shock or fire. For electrical work, contact the dealer, seller, a qualified electrician, or an Authorized Service Center. Do not disassemble or repair the product by yourself.

• There is risk of fire or electric shock. Always ground the product as per the wiring diagram. Do not connect the ground wire to gas or water pipes lightening rod or telephone ground wire.

• There is risk of fire or electric shock. Install the panel and the cover of control box securely.

• There is risk of fire or electric shock due to dust , water etc. Use the correctly rated breaker or fuse.

• There is risk of fire or electric shock. Do not modify or extend the power cable. If the power cable or cord has scrathes or skin peeled off or deteriorated then it must be replaced.

• There is risk of fire or electric shock. For installation, removal or reinstall , always contact the dealer or an Authorized Service Center.

• There is risk of fire, electric shock, explosion, or injury. Do not install the product on a defective installation stand. Be sure that the installation area does not deteriorate with age.

• It may cause product to fall. Never install the outdoor unit on a moving base or a place from where it can fall down.

• The falling outdoor unit can cause damage or injury or even death of a person. When the product is soaked (flooded or submerged) in water , contact an Authorized Service Center for repair before using it again.

• There is risk of fire or eletric shock. In outdoor unit the step-up capacitor supplies high voltage electricity to the electrical components. Be sure to discharge the capacitor completely before conducting the repair work.

• An charged capacitor can cause electrical shock. When installing the unit, use the installation kit provided with the product.

• Otherwise the unit may fall and cause severe injury. Be sure to use only those parts which are listed in the svc parts list. Never attempt to modify the equipment.

• The use of inappropriate parts can cause an electrical shock, excessive heat generation or fire.4 Room Air Conditioner Safety Precautions Indoor/outdoor wiring connections must be secured tightly and the cable should be routed properly so that there is no force pulling the cable from the connection terminals.

• Improper or loose connections can cause heat generation or fire. Safely dispose off the packing materials. Like screws, nails, batteries, broken things etc after installation or svc and then tear away and thraw away the plastic packaging bags.

• Children may play with them and cause injury. Make sure to check that the power cable plug is not dirty, loose or broken and then only insert the plug completely.

• Dirty, loose or broken power plug can cause electric shock or fire. Be sure to check the refrigerant to the used. Please read the label on the product.

• Incorrect refrigerant used can prevent the normal operation of the unit. Don't use a power cord, a plug or a loose socket which is damaged.

• Otherwise it may cause a fire or electrical shock. Do not touch , operate, or repair the product with wet hands. Hold the plug by hand when taking out

• There is risk of electric shock or fire. Do not place a heater or other heating appliances near the power cable.

• There is risk of fire and electric shock. Do not allow water to run into electric parts. Install the unit away from water sources.

• There is risk of fire, failure of the product, or electric shock. Do not store or use or even allow flammable gas or combustibles near the product.

• There is risk of fire. Do not use the product in a tightly closed space for a long time. Perform ventilation regularly.

• Oxygen deficiency could occur and hence harm your health. Do not open the front grille of the product during operation. (Do not touch the electrostatic filter, if the unit is so equipped.)

• There is risk of physical injury, electric shock, or product failure. If strange sounds, smell or smoke comes from product.Immediately turn the breaker off or disconnect the power supply cable.

• There is risk of electric shock or fire. Ventilate the product room from time to time when operating it together with a stove, or heating element etc.

• Oxygen deficiency can occur and hence harm your health. Turn the main power off and unplug the unit when cleaning or repairing the product.

• There is risk of electric shock. When the product is not to be used for a long time, disconnect the power supply plug or turn off the breaker.

• There is risk of product damage or failure, or unintended operation. Take care to ensure that nobody especially kids could step on or fall onto the outdoor unit.

• This could result in personal injury and product damage. Take care to ensure that power cable could not be pulled out or damaged during operation.

• There is risk of fire or electric shock. Do not place ANYTHING on the power cable.

• There is risk of fire or electric shock. Do not plug or unplug the power supply plug to turn the unit ON/OFF .

• There is risk of fire or electric shock. When flammable gas leaks, turn off the gas and open a window for ventilation before turn the product on.

• Do not use the telephone or turn switches on or off. There is risk of explosion or fire. Two or more people must lift and transport the product.

• Avoid personal injury. Do not install the product where it will be exposed to sea wind (salt spray) directly.

• It may cause corrosion on the product. Install the drain hose to ensure that the condensed water is drained away properly.

• A bad connection may cause water leakage. Keep level even when installing the product.

• To avoid vibration or noise. Do not install the product where the noise or hot air from the outdoor unit could damage or disturb the neighborhoods.

• It may cause a problem for your neighbors and hence dispute. Always check for gas (refrigerant) leakage after installation or repair of product.

• Low refrigerant levels may cause failure of product.Owner's Manual 5 Safety Precautions ENGLISH Do not use the product for special purposes, such as preserving foods, works of art, etc. It is a consumer air conditioner, not a precision refrigeration system.

• There is risk of damage or loss of property. Do not block the inlet or outlet of air flow.

• It may cause product failure. Use a soft cloth to clean. Do not use harsh detergents, solvents or splashing water etc .

• There is risk of fire, electric shock, or damage to the plastic parts of the product. Do not touch the metal parts of the product when removing the air filter.

• There is risk of personal injury. Do not step on or put anyting on the product. (outdoor units)

• There is risk of personal injury and failure of product. Always insert the filter securely after cleaning. Clean the filter every two weeks or more often if necessary.

• A dirty filter reduces the efficiency. Do not insert hands or other objects through the air inlet or outlet while the product is operating.

• There are sharp and moving parts that could cause personal injury. Be cautious when unpacking and installing the product.

• Sharp edges could cause injury. If the refrigerant gas leaks during the repair, do not touch the leakaing refrigerant gas.

• The refrigernat gas can cause frostbite (cold burn) Do not tilt the unit when removing or uninstalling it.

• The condensed water inside can spill . Do not mix air or gas other than the specified refrigerant used in the system .

• If air enters the refrigerant system, an excessively high pressure results, causing equipment damage or injury. If the refrigerant gas leaks during the installation, ventilate the area immediately.

• Otherwise it can be harmfull for your health. Dismantling the unit, treatment of the refrigerant oil and eventual parts should be done in accordance with local and national standards. Replace the all batteries in the remote control with new ones of the same type. Do not mix old and new batteries or different types of batteries.

• There is risk of fire or product failure. Do not recharge or disassemble the batteries. Do not dispose off batteries in a fire.

• They may burn or explode. If the liquid from the batteries gets onto your skin or clothes, wash it well with clean water. Do not use the remote if the batteries have leaked.

• The chemicals in batteries could cause burns or other health hazards. Do not let the air conditioner run for a long time when the humidity is very high and a door or a window is left open.

• Moisture may condense and wet or damage furniture. Do not expose your skin or kids or plants to the cool or hot air draft.

• This could harm to your health. Do not drink the water drained from the product.

• It is not sanitary and could cause serious health issues. Use a firm stool or ladder when cleaning, maintaining or repairing the product at an height.

• Be careful and avoid personal injury.6 Room Air Conditioner Electrical Safety Electrical Safety
• This appliance must be properly grounded.To minimize the risk of electric shock, you must alway plug into a grounded oulet.• Do not cut or remove the grounding prong from the power plug. • Attaching the adapter ground terminal to the wall receptacle cover screw does not ground the applianceunless the cover screw is metal and not insulated, and the wall receptacle is grounded through thehouse wiring.• If you have any doubt whether the air conditioner is properly grounded, have the wall receptacle andcircuit checked by a qualified electrician.We strongly discourage the use of an adapter due to potential safety hazards. For temporary connections,use only a genuine adapter, available from most local hardware stores. Ensure that the large slot in theadapter is aligned with the large slot in the receptacle for a proper polarity connection.To disconnect the power cord from the adapter, use one hand on each to avoid damaging the groundterminal. Avoid frequently unplugging the power cord as this can lead to eventual ground terminal damage.• Never use the appliance with a broken adapter. We strongly discourage the use of an extension cord due to potential safety hazards. For temporarysituations, use only CSA certified and UL listed 3-wire grounded extension cords, rated 15 A, 125 V. Temporary Use of an Adapter Temporary Use of an Extension Cord This symbol alerts you to the risk of electric shock. This symbol alerts you to hazards that may cause harm to the air conditioner. This symbol indicates special notes. NOTE Symbols used in this Manual This appliance should be installed in accordance with national wiring regulations. This guide acts as aguide to help to explain product features.Remote Controller Operating Instructions Remove the battery cover by pulling it according tothe arrow direction.Insert new batteries making sure that the (+) and (-)of battery are installed correctly.Reattach the cover by sliding it back into position.Use 2 AAA(1.5volt) batteries. Do not userechargeable batteries. NOTICE

• The remote control may be stored mounted on a wall. • To operate the room air conditioner, aim the remotecontrol at the signal receptor. Storage and Tips For Using the Remote Control Operating Instructions Signal Receptor Receives the signals from the remote controller.(Signal receiving sound:two short beeps or one long beep.) Operation Indication Lamps On/O: Lights up during the system operation.: Lights up during outdoor unit operation.(Cooling model only)Outdoor UnitOperation OUT DOOR Timer : Lights up during Timer operation. Owner's Manual 7 ENGLISHWireless Remote Controller The remote control transmits the signals to the system. TEMP. TIME OFF hr.

OPERATION DISPLAY Displays the operation conditions.

AIRFLOW DIRECTION BUTTON

Used to stop or start louver movement and set the desired up/down airflow direction.

Used to set the time of stopping operation.

Operation starts when this button is pressed, and stops when the button is pressed again.

BUTTON JET COOL Used to start or stop the speed cooling. (Speed cooling operates super high fan speed in cooling mode.)

(1) Operation Mode (2) Operation Procedure 1st 2nd 3rd 4th Start/Stop Button Operation Mode Selection Button Room Temperature Setting Button Indoor Fan Speed Selection Button 8 Room Air Conditioner Operating InstructionsTIMEOFFhr.TEMP. TIME OFFhr. TEMP. TIME OFFhr. TEMP. To raise the temperature To lower the temperature TEMP. TIME OFF hr. TIME OFF hr. TEMP. Cooling Healthy Dehumidification Beep, Beep Press the Start/Stop Button. Select Cooling Operation. Press the Operation Mode Selection Button. Each time the button is pressed, the operation mode is shifted in the arrow direction. Set the temperature lower than the room temperature.

• The temperature can be set within a range of 18°C ~ 30°C by 1°C . Set the fan speed.

Select the fan speed in four steps-low, medium, high

• Each time the button is pressed, the fan speed mode is shifted.

The display shows high fan speed. Cooling Operation

Healthy Dehumidification Operation Mode This mode dehumidifies without overcooling. During Healthy Dehumidification Operation: If you select the dehumidification mode on the operation selection button, the airconditioner starts to run the dehumidification function, automatically setting the room temp. and airflow volume to the best condition for dehumidification based on the sensed current room temp. In this case, however, the setting temp. is not displayed in the remote control and you are not able to control the room temp. either. During the healthy dehumidification function, the airflow volume is automatically set according to the optimization algorithm responding to the current room temp. status and makes the room condition healthy and comfortable even in the high humidity season. Owner's Manual 9 Operating Instructions ENGLISHBeep, Beep TIME OFF hr. TEMP. Press the OFF Time Button.

1. Press the OFF Time Button.

2. Check the OFF Time LED of the room air conditioner.

3. The Timer is programmed by 1 hour each

pressing the OFF Time button from 1 hour to 7 hours. Timer control Setting

OFF TIMER CONTROL SETTING

Press the Jet Cool button to operate the speed cooling mode and the unit will operate at super high fan speed on cooling mode for 30 minutes. To cancel the fan speed button or the room temperature setting button again and the unit will operate at high fan speed on cooling mode. Jet Cool mode, press the Jet Cool button, the TIME OFF hr. TEMP. Jet Cool Operation 10 Room Air Conditioner Operating InstructionsVertical Airow Direction Control The up/down airow (Vertical Airow) can be adjusted by using the remote control. 1. Press the Start/Stop button to start the unit.2. Press Chaos Swing button and the louvers will swingup and down. Press the Chaos Swing button againto set the vertical louver at the desired airowdirection.If you press the CHAOS swing button, thehorizontal airow direction is changedautomatically based on the CHAOS algorithm todistribute the air in the room evenly and at thesame time to make the human body feel mostcomfortable, as if enjoying a natural breeze.Always use the remote control to adjust theup/down airow direction. Manually moving thevertical airow direction louver by hand, coulddamage the air conditioner.When the unit is shut o, the up/down airowdirection louver will close the air outlet vent of thesystem. NOTICE Horizontal Airow Direction Control

• Adjust the horizontal airow direction by manually moving thehorizontal airow direction louver by hand.Operation procedures when the remote control can't be used.The operation will be started if the power button is pressed.If you want to stop operation, re-press the button. Forced Operation Heat pump ModelCoolingModel Room Temp. ≥ 24°C 21 °C ≤ Room Temp. < 24 °C Room Temp. < 21 ° COperating modeCooling CoolingHealthy Dehumidication HeatingIndoor FAN Speed High High High HighSetting Temperature22° C22° C23° C24° C Test operation During the TEST OPERATION, the unit operates in cooling mode at high speed fan, regardless of roomtemperature and resets in 18 minutes.During test operation, if remote controller signal is received, the unit operates as remote controller sets.If you want to use this operation, open the front panel upward and Press the power button let it be pressedfor about 3 seconds.If you want to stop the operation, re-press the button. ON/OFFbutton ENGLISH Owner's Manual 11 Operating InstructionsG

(Side) (Rear) Air intake vents Air outlet vents Piping Drain Hose Maintenance and Service Indoor Unit Outdoor Unit CAUTION: Before performing any maintenance, turn o the main power to the system. Grille, Case, and Remote Control Turn the system o before cleaning. To clean, wipe with a soft, dry cloth. Do not use bleach or abrasives. Supply power must be disconnected before cleaning the indoor unit. AIR FILTERS The air lters behind the front grille should be checked and cleaned once every 2 weeks or more often if neccessary. Never use any of the followings:

• Water hotter than 40 °C Could cause deformation and/or discoloration.

• Volatile substances Could damage the surfaces of the air conditioner. Lift the front access panel and pull the lter tab slightly forward to remove the lter. Clean the lter with a vacuum or warm, soapy water.

• If dirt is conspicuous, wash with a solution of detergent in lukewarm water.

• If hot water (40 °C or more) is used, it may be deformed. After washing with water, dry well in the shade. Re-install the air lter. NOTICE The heat exchanger coils and panel vents of the outdoor unit should be checked regularly. If clogged with dirt or soot, the heat exchanger and panel vents may be professionally steam cleaned. Dirty or clogged coils will reduce the operating eciency of the system and cause higher operating costs. NOTICE Air inletAir filterAir outletFront grilleON/OFF buttonSignalreceiverGrille tab Flap (Horizontal blade)Louvers(Vertical blades) 12 Room Air Conditioner Maintenance and Service (Side) (Rear) Drain Hose Air intake vents Air outlet vents Piping (Side) (Rear) Piping Drain Hose Air intake vents Air outlet ventsCAUTION CAUTION When the air conditioner is not going to be used for a long time. Operation Tips When air conditioner is not going to be used for a long time. When the air conditioner is to be used again. Turn o the circuit breaker, and disconnect the plug. Remove the batteries from the remote control. Turn o the circuit breaker when the air conditioner is not going to be used for a long time. Dirt may collect and may cause a re. Clean the air lter and install it in the indoor unit. (Refer to page 12 for cleaning lters.) Check that the air inlet and outlet of the indoor/outdoor unit are not blocked. Do not overcool the room. This is not good for the health and wastes electricity. Make sure that the doors and windows are shut tight. Avoid opening doors and windows as much as possible to keep the cool air in the room. Keep blinds or curtains closed. Do not let direct sunshine enter the room when the air conditioner is in operation. Clean the air lter regularly. Blockages in the air lter reduce the airow and lower cooling and dehumidifying eects. Clean at least once every two weeks. Keep the room temperature uniform. Adjust the vertical and horizontal airow direction to ensure a uniform temperature in the room. Ventilate the room occasionally. Since windows are kept closed, it is a good idea to open them and ventilate the room now and then. Owner's Manual 13 ENGLISH Maintenance and ServiceTroubleshooting Check the following points before requesting repairs or service.... If the fault persists, please contact your dealer or service center. egap eeSnoitanalpxEesaC The air conditioner does not operate. The room has a peculiar odor. It seems that condensation is leaking from the air conditioner. Air conditioner does not operate for about 3 minutes when restarted. Does not cool or heat eectively. The air conditioner operation is noisy. Remote control display is faint, or no display at all. Crack sound is heard.

• Have you made a mistake in timer operation?

• Has the fuse blown or has the circuit breaker been tripped?

• Check that this is not a damp smell exuded by the walls, carpet, furniture, or cloth items in the room.

• Condensation occurs when the airow from the air conditioner cools the warm room air.

• This is the protector of the mechanism.

• Wait about three minutes and operation will begin.

• Is the air lter dirty? See air lter cleaning instructions.

• Has the temperature been set incorrectly?

• Are the indoor unit's air inlet or outlet vents obstructed?

• For a noise that sounds like water owing. -This is the sound of freon owing inside the air conditioner unit.

• For a noise that sounds like the compressed air releasing into atmosphere. -This is the sound of the dehumidifying water being processed inside the air conditioning unit.

• Are the batteries depleted?

• Are the batteries inserted in the opposite (+) and (-) directions?

• This sound is generated by the expansion/constriction of the front panel, etc. due to changes of temperature.
