GX5000 - Coffee grinder KRUPS - Free user manual and instructions

Product Type	Electric burr coffee grinder
Brand	Krups
Model	GX5000
Supply Voltage	120 V~
Frequency	60 Hz
Rated Power	110 W
Burr Type	Stainless steel conical burr
Bean Hopper Capacity	Approx. 250 g
Grounds Container Capacity	Approx. 100 g
Grind Selector	10 adjustable positions
Cup Selector	Adjusts ground coffee quantity (up to approx. 12 cups)
Auto Shut-Off	Yes, at end of grinding cycle
Overheat Protection	Yes, automatic shutdown and 30-minute cool-down
Safety Features	Safety switch: hopper lid and grounds container must be in place
Plug Type	Polarized plug (one blade wider)
Cord Length	Short cord (reduces tangling risk)
Housing Material	Hard-wearing ABS plastic
Color	Black
Included Accessories	Cleaning brush
Maintenance	Removable upper burr for cleaning, parts washable with soapy water
Warranty	2 years (KRUPS International Warranty)

Frequently Asked Questions - GX5000 KRUPS

What to do if the coffee grinder does not work?

First check that the appliance is properly plugged into an electrical outlet. Make sure the bean hopper lid (2) is closed and that the grounds container (6) with its lid (7) is correctly positioned in the housing. These components are safety devices that prevent operation if not in place.

Why does the grinder stop during operation?

This is likely due to overheating of the appliance. The overheat protection device activates automatically. Unplug the appliance, remove the upper burr to clean it and remove any obstruction, then let it cool for 30 minutes before restarting. Avoid exceeding maximum bean or ground coffee capacities.

How to clean the coffee grinder?

Always unplug the appliance before cleaning. Wash the grounds container and its lid in warm soapy water, rinse and dry. For the removable upper burr (5), set the grind selector to the minimum position, turn the burr clockwise and lift it out. Clean it with the supplied cleaning brush (11). The inside of the bean hopper (1) and the grounds outlet (10) should be wiped with a damp cloth. Never immerse the housing in water.

How to adjust the grind fineness?

Use the grind selector (9) located on the housing. The adjustment has 10 positions, ranging from very fine (for espresso) to coarse (for percolator). Refer to the chart in the manual to choose the grind suitable for your coffee maker. Adjust by two to three clicks at a time to find the ideal setting. Do not change the setting while the appliance is running.

How to choose the number of cups?

Turn the cup selector (8) to set the desired amount of grounds. The higher the number, the longer the grinding time. The grinder grinds approximately 1/4 ounce (7 g) of coffee per selected cup. Make sure the grounds do not exceed the 'max.' level in the container.

Can other beans besides coffee be ground?

No, this appliance is exclusively designed for grinding coffee beans. Any other use, such as spices or cereals, may damage the burrs and void the warranty. The appliance is intended for household use only.

How to replace or remove the upper burr?

To remove the removable upper burr (5), first set the grind selector (9) to the minimum position. Grasp the burr fins, turn clockwise and lift it out. To replace it, set the selector to the maximum position, position the burr and turn counterclockwise. Use the cleaning brush to remove any residue.

What is the warranty for this product?

Krups offers a 2-Year International Warranty from the date of purchase, covering any defect in materials or workmanship. The warranty does not cover normal wear, damage due to misuse, incorrect voltage, or unauthorized repairs. For any claim, keep the proof of purchase.

How to store coffee beans?

To preserve aroma, store coffee beans in an airtight container in the refrigerator. It is recommended to grind coffee just before brewing for optimal flavor. Do not keep ground coffee in the container beyond 24 hours.

The grinder makes an abnormal noise or does not grind properly?

An unusual noise may indicate a foreign object in the hopper or an obstruction in the burrs. Check and clean the inside of the hopper and the upper burr. Ensure the upper burr is properly installed. If the problem persists, contact a Krups authorized repair center.

USER MANUAL GX5000 KRUPS

EN. P.1-7
FR. P.8-14
ES. P.15-2

KRUPS

CoffeeGrinder

9100035732-09
www.krups.com

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed: 1. Read all instructions before using the burr grinder.
2. To protect against fire, electric shock and injury to persons, do not immerse cord, plugs or machine in water or other liquid.
3. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
4. Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning. To unplug, grasp plug and pull from electrical outlet. Never pull cord.
5. Avoid contact with moving parts.
6. To reduce the risk of severe injury to persons or damage to the appliance, keep hands and utensils out of the bean hopper while grinding, and when the appliance is plugged in.
7. Do not operate the grinder with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. In this case, return the appliance to the KRUPS approved Service Center for examination, repair, or electrical or mechanical adjustment.
8. The use of attachments not recommended or sold by KRUPS may cause fire, electric shock or injuries.
9. Do not use outdoors.
10. Do not let cord hang over edge of table or counter or touch hot surfaces, including the stove.
11. Check hopper for presence of foreign objects before using.
12. Always operate the burr grinder with the lid securely in place.
13. Do not place on or near a hot gas or electric burner or in a heated oven.
14. Do not operate the appliance when empty
15. This product has been designed for domestic use only. Any professional use, inappropriate use or failure to comply with the instructions will void the manufacturer's Warranty.
16. Do not use appliance for other than intended use.

SAVE THESE INSTRUCTIONS

CAUTION

This appliance is for household use only. Any servicing other than cleaning and user maintenance should be performed by the nearest authorized KRUPS Service Center.

Do not immerse appliance in water.
To reduce the risk of fire or electric shock, do not dismantle the appliance. Repair should be done by an authorized KRUPS Service Center only.

SHORT CORD INSTRUCTIONS

Regarding your Cord Set:

A. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
B. Extension cords should be used with caution.

C. If an extension cord is used, (1) the marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance, (2) if the appliance is of the grounded type, the extension cord should be of a grounded type and (3) the longer cord should be arranged so that it will not drape over the counter top or table top where it can be pulled on by children or tripped over.
D. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

POLARIZED PLUG

This appliance has a polarized plug (one blade is wider than the other), to reduce the risk of electrical shock. This plug will fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not modify the plug in any way.

Thank you for choosing an appliance from KRUPS.

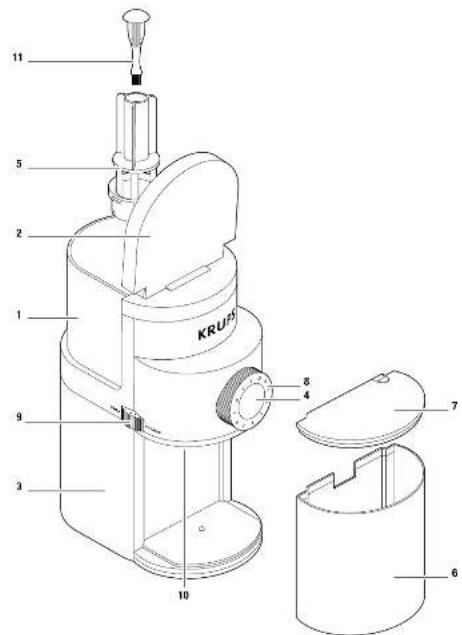

DESCRIPTION

1 Coffee bean hopper
2 Coffee bean hopper lid
3 Body
4 ON/OFF switch
5 Removable upper burr
6 Ground coffee container

7 Ground coffee container lid
8 Number of cups selector
9 Ground coffee fineness selector
10 Ground coffee dispenser
11 Cleaning brush

TECHNICAL CHARACTERISTICS

Rated power 110 W
Frequency 60 Hz
Rated voltage 120 V~

ABOUT GRINDING COFFEE

The proper grind gives the most flavorful cup of coffee. The grind depends on the method by which the coffee is to be brewed. Generally, the finer the grind the more quickly the coffee should be prepared. That is why coffee ground for use in an espresso machine is much finer than coffee to be brewed in a drip system.

Coffee that is ground too fine for a particular brewing process – (fine espresso grind used in an automatic drip coffee machine) will result in over-extraction and bitter, pungent tasting coffee. Conversely, coffee that is too coarse for a particular brew method will result in under-extraction and weak, watery coffee. If the correct grind is used, adding more coffee simply makes a brew stronger without making it bitter.

In addition to providing a number of grind settings, coffee grinders provide a consistent grind. This is important to ensure the extraction is consistent across all of the ground coffee particles.

BEFORE FIRST USE

Before using the coffee grinder, wipe the housing and bean hopper with a clean damp cloth. Wash the ground coffee container and the ground coffee container lid in hot soapy water, then rinse and dry.

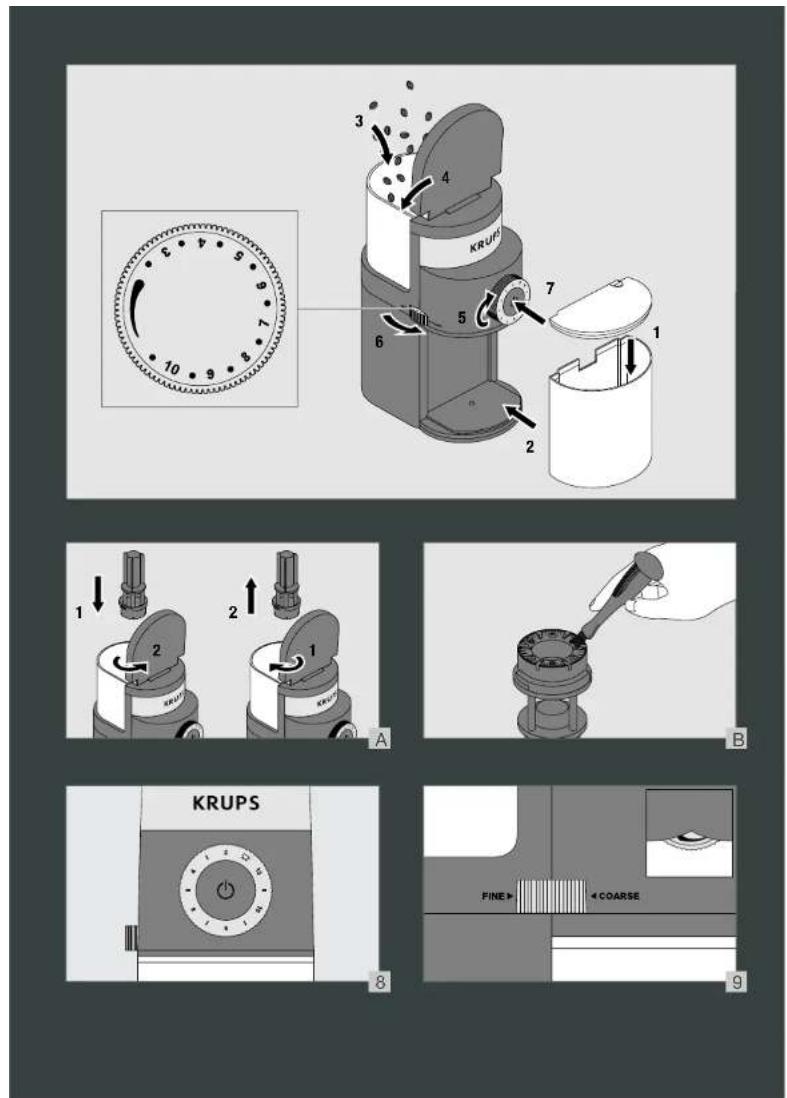

1. Make certain the coffee grinder is unplugged. Fit the ground coffee container (6) and its lid (7) in their correct positions. Check that the assembly is correctly positioned in the body (3).

2. Open the lid of the coffee bean hopper (2) and fill the bean hopper (1) to the level desired. Do not fill above the "max." level. Close the lid.

NOTE: This product is designed to grind whole bean coffee only.

1. Set the quantity of ground coffee by positioning the number of cups selector (8) according to the desired quantity.
2. Set the ground coffee fineness level by adjusting the ground coffee fineness selector (9) to the desired level, (see § Practical Hints)
3. Insert the plug into an electrical socket (voltage: 120 volts 60 Hz).
4. Press the ON/OFF switch (4) to start the appliance.
5. Once the selected quantity has been ground, the appliance will stop automatically.
6. If you want to stop the appliance before grinding is complete, press the ON/OFF switch (4).
7. Remove the ground coffee container, tap the receptacle gently, remove the lid and pour the ground coffee into the filter of the coffee maker or use a measuring spoon.
8. To obtain additional ground coffee, repeat the operating cycle. Always first make sure that the ground coffee does not go above the "max." level of the ground coffee container (6).

Selected settings will be retained from one use to the next.

IMPORTANT!

For your appliance to run correctly, make certain that:

The lid to the coffee-bean hopper (2) is correctly closed.
The ground coffee container (6) and its lid (7) are correctly placed in the body of the appliance.
This appliance is equipped with an overheat protective device. If the appliance overheats, it will switch off automatically. In this case leave it to cool for 30 minutes. Then restart by pressing the ON/OFF switch.

PRACTICAL HINTS

It is best to store coffee beans in a dry, cool place. Beans should be kept in an opaque, airtight container.
Grind the coffee just prior to brewing it.
Advice to select the level of fineness for your ground coffee.
Use the fineness selector (9) to adjust the grind according to the type of coffee maker.

FINE
MEDIUM
COARSE

Espresso	Aeropress	Pour Over		Drip Coffee		Percolator		French Press		Cold Brew
	3	4	5	6	7	8	9	10

The origin, roast, and age of your coffee will affect the grind size most optimal. The below chart is a guide, please adjust two-three clicks at a time when dialing in for the perfect grind result.
Generally, the quicker the water goes through the ground coffee, the finer the ground coffee should be.

A "medium" ground is thus suited to making filter coffee while a "very fine" ground is needed to make an Espresso

For the first use, we suggest that you use an intermediate position and then adjust the setting to your taste. Once you have used the appliance a few

times, you will find the ideal grind setting to suit your taste and brew method.
Do not change the grind setting while the appliance is running.
- Do not store the coffee bean or powder in the coffee container or dispenser over 24 hours.

Advice to select the number of cups

• Use the number of cups selector (8) to program the quantity of ground coffee you want.
• The more cups you select, the longer the appliance will run.
  The mill grinds 1/4 oz. of coffee per cup selected.

MAINTENANCE

To keep all your coffee's aroma and to avoid a degradation of the ground coffee, empty the ground coffee container after each use.
Always disconnect the grinder before cleaning.
Never place the grinder, power supply cord or plug in water or under running water.
Do not use strong detergents or abrasive pads to clean the appliance.
Clean the lids and the ground coffee container in warm, soapy water.
To remove the upper burr (5), set the fineness selector (9) to the fine position then take hold of the winglets of the upper mill with your fingers and turn clockwise, then raise it vertically to remove. (Fig. A)
Clean the upper burr with the cleaning brush (11). (Fig. B)
Carefully clean the inside of the coffee-bean hopper (1) with a damp cloth.
To replace the upper burr, set the fineness selector (9) to the coarse position, insert the burr and turn it once in the counter-clockwise direction. (Fig. A)
Carefully clean the ground coffee dispenser (10) and the body of the appliance with a damp cloth.

TROUBLE SHOOTING GUIDE

The appliance does not work.	Check the electrical connection.
	The lid of the coffee bean hopper is not correctly closed.
	The ground coffee container is not correctly positioned or the lid is not correctly positioned or is not in place.
The appliance stops during operation.	The appliance has overheated. The overheat protection mechanism has been activated. Unplugged the appliance. Detach the upper burr for cleaning and remove any obstacle. Leave the appliance to cool down for 30 minutes before next use.If the appliance is still not working, you have to contact an approved service center.Causes of overheating to be avoided:The maximum capacity of beans in the bean hopper, or the maximum capacity of ground coffee in the ground coffee container has been exceeded.
The fineness selector does not work anymore.	Check that the upper burr is correctly positioned. (See paragraph concerning the maintenance in the manual).

KRUPS INTERNATIONAL LIMITED GUARANTEE

www.krups.com

This product is repairable by KRUPS during and after the guarantee period.

Accessories, consumables and end-user replaceable parts can be purchased, if locally available.

as described on the KRUPS internet site www.krups.com

The Guarantee

This product is guaranteed by KRUPS (company address and details included in the country list of the KRUPS International Guarantee) against any manufacturing defect in materials or workmanship for a period of 2 years starting from the initial date of purchase or delivery date.

The international manufacturer's guarantee by KRUPS is an extra benefit which does not affect consumer's Statutory Rights.

The international manufacturer's guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labour. At KRUPS's choice, an equivalent or superior replacement product may be provided instead of repairing a defective product. KRUPS's sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement.

Conditions & Exclusions

The international KRUPS guarantee only applies within the guarantee period and for those countries listed in the country list attached and is valid only on presentation of a proof of purchase. The product can be taken directly in person to an authorised service centre or must be adequately packaged and returned, by recorded delivery (or equivalent method of postage), to a KRUPS authorised service centre. Full address details for each country's authorised service centres are listed on KRUPS website (www.krups.com) or by calling the appropriate telephone number as set out in the country list to request the appropriate postal address. KRUPS shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase.

This guarantee will not cover any damage which occurs as a result of misuse, negligence, failure to follow KRUPS instructions, use on current or voltage other than as stamped on the product, or a modification or unauthorised repair of the product. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following:

using the wrong type of water or consumable
damage as a result of lightning or power surges
- scaling (any de-scaling must be carried out according to the instructions for use)
- damages or poor results due to wrong voltage or frequency
- professional or commercial use
- ingress of water, dust or insects into the product (excluding appliances with features specifically designed for insects)
mechanical damages, overloading
accidents including fire, flood, thunderbolt, etc

damage to any glass or porcelain ware in the product

This guarantee does not apply to any product that has been tampered with, or to damages incurred through improper use and care, faulty packaging by the owner or mishandling by any carrier. In order to offer the best possible after-sales service and constantly improve customer satisfaction, KRUPS may send a satisfaction survey to all customers who have had their product repaired or exchanged in a KRUPS authorised service centre.

The international KRUPS guarantee applies only for products purchased in one of the countries listed, and used for domestic purposes only in one of the countries listed on the Country List.

Where a product purchased in one listed country and then used in another listed country:

a) The international KRUPS guarantee does not apply in case of non-conformity of the purchased product with the local standards, such as voltage, frequency, power plugs, or non-con-formity with other local legal requirements or other local technical specifications.
b) The repair process for products purchased outside the country of use may require a longer time if the product is not locally sold by KRUPS country of usage.
c) In cases where the product is not repairable in the new country of usage, the international KRUPS guarantee is limited to a replacement by a similar product or an alternative product at similar cost, where possible.

Consumer Statutory Rights

This international KRUPS guarantee does not affect the statutory rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This guarantee gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from State to State or Country to Country. The consumer may assert any such rights at his sole discretion.

For Australia only

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Please keep this document for your reference should you wish to make a claim under the guarantee
