GX41 - Coffee grinder KRUPS - Free user manual and instructions
Find the device manual for free GX41 KRUPS in PDF.
| Product type | Electric coffee grinder |
| Brand | Krups |
| Model | GX41 (Chrome Touch) |
| Housing material | Chrome plastic |
| Grinding chamber capacity | Approximately 60 g (for 12 cups) |
| Dimensions (W x D x H) | 12 x 12 x 20 cm |
| Weight | 0.8 kg |
| Power supply | 220-240 V, 50-60 Hz |
| Power | 150 W |
| Grinding type | Rotary blades |
| Fineness adjustment | By activation duration (push button) |
| Maximum recommended grinding time | 20 seconds |
| Grinding function | For coffee beans (all types) |
| Usage | Domestic only |
| Safety | Lockable lid, automatic stop 2-3 seconds after releasing the switch |
| Lid cleaning | Dishwasher safe (top rack, gentle cycle) or hand wash |
| Base cleaning | Wipe with a damp cloth - do not immerse |
| Cord storage | Wrap around the base |
| Included accessories | Lid, motor base, cord |
| Available spare parts | Lid, blades (via Krups after-sales service) |
| Warranty | 2 years (international warranty) |
Frequently Asked Questions - GX41 KRUPS
User questions about GX41 KRUPS
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Coffee grinder in PDF format for free! Find your manual GX41 - KRUPS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. GX41 by KRUPS.
USER MANUAL GX41 KRUPS
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons including the following:
- Read all instructions carefully before using the coffee-grinder.
- To protect against risk of fire, electric shock and injury to persons, do not immerse cord, plug or appliance in water or other liquids.
-
This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
-
This appliance is not intended for use by children.
-
Do not remove the lid until the blade has stopped completely. After releasing the push button the blade will come to a stop within 2 to 3 seconds.
-
Turn the appliance OFF, then unplug from the outlet when not in use, before assembling or disassembling parts and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord. Permanently Installed – Make sure appliance is OFF when not in use, before putting on or taking off parts, and before cleaning.
-
Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been dropped or damaged in any manner. Return the appliance to the nearest authorized KRUPS Service Center for examination, repair or adjustment.
-
To reduce the risk of injury do not drape cord over the counter top or table top where it can be pulled on by children or tripped over unintentionally.
-
Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
-
Do not use outdoors.
-
Do not place on or near a hot gas or electric burner, or in a heated oven.
-
To disconnect, remove plug from wall outlet. Do not yank cord, instead grasp plug and pull to disconnect.
-
Do not use the appliance for other than intended use.
- Check grinding chamber for presence of foreign objects before using
- Blades are sharp. Handle them carefully.
- Make certain the voltage of the appliance is in accordance with your domestic supply.
- Close supervision is necessary when any appliance is used by or near children.
- Children should be supervised to ensure that they do not play with the appliance.
- It is not intended to be used in the following applications, and the guarantee will not apply for: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
- Your appliance is designed for domestic use only.
- The use of attachments not recommended or sold by KRUPS may cause fire, electric shock or injuries.
SAVE THESE INSTRUCTIONS
CAUTION
This appliance is for household use only. Any servicing other than cleaning and user maintenance should be performed by the nearest authorized KRUPS Service Center.
■ Do not immerse appliance in water.
■ To reduce the risk of fire or electric shock, do not dismantle the appliance. Repair should be done by an authorized KRUPS Service Center only.
SHORT CORD INSTRUCTIONS
Regarding your Cord Set:
A A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
B Extension cords should be used with caution.
C If an extension cord is used, (1) the marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance, (2) if the appliance is of the grounded type, the extension cord should be of a grounded type and (3) the longer cord should be arranged so that it will not drape over the counter top or table top where it can be pulled on by children or tripped over.
D This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

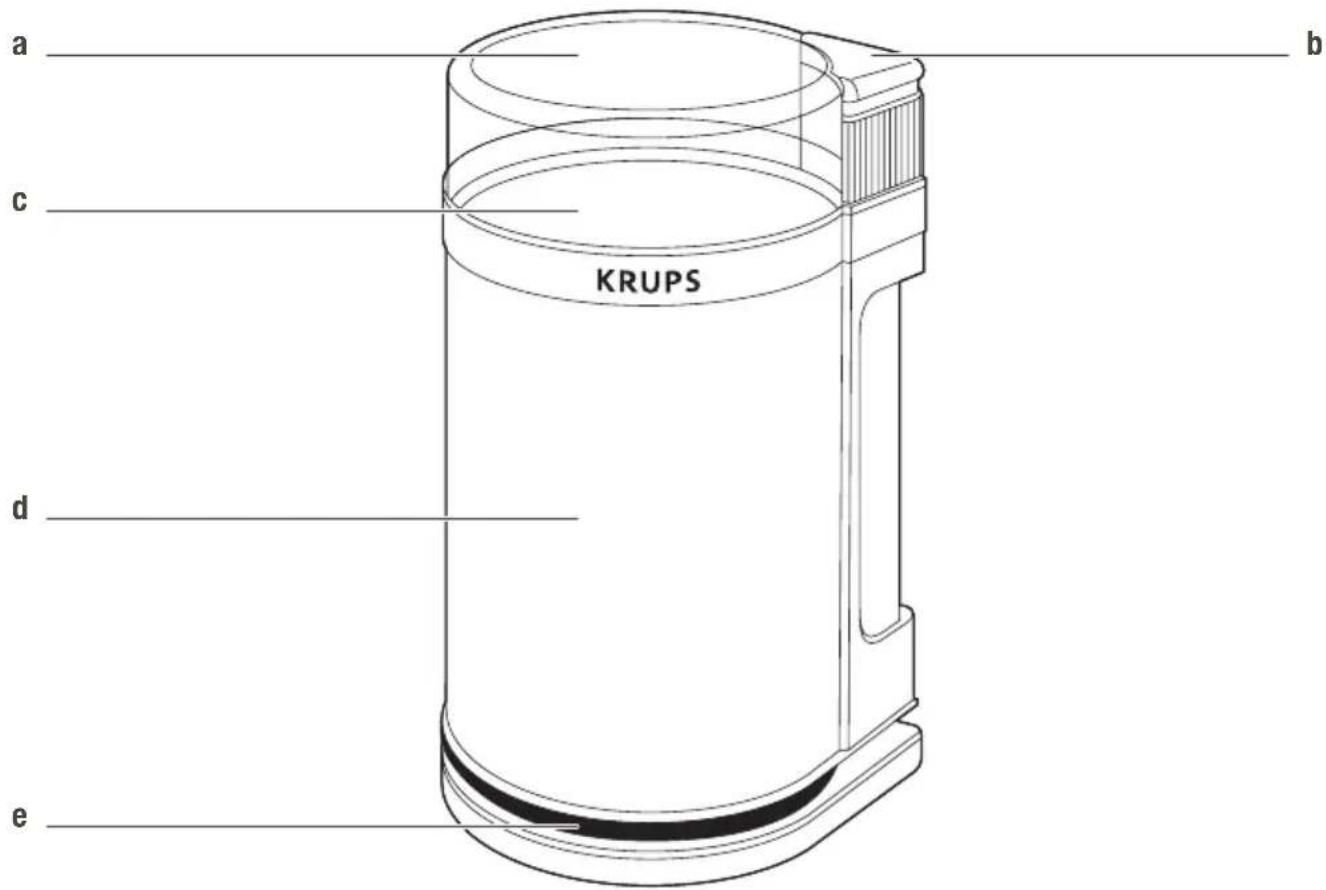

DESCRIPTION
a Grinder lid
d Motor base
b Power button
e Cord storage
c Grinding chamber
INTRODUCTION
Your KRUPS Chrome Touch coffee grinder allows you to grind your own coffee beans right in your own home. With such a variety of coffee beans available in supermarkets and gourmet shops, owning the Chrome Touch is sophisticated and economical. The best result, however, is that you get fresh coffee, every time!
Light roasted beans seem to be the most popular in North America, and dark roasts have been associated more with the heavier coffees, such as Espresso and Turkish. These dark roast, however, can also be brewed for “regular” coffee.
Coffee beans are also categorized as straight coffees or blends. The straight coffees consist of beans from a single area; blend consist of beans from several areas, which sometimes results in a superior coffee combination.
The best way to familiarize yourself with coffee is to purchase small quantities of several different varieties. Eventually, you will learn which beans and blends suit your personal taste. Perhaps you will soon start blending your own “house brands”!
OPERATION

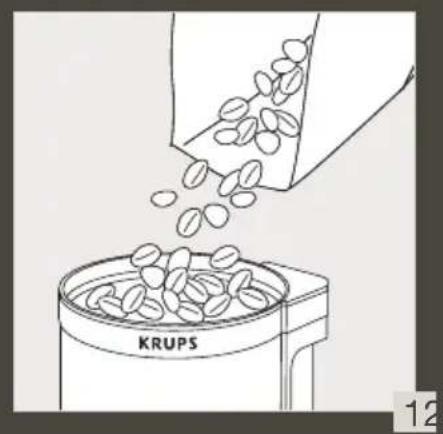

■ Fill the grinding chamber (c) 1/2 to 3/4 with coffee beans (1).
■ To calculate the amount of coffee beans to use, keep in mind that whole coffee beans yield the approximate equivalent in ground coffee (i.e. 1/4 cup beans = approx. 1/4 cup ground coffee).

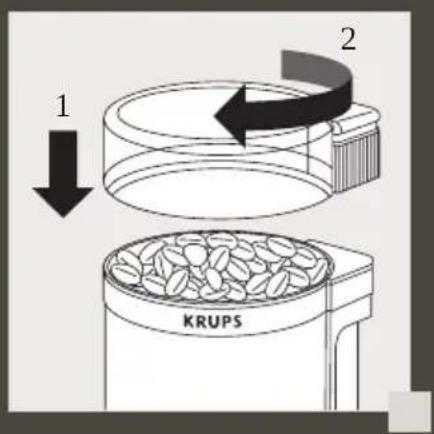

■ Place the lid (a) on the base and turn clockwise until firmly locked in place (2).

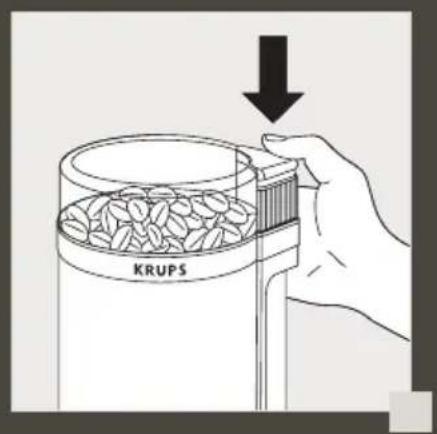

- Plug in the chrome Touch. To start grinding, press the power button (b) (3). The power will only stay on as long as the button is pressed.
■ The degree of fineness you desire will decide how long you should grind. For example, a coarse grind would require less grinding time than a find grind.
CAUTION
Wait until the blades have completely stopped before removing lid. Grinder should be unplugged before removing lid.
■ When grinding is complete, unplug the unit. Turn the lid couterclockwise to remove the lid and pour the ground coffee into a bowl or cannister. If you are grinding a large amount of beans, store the coffee in an airtight container.

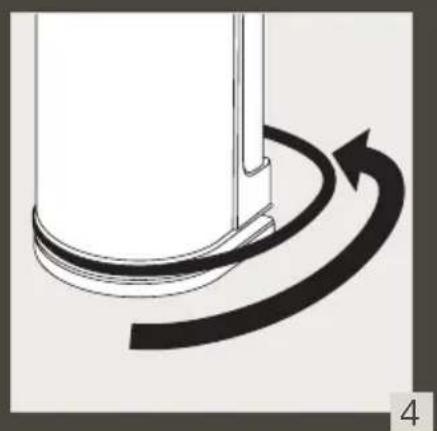

■ The cord can be wrapped around the base of the grinder for storage (4).
COFFEE TIPS
■ Purchase coffee beans in small quantities.
■ Store coffee beans in an airtight container in the freezer.
■ Coffee beans do not need to thawed before grinding and/or brewing.
■ Large ground quantities should be stored in an airtight container and placed in your refrigerator or freezer to maintain freshness.
■ Follow the recommendations of your coffeemaker brand for brewing quantities. Adjustments should be made to suit your own personal taste.
| Type of coffemaker | Perculator | Regulator Auto Drip Coffeemaker | KRUPS Drip Coffemaker |
| Quantity | |||
| 4-Cups 4 Tbsp./ 4-6 sec. 4 Tbsp./ 5-7 sec. 4 Tbsp./ 11-13 sec. | |||
| 8-cups 8 Tbsp./ 5-7 sec. 8 Tbsp./ 6-8 sec. 8 Tbsp./ 12-16 sec | |||
| 10-cups 10 Tbsp./ 6-8 sec. 10 Tbsp./ 7-9sec. 10 Tbsp./ 15-17 sec. | |||
| 12-cups 12 Tbsp./ 7-9 sec. 12 Tbsp./ 8-10 sec. 12 Tbsp./ 16-20 sec. | |||
GRINDING FOR ESPRESSO/CAPPUCCINO
The KRUPS Chrome touch (GX 4100) is acceptable for grinding beans for boiler type espresso machines. We do not recommend using the Chrome Touch to grind beans for use with pump espresso machines. Pump espresso machines require a disc type grinder such as the KRUPS "Il Barista" ref 220 or a similar, professional style espresso grinder. This type of grinder will prevent coffee dust which can impede the flow of water through the espresso machine.
GRINDING COFFEE
Grinding time depends on how coarse or fine a grind you desire. We do not recommend grinding coffee longer than 20 seconds. Longer use will not result in a finer grind, but in overheated coffee. As a result coffee will lose its flavor.
CLEANING
Keeping your Chrome Touch clean is essential in achieving optimal taste results. Most coffee beans contain oils that may, over time, become stronger in flavor and could affect the taste of your coffee.
Be sure that grinder is unplugged before cleaning!
■ Remove all coffee after each grinding. A small soft brush or cloth is helpful in removing ground coffee from lid and blades.
■ Wipe inside of grinder lid and blades very carefully with a damp cloth.
■ Base unit can be wiped down with a damp cloth. NEVER immerse base unit in water or any other liquid!
- Lid can be washed in warm water, using a mild detergent, or be placed in the top rack of the dishwasher and used on gentle cycle.
KRUPS INTERNATIONAL LIMITED GUARANTEE
: www.krups.com
This product is repairable by KRUPS during and after the guarantee period.
Accessories, consumables and end-user replaceable parts can be purchased, if locally available, as described on the KRUPS internet site www.krups.com
The Guarantee:
This product is guaranteed by KRUPS (company address and details included in the country list of the KRUPS International Guarantee) against any manufacturing defect in materials or workmanship for a period of 2 years starting from the initial date of purchase or delivery date.
The international manufacturer's guarantee by KRUPS is an extra benefit which does not affect consumer's Statutory Rights.
The international manufacturer's guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labour. At KRUPS's choice, a replacement product may be provided instead of repairing a defective product. KRUPS's sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement.
Conditions & Exclusions:
The international KRUPS guarantee only applies within the guarantee period and for those countries listed in the country list attached and is valid only on presentation of a proof of purchase. The product can be taken directly in person to an authorised service centre or must be adequately packaged and returned, by recorded delivery (or equivalent method of postage), to a KRUPS authorised service centre. Full address details for each country's authorised service centres are listed on KRUPS website (www.krups.com) or by calling the appropriate telephone number as set out in the country list to request the appropriate postal address.
KRUPS shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase.
This guarantee will not cover any damage which occurs as a result of misuse, negligence, failure to follow KRUPS instructions, use on current or voltage other than as stamped on the product, or a modification or unauthorised repair of the product. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following:
– using the wrong type of water or consumable
- ingress of water, dust or insects into the product
– damage as a result of lightning or power surges
– mechanical damages, overloading
- scaling (any de-scaling must be carried out according to the instructions for use)
- accidents including fire, flood, thunderbolt, etc
– damages or poor results due to wrong voltage or frequency
– damage to any glass or porcelain ware in the product
– professional or commercial use
This guarantee does not apply to any product that has been tampered with, or to damages incurred through improper use and care, faulty packaging by the owner or mishandling by any carrier.
In order to offer the best possible after-sales service and constantly improve customer satisfaction, KRUPS may send a satisfaction survey to all customers who have had their product repaired or exchanged in a KRUPS authorised service centre.
The international KRUPS guarantee applies only for products purchased in one of the countries listed, and used for domestic purposes only in one of the countries listed on the Country List. Where a product purchased in one listed country and then used in another listed country:
a) The international KRUPS guarantee does not apply in case of non conformity of the purchased product with the local standards, such as voltage, frequency, power plugs, or other local technical specifications
b) The repair process for products purchased outside the country of use may require a longer time if the product is not locally sold by KRUPS
c) In cases where the product is not repairable in the new country, the international KRUPS guarantee is limited to a replacement by a similar product or an alternative product at similar cost, where possible.
Consumer Statutory Rights:
This international KRUPS guarantee does not affect the statutory rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This guarantee gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from State to State or Country to Country. The consumer may assert any such rights at his sole discretion.
For Australia only: Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
*** Please keep this document for your reference should you wish to make a claim under the guarantee
