USER MANUAL MOF28310X BEKO

MOF28310X EN - FR 01M-8856153200-4420-04 User Manual Microwave OvenPlease read this manual first! Dear Customer, Thank you for purchasng a Beko product. We hope that you get the best results from your product whch has been manufactured wth hgh qualty and state-of-the-art technology. Therefore, please read ths entre user manual and all other accompanyng documents carefully before usng the product and keep t as a reference for future use. If you handover the product to someone else, gve the user manual as well. Follow all warnngs and nformaton n the user manual. Meanings of the symbols Followng symbols are used n the varous secton of ths user manual:

Important information and useful hints about usage.

Warnings for dangerous situations concerning the safety of life and property. Warning for hot surfaces. Ths product has been manufactured n envronmental frendly modern plants wthout gvng any harm to the nature. Ths applance conforms to the WEEE regulaton. It does not contan PCB.Microwave Oven / User Manual 3 / EN CONTENTS ENGLISH 04-20 FRANÇAIS 21-40Microwave Oven / User Manual 4 / EN

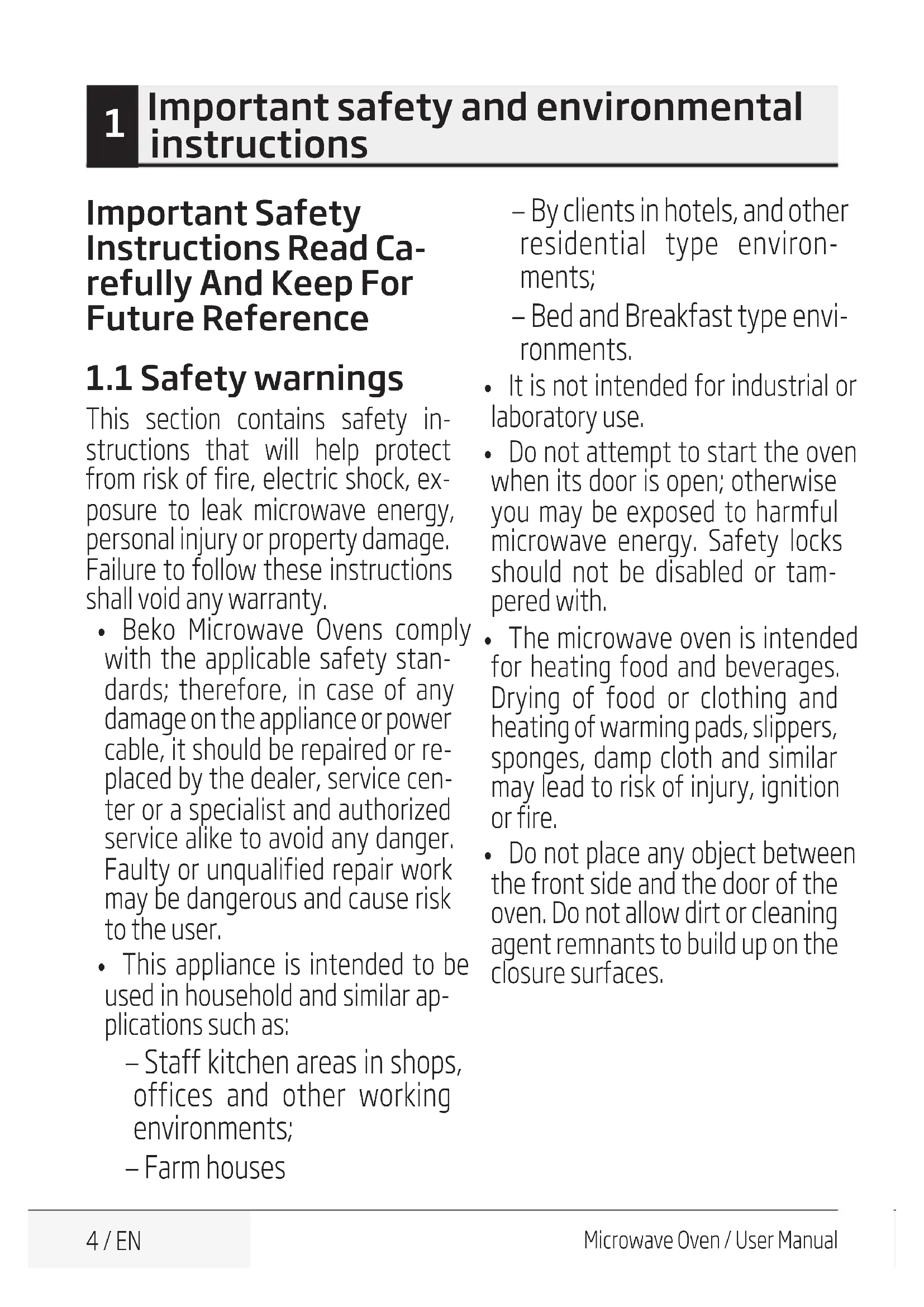

Important safety and environmental instructions Important Safety Instructions Read Ca- refully And Keep For Future Reference

This section contains safety in- structions that will help protect from risk of fire, electric shock, ex- posure to leak microwave energy, personal injury or property damage. Failure to follow these instructions shall void any warranty.

• Beko Microwave Ovens comply with the applicable safety stan- dards; therefore, in case of any damage on the appliance or power cable, it should be repaired or re- placed by the dealer, service cen- ter or a specialist and authorized service alike to avoid any danger. Faulty or unqualified repair work may be dangerous and cause risk to the user.
• This appliance is intended to be used in household and similar ap- plications such as: – Staff kitchen areas in shops, offices and other working environments; – Farm houses – By clients in hotels, and other residential type environ- ments; – Bed and Breakfast type envi- ronments.
• It is not intended for industrial or laboratory use.
• Do not attempt to start the oven when its door is open; otherwise you may be exposed to harmful microwave energy. Safety locks should not be disabled or tam- pered with.
• The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.
• Do not place any object between the front side and the door of the oven. Do not allow dirt or cleaning agent remnants to build up on the closure surfaces.Microwave Oven / User Manual 5 / EN

Important safety and environmental instructions

• Any service works involving re- moval of the cover that provides protection against exposure to microwave energy must be per- formed by authorized persons/ service. Any other approach is dangerous.

• Your product is intended for cook- ing, heating and defrost food at home. It must not be used for commercial purposes.

• Your oven is not designed to dry any living being.

• Do not use your appliance to dry clothes or kitchen towels.

• Do not use this appliance out- doors, bathrooms, humid environ- ments or in places where the it can get wet.

• No responsibility or warranty claim shall be assumed for damages arising from misuse or improper handling of the appliance.

• Never attempt to dismantle the appliance. No warranty claims are accepted for damage caused by improper handling.

• Only use the original parts or parts recommended by the manufac- turer.

• Do not leave this appliance unat- tended while it is in use.

• Always use the appliance on a stable, flat, clean dry, and non-slip surface.

• The appliance should not be oper- ated with an external clock timer or separate remote control sys- tem.

• Before using the appliance for the first time, clean all parts. Please see the details given in the “Clean- ing and Maintenance” section.

• Operate the appliance for its in- tended purpose only as described in this manual.

• Appliance becomes very hot while it is in use. Pay attention not to touch the hot parts inside the oven.

• Do not operate the oven empty.

• Cooking utensil may get hot due to the heat transferred from the heated food to the utensil. You may need oven gloves to hold the utensil.

• Utensils shall be checked to en- sure that they are suitable for use in microwave ovens.

• Do not place the oven on stoves or other heat generating appliances. Otherwise, it may be damaged and the warranty becomes void.Microwave Oven / User Manual 6 / EN

• Steam may come out while open- ing the covers or the foil after cooking the food.

• The appliance and its accessible surfaces may be very hot when the appliance is in use.

• Door and outer glass may be very hot when the appliance is in use.

• Make sure that your mains power supply complies with the informa- tion supplied on the rating plate of the appliance.

• The only way to disconnect the appliance from the power supply is to remove the power plug from the power outlet.

• Use the appliance with a grounded outlet only.

• Never use the appliance if the power cable or the appliance itself is damaged.

• Do not use this appliance with an extension cord.

• Never touch the appliance or its plug with damp or wet hands.

• Place the appliance in a way so that the plug is always accessible.

• Prevent damage to the power cable by not squeezing, bending, or rubbing it on sharp edges. Keep the power cable away from hot surfaces and naked flame.

• Make sure that there is no danger that the power cable could be ac- cidentally pulled or that someone could trip over it when the appli- ance is in use.

• Unplug the appliance before each cleaning and when the appliance is not in use.

• Do not pull the power cable of the appliance to disconnect it from its power supply and never wrap its power cable around the appliance.

• Do not immerse the appliance, power cable, or power plug in water or any other liquids. Do not hold it under running water.

• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

• Remove the wire strings and/or metal handles of paper or plastic bags before placing bags to the oven.

Important safety and environmental instructionsMicrowave Oven / User Manual 7 / EN

• If smoke is observed, switch off or unplug the appliance if safe to do so and keep the door closed in order to stifle any flames.

• Do not use microwave oven for storage. Do not leave paper items, cooking material or food inside the oven when it is not being used.

• The contents of feeding bottles and baby food jars should be stirred or shaken and the temper- ature checked before consump- tion, in order to avoid burns.

• This appliance is a Group 2 Class B ISM equipment. Group 2 contains all ISM (Industrial, Scientific and Medical) equipment in which ra- dio-frequency energy is intention- ally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment.

• Class B equipment is suitable for use in domestic establishments and establishments directly con- nected to a low voltage power supply network.

• Do not use cooking oil in the oven. Hot oil may damage the compo- nents and materials of the oven, and it may even cause skin burns.

• Pierce food with thick crust such as potatoes, courgettes, apples and chestnuts.

• Appliance must be placed so that the rear side is facing the wall.

• Before moving the appliance, please secure the turntable to prevent damage.

• Eggs in their shell and whole hard- boiled eggs must not be heated in microwave ovens since they may explode, even after microwave heating has ended.

If the door or door seals are damaged, the oven must not be operated until it has been re- paired by a competent person.

It is hazardous for anyone other than a competent person to carry out any service or repair operation which involves the removal of a cover which gives pro- tection against exposure to micro- wave energy.

Liquids and other foods must not be heated in sealed containers since they are liable to explode.

• The oven should be cleaned reg- ularly and any food deposits re- moved.

Important safety and environmental instructionsMicrowave Oven / User Manual 8 / EN

• There should be min 20 cm free space above the top surface of the oven.

• Do not over-cook foods; other- wise, you may cause a fire.

• Do not use chemicals and steam assisted cleaners to clean the ap- pliance.

• Extreme caution is advised when being used near children and per- sons who are restricted in their physical, sensory or mental abili- ties.

• This appliance can be used by the children who are at the age of 8 or over and by the people who have limited physical, sensory or men- tal capacity or who do not have knowledge and experience, as long as they are supervised with regard to safe use of the product or they are instructed accordingly or understand the risks of using the product. Children should not play with the appliance. Cleaning and user maintenance procedures should not be performed by chil- dren unless they are controlled by their elders.

• Danger of choking! Keep all the packaging materials away from children.

• Due to excessive heat that arises in grill and combination modes, children should only be allowed to use these modes under supervi- sion of an adult.

• Keep the product and its power cable so that they are inaccessible by children under 8 years old.

• Do not cook food directly on the glass tray. Put the food in / on ap- propriate kitchen utensils before placing them in the oven.

• Metallic containers for food and beverages are not allowed during microwave cooking. Otherwise, sparking may occur.

• This product is not designed to be built-in. Do not place the product in a cabinet or box while it is in use.

Important safety and environmental instructionsMicrowave Oven / User Manual 9 / EN

1.2 Compliance with WEEE

Directive and Disposing of the Waste Product This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equip- ment (WEEE). This symbol indicates that this product shall not be disposed with other house- hold wastes at the end of its service life. Used device must be returned to offical collection point for recycling of electrical and electronic devices. To find these col- lection systems please contact to your local au- thorities or retailer where the product was pu- chased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps pre- vent potential negative consequences for the en- vironment and human health.

1.3 Compliance with RoHS

Directive The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package Information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the do- mestic or other wastes. Take them to the packag- ing material collection points designated by the local authorities.

Important safety and environmental instructionsMicrowave Oven / User Manual 10 / EN Markngs on the product or the values stated n other documents suppled wth the product are values obtaned under laboratory condtons as per relevant standards. These values may vary accordng to the usage of the applance and ambent condtons. Power values are tested at 230V. 2 Your mcrowave oven

• Never place the glass tray upside down. The glass tray should never be restricted.
• Both glass tray and turntable support must al- ways be used during cooking. • All food and containers of food must always place on the glass tray for cooking. • If glass tray or turntable support crack or break, contact your nearest authorized service center. 2 Your microwave oven Hub (underside)Glass trayTurntable shaftTurntable supportMicrowave Oven / User Manual 12 / EN 3 Installation and connection

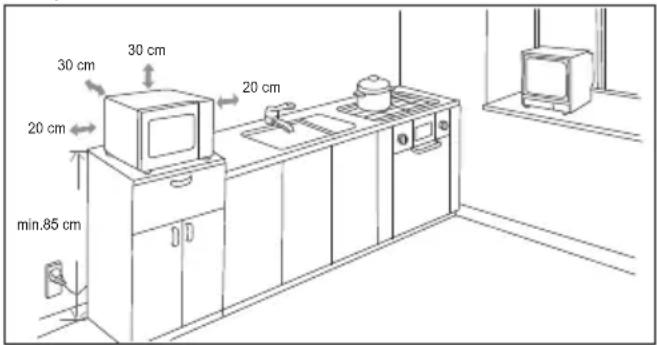

3.1 Installation and

• Remove all packng materal and accessores. Examne the oven for any damage such as dents or broken door. Do not nstall f oven s damaged.
• Remove any protectve flm found on the mcro- wave oven cabnet surface. • Do not remove the lght brown Mca cover that s attached to the oven cavty to protect the magnetron. • Select a flat surface that provdes suffcent space for nlet and outlet ducts. 20 cm30 cm20 cmmin.85 cm30 cm
• Mnmum nstallaton heght s 85 cm. • The rear surface of applance shall be placed aganst a wall. Leave a mnmum clearance of 30 cm above the oven, a mnmum clearance of 20 cm s requred between the oven and any adjacent walls. • Do not remove the legs from the bottom of the oven. • Blockng the ntake and / or outlet openngs can damage the oven. • Place the oven as far away from rados and TV as possble. Operaton of mcrowave oven may cause nterference to your rado or TV recepton. 2. Plug your oven nto a standard household outlet. Be sure the voltage and the frequency s the same as the voltage and the frequency on the ratng label. WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If in-stalled near or over a heat source, the oven could be damaged and the warranty would be void.The accessible surface may be hot during operation.Microwave Oven / User Manual 13 / EN

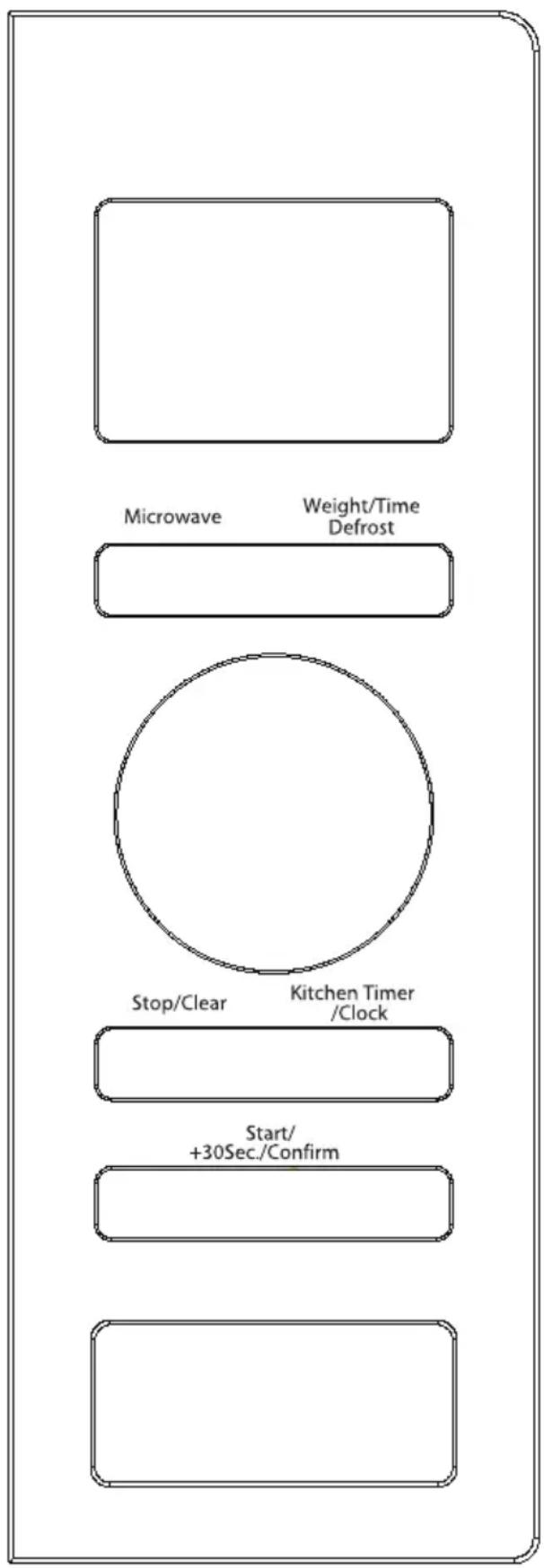

4.1 Control panel 4.2 Operating instructions

4.2.1 Setting the timeWhen the microwave oven is energized, "0:00” will be displayed in screen and buzzer will ring once.1. Press “Kitchen Timer/Clock” twice and the figures for hours will start flashing.2. Turn to adjust the hour; the input value should be between 0 and 23.3. Press “Kitchen Timer/Clock” and the figures for minutes will start flashing.4. Turn to adjust the minutes; the input value should be between 0 and 59.5. Press “Kitchen Timer/Clock” to finish time setting. ":" symbol will flash, and the time will light. If you press “Stop/Clear” during time setting, oven will automatically re-turn back to previous mode.4.2.2 Cooking with microwave oven 1. Press “Microwave” and “P100” will be displayed in screen.2. Press “Microwave” again or turn to select the desired power. Each time you press the key, “P100”, “P80”, ”P50”, “P30”, “P10” will be displayed respectively.3. Press “Start/+30Sec./Confirm” to confirm and turn to set the cooking time to a value between 0:05 and 95:00.4. Press “Start/+30 Sec./Confirm” again to start cooking. 4 OperationMicrowave Oven / User Manual 14 / EN

Example: If you want to use 80% microwave power to cook for 20 minutes, you can operate the oven with the following steps.5. Press “Microwave” once and “P100” will be displayed in the screen.6. Press “Microwave” once again or turn to set 80% microwave power.7. Press “Start/+30Sec./Confirm” to confirm and "P 80” will be displayed in the screen.8. Turn to adjust the cooking time until the oven displays "20:00".9. Press “Start/+30 Sec./Confirm” to start cooking.The steps for adjusting the time in coding button are as below:Setting the durationIncrement amount0-1 minute 5 seconds1-5 minutes 10 seconds5-10 minutes 30 seconds10-30 minutes 1 minute30-95 minutes 5 minutes

1. In standby mode, press “Start/+30Sec./Confirm” to start cooking with 100% microwave power. Each time you press the key, cooking time will increase until 95 minutes with steps of 30 seconds.2. In microwave oven cooking, grill and combina-tion cooking or defrost by time modes, the cooking time will increase by 30 seconds each time you press “Start/+30 Sec/Confirm”. 4 Operaton 3. In standby mode, turn counterclockwise to set the cooking time in order to start cooking with 100% microwave power and press “Start/+30Sec./Confirm” to start cooking.

4.4 Defrost by weght

1. Press “Weight/ Timer Defrost” once, and the oven will display “dEF1”.2. Turn to select the weight of food from 100 to 2000 g.3. Press “Start/+30Sec./Confirm” to start defrost.

1. Press “Weight/ Timer Defrost” once, and the oven will display “dEF2”.2. Turn to select the defrost time. The maximum time is 95 minutes.3. Press “Start/+30Sec./Confirm” to start defrost. Defrost power is P30 and cannot be changed.

1. Press “Kitchen Timer/Clock” for once and 00:00 will be displayed in LED screen.2. Turn to enter the correct time. 3. Press “Start/+30Sec./Confirm” to confirm the setting.4. When the countdown from the entered time reaches to 00:00, the buzzer will ring for 5 times. If the time is set “24-hour system”, current time will be displayed in LED screen. Kitchen timer functions different than 24-hours system. Kitchen tim-er is just a timer.Microwave Oven / User Manual 15 / EN

1. Turn clockwise to select the desired menu. Menus between “A-1” and “A-8”, namely pizza, meat, vegetable, pasta, potato, fish, beverage and popcorn, will be displayed.2. Press “Start/+30Sec./Confirm” to confirm.3. Turn to choose the default weight in accordance with the menu chart.4. Press “Start/+30Sec./Confirm” to start cooking. Example: If you want to use “Auto Menu" to cook 350 g fish:1. Turn clockwise until "A-6" is displayed in the screen.2. Press “Start/+30Sec./Confirm” to confirm.3. Turn to select the weight of fish until "350" is displayed in the screen.4. Press “Start/+30Sec./Confirm” to start cooking. 4 OperationMicrowave Oven / User Manual 16 / EN

At most 2 steps can be set for cooking. In mul-ti-step cooking, if one step is defrosting, then de-frosting must be placed in the first step. If you want to thaw food for 5 min-utes and then cook with 80% micro-wave power for 7 minutes, perform the following steps:1. Press “Weight/ Timer Defrost” twice, and the oven will display “dEF2”.2. Turn to select the defrost time until "5:00" is displayed in the screen.3. Press “Microwave” once and “P100” will be displayed in the screen.4. Press “Microwave” once again or turn to set 80% microwave power.5. Press “Start/+30Sec./Confirm” to confirm and "P 80” will be displayed in the screen.6. Turn to adjust the cooking time until the oven displays "7:00".7. Press “Start/+30Sec./Confirm” to start cooking. Buzzer will sound once for the first step and defrost time countdown will start. Buzzer will sound once again when entering the second cooking step. Buzzer will sound for 5 times at the end of cooking.

1. In microwave, grill and combination modes, press “Microwave”, the current power level will be displayed for 3 seconds. After 3 seconds, the oven will return to the previous mode.2. While cooking, press “Kitchen Timer/Clock” and the current time will be displayed for 3 seconds.

Locking: In standby mode, press “Stop/Clear” for 3 seconds and a buzzer will sound indicating that the child lock is activated. If the time is already set, current time will also be displayed; otherwise will be displayed in the LED screen. Unlocking: To disable the child lock, press “Stop/Clear” for 3 seconds and a long ”beep” will sound indicating that the child lock is disabled. 4 OperatonMicrowave Oven / User Manual 18 / EN

WARNING: Never use gaso-line, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

WARNING: Never immerse the appliance or its power cable in water or in any other liquid.1. Turn the applance off and dsconnect t from wall socket.2. Wat for the applance to completely cool down.3. Keep the nsde of the oven clean. Wpe wth a damp cloth when splashed food or splled lqu-ds stck on the walls of the oven. A mld deter-gent may be used f the oven gets very drty. Avod usng sprays and other harsh cleanng agents as they may cause stans, marks, and opaqueness on the door surface.4. Outer surfaces of the oven must be cleaned wth a damp cloth. Do not allow water ngress from ventlaton openngs to prevent damage to the operatng parts n the oven.5. Wpe both sdes of the door and the glass, door gaskets and parts near the gaskets frequently wth a damp cloth n order to remove the overf-lowng and splashng stans. Do not use abras-ve cleanng agents.6. Do not allow control panel to get wet. Clean wth a soft damp cloth. Leave the door of the oven open to prevent nadvertent operaton whle cleanng the control panel.7. If steam accumulates nsde or around the oven door, wpe wth a soft cloth. Ths may occur when the mcrowave oven s operated under hgh humdty condtons. It s normal.8. In some cases, you may need to remove the glass tray for cleanng. Wash the tray n warm soapy water or n a dshwasher.9. The roller rng and oven floor should be cleaned regularly to avod excessve nose. 5 Cleaning and maintenance It would be sufficient to wipe the lower surface of the oven with a mild detergent. Roller ring may be washed in warm soapy water or in a dishwasher. When you remove the roller ring from oven internal floor for cleaning, ensure that you install it in the correct position while replacing it.10. In order to remove bad odors in your oven, put a glass of water and juice and peel of a lemon to a deep bowl suitable for use in microwave and operate the oven for 5 minutes in microwave mode. Wipe thoroughly and dry with a soft cloth.11. Please contact the authorized service when the oven lamp needs to be replaced.12. The oven should be cleaned regularly and any food deposits should be removed. If the oven is not kept clean, this may cause surface defects that would affect the lifecycle of the appliance negatively and that would possibly cause risks.13. Please do not dispose this appliance with household waste; old ovens shall be disposed to special waste centers provided by the municipalities.14. When the microwave oven is used in grill function, a small amount of smoke and odor may occur which will disappear after a certain time of usage.

• If you do not ntend to use the applance for a long tme, please store t carefully.
• Please make sure that the applance s unplug- ged, cooled down and totally dry. • Store the applance n a cool and dry place. • Keep the applance out of the reach of chldrenMicrowave Oven / User Manual 19 / EN

5.3 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packa- ging of the appliance protects it against physi- cal damages.

• Do not place heavy loads on the appliance or the packaging. The appliance may be damaged.

• Dropping the appliance will render it non- operational or cause permanent damage.. 5 Cleaning and maintenanceMicrowave Oven / User Manual 20 / EN 6 Troubleshootng Normal Microwave oven interferes with TV reception Radio and TV reception may be interfered when microwave oven is operating. It is similar to the interference caused by small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal. Oven light is dimmed In low power microwave cooking, oven light may be dimmed. It is normal. Steam accumulating on door, hot air coming out of vents During cooking, steam may arise from the food. Most of this steam will get out from vents. But some may accumulate on a cool place like oven door. It is normal. Oven started accidentally with no food in it. It is not allowed to run the appliance without any food inside. It is very dangerous. Problem Possible Reason Solution Oven cannot be started. 1) Power cable is not plugged in properly. Unplug. Then plug again after 10 seconds.

2) Fuse is blown or circuit

breaker is activated. Replace fuse or reset circuit breaker (repaired by professional personnel of our company).

3) Trouble with outlet. Test the outlet with other

electrical appliances. Oven does not heat. 4) Door is not closed properly. Close the door properly. Glass turntable makes noise when microwave oven operates

5) Turntable and bottom of the
