USER MANUAL W205 SONY

Thank you for purchasing the Sony Ericsson W205 WalkmanTM. For additional phone content, go to www.sonyericsson.com/fun. Register now to get a suite of tools, free online storage, special offers, news and competitions at www.sonyericsson.com/myphone. For product support, go to www.sonyericsson.com/support.

Instruction symbols

These symbols may appear in the User guide:

Use a selection or navigation key to scroll and select. See Navigation on page 12
Press the centre selection key
Press the navigation key up.
Press the navigation key down
Press the navigation key to the left
Press the navigation key to the right

Please read the Important information before you use your mobile phone.

Preparing the phone

SIM card

The SIM (Subscriber Identity Module) card, which you get from your network operator, contains information about your subscription. Always turn off your phone and detach the charger and battery (if inserted) before you insert or remove the SIM card.

PIN

You may need a PIN (Personal Identification Number) to activate the services and functions in your phone. Your PIN is supplied by your network operator. Each PIN digit appears as *, unless it starts with emergency number digits, for example, 112 or 911. You can see and call an emergency number without entering a PIN.

If you enter the wrong PIN three times in a row, the SIM card is blocked. See SIM card lock on page 34.

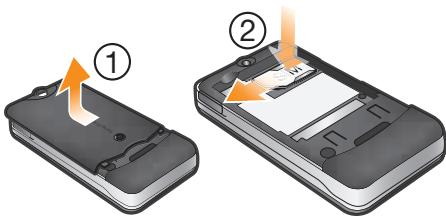

To remove the SIM card

1 Press the centre of the battery cover and slide to remove it. Remove the battery, if inserted.
2 Press the right edge of the SIM card and slide to remove it.
Do not use any sharp objects to remove the battery cover.
See the illustrations on your phone box for how to insert the SIM card and battery.

Memory card

Your phone supports Memory Stick MicroTM (M2TM) memory card up to 2 GB, adding more storage space to your phone. It can also be used as a portable memory card with other compatible devices. You can move content between a memory card and the phone memory.

You may have to purchase a memory card separately.

We recommend that you install Java™ applications in the phone memory.

To insert a memory card

1 Open the cover of the memory card slot.
2 Insert the memory card with the gold-coloured contacts facing down.

To remove a memory card

1 Open the cover of the memory card slot.
2 Press the edge of the memory card to release and remove it.

Turning on the phone

To turn on the phone

1 Press and hold down
2 Open the slider and enter your PIN, if requested.
3 Select OK.
4 Select a language.
5 Select Yes to use the setup wizard.

If you make a mistake when you enter your PIN, you can press to delete numbers from the screen.

Standby

After you have turned on the phone and entered your PIN, the name of the network operator appears. This view is called standby. You phone is now ready for use.

To turn off the phone

Press and hold down
Before turning off the phone, you must return to standby.

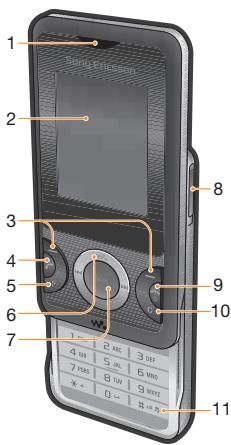

Phone overview

1 Ear speaker
2 Screen
3 Selection keys
4 Call key
5 Shortcut key
6 WALKMAN™ shortcut key
7 Navigation key/ WalkmanTM player controls
8 Memory card slot
9 End key, on/off key
10 C key (Clear)
11 Silent key

12 Camera
13 Strap hole
14 Volume key
15 Connector for charger, handsfree and USB cable
16 Loudspeaker

Screen icons

These icons may appear on the screen.

Icon	Description
	Missed call
	Handsfree connected
	Ongoing call
	Text message received
	Multimedia message received
	Predictive text input activated
	Phone set to silent
	Radio playing
	Alarm activated
	BluetoothTM function activated

Network coverage

The network bars show the strength of the GSM network in your area. You should move to another location if you have problems calling and network coverage is poor. No network means you are not in range of a network.

Good network coverage
Average network coverage

Battery status

The phone battery is fully charged
- = The phone battery is empty

To charge the battery

1 Connect the charger to the phone with the power icon on the charger facing upwards. It takes approximately 3 hours to fully charge the battery. Press a key to view the screen.

2 To remove the charger, tilt the plug upwards.

The phone battery is partly charged when you buy it. It may take a few minutes before the battery icon appears on the screen.

You can use your phone while it is charging. You can charge the battery at any time and for more or less than 3 hours. You can interrupt the charging without damaging the battery.

Menu overview*

Organiser

File manager**, Alarms, Calendar, Torch, Tasks, Notes, Timer, Stopwatch, Calculator

Camera

Calls

All, Answered, Dialled, Missed

Internet

Messaging

Write new, Inbox, Call voicemail, Drafts, Outbox, Sent messages, Saved msgs, Templates, Settings

Contacts

Normal

Myself, New contact

Multi phonebook ***

Shared ph. book, Phonebook 1,

Phonebook 2,
Phonebook 3,
Phonebook 4, Myself,
New contact

Entertainment

Online services*, Video player, TrackID™, My Games, Radio, Record sound

WALKMAN

Settings

General, Sounds & alerts, Display, Calls, Connectivity

• Some menus are operator-, network- and subscription-dependent. ** You can use the navigation key to scroll between tabs in submenus.

*** Multiple phonebook mode with tabs.

Navigation

The main menus are shown as icons. Some submenus include tabs.

To access the main menu

• When Menu appears on the screen, press the centre selection key to select Menu.
• When Menu does not appear on the screen, press the end key and then press the centre selection key to select Menu.

To navigate the phone menus.

1 Press to select Menu.
2 Press , , or to move through the menus.

To select an item

• Scroll to the item and press ⑥

To scroll between tabs

• Press or to go to a tab.

To go back one step in the menu

• Select Back.

To end a function

Press

To return to standby

Press

To delete an item

• Scroll to the item and press .

Shortcuts

You can use the navigation key shortcuts from standby or use the shortcut menu to get quick access to certain functions.

To use navigation key shortcuts

• Press , , or to go directly to a function.

To edit a navigation key shortcut

• Select Menu > Settings > General > Shortcuts.

The WALKMAN shortcut cannot be changed.

To open the shortcut menu

• Press .

To add a shortcut

1 Press
2 Scroll to New shortcut and select Add.

To delete or move a shortcut

1 Press .
2 Scroll to a shortcut and select Options.
3 Select an option.

To set the phone to silent

Press and hold down

Entering text

You can use multitap text input or Zi™ text input to enter text. The Zi text input method uses a built-in dictionary.

By using the Zi text input you only have to press each key once. Continue writing a word even if it appears to be wrong.

To enter text using Zi text input

1 For example, to write the word "Jane", press (5) , (2) , (6) , (3) .
2 You now have several options:

• If the word shown is the one you want, press (0) to accept and add a space. To accept a word without adding a space, press (A).
• If the word shown is not the one you want, press (点) or (点) repeatedly to view alternative words. To accept a word and add a space, press (点) .
  To enter full stops and commas, press 1 and then or repeatedly.

To enter text using multitap

• Press 2 - 9 until the character you want appears.
• Press 0 - to add a space.
• Press 1 to enter punctuation marks.

To use the keys when entering text

To change text input method, press and hold down ( +)
- To change writing language, press and hold down (#^s).

• To shift between upper-case letters, lower-case letters and numbers, press # 不 的
  To delete characters, press C.
  To delete a whole word, press and hold down C
  To enter numbers, press and hold down 0-9.

To add a word to the dictionary

1 When you enter text using Zi text input, select Options > Spell word.
2 Enter the word using multitap and select Save.

Calling

You must turn on the phone and be within range of a network.

To make a call

1 Enter a phone number (with international country code and area code, if applicable).
2 Press
- You can call numbers from your contacts and call list.
See Contacts on page 17, and Call list on page 16.

To end a call

Press

To answer a call

• Press

To reject a call

Press

To change the ear speaker volume during a call

• Press the volume key up or down.

To turn off the ringtone without answering a call

• Press the volume key up or down.

To turn on the loudspeaker during a call

• Select SpkrOn.

Do not hold the phone to your ear when using the loudspeaker. This could damage your hearing.

To make an international call

1 Press and hold down (主) until a "+" sign appears.
2 Enter the country code, area code (without the first zero) and phone number.
3 Press

Call list

You can view information about recent calls.

To call a number from the call list

1 Press 0 .
2 Scroll to a name or a number and press

To clear the call list

1 Press
2 In the All tab, select Options > Delete all.
3 To confirm, select Yes.

Emergency calls

Your phone supports international emergency numbers, for example, 112 or 911. You can normally use these numbers to make emergency calls in any country, with or without the SIM card inserted, if you are within range of a network.

To make an emergency call

• Enter 112 (the international emergency number) and press
  In some countries, other local emergency numbers may also be promoted. Your network operator may have saved these numbers on the SIM card.

Contacts

You can save names, phone numbers and personal information in Contacts. Information can be saved in the phone memory or on the SIM card.

Default contacts

You can choose which contact information is shown as default. If Phone contacts is selected as default, your contacts show all the information saved in Contacts. If you select SIM contacts as default, your contacts show names and numbers saved on the SIM card.

To select default contacts

1 Select Contact > Options > More > Advanced > Default contacts.
2 Select an option.

Contact memory status

The number of contacts you can save in your phone or on the SIM card depends on available memory.

To view contact memory status

• Select Contact > Options > More > Advanced > Memory status.

Phonebook mode

When Phone contacts is selected as default contacts, you can choose between two phonebook modes:

• Normal - only one phonebook. You can select this mode if the phone is used by one person only.
• Multi phonebook - one shared phonebook and four individual phonebooks. These appear as tabs. Contacts in the shared phonebook are displayed in each individual phonebook. Contacts in an individual phonebook can be shown in only one or in several individual phonebooks. You can select this mode if the phone is used by more than one person.

See the phonebook setup wizard for first time use. The setup wizard will appear again if being ignored.

To change phonebook mode

1 Select Contact > Options > More > Phonebook mode.
2 Select an option.

In Multi phonebook mode, the phonebook you last used is the default phonebook when you open Contacts. When Normal mode is activated, all the contacts in Multi phonebook mode are displayed. When Normal mode is changed to Multi phonebook mode, all the contacts in the Normal mode are saved in Shared ph. book.

To rename a phonebook in multiple phonebook mode

1 Select Options > More > Rename phonebk.
2 Scroll to an individual phonebook and select Edit.
3 Enter a new name and select OK.

The shared phonebook cannot be renamed.

Phone contacts

Phone contacts can contain names, phone numbers and personal information. They are saved in the phone memory.

If you enter the + sign and country code in all phonebook numbers, you can use them abroad and at home. See To make an international call on page 16.

To add a phone contact in normal phonebook mode

1 Select Contact > New contact.
2 Select Last name:, enter the last name and select OK.
3 Select First name:, enter the first name and select OK.
4 Select New number:, enter the number and select OK.
5 Select a number type.
6 Scroll between tabs and select the fields to add information.
7 Select Save.
Make sure you select Phone contacts as Default contacts when adding a phone contact.

To add a phone contact in multiple phonebook mode

1 Select Contact > New contact.
2 Select Last name:, enter the last name and select OK.
3 Select First name:, enter the first name and select OK.
4 Select Contact properties; mark the phonebooks where you want the contact to appear and select Save.
5 Select New number., enter the number and select OK.
6 Select a number type.
7 Scroll between tabs and select the fields to add information.
8 Select Save.
Make sure you select Phone contacts as Default contacts when adding a phone contact.

To call a contact

1 Select Menu > Contacts.
2 If you are in Multiple phonebook mode, scroll to a phonebook.
3 Scroll to, or enter the first few letters of, the contact.
4 Press

To edit a phone contact

1 Select Contact.
2 Scroll to a contact and select Options > Edit contact.
3 Scroll between the tabs, edit information and select Save.

To copy contacts to or from the SIM card

1 Select Contact > Options > More > Advanced.
2 Select Copy to SIM or Copy from SIM.

Messaging

Text messages (SMS)

You must have a valid service centre number in your phone. This is supplied by your service provider and saved on the SIM card. You may have to enter the number yourself.

To write and send a text message

1 Select Menu > Messaging > Write new > Text message.
2 Write the message and select Cont. > Contacts lookup.
3 Select a recipient and select Send.

To view a received text message

• When From: Text message received Read now? appears, select Yes.

To view messages from the Inbox

1 Select Menu > Messaging > Inbox.
2 Scroll to a message and select View.

Multimedia messages (MMS)

Multimedia messages can contain text, pictures, sound and attachments. They are sent using MMS to a mobile phone. You need the correct Internet settings in your phone to use multimedia messages. See Internet on page 30.

You must set an MMS profile and the address of your message server. If no MMS profile or message server exists, you can receive all the settings automatically from your network operator or at www.sonyericsson.com/support.

To create and send a multimedia message

1 Select Menu > Messaging > Write new > Multimedia msg.
2 Enter text. To add items to the message, press scroll using or and select an item.
3 To preview the multimedia message before sending it, press 值 and select
4 When the message is ready, select Cont.. If the message consists of more than one slide, select Yes to preview or select No to skip the preview.
5 Select Contacts look-up and select a recipient.
6 Select Send.
Sending and receiving phones must have subscriptions that support multimedia messaging.

Walkman™

To play music

1 Press _ and select Options > My music.
2 Browse by artist, album, track or playlist. Scroll to a list and select Open.
3 Scroll to a title and select Play.

To stop playing music

• When in Play view, press

Transferring music

You can transfer music from your computer to your phone memory or Memory Stick Micro™ (M2™). There are two ways to connect the phone to a computer:

using a USB cable
- using a Bluetooth™ wireless technology connection You can drag and drop files between your phone or memory card and a computer in Microsoft® Windows Explorer. You can get more information about transferring files to your phone at www.sonyericsson.com/support.

You may have to purchase a USB cable separately.

To connect your phone to a computer using a USB cable

1 Make sure your phone is turned on.
2 Connect the USB cable to your phone and the computer.
3 Phone: select File transfer.
4 Computer: Wait for the drivers to be installed (this is done automatically). The first time you connect your phone to the computer, you may need to identify and name the phone.

To transfer files in file transfer mode using a USB cable

Do not remove the USB cable from the phone or computer during transfer, as this may corrupt the memory card and the phone memory. You cannot view the transferred files in your phone until you have removed the USB cable from the phone.

1 Connect the USB cable to the phone and the computer.
2 Phone: Select File transfer.
3 Computer: Wait until the phone memory and memory card appear as external disks in Microsoft Windows Explorer.
4 Computer: On the computer desktop, double-click the My Computer icon.
5 Computer: To view the phone memory and memory card folders, double-click the icon representing your phone.
6 Copy and paste your file, or drag and drop it, into a folder on your computer, in your phone memory or on your memory card.
7 To safely disconnect the USB cable, right-click the Removable Disk icon in Windows Explorer and select Eject.

Playlists

You can create playlists to organise your music.

To create a playlist

1 Press and select Options > My music > My Playlists > New playlist.
2 Enter a name and select OK.
3 Scroll to a track and select Mark.
4 Select Add to add the track to the playlist.

To add tracks to a playlist

1 Press (w) and select Options > My music > My Playlists.
2 Open a playlist and select Options > Add media.
3 Mark the tracks you want and select Add.

You can also add all the tracks in a folder to a playlist by marking the folder and then selecting Options > Add.

To remove tracks from a playlist

1 Press (w) and select Options > My music > My Playlists.
2 Open a playlist and scroll to a track.
3 Press and select Yes.

To control the Walkman™ player

• Press to open the Walkman™ player.
• Press to play or stop the current music file.
• Press to go to the next music file.
• Press to go to the previous music file.
• Press and hold down or to fast forward or rewind.
• Press or to view and scroll files in the current playlist.
• Press the volume key up or down to change the volume.
• Select Back to minimise the Walkman™ player during playback.
• Press to exit and return to standby.

TrackID™

TrackID™ is a music recognition service. You can search for title, artist and album name for a track you hear playing through a loudspeaker or on the radio.

• You need the correct settings for Java and Internet in your phone to use this function. See Internet on page 30. For cost information contact your service provider.

To search for track information

• When you hear a track through a loudspeaker, select Menu > Entertainment > TrackID™ > Start.
• When you hear a track through the radio on your phone, from the radio view select Options > TrackID™.

Video player

You can view and manage video clips in your phone.

To view a video clip

1 Select Menu > Entertainment > Video player.
2 Scroll to a video clip and select Play.

Radio

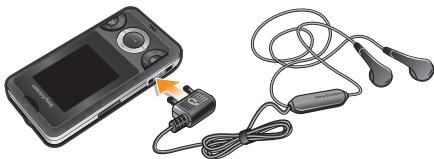

Your phone has a radio and the handsfree works as an antenna.

Do not use your phone as a radio in places where this is prohibited.

To turn on the radio

1 Connect a handsfree to the phone.
2 Select Menu > Entertainment > Radio.

To search for channels automatically

• When the radio is playing, press .

To search for channels manually

• When the radio is playing, press or .

To save channels

1 When you have found a radio channel, select Options > Channels > Save.
2 Scroll to a position and select Insert.

You can also save channels in positions 1 to 9 by pressing and holding down (1c 3) - (9) .

To select saved channels

1 When the radio is playing, select Options > Channels > Channel list.
2 Select a radio channel.

You can also select channels saved in positions 1 to 9 by pressing (1三) - (9)

To record from the radio

1 To set record quality, select Menu > Entertainment > Radio > Options > Settings > Record quality and select an option.
2 Select Options > Record radio to start.
3 Select Save to save the recording.
4 To access the radio recordings, select Options > My radio recs.

This service is not available in all countries.

To minimise the radio

• When the radio is playing, select Back.

To turn off the radio

• When you are in radio play view, press select Options > Turn off.

To view radio options

• When the radio is playing, select Options.

Imaging

Camera and video recorder

You can take photos and record video clips to view, save or send. Photos and video clips are automatically saved in the phone memory.

You can save photos and video clips on a memory card by selecting Camera > Options > Save to > Memory card.

To take a photo

1 Select Camera and scroll to

2 Select TakePic. The photo is automatically saved in JPEG format.

To avoid a blurred photo, use a support or the self-timer.

To change camera settings

1 Select Camera > Options.
2 Select an item and change settings.

To send a saved photo

1 Select Menu > Organiser > File manager > Camera album.
2 Scroll to a photo and select Options > Send.
3 Select an option.

See To send an item using the Bluetooth function on page 30. See To create and send a multimedia message on page 21.

To record a video clip

1 Select Camera and scroll to
2 Select Record to start recording.
3 To stop recording, select Stop. The video clip is automatically saved.
Do not record with a strong light source in the background.

To view video clips

1 Select Menu > Organiser > File manager > Videos.
2 Scroll to a video clip and select Play.

You can also find video clips in Entertainment > Video player. Scroll to a video clip and select Play to view it.

Transferring photos and video clips

You can use Bluetooth™ wireless technology and the USB cable to transfer photos and video clips between your computer and phone. For more information, see Bluetooth™ wireless technology on page 29 and To transfer files in file transfer mode using a USB cable on page 23.

Bluetooth™ wireless technology

Bluetooth™ wireless technology makes wireless connection to other Bluetooth™ devices possible, for example, a Bluetooth™ headset. You can connect to several devices at the same time or exchange items.

A range within 10 metres (33 feet), with no solid objects in between, is recommended for Bluetooth™ communication.

To turn on the Bluetooth™ function

• Select Menu > Settings > Connectivity > Bluetooth > Turn on.
  Some countries do not allow you to use Bluetooth™ wireless technology.

To show or hide your phone

• Select Menu > Settings > Connectivity > Bluetooth > Visibility > Show phone or Hide phone.
  If set to hide, other devices will not be able to identify your phone using Bluetooth™ wireless technology.

To pair the phone with a device

1 To search for available devices, select Menu > Settings > Connectivity > Bluetooth > My devices > New device.
2 Select a device from the list.
3 Enter a passcode, if required.
Make sure that the device you want to pair your phone with has the Bluetooth™ function activated and Bluetooth™ visibility set to Show phone.

To pair the phone with a Bluetooth handsfree

1 Select Menu > Settings > Connectivity > Bluetooth > Handsfree > My handsfree > New handsfree.
2 Scroll to a device and select Add.

To receive an item

1 Turn on the Bluetooth function and set the Visibility to Show phone.
2 When you receive an item, follow the instructions that appear.

To send an item using the Bluetooth function

1 Select, for example, Menu > Organiser > File manager > Camera album.
2 Scroll to an item and select Options > Send > Via Bluetooth.

Internet

You need the correct Internet settings in your phone. If the settings are not in your phone, you can go to

www.sonyericsson.com/support on a computer for more information.

Make sure you have a phone subscription that supports data transmission in your phone.

To select an Internet profile

1 Select Menu > Settings > Connectivity > Internet settings > Connect using:
2 Select an account.

To start browsing

1 Select Menu > Internet > Options > Go to.
2 Select an option.

To exit the browser

• When you are browsing, press

More features

File manager

You can handle files saved in the phone memory or on a memory card. You can create sub folders where you can save your files.

To view information about a file

1 Select Menu > Organiser > File manager.
2 Find a file in a folder and select Options > Information.

To copy or move a file in the file manager

1 Select Menu > Organiser > File manager.
2 Find a file in a folder and select Options > Manage file.
3 Select Copy or Move.

To view the memory status

• Select Menu > Organiser > File manager > Options > Memory status.

Voicemail

If your subscription includes an answering service, callers can leave a voicemail message when you cannot answer a call.

To enter your voicemail number

1 Select Menu > Messaging > Settings > Voicemail number.
2 Enter the voicemail number that you get from your service provider and select Save.

To call your voicemail service

• Press and hold down 150 .

Alarms

You can set a sound or the radio as an alarm signal. The alarm sounds even if the phone is turned off.

To set the alarm

1 Select Menu > Organiser > Alarms.
2 Scroll to an alarm and select Edit.
3 Scroll between the tabs, set the time, the alarm signal and other information if needed.
4 Select Save.

• Keep the handsfree inserted when you select radio as alarm signal. The radio signal sounds through the loudspeaker.

To silence the alarm

1 When the alarm sounds, press any key.

2 To repeat the alarm, select Snooze.

Torch

To use the torch

• To turn on the torch, select Menu > Organiser > Torch.
• To turn off the torch, select Back.

Ringtones and themes

Themes are used to change the appearance of the screen.

To set the ringtone volume

1 Select Menu > Settings > Sounds & alerts > Ring volume.
2 Press or to change the volume.
3 Select Save.

To set a ringtone

1 Select Menu > Settings > Sounds & alerts > Ringtone.
2 Find and select a ringtone.

To set the vibrating alert

1 Select Menu > Settings > Sounds & alerts > Vibrating alert.
2 Select an option.

To set a theme

1 Select Menu > Settings > Display > Themes.
2 Scroll to a theme and select Set.

To use a photo as wallpaper

1 Select Menu > Organiser > File manager > Camera album.

2 Scroll to a picture and select Options > Use as > Wallpaper.

Keypad lock

You can set this lock to avoid accidental dialling. Incoming calls can be answered without unlocking the keypad.

Calls to the international emergency number 112 can still be made.

To use the automatic keylock

1 Select Menu > Settings > General > Security > Auto keylock.
2 Select an option.

SIM card lock

This lock only protects your subscription. Your phone will work with a new SIM card. If the lock is on, you have to enter a PIN. If you enter your PIN incorrectly three times in a row, the SIM card is blocked and you need to enter your PUK (Personal Unblocking Key). Your PIN and PUK are supplied by your network operator.

To unblock the SIM card

1 When PIN blocked. To unblock, enter your PUK code provided by your network operator. is displayed, enter your PUK and select OK.
2 Enter a new PIN and select OK.
3 To confirm, re-enter the new PIN and select OK.

To use the SIM card lock

1 Select Menu > Settings > General > Security > PIN codes > SIM protection > Protection > On.
2 Enter your PIN and select OK.

To edit the PIN

1 Select Menu > Settings > General > Security > PIN codes > SIM protection > Change PIN.
2 Enter your PIN and select OK.
3 Enter a new PIN and select OK.
4 To confirm, re-enter the new PIN and select OK.

Phone lock

The phone lock protects the phone against unauthorised use if it is stolen and the SIM card is exchanged. You can change the phone lock code (which is 0000 by default) to any four-to-eight-digit personal code. If the phone lock is set to Automatic, you do not need to enter your phone lock code until a different SIM card is inserted in the phone.

To use the phone lock

1 Select Menu > Settings > General > Security > PIN codes > Phone protection > Protection.
2 Select an option.
3 Enter the phone lock code and select OK.

To change the phone lock code

1 Select Menu > Settings > General > Security > PIN codes > Phone protection > Change code.
2 Enter the old code and select OK.
3 Enter the new code and select OK.
4 Repeat the code and select OK.

To unlock the phone

1 Select Menu > Settings > General > Security > PIN codes > Phone protection > Protection > Off.
2 Enter your phone lock code and select OK.

Troubleshooting

Some problems require you to call your network operator, but you can correct most problems yourself. Remove the SIM card before handing your phone in for repair. For more support, go to www.sonyericsson.com/support.

Restart your phone every day to free memory. Do a Master reset if you are having problems with memory capacity or if the phone is working slowly.

Master reset

If you experience problems with your phone, such as screen flickering, screen freezing or navigation problems, you should reset the phone.

To reset the phone

• Select Menu > Settings > General > Master reset and select an option.
  ! Reset settings resets all changes that you have made in your phone to default.

Reset all deletes all user data such as contacts, messages, pictures and sounds in your phone.

Legal information

Sony Ericsson W205 WalkmanTM

This User guide is published by Sony Ericsson Mobile Communications AB or its local affiliated company, without any warranty. Improvements and changes to this User guide necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Ericsson Mobile Communications AB at any time and without notice. Such changes will, however, be incorporated into new editions of this User guide.

All rights reserved.

©Sony Ericsson Mobile Communications AB, 2009

Publication number: 1224-6945.1

Attention: Some of the services and features described in this User guide are not supported by all networks and/or service providers in all areas. Without limitation, this applies to the GSM International Emergency Number 112. Please contact your network operator or service provider to determine availability of any specific service or feature and whether additional access or usage fees apply.

Your mobile phone has the capability to download, store and forward additional content, e.g. ringtones. The use of such content may be restricted or prohibited by rights of third parties, including but not limited to restriction under applicable copyright laws. You, and not Sony Ericsson, are entirely responsible for additional content that you download to or forward from your mobile phone. Prior to your use of any additional content, please verify that your intended use is properly licensed or is otherwise authorized. Sony Ericsson does not guarantee the accuracy, integrity or quality of any additional content or any other third party content. Under no circumstances will Sony Ericsson be liable in any way for your improper use of additional content or other third party content.

Bluetooth is a trademark or a registered trademark of Bluetooth SIG Inc. and any use of such mark by Sony Ericsson is under license.

The Liquid Identity logo and TrackID are trademarks or registered trademarks of Sony Ericsson Mobile Communications AB.

TrackID™ is powered by Gracenote Mobile MusicID™, Gracenote and Gracenote Mobile MusicID are trademarks or registered trademarks of Gracenote, Inc.

WALKMAN, WALKMAN logo, Sony, Memory Stick Micro™ and M2™ are trademarks or registered trademarks of Sony Corporation.

Ericsson is a trademark or registered trademark of Telefonaktiebolaget LM Ericsson.

Microsoft, Windows and Vista are registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

Zi^T predictive text input technology is used under license from Zi Corporation.

Java and all Java-based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries.

End-user license agreement for Sun Java™ J2ME™. 1. Restrictions: Software is confidential copyrighted information of Sun and title to all copies is retained by Sun and/or its licensors. Customer shall not modify, decode, disassemble, decrypt, extract, or otherwise reverse engineer Software. Software may not be leased, assigned, or sublicense, in whole or in part. 2. Export Regulations: Software including technical data, is subject to U.S. export control laws, including the U.S. Export Administration Act and its associated regulations, and may be subject to export or import regulations in other countries. Customer agrees to comply strictly with all such regulations and acknowledges that it has the responsibility to obtain licenses to export, re-export, or import Software. Software may not be downloaded, or otherwise exported or re-exported (i) into, or a national or resident of, Cuba, Iraq, Iran, North Korea, Libya, Sudan, Syria (as such listing may be revised from time to time) or any country to which the U.S. has embargoed goods; or (ii) to anyone on the U.S. Treasury Department's list of Specialty Designated Nations or the U.S. Commerce Department's Table of Denial Orders. 3. Restricted Rights: Use, duplication or disclosure by the United States government is subject to the restrictions as set forth in the Rights in Technical Data and Computer Software Clauses in DFARS 252.227-7013(c) (1) and FAR 52.227-19(c) (2) as applicable.

This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.

Other product and company names mentioned herein may be the trademarks of their respective owners.

Any rights not expressly granted herein are reserved.

All illustrations are for illustration only and may not accurately depict the actual phone.

www.sonyericsson.com

Sony Ericsson

Sony Ericsson Mobile Communications AB SE-221 88 Lund, Sweden

1224-6945.1
