This unit has been designed for use as a computer display monitor. The optional video card is required if you wish to view other video signals on the monitor. For details consult your local retail dealer.

Français

Operating Instructions

Thank you very much for purchasing this PIONEER product. Before using your Plasma Display, please read the "Safety Precautions" and these "Operating Instructions" carefully so you will know how to operate the Plasma Display properly. Keep this manual in a safe place. You will find it useful in the future.

Notes on Installation Work:

This product is marketed assuming that it is installed by qualified personnel with enough skill and competence. Always have an installation specialist or your dealer install and set up the product. PIONEER cannot assume liabilities for damage caused by mistake in installation or mounting, misuse, modification or a natural disaster.

Note for Dealers:

After installation, be sure to deliver this manual to the customer and explain to the customer how to handle the product.

IMPORTANT

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCK,DO NOT REMOVE COVER (OR BACK).NO USER-SERVICEABLE PARTS INSIDE.REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

D3-4-2-1-1 En-A

WARNING: The apparatus is not waterproofs, to prevent fire or shocks hazard, do not expose this apparatus to rain or moisture and do not put any water source near this apparatus, such as vase, flower pot, cosmetics container and medicine bottle etc. D3-4-2-1-3

IMPORTANT NOTICE

The serial number for this equipment is located on the rear panel. Please write this serial number on your enclosed warranty card and keep it in a secure area. This is for your security.

WARNING: Handling the cord on this product or cords associated with accessories sold with the product will expose you to lead, a chemical known to the State of California and other governmental entities to cause cancer and birth defects or other reproductive harm.

Wash hands after handling

D36-P4_En

The following symbols are found on labels attached to the product. They alert the operators and service personnel of this equipment to any potentially dangerous conditions.

WARNING

This symbol refers to a hazard or unsafe practice which can result in personal injury or property damage.

CAUTION

This symbol refers to a hazard or unsafe practice which can result in severe personal injury or death.

CAUTION: WHEN POSITIONING THIS EQUIPMENTENSURE THAT THE MAINS PLUG AND SOCKET IS EASILY ACCESSIBLE.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

D8-10-1-2_En

Information to User

Alteration or modifications carried out without appropriate authorization may invalidate the user's right to operate the equipment. D8-10-2_En

[For Canadian model]

This Class B digital apparatus complies with Canadian ICES-003.

CAUTION: This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded cables and connectors for connections. D8-10

D8-10-3a En

IMPORTANT SAFETY INSTRUCTIONS

READ INSTRUCTIONS - All the safety and operating instructions should be read before the product is operated.

REtain Instructions The safety and operating instructions should be retained for future reference.

HEED WARNINGS All warnings on the product and in the operating instructions should be adhered to.

FOLLOW INSTRUCTIONS - All operating and use instructions should be followed.

CLEANING—Unplug this product from the wall outlet before cleaning. The product should be cleaned only with a polishing cloth or a soft dry cloth. Never clean with furniture wax, benzine, insecticides or other volatile liquids since they may corrode the cabinet.

ATTACHMENTS Do not use attachments not recommended by the product manufacturer as they may cause hazards.

WATER AND MOISTURE - Do not use this product near water - for example, near a bathtub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

ACCESSORIES - Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fail, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer.

CART A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

VENTILATION — Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

POWER SOURCES This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.

LOCATION The appliance should be installed in a stable location.

NONUSE PERIODS - The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.

GROUNDING OR POLARIZATION

If this product is equipped with a polarized alternating current line plug (a plug having one blade wider than the other), it will fit into the outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

If this product is equipped with a three-wire grounding type plug, a plug having a third (grounding) pin, it will only fit into a grounding type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding type plug.

POWER-CORD PROTECTION - Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

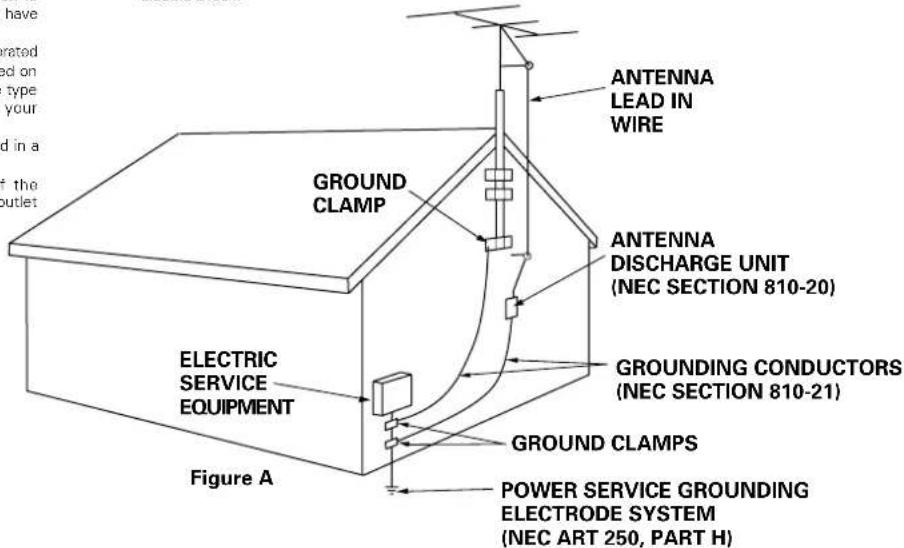

OUTDOOR ANTENNA GROUNDING If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure A.

LIGHTNING - For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

POWER LINES An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

OVERLOADING - Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

OBJECT AND LIQUID ENTRY — Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

SERVICING Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

DAMAGE REQUIRING SERVICE — Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

• When the power-supply cord or plug is damaged.
• If liquid has been spilled, or objects have fallen into the product.

If the product has been exposed to rain or water.

If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

If the product has been dropped or damaged in any way.

When the product exhibits a distinct change in performance — this indicates a need for servi

REPLACEMENT PARTS - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

SAFETY CHECK - Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

HEAT The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

WALL OR CEILING MOUNTING - The product should be mounted to a wall or ceiling only as recommended by the manufacturer.

NEC-NATIONAL ELECTRICAL CODE

FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Product Name: Plasma Display with Video Card

Model Number: PDP-425CMX (Plasma Display) PDA-5003/PDA-5004 (Video Cap

Product Category: Class B Personal Computers & Peripherals

Responsible Party Name: PIONEER ELECTRONICS SERVICE, INC.

Address: 1925E. Dominguez st., Logn Beach, CA. 90801-1760, U.S.A.

Phone Number: 310-952-2915

For Business Customer URL: http://www.pioneerUSA.com

Should this product require service in the U.S.A. and you wish to locate the nearest Pioneer Authorized Independent Service Company, or if you wish to purchase replacement parts, operating instructions, service manuals, or accessories, please call the number shown below.

800-872-4159

Please do not ship your product to Pioneer without first calling the Customer Support Division at the above listed number for assistance.

Pioneer Electronics (USA) Inc.

Customer Support Division

P.O. BOX 1760, Long Beach,

For warranty information please see the Limited Warranty sheet included with your product.

Should this product require service in Canada, please contact a Pioneer Canadian

Authorized Dealer to locate the nearest Pioneer Authorized Service Company in Canada. Alternatively, please contact the Customer Satisfaction Department at the following add

Pioneer Electronics of Canada, Inc.

Customer Satisfaction Department

300 Allstate Parkway, Markham, Ontario L3R OP2

[phone]

1(877)283-5901

For warranty information please see the Limited Warranty sheet included with your product.

S021_EF

Contents

Safety Precautions

Features 2

Before Proceeding 3

How to use this manual 3

Checking supplied accessories 5

Part Names and Functions 6

Main unit. 6

Remote control unit 7

Connection panel 8

Installation and Connections 10

Installation of the unit. 10

Connection to a personal computer 12

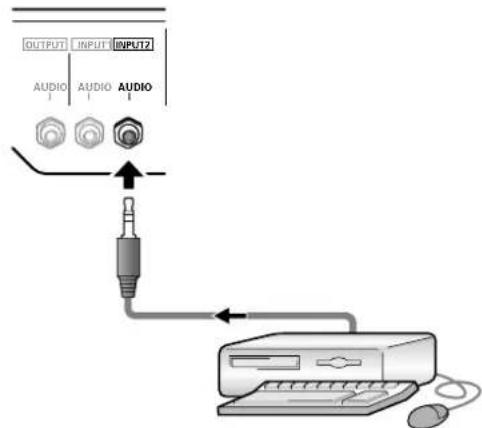

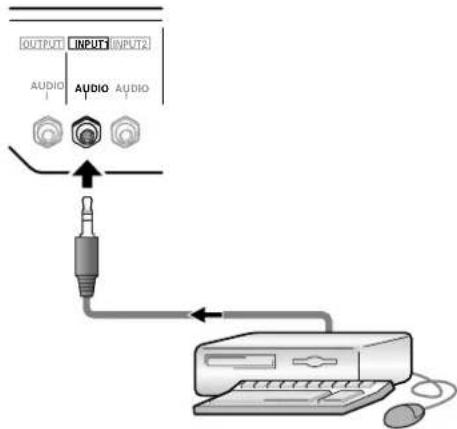

Audio connections 13

Power cord connection. 14

How to route cables 15

System Settings 16

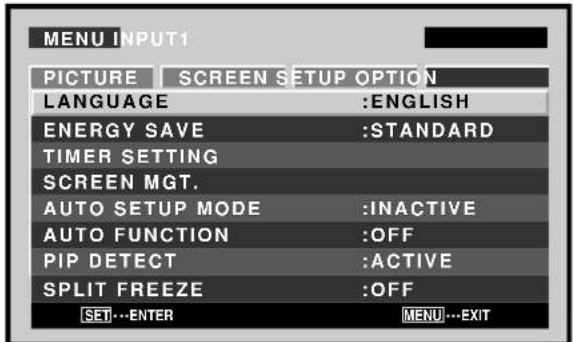

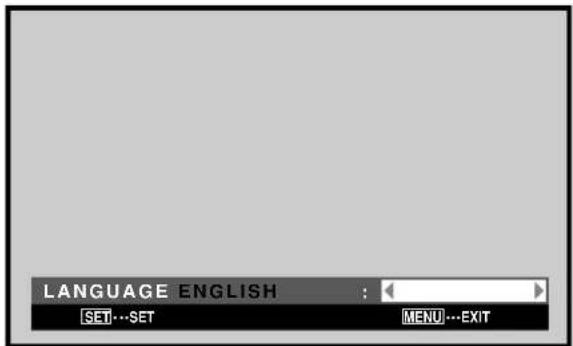

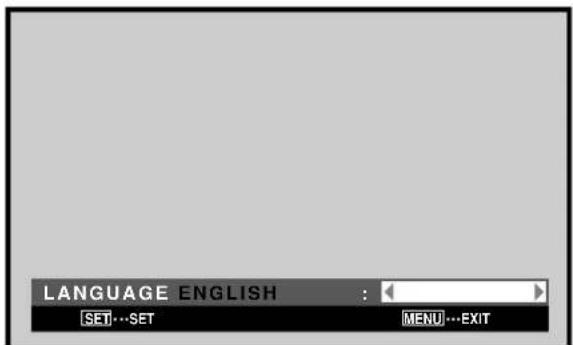

Setting the onscreen display language. 16

Settings after connections 17

Operation 18

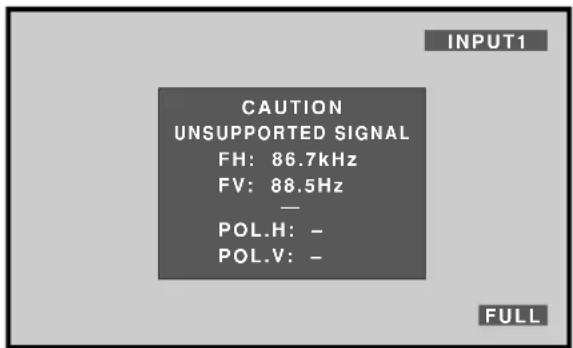

Selecting input source 18

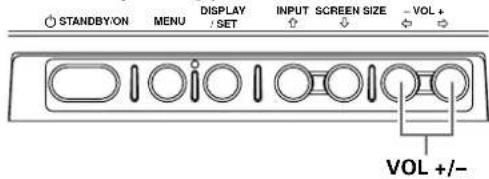

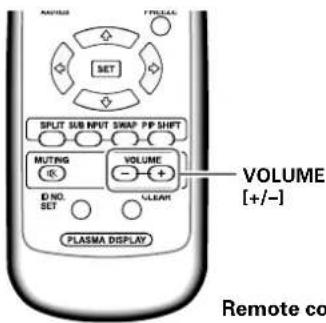

Adjusting sound volume 19

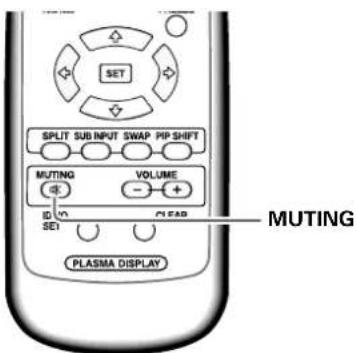

Muting the sound. 19

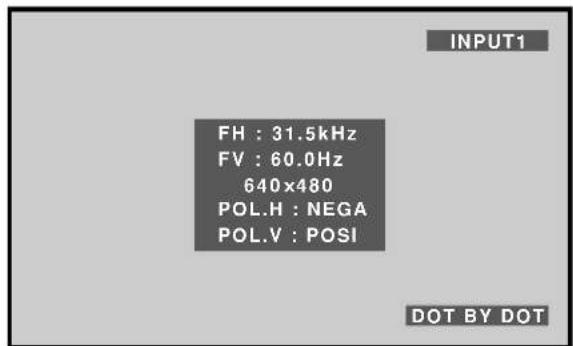

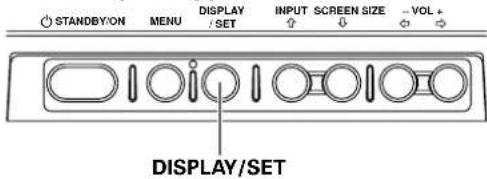

Confirming current status 19

Changing screen size 20

Enlarging one part of the screen

(POINT ZOOM) 21

Multiscreen display. 22

Automatic power-off

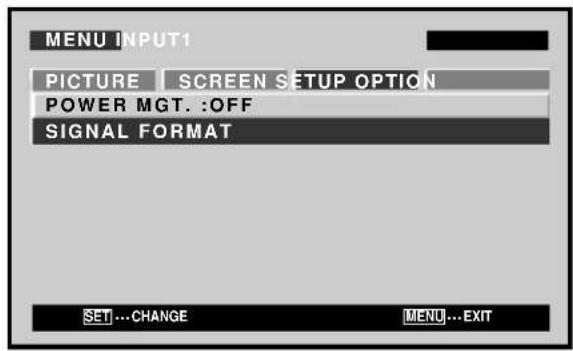

(POWER MANAGEMENT) 23

PICTURE/SCREEN Adjustment 24

PICTURE adjustment 24

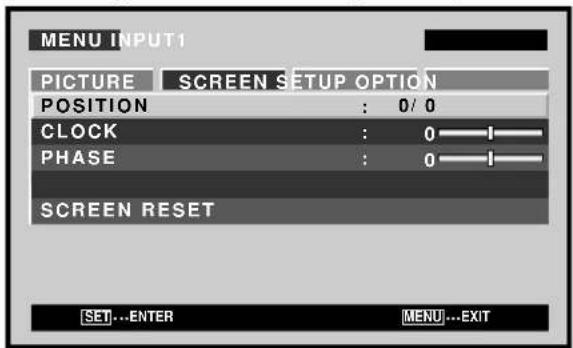

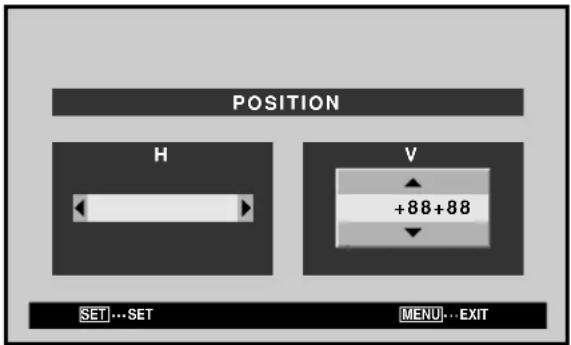

Adjusting screen POSITION, CLOCK, and PHASE 25

Adjusting screen POSITION, CLOCK, and PHASE 26

Other Operations 28

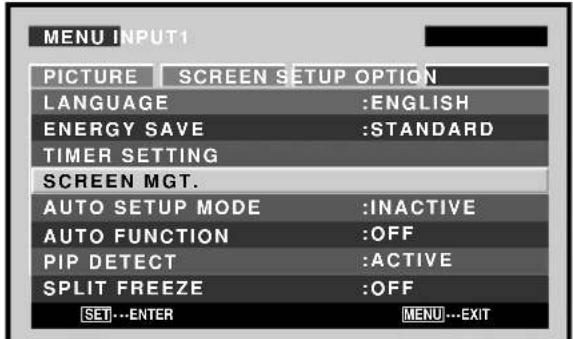

Setting the ORBITER 28

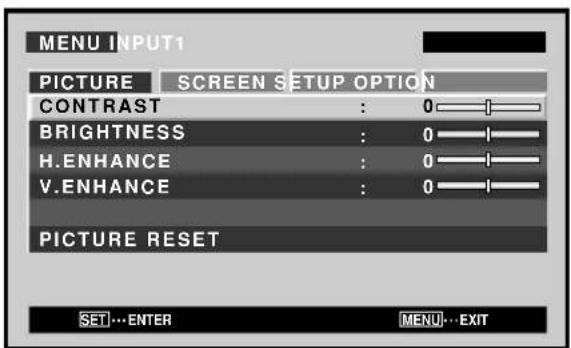

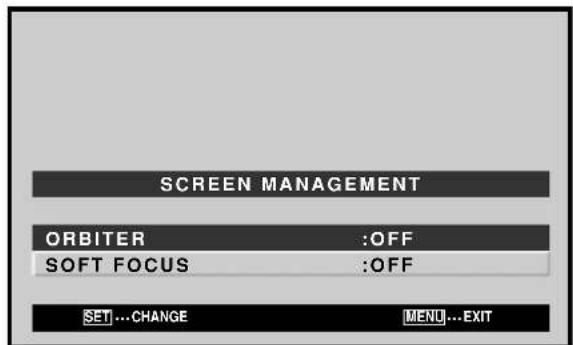

Setting the SOFT FOCUS 29

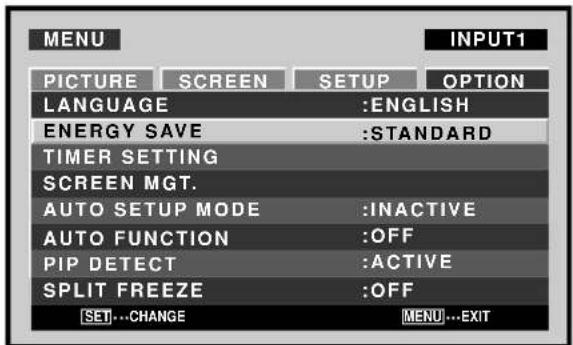

Energy saving settings (ENERGY SAVE) 30

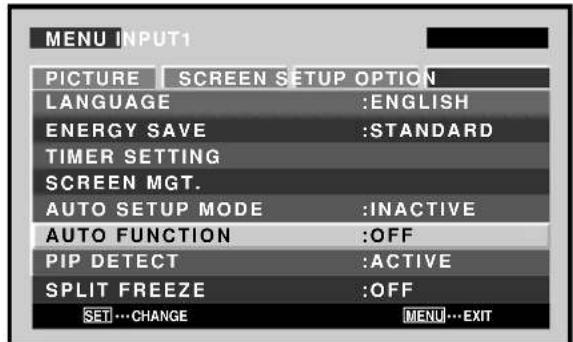

Automatic input switching (AUTO FUNCTION) 31

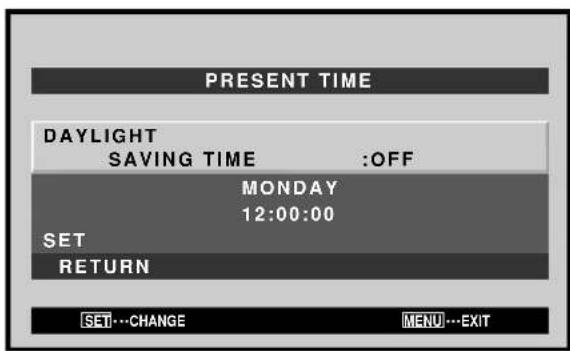

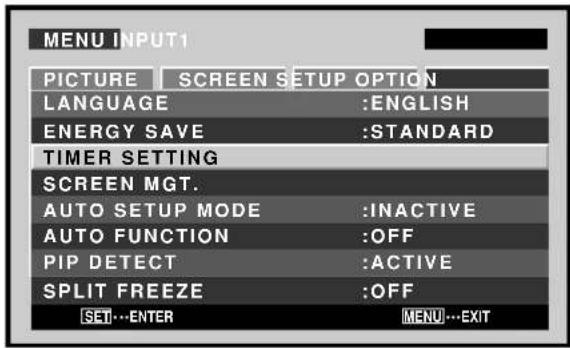

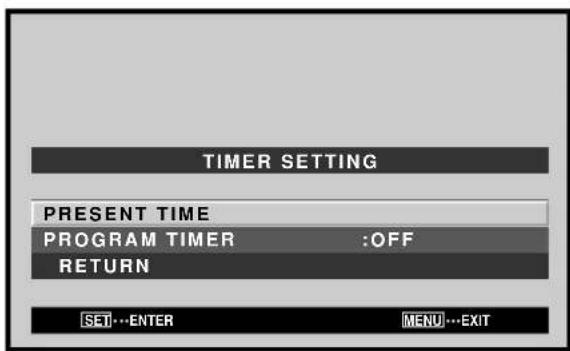

Setting the timer (TIMER SETTING) 32

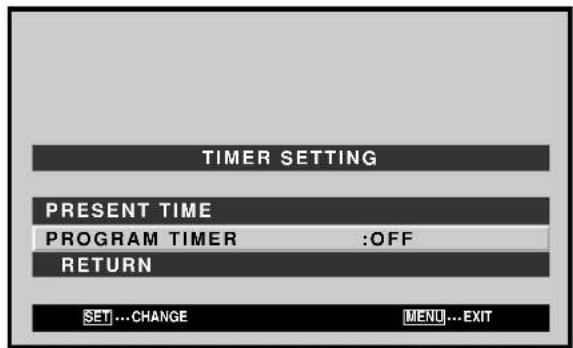

Activating the PROGRAM TIMER 33

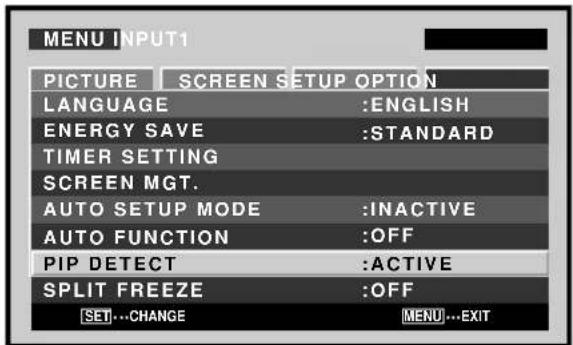

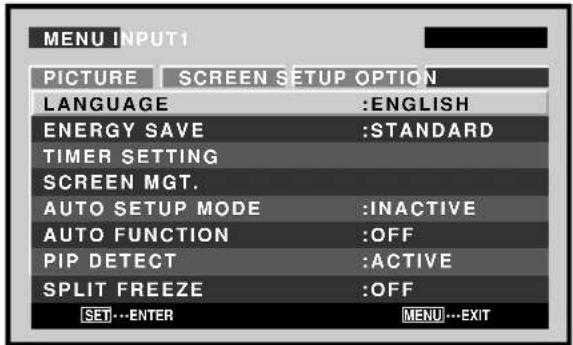

Setting the subscreen mode (PIP DETECT) .... 34

Setting the memo screen (SPLIT FREEZE).... 35

Additional Information 36

Cleaning 36

Troubleshooting 36

Precautions regarding use 38

STANDBY/ON indicator 38

Specifications 39

Appendix 1: Computer signal compatibility table 40

Appendix 2: INPUT1/2 pin assignments 43

Explanation of terms 44

Features

• Introduces newly developed 42" Wide Plasma Panel

The new wide high-precision 42^ plasma panel (1024x768 / 16:9) pushes the envelope of previous high-luminance panels, producing brighter, clearer images with higher contrast.

ES Slot interface for enhanced potential

The display is provided with a built-in ES Slot Interface to allow the installation of cards for the connection of external devices, thus enhancing its expansion potential.

Supports wide range of computer signals (analog/digital)

Supports non-compressed display of signals ranging from 640x400 and 640x480 (VGA) to 1024x768 (XGA), and compressed display of 1280x1024 (SXGA), 1400x1050 (SXGA+) and 1600x1200 (UXGA) signals. Further, aspect ratio and screen size settings supported include [DOT BY DOT], [4:3] and [FULL] (*1).

• Supported signals are different on INPUT1 and INPUT2.

*1 Aspect ratio and screen size appearance will differ depending on input signal.

Free Installation Configuration

• Broader installation possibilities with thinner,

lighter, high-endurance design -

While producing a large 42^ screen image, the display is only 98 mm thick, and weighs in at only 30.5kg . On the other hand, the efficient heat-radiating design greatly improves environmental operating conditions. The thinner, lighter design, coupled to high-endurance construction greatly broadens the range of possible installation locations and styles.

High reliability for commercial applications

This display is provided with features giving it high dependability in commercial applications, including the ability to suppress peak luminance in accordance with the viewing program, and to change the cooling fan's speed in accordance with changes in operating environment. Such features provide safety and high-endurance under conditions of commercial use.

Improved usability

User convenience has been improved by the inclusion of features making the display even more compatible with your computer. Some of these include the one-touch screen adjustment, [AUTO SET UP] function for computer connections, and the POINT ZOOM function to enlarge local portions of the screen image to display important detailed program data.

Power-Saving Design

The display is provided with a variety of power-saving functions, including an automatic brightness function with ambient light sensor.

-Optional line (sold separately)

(For details, please consult the dealer where this unit was purchased.)

1 Table top stand: PDP-425CMX display stand.

2 Wall installation unit:

Wall installation bracket designed as a wall interface for securing the unit.

3 Speaker system designed specifically for Plasma Displays (width: 9 cm (3-9/16 in.)): 2-way speaker units featuring 5 cm (2 in.) tweeter and 8 cm (3-3/16 in.) woofer in vertical arrangement.

4 Video card: Expansion card allows viewing of video signals and computer analog RGB signals.

Cards used in the expansion slots should be manufactured or recommended by Pioneer. Using other expansion cards may result in malfunction.

How to use this manual

This manual is set up to follow the course of actions and operations in the order that would seem most logical for someone setting up this unit.

Once the unit has been taken out of the box and it has been confirmed that all the parts have been received (page 5), it may be beneficial to look over the section "Part Names and Functions" starting on page 6 to become acquainted with the plasma monitor and remote control unit, as their respective buttons and controls will be referred to throughout this manual.

The section "Installation and Connections" starting on page 10 covers all the necessary points regarding installation of the Plasma Display and connections to a wide variety of components.

The section "System Settings" starting on page 16 covers the on-screen settings necessary for correct operation of the Plasma Display with its connected components. Depending on the connections made, this section may or may not be necessary.

The remainder of the sections in this manual is dedicated to the basic operations associated with selecting a source component up to the more complex operations associated with adjusting the Plasma Display picture to match the requirements of specific components and personal preferences.

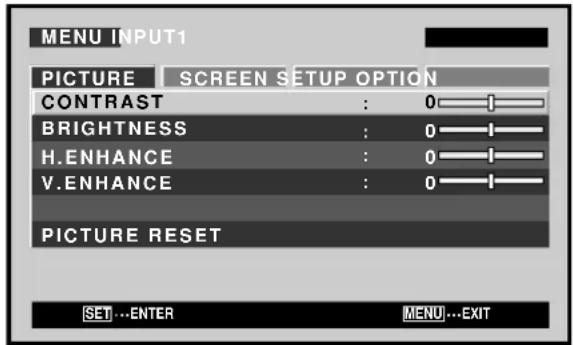

Menu display examples

Images shown here may differ from the actual display image.

About operations in this manual

Each operation is described in its proper operating order. These Operating Instructions will refer to the operating controls found on the remote control unit, with the exception of those buttons found only on the main Plasma Display itself. When the Plasma Display controls include equivalent buttons to those found on the remote control unit, the commands can be performed on the main unit as well.

The following illustrations are an example of the actual operations used for the section "PICTURE adjustment". The examples are provided to allow you to confirm whether the operation is performed correctly or not.

Note

The screen images depicted in these Operating Instructions should be considered typical images; some difference will be seen in practice, depending on the screen item displayed and its contents, the input source and various other control settings.

PICTURE/SCREEN Adjustment

eannnnn

PICTURE adjustment

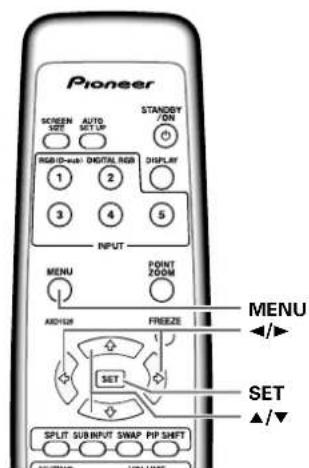

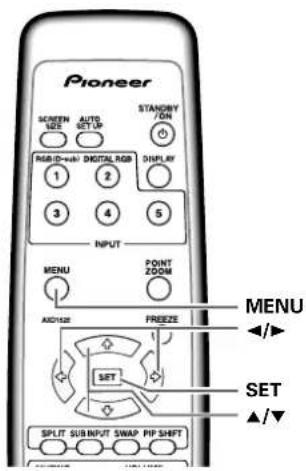

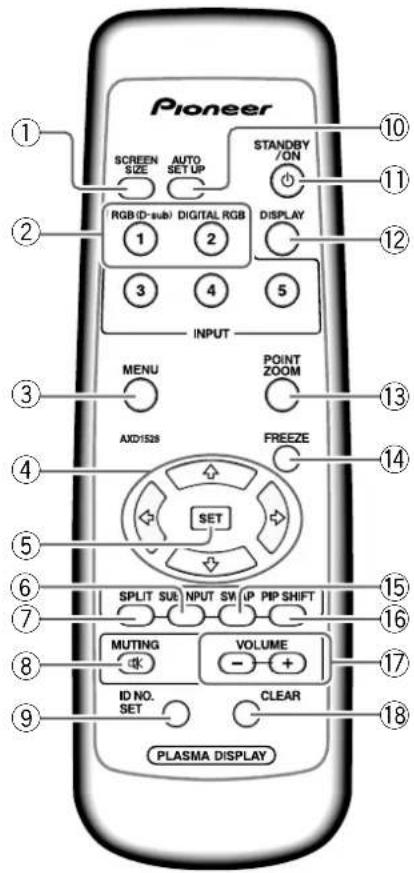

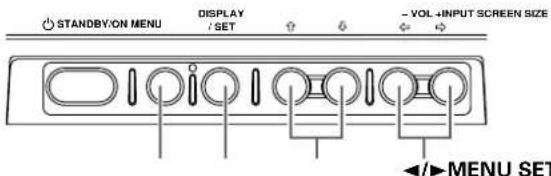

Remote control unit

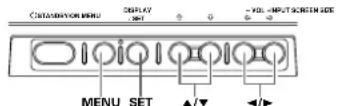

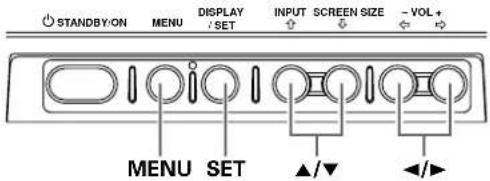

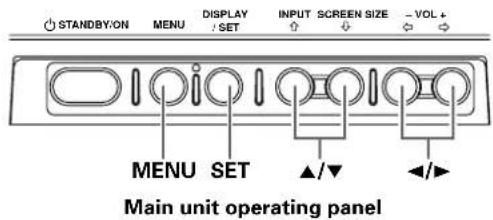

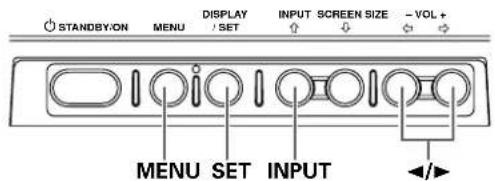

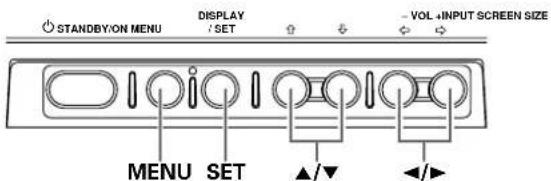

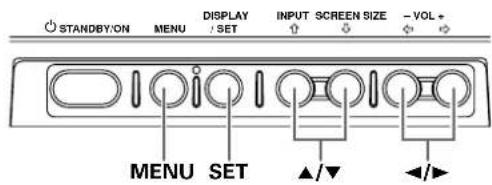

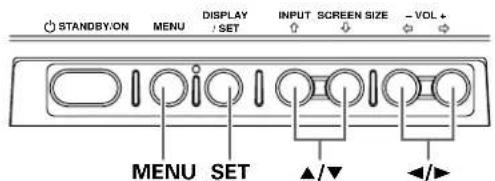

Main unit operating panel

Prrnnnne aannnnnne

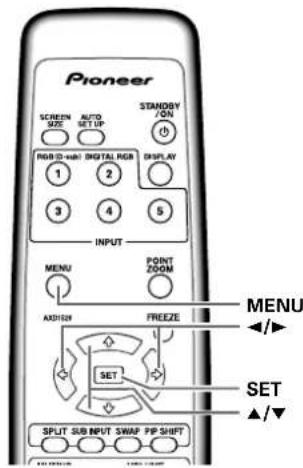

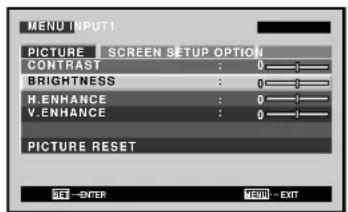

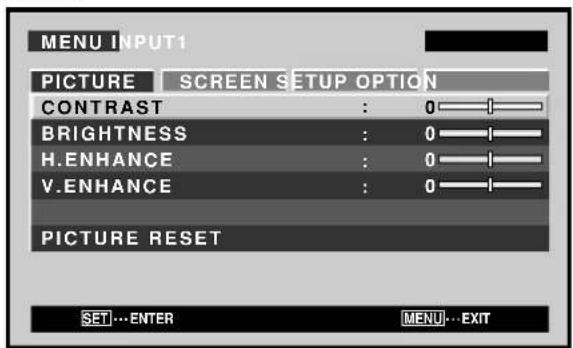

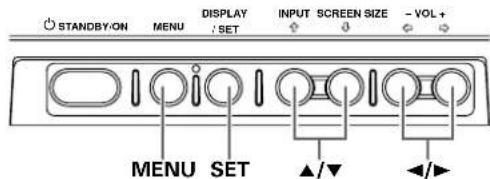

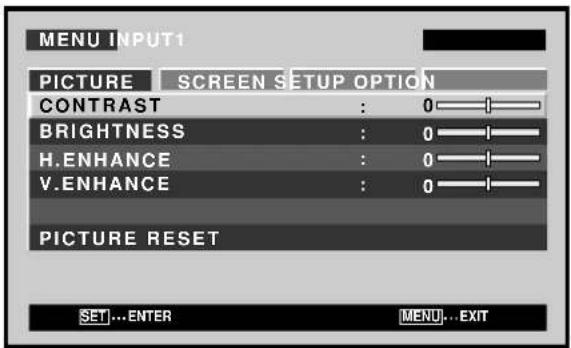

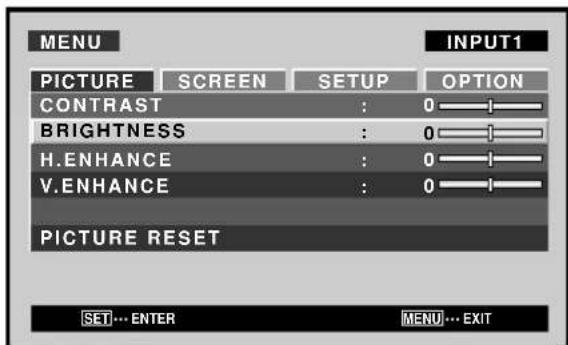

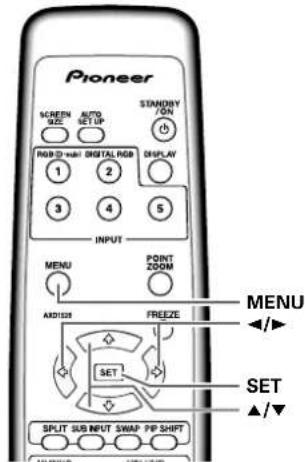

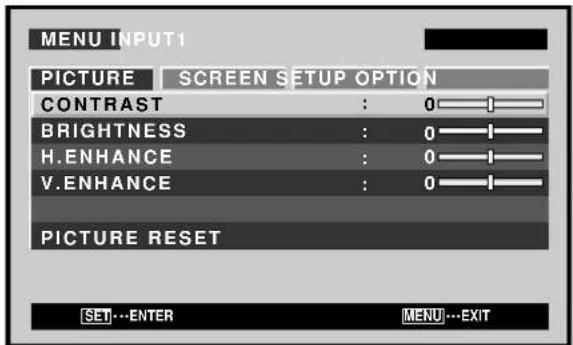

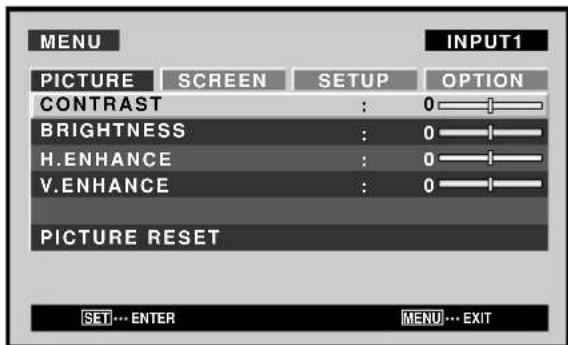

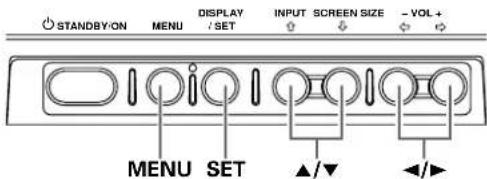

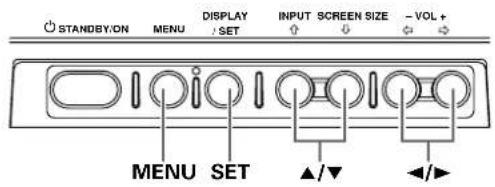

1 Press the MENU button to display the menu screen.

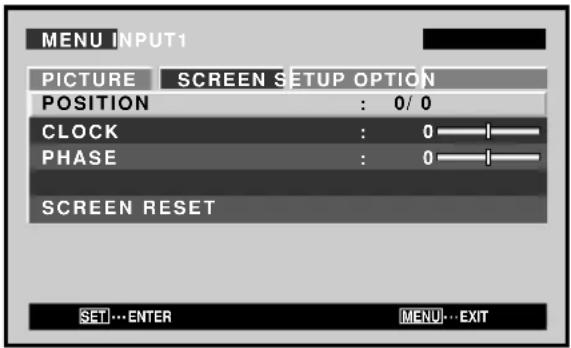

2 Use the / buttons to select the adjustment item, then press the SET button.

24

Cn

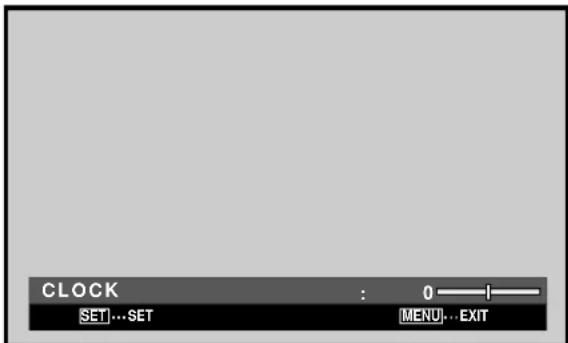

3 Use the buttons to adjust the picture quality as desired.

4 Press the SET button.

Pressing the SET button writes the value into the memory and returns the display to the step 2 screen.

5 When the setup is finished, press the MENU button to exit the menu screen.

Note

Make these adjustments for each input (INPUT1 or INPUT2) and signals.

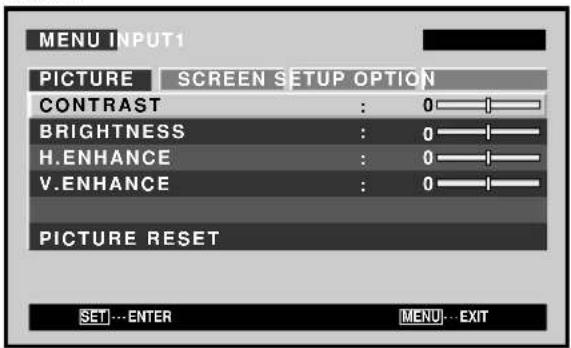

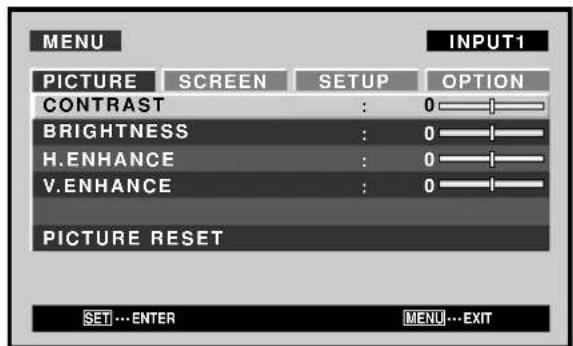

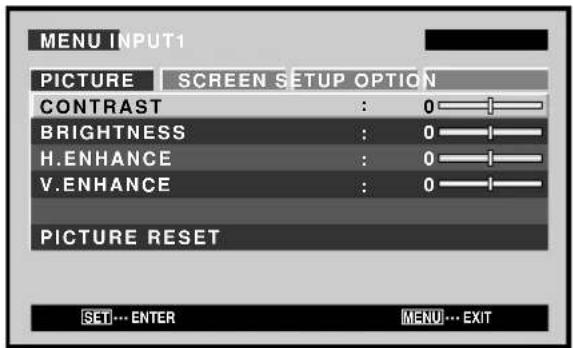

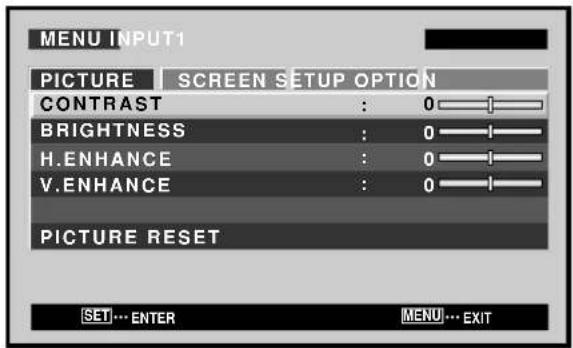

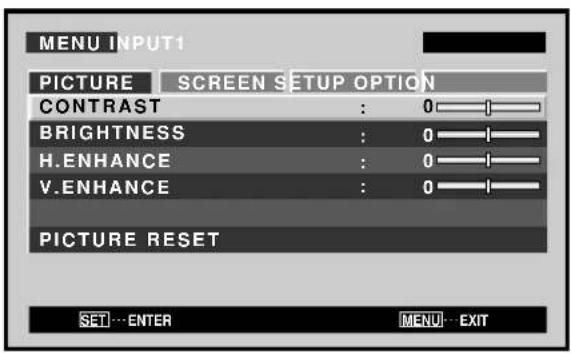

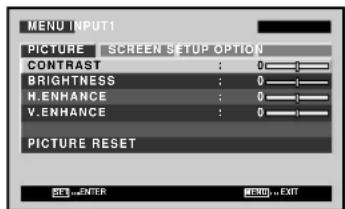

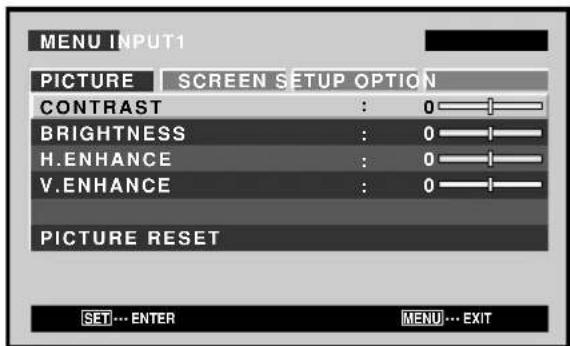

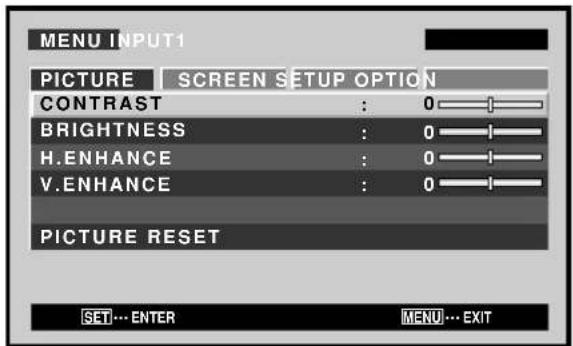

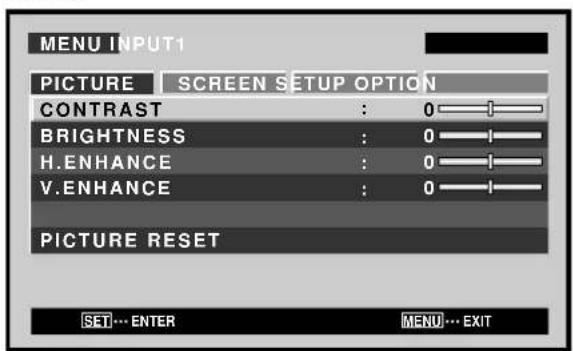

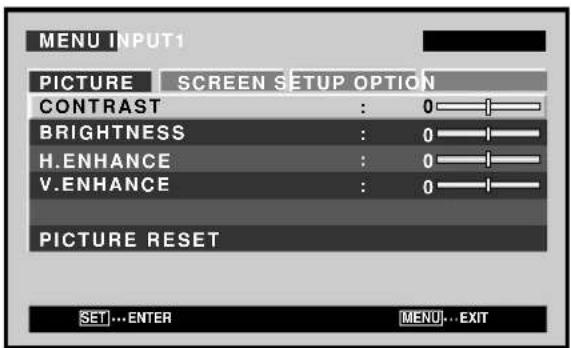

[PICTURE] mode adjustment items

Below are brief descriptions of the options that can be set in the [PICTURE] mode.

CONTRAST Adjust according to the surrounding brightness so that the picture can be seen clearly.

BRIGHTNESS Adjust so that the dark parts of the picture can be seen clearly.

H. ENHANCE…… Sharpens the image in the horizontal direction.

V. ENHANCE Sharps the image in the vertical direction.

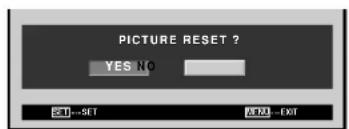

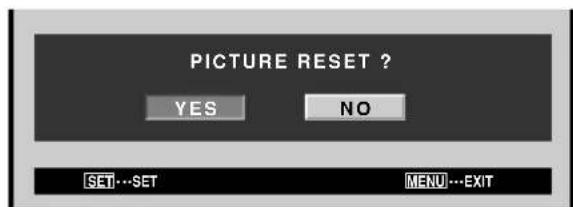

To reset [PICTURE] mode settings to the default

If settings have been adjusted excessively or the picture on the screen no longer appears natural, it may prove more beneficial to reset the [PICTURE] mode to default settings instead of trying to make adjustments under already adjusted conditions.

1 In step 2 in the previous procedure, use the / buttons to select [PICTURE RESET], then press the SET button.

2 Use the buttons to select [YES], and press the SET button.

All [PICTURE] mode settings are returned to the factory set default.

Checking supplied accessories

Check that the following accessories were supplied.

①Power cord

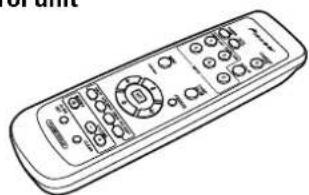

②Remote control unit

③AA (R6) batteries (x 2)

④ Cleaning cloth (for screen)

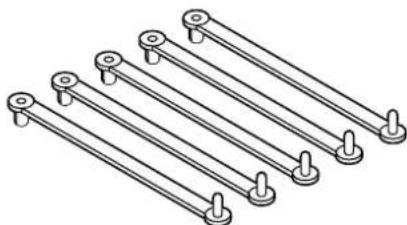

⑤Speed clamps (x 5)

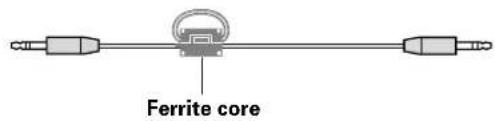

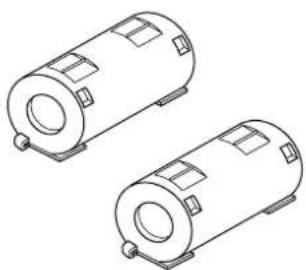

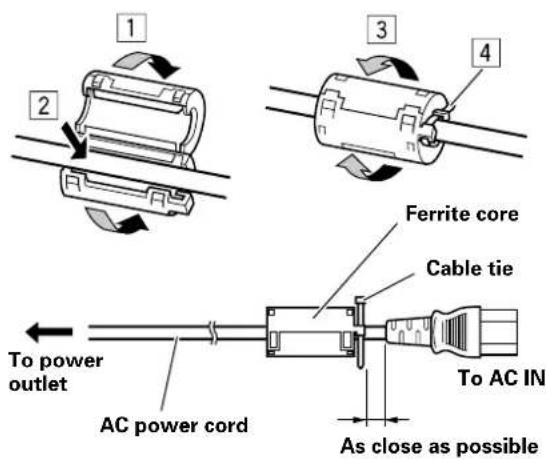

⑥ Ferrite cores (x 2) (for power cord)

⑦ Ferrite cores (x 3) (for audio cables)

⑧Display stands (x 2)

⑨ Washers (x 2)

10Hex hole bolts (x 2)

Remote control unit holder

Use as a holder for the remote control unit. When attaching to the rear of the main unit, be careful not to cover the vents.

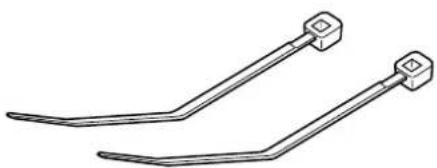

② Cable ties (x 2)

These Operating Instructions

Warranty

Part Names and Functions

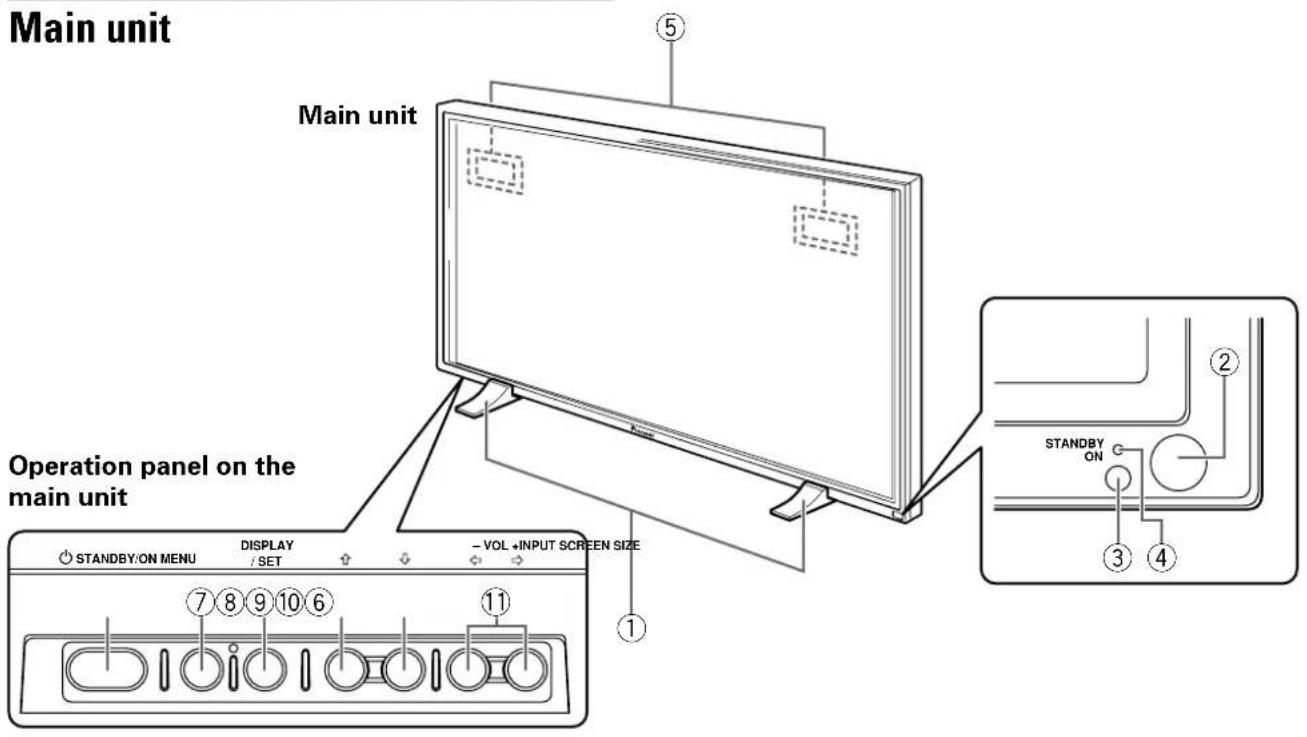

Main unit

① Display stand
② Remote control sensor

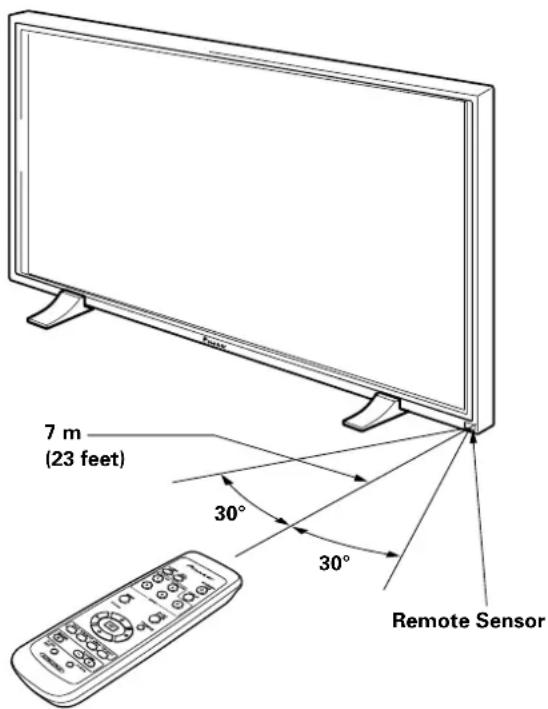

Point the remote control toward the remote sensor to operate the unit (page 8).

③ Ambient light sensor

This sensor measures the level of light inside the viewing room; it is enabled when the [ENERGY SAVE] option is set to [AUTO] (page 30).

④ STANDBY/ON indicator

When the unit is operating:

The indicator lights green (page 18).

When flashing, the indicator is used to indicate error messages (page 38).

The indicator flashes green once every one second when the [POWER MGT.] function is operating (page 23).

When the unit is in standby mode:

The indicator lights red (page 18).

When flashing, the indicator is used to indicate error messages (page 38).

⑤ Handles

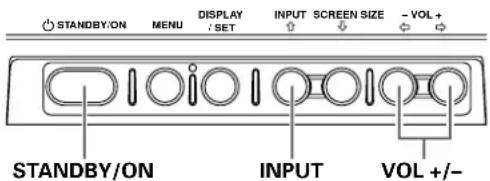

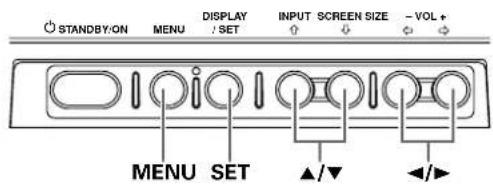

Operation panel on the main unit

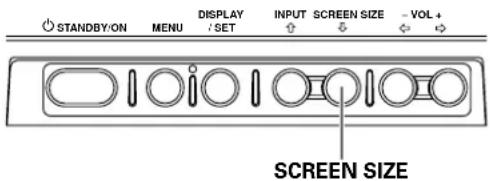

6 STANDBY/ON button ()

Press to put the display in operation or standby mode (page 18).

⑦ MENU button

Press to open and close the on-screen menu (pages 16 to 35).

⑧ DISPLAY/SET button

Use to confirm onscreen menu selections, and to change settings (pages 16 to 35).

When not indicated by onscreen menus, used to display the current set status (page 19).

9 INPUT (↑) button

Except when menu screen is displayed, this button operates to change the input.

10 SCREEN SIZE (L) button

Except when menu screen is displayed, this button operates to change the screen size.

11 VOL + / - ( / ) buttons

When not indicated for use in onscreen menu items, these buttons are used for adjusting the sound volume (pages 18 and 19).

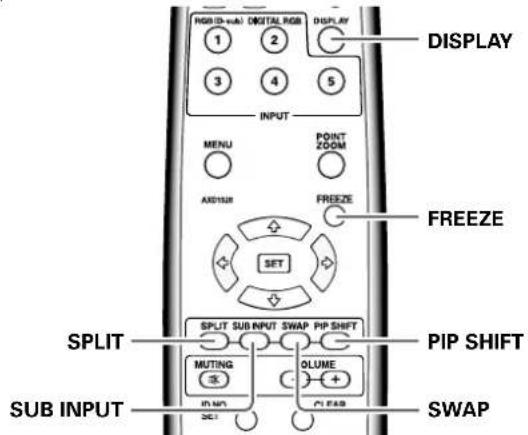

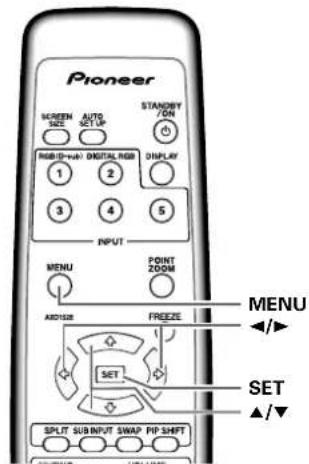

Remote control unit

When handling the remote control unit

Do not drop the remote control unit or expose it to moisture.
- Do not use the remote control unit in a location subject to direct sunlight, heat radiation from a heater, or in a place subject to excessive humidity.
- When the remote control unit's batteries begin to wear out, the operable distance will gradually become shorter. When this occurs, replace all batteries with new ones as soon as possible.

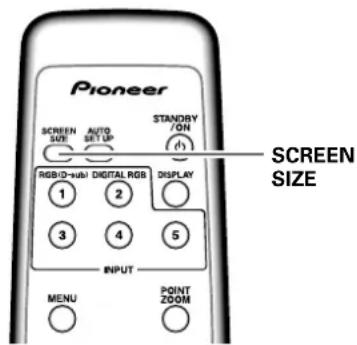

① SCREEN SIZE button

Press to select the screen size (page 20).

②INPUT buttons

Press to select the input (page 18).

③ MENU button

Press to open and close the on-screen menu (pages 16 to 35).

④ ADJUST (▲/▼/▶/▲) buttons

Use to navigate menu screens and to adjust various settings on the unit (pages 16 to 35).

⑤SET button

Press to adjust or enter various settings on the unit (pages 16 to 35).

⑥SUB INPUT button

During multi-screen display, use this button to change inputs to subscreens (page 22).

⑦SPLIT button

Press to switch to multi-screen display (page 22).

⑧MUTING button

Press to mute the volume (page 19).

⑨ID NO. SET button

Button used by professional installers.

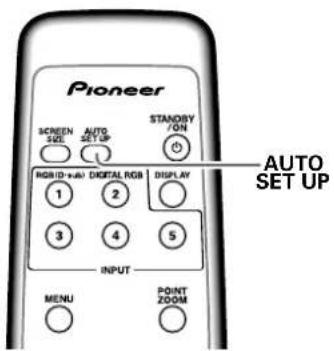

10 AUTO SET UP button

When using computer signal input, automatically sets the [POSITION], [CLOCK] and [PHASE] to optimum values (page 25).

①STANDBY/ON button (b)

Press to put the unit in operation or standby mode (page 18).

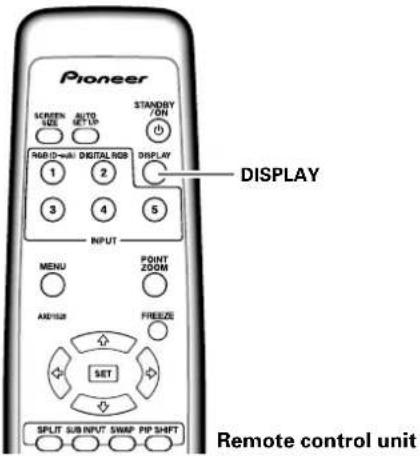

⑫DISPLAY button

Press to view the unit's current input and setup mode (page 19).

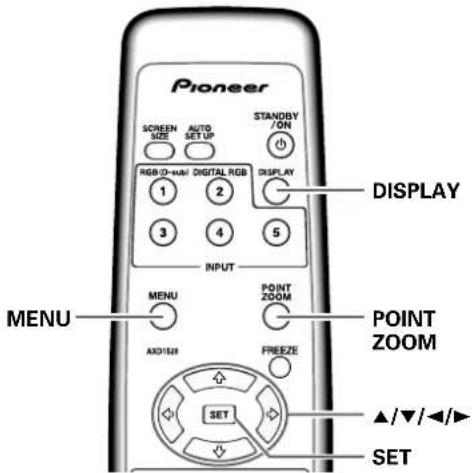

⑬POINT ZOOM button

Use to select and enlarge one part of the screen (page 21).

14FREEZE button

When memo screen function is enabled, a still image is displayed in the subscreen (page 35).

SWAP button

During multi-screen display, use this button to switch between main screen and subscreen (page 22).

16PIP SHIFT button

When using the picture-in-picture mode with multiscreen display, use this button to move the position of subscreen (page 22).

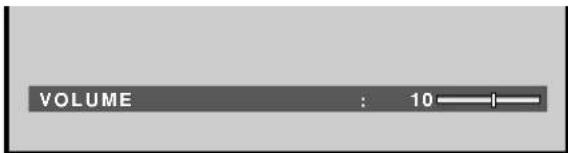

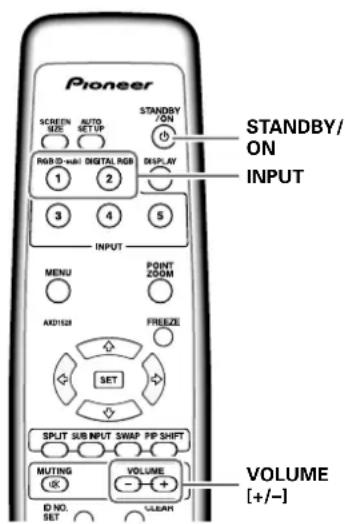

⑦VOLUME (+ / - ) buttons

Use to adjust the volume (pages 18 and 19).

18CLEAR button

Button used by professional installers.

Operating range of the remote control unit

When operating the remote control unit, point it at the remote sensor located on the front panel of the main unit. The remote control unit is operable up to 7m from the unit and within a 30 angle on each side of the sensor.

If you are having difficulty with operation of the remote control unit

The remote control unit may not operate if there are objects placed between it and the display.
Operational distance will gradually become shorter as the batteries begin to wear out, replace weak batteries with new ones as soon as possible.
This unit discharges infrared rays from the screen. Placing a video deck or other component that is operated by an infrared remote control unit near this unit may hamper that component's reception of the remote control's signal, or prevent it from receiving the signal entirely. Should this occur, move the component to a position further away from this unit.
Depending on the installation surroundings, this unit's remote control unit may be influenced by the infrared rays discharged from the Plasma Display, hampering reception of its rays or limiting its operational distance. The strength of infrared rays discharged from the screen will differ according to the picture displayed.

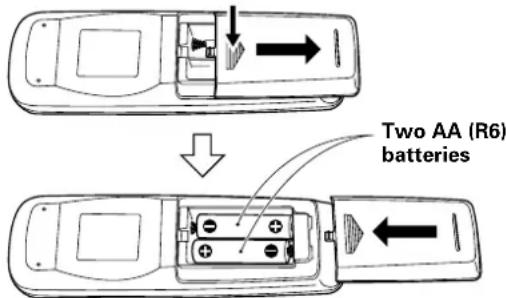

Inserting the batteries in the remote control unit

While pressing down lightly, slide in the direction of the arrow.

CAUTION

Insert batteries so that the plus (+) and minus (-) sides are aligned according to the markings in the battery case.
When not using the remote control unit for a long period of time (1 month or more), remove the batteries from the remote control unit to prevent leaking of battery fluid. If battery liquid has leaked, thoroughly wipe the inside of the case until all liquid is removed, and then insert new batteries.

When disposing of used batteries, please comply with governmental regulations or environmental public instruction's rules that apply in your country/area. D3-4-2-3-1.En

NO!

Do not mix new batteries with used ones.
The voltage of batteries may differ even if they are the same shape. Please do not mix different kinds of batteries together.
Do not charge, short, disassemble or throw the provided batteries in a fire.

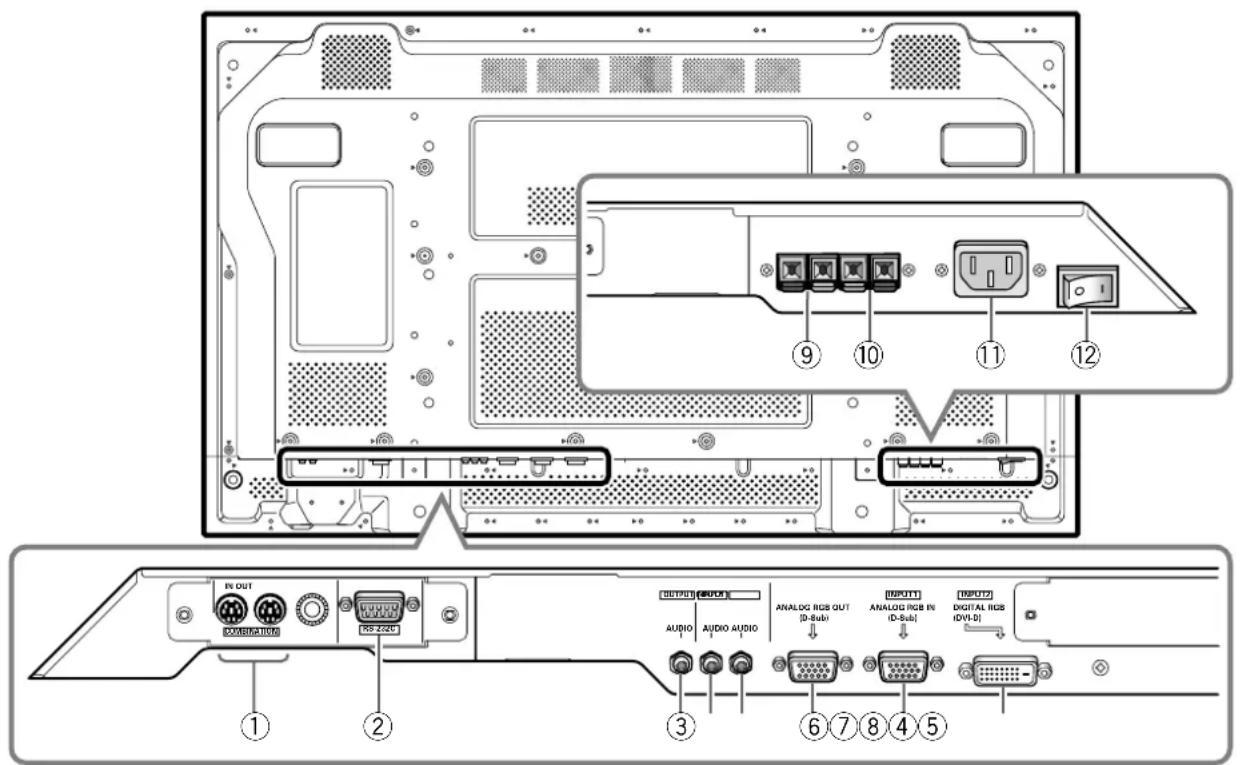

Connection panel

The connection panel is provided with two video input terminals and one video output terminal. Audio input/ output and speaker output terminals are also provided.

For instructions regarding connections, consult the pages noted in parentheses by each item.

① COMBINATION IN/OUT

Never connect any component to these connectors without first consulting your Pioneer installation technician.

These connectors are used for Plasma Display setup adjustments.

②RS-232C

Never connect any component to this connector without first consulting your Pioneer installation technician.

This connector is used for Plasma Display setup adjustments.

③AUDIO (OUTPUT) (Stereo mini jack)

Use to output the audio of the selected source component connected to this unit to an AV amplifier or similar component.

Note: No sound is produced from the AUDIO (OUTPUT) jack when the MAIN POWER switch is set to OFF or ON (standby) (page 13).

Use to obtain sound when INPUT1 is selected. Connect the audio output jack of components connected to INPUT1 to this unit (page 13).

Use to obtain sound when INPUT2 is selected. Connect the audio output jack of components connected to INPUT2 to this unit (page 13).

⑥ANALOG RGB OUT (INPUT1) (mini D-sub 15 pin)

Use the ANALOG RGB OUT (INPUT1) terminal to output the video signal to an external monitor or other component.

Note: The video signal will not be output from the ANALOG RGB OUT (INPUT1) terminal when the main power of this unit is off or in standby mode.(page 12)

⑦ANALOG RGB IN (INPUT1) (mini D-sub 15 pin)

For connection of a personal computer (PC) or similar component. Make sure that the connection made corresponds to the format of the signal output from the connected component (page 12).

⑧DIGITAL RGB (INPUT2) (DVI-D jack)

Use to connect a computer. Note: This unit does not support the display of copyguard-protected video signals (page 12).

9SPEAKER (R) terminal

For connection of an external right speaker. Connect a speaker that has an impedance of 6 (page 13).

10 SPEAKER (L) terminal

For connection of an external left speaker. Connect a speaker that has an impedance of 6 Ω (page 13).

⑪AC IN

Use to connect the supplied power cord to an AC outlet (page 14).

12MAIN POWER switch

Use to switch the main power of the unit on and off.

Installation of the unit

Installation using the supplied display stands

Be sure to fix the supplied stands to the installation surface. Use commercially available M8 bolts that are 25mm (1 in.) longer than the thickness of the installation surface.

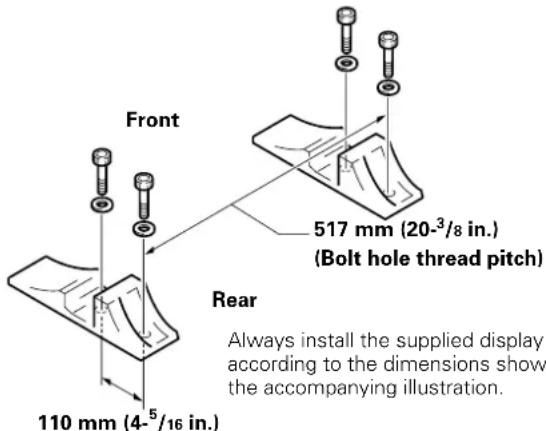

1 Fix the supplied stands to the installation surface at each of the 4 prepared holes using commercially available M8 bolts.

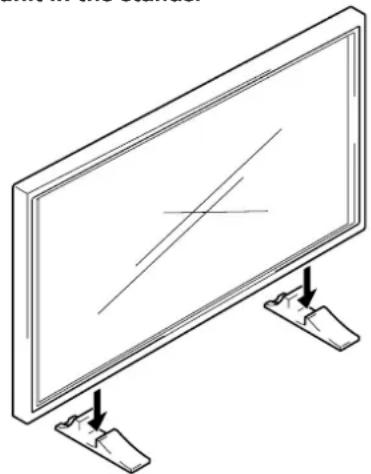

2 Set this unit in the stands.

3 Fix this unit using the supplied washer and bolt.

Use a 6 mm (1/4 in.) hex wrench to bolt them.

CAUTION

This display unit weighs at least 30kg (67 lbs) and has little front-to-back depth, making it very unstable when stood on edge. As a result, two or more persons should cooperate when unpacking, moving, or installing the display.

Installation using the optional PIONEER stand or installation bracket

• Please be sure to request installation or mounting of this unit or the installation bracket by an installation specialist or the dealer where purchased.
• When installing, be sure to use the bolts provided with the stand or installation bracket.
  For details concerning installation, please refer to the instruction manual provided with the stand or installation bracket.

Installation using accessories other than the PIONEER stand or installation bracket (sold separately)

• When possible, please install using parts and accessories manufactured by PIONEER. PIONEER will not be held responsible for accident or damage caused by the use of parts and accessories manufactured by other companies.
  For custom installation, please consult the dealer where the unit was purchased, or a qualified installer.

Wall-mount installation of the unit

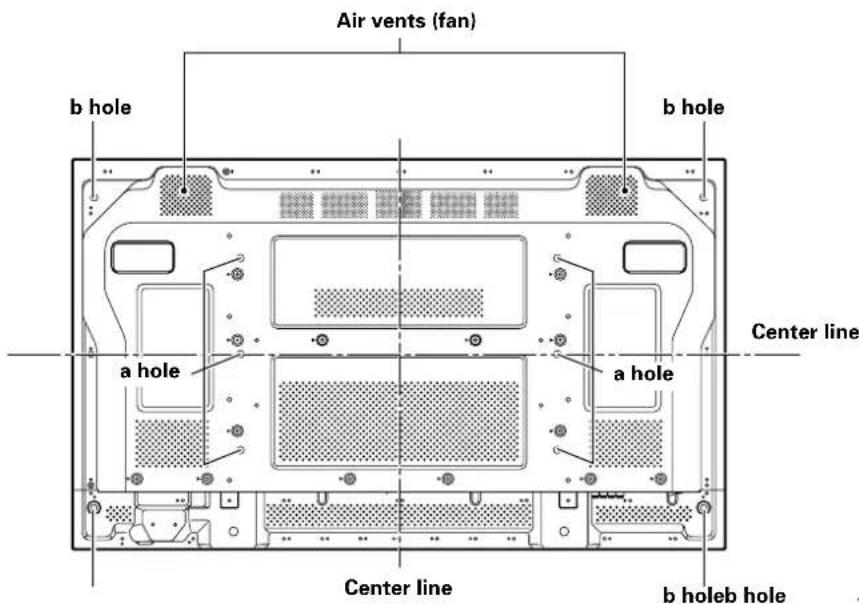

This unit has been designed with bolt holes for wall-mount installation, etc. The installation holes provided are shown in the accompanying illustration.

• Be sure to attach in 4 or more locations above and below, left and right of the center line.

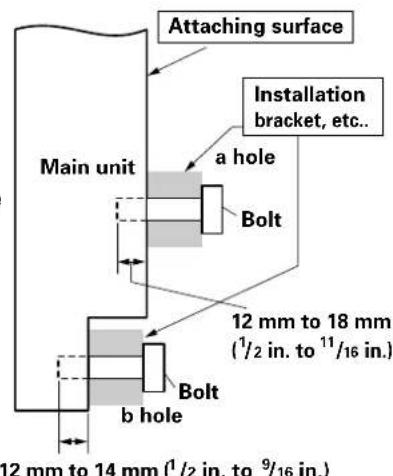

• Use bolts that are long enough to be inserted 12mm (^1/2 in.) to 18mm (^11/16 in.) into the main unit from the attaching surface for both a holes and b holes. Refer to the side view diagram in the accompanying illustration.
• As this unit is constructed with glass, be sure to install it on a flat, unwarped surface.

CAUTION

To avoid malfunction, overheating of this unit, and possible fire hazard, make sure that the vents on the main unit are not blocked when installing. Also, as hot air is expelled from the air vents, be careful of deterioration and dirt build up on rear surface wall, etc..

CAUTION

Please be sure to use an M8 (Pitch = 1.25 mm) bolt. (Only this size bolt can be used.)

CAUTION

This display unit weighs at least 30kg (67 lbs) and has little front-to-back depth, making it very unstable when stood on edge. As a result, two or more persons should cooperate when unpacking, moving, or installing the display.

AUTION

This unit incorporates a thin design. To ensure safety if vibrated or shaken, please be sure to take measures to prevent the unit from tipping over.

CAUTION

• Handles should not be removed or reattached by anyone other than the professional installation technician or service personnel.
• When moving the display, it should always be carried by two persons holding the rear handles in the manner shown.

NO!

Never attempt to move the Plasma Display by holding only one of the handles.

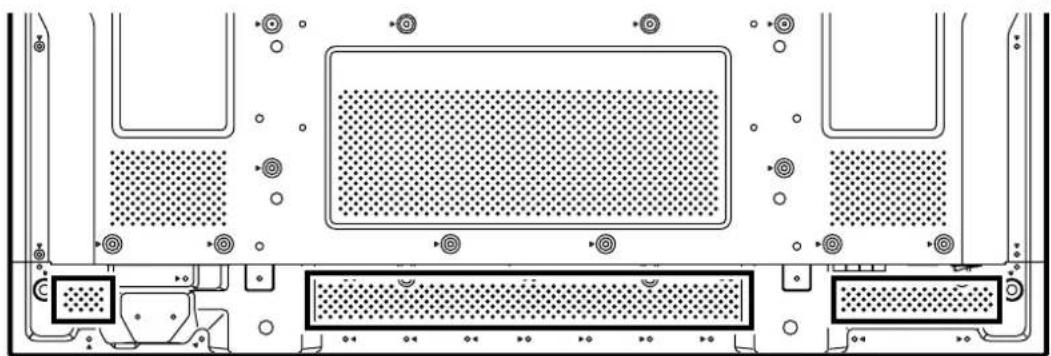

Rear view diagram

Side view diagram

Connection to a personal computer

Connection method differs depending on the computer type. When connecting, please thoroughly read the computer's instruction manual.

Before making connections, be sure to make sure that the personal computer's power and this unit's main power is off.

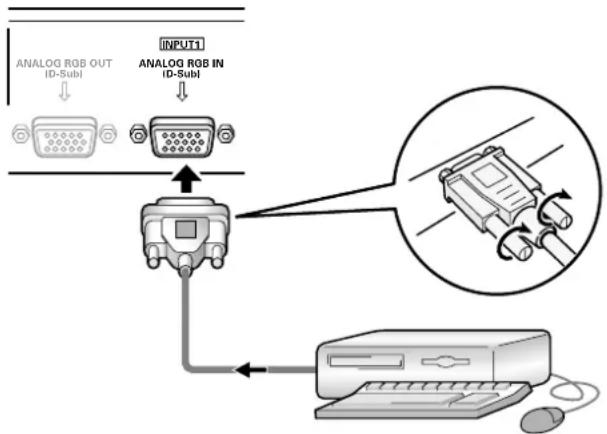

Connection to INPUT1

Connect the display's D-sub input connector to the D-sub output (analog RGB) from the computer.

This connector also supports G ON SYNC (output with green signal combined with sync signal), and composite SYNC (output with combined horizontal and vertical sync signals).

When connecting to ANALOG RGB IN (INPUT1)

Connect the cable corresponding to the shape of the input terminal on this unit and the personal computer's output terminal.

Secure by tightening the terminal screws on both units.

Following completing connections, on-screen setup is necessary. See pages 16 to 17 for details.

Note

Depending on the type of computer model being connected, a conversion connector or adapter etc. provided with the computer or sold separately may be necessary.

For details, please read your PC's instruction manual or consult the maker or nearest dealer of your computer.

NOTICE

• INPUT1 supports Microsoft "Plug & Play" (VESA DDC 1/2B) components. See Appendix 2-1/2 (page 43) when making connections to INPUT1.
  See Appendix 1 (pages 40 to 41) for information regarding signals and display formats supported by INPUT1.

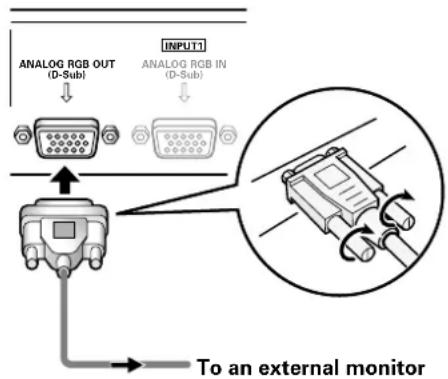

When connecting to ANALOG RGB OUT (INPUT1)

With this unit, it is possible to output the video signal to an external monitor or other component from the ANALOG RGB OUT (INPUT1) terminal.

Note

A video signal will not be output from the ANALOG RGB OUT (INPUT1) terminal when the main power of this unit is off or in standby.

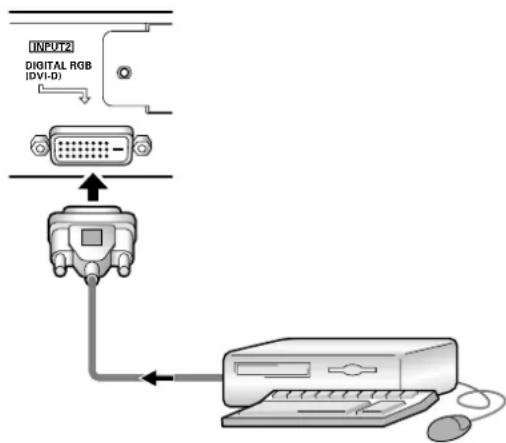

Connection to INPUT2

A computer equipped with DVI output (digital RGB signal) can be connected to the Plasma Display's DVI connector.

Following completing connections, on-screen setup is necessary. See pages 16 to 17 for details.

Notes

Use a DVI-D 24-pin (digital only) cable for the connection.
This unit does not support the display of copyguard-protected video signals.

NOTICE

• INPUT2 supports Microsoft "Plug & Play" (VESA DDC 2B) components. See Appendix 2-2/2 (page 43) when making connections to INPUT2.
  See Appendix 1 (pages 41 to 42) for information regarding signals and display formats supported by INPUT2.

Audio connections

Before making connections, be sure to check that the audio component's power and the unit's main power is off.

Connecting the speakers

This unit is equipped with speaker output terminals for connection to the speaker system (not supplied) specially designed for use with this unit. Refer to the illustrations below when making connections to the speaker terminals on this unit.

Twist exposed wire strands together.

Push tab to the open position, and insert the wire. Then, close tab firmly to secure the wire in place.

Notes

After connecting the wires, pull gently on the cables to confirm that the wire cores are fastened securely in their terminals. Insecure connections will result in noise or interrupted sound.
- Do not allow the wire cores of the and speaker cables to protrude excessively, since they may touch each other, causing a short circuit. This will produce excessive load on the Plasma Display, causing operation to malfunction or stop.

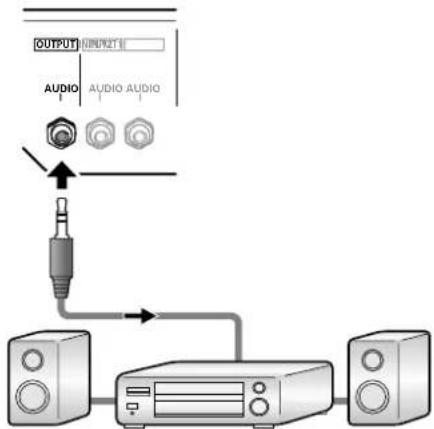

Connection to audio output connector

Use a stereo miniplug to connect the Plasma Display's AUDIO (OUTPUT) stereo mini jack (L/R) to an AV amplifier or other component.

Making connections to the audio inputs on this unit

This unit features two audio inputs and one audio output. The following chart shows the video inputs and the corresponding audio input terminals.

Video input	Audio input jacks	Sound output
INPUT1	Stereo mini jack (L/R)	Sound of the selected video input is output from the SPEAKER (L/R) terminals
INPUT2	Stereo mini jack (L/R)	SPEAKER (L/R) mini jack (L/R)

Audio connections for component (computer) connected to INPUT1

A stereo miniplug cable can be used to connect the audio output from the component connected to INPUT1, to the Plasma Display's AUDIO (INPUT1) stereo mini jack (L/R).

Sound is output from both the AUDIO (OUTPUT) stereo mini jack (L/R) and the SPEAKER (L/R) terminals according to the video input selection.

Audio connections for component (computer) connected to INPUT2

A stereo miniplug cable can be used to connect the audio output from the component connected to INPUT2, to the Plasma Display's AUDIO (INPUT2) stereo mini jack (L/R).

Sound is output from both the AUDIO (OUTPUT) stereo mini jack (L/R) and the SPEAKER (L/R) terminals according to the video input selection.

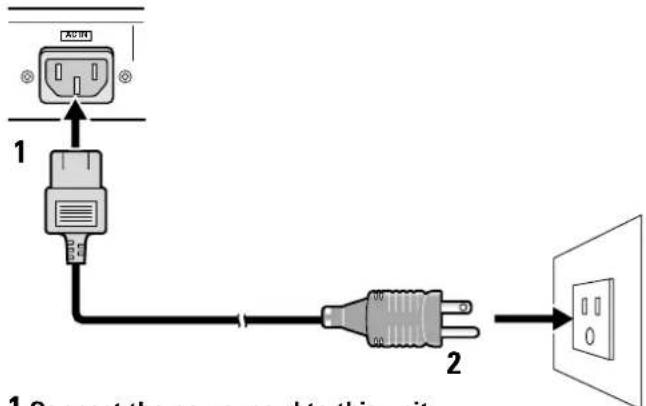

Power cord connection

Connect the power cord after all component connections have been completed.

1 Connect the power cord to this unit.
2 Plug the power cord into a power outlet.

CAUTION

-Use only the power cord provided.
For the Plasma Display, a three-core power cord with a ground terminal is used for efficiency protection. Always be sure to connect the power cord to a three-pronged grounded outlet and make sure that the cord is properly grounded. If you use a power source converter plug, use an outlet with a ground terminal and screw down the ground line.

NO!

Do not use a power supply voltage other than that indicated (AC 100 - 120 V, 50/60 Hz) as this may cause fire or electric shock.

Attaching the ferrite cores

To help prevent noise, attach the accessory ferrite cores to the both connector ends of the power cord as shown in the accompanying illustration. Use the provided cable tie to prevent the ferrite core from slipping on the cable.

Note

Regarding the audio cable, attach the supplied ferrite core. If you do not do this, this monitor will not conform to mandatory FCC standards.

Wind the audio cable (not supplied) around the ferrite core once, and then fasten the catch.

Audio cable (not supplied)

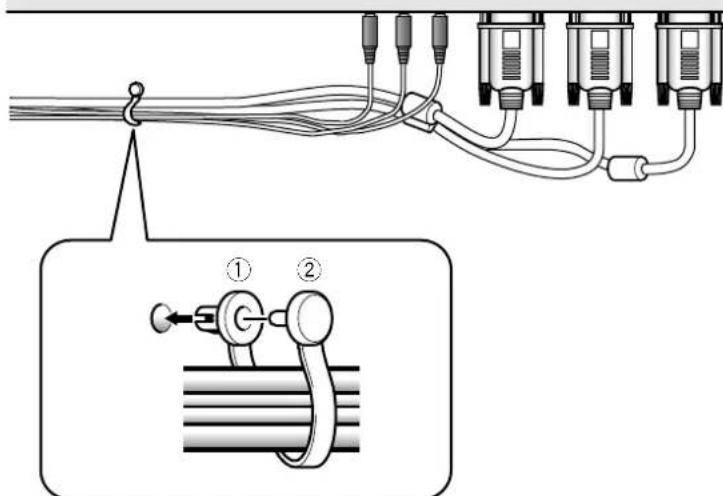

How to route cables

Speed clamps are included with this unit for bunching cables together. Once components are connected, follow the following steps to route cables.

• As viewed from the rear of the display.

Organize cables together using the provided speed clamps.

Insert 1 into an appropriate hole on the rear of the unit, then snap 2 into the back of 1 to fix the clamp.

Speed clamps are designed to be difficult to undo once in place. Please attach carefully.

To attach the speed clamps to the main unit

Use the holes marked with the sign as needed.

Note

Cables can be routed to the right or left.

• As viewed from the rear of the display.

To remove speed clamps

Using pliers, twist the clamp 90^ and pull it outward. In some cases the clamp may have deteriorated over time and may get damaged when removed.

System Settings

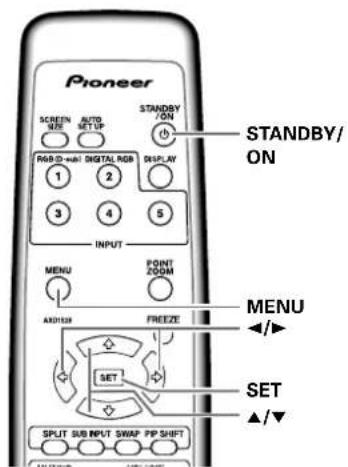

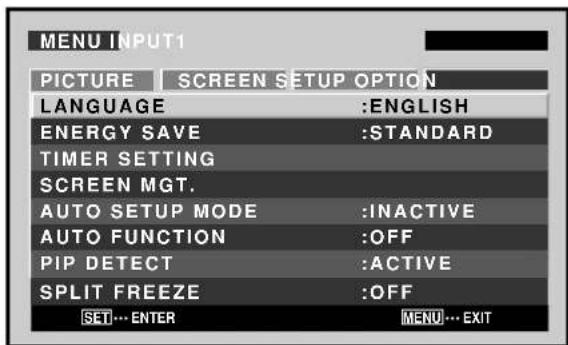

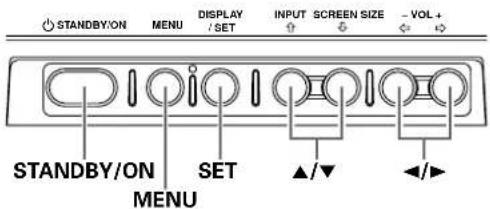

Setting the onscreen display language

The onscreen display language has been set to English as the factory default. To change to another language, the screen setting must be changed. Follow the procedures below to change the setting.

Remote control unit

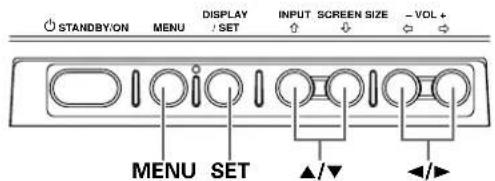

Main unit operating panel

1 Set the rear panel MAIN POWER switch to ON.

The STANDBY/ON indicator on the front panel will light red.

2 Press the STANDBY/ON button to turn the power ON.

The STANDBY/ON indicator on the front panel will light green.

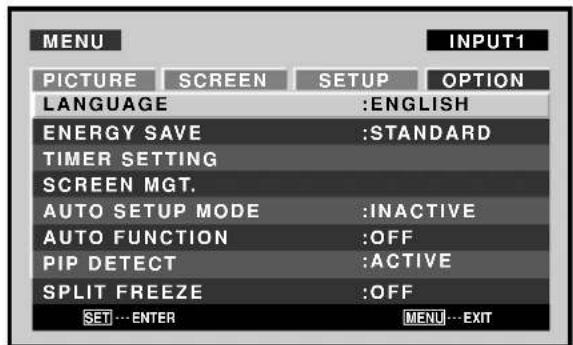

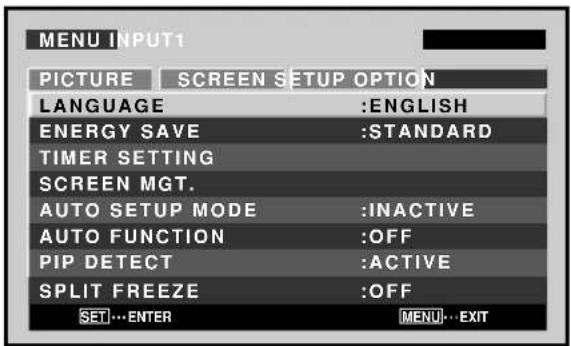

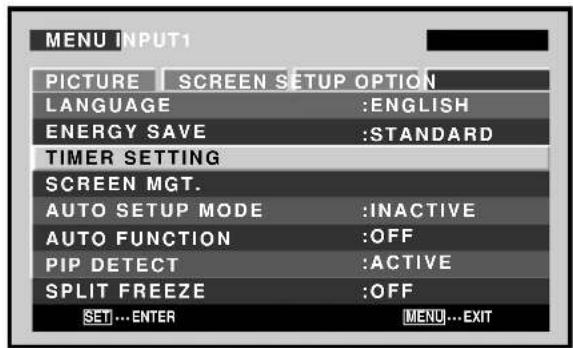

3 Press the MENU button to display the menu screen.

4 Use the buttons to select [OPTION].

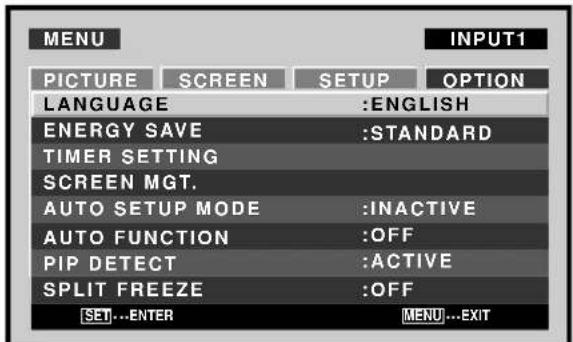

5 Use the / buttons to select [LANGUAGE], then press the SET button.

6 Use the / buttons to select the desired language. Each time the / buttons are pressed, the language alternates between those available, in the following order:

7 With the desired language displayed, press the SET button.

The selected language will be set in memory, and the screen will return to that shown in step 4.

8 When settings are completed, press the MENU button to return to the normal screen image.

Note

When the onscreen display language is set for either INPUT1 or INPUT2, the display language for the other input will be set to the same language.

Settings after connections

After components have been connected to INPUT1 or INPUT2, on-screen setup is necessary.

Follow the procedure described below and make settings as they apply to the type of components connected.

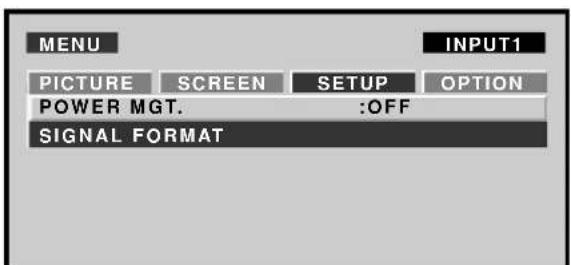

[SIGNAL FORMAT] setup

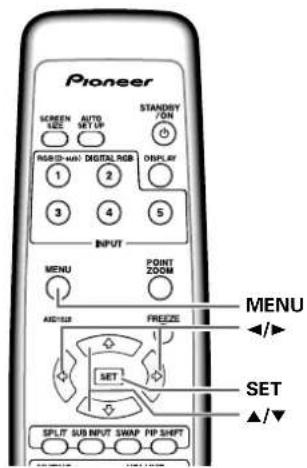

Remote control unit

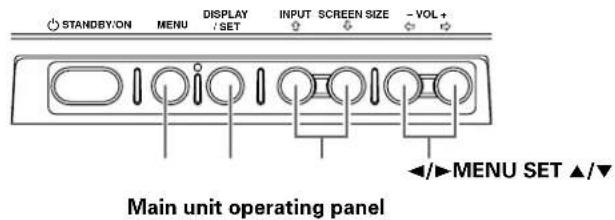

Main unit operating panel

1 Press the MENU button to display the menu screen.

2 Use the buttons to select [SETUP].

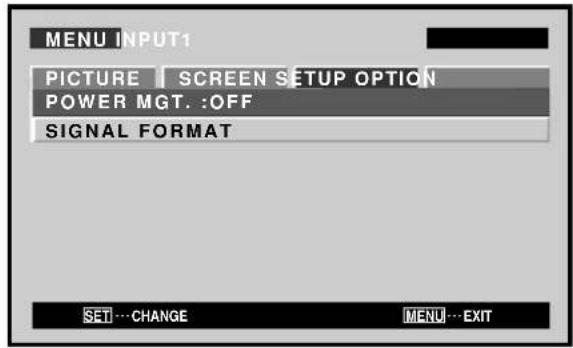

3 Use the / buttons to select [SIGNAL FORMAT], then press the SET button.

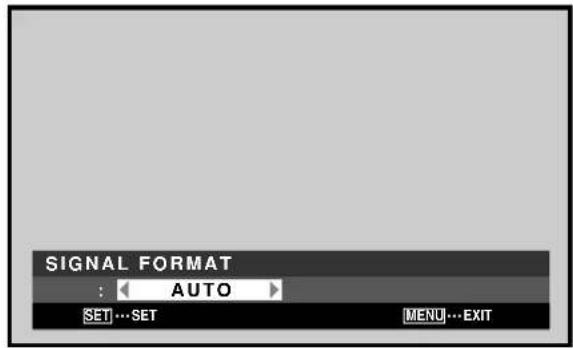

4 Use the buttons to select the input signal.

Each time the buttons are pressed, the selection alternates as follows:

• AUTO .... Signals are detected automatically in accordance with the Computer signal compatibility table (pages 40 to 42)
• Others ... Selectable resolutions are displayed.

5 Press the SET button.

The setting is stored in memory and the screen returns to that shown in step 3.

6 When the setup is completed, press the MENU button to exit the menu screen.

Note

Make [SIGNAL FORMAT] setting for each input (INPUT1 and INPUT2).

Operation

Selecting input source

This section explains the basic operation of this unit. Outlined on the following pages is how to turn the main power on and off, put this unit in the operation or standby mode and how to select connected components.

Before you begin, make sure you have:

Made connections between this unit and personal computer as described in the section "Installation and Connections" starting on page 10.
- Set up the on-screen menu to input signals from components connected to INPUT1 and INPUT2 as described in the section "System Settings" starting on page 16.

If no connections are made to these terminals, on-screen setup is not necessary.

Remote control unit

Main unit operating panel

1 Set the rear panel MAIN POWER switch to ON.

The STANDBY/ON indicator on the front panel will light red.

2 Press the STANDBY/ON button to turn the power ON.

The STANDBY/ON indicator on the front panel will light green.

3 Press the INPUT button to select the input.

• When the menu screen is displayed, changing the signal input will cause the menu screen to turn off.
  If the input computer signal is not supported by the display, the following message will be displayed:

4 Use VOLUME (+ / - ) buttons to adjust the sound volume.

If no audio connections are made to this unit, this step is not necessary.

5 When viewing is finished, press the STANDBY/ON button to put the unit in standby mode.

6 Set the rear panel MAIN POWER switch to OFF.

The STANDBY/ON indicator may continue to light for a short while even after the main power is turned off. This is a result of residual electric load impressed on the circuitry, and the light will turn off presently.

Note

Please do not leave the same picture displayed on the screen for a long time. Doing so may cause a phenomenon known as "screen burn" which leaves a ghost, or residual, image of the picture on the screen.

Adjusting sound volume

Main unit operating panel

Remote control unit

Press the VOLUME buttons.

Press the [-] or [+] button to respectively decrease and increase the volume of sound from the speakers.

Muting the sound

Press the MUTING button on the remote control unit.

Press the MUTING button again to restore the sound.
Muting is automatically canceled about 8 minutes after the button is pressed, and the volume level is adjusted to the minimum level.
Press VOLUME + or VOLUME - to adjust the volume at a desired level.

Confirming current status

Main unit operating panel

Press the DISPLAY button.

The currently selected input, screen size and refresh rates will be displayed for about 3 seconds.

Note

The displayed refresh rates may be slightly different from actual values.

Changing screen size

This unit incorporates screen modes of various height and width ratios. For optimal viewing, we recommend that you select the screen mode that best matches the video source that you are viewing. Although these modes are designed for full display of a picture on a wide screen, it is our hope that you make use of them with a full understanding of the manufacturer's intentions.

Screen size selection

The size of the image displayed on the screen, and the range of the image shown can be set in one of four modes.

Press the SCREEN SIZE button to select the size.

Remote control unit

Main unit operating panel

The screen size changes each time the SCREEN SIZE button is pressed as follows.

Consult the Computer signal compatibility table (pages 40 to 42) for information regarding screen sizes supported by each signal format.

Notes

• When the [FULL] setting is used to display a non-wide screen 4:3 picture fully on a wide screen, a portion of the picture may be cut off or appear deformed.
• Be aware that when the display is used for commercial or public viewing purposes, selecting the [FULL] mode setting may violate the rights of authors protected under copyright law.
• When [DOT BY DOT] or [4:3] screen size is selected, the display position is moved slightly each time the power is turned on, in order to prevent image burning.

During personal computer signal input

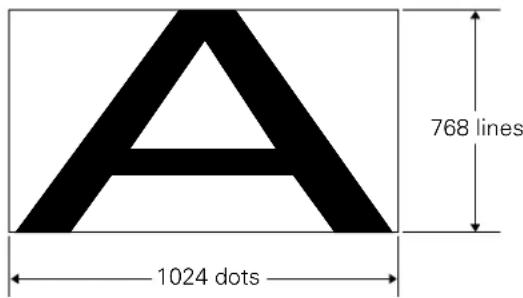

① DOT BY DOT

The input signal and the screen maintain a dot to line ratio of 1:1 and is thus highly faithful to the source.

• This unit is designed with horizontally oblong elements, with the result that the image displayed will appear more oblong than the original input signal.

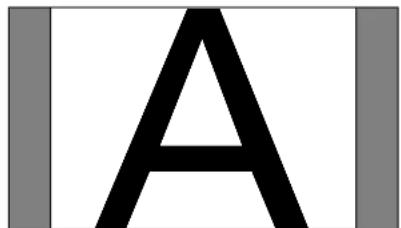

② 4:3

The display fills the screen as much as possible without altering the aspect ratio of the input signal.

③ FULL

The display is presented with a widescreen aspect ratio of 16:9 and fills the entire screen.

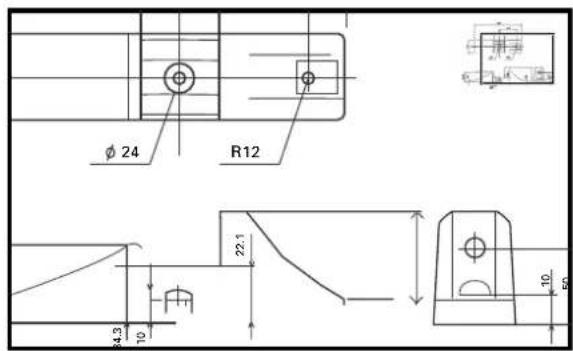

Enlarging one part of the screen (POINT ZOOM)

This Plasma Display allows enlarging of the screen image. When enlarging the screen, the / / buttons can be used to move the enlarged viewing area around the screen.

The range of zoom possible can be confirmed by viewing the Zoom-Area subscreen at the upper right of the main screen (A "+" mark will be displayed in the center). The Zoom-Area subscreen is displayed for about three seconds whenever the POINT ZOOM button, one of the / / buttons, or DISPLAY button is pressed.

1 Press the remote control unit's POINT ZOOM button.
Zoom-Area subscreen

Each time the POINT ZOOM button is pressed, the zoom ratio alternates in the following order:

2 Using the / / buttons, move the screen to the desired part of the image.

Notes

• During use of the POINT ZOOM function, the screen size cannot be changed.
• When using the Plasma Display in a profit-making activity, or when exhibiting images publicly, using the screen size function to compress or stretch the image may result in infringement of the copyrights of the image owners.
• Pressing the POINT ZOOM and / / buttons again will change the zoom ratio and the position of screen enlarged.
• If the input signal changes, or if the menu screen is displayed and the input is changed, or if the multiscreen mode is selected, the POINT ZOOM function will be canceled.

Multiscreen display

The Plasma Display's multiscreen function allows the simultaneous display of two inputs. The multiscreen display include two modes, side-by-side and picture-in-picture.

1 Press the remote control unit's SPLIT button.

Each time the button is pressed the multiscreen display changes in the following order:

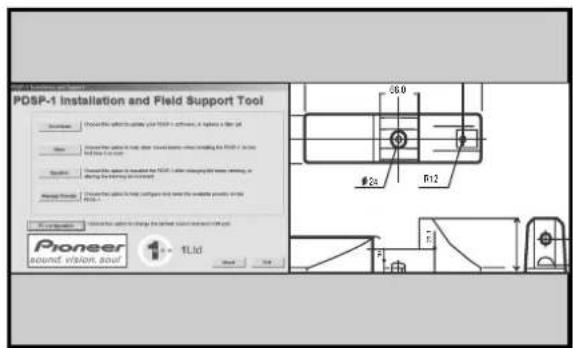

①Side-by-side

The main screen is displayed on the left and the subscreen on the right.

②Picture-in-picture

The subscreen is displayed in one of the four corners of the main screen.

2 Press the remote control unit's SUB INPUT button to select the subscreen input source.

To exchange the main screen and subscreen inputs:

Press the remote control unit's SWAP button.

• When the side-by-side mode has been selected: The right and left sides of the display will switch; what was previously the main screen will now show the subscreen, and vice versa.
• When the picture-in-picture mode has been selected: What was previously the main screen image will now appear in reduced size as the subscreen image, and vice versa.

To change the position of the subscreen in picture-in-picture mode:

Press the remote control unit's PIP SHIFT button.

Each time the button is pressed, the position of the subscreen moves in the following order:

To display the currently selected input: Press the DISPLAY button.

If the DISPLAY button is pressed while in multiscreen mode, the main screen and sub-screen will each be displayed with its currently selected input.

Notes

• When using the Plasma Display in a profit-making activity, or when exhibiting images publicly, using the screen size function to compress or stretch the image may result in infringement of the copyrights of the image owners.
  If the multiscreen display is left on for an extended period of time, or if the same multiscreen display is repeatedly shown for short periods on an everyday basis, a residual image pattern may be burned onto the screen.
• When selecting the side-by-side mode, the screen image may appear somewhat rougher, depending on the source used.
  The multiscreen mode will be canceled if a menu is opened, or if POINT ZOOM is performed.
  The screen size cannot be changed during multiscreen display.
  The sound of the input selected in the main screen is outputted when using the multiscreen function.

Automatic power-off (POWER MANAGEMENT)

This display is equipped with [POWER MGT.] function, which allows the unit to automatically switch to standby mode when no sync signal is detected.

(A warning message is displayed before this function operates.)

Note

Always turn off the Plasma Display's main power switch when not using the display for extended periods of time.

Remote control unit

Main unit operating panel

1 Press the MENU button to display the menu screen.

2 Use the buttons to select [SETUP].

3 Press the SET button to confirm selection of [POWER MGT].

The factory default setting is [OFF].

Each time the button is pressed, the setting alternates as follows:

• OFF .... The display will continue in operating mode, regardless of the presence/absence of an input sync signal.
  -ON.... If a sync signal is not detected, a warning message is first displayed for 8 seconds, after which the display automatically enters the standby mode, and the STANDBY/ON indicator flashes green. If a sync signal is input again later, the Plasma Display automatically returns to normal operating mode (1).
  1. Except when input signal is G ON SYNC or composite SYNC

4 When the setup is finished, press the MENU button to exit the menu screen.

Note

The [POWER MGT.] function must be set individually for each input (INPUT1 or INPUT2).

To return to operating mode:

To return to normal operation from the [POWER MGT.] function's standby mode, either operate your computer, or press the INPUT button.

PICTURE/SCREEN Adjustment

PICTURE adjustment

Remote control unit

Main unit operating panel

1 Press the MENU button to display the menu screen.

2 Use the / buttons to select the adjustment item, then press the SET button.

3 Use the buttons to adjust the picture quality as desired.

4 Press the SET button.

Pressing the SET button writes the value into the memory and returns the display to the step 2 screen.

5 When the setup is finished, press the MENU button to exit the menu screen.

Note

Make these adjustments for each input (INPUT1 or INPUT2) and signals.

[PICTURE] mode adjustment items

Below are brief descriptions of the options that can be set in the [PICTURE] mode.

CONTRAST Adjust according to the surrounding brightness so that the picture can be seen clearly.

BRIGHTNESS Adjust so that the dark parts of the picture can be seen clearly.

H. ENHANCE…… Sharpens the image in the horizontal direction.

V. ENHANCE Sharpens the image in the vertical direction.

To reset [PICTURE] mode settings to the default

If settings have been adjusted excessively or the picture on the screen no longer appears natural, it may prove more beneficial to reset the [PICTURE] mode to default settings instead of trying to make adjustments under already adjusted conditions.

1 In step 2 in the previous procedure, use the / buttons to select [PICTURE RESET], then press the SET button.

2 Use the buttons to select [YES], and press the SET button.

All [PICTURE] mode settings are returned to the factory set default.

Adjusting screen POSITION, CLOCK, and PHASE

By pressing the remote control unit's AUTO SET UP button or by selecting [AUTO SETUP MODE] from the menu, the unit will automatically set the screen position and clock to best match the current image input.

Note

This setting is supported only when INPUT1 is selected. The function is disabled when INPUT2 is selected.

When the button is pressed, the optimum settings are automatically selected for the current input source.

Press the remote control unit's AUTO SET UP button.

Note

Optimum settings may not be possible for low-luminance and certain other signals. In such cases, set the [AUTO SETUP MODE] to [INACTIVE], and use the manual adjustment methods explained in the following section, "Adjusting screen POSITION, CLOCK, and PHASE ".

When the automatic setup mode is selected, the unit will automatically be adjusted to the optimum image settings whenever the power is turned on, the input source is changed, or the type of input signal is changed.

Remote control unit

Main unit operating panel

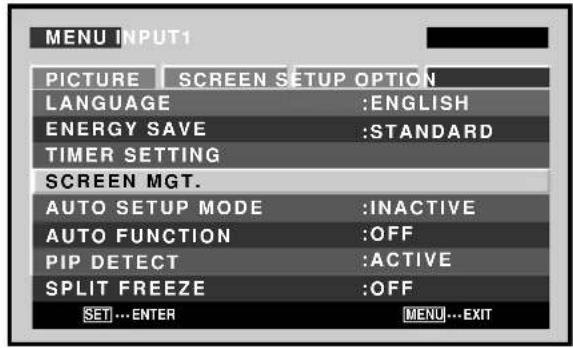

1 Press the MENU button to display the menu screen.

2 Use the buttons to select [OPTION].

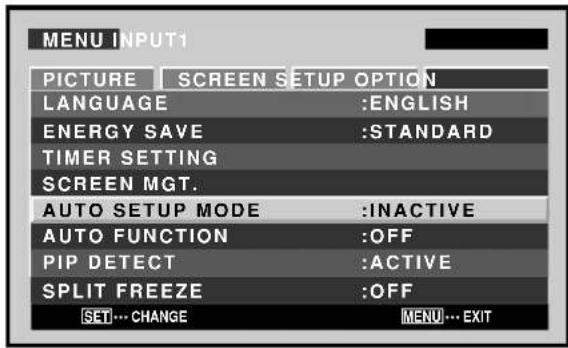

3 Use the / buttons to select [AUTO SETUP MODE].

4 Press the SET button to activate the setting.

The factory default setting is [INACTIVE].

Each time the button is pressed, the setting alternates as follows:

5 When finished with the setting, press the MENU button to return to the normal screen image.

Note

Optimum settings may not be possible for low-luminance and certain other signals. In such cases, set the [AUTO SETUP MODE] to [INACTIVE], and use the manual adjustment methods explained in the following section, "Adjusting screen POSITION, CLOCK, and PHASE "

Adjusting screen POSITION, CLOCK, and PHASE

Remote control unit

Main unit operating panel

1 Press the MENU button to display the menu screen.

2 Use the buttons to select [SCREEN].

3 Use the / buttons to select the adjustment item, then press the SET button.

4 Use the and buttons to select the desired value.

• When the [POSITION] item is selected, the buttons control movement in the Horizontal direction (H), and the buttons control movement in the Vertical direction (V).

• Use the buttons for the adjustments of [CLOCK] and [PHASE].

Note

If INPUT2 is selected, only the [POSITION] can be adjusted.

5 Press the SET button.

Pressing the SET button writes the value into the memory and returns the display to the step 3 screen.

6 When adjustment is finished, press the MENU button to exit the menu screen.

[SCREEN] mode adjustment items

Below are brief descriptions of the options that can be set in the [SCREEN] mode.

POSITION

H Adjust the picture's position to the left or right.

V Adjust the picture's position upward or downward.

CLOCK Adjust letter breakup or noise on the screen. This setting adjusts the unit's internal clock signal frequency that corresponds to the input video signal.

PHASE... Adjust so that there is minimum flicker of screen letters or color misalignment. This setting adjusts the phase of the internal clock signal adjusted by the [CLOCK] setting.

Notes

The [CLOCK] and [PHASE] adjustment items are supported only for INPUT1.
- When the [CLOCK] frequency is changed, the [POSITION] command's horizontal [H] option may require readjustment.
If the adjustment items in the [SCREEN] mode are adjusted excessively, the picture may not be displayed properly.
- When the [AUTO SETUP MODE] set to [ACTIVE], selecting the [POSITION] and [CLOCK] adjust modes will cause a message to be displayed on the screen, but adjustment is possible. However, if the input source is changed, the adjustment value stored in memory will be the one automatically set with the auto setup mode. If you wish to record a manually set adjustment value, set the [AUTO SETUP MODE] to [INACTIVE] (pages 25 to 26) before beginning your adjustments.

To reset [SCREEN] mode settings to the default

If settings have been adjusted excessively or the picture on the screen no longer appears natural, it may prove more beneficial to reset the [SCREEN] mode to default settings instead of trying to make adjustments under already adjusted conditions.

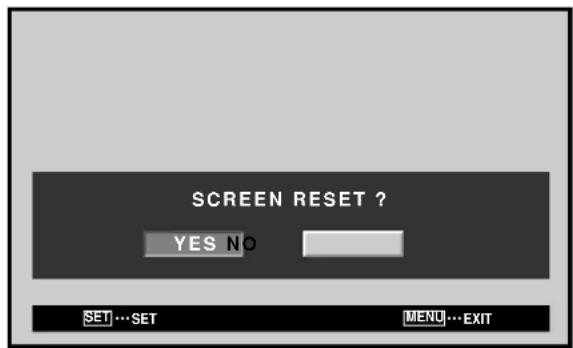

1 In step 3 in the previous procedure, use the / buttons to select [SCREEN RESET], then press the SET button.

2 Use the / buttons to select [YES], and press the SET button.

All [SCREEN] mode settings are returned to the factory set default.

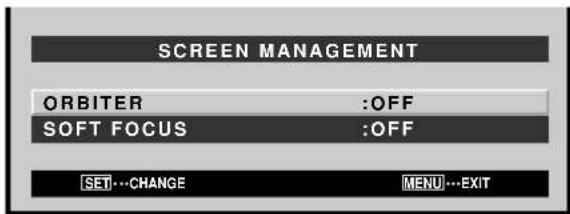

Setting the ORBITER

This function gradually shifts the screen position at time intervals.
This function is not supported when using the POINT ZOOM function.

Remote control unit

Main unit operating panel

1 Press the MENU button to display the menu screen.

2 Use the buttons to select [OPTION].

3 Use the / buttons to select [SCREEN MGT.], then press the SET button.

4 Use the / buttons to select [ORBITER].

5 Press the SET button to activate the setting.

The factory default setting is [OFF].

Each time the button is pressed, the setting alternates as follows:

OFF. The [ORBITER] is not being used.
- MODE1 ....... The image size is reduced, and the screen display position is changed.
- MODE2 ....... The image size is enhanced, and the screen display position is changed.
- MODE3 ....... Screen position is shifted in accordance with dot-by-dot orientation.

6 When finished with the setting, press the MENU button to return to the normal screen image.

Note

The [ORBITER] setting affects all input sources.

Setting the SOFT FOCUS

Images are softened by suppressing the edge contrast.

Remote control unit

Main unit operating panel

1 Press the MENU button to display the menu screen.

2 Use the buttons to select [OPTION].

3 Use the / buttons to select [SCREEN MGT.], then press the SET button.

4 Use the / buttons to select [SOFT FOCUS].

5 Press the SET button to activate the setting.

The factory default setting is [OFF]. Each time the button is pressed, the setting alternates as follows:

OFF The [SOFT FOCUS] setting is canceled.
-1~4 Settings for [SOFT FOCUS]. Softened increases in the order 1,2, 3,4.

6 When finished with the setting, press the MENU button to return to the normal screen image.

Note

The [SOFT FOCUS] setting affects all input sources.

Energy saving settings (ENERGY SAVE)

The power control function allows screen brightness to be suppressed as a means of lowering power consumption and reducing display deterioration.

Remote control unit

Main unit operating panel

1 Press the MENU button to display the menu screen.

2 Use the buttons to select [OPTION].

3 Use the / buttons to select [ENERGY SAVE].

4 Press the SET button to select [ENERGY SAVE] setting.

The factory default setting is [STANDARD]. Each time the SET button is pressed, the setting changes as follows:

STANDARD... Brightness is controlled in accordance with input signal to produce bright, easily viewed image.
- MODE1 Brightness is controlled in accordance with input signal, but power consumption is less than that used in [STANDARD] mode.
- MODE2 Brightness is controlled in accordance with input signal, but power consumption is less than that used in [MODE1].
- MODE3 Brightness is set at fixed level, regardless of input signal level. Effective at reducing screen aging due to burned lag images, etc.
- AUTO Brightness is set automatically in response to ambient lighting conditions so as to produce optimum image appearance.

5 When finished with the setting, press the MENU button to return to the normal screen image.

Note

The [ENERGY SAVE] setting affects all input sources.

Automatic input switching (AUTO FUNCTION)

This display is equipped with an optional [AUTO FUNCTION] selector. When enabled, the selector automatically switches the display's input source to INPUT1 when an image signal is detected at the INPUT1 terminal.

Remote control unit

1 Press the MENU button to display the menu screen.

2 Use the buttons to select [OPTION].

3 Use the / buttons to select [AUTO FUNCTION].
4 Press the SET button to select [INPUT1].

The factory default setting is [OFF]. Each time the SET button is pressed, the selector function switches alternately as shown:

OFF [AUTO FUNCTION] is disabled.
- INPUT1 ....... When a signal is detected at INPUT1, the input source automatically switches to [INPUT1].
After the [AUTO FUNCTION] mode has caused the input to switch, if the input signal is no longer detected, the input source reverts to the one selected before operation of the [AUTO FUNCTION] mode.
If the input changes when the unit is in [AUTO FUNCTION] mode, pressing the INPUT button to select a different input will cause the [AUTO FUNCTION] mode to be temporarily disabled, but it can be enabled again by turning the power ON/OFF.

5 When finished with the setting, press the MENU button to return to the normal screen image.

Notes

• The [AUTO FUNCTION] for [INPUT1] is supported only when a separate SYNC or composite SYNC analog RGB signal is input. (When a G ON SYNC or component video signal is input, [AUTO FUNCTION] is disabled.)
  The [AUTO FUNCTION] setting affects all input sources.

Setting the timer (TIMER SETTING)

Sets the current time, day of the week and daylight savings time.

Remote control unit

Main unit operating panel

1 Press the MENU button to display the menu screen.

2 Use the buttons to select [OPTION].

3 Use the / buttons to select [TIMER SETTING], then press the SET button.

4 Use the / buttons to select [PRESENT TIME], then press the SET button.

5 Use the / / buttons to set each menu item.

Use to set to daylight savings time.

ON: Displays time as present time + 1 hour.

OFF: Disables [DAYLIGHT SAVING TIME] mode.

Week.... Set current day of the week.
Hour, Minute Sets to current time.

6 When finished with the setting, use the / buttons to select [RETURN], then press the SET button to return to the [TIMER SETTING] menu.

Note

The [TIMER SETTING] setting affects all input sources.

Activating the PROGRAM TIMER

The timer can be used to operate a preset program.

Remote control unit

Main unit operating panel

1 Press the MENU button to display the menu screen.

2 Use the buttons to select [OPTION].

3 Use the / buttons to select [TIMER SETTING], then press the SET button.

4 Use the / buttons to select [PROGRAM TIMER].

5 Press the SET button to activate the setting.

The factory default setting is [OFF]. Each time the button is pressed, the setting alternates as follows:

6 When finished with the setting, use the / buttons to select [RETURN], then press the SET button to return to the normal screen image.

PROGRAM TIMER setting

Every day, power turns on at 10:00. Input and function settings are the same as those set the last time the unit was turned OFF.
-At 20:00 (8 o'clock PM), the screen turns white. At 21:00 (9 o'clock PM), power turns OFF.

Setting the subscreen mode (PIP DETECT)

During picture-in-picture display, if no subscreen input signal is detected, the black borders of the subscreen are automatically turned off.

The subscreen mode function is disabled during side-by-side display.

The lack of a subscreen input signal means there is no video signal or sync signal.

Remote control unit

1 Press the MENU button to display the menu screen.

2 Use the buttons to select [OPTION].
3 Use the / buttons to select [PIP DETECT].

4 Press the SET button to activate the setting.

The factory default setting is [ACTIVE]. Each time the button is pressed, the setting alternates as follows:

• ACTIVE. When no subscreen input signal is detected during multiscreen display, the black border of the subscreen will disappear after 3 seconds.
  INACTIVE .... Subscreens with no input will be left with the black border visible.

5 When finished with the setting, press the MENU button to return to the normal screen image.

Note

The [PIP DETECT] setting affects all input sources.

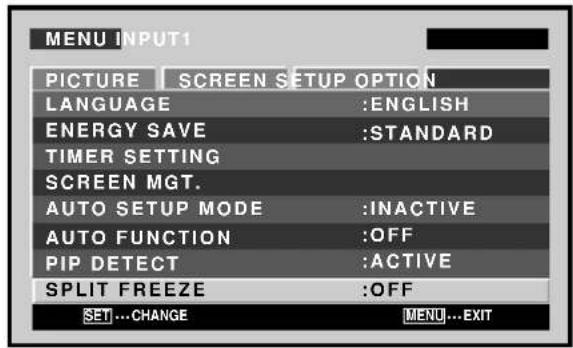

Setting the memo screen (SPLIT FREEZE)

When set to any setting other than [OFF], the image displayed when the FREEZE button is pressed will be displayed in a subscreen as a freeze-frame image.

Remote control unit

Main unit operating panel

1 Press the MENU button to display the menu screen.

2 Use the buttons to select [OPTION].

3 Use the / buttons to select [SPLIT FREEZE].

4 Press the SET button to activate the setting.

The factory default setting is [OFF].

Each time the button is pressed, the setting alternates as follows:

OFF The still picture displayed at the time the FREEZE button was pressed is displayed as a single fullscreen image.
- S BY S. When the FREEZE button is pressed, the freeze-frame image will be displayed in the side-by-side subscreen.
- PIP. When the FREEZE button is pressed, the freeze-frame image will be displayed in the picture-in-picture (left-bottom to left-top) subscreen.

5 When finished with the setting, press the MENU button to return to the normal screen image.

Notes

This function is subject to the following conditions:

It does not function during multi-screen display.
It will be disabled if the FREEZE button is pressed again while the function is operating.
It will be disabled if set to multi-screen display while the function is operating.
- The [SPLIT FREEZE] setting affects all input sources.

Additional Information

Cleaning

Regular cleaning will extend the life and performance of this unit. The recommended way to clean the display and related parts is described below.

Before cleaning, be sure to unplug the power cord from the power outlet.

Cleaning the display panel body and remote control

Do not under any circumstances use solvents such as benzine or thinner for cleaner. Use of such liquids may cause deterioration or peeling of paint from the display or remote control unit.

Wipe the display and remote control gently with a soft cloth. In the case of excessive dirt buildup, dampen a soft cloth with a diluted neutral cleaning detergent and after wringing the cloth thoroughly, wipe the component and then dry it with a dry soft cloth.

Cleaning the screen

After dusting, wipe the screen gently using the supplied cleaning cloth or another soft cloth (cotton, flannel, etc.). Do not use tissue or a rough cloth. As the surface of the screen is easily scratched, do not rub it or hit it with a hard object.

If you clean the surface of the screen with a wet cloth, water droplets on the surface may enter into the product, resulting in malfunction.

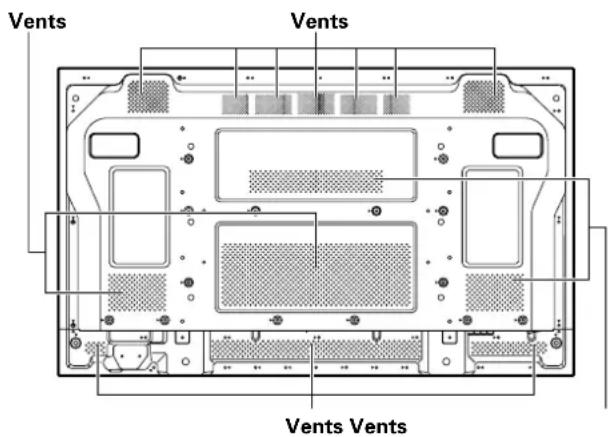

Cleaning the vents

As a general rule, use a vacuum cleaner about once a month to clean the vents on the rear panel of the display of dust buildup (set the vacuum cleaner to its weakest setting when doing this).

Using the unit without cleaning it of dust will cause the internal temperature to increase, resulting in possible breakdown or fire.

Troubleshooting

What may at first seem to be an malfunction, may be remedied with a quick check.

Please check to see if a warning is displayed on the screen. If displayed, refer to the table below and check the mode. If there is no display check to see if the problem is listed on page 37. The problem may also be caused by something other than this unit so please also check the other components being used such as a video deck. If the problem can still not be solved please consult the dealer where this unit was purchased.

About the self diagnosis mode

Messages appear on the bottom of this unit's screen to indicate operation or connection faults. After message confirmation, check the condition of the unit.

ERRORMESSAGE	REMEDY
CAUTIONOUT OF RANGEorCAUTIONUNSUPPORTED SIGNALorSIGNAL NG	●The current input signal is not supported by the unit. Check the Computer signal compatibility table on pages 40 to 42, and change the computer's output signal setting appropriately.
WARNINGTHERMAL ALERTSHUT DOWN (**)	●Turn off main power (page 9).●Is ambient temperature too high?●Remove any objects blocking the cooling vents on the Plasma Display.
WARNINGFAN FAILURESHUT DOWN (**)	●Cooling fan has malfunctioned. Immediately turn off power, remove power plug from its outlet, and consult a Pioneer service center or your dealer.
ERRORINVALID KEY ENTRY	●An invalid operation has been attempted. Check input signals, connections and other settings.
SHUT DOWN (**)	●Turn off main power, wait for 1-2 minutes, then try turning power on again. If problem persists, remove power plug from its outlet and consult a Pioneer service center or your dealer.

In the above, messages contents indicated by (^**) represent numerals.

General problems

Problem Possible Solution
• No power.	• Is the power cord disconnected? (page 14) • Has the MAIN POWER switch been switched on? (page 9)
• Unit cannot be operated.	• External influences such as lightning, static electricity, etc., may cause improper operation. In this case, operate the unit after first turning the MAIN POWER off/on, or unplugging the power cord and re-plugging it in after 1 to 2 minutes.
• Remote control does not operate.	• Are batteries inserted with polarity (+,-) correctly aligned? (page 8) • Are batteries worn out? (Replace with new batteries.) • Is any object occluding the remote signal receiver? (page 8) • Point the remote control unit toward the remote signal receiver when operating (page 8).
• Picture is cut off.	• Is the selected screen size correct? Switch to another screen size (page 20). • Are [SCREEN] mode adjustments such as picture size made correctly? (pages 20, 21 and 25 to 27) • Is the POINT ZOOM function being used? (page 21)
• Strange color, light color, or dark, or color misalignment.	• Adjust the picture tone (page 24). • Is the room too bright? The picture may look dark in a room that is too bright.
• Power is suddenly turned off.	• The unit's internal temperature has increased. (Air vents are blocked.) Remove any objects blocking vent or clean (page 36). • Is the [POWER MGT.] function set to [ON]? (page 23)
• No picture.	• Is connection to other components correct? (pages 12 to 13) • Has setup been done correctly after connection? (pages 16 to 17) • Is the correct input selected? (page 18) • Is a non-compatible signal being input? (pages 40 to 42) • Is the [PICTURE] setting correct? (page 24)

Problems commonly mistaken as breakdown

Problem Possible Solution
• The screen is displayed in a small size.	• Is the correct screen size selected? (pages 20, 21, 25 to 27)
• Letter breakup on screen.	• Adjust using [SCREEN] mode on the menu screen (pages 25 to 27).If there is still no improvement, this unit may be limiting the displayable range. Check the Computer signal compatibility table (pages 40 to 42).
• A sharp sound is sometimes heard from the cabinet.	• Expansion/contraction caused by surrounding temperature change may result in sound being heard from the cabinet. This is not a malfunction.
• Bright portions of image appear to be losing intensity.	• When the video input signal's level is too high, the bright portions may appear to be losing their intensity.Increase the adjustment level of the contrast and check the picture (page 24).
• Speckles or noise appears on screen.	• May be caused by radio wave interference from appliances with motors such as hair dryers, electric vacuum cleaners, electric power drills, ignition systems of cars, motorcycles etc., switch devises such as thermostats etc., neon signs or electrical discharge from power lines etc.
• Stripes appear on the screen.	• May be caused by radio wave mingling from TV station, FM station, amateur radios, public radios (simplified radios) etc., or a nearby personal computer, TV, or video/music component.A strong electromagnetic field may cause picture distortion and similar problems.
• Sound is heard from inside the unit.	• Normal sound of the cooling fan and internal sliding parts of the Plasma Display panel. Not a malfunction.
• Fan speed changes.	• Fan speed changes automatically in accordance with ambient conditions. Not a malfunction.
• ON (green) indicator doesn't light.	• The ON indicator may not light in some cases, depending on the settings performed by the installer. Consult with your installation technician.

Precautions regarding use

Panel sticking and after-image lag

• Displaying the same images such as still images for a long time may cause after-image lagging. This may occur in the following two cases.

1. After-image lagging due to remaining electrical load

When image patterns with very high peak luminance are displayed for more than 1 minute, after-image lagging may occur due to the remaining electric load. The after-images remaining on the screen will disappear when moving images are displayed. The time for the after-images to disappear depends on the luminance of the still images and the time they had been displayed.

2. After-image (lag image) due to burning

Avoid displaying the same image on the Plasma Display continuously over a long period of time. If the same image is displayed continuously for several hours, or for shorter periods of time over several days, a permanent after-image may remain on the screen due to burning of the fluorescent materials. Such images may become less noticeable if moving images are later displayed, but they will not disappear completely.

The same kind of burning of a lag image may also be produced after extended multi-hour use, or recurrent daily use for shorter periods of a single [4:3] screen size, or [DOT BY DOT] image. Except in cases where violation of intellectual property rights may be involved (pages 20 and 21), it is recommended that lag-image burning be avoided by selecting a screen size that displays images over the entire screen (page 20).

• In addition, the [ORBITER] function (page 28) and [ENERGY SAVE] function (page 30) can also be used to reduce the chance of lag image formation.

Note

Special precautions must be employed when using the Plasma Display as a surveillance monitor or in other applications where a fixed image will be displayed for extended periods of time. Before using the monitor in such applications, consult your dealer for advice. When using this unit as a monitor for a surveillance camera, it is recommended to set the [ENERGY SAVE] function to [MODE3] or [MODE2].

About the plasma panel's protection function

The brightness of this display will deteriorate slightly when an image with little movement such as a photograph or computer image is continuously displayed. This is caused by the plasma panel's protection function which detects images with slight movement and automatically adjusts brightness to protect the display, and is not a malfunction.

The screen-saver function begins operating when the display detects no or little screen movement for a period of about three minutes; the function is an automatic feature and cannot be turned OFF.

Pixel failure

The Plasma Display screen is composed of a high numbers of tiny pixel elements constructed in a high-precision array, but on occasion one or more of the pixels may fail to light, or may light erratically. This is an inevitable by-product of the manufacturing process and not a malfunction.

Concerning infrared light

In principle, the Plasma Display radiates infrared light. Depending on the environment in which the monitor is installed and used, infrared remote control units for other nearby appliances may fail to operate properly, or noise may be heard in wireless headphones. In such cases, move the affected appliance to a location where its infrared sensor is not affected.

Electromagnetic interference

This unit is built in compliance with official standards for electromagnetic interference, but it nonetheless may produce a low level of radio noise. This noise may be noticeable if AM radios, computers, or video appliances are installed too close to the display. In such cases, remove the affected appliance to a location where it is not affected.

Drive Noise

When power is turned on, some degree of drive noise may be heard; this is normal and not a malfunction.

Plasma Display Temperature

When the display is used for long periods of time, some parts of the display may retain heat and the display may become hot to the touch; this is normal and not a malfunction.

Additional cautions

• If the power is automatically turned off during operation of this unit, the following reasons may be the cause.
  ①Is the [POWER MGT.] function set to [ON]? (page 23).
  The surrounding temperature has risen above 40^ The display should be used within ambient temperature conditions below 40^
  ③ The internal temperature has risen abnormally due to blocked cooling vents, overheating of internal electronic parts, or other factors.

If the power is automatically turned off for a reason other than the above reasons, there could be a malfunction. In this case, unplug the power cord from the power outlet and request repair from your nearest sales outlet.

• The Plasma Display panel of this unit is very bright and viewing it a close distance will cause eye strain. We recommend that you view the screen from a suitable distance (3 to 6 m).
• In order to protect the panel and internal circuitry, this display is provided with a cooling fan designed to turn on/off and change speed automatically in accordance with ambient temperature conditions (the fan sound will change in accordance with its speed). The display should be used within ambient temperature conditions below 40^ .

STANDBY/ON indicator

During operation of the [POWER MGT.] function, this indicator will flash green at intervals of about 1 second (page 23). This indicator lights steadily (green) under normal operating conditions. However, depending on the settings performed by the installation technician, the green indicator may not light even when power is turned on (page 37).

If the green light displays a flashing pattern other than the above, an error message is indicated. Consult any onscreen messages (page 36) and check ambient conditions (temperature, etc.) and respond accordingly (page 37).

If the problem persists, disconnect the power plug and consult your dealer or a service center.

Other than this, if the power turns off by itself, or refuses to turn on, or if this indicator conditions flashing red, a malfunction may be indicated. Immediately disconnect the power plug and consult your dealer or a service center.

Specifications

General

Light emission panel 42V type AC Plasma Panel 92.16 cm (W) x 51.53 cm (H) x 105.59 cm (diagonal)

Number of pixels 1024 x 768

Power supply AC 100 - 120 V, 50/60 Hz

Rated current 3.0 A - 2.5 A

Standby power consumption 1.2 W

External dimensions

1022 mm (W) x 610 mm (H) x 98 mm

(D: Not including handles)

40-1/4 in. (W) × 24 in. (H) × 3 - 7 / 8 in.

(D: Not including handles)

(including display stand)

47-31/32 in. (W) × 29-1/32 in. (H) × 11-13/16 in. (D)

Weight. 30.5 kg (67 lbs.)

(including display stand) 31.1 kg (69 lbs.)

Input/output

Video

INPUT1

Input Mini D-sub 15 pin (socket connector)

RGB signal (G ON SYNC compatible)

RGB ... 0.7 Vp-p/75 Ω/no sync.

HD/NS, VD ... TTL level

/positive and negative polarity

/2.2 kΩ

G ON SYNC

1 Vp-p/75 Ω/negative sync.

*Compatible with Microsoft "Plug & Play"

(VESA DDC1/2B)

Output Mini D-sub 15 pin (socket connector)

75 with buffer

INPUT2

Input DVI-D 24-pin connector

Digital RGB signal (DVI compliant TMDS

signal)

*Compatible with Microsoft "Plug & Play"

(VESA DDC 2B)

Audio

Input AUDIO INPUT (for INPUT1)

Stereo mini jack

L/R ... 500 mVrms/more than 10 kΩ

AUDIO INPUT (for INPUT2)

Stereo mini jack

L/R ... 500 mVrms/more than 10 kΩ

Output AUDIO OUTPUT

Stereo mini jack

L/R ... 500 mVrms (max)/less than 5 kΩ

SPEAKER

L/R ... 6 Ω/8 W +8 W (at 6 Ω)

Control

RS-232C ... D-sub 9 pin (pin connector)

COMBINATION IN/OUT

... Mini DIN 6 pin (x2)

Accessories

Power cord 1

Remote control unit 1

Remote control unit holder 1

AA (R6) batteries 2

Cleaning cloth (for screen) 1

Speed clamps 5

Display stands 2

Washers 2

Hex hole bolts (M8X40) 2

Ferrite cores (for power cord) 2

Ferrite cores (for audio cables) 3

Cable ties 2

Operating Instructions. 1

Warranty. 1

Due to improvements, specifications and design are subject to change without notice.

Appendix 1: Computer signal compatibility table

Appendix 1-1/2 (INPUT1)

Not available.

Resolution (Dot x Line)	Refresh rate		Screen size (Dot x line)			Remarks
	Vertical	Horizontal	DOT BY DOT FULL 4:3
640x400	70.1Hz	31.5kHz			○1024x768	NEC PC-9800
720x400	70.1Hz	31.5kHz			○1024x768	NEC PC-9800
	85.1Hz	37.9kHz			↑
640x480	60Hz	31.5kHz		○768x768	○1024x768
	66.7Hz	35.0kHz		↑	↑	Apple Macintosh 13"
	72.8Hz	37.9kHz		↑	↑
	75Hz	37.5kHz		↑	↑
	85Hz	43.3kHz		↑	↑
	100.4Hz	51.1kHz		↑	↑	I/O DATA
	120.4Hz	61.3kHz		↑	↑	I/O DATA
848x480	60Hz	31.0kHz			○1024x768
852x480	60Hz	31.7kHz			○1024x768	I/O DATA
800x600	56Hz	35.2kHz		○768x768	○1024x768
	60Hz	37.9kHz		↑	↑
	72Hz	48.1kHz		↑	↑
	75Hz	46.9kHz		↑	↑
	85Hz	53.7kHz		↑	↑
	99.8Hz	63.0kHz		↑	↑	I/O DATA
	120Hz	75.7kHz		↑	↑	I/O DATA
832x624	74.6Hz	49.7kHz		○768x768	○1024x768	Apple Macintosh 16"
1360x765	60Hz	47.7kHz			△1024x768
1024x768	60Hz	48.4kHz	○1024x768	○768x768
	60Hz	49.7kHz	↑	↑		Work station (SGI)
	70Hz	56.5kHz	↑	↑
	75Hz(74.9Hz)	60.0kHz(60.2kHz)	↑	↑		() indicates Apple Macintosh 19"
	85Hz	68.7kHz	↑	↑
	100.6Hz	80.5kHz	↑	↑		I/O DATA
1280x768	56Hz	45.1kHz			△1024x768
	60Hz	47.8kHz			↑
	70Hz	56.1kHz			↑
1360x768	60Hz	47.7kHz			△1024x768	I/O DATA
1376x768	59.9Hz	48.3kHz			△1024x768	I/O DATA
1280x800	60Hz	49.7kHz			△1024x768	CVT
1280x854	60Hz	53.1kHz			△1024x768	PC
Vertical DOT EBCDTEGBUL3
1152x864	60Hz	53.7kHz		△ 768x768	△ 1024x768
	72Hz	64.9kHz		↑	↑
	75Hz	67.5kHz		↑	↑
1152x870	75.1Hz	68.5kHz		△ 768x768	△ 1024x768	Apple Macintosh 21"
1152x900	66Hz	61.8kHz		△ 768x768	△ 1024x768	Sun Microsystems LO
	76Hz	71.7kHz		↑	↑	Sun Microsystems HI
1440x900	60Hz	56.0kHz			△ 1024x768	Apple Macintosh 17"
1280x960	60Hz	60.0kHz		△ 768x768	△ 1024x768
1280x1024	60Hz	64.0kHz		△ 768x768	△ 1024x768	Work station (SGI)
	60Hz	64.6kHz		↑	↑	Work station (EWS4800)
	71.2Hz	75.1kHz		↑	↑	Work station (EWS4800)
	72Hz	78.1kHz		↑	↑	Work station (HP)
	75Hz	80.0kHz		↑	↑
	76.1Hz	81.1kHz		↑	↑	Work station (SUN)
	85Hz	91.2kHz		↑	↑
	100.1Hz	108.5kHz		↑	↑	I/O DATA
1400x1050	60Hz	65.3kHz		△ 768x768	△ 1024x768
	75Hz	82.3kHz		↑	↑
	85Hz	93.9kHz		↑	↑
1680x1050	60Hz	65.3kHz			△ 1024x768
1600x1200	60Hz	75.0kHz		△ 768x768	△ 1024x768
	65Hz	81.3kHz		↑	↑
	70Hz	87.5kHz		↑	↑
	75Hz	93.8kHz		↑	↑
	85Hz	106.3kHz		↑	↑
1920x1200	60Hz	74.6kHz			△ 1024x768	CVT
1920x1200RB	60Hz	74.0kHz			△ 1024x768	CVT

Optimal picture. Adjustment of picture position, refresh rate, phase etc., may be necessary.
: Picture will be enlarged but some fine detail will be hard to see.
: Simple reproduction. Fine detail will not be reproduced.

Appendix 1 -2/2 (INPUT2)

Resolution (Dot x Line)	Refresh rate		Screen size (Dot x line)			Remarks
	Vertical	Horizontal	DOT BY DOT FULL 4:3
640x480	60Hz	31.5kHz		○768x768	○1024x768
	72.8Hz	37.9kHz		↑	↑
	75Hz	37.5kHz		↑	↑
	85Hz	43.3kHz		↑	↑
	100.4Hz	51.1kHz		↑	↑
	120.4Hz	61.3kHz		↑	↑
848x480	60Hz	31.0kHz		○768x768	○1024x768
852x480	60Hz	31.7kHz			○1024x768
800x600	56Hz	35.2kHz		○768x768	○1024x768
	60Hz	37.9kHz		↑	↑

: Not available.

Resolution (Dot x Line)	Refresh rate		Screen size (Dot x line)			Remarks
	Vertical	Horizontal	DOT BY DOT FULL 4:3
800x600	72Hz	48.1kHz		○768x768	○1024x768
	75Hz	46.9kHz		↑	↑
	85Hz	53.7kHz		↑	↑
	99.8Hz	63.0kHz		↑	↑
	120Hz	75.7kHz		↑	↑
1024x768	60Hz	48.4kHz	○1024x768	○768x768
	60Hz	49.7kHz	↑	↑		Work station (SGI)
	70Hz	56.5kHz	↑	↑
	75Hz	60.0kHz	↑	↑
	85Hz	68.7kHz	↑	↑
	100.6Hz	80.5kHz	↑	↑
1280x768	56Hz	45.1kHz			△1024x768
	60Hz	47.8kHz			↑
	70Hz	56.1kHz			↑
1280x800	60Hz	49.7kHz			△1024x768
1280x854	60Hz	53.1kHz			△1024x768
1360x768	60Hz	47.7kHz			△1024x768	I/O DATA
1376x768	59.9Hz	48.3kHz			△1024x768	I/O DATA
1152x864	60Hz	53.7kHz		△768x768	△1024x768
	75Hz	67.5kHz		↑	↑
1152x900	66Hz	61.8kHz		△768x768	△1024x768	Work station (SUN)
	76Hz	71.7kHz		↑	↑	Work station (SUN)
1440x900	60Hz	56.0kHz			△1024x768	Apple Macintosh17"
1280x960	60Hz	60.0kHz		△768x768	△1024x768
1280x1024	60Hz	64.0kHz		△768x768	△1024x768	Work station (SGI)
	60Hz	64.6kHz		↑	↑	Work station (EWS4800)
	71.2Hz	75.1kHz		↑	↑	Work station (EWS4800)
	72Hz	78.1kHz		↑	↑	Work station (HP)
	76.1Hz	81.1kHz		↑	↑	Work station (SUN)
	75Hz	80.0kHz		↑	↑
	85Hz	91.2kHz		↑	↑
1400x1050	60Hz	65.3kHz		△768x768	△1024x768
1680x1050	60Hz	65.3kHz			△1024x768
1600x1200	60Hz	75.0kHz		△768x768	△1024x768
1920x1200RB	60Hz	74.0kHz			△1024x768	CVT

Optimal picture. Adjustment of picture position, refresh rate, phase etc., may be necessary.
: Picture will be enlarged but some fine detail will be hard to see.
: Simple reproduction. Fine detail will not be reproduced.

Note

In rare cases, a normal picture may not be obtained when switching between compatible signal formats on the output device (PC, etc.).

Should this happen, turn off the power and then turn it back on again.

Appendix 2: INPUT1/2 pin assignments

Appendix 2-1/2:

INPUT1 (Mini D-sub 15 pin female connector) pin allocation.

Pin No.	Input Output
1	R	←
2	G	←
3	B	←
4	NC (No connection)	←
5	GND	←
6	GND	←
7	GND	←
8	GND	←
9	DDC + 5V	NC (No connection)
10	GND	←
11	NC (No connection)	←
12	DDC SDA	NC (No connection)
13	HD or H/V SYNC	←
14	VD	←
15	DDC SCL	NC (No connection)

Appendix 2-2/2:

INPUT2 (DVI female connector) pin allocation.

Pin No.	Signal Assignment
1	T.M.D.S. Data2-
2	T.M.D.S. Data2+
3	T.M.D.S. Data2/4 Shield
4	NC (No connection)
5	NC (No connection)
6	DDC Clock
7	DDC Data
8	NC (No connection)
9	T.M.D.S. Data1-
10	T.M.D.S. Data1+
11	T.M.D.S. Data1/3 Shield
12	NC (No connection)
13	NC (No connection)
14	+5V Power
15	GND
16	Hot Plug Detect
17	T.M.D.S. Data0-
18	T.M.D.S. Data0+
19	T.M.D.S. Data0/5 Shield
20	NC (No connection)
21	NC (No connection)
22	T.M.D.S. Clock Shield
23	T.M.D.S. Clock+
24	T.M.D.S. Clock-

Explanation of terms

Aspect ratio

The TV screen's width to height ratio is referred to as its aspect ratio. The aspect ratio on standard TVs is 4:3 and on wide TVs or High Definition TVs it is 16:9.

G ON SYNC

This indicates a video signal in the form of a synchronization signal added to the G (GREEN) signal of the R.G.B signal.

VGA

General term for "Video Graphics Array". Generally this indicates a 640 dot x 480 line resolution.

WVGA

General term for "Wide Video Graphics Array". Generally this indicates a 848 dot × 480 line resolution.

XGA

General term for "eXtended Graphics Array". Generally this indicates a 1024 dot x 768 line resolution.

WXGA

General term for "Wide eXtended Graphics Array". Generally this indicates a 1280 dot x 768 line resolution.

SXGA

General term for "Super eXtended Graphics Array". Generally this indicates a 1280 dot × 1024 line resolution.

SXGA+

General term for "Super eXtended Graphics Array plus". Generally this indicates a 1400 dot × 1050 line resolution.

DVI

General term for "Digital Visual Interface". An interface standard proposed by the Digital Display Working Group (DDWG) for digital displays.

Apple and Macintosh are registered trademarks of Apple Computer, Inc.

Microsoft is a registered trademark of Microsoft Corporation. NEC and PC-9800 are trademarks of NEC Corporation.

VESA and DDC are registered trademarks of Video Electronics Standards Association.

Power Management and Sun Microsystems are registered trademarks of Sun Microsystems, Inc.

VGA and XGA are registered trademarks of International Business Machines Co., Inc.

Published by Pioneer Corporation. Copyright © 2005 Pioneer Corporation. All rights reserved.

Mode d'emploi

ELECTRODEPOUR LAMISE A

LA MASSE DU SYSTEME

ELECTRIQUE

(NEC, ART. 250, SECTION H)

NEC-NATIONAL ELECTRICAL CODE

300, Allstate Parkway, Markham, Ontario L3R OP2

(905)479-441

1(877)283-5901

Installation et raccordements 10

Installation de I'ecran a plasma 10

Raccordements audio 13

(GESTION D'ALIM.) 23

⑧ Touche DISPLAY/SET (ecran/validation)

Cable audio (non fourni)

Publication de Pioneer Corporation.

© 2005 Pioneer Corporation.
