Product type	Air purifier
Brand	Blueair
Model	DustMagnet 5440i
Power supply	100-240 V, 50/60 Hz
Power consumption (min/max)	7 W / 42 W
Wi-Fi operating frequency	2402-2480 MHz
Wi-Fi output power	Max 5 mW
Sound level (min/max)	31 - 50 dB(A)
Smoke CADR	416 m³/h
Dust CADR	453 m³/h
Pollen CADR	450 m³/h
Filters	2 pre-filters + 2 HEPASilent™ main filters
Automatic mode	Yes, automatic regulation according to air quality
Night mode	Yes, reduced speed and low brightness
Wi-Fi connectivity	Yes, via Blueair app
Air quality sensor	Integrated (PM2.5)
Filter replacement indicator	Yes
Automatic startup	Yes, after power outage
Pre-filter cleaning	Weekly, wiping or vacuuming
Main filter replacement	Every 6 to 12 months
Safety	Automatic shut-off, overheat protection
Power adapter	Included
Warranty	Blueair limited warranty

Frequently Asked Questions - DustMagnet 5440i BLUEAIR

How to turn on the air purifier?

Press the On/Off button on the control panel.

How to connect the device to the Blueair app?

Download the Blueair app from the App Store or Google Play, open it, and follow the on-screen instructions to pair your air purifier.

When should the filters be replaced?

The air purifier indicates replacement time via the filter indicator. In general, main filters should be changed every 6 to 12 months depending on usage.

How to clean the pre-filters?

Turn off and unplug the device, open the hatches, remove the pre-filters and clean them with a dust cloth or a vacuum cleaner with a soft brush. Repeat this operation weekly.

What to do in case of Wi-Fi connection error?

Check that the Wi-Fi indicator is blinking rapidly. Consult the Blueair app for troubleshooting steps or visit www.blueair.com/customer-support for assistance.

Can the purifier be used in a bedroom?

Yes, the night mode allows reduced speed and low brightness for quiet and discreet operation, ideal for a bedroom.

How to reset the filter timer after replacement?

After installing the new filters, plug in the device and press the airflow speed button for about 15 seconds until the indicator turns off.

Is the purifier safe for children?

Yes, children aged 8 years and above can use it under supervision. Younger children should not play with the device.

Can I use the device without filters?

No, the device should never be used without filters as it could damage the motor and reduce performance.

Where to find replacement filters?

You can purchase genuine Blueair filters at www.blueair.com or via the Blueair app. Use your device model number to order the appropriate filters.

USER MANUAL DustMagnet 5440i BLUEAIR

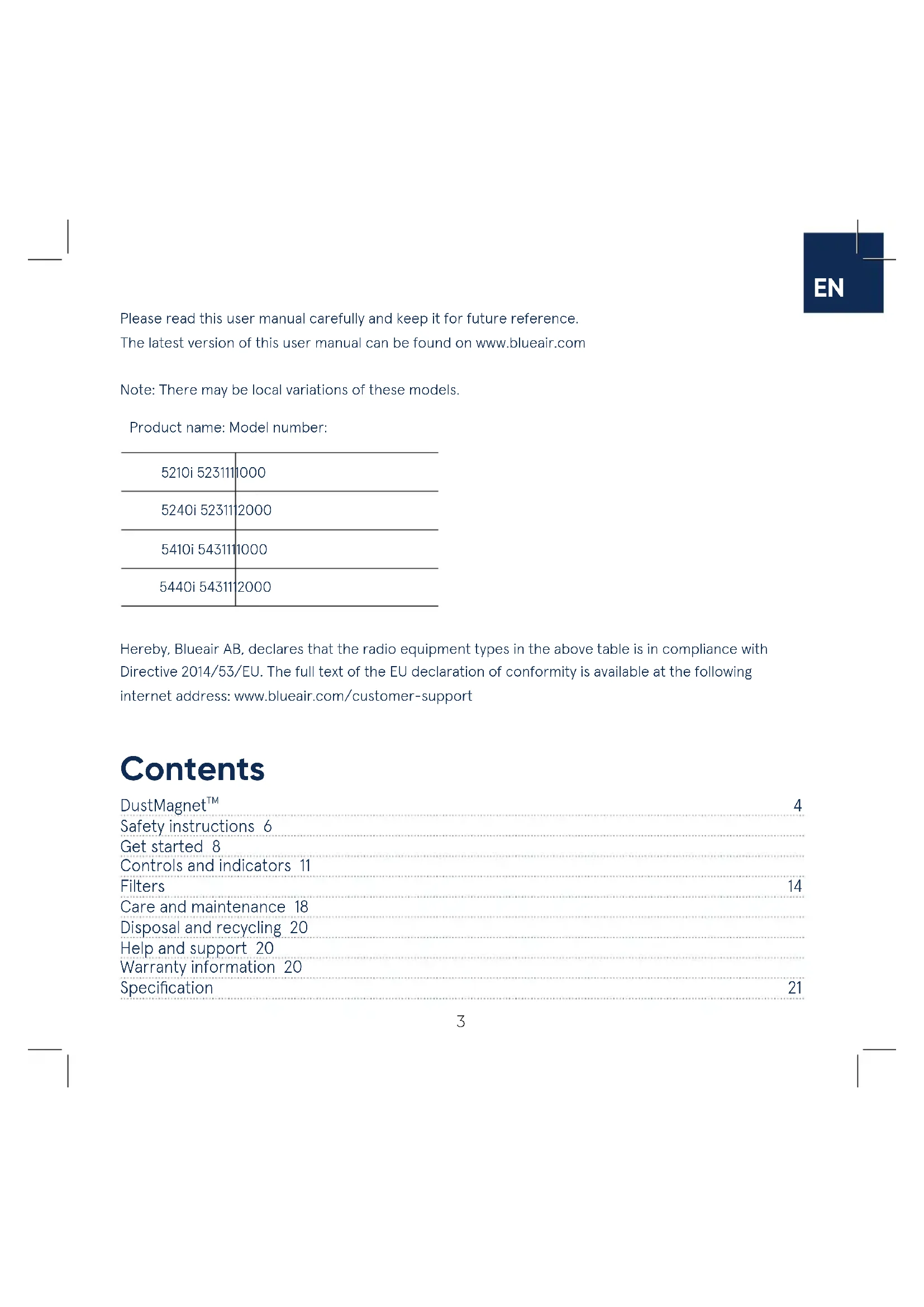

Please read this user manual carefully and keep it for future reference. The latest version of this user manual can be found on www.blueair.com

Note: There may be local variations of these models.

Product name: Model number:

5210i 5231111000

5240i 5231112000

5410i 5431111000

5440i 5431112000

Hereby, Blueair AB, declares that the radio equipment types in the above table is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.blueair.com/customer-support

Contents

DustMagnet ^TM 4

Safety instructions 6

Get started 8

Controls and indicators 11

Filters 14

Care and maintenance 18

Disposal and recycling 20

Help and support 20

Warranty information 20

Specification 21

Blueair DustMagnet™

Blueair DustMagnet ^™ air purifiers are available in four models. All models are Wi-Fi enabled, have two pre-filters and two HEPASilent ^™ main filters to purify air. All DustMagnet ^™ models have control functions and a built-in sensor.

The air purifier is mainly composed of a motor, a fan and filters. The air purifier removes contaminants from the air in a room to improve indoor air quality.

You can change the air purifier settings at any time, using the control panel on the air purifier or remotely, using the Blueair app. Additional functions are available for all models through the Blueair app.

Recommendations for best performance

• Use the air purifier in a room that does not exceed the room size recommendation.
• Place the air purifier in a location where air can circulate freely in, out and around the air purifier.
• Do not place the air purifier closer than 10cm to another object.
• During operation, keep doors and windows in the room with the air purifier closed.
• Only use original Blueair filters.
• Change the main filter when the filter replacement indicator appears on the control panel.
• Follow the maintenance instructions in this user manual.

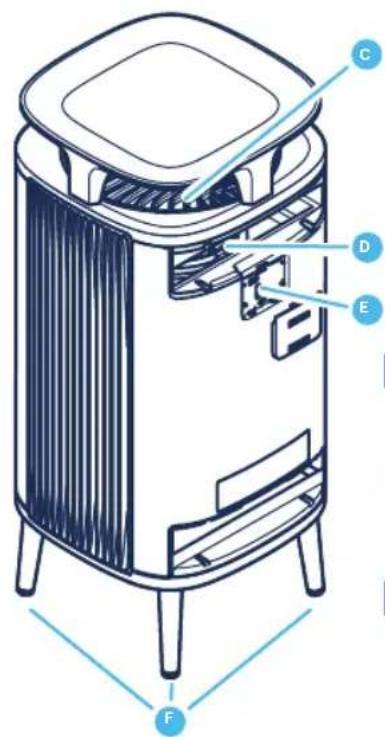

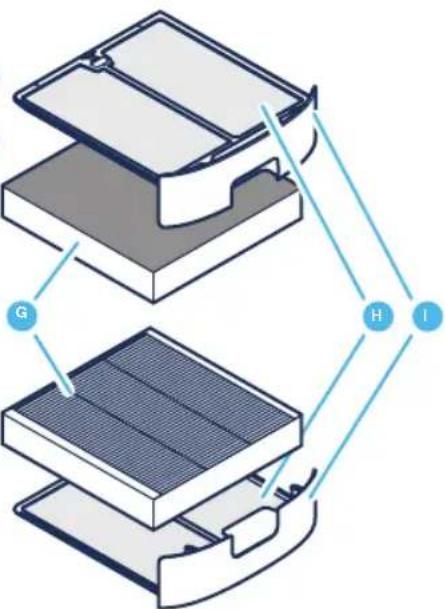

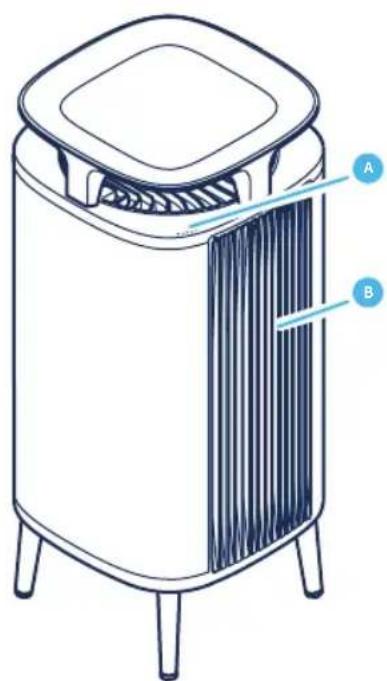

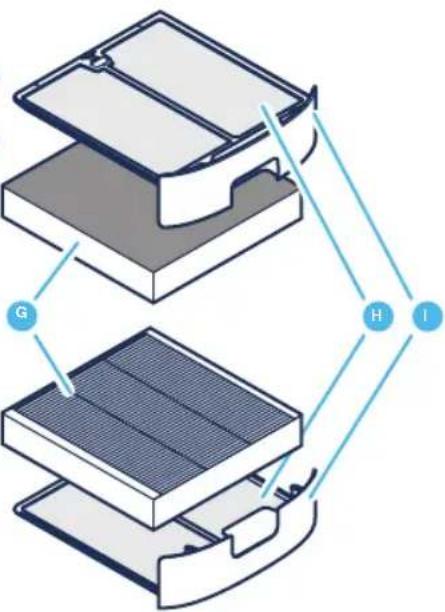

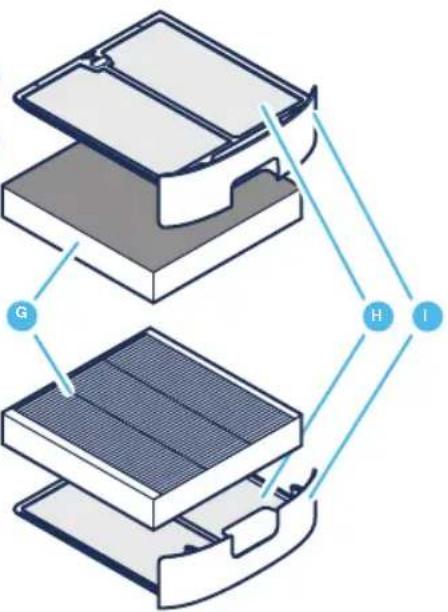

A Control panel G Main filters
B Air outlet H Pre-filters
C Air inlet I Filter hatch
D Fan and motor
E Air quality sensor
F Legs

J Power adapter (not in picture)
K User Manual (not in picture)

Safety instructions

Blueair DustMagnet™ air purifiers are electrical appliances for indoor use only, take the necessary precautions to reduce the risk of fire, electric shock or injury.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• Cleaning and maintenance shall not be made by children without supervision.
• Always disconnect the appliance from the power supply before maintenance.
• Do not attempt to open or service the appliance yourself. Service must be done by the manufacturer, service agent or similarly qualified personnel using only original Blueair spare parts.
• Ensure that the power cable and the power plug are not at risk of getting damaged. To avoid hazard, a damaged power cable must always be replaced by the manufacturer, service agent or similarly qualified person.
• If the appliance is damaged or is malfunctioning, turn it off, disconnect it from the power supply and contact Blueair.
• The power plug must be firmly inserted in the power socket.

• When disconnecting the unit from the power supply, do not pull the power cord, pull the power plug.

• Use the power cable provided with your Blueair air purifier to plug directly and firmly into an appropriate, electrical outlet.

• Do not use an extension cord or a power strip. Refer to the rating label on your appliance.
• Do not alter the power plug in any way. If the plug does not fit into the outlet, contact qualified personnel to install the proper outlet.
• Do not use the included power cord for anything else but the appliance.
• Do not allow objects to enter or block the air inlets and air outlets as this can cause electric shock or damage the appliance.
• Do not place any liquids on top of the product.
• Do not put any objects heavier than 10kg on top of the product.
• Do not put any objects directly against the appliance.
• Do not sit on, stand, climb onto or hang from the appliance.
• Keep the appliance, including the power cable, at a safe distance from heated surfaces and open fire.
• Keep the appliance and power plug away from water and other liquids.
• Keep the appliance and power plug away from chemicals such as pesticides and deodorants.
• Place the appliance on the floor. The appliance must be placed on a stable surface.
• Do not use the appliance outdoors or in wet environments such as bathrooms, laundry rooms or pool areas.

Get started

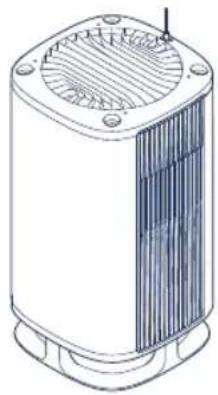

Step 1

Carefully place the unit with the table top down on a stable soft surface.

Technical line drawing of a cylindrical industrial or thermal device with heat dissipation fins and mounting holes (no text or symbols)

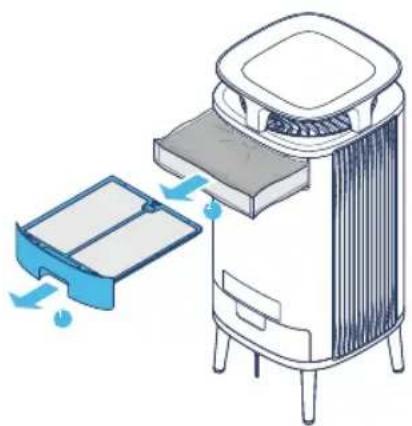

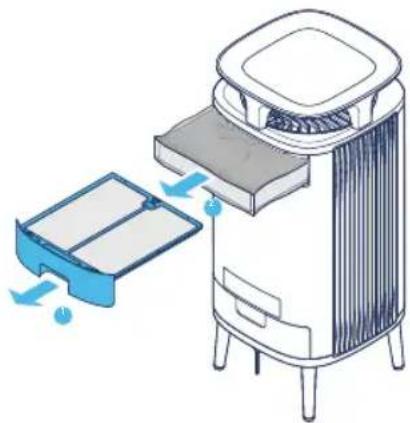

Step 3

Open the top filter hatch, pull out the main filter and remove the protective plastic wrapping.

Illustration of a smart air conditioner unit with a blue tray and airflow arrows indicating process (no text or symbols)

Step 2

Attach the four legs onto the unit by screwing them on.

Diagram of a cylindrical device with three blue handles and a central fan, showing internal components (no text or symbols)

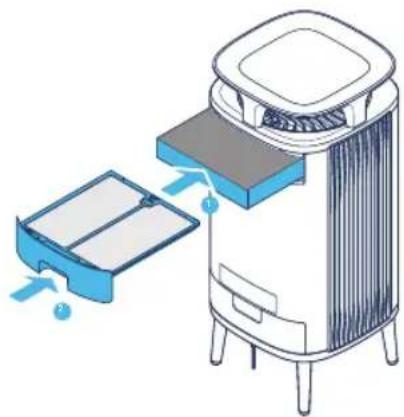

Step 4

Insert the main filter back into the unit, and close the filter hatch.

Illustration of a smart air purifier with a device and airflow path (no text or symbols)

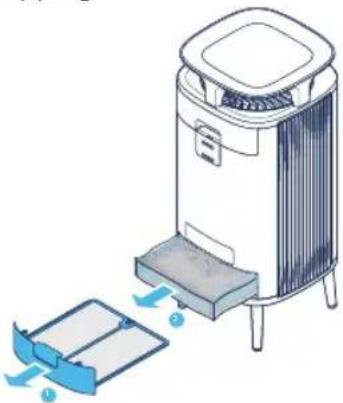

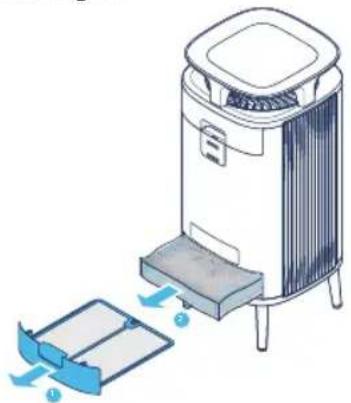

Step 5

Open the bottom filter hatch, pull out the main filter and remove the protective plastic wrapping.

Illustration of a portable air purifier with blue insulation and airflow indicators (no text or symbols)

Step 7

Plug the power adapter into a wall outlet.

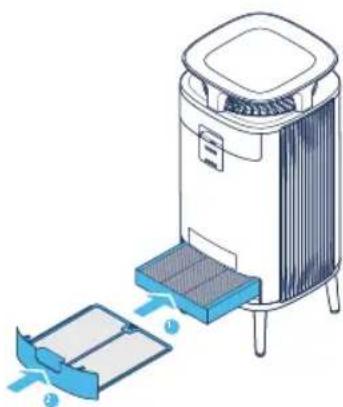

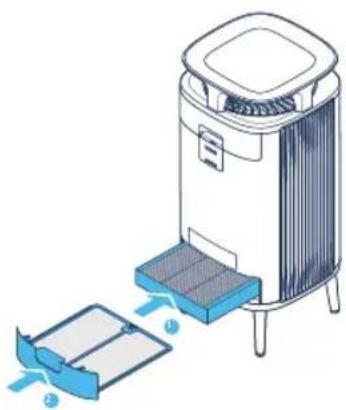

Step 6

Place the main filter back into the unit, and close the filter hatch.

Illustration of a portable air purifier with blue insulation and a side-mounted base, showing internal components and airflow paths (no text or symbols)

Step 8

Press the On/Off button to turn the unit on.

Illustration of a blue electrical plug inserted into a wall socket with a cable (no text or symbols)

Hand icon showing a finger pressing a button with a power symbol (no text or labels)

See section Filters for more information regarding filter handling.

Connect to the Blueair app

Connecting the air purifier to the Blueair app allows you to control the air purifier remotely and change the settings. The app adds additional functions to the air purifier.

Step 1

Download the Blueair app from the App store or Google play.

Step 2

Open the Blueair app and follow the instructions to connect it to the air purifier.

Controls and indicators

Control the air purifier using the buttons on the control panel or using the Blueair app. The LED light below the symbol indicates active status.

On/Off

Press to turn On or Off.

Note! Wi-Fi continues to be in operation when the air purifier is turned off.

Airflow speed

Available airflow speed options are: 0, 1, 2, 3, Auto mode and Night mode.

Press to switch between airflow speed options, Auto mode and Night mode.

Auto mode

In Auto mode the air purifier automatically controls the airflow based on air quality information from the sensor.

Night mode

In Night mode the air purifier uses low fan speed and dimmed LED lights. The brightness of the LED is possible to set in the Blueair app.

Autostart

The air purifier has an Autostart feature. This means that the unit will automatically restart at the set speed if a power failure occurs, the unit is unplugged or a power switch timer is used.

Wi-Fi Connection

A Wi-Fi function is available on all models and allows the air purifier to connect to the Blueair app and to receive functional updates. The LED light below the symbol indicates status.

Indicators

Status White light Connected to Wi-Fi network.

Status White "pulsating" light Wi-Fi On, ready for onboarding.

Status White fast "blinking" light Connection error.

See the Blueair app for further information regarding Wi-Fi connection. For support, visit www.blueair.com/customer-support

Filter indicator

The air purifier calculates the remaining lifetime of the filters based on usage and sensor readings, and indicates when it is time to replace the filters.

Status Filter replacement No lifetime left of the filter.

Air quality information

The air quality levels for particulate matter (PM) are indicated using a color scale on the air quality indicator. This scale gives a reading for PM2.5, which are particles with a diameter of 2.5 micrometers or less.

Air quality level

Five horizontal color bars in red, orange, yellow, green, cyan, and white (no text or symbols)

Very Polluted
Slightly Polluted
Moderate
Good
Excellent
Data not available

See the Blueair app for further information regarding air quality.

Filters

The air purifier is delivered with two pre-filters and two main filters installed. The filters purify the air from particles and gases. For best performance, clean the pre-filters regularly and change the main filters when the air purifier indicates filter change. To find the right main filter for your air purifier, use the Blueair app or visit www.blueair.com. The model number of your air purifier can be found on the rating label on the air purifier.

Important! Always turn off and disconnect the appliance from the power supply before changing filters, cleaning or carrying out maintenance procedures.

Important! Do not use the unit without filters.

Blueair filter subscription program

Use the Blueair app or visit www.blueair.com to sign up for the Blueair filter subscription program. (Not available in all markets)

Clean the pre-filters

For best performance, clean the pre-filters weekly.

Step 1

Turn the unit off and unplug it.

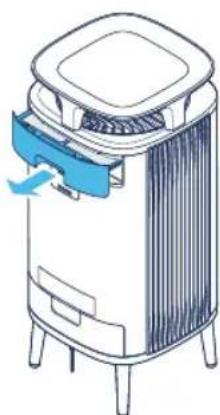

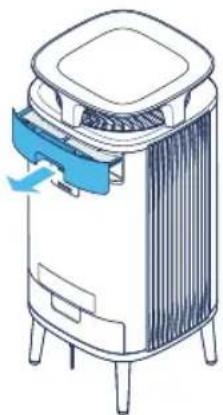

Step 2

Open the top filter hatch and pull out the pre-filter.

Illustration of a portable air conditioner unit with blue handle and cooling fan (no text or symbols)

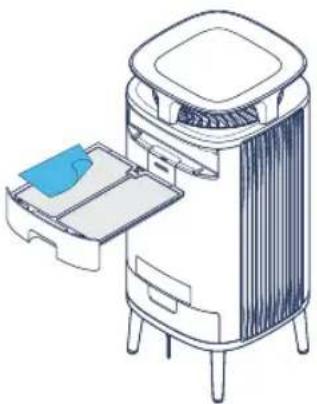

Step 3

Clean the pre-filter by wiping it with a dust cloth.

Illustration of a portable air conditioner unit with a paper feed tray and top panel (no text or symbols)

Step 5

Repeat step 1-4 on the bottom pre-filter.

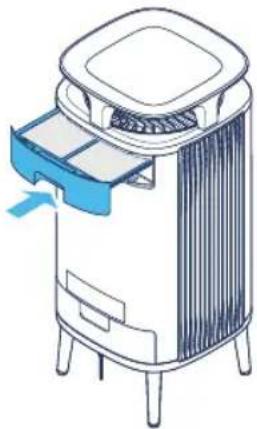

Step 4

Place the pre-filter back into the unit and close the filter hatch.

Illustration of a portable air conditioner unit with a blue handle and top panel, no text or symbols present

Step 6

Plug in the unit.

Illustration of a blue electrical plug inserted into a wall socket with a cable (no text or symbols)

Change the main filters

The air purifier calculates the remaining lifetime of the filters based on usage and sensor readings, and indicates when it is time to change filter. The recommended time for filter change is between 6-12 months depending on the indoor conditions.

A filter replacement indicator indicates when it is time to change the filters.

Filter replacement indicator

Important! Use only original Blueair filters suitable for the model to ensure proper function and performance of the air purifier, and to qualify for full warranty coverage.

Step 1

Turn the unit off and unplug it.

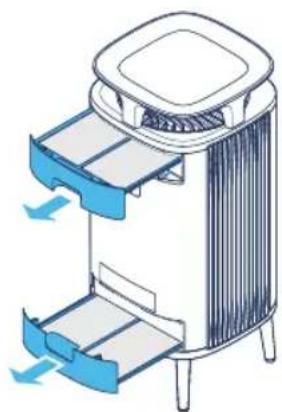

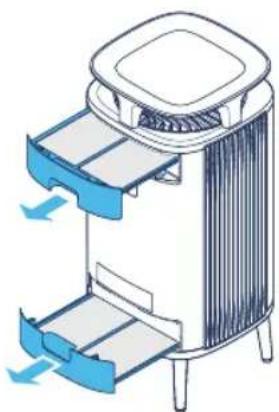

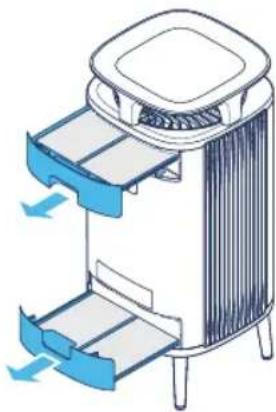

Step 2

Open the two filter hatches.

Illustration of a multi-tiered appliance with blue and gray compartments, showing airflow direction (no text or symbols)

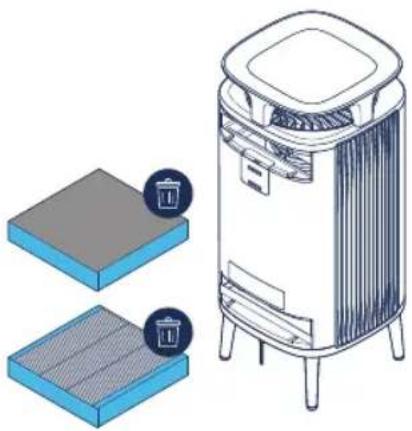

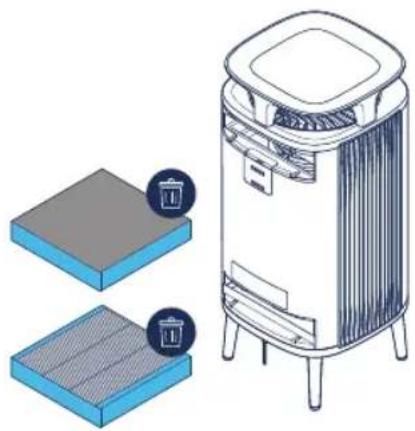

Step 3

Remove and dispose of the old main filters.

Illustration of a kitchen appliance with two rectangular blocks and a cylindrical drawer, alongside a separate view of its interior space (no text or symbols)

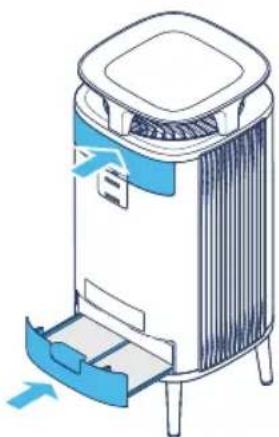

Step 5

Close the two filter hatches.

Note! Make sure that the filter hatches are closed correctly.

Illustration of a portable air conditioner unit with blue airflow arrows indicating airflow direction (no text or symbols)

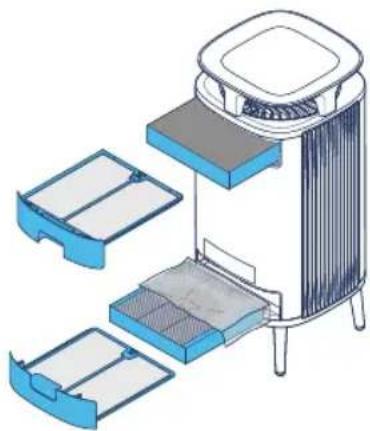

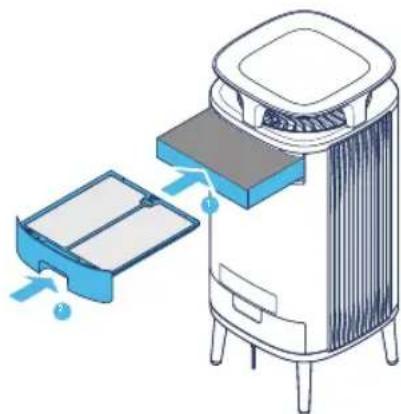

Step 4

Note! Remove the protective plastic from the new main filters before use.

Insert the new main filters.

Isometric illustration of a modular appliance with blue compartments and a top panel (no text or symbols)

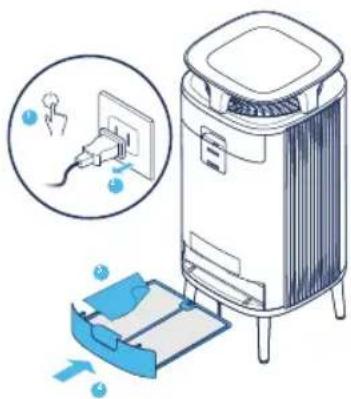

Step 6

Plug in the unit.

Note! Press the airflow speed button for 15s to reset the filter timer.

Illustration of a blue electrical plug inserted into a wall socket with an arrow indicating direction (no text or symbols)

Care and maintenance

General

• Disconnect the air purifier from the power supply before maintenance.
• Do not allow foreign objects to enter the air inlets or air outlets. This may cause electric shock or damage the air purifier.
• Never clean with gasoline, chemical solvents or corrosive materials as these agents may damage the air purifier.
• Make sure the air purifier is completely dry before connecting it to power.
• Do not wash the main filter. The main filter is not washable or reusable.

Cleaning

• Clean the pre-filters by wiping with a dust cloth or vacuuming with a soft brush attachment (not included).
• Wipe the exterior of the air purifier with a soft, clean, damp cloth.
  • Vacuum the small air inlets with a soft brush attachment (not included).
  • Vacuum the inside of the air purifier with a soft brush attachment (not included).
• Clean and check the power cable and power plug for wear or damages.
• Clean the sensor when changing the main filter.

Moving the air purifier

Important!

• Unplug the air purifier before moving it.
• Make sure that the filter hatches on the air purifier are securely closed.
• Lift the air purifier to move it. Do not drag or push the air purifier.

Clean the air quality sensor

The inlet for the air quality sensor is located at the back of the air purifier. Vacuum the opening to clean the inlet for the sensor.

Important! Do not use fingers or any unrecommended objects to clean inside the sensor inlet.

Step 1

Turn the unit off and unplug it.

Step 3

Gently clean the sensor with a cotton swab, and attach the sensor lid.

Technical line drawing of a cylindrical device with internal components and mounting feet (no text or symbols)

Step 2

Remove the lid covering the sensor.

Line drawing of a four-legged appliance with lid and front panel (no text or symbols)

Step 4

Plug in the unit.

Illustration of a blue electrical plug inserted into a wall socket with a cable, showing a directional arrow (no text or symbols)

Disposal and recycling

This air purifier should be disposed or recycled as electrical waste and the filter may be recycled as plastic. If you have questions regarding the disposal and recycling of this air purifier, please contact your local recycling facility for availability or Blueair dealer and ask for the correct method of recycling.

The crossed-out waste bin symbol on the appliance or on its packaging means that at the end of its useful lifespan, the product must be disposed of separately from ordinary household wastes.

Help and support

If you have questions about your product, please visit www.blueair.com or contact your local Blueair retailer.

To contact Blueair for personalized support, please visit www.blueair.com/customer-support

Warranty information

The Blueair Limited Warranty applies only if the air purifier is installed, used and maintained according to the instructions in this manual.

For warranty conditions, please visit www.blueair.com/warranty

Warranty and returns

If you purchased the air purifier at one of our authorized retailers, please contact the same store to request assistance.

Specification
5210i/5240i 5410i/5440i

Input Power, Frequency 100-240VAC	50/60Hz 100-240VAC 50/60Hz
Power consumption/Rated input power (min/max)	5-22W 7-42W
Operating frequency 2402-2480 MHz	2402-2480 MHz
Output power Max 5mW Max 5mW
Sound level (min/max) ^1	29-45 dB 31-50 dB
Recommended room size ^2	22 m ^2	35 m ^2
CADR Smoke ^2	260 m ^3 /h 416 m	^3 /h
CADR Dust ^2	260 m ^3 /h 453 m	^3 /h
CADR Pollen ^2	293 m ^3 /h 450 m	^3 /h

^1 Sound pressure according to GB/T18801
^2 According to AHAM AC-1-2019

FR

Technical line drawing of a cylindrical industrial or thermal device with heat dissipation fins and mounting holes (no text or symbols)

Étape 3

Illustration of a smart air conditioner unit with airflow arrows indicating process flow (no text or symbols)

Étape 2

Diagram of a cylindrical device with three blue handles and a central fan, showing internal components (no text or symbols)

Étape 4

Illustration of a smart air purifier with a device and airflow path (no text or symbols)

Étape 5

Illustration of a portable air purifier with blue filter units and airflow indicators (no text or symbols)

Étape 7

Illustration of a blue electrical plug inserted into a wall socket with an arrow indicating direction (no text or symbols)

Étape 6

Illustration of a portable air purifier with blue insulation panels and a side panel, showing internal components (no text or symbols)

Étape 8

Hand icon showing a finger pressing a button with a power symbol (no text or labels)

Five horizontal color bars in red, orange, yellow, green, cyan, and white (no text or symbols)

Très pollué

Légèrement pollué

Moyenne

Bonne

Excellente

Illustration of a portable air conditioner unit with blue airflow arrow (no text or symbols)

Étape 3

Illustration of a portable air conditioner unit with a paper feed tray and top panel (no text or symbols)

Étape 5

Étape 4

Illustration of a portable air conditioner unit with a blue handle and top panel, no text or symbols present.

Étape 6

Illustration of a blue electrical plug inserted into a wall socket with a cable (no text or symbols)

Illustration of a multi-tiered appliance with blue and gray compartments, showing airflow or movement arrows (no text or symbols)

Étape 3

Illustration of a portable kitchen appliance with two blue filter panels and a paper bed, alongside its exterior view (no text or symbols)

Étape 5

Illustration of a portable air conditioner unit with blue airflow arrows indicating airflow direction (no text or symbols)

Étape 4

Isometric illustration of a modular appliance with blue compartments and a top panel (no text or symbols)

Étape 6

Illustration of a blue electrical plug inserted into a wall socket with a cable, showing an upward arrow (no text or symbols)

Étape 3

Technical line drawing of a cylindrical device with internal components and mounting feet (no text or symbols)

Étape 2

Line drawing of a four-legged appliance with lid and front panel (no text or symbols)

Étape 4

Illustration of a blue electrical plug inserted into a wall socket with a cable (no text or symbols)

Technical line drawing of a cylindrical industrial or thermal unit with heat dissipation fins and mounting holes (no text or symbols)

Paso 3

Illustration of a smart air conditioner unit with airflow arrows indicating process flow (no text or symbols)

Paso 2

Diagram of a cylindrical device with blue arrows indicating airflow or movement, no text or symbols present

Paso 4

Illustration of a smart air purifier with cooling unit and airflow direction arrows (no text or symbols)

Paso 5

Illustration of a portable air purifier with blue insulation and airflow indicators (no text or symbols)

Paso 7

Illustration of a blue electrical plug inserted into a wall socket with a cable (no text or symbols)

Paso 6

Illustration of a portable air purifier with blue insulation panels and a side panel, showing internal components (no text or symbols)

Paso 8

Hand icon showing a finger pressing a button with a power symbol (no text or labels)

Five horizontal color bars in red, orange, yellow, green, cyan, and white (no text or symbols)

Muy contaminado

Ligeramente contaminado

Moderado

Bueno

Excelente

Illustration of a portable air conditioner unit with blue handle and cooling fan (no text or symbols)

Paso 3

Illustration of a portable air conditioner unit with a blue paper lid and drawer, no text or symbols present

Paso 5

Illustration of a portable air conditioner unit with a blue handle and top panel, no text or symbols present.

Paso 6

Enchufar la unidad.

Illustration of a blue electrical plug inserted into a wall socket with a cable (no text or symbols)

Cambie los filtros principales

Illustration of a multi-tiered appliance with blue and gray compartments, showing airflow direction (no text or symbols)

Paso 3

Illustration of a portable air conditioner unit with two blue filter panels and a paper stack, alongside its exterior view (no text or symbols)

Paso 5

Illustration of a portable air conditioner unit with blue airflow indicators (no text or symbols)

Paso 4

Illustration of a multi-tiered appliance with blue compartments and a gray top unit (no text or symbols)

Paso 6

Enchufar la unidad.

Illustration of a blue electrical plug inserted into a wall socket with a cable, showing a directional arrow (no text or symbols)

Paso 3

Technical line drawing of a cylindrical device with internal components and mounting base (no text or symbols)

Paso 2

Line drawing of a four-legged appliance with lid and front panel (no text or symbols)

Paso 4

Enchufar la unidad.

Illustration of a blue electrical plug inserted into a wall socket with a cable, showing a directional arrow (no text or symbols)

Consumo energético (min/max) 5-22W 7-42W

Technical line drawing of a cylindrical industrial or thermal device with heat dissipation fins and mounting holes (no text or symbols)

Punto 3

Illustration of a portable air conditioner unit with a blue tray and airflow arrows indicating process (no text or symbols)

Punto 2

Diagram of a cylindrical device with blue connectors and a central fan, showing internal components (no text or symbols)

Punto 4

Illustration of a smart air purifier with a device and airflow path (no text or symbols)

Punto 5

Illustration of a portable air purifier with blue filter units and airflow indicators (no text or symbols)

Punto 7

Illustration of a blue electrical plug inserted into a wall socket with a cable (no text or symbols)

Punto 6

Illustration of a portable air purifier with blue insulation panels and a side panel, showing internal components (no text or symbols)

Punto 8

Hand icon showing a finger pressing a button with a power symbol (no text or labels)

Five horizontal color bars in red, orange, yellow, green, cyan, and white (no text or symbols)

Molto inquinata

Punto 2

Illustration of a portable air conditioner unit with blue airflow arrow (no text or symbols)

Punto 3

Illustration of a portable air conditioner unit with a paper feed tray and top panel (no text or symbols)

Punto 5

Punto 4

Illustration of a portable air conditioner unit with a blue handle and top panel, no text or symbols present

Punto 6

Illustration of a blue electrical plug inserted into a wall socket with a cable (no text or symbols)

Illustration of a multi-tiered appliance with blue and gray compartments, showing airflow or movement arrows (no text or symbols)

Punto 3

Illustration of a portable air conditioner unit with two blue filter panels and a separate paper holder (no text or symbols)

Punto 5

Illustration of a portable air purifier with blue insulation and airflow arrows (no text or symbols)

Punto 4

Isometric illustration of a smart air conditioner unit with blue components and a top panel (no text or symbols)

Punto 6

Illustration of a blue electrical plug inserted into a wall socket with a cable, showing an upward arrow (no text or symbols)

Cura e manutenzione

Procedure generali

Punto 3

Line drawing of a four-legged appliance with lid and front panel (no text or symbols)

Punto 4

Technical line drawing of a cylindrical device with internal components and mounting feet (no text or symbols)

Illustration of a blue electrical plug inserted into a wall socket with a cable (no text or symbols)

Technical line drawing of a cylindrical industrial fan or heater with heat dissipation fins (no text or symbols)

Schritt 3

Diagram of a portable air conditioner unit with blue indicator lights and ventilation grilles (no text or symbols)

Schritt 4

Illustration of a portable appliance with a drawer and handle, showing airflow direction (no text or symbols)

Illustration of a smart air conditioner unit with a blue tray and heat exchanger, showing airflow direction (no text or symbols)

Schritt 5

Illustration of a portable air purifier with blue airflow indicators (no text or symbols)

Schritt 7

Illustration of a blue electrical plug inserted into a wall socket with a cable, showing a directional arrow (no text or symbols)

Schritt 6

Illustration of a portable air purifier with blue insulation and a side panel, showing internal components and airflow direction (no text or symbols)

Schritt 8

Hand icon showing a finger pressing a button with a power symbol (no text or labels)

Five horizontal color bars in red, orange, yellow, green, cyan, and white (no text or symbols)

Stark verschmutzt

Leicht verschmutzt

Moderat

Gut

Hervorragend

Illustration of a portable air conditioner unit with blue airflow arrow (no text or symbols)

Schritt 3

Illustration of a portable air conditioner unit with a paper feed tray and top panel (no text or symbols)

Schritt 5

Illustration of a portable air conditioner unit with a blue handle and side panel (no text or symbols)

Schritt 6

Illustration of a blue electrical plug inserted into a wall socket with a cable (no text or symbols)

Diagram of a multi-tiered appliance with blue and gray compartments, showing airflow direction (no text or symbols)

Schritt 3

Illustration of a portable kitchen appliance with two rectangular plates and a cylindrical drawer, accompanied by a close-up view of its lid (no text or symbols present)

Schritt 5

Illustration of a portable air purifier with blue insulation and airflow arrows (no text or symbols)

Schritt 4

Isometric illustration of a smart air conditioner unit with blue components and a top panel (no text or symbols)

Schritt 6

Illustration of a blue electrical plug inserted into a wall socket with a cable, showing an upward arrow (no text or symbols)

Pflege und Wartung

Allgemeines

Schritt 3

Technical line drawing of a cylindrical device with internal components and mounting feet (no text or symbols)

Schritt 2

Line drawing of a four-legged appliance with lid and front panel (no text or symbols)

Schritt 4

Illustration of a blue electrical plug inserted into a wall socket with a cable (no text or symbols)

Technical line drawing of a cylindrical industrial or thermal unit with heat dissipation fins and mounting holes (no text or symbols)

Stap 3

Illustration of a portable air conditioner unit with a blue tray and airflow arrows indicating process (no text or symbols)

Stap 2

Diagram of a cylindrical device with blue arrows indicating airflow or movement, no text or symbols present

Stap 4

Illustration of a smart air purifier with a device and airflow path (no text or symbols)

Stap 5

Illustration of a portable air purifier with blue filter units and airflow indicators (no text or symbols)

Stap 7

Illustration of a blue electrical plug inserted into a wall socket with a cable (no text or symbols)

Stap 6

Illustration of a portable air purifier with blue insulation panels and a side panel, showing internal components (no text or symbols)

Stap 8

Hand icon showing a finger pressing a button with a power symbol (no text or labels)

Five horizontal color bars in red, orange, yellow, green, cyan, and white (no text or symbols)

Sterk vervuild

Licht vervuild

Matig

Goed

Uitstekend

Illustration of a portable air conditioner unit with blue airflow arrow (no text or symbols)

Stap 3

Illustration of a portable air conditioner unit with a blue plastic bag inserted, showing internal compartments and handle (no text or symbols)

Stap 5

Stap 4

Illustration of a portable air conditioner unit with a blue handle and top panel, no text or symbols present.

Stap 6

Illustration of a blue electrical plug inserted into a wall socket with a cable (no text or symbols)

Illustration of a multi-tiered appliance with blue handlebars and a side panel, showing airflow direction (no text or symbols)

Stap 3

Illustration of a portable kitchen appliance with two rectangular plates and a cylindrical drawer, accompanied by a close-up of its lid (no text or symbols present)

Stap 5

Illustration of a portable air purifier with blue airflow indicators (no text or symbols)

Stap 4

Isometric illustration of a smart air conditioner unit with blue components and a top panel (no text or symbols)

Stap 6

Illustration of a blue electrical plug inserted into a wall socket with a cable, showing an upward arrow (no text or symbols)

Onderhoud

Algemeen

Stap 3

Technical line drawing of a cylindrical device with internal components and mounting feet (no text or symbols)

Stap 2

Line drawing of a four-legged appliance with lid and front panel (no text or symbols)

Stap 4

Illustration of a blue electrical plug inserted into a wall socket with a cable (no text or symbols)

Specifications
5210i/5240i 5410i/5440i

Ingangsvermogen, frequentie 100-240	VAC 50/60 Hz 100-240 VAC 50/60 Hz
Stroomverbruik/nominaal ingangsvermogen (min/max)	5-22 W 7-42 W
Bedrijfsfrequentie 2402-2480 MHz 2402-2480 MHz
Afgegeven vermogen Max 5mW Max 5mW
Geluidsniveau (min/max) ^1	29-45 dB 31-50 dB
Aanbevolen grootte van de ruimte ^2	22 m ^2	35 m ^2
CADR - rook ^2	260 m ^3 /uur 416 m	^3 /uur
CADR - stof ^2	260 m ^3 /uur 453 m	^3 /uur
CADR - pollen ^2	293 m ^3 /uur 450 m	^3 /uur

Technical line drawing of a cylindrical industrial or thermal device with heat dissipation fins and mounting holes (no text or symbols)

Krok 3

Illustration of a smart air conditioner unit with a blue tray and airflow arrows indicating process (no text or symbols)

Krok 2

Diagram of a cylindrical device with blue connectors and a central fan, showing internal components (no text or symbols)

Krok 4

Illustration of a smart air conditioner unit with cooling panel and heat exchanger (no text or symbols)

Krok 5

Illustration of a portable air purifier with blue insulation and airflow indicators (no text or symbols)

Krok 7

Illustration of a portable air purifier with blue insulation panels and a side panel, showing internal components (no text or symbols)

Krok 8

Illustration of a blue electrical plug inserted into a wall socket with an arrow indicating direction (no text or symbols)

Hand icon showing a finger pressing a button with a power symbol (no text or labels)

Five horizontal color bars in red, orange, yellow, green, cyan, and white (no text or symbols)

Illustration of a portable air conditioner unit with blue airflow arrow (no text or symbols)

Krok 3

Illustration of a portable air conditioner unit with a paper feed tray and top panel (no text or symbols)

Krok 5

Krok 4

Illustration of a portable air conditioner unit with a blue handle and top panel, no text or symbols present

Krok 6

Illustration of a blue electrical plug inserted into a wall socket with a cable (no text or symbols)

Illustration of a multi-tiered appliance with blue and gray compartments, showing airflow direction (no text or symbols)

Krok 3

Illustration of a kitchen appliance with two rectangular blocks and a cylindrical drawer, alongside a separate view of its interior space (no text or symbols)

Krok 5

Illustration of a portable air conditioner unit with blue airflow arrows indicating airflow direction (no text or symbols)

Krok 4

Isometric illustration of a modular appliance with blue compartments and a top panel (no text or symbols)

Krok 6

Illustration of a blue electrical plug inserted into a wall socket with a cable, showing an upward arrow (no text or symbols)

Krok 3

Technical line drawing of a cylindrical device with internal components and mounting feet (no text or symbols)

Krok 2

Line drawing of a four-legged appliance with lid and front panel (no text or symbols)

Krok 4

Illustration of a blue electrical plug inserted into a wall socket with a cable (no text or symbols)

A Komandna tabla G Glavni filteri
B Izlaz za vazduh H Predfilteri
C Ulaz za vazduh I Držač filtera
D Ventilator i motor
E Senzor za kvalitet vazduha
F Nogare

J Adapter napajanja (nije prikazan na ilustraciji)
K Korisničko uputstvo (nije prikazano na ilustraciji)

Technical line drawing of a cylindrical industrial or thermal unit with heat dissipation fins and mounting holes (no text or symbols)

Korak 3

Diagram of a cylindrical device with blue arrows indicating airflow or movement, no text or symbols present

Korak 4

Ponovo postavite glavni filter u uređaj i zatvorite držač filtera.

Illustration of a smart air conditioner unit with a blue tray and airflow arrows indicating process (no text or symbols)

Illustration of a portable air conditioner unit with cooling panel and fan (no text or symbols)

Korak 5

Illustration of a portable air purifier with blue insulation and airflow indicators (no text or symbols)

Korak 7

Illustration of a blue electrical plug inserted into a wall socket with a cable (no text or symbols)

Korak 6

Ponovo postavite glavni filter u uređaj i zatvorite držač filtera.

Illustration of a portable air purifier with blue insulation panels and a side panel, showing internal components (no text or symbols)

Korak 8

Hand icon showing a finger pressing a button with a power symbol (no text or labels)

Six horizontal color bars in red, orange, yellow, green, cyan, and white (no text or symbols)

Veoma zagađen

Blago zagađen

Srednji

Dobar

Odličan

Korak 2

Otvorite gornji držač filtera i izvucite predfilter.

Illustration of a portable air conditioner unit with blue airflow arrow (no text or symbols)

Korak 3

Illustration of a portable air conditioner unit with a paper feed tray and top panel (no text or symbols)

Korak 5

Ponovite korake od 1 do 4 i za donji predfilter.

Korak 4

Ponovo postavite predfilter u uređaj i zatvorite držač filtera.

Illustration of a portable air conditioner unit with a blue handle and side panel (no text or symbols)

Korak 6

Ukopčajte uređaj.

Illustration of a blue electrical plug inserted into a wall socket with a cable (no text or symbols)

Zamena glavnih filtera

Illustration of a multi-tiered appliance with blue and gray compartments, showing airflow direction (no text or symbols)

Korak 3

Uklonite i odložite dotrajale glavne filtere.

Illustration of a portable air conditioner unit with two blue filter panels and a separate paper holder (no text or symbols)

Korak 5

Illustration of a portable air purifier with blue airflow arrows indicating flow direction (no text or symbols)

Korak 4

Napomena! Pre korišćenja uklonite zaštitnu plastičnu ambalažu sa novih filtera.

Postavite nove glavne filtere.

Isometric illustration of a modular appliance with blue compartments and a top panel (no text or symbols)

Korak 6

Ukopčajte uređaj.

Napomena! Držite pritisnutim taster za brzinu protoka vazduha u trajanju od 15 sekundi da biste poništili stanje tajmera za zamenu filtera.

Illustration of a blue electrical plug inserted into a wall socket with a cable, showing an upward arrow (no text or symbols)

Nega i održavanje

Opšte stavke

Korak 2

Uklonite poklopac za senzor.

Line drawing of a four-legged appliance with lid and front panel (no text or symbols)

Korak 3

Technical line drawing of a cylindrical device with internal components and mounting feet (no text or symbols)

Korak 4

Ukopčajte uređaj.

Illustration of a blue electrical plug inserted into a wall socket with a cable (no text or symbols)

Odlaganje i recikliranje

Ovaj prečistač vazduha treba da se reciklira kao elektronski otpad, dok se filter reciklira kao plastika. Ukoliko imate bilo kakvih pitanja u vezi sa odlaganjem i recikliranjem ovog prečistača vazduha, obratite se lokalnim postrojenjima za recikliranje ili prodavcu Blueair proizvoda i informišite se o pravilnom načinu za recikliranje.

Simbol precrtane korpe za otpatke na uređaju ili njegovom pakovanju označava da se uređaj na kraju njegovog radnog veka odlaže zasebno od komunalnog otpada.

Pomoć i podrška

Ukoliko imate bilo kakvih pitanja o proizvodu, posetite veb-adresu www.blueair.com ili kontaktirajte prodavca Blueair proizvoda.

Posetite veb-adresu www.blueair.com/customer-support da biste stupili u kontakt sa korisničkom podrškom kompanije Blueair.

Informacije o garanciji

Ograničena garancija kompanije Blueair je važeća samo kada je prečistač vazduha postavljen, korišćen i održavan u skladu sa uputstvima navedenim u ovom priručniku.

Uslove garancije možete da pročitate na veb-adresi www.blueair.com/warranty

A Kontrol paneli G Ana filtreler

Technical line drawing of a cylindrical industrial component with heat dissipation zones (no text or symbols)

3. Adim

Diagram of a cylindrical air conditioner unit with blue indicator lights and a central fan (no text or symbols)

4. Adim

Illustration of a portable air conditioner unit with a blue tray and airflow arrows indicating process (no text or symbols)

Illustration of a smart air conditioner unit with cooling system and labeled components (no text or symbols)

5. Adim

Illustration of a portable air purifier with blue insulation and airflow indicators (no text or symbols)

7. Adim

Illustration of a portable air purifier with blue insulation and a side-mounted base, showing internal components and airflow paths (no text or symbols)

8. Adim

Illustration of a blue electrical plug inserted into a wall socket with a cable (no text or symbols)

Hand icon showing a finger pressing a button with a power symbol (no text or labels)

Illustration of a portable air conditioner unit with blue handle and cooling fan (no text or symbols)

3. Adim

Illustration of a portable air conditioner unit with a blue paper lid and side drawer (no text or symbols)

5. Adim

Illustration of a portable air conditioner unit with a blue handle and top panel, no text or symbols present

6. Adim

Üniteyi fişe takın.

Illustration of a blue electrical plug inserted into a wall socket with a cable (no text or symbols)

Illustration of a multi-tiered appliance with blue and gray compartments, showing airflow direction (no text or symbols)

3. Adim

Illustration of a portable air conditioner unit with two blue filter panels and a paper stack, alongside a separate view of its internal components (no text or symbols present)

5. Adim

Illustration of a portable air conditioner unit with blue airflow indicators (no text or symbols)

4. Adim

Illustration of a multi-tiered appliance with blue compartments and a gray top unit (no text or symbols)

6. Adim

Üniteyi fişe takın.

Illustration of a blue electrical plug inserted into a wall socket with a cable, showing a directional arrow (no text or symbols)

Bakım ve onarım

Genel

Line drawing of a portable air conditioner unit with lid and side legs (no text or symbols)

3. Adim

Technical line drawing of a cylindrical device with internal components and mounting feet (no text or symbols)

Illustration of a blue electrical plug inserted into a wall socket with a cable (no text or symbols)

Technical line drawing of a cylindrical industrial or thermal device with heat dissipation fins and mounting holes (no text or symbols)

Steg 3

Illustration of a smart air conditioner unit with airflow arrows indicating process flow (no text or symbols)

Steg 2

Diagram of a cylindrical device with three blue handles and a central fan, showing internal components (no text or symbols)

Steg 4

Illustration of a smart air conditioner unit with a device inside and airflow arrows indicating process (no text or symbols)

Steg 5

Illustration of a portable air purifier with blue insulation and airflow indicators (no text or symbols)

Steg 7

Illustration of a portable air purifier with blue insulation panels and a side panel, showing internal components (no text or symbols)

Steg 8

Illustration of a blue electrical plug inserted into a wall socket with an arrow indicating direction (no text or symbols)

Hand icon showing a finger pressing a button with a power symbol (no text or labels)

Five horizontal color bars in red, orange, yellow, green, cyan, and white (no text or symbols)

Mycket förorenad

Något förorenad

Måttlig

Bra

Utmärkt

Uppgift saknas

Illustration of a portable air conditioner unit with blue airflow arrow (no text or symbols)

Steg 3

Illustration of a portable air conditioner unit with a paper feed tray and top panel (no text or symbols)

Steg 5

Illustration of a portable air conditioner unit with a blue handle and top panel, no text or symbols present.

Steg 6

Koppla in enheten.

Illustration of a blue electrical plug inserted into a wall socket with a cable (no text or symbols)

Byta huvudfilter

Illustration of a multi-tiered appliance with blue and gray compartments, showing airflow direction (no text or symbols)

Steg 3

Illustration of a portable air conditioner unit with two blue filter panels and a paper stack, alongside a separate view of its internal components (no text or symbols present)

Steg 5

Illustration of a portable air conditioner unit with blue airflow indicators (no text or symbols)

Steg 4

Illustration of a multi-tiered appliance with blue compartments and a gray top unit (no text or symbols)

Steg 6

Koppla in enheten.

Illustration of a blue electrical plug inserted into a wall socket with a cable, showing a directional arrow (no text or symbols)

Steg 3

Technical line drawing of a cylindrical device with internal components and mounting feet (no text or symbols)

Steg 2

Ta bort locket som täcker sensorn.

Line drawing of a four-legged appliance with lid and front panel (no text or symbols)

Steg 4

Koppla in enheten.

Illustration of a blue electrical plug inserted into a wall socket with a cable (no text or symbols)

www.blueair.com/customer-support

Innhold

DustMagnet ^TM 204

A Kontrollpanel G Hovedfiltre

Technical line drawing of a cylindrical industrial fan or heater with heat dissipation fins (no text or symbols)

Trinn 3

Åpne den øverste filterluken, trekk ut hovedfilteret og fjern den beskyttende plastinnpakningen.

Illustration of a smart air conditioner unit with airflow arrows indicating process flow (no text or symbols)

Trinn 2

Fest de fire bena på enheten ved å skru dem på.

Diagram of a cylindrical device with three blue handles and a central fan, showing internal components (no text or symbols)

Trinn 4

Illustration of a smart air conditioner unit with a device inside and airflow arrows indicating process (no text or symbols)

Trinn 5

Åpne den nederste filterluken, trekk ut hovedfilteret og fjern den beskyttende plastinnpakningen.

Illustration of a portable air purifier with a side-mounted drain and blue vent, showing internal components and airflow direction (no text or symbols)

Trinn 7

Illustration of a portable air purifier with blue insulation and a side panel, showing internal components and airflow direction (no text or symbols)

Trinn 8

Illustration of a blue electrical plug inserted into a wall socket, with a cable being inserted (no text or symbols)

Hand icon showing a finger pressing a button with a power symbol (no text or labels)

Five horizontal color bars in red, orange, yellow, green, cyan, and white (no text or symbols)

Svært forurenset

Noe forurenset

Moderat

Bra

Utmerket

Illustration of a portable air conditioner unit with blue handle and cooling fan (no text or symbols)

Trinn 3

Illustration of a portable air conditioner unit with a paper feed tray and top panel (no text or symbols)

Trinn 5

Illustration of a portable air conditioner unit with a blue handle and top panel, no text or symbols present.

Trinn 6

Sett inn støpselet.

Illustration of a blue electrical plug inserted into a wall socket with a cable (no text or symbols)

Bytte hovedfiltrene

Illustration of a multi-tiered appliance with blue and gray compartments, showing airflow or movement arrows (no text or symbols)

Trinn 3

Ta ut og kast de gamle hovedfiltrene.

Illustration of a kitchen appliance with two rectangular blocks and a cylindrical drawer, alongside a separate view of its interior space (no text or symbols)

Trinn 5

Lukk de to filterlukene.

Illustration of a portable air conditioner unit with blue airflow arrows indicating airflow direction (no text or symbols)

Trinn 4

Isometric illustration of a modular appliance with blue compartments and a top panel (no text or symbols)

Trinn 6

Sett inn støpselet.

Illustration of a blue electrical plug inserted into a wall socket with an arrow indicating direction (no text or symbols)

Trinn 3

Technical line drawing of a cylindrical device with internal components and mounting feet (no text or symbols)

Trinn 2

Line drawing of a four-legged appliance with lid and front panel (no text or symbols)

Trinn 4

Sett inn støpselet.

Illustration of a blue electrical plug inserted into a wall socket with a cable (no text or symbols)

A Ohjauspaneeli

G Pääsuodattimet

B Ilmanpoistoaukko

C Ilmanottoaukko I Suodattimen luukku

Technical line drawing of a cylindrical industrial or thermal device with heat dissipation fins and mounting holes (no text or symbols)

Vaihe 3

Illustration of a smart air conditioner unit with airflow arrows indicating process flow (no text or symbols)

Vaihe 2

Diagram of a cylindrical device with three blue handles and a central fan, showing internal components (no text or symbols)

Vaihe 4

Illustration of a smart air conditioner unit with a device inside and airflow arrows indicating process (no text or symbols)

Vaihe 5

Illustration of a portable air purifier with a side-mounted drain and blue vent, showing internal components and airflow direction (no text or symbols)

Vaihe 7

Illustration of a portable air purifier with blue insulation and a side panel, showing internal components and airflow direction (no text or symbols)

Vaihe 8

Illustration of a blue electrical plug inserted into a wall socket with a cable, showing a directional arrow (no text or symbols)

Hand icon showing a finger pressing a button with an 'Power' symbol (no text or numbers present)

Five horizontal color bars in red, orange, yellow, green, blue, and white (no text or symbols)

Erittäin huono

Heikko

Kohtuullinen

Hyvä

Erinomainen

Line drawing of a portable air conditioner unit with blue handle and cooling fan (no text or symbols)

Vaihe 3

Illustration of a portable air conditioner unit with a blue tray and top panel (no text or symbols)

Vaihe 5

Illustration of a portable air conditioner unit with a blue handle and side panel (no text or symbols)

Vaihe 6

Illustration of a blue electrical plug inserted into a wall socket with a cable (no text or symbols)

Vaihe 2

Avaa molemmat suodatinluukut.

Illustration of a multi-tiered appliance with blue and gray compartments, showing airflow direction (no text or symbols)

Vaihe 3

Illustration of a portable air conditioner unit with two blue filter panels and a paper stack, alongside a separate view of its internal components (no text or symbols present)

Vaihe 5

Sulje molemmat suodatinluukut.

Illustration of a portable air conditioner unit with blue airflow arrows indicating airflow direction (no text or symbols)

Vaihe 4

Illustration of a multi-tiered appliance with blue compartments and a gray top unit (no text or symbols)

Vaihe 6

Illustration of a blue electrical plug inserted into a wall socket with a cable, showing a directional arrow (no text or symbols)

Hoito ja huolto

Yleisohjeet

Vaihe 3

Technical line drawing of a cylindrical device with internal components and mounting feet (no text or symbols)

Vaihe 2

Line drawing of a four-legged appliance with lid and front panel (no text or symbols)

Vaihe 4

Illustration of a blue electrical plug inserted into a wall socket with a cable (no text or symbols)

Line drawing of a portable air purifier with labeled parts A and B (no text or symbols on the device itself)

Technical line drawing of a cylindrical industrial or thermal device with heat dissipation fins and mounting holes (no text or symbols)

Trin 3

Illustration of a smart air conditioner unit with a blue tray and airflow arrows indicating process (no text or symbols)

Trin 2

Diagram of a cylindrical device with three blue handles and a central fan, showing internal components (no text or symbols)

Trin 4

Illustration of a smart air purifier with a device and airflow path (no text or symbols)

Trin 5

Illustration of a portable air purifier with cooling unit and digital display (no text or symbols)

Trin 7

Illustration of a blue electrical plug inserted into a wall socket with a cable (no text or symbols)

Trin 6

Illustration of a portable air purifier with blue insulation panels and a side panel, showing internal components (no text or symbols)

Trin 8

Hand icon with a finger pressing a button to the right (no text or symbols)

Five horizontal color bars in red, orange, yellow, green, cyan, and white (no text or symbols)

Meget forurenet

Let forurenet

Moderat

God

Fremragende

Illustration of a portable air conditioner unit with blue handle and cooling fan (no text or symbols)

Trin 3

Illustration of a portable air conditioner unit with a paper feed tray and top panel (no text or symbols)

Trin 5

Gentag trin 1-4 på det nederste forfilter.

Trin 4

Illustration of a portable air conditioner unit with a blue handle and side panel (no text or symbols)

Trin 6

Tilslut luftrenseren.

Illustration of a blue electrical plug inserted into a wall socket with a cable (no text or symbols)

Udskift hovedfiltrene

Illustration of a multi-tiered appliance with blue and gray compartments, showing airflow direction arrows (no text or symbols)

Trin 3

Illustration of a kitchen appliance with two rectangular blocks and a cylindrical drawer, alongside a separate view of its interior space (no text or symbols)

Trin 5

Luk de to filterluger.

Illustration of a portable air purifier with blue airflow arrows indicating flow direction (no text or symbols)

Trin 4

Isometric illustration of a modular appliance with blue compartments and a top panel (no text or symbols)

Trin 6

Tilslut luftrenseren.

Illustration of a blue electrical plug inserted into a wall socket with a cable, showing an upward arrow (no text or symbols)

Line drawing of a four-legged appliance with lid and front panel (no text or symbols)

Trin 3

Technical line drawing of a cylindrical device with internal components and mounting feet (no text or symbols)

Illustration of a blue electrical plug inserted into a wall socket with a cable (no text or symbols)

Besøg blueair.com/customer-support for at få personlig support

Garantiinformation

A Panel kendali G Filter utama
B Lubang udara keluar H Pra-filter
C Lubang udara masuk I Pintu filter
D Kipas dan motor
E Sensor kualitas udara
F Kaki

Technical line drawing of a cylindrical industrial or thermal device with heat exchanger and mounting flanges (no text or symbols)

Langkah 3

Buka pintu filter atas, tarik filter utama dan lepaskan pembungkus plastik pelindung.

Langkah 2

Diagram of a cylindrical device with blue indicator lights and a central fan, showing internal components (no text or symbols)

Langkah 4

Illustration of a smart air conditioner unit with airflow arrows indicating process flow (no text or symbols)

Illustration of a smart air conditioner unit with a device inside and airflow arrows indicating process (no text or symbols)

Langkah 5

Illustration of a portable air purifier with blue insulation and airflow indicators (no text or symbols)

Langkah 7

Sambungkan adaptor daya ke stopkontak dinding.

Illustration of a blue electrical plug inserted into a wall socket with an arrow indicating direction (no text or symbols)

Langkah 6

Illustration of a portable air purifier with blue insulation and labeled components (no text or symbols)

Langkah 8

Hand icon with a finger pressing a button to the right (no text or symbols)

Five horizontal color bars in red, orange, yellow, green, cyan, and white (no text or symbols)

Sangat Tercemar

Agak Tercemar

Sedang

Bagus

Sangat Baik

Data tidak tersedia

Program langganan filter Blueair

Langkah 2

Buka pintu filter atas dan tarik keluar prafilter.

Illustration of a portable air conditioner unit with blue airflow arrow (no text or symbols)

Langkah 3

Illustration of a portable kitchen appliance with a drawer and top shelf (no text or symbols)

Langkah 5

Ulangi langkah 1-4 di pra-filter bawah.

Langkah 4

Illustration of a portable air conditioner unit with a blue airflow arrow (no text or symbols)

Langkah 6

Sambungkan kabel daya unit.

Illustration of a blue electrical plug inserted into a wall socket with a cable (no text or symbols)

Mengganti filter utama

Illustration of a multi-tiered appliance with blue and gray compartments, showing airflow direction arrows (no text or symbols)

Langkah 3

Lepas dan buang filter utama lama.

Illustration of a portable air conditioner unit with two blue filter panels and a separate paper holder (no text or symbols)

Langkah 5

Illustration of a portable air purifier with blue airflow arrows indicating internal components (no text or symbols)

Langkah 4

Isometric illustration of a modular appliance with blue compartments and a top panel (no text or symbols)

Langkah 6

Sambungkan kabel daya unit.

Illustration of a blue electrical plug inserted into a wall socket with a cable, showing an upward arrow (no text or symbols)

Langkah 3

Technical line drawing of a cylindrical device with internal components and mounting feet (no text or symbols)

Langkah 2

Line drawing of a four-legged appliance with lid and front panel (no text or symbols)

Langkah 4

Sambungkan kabel daya unit.

Illustration of a blue electrical plug inserted into a wall socket with a cable, showing a directional arrow (no text or symbols)

المرشحات الرئيسية G

المرشحات الأولية H

فتحة المرشح

Diagram of a portable air conditioner unit with blue indicator lights and ventilation slots (no text or labels)

Technical line drawing of a cylindrical industrial fan or heater with heat dissipation fins (no text or symbols)

Illustration of a smart air conditioner unit with airflow arrows indicating process (no text or symbols)

Illustration of a smart air conditioner unit with airflow arrows indicating process (no text or symbols)

Illustration of a portable air purifier with blue insulation and a side panel, showing internal components and airflow paths (no text or symbols)

Illustration of a portable air purifier with blue insulation and cooling unit (no text or symbols)

Simple line drawing of a hand pressing a button with a power symbol (no text or labels)

Illustration of a blue electrical plug inserted into a wall socket with a cable, showing a directional arrow (no text or symbols)

Illustration of a portable air conditioner unit with blue handle and cooling fins (no text or symbols)

Illustration of a portable air conditioner unit with cooling fins and a blue airflow arrow (no text or symbols)

Line drawing of a portable air conditioner unit with a blue plastic bag attached to the side panel (no text or symbols)

Illustration of a blue electrical plug inserted into a wall socket with a cable (no text or symbols)

غير المرشح الرئيسي

Illustration of a multi-tiered air purifier with blue handlebars and airflow arrows (no text or symbols)

Illustration of a smart air conditioner unit with blue plastic compartments and a top-mounted fan (no text or symbols)

6 alخطوة

وصل الوحدة.

Illustration of a blue electrical plug inserted into a wall socket with a cable, showing an upward arrow (no text or symbols)

3 alخطوة

Illustration of a portable kitchen appliance with two blue filter panels and a white cylindrical tray (no text or symbols)

5 alخطوة

Illustration of a portable air conditioner unit with blue airflow arrows indicating internal components (no text or symbols)

الرعية والصيانة

عام

Line drawing of a four-legged cylindrical device with lid and top panel (no text or symbols)

4 alخطوة

وصل الوحدة.

3 alخطوة

Illustration of a blue electrical plug inserted into a wall socket, with a cable inserted (no text or symbols)

Technical line drawing of a mechanical device with internal components and mounting base (no text or symbols)

www.blueair.com/customer-support لل九十اصل مع Blueair

معلومات الضمان

Blueair AB Middle East

Jafza One, Office No. AB1503

Jebel Ali Free Zone

P.O. Box No. 263947

Dubai, United Arab Emirates

Tel:[phone]

[e-mail]

Blueair Inc.

125 S Clark

Suite 2000

Chicago, IL. 60603

USA

Tel: [phone]

[e-mail]

Blueair (Shanghai) Trading Co. Ltd.

Room 1001, City Gateway

No. 398 North Caoxi Road

Xuhui Distr, Shanghai,

China

Tel: [phone]

[e-mail]

Blueair Asia Ltd.

Unit 8C, 8/F, MG Tower,

133 Hoi Bun Road,

Kwun Tong, Kowloon,

Hong Kong

Tel: [phone]

[e-mail]
