USER MANUAL KEMS378SBL05 KITCHENAID

BUILT-IN CONVECTION MICROWAVE OVEN Use &Care Guide For questions about features, operation/performance, parts accessories or service, call: 1-800-422-1230 or visit our website at www.kitchenaid.com In Canada, call for assistance, installation and service, call: 1-800-807-6777 or visit our website at www.KitchenAid.ca

You can be killed or seriously injured if you don't immediately You can be killed or seriously injured if you don'tfollow All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.This is the safety alert symbol.This symbol alerts you to potential hazards that can kill or hurt you and others.All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”These words mean:follow instructions.instructions. DANGER WARNING

SAVE THESE INSTRUCTIONS

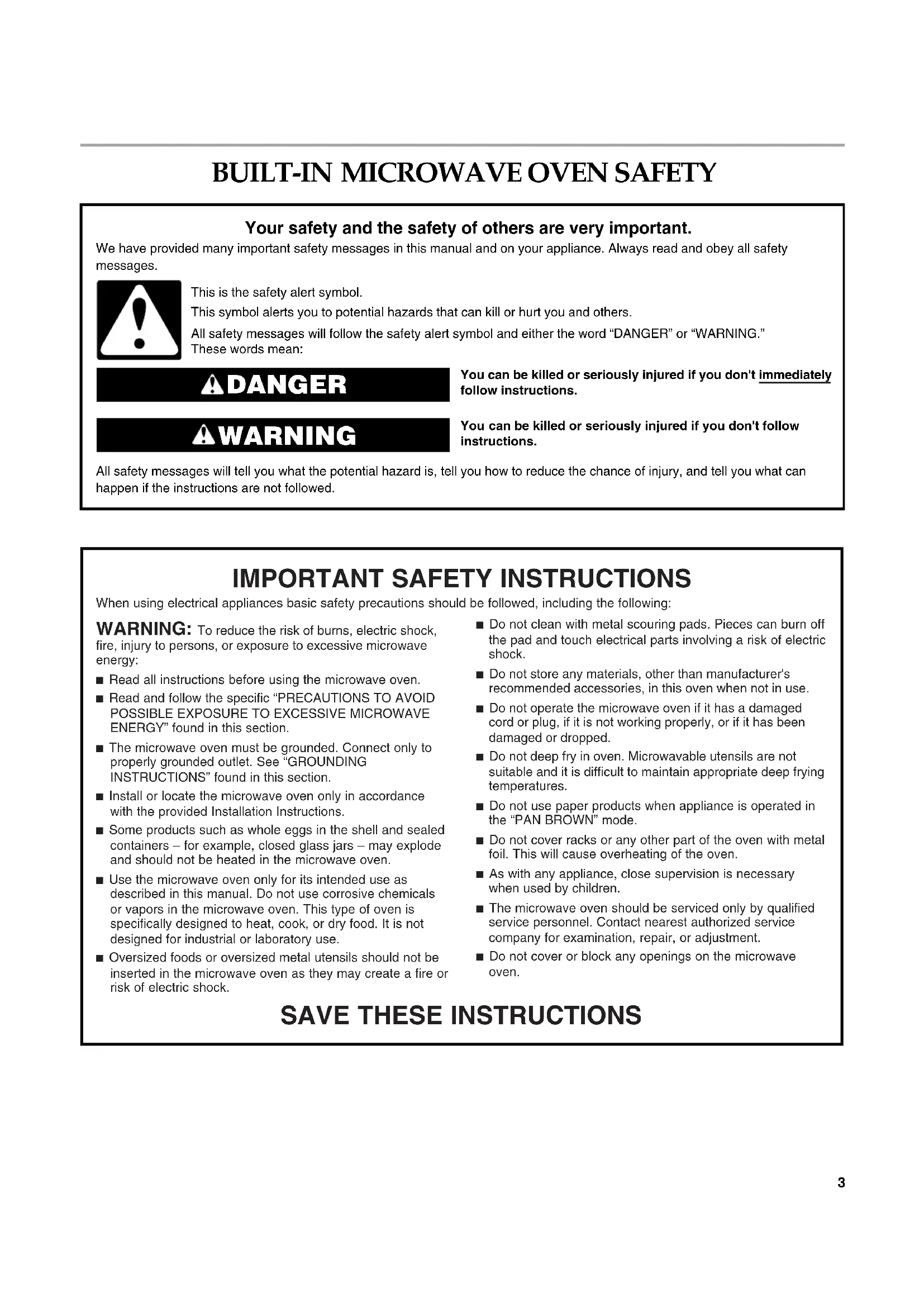

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances basic safety precautions should be followed, including the following:

WARNING: To reduce the risk of burns, electric shock,

fire, injury to persons, or exposure to excessive microwave energy: ■ Read all instructions before using the microwave oven.■ Read and follow the specific “PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY” found in this section.■ The microwave oven must be grounded. Connect only to properly grounded outlet. See “GROUNDING INSTRUCTIONS” found in this section.■ Install or locate the microwave oven only in accordance with the provided Installation Instructions.■ Some products such as whole eggs in the shell and sealed containers – for example, closed glass jars – may explode and should not be heated in the microwave oven. ■ Use the microwave oven only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in the microwave oven. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use.■ Oversized foods or oversized metal utensils should not be inserted in the microwave oven as they may create a fire or risk of electric shock.■ Do not clean with metal scouring pads. Pieces can burn off the pad and touch electrical parts involving a risk of electric shock.■ Do not store any materials, other than manufacturer's recommended accessories, in this oven when not in use.■ Do not operate the microwave oven if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped.■ Do not deep fry in oven. Microwavable utensils are not suitable and it is difficult to maintain appropriate deep frying temperatures.■ Do not use paper products when appliance is operated in the “PAN BROWN” mode.■ Do not cover racks or any other part of the oven with metal foil. This will cause overheating of the oven.■ As with any appliance, close supervision is necessary when used by children.■ The microwave oven should be serviced only by qualified service personnel. Contact nearest authorized service company for examination, repair, or adjustment.■ Do not cover or block any openings on the microwave oven.4 Electrical Requirements Observe all governing codes and ordinances. The microwave oven is connected to both 120-volt sides of the 208/240-volt circuit required for electrical connections. If the incoming voltage to the microwave oven is less than 120 volts, cooking times may be longer. Have a qualified electrician check your electrical system.

SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

■ Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID.To reduce the risk of injury to persons:– Do not overheat the liquid.– Stir the liquid both before and halfway through heating it.– Do not use straight-sided containers with narrow necks.– After heating, allow the container to stand in the microwave oven for a short time before removing the container.– Use extreme care when inserting a spoon or other utensil into the container.■ Do not store the microwave oven outdoors. Do not use this product near water - for example, near a kitchen sink, in a wet basement, or near a swimming pool, and the like.■ See door surface cleaning instructions in the “Oven Care” section.■ To reduce the risk of fire in the oven cavity:– Do not overcook food. Carefully attend the microwave oven if paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.– Remove wire twist-ties from paper or plastic bags before placing bags in oven.– If materials inside the oven should ignite, keep oven door closed, turn oven off, and disconnect the power cord, or shut off power at the fuse or circuit breaker panel.– Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use.

(a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposureto microwave energy. It is important not to defeat ortamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate onsealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that thereis no damage to the: (1) Door (bent), (2) Hinges and latches (broken or loosened), (3) Door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyoneexcept properly qualified service personnel. This device complies with Part 18 of the FCC Rules. For a permanently connected microwave oven:The microwave oven must be connected to a grounded, metallic, permanent wiring system, or an equipment grounding conductor should be run with the circuit conductors and connected to the equipment grounding terminal or lead on the microwave oven. GROUNDING INSTRUCTIONS

This manual covers different models. The microwave oven you have purchased may have some or all of the parts and features listed. The location and appearance of the features shown here may not match those of your model. Turntable The turntable rotates in both directions to help cook food more evenly. Do not operate the microwave oven without having the turntable in place. See “Assistance or Service” to reorder any of the parts.The raised, curved lines in the center of the turntable bottom fit between the 3 spokes of the hub. The hub turns the turntable during microwave oven use. The rollers on the support should fit inside the turntable bottom ridge. Convection Grid The convection grid provides optimal heat circulation for convection cooking.■ Grid will become hot. Always use oven mitts or pot holders when handling.■ Do not allow the grid to touch the inside cavity walls, ceiling or floor. ■ Always use the turntable. ■ Do not store the grid in the oven. Damage to the oven could result if someone unintentionally turns on the microwave oven.■ Two-level cooking is not recommended.■ Do not place popcorn bags on the grid.■ The grid is designed specifically for this oven. Do not attempt to use any other grid or rack in this oven.■ See “Assistance or Service” section to reorder. Crisper Pan and Handle The crisper pan, with its nonstick surface and detachable handle, has been specifically designed for microwave use, and is ideal for pan-frying (pan-browning) foods in the microwave oven.■ The crisper pan will become hot. Always use the handle and oven mitts or pot holders when handling. Place gripping end on the edge of pan, squeeze handle, and lift pan.■ Do not allow the crisper pan or handle to touch the inside cavity walls, ceiling or floor. ■ Do not place crisper pan on the convection grid. Always use the turntable as a support for the crisper pan.■ Do not use another metal object with the crisper pan.■ Do not place hot Crisper Pan directly on heat-sensitive surfaces. Damage may occur.■ The crisper pan is designed specifically for this oven. Do not use it in any other oven.■ Use only wooden or plastic cooking utensils to help avoid scratches.■ See “Assistance or Service” section to reorder.A. Electronic oven controlB. Convection element and fan (hidden behind back panel)C. Light (inaccessible, in ceiling)D. Broil element (can be lowered)E. TurntableF. Metal shielded windowG. Lower oven (on combination models, see separate Use and Care Guide)H. Door safety lock systemI. Dual microwave emissionJ. Cooking guide labelK. Model and serial plate (on right mounting rail, single oven models)Parts and Features not shownSteamerConvection gridCrisper pan and handleBaking trayA. TurntableB. Support and rollersC. Hub

Baking Tray ■ Baking Tray can be used only with convection cooking. ■ Do not use in combination with microwave cooking.■ Baking Tray will become hot. Always use oven mitts or pot holders when handling. ■ See “Positioning Baking Tray” section before using.■ See “Assistance or Service” section to reorder. KITCHENAID™ SteamerVessel Use the KITCHENAID™ Steamer Vessel with the Steam Cook feature to steam foods. ■ The steamer vessel will become hot. Always use oven mitts or pot holders when handling. ■ Steamer vessel is designed to be used only in the microwave. Do not use in a convectional- or combination-type oven, or any other convection function, crisp or on electric or gas burners. ■ Do not use plastic wrap or aluminum foil when covering the food. ■ Always place the steamer on the glass turntable. Check that the turntable turns freely before starting the oven. ■ Do not remove lid while the bowl is inside the oven, as the rush of steam will disrupt the sensor settings. ■ To avoid scratching, use plastic utensils.■ Do not overfill with water. See steam chart in the “Steam Cooking” section for the amount of water recommended. Lid: Always use the lid when steaming. Place directly over the insert and base or just the base. Insert: Use when steam cooking to keep foods such as fish and vegetables out of the water. Place insert with food directly over the base. Do not use when simmering. Base: For steam cooking, place water in base. For simmering foods such as rice, potatoes, pasta and vegetables, place food and water/liquid in base. See “Assistance or Service” section to order replacements. See “General Cleaning” section for instructions on cleaning. A. Lid B. Insert C. Base

This manual covers different models. The oven you have purchased may have some or all of the items listed. The locations and appearances of the items shown here may not match those of your model. Combination Oven Models Single Oven Models A. Lower oven controls (see separate Use and Care Guide) B. Timer C. Number keys D. Upper microwave oven display E. Cook time F. Microwave popcorn G. Crisping H. Microwave cooking power

J. Microwave start/add a minute K. Microwave soften/melt L. Microwave custom defrost M. Microwave custom reheating N. Microwave steam cooking O. EasyConvect™ conversion cooking P. O ptions Q. Clock set/start R. Lower oven start/control lock S. Lower oven display % OZ

A. Microwave steam cooking B. Cook time C. Microwave cooking power D. Microwave popcorn E. Microwave soften/melt F. Crisping G. Microwave oven display H. Timer

A FEB C D G H JI K L M N O P8 Display(s) When power is first supplied to the oven, the clock will be flashing the message “clock-enter time.” Time can be entered by touching either CLOCK SET/START or START to allow operation. To allow operation without setting a time, touch CLOCK SET/ START, START or OFF. Lower Oven Display (combination oven models) When the lower oven is in use, this display shows the oven temperature, heat source(s) and start time. In addition, during Timed Cooking, this display shows a time countdown and the stop time (if entered). If “Err” appears on the lower oven display, an error condition has occurred. Call for service. See the “Assistance or Service” section. When the lower oven is not in use, this display shows the time of day or Time countdown. Upper Microwave Oven Display (combination oven models) When the upper oven is in use, this display shows the upper oven heat source(s), cooking power, quantities, weights and/or help prompts and time countdown. If “Err” appears on the upper oven display, an error condition has occurred. Call for service. See the “Assistance or Service” section. When the upper oven is not in use, this display is blank. Microwave Oven Display (single oven models) When the microwave oven is in use, the display shows the heat source(s), cooking power, quantities, weight and/or help prompts and time countdown. If “Err” appears on the display, an error condition has occurred. Call for service. See the “Assistance or Service” section. Time of Day/Timer Display When the microwave oven is not in use, the display shows the time of day or time countdown. NumberCodes The oven is preset with shortcut number codes. A number code includes one or more of the following; food category, cooking power, cook time and food quantity or weight. See the code charts in the “Custom Reheating,” “Custom Defrosting,” “Popcorn,” “Soften and Melt,” and “EasyConvect™” sections for additional information. Start/Add a Minute The Start/Add a Minute key controls 3 separate functions for the single built-in microwave: Start, Add a Minute and Control Lock. Start The Start/Add a Minute key begins any upper or single oven cooking function once enough data has been entered and the door is closed. If the Start key is not touched within 5 seconds after touching another key, “START?” will appear on the oven display as a reminder. If the Start key is not touched within 5 minutes after touching another key, the oven display will return to the inactive mode and the programmed function will be canceled. If cooking is interrupted by opening the door, touching Start/Add a Minute after the door is closed again will resume the preset cycle (except for sensor cooking). Add a Minute Touching Start/Add a Minute when the microwave oven is off will start 1 minute of cook time at 100% power. Touching Start/Add a Minute while the microwave oven is operating will add cook time to the current cycle by 1 minute. Multiple minutes can be added by repeatedly touching Start/Add a Minute. Control Lock The Control Lock shuts down the control panel keys to avoid unintended use of the oven. The Control Lock will remain set after a power failure, if set before the power failure occurs. When the control is locked, only the TIMER SET/START and TIMER OFF keys will function. The Control Lock is preset unlocked, but can be locked. To Lock Control: Touch and hold START or START/ADD A MINUTE for approximately 5 seconds, until “control locked” appears on the lower text line and a lock icon appears in the display. To Unlock Control: Repeat to unlock and remove “control locked” and lock icon from the display. Lower Oven Display (combination oven models) A. Oven cavity symbol B. Time of day/timer display Upper Microwave Oven Display (combination oven models) A. Microwave cavity symbol B. Timer display Microwave Oven Display (single oven models) A. Microwave cavity symbol B. Time of day/timer display

Off The OFF key stops any upper or single oven function except for the Clock, Timer and Control Lock. The oven will also turn off when the door is opened. When the door is opened, the element(s) and fan will turn off, but the oven light will remain on. Close the door and touch START to resume the preset cycle (except for sensor cooking). The oven cooling fan may continue to operate even after an oven function has been canceled or completed, depending on the oven temperature. Clock This is a 12-hour clock. Before setting, make sure the oven, Timer, and Timed Cooking are off. To Set:

1. Touch CLOCK SET/START.

2. Touch the number keys to set the time of day.

3. Touch CLOCK SET/START again.

Tones Tones are audible signals, indicating the following: One beep ■ Valid key touch ■ Oven is preheated ■ Function has been entered One chime ■ Preheat cycle has been completed Three beeps ■ Invalid key touch ■ End of a cooking cycle Three chimes ■ When timer reaches zero Includes using the Timer for functions other than cooking. Four beeps ■ Start key touched when door is open ■ Door opened during a sensor function Tone Volume The volume is preset at high, but can be changed to low. To Change: Touch OPTIONS and then “3” to toggle volume between high and low settings. All Tones All tones are preset on, but can be turned off. To Turn Off/On: Touch OPTIONS and then “2” to toggle tones between On and Off settings. End-of-Cycle and Reminder Tones The Timed Cooking end-of-cycle and reminder tones are preset on, but can be turned off. If all tones have been turned off, the end-of-cycle and reminder tones cannot be independently turned on. To Tur n Tones Off/On: Touch OPTIONS and then “4” to toggle tones between On and Off settings. Options (single oven models) The OPTIONS selection key allows you access to 5 hidden functions within the Electronic Oven Control. These hidden functions allow you to change the oven temperature between Fahrenheit and Celsius, turn the audible signals, prompts, and turntable on and off. To Use:

1. Touch OPTIONS. The oven display will scroll through the

various options, starting at 1 and ending automatically at 5. You can also touch the Options key repeatedly to manually scroll through the list of options.

2. Touch the number key for the specific option to toggle the

function setup. Use the following chart as a guide. OPTIONS CHART Fahrenheitand Celsius The temperature is preset in Fahrenheit; however it can be changed to Celsius. To Change: Touch OPTIONS and then “1” to toggle temperature between Fahrenheit and Celsius settings. When in Fahrenheit, “°F” follows the oven temperature. When in Celsius, “°C” follows the oven temperature. Timer The Timer can be set in minutes and seconds or hours and minutes and counts down the set time. NOTE: The Timer does not start or stop the oven. To Set:

1. Touch TIMER SET/START.

Touch again to switch between MIN/SEC and HR/MIN. If no action is taken, the control will continue to wait for a length of time to be entered.

2. Touch the number keys to set the length of time.

3. Touch TIMER SET/START.

If the key is not touched, the control will continue to wait for Timer Set/Start to be touched. When the set time ends, if enabled, end-of-cycle tones will continuously repeat until the TIMER OFF key is touched. If the “Off” key is touched, the oven will turn off; however, the Timer can only be turned off using the Timer “Off” key.

A magnetron in the oven produces microwaves which reflect off the metal floor, walls and ceiling and pass through the turntable and appropriate cookware to the food. Microwaves are attracted to and absorbed by fat, sugar and water molecules in the food, causing them to move, producing friction and heat which cooks the food. ■ Do not lean on or allow children to swing on the microwave oven door. ■ Do not operate microwave oven when it is empty. ■ The turntable must be in place and correct side up when microwave oven is in use. Do not use if turntable is chipped or broken. See “Assistance or Service” section to reorder. ■ Baby bottles and baby food jars should not be heated in microwave oven. ■ Clothes, flowers, fruit, herbs, wood, gourds, paper, including brown paper bags and newspaper, should not be dried in microwave oven. ■ Do not use the microwave oven for canning, sterilizing or deep frying. ■ Paraffin wax will not melt in the microwave oven because it does not absorb microwaves. ■ Use oven mitts or pot holders when removing containers from microwave oven. ■ Do not overcook potatoes. At the end of the recommended cook time, potatoes should be slightly firm. Let potatoes stand for 5 minutes. They will finish cooking while standing. ■ Do not cook or reheat whole eggs inside the shell. Steam buildup in whole eggs may cause them to burst. Cover poached eggs and allow a standing time. Food Characteristics When microwave cooking, the amount, size and shape, starting temperature, composition and density of the food affect cooking results. Amount of Food The more food heated at once, the longer the cook time needed. Check for doneness and add small increments of time if necessary. Size and Shape Smaller pieces of food will cook more quickly than larger pieces, and uniformly shaped foods cook more evenly than irregularly shaped food. Starting Temperature Room temperature foods will heat faster than refrigerated foods, and refrigerated foods will heat faster than frozen foods. Composition and Density Foods high in fat and sugar will reach a higher temperature, and will heat faster than other foods. Heavy, dense foods, such as meat and potatoes, require a longer cook time than the same size of a light, porous food, such as cake. Cooking Guidelines Covering Covering food helps retain moisture, shorten cook time and reduce spattering. Use the lid supplied with cookware. If a lid is not available, wax paper, paper towels or plastic wrap approved for microwave ovens may be used. Plastic wrap should be turned back at one corner to provide an opening to vent steam. Condensation on the door and cavity surfaces is normal during heavy cooking. Stirring and Turning Stirring and turning redistribute heat evenly to avoid overcooking the outer edges of food. Stir from outside to center. If possible, turn food over from bottom to top. Arranging If heating irregularly shaped or different sized foods, arrange the thinner parts and smaller sized items toward the center. If cooking several items of the same size and shape, place them in a ring pattern, leaving the center of the ring empty. Piercing Before heating, use a fork or small knife to pierce or prick foods that have a skin or membrane, such as potatoes, egg yolks, chicken livers, hot dogs, and sausage. Prick in several places to allow steam to vent. Shielding Use small, flat pieces of aluminum foil to shield the thin pieces of irregularly shaped foods, bones and foods such as chicken wings, leg tips and fish tail. See “Aluminum Foil and Metal” first. Standing Time Food will continue to cook by the natural conduction of heat even after the microwave cooking cycle ends. The length of standing time depends on the volume and density of the food. Turntable On/Off For best performance, the turntable should be on during microwave cooking. If using oversized cookware that does not turn freely on the turntable, turn the turntable off. Select turntable “Off” on the Option menu. When microwave cooking with the turntable off, food should be turned halfway through the cooking process.11 Cookware and Dinnerware Cookware and dinnerware must fit on the turntable. Always use oven mitts or pot holders when handling because any dish may become hot from heat transferred from the food. Do not use cookware and dinnerware with gold or silver trim. Use the following chart as a guide, then test before using. To Test Cookware or Dinnerware for Microwave Use:

1. Place cookware or dinnerware in microwave oven with

1 cup (250 mL) of water beside it.

2. Cook at 100% cooking power for 1 minute.

Do not use cookware or dinnerware if it becomes hot and the water stays cool. Aluminum Foil and Metal Always use oven mitts or pot holders when removing dishes from the microwave oven. Aluminum foil and some metal can be used in the microwave oven. If not used properly, arcing (a blue flash of light) can occur and cause damage to the microwave oven. OK for Use Racks and bakeware supplied with the microwave oven (on some models), aluminum foil for shielding, and approved meat thermometers may be used with the following guidelines: ■ Do not allow aluminum foil or metal to touch the inside cavity walls, ceiling or floor. ■ Always use the turntable. ■ Do not allow contact with another metal object during microwave cooking. Do Not Use Metal cookware and bakeware, gold, silver, pewter, non- approved meat thermometers, skewers, twist ties, foil liners such as sandwich wrappers, staples and objects with gold or silver trim or a metallic glaze should not be used in the microwave oven. Positioning Baking Tray Baking tray can only be used with convection cooking. Place baking tray on slide rails as shown below. Push in tray to stop position. Check that the baking tray is level. Use baking tray only in the recommended position. Microwave Cooking Power Many recipes for microwave cooking specify which cooking power to use by percent, name or number. For example, 70%=7=Medium-High. Use the following chart as a general guide for the suggested cooking power of specific foods.

MICROWAVE COOKING POWER CHART

MATERIAL RECOMMENDATIONS Aluminum Foil, Metal See “Aluminum Foil and Metal” section. Browning Dish Bottom must be at least ³⁄₁₆" (5 mm) above the turntable. Follow manufacturer’s recommendations. Ceramic Glass, Glass Acceptable for use. China, Earthenware Follow manufacturer’s recommendations. Melamine Follow manufacturer’s recommendations. Paper: Towels, Dinnerware, Napkins Use nonrecycled and those approved by the manufacturer for microwave oven use. Plastic: Wraps, Bags, Covers, Dinnerware, Containers Use those approved by the manufacturer for microwave oven use. Pottery and Clay Follow manufacturer’s recommendations. Silicone Bakeware Follow manufacturer’s recommendations. Straw, Wicker, Wooden Containers Do not use in microwave oven. Styrofoam

Do not use in microwave oven. Wax Paper Acceptable for use. †®STYROFOAM is a Registered Trademark of The Dow Chemical Company. A. Slide rail B. Baking tray

PERCENT/NAME NUMBER USE

100%, High (default setting) 10 Quick heating convenience foods and foods with high water content, such as soups, beverages and most vegetables. 90% 9 Cooking small, tender pieces of meat, ground meat, poultry pieces and fish fillets. Heating cream soups. 80% 8 Heating rice, pasta or casseroles. Cooking and heating foods that need a cook power lower than high. For example, whole fish and meat loaf. 70%, Medium-High 7 Reheating a single serving of food.

B12 To Set a Cooking Power other than 100%:

1. Touch the number keys to set a length of time to cook.

The display will count down the cook time. When the stop time is reached, the oven will shut off automatically and “cooking complete” will appear on the display. If enabled, end-of-cycle tones will sound, then reminder tones will sound every minute.

5. Touch OFF or open the door to clear the display and/or stop

reminder tones. Doneness Doneness is a function used for adjusting the cook time. This feature is used on all sensor and non-sensor functions with the exception of Manual cooking, Popcorn, EasyConvect™, Custom Reheat (beverage-manual), Custom Defrost (manual), Steam (manual), and Crisp. The 3 Doneness levels are Normal (default), More or Less and will appear once activated on the lower text line of the upper oven display. Doneness can be changed only before starting the cycle. To Change Doneness Setting: After setting a function, the Doneness setting can be changed if desired. This can be done before or after the “START?” prompt appears in the display. Touch the POWER key repeatedly to toggle through Doneness options of Normal, More, or Less. Sensor Cook The Sensor Cook function is used in Custom Reheat (dinner plate) and Steam Cook. During the Sensor Cook function a sensor automatically adjusts for the cook time and power level. The microwave oven display will show the “Maximum Time Remaining” prompt and the time countdown once the sensor identifies the cooking duration. If the microwave oven door is opened during a sensor function the microwave oven will turn off, and any additional operations will be canceled. For best cooking performance: Before using a sensor cook function, make sure power has been supplied to the microwave oven for at least 2 minutes, the room temperature is not above 95°F (35°C), and the outside of the cooking container and the microwave oven cavity are dry. Manual Cooking To Use:

1. Touch COOK TIME and then number keys to set a length of

Touch the number keys to set a length of time to cook. Time can be set up to 99 minutes and 99 seconds. If using 100% cook power, skip to Step 3.

2. Touch POWER then enter the desired power level. See the

Microwave Cooking Power Chart in the “Microwave Cooking Power” section. NOTE: Doneness function is not active for manual cooking.

The display will count down the cook time. Touching Start/Add a Minute while the microwave oven is operating will add cook time to the current cycle by 1 minute. Multiple minutes can be added by repeatedly touching Start/ Add a Minute. When the stop time is reached, the oven will shut off automatically and “cooking complete” will appear on the oven display. If enabled end-of-cycle tones will sound, then reminder tones will sound every minute.

4. Touch OFF or open the door to clear the display and/or stop

reminder tones. Crisper Pan Frying When the crisper pan is used with microwaves, it is like a frying pan or griddle, ideal for French toast, burgers, eggs, stir-frying and sautéing. Before using, see “Crisper Pan and Handle” section and the Crisper Pan Frying Chart. Always use the turntable “On” option when using the crisper pan (default setting). Before Use: Preheat pan for 3 minutes on 100% power. Use 100% power for cooking. Before crisper pan frying, brush crisper pan with ½ tsp (3 mL) of oil or spray with nonstick cooking spray. Arrange food on crisper pan. Place pan on turntable. To Use:

1. Touch cook time and then number keys to set a length of time

Touch the number keys to set a length of time to cook. NOTE: Doneness function is not active for manual cooking.

The display will count down the cook time. When the stop time is reached, the oven will shut off automatically and “cooking complete” will appear on the oven display. If enabled end-of-cycle tones will sound, then reminder tones will sound every minute. 60% 6 Cooking sensitive foods such as cheese and egg dishes, pudding and custards. Cooking non-stirrable casseroles, such as lasagna. 50%, Medium 5 Cooking ham, whole poultry and pot roasts. Simmering stews. 40% 4 Melting chocolate. Heating bread, rolls and pastries. 30%, Medium- Low, Defrost 3 Defrosting bread, fish, meats, poultry and precooked foods. 20% 2 Softening butter, cheese, and ice cream. 10%, Low 1 Taking chill out of fruit.

reminder tones. Use the following chart as a guide.

CRISPER PAN FRYING CHART

*Times are approximate and may be adjusted for individual tastes. Custom Reheat Times and cooking powers have been preset for reheating a number of food types. Manual Reheat requires that a cook time and a power level be entered if using other than 70% cook power. Use the following chart as a guide.

Touch number key to select food type from the Custom Reheat Chart

Touch CUSTOM REHEAT repeatedly to scan and select food settings. For example, to select the Sauce setting, Custom Reheat must be touched twice.

2. Touch number keys to enter quantity (slices or cups).

To change the doneness setting, touch the Power key before or after the “START?” prompt is displayed to toggle through and select a doneness of Normal, More, or Less.

When the stop time is reached, the oven will shut off automatically and “reheat complete” will appear on the oven display. If enabled end-of-cycle tones will sound, then reminder tones will sound every minute.

Touch CUSTOM REHEAT repeatedly to scan to the Manual setting. If using 70% cook power, skip to Step 4.

5. Touch the number key to set a length of time to cook. Time

can be set up to 99 minutes and 99 seconds. NOTE: Doneness function is not active for manual reheating.

6. Touch START. The upper oven display will count down the

reheat time. When the stop time is reached, the oven will shut off automatically and “reheat complete” will appear on the oven display. If enabled end-of-cycle tones will sound, then reminder tones will sound every minute.

Eggs, Fried 2 eggs 4 eggs Side 1: 30-45 sec Side 2: 30-45 sec Side 1: 1 min Side 2: 45 sec Times are for over- easy doneness. Omelet 4 eggs 2-3 min Mix eggs and 4 tbs of water. Sausage Patties

1.5 oz (42.5 g) each

4 patties 8 patties Side 1: 2 min Side 2: 1 min 30 sec Side 1: 3 min Side 2: 2 min 30 sec Cook until 160°F (70°C) Vegetables, stir-fry, 2 cups (500 mL) 4-5 min Cut vegetables in equal sizes. Stir halfway through cooking. Nuts 1 cup (250 mL) 2 cups (500 mL) 3 min 4 min Stir halfway through cooking.

Dinner Plate Place food on plate. Cover with plastic wrap and vent. Let stand 2-3 minutes after reheating. 1 8-16 oz (227-454 g) Sauce Place in microwave-safe container. Cover with plastic wrap and vent. Stir and let stand 2-3 minutes after reheating. 2 1-4 cups (250 mL-1 L) Soup Place in microwave-safe container. Cover with plastic wrap and vent. Stir and let stand 2-3 minutes after reheating. 3 1-4 cups (250 mL-1 L) Pizza Place on a paper towel. 4 1-3 slices [3 oz (85 g) each] Casserole Place in microwave-safe container. Cover with plastic wrap and vent. Stir and let stand 2-3 minutes after reheating. 5 1-4 cups (250 mL-1 L) Beverage Do not cover. 6 1-2 cups (250 mL- 500 mL) Manual 7 Default power level 70%

Touch CUSTOM REHEAT repeatedly to scan and select the Beverage setting.

3. Touch number key to enter cups quantity.

4. Touch number keys 1 to 3 to select Warm, Hot,

Touch CUSTOM REHEAT repeatedly to scan and select temperature setting. NOTE: Doneness function not active for reheating beverages.

The upper oven display will count down the reheat time. When the stop time is reached, the oven will shut off automatically and “reheat complete” will appear on the oven display. If enabled end-of-cycle tones will sound, then reminder tones will sound every minute. IMPORTANT: Heated liquids can splash out during and after heating. A wooden stir stick placed in the cup or bowl during heating may help avoid this.

6. Touch OFF or open the door to clear the display and/or stop

reminder tones. Custom Defrost The Custom Defrost feature can be used, or the microwave oven can be manually set to defrost by using 30% cook power. ■ For optimal results, food should be 0°F (-18°C) or colder when defrosting. ■ Unwrap foods and remove lids (from fruit juice) before defrosting. ■ Shallow packages will defrost more quickly than deep blocks. ■ Separate food pieces as soon as possible during or at the end of the cycle for more even defrosting. ■ Foods left outside the freezer for more than 20 minutes or frozen ready-made food should not be defrosted using the Custom Defrost feature, but should be defrosted manually. ■ Use small pieces of aluminum foil to shield parts of food such as chicken wings, leg tips and fish tails. See “Aluminum Foil and Metal” first. ■ Times and cooking powers have been preset for defrosting a number of food types. ■ Manual Defrost requires that a cook time and power level be entered if using other than 30% cook power. Use the following chart as a guide.

CUSTOM DEFROST CHART

*See the Defrost Preparation Chart at end of “Custom Defrost” section for cuts, sizes, and instructions. To Custom Defrost:

1. Touch CUSTOM DEFROST.

2. Touch the number key from the Custom Defrost Chart to

Touch CUSTOM DEFROST repeatedly to scroll through foods. For example, to select the Poultry setting, Custom Defrost must be touched twice.

3. Touch number keys to enter the weight.

To change the doneness setting, touch the Power key before or after the “START?” prompt is displayed to toggle through and select a doneness of Normal, More, or Less.

The upper oven display will count down the defrost time. For better results, a preset standing time is included in the defrosting time. This may make the defrosting time seem longer than expected. When the stop time is reached, the oven will shut off automatically and “defrost complete” will appear in the display. If enabled end-of-cycle tones will sound, then reminder tones will sound every minute.

Touch CUSTOM DEFROST repeatedly to scan to the Manual setting. If using 30% cook power, skip to Step 3.

5. Touch the number keys to set a length of time to defrost.

Time can be set up to 99 minutes and 99 seconds. NOTE: Doneness function is not active for manual defrosting.

6. Touch START. The upper oven display will count down the

defrost time. When the stop time is reached, the oven will shut off automatically and “defrost complete” will appear on the oven display. If enabled end-of-cycle tones will sound, then reminder tones will sound every minute.

Steam Cooking Steam Cook is a sensor cooking function that uses microwaves to steam food. Always use steamer vessel. See the “KitchenAid™ Steamer Vessel” section before using. Use Steam Cook for foods such as vegetables, fish and potatoes. ■ Times and cooking powers have been preset for steaming a number of food types. ■ Manual Steam Cook requires that a cook time be entered. ■ It is recommended to add ½ cup (125 mL) of water to Steamer Vessel before steaming. Use the following chart as a guide.

2. Touch the number key to select a food type from the Steam

Touch STEAM COOK repeatedly to scan and select food type. For example, to select the Fresh Vegetables setting, Steam Cook must be touched twice. To change the doneness setting, touch the Power key before or after the “START?” prompt is displayed to toggle through and select a doneness of Normal, More, or Less.

3. Touch START. The upper oven display will count down the

steam time once the sensor identifies the cooking duration. When the steam time has ended, the oven will shut off automatically and “steam complete” will appear in the display. If enabled end-of-cycle tones will sound, then reminder tones will sound every minute.

Touch STEAM COOK repeatedly to scan and select the Manual steam setting.

3. Touch the number keys to set a length of time to steam. Time

can be set up to 99 minutes and 99 seconds. NOTE: Doneness function is not active for manual steam cooking.

Once the boiling point is reached the upper oven display will start to count down the steam time. When the stop time is reached, the oven will shut off automatically and “steam complete” will appear in the display. If enabled end-of-cycle tones will sound, then reminder tones will sound every minute.

5. Touch OFF or open the door to clear the display and/or stop

reminder tones. Popcorn ■ Do not use regular paper bags or glassware. ■ Pop only 1 package of popcorn at a time. ■ Follow manufacturer’s instructions when using a microwave popcorn popper. ■ Listen for popping to slow to 1 pop every 1 or 2 seconds, then stop the cycle. Do not repop unpopped kernels. ■ For best results, use fresh bags of popcorn. ■ Cooking results may vary by brand and fat content. Popping time has been preset based on commercially packaged microwave popcorn. The oven is preset for the 3.5 oz (99 g) size, but can be changed. Use the following chart as a guide. POPCORN CHART To Pop Popcorn:

2. Touch the number key to select bag size from the Popcorn

Touch POPCORN repeatedly to scan and select bag size. NOTE: Doneness function is not active for popcorn setting. MEAT Beef: ground, steaks, roast, stew The narrow or fatty areas of irregular shaped cuts should be shielded with foil before defrosting. Do not defrost less than ¼ lb (113 g) or two 4 oz (113 g) patties. Place all meats in microwave- safe baking dish. Lamb: stew and chops Pork: chops, ribs, roasts, sausage POULTRY Chicken: whole and cut up Place in microwave-safe baking dish, chicken breast side up. Remove giblets from whole chicken. Cornish hens Turkey: breast FISH Fillets, Steaks, Whole, Shellfish Place in microwave-safe baking dish.

popping time. When the stop time is reached, the oven will shut off automatically and “cooking complete” will appear in the display. If enabled end-of-cycle tones will sound, then reminder tones will sound every minute.

4. Touch OFF or open the door to clear the display and/or stop

reminder tones. Keeping Food Warm Hot cooked food can be kept warm in the microwave oven. ■ Cover plates of food.■ Cover foods that were covered while being cooked.■ Do not cover baked goods such as pastries, pies, turnovers, etc. To Keep Food Warm:

1. Touch COOK TIME and then number keys to set a length of

Touch the number keys to set a length of time to warm.

3. Touch number key “1” to set cook power at 10%.

NOTE: Doneness function is not active for manual cooking.

The display will count down the warming time. When the stop time is reached, the oven will shut off automatically and “cooking complete” will appear in the display. If enabled end-of-cycle tones will sound, then reminder tones will sound every minute.

5. Touch OFF or open the door to clear the display and/or stop

the reminder tones. Crisp The Crisp feature uses the broil element and microwaves to crisp and brown foods. Crisp can be used to saute meats and vegetables, pan-fry bacon and eggs, and to crisp and brown pizza and french fries. Always use the crisper pan. See the “Crisper Pan and Handle” section before using. ■ The crisper pan will become very hot. Use oven mitts or detachable handle to grasp and remove the pan from the oven. ■ Do not place hot crisper pan directly on heat-sensitive surfaces. Damage may occur. ■ Do not use plastic utensils on the crisper pan, as it becomes very hot quickly and could melt the utensils. ■ Do not use metal utensils, as they can scratch the pan.■ Do not use the crisper pan in any other microwave oven or in a standard thermal oven. ■ Do not place the crisper pan on the convection rack or the baking tray. Always use the turntable as a support for the pan. ■ Always use the turntable “On” option when crisping (default setting). To Crisp: Before Crisping, brush crisper pan with ½ tsp (3 mL) of oil or spray with nonstick cooking spray. For best results, the crisper pan should be preheated for 3 minutes. Arrange food on crisper pan, and place pan on turntable.

The “Use Crisp Pan” prompt will appear momentarily in the display as a reminder to use the crisp pan.

2. Touch the number keys to enter a length of time to cook in

minutes and seconds. The time can be set up to 99 minutes and 99 seconds. NOTE: Doneness function is not active for crisp setting.

The upper oven display will count down the crisp time. When the stop time is reached, the oven will shut off automatically and “cooking complete” will appear in the display. If enabled end-of-cycle tones will sound, then reminder tones will sound every minute.

4. Touch OFF or open the door to clear the display and/or stop

the reminder tones. Use the following chart as a guide. CRISPING CHART *Times are approximate and may be adjusted for individual tastes. WARNING Food Poisoning Hazard Do not let food sit in oven more than one hour before or after cooking. Doing so can result in food poisoning or sickness.

(MINUTES)* PREPARATION Bacon, 4 strips Side 1: 3:00 Side 2: 1:45 Place in crisper pan in a single layer Frozen french fries, 2 servings Side 1: 5:00 Side 2: 2:00 Place in crisper pan in a single layer Boneless chicken breasts, 2 pieces Side 1: 4:00 Side 2: 3:00 5-6 oz (142-170 g) each Hamburger patties, 2 Side1: 3:30 Side2: 2:00 4 oz (113 g) each, ½ (1.3 cm) thick Frozen thin crust pizza 8:00-9:0017 Soften/Melt Soften and Melt functions may be used to soften or melt your food. Times and cooking powers have been preset for a number of food types. Use the following chart as a guide. SOFTEN CHART To Soften:

1. Touch SOFTEN/MELT.

2. Touch number key “2” to select Soften function

Touch SOFTEN/MELT repeatedly to scan and select Soften.

3. Touch number key to select food type from the Soften Chart

Touch SOFTEN/MELT repeatedly to scan and select food settings.

4. Touch number keys to enter quantity (weight or sticks).

To change the doneness setting, touch the Power key before or after the “START?” prompt is displayed to toggle through and select a doneness of Normal, More, or Less.

The upper oven display will count down the soften time. When the stop time is reached, the oven will shut off automatically and “soften complete” will appear in the display. If enabled end-of-cycle tones will sound, then reminder tones will sound every minute.

6. Touch OFF or open the door to clear the display and/or stop

reminder tones. Use the following chart as a guide. MELT CHART To Melt:

Touch SOFTEN/MELT repeatedly to scan and select Melt.

3. Touch number key to select food type from the Melt Chart

Touch SOFTEN/MELT repeatedly to scan and select food settings.

4. Touch number keys to enter quantity (weight or sticks).

To change the doneness setting, touch the Power key before or after the “START?” prompt is displayed to toggle through and select a doneness of Normal, More, or Less.

The upper oven display will count down the melt time. When the stop time is reached, the oven will shut off automatically and “melt complete” will appear in the display. If enabled end-of-cycle tones will sound, then reminder tones will sound every minute.

6. Touch OFF or open the door to clear the display and/or stop

reminder tones. EasyConvect™ Conversion Convection cooking uses the convection element, the broil element and the fan. Hot air is circulated throughout the oven cavity by the fan. The constantly moving air surrounds the food to heat the outer portion quickly. ■ The convect function may be used to cook small amounts of food on a single rack. ■ Always use the convection grid placed on turntable or baking tray. ■ Always use the turntable “On” option when convection cooking with the convection grid (default setting). ■ Do not cover turntable or convection grid or baking tray with aluminum foil. ■ Do not use light plastic containers, plastic wrap or paper products. All heatproof cookware or metal utensils can be used in convection cooking. Round pizza pans are excellent for convection cooking.

FOOD CODE QUANTITY PREPARATION

Butter 1 ½-2 sticks Unwrap and place in microwave-safe container. Margarine 2 ½-2 sticks Ice cream 3 16, 32, or 64 oz (454, 907 g, or

Butter 1 ½-2 sticks Unwrap and place in microwave-safe container. Margarine 2 ½-2 sticks Chocolate 3 2, 4, 6, 8 oz. (57, 113, 170, 227 g) Cut squares into small pieces or use chips. Place in microwave-safe container. Cheese 4 8 or 16 oz (227 or 454 g) Cut into small pieces and place in microwave-safe container. Marsh- mallows 5 5 or 10 oz (142-283 g) Place in microwave- safe container. A. Broil element B. Convection fan C. Convection element D. Convection grid

A18 ■ Use convection cooking for items such as souffles, breads, cookies, angel food cakes, pizza, and most meats and fish. ■ All EasyConvect™ functions require preheating before use. Place food in microwave oven after preheating is complete. EasyConvect™ Conversion is a function that converts a standard thermal bake cook time and temperature into an ideal cook time and temperature for convection cooking after the oven has preheated. Convection temperatures and times differ from those of standard cooking. The oven can automatically reduce standard recipe temperatures and times for convection cooking. The conversion may not be exact because foods are grouped in general categories. Use the following chart as a guide. CONVECTION CHART To Use:

1. Position convection grid on turntable in microwave oven or

place baking tray on slide rails and close the door.

2. Touch EASYCONVECT™ function.

3. Touch number key to select food category from the

Touch EASYCONVECT™ function repeatedly to scan and select food category. For example, to select the Meats setting, EasyConvect™ must be touched twice.

4. Touch the number keys to set a standard temperature.

Temperature can be set between 170°F and 450°F (77°C and 232°C).

5. Touch the number keys to set a length of standard time to

cook. Time can be set up to 11 hours and 59 minutes. NOTE: Doneness function not active for EasyConvect™.

6. Touch START. “Preheating” and “Lo” will appear on the upper

oven display. Once the temperature reaches 170°F (77°C), “Lo” will be replaced by the increasing temperature. Time and temperature will be automatically converted for convection cooking. When preheating is complete 2 tones will sound and the display will show the set temperature and “INSERT FOOD” prompt.

7. Place food or bakeware on convection grid or on baking tray

cook time and show temperature for convection cooking. When the stop time is reached, the oven will shut off automatically and “cooking complete” will appear on the oven display. If enabled end-of-cycle tones will sound, then reminder tones will sound every minute.

General Cleaning IMPORTANT: Before cleaning, make sure all controls are off and the microwave oven is cool. Always follow label instructions on cleaning products. Soap, water and a soft cloth or sponge are suggested first unless otherwise noted. STAINLESS STEEL (on some models) NOTE: Do not use soap-filled scouring pads, abrasive cleaners, Cooktop Polishing Creme, steel-wool pads, gritty washcloths or some paper towels. Damage may occur, even with one-time or limited use. Rub in direction of grain to avoid damaging. Cleaning Method: ■ KitchenAid

Stainless Steel Cleaner and Polish Part Number 4396920 (not included): See “Assistance or Service” section to order. ■ Liquid detergent or all-purpose cleaner: Rinse with clean water and dry with soft, lint-free cloth. ■ Vinegar for hard water spots.

MICROWAVE OVEN DOOR EXTERIOR

Cleaning Method: ■ Glass cleaner and a soft cloth or sponge: Apply glass cleaner to soft cloth or sponge, not directly on panel. ■ All-Purpose Appliance Cleaner Part Number 31662 (not included): See “Assistance or Service” section to order.

MICROWAVE OVEN CAVITY

Do not use soap-filled scouring pads, abrasive cleaners, steel- wool pads, gritty washcloths or some recycled paper towels. Damage may occur. On stainless steel models, rub in direction of grain to avoid damaging. The area where the oven door and frame touch when closed should be kept clean.

BAKED GOODS Biscuits, Breads: quick and yeast, Cakes and Cookies Casseroles: including frozen entrées and soufflés Fish

MEATS Baked potatoes Chicken: whole and pieces, Meat loaf, Roasts: pork, beef and ham *Turkey and large poultry are not included because their cook times vary.

OTHER FOODS Convenience foods: french fries, nuggets, fish sticks, pizza, Pies: fruit and custard

Cleaning Method: Average soil ■ Mild, nonabrasive soaps and detergents: Rinse with clean water and dry with soft, lint-free cloth. Heavy soil ■ Mild, nonabrasive soaps and detergents: Heat 1 cup (250 mL) of water for 2 to 5 minutes in oven. Steam will soften soil. Rinse with clean water and dry with soft, lint-free cloth. Odors ■ Lemon juice or vinegar: Heat 1 cup (250 mL) of water with 1 tbs (15 mL) of either lemon juice or vinegar for 2 to 5 minutes in oven.

MICROWAVE OVEN CEILING

The broil element does not need cleaning since the intense heat will burn off any food spatters. However, the ceiling above the broil element may need regular cleaning. Cleaning Method: ■ Warm water, mild detergent and a sponge. To clean:

1. Twist and remove the ceramic hook.

2. Lower the front of the broil element to access the ceiling for

3. Raise broil element back up and replace with ceramic hook.

Always return the broil element to the cooking position after cleaning. TURNTABLE Replace turntable immediately after cleaning. Do not operate the microwave oven without the turntable in place. Cleaning Method: ■ Mild cleanser and scouring pad ■ Dishwasher GRID ■ Steel-wool pad ■ Dishwasher CRISPER PAN Do not immerse or rinse with water while the crisper pan is hot. Damage may occur. Do not use steel-wool pads. Damage may occur. Cleaning Method: ■ Warm water, mild detergent and a sponge. Heavily soiled areas can be cleaned with a scouring pad and mild cleanser. ■ Dishwasher BAKING TRAY ■ Dishwasher STEAMER ■ Dishwasher

TURNTABLE SUPPORT AND ROLLERS, HUB, CRISP

PLATE HANDLE ■ Dishwasher20 TROUBLESHOOTING Try the solutions suggested here first in order to avoid the cost of an unnecessary service call. Nothing will operate ■ Has a household fuse blown, or has the circuit breaker tripped? Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician. ■ Is the appliance wired properly? See Installation Instructions. Microwave oven will not operate ■ Is the door completely closed? Firmly close door. ■ Is the electronic oven control set correctly? See “Electronic Oven Control” section. ■ On some models, is the Control Lock set? See “Control Lock” section. ■ On combination oven models, is the lower oven self- cleaning? The upper oven will not work during the lower oven Self- Cleaning Cycle. ■ Is the magnetron working properly? Try to heat 1 cup (250 mL) of cold water for 2 minutes at 100% cooking power. If water does not heat, call for service. See “Assistance or Service” section. Oven makes humming noise ■ This is normal and occurs when the transformer in the magnetron cycles on. Oven door looks wavy ■ This is normal and will not affect performance. Turntable will not operate ■ Is the turntable properly in place? Make sure turntable is correct side up and is sitting securely on the turntable support. ■ Is the turntable support operating properly? Remove turntable. Remove and clean turntable support and rollers. Replace turntable support. Replace turntable. Place 1 cup (250 mL) of water on the turntable, then restart oven. If it still is not working, call for service. See “Assistance or Service” section. Do not operate the oven without turntable and turntable support working properly. Turntable rotates both directions ■ This is normal and depends on motor rotation at beginning of cycle. Display shows messages ■ Is the display showing a letter followed by a number? Clear the display. See “Display(s)” section. If it reappears, call for service. See “Assistance or Service” section. Display shows time countdown, but is not operating ■ Is the Timer in use? See “Timer” section. Tones are not sounding ■ Are tones disabled? See “Tones” section. Smoke is coming from oven vent during crisping ■ Some smoke is normal and occurs just as in conventional crisping. Sparking during crisping ■ This is normal and occurs as fat burns off from past cooking. Sparking will stop once fat is completely burned off. Cooking times seem too long ■ Is the cooking power set properly? See “Microwave Cooking Power” in the “Microwave Oven Use” section. ■ Are large amounts of food being heated? Larger amounts of food need longer cooking times. ■ Is the incoming voltage less than that specified in “Parts and Features”? Have a qualified electrician check the electrical system of the house. Radio or TV Interference ■ Is the microwave oven plugged into the same outlet? Try a different outlet. ■ Is the radio or TV receiver near the microwave oven? Move the receiver away from the microwave oven, or adjust the radio or TV antenna. ■ Are the microwave oven door and sealing surfaces clean? Make sure these areas are clean.21

ASSISTANCE OR SERVICE

Before calling for assistance or service, please check “Troubleshooting.” It may save you the cost of a service call. If you still need help, follow the instructions below. When calling, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request. If you need replacement parts If you need to order replacement parts, we recommend that you use only factory specified parts. These factory specified parts will fit right and work right because they are made with the same precision used to build every new KITCHENAID

appliance. To locate factory specified parts in your area, call us or your nearest KitchenAid designated service center. In the U.S.A. Call the KitchenAid Customer eXperience Center toll free: 1-800-422-1230. Our consultants provide assistance with: ■ Features and specifications on our full line of appliances.■ Installation information.■ Use and maintenance procedures.■ Accessory and repair parts sales.■ Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.). ■ Referrals to local dealers, repair parts distributors and service companies. KitchenAid designated service technicians are trained to fulfill the product warranty and provide after- warranty service, anywhere in the United States. To locate the KitchenAid designated service company in your area, you can also look in your telephone directory Yellow Pages. For further assistance If you need further assistance, you can write to KitchenAid with any questions or concerns at: KitchenAid Brand Home Appliances Customer eXperience Center 553 Benson Road Benton Harbor, MI 49022-2692 Please include a daytime phone number in your correspondence. Accessories U.S.A. To order accessories, call the KitchenAid Customer eXperience Center toll free at 1-800-442-9991 and follow the menu prompts. Or visit our website at www.kitchenaid.com and click on “Shopping Options.” Go to “Replacement Parts & Accessories” and click on “applianceaccessories.com.” Portable appliances, bakeware, cookware, gadgets and textiles are also available. Replacement Parts and Accessories In Canada Call the KitchenAid Canada Customer Interaction Centre toll free: 1-800-807-6777. Our consultants provide assistance with: ■ Features and specifications on our full line of appliances.■ Use and maintenance procedures.■ Accessory and repair parts sales.■ Referrals to local dealers, repair parts distributors and service companies. KitchenAid Canada designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in Canada. For further assistance If you need further assistance, you can write to KitchenAid Canada with any questions or concerns at: Customer Interaction Centre KitchenAid Canada 1901 Minnesota Court Mississauga, Ontario L5N 3A7 Please include a daytime phone number in your correspondence. Glass Turntable Part Number 8304389 Turntable Support and Rollers Part Number 8304390 Turntable Hub Part Number 8304391 Crisper Pan Part Number 8304392 Baking Tray Part Number 8304408 Crisper Pan Handle Part Number 8304393 Steamer Part Number 8304394 Convection Grid Part Number 8304395 KitchenAid

Stainless Steel Cleaner and Polish (stainless steel models) Part Number 4396920 KitchenAid

For one year from the date of purchase, when this major appliance is operated and maintained according to instructions attached to or furnished with the product, KitchenAid or KitchenAid Canada (hereafter “KitchenAid”) will pay for factory specified parts and repair labor to correct defects in materials or workmanship. Service must be provided by a KitchenAid designated service company. SECOND THROUGH FIFTH YEAR LIMITED WARRANTY ON CERTAIN COMPONENT PARTS In the second through fifth years from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, KitchenAid or KitchenAid Canada will pay for factory specified parts for the following components if defective in materials or workmanship: ■ Electric element ■ Solid state touch control system parts

SECOND THROUGH TENTH YEAR LIMITED WARRANTY

On microwave ovens only, in the second through tenth years from date of purchase, when this major appliance is operated and maintained according to instructions attached to or furnished with the product, KitchenAid will pay for factory specified parts for the stainless steel oven cavity/inner door if the part rusts through due to defects in materials or workmanship.

ITEMS KITCHENAID WILL NOT PAY FOR

1. Service calls to correct the installation of your major appliance, to instruct you how to use your major appliance, to replace or repair house fuses or to correct house wiring or plumbing. 2. Service calls to repair or replace appliance light bulbs, air filters or water filters. Those consumable parts are excluded from warranty coverage.

3. Repairs when your major appliance is used for other than normal, single-family household use.

4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes, or use of products not approved by KitchenAid.

5. Replacement parts or repair labor costs for units operated outside the United States or Canada.

6. Pickup and delivery. This major appliance is designed to be repaired in the home.

7. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.

8. Expenses for travel and transportation for product service in remote locations.

9. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not installed in accordance with published installation instructions. DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. KITCHENAID SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE. Outside the 50 United States and Canada, this warranty does not apply. Contact your authorized KitchenAid dealer to determine if another warranty applies. If you need service, first see the “Troubleshooting” section of the Use & Care Guide. After checking “Troubleshooting,” additional help can be found by checking the “Assistance or Service” section or by calling KitchenAid. In the U.S.A., call 1-800-422-1230. In Canada, call 1-800-807-6777. 9/05 Keep this book and your sales slip together for future reference. You must provide proof of purchase or installation date for in-warranty service. Write down the following information about your major appliance to better help you obtain assistance or service if you ever need it. You will need to know your complete model number and serial number. You can find this information on the model and serial number label located on the product. Dealer name____________________________________________________ Address ________________________________________________________ Phone number__________________________________________________ Model number __________________________________________________ Serial number __________________________________________________ Purchase date __________________________________________________23

ASSISTANCE OU SERVICE
