USER MANUAL BDHS6120 BLACK & DECKER

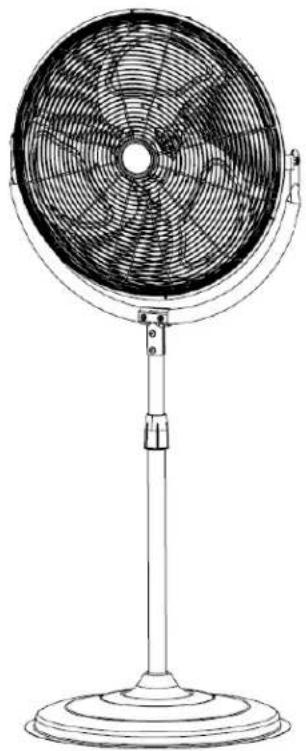

20" High Velocity Pedestal Fan

Line drawing of a standard office fan with a circular top and stand (no text or symbols)

MODEL NUMBER: BDHS-6120

USA & Canada Customer Service Number:

1-888-773-8744

www.BlackandDecker.com

READ THIS MANUAL CAREFULLY BEFORE OPERATING- SAVE IT FOR FUTURE REFERENCE

SAFETY INFORMATION

WARNING

1. Always unplug the fan before moving it or performing maintenance. Never touch the fan with wet hands.
2. The fan should always be disassembled, repaired or rebuild by a qualified electrician.
3. Always unplug the fan when not in use.
4. Never unplug the fan by pulling the power cord, always do it by holding the plug.
5. Never use the fan if the power cord or plug is damaged. Discard the fan or return it to an authorized service agent for examinaon and/or repair.
6. Never use the fan with an extension cord.
7. Do not place the fan near heat sources or re.
8. Do not insert your hand or any other objects into the guard or moving parts.
9. Do not run the power cord under carpets. Do not cover the power cord with area rugs, runners or similar coverings.
10. Do not place power cord under furniture or appliances. Always keep the cord away from trac areas so it will not be tripped over.
11. To reduce the risk of re or electric shock, do not use this fan with any solid-state speed control device.
12. If the power cord is damaged, have it replaced by the manufacturer, an authorized service agent or a similarly qualified person in order to avoid any hazard.

CAUTION

1. Always unplug the fan from the main power supply and clean it with a so cloth.
2. DANGER: Risk of electrocuon. Do not immerse the appliance or the cord in water or any other liquid.
3. Always t the guard onto the fan before starng up the fan.
4. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are supervised or have been given instrucons concerning the use of the fan by a person responsible for their safety. Children should be supervised to ensure they do not play with the fan.

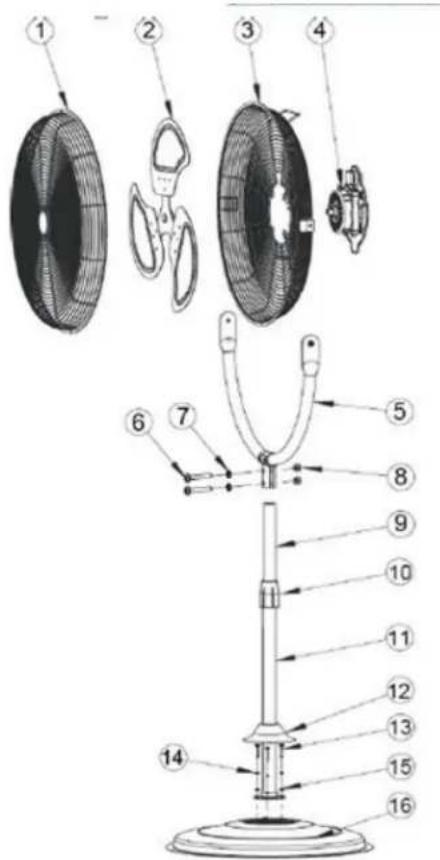

PACKAGE CONTENT

Exploded view diagram of a mechanical device with numbered parts for identification

Part	Descripon	Quantity
1	Front Guard	1
2	Blade	1
3	Rear Guard	1
4	Motor	1
5	Bracket	1
6	Screw M6X40	2
7	Washer #6	2
8	Nut M6	2
9	Inner Tube	1
10	Height Adjust Knob	1
11	Outer Tuber	1
12	Base Cap	1
13	Screw M5x30	4
14	Flat Washer #5	4
15	Spring Washer #5	4
16	Base	1

CARE AND MAINTENANCE

Unplug the appliance before cleaning. Do not use water to clean metal surfaces. Slightly moisten a cloth with a mild cleaner and then wipe o the surfaces of the fan. In order to remove dust from the protecve guard, use a vacuum cleaner or remove the front protecve guard using a screwdriver to unscrew the securing screws on the edges of the guard. Aer cleaning, replace the safety guard, and fasten the securing screws on the edges of the protecve guard.

ASSEMBLY INSTRUCTIONS

Technical line drawing of a mechanical device with concentric circular base and central hub (no text or symbols)

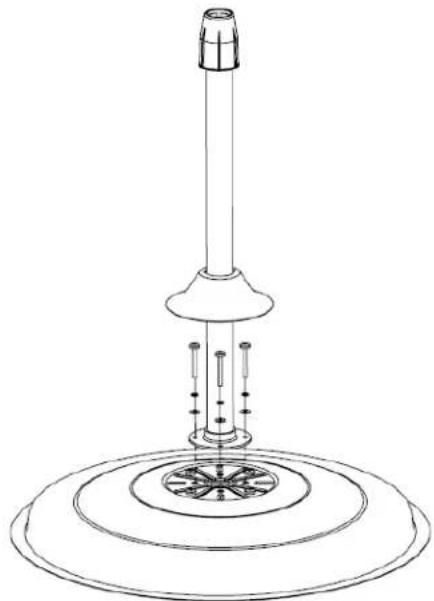

Step 1

Aach the outer tube (11) to the base (16) with the screws (13), at washers (14), and spring washers (15) as shown in the picture.

Cauon: The screws must be fully ghtened before operang the fan.

Line drawing of a mechanical device with a cylindrical base and top component, no text or symbols present

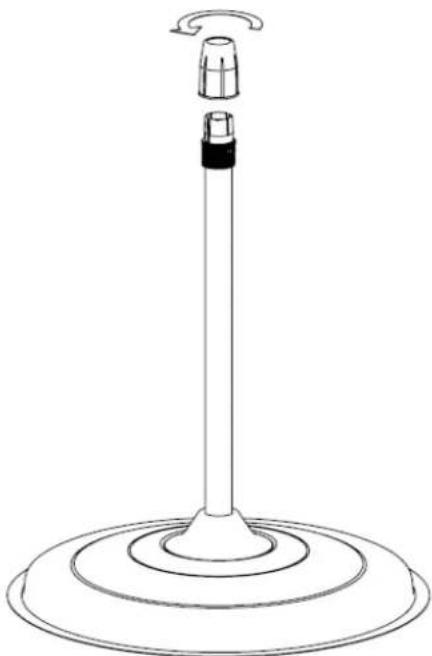

Step 2

Slide the height adjustable ring (10) away from the outer tube (11). Save it to use it in Step 3.

Technical line drawing of a mechanical device with a downward arrow indicating motion (no text or symbols)

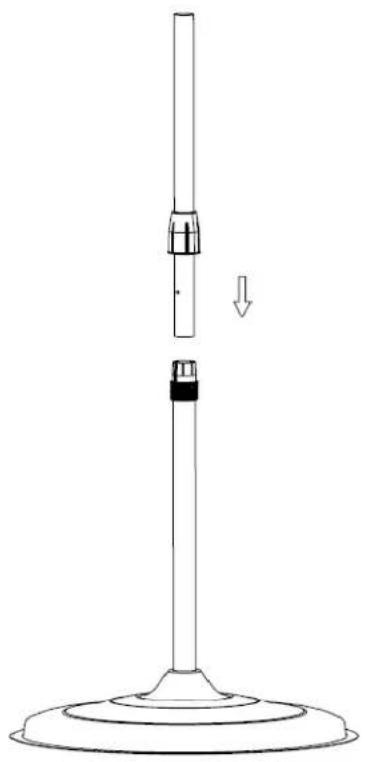

Step 3

Slide the height adjustable ring into the inner Tube (9). Then, out it into the outer tube (11) and fasten the height adjustable ring (10) to the desired height.

Line drawing of a standard office fan with an inset close-up showing internal components (no text or symbols)

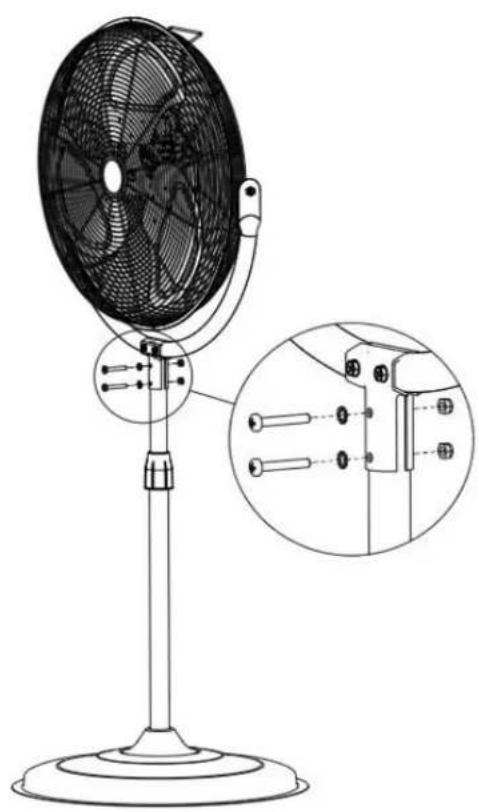

Step 4

Connect the fan head (1, 2 & 3) with the inner tube (9).

Then rmly ghten two sets of screws (6), washers (7) and nuts (8) in the holes of the fan.

Cauon: the screws must be fully ghtened before operang the fan.

OPERATING INSTRUCTIONS

1. Adjust the desired speed by rotang the knob: 0: Stop- 1: Low- 2: Medium- 3: High

1. Tilt the fan head upward or downward for the desired direcon of air ow.

PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The fan fails to operate the power outlet is	1.Fan is not plugged in 1.Make sure the working properly.	the fan is plugged in, and
	2.There may be some 2.Check for any obstrucon if you obstrucons in the fan. nd an obstrucon, turn the fan OFF. Unplug fan and carefully remove the obstrucon. Plug the fan in and turn it on again. Refer to OPERATING INSTRUCTIONS.

MAIN SPECIFICATIONS

MODEL No.	BLADE	SIZE	VOLTAGE/Hz	Speed	Waage
BDHS-6120			500 MM		120V/60 Hz	HIGH	153
20 INCHES			MEDIUM	142
LOW		131

USA & Canada Customer Service Number:

1-888-773-8744

MADE IN CHINA

Imported by Ragalta USA

5870 NW 163th Street,

Miami Lakes, Florida 33014

USA

www.BlackandDecker.com

Black & Decker and the Black and Decker logo are trademarks of the Black & Decker Corporaon and are used under license. All rights reserved. Product may dier slightly from the picture on the cover of this instrucon manual. Not all accessories shown in the photography are included in this package. 3 Year limited warranty: Covers all defective materials and workmanship under normal household use.

BLACK&DECKER®

Line drawing of a standard office fan with visible blades and mounting base (no text or symbols)

MODELO NÚMERO: BDHS-6120

Exploded view diagram of a car steering wheel assembly with numbered parts for identification

Parte	Descripción	Candad
1	Protector Frontal	1
2	Aspas	1
3	Protector Trasero	1
4	Motor	1
5	Soporte	1
6	Tornillo M6X40	2
7	Arandela #6	2
8	Tuerca de Sguridad	2
9	Tubo interno	1
10	Perilla de Ajuste	1
11	Tubo externo	1
12	Tapa de base	1
13	Tornillo M5X30	4
14	Arandela Plana #5	4
15	Arandela #5	4
16	Base	1

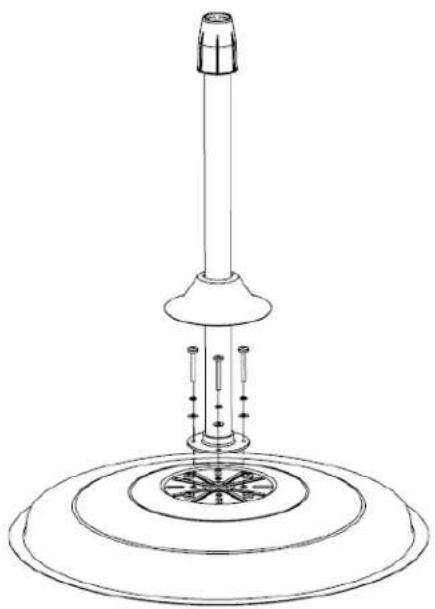

INSTRUCCIONES DE ENSAMBLAJE

Technical line drawing of a mechanical device with concentric circular base and central shaft (no text or symbols)

Paso 1

Line drawing of a mechanical device with a rotating knob and base, no text or symbols present

Paso 2

Technical line drawing of a mechanical device with a downward arrow indicating motion (no text or symbols)

Paso 3

Line drawing of a standard office fan with an inset close-up showing internal components (no text or symbols)

Paso 4
