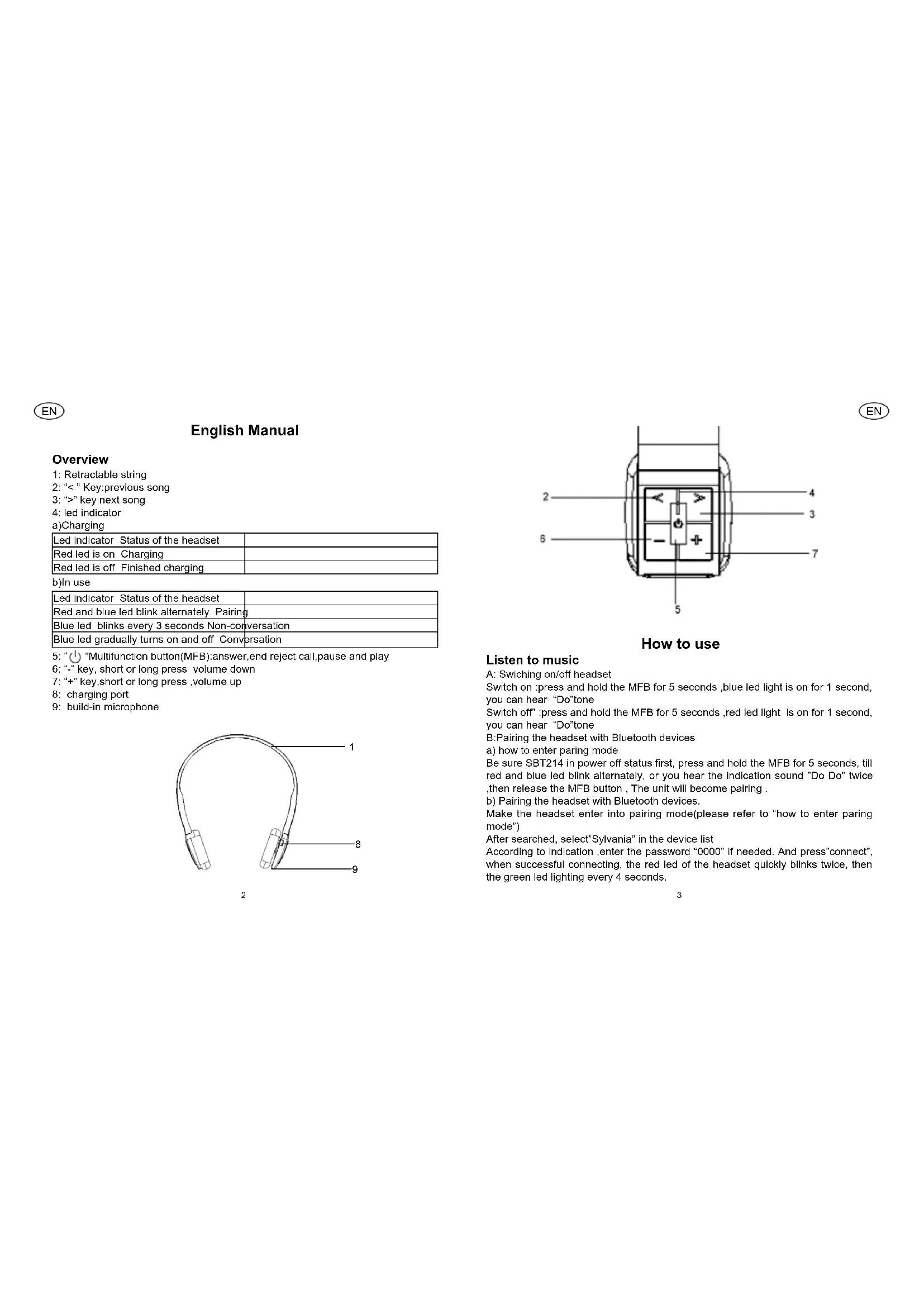

USER MANUAL SBT214 SYLVANIA

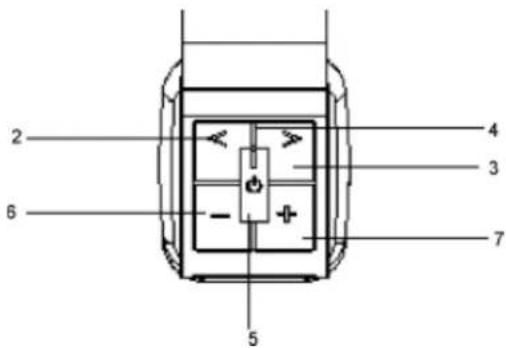

2:"<Key:previous song
3:" > key next song
4: led indicator
a)Charging
| Led indicator Status of the headset | |
| Red led is on Charging | |
| Red led is off Finished charging |
b)In use
| Led indicator Status of the headset | |
| Red and blue led blink alternately Pairing | |
| Blue led blinks every 3 seconds Non-conversion | |
| Blue led gradually turns on and off Conversation |
5:"Multifunction button(MFB):answer,end reject call,pause and play
6: key, short or long press volume down
7:“+”key,short or long press, volume up
8: charging port
9: build-in microphone
2
EN
How to use
Listen to music
A:Swiching on/off headset
Switch on :press and hold the MFB for 5 seconds, blue led light is on for 1 second, you can hear "Do"tone
Switch off":press and hold the MFB for 5 seconds, red led light is on for 1 second, you can hear "Do"tone
B:Pairing the headset with Bluetooth devices
a) how to enter sparing mode
Be sure SBT214 in power off status first, press and hold the MFB for 5 seconds, till red and blue led blink alternately, or you hear the indication sound "Do Do" twice, then release the MFB button . The unit will become pairing .
b) Pairing the headset with Bluetooth devices.
Make the headset enter into pairing mode(please refer to "how to enter pairing mode")
After searched, select"Sylvania" in the device list
According to indication, enter the password "000" if needed. And press "connect", when successful connecting, the red led of the headset quickly blinks twice, then the green led lighting every 4 seconds.
3
Remark:make sure your device has Bluetooth function
Answer Calling
Switch on the headset and make sure in the well connection with mobile phone. here are the table for operation.
| Function Status of headset Operation | ||
| Answer calling Ringing Short press MFB | ||
| Volume up Conversation mode Short press | or long | |
| press"+".key,when the volume is adjusted to Maximum, you will hear an indication tone | ||
| Volume down Conversation mode Short pre | ss or long press"-".key,when the volume is adjusted to Minimum, you will hear an indication tone | |
Warning: Excessive pressurer from the headphones can cause the hearing loss. How to wear the headset
The string of headset is retractable, please adjust according to your comfortable size, logo"L" represents left ear, logo "R" represents right ear. See below photo.
Charging your headset
Insert the usb charging cable into use port of PC.
Connect charging cable with the charging port of headset
When the red light is on, the headset is charging.
When the red light is off, the headset is charging fully.
Re-connecting to Bluetooth device
Automatic connecting
Every time the headset is switched on, it will connect to the nearest, and the last connected device automatically.
When the headset is in standby mode and doesn't connect to any device, short press MFB button, it will connect to last connected device automatically.
Specification
| Bluetooth version V3.0+EDR | |
| Support Bluetooth profile HSP,HFP,A2DP,AVRCP | |
| Standard battery Build in rechargeable 300mAh lithium battery | |
| Music play time Max 10 hours | |
| Standby time | 250hours |
| Charging time | 3 hours |
| Talk time | 10 hours |
| Dimension | 14.5*10*6cm |
| Weight | 112g |
| Operating range | 10 meters |
| Frequency | 2402MHz~2480MHz ISM Ban |
| Microphone specification | -42dB(0dB=1V/Pa,1KHz) |
| Input | DC 5V |
| Accessories | User manual and usb cable |
WARNING
Read Safety Instructions Before Making Volume Changes
Safe use depends on exposure time and volume levels.
Volume at 80 dB(A), exposure should be limited to 40 hours/week. At 89 dB(A) exposure should not exceed 5 hours/week.
INSTRUCTION MANUAL
This lightning flash and arrowhead within the triangle is a warning sign alerting you of "dangerous voltage" inside the product.
CAUTION
RISK OF ELECTRIC SHOCK
CAUTION: TO REDUCE THE RISK OF E ELECTRIC SHOCK, D. O. NOT REMOVE COVER (ON BACK). NO USER SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The exclamation point within the triangle is a warning sign alerting you of important t instructions.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE
IMPORTANT SAFETY INSTRUCTIONS
- READ INSTRUCTIONS - All the safety and operating Instructions should be read before the product is operated.
- RETAIN INSTRUCTIONS - The safety and operating Instructions should be retained for future reference.
- HEED WARNINGS -All warnings on the product and In the operating Instructions should be adhered to
- FOLLOW INSTRUCTIONS - All operating and use Instructions should be followed.
- CLEANING- Unplug this product from the wall outlet before cleaning, Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning
- ATTACHMENTS - Do not use attachmentsnot recommendedby the product manufacturer as they may cause hazards
- WATER AND MOISTURE - Do not use this product near water- for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; In a wet basement, or near a swimming pool, and the like.
- ACCESSORIES - Do not place this product on an unstable cart, stand tripod, bracket, or table. The product may fall, causing serious Injury
to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's Instructions, and should use a mounting accessory recommended by the manufacture
- A product and cart combinations should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.
- VENTILATION - Slots and openings In the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed In a built-in Installationsuch as a bookcaseor rack unless proper ventilationis provided or the manufacturer's Instructions have been adhered to
- POWER SOURCES - This product should be operated only from the type of power source indicated on the markinglabel. If you are not sure of the type of power supply to you home, consult your product dealer or local power company. For products Intended to operate from batterypower, or other sources, refer to operating Instruction.
- GROUNDING OR POLARIZATION - This product may be equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electricianto replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug
ALTERNATE W A R N I N G S - This product is equipped with a threewire grounding-typeplug, a plug having a third (grounding)pin. This plug
EN
will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet, Do not defeat the safety purpose of the grounding-type plug.
- POWER - CORD PROTECTION - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and point where they exit from the product.
14.PROTECTIVE ATTACHMENT PLUG - The product is equipped with an attachment plug having overload protection. This is a safety feature. See Instruction Manual for replacement or resetting of protective device. If replacement of the plug is required, be sure the service technician has used a replacement plug specified by the manufacturer that has the same overload protection as the original plug. - OUTDOOR ANTENNA GROUNDING - If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna-discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

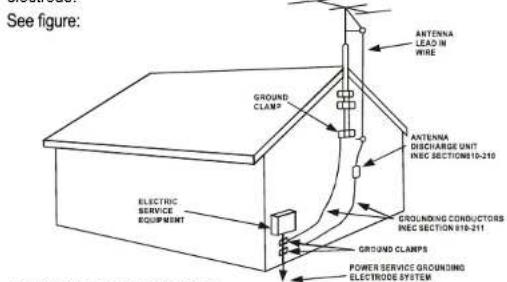

NEC NATIONAL ELECTRICAL CODE
8
16.LIGHTNING - For added protection for this product during a lightning storm, or when It is left unattended and unused for long periods of time, unplug It from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.
17. POWER LINES - An outside antenna system should not be located In the vicinity of overhead power lines or other electric light or power circuits, or where it can fall Into such power lines or circuits. When Installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
18. OVERLOADING - Do not overload wall outlets, extension cords, or Integral convenience receptacles as this can result in a risk of fire or electric shock.
19. OBJECT AND LIQUID ENTRY - Never push objects of any kind Into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
20.SERVICING - Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
21.DAMAGE REQUIRING SERVICE - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:
a) W hen the power-supply cord or plug Is damaged
b) If liquid has been spilled, or objects have fallen Into the product.
c) If the product has been exposed to rain or water
d) If the product does not operate normally by following the operating Instructions, adjust only those controls that are covered by the operating Instructions as an Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.
e) If the product has been dropped or damaged In any way.
f) When the product exhibits a distinct change in performance - this indicates a need for service.
9
EN
EN
22.REPLACEMENT PARTS - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
23.SAFETY CHECK - Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.
24.WALL OR CEILING MOUNTING - The product should be mounted to a wall or ceiling only as recommended by the manufacturer.
25.HEAT - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the users' authority to operate the equipment.
