FM/MW/LW Cassette Car Stereo Operating Instructions

EN XR-C850RW XR-C850RDS XR-C750RDS

 1997 by Sony Corporation

Thank you for purchasing the Sony Cassette Player. This unit lets you enjoy a variety of features by using either a rotary remote or a wireless remote. In addition to the tape playback and radio operations, you can expand your system by connecting an optional CD/MD changer. If you connect an optional CD changer with the CD-TEXT function, the CD-TEXT information will appear in the display when you playback a CD-TEXT disc.∗ ∗ A CD-TEXT disc is an audio CD that includes information such as the disc name, artist name and track names. This information is recorded on the disc.

There are several differences between the XRC850RW/C850RDS and XR-C750RDS.

• The XR-C850RW/C850RDS has the Dolby B and C NR systems, but the XR-C750RDS has only the Dolby B NR system. • The XR-C850RW/C850RDS can record eight minutes of Traffic Information Replay (TIR) announcements while the XR-C750RDS can record only four minutes worth. • The XR-C850RW/C850RDS has three subwoofer cut-off frequencies to choose from, and you can connect and control an optional DSP unit.

With Optional Equipment

Detaching the front panel Preparing the rotary remote Setting the clock

Listening to a tape 6 Playing tracks repeatedly — Repeat Play 6 Playing a tape in various modes 7

Memorising stations automatically — Best Tuning Memory (BTM) 7 Memorising only the desired stations 8 Receiving the memorised stations 8

17 17 17 17 19 20 20

DSP (XDP-U50D) XR-C850RW/C850RDS EN

RDS Overview of the RDS function 9

Displaying the station name 9 Re-tuning the same programme automatically — Alternative Frequencies (AF) 9 Listening to traffic announcements 10 Presetting the RDS stations with the AF and TA data 11 Recording the traffic announcements — Traffic Information Replay (TIR) 11 Locating a station by programme type 12 Setting the clock automatically 13

Using the rotary remote Adjusting the sound characteristics Muting the sound Changing the sound and display settings Adjusting the volume of the subwoofer(s) (XR-C850RW/ C850RDS only)

Playing a CD or MD Scanning the tracks

— Intro Scan Playing tracks repeatedly — Repeat Play Playing tracks in random order — Shuffle Play Creating a programme — Programme Memory Labeling a CD — Disc Memo/Custom File Locating a disc by name — List-up Selecting the specific tracks for playback — Bank/Custom File

Selecting the surround menu

Storing the surround effect onto the CDs — DSP Custom File Selecting the listening position Adjusting the fader (FAD) Adjusting the volume of the subwoofer(s) Adjusting the volume of the bass and treble Listening to each programme source in its registered surround menu — Source Sound Memory (SSM) Changing the line output level

Attaching the front panel

Align the front panel with the unit, and push in.

Before operating the unit for the first time or after replacing the car battery, you must reset the unit. Press the reset button with a pointed object such as a ballpoint pen. Front panel detached

• Be sure not to attach the front panel upside down. • Do not press the front panel hard against the unit when attaching it. Press it lightly against the unit. • Do not press hard or put excessive pressure on the display windows of the front panel. • Do not expose the front panel to direct sunlight, heat sources such as hot air ducts, and do not leave it in a humid place. Never leave it on the dashboard of a car parked in direct sunlight where there may be a considerable rise in temperature.

Pressing the reset button will erase the clock and some memorized functions.

If you turn the ignition key switch to the OFF position without removing the front panel, the caution alarm will beep for a few seconds

(only when the POWER SELECT switch on the bottom of the unit is set to the A position).

Detaching the front panel

You can detach the front panel of this unit to prevent the unit from being stolen.

Press (OPEN) to open up the front panel, then pull it off towards you.

If you pull out the ignition key while the TIR function is on, the TIR indicator flashes a few times. (only when the POWER SELECT switch on the bottom of the unit is set to the A position).

For more information on the TIR function, refer to “Recording the traffic announcements”

• Do not put anything on the inner surface of the front panel. • Be sure not to drop the panel when detaching it from the unit. • If you detach the panel while the unit is still on, the power will turn off automatically to prevent the speakers from being damaged. • When you carry the front panel with you, put it in the supplied front panel case.

Preparing the rotary remote

When you mount the rotary remote, attach the label in the illustration below.

The clock has a 24-hour digital indication. Example: Set the clock to 10:08

Press (SHIFT), then press (2) (SET UP).

2 Set the hour. to go backward

4 Set the minute. to go backward to go forward

Note If the POWER SELECT switch on the bottom of the unit is set to the B position, turn the power on first, then set the clock. To turn the power on, press (SOURCE).

Locating the beginning of a track

— Automatic Music Sensor (AMS) You can skip up to nine tracks at one time. During playback, press either side of (SEEK/AMS) momentarily.

SEEK/AMS Listening to a tape

To locate preceding tracks

Press (OPEN) and insert a cassette.

To locate succeeding tracks

The AMS function may not work when: • the blanks between tracks are shorter than four seconds. • there is noise between tracks. • there are long sections of low volume or quiet sections.

Changing the displayed item

Playback starts automatically.

Each time you press (DSPL), the item changes as follows: z Tape playback

Close the front panel.

* While the AF/TA function is activated.

EN If a cassette is already inserted, press

(SOURCE) until “FWD” or “REV” appears to start playback. The side facing up is being played.

Playing tracks repeatedly

You can repeat play the current track.

The side facing down is being played.

REV SUR EQ During playback press (SHIFT).

Every time you press (SHIFT), only the items you can select light up.

PLAY MODE SHIFT Tips

• To change the tape transport direction, press (MODE) (*). • “Metal” appears in the display when you insert a metal or CrO2 tape (Auto Metal function).

Fast-winding the tape

During playback, press either side of (SEEK/AMS) for one second.

SEEK/AMS Fast-forward

To start playback while fast-forwarding or rewinding, press (MODE)(*).

To go back to the normal playback mode, press

Playing a tape in various modes

You can play the tape in various modes: •Intro (Intro Scan) lets you play the first 10 seconds of all the tracks. •NR (Dolby NR) lets you select the Dolby* NR B or C**system. •ATA (Automatic Tuner Activation) turns on the tuner automatically while fast-winding the tape. •B.Skip (Blank Skip) skips blanks longer than eight seconds. ∗ Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation. “DOLBY” and the double-D symbol a are trademarks of Dolby Laboratories Licensing Corporation. ∗∗ XR-C850RW/C850RDS only.

Memorising stations automatically — Best Tuning Memory (BTM) The unit selects the stations with the strongest signals and memorises them. You can store up to 10 stations on each band (FM 1, FM 2, MW and LW). Caution When tuning in stations while driving, use Best Tuning Memory to prevent accidents.

Intro n NR n ATA n B.Skip

FWD SUR EQ Press (SOURCE) repeatedly to select the tuner.

Each time you press (SOURCE), the source changes as follows:

PLAY MODE Press (MODE) repeatedly to select the desired band.

Each time you press (MODE), the band changes as follows: z FM 1

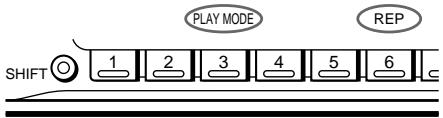

Press (4) (n) to select the desired play mode setting (for example: on, NR B, or

Press (4) (n) until “B.T.M” flashes.

The unit stores stations in the order of their frequencies on the number buttons. A beep sounds and the setting is stored.

To go back to the normal playback mode, select “off” in step 2 above.

z LW Press (SHIFT), then press (3) (PLAY MODE) repeatedly until “B.T.M” appears.

EN Cassette Player/Radio

Press (SHIFT), then press (3) (PLAY MODE) repeatedly until the desired play mode appears.

Each time you press (3), the item changes as follows:

• The unit does not store stations with weak signals. If only a few stations are received, some number buttons remain empty. • When a preset number is indicated in the display, the unit starts storing stations from the one currently displayed.

Memorising only the desired stations

Receiving the memorised stations

You can store up to 10 stations on each band

(20 for FM 1 and FM 2, 10 for MW or LW) in the order of your choice.

Press (SOURCE) repeatedly to select the tuner.

Press (SOURCE) repeatedly to select the tuner.

Press (MODE) repeatedly to select the desired band.

Press (MODE) repeatedly to select the desired band.

Press the number button ((1) to (10)) momentarily where the desired station is stored.

Press either side of (SEEK/AMS) to tune in the station you want to store on the number button.

EN If you cannot tune in a preset station

Press either side of (SEEK/AMS) momentarily to search for the station (automatic tuning). Scanning stops when the unit receives a station. Press either side of (SEEK/AMS) repeatedly until the desired station is received.

Keep the desired number button ((1) to

(10)) pressed until “MEM” appears in the display.

The number button indication appears in the display.

Note If you try to store another station on the same number button, the previously stored station will be erased.

If the automatic tuning stops too frequently, press (SHIFT), then press (3) (PLAY MODE) repeatedly until “Local” (local seek mode) appears. Then press (4) (n) to select “Local on.” Press (SHIFT). Only the stations with relatively strong signals will be tuned in. Tip If you know the frequency of the station you want to listen to, press and hold down either side of (SEEK/AMS) for a few seconds until the desired frequency appears (manual tuning).

If FM stereo reception is poor

Press (SHIFT), then press (3) (PLAY MODE) repeatedly until “Mono” appears.

Press (4) (n) repeatedly until

“Mono on” appears. The sound improves, but becomes monaural (“ST” disappears).

To go back to the normal mode, select “Mono off” in step 2 above.

Changing the displayed item

Each time you press (DSPL), the item changes as follows: Station name ˜ Clock

Re-tuning the same programme automatically

— Alternative Frequencies (AF)

Overview of the RDS function

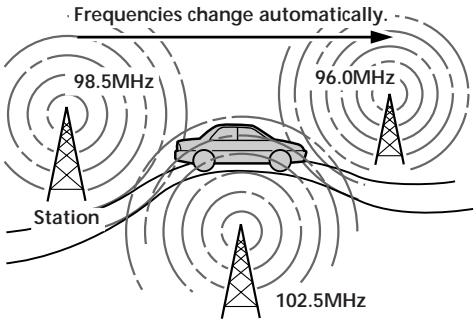

The Radio Data System (RDS) is a broadcasting service that allows FM stations to send additional digital information along with the regular radio programme signal. Your car stereo offers you a variety of services. Here are just a few: re-tuning the same programme automatically, listening to traffic announcements and locating a station by programme type.

The Alternative Frequencies (AF) function automatically selects and re-tunes the station with the strongest signal in a network. By using this function, you can continuously listen to the same programme during a longdistance drive without having to re-tune the station manually.

Frequencies change automatically. 98.5MHz

• Depending on the country or region, not all of the RDS functions are available. • RDS may not work properly if the signal strength is weak or if the station you are tuned to is not transmitting RDS data.

The name of the station currently received lights up in the display.

Select an FM station. When you tune in an FM station that transmits RDS data, the station name appears in the display.

SUR EQ BBC 1 FM Note

The “*” indication means that an RDS station is being received.

Select an FM station.

Press (AF/TA) repeatedly until “AF on” appears.

The unit starts searching for an alternative station with a stronger signal in the same network.

EN Radio/RDS Displaying the station name

When there is no alternative station in the area and you do not need to search for an alternative station, turn the AF function off by pressing (AF/TA) repeatedly until “AF TA off” appears.

Changing the displayed item

Each time you press (AF/TA), the item changes as follows: ” AF on

* Select this to turn on both the AF and TA functions.

Changing the displayed item

Each time you press (DSPL), the item changes as follows: ” Frequency

“NO Name” appears if the received station does not transmit RDS data.

• “NO AF” and the station name flash alternately, if the unit cannot find an alternative station in the network. • If the station name starts flashing after selecting a station with the AF function on, this indicates that no alternative frequency is available. Press (SEEK/AMS) while the station name is flashing (within eight seconds). The unit starts searching for another frequency with the same PI (Programme Identification) data (“PI seek” appears and no sound is heard). If the unit cannot find another frequency, “NO PI” appears, and the unit returns to the originally selected frequency.

Listening to a regional programme

Press (AF/TA) repeatedly until “TA on” or

“AF TA on” appears. The unit starts searching for traffic information stations. “TP” appears in the display when the unit finds a station broadcasting traffic announcements. When the traffic announcement starts, “TA” flashes. The flashing stops when the traffic announcement is over.

The “REG on” (regional on) function lets you stay tuned to a regional programme without being switched to another regional station.

(Note that you must turn the AF function on.) The unit is factory preset to “REG on,” but if you want to turn off the function, do the following.

Press (SHIFT), then press (3) (PLAY MODE) repeatedly until “REG” appears.

Press (4) (n) repeatedly until

Note that selecting “REG off” might cause the unit to switch to another regional station within the same network.

To go back to the regional on setting, select

“REG on” in step 2 above.

This function does not work in the United Kingdom and in some other areas.

If the traffic announcement starts while you are listening to another programme source, the unit automatically switches to the announcement and goes back to the original source when the announcement is over. Notes • “NO TP” flashes for five seconds if the received station does not broadcast traffic announcements. Then, the unit starts searching for a station that broadcasts traffic announcements. • When “EON” appears with “TP” in the display, the current station makes use of traffic announcements broadcast by other stations in the same network.

To cancel the current traffic announcement

Press (AF/TA) momentarily. To cancel all traffic announcements, turn off the function by pressing (AF/TA) until “AF TA off” appears.

Local link function (United

Kingdom only) The Local Link function lets you select other local stations in the area, even though they are not stored on your number buttons.

Press a number button that has a local station stored on it.

Within five seconds, press the number button of the local station again.

Repeat this procedure until the desired local station is received.

Listening to traffic announcements

The Traffic Announcement (TA) and Traffic Programme (TP) data let you automatically tune in an FM station that is broadcasting traffic announcements even though you are listening to other programme sources.

Presetting the volume of traffic announcements

You can preset the volume level of the traffic announcements beforehand so you won’t miss the announcement. When a traffic announcement starts, the volume will be automatically adjusted to the preset level.

Select the desired volume level.

Press (AF/TA) for two seconds.

“TA” appears and the setting is stored.

Receiving emergency announcements

If an emergency announcement comes in while you are listening to the radio, the programme will be automatically switched to the announcement. If you are listening to a source other than the radio, the emergency announcements will be heard if you set AF or TA to on. The unit will then automatically switch to these announcements no matter what you are listening to at the time.

Presetting the RDS stations with the AF and

Recording the traffic announcements

When you preset the RDS stations, the unit stores each station’s data as well as its frequency, so you don’t have to turn on the AF or TA function every time you tune in the preset station. You can select a different setting

(AF, TA, or both) for each preset station, or the same setting for all preset stations.

You can listen to the latest traffic announcements by recording them. The unit automatically records and stores up to eight traffic announcements. If the recording exceeds eight minutes (XR-C850RW/

C850RDS), or four minutes (XR-C750RDS), the recorded announcements are updated, so you can always hear the latest information. The TIR function turns on the unit automatically and records the traffic announcements for up to two hours before and after a preset time.

Presetting the same setting for all preset stations

Press (AF/TA) repeatedly to select either

“AF on,” “TA on” or “AF TA on” (for both AF and TA functions). Note that selecting “AF TA off” stores not only RDS stations, but also non-RDS stations.

Presetting the time and the station

Press (TIR) for two seconds until “TIR” lights up in the display.

Press (4) (n) repeatedly until “TIR on” appears.

Press (SHIFT), then press (3) (PLAY MODE) repeatedly until “B.T.M” appears.

Press (4) (n) until “B.T.M” flashes.

—Traffic Information Replay (TIR)

Press (TIR) repeatedly until the time indication appears.

TIR Presetting different settings for each preset station

1 Set the hour by rotating the dial.

Select an FM band, and tune in the desired station.

Press (AF/TA) repeatedly to select either

“AF ON,” “TA ON” or “AF TA ON” (for both AF and TA functions).

2 Press (4) (n) until the minute digits flash.

TIR Press the desired number button for two seconds until “MEM” appears.

Repeat from step 1 for presetting other stations.

3 Set the minute by rotating the dial.

If you want to change the preset AF and/or TA setting after you tune in the preset station, you can do so by turning on/off the AF or TA function.

Select the desired station by pressing the preset number button or either side of (SEEK/AMS). continue to next page n

Press (TIR) for two seconds to return to the original display. t lights up.

AF/TA To cancel the TIR function

Select “TIR off” in step 2 above. Tips • While the unit is recording the traffic announcement, t and “TA” flash. • If the unit still cannot find a TP station, it starts a new search every five minutes until it finds one. • If you pull out the ignition key while the TIR function is on, "TIR on" and t flash a few times. Notes • The unit also stands by for traffic announcements for two hours after you turn off the engine, as long as the TIR function is on. • If you have a power aerial, it automatically extends every time the unit searches for a traffic programme station. If you have a manual aerial, make sure that the aerial is fully extended. • If you do not use your car for about ten days, the TIR function will turn off automatically to avoid battery wear, even if the TIR function is on.

Playing back the recorded traffic announcements

When there are recorded traffic announcements you have not listened to yet, t flashes.

You can locate the station you want by selecting one of the programme types shown below.

The unit turns on automatically and stands by for traffic announcements for four hours

(two hours before and after the preset time). If the preset station does not broadcast the traffic announcement while searching, the unit starts searching for other traffic programme (TP) stations.

EN Locating a station by programme type

The latest traffic announcement is played back. To listen to the previous ones, press (TIR) or the + side of (SEEK/AMS). To replay the announcements, press the – side of (SEEK/AMS). “NO Data” appears if no traffic announcements were recorded. Press (TIR) to go back to the original programme.

If you are in a country or regions where EON data is not transmitted, you can use this function only for the stations you have tuned in once.

News Current Affairs Information Sports Education Drama Culture Science Varied Popular Music Rock Music Middle of the Road Music Light Classical Classical Other Music Type Weather Finance Children's programmes Social Affairs Religion Phone In Travel Leisure Jazz Music Country Music National Music Oldies Music Folk Music Documentary Not specified

NEWS AFFAIRS INFO SPORT EDUCATE DRAMA CULTURE SCIENCE VARIED POP M ROCK M M.O.R. M LIGHT M CLASSICS OTHER M WEATHER FINANCE CHILDREN SOCIAL A RELIGION PHONE IN TRAVEL LEISURE JAZZ COUNTRY NATION M OLDIES FOLK M DOCUMENT NONE Note

You can not use this function in some countries where no PTY (Programme Type selection) data is available.

Press (PTY/LIST) during FM reception until “PTY” appears.

PTY SUR EQ INFO The current programme type name appears if the station is transmitting the PTY data.

“- - - - -” appears if the received station is not an RDS station, or if the RDS data has not been received.

Press (PTY/LIST) repeatedly until the desired programme type appears.

The programme types appear in the order shown in the above table. Note that you cannot select “NONE” (Not specified) for searching.

SPORT Using the rotary remote

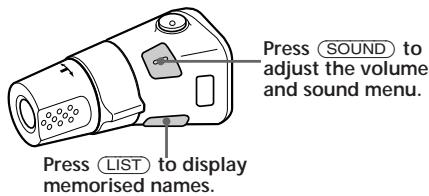

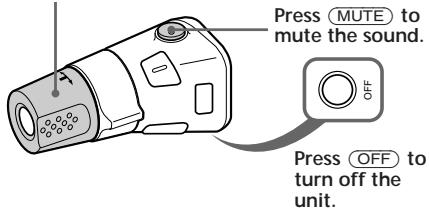

The rotary remote works by pressing buttons and/or rotating controls. You can control the optional CD and MD changer with the rotary remote.

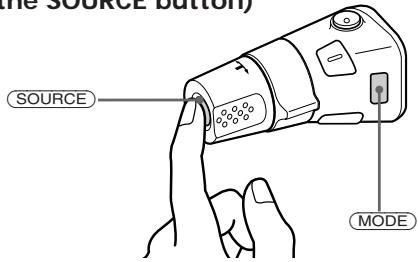

By pressing the button

Each time you press (SOURCE), the source changes as follows:

Tuner n CD n MD n Tape

Setting the clock automatically

The CT (Clock Time) data from the RDS transmission sets the clock automatically.

Press (SHIFT), then press (2) (SET UP) repeatedly until “CT” appears.

Pressing (MODE) changes the operation in the following ways

• the tape transport direction • the band: FM1 n FM2 n MW n LW • the CD changer: CD1 n CD2 n .... • the MD changer: MD1 n MD2 n ....

EN RDS/Other Functions

Press either side of (SEEK/AMS).

The unit starts searching for a station broadcasting the selected programme type. When the unit finds the programme, the programme type appears again for five seconds. “NO” and the programme type flash for five seconds if the unit cannot find the programme type. It then returns to the previous station.

You can turn on this unit by pressing (SOURCE) on the rotary remote.

By rotating the control

(the SEEK/AMS control)

Press (4) (n) repeatedly until “CT on” appears.

Press (SHIFT) to return to the normal display.

To cancel the CT function

Select “CT off” in step 2 above. Notes • The CT function may not work even though an RDS station is being received. • There might be a difference between the time set by the CT function and the actual time.

Rotate the control momentarily and release it to:

• Locate the beginnings of the tracks on the tape. Rotate and hold the control, and release it to fast-wind the tape. To playback, rotate and hold the control again, and release it. • Locate a specific track on a disc. Rotate and hold the control until you locate the specific point in a track, then release it to start playback. continue to next page n

•Tune in stations automatically. Rotate and hold the control to tune in the specific station.

By rotating the control while pushing in (the PRESET/DISC control)

Press (SOUND) two seconds while pushing the VOL control.

Push in and rotate the control to:

•Receive the stations memorised on the preset buttons. •Change the disc.

Rotate the VOL control to adjust the volume.

EN OFF Press (MUTE) to mute the sound.

You can change the operative direction of controls with the unit, refer to “Changing the sound and display settings” (page 15).

Adjusting the sound characteristics

You can adjust the subwoofer volume*, bass, treble, balance and fader. Each source can store the sub output, bass and treble level respectively.

Press (OFF) to turn off the unit.

Press (SOUND) to adjust the volume and sound menu.

Select the item you want to adjust by pressing (SOUND) repeatedly.

VOL (volume) n SUB* (subwoofer volume) n BAS (bass) n TRE (treble) n BAL (balance) n FAD (fader) ∗ XR-C850RW/C850RDS only.

Adjust the selected item by rotating the dial.

Adjust within three seconds after selection. (After three seconds, the dial works as the volume control dial.)

Changing the operative direction

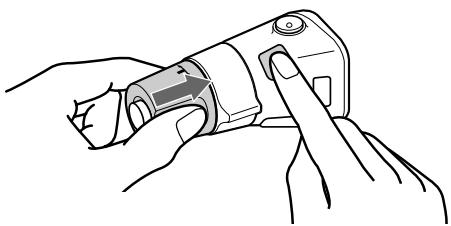

The operative direction of controls is factory preset as in the illustration below. To increase

The unit decreases the volume automatically when a telephone call is received (Telephonemute function).

If you need to mount the rotary remote on the right of the steering column, you can reverse the operative direction of the controls.

Changing the sound and display settings

Press (4) (n) to select the desired setting (for example: “on” or “off”).

For the “Contrast” setting, pressing (4) (n) makes the contrast higher, and pressing (1) (N) makes the contrast lower.

When the mode setting is complete, the normal playback mode appears.

Adjusting the frequency of the subwoofer(s)

(XR-C850RW/C850RDS only) To match the characteristics of the connected subwoofer(s), you can cut out the unwanted high and middle frequency signals entering the subwoofer(s). By setting the cut-off frequency, the subwoofer(s) will output only low frequency signals so you can get a clearer sound image.

Press (SOURCE) to select a source (radio, tape, CD, or MD).

Press (SHIFT), then press (2) (SET UP) repeatedly until “LPF” appears.

Press (4) (n) or (1) (N) repeatedly to select desired setting.

Press (SHIFT), then press (2) (SET UP).

Press (2) (SET UP) repeatedly until the desired setting mode appears.

Each time you press (4) (n) or (1) (N), the cut-off frequency in the display changes as follows:

The displayed item will differ depending on the source.

•Clock (page 5) •CT (Clock Time) (page 13) •D. Info (Dual Information) to display the clock and the play mode at the same time (ON), or to display the information alternately (OFF). •Amber/Green to change the illumination colour to amber or green. •Dimmer to change the brightness of the display. — Select “Auto” to dim the display only when you turn the lights on. — Select “on” to dim the display. •Contrast to adjust the contrast if the indications in the display are not recognizable because of the unit’s installed position. •Beep to turn on or off the beeps. •RM (Rotary Remote) to change the operative direction of the controls of the rotary remote. — Select “norm” to use the rotary remote in the factory preset position. — Select “rev” when you mount the rotary remote on the right side of the steering column. •Loud (Loudness) to enjoy bass and treble even at low volume. The bass and treble will be reinforced. •LPF (Low Pass Filter) •A. Scrl (page 16) •Disc MEMO/TEXT name (Disc memo/CDTEXT name) to set the priority display item when you connect an optional CD changer with the CD-TEXT and disc memo function.

When the frequency setting is complete, the display goes back to the normal playback mode.

Each time you press (2) (SET UP), the item changes as follows:

Clock n CT n D.Info n Amber/Green n Dimmer n Contrast n Beep n RM n Loud n LPF n A.Scrl n Disc MEMO/TEXT name

With Optional Equipment

If you connect an optional CD changer with the CD-TEXT function, the CD-TEXT information will appear in the display when you playback a CD-TEXT disc.

Press (SOURCE) repeatedly to select the

Press (MODE) until the desired changer indication appears in the display.

CD/MD playback starts.

Each time you press (DSPL) during CD, CDTEXT or MD playback, the item changes as follows:

$ Elapsed playback time $ Disc name∗1/Artist name∗2 $ Track name∗3 $ Clock ∗1 If you have not labeled the CD or there is no disc name prerecorded on the MD, “NO D. Name” appears in the display. 2 ∗ If you play a CD-TEXT disc, the artist name appears in the display after the disc name. (Only for CD-TEXT discs with the artist name) 3 ∗ If the track name of a CD-TEXT disc or MD is not prerecorded, “NO T. Name” appears in the display.

You can label a personalized name for CDs and CD-TEXT discs with the disc memo function, refer to “Labeling a CD” (page 19).

Tip If the name of the CD-TEXT disc or MD is too long, you can scroll it across the display by pressing (SHIFT), then (1) (N).

Automatically scrolling a disc name

— Auto Scroll If the disc name/artist name or track name on a CD-TEXT or MD disc exceeds 10 characters and the Auto Scroll function is on, automatically scrolls on the display as follows.

• The disc name appears when the disc has changed (if the disc name is selected).

• The track name appears when the track has changed (if the track name is selected). • The disc or track name appears depending on the setting when you press (SOURCE) to select an MD or CDTEXT disc.

If you press (DSPL) to change the display item, the disc or track name of the MD or CDTEXT disc is scrolled automatically whether you set the function on or off.

Press (SHIFT), then press (2) (SET UP) repeatedly until “A. Scrl” appears.

Press (4) (n) to select “A. Scrl on.”

To cancel Auto Scroll, select “A. Scrl off” in step 2 above.

Note For some CD-TEXT discs with extremely many characters, the following cases may happen: - Some of the characters are not displayed. - Auto Scroll does not work.

Displaying the recording date of the currently selected MD Press (DSPL) for two seconds during MD playback.

The recording date of the track is displayed for about three seconds.

Locating a specific track

— Automatic Music Sensor (AMS) During playback, press either side of (SEEK/AMS) once for each track you wish to skip.

SEEK/AMS To locate succeeding tracks

To locate preceding tracks

Locating a specific point in a track

— Manual Search During playback, press and hold either side of (SEEK/AMS). Release the button when you have found the desired point.

SEEK/AMS To search forward

Locating a disc by disc number

— Direct Disc Selection Press the number button that corresponds with the desired disc number. The desired disc in the currently selected changer begins playback.

During playback, press (SHIFT), then press (7) (SHUF) repeatedly until “Shuf” appears.

Press (7) (SHUF) repeatedly until the desired setting appears.

You can play the first 10 seconds of all the tracks on the current disc.

During playback, press (SHIFT), then press (3) (PLAY MODE) repeatedly until

Shuffle play starts.

Press (4) (n) repeatedly until

“Intro on” appears. Intro Scan starts.

To go back to the normal playback mode, select “Shuf off” in step 2 above.

To go back to the normal playback mode, select “Intro off” in step 2 above.

Creating a programme

Playing tracks repeatedly — Repeat Play

You can play tracks in the order you want by making your own programme. You can make two programmes: Programme 1 and

Programme 2. You can select up to 12 tracks for each programme. You can store the programmes in memory.

During playback, press (SHIFT), then press (6) (REP) repeatedly until “Repeat” appears.

Press (6) (REP) repeatedly until the desired setting appears.

If you have labeled the disc, the bank edit mode appears. Press (3) (PLAY MODE) to display “P1” above.

Repeat off Z Press (SHIFT).

To go back to the normal playback mode, select “Repeat off” in step 2 above.

Playing tracks in random order — Shuffle Play

You can select: •Shuf 1 to play the tracks on the current disc in random order. •Shuf 2 to play the tracks in the current changer in random order. •Shuf 3 to play all the tracks in random order when you connect two or more changers.

“P1” shows Programme 1 is selected.

Press (SHIFT), then press (3) (PLAY MODE) for two seconds.

•Repeat 1 to repeat a track. •Repeat 2 to repeat a disc. •Repeat 3 to repeat all the discs in the current changer when you connect two or more changers.

— Programme Memory (CD/MD changer with programme memory function)

To select Programme 2, press (4) (n) repeatedly until “P2” appears.

Select the track you want.

1 Press (SOURCE) repeatedly to select the CD or MD. 2 Press (MODE) repeatedly to select the changer. 3 Press (SHIFT), then press the number button to select the disc. 4 Press (SHIFT). 5 Press either side of (SEEK/AMS) to select the track. continue to next page n

Press (5) (ENTER) momentarily.

SUR EQ To go back to the normal playback mode, select “PGM off” in step 3 above.

To continue entering tracks, repeat steps

When you finish entering tracks, press

(3) (PLAY MODE) for two seconds.

• If you press a number button during programme memory play, programme memory play is interrupted, and playback of the selected disc starts. • “NO Data” appears in the display if no track is stored in the programme. • If a track stored into the programme memory is not in the disc magazine, the track will be skipped. • When the disc magazine contains not a single track stored into the programme memory, or when the programme information has not been loaded yet, “Not Ready” appears.

Erasing the entire programme

• “*Wait*” appears in the display while the unit is reading the data, or when a disc has not been put into the unit. • “*Mem full*” appears in the display when you try to enter more than 12 tracks into a programme.

Playing the stored programme

Changing the disc order in the changer will not affect programme memory play.

Press (SHIFT), then press (3) (PLAY MODE) for two seconds.

If you have labeled the disc, the bank edit mode appears. Press (3) (PLAY MODE) to display “P1” above.

Press (1) (N) repeatedly until “DEL” appears.

•PGM 1 to play Programme 1. •PGM 2 to play Programme 2. •PGM 1+2 to play Programmes 1 and 2.

Press (3) (PLAY MODE) repeatedly until

--PGM1-PLAY MODE To erase Programme 2, press (4) (n) repeatedly until “P2” appears.

Press (5) (ENTER) for two seconds.

SUR EQ Press (4) (n) repeatedly until the desired programme appears.

Programme play starts. Programme 1 Playback PGM 1

SUR EQ ENTER The entire programme is erased.

When you finish erasing programmes, press (3) (PLAY MODE) for two seconds.

Programme 2 Playback

Programmes 1 and 2 Playback

Press (SHIFT), then press (3) (PLAY MODE) for two seconds.

If you have labeled the disc, the bank edit mode appears. Press (3) (PLAY MODE) to display “P1” above.

Adding tracks to the programme

To select Programme 2, press (4) (n) repeatedly until “P2” appears.

Press (1) (N) or (4) (n) to select the track slot number where you want to insert a track.

When you finish erasing tracks, press (3)

(PLAY MODE) for two seconds.

Press either side of (SEEK/AMS) to select the track you want to insert.

Press (5) (ENTER) momentarily to enter the track.

The current track in that slot number and the succeeding tracks shift down. To continue inserting tracks, repeat steps 2 through 4.

— Disc Memo/Custom File (CD changer with custom file function) You can label each disc with a personalized name. You can enter up to 8 characters for a disc. If you label a CD, you can locate a disc by name (page 20) and select the specific tracks for playback (page 20).

Once all 12 slots have been filled, “∗Mem full∗” appears in the display, and you cannot insert tracks.

Erasing the tracks in the programme

2 Press (4) (n) after locating the desired character.

The flashing cursor moves to the next space.

If you rotate the dial counterclockwise, the characters appear in reverse order.

If you want to put a blank space between characters, select “_” (underbar).

Press (1) (N) or (4) (n) to select the track you want to erase.

SUR EQ Enter the characters.

1 Rotate the dial clockwise direction to select the desired characters. (A n B n C n ··· Z n 0 n 1 n 2 n ··· 9 n + n – n * n / n \ n > n < n.n_)

Press (SHIFT), then press (3) (PLAY MODE) for two seconds.

If you have labeled the disc, the bank edit mode appears. Press (3) (PLAY MODE) to display “P1” above. To select Programme 2, press (4) (n) repeatedly until “P2” appears.

When you finish inserting tracks, press

(3) (PLAY MODE) for two seconds.

Play the CD and press (PTY/LIST) for two seconds.

PLAY MODE If you press (1) (N), the flashing cursor moves to the left.

The track currently registered in slot 6 of

3 Repeat steps 1 and 2 to enter the entire name.

Press (5) (ENTER) for two seconds.

When you erase a track from a slot number, the succeeding tracks shift up to fill the gap.

DEL SUR EQ DISC TRACK

To return to the normal CD playback mode, press (PTY/LIST) for two seconds.

To continue erasing tracks, repeat steps

To erase/correct a name, enter “_” (under-bar) for each character.

Displaying the disc memo

During playback, press (DSPL).

4 SCHUBERT Each time you press (DSPL) during CD playback, the item changes as follows: z Disc name∗1

z Elapsed playback time

Clock Z Track name∗2 Z

∗1 When you connect an optional CD changer with the CD-TEXT function, the personalized label or the CDTEXT disc name appears. See below to change the display. - To change the displayed item press (4) (n). - To change the display using Display settings (page 15).

Locating a disc by name

— List-up (CD changer with custom file function or MD changer) You can use this function for the discs that have been assigned a personalized name. For more information on disc names, refer to “Labeling a CD” (page 19).

LST SUR EQ The display item will change depending on the setting as follows.

Type of Priority display setting disc

A EN B C D D.MEMO CD-TEXT D.MEMO CD-TEXT D.MEMO CD-TEXT D.MEMO CD-TEXT

∗2 If you connect an optional CD changer with the CDTEXT function, the CD-TEXT information will appear on the display when you playback a CD-TEXT disc.

Erasing the disc memo

Press (SOURCE) repeatedly to select CD.

Press (PTY/LIST) for two seconds.

Rotate the dial to select the name you want to erase.

Press (5) (ENTER) for two seconds.

The name is erased. Repeat steps 5 and 6 if you want to erase other names.

Press (MODE) repeatedly to select the CD changer.

Press (DSPL) for two seconds.

“Delete” and the disc memo appear in the display.

Press (PTY/LIST) for two seconds.

The unit returns to the normal CD playback mode.

4 SCHUBERT ENTER If you add disc memo labels to a CD-TEXT disc, the display setting you make will determine which information is displayed.

If the disc has only one set of information (either CD-TEXT or disc memo labels ), that information will be displayed regardless of the display setting you make.

Press (PTY/LIST) repeatedly until you find the desired disc.

Press (5) (ENTER) to play back the disc.

A: CD-TEXT disc with disc memo

B: Normal CD with disc memo C: CD-TEXT disc without disc memo D: Normal CD without disc memo

Press (PTY/LIST) momentarily.

The names assigned to the disc currently playing and the next disc to be played appear in the display. The name assigned to currently playing disc is flashing.

• To go back to the normal display, press (DSPL). Once a disc name has been displayed for five seconds, the display goes back to the normal playback mode. • The track names are not displayed during MD playback. • If there are no discs in the magazine, “NO Disc” appears in the display. • If a disc has not been assigned a custom file, “********” appears in the display. • If the disc information has not been read by the unit, “?” appears in the display. To load the disc, first press a number button, then choose a disc that has not been loaded. • The information appears only in upper cases. There are also some letters which cannot be displayed (during MD playback).

Selecting the specific tracks for playback

— Bank/Custom File (CD changer with custom file function) If you label the disc, you can set the unit to skip tracks and play only the tracks you want.

Start playing the disc and press (SHIFT).

Then press (3) (PLAY MODE) for two seconds.

If you have not labeled the disc, the bank edit mode does not appear and the program edit mode appears. To go back to the normal playback mode, press (3) (PLAY MODE) for two seconds.

Press either side of (SEEK/AMS) to select the track number you want to skip and press (5) (ENTER).

PLAY MODE DSP With the optional XDP-U50D connected (XR-C850RW/C850RDS only)

The optional XDP-U50D lets you add some effects to the sound field of the currently selected source.

ENTER The indication changes from “Play” to

“Skip.” If you want to return to “Play,” press (5) (ENTER) again.

Selecting a surround menu

Repeat step 2 to set the “Play” or “Skip” mode on all the tracks.

Press (3) (PLAY MODE) for two seconds.

• You can set the “Play” and “Skip” modes on up to 24 tracks. • You cannot set the “Skip” mode on all the tracks.

Playing the specific tracks only

You can select: •Bank on to play the tracks with the “Play” setting. •Bank inv (inverse) to play the tracks with the “Skip” setting.

During playback, press (SHIFT), then press (3) (PLAY MODE) repeatedly until

Press (4) (n) repeatedly until the desired setting appears. z Bank on

Press (SOURCE) to select a source (radio, tape, CD, or MD).

Press (SOUND) repeatedly until “SUR” appears.

SUR EQ SUR EQ Concert hall

Jazz club Disco with thick walls Movie theatre Big open space Live concert Opera house Church/chapel with a lot of reverberation Open-air concert in a stadium Cellar with a lot of reverberation Normal sound without any DSP effects

EN CD/MD Changer/DSP

You can select a desired surround menu to best fit the audio source. The following menu can simulate different sound fields and enhance the sound so you can feel as if you are at a live concert.

PLAY MODE Playback starts from the track following the current one.

To go back to the normal playback mode, select “Bank off” in step 2 above.

Rotate the dial to select the desired surround menu.

The surround menu appears in the order shown above. After three seconds, the display goes back to the normal playback mode.

Adjusting the effect level

Press (SOURCE) to select a source (radio, tape, CD, or MD).

Press (SOUND) for two seconds.

Rotate the dial to select the desired surround menu.

Press (PTY/LIST) for two seconds.

When the effect setting complete, the display goes back to the normal playback mode.

Rotate the dial to select the desired surround menu.

Playing the disc with the stored surround menu

Press (SHIFT), then press (3) (PLAY MODE) repeatedly until “D.File” appears.

Press (4) (n) to select “D. File on.”

After five seconds, the display goes back to the normal playback mode.

Rotate the dial to adjust the level.

You can adjust the level from 0 to 100%. Increase the level to enjoy more enhanced effects.

Press (SOUND) for two seconds.

To cancel playback of the disc with a stored surround menu, select “D. File off” in step 2 above.

Changing the stored surround effect

Play the disc whose surround effect you want to change, and follow the steps in “Storing the surround effect for CDs.”

Erasing the stored surround effect

Select “DEFEAT” in step 3 of “Storing the surround effect onto CDs.”

Storing the surround effect onto the CDs

— Digital Signal Processor (DSP) Custom File (CD changer with custom file function)

Selecting the listening position

Once you have registered the desired surround menu onto the discs, you can enjoy the same surround menu every time you play them.

(Only when you have labeled the disc with the Custom File function.)

You can set the time for the sound to reach the listeners from the speakers.

The unit can simulate a natural sound field so that you can feel as if you are in the centre of the sound field wherever you sit in the car.

Press (PTY/LIST) for two seconds.

Press (PTY/LIST) until the surround menu appears.

LP1 All LP2 Front LP3 Front R LP4 Front L LP5 Rear

Centre of sound field

Normal setting (1 + 2 + 3) Front part (1 + 2) Right front (2) Left front (1) Rear part (3)

Press (SOUND) momentarily until “LP1” appears.

ALL Rotate the dial to select the desired listening position.

The listening positions appear in the order shown above. After three seconds, the display goes back to the normal playback mode.

Adjusting the fader (FAD)

Normally, with the DSP mode on, the volume of the output sound from the rear speakers is lowered automatically to improve the efficiency of the listening position setting. If you want to raise the rear speaker volume, adjust the fader.

Follow steps 1 to 3 of “Selecting a surround menu” (page 21).

Press (SOUND) momentarily until “FAD” appears.

Rotate the dial to adjust the fader.

Adjusting the listening position

Press (SOUND) for two seconds.

Rotate the dial to select the desired listening position.

Decreases the front speaker volume

Increases front speaker volume

After three seconds, the display goes back to the normal playback mode.

L R Rotate the dial to adjust the centre of the sound field to the left or right. Then set the centre of the sound field.

Centre moves to the L (left)

Adjusting the volume of the subwoofer(s)

Press (SOURCE) to select a source (radio, tape, CD, or MD).

Press (SOUND) repeatedly until “SUB” appears.

Rotate the dial to adjust the volume.

After three seconds, the display goes back to the normal playback mode.

Centre moves to the R (right)

R F Rotate the dial to adjust the centre of the sound field to the front or rear.

Centre moves to the R (rear) Centre moves to the F (front)

Press (SOUND) for two seconds.

When the effect setting is complete, the normal playback mode display appears.

Adjusting the frequency of the subwoofer(s)

To match the characteristics of the connected subwoofer(s), you can cut out the unwanted high and middle frequency signals entering the subwoofer(s). By setting the cut-off frequency (see the diagram below), the subwoofer(s) will output only low frequency signals so you can get a clearer sound image.

You can adjust the volume of the bass and treble to best fit the acoustic characteristics inside your car.

Press (SOURCE) to select a source (radio, tape, CD, or MD).

Press (SOUND) repeatedly until “BAS” or

Rotate the dial to adjust the volume.

After three seconds, the display goes back to the normal playback mode.

Press (SOURCE) to select a source (radio, tape, CD, or MD).

Press (SOUND) for two seconds.

Press (SOUND) repeatedly until “SUB” appears.

EN Adjusting the volume of the bass and treble

Adjusting the turn-over frequency

You can adjust the bass and treble turn-over frequencies. Turn-over frequency

Rotate the dial to select the desired cutoff frequency.

The cut-off frequency in the display changes.

Press (SOURCE) to select a source (radio, tape, CD, or MD).

Press (SOUND) for two seconds.

Press (SOUND) repeatedly until “BAS” or

Press (SOUND) for two seconds.

When the frequency setting is complete, the display goes back to the normal playback mode.

Treble adjusting mode

Rotate the dial to select the turn-over frequency.

The turn-over frequency changes as follows: Bass: 198 Hz n 250 Hz n 314 Hz* n 396 Hz

2.0 kHz n 3.1 kHz* n 4.0 kHz n 5.0 kHz

* Factory-set frequency

Press (SOUND) for two seconds.

The display goes back to the normal playback mode.

Listening to each programme source in its registered surround menu

— Source Sound Memory (SSM) You can always listen to the same source with the same surround menu even after changing the programme source or turning the unit off and on again.

Changing the line output level

• If your car was parked in direct sunlight resulting in a considerable rise in temperature inside the car, allow the unit to cool off before operating it. • If no power is being supplied to the unit, check the connections first. If everything is in order, check the fuse. • If no sound comes from the speakers of a two-speaker system, set the fader control to the centre position. •If your car is equipped with a power aerial, note that it will extend automatically while the tuner function is selected. If you have any questions or problems concerning your unit that are not covered in this manual, please consult your nearest Sony dealer.

To maintain high quality sound

Press (SHIFT), then press (2) (SET UP) until “L.out” appears.

Press (4) (n) to select the desired setting (–10 dB or –16 dB).

If you have drink holders near your audio equipment, be careful not to splash juice or other soft drinks onto the car audio. Sugary residues on this unit or cassette tapes may contaminate the playback heads, reduce the sound quality, or prevent sound reproduction altogether.

Cassette cleaning kits do not remove sugar from the tape heads.

EN DSP/Additional Information

You can change the line output level when you want to adjust the level of the spectrum analyser or when the sound is distorted.

Notes on cassette deck tape head

•Long use of cassette tapes contaminates the tape head causing poor sound quality or complete sound dropout. Therefore, we recommend cleaning the tape head once a month or so with the separately available Sony Cassette Cleaning Set. If the sound does not improve after using a cleaning cassette, please consult your nearest Sony dealer. •In case of old or inferior cassette tapes, the tape head gets contaminated much more quickly. Depending on the tape, one or two playbacks may cause poor sound.

Fuse replacement When replacing the fuse, be sure to use one that matches the amperage described on the fuse. If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after replacement, there may be an internal malfunction. In such a case, consult your nearest Sony dealer.

•Do not touch the tape surface of a cassette, as any dirt or dust will contaminate the heads.

•Keep cassettes away from equipment with built-in magnets such as speakers and amplifiers, as erasure or distortion on the recorded tape could occur. •Do not expose cassettes to direct sunlight, extremely cold temperatures or moisture. •Slack in the tape may cause the tape to be caught in the machine. Before you insert the tape, use a pencil or similar object to turn the reel and take up any slack.

Never use a fuse with an amperage rating exceeding the one supplied with the unit as this could damage the unit.

Cleaning the connectors

The unit may not function properly if the connectors between the unit and the front panel are not clean. To prevent this, open the front panel by pressing (OPEN), then detach it and clean the connectors with a cotton swab dipped in alcohol. Do not apply too much force. Otherwise, the connectors may be damaged.

•Distorted cassettes and loose labels can cause problems when inserting or ejecting tapes.

Remove or replace loose labels.

Cassettes longer than 90 minutes

The use of cassettes longer than 90 minutes is not recommended except for long continuous play. The tapes used for these cassettes are very thin and tend to be stretched easily. Frequent playing and stopping of these tapes may cause them to be pulled into the cassette deck mechanism.

Back of the front panel

Dismounting the unit

EN Additional Information

Press the clip inside the front cover with a thin screwdriver, and lever the front cover free.

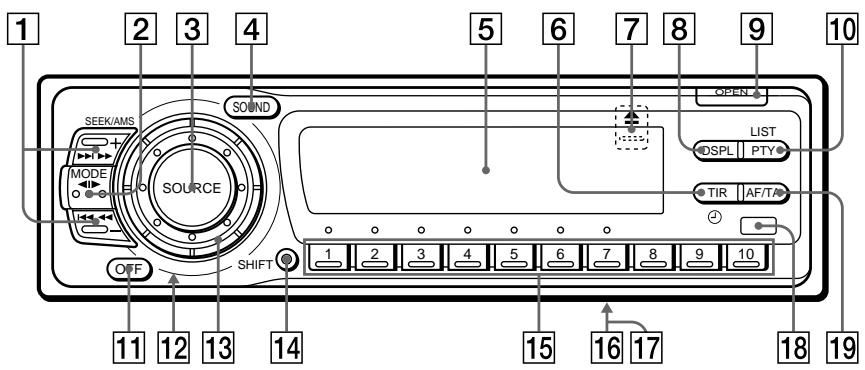

Location of controls

OPEN SOUND SEEK/AMS LIST DSPL PTY TIR AF/TA MODE SOURCE OFF EN SHIFT

Refer to the pages for details.

1 SEEK/AMS (seek/Automatic Music Sensor/manual search) button 6, 8, 9, 11, 12, 16, 17, 18, 21

2 MODE (band select, changer select, tape transport direction) button 6, 7, 8,

3 SOURCE (source select) button 5, 6, 7, 8,

14, 16, 17, 20, 21, 22, 23, 24 4 SOUND button 14, 21, 22, 23, 24, 25 5 Display window 6 TIR button 11, 12 7 6 (eject) button (located on the front of the unit hidden by the front panel) 6 8 DSPL button (display mode change) button 6, 8, 9, 16, 20 9 OPEN button 4, 6, 26 !º PTY/LIST button PTY 12, 13 Disc Memo 19 DSP Custom File 22 List-up 20 !¡ OFF button 4, 6 !™ Reset button (located on the front of the unit hidden by the front panel) 4

!∞ During radio reception:

Preset number buttons 8 During CD/MD playback: Direct disc selection buttons 16 !§ POWER SELECT switch (located on the bottom of the unit) See “POWER SELECT switch” in the Installation/Connections manual. !¶ LINE-OUT/IN SELECT switch (located on the bottom of the unit) (XR-C850RW/ C850RDS only) See “LINE-OUT/IN SELECT switch” in the Installation/Connections manual. !• Receptor for wireless remote !ª AF/TA button 9, 10, 11

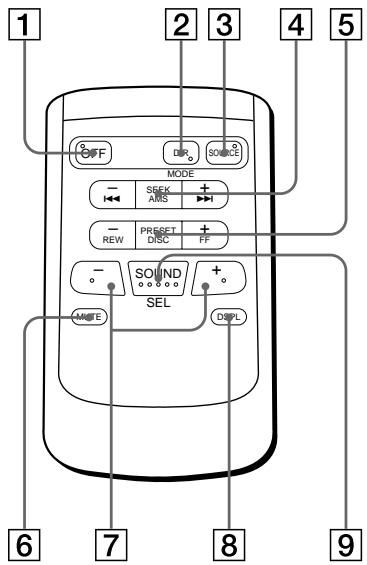

Optional wireless remote

PRESET DISC FF SOUND

Buttons with the same functions as those on this unit.

You cannot do manual search and manual tuning with the remote commander.

The unit cannot be operated with the wireless remote unless (SOURCE) on the unit is pressed or a cassette is inserted to activate the unit first.

Cassette player section

Wow and flutter Frequency response Signal-to-noise ratio

4-track 2-channel stereo

0.08 % (WRMS) 30 – 20,000 Hz

Dolby B Dolby C∗ type NR NR TYPE II, III, IV 67 dB 73 dB TYPE I 64 dB 70 dB ∗ XR-C850RW/C850RDS only

Supplied accessories

External aerial connector 10.7 MHz 9 dBf 75 dB at 400 kHz 65 dB (stereo), 68 dB (mono) Harmonic distortion at 1 kHz 0.5% (stereo), 0.3% (mono) Separation 35 dB at 1 kHz Frequency response 30 – 15,000 Hz Capture ratio

2 dB MW/LW Tuning range

Aerial terminal Intermediate frequency Sensitivity

LW: 153 – 281 kHz External aerial connector 10.71 MHz/450 kHz

MW: 30 µV LW: 50 µV Speaker outputs

(sure seal connectors) Speaker impedance 4 – 8 ohms Maximum power output 40 W × 4 (at 4 ohms)

Tuning range Aerial terminal Intermediate frequency Usable sensitivity Selectivity Signal-to-noise ratio

Optional accessories

Power aerial relay control lead Power amplifier control lead Bass ±8 dB at 100 Hz Treble ±8 dB at 10 kHz 12 V DC car battery (negative ground) Approx. 184 × 50 × 176 mm (w/h/d) Approx. 182 × 53 × 163 mm (w/h/d) Approx. 1.3 kg Parts for installation and connections (1 set) Front panel case (1) Rotary remote RM-X2S (1) Wireless remote RM-X41 (1) BUS cable (supplied with an RCA pin) RC-61 (1 m), RC-62 (2 m) RCA pin cord RC-63 (1 m), RC-64 (2 m), RC-65 (5 m) CD changer 10 discs: CDX-805, CDX-705 6 discs: CDX-T65, CDX-T62 MD changer MDX-61 Source selector XA-C30

Design and specifications are subject to change without notice.

Troubleshooting guide

The following checklist help you remedy most problems you may encounter with your unit. Before going through the checklist below, check the connection and operating procedures.

•Rotate the dial clockwise to adjust the volume.

•Set the fader control to the centre position for 2-speaker systems.

The contents of the memory have been erased.

• The power cord or battery has been disconnected.

• The reset button has been pressed. n Store again into the memory.

Indications do not appear in the display.

Remove the front panel and clean the connectors. See “Cleaning the connectors” (page 26) for details.

The beep tone is turned off (page 15).

Playback sound is distorted.

Contamination of the tape head. n Clean the head.

The AMS does not operate correctly.

• There is noise in the space between tracks.

• A blank space is too short (less than four seconds). • + on (SEEK/AMS) is pressed immediately before the following tracks. • = on (SEEK/AMS) is pressed immediately after the track starts. • A long pause, or a passage of low frequencies or very low sound level is treated as a blank space.

EN Additional Information

Preset tuning is not possible.

• Store the correct frequency.

• The broadcast is too weak.

Automatic tuning is not possible.

The broadcast is too weak. n Use manual tuning.

The “ST” indication flashes.

•Tune in the frequency correctly.

•The broadcast signal is too weak. n Set to the monaural mode (page 8).

A SEEK starts after a few seconds of listening.

The station is non-TP or has a weak signal. n Press (AF/TA) until “AF TA off” appears.

No traffic announcements.

•The station does not broadcast any traffic announcements despite being TP. n Tune in another station.

PTY displays “NONE.”

The station does not specify the programme type.

No sound, or sound is too low.

The volume of the rear speakers may have been automatically lowered in order to maximize the effect of the listening position adjustment. n Rotate the dial clockwise to adjust the balance.

The speaker balance can be set separately for the DSP on mode and DSP off mode (page 22).

Error displays (when an optional CD/MD changer is connected)

The following indications flash for about five seconds, and an alarm sound is heard. Cause

The disc magazine is not inserted in the CD/MD changer.

Insert the disc magazine with discs into the CD/MD changer.

No disc is inserted in the CD/MD changer.

Insert discs in the CD/MD changer.

A CD/MD cannot play because of Insert another CD/MD. some problem.

A CD is dirty or inserted upside down.*2

Clean or insert the CD correctly.

An MD cannot play because of some problem.*2

No tracks have been recorded on an MD.*2

Play back an MD with recorded tracks on it.

The CD/MD changer cannot be

Press the reset button of the unit. operated because of some problem. The lid of the MD changer is open or MDs are not inserted properly.

Close the lid or insert the MDs properly.

The ambient temperature is more than 50° C.

Wait until the temperature goes below 50° C.

*1 When an error occurs during playback of an MD or CD, the disc number of the MD or CD does not appear in the display.

*2 The disc number of the disc causing the error appears in the display.

If the above-mentioned solutions do not help improve the situation, consult your nearest Sony dealer.

A Alternative Frequencies (AF) 9 Automatic Music Sensor (AMS) 6, 16 Automatic Tuner Activation (ATA) 7 Automatic tuning 8 Auto-Metal 6 Auto Scroll 16

Bank Play 20 Bass 14, 24 Beep tone 15 Best Tuning Memory (BTM) 7, 11 Blank Skip 7

C D, E Digital Signal Processor (DSP) 21

Direct disc selection 16 Disc Memo 19 Dolby 7 Dual information 15

F, G, H Fader 14, 23

Front panel 4 Fuse 26

L Line output level 25

Listening position 22 List-up 20 Local seek mode 8 Locating a disc 20 a specific track 16 a station 12 Loudness 15 Low pass filter 15

M, N, O Manual search 16

Manual tuning 8 MD playback 16 Metal 6

P, Q PLAY MODE ATA 7

Bank 20 B. Skip 7 Intro 7, 17 Local 8 Mono 8 NR 7 PGM 17 REG 10 Repeat 6, 17 Shuf 17 Programme memory 17 Programme Type selection (PTY) 12

Radio Data System (RDS) 9 Repeat Play 6, 17 Reset 4 Rotary remote 5, 13

EN Additional Information

Memorising a station 7

Monaural mode 8 Mute 14

A.Scrl 15 Beep 15 Clock 5 Contrast 15 CT 13 D. Info 15 Dimmer 15 Disc MEMO/TEXT name 15 Green 15 Loud 15 LPF 15 RM 15 Shuffle Play 17 Source Sound Memory (SSM) 25 Subwoofer 15, 24 Subwoofer volume 15, 24 Surround 21

T, U Tape playback 6

Telephone-mute 14 Traffic Announcement (TA) 10 Traffic Information Replay (TIR) Traffic Programme (TP) 10 Treble 14, 24

W, X, Y, Z Wireless remote

Intro n NR n ATA n B.Skip

PLAY MODE Tuner n CD n MD n Tape

D.MEMO CD-TEXT D.MEMO CD-TEXT D.MEMO CD-TEXT D.MEMO CD-TEXT LP1

All LP2 Front LP3 Front R LP4 Front L LP5 Rear

LW: 153 – 281 kHz Conector de antena externa 10,71 MHz/450 kHz

MW: 30 µV LW: 50 µV DSP (XDP-U50D)

endast XR-C850RW/C850RDS Intro n NR n ATA n B.Skip

FWD SUR EQ Intro off

PLAY MODE Uppspelningen startar.

NEWS AFFAIRS INFO SPORT EDUCATE DRAMA CULTURE SCIENCE VARIED POP M ROCK M M.O.R. M LIGHT M CLASSICS OTHER M WEATHER FINANCE CHILDREN SOCIAL A RELIGION PHONE IN LP1

All LP2 Front LP3 Front R FLP4 Front L LP5 Rear

TYPE II, III, IV TYPE I

* endast XR-C850RW/C850RDS Bilradion

RDS (Radio Data System) 9

PLAY MODE ATA 7 Bank 22 B.Skip 7 Intro 7, 17 Local 8

Colocar o painel frontal

Intro n NR n ATA n B.Skip

FWD SUR EQ Intro off

PLAY MODE TRAVEL LEISURE JAZZ COUNTRY NATION M OLDIES FOLK M DOCUMENT NONE Visor

NEWS AFFAIRS INFO SPORT EDUCATE DRAMA CULTURE SCIENCE VARIED POP M ROCK M M.O.R. M LIGHT M CLASSICS OTHER M WEATHER FINANCE CHILDREN SOCIALA RELIGION PHONE IN INFO Clock n CT n D.Info n Amber/Green n

Dimmer n Contrast n Beep n RM n Loud n LPF n A.Scrl n Disc MEMO/TEXT name

D.MEMO CD-TEXT D.MEMO CD-TEXT D.MEMO CD-TEXT D.MEMO CD-TEXT Visualização actual

All LP2 Front LP3 Front R LP4

Front L Regular o fader (FAD)

Pesquisa manual 18 Pesquisa sequencial (Intro Scan) 7, 18

Sony Corporation Printed in Japan
