USER MANUAL 43LW310C LG

Safety and Reference

LED TV*

* LG LED TV applies LCD screen with LED backlights.

Please read this manual carefully before operating your set and retain it for future reference.

Safety instructions

Please read these safety precautions carefully before using the product.

WARNING

Do not place the TV and/or remote control in the following environments:

• A location exposed to direct sunlight
• An area with high humidity such as a bathroom
- Near any heat source such as stoves and other devices that produce heat
- Near kitchen counters or humidifiers where they can easily be exposed to steam or oil
• An area exposed to rain or wind
• Near containers of water such as vases

Otherwise, this may result in fire, electric shock, malfunction or product deformation.

Do not place the product where it might be exposed to dust. This may cause a fire hazard.

Mains Plug is the TV connecting/disconnecting device to AC mains electric supply. This plug must remain readily attached and operable when TV is in use.

Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power plug completely or wipe dust off. You may be electrocuted due to excess moisture.

Make sure to connect Mains cable to compliant AC mains socket with Grounded earth pin. (Except for devices which are not grounded on earth.) Otherwise possibility you may be electrocuted or injured.

Insert power cable plug completely into wall socket otherwise if not secured completely into socket, fire ignition may break out.

Ensure the power cord does not come into contact with hot objects such as a heater. This may cause a fire or an electric shock hazard.

Do not place a heavy object, or the product itself, on power cables. Otherwise, this may result in fire or electric shock.

Bend antenna cable between inside and outside building to prevent rain from flowing in. This may cause water damaged inside the Product and could give an electric shock.

When mounting TV onto wall make sure to neatly install and isolate cabling from rear of TV as to not create possibility of electric shock / fire hazard.

Illustration of a mechanical device with springs and a lightning bolt, no text or symbols present

Do not plug too many electrical devices into a single multiple electrical outlet. Otherwise, this may result in fire due to over-heating.

Do not drop the product or let it fall over when connecting external devices. Otherwise, this may result in injury or damage to the product.

Keep the anti-moisture packing material or vinyl packing out of the reach of children. Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.

Do not let your children climb or cling onto the TV. Otherwise, the TV may fall over, which may cause serious injury.

Dispose of used batteries carefully to ensure that a small child does not consume them. Please seek Doctor- Medical Attention immediately if child consumes batteries.

Do not insert any metal objects/conductors (like a metal chopstick/cutlery/screwdriver) between power cable plug and input Wall Socket while it is connected to the input terminal on the wall. Additionally, do not touch the power cable right after plugging into the wall input terminal. You may be electrocuted. (Depending on model)

Do not put or store inflammable substances near the product. There is a danger of combustion/explosion or fire due to careless handling of the inflammable substances.

Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the product, or inflammable objects such as paper and matches. Children must pay particular attention. Electrical shock, fire or injury can occur. If a foreign object is dropped into the product, unplug the power cord and contact the service centre.

Do not spray water on the product or scrub with an inflammable substance (thinner or benzene). Fire or electric shock accident can occur.

Do not allow any impact, shock or any objects to fall into the unit, and do not drop anything onto the screen. You may be injured or the product can be damaged.

Never touch this product or antenna during a thunder or lighting storm. You may be electrocuted.

Never touch the wall outlet when there is leakage of gas, open the windows and ventilate. It may cause a fire or a burn by a spark.

Do not disassemble, repair or modify the product at your own discretion. Fire or electric shock accident can occur. Contact the service centre for check, calibration or repair.

If any of the following occur, unplug the product immediately and contact your local service centre.

• The product has been impacted by shock
• The product has been damaged
• Foreign objects have entered the product
• The product produced smoke or a strange smell

This may result in fire or electric shock.

Unplug the TV from AC mains wall socket if you do not intend to use the TV for a long period of time. Accumulated dust can cause fire hazard and insulation deterioration can cause electric leakage/shock/fire.

Cartoon illustration of a computer monitor with a sad face and a window, showing distress (no text or symbols)

Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

Do not install this product on a wall if it could be exposed to oil or oil mist. This may damage the product and cause it to fall.

If water enters or comes into contact with TV, AC adapter or power cord please disconnect the power cord and contact service centre immediately. Otherwise, this may result in electric shock or fire.

Only use an authorized AC adapter and power cord approved by LG Electronics. Otherwise, this may result in fire, electric shock, malfunction or product deformation.

Never Disassemble the AC adapter or power cord. This may result in fire or electric shock.

Be careful in handling the adapter to prevent any external shocks to it. An external shock may cause damage to the adapter.

Make sure the power cord is connected securely to the power plug on the TV. (Depending on model)

CAUTION

Simple line drawing of a smiling computer monitor on a hillside with wind turbines and clouds above (no text or symbols)

Install the product where no radio wave occurs.

Cartoon illustration of a smiling house with a wind turbine above it (no text or symbols)

There should be enough distance between an outside antenna and power lines to keep the former from touching the latter even when the antenna falls. This may cause an electric shock.

Do not install the product on places such as unstable shelves or inclined surfaces. Also avoid places where there is vibration or where the product cannot be fully supported. Otherwise, the product may fall or flip over, which may cause injury or damage to the product.

If you install the TV on a stand, you need to take actions to prevent the product from overturning. Otherwise, the product may fall over, which may cause injury.

If you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts) to the back of the product. When you install the set to use the wall mounting bracket (optional parts), fix it carefully so as not to drop.

Only use the attachments / accessories specified by the manufacturer.

When installing the antenna, consult with a qualified service technician. If not installed by a qualified technician, this may create a fire hazard or an electric shock hazard.

We recommend that you maintain a distance of at least 2 to 7 times the diagonal screen size when watching TV. If you watch TV for a long period of time, this may cause blurred vision.

Only use the specified type of battery. This could cause damage to the remote control.

Do not mix new batteries with old batteries. This may cause the batteries to overheat and leak.

Batteries should not be exposed to excessive heat. For example, keep away from direct Sunlight, open fireplace and electric heaters.

Do not place non-rechargeable batteries in charging device.

Make sure there are no objects between the remote control and its sensor.

Signal from Remote Control can be interrupted due to external/internal lighting eg Sunlight, fluorescent lighting. If this occurs turn off lighting or darken viewing area.

When connecting external devices such as video game consoles, make sure the connecting cables are long enough. Otherwise, the product may fall over, which may cause injury or damage the product.

Do not turn the product On/Off by plugging-in or unplugging the power plug to the wall outlet. (Do not use the power plug for switch.) It may cause mechanical failure or could give an electric shock.

Cartoon illustration of a smiling computer monitor with arms raised, showing a 10cm scale indicator (no text or symbols on the monitor itself)

Please follow the installation instructions below to prevent the product from overheating.

• The distance between the product and the wall should be more than 10 cm.
• Do not install the product in a place with no ventilation (e.g., on a bookshelf or in a cupboard).
  • Do not install the product on a carpet or cushion.
  • Make sure the air vent is not blocked by a tablecloth or curtain. Otherwise, this may result in fire.

Take care not to touch the ventilation openings when watching the TV for long periods as the ventilation openings may become hot. This does not affect the operation or performance of the product.

Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.

Prevent dust collecting on the power plug pins or outlet. This may cause a fire hazard.

Illustration of hands using a tool to connect wires to an electrical outlet (no text or symbols present)

Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

Do not press strongly upon the panel with a hand or sharp object such as nail, pencil or pen, or make a scratch on it, as it may cause damage to screen.

Avoid touching the screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary or permanent distortion/damage to screen.

When cleaning the product and its components, unplug the power first and wipe it with a soft cloth. Applying excessive force may cause scratches or discolouration. Do not spray with water or wipe with a wet cloth. Never use glass cleaner, car or industrial shiner, abrasives or wax, benzene, alcohol etc., which can damage the product and its panel. Otherwise, this may result in fire, electric shock or product damage (deformation, corrosion or breakage).

As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn off this unit by SWITCH.

When unplugging the cable, grab the plug and unplug it, by pulling at the plug.

Don't pull at the cord to unplug the power cord from the power board, as this could be hazardous.

When moving the product, make sure you turn the power off first. Then, unplug the power cables, antenna cables and all connecting cables. The TV set or power cord may be damaged, which may create a fire hazard or cause electric shock.

When moving or unpacking the product, work in pairs because the product is heavy. Otherwise, this may result in injury.

Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

If the product feels cold to the touch, there may be a small "flicker" when it is turned on. This is normal, there is nothing wrong with product.

This panel is an advanced product that contains millions of pixels. You may see tiny black dots and/or brightly coloured dots (red, blue or green) at a size of 1 ppm on the panel. This does not indicate a malfunction and does not affect the performance and reliability of the product.

This phenomenon also occurs in third-party products and is not subject to exchange or refund.

You may find different brightness and color of the panel depending on your viewing position(left/right/top/down).

This phenomenon occurs due to the characteristic of the panel. It is not related with the product performance, and it is not malfunction.

Displaying a still image for a prolonged period of time may cause image sticking. Avoid displaying a fixed image on the TV screen for a long period of time.

Generated Sound

"Cracking" noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to temperature and humidity. This noise is common for products where thermal deformation is required. Electrical circuit humming/panel buzzing:

A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depending on the product.

This generated sound does not affect the performance and reliability of the product.

Do not use high voltage electrical goods near the TV (e.g. electric mosquito-swatter). This may result in product malfunction.

Preparing

NOTE

• Image shown may differ from your TV.
• Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.
• The available menus and options may differ from the input source or product model that you are using.
• New features may be added to this TV in the future.
• The items supplied with your product may vary depending on the model.
  • Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions.
• For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV's USB port.

^* A ≤ 10 mm

*B ≤ 18 mm

- Use a certified cable with the HDMI logo attached. - If you do not use a certified HDMI cable, the screen may not display or a connection error may occur. (Recommended HDMI Cable Types) - High-Speed HDMI ^ / ^TM cable (3 m or less) - High-Speed HDMI ^ / ^TM cable with Ethernet (3 m or less)

CAUTION

• Do not use any unapproved items to ensure the safety and product life span.
• Any damage or injuries caused by using unapproved items are not covered by the warranty.
• Some models have a thin film attached on to the screen and this must not be removed.

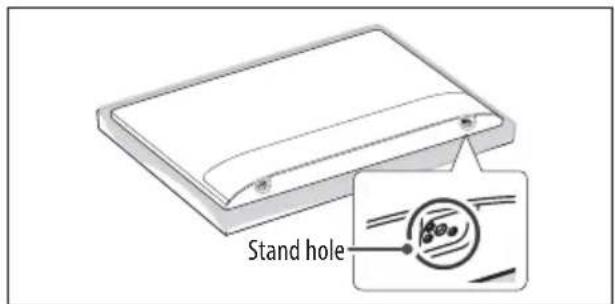

• When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.
• Make sure that the screws are fastened completely. (If they are not fastened securely enough, the TV may tilt forward after being installed.) Do not use too much force and over tighten the screws; otherwise screw may be damaged and not tighten correctly.

Separate purchase

Separate purchase items can be changed or modified for quality improvement without any notification. Contact your dealer to buy these items. These devices only work with certain models. The model name or design may be changed depending on the upgrade of product functions, manufacturer's circumstances or policies.

(Depending on model)

LED ClockLEC-003

AN-WF500Wi-Fi/Bluetooth Dongle

Lifting and moving the TV

Please note the following advice to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

• It is recommended to move the TV in the box or packing material that the TV originally came in.
• Before moving or lifting the TV, disconnect the power cord and all cables.
• When holding the TV, the screen should face away from you to avoid damage.

- Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grill area.

Diagram illustrating how to remove a device from a screen, with corresponding action buttons for cleaning or disassembly steps.

• When transporting a large TV, there should be at least 2 people.
• When transporting the TV by hand, hold the TV as shown in the following illustration.

• When transporting the TV, do not expose the TV to jolts or excessive vibration.
• When transporting the TV, keep the TV upright, never turn the TV on its side or tilt towards the left or right.
• Do not apply excessive pressure to cause flexing / bending of frame chassis as it may damage screen.
• When handling the TV, be careful not to damage the protruding buttons.

CAUTION

• Avoid touching the screen at all times, as this may result in damage to the screen.
• Do not move the TV by holding the cable holders, as the cable holders may break, and injuries and damage to the TV may occur.

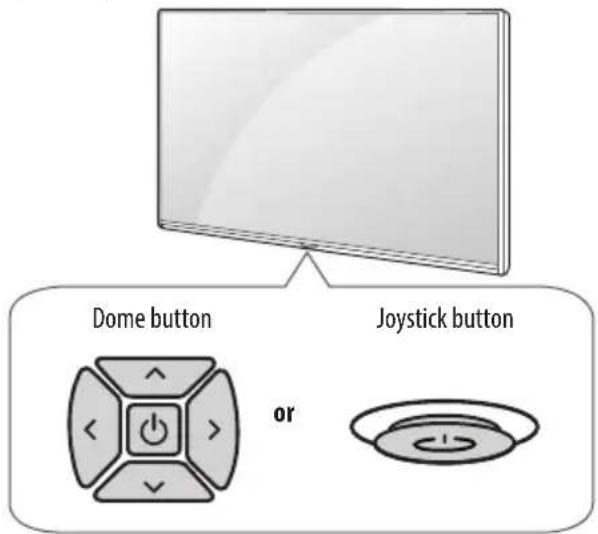

Using the button

(Depending on model)

You can simply operate the TV functions, pressing or moving the button.

NOTE

- LW30 series does not have a Joystick functions but has only a power On/Off button.

Dome button Joystick button or

Basic functions

		Power On (Press)Power Off (Press and hold) ^1
		Volume Control
		Programmes Control

1 If the Menu button is on the screen, pressing and holding the button will let you exit the Menu.

Adjusting the menu

When the TV is turned on, press the button one time. You can adjust the Menu items pressing or moving the buttons.

	Turns the power off.
	Clears on-screen displays and returns to TV viewing.
	Changes the input source.
	Accesses the settings menu.

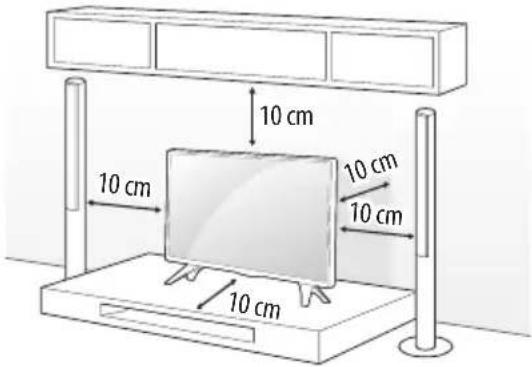

Mounting on a table

1 Lift and tilt the TV into its upright position on a table.

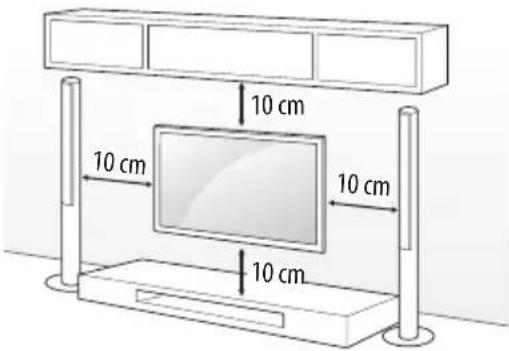

- Leave a 10 cm (minimum) space from the wall for proper ventilation.

10 cm 10 cm 10 cm 10 cm 10 cm

2 Connect the power cord to a wall outlet.

CAUTION

- Do not place the TV near or on sources of heat, as this may result in fire or other damage.

Attaching the TV to a desk

(This feature is not available for all models.)

The TV should be attached to a desk so it cannot be pulled in a forward/backward direction, potentially causing injury or damaging the product.

A type)

4-Screws

4-Screws

(Not supplied with TV)

Stand Desk

NOTE

- Screw : M5 x L (*L: Table depth + 8\~10 mm) ex) Table depth: 15 mm, Screw : M5 x L25

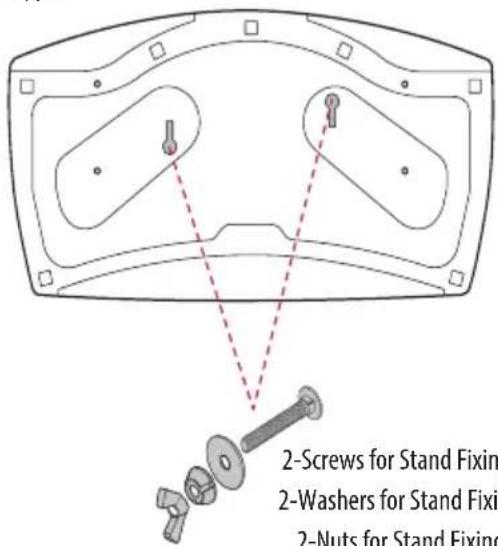

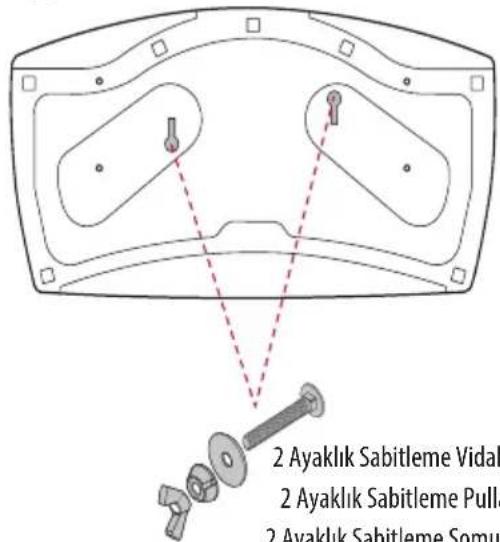

B type)

2-Screws for Stand Fixing 2-Washers for Stand Fixing 2-Nuts for Stand Fixing

2-Screws for Stand Fixing,

2-Washers for Stand Fixing,

2-Nuts for Stand Fixing (Supplied with TV)

Stand Desk

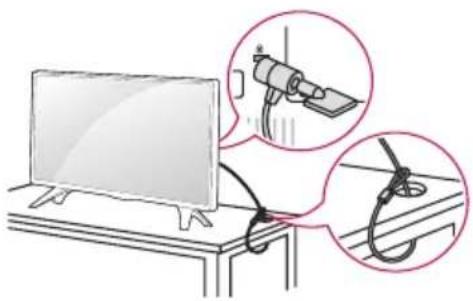

Using the kensington security system

(This feature is not available for all models.)

• Image shown may differ from your TV.

The Kensington security system connector is located at the rear of the TV. For more information of installation and using, refer to the manual provided with the Kensington security system or visit http://www.

kensington.com. Connect the Kensington security system cable between the TV and a table.

Illustration of a monitor connected to cable with two magnified insets showing cable attachment (no text or symbols)

Securing the TV to a wall

(This feature is not available for all models.)

Technical diagram showing a mechanical assembly with labeled components and two circular insets highlighting specific parts.

1 Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV.

- If there are bolts inserted at the eye-bolts position, remove the bolts first.

2 Mount the wall brackets with the bolts to the wall. Match the location of the wall bracket and the eye-bolts on the rear of the TV.

3 Connect the eye-bolts and wall brackets tightly with a sturdy rope. Make sure to keep the rope horizontal with the flat surface.

CAUTION

• Make sure that children do not climb on or hang on the TV.

NOTE

- Use a platform or cabinet that is strong and large enough to support the TV securely.

- Brackets, bolts and ropes are not provided. You can obtain additional accessories from your local dealer.

Adjusting the angle of the TV to suit view

(This feature is not available for all models.)

Swivel 20 degrees to the left or right and adjust the angle of the TV to suit your view.

20°20°

CAUTION

- When adjusting the angle of the product, watch out for your fingers.

-Personal injury may occur if hands or fingers are pinched. If the product is tilted too much, it may fall, causing damage or injury.

Mounting on a wall

Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the floor. When you attach the TV to other building materials, please contact qualified personnel. LG recommends that wall mounting be performed by a qualified professional installer. We recommend the use of LG's wall mount bracket. LG's wall mount bracket is easy to move with cables connected. When you do not use LG's wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices. It is advised to connect all the cables before installing fixed wall mounts.

10 cm 10 cm 10 cm 10 cm

Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table.

Separate purchase(Wall Mounting Bracket)

Model	32LW30**43LW31**32/43LW34**32/43LW54**	49LW31**49/55LW34*49/55LW54**
VESA (A x B) (mm)	200 x 200 300 x 300
Standard screw M6	M6
Number of screws	4 4
Wall mount bracket	LSW240BMSW240	LSW350BMSW240

A B

CAUTION

- Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse.

NOTE

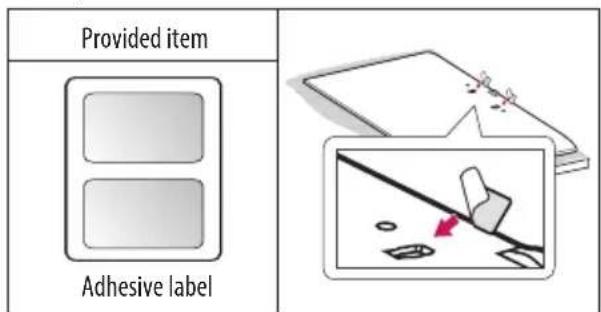

- When installing the wall mounting bracket, use the adhesive label provided. The adhesive label will protect the opening from accumulating dust and dirt. (Only when the item of the following form is provided)

Provided item Adhesive label

- When installing the wall mounting bracket, it is recommended to cover the stand hole using tape, in order to prevent the influx of dust and insects. (Depending on model)

Stand hole

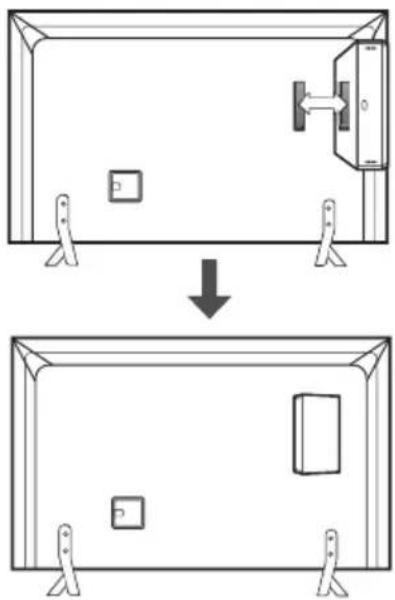

How to use Dual Lock™

(Only when the item of the following form is provided)

(Except for 32LW30**)

(This feature is not available for all models.)

Fix the set-top box to the TV and use it when you want to.

1 After removing the protection paper from the Dual Lock™, stick it to the TV and the set-top box as shown.

Dual Lock™

2 Attach the set-top box to the TV by pressing the Velcro strips together.

Diagram showing a device being removed from a wall, with no text or symbols present.

NOTE

• Please make sure no foreign substances exist on the surface of the product, and then firmly attach the Dual Lock™.
• Before attaching the set-top box to the TV set, let the attached Dual Lock™ dry for at least three days.

Connections (notifications)

Connect various external devices to the TV and switch input modes to select an external device. For more information of external device's connection, refer to the manual provided with each device.

Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.

NOTE

• The external device connection may differ from the model.
- Connect external devices to the TV regardless of the order of the TV port.
- If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information of recording, refer to the manual provided with the connected device.
- Refer to the external equipment's manual for operating instructions.
- If you connect a gaming device to the TV, use the cable supplied with the gaming device.
- In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear.
- In PC mode, some resolution settings may not work properly depending on the graphics card.

Antenna connection

Connect the TV to a wall antenna socket with an RF cable (75 Ω).

• Use a signal splitter to use more than 2 TVs.
- If the image quality is poor, install a signal amplifier properly to improve the image quality.
- If the image quality is poor with an antenna connected, try to realign the antenna in the correct direction.
• An antenna cable and converter are not supplied.
• Supported DTV Audio: MPEG, Dolby Digital, Dolby Digital Plus, HE-AAC

Satellite dish connection

(Only satellite models)

Connect the TV to a satellite dish to a satellite socket with a satellite RF cable (75 Ω).

Adapter connection

(Depending on model)

CAUTION

- Please be sure to connect the TV to the AC-DC power adapter before connecting the TV's power plug to a wall power outlet.

CI module connection

(Depending on model)

View the encrypted (pay) services in digital TV mode.

• Check if the CI module is inserted into the PCMCIA card slot in the right direction. If the module is not inserted properly, this can cause damage to the TV and the PCMCIA card slot.
• If the TV does not display any video and audio when CI+ CAM is connected, please contact to the Terrestrial/Cable/Satellite Service Operator.

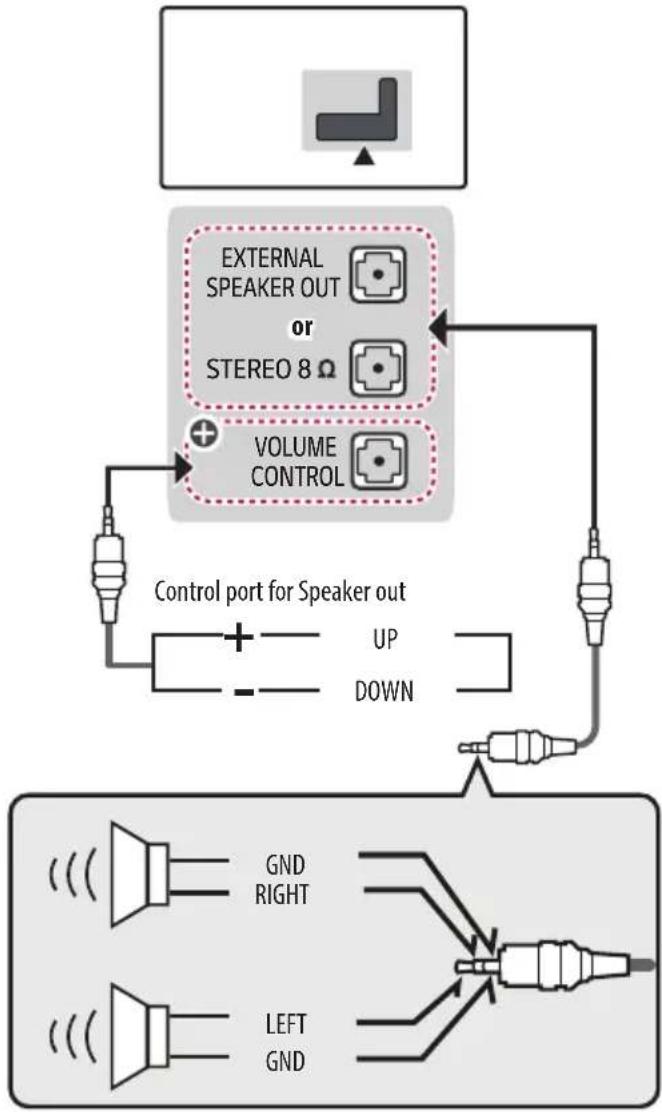

Speaker Output Setup

(Depending on model)

: Depending on model

NOTE

• Use only with the 3 Pole 3.5 mm Stereo Jack.
- Do not connect your headphones or earphones to the port for connecting an external speaker.

Method of Volume control port

(Depending on model)

- Cable Spec.

Each Up / Down pin is pulled to 3.3 V with CPU GPIO.

CPU detects transition from 3.3 V to GND level for volume control.

Network setup

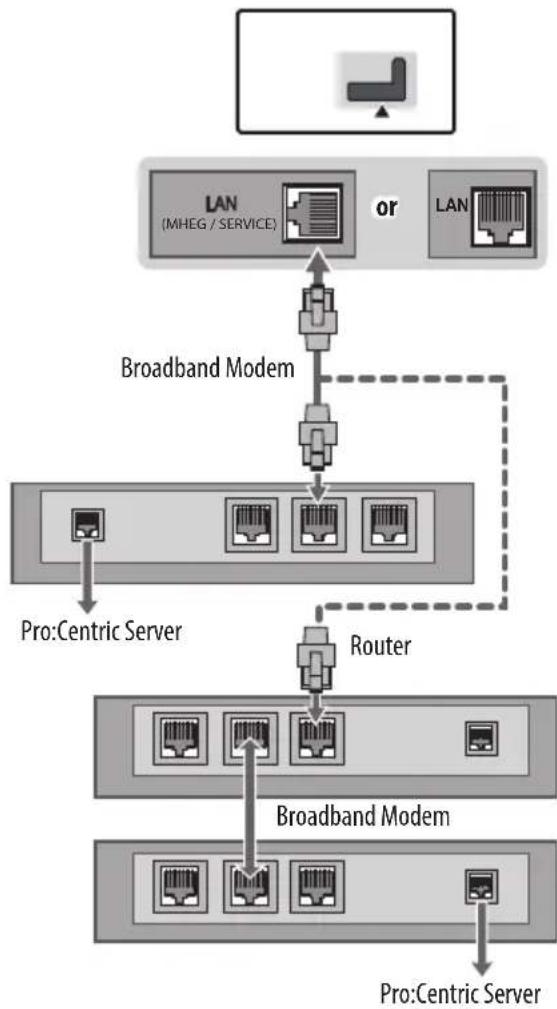

Wired network connection

(Depending on model)

This TV can be connected to a Pro:Centric server via the LAN port. After making the physical connection, the TV needs to be set up for network communication. Connect the LAN port of the Modem or Router from Pro:Centric server to the LAN port on the TV.

CAUTION

• Do not connect a modular phone cable to the LAN port.
- Since there are various connection methods, please follow the specifications of your telecommunication carrier or internet service provider.

Other connections

Connect your TV to external devices. For the best picture and audio quality, connect the external device and the TV with the HDMI cable. Some separate cable is not provided.

Remote control

The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly.

To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the + and ends to the label inside the compartment, and close the battery cover. To remove the batteries, perform the installation actions in reverse.

Make sure to point the remote control toward the remote control sensor on the TV.

(Depending on model)

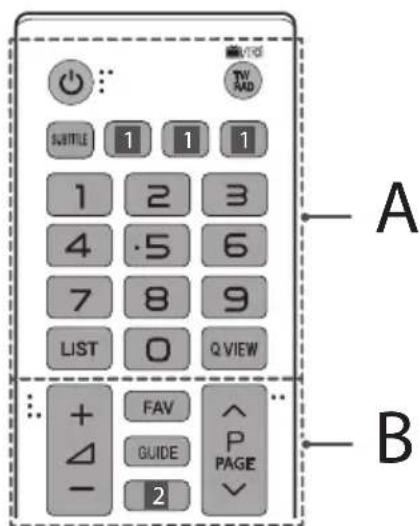

A B

A

(POWER) Turns the TV on or off.

TV/RAD Selects Radio, TV and DTV programme.

SUBTITLE Recalls your preferred subtitle in digital mode.

1 ABy pressing the AD button, audio descriptions function will be enabled. (Depending on model)

1 AV mode an AV mode. (Depending on model)

1 RATES an image. (Depending on model)

1 INPUT), ChangeInput the input source. (Depending on model)

Number buttons Enters numbers.

LIST Accesses the saved programme list.

Q.VIEW Returns to the previously viewed programme.

B

+△-Adjusts the volume level.

FAV Accesses your favourite programme list.

GUIDE Shows programme guide.

2 (MUTE), MUTES on sounds. (Depending on model)

^P∨ Scrolls through the saved programmes.

^PAGE Moves to the previous or next screen.

Teletext buttons (☐ TEXT, T.OPT) These buttons are used for teletext.

3 (HOME) Accesses the Home menu. (Depending on model)

3 INFO① Views the information of the current programme and screen. (Depending on model)

3 (Settings), SETTINGS Accesses the Settings menu. (Depending on model)

Q.MENU Accesses the Quick menus.

Navigation buttons (up/down/left/right) Scrolls through menus or options.

●OKelects menus or options and confirms your input.

3 BACK, BACK Returns to the previous level. (Depending on model)

EXIT Clears on-screen displays and returns to TV viewing.

D

4 INFO Views the information of the current programme and screen. (Depending on model)

4 SIMPLINK Accesses the AV devices connected with the HDMI cable through HDMI-CEC. Opens the SIMPLINK menu. (Depending on model)

4 ● REC/* Starts to record and displays record menu. (Depending on model)

4 ABy pressing the AD button, audio descriptions function will be enabled. (Depending on model)

Control buttons (■, ▶, Ⅱ, ◀, ▶) Controls media contents. Coloured buttons These access special functions in some menus.

(●: Red, ⋯: Green, ⋮: Yellow, ⋯: Blue)

(Depending on model)

ENERGY A/MODE INPUT V/ED SAVING 1 2 3 4 5° 6 7 8 9 LIST 0 Q.VIEW + FAV △ RATIO P - MUTED PAGE A B

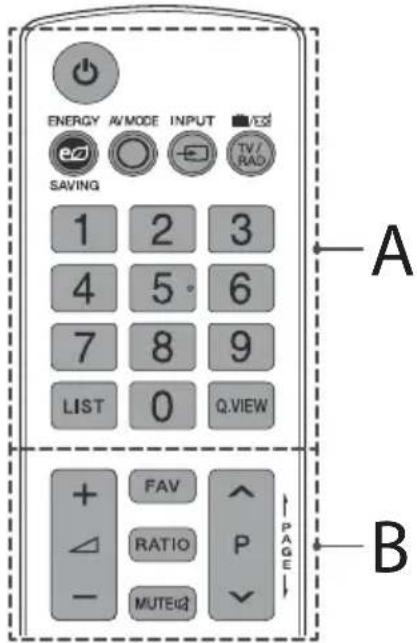

A

(POWER) Turns the TV on or off.

ENERGY SAVING Adjusts the brightness of the screen to reduce energy consumption.

○ AV mode an AV mode.

INCHanges the input source.

TV/RAD Selects Radio, TV and DTV programme.

Number buttons Enters numbers.

LIST Accesses the saved programme list.

Q.VIEW Returns to the previously viewed programme.

B

+△-Adjusts the volume level.

FAV Accesses your favourite programme list.

RATIO Resizes an image.

MUTE Mutes all sounds.

^P∨ Scrolls through the saved programmes.

PAGE Moves to the previous or next screen.

GUIDE PORTAL INFO OK SETTINGS EXIT TEXT T.OPT SUBTITLE Q.MENU AD ALARM C D

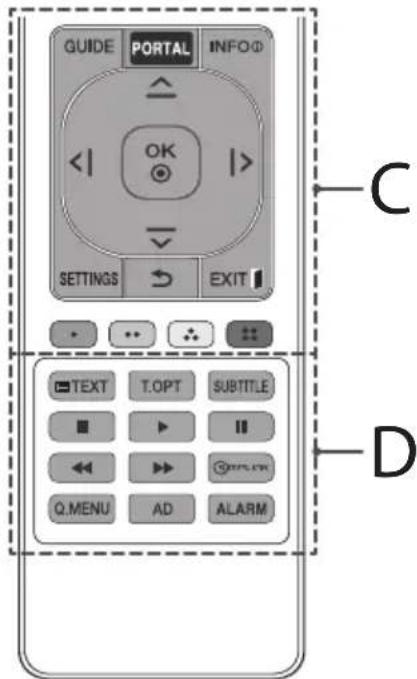

C

GUIDE Shows programme guide.

PORTAL Displays and removes hotel interactive menu.

INFO ①Views the information of the current programme and screen.

Navigation buttons (up/down/left/right) Scrolls through menus or options.

OK Selects menus or options and confirms your input.

SETTINGS Accesses the main menus.

(BACK) Returns to the previous level.

EXIT ▪ Clears on-screen displays and return to TV viewing.

Coloured buttons These access special functions in some menus.

Teletext buttons ☐ These Buttons are used for teletext.

SUBTITLE Recalls your preferred subtitle in digital mode.

Control buttons (■, ▶, □, ◀, ▶) Controls media contents.

SIMPLINK Accesses the AV devices connected with the HDMI cable through HDMI-CEC. Opens the SIMPLINK menu.

Q.MENU Accesses the Quick menus.

AD By pressing the AD button, audio descriptions function will be enabled.

ALARM Sets the alarm function. (Depending on model)

Licenses

Supported licenses may differ by model. For more information about licenses, visit www.lg.com.

DOLBY. DIGITAL PLUS

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

DIVX HD

This DivX Certified ^® device has passed rigorous testing to ensure it plays DivX ^® video.

To play purchased DivX movies, first register your device at vod.divx.com. Find your registration code in the DivX VOD section of your device setup menu.

DivX Certified ^® to play DivX ^® video up to HD 1080p, including premium content.

DivX ^® , DivX Certified ^® and associated logos are trademarks of DivX, LLC and are used under license.

Covered by DivX Patents 7,295,673; 7,515,710; RE45,052; and others available at [www.divx.com/patents].

Open source software notice information

To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource.lge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [e-mail]. This offer is valid for three (3) years from the date on which you purchased the product.

Troubleshooting

The software version can be updated for improvement in performance. Customer needs to ensure the compatibility of customer's equipment with LGE software. If needed, please consult with LGE and upload revised software version according to the guidance provided by LGE.

Cannot control the TV with the remote control.

• Check the remote control sensor on the product and try again.
• Check if there is any obstacle between the product and the remote control.
• Check if the batteries are still working and properly installed to ④ to ⑦.

No image display and no sound is produced.

• Check if the product is turned on.
• Check if the power cord is connected to a wall outlet.
- Check if there is a problem in the wall outlet by connecting other products.

The TV turns off suddenly.

• Check the power control settings. The power supply may be interrupted.
• Check if the Automatic Standby (Depending on model) / Sleep Timer / Off Time is activated in the TIME settings. (Depending on model)
• Check if the Auto Power Off (Depending on model) / Sleep Timer / Timer Power Off is activated in the Timers settings. (Depending on model)
• If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes of inactivity.

When connecting to the PC (RGB/HDMI/DVI), 'No signal' or 'Invalid Format' is displayed.

• Turn the TV off/on using the remote control.
• Reconnect the RGB/HDMI cable.
- Restart the PC with the TV on.

Software download information

• Use this information for LW540S series.

You can download the SuperSign Software and manual from LG Electronics website.

https://www.lgecommercial.com/digital-signage/support/download/supersign

Software : SuperSign W_Lite_Server_vX.X.X_Setup.zip

SuperSign C_vX.X.X_Setup.zip

SuperSign W_Editor_vX.X.X_Setup.zip

SuperSign W_Player_vX.X.X_Setup.zip

Manual : SuperSign W_Lite_Server_vX.X.X_Manual.zip

SuperSign C_vX.X.X_Manual.zip

SuperSign W_Editor_vX.X.X_Manual.zip

SuperSign W_Player_vX.X.X_Manual.zip

Specifications

CI Module (W x H x D) 100.0 mm x 55.0 mm x 5.0 mm
Environment condition	Operating Temperature 0 °C to 40 °C
	Operating Humidity Less than 80 %
	Storage Temperature -20 °C to 60 °C
	Storage Humidity Less than 85 %

AC/DC Adapter	32LW30**
	Manufacturer : Lien ChangModel : LCAP16B-E, LCAP25BManufacturer : HonorModel : ADS-45FSN-19 19040GPG,ADS-45SN-19-2 19040G
	Input : AC 100 - 240 V ~ 50/60 HzOutput : DC 19 V --- 2.1 A

(Depending on country)

	Digital TV Analogue TV
	Satellite Terrestrial Cable Terrestrial / Cable
Television system DVB-S/S2*		DVB-TDVB-T2*	DVB-C	PAL/SECAM B/G, D/K, I, SECAM L
Channel coverage (Band)	950 ~ 2150 Mhz	VHF III: 174 ~ 230 MhzUHF IV: 470 ~ 606 MhzUHF V: 606 ~ 862 MhzS Band II: 230 ~ 300 MhzS Band III: 300 ~ 470 Mhz	46 ~ 862 Mhz 46 ~	862 Mhz
Maximum number of storable programmes	6,000	1,500 (Only LW54**, LW341*)2,000 (Only LW340*, LW31**, LW30**)
External antenna impedance 75 Ω

* Only DVB-T2/C/S2 support models.

HDMI/DVI-DTV supported mode

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)
640 x 480	31.46	59.94
	31.50	60.00
720 x 480	31.469	59.94
	31.50	60.00
720 x 576 31.250	50.00
1280 x 720	37.50	50.00
	45	60.00
	44.96	59.94
1920 x 1080	28.125	50.00
	33.75	60.00
	33.72	59.94
	56.250	50.00
	67.50	60.00
	67.432	59.94
	27.00	24.00
	26.973	23.976
	33.75	30.00
	33.716	29.976

RGB-PC supported mode

(Only LW31**, LW340*, LW540*)

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)
640 x 350 31.468	70.09
720 x 400 31.469	70.08
640 x 480 31.469	59.94
800 x 600 37.879	60.31
1024 x 768 48.363	60.00
1152 x 864 54.348	60.053
1360 x 768 47.712	60.015
1280 x 1024 63.981	60.020
1920 x 1080 66.587	59.934
1920 x 1080 67.50	60.00

HDMI/DVI-PC supported mode
(Use HDMI IN 1 for PC mode)

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)
640 x 350 31.468	70.09
720 x 400 31.469	70.08
640 x 480 31.469	59.94
800 x 600 37.879	60.31
1024 x 768 48.363	60.00
1152 x 864 54.348	60.053
1360 x 768 47.712	60.015
1280 x 1024 (FHD only)	63.981 60.020
1920 x 1080 (FHD only)	67.50 60.00

1 : Only LW31**, LW34**, LW54**

Component port connecting information

Component ports on the TV Y P

B

PR

Video output ports on DVD player	Y	P_B	P_R
	Y B-Y	R-Y
	Y Cb	Cr
	Y Pb	Pr

Signal	Component
480i / 576i	0
480p / 576p	0
720p / 1080i	0
1080p	0(Only 50 Hz / 60 Hz)

Supported video formats

(Only LW54**, LW341*)

• Maximum: 1920 x 1080 @ 30p (only Motion JPEG 640 x 480 @ 30p)
- .asf, .wmv [Video] MPEG-2, MPEG-4 Part2, XViD, H.264/AVC, VC1(WMV3, WVC1), MP43 [Audio] WMA Standard, WMA9(Pro), MP3, AAC, AC3, 3D WMV Single Stream
- .divx, .avi [Video] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4, DivX5, DivX6, XViD, H.264/AVC [Audio] HE-AAC, LPCM, ADPCM, MPEG-1 Layer I, MPEG-1 Layer II, Dolby Digital, MPEG-1 Layer III (MP3)
- .ts, .trp, .tp, .mts, .m2ts [Video] H.264/AVC, MPEG-2, AVS, VC1 [Audio] MPEG-1 Layer I, MPEG-1 Layer II, MPEG-1 Layer III (MP3), Dolby Digital, Dolby Digital Plus, AAC, HE-AAC
- .vob [Video] MPEG-1, MPEG-2 [Audio] Dolby Digital, MPEG-1 Layer I, MPEG-1 Layer II, DVD-LPCM - .mp4, .m4v, .mov [Video] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4, DivX5, DivX6, XVID, H.264/AVC [Audio] AAC, MPEG-1 Layer III (MP3)
- .mkv [Video] MPEG-2, MPEG-4 Part2, XVID, H.264/AVC [Audio] HE-AAC, Dolby Digital, MPEG-1 Layer III (MP3), LPCM
• motion JPEG [Video] MJPEG [Audio] LPCM, ADPCM
- .mpg, .mpeg, .mpe [Video] MPEG-1, MPEG-2 [Audio] MPEG-1 Layer I, MPEG-1 Layer II, Dolby Digital, LPCM
- .dat [Video] MPEG-1, MPEG-2 [Audio] MP2
• .flv [Video] Sorenson H.263, H.264/AVC [Audio] MP3, AAC, HE-AAC
• .3gp, .3gp2 [Video] H.264/AVC, MPEG-4 Part2 [Audio] AAC, AMR(NB/WB)

(Only LW340*, LW31**, LW30**)

• Maximum : 1920 x 1080 @ 30p (Only Motion JPEG 640 x 480 @ 30p) • .asf, .wmv [Video] MPEG-4 Part2, XViD, H.264/AVC, VC1(WMV3, WVC1), MP43 [Audio] WMA Standard, WMA9(Pro), MP3, AAC, AC3
- .divx, .avi [Video] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4, DivX5, DivX6, XViD, H.264/AVC [Audio] HE-AAC, LPCM, ADPCM, MPEG-1 Layer I, MPEG-1 Layer II, Dolby Digital, MPEG-1 Layer III (MP3)
- .ts, .trp, .tp, .mts, .m2ts [Video] H.264/AVC, MPEG-2, H.265/HEVC [Audio] MPEG-1 Layer I, MPEG-1 Layer II, MPEG-1 Layer III (MP3), Dolby Digital, Dolby Digital Plus, AAC, HE-AAC
- .vob [Video] MPEG-1, MPEG-2 [Audio] Dolby Digital, MPEG-1 Layer I, MPEG-1 Layer II, DVD-LPCM
- .mp4, .m4v, .mov [Video] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4, DivX5, XVID, H.264/AVC [Audio] AAC, MPEG-1 Layer III (MP3)
- .mkv [Video] MPEG-2, MPEG-4 Part2, XVID, H.264/AVC [Audio] HE-AAC, Dolby Digital, MPEG-1 Layer III (MP3), LPCM
• motion JPEG [Video] MJPEG [Audio] LPCM, ADPCM
- .mpg, .mpeg, .mpe [Video] MPEG-1, MPEG-2 [Audio] MPEG-1 Layer I, MPEG-1 Layer II, Dolby Digital, LPCM
- .dat [Video] MPEG-1, MPEG-2 [Audio] MP2
• .flv [Video] Sorenson H.263, H.264/AVC [Audio] MP3, AAC, HE-AAC
• .3gp, .3gp2 [Video] H.264/AVC, MPEG-4 Part2 [Audio] AAC, AMR(NB/WB)

Supported audio formats

• File type : mp3
  [Bit rate] 32 Kbps - 320 Kbps
  [Sample freq.] 16 kHz - 48 kHz
  [Support] MPEG1, MPEG2, Layer2, Layer3

- File Type : AAC

[Bit rate] Free Format

[Sample freq.] 8 kHz \~ 48 kHz

[Support] ADIF, ADTS

- File Type : M4A

[Bit rate] Free Format

[Sample freq.] 8 kHz \~ 48 kHz

[Support] MPEG-4

- File Type: WMA

[Bit rate] 128 Kbps \~ 320 Kbps

[Sample freq.] 8 kHz \~ 48 kHz

[Support] WMA7, WMA8, WMA9 Standard

• File Type : WMA 10 Pro

[Bit rate] \~ 768 Kbps

[Channel / Sample freq.]

M0: up to 2 Channel @ 48 kHz (Except LBR mode),

M1: up to 5.1 Channel @ 48 kHz,

M2 : up to 5.1 Channel @ 96 kHz

[Support] WMA 10 Pro

(Only LW54**, LW341*)

- File Type : OGG

[Bit rate] Free Format

[Sample freq.] \~ 48 kHz

[Support] OGG Vorbis

(Only LW340*, LW31**, LW30**)

- File Type : OGG

[Bit rate] Free Format

[Sample freq.] 8 kHz \~ 48 kHz

[Support] OGG Vorbis

- File Type: WAV

[Bit rate] 64 kbps \~ 1.5 Mbps

[Sample freq.] 8 kHz \~ 48 kHz

[Support] LPCM

[Bit depth] 8 bit / 16 bit / 24 bit

Supported photo formats

• Category : 2D (jpeg, jpg, jpe)

[Available file type]

SOFO : Baseline,

SOF1 : Extend Sequential,

SOF2 : Progressive

[Photo size]

Minimum : 64 x 64,

Maximum (Normal Type) : 15360 (W) x 8640 (H),

Maximum (Progressive Type) : 1920 (W) x 1440 (H)

Category : BMP

[Photo size] Minimum : 64 x 64, Maximum : 9600 x 6400

Category: PNG

[Available file type] Interlace, Non-Interlace

[Photo size]

Minimum : 64 x 64,

Maximum (Interlace) : 1200 x 800,

Maximum (Non-Interlace) : 9600 x 6400

• BMP and PNG format files may be slower to display than JPEG.

• Non-standard photo/image file may not be displayed.

LG

Life's Good

Record the model number and serial number of the TV.

Refer to the label on the back cover and quote this information to your dealer when requiring any service.

MODEL ____

SERIAL

Illustration of a mechanical assembly with springs and a lightning bolt (no text or symbols)

Cartoon illustration of a person reacting to a computer screen displaying a sad face (no text or symbols present)

Simple line drawing of a smiling computer monitor with antenna and wind turbines above (no text or symbols)

Cartoon illustration of a smiling house with a flagpole and wind lines (no text or symbols)

Cartoon illustration of a distressed computer monitor with arms and a sad face, next to an open window (no text or symbols)

Cartoon illustration of a smiling computer monitor with arms extended, no text or symbols present

Illustration of hands using a tool to connect wires to an electrical socket (no text or symbols present)

Diagram illustrating a device with hand gestures and corresponding close-ups of the screen, showing correct and incorrect states.

Diagram showing a mechanical or electrical setup with labeled components and two circular insets highlighting specific parts.

Diagram showing a device with a magnified view of a screen and its internal components, likely illustrating a physical or technical concept.

Dual Lock ^TM

Diagram showing a device being placed on a flat panel, with an arrow indicating the process (no text or symbols present)

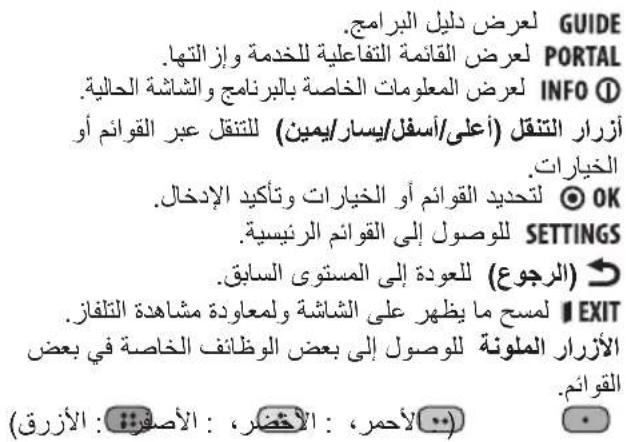

GUIDE PORTAL INFO OK SETTINGS EXIT TEXT T.OPT SUBTITLE Q.MENU AD ALARM C D

C

• Odolby ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY D • Odolby ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBY ĐOLBy D • Odolby ĐOLBy ĐOLBy ĐOLBy ĐOLBy ĐOLBy ĐOLBy ĐOLBy ĐOLBy ĐOLBy ĐOLBy ĐOLBy ĐOLBy ĐOLBy ĐOLBy ĐOLBy ĐOLBy ĐOLBy ĐOLBy ĐOLBy ĐOLBy ĐOLBy ĐOLBy ĐOLBy ĐolBy D • Odolby ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolByĐolByĐolByĐolByĐolByĐolByĐolByĐolByĐolByĐolByĐolByĐolByĐolByĐolByĐolByĐolByĐolByĐolByĐolByĐolByĐolByĐolByĐolByĐolByĐolByĐolByĐolByĐolByĐolByĐolByĐolByĐolByĐolByĐolByĐoloD • Odolby ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐolBy ĐoloD • Odolby D olby D olby D olby D olby D olby D olby D olby D olby D olby D olby D olby D olby D olby D olby D olby D olby D olby D olby D olby D olby D olby D olby D olby D olby D olby D olby D olby D olby D olby D olby D olby D olby D olby D olb y d o l b o l b o l b o l b o l b o l b o l b o l b o l b o l b o l b o l b o l b o l b o l b o l b o l b o l b o l b o l b o l b o l b o l b o l b o l b o l b o l b o l b o l b o l b o l b o l b o l b o l b a n d

DOLBY. DIGITAL PLUS

HDMI HIGH-DEFINITION MULTIMEDIA INTERFACE

https://www.lgecommercial.com/digital-signage/support/download/supersign

SuperSign W_Lite_Server_vX.X.X_Setup.zip : alبرنامج

SuperSign C_vX.X.X_Setup.zip

SuperSign W_Editor_vX.X.X_Setup.zip

SuperSign W_Player_vX.X.X_Setup.zip

SuperSign W_Lite_Server_vX.X.X_Manual.zip : ال二十五

SuperSign C_vX.X.X_Manual.zip

SuperSign W_Editor_vX.X.X_Manual.zip

SuperSign W_Player_vX.X.X_Manual.zip

المواصفات

‘Dolby Digital ‘MPEG-1 Layer II ‘Layer I

(MP3) MPEG-1 Layer III

.m2ts '.mts '.tp '.trp '.ts •

H.265/HEVC, MPEG-2, H.264/AVC [فیدیو]

,MPEG-1 Layer II ,MPEG-1 Layer I [صوت]

Dolby 'Dolby Digital '(MP3) MPEG-1 Layer III

HE-AAC 'AAC 'Digital Plus

.vob •

MPEG-2 'MPEG-1 [فيديو]

·MPEG-1 Layer I ·Dolby Digital [صوت]

DVD-LPCM •MPEG- 1 Layer II

.mov '.m4v '.mp4

DivX3.11 MPEG-4 Part2 MPEG-2 [فيديو]

H.264/AVC 'XVID 'DivX5 'DivX4

(MP3) MPEG-1 Layer III, AAC [صوت]

.mkv •

H.264/ ,XVID ,MPEG-4 Part2 ,MPEG-2 [فیدیو]

AVC

MPEG-1 Layer ,Dolby Digital ,HE-AAC [صوت]

LPCM •(MP3) III

motion JPEG

MJPEG [فيديو]

ADPCM,LPCM [صوت]

.mpe '.mpeg '.mpg

MPEG-2 'MPEG-1 [فيديو]

MPEG-1 Layer II MPEG-1 Layer I [صوت]

LPCM 'Dolby Digital

.dat •

MPEG-2 ,MPEG-1 [فيديو]

MP2 [صوت]

.flv •

H.264/AVC •Sorenson H.263 [فيديو]

HE-AAC, AAC, MP3 [صوت]

.3gp2 .3gp

MPEG-4 Part2 ·H.264/AVC [فيديو]

AMR(NB/WB) ,AAC [الصوت]

3D WMV Single Stream AC3

DivX3.11 MPEG-4 Part2 MPEG-2 [فيديو]

H.264/AVC ,XViD ,DivX6 ,DivX5 ,DivX4

MPEG-1, ADPCM, LPCM, HE-AAC [صوت]

•Dolby Digital •MPEG-1 Layer II •Layer I

(MP3) MPEG-1 Layer III

.m2ts '.mts '.tp '.trp '.ts

VC1 ,AVS ,MPEG-2 ,H.264/AVC [فیدیو]

MPEG-1 Layer II MPEG-1 Layer I [صوت]

Dolby •Dolby Digital •(MP3) MPEG-1 Layer III

HE-AAC 'AAC 'Digital Plus

MPEG-2 ,MPEG-1 [فيديو]

MPEG-1 MPEG-1 Layer I Dolby Digital [صوت]

DVD-LPCM 'Layer II

.mov '.m4v '.mp4

DivX4 DivX3.11 MPEG-4 Part2 MPEG-2 [فیديو]

H.264/AVC ·XVID ·DivX6 ·DivX5

(MP3) MPEG-1 Layer III, AAC [صوت]

.mkv •

H.264/AVC ,XVID ,MPEG-4 Part2 ,MPEG-2 [فیديو]

MPEG-1 Layer III, Dolby Digital, HE-AAC [صوت]

LPCM ‘(MP3)

motion JPEG

MJPEG [فيديو]

ADPCM,LPCM [صوت]

.mpe '.mpeg '.mpg

MPEG-2 ,MPEG-1 [فيديو]

MPEG-1 Layer II MPEG-1 Layer I [صوت]

LPCM • Dolby Digital

.dat

MPEG-2,MPEG-1 [فيديو]

MP2 [صوت]

.flv

H.264/AVC ,Sorenson H.263 [فیدیو]

HE-AAC, AAC, MP3 [صوت]

.3gp2 .3gp

MPEG-4 Part2 ·H.264/AVC [فیدیو]

AMR(NB/WB) ,AAC [الصوت]

• .avi ‘.div)

•

• .vob

•

•

•

•

•

•

•

Illustration of a mechanical device with springs and wires, no text or symbols present

Cartoon illustration of a person reacting to a computer screen displaying a sad face (no text or symbols present)

Cartoon illustration of a computer monitor with a sad face and a window, showing distress (no text or symbols)

Simple line drawing of a smiling computer monitor on a hillside with wind turbines and clouds above (no text or symbols)

Cartoon illustration of a smiling house with wind lines above, no text or symbols present

Cartoon illustration of a smiling computer monitor with arms raised, showing a 10 cm scale indicator (no text or symbols on the device itself)

Illustration of hands using a tool to connect wires to an electrical outlet (no text or symbols present)

Diagram illustrating a device with cross-sectional views and hand positioning, showing step-by-step instructions for viewing or adjustment.

Stojan Stül

Illustration of a monitor connected to a cable with two magnified insets showing cable attachment (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and highlighted parts, including a magnified view of the top panel.

Dual Lock™

Diagram showing a device being placed on a flat panel, with an arrow indicating the process (no text or symbols present)

POZNÁMKA

GUIDE PORTAL INFOO OK SETTINGS EXIT TEXT T.OPT SUBTITLE Q.MENU AD ALARM C D

C

This DivX Certified ^® device has passed rigorous testing to ensure it plays DivX ^® video.

To play purchased DivX movies, first register your device at vod.divx.com. Find your registration code in the DivX VOD section of your device setup menu.

DivX Certified ^® to play DivX ^® video up to HD 1080p, including premium content.

DivX ^® , DivX Certified ^® and associated logos are trademarks of DivX, LLC and are used under license.

Covered by DivX Patents 7,295,673; 7,515,710; RE45,052; and others available at [www.divx.com/patents].

https://www.lgecommercial.com/digital-signage/support/download/supersign

Software SuperSign : SuperSign W_Lite_Server_vX.X.X_Setup.zip

SuperSign C_vX.X.X_Setup.zip

SuperSign W_Editor_vX.X.X_Setup.zip

SuperSign W_Player_vX.X.X_Setup.zip

Příručka k televizoru : SuperSign W_Lite_Server_vX.X.X_Manual.zip

SuperSign C_vX.X.X_Manual.zip

SuperSign W_Editor_vX.X.X_Manual.zip

SuperSign W_Player_vX.X.X_Manual.zip

Technické údaje

Illustration of a mechanical device with springs and a lightning bolt, no text or symbols present

Cartoon illustration of a person reacting to a computer monitor displaying a sad face, with no visible text or symbols.

Cartoon illustration of a computer monitor with a sad face emerging from its window (no text or symbols present)

Cartoon illustration of a smiling computer monitor with a smiling face, set against a house and wind turbines (no text or symbols)

Cartoon illustration of a smiling house with a windmill above, no text or symbols present

Cartoon illustration of a smiling computer monitor with arms and legs, no text or symbols present

Illustration of hands using a tool to connect wires to an electrical outlet (no text or symbols present)

Diagram illustrating a device with labeled parts and directional arrows indicating movement or assembly.

Support Bureau

REMARQUE

Support Bureau

Illustration of a monitor connected to a cable with two magnified insets showing mechanical components (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and directional arrows, including a magnified view of the top panel.

Orifices du support

Dual Lock™

Diagram showing a device being placed on a flat panel, with no text or symbols present.

REMARQUE

GUIDE PORTAL INFOO OK SETTINGS EXIT TEXT T.OPT SUBTITLE Q.MENU AD ALARM C D

C

https://www.lgecommercial.com/digital-signage/support/download/supersign

Logiciel : SuperSign W_Lite_Server_vX.X.X_Setup.zip

SuperSign C_vX.X.X_Setup.zip

SuperSign W_Editor_vX.X.X_Setup.zip

SuperSign W_Player_vX.X.X_Setup.zip

Manuel : SuperSign W_Lite_Server_vX.X.X_Manual.zip

SuperSign C_vX.X.X_Manual.zip

SuperSign W_Editor_vX.X.X_Manual.zip

SuperSign W_Player_vX.X.X_Manual.zip

Spécifications

Illustration of a mechanical device with springs and a lightning bolt, no text or symbols present

Cartoon illustration of a person reacting to a computer screen displaying a sad face (no text or symbols present)

Cartoon illustration of a computer monitor with a sad face emerging from its window, no text or symbols present.

Cartoon illustration of a smiling computer monitor with a house, emitting exhaust smoke from above (no text or symbols)

Cartoon illustration of a smiling house with a wind turbine above it (no text or symbols)

Cartoon illustration of a smiling computer monitor with arms raised, showing a 10cm scale indicator (no text or symbols on the monitor itself)

Illustration of hands using a tool to connect wires to an electrical outlet (no text or symbols present)

Diagram illustrating how to change a screen with hand gestures, showing correct and incorrect states of action.

Illustration of a monitor connected to a cable with two magnified insets showing mechanical components (no text or symbols)

Diagram showing a mechanical or electrical setup with labeled components and two circular insets highlighting specific parts.

Dual Lock™

Diagram showing a device being lowered from top to bottom, with no text or symbols present.

HINWEIS

GUIDE PORTAL INFO OK SETTINGS EXIT TEXT T.OPT SUBTITLE Q.MENU AD ALARM C D

C

https://www.lgecommercial.com/digital-signage/support/download/supersign

Software : SuperSign W_Lite_Server_vX.X.X_Setup.zip

SuperSign C_vX.X.X_Setup.zip

SuperSign W_Editor_vX.X.X_Setup.zip

SuperSign W_Player_vX.X.X_Setup.zip

Illustration of a mechanical component with springs and a lightning bolt, no text or symbols present

Cartoon illustration of a computer monitor with a sad face emerging from its screen, next to a window with curtains (no text or symbols present)

Simple line drawing of a smiling house with a computer monitor and cloud above, no text or symbols present.

Cartoon illustration of a smiling house with a wind turbine above it (no text or symbols)

Cartoon illustration of a smiling computer monitor with arms raised, showing a 10cm scale indicator (no text or symbols on the monitor itself)

Illustration of hands using a tool to connect wires to an electrical outlet (no text or symbols present)

Diagram illustrating a device with labeled hand positions and corresponding action buttons for contact or disconnection.

10 εK 10 εK 10 εK 10 εK

Illustration of a monitor connected to a cable with magnified insets showing mechanical components (no text or symbols)

Diagram showing a mechanical assembly with labeled components and two magnified views of the component.

10 εK 10 εK 10 εK

Dual Lock™

Diagram showing a device being locked into a flat panel, with no text or symbols present.

ΣΗΜΕΙΩΣΗ

GUIDE PORTAL INFOG OK SETTINGS EXIT TEXT T.OPT SUBTITLE Q.MENU AD ALARM C D

C

This DivX Certified ^® device has passed rigorous testing to ensure it plays DivX ^® video.

To play purchased DivX movies, first register your device at vod.divx.com. Find your registration code in the DivX VOD section of your device setup menu.

DivX Certified ^® to play DivX ^® video up to HD 1080p, including premium content.

DivX ^® , DivX Certified ^® and associated logos are trademarks of DivX, LLC and are used under license.

Covered by DivX Patents 7,295,673; 7,515,710; RE45,052; and others available at [www.divx.com/patents].

https://www.lgecommercial.com/digital-signage/support/download/supersign

['Hxoc] WMA Standard, WMA9(Pro), MP3, AAC, AC3, 3D WMV Single Stream

- .divx, .avi

[Bivteo] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4, DivX5, DivX6, XViD, H.264/AVC [Hxoç] HE-AAC, LPCM, ADPCM, MPEG-1 Layer I, MPEG-1 Layer II, Dolby Digital, MPEG-1 Layer III (MP3)

• .ts, .trp, .tp, .mts, .m2ts

[Bivteo] H.264/AVC, MPEG-2, AVS, VC1 [Hxoç] MPEG-1 Layer I, MPEG-1 Layer II, MPEG-1 Layer III (MP3), Dolby Digital, Dolby Digital Plus, AAC, HE-AAC

• .vob

[Bívtεο] MPEG-1, MPEG-2

['Hxoc] Dolby Digital, MPEG-1 Layer I, MPEG-1 Layer II, DVD-LPCM

- .mp4, .m4v, .mov

[Bivteo] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4, DivX5, DivX6, XVID, H.264/AVC'

['Hxoc] AAC, MPEG-1 Layer III (MP3)

. .mkv

[Bívtεο] MPEG-2, MPEG-4 Part2, XVID, H.264/AVC

['Hxoc] HE-AAC, Dolby Digital, MPEG-1 Layer III (MP3), LPCM

- motion JPEG

[Bíντεο] MJPEG

['Hxoc] LPCM, ADPCM

- .mpg, .mpeg, .mpe

[Bívtεο] MPEG-1, MPEG-2

['Hxoc] MPEG-1 Layer I, MPEG-1 Layer II, Dolby Digital, LPCM

. .dat

[Bívtεο] MPEG-1, MPEG-2

['Hxoc] MP2

• .flv

[Bívtεο] Sorenson H.263, H.264/AVC

['Hxoc] MP3, AAC, HE-AAC

.3gp,.3gp2

[Bivteo] H.264/AVC, MPEG-4 Part2

['Hxoc] AAC, AMR(NB/WB)

[Ηχος] MP3, AAC, HE-AAC

.3gp, .3gp2

[Bívtεο] H.264/AVC, MPEG-4 Part2

[Υποστήριξη] ADIF, ADTS

Illustration of a mechanical device with springs and a lightning bolt, no text or symbols present

Cartoon illustration of a computer monitor with a sad face emerging from its window (no text or symbols present)

Cartoon illustration of a smiling computer monitor on a hillside with wind turbines and clouds in the background (no text or symbols)

Cartoon illustration of a smiling house with wind lines above, no text or symbols present

Cartoon illustration of a smiling computer monitor with arms raised, showing a 10cm scale indicator (no text or symbols on the device itself)

Illustration of hands using a tool to connect wires to an electrical outlet (no text or symbols present)

Diagram illustrating a device with labeled parts and directional arrows, showing hand positioning and alignment instructions.

Illustration of a monitor connected to a cable with two magnified insets showing cable attachment (no text or symbols)

Technical diagram showing a door mechanism with labeled parts and two magnified views of the handle mechanism.

Dual Lock™

Diagram showing a device being installed from a flat panel, with no text or symbols present.

NOTA

GUIDE PORTAL INFO OK SETTINGS EXIT TEXT T.OPT SUBTITLE Q.MENU AD ALARM C D

C

GUIDE Mostra la Guida al programma.

https://www.lgecommercial.com/digital-signage/support/download/supersign

Software : SuperSign W_Lite_Server_vX.X.X_Setup.zip

SuperSign C_vX.X.X_Setup.zip

SuperSign W_Editor_vX.X.X_Setup.zip

SuperSign W_Player_vX.X.X_Setup.zip

Manuale : SuperSign W_Lite_Server_vX.X.X_Manual.zip

SuperSign C_vX.X.X_Manual.zip

SuperSign W_Editor_vX.X.X_Manual.zip

SuperSign W_Player_vX.X.X_Manual.zip

Specifiche tecniche

[Formati supportati] ADIF, ADTS

[Bitdepth] 8 bit / 16 bit / 24 bit

Illustration of a mechanical device with springs and a lightning bolt, no text or symbols present

Cartoon illustration of a smiling computer monitor on a hill with wind turbines and clouds above (no text or symbols)

Cartoon illustration of a smiling house with wind lines and smoke, no text or symbols present

Illustration of hands using a tool to connect wires to an electrical outlet (no text or symbols present)

Diagram illustrating a device with labeled parts and directional arrows indicating movement or assembly.

Illustration of a monitor connected to a cable with two magnified insets showing a connector and hook (no text or symbols)

Diagram showing a door with labeled dimensions and two close-up insets illustrating mechanical components or parts.

Dual Lock™

Diagram showing a device being installed from top and bottom views, with no text or symbols present.

UWAGA

GUIDE PORTAL INFO OK SETTINGS EXIT TEXT T.OPT SUBTITLE Q.MENU AD ALARM C D

C

This DivX Certified ^® device has passed rigorous testing to ensure it plays DivX ^® video.

To play purchased DivX movies, first register your device at vod.divx.com. Find your registration code in the DivX VOD section of your device setup menu.

DivX Certified ^® to play DivX ^® video up to HD 1080p, including premium content.

DivX ^® , DivX Certified ^® and associated logos are trademarks of DivX, LLC and are used under license.

Covered by DivX Patents 7,295,673; 7,515,710; RE45,052; and others available at [www.divx.com/patents].

https://www.lgecommercial.com/digital-signage/support/download/supersign

Oprogramowanie : SuperSign W_Lite_Server_vX.X.X_Setup.zip

SuperSign C_vX.X.X_Setup.zip

SuperSign W_Editor_vX.X.X_Setup.zip

SuperSign W_Player_vX.X.X_Setup.zip

MANUAL DE INSTRUÇÕES

Illustration of a mechanical device with attached wires and a lightning bolt (no text or symbols)

Cartoon illustration of a person reacting to a computer screen displaying a sad face (no text or symbols present)

Cartoon illustration of a computer monitor with a sad face and a window, showing a broken-out window (no text or symbols present)

Simple line drawing of a smiling computer monitor with wind turbines in the background (no text or symbols)

Cartoon illustration of a smiling house with a windmill and motion lines (no text or symbols)

Illustration of hands using a tool to connect wires to an electrical outlet (no text or symbols present)

Relógio LEDLEC-003

AN-WF500Wi-Fi/Bluetooth Dongle

Diagram illustrating a device with labeled parts and directional arrows indicating movement or assembly steps.

Illustration of a monitor connected to a cable with magnified insets showing cable attachment (no text or symbols)

Diagram showing a basketball court with a close-up of the court and two close-up insets illustrating positions of the net, including a weight and a weight.

Dual Lock™

Diagram showing a device being lowered from top to bottom, with no text or symbols present.

NOTA

GUIDE PORTAL INFOO OK SETTINGS EXIT TEXT T.OPT SUBTITLE Q.MENU AD ALARM C D

C

GUIDE Mostra o manual do programa.

PORTAL Apresenta e remove o menu interactivo do hotel.

https://www.lgecommercial.com/digital-signage/support/download/supersign

Software : SuperSign W_Lite_Server_vX.X.X_Setup.zip

SuperSign C_vX.X.X_Setup.zip

SuperSign W_Editor_vX.X.X_Setup.zip

SuperSign W_Player_vX.X.X_Setup.zip

Manual : SuperSign W_Lite_Server_vX.X.X_Manual.zip

SuperSign C_vX.X.X_Manual.zip

SuperSign W_Editor_vX.X.X_Manual.zip

SuperSign W_Player_vX.X.X_Manual.zip

Especificações

Illustration of a mechanical device with multiple legs and a lightning bolt, no text or symbols present

Cartoon illustration of a person lying on the floor looking at a computer monitor with a sad face (no text or symbols present)

Cartoon illustration of a computer monitor with a sad face emerging from its window, symbolizing distress or overload (no text or symbols present)

Cartoon illustration of a smiling computer monitor with arms raised, showing a 10cm scale indicator (no text or symbols on the monitor itself)

Illustration of hands using a tool to connect wires to an electrical outlet (no text or symbols present)

Diagram illustrating a device with labeled hand positions and tool application steps

Illustration of a monitor connected to a cable with two magnified insets showing mechanical components (no text or symbols)

Diagram showing a mechanical or electrical component with labeled dimensions and two magnified insets highlighting specific features.

Dual Lock™

Diagram showing a device being removed from a wall-mounted door, with no text or symbols present.

ПРИМЕЧАНИЕ

GUIDE PORTAL INFOQ OK SETTINGS EXIT TEXT T.OPT SUBTITLE Q.MENU AD ALARM C D

C

This DivX Certified ^® device has passed rigorous testing to ensure it plays DivX ^® video.

To play purchased DivX movies, first register your device at vod.divx.com. Find your registration code in the DivX VOD section of your device setup menu.

DivX Certified ^® to play DivX ^® video up to HD 1080p, including premium content.

DivX ^® , DivX Certified ^® and associated logos are trademarks of DivX, LLC and are used under license.

Covered by DivX Patents 7,295,673; 7,515,710; RE45,052; and others available at [www.divx.com/patents].

https://www.lgecommercial.com/digital-signage/support/download/supersign

Illustration of a mechanical device with springs and a lightning bolt, no text or symbols present

Cartoon illustration of a person reacting to a computer screen displaying a sad face (no text or symbols present)

Cartoon illustration of a computer monitor with a sad face and open window (no text or symbols)

Cartoon illustration of a smiling computer monitor with a house and smokestacks above (no text or symbols)

Cartoon illustration of a smiling house with a windmill above, no text or symbols present

Illustration of hands using a tool to connect wires to an electrical outlet (no text or symbols present)

Diagram illustrating a device with labeled parts and directional arrows indicating movement or assembly steps.

Illustration of a monitor connected to a cable with two magnified insets showing mechanical components (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and two circular insets highlighting specific parts.

Dual Lock™

Diagram showing a device being placed on a flat panel, with no text or symbols present.

NOTA

GUIDE PORTAL INFOG OK SETTINGS EXIT TEXT T.OPT SUBTITLE Q.MENU AD ALARM C D

C

https://www.lgecommercial.com/digital-signage/support/download/supersign

Software : SuperSign W_Lite_Server_vX.X.X_Setup.zip

SuperSign C_vX.X.X_Setup.zip

SuperSign W_Editor_vX.X.X_Setup.zip

SuperSign W_Player_vX.X.X_Setup.zip

Manual : SuperSign W_Lite_Server_vX.X.X_Manual.zip

SuperSign C_vX.X.X_Manual.zip

SuperSign W_Editor_vX.X.X_Manual.zip

SuperSign W_Player_vX.X.X_Manual.zip

Especificaciones

[Audio] MP3, AAC, HE-AAC

.3gp,.3gp2

[Audio] MP3, AAC, HE-AAC

.3gp, .3gp2

Illustration of a mechanical device with springs and a lightning bolt, no text or symbols present

Cartoon illustration of a person reacting to a computer screen displaying a sad face (no text or symbols present)

Cartoon illustration of a computer monitor with a sad face and open window (no text or symbols)

Simple line drawing of a smiling computer monitor in front of a house with wind turbines and clouds (no text or symbols)

Cartoon illustration of a smiling house with wind turbines above (no text or symbols)

Cartoon illustration of a smiling computer monitor with arms and legs, waving (no text or symbols)

Illustration of hands using a tool to connect wires to an electrical outlet (no text or symbols present)

Diagram illustrating a device with hand positioning and tool application steps, showing selection of X and ✓ symbols.

Ayaklik Sehpa

NOT

- Vida : M5 x L (*L: Masa derinliği + 8\~10 mm) örn.) Masa derinliği: 15 mm, Vida : M5 x L25

B tipi )

2 Ayaklik Sabitleme Vidal 2 Ayaklik Sabitleme Pulla 2 Ayaklik Sabitleme Somu

Ayaklik Sehpa

Illustration of a monitor connected to a cable with two magnified insets showing mechanical components (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and two magnified views of the component.

Dual Lock™

Diagram showing a device being installed from top and bottom views, with no text or symbols present.

NOT

GUIDE PORTAL INFO OK SETTINGS EXIT TEXT T.OPT SUBTITLE Q.MENU AD ALARM C D

C

https://www.lgecommercial.com/digital-signage/support/download/supersign

Yazılım : SuperSign W_Lite_Server_vX.X.X_Setup.zip

SuperSign C_vX.X.X_Setup.zip

SuperSign W_Editor_vX.X.X_Setup.zip

SuperSign W_Player_vX.X.X_Setup.zip

Kılavuz : SuperSign W_Lite_Server_vX.X.X_Manual.zip

SuperSign C_vX.X.X_Manual.zip

SuperSign W_Editor_vX.X.X_Manual.zip

SuperSign W_Player_vX.X.X_Manual.zip

Teknik özellikler

[Audio] WMA Standard, WMA9(Pro), MP3, AAC, AC3, 3D WMV Single Stream

- .divx, .avi

[Video] MPEG-2, MPEG-4 Kısım 2, DivX3.11, DivX4, DivX5, DivX6, XViD, H.264/AVC

[Audio] HE-AAC, LPCM, ADPCM, MPEG-1 Layer I, MPEG-1 Layer II, Dolby Digital, MPEG-1 Layer III (MP3)

• .ts, .trp, .tp, .mts, .m2ts

[Video] H.264/AVC, MPEG-2, AVS, VC1

[Audio] MPEG-1 Layer I, MPEG-1 Layer II, MPEG-1 Layer III (MP3), Dolby Digital, Dolby Digital Plus, AAC, HE-AAC

• .vob

[Video] MPEG-1, MPEG-2

[Audio] Dolby Digital, MPEG-1 Layer I, MPEG-1 Layer II, DVD-LPCM

- .mp4, .m4v, .mov

[Video] MPEG-2, MPEG-4 Kısım 2, DivX3.11, DivX4, DivX5, DivX6, XVID, H.264/AVC

[Audio] AAC, MPEG-1 Layer III (MP3)

. mkv

[Video] MPEG-2, MPEG-4 Kısım 2, XVID, H.264/AVC

[Audio] HE-AAC, Dolby Digital, MPEG-1 Layer III (MP3), LPCM

- motion JPEG

[Video] MJPEG

[Audio] LPCM, ADPCM

- .mpg, .mpeg, .mpe

[Video] MPEG-1, MPEG-2

[Audio] MPEG-1 Layer I, MPEG-1 Layer II, Dolby Digital, LPCM

. .dat

[Video] MPEG-1, MPEG-2

[Audio] MP2

• .flv

[Video] Sorenson H.263, H.264/AVC

[Audio] MP3, AAC, HE-AAC

.3gp,.3gp2

[Audio] MP3, AAC, HE-AAC

.3gp, .3gp2

LG Electronics Mlawa Sp. z o.o. (Ltd.)

LG Electronics 7 street

06-500 Mlawa, Poland

Tel.: [phone]

Fax: [phone]

LG Electronics Wroclaw Sp. z o.o

UI. LG Electronics 1-2

Biskupice Podgorne

55-040 Kobierzyce, Poland

Tel: [phone]

Fax: [phone]

LG Electronics Inc.

77, Sanho-daero, Gumi-si, Gyeongsangbuk-do, 39381, Rep. of KOREA

Tel : [phone]

Fax: [phone]

Yetkili Servisler

Değerli Müşterimiz,

Illustration of a mechanical device with springs and a lightning bolt, no text or symbols present

Cartoon illustration of a computer monitor with a sad face and open window (no text or symbols)

Simple line drawing of a smiling computer monitor with a house and wind turbines in the background (no text or symbols)

Cartoon illustration of a smiling house with a wind turbine above, no text or symbols present

Cartoon illustration of a smiling computer monitor with arms raised, showing a 10cm scale indicator (no text or symbols on the monitor itself)

Illustration of hands using a tool to connect wires to an electrical outlet (no text or symbols present)

Diagram illustrating how to switch a screen, showing step-by-step instructions with X and Y symbols.

Illustration of a monitor connected to a cable with magnified insets showing the cable being inserted (no text or symbols present)

Diagram showing a mechanical assembly with labeled components and two circular insets highlighting specific parts.

Dual Lock™

Diagram showing a device being removed from a wall, with no text or symbols present.

ПРИМИТКА

GUIDE PORTAL INFO OK SETTINGS EXIT TEXT T.OPT SUBTITLE Q.MENU AD ALARM C D

A

RATIO Resizes an image.

This DivX Certified ^® device has passed rigorous testing to ensure it plays DivX ^® video.

To play purchased DivX movies, first register your device at vod.divx.com. Find your registration code in the DivX VOD section of your device setup menu.

DivX Certified ^® to play DivX ^® video up to HD 1080p, including premium content.

DivX ^® , DivX Certified ^® and associated logos are trademarks of DivX, LLC and are used under license.

Covered by DivX Patents 7,295,673; 7,515,710; RE45,052; and others available at [www.divx.com/patents].

https://www.lgecommercial.com/digital-signage/support/download/supersign

[Підтримка] ADIF, ADTS

• Тип файлу : M4A
