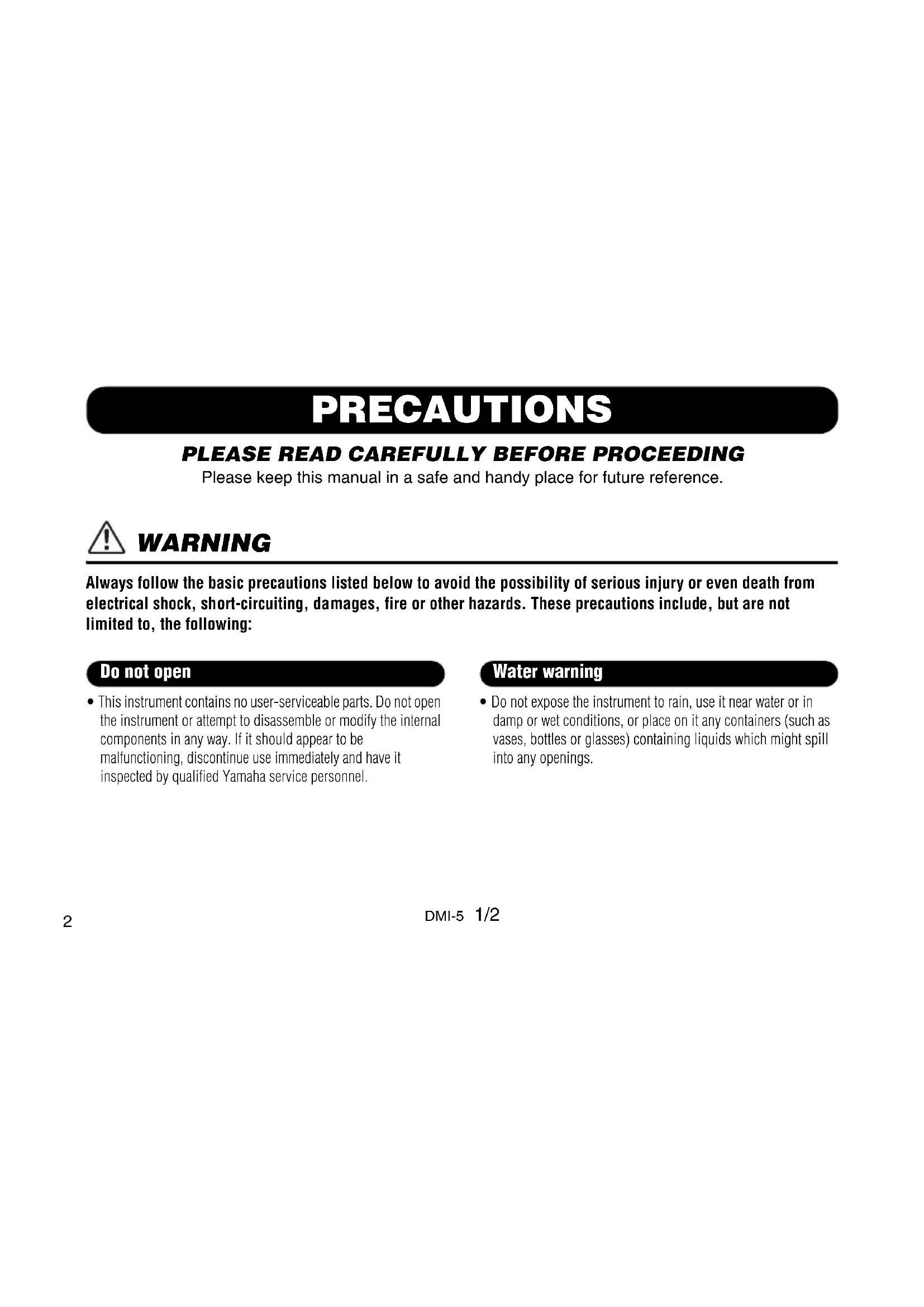

PRECAUTIONS
PLEASE READ CAREFULLY BEFORE PROCEEDING
Please keep this manual in a safe and handy place for future reference.
WARNING
Always follow the basic precautions listed below to avoid the possibility of serious injury or even death from electrical shock, short-circuiting, damages, fire or other hazards. These precautions include, but are not limited to, the following:
Do not open
- This instrument contains no user-serviceable parts. Do not open the instrument or attempt to disassemble or modify the internal components in any way. If it should appear to be malfunctioning, discontinue use immediately and have it inspected by qualified Yamaha service personnel.
Water warning
- Do not expose the instrument to rain, use it near water or in damp or wet conditions, or place on it any containers (such as vases, bottles or glasses) containing liquids which might spill into any openings.
CAUTION
Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or damage to the instrument or other property. These precautions include, but are not limited to, the following:
Location
- Before moving the instrument, remove all connected cables, to prevent damage to the cables or injury to anyone who might trip over them.
Handling caution
- Do not rest your weight on, or place heavy objects on the instrument, and do not use excessive force on the buttons, switches or connectors.
Yamaha cannot be held responsible for damage caused by improper use or modifications to the instrument, or data that is lost or destroyed.
NOTICE
To avoid the possibility of malfunction/damage to the product, damage to data, ordamage to other property, follow the notices below.
■ Handling
- Do not expose the instrument to excessive dust or vibrations, or extreme cold or heat (such as in direct sunlight, near a heater, or in a car during the day) to prevent the possibility of panel disfiguration, damage to the internal components or unstable operation.
■ Maintenance
- When cleaning the instrument, use a soft cloth. Do not use paint thinners, solvents, alcohol, cleaning fluids, or chemical-impregnated wiping cloths.
INTRODUCTION
Thank you for purchasing the Yamaha FC7 foot controller. The FC7 uses a rotary potentiometer control, and is compatible with the older photo interpret type of pedal (FC-3A). Also, the FC7 has a fortissimo function, which enables you to accent certain parts of your performance. Also, the pedal angle is adjustable for seated or standing performance. In order to make full use of the FC7's capabilities and enjoy trouble-free operation, please read this manual carefully.
SPECIFICATIONS

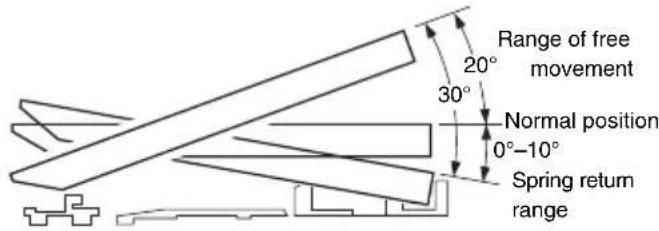

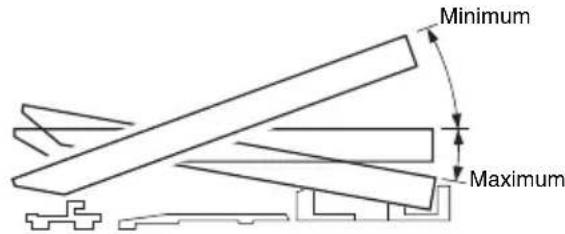

Total Pedal Angle 30^
(Both standing and seated positions)
Resistance
(KΩ)
| RT RV | ||
| Minimum 50± | 30% 50±30% | |
| Maximum 50± | 30% — |
Dimensions (W× H× D) 116× 58× 250mm
Weight 1.3 kg
- The contents of this manual apply to the latest specifications as of the publishing date.
To obtain the latest manual, access the Yamaha website then download the manual file.
This allows you to selectively emphasise parts of your performance. As shown in the diagram, the pedal angle is 30^ when fully raised. The pedal will rest at any point you take your foot off from fully raised to standard position. If you depress the pedal further from standard position, it will return to standard position when you take your foot off. Also, by adjusting the screw on the bottom, you may adjust the spring return range from 0^ - 10^ .
Selectable pedal angle

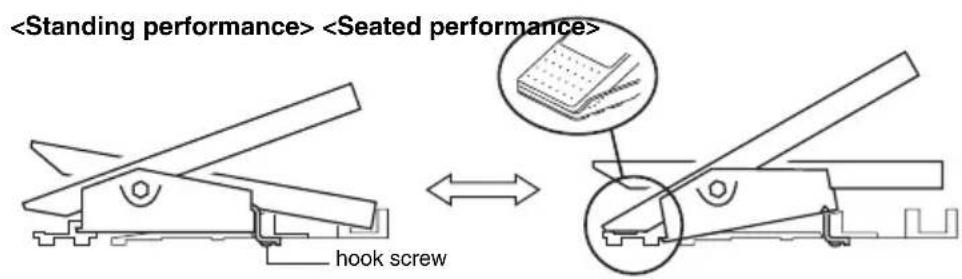

As shown below, you may change the pedal angle to fit your playing position.
To select pedal angle 1. Loosen hook screw with a screwdriver.
2. Move the pedal body to the position in the illustration.
3. Retighten the hook screw.
CONNECTION OF MULTIPLE PEDALS

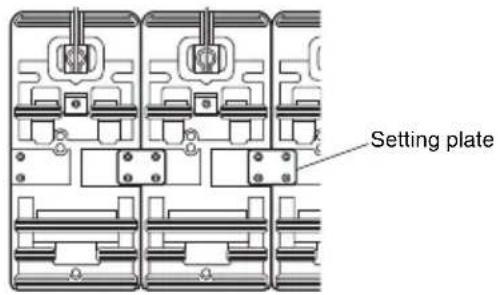

When using several FC7s, you may connect them together by moving the metal plate on the bottom.
CABLE STORAGE

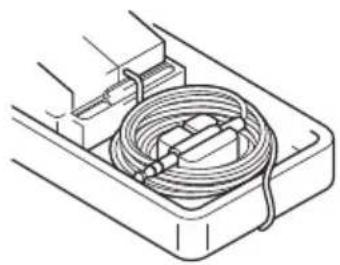

Store the cable as shown.

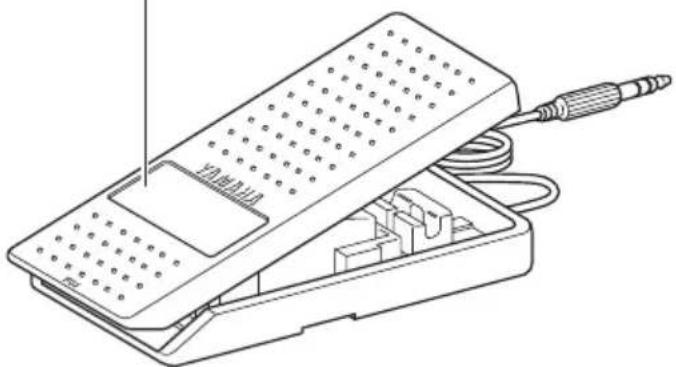

You may write the function of the pedal (eg. VOLUME, MODULATION) on a piece of tape and put it in this area.
