Product Type	Bluetooth Wireless Portable Speaker
Brand	Motorola
Model	MotoROKR EQ5
Product Authorization Number	MC2-41H14
Wireless Technology	Bluetooth Stereo
Supported Bluetooth Profiles	A2DP, AVRCP, HFP
Audio Technology	SRS WOW HD (audio enhancement)
Power Source	Rechargeable lithium-ion battery (non-replaceable)
Charging Time	At least 1 hour
Charging Indicator	Red light (charging), green (charged)
Wired Connectivity	3.5 mm audio input (cable included)
Built-in Controls	Play/pause, volume, next/previous track, call
Phone Functions	Hands-free, call reject, call waiting, voice dialing
LED Indicators	Bluetooth status, call, battery indicator
Included Accessories	Charger, audio cable
Battery	Lithium-ion, approximately 500 charge cycles
Safety	Read the safety instructions before use
Repairability	Battery not user-replaceable
Compliance	Directive 1999/5/EC

Frequently Asked Questions - MotoROKR EQ5 MOTOROLA

How do I pair the EQ5 speaker with my phone?

Turn on the speaker (the light turns solid blue). Enable Bluetooth on your phone and search for devices. Select Motorola EQ5 from the list. If prompted, enter the code 0000. Once paired, the light flashes blue and purple.

How do I charge the speaker's battery?

Plug the provided charger into the speaker's charging port. The light turns red while charging. When it turns green, the battery is fully charged. Allow at least 1 hour for charging.

Can I use the speaker while it's charging?

Yes, you can use the speaker while charging. Music and calls remain functional, but the battery will take longer to fully charge.

How do I check the battery level?

Press and hold both volume buttons simultaneously. The main light shows the status: red (<30%), yellow (30-70%), green (>70%). Release the buttons to return to normal display.

How do I disable SRS WOW HD technology?

Press and hold the Play/Pause and Back buttons together until you hear a tone and see the light flash yellow twice. Repeat the operation to reactivate SRS WOW HD.

How do I connect two devices at the same time (multipoint)?

First pair your phone, then turn it off. Reactivate the speaker to make it discoverable, then pair your music player. Turn off the speaker, turn on the phone, then turn on the speaker again. It will connect to both devices.

What should I do if I hear no sound?

Ensure the speaker is powered on and paired. If using a wired connection, make sure the cable is properly connected and increase the source volume. For Bluetooth, verify that the speaker and source volumes are adequate.

How do I make a hands-free call?

Make sure the speaker is connected in HFP profile to your phone. To redial the last number, press and hold the call button. For voice dialing, briefly press the call button and follow your phone's instructions.

How do I reject an incoming call?

During an incoming call, press and hold either volume button or the call button to reject the call. The speaker will continue playing music if it was playing.

How do I clear the paired device list?

Press and hold the Back and Forward buttons together until the speaker resets. All paired devices will be deleted from memory.

USER MANUAL MotoROKR EQ5 MOTOROLA

Abstract black-and-white geometric logo resembling a stylized letter 'M' within a white circle (no text or symbols)

MOTOROKR™ EQ5

Quick Start Guide

Bluetooth

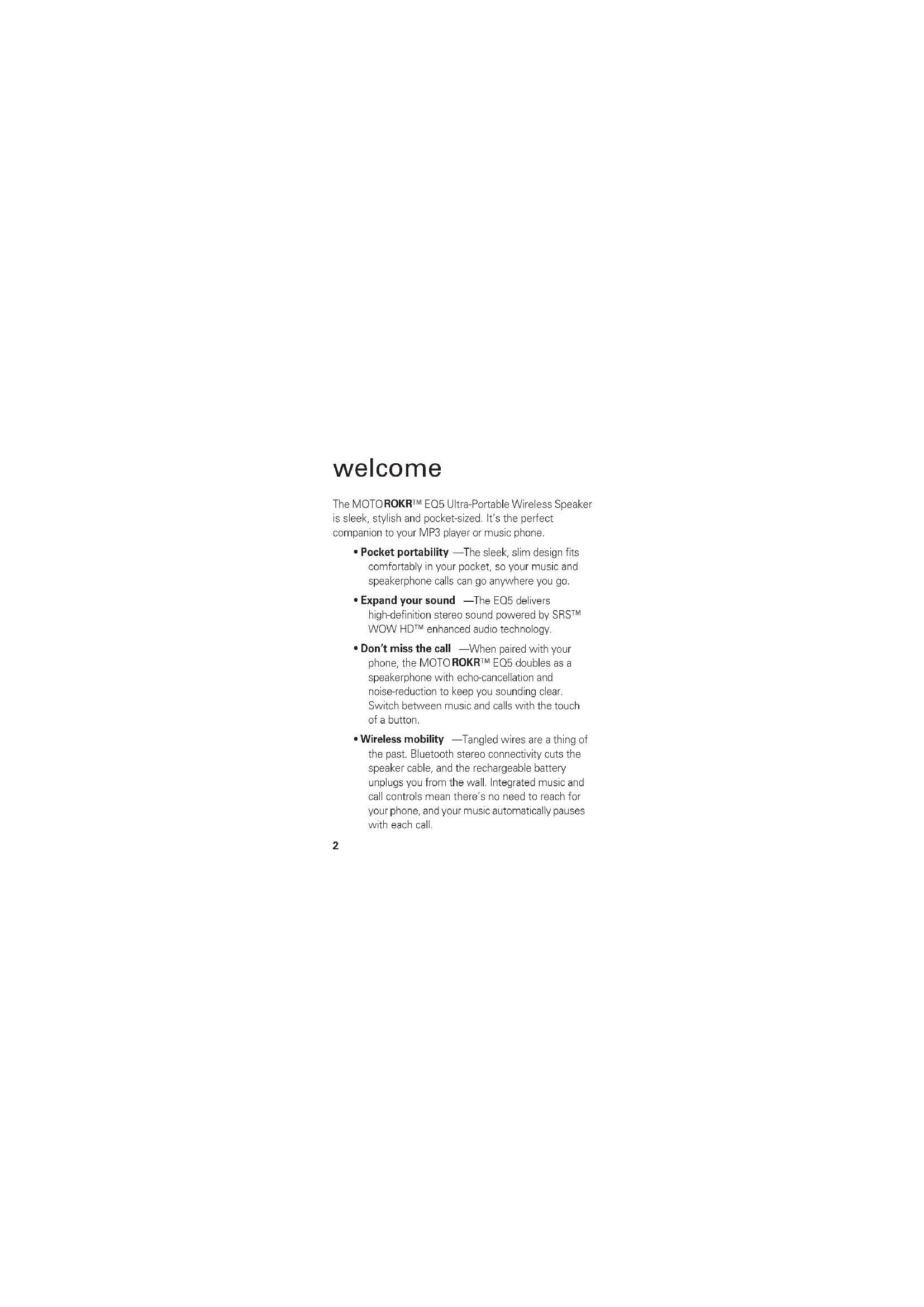

welcome

The MOTOROKR™ EQ5 Ultra-Portable Wireless Speaker is sleek, stylish and pocket-sized. It's the perfect companion to your MP3 player or music phone.

• Pocket portability —The sleek, slim design fits comfortably in your pocket, so your music and speakerphone calls can go anywhere you go.
• Expand your sound —The EQ5 delivers high-definition stereo sound powered by SRSTM WOW HD™ enhanced audio technology.
• Don't miss the call —When paired with your phone, the MOTO ROKR™ EQ5 doubles as a speakerphone with echo-cancellation and noise-reduction to keep you sounding clear. Switch between music and calls with the touch of a button.
• Wireless mobility —Tangled wires are a thing of the past. Bluetooth stereo connectivity cuts the speaker cable, and the rechargeable battery unplugs you from the wall. Integrated music and call controls mean there's no need to reach for your phone, and your music automatically pauses with each call.

Note: Before using your speaker for the first time, be sure to review the important safety and legal pamphlet and follow instructions. Periodically review this information so you remember how to safely use your speaker.

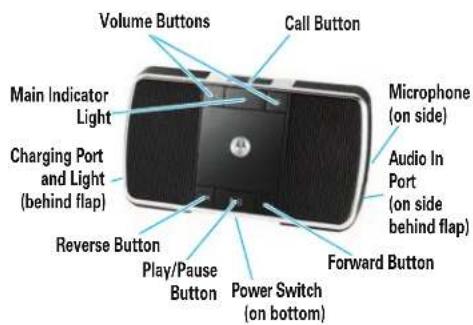

before you begin

Take a moment before you get started to familiarize yourself with the components of your speaker.

charge your speaker

You'll need to charge your speaker's battery for a minimum of 1 hour using the included charger.

Note: You can use the speaker while the battery charges.

① Plug the charger into the charging port on your speaker, as shown.

Close-up of a black flip phone with a USB cable inserted, showing the cable being inserted (no text or symbols visible)

The Charging indicator light turns red when battery is charging. It may take up to 1 minute for the indicator light to turn on. When the speaker's battery is fully charged, the indicator light turns green.

② Disconnect the charger.

Note: This product uses a lithium ion, rechargeable, non-replaceable battery. Under normal use, expected life of the rechargeable battery is approximately 500 charges.

turn it on & off

To turn your speaker on and off slide the Power switch to the ON position. The main indicator light flashes 3 times.

Black rectangular electronic device with a blue arrow pointing to its side panel (no visible text or symbols)

connect wirelessly

To listen to your music via Bluetooth wireless connection, as well as make and receive handsfree calls, you need to pair (link) your speaker with your Bluetooth phone and/or music player.

① Turn off any Bluetooth devices previously paired with your speaker.
2 Turn on the Bluetooth feature on your Bluetooth phone or music player.
3 Turn on your speaker. The main indicator light is steadily lit in blue to indicate the speaker is in discoverable mode.
4 Place phone or music player in Bluetooth search mode.
The phone or music player searches for your speaker.
5 Select Motorola EQ5 from search results on your phone or music player.
6 Select OK or Yes to pair your speaker with your phone or music player.
⑦ If prompted, enter 0000 for passkey.

connect wirelessly

When your speaker successfully pairs and connects with your phone or music player, the main indicator light flashes blue and purple. Music playing from your connected music source is heard on your speaker.

Notes:

• After successfully pairing your speaker and Bluetooth device, you don't need to repeat these steps. For each use, ensure that your speaker is turned ON and that your device's Bluetooth feature is ON.
• Some music devices will automatically attempt to play music when the EQ5 re-connects to it.

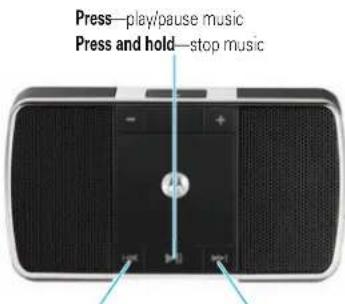

control your tunes

Playback controls on your speaker can be used when listening to wireless music streaming from a Bluetooth-enabled music player that also provides remote control capabilities (AVRCP).

Press—skip to previous track Press—skip to next track Press and hold—rewind track* Press and hold—fast-forward track*

* If your music player supports this feature

When remote control capabilities are not supported by your music player, the EQ5 simply acts as a speaker, and music should be controlled from your music player.

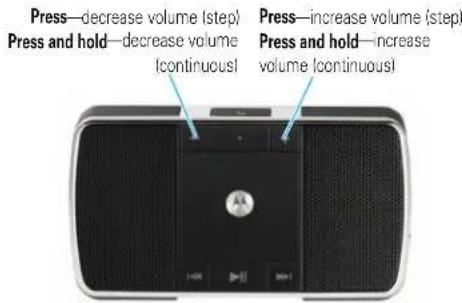

crank it up

To adjust music volume, use the Volume buttons on your speaker.

You'll hear a tone when maximum or minimum volume is reached on your speaker.

Note: The volume setting on your music player may impact volume on your speaker.

handsfree calls

To make and receive calls using the speaker, a Bluetooth handsfree (HFP) connection must be established with your phone (see "connect wirelessly" on page 7 for details).

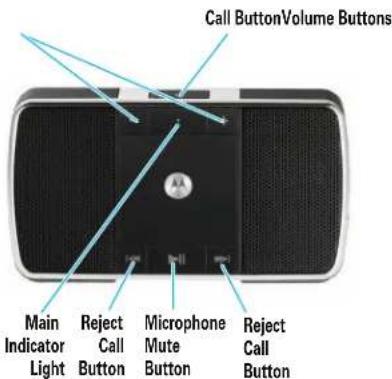

You'll use these controls and indicators on your speaker when making and receiving handsfree calls.

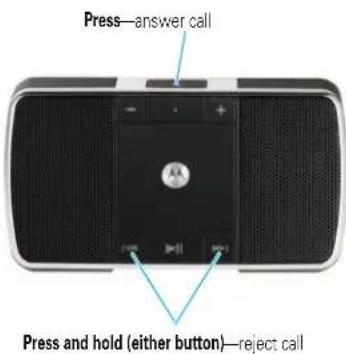

receive a call

When there's an incoming call, the main indicator light flashes quickly in blue on your speaker, and you hear a ring tone over your speaker. If music is playing when a call is received, the music pauses or mutes, depending on your music player and connection setup.

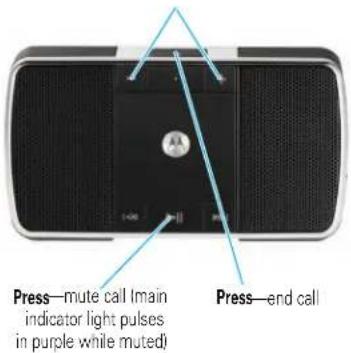

while on a call

When a call is active, the main indicator light slowly pulses in blue on your speaker.

Press—adjust call volume (step)

Press and hold—adjust call volume (continuous)

while on a call

When there's a second incoming call, the main indicator light flashes quickly in blue on your speaker and you hear an alert.

Press—1) answer second call (first call is placed on hold), 2) end second call (first call resumes), or 3) resume first call on hold (when second caller hangs up)

Top-down view of a black and silver portable electronic device with speaker grille and control buttons (no visible text or symbols)

Press and hold (either button)—reject second incoming call*

* If your phone supports this feature

make a call

Using the speaker to make a call, you can redial the last dialed number or make a voice dial call (if your phone supports this feature). When making a voice dial call, the microphone on the speaker is enabled, and you hear a prompt from your phone.

Press—make a voice dial call (you hear a prompt from your phone)

Press and hold—redial last number

Front view of a black portable electronic device with speaker grille and control buttons (no visible text or symbols)

cable connection

To listen to your music using a wired connection

connect your music player to the Audio port on your speaker using the included audio cable.

Close-up of a black electronic device with a blue arrow pointing to its cable (no text or symbols visible)

Notes:

• The Audio port functions as an input port from a music device only (not as a headphone jack).
• Playback controls provided on your speaker cannot be used when listening to music input from wired connection.
• In wired connection, if no audio is heard turn up volume on music device.

check your battery

To check your speaker's battery charge level press and hold both Volume buttons. The main indicator light displays charge status until the Volume buttons are released.

Main Indicator Light Battery Charge Status

Red Less than 30% charge

Yellow Between 30% and 70% charge

Green More than 70% charge

When your speaker is in a low battery charge state, the main indicator light flashes quickly in red, and a tone is repeated every minute.

speaker status

The main indicator light on your speaker displays current status of Bluetooth wireless connection(s) to your phone and/or music player.

Main Indicator Light Wireless Status

steady blue pairing mode

long blue flash standby (handsfree connection only)

long yellow flash standby (streaming music connection only)

long green flash standby (both handsfree and streaming music connection)

quick blue flash incoming/outgoing call

long blue pulse connected on a call

long purple pulse connected call muted

three green flashes started/paused music player

long green pulse music streaming (with handsfree connection active)

speaker status

Main Indicator Light Wireless Status

long yellow pulse music streaming (without handsfree connection active)

long purple pulse music from wired connection active

two yellow flashes SRS WOW HD on/off

three yellow flashes stopped music player

slow red flash idle (not connected to a device)

tips & tricks

multi-point (two device) connection

To connect to phone and music device at the same time:

① Pair and connect to your phone first (see page 7).
② Turn off your phone and your speaker.
3 Turn your speaker back on.

The Bluetooth indicator flashes to indicate the speaker is in discoverable mode.

4 Turn on your music device. Make sure the Bluetooth feature is turned on in the device.
The music device searches for your speaker.
5 Complete steps 5 through 7 on page 7 to pair and connect your music device and speaker successfully.
6 Turn off your speaker.
7 Turn your phone back on and make sure the Bluetooth feature is turned on in both the phone and music device.
8 Turn your speaker system back on. It should now connect to both devices.

tips & tricks

pairing tips

• To initiate pairing (discoverable) mode manually when your speaker is already powered on, press and hold both Call and Play/Pause buttons at the same time.

• To clear paired devices list in your speaker, press and hold both Reverse and Forward buttons at the same time until speaker resets.

tips & tricks

disabling SRS WOW HD

SRS WOW HD is an audio enhancement technology that provides better width and improved bass and definition control. This feature is enabled on your speaker at purchase.

If your music player also has SRS or any other sound enhancement technology, best audio results may be achieved if the audio enhancement feature is enabled on only either the music source or the speaker (but not both).

To disable the SRS WOW HD audio enhancement feature on your speaker, press and hold the Play/Pause and Rewind buttons at the same time until you hear a tone and the main indicator light flashes yellow twice. To re-enable the SRS feature, perform the same action.

tech speak

Here are some helpful Bluetooth terms to know:

Profile	An application (or use case) through which different Bluetooth devices can communicate with each other. Both devices must support the same profile in order to communicate with one another for the application.
A2DP(Advanced Audio Distribution Profile)	Profile for streaming dual-channel stereo audio from a stereo music player to your speaker.
AVRCP(Audio Video Remote Control Profile)	Profile for controlling streaming audio/video playback on remote devices.Typically used with A2DP devices for next/previous track selection and pause/play functions.
HFP(Hands-Free Profile)	Profile for making and receiving calls from a hands-free device.

European Union Directives Conformance Statement

Hereby, Motorola declares that this product is in compliance with:

• The essential requirements and other relevant provisions of Directive 1999/5/EC.
• All other relevant EU Directives.

The above gives an example of a typical Product Approval Number.

You can view your product's Declaration of Conformity (DoC) to Directive 1999/5/EC (to R&TTE Directive) at www.motorola.com/rtte. To find your DoC, enter the product Approval Number from your product's label in the "Search" bar on the web site.

Motorola, Inc.

Consumer Advocacy Office

1307 East Algonquin Road

Schaumburg, IL 60196

www.motorola.com

www.motorola.com/bluetoothsupport

1-877-MOTOBLU (Motorola Bluetooth Support)

1-800-331-6456 (United States)

1-888-390-6456 (TTY/TDD United States for hearing impaired)

1-800-461-4575 (Canada)

The use of wireless devices and their accessories may be prohibited or restricted in certain areas. Always obey the laws and regulations on the use of these products.

MOTOROLA and the Stylized M Logo are registered in the US Patent &

Trademark Office. The Bluetooth trademarks are owned by their

proprietor and used by Motorola, Inc. under license. SRS and WOW

HD are trademarks of SRS Labs, Inc. All other product and service

names are the property of their respective owners.

© 2008 Motorola, Inc. All rights reserved.

Bluetooth QD ID: B013626

Manual Number: 68000201065-A
