Contents

Safety information 4

Important safety symbols and precautions: 4

State of California Proposition 65 Warning (US only) 5

Critical installation warnings 5

Installation cautions 7

Critical usage warnings 8

Usage cautions 11

Cleaning cautions 12

Critical disposal warnings 13

This appliance is intended to be used in household and similar applications such as 13

Installation 14

Your refrigerator at a glance 14

Step-by-step installation 16

Operations 35

User interface 35

SmartThings 45

SMART GRID Function (Demand Response) (applicable models only) 48

Recommendations for voice recognition 52

Samsung Family Hub 52

Special features 54

Maintenance 59

Handling and care 59

Cleaning 66

Replacement 67

English2

Troubleshooting 69

General 69
Do you hear abnormal sounds from the refrigerator? 73
SmartThings 75
Samsung Family Hub 76
Smart Grid (applicable models only) 77
LCD 78

LIMITED WARRANTY (U.S.A.) 79

SAMSUNG REFRIGERATOR 79

Warranty Information (CANADA) 82

If your refrigerator needs service 82

Limited Warranty for Original Purchaser 82

Obligation to the Original Owner 82

Exclusions of the Warranty 83

Regulatory Notice 84

FCC Notice 84

IC Notice 85

English 3

Safety information

• Before using your new Samsung Refrigerator, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers safely and efficiently.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Because the following instructions cover various models, the characteristics of your refrigerator may differ slightly from the refrigerator described in this manual.
• If you have any question, contact us at 1-800-SAMSUNG or find help and information online at www.samsung.com.
• R-600a or R-134a is used as a refrigerant. Check the compressor label on the rear of the appliance or the rating label inside the fridge to see which refrigerant is used for your refrigerator. If this product contains flammable gas (Refrigerant R-600a), contact your local authority in regard to safe disposal of this product.
• It is hazardous for anyone other than an Authorized Service Person to service this appliance.

Warning; Risk of fire / flammable materials

Important safety symbols and precautions:

Please follow all safety instructions in this manual. This manual uses the following safety symbols.

WARNING

Hazards or unsafe practices that may result in severe personal injury, property damage, and/or death.

CAUTION

Hazards or unsafe practices that may result in severe personal injury and/or property damage.

NOTE

Useful information that helps users understand or benefit from the refrigerator.

These warning signs are here to prevent injury to you and others.

Please follow them carefully.

After reading this section, keep it in a safe place for future reference.

English4

State of California Proposition 65 Warning (US only)

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Critical installation warnings

WARNING

- Do not install the refrigerator in a damp location or place where it may come in contact with water.

- Deteriorated insulation on electrical parts may cause an electric shock or fire.

• Do not place this refrigerator in direct sunlight or expose it to the heat from stoves, room heaters, or other appliances.
• Do not plug several appliances into the same multiple power strip. The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the voltage listed on the refrigerator's rating plate.

- This provides the best performance and also prevents overloading of house wiring circuits, which could overheat the wires and cause a fire hazard.

- If the wall socket is loose, do not insert the power plug.

- There is a risk of electric shock of fire.

• Do not use a power cord that has cracks or abrasion damage along its length or at either end.
• Do not bend the power cord excessively or place heavy objects on it.
• Do not pull or excessively bend the power cord.
• Do not twist or tie the power cord.
• Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord into the space behind the appliance.
• When moving the refrigerator, be careful not to roll over or damage the power cord.
• This may result in an electric shock or fire.
• Never unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and pull straight out from the outlet.

- Damage to the cord may cause a short-circuit, fire, and/or electric shock.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Do not install this appliance near a heater or flammable material.
• Do not install this appliance in a location where gas may leak.

- This may result in an electric shock or fire.

- This refrigerator must be properly located and installed in accordance with the instructions in this manual before you use it.

English 5

Safety information

• Connect the power plug in the proper position with the cord hanging down.
• If you connect the power plug upside down, the wire can get cut off and cause a fire or electric shock.
• Make sure that the power plug is not crushed or damaged by the back of the refrigerator.
• Keep the packing materials out of reach of children.
• There is a risk of death from suffocation if a child puts the packing materials on his or her head.
• The appliance must be positioned so that the plug is accessible after installation.
• Failing to do so may result in an electric shock or fire due to electric leakage.
• Do not install this appliance in a humid, oily or dusty location, or in a location exposed to direct sunlight or to water (rain drops).
• Deteriorated insulation on electrical parts may cause an electric shock or fire.
• If large amounts of dust or water enter the refrigerator, disconnect the power plug and contact your Samsung Electronics service center.
• Otherwise there is a risk of fire.
• Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.
• This may result in an electric shock, fire, problems with the product, or injury.
• You need to remove all the protective plastic film before you initially plug the product in.
• Children should be supervised to ensure that they do not play with the snap rings used for door adjustment or the water tube clips.
• There is risk of death by suffocation if a child swallows a snap ring or water tube clip. Keep the snap rings and water tube clips out of children's reach.
• The refrigerator must be safely grounded.
• Always make sure that you have grounded the refrigerator before attempting to investigate or repair any part of the appliance. Power leakages can cause severe electric shock.
• Never use gas pipes, telephone lines, or other potential lightning attractors as an electrical ground.
• You must ground the refrigerator to prevent any power leakages or electric shocks caused by current leakage from the refrigerator.
• Grounding the refrigerator improperly may result in an electric shock, fire, explosion, or problems with the product.

English6

- Improper use of the grounding plug can result in a risk of electric shock. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension cord should be AC 115-120 V, 10 A, or more. If a grounding adapter is used, make sure the receptacle box is fully grounded.

• Plug the power plug into the wall socket firmly. Do not use a damaged power plug, damaged power cord, or loose wall socket.
• This may result in an electric shock or fire.
• If the power cord is damaged, have it replaced immediately by the manufacturer or one of its service agents.
• Only a qualified technician or service company should be allowed to change the fuse in the refrigerator.
• Failing to do so may result in an electric shock or personal injury.
• The wall socket must be easily accessible so that the appliance can be quickly disconnected from the wall socket in an emergency.
• It must be outside the area of the rear of the appliance.
• When positioning the appliance, ensure the power cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

Installation cautions

CAUTION

• Allow sufficient space around the refrigerator and install it on a flat surface.
• Keep the ventilation space in the appliance enclosure or mounting structure clear of obstructions.
• After you have installed the refrigerator and turned it on, allow the appliance to stand for 2 hours before loading it with food.
• We strongly recommend you have a qualified technician or service company install the refrigerator.
• Failing to do so may result in an electric shock, fire, explosion, problems with the product, or injury.
  • Overloading one door may make the refrigerator fall, causing physical injury.

English 7

Safety information

Critical usage warnings

WARNING

- Do not insert the power plug into a wall socket with wet hands.

- This may result in an electric shock.

- Do not store articles on the top of the appliance.

- When you open or close the door, the articles may fall and cause personal injury and/or material damage.

- Do not insert hands, feet or metal objects (such as chopsticks, etc.) into the bottom or the back of the refrigerator.

- This may result in an electric shock or injury.

- Any sharp edges may cause a personal injury.

- Do not touch the inside walls of the freezer or products stored in the freezer with wet hands.

- This may cause frostbite.

- Do not put a container filled with water on the refrigerator.

- If spilled, there is a risk of fire or electric shock.

- Do not keep volatile or flammable objects or substances (benzene, thinner, propane gas, alcohol, ether, LP gas, and other such products) in the refrigerator.

- This refrigerator is for storing food only.

- This may result in fire or explosion.

- Children should be supervised to ensure that they do not play with the appliance.

- Keep fingers out of "pinch point" areas. Clearances between the doors and cabinet are necessarily small. Be careful when you open the doors if children are in the area.

- Do not let children hang on the door or door bins. A serious injury may occur.

- Do not let children go inside the refrigerator. They could become trapped.

- Do not insert your hands into the area under the appliance.

- Any sharp edges may cause personal injury.

- Do not store pharmaceutical products, scientific materials, or temperature sensitive products in the refrigerator.

- Products that require strict temperature controls must not be stored in the refrigerator.

- Do not place or use electrical appliances inside the refrigerator/freezer, unless they are of a type recommended by the manufacturer.

- If you smell smoke, pull out the power plug immediately, and then contact a Samsung Electronics service center.

- If large amounts of dust or water enter the refrigerator, disconnect the power plug and contact a Samsung Electronics service center.

- Otherwise there is a risk of fire.

English8

- Do not let children step on a drawer.

- The drawer may break and cause them to slip.

- Do not leave the doors of the refrigerator open while the refrigerator is unattended and do not let children enter the refrigerator.

- Do not allow babies or children go into a drawer.

- It can cause death from suffocation by entrapment or personal injury.

- Do not overfill the refrigerator with food.

- When you open the door, an item may fall out and cause personal injury or material damage.

- Do not spray volatile material such as insecticide onto the surface of the appliance.

- As well as being harmful to humans, it may also result in an electric shock, fire, or problems with the product.

- Never put fingers or any objects into the water dispenser outlet, ice chute, or ice maker bucket.

- It may cause a personal injury or material damage.

- Do not use or place any substances sensitive to temperature such as flammable sprays, flammable objects, dry ice, medicine, or chemicals near or inside the refrigerator.

- Do not use a hair dryer to dry the inside of the refrigerator. Do not place a lighted candle in the refrigerator to remove bad odors.

- This may result in an electric shock or fire.

- Fill the tank and ice cube tray with potable water only (tap water, mineral water, or purified water).

- Do not fill the tank with tea, juice, or a sports drink. They can damage the refrigerator.

- Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. This may result in an electric shock, fire, problems with the product, or injury. Do not put a container filled with water on the appliance.

- If spilled, there is a risk of fire or electric shock.

- Do not use mechanical devices or any other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- Do not damage the refrigerant circuit.

- Never stare directly at the UV LED lamp for long periods of time.

- This may result in eye strain due to the ultraviolet rays.

- Do not put a fridge shelf into the refrigerator upside down. The shelf stopper will not work.

- The glass shelf could fall and cause personal injury.

- Keep fingers out of “pinch point” areas. Clearances between the doors and cabinet are necessarily small. Be careful when you open the doors if children are in the area.

English 9

Safety information

- If a gas leak is detected, avoid any naked flames or potential sources of ignition, and air the room in which the appliance is standing for several minutes.

• Do not touch the appliance or power cord.
• Do not use a ventilating fan.

• A spark may result in an explosion or fire.

• Use only the LED Lamps provided by the manufacturer or its service agents.

• Bottles should be stored tightly together so that they do not fall over or out.
  • This product is intended only for the storage of food in a domestic environment.
• Never put fingers or any objects into the water dispenser outlet, ice chute, or ice maker bucket.

- This can cause a personal injury or material damage.

• Do not attempt to repair, disassemble, or modify the refrigerator yourself.
• Unauthorized modifications can cause safety problems. To reverse an unauthorized modification, we will charge the full cost of parts and labor.
• Do not use any fuse (such as cooper, steel wire, etc.) other than a standard fuse.
• If your refrigerator needs to be repaired or reinstalled, contact your nearest Samsung service center.

- Failing to do so may result in an electric shock, fire, problems with the product, or injury.

• If the interior or exterior LED lamp has gone out, contact your nearest Samsung service center.
• If the refrigerator emits a burning smell or smoke, unplug the refrigerator immediately and contact a Samsung service center.

- Failing to do so may result in an electric or fire hazards.

- Pull the power plug out of the socket before changing the interior lamps of the refrigerator.

- Otherwise, there is a risk of electric shock.

• If you experience difficulty changing a non-LED light, contact a Samsung service center.
• If the product is equipped with LED lamps, do not disassemble the Lamp Covers and LED lamps yourself.

- Contact a Samsung service center.

• Plug the power plug into the wall socket firmly.
• Do not use a damaged power plug, damaged power cord, or loose wall socket.

- This may result in an electric shock or fire.

English10

Usage cautions

CAUTION

• Do not re-freeze frozen foods that have thawed completely.

• Use only the ice maker provided with the refrigerator.
  • To get the best performance from the product:

• Do not place food too close to the vents at the rear of the refrigerator as this can obstruct free air circulation in the refrigerator compartment.

• Wrap food up properly or place it in airtight containers before putting it into the refrigerator.
• Please observe maximum storage times and expiration dates of frozen goods.

- Do not put glass containers or bottles or carbonated beverages into the freezer.

- The container may freeze and break, and this may result in injury.

• Service Warranty and Modification.

- Any changes or modifications performed by a 3rd party on this finished appliance are not covered under Samsung warranty service, nor is Samsung responsible for safety issues that result from 3rd party modifications.

- Do not block the air vents inside the refrigerator.

- If the air vents are blocked, especially with a plastic bag, the refrigerator can be over cooled. If a cooling period lasts too long, the water filter may break and cause water leakage.

• If the refrigerator is disconnected from the power supply, you should wait for at least five minutes before plugging it back in.
• If large amounts of water enter the refrigerator, pull out the power plug and contact a Samsung service center.
• Do not strike or apply excessive force to any glass surface.

- Broken glass may result in a personal injury and/or property damage.

- Fill the water tank and ice cube trays with potable water only (tap water, mineral water, or purified water).

- Do not fill the tank with tea, juice, or a sports drink. They can damage the refrigerator.

- If the refrigerator is flooded, shut off the power to the refrigerator and contact your nearest Samsung service center.

- There is a risk of electric shock or fire.

- Do not keep vegetable oil in your refrigerator's door bins. The oil can solidify, making it foul-tasting and difficult to use. In addition, the open container can leak and the leaked oil can cause the door bin to crack. After opening an oil container, it is best to keep the container in a cool and shaded place such as a cupboard or pantry.

- Examples of vegetable oil: olive oil, corn oil, grape-seed oil, etc.

English 11

Safety information

Cleaning cautions

CAUTION

• Do not spray water directly on the inside or outside the refrigerator.
• There is a risk of fire or electric shock.
• Do not use a hair dryer to dry the inside of the refrigerator.
• Do not place a lighted candle in the refrigerator to remove bad odors.
• This may result in an electric shock or fire.
• Do not spray cleaning products directly on the display.
• Printed letters on the display may come off.
• If any foreign substance such as water has entered the appliance, unplug the power plug and contact your nearest Samsung service center.
• Failing to do so may result in an electric shock or fire.
• Use a clean, dry cloth to remove any foreign matter or dust from the power plug blades. Do not use a wet or damp cloth when cleaning the plug.
• Otherwise, there is a risk of fire or electric shock.
• Do not clean the appliance by spraying water directly onto it.
• Do not use benzene, thinner, or Clorox (bleach) to clean the refrigerator.
• They may damage the surface of the appliance and may cause a fire.
• Never put fingers or any objects into the dispenser outlet.
• This can cause a personal injury or material damage.
• Before cleaning or performing maintenance, unplug the appliance from the wall socket.
• Failing to do so may result in an electric shock or fire.
• Use a clean sponge or soft cloth and a mild detergent in warm water to clean the refrigerator.
• Do not use abrasive or harsh cleansers such as window sprays, scouring cleansers, flammable fluids, muriatic acid, cleaning waxes, concentrated detergents, bleaches, or cleansers containing petroleum products on exterior surfaces (doors and cabinet), plastic parts, door and interior liners, and gaskets.
• These can scratch or damage the material.
• Do not clean glass shelves or covers with warm water when they are cold. Glass shelves and covers may break if exposed to sudden temperature changes or impacts such as bumping or dropping.

English12

Critical disposal warnings

WARNING

• DANGER : Risk of child entrapment. Before you throw away your old refrigerator or freezer:
• Take off the doors and door latch.
• Leave the shelves in place so that children may not easily climb inside.
• Children trapped inside a refrigerator can hurt themselves or suffocate to death.

- Please dispose of the packaging material from this product in an environmentally friendly manner.

- Ensure that none of the pipes on the back of the refrigerator are damaged prior to disposal.

- R-600a or R-134a is used as a refrigerant. Check the compressor label on the rear of the appliance or the rating label inside the fridge to see which refrigerant is used for your refrigerator. If this refrigerator contains flammable gas (Refrigerant R-600a), contact your local authority in regard to the safe disposal of this product.

- When disposing of this refrigerator, remove the door/door seals and door latch so that small children or animals cannot become trapped inside. Children should be supervised to ensure that they do not play with the appliance.

- If trapped inside, the child could be injured or suffocate to death.

- Cyclopentane is used in the insulation. The gases in the insulation material require a special disposal procedure. Please contact your local authorities in regard to the environmentally safe disposal of this product.

- Keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to children.

- If a child places a bag over his or her head, the child could suffocate.

This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments;
  • catering and similar non-retail applications.

Installation

Follow these instructions carefully to prevent accidents and to ensure the proper installation of this refrigerator.

WARNING

• Use the refrigerator only for its intended purpose as described in this manual.
• Any servicing must be performed by a qualified technician.
• Dispose of the product packaging material in compliance with the local regulations.
  • To prevent electric shock, unplug the power cord before servicing.

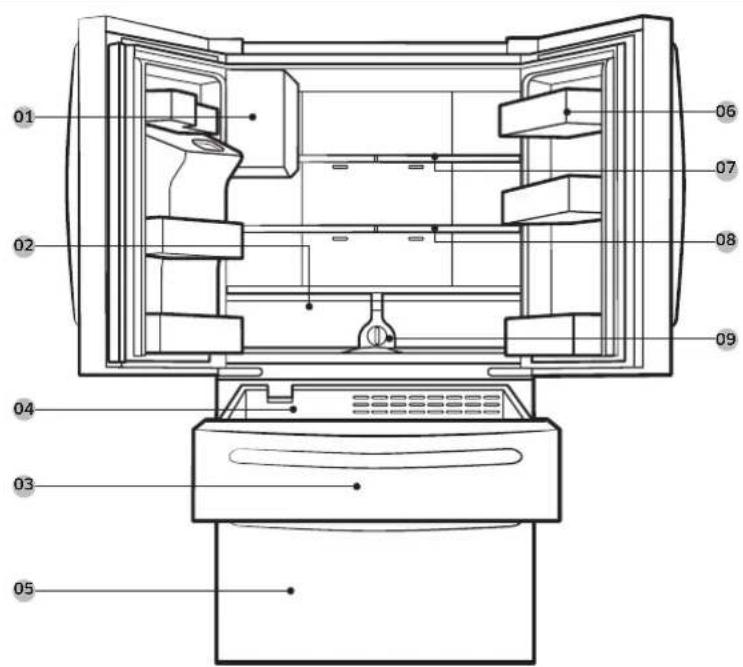

Your refrigerator at a glance

NOTE

Your refrigerator and the provided component parts of your refrigerator may differ from the illustrations in this manual, depending on the model and your country.

01 02 03 04 05 06 07 08 09

English14

01 Auto ice maker *
03 FlexZone™
05 Freezer
07 Fridge shelf
09 Water filter *

02 Vegetables & fruit drawers
04 Upper basket
06 Door bins
08 2-Step foldable shelf

* applicable models only

NOTE

• For energy efficiency, keep all shelves, drawers, and baskets in their original positions.
• When closing the door, make sure the vertical hinged section is in the correct position to avoid scratching the other door.
• If the vertical hinged section is reversed, put it back into the correct position, and then close the door.
• Moisture may form at times on the vertical hinged section.
• If you close a door forcefully, the other door may open.
• When the door is opened, the interlock switch automatically disables the auger motor of the ice maker for safety reasons.
• If the internal or external LED lamp is out of order, contact a local Samsung service center.

Installation

Step-by-step installation

STEP 1 Select a site

The site must:

• Have a solid level surface without carpeting or flooring that may obstruct ventilation
• Be out of direct sunlight
  • Have adequate room for opening and closing the door
• Be away from any heat source
• Provide room for maintenance and servicing
  • Have a temperature range between 50 °F (10 °C) and 110 °F (43 °C)

Clearance

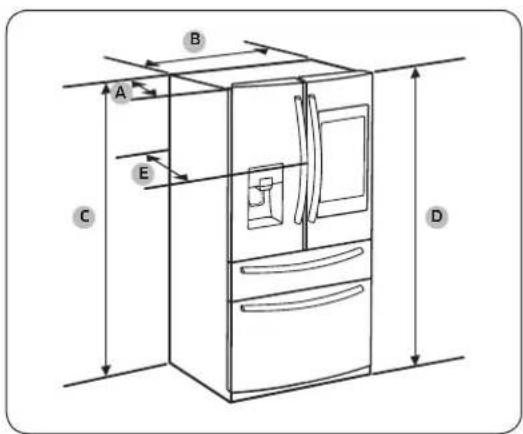

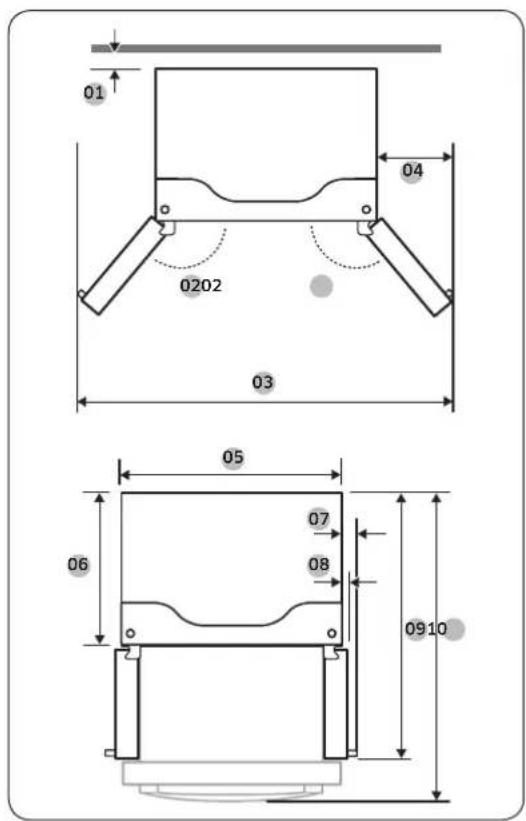

See the pictures and table below and on the next page for installation space requirements.

A B C D E

Model RF2	8NH* RF22NP*
Depth “A”	34"(864 mm)	28^5/8" (726 mm)
Width “B”	35^6/8" (908 mm)	35^6/8" (908 mm)
Height “C”	68^7/8" (1749 mm)	68^7/8" (1749 mm)
Overall Height “D”	70"(1777 mm)	70"(1777 mm)
Depth “E”	36^1/2" (926 mm)	31"(788 mm)

English16

01 0202 03 04 05 06 07 08 0910

Model RF28NH* RF22NP*
01 2" (50 mm) 2" (50 mm)
02 125° 125°
03	62 ^1/_8 " (1578 mm)	62 ^1/_8 " (1578 mm)
04	13 ^2/_8 " (335 mm)	13 ^2/_8 " (335 mm)
05	35 ^6/_8 " (908 mm)	35 ^6/_8 " (908 mm)
06	29 ^3/_8 " (748 mm)	24" (610 mm)
07	4 ^6/_8 " (122 mm)	4 ^6/_8 " (122 mm)
08 2	^3/_8 " (61 mm)	^3/_8 " (61 mm)
09	48 ^1/_4 " (1226 mm)	42 ^6/_8 " (1088 mm)
10	53" (1346 mm)	44 ^1/_4 " (1125 mm)

NOTE

The measurements of your refrigerator may differ from those listed above, depending on the measuring method.

Installation

STEP 2 Flooring

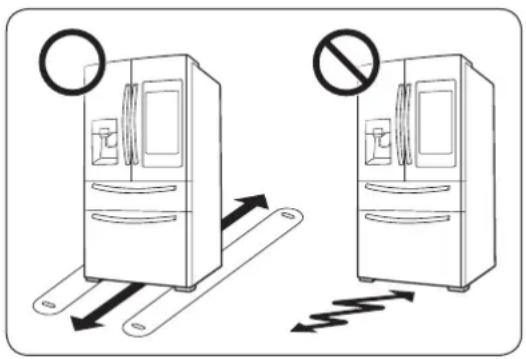

Illustration of two refrigerators with directional arrows indicating movement, no text or symbols present

• The surface of the installation location must support a fully loaded refrigerator.
• To protect the floor, put a large piece of cardboard under each leg of the refrigerator when you move it for installation.
• To protect the floor once the refrigerator is in its final position, do not move it unless necessary. If you have to move it, place thick paper or cloth such as an old carpet, along the movement path.

NOTE

If the refrigerator cannot pass through entrance to your home or kitchen due to its size, see STEP 3 Door removal for entrance starting on page 19.

English18

STEP 3 Door removal for entrance

If the refrigerator cannot pass through the entrance to your home or kitchen due to its size, follow these instructions to remove and then re-install the refrigerator's doors. If you do not need to remove the doors, go to page 16 for the installation instructions.

Tools required (not provided)

Phillips screwdriver Flat-heat screwdriver Socket wrench (10 mm)

Allen wrench (5 mm)

To detach the fridge doors

Left door

Diagram of a battery rear panel with mounting holes and a black arrow indicating direction (no text or symbols)

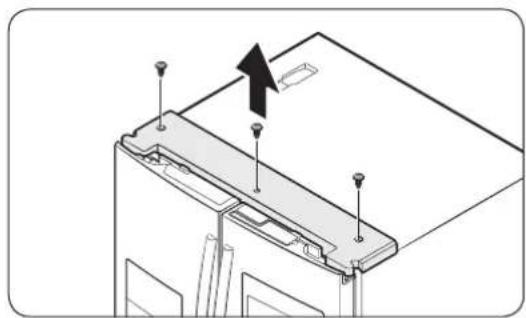

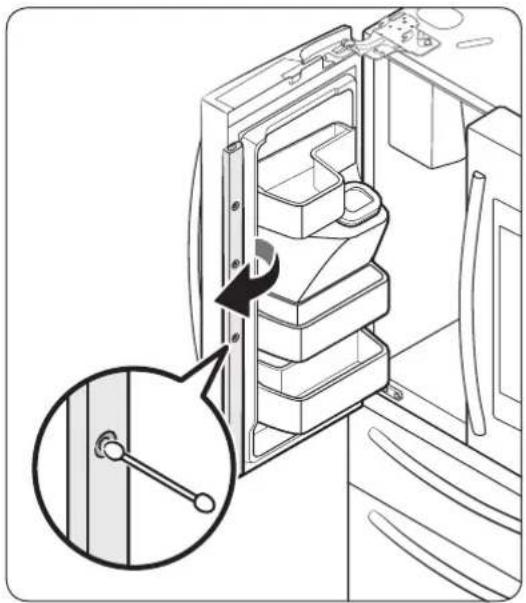

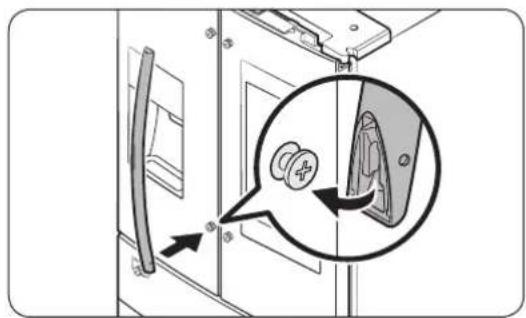

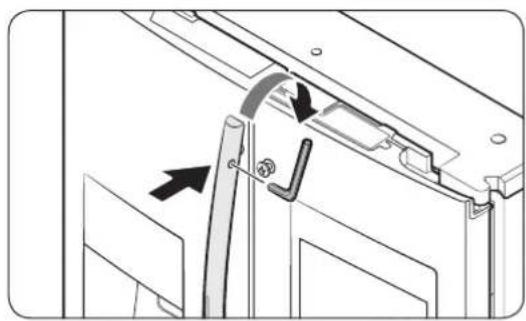

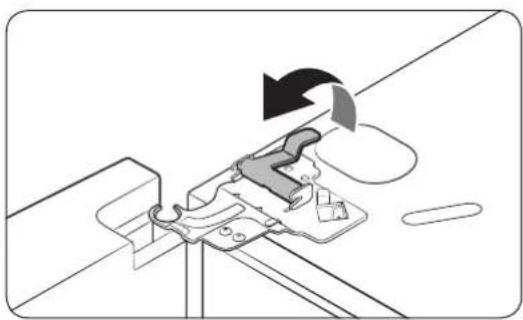

1. With the doors closed, use a Phillips head screwdriver to remove the screws (x3) in the top cover.

Installation

Diagram of cable connector assembly with directional arrows indicating movement (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with rotating arrow (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

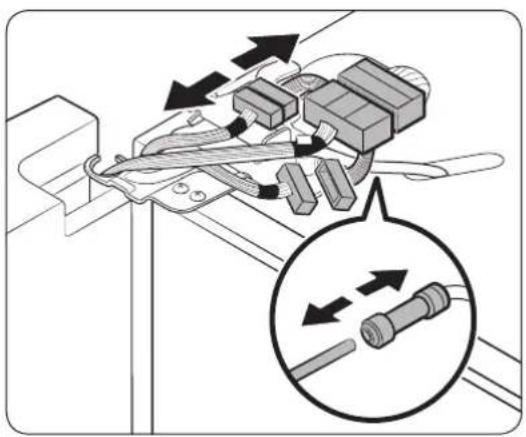

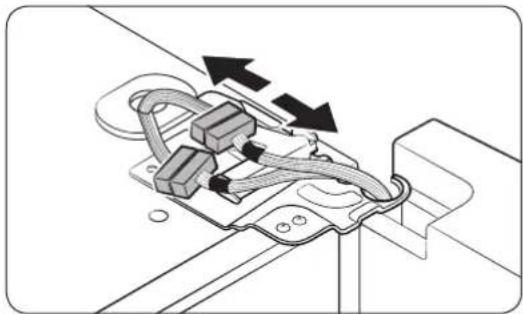

1. Disconnect the wire connectors (x3) and the water tube (dispenser-featured models only) from the coupler on the left door.

NOTE

• The position of the connectors differs with the model.
  • Non-dispenser models do not come with the water tube.

CAUTION

• Do not remove both doors simultaneously. Make sure to remove one door at a time. Otherwise, one of the doors may fall and cause physical injury.
• Make sure the refrigerator is off before disconnecting the connectors.

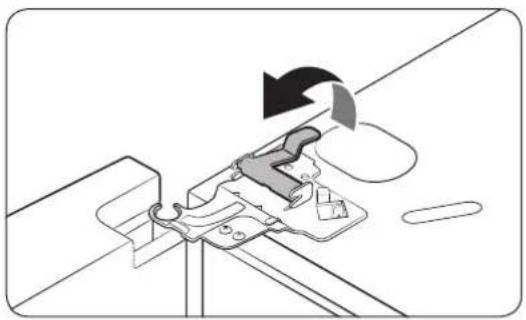

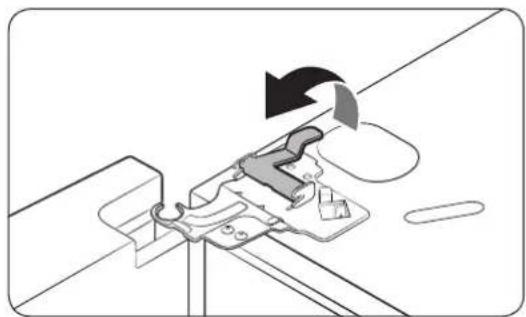

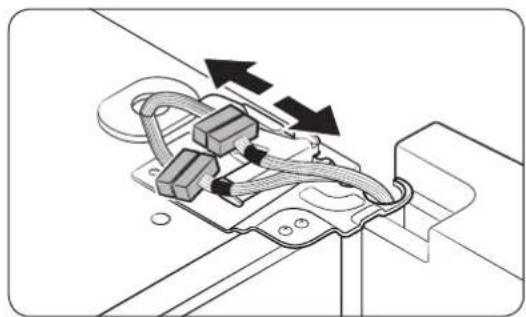

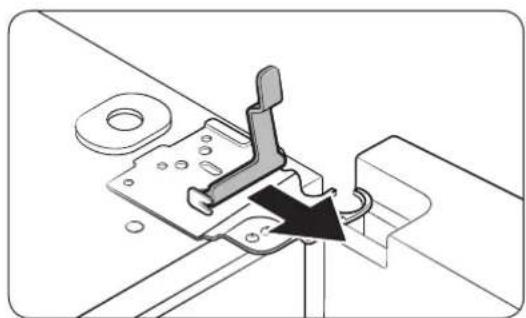

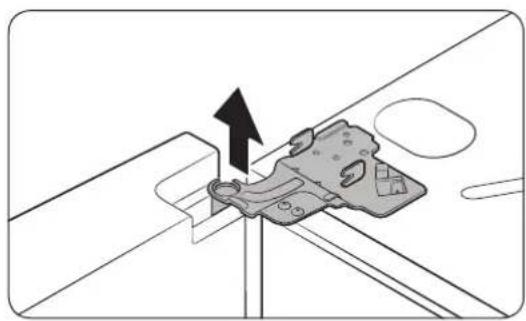

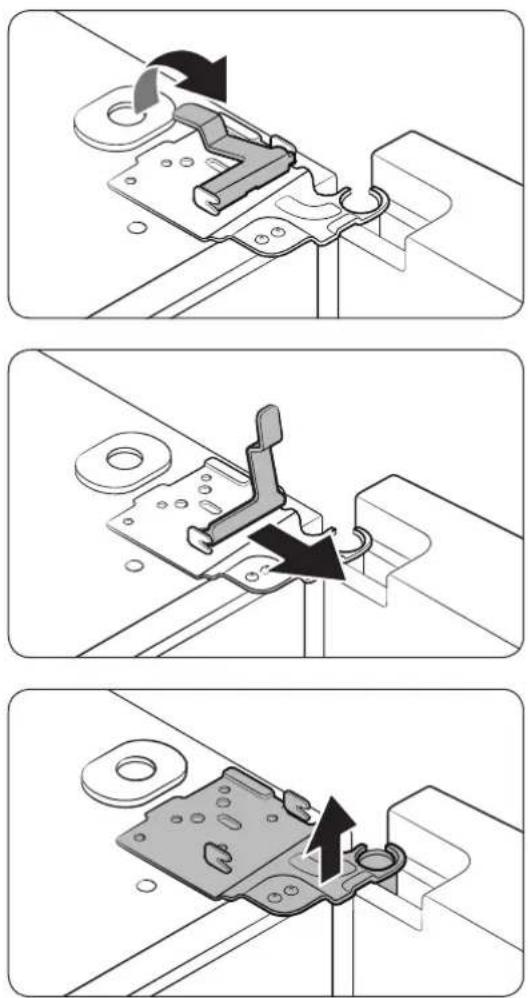

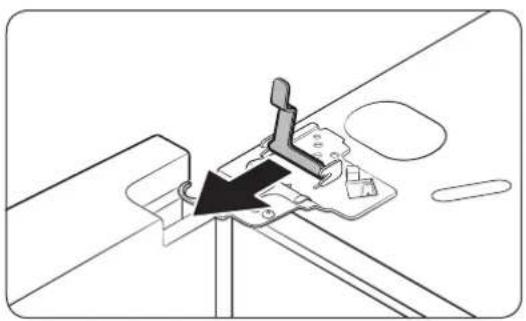

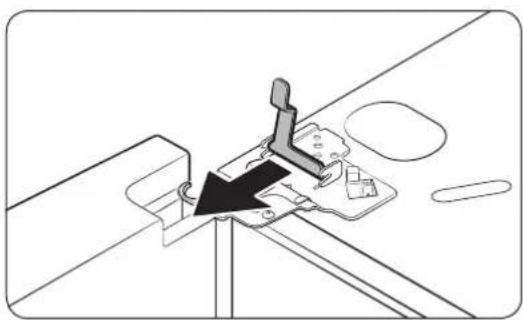

• Gently draw up the clamp in several steps. To prevent finger injuries, do not apply a sudden force to the clamp.

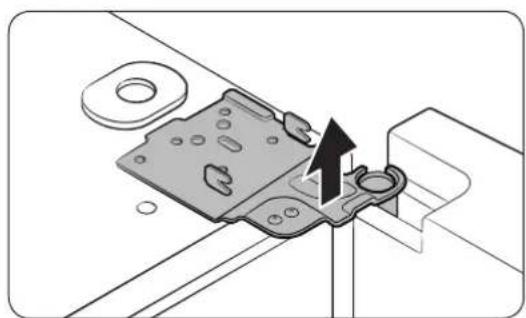

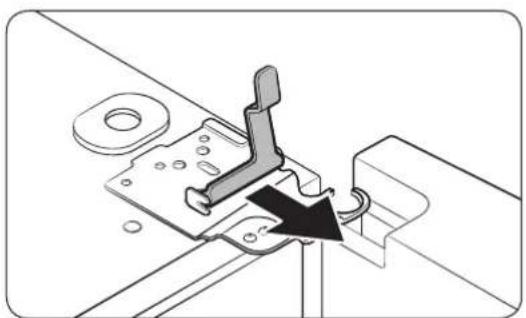

• Pull up the clamp to remove it.

English20

Diagram of a mechanical component with an arrow indicating direction, no text or symbols present

Diagram of a refrigerator interior showing the door, drawer, and shelf (no text or symbols)

Right door

Diagram of a mechanical assembly with arrows indicating direction (no text or symbols)

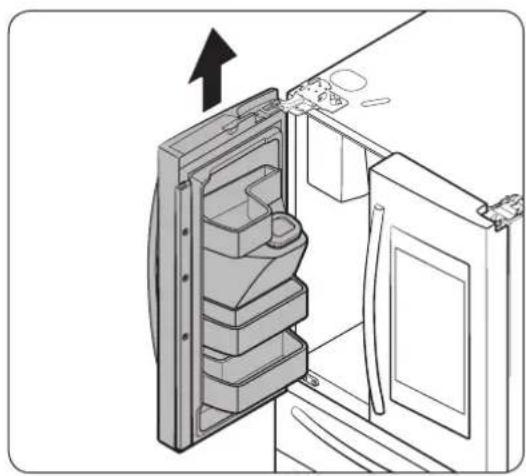

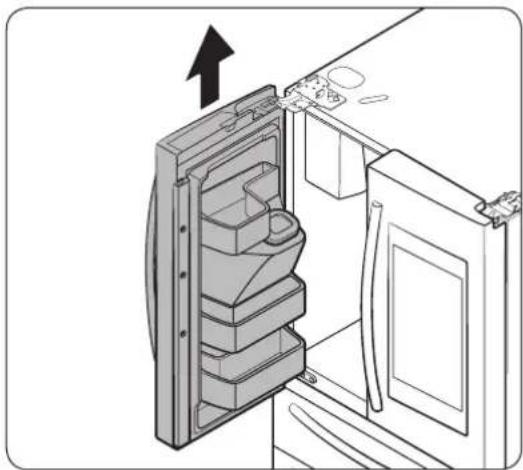

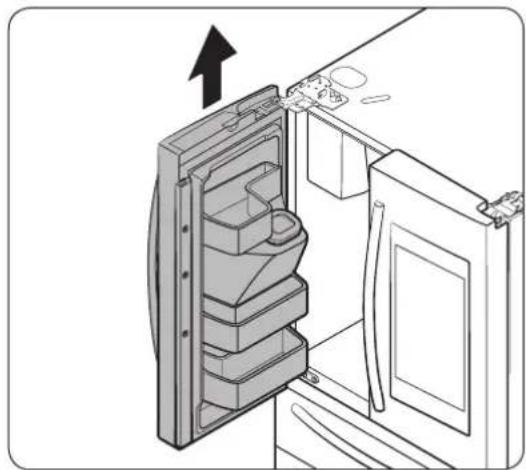

1. Open the door 90 degrees. While holding the door, pull up and remove the top hinge. Be careful not to damage the connector wires when you remove the hinge.

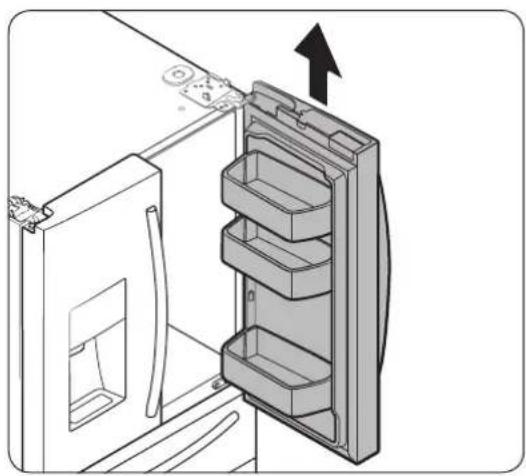

2. Gently pull up the door vertically to remove. Do not apply excessive force to the door. The door may fall, causing physical injury.

3. Lay the door down on a flat surface.

4. Disconnect the wire connectors (x2) on the right door. The position of the connectors differs with the model.

CAUTION

• Do not remove both doors simultaneously. Make sure to remove one door at a time. Otherwise, one of the doors may fall and cause physical injury.
• Make sure the refrigerator is off before disconnecting the connectors.

Installation

Installation

Technical diagram showing three-step assembly steps of a mechanical component with directional arrows indicating motion.

1. Gently draw up the clamp in several steps. To prevent finger injuries, do not apply a sudden force to the clamp.

2. Pull up the clamp to remove it.

3. Open the door 90 degrees. While holding the door, pull up and remove the top hinge. Be careful not to damage the connector wires when you remove the hinge.

English22

Diagram of an open refrigerator with a stack of shelves and a black upward arrow indicating direction (no text or symbols)

To reattach the fridge doors

Once the refrigerator is in or near it's final location, re-attach the doors by following the directions in the reverse order of removal.

1. Gently pull up the door vertically to remove. Do not apply excessive force to the door. The door may fall, causing physical injury.
2. Lay the door down on a flat surface.

Installation

Detach the FlexZone™ drawer

Diagram of a refrigerator drawer with an arrow indicating a process (no text or symbols present)

Diagram showing a mechanical component inserted into a drawer, with an inset magnified view highlighting the internal structure (no text or symbols present)

Technical diagram showing a mechanical assembly with an inset close-up of a component (no text or symbols visible)

Diagram showing a device with an inset magnified view of internal components (no text or symbols)

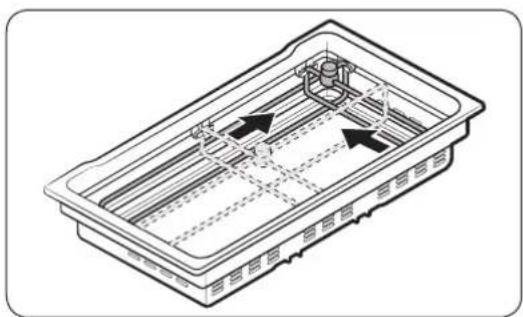

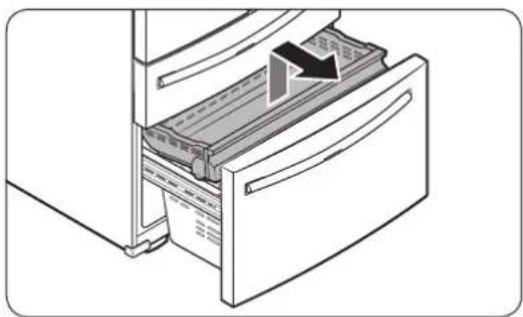

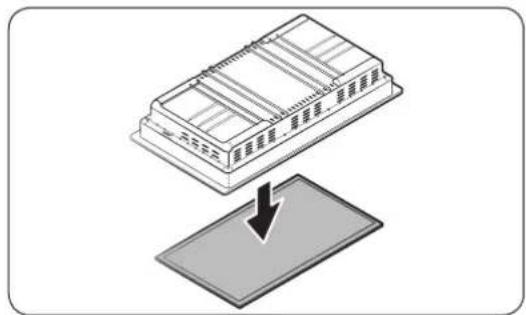

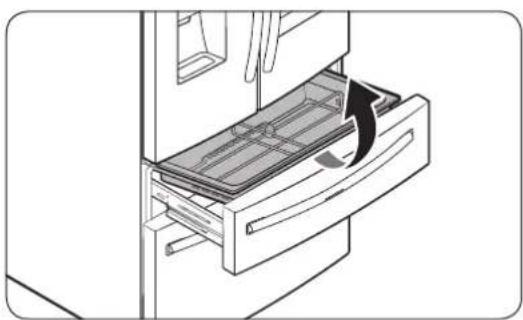

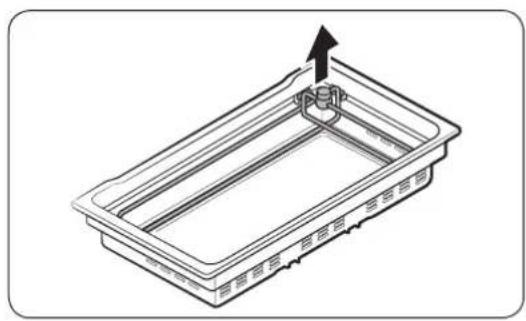

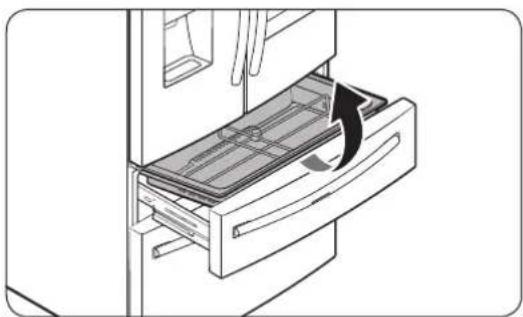

1. Lift up to remove the FlexZone™ basket.

2. Remove the wire cover along with the connector harness using a flat-head screwdriver.

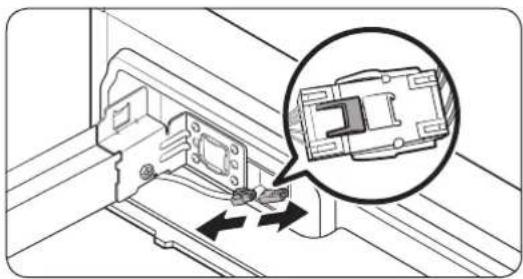

3. Press the locking tab to disconnect the wire connector.

CAUTION

When relocking the tab, make sure to fully connect the wire connector. Otherwise, the FlexZone™ will not operate.

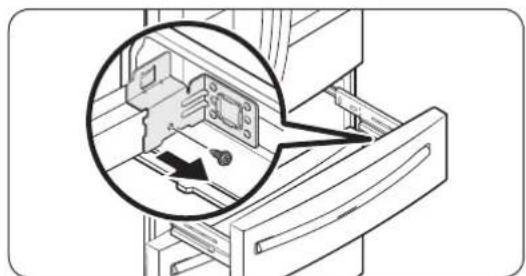

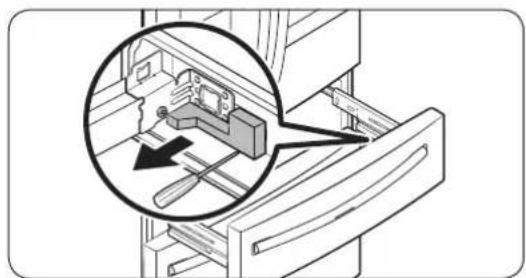

1. Remove the hex-head bolt on each side of the drawer using a 10 mm socket wrench.

English24

Diagram of a drawer with an arrow indicating direction, no text or symbols present

Diagram of a refrigerator drawer with an inset showing a mechanical component (no text or symbols)

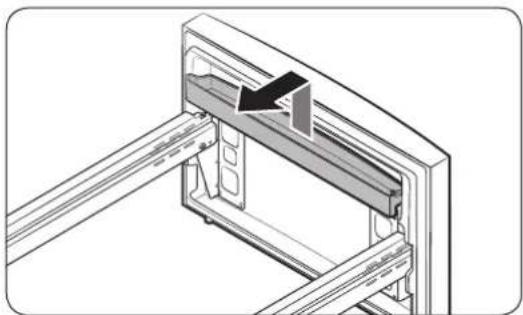

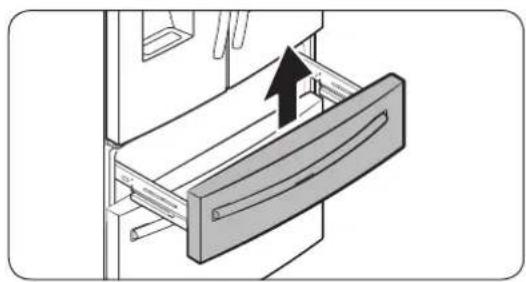

1. Lift up to remove the drawer front of the FlexZone™ from the rail assembly.

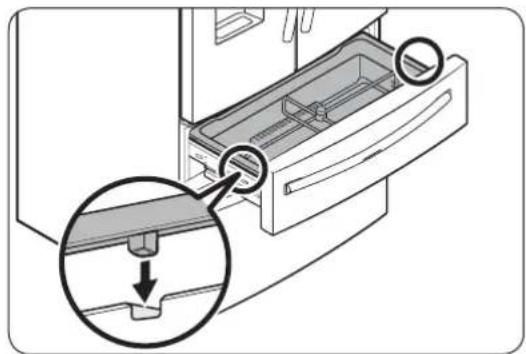

CAUTION

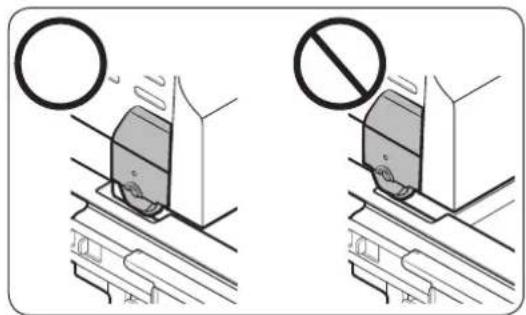

• Use caution when removing the rail assembly, which may fall off causing damage to the floor.
• Make sure to put the FlexZone™ drawer in place after removing or mounting the FlexZone™ basket. The FlexZone™ drawer may not open or close if the freezer drawer is not in place.
• Do not store too much food in the FlexZone™ drawer. This prevents the FlexZone™ drawer from closing properly, resulting in frost buildup.

To reattach the FlexZone™ drawer

After you have moved the refrigerator to its final location, re-attach the FlexZone™ drawer by following the removal instructions in reverse order.

CAUTION

If the FlexZone™ or the indicator does not operate properly, make sure the connectors are connected properly.

Installation

To detach the freezer drawer

Diagram of a refrigerator drawer with an arrow indicating a file or folder (no text or symbols present)

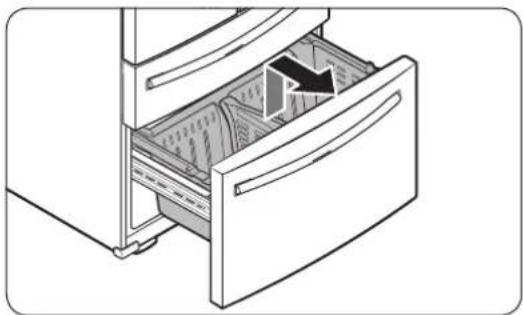

1. Push the upper basket to the end, and then pull up to remove.

Technical diagram of a mechanical assembly with a black arrow indicating direction (no text or symbols present)

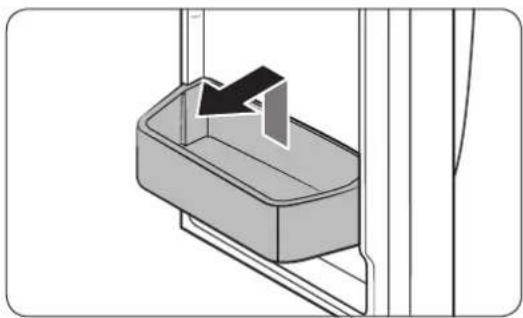

1. Lift up to remove the door bin.

Diagram of a refrigerator drawer with an arrow indicating a directional flow or movement (no text or symbols present)

1. Then, pull up to remove the lower basket from the rail assembly.

Diagram showing two connected devices with a magnified inset of a device component (no text or symbols)

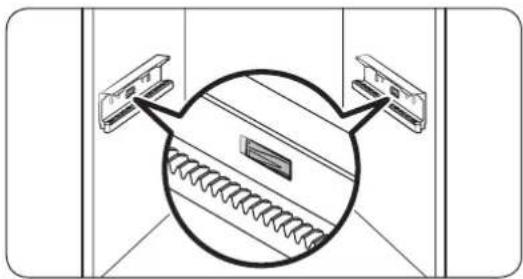

1. Press down the hooks to unlock the rail assembly.

English26

Diagram of a refrigerator drawer with an arrow indicating left-side movement (no text or symbols present)

Two technical diagrams showing a device on a conveyor belt with a prohibition sign (no text or symbols present)

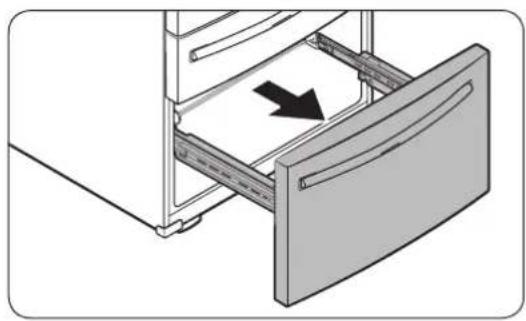

1. While holding the upper area of the freezer drawer front, slide the drawer out all the way to remove the freezer drawer from the rail assembly.

CAUTION

- Use caution not to scratch or dent the rail assembly.

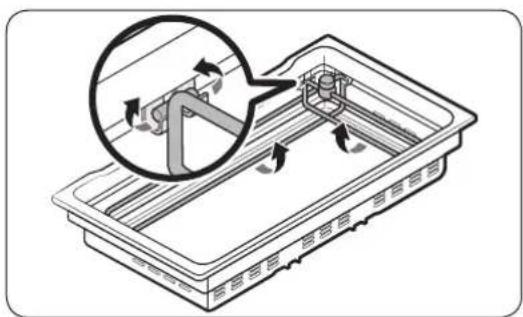

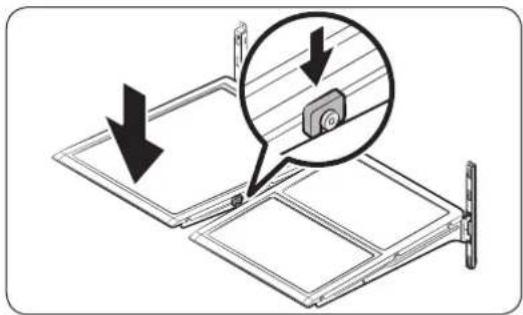

- Make sure you mount the freezer baskets in the correct position. Otherwise, the door will not open or close properly, which causes frost to build up.

- Do not store too much food in the freezer drawer. This prevents the freezer drawer from closing properly, resulting in frost buildup.

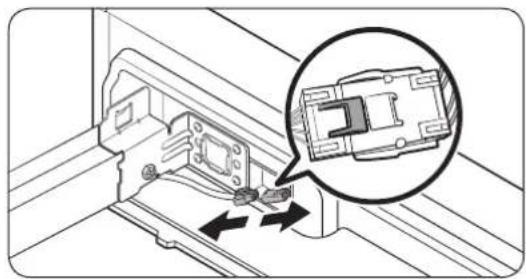

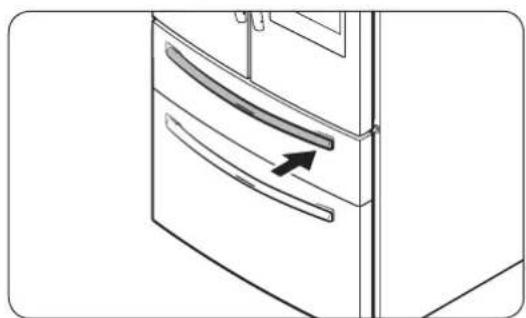

To reattach the freezer drawer

Once the refrigerator is in or near it's final location, re-attach the freezer drawer by following the directions in the reverse order of removal.

Installation

STEP 4 Adjust the levelling feet

CAUTION

• When installed, the refrigerator must be leveled on a flat, solid floor. Not leveling the refrigerator can cause damage to the refrigerator or physical injury.
• Levelling must be performed with the refrigerator empty. Make sure no food items are inside the refrigerator.
• For safety reasons, adjust the front a little higher than the rear.

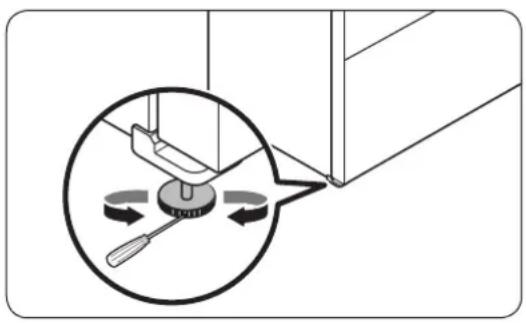

Level the refrigerator using the special screws (levellers) on the front legs. Use a flat-head screwdriver to turn the levellers.

Diagram showing a mechanical device with rotating components and a magnified circular view of the main component (no text or symbols)

• To adjust the height of the left side: Insert a flat-head screwdriver into the leveller of the left side front leg. Turn the leveller clockwise to raise the left side or turn it counterclockwise to lower.
• To adjust the height of the right side: Insert a flat-head screwdriver into the leveller of the right side front leg. Turn the leveller clockwise to raise the right side or turn it counterclockwise to lower.

English28

STEP 5 Adjust the door height

Two abstract curved shapes resembling stylized letters or symbols, no text or labels present

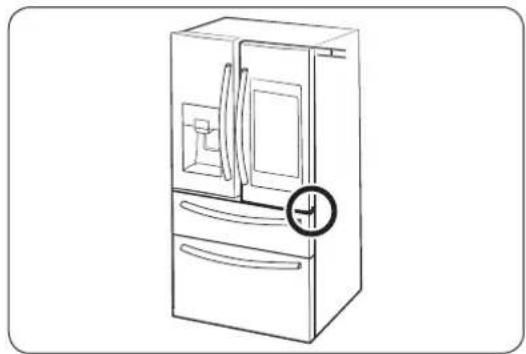

The height of a door can be adjusted using the provided snap rings, which come in 4 different sizes (1 mm, 1.5 mm, 2 mm, and 2.5 mm).

Line drawing of a refrigerator with doors, drawers, and a handle (no text or symbols)

1. Check the height difference between the doors, and then raise and hold the lower door.

Technical diagram showing a mechanical component with a labeled section A pointing to a curved component (no text or symbols present)

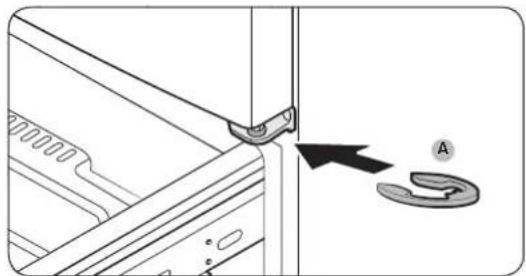

1. Insert a suitable-sized snap ring (A) between the door and the hinge as shown.

CAUTION

• Insert only one snap ring for this purpose. If you insert two or more snap rings, the rings may slip out or make a rubbing noise.
• Keep the snap rings out of children's reach, and keep them for future use.
• Do not raise the door too much. The door can contact and damage the top cover.

Installation

STEP 6 Attach the handles

Technical line drawing of a mechanical component with two circular features and a central gap (no text or symbols)

Diagram showing a refrigerator with a screwdriver and directional arrow indicating rotation or movement, labeled with parts 514 and 574.

Diagram showing a door handle mechanism with a magnified inset highlighting a component with a plus sign and directional arrows.

Diagram of a door with a handle and arrow indicating direction (no text or symbols)

CAUTION

The refrigerator handles must be oriented in the correct direction.

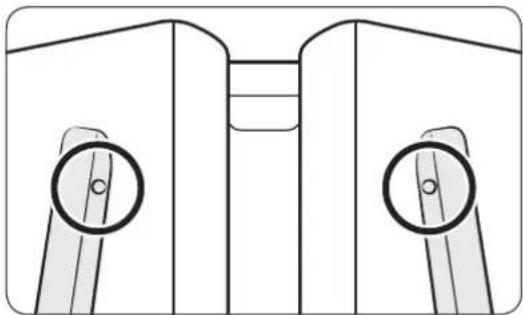

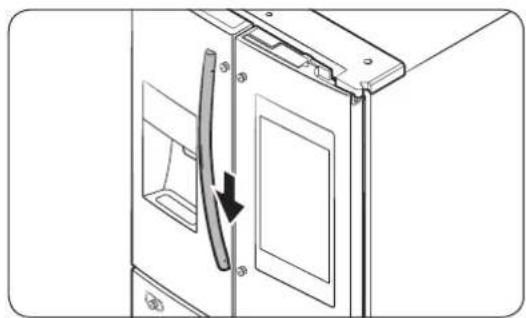

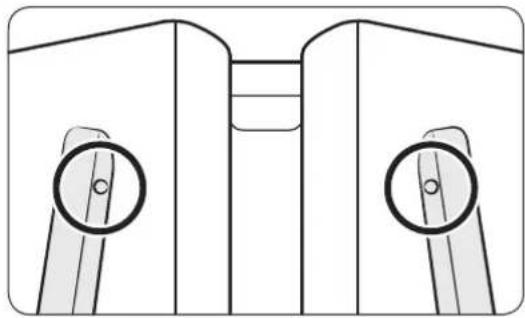

• The fridge handles must be attached so that the holes on each face each other.

• The freezer handle must be attached so that its hole faces downwards.

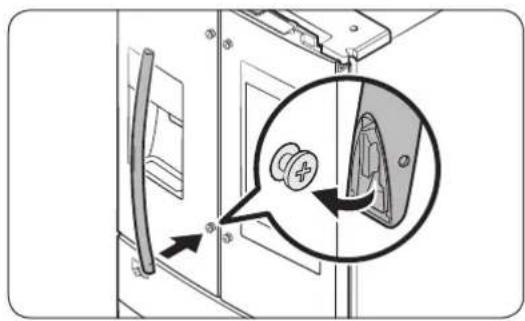

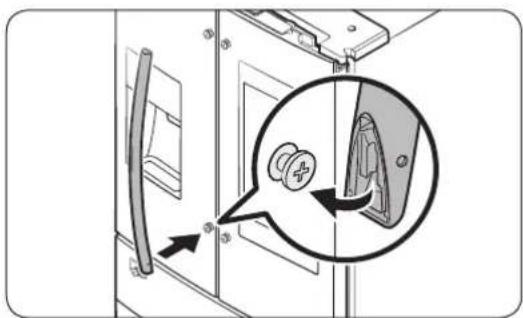

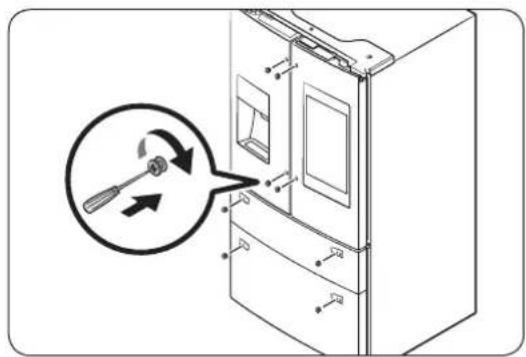

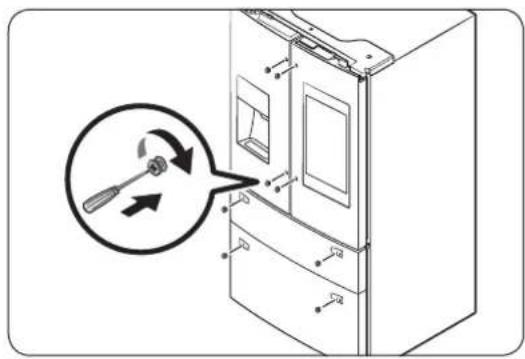

• Using a Phillips screwdriver, attach the handle screws to the refrigerator, two for each handle respectively, as shown in the illustration to the left.

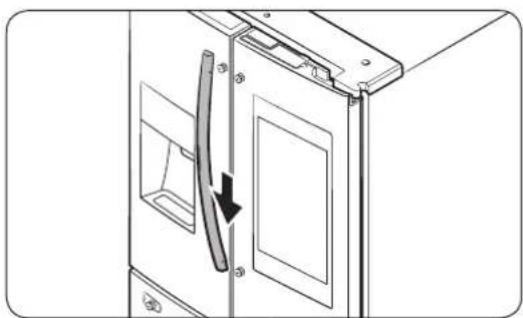

• To fix the fridge handles to the refrigerator, first place the lower side of one handle onto the lower handle screw.

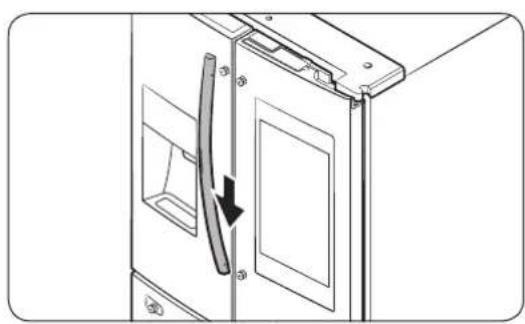

• Push the handle down, and then place the upper side of the handle onto the upper handle screw.

English30

Mechanical assembly diagram showing a lever mechanism with arrows indicating motion (no text or symbols)

Line drawing of a refrigerator door with handle and drawer (no text or symbols)

Line drawing of a refrigerator door with a black arrow pointing to the side panel (no text or symbols)

Diagram showing a door handle with a magnified inset illustrating the right-hand rule of rotation (no text or symbols present)

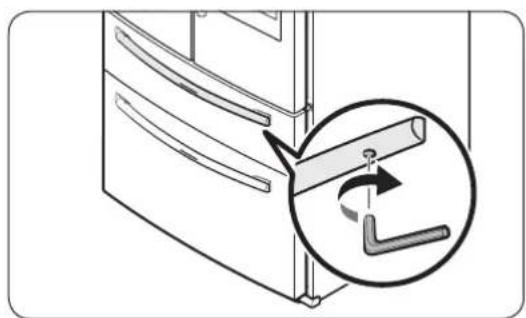

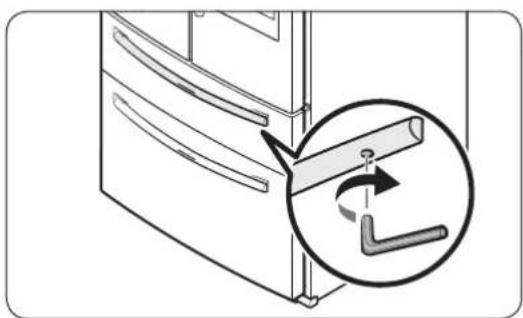

1. Insert the supplied wrench into the handle hole, and then turn it clockwise to tighten.

2. Repeat Steps 2 through 4 with the second refrigerator door handle.

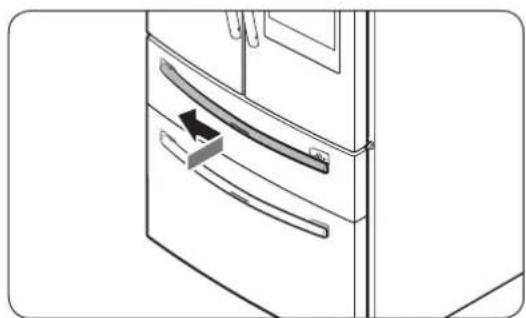

3. To fix the freezer handle to the refrigerator, first place the left side of the freezer handle onto the left handle screw.

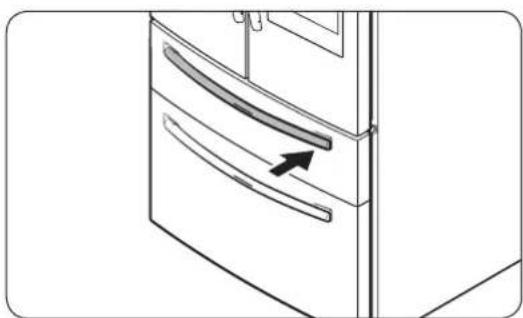

4. Push the handle to the left, and then place the right side of the freezer handle onto the right handle screw.

5. Insert the supplied wrench into the handle hole, and then turn it clockwise to tighten.

Installation

STEP 7 Connect the water dispenser line (applicable models only)

A water dispenser with a filter is one of the helpful features on your new refrigerator. To help promote better health, the water filter removes unwanted particles from your water. However, it does not sterilize or destroy microorganisms. You may need to purchase a water purifying system to do that.

The water line also connects to the ice maker. For the ice maker to operate properly, a water pressure of 20-125 psi (138-862 kPa) is required.

If the refrigerator is installed in an area with low water pressure (below 20 psi (138 kPa)), you can install a booster pump to compensate for the low pressure.

After you have connected the water line, make sure the water storage tank inside the refrigerator is properly filled. To do this, press the water dispenser lever until the water runs from the water outlet.

NOTE

• Water line installation kits are available at extra cost from your retailer. We recommend using a water line installation kit that contains copper tubing and a 6 mm (1/4") compression nut.
• Use the new hose-sets supplied with the appliance only. Do not re-use an old hose set.

WARNING

- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. Connect to potable water supply only.

A B C

1. Shut off the main water source.

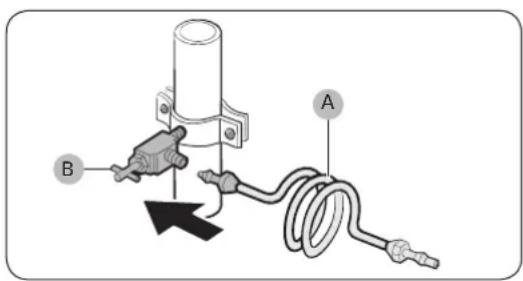

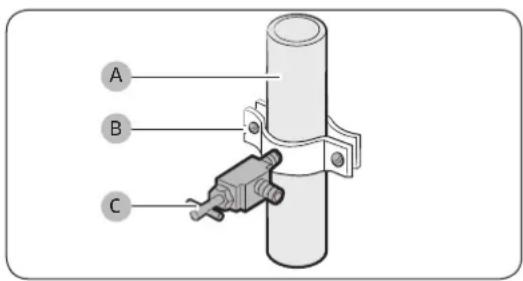

2. Insert the pipe clamp (B) and the shut off valve (C) into the cold water line (A).
3. Connect the water line installation kit (A) to the shut off valve (B).

Diagram showing a mechanical assembly with labeled components A and B, including a coiled cable and directional arrow indicating motion.

English32

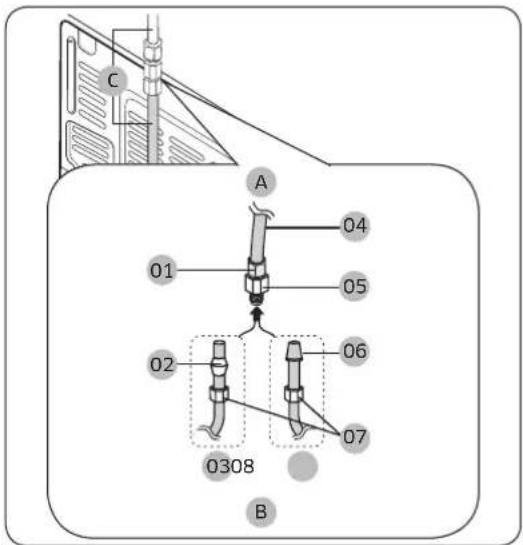

Connect the water supply line to the refrigerator

There are several items you must purchase to complete this connection. You may find these items sold as a kit at your local hardware store.

Copper Tubing	^1/_4" copper tubing ^1/_4" compression nut (1 pc)Ferrule (2 pc)
Plastic Tubing	^1/_4" plastic tubing → Molded end (Bulb) ^1/_4" compression nut (1pc)

C A 04 01 05 02 06 07 O308 B

Safety warning symbols for pipe safety, one showing no sign and the other a circle with prohibition sign

A. Refrigerator
B. Household water supply line

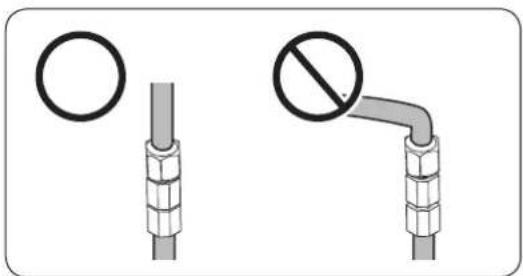

C. Water Line: Must be kept straight.

01 Compression Nut ( ^1/_4 ) (Assembled)
02 Ferrule (Not supplied)
03 Copper tubing (Not supplied)
04 Plastic Tubing (Assembled)
05 Compression Fitting (Assembled)
06 Molded end (Bulb)
07 Compression nut (B) (1/4") (Not supplied)
08 Plastic Tubing (A) (Not supplied)

NOTE

If you have to relocate the refrigerator after connecting the water line (C), make sure the joined section of the water line is straight.

1. Connect the household water line to the assembled compression fitting.

2. If you are using copper tubing, slip the compression nut (B) (not supplied) and ferrule (not supplied) on the copper tubing (not supplied) as shown.

3. If you are using plastic tubing (A), insert the molded end (Bulb) of the plastic tubing (A) into the compression fitting.

Installation

CAUTION

If you use plastic tubing, (A) do not use it without the molded end (Bulb).

1. Tighten the compression nut (B) onto the compression fitting. Do not over-tighten the compression nut (B).
2. Turn the water on and check for any leakage. If you find water drops or leakage in the connection areas, turn off the main water supply. Check the connections and, if necessary, tighten.
3. Flush 1 gallon of water through the filter before drinking or using the water from the refrigerator. (Flush approximately 6 minutes.) To flush, press a large glass or cup against the water dispenser lever. Fill the glass, empty it, and then repeat.
4. After you turn on the refrigerator, let the ice maker make ice for 1 to 2 days. Over that period of time, throw out the first 1 or 2 buckets of ice the ice maker makes to ensure all impurities have been removed from the water line.

NOTE

Only connect the water line to a potable water source.

• If you have to repair or disassemble the water line, cut off ^1/4 of the plastic tubing to make sure you get a snug, leak-free connection.
• You can test the water line quickly using a paper cup. Under normal conditions, the water dispenser can fill a 5 3/4 oz. (170 cc) cup in about 10 seconds.

STEP 8 Initial settings

After you complete the following steps, the refrigerator should be fully functional.

1. Plug the power cord into the wall socket to turn the refrigerator on.
2. Open the door, and check if the interior light lights up.
3. Set the temperature to the coldest setting, and then wait for about an hour. Then, the freezer will be slightly chilled, and the motor should be running smoothly.
4. Wait until the refrigerator reaches the set temperature. Now the refrigerator is ready to use.

STEP 9 Final check

When installation is complete, confirm that:

• The refrigerator is plugged into an electrical outlet and grounded properly.
• The refrigerator is installed on a flat, level surface with appropriate clearance between it and any walls or cabinets.
• The refrigerator is level and is sitting firmly on the floor.
• The door opens and closes freely, and the interior light turns on automatically when you open the door.

English34

Operations

User interface

NOTE

• For detailed information about the refrigerator's functions, and apps, see the on-screen user manual available on the LCD display of your refrigerator.
• The content of apps and widgets and their design is subject to change. Support for apps and widgets may be discontinued without notice, depending on the content provider's policy.
• Children's use of the refrigerator's functions, apps, and services must be supervised by adults.
  • The PANDORA apps are only available in the United States.

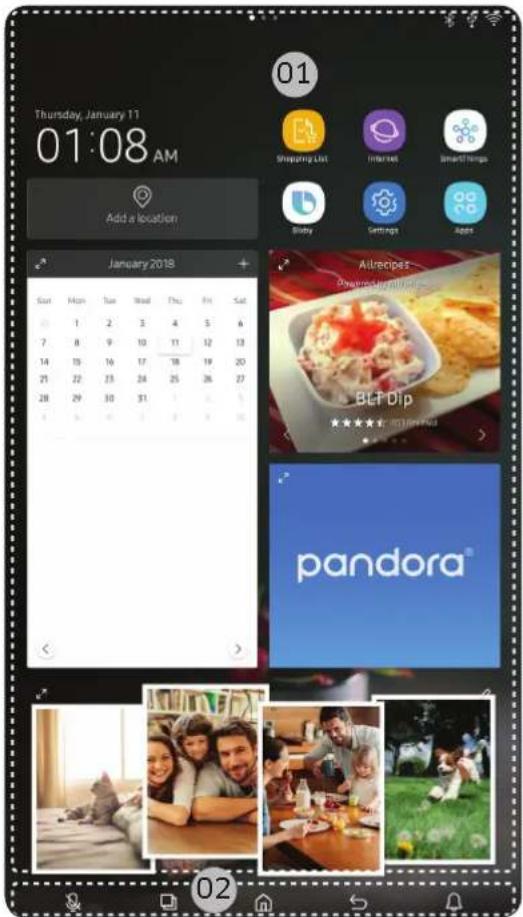

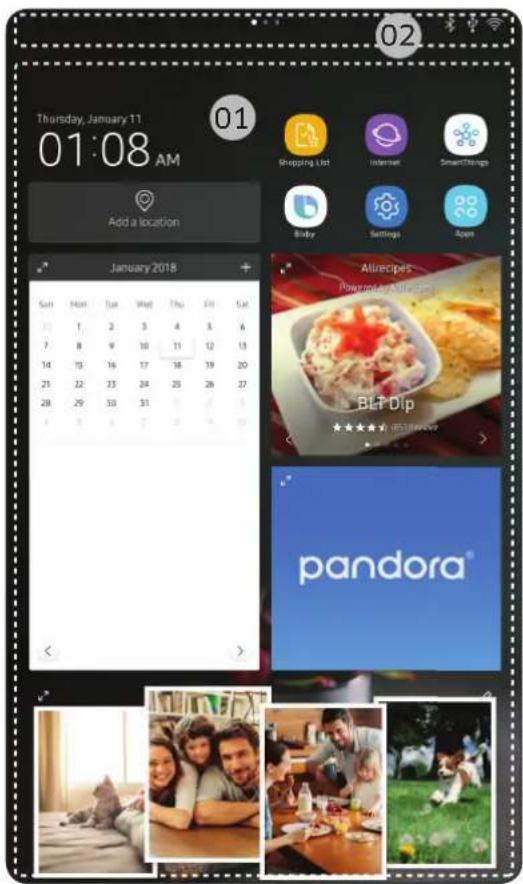

Thursday, January 11 01:08 AM Add a location January 2018 Sun 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

01 Home screen
02 Soft buttons

Operations

01 Home screen

Thursday, January 11 01:08 AM Add a location January 2018 Sun Mon Sun Wed Thu Fri Sat 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 25 22 23 24 25 26 27 28 29 30 31 Allrecipes Powered by Allrecipes BLT Dip pandora®

Icon descriptions

01 Apps & Widgets

• Tap a desired app or widget to launch it.
• Tap and hold an app or widget to enter Edit mode. A grid appears. In Edit mode, you can drag and drop an app or widget to a new position on the grid. When you move the app or widget to a new grid location, the location turns blue if it is available. If it is not available, it turns red.
• You can add an app or widget that has been removed from the Apps list.

02 Status bar

- Displays the status of various functions. (Refer to the following Icon descriptions table.)

Bluetooth (✗)	Indicates Bluetooth connection status.
USB (✗)	Indicates USB connection status. ⚙ NOTEThe refrigerator supports USB memory that is formatted in the FAT32 or exFAT file systems. NTFS is not supported. Be sure to convert NTFS to FAT32 or exFAT before use.
Remote Management (○)	Turns on when Remote Management is enabled and running.
Network (寧)	Indicates network connection status in 5 levels (Off, 1-4).
Software Update (○)	Indicates that the newest version of the refrigerator's software has been downloaded from the server and is ready to update.

English36

Notification (1)	Indicates there is a notification message.
Cloud sync (2)	Indicates Family Hub is receiving data from the cloud server.
Energy Saver (3)	Indicates Energy Saver is on.

02 Soft buttons

010203040506

01 Microphone

- Tap to turn the microphone on or off.

02 Task Manager

• Tap to open the Task Manager.
• See the Task Manager section for details.

03 Home

- Tap to open the Home screen.

04 Return

- Tap to return to the previous screen.

05 Notification

- Tap to display the Quick Panel.

06 Hide/Show

• Tap to hide or show Soft buttons.
• The Hide/Show button only appears when an app is active.

Operations

Fridge Manager

To access Fridge Manager, swipe the Home screen to the left, and then tap the Fridge Manager widget.

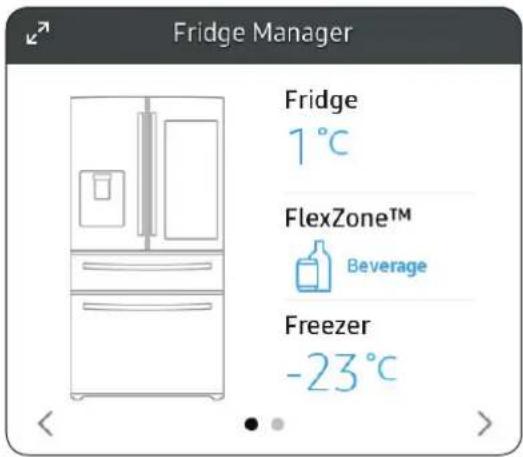

Fridge Manager Fridge 1°C FlexZone™ Beverage Freezer -23°C

• The design of the Fridge Manager widget differs with the model.
• On the Fridge Manager widget, the current fridge and freezer temperatures are displayed.
• For detailed settings, tap the widget to open the Fridge Manager.

NOTE

If you tap Buy Filter on the second page of the Fridge Manager widget, you will be directed to the website where you can purchase a water filter.

English38

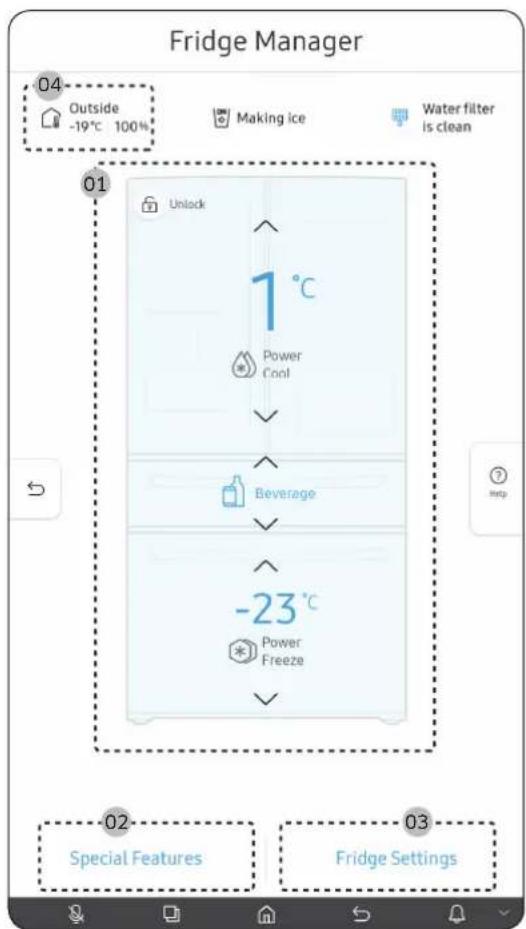

Fridge Manager 04 Outside -19°C 100% Making ice Water filter is clean 01 Unlock 1 °C Power Cool Beverage -23 °C Power Freeze 02 Special Features 03 Fridge Settings

The Fridge Manager is a graphical representation of your refrigerator. The top half represents the refrigerator compartment, and the bottom half represents the freezer compartment. The temperature or mode settings for each are displayed over each section.

Fridge Manager At a Glance

01 Temperature

Changes the set temperature in the fridge or freezer. You can also turn on and turn off the refrigerator's Power Cool function and the freezer's Power Freeze function.

- Power Freeze speeds up the freezing process at maximum fan speed. The freezer keeps running at full speed for several hours and then returns to the previous temperature.

- To freeze large amounts of food, activate Power Freeze at least 20 hours before putting the food in the freezer.

NOTE

Using Power Freeze increases power consumption. Make sure you turn it off so the freezer returns to its previous temperature if you do not need it any longer.

02 Special Features

View a short explanation of some of the refrigerator's special features.

03 Fridge Settings

Change many of the fridge's settings including settings for ice making, the door alarm, and the temperature units (°F or °C). See the next page for details.

04 External Conditions

Displays the external (ambient) temperature and humidity.

NOTE

The displayed conditions may differ from the actual temperature and humidity.

Operations

NOTE

Also displayed is the Ice Off (ice making off) indicator at the top, center. When the indicator displays Ice Off, the refrigerator's ice maker is turned off.

Ice Maker(applicable models only)	Turns the icemaker on and off. Tap and drag the button to turn on or off. Note that if the ice bucket is full of ice, the refrigerator does not start making ice when you tap and drag this button (turning the Ice Maker on), but displays the Ice Full indicator on the main screen.If you hold down the dispenser lever for 5 seconds, the Ice Maker Off status changes to Ice Maker On.
Dispenser Lock(applicable models only)	Turns the ice and water dispensers on and off. Tap to set Dispenser Lock on or off.
Door Alarm	The door alarm sounds if you leave the door open. Tap and drag the button to turn on or off.
Temp. Unit	Switch the temperature scale between Celsius and Fahrenheit. Touch °F or °C to change the scale.
Water Filter(applicable models only)	Provides a water filter replacement tutorial and lets you reset the water filter replacement indicator. Tap to open.NOTEAfter installing the water filter, tap Water Filter, and then tap Reset. Tapping Reset re-initializes the function that measures the time remaining until the water filter needs to be replaced again.If you tap Buy Filter, you will be directed to the website where you can purchase a water filter.
Self Check	Self Check is a self diagnoses function. Tap to open. Tap Start to run.
Energy Saver	Tap and drag this button to turn Energy Saver mode on and off.The Energy Saver function automatically turns off when power is supplied to the refrigerator. The settings for Energy Saver may differ with the model. If condensation or water drops appear on the doors, turn the Energy Saver mode off.
Demand Response(applicable models only)	Works with the Smart Grid energy saving manager. Tap to open. Tap and drag the button to turn on or off. See the Smart Grid section in this manual for more information.

English40

Cooling Off

Cooling Off mode (also called Shop mode), is designed for use by retailers when they are displaying refrigerators on the shop floor.In Cooling Off mode, the refrigerator's fan motor and lights work normally, but the compressors do not run, and the refrigerator and freezer do not get cold. If Cooling Off is turned on, all cooling controls will turn to OFF on the Fridge Manager.To activate Cooling Off, tapActivate >Proceedfrom Cancel/Proceed.To deactivate Cooling Off, tapDeactivate >Proceedfrom Cancel/Proceed.

Operations

Settings

Display	You can set the screen brightness, wallpapers, auto wake-up, motion detector, theme, screen timeout, and duration of the screen saver.
Sound	Set the volume and equalizer and turn on or turn off the touch sound.
Wi-Fi	Turn on or turn off a Wi-Fi connection. The current Wi-Fi network is listed first in the access point (AP) list.
Bluetooth	When the Speaker mode is on, you can listen to music and media on your mobile phone or tablet through Family Hub's speaker.- Only one connected mobile phone or tablet is listed.When the Speaker mode is off, you can search and connect to nearby Bluetooth-enabled devices.- Up to 4 recently paired Bluetooth devices are listed.- To add a new device when 4 paired devices are listed, first unpair a paired device from the device list.- Available devices are Bluetooth-enabled headsets, headphones, and speakers.
Voice	You can check the Voice function language, turn on or turn off Voice wake-up, select Wake Word, register and manage Voice ID, and check information about Bixby.
Profile • You can add, edit, or delete a profile.
Security	Enable or disable restrictions on Family Hub features and apps.
Language	Select a preferred language. Available languages depend on the sales region.
Date and Time	Make sure the Auto update function is on with a proper Wi-Fi network connection. Open the fridge door and locate the display reset button on the inner side of the door. Press the button and press again to reset the display. Then, the date and time will be synced by the time server.You can change the time zone through the Time zone menu.
About Device	Make sure the Software Update function is on with a proper Wi-Fi network connection.When updates are available, theUpdatebutton becomes active. When updates are complete, the refrigerator restarts automatically.Legal information displays the Open Source License Agreement. Tap the list item to open the Open Source Announcement.

English42

Easy Connection	· Easy Connection can be used with Samsung Smartphone apps, and allows you to connect your device to the same home Wi-Fi network that your smartphone is connected to.
Clean screen mode	· Turn on so you can clean the screen without activating any apps.
Accessibility	· Set to turn on or off the screen reader function for blind and low-vision users.
Online Manual	· The online manual will walk you through various menus and apps that the refrigerator provides directly on the display.
Factory Data Reset	· Tap Reset to restart the refrigerator in Factory Data Reset mode. All user data will be removed permanently. Data that will be removed includes account information, memos, photos, and user settings.⚠️ CAUTIONOnce factory reset is complete, no user data can be recovered.
Remote Management	· Use Remote Management to allow a service representative to remotely diagnose problems and provide solutions.· Remote Management requires a Wi-Fi connection.· The Remote Management menu does not appear on models that do not support Remote Management.

Operations

Display reset (applicable models only)

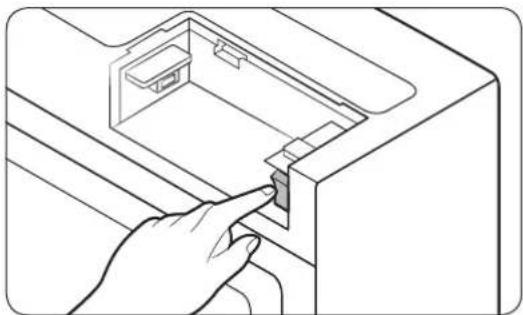

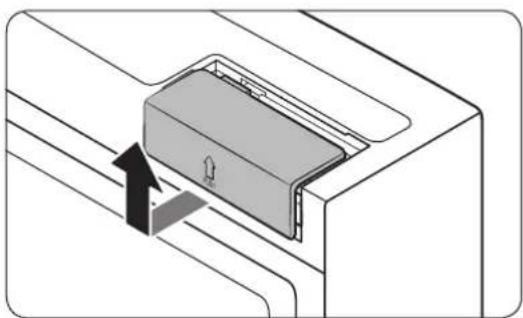

If the display is not working correctly, try resetting the display. This may resolve the problem.

Diagram of a mechanical component with an arrow indicating direction, no text or symbols present

1. Open the right-side fridge door and locate the switch cover on the top right corner of the door.

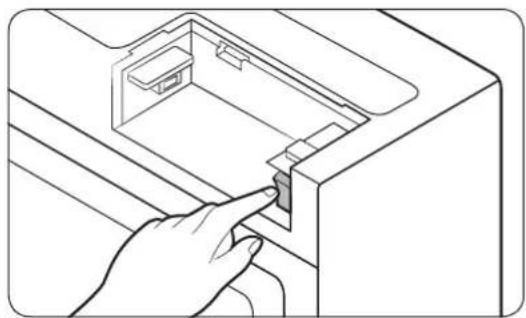

2. Push up the cover to reveal the power switch.

3. Turn the switch off, and then turn it on again.

4. Reinsert the switch cover. You will hear a click when the cover is in place.

Line drawing of a hand inserting a small component into a device (no text or symbols)

English44

SmartThings

Installation

Visit the Google Play Store, Galaxy Apps, or Apple App Store and search for "SmartThings". Download and install the SmartThings app provided by Samsung Electronics to your smart device.

NOTE

• The SmartThings app is designed for Android 6.0 (Marshmallow) or later, iOS 10.0 or later, iPhone 6 or later, and is optimized for Samsung smartphones (Galaxy S and Galaxy Note series).
• For improved performance, the SmartThings app is subject to change without notice or discontinued support according to the manufacturer's policy.
• Recommended encryption systems include WPA/TKIP and WPA2/AES. Any newer or non-standard Wi-Fi authentication protocols are not supported.
• Wireless networks may be affected by the surrounding wireless communication environment.
• If your Internet service provider has registered the MAC address of your PC or modem for identification, your Samsung Smart Refrigerator may fail to connect to the Internet. If this happens, contact your Internet service provider for technical assistance.
• The firewall settings of your network system may prevent your Samsung Smart Refrigerator from accessing the Internet. Contact your Internet service provider for technical assistance. If this symptom continues, contact a local Samsung service center or retailer.
• To configure the wireless access point (AP) settings, see the user manual of the AP (router).
• Samsung Smart Refrigerators support both Wi-Fi 2.4 GHz with IEEE 802.11 b/g/n and Soft-AP protocols. (IEEE 802.11 n is recommended.)
• Unauthorized Wi-Fi wireless routers may fail to connect to applicable Samsung Smart Refrigerators.

Operations

Samsung account

You are required to register your Samsung account to use the app. If you don't have a Samsung account, follow the app's onscreen instructions to create a free Samsung account.

Getting started

Turn on the device you want to connect, open the SmartThings app on your phone, and then follow the instructions below.

If a pop-up appears saying that a new device has been found, tap ADD NOW.

If a pop-up doesn't appear, tap the + button, and then select the device you want to connect from the list of available devices.

If your device isn't in the list of available devices, tap Supported Devices, select the device type (Refrigerator), and then select the specific device model.

Follow the instructions in the app to set up your device. Once setup is complete, your refrigerator will appear as a "card" on your Devices screen.

Refrigerator app

Integrated control

You can monitor and control your refrigerator at home and on the go.

• Tap the refrigerator icon on the SmartThings Dashboard or tap the Devices icon at the bottom of the Dashboard, and then tap the refrigerator "card" to open the Refrigerator page.
• Check the operation status or notifications related to your refrigerator, and then change options or settings if necessary.

NOTE

Some options or settings of the refrigerator may not be available for remote control.

English46

Category Item Description
Monitoring	Fridge temperature	Displays the current temperature setting of the fridge.
	Freezer temperature	Displays the current temperature setting of the freezer.
	FlexZoneTM settings Displays the settings of the FlexZoneTM.
	Diagnosis	Detects abnormal operations of the refrigerator.
	Energy monitoring	Checks the accumulated power consumption of the refrigerator for the last 180 days.
Functions	Ice making	You can turn the ice making function on or off, and check the current settings of the function.
		You can also check the status and progress of ice making.
	Power Cool	You can turn Power Cool on or off, and check the current settings.
	Power Freeze	You can turn Power Freeze on or off, and check the current settings.
Alarms	Abnormally high temperature	This alarm is triggered when the fridge or freezer has abnormally high temperatures.
	Door opening	This alarm is triggered if the fridge door, the freezer drawer, or the FlexZoneTM drawer is open for a specific length of time.
	Water filter replacement	This alarm reminds you that the water filter must be replaced.
Inside Image		You can view the inside of the refrigerator and can see if you need to replace food items.
Family Hub App Link		You can connect to the App Store and download the Refrigerator app.

Operations

SMART GRID Function (Demand Response) (applicable models only)

When the refrigerator operates in SMART GRID (Demand Response) mode, the Energy Management Refrigerator function can control energy usage or delay the operation of some functions to save money when energy prices or demand are the highest.

NOTE

• You can deactivate the SMART GRID (Demand Response) function at any time using the Override On/Off function.
• To use the SMART GRID (Demand Response) function, you need a separate contract with your electric utility company.

In addition, to use the Smart Grid (Demand Response) function, you must register for the service with your electric company. The company must have an EMS (Energy Management System) that supports SEP (Smart Energy profile).

Using the SMART GRID (Demand Response) Function

This feature monitors energy prices and demand information from your utility company and sends notifications to the refrigerator to run high energy consuming tasks during off-peak times when electricity costs and demand are lower.

If the refrigerator receives a control signal from the utility company, the refrigerator will display the DAL (L3) \~ TALR (L4) levels on the refrigerator display and control the power consumption according to the level.

Exception condition: The DAL and TALR control signals from a utility company work as long as product performance is maintained.

If the refrigerator receives the SMART GRID (Demand Response) signal (DAL or TALR), the refrigerator will operate in Delay Appliance Load or Temporary Appliance Load Reduction mode.

- Delay Appliance Load (L3): The refrigerator responds to a DAL signal by providing a moderate load reduction for the duration of the delay period. This function controls functions that consume a lot of energy such as adjusting the Cooling system, running the defrost cycle, and making ice.

- DAL mode is automatically deactivated after it lasts for the amount of time stipulated by the DAL signal (max. 4.5 hours) or when the Override function is turned on.

English48

• Temporary Appliance Load Reduction (L4): The refrigerator responds to a TALR signal by aggressively reducing the load for a short time period. This function reduces energy consumption by stopping the compressor and controlling the functions that consume a lot of energy such as the defrost cycle and making ice.
• TALR (L4) mode is automatically deactivated after it lasts for the received duration (max. 15 minutes), or when the Override function is turned on. The mode is immediately deactivated and the refrigerator returns to the normal state when the door is opened or closed, or the dispenser is used.

To check the MAC address

1. Tap the Settings icon on the Home screen.
2. Scroll down to and open About Device.
3. The screen displays (among others) the Wi-Fi MAC address.

Override Mode

When you want the refrigerator to ignore the SMART GRID (Demand Response) signal from the utility company, you can activate OVERRIDE mode.

When you activate OVERRIDE mode, the refrigerator ignores the SMART GRID (Demand Response) signal and is not controlled by the utility company.

Activating and deactivating Override mode

1. Tap the Fridge Manager icon.
2. On the bottom of the Fridge Manager screen, tap the Fridge Settings icon.
3. Tap Demand Response.
4. Slide the DAL/TALR override button to the ON or OFF position.

NOTE

- Alternatively, you can activate or deactivate OVERRIDE mode using the SmartThings app and the Energy Management function. See the next page.

Operations

Using the Energy Management Function

The Energy Management function enables you to control and monitor your Energy Management refrigerator using the SmartThings app for your convenience.

NOTE

- To use the Energy Management refrigerator functions, you have to install the corresponding app first.

1. Operational Status

- You can check the DR and Override status.

1. Energy Consumption Reporting

- Shows the accumulated power consumption. Power consumption data is updated every 5 minutes.

NOTE

The energy consumption report may differ from the power consumption specifications of the product depending on the operating environment and the quantity and type of stored food.

1. Delay Defrost Capability

- The Delay Defrost Capability function saves energy by delaying the defrost operation to a time specified by the user. You can configure the time. and this function will save energy during the specified period in a 24 hour cycle. If the time is not set, the function works with the default time settings. The default time settings are below:

- 6 am to 10 am: November 1st to April 30th.

- 3 pm to 7 pm: May 1st to October 31st.

To change the time setting for the Delay Defrost Capability

You can change the time setting for the Delay Defrost Capability on the app.

English50

Provision for Open Access to the Connected Product Requirements

1. SGIP Open Standards (Smart Energy Profile 2.0 - http://www.csep.org/)

2. Energy Consumption Reporting

3. Demand Response

4. OPEN API

5. Operational Status, User Settings & Messages

6. ICE Maker Status: GET /icemaker/status/vs/0
7. Door Open Alarm: GET /doors/vs/0
8. DR Status: GET /drlc/vs/0
9. Delay Defrost Capability
10. Set Schedule of the Defrost Delay: POST /defrost/reservation/vs/0?op=add
11. Get Schedule of the Defrost Delay : GET /defrost/reservation/vs/0
12. Delete Schedule of the Defrost Delay: POST /defrost/reservation/vs/0?op=remove
13. Defrost Delay On/OFF: POST /defrost/delay/vs/0

Operations

Recommendations for voice recognition

For the voice recognition function, there is a built-in microphone on top of the refrigerator's display. To use the voice recognition function:

• Stand no more than 3 feet (1 meter) from the refrigerator and speak loudly and clearly towards the built-in microphone.
• Speak at a regular pace. Reduce ambient noises, such as noises from a living-room TV.

NOTE

The voice recognition function may not be enabled if you stand more than 3 feet (1 meter) away or if you speak too softly.

Samsung Family Hub

Installation

Visit the Google Play Store, Galaxy Apps, or Apple App Store and search for “Samsung Family Hub”. Download and install the Samsung Family Hub app provided by Samsung Electronics to your smart device.

NOTE

• The Samsung Family Hub app is designed for Android 4.4 (KitKat) or higher, or iOS 8.0 or higher, and is optimized for Samsung smartphones (Galaxy S and Galaxy Note series).
• For improved performance, the Samsung Family Hub app is subject to change without notice. Support may be discontinued according to the manufacturer's policy.
• Wireless networks may be affected by the surrounding wireless communication environment.
• If your Internet service provider has registered the MAC address of your PC or modem for identification, your Samsung Smart Refrigerator may fail to connect to the Internet. If this happens, contact your Internet service provider for technical assistance.
• The firewall settings of your network system may prevent your Samsung Smart Refrigerator from accessing the Internet. Contact your Internet service provider for technical assistance. If this symptom continues, contact a local Samsung service center or retailer.

English52

Samsung account

You are required to register your Samsung account to use the Samsung Family Hub app. If you don't have a Samsung account, follow the app's onscreen instructions to create a free Samsung account.

NOTE

To connect your smartphone and the refrigerator, register your Samsung account in Settings → Profile.

Item Description

Calendar You can share your schedule with your family.

To Do You can create and edit a to-do list.

Memo You can create and edit a memo for specific users.

Whiteboard You can send White Board contents created on the refrigerator to your smartphone or vice versa.

Gallery You can send photos from your smartphone to the refrigerator.

View Inside You can view the inside of the refrigerator and see electronic labels you created with item-specific storage periods to keep track of item expiration dates.

Shopping List You can create and edit a shopping list.

Operations

Special features

Water/Ice dispenser (applicable models only)

With the dispenser, you can dispense water with or without ice.

Simple line drawing of a container with a side slot, no text or symbols present

The water dispenser offers 3 options: chilled water, cubed ice, and crushed ice. To dispense chilled water, press Water on the dispenser panel. Put a water glass against dispenser lever, and then push the dispenser lever.

To dispense water with ice

1. With the Ice Maker enabled, press Cubed Ice or Crushed Ice to select the ice type.
2. Place a water glass against the dispenser lever and push it. Ice will be dispensed from the dispenser.
3. Press Water to select water.
4. Place the glass against the dispenser lever, and then push it. Water will be dispensed from the dispenser.

NOTE

• The dispenser will stop dispensing if you keep pushing the dispenser lever for about 1 minute. To dispense more water, release and push the lever again.
• To prevent spills, wait 1 second before removing the glass after dispensing.
• Make sure the glass is vertically aligned with the dispenser to prevent the dispensed water from spilling out.
• If you do not use the water dispenser for 2-3 days, the dispensed water may have an abnormal smell or taste. This is not a system failure. Discard the first 1-2 glasses of water.

English54

Ice maker (applicable models only)

The refrigerator has a built-in ice maker that automatically dispenses ice so that you can enjoy filtered water with cubed or crushed ice.

Ice making

After you have installed your refrigerator and plugged it in, follow these instructions to ensure proper ice making and to keep the ice bucket full of ice:

1. Let the refrigerator run at least 24 hours without dispensing ice for optimal performance.
2. Dispense the first 4 to 6 ice cubes into a glass.
3. Wait another 8 hours and dispense another 4 to 6 ice cubes.
4. Then, wait another 16 hours and dispense the first glass-full of ice.

NOTE

• If you consume all the ice at once, you must wait 8 hours before dispensing the first 4 to 6 cubes. This ensures that the ice bucket is filled with ice properly.
• Ice cubes generated rapidly may look white, which is normal.

Diagnosis

Technical line drawing of a mechanical component with an arrow indicating a specific part (no text or symbols present)

If ice does not dispense, first check the ice maker.

To check the ice maker

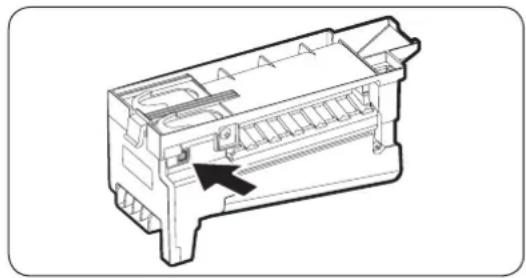

1. Press Test on the side of the ice maker. You will hear a chime (ding-dong) when you press the button.
2. You will hear another chime if the ice maker is operating properly.

CAUTION

• If the ice making chime rings repeatedly, contact the waterline installer or a local Samsung service center.
• Do not press Test repeatedly after the ice tray is filled with ice or water. Water may overflow or ice may jam.
• Do not put food in the ice bucket. The frozen food may damage the ice maker, especially when you open or close the door.
• When the refrigerator recovers power after a power failure, the ice bucket may contain a mix of melted and jammed ice cubes, which can prevent the ice maker from working properly. To prevent this, make sure to empty the ice bucket before using the ice maker again.

Operations

• Do not put fingers or any objects into the dispenser outlet or the ice maker. This can cause physical injury or property damage.
• When reinserting the ice maker tray, make sure that the tray is properly centered at the entrance. Otherwise, the tray can get stuck.

Ice Maker Off

To disable the icemaker, tap Fridge Manager > Fridge Settings > Ice Maker on the Home screen, and then select Off. Make sure to empty the ice bucket.

Remaining ice cubes may clump together, making it difficult to remove them.

To remove the ice bucket, see the ice bucket section on page 59.

NOTE

- Removal of the ice bucket does not affect the thermal and mechanical performance of the refrigerator.

Water clouding

Water supplied to the refrigerator flows through a core alkaline filter. During this filtering process, the water pressure of the water increases and the water becomes saturated with oxygen and nitrogen. This causes the water to look misty or cloudy temporarily when dispensed. This is normal and the water will look clear after a few seconds.

English56

FlexZone™

The FlexZone™ is a full-width drawer featuring temperature control. It has a temperature sensor that adjusts the amount of cold air allowed into the zone.

• Press FlexZone™ repeatedly to select a desired mode. By default, Deli is selected.
• The refrigerator adjusts the temperature in the FlexZone™ according to the selected mode.

Mode Description Examples
Wine	Select Wine to keep food fresh for a long time. The temperature of the FlexZoneTM will be kept around 42 °F (5 °C).	Wine, cocktails, cake, cheese
Deli	Select Deli to keep food fresh for a longer time. The temperature of the FlexZoneTM will be kept around 37 °F (3 °C).	Pineapples, lemons, biscuits, potatoes
Beverage	Select Beverage to keep drinks cold and refreshing.The temperature of the FlexZoneTM will be kept around 33 °F (1 °C).	Bottled water, juice, soft drinks, beer
Meat	Select Meat to keep meat or fish fresh for a longer time.The temperature of the FlexZoneTM will be kept around 29 °F (-1 °C).	Steaks, cold cuts, bacon, chili dogs

CAUTION

• Do not use the FlexZone™ to store most kinds of fruit or leafy vegetables. These food items may suffer cold-temperature damage.
• Do not store glass bottles in the FlexZone™ in Beverage or Meat mode. They may break and cause physical injury.

Operations

FlexZone™ divider

Technical line drawing of a mechanical assembly with rotating components (no text or symbols)

You can change the divider position.

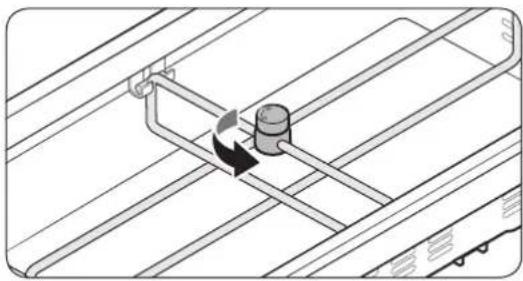

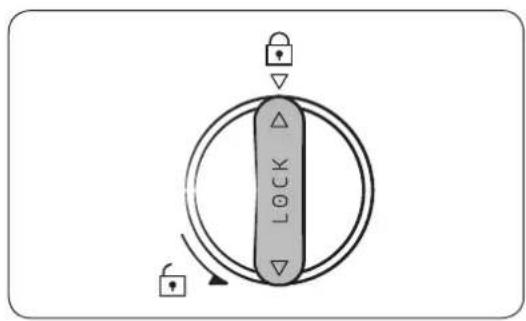

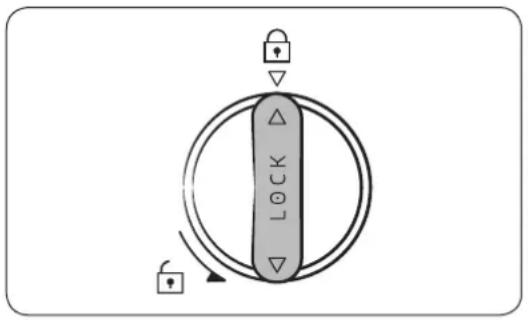

To do this, unlock the divider by turning the divider dial counter clockwise. Then, move the width and height bars as appropriate. When done, turn the dial clockwise to lock the divider.

NOTE

If the divider lock does not function, wipe the bars to remove moisture on them.

English58

Maintenance

Handling and care

Ice bucket (applicable models only)

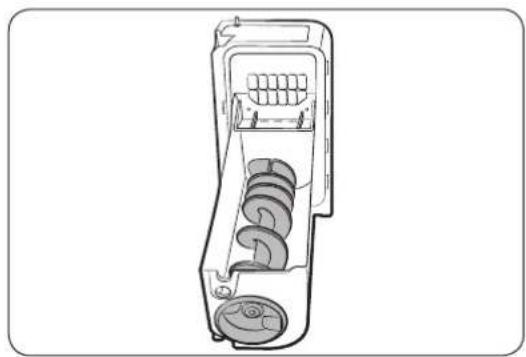

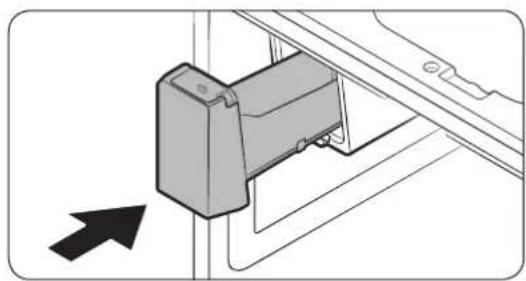

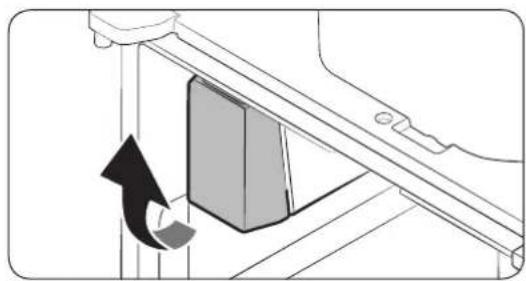

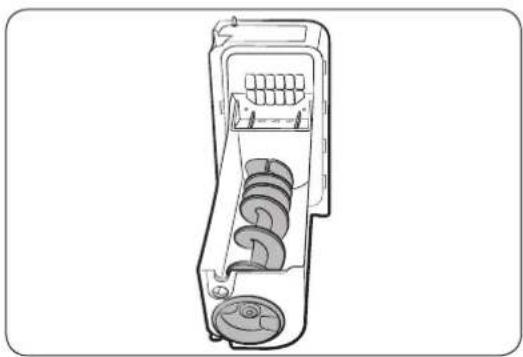

If you do not dispense ice for an extended period, ice may form clumps inside the bucket. If this happens, remove and empty the ice bucket.

Mechanical assembly diagram showing a rotating component with an arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with internal components (no text or symbols)

1. To remove the ice bucket, gently lift it up, and then pull it out slowly while holding the bottom of the bucket with one hand and the side with the other hand.

2. Empty the bucket.

3. When done, put the bucket back into position. If the bucket does not fit in, turn the helix screw 90 degrees, and then try again.

If the ice bucket is not firmly inserted, turn the ice screw 90 degrees, and then try again.

CAUTION

• Do not apply excessive force to the bucket cover. The cover may break.
• Do not forcefully close the door. Water may spill over the ice maker.
  • To prevent injury, make sure to clean up any ice or water that has fallen on the floor.
• To prevent accidents or injury, do not let children play with the water dispenser or the ice maker.

Maintenance

• Do not put your hand or an object into the ice chute. This may cause physical injury or product damage.
• Use only the provided ice bucket. Third-party ice buckets may cause a system failure.
• Use only potable water that is connected to the water supply line.

NOTE

• The water pressure required for ice making is between 20 psi and 125 psi (138 and 862 kPa).
• Noise from the ice maker as it produces ice during the ice making process is normal.
• While the door is open, neither the ice maker nor the water dispenser operates.

English60

Tempered glass shelves (fridge)

Diagram of a device with a rectangular panel and directional arrow indicating rotation (no text or symbols)

Diagram showing a metal bracket being inserted into a wall, with an arrow indicating the direction (no text or symbols present)

Diagram showing a device with downward arrows indicating movement, and a magnified inset highlighting a component.

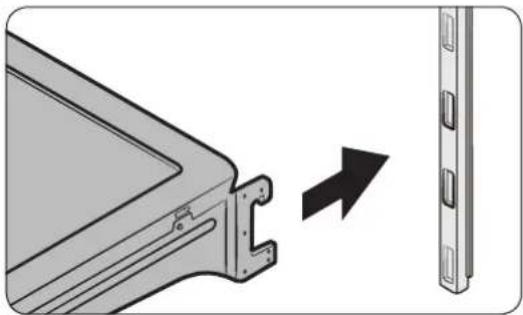

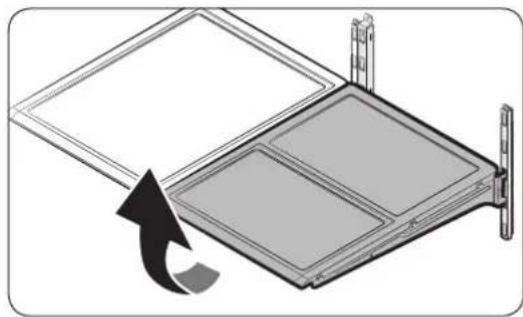

• To remove a shelf, fully open the corresponding door. Hold the front of the shelf, and then gently lift up and slide out.

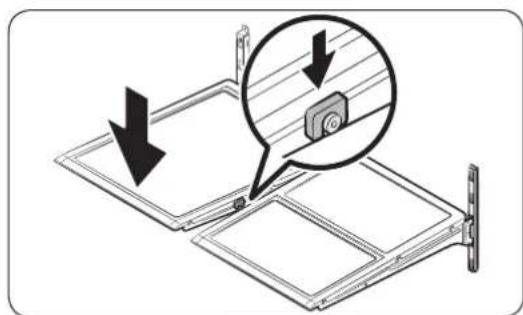

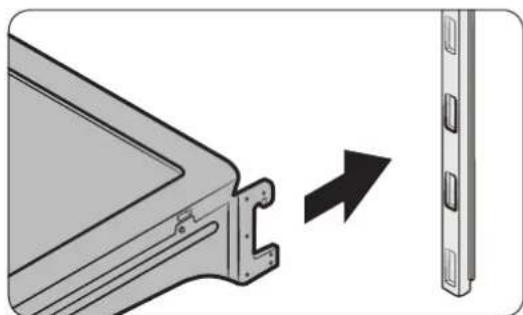

- To reinsert, hold the shelf at an angle so the front is higher than the back, and then insert the top hook into the top shelf notch. Then, lower the shelf and insert the bottom shelf hook into the bottom shelf notch.

CAUTION

• The tempered glass shelves are heavy. Use caution when removing them.
• The shelf must be inserted correctly. Do not insert upside down.
  • Glass containers may scratch the surface of glass shelves.

Maintenance

Door bins

The top door bin section has a marked line to ensure easy removal and proper reinsertion.

Diagram of a mechanical component with a black arrow indicating direction, no text or symbols present

Lift up the door bin, and then pull out straight.

CAUTION

Do not allow children to play with the bins. Sharp-edged corners may cause injury.

Vegetable & fruit drawers

Mechanical assembly diagram showing a clamping mechanism with a black arrow indicating force (no text or symbols present)

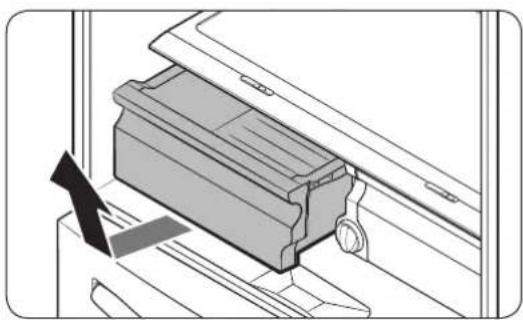

Gently lift up the front of the drawer and slide out.

We recommend that you remove the door bins before removing the drawer. This is to prevent damage to the door bins.

English62

Vegetable shelf

Diagram of a mechanical assembly with a black arrow indicating force or direction (no text or symbols present)

1. Slide out the left-side vegetable drawer.

Diagram of a mechanical assembly with two components and an arrow indicating direction (no text or symbols)

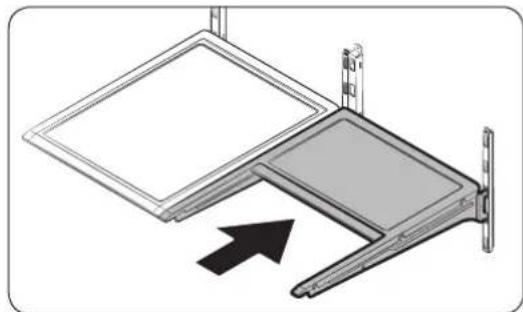

1. Slide in the right-side foldable shelf.

Diagram of a refrigerator interior showing a tray and hanging device with arrows indicating movement (no text or symbols)

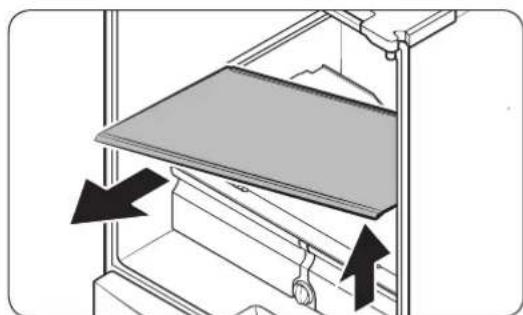

1. While supporting the vegetable shelf with one hand, slide it out with the other hand.

NOTE

To use the space that is opened up after removing the foldable shelf, take out the vegetable shelf.

To reinsert, follow the steps above in the reverse order.

Ice bucket (applicable models only)

To remove the ice bucket, see the Maintenance section on page 59.

Maintenance

FlexZone™ basket

Diagram of a refrigerator drawer with an arrow indicating rotation or movement (no text or symbols present)

- To remove, fully open the FlexZone™ drawer. Lift up the FlexZone™ basket, and then pull out with both hands.

- To reinsert, fully open the FlexZone™ drawer. While tilting up the front of the basket, insert the rear of the basket into the rail assembly. Lower the front until the basket settles down.

- If the divider lock does not function, wipe the bars to remove moisture on them.

To remove the divider and the metal cooling plate (applicable models only) from the FlexZone™ basket

Technical line drawing of a rectangular device with internal components and directional arrows indicating flow or movement (no text or symbols)

1. Unlock the divider by turning the divider dial counter clockwise.

2. Slide the divider to the end as shown.

Technical diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

1. The divider has width and length bars. Push the lower part of each bar inward to unlock. See the figures for details.

English64

Isometric line drawing of a rectangular container with an arrow pointing upward (no text or symbols)

1. Hold the divider and pull up to remove.

Diagram showing a device with labeled components and a downward arrow indicating a process or transformation.

1. Turn over the basket to remove the metal cooling plate.

CAUTION

The basket and the metal cooling plate are heavy. Use caution when handling them. Careless handling may cause personal injury or property damage.

To reinsert the metal cooling plate

Reinsertion in the reverse order of removal.

Reinsert the divider into the FlexZone™ basket firmly until you hear a click.

Freezer basket divider

Illustration of a drawer with a magnified inset showing a folded document or folder (no text or symbols present)

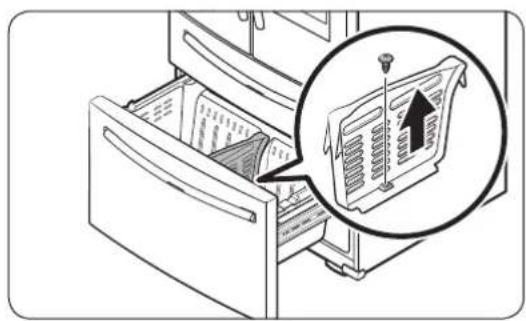

Loosen and remove the screw from the lower side of the divider. Then, pull straight up to remove the divider.

Maintenance

Cleaning

Interior and exterior

WARNING

• Do not use benzene, thinner, home/car detergent, or Clorox™ for cleaning. They may damage the surface of the refrigerator or cause a fire.
• Do not spray water onto the refrigerator. This may cause electric shock.
• Do not put fingers or any objects into the dispenser outlet.

Regularly use a dry cloth to remove all foreign substances such as dust or water from the power plug terminals and contact points.

To clean the refrigerator

1. Unplug the power cord.
2. Use a moistened, soft, lint-free cloth or paper towel to clean the refrigerator's interior and exterior.
3. When done, use a dry cloth or paper towel to dry well.
4. Plug in the power cord.

Inner-view camera

Line drawing of a refrigerator interior showing the door, shelves, and handle (no text or symbols)

NOTE

Use a cotton swab or microfiber cloth to clean the camera on the left-side door of the fridge.

English66

Replacement

Water filter (applicable models only)

WARNING

- Do not use third-party water filters. Use only Samsung-provided or -approved filters. - Unapproved filters may leak and damage the refrigerator, causing electric shock. Samsung is not responsible for any damage that may occur from use of third-party water filters.

The filter indicator (☐) turns red to let you know it is time to replace the water filter. Before replacing the filter, shut off the water supply line.

Diagram of a mechanical assembly with directional arrows indicating motion or force (no text or symbols)

Mechanical assembly diagram showing a cylindrical component inserted into a bracket with an arrow indicating rotation (no text or symbols present)

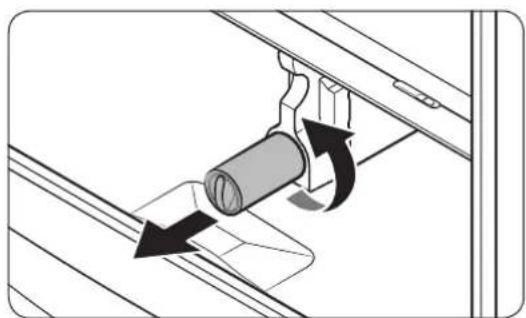

1. Turn the knob of the filter cartridge counter clockwise 90 degrees (1/4 turn). The filter cartridge unlocks.

2. Pull out to remove the cartridge.

- If the water filter is severely contaminated, the cartridge may not be easy to remove. If that is the case, use force to remove the cartridge. - To prevent water leaks from the filter opening, pull the cartridge straight out while removing it.

1. Insert a new filter cartridge. Use only Samsung-provided or approved filters.

Maintenance

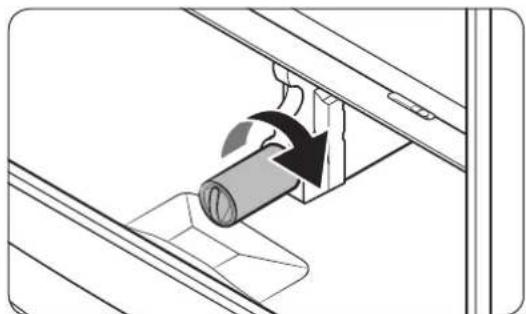

1. Turn the cartridge knob clockwise to lock into place.
2. On the Home screen, tap Fridge Manager > Fridge Settings > Water Filter, and then select Reset. The filter indicator turns off.
3. When you are done replacing the filter, open the water valve and run water through the dispenser for about 7 minutes. This is to remove impurities and air from the water line.

NOTE

• A newly installed filter may cause the water dispenser to spurt water briefly. This is because air has entered the waterline.
• The replacement process may cause the water dispenser to drip for a short period of time. If it drips, simply wipe up any water on the floor with a dry towel.

Reverse osmosis water filtration system

The water pressure of the water supply system to a reverse osmosis water filtration system must be between 35 psi and 120 psi (241 kPa and 827 kPa).

The water pressure of the reverse osmosis water filtration system to the refrigerator's cold water line must be at least 40 psi (276 kPa). If the water pressure is below these specifications:

• Check if the sediment filter in the reverse osmosis system is blocked. Replace the filter if necessary.
• Refill the water tank in the reverse osmosis system with water.
• If your refrigerator has a water filter, it may further reduce the water pressure when used in conjunction with a reverse osmosis system. Remove the water filter.

For more information or servicing, contact a licensed plumbing professional.

Ordering a new filter

To purchase a new water filter, contact a local Samsung service center or visit www.samsungparts.com on the web.

LED Lights

To replace the LED lights on the refrigerator, contact a local Samsung service center.

WARNING

The LED lights are not user-serviceable. Do not attempt to replace an LED light yourself. This can cause electric shock.

English68

Troubleshooting

Before calling for service, review the checkpoints below. Any service calls regarding normal situations (No Defect Cases) will be charged to users.

General

Temperature

Symptom Possible causes Solution
Fridge/freezer does not operate.Fridge/freezer temperature is warm.	Power cord is not plugged in properly.Temperature control is not set correctly.Refrigerator is located near a heat source or direct sunlight.Not enough clearance between refrigerator and nearby walls or cabinets.The refrigerator is overloaded. Food is blocking the refrigerator vents.	Properly plug in the power cord.Set the temperature lower.Keep the refrigerator away from direct sunlight or a heat source.Make sure there is a gap of at least 2.5 inches (5 cm) between the refrigerator back and sides and any nearby walls or cabinets.Do not overload the refrigerator. Do not allow food to block ventilation.
Fridge/freezer is over-cooling.	Temperature control is not set correctly.	Set the temperature higher.
Interior wall is hot.	Refrigerator has heat-proof piping in the interior wall.	To prevent condensation from forming, the refrigerator has heat-proof piping in the front corners. If the ambient temperature rises, this equipment may not work effectively. This is not a system failure.

Troubleshooting

Odors

Symptom Possible causes Solution
Refrigerator has odors.	• Spoiled food.	• Clean the refrigerator and remove any spoiled food.
	• Food with strong odors.	• Make sure strong smelling food is wrapped airtight.

Frost

Symptom Possible causes Solution
Frost around the vents.	Food is blocking the vents.	Make sure no food blocks the refrigerator vents.
Frost on interior walls.	Door is not closed properly.	Make sure food does not block the door. Clean the door gasket.
Fruits or vegetables are frozen.	Fruits or vegetables are stored in the FlexZone and the temperature was set too low.	Set the temperature of the FlexZone to a temperature appropriate for fruits or vegetables.

Condensation

Symptom Possible causes Solution
Condensation forms on the interior walls.	If door is left open, moisture enters the refrigerator.	Remove the moisture and do not leave a door open for extended periods of time.
	Food with high moisture content.	Make sure food is wrapped airtight.

English70

Water/ice (dispenser models only)

Symptom Possible causes Solution
Water flow is weaker than normal.	·Water pressure is too low.	·Make sure the water pressure is between 20 to 120 psi (138 to 827 kPa).
Ice maker makes a buzzing sound.	·The ice maker function is activated, but the water supply to the refrigerator has not been connected.	·Press Ice Maker off .
Ice maker does not make ice.	·Ice maker has just been installed.	·You must wait 12 hours for the refrigerator to make ice.
	·Freezer temperature is too low.	·Set the freezer temperature below 0 °F (-18 °C) or -4 °F (-20 °C) in warm, ambient air.
	·Dispenser Lock is activated.	·Deactivate Dispenser Lock.
	·Ice maker is off. ·Turn on the ice maker.
Ice does not dispense.	·Ice may jam if the ice dispenser is not used for a long time (approx. 3 weeks).	·If you won't be using the refrigerator for a long time, empty the ice bucket and turn off the ice maker.
	·Ice bucket is not properly inserted.	·Make sure the ice bucket is properly inserted.
	·Water line is not connected properly or water supply is not on.	·Check if the water line is installed correctly. Check if the water line stop cock is closed.

Troubleshooting

Symptom Possible causes Solution
Water does not dispense.	·Water line is not connected properly or water supply is not on.	·Check the water installation conditions.
	·Dispenser Lock is activated.	·Deactivate Dispenser Lock.
	·A third-party water filter was installed.	·Use only Samsung-provided or approved filters.·Unapproved filters may leak and damage the refrigerator.
	·Water filter indicator turns on or blinks.	·Replace the water filter. After replacing, reset the filter indicator sensor.

English72

Do you hear abnormal sounds from the refrigerator?

Before calling for service, review the checkpoints below. Any service calls related to normal sounds will be charged to the user.

These sounds are normal.

- When starting or ending an operation, the refrigerator may make sounds similar to a car engine ignition. As the operation stabilizes, the sounds will decrease.

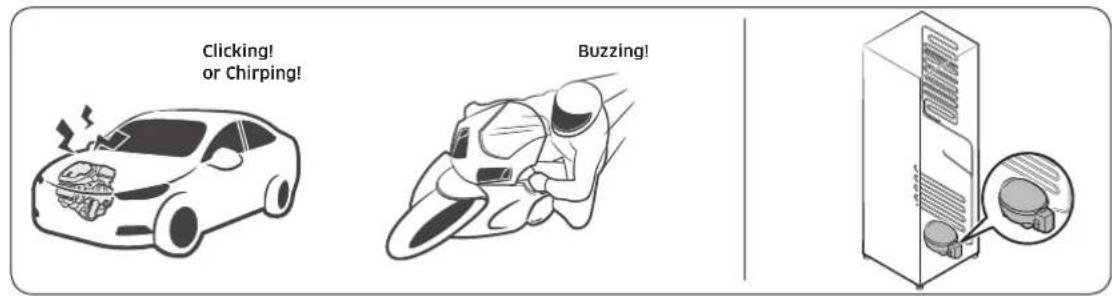

Clicking! or Chirping! Buzzing!

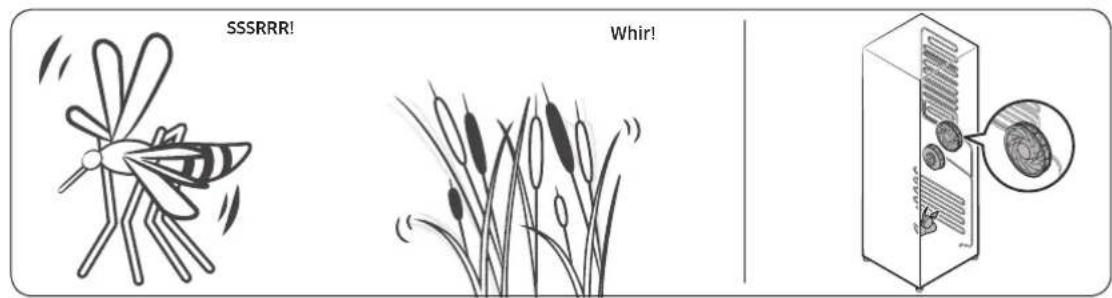

- While the fan is operating, these sounds may occur. When the refrigerator reaches the set temperature, the fan sound will stop.

SSSRRR! Whir!

- During a defrost cycle, water may drip on the defrost heater, causing sizzling sounds.

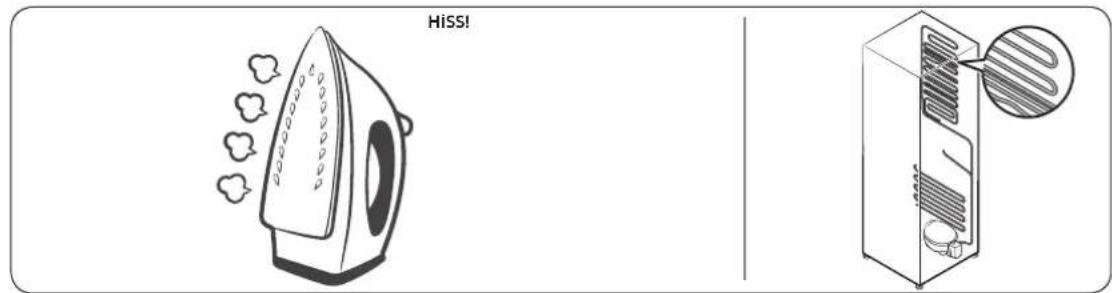

HiSSI

Troubleshooting

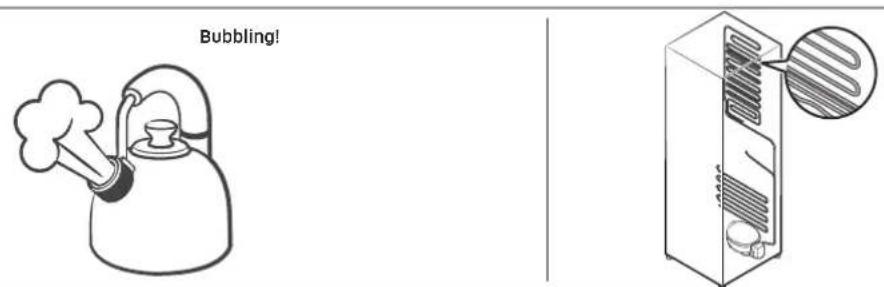

- As the refrigerator cools or freezes, refrigerant gas moves through sealed pipes, causing bubbling sounds.

- As the refrigerator temperature increases or decreases, plastic parts contract and expand, creating knocking noises. These noises occur during the defrosting cycle or when electronic parts are working.

Cracking!

• For ice maker models: When the water valve opens to fill the ice maker, buzzing sounds may occur.
• Due to pressure equalizing when you open and close the refrigerator door, whooshing sounds may occur.

English74

SmartThings

Symptom Action
Could not find “SmartThings” in the app market.	The SmartThings app is designed for Android 6.0 (Marshmallow) or later, iOS 10.0 or later, iPhone 6 or later, and is optimized for Samsung smartphones (Galaxy S and Galaxy Note series).
The SmartThings app fails to operate.	The SmartThings app is available for applicable models only.The old Samsung Smart Refrigerator app cannot connect with Samsung Smart Home models.
The SmartThings app is installed but is not connected to my refrigerator.	You must log into your Samsung account to use the app.Make sure that your router is operating normally.If you have not connected your refrigerator to the SmartThings App after the app was installed, you must make the connection using the device registration function of the app.
Could not log into the app.	You must log into your Samsung account to use the app.If you don't have a Samsung account, follow the app's onscreen instructions to create one.
An error message appears when I try to register my refrigerator.	Easy Connection may fail due to the distance from your access point (AP) or electrical interference from the surrounding environment. Wait a moment and try again.
The SmartThings app is successfully connected to my refrigerator but does not run.	Exit and restart the SmartThings app or disconnect and reconnect the router.Unplug the power cord of the refrigerator, and then plug it in again after 1 minute.

Troubleshooting

Samsung Family Hub

Symptom Action
Could not find “Samsung Family Hub” in the app market.	The Samsung Family Hub app is available for smartphones that run Android 4.4 (KitKat) or higher, or iOS 8.0 or higher.
Could not log into the app.	You must log into your Samsung account to use the app.If you don't have a Samsung account, follow the app's on-screen instructions to create one.

English76

Smart Grid (applicable models only)

Symptom Action
What Do I Need to use the Energy Management and Smart Grid functions?	To use the Smart Grid (Demand Response) and Energy Management functions on your refrigerator, you need the following: DevicesA wireless access point (router)A Samsung Energy Management-supported refrigeratorA smartphoneRegistrationConnect your refrigerator to your home Wi-Fi network.Register for the EMS service with your electric company. Your electric company must have an EMS (Energy Management System) supporting SEP (Smart Energy profile). AppDownload the SmartThings app from the Google Play Store, Apple App Store, or Samsung Galaxy Apps.Install and run the SmartThings app on your smartphone.
Why isn't the Energy Management function working normally?	Make sure that your home router is operating normally with proper Internet service and connection.Make sure that the refrigerator is connected to the AP (router). CheckpointsConnect your smartphone to the router (AP, Access Point), and then check if you can browse the Internet on the smartphone.
Why isn't the Delay Defrost Capability working normally?	Make sure that your home router is operating normally with proper Internet service and connection.

Troubleshooting

LCD

Symptom Action
Cannot connect to my TV.	This refrigerator can connect only with Samsung Smart TV 6400 series or higher models released since 2015. Please check the model name of your TV first.Network connections may suffer temporary interruptions.Turn your TV off, and then try again.
The inner view picture looks bulged out or incomplete.	The edges of the inner view may look bulged out. The bulging is caused by the convex lens of the camera.The inner view may be incomplete due to the blind spots on the left and right corners or be screened depending on the layout of food items. Make sure to place food items in the front center.
The displayed measurement on the Fridge Manager is not correct.	The displayed conditions may differ from the actual temperature and humidity.

English78

LIMITED WARRANTY (U.S.A.)

SAMSUNG REFRIGERATOR

LIMITED WARRANTY TO ORIGINAL CONSUMER PURCHASER WITH PROOF OF PURCHASE

This SAMSUNG brand product, as supplied and distributed by Samsung Electronics America, Inc. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials or workmanship for the limited warranty period of:

One (1) year parts and labor

Five (5) years parts and labor on Sealed Refrigeration System Only (Compressor, Evaporator, Condenser, Drier, and Connecting Tubing)

Ten (10) years part and Five (5) years labor on Digital Inverter Compressor Only

This limited warranty is valid only on products purchased and used in the United States that have been installed, operated, and maintained according to the instructions attached to or furnished with the product. To receive warranty service, the purchaser must contact SAMSUNG at the address or phone number provided below for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG's authorized service center to receive warranty service.

SAMSUNG will provide in-home service within the contiguous United States during the warranty period at no charge, subject to availability of SAMSUNG authorized servicers within the customer's geographic area. If in-home service is not available, SAMSUNG may elect, at its option, to provide transportation of the product to and from an authorized service center. If the product is located in an area where service by a SAMSUNG authorized servicer is not available, you may be responsible for a trip charge or required to bring the product to a SAMSUNG authorized service center for service.

To receive in-home service, product must be unobstructed and accessible to the service agent.

During the applicable warranty period, a product will be repaired, replaced, or the purchase price refunded, at the sole option of SAMSUNG. SAMSUNG may use new or reconditioned parts in repairing a product, or replace the product with a new or reconditioned product. Replacement parts and products are warranted for the remaining portion of the original product's warranty or ninety (90) days, whichever is longer. All replaced parts and products are the property of SAMSUNG and you must return them to SAMSUNG.

LIMITED WARRANTY (U.S.A.)

This limited warranty covers manufacturing defects in materials or workmanship encountered in normal household, noncommercial use of this product and shall not cover the following: damage that occurs in shipment, delivery, installation, and uses for which this product was not intended; damage caused by unauthorized modification or alteration of the product; product where the original factory serial numbers have been removed, defaced, changed in any way, or cannot be readily determined; cosmetic damage including scratches, dents, chips, and other damage to the product's finishes; damage caused by abuse, misuse, pest infestations, accident, fire, floods, or other acts of nature or God; damage caused by use of equipment, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied or authorized by SAMSUNG; damage caused by incorrect electrical line current, voltage, fluctuations and surges; damage caused by failure to operate and maintain the product according to instructions; in-home instruction on how to use your product; and service to correct installation not in accordance with electrical or plumbing codes or correction of household electrical or plumbing (i.e., house wiring, fuses, or water inlet hoses). The cost of repair or replacement under these excluded circumstances shall be the customer's responsibility.

Visits by an authorized servicer to explain product functions, maintenance or installation are not covered by this limited warranty. Please contact SAMSUNG at the number below for assistance with any of these issues.

EXCLUSION OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific rights, and you may also have other rights, which vary from state to state.

English80

LIMITATION OF REMEDIES

YOUR SOLE AND EXCLUSIVE REMEDY IS PRODUCT REPAIR, PRODUCT REPLACEMENT, OR REFUND OF THE PURCHASE PRICE AT SAMSUNG'S OPTION, AS PROVIDED IN THIS LIMITED WARRANTY. SAMSUNG SHALL NOT BE LIABLE FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO TIME AWAY FROM WORK, HOTELS AND/OR RESTAURANT MEALS, REMODELING EXPENSES, LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some states do not allow exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific rights, and you may also have other rights, which vary from state to state.

SAMSUNG does not warrant uninterrupted or error-free operation of the product. No warranty or guarantee given by any other person, firm, or corporation with respect to this product shall be binding on SAMSUNG.

To obtain warranty service, please contact SAMSUNG at:

Samsung Electronics America, Inc.

85 Challenger Road

Ridgefield Park, NJ 07660

If your refrigerator needs service

Do not hesitate to call any Samsung Authorized Service Center nearby giving them your name, address and telephone number if your product is not functioning properly.

Limited Warranty for Original Purchaser

This Samsung product is warranted by Samsung Electronics Canada Inc. (hereafter referred to as SECA) against manufacturing defects in material or workmanship for the following periods:

Labor : 1 year (in-home)

Parts : 1 year

Inverter Compressor : 10 years (Part only)

SECA further warrants that if this product fails to operate properly within the specified warranty period and the failure is due to improper workmanship or defective material, SECA will repair or replace the product at its option. In-home service is not available in all areas. Contact us to find out if in-home service is currently available in your area by using the contact information at the back of this warranty.

All warranty repairs or part replacements must be performed by a SECA Authorized Service Center. (To find the nearest SECA Service Center, call 1-800-SAMSUNG (7267864) or visit our web site at www.samsung.com/ca)

Obligation to the Original Owner

The original dated sales receipt must be retained by the customer and is the only acceptable proof of purchase. It must be presented to a SECA Authorized Service Center at the time service is requested before warranty services are rendered. On all carry-in models, transportation to and from the Authorized Service Center is the responsibility of the customer.

English82

Exclusions of the Warranty

This warranty does not cover damage due to accident, fire, flood, and/or other Acts of God, misuse, incorrect line voltage, improper installation, improper or unauthorized repairs, commercial use, or damage that occurs during shipping. Customer adjustments which are explained in this owners manual are not covered under the terms of this warranty. This warranty will automatically be voided for any unit found with a missing or altered serial number. This warranty is valid only on products purchased and used in Canada.

SAMSUNG CUSTOMER CARE CENTER

Samsung Electronics Canada Inc.

2050 Derry Road West

Mississauga, Ontario L5N 0B9

Canada

www.samsung.com/ca/support (English)

www.samsung.com/ca_fr/support (French)

Regulatory Notice

FCC Notice

! FCC CAUTION:

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Contains Transmitter Module FCC ID: A3LWCM730Q

This device complies with Part 15 of FCC Rules. Operation is Subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received including interference that cause undesired operation.

For products available in the US and Canadian markets, only channels 1\~11 are available. You cannot select other channels.

FCC STATEMENT:

This equipment has been tested and found to comply within the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment to an outlet that is on a different circuit than the receiver.
• Consult the dealer or an experienced radio/TV technician for help.

FCC RADIATION EXPOSURE STATEMENT:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated so there is at least 8 inches (20 cm) between the radiator and your body. This device and it's antennas must not be co-located or operated in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures.

English84

IC Notice

Contains Transmitter Module IC: 649E-WCM730Q

The term “IC” before the radio certification number only signifies that Industry Canada technical specifications were met. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003.

For products available in the US and Canadian markets, only channels 1\~11 are available. You cannot select other channels.

IC RADIATION EXPOSURE STATEMENT:

This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated so there is at least 8 inches (20 cm) between the radiator and your body. This device and it's antennas must not be co-located or operated in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures.

SAVE THESE INSTRUCTIONS

DECLARATION OF CONFORMITY

According to Sec. 2.1077, 47 CFR of the FCC Rules.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Equipment EUT Type Other Class B digital devices & peripherals
Kind of product Refrigerator-Freezer
Trade Name SAMSUNG
Model RF22NPEDBSG
Variant Model	RF22NPE****(The symbol “*” can be any alphanumeric character.)
Applied Rules 47 CFR	Part 15, Subpart B / ANSI C63.4-2014
Manufacturer	Samsung Electronics Co., Ltd.(Maetan dong) 129, Samsung-ro, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do 16677 Korea

We hereby declare that the equipment bearing the trade name and model number specified above was tested conforming to the applicable FCC Rules under the most accurate measurement standards possible, and that all the necessary steps have been taken and are in force to assure that production units of the same equipment will continue to comply with the Commission's requirements.

U.S. RESPONSIBLE PARTY	Samsung Electronics America, Inc.QA Lab America19 Chapin Rd. Building D Pine Brook NJ 07058
CONTACT PERSON	Ms. Jenni Chun, General ManagerRegulatory & Environmental AffairsE-Mail : [e-mail] : 1-973-808-6375 Fax : [phone]

English86

DECLARATION OF CONFORMITY

According to Sec. 2.1077, 47 CFR of the FCC Rules.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Equipment EUT Type Other Class B digital devices & peripherals
Kind of product Refrigerator-Freezer
Trade Name SAMSUNG
Model RF28NHEDBSR
Variant Model	RF28NHE****(The symbol “*” can be any alphanumeric character.)
Applied Rules 47 CFR	Part 15, Subpart B / ANSI C63.4-2014
Manufacturer	Samsung Electronics Co., Ltd.(Maetan dong) 129, Samsung-ro, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do 16677 Korea

We hereby declare that the equipment bearing the trade name and model number specified above was tested conforming to the applicable FCC Rules under the most accurate measurement standards possible, and that all the necessary steps have been taken and are in force to assure that production units of the same equipment will continue to comply with the Commission's requirements.

U.S. RESPONSIBLE PARTY	Samsung Electronics America, Inc.QA Lab America19 Chapin Rd. Building D Pine Brook NJ 07058
CONTACT PERSON	Ms. Jenni Chun, General ManagerRegulatory & Environmental AffairsE-Mail : [e-mail] : 1-973-808-6375 Fax : [phone]

Scan this with your smartphone

Scan the QR code* or visit www.samsung.com/spsn to view our helpful How-to Videos and Live Shows

* Requires reader to be installed on your smartphone

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG Customer Care Center.

Country Contact Center Web Site
U.S.A	1-800-SAMSUNG (726-7864)1-844-SAM-PAYS (726-7297)	www.samsung.com/us/support
CANADA	1-800-SAMSUNG (726-7864)1-844-SAM-PAYS (726-7297)	www.samsung.com/ca/support (English)www.samsung.com/ca_fr/support (French)

DA68-02897C-02

Refrigerador

Manual del usuario

Illustration of two refrigerators with directional arrows indicating movement, one marked with a prohibition sign (no text or symbols on the devices themselves)

Diagram of a mechanical assembly with mounting holes and a directional arrow (no text or symbols)

Mechanical assembly diagram showing clamping mechanism with arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with rotating arrow and component placement (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a bracket with an arrow indicating direction (no text or symbols)

Diagram of a refrigerator interior showing the door, drawer, and shelf (no text or symbols)

Puerta derecha

Mechanical assembly diagram showing a bracket with arrows indicating motion direction (no text or symbols)

Mechanical assembly diagram showing a clamping mechanism with no visible text or symbols

Mechanical assembly diagram showing a bracket with mounting flange and a black arrow indicating a component (no text or symbols present)

Mechanical assembly diagram showing a component being inserted into a housing (no text or symbols visible)

Diagram of a refrigerator with an open door and stackers, showing a black upward arrow indicating direction (no text or symbols present)

Line drawing of a refrigerator drawer with an arrow indicating the handle (no text or symbols present)

Diagram showing a mechanical assembly with an inset magnified view of a component being inserted (no text or symbols present)

Technical diagram showing a mechanical assembly with directional arrows and a magnified inset of a component (no text or symbols)

Diagram showing a mechanical assembly with an inset magnified view of a component (no text or symbols)

Diagram of a refrigerator drawer with an arrow indicating direction (no text or symbols present)

Diagram of a refrigerator drawer with an inset showing a mechanical component (no text or symbols)

PRECAUCIÓN

Diagram of a refrigerator drawer with an arrow indicating direction (no text or symbols present)

Two technical diagrams showing a device on a rail track with a prohibition sign, no text or symbols present.

Diagram showing a mechanical device with a circular inset view of its internal components (no text or symbols)

Two abstract curved shapes resembling stylized letters or symbols, rendered in grayscale without any text or labels.

Line drawing of a refrigerator with open doors and side drawers (no text or symbols)

Technical diagram showing a mechanical component with a labeled section A, no text or symbols present

Technical line drawing of a mechanical component with two circular features and a central gap (no text or symbols)

Diagram showing a refrigerator with a screwdriver and directional arrow indicating rotation or adjustment, labeled with '52' at the bottom.

Diagram showing a door handle mechanism with a magnified inset highlighting the component's direction and movement.

Diagram of a door with a curved arrow indicating direction, showing internal components and mounting brackets (no text or symbols)

PRECAUCIÓN

Technical diagram of a mechanical assembly with arrows indicating motion or force (no text or symbols)

Line drawing of a refrigerator door with handle and drawer (no text or symbols)

Diagram of a refrigerator door with a black arrow pointing to the side panel (no text or symbols present)

Diagram showing a door handle with a magnified inset highlighting a curved arrow (no text or symbols present)

Diagram showing a mechanical or electrical component with labeled parts A and B, including a coiled cable and directional arrow.

Safety warning illustration showing a pipe knot with a circle and a prohibition sign, indicating no protection or disapproval.

NOTA

Diagram of a mechanical component with an arrow indicating direction, no text or symbols present

Line drawing of a hand inserting a small component into a device housing (no text or symbols)

Simple line drawing of a container with a rectangular slot and liquid inside (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating a specific part (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a mechanical assembly with a rotating component and directional arrow (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with internal components (no text or symbols)

Diagram of a device with a slide and frame, showing a black arrow indicating rotation (no text or symbols present)

Diagram showing a metal bracket being inserted into a wall, with an arrow indicating the direction (no text or symbols present)

Diagram showing a device with directional arrows and a magnified inset highlighting a component, likely illustrating a mechanical or electrical assembly.

Diagram of a mechanical component with a black arrow indicating direction, no text or symbols present

Mechanical assembly diagram showing a bracket with a black arrow indicating force or motion (no text or symbols present)

Mechanical assembly diagram showing a clamping device with a black arrow indicating force or motion (no text or symbols present)

Diagram of a mechanical assembly with two components and an arrow indicating direction (no text or symbols)

Diagram of a door frame with an open lid and hanging hook, showing directional arrows (no text or symbols)

Diagram of a refrigerator drawer with an arrow indicating rotation or movement (no text or symbols present)

Technical line drawing of a rectangular electronic device with internal components and directional arrows (no text or symbols)

Technical diagram of a mechanical assembly with directional arrows indicating motion (no text or symbols)

Technical line drawing of a rectangular tray with an arrow indicating upward movement (no text or symbols)

Diagram showing a device with labeled components and a downward arrow indicating process or transformation.

Illustration of a file drawer with an arrow pointing to a document inside, showing no text or symbols on the main object.

Diagram of a refrigerator interior showing internal compartments and a close-up of the door handle (no text or symbols)

NOTA

Diagram showing a cylindrical object being inserted into a panel, with arrows indicating direction (no text or symbols present)

Mechanical assembly diagram showing a cylindrical component inserted into a bracket with an arrow indicating direction (no text or symbols)

Español68

Aleteo Runrún

Ridgefield Park, NJ 07660

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

Français14-

Illustration of two refrigerators with directional arrows indicating movement, one marked with a prohibition sign (no text or symbols on the devices themselves)

Diagram of a battery rear panel with mounting holes and a black arrow indicating direction (no text or symbols)

Diagram showing mechanical components with directional arrows and a magnified inset of a cylindrical component (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with motion arrows (no text or symbols)

Technical line drawing of a mechanical assembly with a lever and base plate (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction, no text or symbols present

Diagram of a refrigerator interior showing the door, drawer, and shelf (no text or symbols)

Porte droite

Diagram of a mechanical assembly with arrows indicating direction (no text or symbols)

Mechanical assembly diagram showing a clamping mechanism with no visible text or symbols

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Mechanical assembly diagram showing a component being inserted into a housing (no text or symbols visible)

Diagram of an open refrigerator with a stack of shelves and a black upward arrow indicating direction (no text or symbols)

Diagram of a door drawer with an arrow indicating direction (no text or symbols present)

Diagram of a refrigerator drawer with an inset showing a mechanical component (no text or symbols)

Diagram of a refrigerator drawer with an arrow indicating a file or folder (no text or symbols present)

Technical diagram of a mechanical assembly with a black arrow indicating direction (no text or symbols present)

Line drawing of a refrigerator drawer with an arrow indicating a directional change (no text or symbols present)

Diagram showing two connected devices with a magnified inset of a device component (no text or symbols)

Diagram of a refrigerator drawer with an arrow indicating direction (no text or symbols present)

Two technical diagrams showing a device on a conveyor belt with a prohibition sign, no text or symbols present.

Diagram showing a mechanical device with rotating components and a magnified circular view of the main component (no text or symbols)

Two abstract curved shapes resembling stylized letters or symbols, no text or labels present

Line drawing of a refrigerator with doors, drawers, and a handle (no text or symbols)

Technical diagram showing a mechanical component with a labeled section A pointing to a curved component (no text or symbols present)

Installation

Technical line drawing of a mechanical component with two circular features and a central gap (no text or symbols)

Diagram showing a refrigerator with a screwdriver and directional arrow indicating rotation or adjustment, labeled with '10' and '12'

Diagram showing a door handle mechanism with a magnified inset highlighting a component with a plus sign and directional arrows.

Diagram of a door with a handle and arrow indicating direction (no text or symbols)

ATTENTION

Technical diagram of a mechanical assembly with arrows indicating motion or force (no text or symbols present)

Line drawing of a refrigerator door with handle and drawer (no text or symbols)

Line drawing of a refrigerator door with a black arrow pointing to the side panel (no text or symbols)

Diagram showing a door handle with a magnified inset illustrating the right-hand rule of rotation (no text or symbols present)

Diagram showing a mechanical assembly with labeled components A and B, including a spring and cable connection.

Safety warning illustration showing a pipe knot with a circle and a no-smoking symbol

Diagram of a mechanical component with an arrow indicating direction, no text or symbols present

Line drawing of a hand inserting a small component into a device (no text or symbols)

Simple line drawing of a container with a rectangular slot and liquid inside (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating a specific part (no text or symbols present)

Technical line drawing of a mechanical assembly with rotating components (no text or symbols)

Diagram showing a mechanical assembly with a rotating component and directional arrow (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with internal components (no text or symbols)

Diagram of a device with a slide and frame, showing a folding view and a black arrow indicating rotation (no text or symbols)

Diagram showing a metal bracket being inserted into a wall, with an arrow indicating the direction (no text or symbols present)

Diagram showing a device with directional arrows and a magnified inset highlighting a component, likely illustrating a mechanical or electrical assembly.

Diagram of a mechanical component with a black arrow indicating direction, no text or symbols present

Mechanical assembly diagram showing a bracket with a black arrow indicating force or motion (no text or symbols present)

Mechanical assembly diagram showing a clamping mechanism with a black arrow indicating force or motion (no text or symbols present)

Diagram of a mechanical assembly with two components and an arrow indicating direction (no text or symbols)

Diagram of a mechanical device with arrows indicating assembly or movement, showing a sloped surface and hanging weights (no text or symbols present)

Diagram of a refrigerator drawer with an arrow indicating rotation or movement (no text or symbols present)

Technical line drawing of a rectangular electronic device with internal components and directional arrows (no text or symbols)

Technical diagram of a mechanical assembly with directional arrows indicating motion (no text or symbols)

Isometric line drawing of a rectangular container with internal structure and an arrow indicating upward motion (no text or symbols)

Diagram showing a device with labeled components and a downward arrow indicating process or transformation.

Illustration of a drawer with a magnified inset showing a folded document or folder (no text or symbols present)

Line drawing of an open refrigerator with a hand valve inserted, showing internal compartments and a close-up of the door (no text or symbols)

REMARQUE

Diagram of a mechanical assembly with directional arrows indicating motion or force (no text or symbols)

Diagram of a mechanical assembly with a cylindrical component inserted into a bracket (no text or symbols visible)

Français66.

Samsung Electronics Canada Inc.

2050 Derry Road West,

Mississauga, Ontario L5N 0B9

Canada

www.samsung.com/ca/support (English)

www.samsung.com/ca_fr/support (French)
