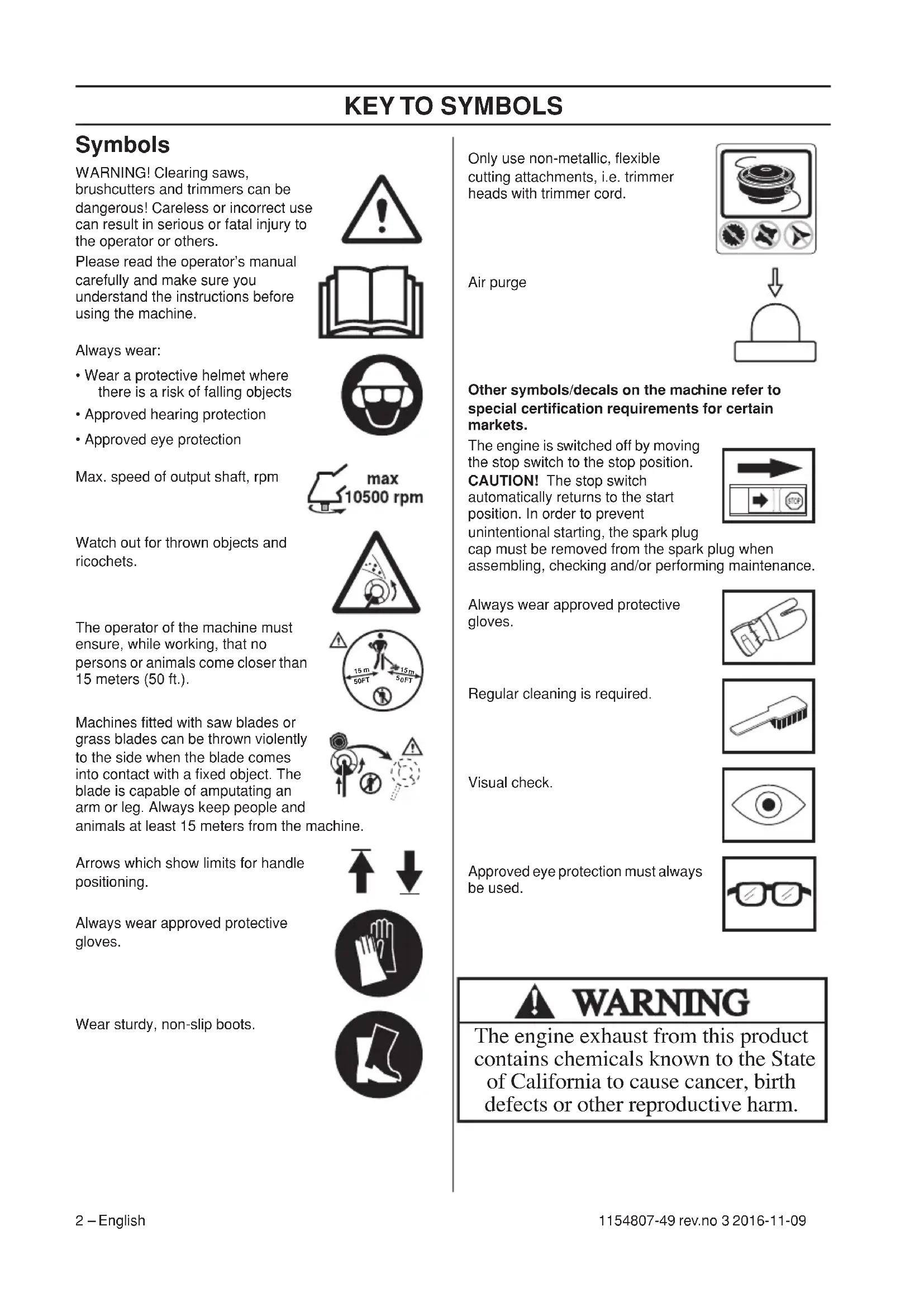

KEY TO SYMBOLS

Symbols

WARNING! Clearing saws, brushcutters and trimmers can be dangerous! Careless or incorrect use can result in serious or fatal injury to the operator or others.

Please read the operator's manual carefully and make sure you understand the instructions before using the machine.

Always wear:

• Wear a protective helmet where there is a risk of falling objects
  • Approved hearing protection
  • Approved eye protection

Max. speed of output shaft, rpm

Watch out for thrown objects and ricochets.

The operator of the machine must ensure, while working, that no persons or animals come closer than 15 meters (50 ft.).

Machines fitted with saw blades or grass blades can be thrown violently to the side when the blade comes into contact with a fixed object. The blade is capable of amputating an arm or leg. Always keep people and animals at least 15 meters from the

Arrows which show limits for handle positioning.

Always wear approved protective gloves.

Wear sturdy, non-slip boots.

Only use non-metallic, flexible cutting attachments, i.e. trimmer heads with trimmer cord.

Air purge

Other symbols/decals on the machine refer to special certification requirements for certain markets.

The engine is switched off by moving the stop switch to the stop position.

CAUTION! The stop switch automatically returns to the start position. In order to prevent unintentional starting, the spark plug cap must be removed from the spark plug when assembling, checking and/or performing maintenance.

Always wear approved protective gloves.

Regular cleaning is required.

Visual check.

Approved eye protection must always be used.

WARNING

The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

CONTENTS

Contents

KEY TO SYMBOLS

Symbols 2

CONTENTS

Contents 3

Note the following before starting: 3

INTRODUCTION

Dear customer! 4

WHAT IS WHAT?

What is what on the brush cutter? 5

GENERAL SAFETY PRECAUTIONS

Important 6

Personal protective equipment 6

Machine's safety equipment 7

Cutting equipment 10

ASSEMBLY

Fitting the handlebar 12

Assembling and dismantling the two-piece shaft . 12

Assembling the cutting equipment 13

Fitting a blade guard, grass blade and grass cutter 13

Fitting the blade guard and saw blade 14

Fitting other guards and cutting attachments ..... 14

Adjusting the harness and brush cutter 15

Standard harness 15

FUEL HANDLING

Fuel safety 16

Fuel 16

Fueling 17

STARTING AND STOPPING

Check before starting 18

Starting and stopping 18

WORKING TECHNIQUES

General working instructions 20

MAINTENANCE

Carburetor 24

Muffler 24

Cooling system 25

Spark plug 25

Air filter 25

Maintenance schedule 27

TECHNICAL DATA

Technical data 28

FEDERAL AND CALIFORNIA EMISSIONS CONTROL WARRANTY STATEMENT

YOUR WARRANTY RIGHTS AND OBLIGATIONS 30

Note the following before starting:

Please read the operator's manual carefully.

Maintenance, replacement, or repair of the emission control devices and system may be performed by any nonroad engine repair establishment or individual.

WARNING! Long-term exposure to noise can result in permanent hearing impairment. So always use approved hearing protection.

WARNING! Under no circumstances may the design of the machine be modified without the permission of the manufacturer. Always use genuine accessories. Non-authorized modifications and/or accessories can result in serious personal injury or the death of the operator or others.

Your warranty may not cover damage or liability caused by the use of non-authorized accessories or replacement parts.

WARNING! A clearing saw, brushcutter or trimmer can be dangerous if used incorrectly or carelessly, and can cause serious or fatal injury to the operator or others. It is extremely important that you read and understand the contents of this operator's manual.

EMISSION CONTROL INFORMATION Husqvarna HUSQVARNA AB HUSKVARNA SWEDEN THIS ENGINE MEETS U S EPA AND CALIFORNIA EXH/EVP REGS FOR SORE . REFER TO OPERATOR'S MANUAL FOR MAINTENANCE SPECIFICATIONS AND ADJUSTMENTS. EMISSIONS COMPLIANCE PERIOD :

The Emissions Compliance Period referred to on the Emission Compliance label indicates the number of operating hours for which the engine has been shown to meet Federal and California emissions requirements.

INTRODUCTION

Dear customer!

Congratulations on your choice to buy a Husqvarna product! Husqvarna is based on a tradition that dates back to 1689, when the Swedish King Karl XI ordered the construction of a factory on the banks of the Huskvarna River, for production of muskets. The location was logical, since water power was harnessed from the Huskvarna River to create the water-powered plant. During over 300 years of continuous operation, the Husqvarna factory has produced a lot of different products, from wood stoves to modern kitchen appliances, sewing machines, bicycles, motorcycles etc. In 1956, the first motor driven lawn mowers appeared, followed by chain saws in 1959, and it is within this area Husqvarna is working today.

Today Husqvarna is one of the leading manufacturers in the world of forest and garden products, with quality as our highest priority. We develop, manufacture and market high quality motor driven products for forestry and gardening as well as for building and construction industry.

Your purchase gives you access to professional help with repairs and service whenever this may be necessary. If the retailer who sells your machine is not one of our authorized dealers, ask for the address of your nearest servicing dealer.

It is our wish that you will be satisfied with your product and that it will be your companion for a long time. Think of this operator's manual as a valuable document. By following its content (using, service, maintenance etc) the life span and the second-hand value of the machine can be extended. If you ever lend or sell this machine, make sure that the borrower or buyer gets the operator's manual, so they will also know how to properly maintain and use it.

Thank you for using a Husqvarna product.

Husqvarna AB has a policy of continuous product development and therefore reserves the right to modify the design and appearance of products without prior notice.

WHAT IS WHAT?

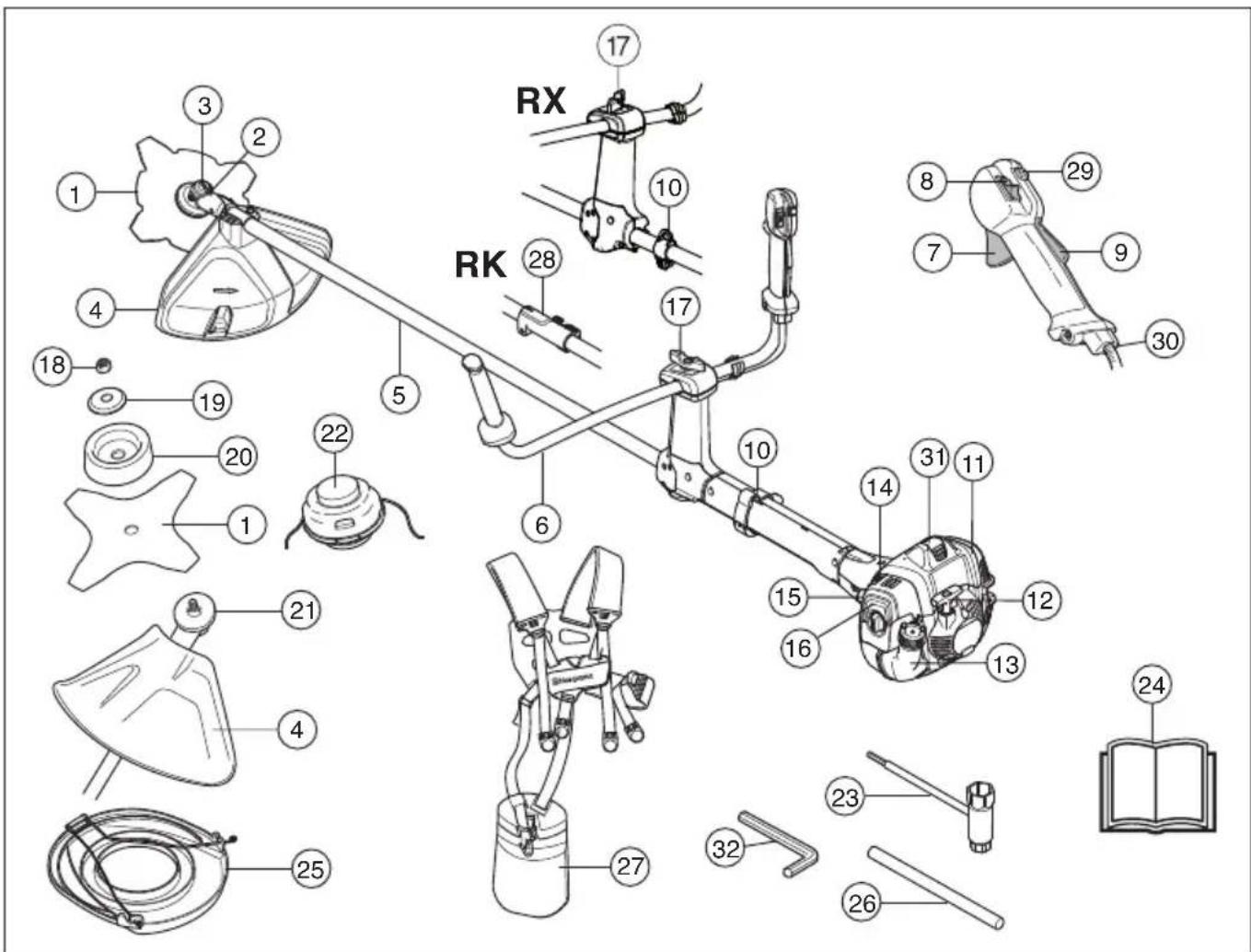

Technical diagram of a mechanical assembly with numbered components and labeled parts

What is what on the brush cutter?

1 Blade
2 Grease filler cap, bevel gear
3 Bevel gear
4 Cutting attachment guard
5 Shaft
6 Handlebar
7 Throttle trigger
8 Stop switch
9 Throttle trigger lockout
10 Suspension
11 Cylinder cover
12 Starter handle
13 Fuel tank
14 Choke control
15 Air purge
16 Air filter cover

17 Handle adjustment
18 Locking nut
19 Support flange
20 Support cup
21 Drive disc
22 Trimmer head
23 Socket spanner
24 Operator's manual
25 Transport guard
26 Locking pin
27 Harness
28 Shaft coupling (525RK)
29 Start throttle button
30 Adjusting screw for throttle cable
31 Spark plug cap and spark plug
32 Allen key

Important

IMPORTANT!

The machine is only designed for trimming grass, grass clearing and/or forestry clearing.

National or local regulations may regulate the use. Comply to given regulations.

The only accessories you can operate with this engine unit are the cutting attachments we recommend in the chapter on Technical data.

Never use the machine if you are tired, if you are ill, if you have consumed alcohol, or if you are taking other drugs or medication that can affect your vision, judgement or co-ordination.

Wear personal protective equipment. See instructions under the heading "Personal protective equipment".

Never use a machine that has been modified in any way from its original specification.

Never use a machine that is faulty. Carry out the safety checks, maintenance and service instructions described in this manual. Some maintenance and service measures must be carried out by trained and qualified specialists. See instructions under the heading Maintenance.

All covers, guards and handles must be fitted before starting. Ensure that the spark plug cap and ignition lead are undamaged to avoid the risk of electric shock.

The machine operator must ensure that no people or animals come closer than 15 meters while working. When several operators are working in the same area the safety distance should be at least twice the tree height and no less than 15 meters.

Do an overall inspection of the machine before use, see maintenance schedule.

WARNING! This machine produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants consult their physician and the medical implant manufacturer before operating this machine.

WARNING! Running an engine in a confined or badly ventilated area can result in death due to asphyxiation or carbon monoxide poisoning.

WARNING! Never allow children to use or be in the vicinity of the machine. As the machine is equipped with a spring-loaded stop switch and can be started by low speed and force on the starter handle, even small children under some circumstances can produce the force necessary to start the machine. This can mean a risk of serious personal injury. Therefore remove the spark plug cap when the machine is not under close supervision.

Personal protective equipment

IMPORTANT!

A clearing saw, brushcutter or trimmer can be dangerous if used incorrectly or carelessly, and can cause serious or fatal injury to the operator or others. It is extremely important that you read and understand the contents of this operator's manual.

You must use approved personal protective equipment whenever you use the machine. Personal protective equipment cannot eliminate the risk of injury but it will reduce the degree of injury if an accident does happen. Ask your dealer for help in choosing the right equipment.

WARNING! Listen out for warning signals or shouts when you are wearing hearing protection. Always remove your hearing protection as soon as the engine stops.

HELMET

Wear a protective helmet where there is a risk of falling objects

HEARING PROTECTION

Wear hearing protection that provides adequate noise reduction.

EYE PROTECTION

Always wear approved eye protection. If you use a visor then you must also wear approved protective goggles. Approved protective goggles must comply with standard ANSI Z87.1 in the USA or EN 166 in EU countries.

GENERAL SAFETY PRECAUTIONS

GLOVES

Gloves should be worn when necessary, e.g., when fitting cutting attachments.

BOOTS

Wear boots with steel toe-caps and non-slip sole.

CLOTHING

Wear clothes made of a strong fabric and avoid loose clothing that can catch on twigs and branches. Always wear heavy, long pants. Do not wear jewellery, shorts sandals or go barefoot. Secure hair so it is above shoulder level.

FIRST AID KIT

Always have a first aid kit nearby.

Machine's safety equipment

This section describes the machine's safety equipment, its purpose, and how checks and maintenance should be carried out to ensure that it operates correctly. See the "What is what?" section to locate where this equipment is positioned on your machine.

The life span of the machine can be reduced and the risk of accidents can increase if machine maintenance is not carried out correctly and if service and/or repairs are not carried out professionally. If you need further information please contact your nearest servicing dealer.

IMPORTANT!

All servicing and repair work on the machine requires special training. This is especially true of the machine's safety equipment. If your machine fails any of the checks described below you must contact your service agent. When you buy any of our products we guarantee the availability of professional repairs and service. If the retailer who sells your machine is not a servicing dealer, ask him for the address of your nearest service agent.

WARNING! Never use a machine with faulty safety equipment. The machine's safety equipment must be checked and maintained as described in this section. If your machine fails any of these checks contact your service agent to get it repaired.

Throttle trigger lockout

The throttle lockout is designed to prevent accidental operation of the throttle control. When you press the lock (A) (i.e. when you grasp the handle) it releases the throttle control (B). When you release the handle the throttle control and the throttle lockout both move back to their original positions. This movement is controlled by two independent return springs. This arrangement means that the throttle control is automatically locked at the idle setting.

A B

Make sure the throttle control is locked at the idle setting when the throttle lockout is released.

Illustration of a robotic arm with a curved arrow indicating motion (no text or symbols)

Press the throttle lockout and make sure it returns to its original position when you release it.

Line drawing of a mechanical device with an arrow indicating upward motion (no text or symbols)

GENERAL SAFETY PRECAUTIONS

Check that the throttle trigger and throttle lockout move freely and that the return springs work properly.

Illustration of a robotic arm with directional arrows indicating motion (no text or symbols)

See instructions under the heading Start. Start the machine and apply full throttle. Release the throttle and check that the cutting attachment stops and remains at a standstill. If the cutting attachment rotates with the throttle in the idle position then the carburettor idle setting must be checked. See instructions under the heading Maintenance.

Illustration of a worker in hard hat and gloves handling a large object (no text or symbols visible)

Stop switch

Use the stop switch to switch off the engine.

Line drawing of a mechanical tool or device with a black arrow pointing to a component (no text or symbols present)

Start the engine and make sure the engine stops when you move the stop switch to the stop setting.

Cutting attachment guard

This guard is intended to prevent loose objects from being thrown towards the operator. The guard also protects the

operator from accidental contact with the cutting attachment.

Check that the guard is undamaged and not cracked. Replace the guard if it has been exposed to impact or is cracked.

Always use the recommended guard for the cutting attachment you are using. See chapter on Technical data.

WARNING! Never use a cutting attachment without an approved guard. See the chapter on Technical data. If an incorrect or faulty guard is fitted this can cause serious personal injury.

Vibration damping system

Your machine is equipped with a vibration damping system that is designed to reduce vibration and make operation easier.

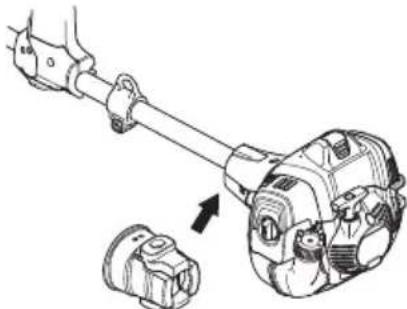

Mechanical assembly diagram showing a shaft and housing with an arrow indicating motion (no text or symbols present)

Use of incorrectly wound cord or an incorrect cutting attachment increases the level of vibration. See instructions under the heading Cutting equipment.

The machine's vibration damping system reduces the transfer of vibration between the engine unit/cutting equipment and the machine's handle unit.

Regularly check the vibration damping units for cracks or deformation. Check that the vibration damping element is undamaged and securely attached.

WARNING! Overexposure to vibration can lead to circulatory damage or nerve damage in people who have impaired circulation. Contact your doctor if you experience symptoms of overexposure to vibration. These symptoms include numbness, loss of feeling, tingling, pricking, pain, loss of strength, changes in skin colour or condition. These symptoms normally appear in the fingers, hands or wrists.

GENERAL SAFETY PRECAUTIONS

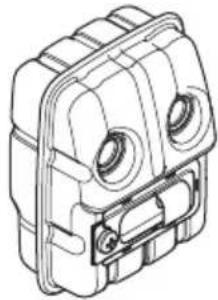

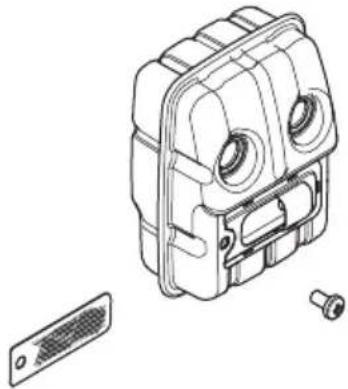

Muffler

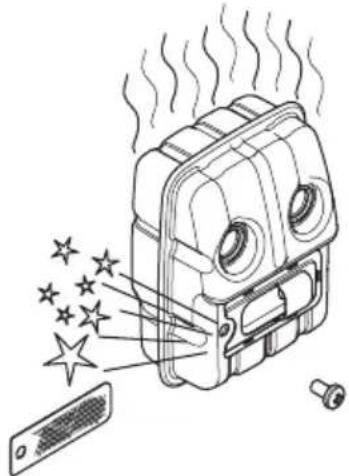

The muffler is designed to keep noise levels to a minimum and to direct exhaust fumes away from the user. A muffler fitted with a catalytic converter is also designed to reduce harmful exhaust gases.

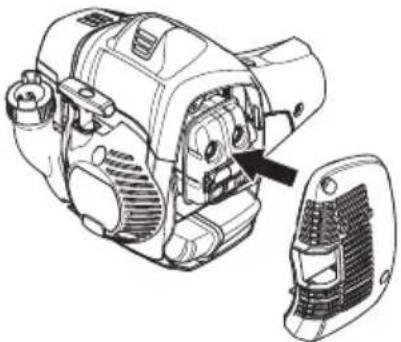

Technical line drawing of a mechanical component with circular features and mounting brackets (no text or symbols)

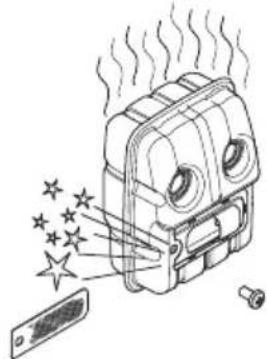

In countries that have a warm and dry climate there is a significant risk of fire. We therefore fit certain mufflers with a spark arrestor screen. Check whether the muffler on your machine is fitted with this kind of screen.

Illustration of a device emitting steam with sparkles and a small panel nearby (no text or symbols)

For mufflers it is very important that you follow the instructions on checking, maintaining and servicing your machine.

Never use a machine that has a faulty muffler.

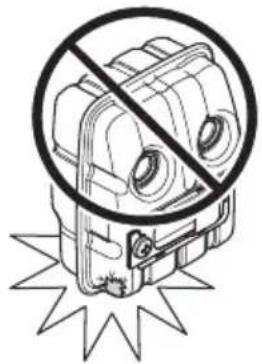

Diagram of a device with a crossed-out circular border and explosion effect (no text or symbols)

Regularly check that the muffler is securely attached to the machine.

Technical line drawing of a mechanical component with a handle and housing (no text or symbols)

If the muffler on your machine is fitted with a spark arrestor screen this must be cleaned regularly. A blocked screen will cause the engine to overheat and may lead to serious damage.

Technical line drawing of a mechanical component with no visible text or symbols

NOTE!

Make sure that the spark arrestor is screwed in place correctly.

WARNING! Mufflers fitted with catalytic converters get very hot during use and remain so for some time after stopping. This also applies at idle speed. Contact can result in burns to the skin. Remember the risk of fire!

WARNING! The inside of the muffler contain chemicals that may be carcinogenic. Avoid contact with these elements in the event of a damaged muffler.

WARNING! Bear in mind that:

The exhaust fumes from the engine are hot and may contain sparks which can start a fire. Never start the machine indoors or near combustible material!

GENERAL SAFETY PRECAUTIONS

Cutting equipment

This section describes how to choose and maintain your cutting equipment in order to:

• Reduce the risk of blade thrust.
• Obtain maximum cutting performance.
• Extend the life of cutting equipment.

IMPORTANT!

Only use cutting attachments with the guards we recommend! See the chapter on Technical data.

Refer to the instructions for the cutting attachment to check the correct way to load the cord and the correct cord diameter.

Keep the teeth of the blade correctly sharpened! Follow our recommendations. Also refer to the instructions on the blade packaging.

Maintain the correct blade setting! Follow our instructions and use the recommended file gauge.

WARNING! Always stop the engine before doing any work on the cutting attachment. This continues to rotate even after the throttle has been released. Ensure that the cutting attachment has stopped completely and disconnect the spark plug cap before you start to work on it.

WARNING! Using an incorrect cutting attachment or an incorrectly sharpened blade increases the risk of blade thrust.

Cutting equipment

Saw blades are intended for cutting fibrous types of wood.

Grass blades and grass knives are intended for cutting coarse grass.

A trimmer head is intended for trimming grass.

Line drawing of a cylindrical container with two handles, no text or symbols present

General rules

Only use cutting attachments with the guards we recommend! See the chapter on Technical data.

Simple line drawing of a triangular shape and a cylindrical object with a coiled cable (no text or symbols)

Keep the teeth of the blade correctly sharpened! Follow our instructions and use the recommended file gauge. An incorrectly sharpened or damaged blade increases the risk of accidents.

Diagram showing a tool interacting with a shield-like object, no text or symbols present

Keep the correct setting on the saw blade! Follow our instructions and use the recommended setting tool. An incorrectly set saw blade increases the risk of jamming and blade thrust, and damage to the saw blade.

Line drawing of a stylus or pipette with a textured base and pointed tip (no text or symbols)

Hand holding a tool with a curved arrow indicating rotation or movement (no text or symbols)

Check the cutting attachment for damage or cracks. A damaged cutting attachment should always be replaced.

Sharpening grass knives and grass blades

• See the cutting attachment packaging for correct sharpening instructions. Sharpen blades and cutters using a single-cut flat file.

GENERAL SAFETY PRECAUTIONS

- Sharpen all edges equally to maintain the balance of the blade.

Two diagrams showing a tool interacting with a shield-like shape, one with an arrow indicating direction (no text or symbols)

WARNING! Always discard a blade that is bent, twisted, cracked, broken or damaged in any other way. Never attempt to straighten a twisted blade so that it can be reused. Only use original blades of the specified type.

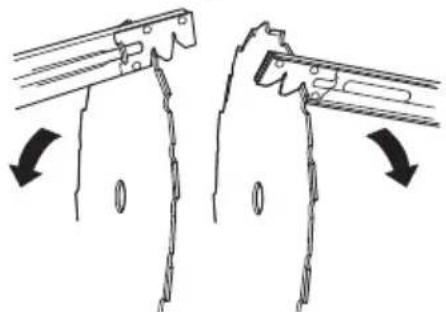

Sharpening the saw blade

• See the cutting attachment packaging for correct sharpening instructions.

A correctly sharpened blade is essential for working efficiently and to avoid unnecessary wear to the blade and brush cutter.

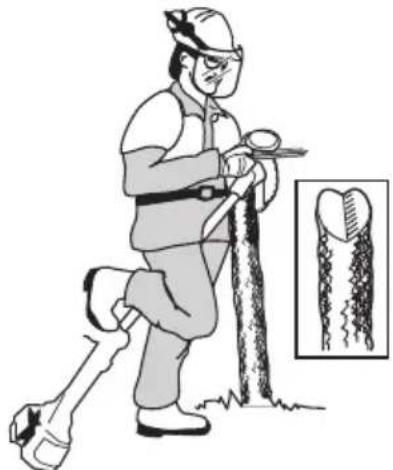

Illustration of a worker in safety gear handling a tool, with an inset showing detailed teeth structure (no text or symbols)

- Make sure that the blade is well supported when you file it. Use a 5.5 mm round file with a file holder.

- The filing angle is 15^ . File alternate teeth to the right and those in between to the left. If the blade has been heavily pitted by stones it may be necessary to dress the top edges of the teeth with a flat file, in exceptional cases. If so, this should be done before filing with a

round file. The top edges must be filed down by the same amount for all the teeth.

15°

Adjust the blade setting. This should be 1 mm.

Diagram showing two mechanical components with directional arrows indicating movement or force (no text or symbols)

Trimmer head

IMPORTANT!

Always ensure the trimmer cord is wound tightly and evenly around the drum, otherwise the machine will generate harmful vibration.

- Only use the recommended trimmer heads and trimmer cords. These have been tested by the manufacturer to suit a particular engine size. This is especially important when a fully automatic trimmer head is used. Only use the recommended cutting attachment. See the chapter on Technical data.

Three technical illustrations of mechanical components: a cylindrical motor, a flat plate with a circular symbol, and a coiled cylindrical component (no text or symbols present)

- Smaller machines generally require small trimmer heads and vice versa. This is because when clearing using a cord the engine must throw out the cord radially from the trimmer head and overcome the resistance of the grass being cleared.

- The length of the cord is also important. A longer cord requires greater engine power than a shorter cord of the same diameter.

- Make sure that the cutter on the trimmer guard is intact. This is used to cut the cord to the correct length.

• To increase the life of the cord it can be soaked in water for a couple of days before use. This will make the cord tougher so that it lasts longer.

ASSEMBLY

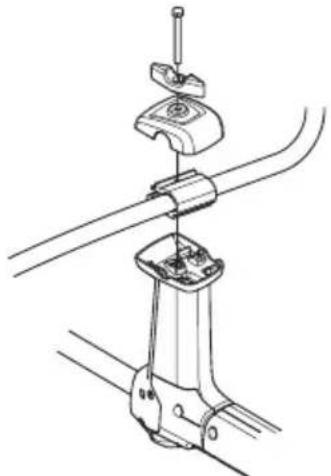

Fitting the handlebar

• Remove the screw at the rear of the throttle handle.
• Slide the throttle handle onto the right side of the handlebar, (see diagram).

Line drawing of a mechanical tool with a downward arrow indicating motion or force (no text or symbols)

• Align the screw hole in the throttle handle with the hole in the handlebar.
• Refit the screw in the hole in the rear of the throttle handle.
• Screw the screw through the handle and handlebar. Tighten it.

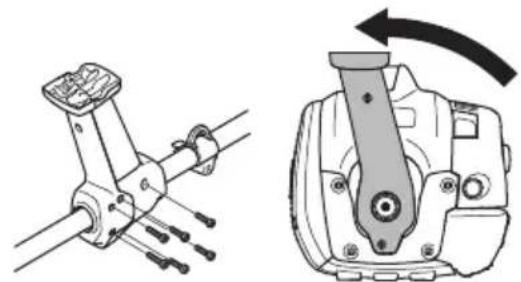

• Loosen the screws on the handle bar bracket.
• Position the handle bar bracket as shown.

Technical illustration of a mechanical device with lever mechanism and rotation arrow (no text or symbols)

• Tighten the screws.
• Unscrew the knob from the handlebar mounting.
• Position the handlebar as shown. Fit the mounting components and tighten the knob lightly.

Technical line drawing of a mechanical clamp or bracket assembly with no visible text or symbols

- Put on the harness and hang the machine from the support hook. Now make a final adjustment so that the machine is in a comfortable working position when it hangs from the harness. Tighten the knob.

Illustration of a person wearing a helmet and holding a long tool, with motion lines indicating movement (no text or symbols)

Assembling and dismantling the two-piece shaft (525RK)

Assembly

• Loosen the coupling by turning the knob counterclockwise.
• Align the tab of the attachment (A) with the arrow on the coupling (B).

Technical line drawing of a mechanical component labeled A and B (no text or symbols beyond labels)

- Push the attachment into the coupling until the attachment snaps into place.

Technical line drawing of a mechanical clamp or bracket assembly with two directional arrows indicating movement (no text or symbols)

- Before using the unit, tighten the knob securely.

Mechanical clamp mechanism diagram showing a curved arrow indicating rotational motion (no text or symbols)

ASSEMBLY

Dismantling

- Loosen the coupling by turning the knob (at least 3 times).

Mechanical clamp assembly diagram showing a black strap and metal bracket (no text or symbols)

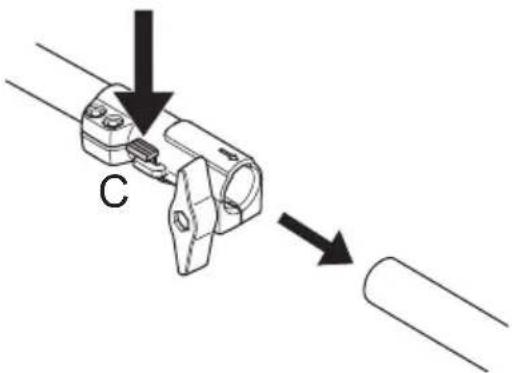

- Push and hold the button (C). While securely holding the engine end, pull the attachment straight out of the coupling.

Mechanical assembly diagram showing a connector labeled 'C' with directional arrows indicating movement (no text or symbols beyond label)

Assembling the cutting equipment

WARNING!

When fitting the cutting attachment it is extremely important that the raised section on the drive disc/support flange engages correctly in the centre hole of the cutting attachment. If the cutting attachment is fitted incorrectly it can result in serious and/or fatal personal injury.

Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present.

WARNING! Never use a cutting attachment without an approved guard. See the chapter on Technical data. If an incorrect or faulty guard is fitted this can cause serious personal injury.

IMPORTANT! If a saw blade or grass blade are to be used the machine must be equipped with the correct handlebar, blade guard and harness.

Fitting a blade guard, grass blade and grass cutter

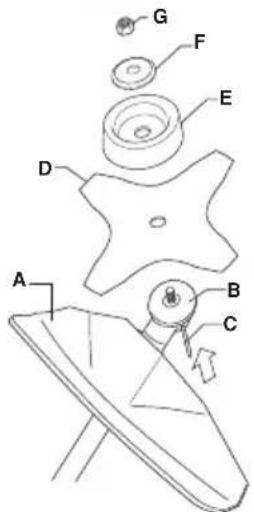

Technical diagram of a mechanical assembly with labeled parts A through G, showing exploded view and component layout.

- Hook the blade guard/combination guard (A) onto the fitting on the shaft and secure with the bolt. CAUTION! Use the recommended blade guard. See the Technical data section.

- Fit the drive disc (B) on the output shaft.

- Turn the output shaft until one of the holes in the drive disc aligns with the corresponding hole in the gear housing.

- Insert the locking pin (C) in the hole to lock the shaft.

- Place the blade (D), support cup (E) and support flange (F) on the output shaft.

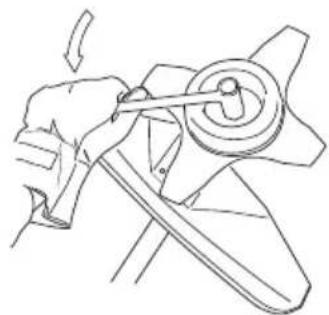

- Fit the nut (G). The nut must be tightened to a torque of 35-50 Nm (26-36 ft-lb). Use the spanner in the tool kit. Hold the shaft of the spanner as close to the blade guard as possible. To tighten the nut, turn the spanner in the opposite direction to the direction of rotation (Caution! left-hand thread).

Line drawing of a hand operating a propeller or fan mechanism (no text or symbols present)

ASSEMBLY

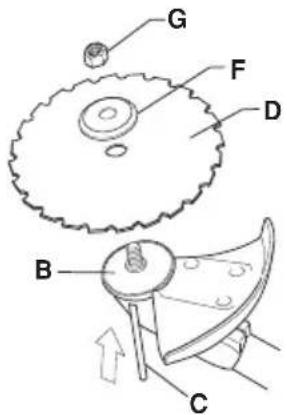

Fitting the blade guard and saw blade

Technical line drawing of two mechanical components with no visible text or symbols

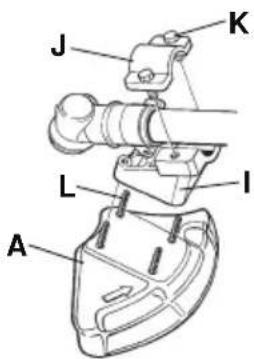

J K L I A

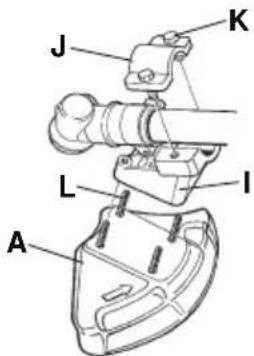

- Remove the mounting plate (H). Fit the adapter (I) and bracket (J) with the two screws (K) as shown. Fit the blade guard (A) to the adapter using the 4 screws (L) as shown.

CAUTION! Use the recommended blade guard. See the Technical data section.

G F D B C

• Fit the drive disc (B) on the output shaft.
• Turn the output shaft until one of the holes in the drive disc aligns with the corresponding hole in the gear housing.
• Insert the locking pin (C) in the hole to lock the shaft.
• Place the blade (D) and support flange (F) on the output shaft.
• Fit the nut (G). The nut must be tightened to a torque of 35-50 Nm (26-36 ft-lb). Use the spanner in the tool kit. Hold the shaft of the spanner as close to the blade guard as possible. To tighten the nut, turn the spanner

in the opposite direction to the direction of rotation (Caution! left-hand thread).

Line drawing of a hand operating a gear with a rotating wheel (no text or symbols)

- When loosening and tightening the saw blade nut, there is a risk of injury from the teeth of the saw blade. You should therefore always ensure that your hand is shielded by the blade guard when doing this. Always use a socket spanner with a shaft that is long enough to allow this. The arrow in the diagram shows the area where you should operate the socket spanner when loosening or tightening the nut.

Diagram of a mechanical tool interacting with a circular component, showing motion arrows (no text or symbols)

Fitting other guards and cutting attachments

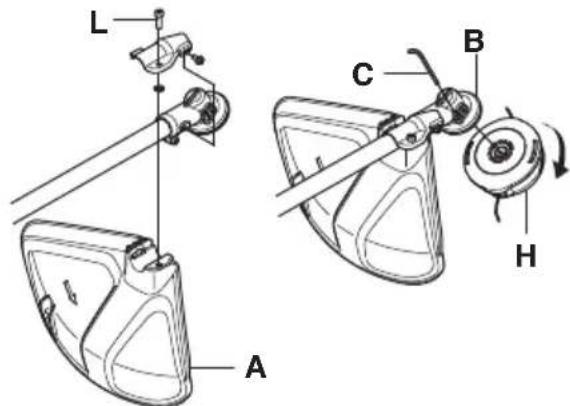

- Fit the trimmer guard/combination guard (A) intended for use with the trimmer head/plastic blades. Hook the guard onto the fitting on the shaft and secure it with the bolt (L).

L A C B H

• Fit the drive disc (B) on the output shaft.
- Turn the output shaft until one of the holes in the drive disc aligns with the corresponding hole in the gear housing.
- Insert the locking pin (C) in the hole to lock the shaft.

ASSEMBLY

- Screw on the trimmer head/plastic blades (H) in the opposite direction to the direction of rotation.

• To dismantle, follow the instructions in the reverse order.

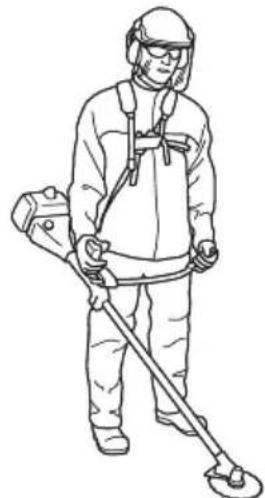

Adjusting the harness and brush cutter

WARNING! When using a brush cutter it must always be hooked securely to the harness. Otherwise you will be unable to control the brush cutter safely and this can result in injury to yourself or others. Never use a harness with a defective quick release.

Standard harness

Quick release

At the front is an easily accessible, quick release. Use this if the engine catches fire or in any other emergency situation that requires you to free yourself from the machine and harness.

Illustration of a person adjusting a belt buckle with arrows indicating motion (no text or symbols)

Spreading the load on your shoulders

A well-adjusted harness and machine makes work much easier. Adjust the harness for the best working position. Tension the side straps so that the weight is evenly distributed across both shoulders.

Cartoon illustration of a person with exaggerated facial features and downward arrows (no text or symbols)

Correct height

Adjust the shoulder strap so that the cutting attachment is parallel to the ground.

Illustration of a person wearing safety gear and holding a long-handled tool (no text or symbols)

Correct balance

Let the cutting attachment rest lightly on the ground. If you use a saw blade it should balance about 10 cm above the ground to prevent contact with stones and the like. Adjust the position of the suspension ring to balance the brush cutter correctly.

Illustration of a person using a power tool with motion arrows indicating movement (no text or symbols)

Fuel safety

Never start the machine:

1 If you have spilled fuel on it. Wipe off the spillage and allow remaining fuel to evaporate.
2 If you have spilled fuel on yourself or your clothes, change your clothes. Wash any part of your body that has come in contact with fuel. Use soap and water.
3 If the machine is leaking fuel. Check regularly for leaks from the fuel cap and fuel lines. In the event of leakage, contact your service agent.

Transport and storage

• Store and transport the machine and fuel so that there is no risk of any leakage or fumes coming into contact with sparks or open flames, for example, from electrical machinery, electric motors, electrical relays/ switches or boilers.
• When storing and transporting fuel always use approved containers intended for this purpose.
• When storing the machine for long periods the fuel tank must be emptied. Contact your local gas station to find out where to dispose of excess fuel. Drain the tank into the appropriate containers and in a well ventilated area.
• Ensure the machine is cleaned and that a complete service is carried out before long-term storage.
• The transport guard must always be fitted to the cutting attachment when the machine is being transported or in storage.
• Secure the machine during transport.
• In order to prevent unintentional starting of the engine, the spark plug cap must always be removed during long-term storage, if the machine is not under close supervision and when performing all service measures.
• Allow the hedge trimmer to cool down after use before putting it away for storage.

WARNING! Take care when handling fuel. Bear in mind the risk of fire, explosion and inhaling fumes.

Fuel

CAUTION! The machine is equipped with a two-stroke engine and must always be run using a mixture of gasoline and two-stroke engine oil. It is important to accurately measure the amount of oil to be mixed to ensure that the correct mixture is obtained. When mixing small amounts of fuel, even small inaccuracies can drastically affect the ratio of the mixture.

WARNING! Fuel and fuel fumes are highly inflammable and can cause serious injury when inhaled or allowed to come in contact with the skin. For this reason observe caution when handling fuel and make sure there is adequate ventilation.

WARNING! Always ensure there is adequate ventilation when handling fuel.

Gasoline

CAUTION! Always use a quality gasoline/oil mixture with an octane rating of at least 87 octane ((RON+MON)/2). If your machine is equipped with a catalytic converter (see chapter on Technical data) always use a good quality unleaded gasoline/oil mixture. Leaded gasoline will destroy the catalytic converter.

Use low-emission gasoline, also known as alkylate gasoline, if it is available.

Ethanol blended fuel, E10 may be used (max 10% ethanol blend). Using ethanol blends higher than E10 will create lean running condition which can cause engine damage.

This engine is certified to operate on unleaded gasoline.

• The lowest recommended octane grade is 87 ((RON+MON)/2). If you run the engine on a lower octane grade than 87 so-called knocking can occur. This gives rise to a high engine temperature and increased bearing load, which can result in serious engine damage.
• When working at continuous high revs a higher octane rating is recommended.

Two-stroke oil

• For best results and performance use HUSQVARNA two-stroke engine oil, which is specially formulated for our air-cooled two stroke-engines.
• Never use two-stroke oil intended for water-cooled engines, sometimes referred to as outboard oil (rated TCW).
• Never use oil intended for four-stroke engines.
• A poor oil quality and/or too high oil/fuel ratio may jeopardise function and decrease the life time of the catalytic converters.
• Mixing ratio 50:1 (2%) with HUSQVARNA two-stroke oil.

FUEL HANDLING

Gasoline, litre T	Two-stroke oil, litre
	2% (50:1)
5 0,10
10 0,20
15 0,30
20 0,40
US gallon US fl. oz.
1 2 1/2
2 1/2 6 1/2
5 12 7/8

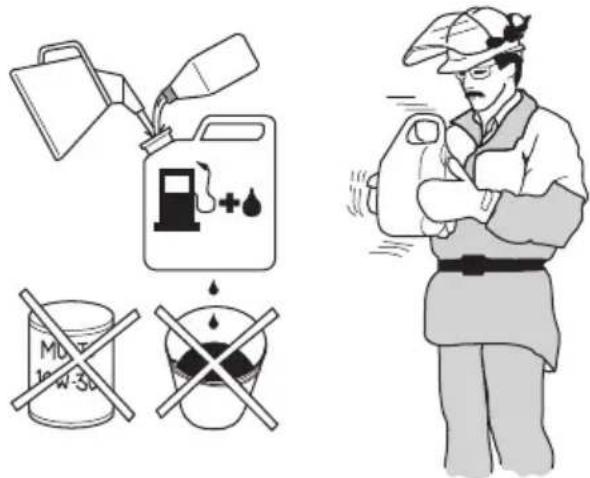

Mixing

• Always mix the gasoline and oil in a clean container intended for fuel.
• Always start by filling half the amount of the gasoline to be used. Then add the entire amount of oil. Mix (shake) the fuel mixture. Add the remaining amount of gasoline.
- Mix (shake) the fuel mixture thoroughly before filling the machine's fuel tank.

Illustration showing fuel and water safety symbols with accompanying text describing pollution control

• Do not mix more than one month's supply of fuel at a time.
• If the machine is not used for some time the fuel tank should be emptied and cleaned.

WARNING! The catalytic converter muffler gets very hot during and after use. This also applies during idling. Be aware of the fire hazard, especially when working near flammable substances and/or vapors.

Fueling

WARNING! Taking the following precautions, will lessen the risk of fire:

Mix and pour fuel outdoors, where there are no sparks or flames.

Do not smoke or place hot objects near fuel.

Always shut off the engine before refueling.

Always stop the engine and let it cool for a few minutes before refueling. Mix and pour fuel outdoors, where there are no sparks or flames. Refuel in a well ventilated area. Never fuel the machine indoors.

When refuelling, open the fuel cap slowly so that any excess pressure is released gently.

Tighten the fuel cap carefully after refueling.

Always move the machine away from the refueling area and source before starting.

• Always use a fuel container with an anti-spill valve.
- If you have spilled fuel on it. Wipe off the spillage and allow remaining fuel to evaporate.
- Clean the area around the fuel cap. Contamination in the tank can cause operating problems.
- Ensure that the fuel is well mixed by shaking the container before filling the tank.

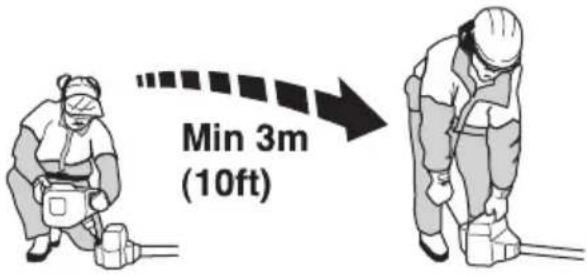

Min 3m (10ft)

STARTING AND STOPPING

Check before starting

Check the blade to ensure that no cracks have formed at the bottom of the teeth or by the centre hole. The most common reason why cracks are formed is that sharp corners have been formed at the bottom of the teeth while sharpening or that the blade has been used with dull teeth. Discard a blade if cracks are found.

Three hand-drawn diagrams showing different states of a surface with arrows indicating direction (no text or symbols)

- Check that the support flange is not cracked due to fatigue or due to being tightened too much. Discard the support flange if it is cracked.

Simple line drawing of a circular ring with a downward arrow pointing to its center (no text or symbols)

Ensure the locking nut has not lost its captive force. The nut lock should have a locking force of at least 1.5 Nm. The tightening torque of the locking nut should be 35-50 Nm.

- Check that the trimmer head and trimmer guard are not damaged or cracked. Replace the trimmer head or trimmer guard if they have been exposed to impact or are cracked.

Simple line drawing of a garment with a circular top and side panels (no text or symbols)

- Never use the machine without a guard nor with a defective guard.

- All covers must be correctly fitted and undamaged before you start the machine.

Starting and stopping

WARNING! The complete clutch cover and shaft must be fitted before the machine is started, otherwise the clutch can come loose and cause personal injury.

Always move the machine away from the refueling area and source before starting. Place the machine on a flat surface. Ensure the cutting attachment cannot come into contact with any object.

Make sure no unauthorised persons are in the working area, otherwise there is a risk of serious personal injury. The safety distance is 15 meters (50 ft.).

Starting

Cold engine

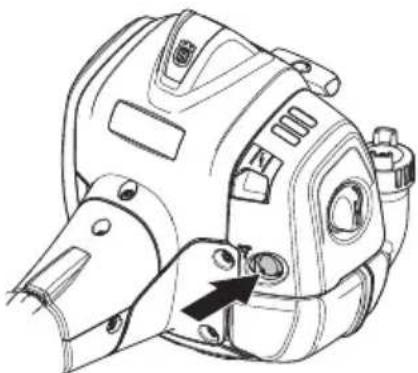

(1) Air purge: Press the air purge repeatedly until fuel begins to fill the bulb. The bulb need not be completely filled.

Technical line drawing of a mechanical device with a black arrow pointing to a component (no text or symbols present)

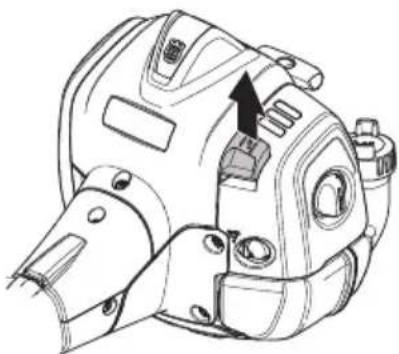

(2) Choke: Set the choke control in the choke position.

Technical line drawing of a mechanical device with a black arrow pointing to a component (no text or symbols present)

WARNING! When the engine is started with the choke in either the choke or start throttle positions the cutting attachment will start to rotate immediately.

STARTING AND STOPPING

Hold the body of the machine on the ground using your left hand (CAUTION! Not with your foot!).

(3) Grip the starter handle, slowly pull out the cord with your right hand until you feel some resistance (the starter pawls grip), now quickly and powerfully pull the cord.

Never wrap the starter cord around your hand

Repeat pulling the cord until engine attempts to start (or maximum 5 pulls).

(4) Move choke control down to run position.

(5) Pull the cord until engine starts and gradually operate throttle trigger for increasing engine speed to operate speed.

Warm engine

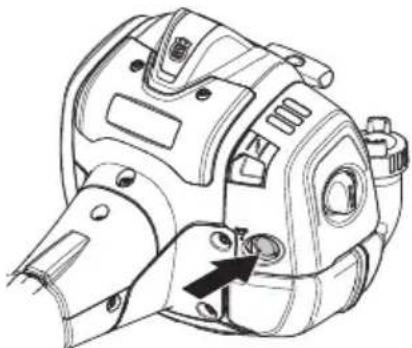

(1) Air purge: Press the air purge repeatedly until fuel begins to fill the bulb. The bulb need not be completely filled.

Technical line drawing of a mechanical device with no visible text or symbols

(5) Pull the cord until engine starts and gradually operate throttle trigger for increasing engine speed to operate speed.

CAUTION! Do not pull the starter cord all the way out and do not let go of the starter handle when the cord is fully extended. This can damage the machine.

Illustration of a worker in safety gear handling a tool (no text or symbols visible)

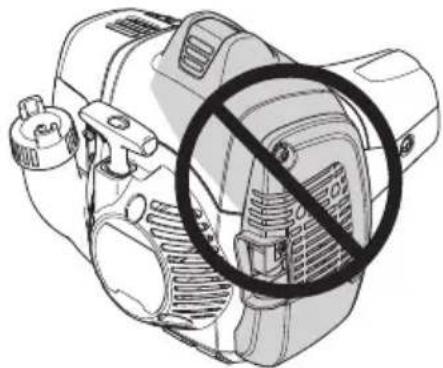

CAUTION! Do not put any part of your body in marked area. Contact can result in burns to the skin, or electrical shock if the spark plug cap has been damaged. Always

use gloves. Do not use a machine with damaged spark plug cap.

Technical line drawing of an electric motor with a circular prohibition symbol overlay (no text or labels)

Stopping

The engine is stopped by pushing the stop switch to the stop position.

Line drawing of a mechanical tool or device with a black arrow pointing to a component (no text or symbols present)

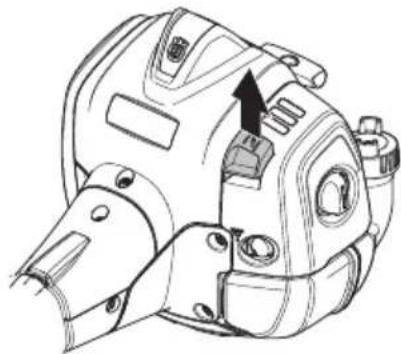

CAUTION! The stop switch automatically returns to the start position. In order to prevent unintentional starting, the spark plug cap must be removed from the spark plug when assembling, checking and/or performing maintenance.

WORKING TECHNIQUES

General working instructions

IMPORTANT!

This section describes the basic safety precautions for working with brush cutters and trimmers.

If you encounter a situation where you are uncertain how to proceed you should ask an expert. Contact your dealer or your service workshop.

Avoid all usage which you consider to be beyond your capability.

You must understand the difference between forestry clearing, grass clearing and grass trimming before use.

Basic safety rules

1 Look around you:

• To ensure that people, animals or other things cannot affect your control of the machine.
• To ensure that people, animals, etc., do not come into contact with the cutting attachment or loose objects that are thrown out by the cutting attachment.
- CAUTION! Do not use the machine unless you are able to call for help in the event of an accident.

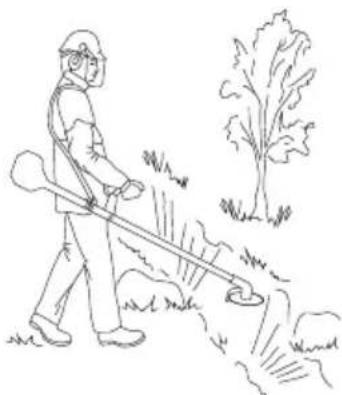

2 Inspect the working area. Remove all loose objects, such as stones, broken glass, nails, steel wire, string, etc. that could be thrown out or become wrapped around the cutting attachment.
3 Do not use the machine in bad weather, such as dense fog, heavy rain, strong wind, intense cold, etc. Working in bad weather is tiring and often brings added risks, such as icy ground, unpredictable felling direction, etc.
4 Make sure you can move and stand safely. Check the area around you for possible obstacles (roots, rocks, branches, ditches, etc.) in case you have to move suddenly. Take great care when working on sloping ground.

Line drawing of a person plowing with a shovel and a tree in the background (no text or symbols)

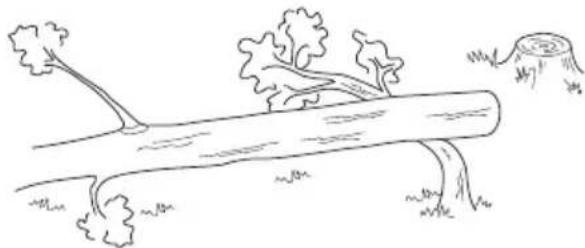

5 Take great care when cutting a tree that is under tension. A tree that is under tension may spring back to its normal position before or after being cut. If you

position yourself incorrectly or make the cut in the wrong place the tree may hit you or the machine and cause you to lose control. Both situations can cause serious personal injury.

Simple line drawing of a tree branch with leaves and roots, no text or symbols present

6 Keep a good balance and a firm foothold. Do not overreach. Keep proper footing and balance at all times.
7 Always hold the machine with both hands. Hold the machine on the right side of your body. Connect the machine to the suspension ring on the harness Keep all parts of your body away from the hot surfaces. Keep all parts of your body away from the rotating cutting attachment.

Line drawing of a person wearing a full-body safety harness and holding a metal detector (no text or symbols)

8 Keep the cutting attachment below waist level.
9 Switch off the engine before moving to another area. Fit the transport guard before carrying or transporting the equipment any distance.
10 Never put the machine down with the engine running unless you have it in clear sight.

WARNING! Neither the operator of the machine nor anyone else may attempt to remove the cut material while the engine is running or the cutting equipment is rotating, as this can result in serious injury.

Stop the engine and cutting equipment before you remove material that has wound around the blade shaft as otherwise there is a risk of injury. The bevel gear can get hot during use and may remain so for a while afterwards. You could get burnt if you touch it.

WORKING TECHNIQUES

WARNING! Watch out for thrown objects. Always wear approved eye protection. Never lean over the cutting attachment guard. Stones, rubbish, etc. can be thrown up into the eyes causing blindness or serious injury.

Keep unauthorised persons at a distance. Children, animals, onlookers and helpers should be kept outside the safety zone of 15 m. (50 ft.) Stop the machine immediately if anyone approaches. Never swing the machine around without first checking behind you to make sure no-one is within the safety zone.

WARNING! Sometimes branches or grass get caught between the guard and cutting attachment. Always stop the engine before cleaning.

Working methods

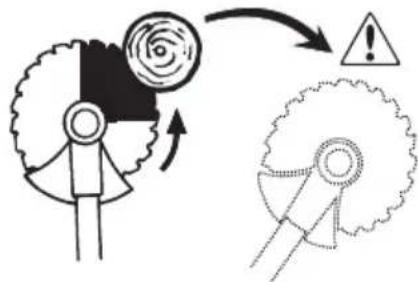

WARNING! Machines fitted with saw blades or grass blades can be thrown violently to the side when the blade comes into contact with a fixed object. This is called blade thrust. A blade thrust can be violent enough to cause the machine and/or operator to be propelled in any direction, and possibly lose control of the machine. Blade thrust can occur without warning if the machine snags, stalls or binds. Blade thrust is more likely to occur in areas where it is difficult to see the material being cut.

Avoid cutting with the area of the blade between the 12 o'clock and 3 o'clock positions. Because of the speed of rotation of the blade, blade thrust can occur if you attempt to cut thick stems with this area of the blade.

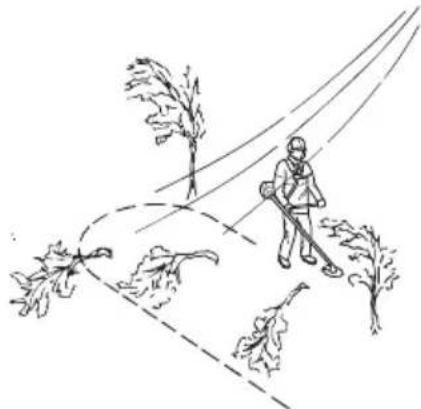

• Before you start clearing, check the clearing area, the type of terrain, the slope of the ground, whether there are stones, hollows etc.
• Start at whichever end of the area is easiest, and clear an open space from which to work.

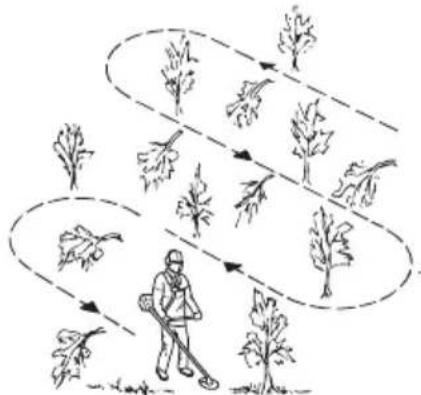

  • Work systematically to and fro across the area, clearing a width of around 4-5 m on each pass. This exploits the full reach of the machine in both directions

and gives the operator a convenient and varied working area to work in.

• Clear a strip around 75 m long. Move your fuel can as work progresses.
• On sloping ground you should work along the slope. It is much easier to work along a slope than it is to work up and down it.
• You should plan the strip so that you avoid going over ditches or other obstacles on the ground. You should also orient the strip to take advantage of wind conditions, so that cleared stems fall in the cleared area of the stand.

Line drawing of a person walking on a path surrounded by trees and vegetation (no text or symbols)

Forestry clearing using a saw blade

- The risk of blade thrust increases with increasing stem size. You should therefore avoid cutting with the area of the blade between 12 o'clock and 3 o'clock.

Diagram illustrating gear meshing process with labeled components and warning symbol

- To fell to the left, the bottom of the tree should be pushed to the right. Tilt the blade and bring it diagonally down to the right, exerting firm pressure. At the same time push the stem using the blade guard. Cut with the area of the blade between 3 o'clock and

WORKING TECHNIQUES

5 o'clock. Apply full throttle before advancing the blade.

Illustration of a manual tool cutting a tree trunk with a falling arrow (no text or symbols)

- To fell to the right, the bottom of the tree should be pushed to the left. Tilt the blade and bring it diagonally up to the right. Cut with the area of the blade between 3 o'clock and 5 o'clock so that the direction of rotation of the blade pushes the bottom of the tree to the left.

Simple line drawing of a manual tool cutting a tree trunk with a shovel, no text or symbols present

• To fell a tree forwards, the bottom of the tree should be pulled backwards. Pull the blade backwards with a quick, firm movement.

Simple line drawing of a person holding a circular object with a downward arrow (no text or symbols)

- Large stems must be cut from two sides. First determine which direction the stem will fall. Make the first cut on the felling side. Then finish cutting the stem from the other side. Adjust the cutting pressure to match the size of the stem and the hardness of the wood. Small stems require more pressure, while large stems require less pressure.

Simple line drawing of a person next to a circular object with a spiral pattern (no text or symbols)

Simple line drawing of a tree with a curved arrow indicating rotation (no text or symbols)

- If the stems are tightly packed, adapt your walking pace to suit.

- If the blade jams in a stem, never jerk the machine free. If you do this the blade, bevel gear, shaft or handlebar may be damaged. Release the handles, grip the shaft with both hands and gently pull the machine free.

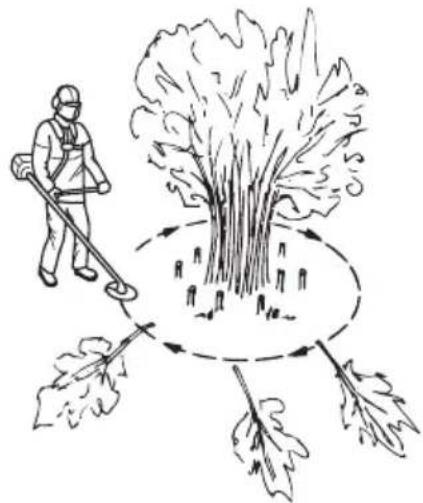

Brush cutting with a saw blade

- Thin stems and brush are mown down. Work with a sawing movement, swinging sideways.

- Try to cut several stems in a single sawing movement.

- With groups of hardwood stems, first clear around the group. Start by cutting the stems high up around the outside of the group to avoid jamming. Then cut the stems to the required height. Now try to reach in with the blade and cut from the centre of the group. If it is still difficult to gain access, cut the stems high up and let them fall. This will reduce the risk of jamming.

Illustration of a person using a tool to spread leafy plants around a central plant (no text or symbols)

Grass clearing using a grass blade

- Grass blades and grass knives must not be used on woody stems.

- A grass blade is used for all types of tall or coarse grass.

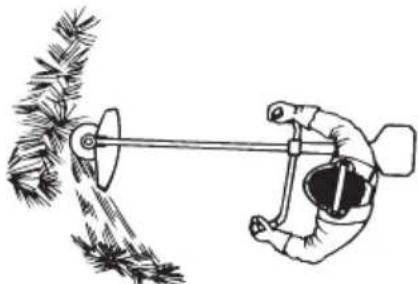

- The grass is cut down with a sideways, swinging movement, where the movement from right-to-left is the clearing stroke and the movement from left-to-right is the return stroke. Let the left-hand side of the blade (between 8 and 12 o'clock) do the cutting.

Illustration of a hand operating a pulley system with pine needles (no text or symbols)

WORKING TECHNIQUES

• If the blade is angled to the left when clearing grass, the grass will collect in a line, which makes it easier to collect, e.g. by raking.
• Try to work rhythmically. Stand firmly with your feet apart. Move forward after the return stroke and stand firmly again.
• Let the support cup rest lightly against the ground. It is used to protect the blade from hitting the ground.
• Reduce the risk of material wrapping around the blade by following these instructions:

1 Always work at full throttle.

2Avoid the previously cut material during the return stroke.

- Stop the engine, unclip the harness and place the machine on the ground before you start to collect the cut material.

Grass trimming with a trimmer head

Trimming

- Hold the trimmer head just above the ground at an angle. It is the end of the cord that does the work. Let the cord work at its own pace. Never press the cord into the area to be cut.

Simple line drawing of a grassy field with a small mechanical component (no text or symbols)

• The cord can easily remove grass and weeds up against walls, fences, trees and borders, however it can also damage sensitive bark on trees and bushes, and damage fence posts.
• Reduce the risk of damaging plants by shortening the cord to 10-12 cm and reducing the engine speed.

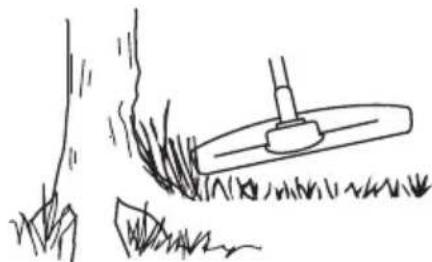

Clearing

- The clearing technique removes all unwanted vegetation. Keep the trimmer head just above the ground and tilt it. Let the end of the cord strike the ground around trees, posts, statues and the like. CAUTION! This technique increases the wear on the cord.

Simple line drawing of a grassy field with a small tool near the edge (no text or symbols)

• The cord wears quicker and must be fed forward more often when working against stones, brick, concrete, metal fences, etc., than when coming into contact with trees and wooden fences.
• When trimming and clearing you should use less than full throttle (80%) so that the cord lasts longer and to reduce the wear on the trimmer head.

1154807-49 rev.no 3 2016-11-09

Cutting

- The trimmer is ideal for cutting grass that is difficult to reach using a normal lawn mower. Keep the cord parallel to the ground when cutting. Avoid pressing the trimmer head against the ground as this can ruin the lawn and damage the tool.

Simple line drawing of a grassy field with a small mechanical component above it (no text or symbols)

- Do not allow the trimmer head to constantly come into contact with the ground during normal cutting. Constant contact of this type can cause damage and wear to the trimmer head.

Sweeping

- The fan effect of the rotating cord can be used for quick and easy clearing up. Hold the cord parallel to and above the area to be swept and move the tool side to side.

Diagram of a hand holding a mechanical lever with directional arrows indicating motion (no text or symbols)

- When cutting and sweeping you should use full throttle to obtain the best results.

IMPORTANT!

To avoid unbalance and vibrations in handles trimmer head cover need to be cleaned every time cord is refilled. In addition, check other part of the head if needed to be cleaned.

MAINTENANCE

Carburetor

Your Husqvarna product has been designed and manufactured to specifications that reduce harmful emissions.

Adjustment of the idle speed

Before any adjustments are made, make sure that the air filter is clean and the air filter cover is fitted.

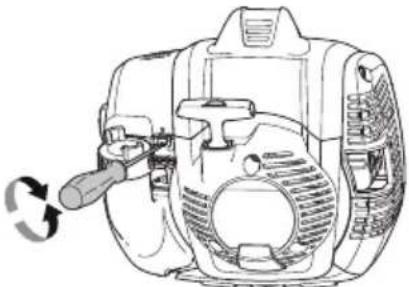

Adjust the idle speed using the idle adjustment screw T, if it is necessary to readjust. First turn the idle adjustment screw T clockwise until the cutting attachment starts to rotate. Then turn the screw counter clockwise until the cutting attachment stops. The idle speed is correctly adjusted when the engine will run smoothly in every position. The idle speed should also be well below the speed at which the cutting attachment starts to rotate.

Technical line drawing of a mechanical device with a handle and internal components (no text or symbols)

Recommended idle speed: See the Technical data section.

WARNING! If the idle speed cannot be adjusted so that the cutting attachment stops, contact your dealer/service workshop. Do not use the machine until it has been correctly adjusted or repaired.

Muffler

CAUTION! Some mufflers are fitted with a catalytic converter. See chapter on Technical data to see whether your machine is fitted with a catalytic converter.

The muffler is designed to reduce the noise level and to direct the exhaust gases away from the operator. The exhaust gases are hot and can contain sparks, which may

cause fire if directed against dry and combustible material.

Technical line drawing of an automotive engine component with a highlighted section showing internal parts (no text or symbols present)

Some mufflers are equipped with a special spark arrestor screen. If your machine has this type of muffler, you should clean the screen at least once a week. This is best done with a wire brush. On mufflers without a catalytic converter the screen should be cleaned weekly, or replaced if necessary. On mufflers fitted with a catalytic converter the screen should be checked, and if necessary cleaned, monthly. If the screen is damaged it should be replaced. If the screen is frequently blocked, this can be a sign that the performance of the catalytic converter is impaired. Contact your dealer to inspect the muffler. A blocked screen will cause the machine to overheat and result in damage to the cylinder and piston.

Illustration of a device emitting steam with stars and a small device nearby (no text or symbols)

CAUTION! Never use a machine with a defective muffler.

WARNING! Mufflers fitted with catalytic converters get very hot during use and remain so for some time after stopping. This also applies at idle speed. Contact can result in burns to the skin. Remember the risk of fire!

MAINTENANCE

Cooling system

To keep the working temperature as low as possible the machine is equipped with a cooling system.

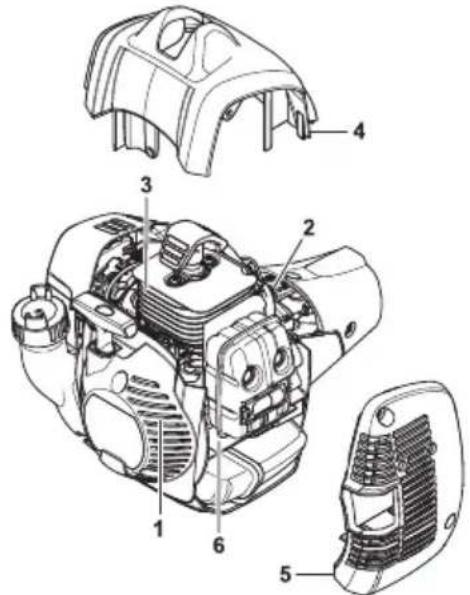

Technical diagram of an automotive engine assembly with numbered parts for identification

The cooling system consists of:

1 Air intake on the starter.
2 Fins on the flywheel.
3 Cooling fins on the cylinder.
4 Cylinder cover (directs cold air over the cylinder).
5 Muffler cover
6 Muffler plate

Clean the cooling system with a brush once a week, more often in demanding conditions. A dirty or blocked cooling system results in the machine overheating which causes damage to the piston and cylinder.

Spark plug

The spark plug condition is influenced by:

• Incorrect carburetor adjustment.
• An incorrect fuel mixture (too much or incorrect type of oil).
• A dirty air filter.

These factors cause deposits on the spark plug electrodes, which may result in operating problems and starting difficulties.

If the machine is low on power, difficult to start or runs poorly at idle speed: always check the spark plug first before taking any further action. If the spark plug is dirty, clean it and check that the electrode gap is 0,026 inch

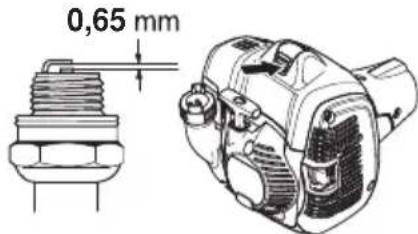

(0,65 mm). The spark plug should be replaced after about a month in operation or earlier if necessary.

0,65 mm

CAUTION! Always use the recommended spark plug type! Use of the wrong spark plug can damage the piston/cylinder. Check that the spark plug is fitted with a suppressor.

Air filter

The air filter must be regularly cleaned to remove dust and dirt in order to avoid:

• Carburettor malfunctions.
- Starting problems.
- Loss of engine power.
- Unnecessary wear to engine parts
• Excessive fuel consumption.

Technical illustration of a mechanical device with internal components and directional arrows indicating assembly (no text or symbols)

Clean the filter every 25 hours, or more regularly if conditions are exceptionally dusty.

Cleaning the air filter

Close the choke control by setting the choke into a choke position.

Technical line drawing of a mechanical component with no visible text or symbols

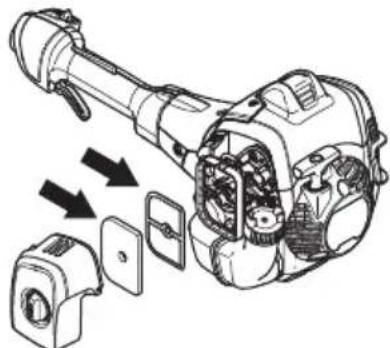

Remove the air filter cover and take out the filter. Wash it clean in warm, soapy water. Clean also the inside of the filter cover by using air or a brush. Ensure that the filter is dry before refitting it.

MAINTENANCE

Remove the Felt filter from the filter holder and gently brush debris from the filter. Check the rubber sealing surface. Change the filter on the rubber seal if damaged.

An air filter that has been in use for a long time cannot be cleaned completely. The filter must therefore be replaced with a new one at regular intervals. A damaged air filter must always be replaced. Damaged, very dirty, or fuel-soaked air filter must always be replaced.

Bevel gear

The bevel gear is filled with the right quantity of grease at the factory. However, before using the machine you should check that the bevel gear is filled three-quarters full with grease. Use HUSQVARNA special grease.

Technical line drawing of a mechanical component with a black arrow pointing to a specific part (no text or symbols present)

The grease in the bevel gear does not normally need to be changed except if repairs are carried out.

Two-piece shaft (525RK)

The drive shaft end in the lower shaft should be lubricated with grease every 30 hours. There is a risk that the drive shaft ends (splined coupling) on models with two-piece shafts will seize if they are not lubricated regularly.

Technical line drawing of a mechanical clamp or connector assembly with directional arrows indicating movement (no text or symbols)

CAUTION! Use only HUSQVARNA replacement parts. Use of other brands of replacement parts can cause damage to your unit or injury to the operator or others. Your warranty does not cover damage or liability caused by the use of accessories and/or attachments not specifically recommended by HUSQVARNA.

MAINTENANCE

Maintenance schedule

The following is a list of the maintenance that must be performed on the machine. Most of the items are described in the Maintenance section.

Maintenance	Daily maintenance	Weekly maintenance	Monthly maintenance
Clean the outside of the machine. X
Make sure the throttle trigger lock and the throttle function correctly from a safety point of view.	X
Check that the stop switch works correctly. X
Check that the cutting attachment does not rotate at idle. X
Clean the air filter. Replace if necessary. X
Check that the guard is undamaged and not cracked. Replace the guard if it has been exposed to impact or is cracked.	X
Check that the trimmer head is undamaged and not cracked. Replace the trimmer head if necessary.	X
Check that nuts and screws are tight. X
Check that there are no fuel leaks from the engine, tank or fuel lines.	X
Check the starter and starter cord. X
Check that the vibration damping elements are not damaged. X
Clean the outside of the spark plug. Remove it and check the electrode gap. Adjust the gap to 0.65 mm (.026"), or replace the spark plug. Check that the spark plug is fitted with a suppressor.		X
Clean the machine's cooling system. X
Clean or replace the spark arrestor screen on the muffler (only applies to mufflers without a catalytic converter).		X
Clean the outside of the carburettor and the space around it. X
Check that the bevel gear is filled three-quarters full with lubricant. Fill if necessary using special grease.		X
Check the fuel filter for contamination and the fuel hose for cracks or other defects. Replace if necessary.			X
Check all cables and connections. X
Check the clutch, clutch springs and the clutch drum for wear. Replace if necessary by an autorized service workshop.			X
Replace the spark plug. Check that the spark plug is fitted with a suppressor.			X
Check and clean the spark arrestor screen on the muffler (only applies to mufflers fitted with a catalytic converter).			X

Technical data

Technical data 525RX 525RXT 525RK

Engine

Cylinder displacement, cu.in/cm ^3 1,55/25,4 1,55/25,4 1,55/25,4

Cylinder bore, inch/mm 1,34/34 1,34/34 1,34/34

Stroke, inch/mm 1.10/28 1.10/28 1.10/28

Idle speed, rpm 3000 3000 3000

Recommended max. speed, rpm 9500/11000 9500/11000 9500/11000

Trimmer head/Grass blade

Speed of output shaft, rpm 6500/7500 6500/7500 6500/7500

Trimmer head/Grass blade

Max. engine output, acc. to ISO 8893, kW/ rpm 1.0/8500 1.0/8500 1.0/8500

Catalytic converter muffler Yes Yes Yes

Speed-regulated ignition system Yes Yes Yes

Emissions Durability Period according to California Air Resources Board, h. 300 300 300

Ignition system

Manufacturer of ignition system	IKEDA/UK	IKEDA/UK	IKEDA/UK
Spark plug	NGK BPMR8Y	NGK BPMR8Y	NGK BPMR8Y
Electrode gap, inch/mm	0.026/0,65	0.026/0,65	0.026/0,65

Fuel and lubrication system

Manufacturer/type of carburetor	Walbro WTEA-8C	Walbro WTEA-8C	Walbro WTEA-8C
Fuel tank capacity, US pint/litre	1,08/0,51	1,08/0,51	1,08/0,51

Weight

Weight without fuel, cutting attachment and guard, Lbs/kg 11.2/5,1 11.9/5,4 12.3/5,6

Sound levels

(see note 1)
Equivalent sound pressure level at the operator's ear, measured according to ISO 22868, dB(A):
Equipped with trimmer head (original)	98	98	98

Vibration levels

(see note 2)
Equivalent vibration levels (ahv,eq) at handles, measured according to ISO 22867, m/s2
Equipped with trimmer head (original), left/right	2,1/2,3 1,8/1,9 2.1/1.9

NOTE! This spark ignition system complies with the Canadian ICES-002 standard.

Note 1: Reported data for equivalent sound pressure level for the machine has a typical statistical dispersion (standard deviation) of 1 dB (A).

Note 2: Reported data for equivalent vibration level has a typical statistical dispersion (standard deviation) of 1m / s^2

TECHNICAL DATA

Powerhead model Accessories Art No.
525RK	Hedge trimmer attachment with shaft HA 110 537 19 66-01
	Hedge trimmer attachment with shaft HA 850 537 19 66-02
	Clean sweep attachment with shaft SR600 537 19 67-01
	Edger attachment with shaft 537 19 69-01
	Saw attachment with shaft PA 1100 537 18 33-17
	Cultivator attachment with shaft CA 150 537 42 54-01

The accessories are recommended for use in combination with the specified power heads and have been evaluated to applicable ISO- and EN safety requirement standards by the Swedish Machinery Testing Institute.

Approved accessories Type Cutting	attachment guard, Art. no.
Centre hole in blades/cutters, ∅ 25,4 mm
Arbor shaft thread M10
Grass blade/grass cutter Grass 255-4	1" (∅ 255 4-teeth) 503 93 42-02 / 588 1	1 79-01
Trimmer head T35, T35x (∅ 2.4 - 3.0 mm cord)		503 93 42-02 / 503 97 71-01588 43 70-01 / 588 11 79-01
Support cup	Fixed	-

The accessories used in combination with the specified power heads have been evaluated to ANSI B175.3-2003 Grass Trimmers and Brushcutters - Safety Requirements. These combinations have been evaluated by Underwriters Laboratories Inc. (UL) and are consequently UL listed.

IMPORTANT: This product is compliant with U.S. EPA Phase 3 regulations for exhaust and evaporative emissions. To ensure EPA Phase 3 compliance, we recommend using only genuine Husqvarna brand replacement parts. Use of non-compliant replacement parts is a violation of federal law.

YOUR WARRANTY RIGHTS AND OBLIGATIONS

The EPA (U.S. Environmental Protection Agency), CARB (California Air Resources Board), Environment Canada and Husqvarna Forest & Garden are pleased to explain the emissions control system's warranty on your 2017-2018* small off-road engine. In U.S. and Canada, small off-road engines must be designed, built, and equipped to meet the applicable Federal or California stringent anti-smog standards. Husqvarna Forest & Garden must warrant the emissions control system on your small off-road engine for the period of time listed below provided there has been no abuse, neglect or improper maintenance of your small off-road engine. Your emission control system may include parts such as the carburetor, fuel-injection system, the ignition system, catalytic convertor, fuel tanks, fuel lines, fuel caps, valves, canisters, filters, vapor hoses, clamps, connectors, and other associated emission-related components. For engines less than or equal to 80 cc, only the fuel tank is subject to the evaporative emission control warranty requirements of this section (California only). Where a warrantable condition exists, Husqvarna Forest & Garden will repair your small off-road engine at no cost to you including diagnosis, parts and labor.

MANUFACTURER'S WARRANTY COVERAGE

The emissions control system is warranted for two years. If any emissions-related part on your small off-road engine is defective, the part will be repaired or replaced by Husqvarna Forest & Garden.

OWNER'S WARRANTY RESPONSIBILITIES

• As the small off-road engine owner, you are responsible for performance of the required maintenance listed in your operator's manual. Husqvarna Forest & Garden recommends that you retain all receipts covering maintenance on your small off-road engine, but Husqvarna Forest & Garden cannot deny warranty solely for the lack of receipts or your failure to ensure the performance of all scheduled maintenance.
• As the small off-road engine owner, you should however be aware that Husqvarna Forest & Garden may deny you warranty coverage if your small off-road engine or a part has failed due to abuse, neglect, or improper maintenance or unapproved modifications.
• You are responsible for presenting your small off-road engine to a Husqvarna Forest & Garden distribution

center or service center as soon as the problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days. If you have any questions regarding your warranty coverage, you should contact Husqvarna Forest & Garden in USA at 1-800-487-5951, in CANADA at 1-800-805-5523 or send e-mail correspondence to [e-mail].

WARRANTY COMMENCEMENT DATE

The warranty period begins on the date the engine or equipment is delivered to an ultimate purchaser.

LENGTH OF COVERAGE

Husqvarna Forest & Garden warrants to the ultimate purchaser and each subsequent owner that the engine or equipment is designed, built, and equipped so as to conform with all applicable regulations adopted by EPA and CARB, and is free from defects in materials and workmanship that causes the failure of a warranted part for a period of two years.

WHAT IS COVERED

REPAIR OR REPLACEMENT OF PARTS Repair or replacement of any warranted part under the warranty must be performed at no charge to the owner at a warranty station. Warranty services or repairs will be provided at all Husqvarna Forest & Garden distribution centers that are franchised to service the subject engines. Throughout the emissions warranty period of two years, Husqvarna Forest & Garden must maintain a supply of warranted parts sufficient to meet the expected demand for such parts.

WARRANTY PERIOD Any warranted part that is scheduled for replacement as required in the maintenance schedule, is warranted for the period of time prior to the first scheduled replacement point for that part. If the part fails prior to the first scheduled replacement, the part will be repaired or replaced by Husqvarna Forest & Garden at no cost. Any such part repaired or replaced under warranty is warranted for the remainder of the period prior to the first scheduled replacement point for the part. Any warranted part that is not scheduled for replacement as required in the maintenance schedule, is warranted for two years. If any such part fails during the period of warranty coverage, it will be repaired and replaced by Husqvarna Forest & Garden at no cost. Any such part repaired or replaced under the warranty is warranted for the remaining warranty period. Any warranted part that is scheduled only for regular inspection in the maintenance schedule will be warranted for a period of two years. A statement in such written instructions to the effect of "repair or replace as necessary" will not reduce the period of warranty coverage. Any such part repaired or replaced under warranty will be warranted for the remaining warranty period.

FEDERAL AND CALIFORNIA EMISSIONS CONTROL WARRANTY STATEMENT

DIAGNOSIS The owner must not be charged for diagnostic labor that leads to the determination that a warranted part is in fact defective, provided that such diagnostic work is performed at a warranty station.

CONSEQUENTIAL DAMAGES Husqvarna Forest & Garden is liable for damages to other engine components proximately caused by a failure under warranty of any warranted part.

EMISSION WARRANTY PARTS LIST

1 Carburetor and internal parts
2 Intake pipe, airfilter holder and carburetor bolts.
3 Airfilter and fuelfilter covered up to maintenance schedule.
4 Spark Plug, covered up to maintenance schedule
5 Ignition Module
6 Fuel tank, line and cap

WHAT IS NOT COVERED

All failures caused by abuse, neglect or improper maintenance are not covered.

ADD -ON OR MODIFIED PARTS

Add-on or modified parts that are not exempted by CARB or EPA may not be used. The use of any non-exempted add-on or modified parts will be grounds for disallowing a warranty claim. Husqvarna Forest & Garden will not be liable to warrant failures of warranted parts caused by the use of a non-exempted add-on or modified part.

HOW TO FILE A CLAIM

If you have any questions regarding your warranty rights and responsibilities, you should contact your nearest authorized servicing dealer or call Husqvarna Forest & Gardenin USA at 1-800-487-5951, in CANADA at 1-800-805-5523 or send e-mail correspondence to [e-mail].

WHERE TO GET WARRANTY SERVICE

Warranty services or repairs are provided through all Husqvarna Forest & Garden authorized servicing dealers.

MAINTENANCE, REPLACEMENT AND REPAIR OF EMISSION-RELATED PARTS

Any replacement part may be used in the performance of any warranty maintenance or repairs and must be provided without charge to the owner. Such use will not reduce the warranty obligations of the manufacturer.

MAINTENANCE STATEMENT

The owner is responsible for the performance of all required maintenance, as defined in the operator's manual.

*Current and following model year will be updated annually in the warranty statement provided to the consumer. For example, in 2012 model year, 2012-2013 will be specified.

EXPLICATION DES SYMBOLES

Symboles

Attention: projections et ricochets.

Technical diagram of a mechanical assembly with numbered components and labeled parts such as RX, RK, and various tools or devices.

Line drawing of a helmet and visor device (no text or symbols)

PROTÈGE-OREILLES

Simple line drawings of eyeglasses and binoculars (no text or symbols)

GANTS

Illustration of a robotic arm with a curved arrow indicating motion (no text or symbols)

Line drawing of a mechanical device with an arrow indicating upward motion (no text or symbols)

Illustration of a robotic arm with directional arrows indicating movement or force (no text or symbols)

Illustration of a worker using a tool to adjust equipment, with three diagrams showing different mechanical states (no text or symbols present)

Bouton d'arrêt

Line drawing of a mechanical tool or device with a handle and base (no text or symbols)

Mechanical assembly diagram showing a shaft and housing with an arrow indicating motion (no text or symbols present)

Technical line drawing of a mechanical component with multiple circular features and mounting holes (no text or symbols)

Illustration of a portable device emitting steam, with starburst effects and a small screen nearby (no text or symbols)

Diagram of a device with a diagonal line crossing through it, no text or symbols present

Technical line drawing of a mechanical component with a wrench (no text or symbols)

INSTRUCTIONS GÉNÉRALES DE SÉCURITÉ

Technical line drawing of a mechanical component with no visible text or symbols

NOTE!

Two technical line drawings: a gear-like circular component and a curved mechanical part with internal features (no text or symbols)

Three abstract geometric shapes: a star-like polygon, a triangular prism with a central dot, and a curved rectangular base with a cat-like shape (no text or symbols)

Technical line drawing of a mechanical component with a flanged base and curved arm (no text or symbols)

INSTRUCTIONS GÉNÉRALES DE SÉCURITÉ

Règles élémentaires

Four abstract line drawings: a circular shape, a star-like shape, a triangular shape, and a cylindrical object with a coiled cable (no text or symbols)

Simple line drawing of a halter with an arrow indicating direction (no text or symbols)

Technical line drawing showing a tool and a hand holding a tool with an arrow indicating motion (no text or symbols)

Two diagrams showing a tool interacting with a shield-like object, one with an arrow indicating direction (no text or symbols)

Illustration of a worker in safety gear handling a tool, with an inset showing detailed tree bark structure (no text or symbols)

Diagram showing two mechanical components with curved arrows indicating motion or force direction (no text or symbols)

Tête de désherbage

IMPORTANT!

Three technical illustrations of household appliances: a cylindrical fan, a washing machine, and a cylindrical bed (no text or symbols present)

Line drawing of a mechanical tool with a curved handle and arrow indicating downward motion (no text or symbols)

Mechanical assembly diagram showing two components: a lever mechanism and a gear shift mechanism (no text or labels)

Technical line drawing of a mechanical clamp assembly with no visible text or symbols

1154807-49 rev.no 3 2016-11-09

Illustration of a person wearing safety gear and holding a long tool, with motion arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical component labeled A and B (no text or symbols beyond labels)

Technical line drawing of a mechanical clamp or connector with two directional arrows indicating movement (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a curved arrow indicating motion (no text or symbols)

Démontage

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Mechanical assembly diagram showing a pipe fitting with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present.

Technical diagram of a mechanical assembly with labeled parts A through G, showing exploded view and component layout.

Line drawing of a hand operating a propeller or fan mechanism (no text or symbols present)

MONTAGE

H J K L I A

Diagram of a mechanical device with labeled parts (A, B, C, D, F, G) showing internal components and motion direction.

Line drawing of a hand operating a gear with a rotating wheel (no text or symbols)

Technical line drawing of a mechanical component with gear and cutting edge (no text or symbols)

Illustration of a belt buckle being adjusted to a person's seatbelt (no text or symbols present)

Cartoon illustration of a person wearing a helmet with downward arrows indicating stress or decline (no text or symbols)

Hauteur correcte

Illustration of a person wearing safety gear and holding a long tool (no text or symbols)

Equilibre correct

Illustration of a person wearing safety gear and using a tool to clean or spray (no text or symbols)

Sécurité carburant

Illustration of a fuel pump with a bottle and gas cylinder pouring into it, accompanied by a fuel can icon (no text or symbols)

Mo 10 W-30

Illustration of a person in historical attire holding an object, no text or symbols present

Three hand-drawn diagrams showing abstract curved shapes with arrows indicating direction (no text or symbols)

Simple line drawing of a circular ring with a downward arrow pointing to its center (no text or symbols)

Simple line drawing of a mechanical component or tool (no text or symbols)

Technical line drawing of a mechanical device with a black arrow pointing to a component (no text or symbols present)

(2) Starter: Tirer la commande de starter.

Technical line drawing of a mechanical device with no visible text or symbols

DÉMARRAGE ET ARRÊT

Technical line drawing of a mechanical device with no visible text or symbols

Illustration of a worker in safety gear handling a box (no text or symbols visible)

Technical line drawing of an electric motor with a circular prohibition symbol (no text or labels)

Arrêt

Line drawing of a mechanical tool or device with a handle and base (no text or symbols)

Line drawing of a person using a shovel to dig through grass with a tree nearby (no text or symbols)

Simple line drawing of a tree with leaves and a trunk, no text or symbols present

Line drawing of a person wearing a full-body mask and safety harness, holding a metal detector (no text or symbols)

Simple line drawing of a person walking on a path with trees and a dashed path (no text or symbols)

Diagram illustrating a mechanical or electrical process with gear and rotor components, showing transformation from gear to motor with warning symbol.

Illustration showing a tree with a stick and a person holding a tree with a ball (no text or symbols)

Illustration showing a person planting a tree with a shovel and a directional arrow, next to a figure holding a circular object (no text or symbols)

Simple line drawing of a person with a large circular object and a downward arrow, no text or symbols present.

Four-step diagram showing tree stump opening process with gear and tree ring cutting (no text or symbols)

Illustration of a person using a tool to spread leafy plants around a central plant (no text or symbols)

Illustration of a person using a pulley system to measure a tree (no text or symbols)

Simple line drawing of a grassy slope with a small shrub and a tool (no text or symbols)

Simple line drawing of a grassy field with a small utility pole and a tool, no text or symbols present.

Simple line drawing of a grassy field with a small mechanical component (no text or symbols)

Diagram of a person using a mechanical lever system with directional arrows (no text or labels)

Technical line drawing of a mechanical device with a wrench and circular component (no text or symbols)

Technical line drawing of an automotive engine component with a close-up view showing internal parts (no text or symbols)

Illustration of a device emitting steam with stars and a small battery (no text or symbols)

Technical diagram of an automotive engine compartment with numbered parts for identification

Technical illustration of a mechanical assembly with internal components and directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a mechanical tool with a magnified view of the base (no text or symbols)

Technical line drawing of a mechanical clamp or connector assembly with directional arrows indicating movement (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and labeled parts such as RX, RK, and various tools or devices.

Line drawing of a helmet and gear assembly (no text or symbols)

PROTECCION AUDITIVA

Line drawings of eyeglasses and binoculars (no text or symbols)

GUANTES

Illustration of a robotic arm with a curved arrow indicating motion (no text or symbols)

Illustration of a mechanical device with a black arrow indicating upward motion (no text or symbols)

Illustration of a mechanical tool with directional arrows indicating motion (no text or symbols)

Illustration of a worker in safety gear handling a box (no text or symbols)

Two technical line drawings of a mechanical component, one with rotation arrow and the other with curved arrow (no text or symbols)

Botón de parada

Line drawing of a mechanical tool or device with a handle and base (no text or symbols)

Mechanical assembly diagram showing a shaft and housing with a close-up of a component (no text or labels)

Technical line drawing of a mechanical component with mounting holes and housing (no text or symbols)

Illustration of a portable device emitting steam, with starburst effects and a small panel nearby (no text or symbols)

Illustration of a device with a diagonal line crossing through it, no text or symbols present.

Technical line drawing of a mechanical component with a wrench (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

NOTE!

Three abstract geometric shapes with no text or symbols

Technical line drawing of a mechanical component with a flanged base and a triangular cutting section (no text or symbols)

Reglas básicas

Four abstract line drawings of circular shapes and a cylindrical object, no text or symbols present.

Simple line drawing of a halter with an arrow indicating upward motion (no text or symbols)

Illustration showing a tool interacting with a textured surface and a hand holding a tool with a curved arrow indicating rotation (no text or symbols)

Two diagrams showing a tool interacting with a shield-like shape, one with an arrow indicating direction (no text or symbols)

Illustration of a worker in safety gear handling a tool, with an inset showing detailed teeth structure (no text or symbols)

Diagram showing two mechanical components with directional arrows indicating movement or force (no text or symbols)

Cabezal de corte

¡IMPORTANTE!

Three technical illustrations of household appliances: a cylindrical fan, a washing machine, and a coiled bed (no text or symbols present)

Line drawing of a mechanical tool with a downward arrow indicating motion or force (no text or symbols)

Mechanical assembly diagram showing a lever mechanism and a mechanical component with a curved arrow indicating rotation (no text or symbols present)

Technical line drawing of a mechanical clamp assembly with no visible text or symbols

Illustration of a person in safety gear holding a long-handled tool, no text or symbols present

Technical line drawing of a mechanical component labeled A and B (no text or symbols beyond labels)

MONTAJE

Technical diagram of a mechanical clamp or bracket with two directional arrows indicating movement (no text or symbols present)

Mechanical clamp mechanism diagram showing rotational motion with arrow (no text or symbols)

Desmontaje

Mechanical clamp assembly diagram showing a bracket and connecting rod (no text or symbols)

Technical line drawing of a mechanical assembly with cross-sectional views (no text or symbols)

Technical diagram of a mechanical assembly with labeled parts A through G, showing exploded view and component layout.

Line drawing of a mechanical assembly with a lever and blade (no text or symbols)

Technical line drawing of two mechanical components with no visible text or symbols

J K L I A

Technical diagram of a mechanical device with labeled parts G, F, D, B, and C

Line drawing of a hand operating a gear with a rotating wheel (no text or symbols)

Technical line drawing of a mechanical component with a circular base and directional arrows indicating motion (no text or symbols)

Two mechanical diagrams showing a propeller with labeled H and rotational arrows (no text or symbols present)

Illustration of a belt buckle being adjusted to a person's seatbelt (no text or symbols present)

Cartoon illustration of a person with headband and downward arrows indicating stress or decline (no text or symbols)

Altura correcta

Illustration of a person in traditional attire holding a long tool or brush (no text or symbols visible)

Equilibrio correcto

Illustration of a person in safety gear using a long-handled tool, with motion arrows indicating movement (no text or symbols)

Diagram illustrating chemical process steps: pouring fuel into a gas can with a plus sign, and stopping a water bottle marked with 'W-30'.

Illustration of a person in traditional attire holding an object, no text or symbols present

Three hand-drawn diagrams showing abstract shapes with arrows, no text or symbols present

Simple line drawing of a circular ring with a downward arrow pointing to its center (no text or symbols)

Simple line drawing of a stylized garment or hat with a circular top and flared skirt (no text or symbols)

Technical line drawing of a mechanical device with a black arrow pointing to a component (no text or symbols present)

ARRANQUE Y PARADA

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with a black arrow pointing to a button (no text or symbols present)

Illustration of a worker in hard hat and safety gear handling equipment (no text or symbols)

Technical line drawing of an electric motor with a prohibition symbol overlay (no text or labels)

Parada

Line drawing of a mechanical tool or device with an arrow indicating direction (no text or symbols present)

Line drawing of a person using a shovel to dig through grass with a tree nearby (no text or symbols)

Simple line drawing of a tree with leaves and a log, no text or symbols present

Line drawing of a person wearing full gear and holding a metal detector (no text or symbols)

Simple line drawing of a person walking on a path with trees and a dashed path (no text or symbols)

Diagram illustrating gear meshing process with gear and gear wheel, showing motion direction and warning symbol

Illustration showing a tree with a stick and a person holding a tree with a spiral (no text or symbols)

Illustration showing a manual sprinkler digging with a tree and a stick figure holding a ball (no text or symbols)

Simple line drawing of a stick figure with a circular head and downward arrow (no text or symbols)

Diagram illustrating tree knotting and gear movement, showing four stages of gear cutting and retraction.

Illustration of a person spraying water with leaves, showing airflow around a plant (no text or symbols)

Illustration of a hand using a pulley to measure a pine cone (no text or symbols present)

Simple line drawing of a grassy field with a grassy crop (no text or symbols)

Simple line drawing of a grassy field with a small utility pole, no text or symbols present

Simple line drawing of a grassy field with a small object on top (no text or symbols)

Diagram of a person using a pulley system with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical device with a wrench and circular component (no text or symbols)

Technical line drawing of a mechanical device with internal components and a separate view showing internal structure (no text or symbols)

Illustration of a device emitting steam with stars and a button, no text or symbols present

Technical diagram of a car engine component with numbered parts for identification

Technical illustration of a mechanical assembly with internal components and directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

MANTENIMIENTO

Diagram of a mechanical tool with an arrow pointing to a specific component (no text or symbols present)

Technical line drawing of a mechanical clamp or connector assembly with directional arrows indicating movement (no text or symbols)
