Product type	Cordless hedge trimmer
Brand	Metabo
Model	AHS 1845 V
Battery voltage	18 V
Battery system	Metabo CAS (Cordless Alliance System)
Cutting length	45 cm
Tooth spacing	30 mm
Blade speed	2400 min⁻¹
Weight (without battery)	2.7 kg
Sound level (LpA)	82 dB(A)
Vibration level (ah)	2.5 m/s²
Blade type	Double steel blade
Charger compatibility	Metabo chargers ASC 30-36, ASC 55, ASC 145, SC 60 Plus, SC 30
Protection	Anti-vibration handle, overload protection
Package contents	Hedge trimmer, Li-Ion battery, charger, protective case
Usage	Cutting hedges, shrubs, bushes
Maintenance	Clean blades after use, lubricate regularly, sharpen if necessary
Safety	Safety stop, two-hand trigger, shock protection

Frequently Asked Questions - AHS 1845 V METABO

Which battery to use with the Metabo AHS 1845 V?

This hedge trimmer works with Metabo CAS (Cordless Alliance System) batteries, voltage 18 V and capacity between 1.3 Ah and 10 Ah.

How to charge the battery?

Use a compatible Metabo CAS charger (e.g. ASC 30-36, ASC 55, ASC 145). Plug in the charger, insert the battery until it stops, the control light flashes. When charging is complete, the light stays on.

What is the battery life?

Battery life depends on battery capacity and branch thickness. With an 18 V/4 Ah battery, expect about 30 to 45 minutes of continuous use.

How to maintain the hedge trimmer blades?

After each use, clean the blades with a dry cloth and apply a special lubricant for blades. For sharpening, have it done by a professional or use a suitable file.

Can the hedge trimmer cut thick branches?

The tooth spacing is 30 mm, allowing cutting of branches up to about 25 mm in diameter. For thicker branches, use pruners or a saw.

How to change the blade?

Disconnect the battery. Remove the blade fixing screws (usually 4 screws). Replace the worn blade with a new one (Metabo part number). Tighten the screws to the torque indicated in the manual.

What safety precautions should be observed?

Wear gloves and safety glasses. Do not work in rain. Use both hands on the handles. Ensure the battery is properly engaged. Turn off the device before any adjustment.

Can the device be used with a battery from another brand?

No, only use Metabo or CAS (Cordless Alliance System) batteries. Using incompatible batteries may damage the device and pose a safety risk.

What to do if the hedge trimmer does not start?

Check that the battery is charged and properly inserted. Check the condition of the blades (jamming). If the battery light flashes, see the troubleshooting section in the manual. If the problem persists, contact Metabo after-sales service.

Where to find spare parts?

Spare parts (blades, springs, screws) are available from authorised Metabo dealers or on the website www.metabo.com. Always use genuine parts.

USER MANUAL AHS 1845 V METABO

Two Metabo miniators with ventilation grilles, one labeled 'AIR COOL EEO' and the other 'ASC 600s', shown in black (no additional text or symbols visible)

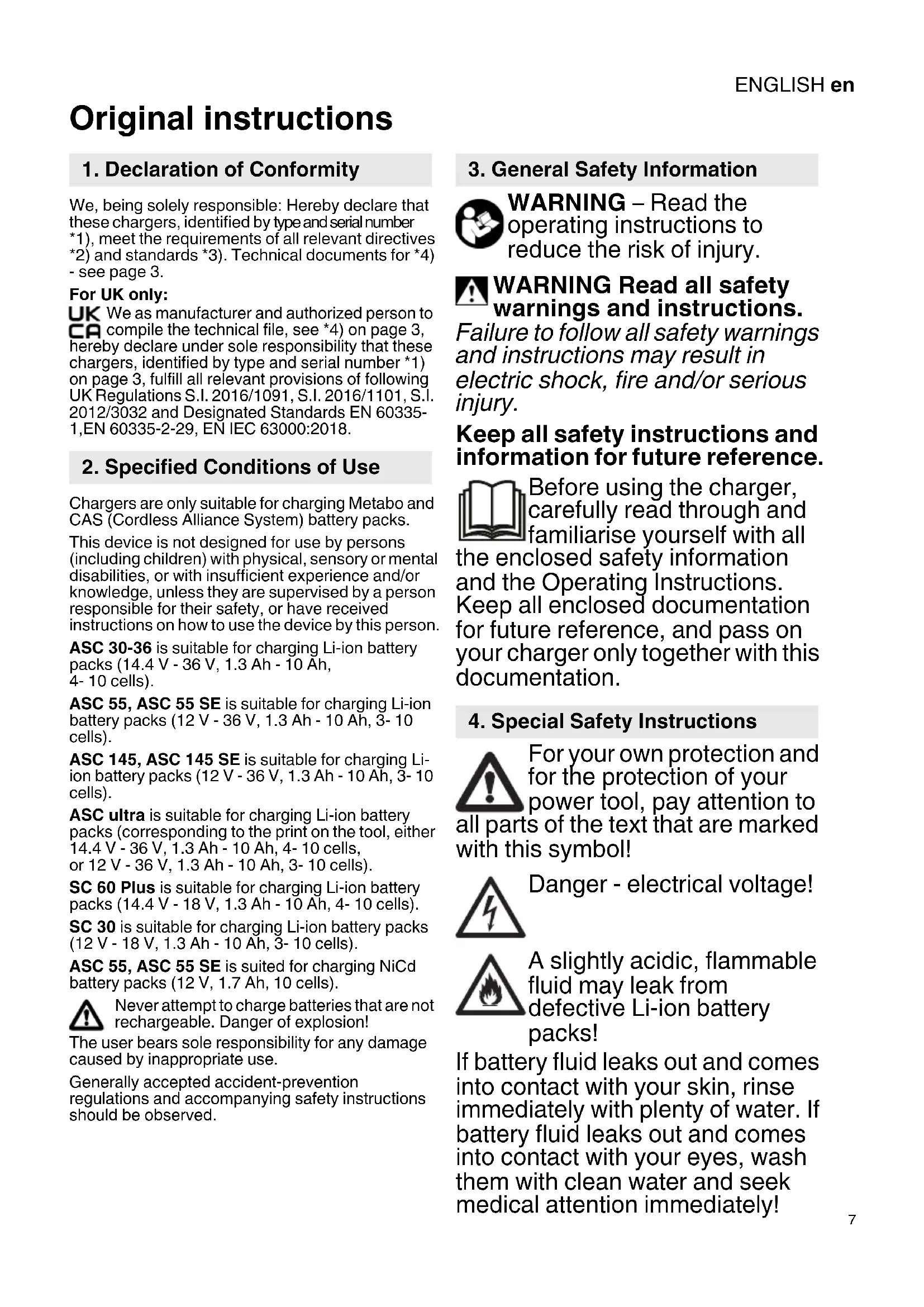

Original instructions

1. Declaration of Conformity

We, being solely responsible: Hereby declare that these chargers, identified by type and serial number *1), meet the requirements of all relevant directives *2) and standards *3). Technical documents for *4) - see page 3.

For UK only:

UK We as manufacturer and authorized person to CA compile the technical file, see *4) on page 3, hereby declare under sole responsibility that these chargers, identified by type and serial number *1) on page 3, fulfill all relevant provisions of following UK Regulations S.I. 2016/1091, S.I. 2016/1101, S.I. 2012/3032 and Designated Standards EN 60335-1, EN 60335-2-29, EN IEC 63000:2018.

2. Specified Conditions of Use

Chargers are only suitable for charging Metabo and CAS (Cordless Alliance System) battery packs.

This device is not designed for use by persons (including children) with physical, sensory or mental disabilities, or with insufficient experience and/or knowledge, unless they are supervised by a person responsible for their safety, or have received instructions on how to use the device by this person.

ASC 30-36 is suitable for charging Li-ion battery packs (14.4 V - 36 V, 1.3 Ah - 10 Ah, 4-10 cells).

ASC 55, ASC 55 SE is suitable for charging Li-ion battery packs (12 V - 36 V, 1.3 Ah - 10 Ah, 3-10 cells).

ASC 145, ASC 145 SE is suitable for charging Li-ion battery packs (12 V - 36 V, 1.3 Ah - 10 Ah, 3-10 cells).

ASC ultra is suitable for charging Li-ion battery packs (corresponding to the print on the tool, either 14.4 V - 36 V, 1.3 Ah - 10 Ah, 4-10 cells, or 12 V - 36 V, 1.3 Ah - 10 Ah, 3-10 cells).

SC 60 Plus is suitable for charging Li-ion battery packs (14.4 V - 18 V, 1.3 Ah - 10 Ah, 4-10 cells).

SC 30 is suitable for charging Li-ion battery packs (12 V - 18 V, 1.3 Ah - 10 Ah, 3-10 cells).

ASC 55, ASC 55 SE is suited for charging NiCd battery packs (12 V, 1.7 Ah, 10 cells).

Never attempt to charge batteries that are not rechargeable. Danger of explosion!

The user bears sole responsibility for any damage caused by inappropriate use.

Generally accepted accident-prevention regulations and accompanying safety instructions should be observed.

3. General Safety Information

WARNING – Read the operating instructions to reduce the risk of injury.

WARNING Read all safety warnings and instructions.

Failure to follow all safety warnings and instructions may result in electric shock, fire and/or serious injury.

Keep all safety instructions and information for future reference.

Before using the charger, carefully read through and familiarise yourself with all closed safety information e Operating Instructions.

Keep all enclosed documentation for future reference, and pass on your charger only together with this documentation.

4. Special Safety Instructions

For your own protection and for the protection of your power tool, pay attention to its of the text that are marked is symbol!

Danger - electrical voltage!

A slightly acidic, flammable fluid may leak from defective Li-ion battery packs!

If battery fluid leaks out and comes into contact with your skin, rinse immediately with plenty of water. If battery fluid leaks out and comes into contact with your eyes, wash them with clean water and seek medical attention immediately!

ENGLISHen

Do not recharge a fully charged battery pack!

Only for use in indoor rooms.

Protect the charger from moisture.

Never allow children to use the device.

Children should be supervised to ensure that they do not play with the tool.

Keep children away from the battery charger and the working area!

Keep your battery charger out of reach of children!

Pull out the mains plug immediately if the battery charger starts to smoke or flames emerge!

Do not insert objects into the ventilation slots on the battery charger – there is a danger of electric shocks and short circuits!

Do not use faulty battery packs. In areas with high metal dust exposure do not charge any battery packs with AIR COOLED chargers.

5. Overview

See page 2. The illustrations are regarded as exemplary for all devices.

1 Battery pack (not in scope of delivery)
2 Sliding seat
3 Operation display
4 Warning display

6. Initial Operation

Before commissioning, check that the rated mains voltage and mains frequency stated on the type plate match your power supply.

Devices like these that generate direct current can influence simple earth leakage protection devices. Use a type F or better, with a release current of max. 30 mA.

Before commissioning the charger, ensure that the air slots are free. Minimum distance to other objects is 5 cm!

6.1 Self-test

Plug in.

The warning display (4) and the operating indicator (3) light up one after the other for approx. 1 second and the installed fan runs for approx. 5 seconds.

7. Use

7.1 Charging battery pack

Push the battery pack completely to the stop on the sliding seat (2).

The operating indicator (3) flashes.

Note: To have the charge level displayed on Li-ion battery packs, first take the battery pack out of the charger and then press the button on the battery pack.

7.2 Conservation charge

Once the charging process has finished, the battery charger automatically switches to conservation mode.

The battery pack can remain in the battery charger and is therefore always ready for use.

The operating display (3) lights up continuously.

8. Faults

8.1 Warning display (4) lights up continuously

Battery pack is not charged. Excessive/insufficient temperature. When the temperature of the battery pack is between 0 °C and 50 °C, the charging process begins automatically.

8.2 Warning display (4) flashes

• Battery pack is defective. Remove the battery pack immediately from the charger.
• The battery pack was not pushed correctly onto the sliding seat (2). See chapter 7.1.

9. Repairs

Repairs to the charger must only be carried out by qualified electricians.

If the mains connection cable of this device is damaged, it must be replaced by the manufacturer

or the Customer Service department of the manufacturer or a similarly qualified person to prevent endangering personnel and property.

If you have Metabo charges that require repairs, please contact your Metabo service centre. See www.metabo.com for addresses.

10. Environmental Protection

Observe national regulations on environmentally compatible disposal and on the recycling of disused machines, packaging and accessories.

Only for EU countries: never dispose of power tools in your household waste! According to European Directive 2012/19/EU

on Waste from Electric and Electronic Equipment and implementation in national law, used power tools must be collected separately and recycled in an environmentally-friendly manner.

11. Technical Specifications

See page 3.

U = voltage ranges of the battery packs
C = battery pack capacity
l_C = charging current
t = charging time

^1) Depending on the residual capacity and the temperature of the battery pack, real charging times may deviate from the specifications.

Recommended ambient temperature when charging: 0 °C to 40 °C

Changes due to technological progress reserved.

Device of protection class II

\~ AC Power

FRANÇAISfr

Notice originale

C = accupack-capaciteit

I_C = laadstroom

t = laadtijd
