Bass Overdrive BOD400 - Guitar BEHRINGER - Free user manual and instructions

Product type	Bass effects pedal
Brand	Behringer
Model	Bass Overdrive BOD400
Category	Distortion / Overdrive Pedal
Power supply	9 V DC (center negative) or 9 V battery (not included)
Power consumption	Approximately 20 mA
Input connectors	1x 6.35 mm TS (jack)
Output connector	1x 6.35 mm TS (jack)
External power supply	2.1 mm DC jack (center negative)
Battery	1x 9 V battery (type 6LR61)
Controls	LEVEL, HIGH, LOW, GAIN, BAL (balance), footswitch on/off
Indicator	LED ON/BATT (lights up when effect is active, indicates battery level)
Features	Tube-style overdrive, treble and bass tone control, dry/effect signal blend
Maintenance	Clean with a dry cloth
Operating temperature	0 °C to 40 °C
Humidity	Max 80%
Weight	Approximately 0.3 kg
Dimensions	Approximately 70 x 120 x 55 mm
Serial number	Affixed under the unit
Warranty	Limited warranty – see Music Tribe website
Country of origin	China
Repairability	Do not open – contact technical support
Safety instructions	Do not use near liquids, do not open, use approved accessories
Disposal	Electronic device, recycle according to local regulations (WEEE directive)
Included accessories	Instruction manual only

Frequently Asked Questions - Bass Overdrive BOD400 BEHRINGER

How to connect the BOD400 pedal?

Connect your instrument to the IN input (6.35 mm jack) and connect the OUT output to your amplifier. Insert the plug to turn on the pedal. Use the footswitch to activate/deactivate the effect.

How to replace the battery?

Open the battery compartment located under the pedal. Replace the used battery with a 9 V battery type 6LR61, respecting polarity. Close the lid.

Can I use an external power supply?

Yes, use a 9 V DC power supply with center negative (2.1 mm). Plug it into the DC IN jack on the front of the pedal. The power supply is not included.

What to do if the LED does not turn on?

Check that the battery is installed correctly or that the external power supply is connected. If the LED remains off, the battery may be drained or the power supply faulty. Replace the battery or test another power supply.

How to set the sound for a mild overdrive?

Turn the GAIN control to a low level (between 8 and 10 o'clock). Adjust LEVEL to the desired volume. Use BAL to mix a little dry signal with the effect. The HIGH and LOW settings allow you to fine-tune the tone.

What is the difference between GAIN and LEVEL?

GAIN controls the amount of distortion (overdrive). The higher it is, the stronger the saturation. LEVEL adjusts the overall output volume without affecting distortion.

Does the pedal work with a guitar?

Yes, the BOD400 is designed for bass but also works with an electric guitar. However, the frequency adjustment is optimized for low frequencies.

How to clean the pedal?

Unplug the pedal and remove the battery. Clean the housing with a dry cloth. Do not use chemical or abrasive cleaners. Avoid moisture.

Is the warranty international?

The warranty is a limited warranty from Music Tribe. For details and terms, visit community.musictribe.com/support.

Can I connect multiple pedals together?

Yes, you can chain multiple effects pedals. Connect the OUT output of the BOD400 to the input of the next pedal. Use good quality jack cables to minimize noise.

USER MANUAL Bass Overdrive BOD400 BEHRINGER

EN Safety Instruction

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Use only attachments/ accessories specified by the manufacturer.

1. Use only with the cart, stand, tripod, bracket, or table

specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

1. Correct disposal of this product: This symbol indicates that this product must not be

disposed of with household waste, according to the WEEE Directive (2012/19/EU) and your national law. This product should be taken to a collection center licensed for the recycling of waste electrical and electronic equipment (EEE). The mishandling of this type of waste could have a possible negative impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE. At the same time, your cooperation in the

correct disposal of this product will contribute to the efficient use of natural resources. For more information about where you can take your waste equipment for recycling, please contact your local city office, or your household waste collection service.

1. Do not install in a confined space, such as a book case or similar unit.
2. Do not place naked flame sources, such as lighted candles, on the apparatus.

Music Tribe accepts no liability for any loss which may be suffered by any person who relies either wholly or in part upon any description, photograph, or statement contained herein. Technical specifications, appearances and other information are subject to change without notice. All trademarks are the property of their respective owners. Midas, Klark Teknik, Lab Gruppen, Lake, Tannoy, Turbosound, TC Electronic, TC Helicon, Behringer, Bugera, Aston Microphones and Coolaudio are trademarks or registered trademarks of Music Tribe Global Brands Ltd. © Music Tribe Global Brands Ltd. 2024 All rights reserved.

Thank you for showing your confidence in us by purchasing the Behringer BASS OVERDRIVE BOD400. This high-quality effects pedal is specifically designed for bass applications. Thanks to its high-performance features you will achieve tube-like distortion, smooth sustain and super fat tone with maximum punch.

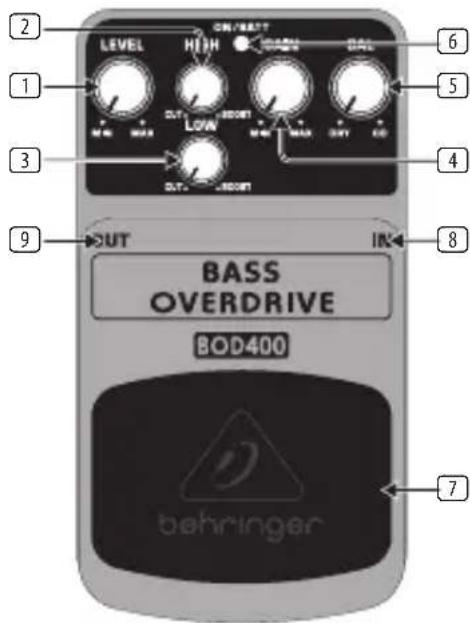

1. Controls

The LEVEL control adjusts the output level.
The HIGH control allows you to boost/cut the high-frequency range.
The LOW control allows you to boost/cut the low-frequency range.
Use the GAIN control to adjust the amount of overdrive.
5 With the BAL(ance) control you can adjust the amount of the dry direct signal and the effect signal.
The ON/BATT LED illuminates when the effect is activated. It also serves as a battery level indicator.
Use the footswitch to activate/deactivate the effect.
Use this 1 / 4 TS IN connector to plug in the instrument cable.
The 1 / 4 TS OUT connector sends the signal to your amp.

Use the DC IN connection at the front of the unit to plug in a 9 V power supply (not included).

The BATTERY COMPARTMENT is located on the bottom. Open the lid to install or replace the 9 V battery.

The BOD400 has no on/off switch. As soon as you insert the jack into the in connector, the BOD400 begins running. When not using the BOD400, remove the jack from the in connector. This extends the life of the battery.

The SERIAL NUMBER is located on the bottom.

2. Safety Instructions

Do not use near water, or install near heat sources. Use only authorized attachments/accessories. Do not service product yourself. Contact our qualified servicing personnel for servicing or repairs, especially when power supply cord or plug is damaged.

3. Limited Warranty

For the applicable warranty terms and conditions and additional information regarding Music Tribe's Limited Warranty, please see complete details online at community.musictribe.com/support.

Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

WARNING

• As with all small batteries, the batteries used with this product should be kept away from small children who still put things in their mouths. If they are swallowed, promptly call your local poison control center.
  Always purchase the correct size and grade of battery most suitable for intended use.
• Replace all batteries of a set at the same time.
• Clean the battery contacts and also those of the device prior to battery installation.
• Ensure the batteries are installed correctly with the regard to polarity (+ and -).
  Always remove battery if consumed or if product is to be left unused for a long time.
• Replacement of a battery with an incorrect type that can defeat a safeguard! Replace only with the same or equivalent type!
• Risk of fire or explosion if the battery is replaced by an incorrect type.
• Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion;
• Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas; and
• A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.
• Attention should be drawn to the environmental aspects of battery disposal.

ES

Power connector 2 mm DC jack, negative center

Battery 9 V type 6LR61

Power consumption 30mA

Physical/Weight

Dimensions

approx. 2.1 × 2.8 × 4.8

(H×W×D)

approx. 54 × 70 × 123 ~mm

Weight approx. 0.7~lbs / 0.33~kg

Behringer is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and appearance may therefore differ from those listed or shown.

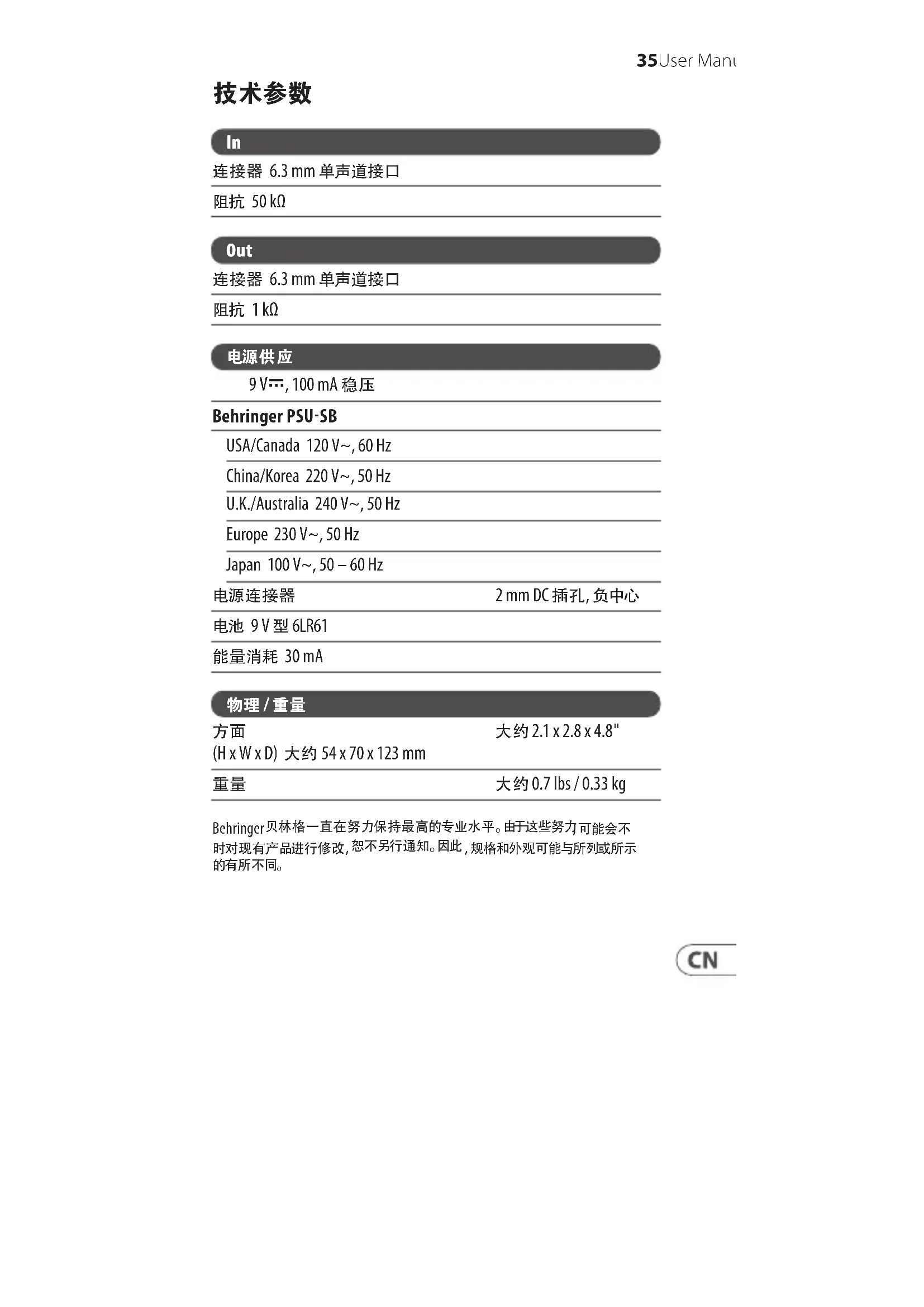

技术参数

In

Responsible Party Name: Music Tribe

Commercial NV Inc.

Address: 122 E. 42nd St.1,

8th Floor NY,

NY 10168,

United States

Email Address:

[e-mail]

BASS OVERDRIVE BOD400

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

This equipment complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Important information:

Changes or modifications to the equipment not expressly approved by Music Tribe can void the user's authority to use the equipment.

Hereby, Music Tribe declares that this product is in compliance with Directive 2014/30/EU, Directive 2011/65/EU and Amendment 2015/863/EU, Directive 2012/19/EU, Regulation 519/2012 REACH SVHC and Directive 1907/2006/EC.

Full text of EU DoC is available at https://community.musictribe.com/

EU Representative: Music Tribe Brands DK A/S Address: Gammel Strand 44, DK-1202 København K, Denmark

UK Representative: Music Tribe Brands UK Ltd. Address: 8^th Floor, 20 Farrington Street London EC4A 4AB, United Kingdom

We Hear You
