USER MANUAL CHEFVOLUTION HMW25STB HOOVER

Please read these instructions carefully before installing and operating the oven.DECLARATION OF COMPLIANCE

By placing the mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.

This appliance is labelled in accordance with European Directive 201/19/EU regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused.) It's important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules: - The WEEE should not be treated as domestic waste; - The WEEE should be taken to dedicated collection areas managed by the town council or a registered company. In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

1. Do not attempt to operate this oven with the door open since open door operation can result in

harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.

2. Do not place any object between the oven front face and the door or allow soil or cleaner

residue to accumulate on sealing surfaces.

3. Do not operate the oven if it is damaged. It is particularly important that the oven door close

properly and that there is no damage to the a. Door (bent), b. Hinges and latches (broken or loosened), c. Door seals and sealing surfaces.

4. The oven should not be adjusted or repaired by anyone except prope

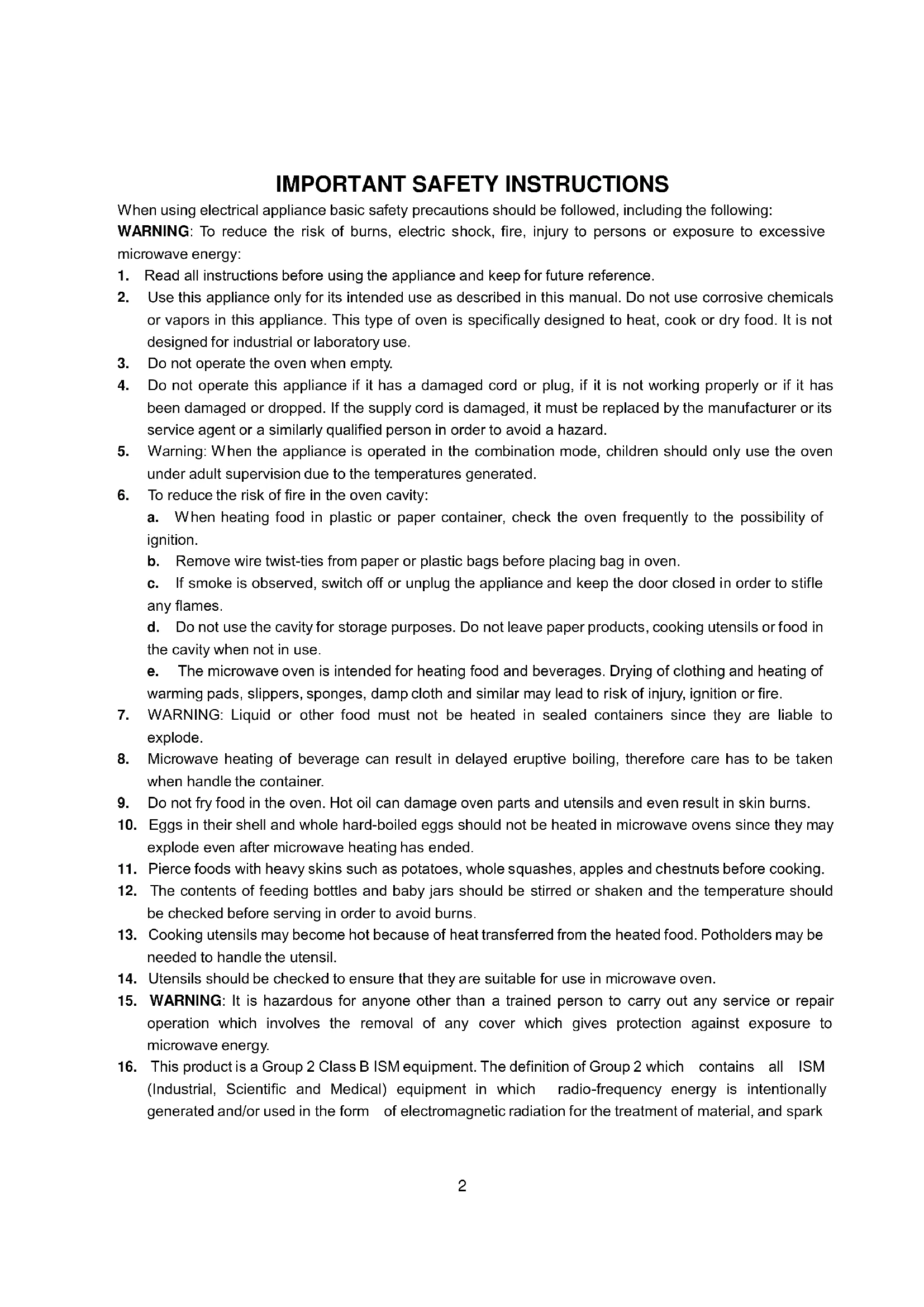

When using electrical appliance basic safety precautions should be followed, including the following:

WARNING: To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive

1. Read all instructions before using the appliance and keep for future reference.

2. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals

or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.

3. Do not operate the oven when empty.

4. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has

been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

5. Warning: When the appliance is operated in the combination mode, children should only use the oven

under adult supervision due to the temperatures generated.

6. To reduce the risk of fire in the oven cavity:

a. When heating food in plastic or paper container, check the oven frequently to the possibility of ignition. b. Remove wire twist-ties from paper or plastic bags before placing bag in oven. c. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames. d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use. e. The microwave oven is intended for heating food and beverages. Drying of clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

7. WARNING: Liquid or other food must not be heated in sealed containers since they are liable to

8. Microwave heating of beverage can result in delayed eruptive boiling, therefore care has to be taken

when handle the container.

9. Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns.

10. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may

explode even after microwave heating has ended.

11. Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking.

12. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should

be checked before serving in order to avoid burns.

13. Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be

needed to handle the utensil.

14. Utensils should be checked to ensure that they are suitable for use in microwave oven.

15. WARNING: It is hazardous for anyone other than a trained person to carry out any service or repair

operation which involves the removal of any cover which gives protection against exposure to microwave energy.

16. This product is a Group 2 Class B ISM equipment. The definition of Group 2 which contains all ISM

(Industrial, Scienti fic and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark 2erosion equipment. For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purpose.

17. This appliance is not intended for use by persons (including children) with reduced physical, sensory or

mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

18. Children should be supervised to ensure that they do not play with the appliance.

19. The microwave oven is only used in freestanding.

20. WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed

could be damaged and the warranty would be avoid.

21. The microwave oven shall not be placed in a cabinet.

22. The door or the outer surface may get hot when the appliance is operating.

23. Warning: Accessible parts may become hot during use. Young children should be kept away.

24. During use the appliances becomes hot. Care should be taken to avoid touching heating elements

inside the oven, for cooking ranged and ovens.

25. The temperature of accessible surfaces may be high when the appliance is operating.

26. The appliance shall be placed against a wall.

27. Appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities,

or lack of experience and knowledge, unless they have been given supervision or instruction

28. WARNING: If the door or door seals are damaged, the oven must not be operated until it has been

repaired by a competent person

29. The instructions shall state that appliances are not intended to be operated by means of an external

timer or separate remote-control system.

30. The microwave oven is for household use only and not for commercial use.

31. Never remove the distance holder in the back or on the sides, as it ensures a minimum distance from

the wall for air circulation.

32. Please secure the turntable before you move the appliance to avoid damages.

33. Caution: It is dangerous to repair or maintain the appliance by no other than a specialist because under

these circumstances the cover have to be removed which assures protection against microwave radiation. This applies to changing the power cord or the lighting as well. Send the appliance in these cases to our service centre.

34. The microwave oven is intended for defrosting, cooking and steaming of food only.

35. Use gloves if you remove any heated food.

36. Caution! Steam will escape, when opening lids or wrapping foil.

37. This appliance can be used by children aged from 8 years and above and persons with reduced

physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made

children unless they are aged from 8 years and above and supervised.

38. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any

flames. 3SPECIFICATIONS Power Consumption: 230V/50Hz, 1400W(Microwave) Microwave Power Output: 900W Operation Frequency: 2450MHz Outside Dimensions: 281mm(H)×483mm(W)×407mm(D) Oven Cavity Dimensions: 220mm(H)×340mm(W)×344mm(D) Oven Capacity: Compact 25 Litres Net Weight: Approx.13.9 kg INSTALLATION

1. Make sure that all the packing materials are removed from the inside of the door.

2. WARNING: WARNING: Check the oven for any damage, such as misaligned or bent door, damaged

door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact qualified service personnel.

3. This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest food

likely to be cooked in the oven.

4. Do not place the oven where heat, moisture, or high humidity are generated, or near combustible

5. For correct operation, the oven must have sufficient airflow. Allow 20cm of space above the oven, 10cm

at back and 5cm at both sides. Do not cover or block any openings on the appliance. Do not remove feet.

6. Do not operate the oven without glass tray, roller support, and shaft in their proper positions.

7. Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or

8. The socket must be readily accessible so that it can be easily unplugged in an emergency.

9. Do not use the oven outdoors.

RADIO INTERFERENCE Operation of the microwave oven can cause interference to your radio, TV, or similar equipment. When there is interference, it may be reduced or eliminated by taking the following measures:

1. Clean door and sealing surface of the oven.

2. Reorient the receiving antenna of radio or television.

3. Relocate the microwave oven with respect to the receiver.

4. Move the microwave oven away from the receiver.

5. Plug the microwave oven into a different outlet so that microwave oven and receiver are on different

branch circuits. 4GROUNDING INSTRUCTIONS This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may result in a fire or other accident causing oven damage. WARNING Improper use of the grounding plug can result in a risk of electric shock. Note:

1. If you have any questions about the grounding or electrical instructions, consult a qualified electrician or

2. Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal

injury resulting from failure to observe the electrical connection procedures. The wires in this cable main are colored in accordance with the following code: Green and Yellow = EARTH Blue = NEUTRAL Brown = LIVE

1. Arrange food carefully. Place thickest areas towards outside of dish.

2. Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food

severely overcooked can smoke or ignite.

3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.

4. Turn foods over once during microwaving to speed cooking of such foods as chicken and hamburgers.

Large items like roasts must be turned over at least once.

5. Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the

center of the dish to the outside.

If the oven fails to operate:

1. Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10

seconds, and plug it in again securely.

2. Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly,

test the outlet with another appliance.

3. Check to ensure that the control panel is programmed correctly and the timer is set.

4. Check to ensure that the door is securely closed engaging the door safety lock system. Otherwise, the

microwave energy will not flow into the oven.

IF NONE OF THE ABOVE REC

TIFIES THE SITUATION, THEN CONTACT A QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF. 5UTENSILS GUIDE

1. Microwave cannot penetrate metal. Only use utensils that are suitable for use in microwave ovens.

Metallic containers for food and beverages are not allowed during microwave cooking. This requirement is not applicable if the manufacturer specifies size and shape of metallic containers suitable for microwave cooking.

2. Microwave cannot penetrate metal, so metal utensils or dishes with metallic trim should not be used.

3. Do not use recycled paper products when microwave cooking, as they may contain small metal

fragments which may cause sparks and/or fires.

4. Round /oval dishes rather than square/oblong ones are recommend,

as food in corners tends t

5. Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. But be careful

don’t use too much and keep a distance of 1 inch (2.54cm) between foil and cavity. The list below is a general guide to help you select the correct utensils.

Heat–Resistant Ceramics Yes Microwave–Safe Plastic Dish Yes Kitchen Paper Yes Metal Tray

Aluminum Foil & Foil Containers

mica plate covering the wave guide)

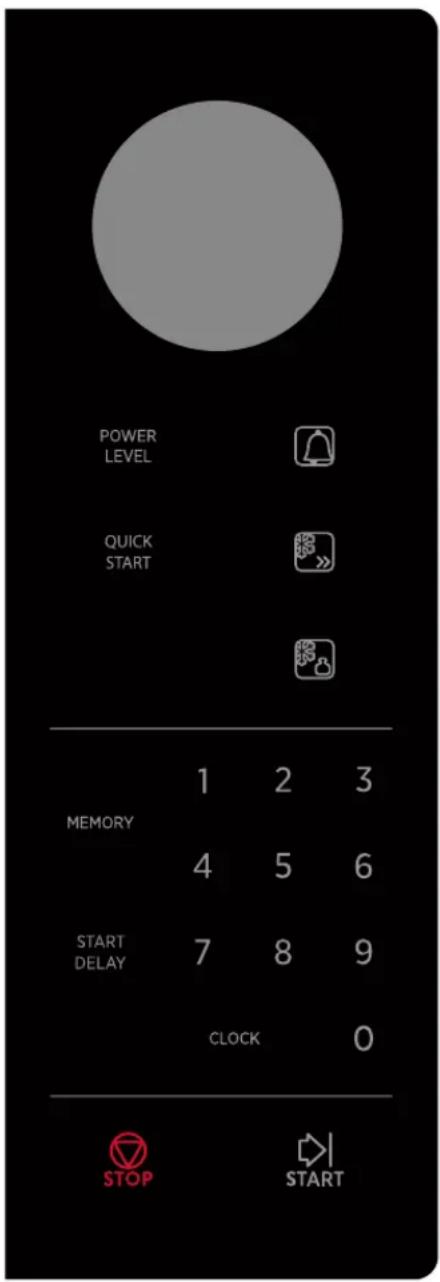

Clock, cooking time, power, action indicators are displayed.

Press this button once and then use the number button to set a cooking power level other than full power. WEIGHT DEFROST Automatically sets proper defrosting cycle once you have entered the weight of the food to be thawed. JET DEFROST Customize defrosting time for food outside the categories or exceeding the max. allowable weight by weight defrost. TIME Press the TIME button once and then use the number buttons to set cooking time. MEMORY Use this button to set a multistage cooking program. NUMBER PADS Touch to enter clock time, set power level, and indicate food weight. CLOCK Use to set the time of day.

Delay start control allows you to put food into the oven and program it to start cooking at a later time. QUICK START To start the oven quickly at full microwave power, you can press this button a number of times to indicate cooking time. Press the QUICK START button for three seconds to active ECO function STOP Touch to clear current setting or reset the system. START Touch to start a cooking or defrosting program.

7HOW TO SET THE OVEN CONTROLS

During cooking, if press STOP pad once, the program will be paused, and then press START pad to resume, but if you press STOP pad twice, the program will be cancelled. End will display with beeps to remind the program is over, and it will sound every two minutes until you press any pad or open the door.

To enter the oven clock time,

1. Touch CLOCK button.

2. Use the number pads to enter time.

3. Touch CLOCK button again to confirm.

NOTE: This is a 24-hour clock. You can check the clock time when cooking is in progress by touching the CLOCK button.

2. Use the number pads to set a cooking time. The longest time you can set is 99 minutes and 99

3. Press POWER LEVEL pad a number of time to enter the power level. (Please check the following

4. Touch START to start cooking.

NOTE: During cooking, you can check the current power level by touching POWER LEVEL pad. If you want to cook at full power level, omit the third step.

With quick start cooking, you touch the QUICK START button a number of times to state cooking time and the oven will work at full power level. Touch once 15 seconds Touch twice 30 seconds Touch 3 times 1 minute Touch 4 times 2 minutes Suppose you want to set the oven to microwave for 1 minute at 100% power level.

81. Touch the QUICK START button 3 times, "1:00" will appear in the display.

2. Touch START button.

JET DEFROST JET DEFROST lets you customize defrosting time, you can use it to defrost food not covered, or its weight exceeds the maximum allowable by weight defrost. Suppose you want to set the oven to defrost for 5 minutes and 30 seconds.

NOTE: The longest defrost time you can set is 99 minutes and 99 seconds. During defrosting, the oven will pause and sound beep to remind user to turn the food over and then press START to resume.

WEIGHT DEFROST Automatically sets proper defrosting cycle once you have entered the weight of the food to be thawed. Maximum allowable weight for each category is shown below.

Suppose you want to defrost 600g shrimp.

1. Touch WEIGHT DEFROST button 3 times. "d3" will appear in the display.

2. Touch number buttons 6,0,0.

3. Touch START button.

NOTE: The oven will not start if you happen to enter weight in excess of the maximum recommended. For food exceeding these maximum weights, use the JET DEFROST program. During defrosting, the oven will pause and sound beep to remind user to turn the food over and then press START to resume.

MULTI-STAGE COOKING Some recipes may require setting a multi-stage program involving defrosting, and different power levels. The following example shows the steps in setting up such a program.

5. Input another microwave cooking program with probably lower power level settings.

6. Touch START button.

NOTE: Jet Defrost and Weight Defrost must be set as the first stage in a multistage cooking program while quick start cooking is unavailable.

9START DELAY COOKING

You can put food in the oven, and program the oven to start up in a later time within the oven's clock cycle. Suppose you want to set the oven to start-up at 2 o'clock.

1. Place food in the oven and close the door.

2. Set a cooking program (except start delay cooking program).

NOTE: When start delay function takes effect, touch START DELAY can check the delay time. And then touch STOP when the display shows the time can cancel the function.

CHILD LOCK The child lock prevents unsupervised operation by children. To set, in standby mode, if there is not any operation within one minutes the oven will auto enter child lock mode. To cancel, in child lock mode, open or close the oven door once can cancel the program. ECO FUNCTION Set the method: In standby mode, long pressing QUICK START button pad three seconds can turn off the display screen and a beep will sound. The oven will enter power saving mode. Lifting method: During the power saving mode, it will be canceled by press any pad and a beep will sound. The display screen will light up.

1. Turn off the oven and remove the power plug from the wall socket before cleaning.

2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe

with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.

3. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating

parts inside the oven, water should not be allowed to seep into the ventilation openings.

4. Wipe the both sides of the door and window, the door seals and adjacent parts fr

equently with a damp cl oth to remove any spills or spatters. Do not use abrasive cleaner.

5. A steam cleaner is not be used.

6. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the

control panel, leave oven door open to prevent oven from accidentally turning on.

7. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may

occur when the microwave oven is operated under high humidity condition. And it is normal.

8. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy

water or in a dishwasher.

The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy water or dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to replace in the proper position.

10. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a

deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.

11. When it becomes necessary to repl

ace the oven light, p lease consult a dealer to have it replaced.

12. The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven

in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

13. Please do not dispose this appliance into the domestic rubbish bin; it should be disposed to the

particular disposal center provided by the municipalities.
