USER MANUAL InnerScan V TANITA

Illustration of a standard analog balance scale with four circular cutouts and a digital display (no text or symbols on the device itself)

Model: BC-601

Instruction Manual

Read this Instruction Manual carefully and keep it for future reference.

Bedienungsanleitung

Eng Table of Contents

Introduction 1

Features and functions ....1

Preparations before use 2

Getting accurate readings 2

Automatic shut-down function .....2

Setting (resetting) date and time ....3

Setting and storing personal data

in memory 4

Taking weight and body fat readings .....5

How to see the reading of each segment .....7

Using the Visceral Fat Button 8

Visceral Fat Rating 8

Visceral Fat Trend 8

Recall Function 9

Programming the guest mode .....10

Taking weight measurement only .....10

Switching the weight mode 10

Troubleshooting....11

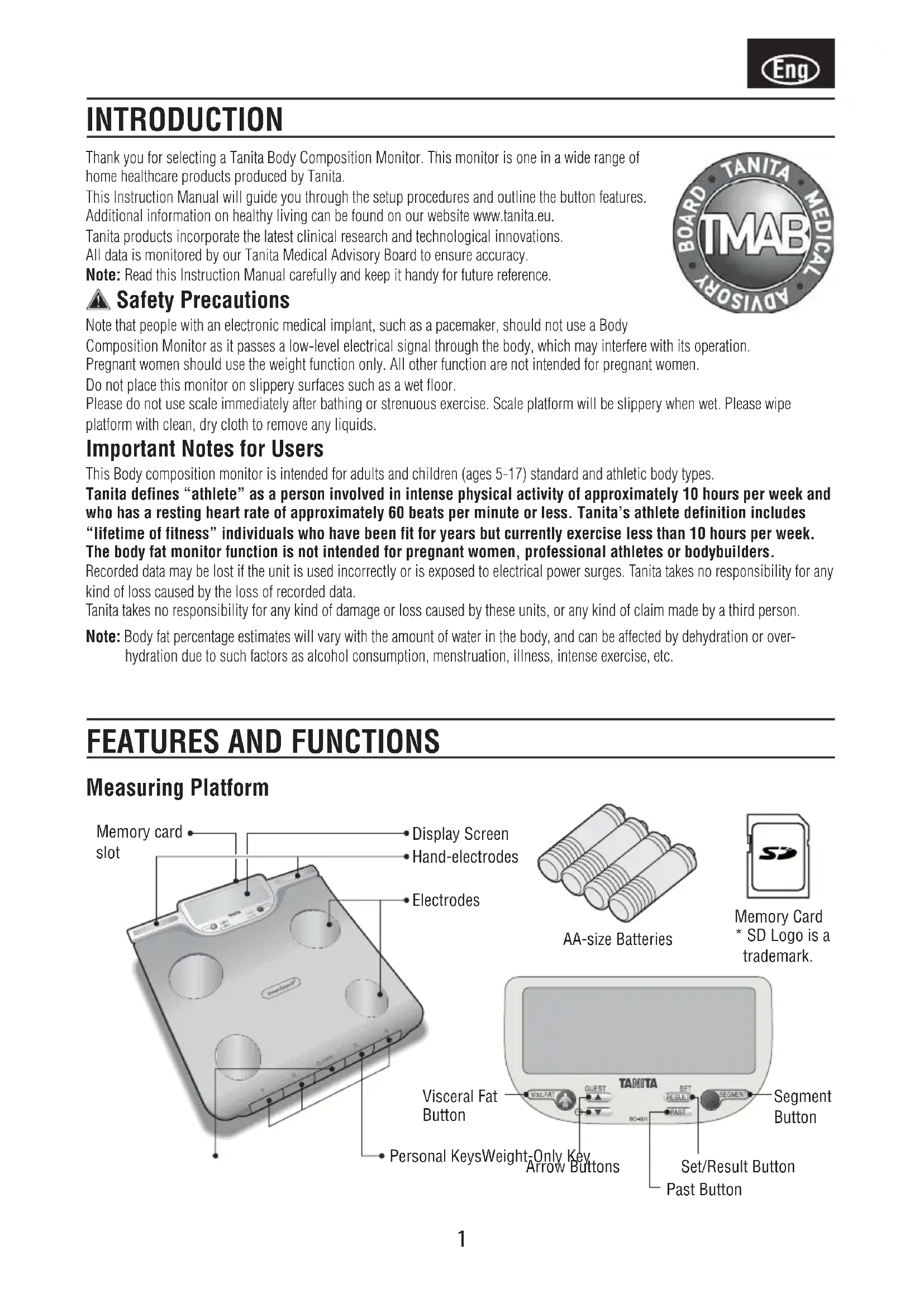

Thank you for selecting a Tanita Body Composition Monitor. This monitor is one in a wide range of home healthcare products produced by Tanita.

This Instruction Manual will guide you through the setup procedures and outline the button features. Additional information on healthy living can be found on our website www.tanita.eu.

Tanita products incorporate the latest clinical research and technological innovations.

All data is monitored by our Tanita Medical Advisory Board to ensure accuracy.

Note: Read this Instruction Manual carefully and keep it handy for future reference.

BOARD TANITA MEDICAL TMAB ADVISORY

Safety Precautions

Note that people with an electronic medical implant, such as a pacemaker, should not use a Body

Composition Monitor as it passes a low-level electrical signal through the body, which may interfere with its operation.

Pregnant women should use the weight function only. All other function are not intended for pregnant women.

Do not place this monitor on slippery surfaces such as a wet floor.

Please do not use scale immediately after bathing or strenuous exercise. Scale platform will be slippery when wet. Please wipe platform with clean, dry cloth to remove any liquids.

Important Notes for Users

This Body composition monitor is intended for adults and children (ages 5-17) standard and athletic body types.

Tanita defines “athlete” as a person involved in intense physical activity of approximately 10 hours per week and who has a resting heart rate of approximately 60 beats per minute or less. Tanita’s athlete definition includes “lifetime of fitness” individuals who have been fit for years but currently exercise less than 10 hours per week. The body fat monitor function is not intended for pregnant women, professional athletes or bodybuilders.

Recorded data may be lost if the unit is used incorrectly or is exposed to electrical power surges. Tanita takes no responsibility for any kind of loss caused by the loss of recorded data.

Tanita takes no responsibility for any kind of damage or loss caused by these units, or any kind of claim made by a third person.

Note: Body fat percentage estimates will vary with the amount of water in the body, and can be affected by dehydration or overhydration due to such factors as alcohol consumption, menstruation, illness, intense exercise, etc.

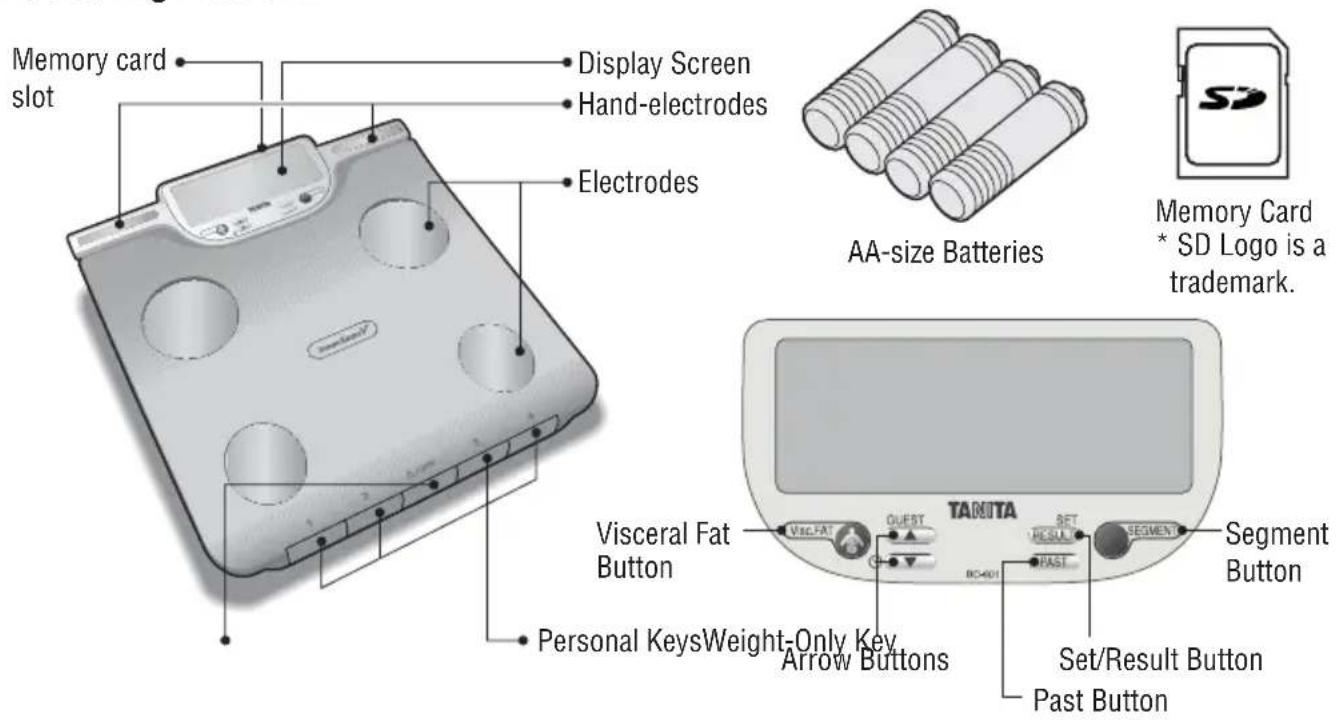

FEATURES AND FUNCTIONS

Measuring Platform

Memory card slot Display Screen Hand-electrodes Electrodes AA-size Batteries Memory Card * SD Logo is a trademark. Visceral Fat Button Personal Keys Weight-Only Key Arrow Buttons TAMITA SET RESULT Segment Button Set/Result Button Past Button

PREPARATIONS BEFORE USE

Open as shown.

Direction of the batteries.

▲ Inserting the Batteries

Turn the scale over and remove the battery cover by releasing the latch, insert 4 x AA batteries (included) with the correct polarity as indicated.

Note: Be sure that the polarity of the batteries is set properly. If the batteries are incorrectly positioned the fluid may leak and damage floors. If you do not intend to use this unit for a long period of time, it is advisable to remove the batteries before storage.

Please note that the included batteries from the factory may have decreased energy levels over time.

▲ Positioning the Monitor

Place the measuring platform on a hard, flat surface where there is minimal vibration to ensure safe and accurate measurement.

Note: To avoid possible injury, do not step on the edge of the platform.

Handling Tips

This monitor is a precision instrument utilising state-of-the-art technology.

To keep the unit in the best condition, please follow these instructions carefully:

• Do not attempt to disassemble the measuring platform.
• Store the unit horizontally, and place it so that the buttons will not be pressed accidentally.
• Avoid excessive impact or vibration to the unit.
• Place the unit in an area free from direct sunlight, heating equipment, high humidity, or extreme temperature change.
• Never submerge in water. Use alcohol to clean the electrodes and glass cleaner (applied to a cloth first) to keep them shiny; avoid using soaps.
• Do not step on the platform with wet feet.
• Do not drop any objects onto the platform.

GETTING ACCURATE READINGS

To ensure accuracy, readings should be taken without clothing and under consistent conditions of hydration. If you do not undress, always remove your socks or stockings, and be sure the soles of your feet are clean before stepping onto the measuring platform. Be sure your heels are correctly aligned with the electrodes on the measuring platform. Don't worry if your feet appear too large for the unit, accurate readings can still be obtained if your toes overhang the platform. It is best to take readings at the same time of day. Try to wait about three hours after rising, eating, or exercising before taking measurements. While readings taken under other conditions may not have the same absolute values, they are accurate for determining the percentage of change as long as the readings are taken in a consistent manner. To monitor progress, compare weight and body fat percentage taken under the same conditions over a period of time.

Note: An accurate reading will not be possible if the soles of your feet are not clean, or if your knees are bent or you are in a sitting position.

AUTOMATIC SHUT-DOWN FUNCTION

The automatic shut-down function shuts off the power automatically in the following cases:

- If you interrupt the measurement process. The power will shut down automatically within 20 to 70 seconds, depending upon the type of operation.

- If an extreme weight is applied to the platform.

- During programming, if you do not touch any of the buttons within 60 seconds.*

• After you have completed the measuring process.

*Note: If the power shuts off automatically, repeat the steps from "Setting and Storing Personal Data in Memory" (p.4).

SETTING (RESETTING) DATE AND TIME

Press to turn on the unit.

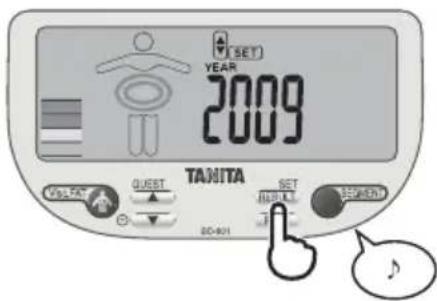

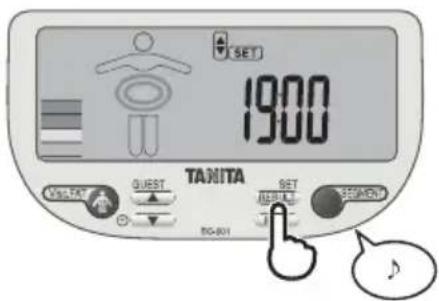

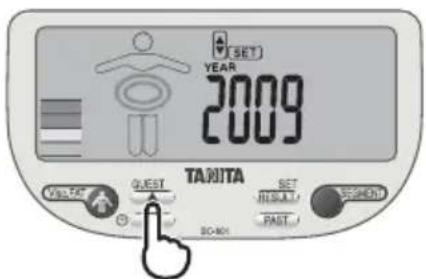

1. Set Year

Specify with ▲ and ▼

SET YEAR 2009 TARITA VOUT QUEST SET INSERT PAST BUSTON

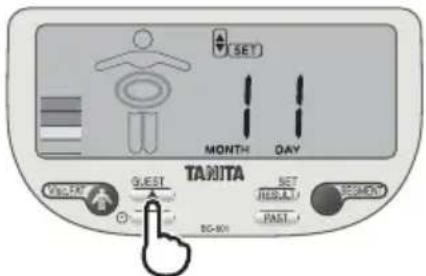

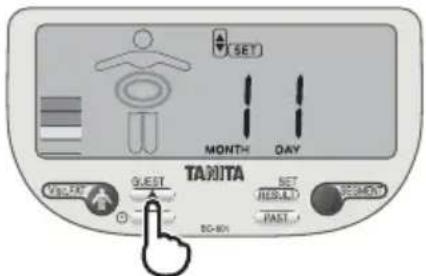

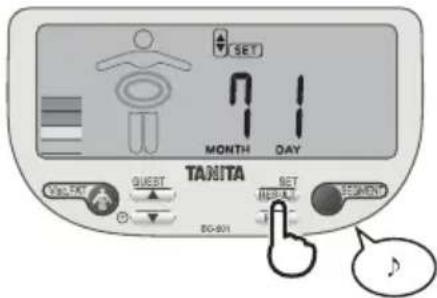

2. Set Month

SET MONTH OAY TAJITA VOUT GUEST SET HESLA1 PAST BOX-80%

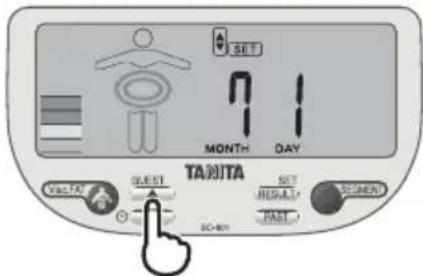

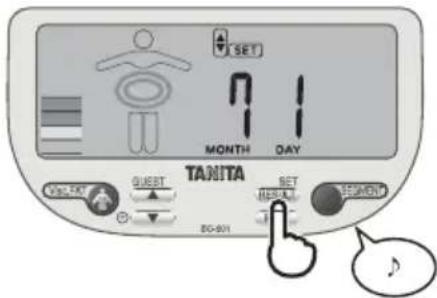

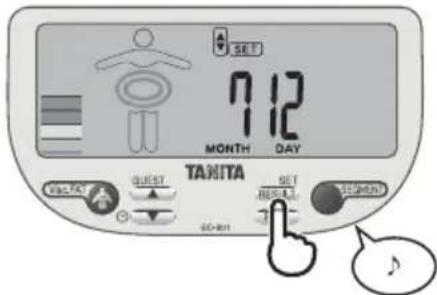

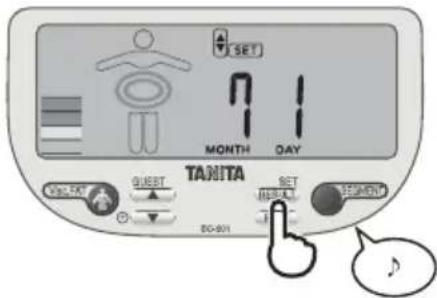

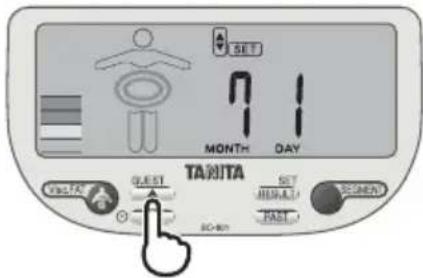

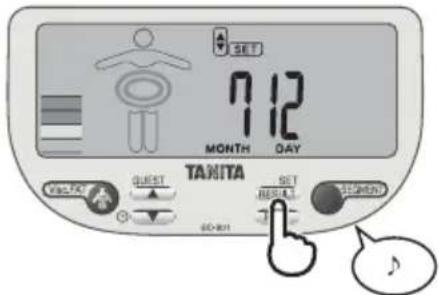

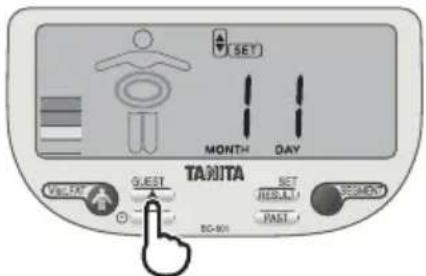

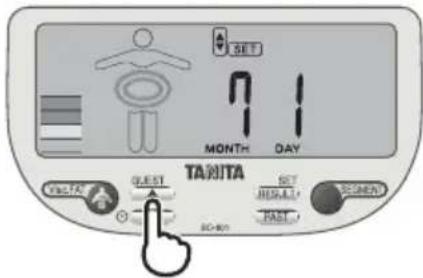

3. Set Day

SET MONTH DAY TAKITA POST DOWN SET HORN PAST DOWN POST

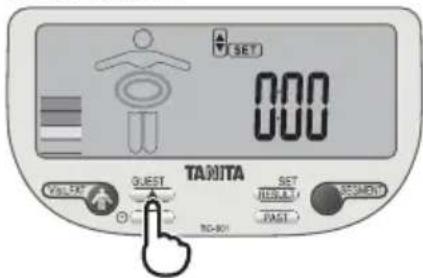

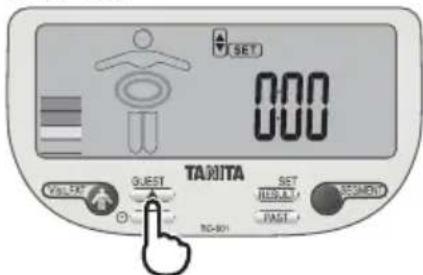

4. Set Hour

SET 000 TARITA QUEST SET HUS-81 PAGE VILL-54 NC-801

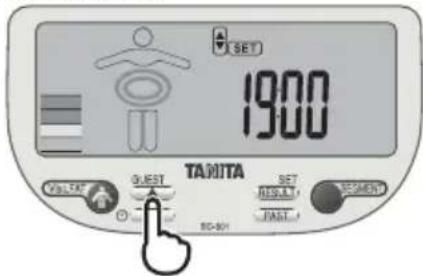

5. Set Minute

SET 19:00 TAKITA VOLTAGE QUEST SET RUSTAL FAST BIO-80%

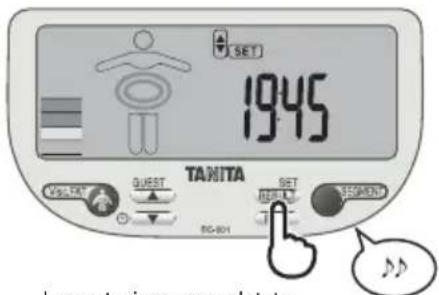

Press SET to confirm.

SET YEAR 2009 TANITA SET PRESET 20-801

SET MONTH DAY TANITA Volume Question DG-801 SET MONTH DEG-801

SET 7:12 MONTH DAY TANITA VACATI QUEST NO-TOT SET HOLD STRAWTH SUNTER

SET 19:00 TAKITA VIS-FAT QUEST SET 12:00 AM 24:00 PM BG-801

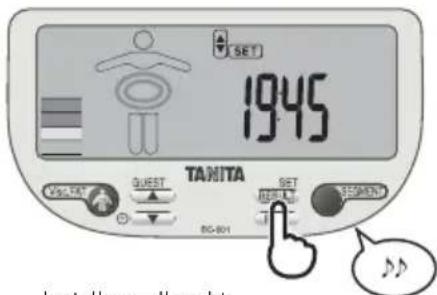

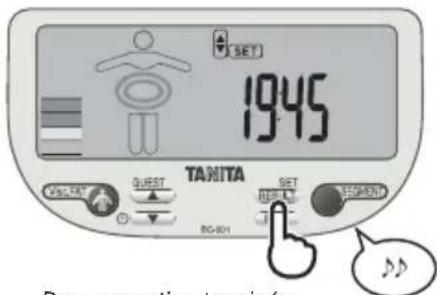

SET 1945 TANITA SET DG-BG1 Setting complete

Setting complete.

Resetting time

Press ▼ and hold for 3 seconds to turn on the unit. Then follow the procedure 1 to 5.

SETTING AND STORING PERSONAL DATA IN MEMORY

You will receive readings only if data has been programmed into one of the personal data memories or the Guest mode. The monitor can store personal details for up to 4 people.

Press SET to turn on the unit.

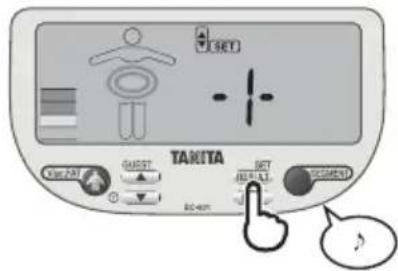

1. Select a number

Specify with ▲ and

1234 TAKITA MOST QUEST SET FAST POMEN NO-SET FAST

Press SET to confirm.

TAKITA OK 247 GUEST AUX SET AUX+AT ACC#M AC=AM

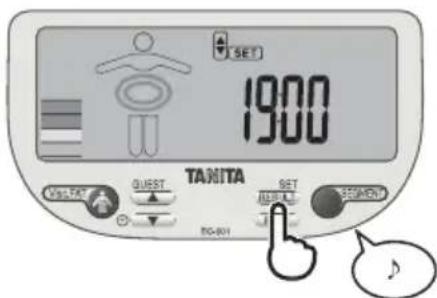

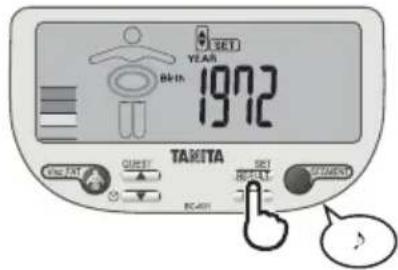

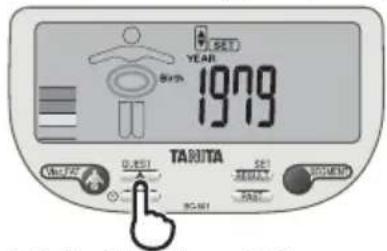

2. Set your Birthday (Year/Month/Day).

SET YEAR 1979 BATH TARITA 0.251 SET YEAR 0.251 0.251 0.251

SET YEAR 84th 1972 TAKITA Vinc FAT CURRY RIGHT OPTIONAL →

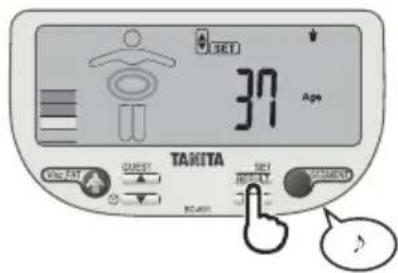

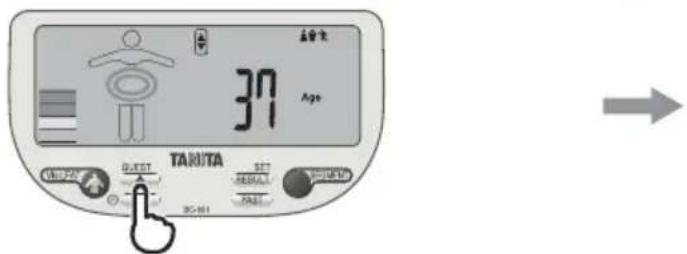

3. Select Female or Male

Female (♂) or Male (♀ Female/Athlete ( ), and Male/Athlete ( )

37 Age TAKITA OFF: 2500 OFF: 2500 OFF: 2500 OFF: 2500 OFF: 2500 OFF: 2500 OFF: 2500 OFF: 2500 OFF: 2500 OFF: 2500 OFF: 2500 OFF: 2500 OFF: 2500 OFF: N/A OFF: N/A OFF: N/A OFF: N/A OFF: N/A OFF: N/A OFF: N/A OFF: N/A

37 Age TAKITA ON FAT QUIST HOLD MUSTAIN REACH

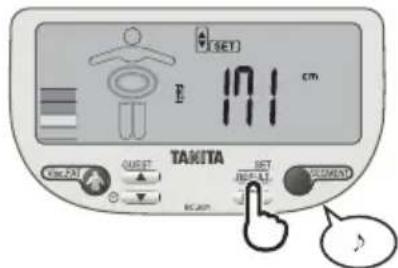

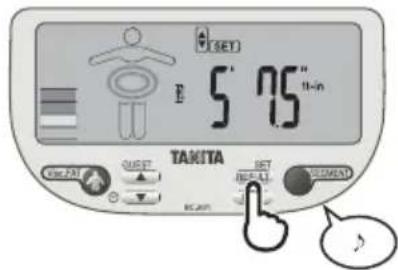

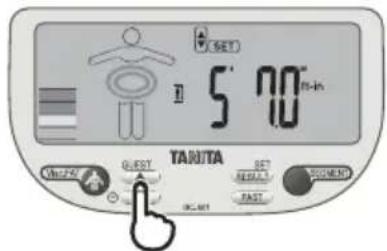

4. Specify the Height

SET 5:00" 7:00" TANITA NEST GUEST SET FEBRU SOMEN FAST OKOUT

SET 5.75"11-in TAKITA Reset 201 RESET SET 11-in-11 RESET 8:201 OK

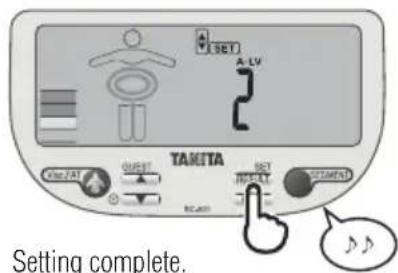

5. Specify the Activity Level

A-LV 123 TA SIITA B-EST SET NO.101 NO.101 NO.101

SET A-LV TAMITA SET INSERT STANDARD One FAT GUEST NO. 100 OK START OK Setting complete.

Setting complete.

Note: When you change the birthday and/or gender, the unit will show "CLr". If you select "YES" using ▲ ▼ buttons, the existing personal data and tracking data will be deleted. If you select "no" using ▲ ▼, no new data will be saved (existing data will be unchanged) then the unit will be shut off. In order to delete personal data, press SET and choose a number with ▲ ▼, then press and hold SET. The display will show CLr. Choose YES or no with ▲ ▼ and press SET to confirm.

TAKING WEIGHT AND BODY FAT READINGS

1. Select Personal Data Number

Press your personal key, and the display will show "0.0".

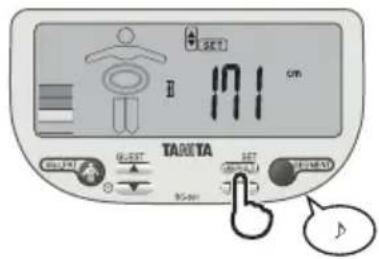

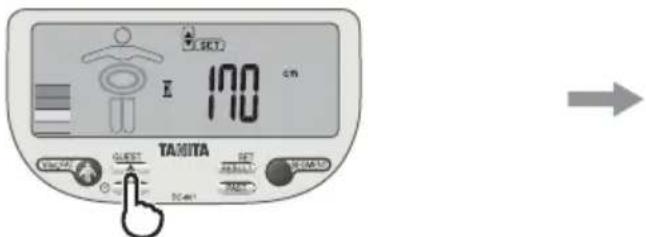

Note: You can change your height setting by pressing SET while "0.0" is shown.

Specify your height with ▲ ▼ , and press SET to confirm.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

0.0 lb

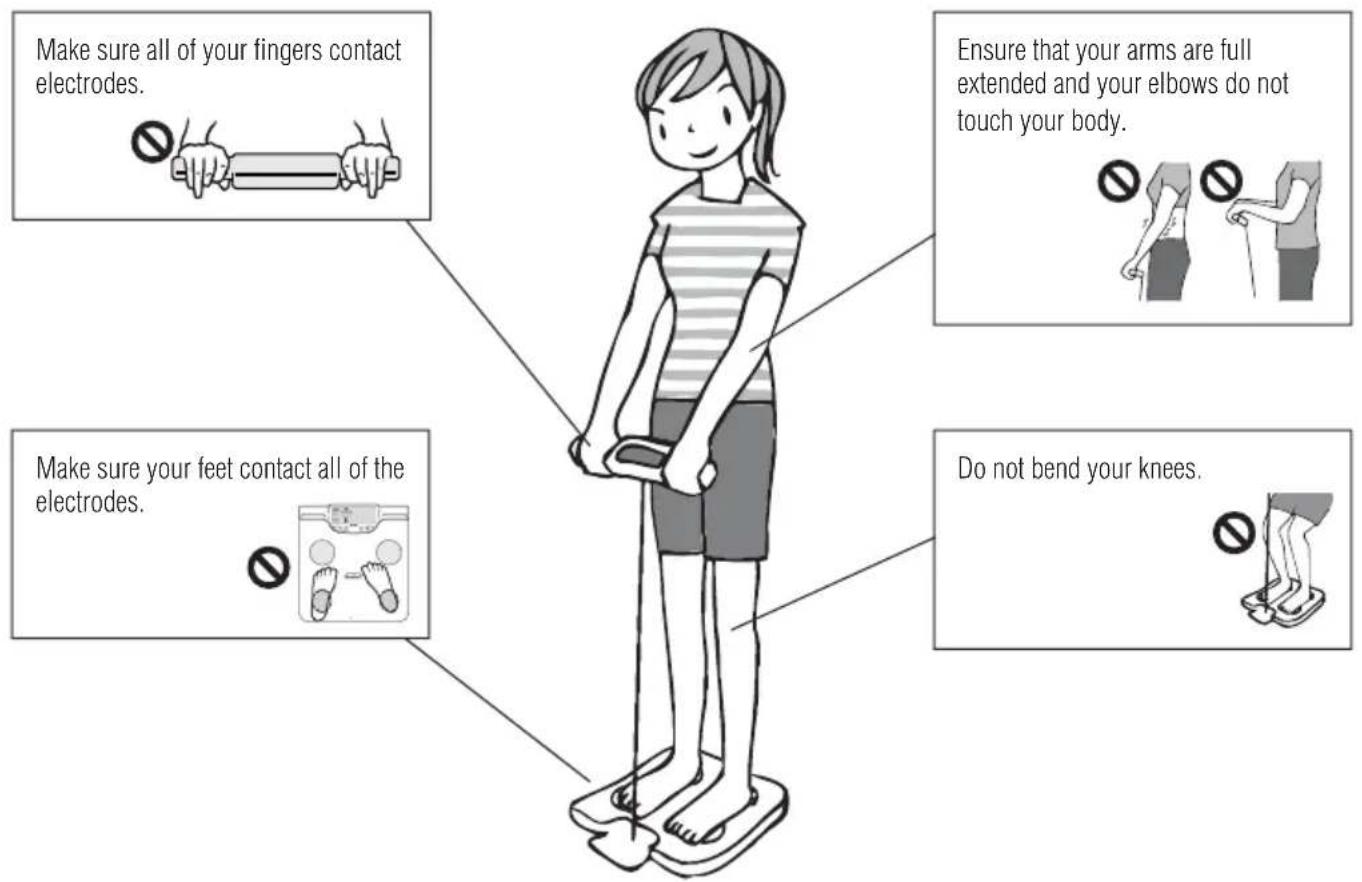

2. Step on

When "0.0" is displayed, hold the hand-electrode as shown and step onto the platform.

The unit will beep twice when the measurement is taken. Please stand still until the unit beeps.

Note: If you step onto the platform before "0.0" appears the display will show "Err" and you will not obtain a reading.

Make sure all of your fingers contact electrodes. Ensure that your arms are full extended and your elbows do not touch your body. Make sure your feet contact all of the electrodes. Do not bend your knees.

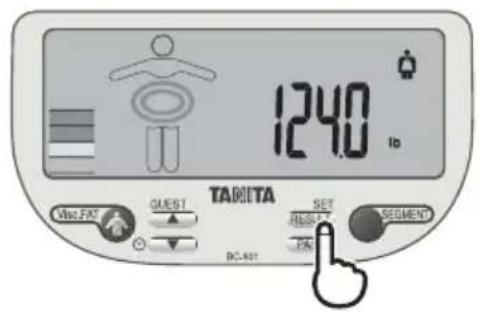

3. Obtain Your Readings

After the measurement, the unit will display all the readings.

Step off the scale and press RESULT to see a desired reading.

1240 lb TAKITA Vac FAT QUEST SET FULL FX SEGMENT DC-801

9) Visceral fat level

TREND + 0 9

1) Weight 8) Total body water %

1240

58.1 %

2) Body fat % 7) Metabolic age

20.6 %

31 Age

1540 kcal DCI

4) Bone mass 5) BMI

64 lb

236

Note: For children (age 5-17), the unit will only display the Weight, the Body fat % and the BMI.

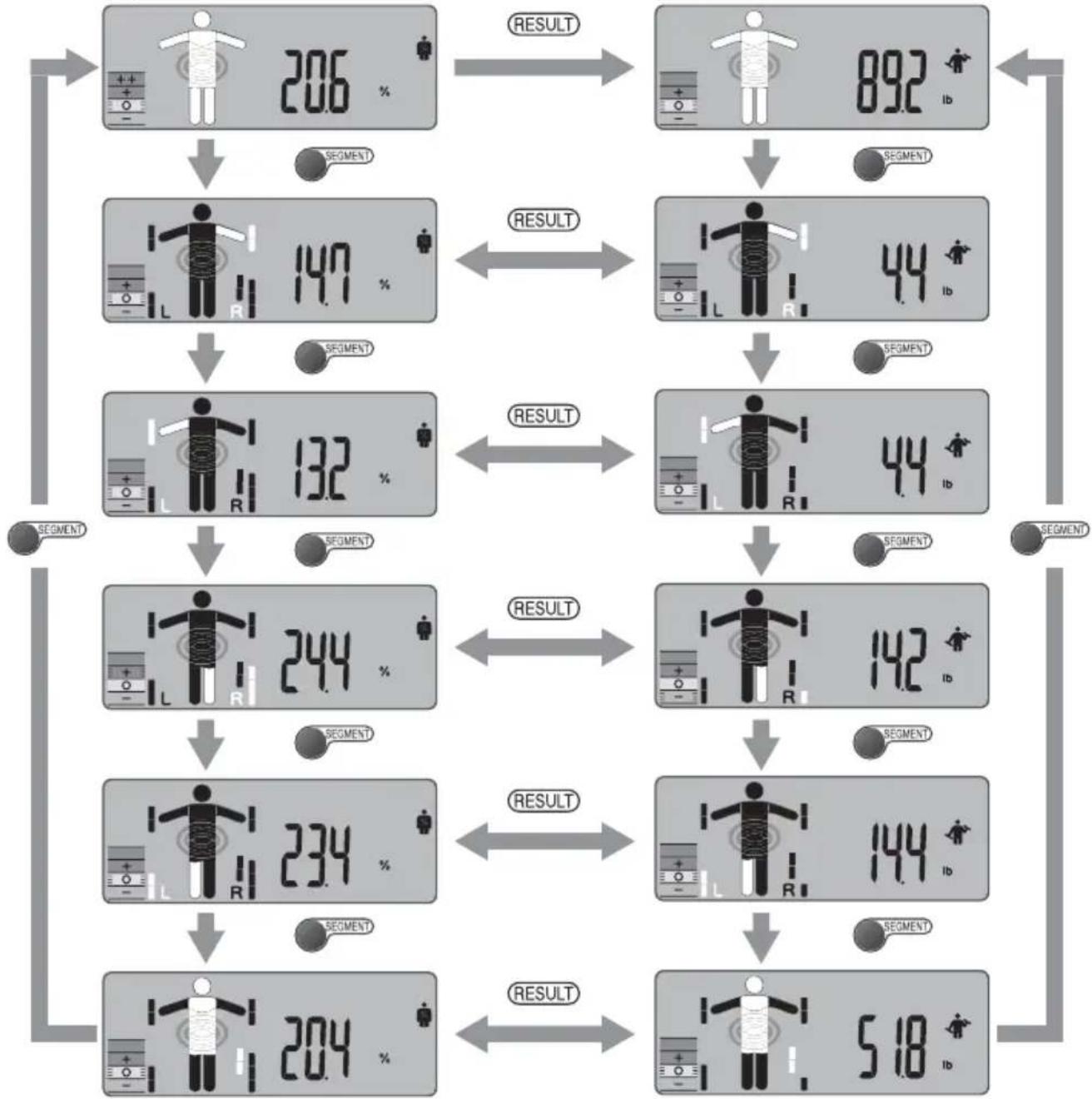

HOW TO SEE THE READING OF EACH SEGMENT

Press we see the readings of right arm, left arm, right leg, left leg, and trunk while readings are displayed.

Body fat percentage Muscle Mass

    G["Segment 1: 892 lb"] --> H["Segment 2: 44 lb"]
    H --> I["Segment 3: 44 lb"]
    I --> J["Segment 4: 142 lb"]
    J --> K["Segment 5: 144 lb"]
    K --> L["Segment 6: 5.18 lb"]

    M["Segment 1: 206 %"] --> N["Segment 2: 147 %"]
    N --> O["Segment 3: 132 %"]
    O --> P["Segment 4: 244 %"]
    P --> Q["Segment 5: 234 %"]
    Q --> R["Segment 6: 204 %"]

    S["Segment 1: 892 lb"] --> T["Segment 2: 44 lb"]
    T --> U["Segment 3: 44 lb"]
    U --> V["Segment 4: 142 lb"]
    V --> W["Segment 5: 144 lb"]
    W --> X["Segment 6: 5.18 lb"]

    style A fill:#f9f,stroke:#333
    style G fill:#f9f,stroke:#333
    style M fill:#f9f,stroke:#333
    style S fill:#f9f,stroke:#333

Level Indicator

The levels of body fat percentage and muscle mass of each segment are indicated with 3 blocks High Standard Low Left arm Right arm Trunk Left leg Right leg

USING THE VISCERAL FAT BUTTON

Using enable you to see your visceral fat rating whenever your readings are displayed.

After the measurement, step off the platform and press /Al while your readings are displayed.

TREND 9

VISCERAL FAT RATING

This feature indicates the rating of visceral fat in your body.

Visceral fat is the fat that is in the internal abdominal cavity, surrounding the vital organs in the trunk (abdominal) area. Research shows that even if your weight and body fat remains constant, as you get older the distribution of fat changes and is more likely to shift to the trunk area especially post menopause. Ensuring you, have healthy levels of visceral fat may reduce the risk of certain diseases such as heart disease, high blood pressure, and the onset of type 2 diabetes.

The Tanita Body Composition Monitor will provide you with a visceral fat rating from 1 – 59.

Rating from 1 – 12

Indicates you have a healthy level of visceral fat. Continue monitoring your rating to ensure that it stays within the healthy range.

Rating from 13 – 59 +

Indicates you have an excess level of visceral fat. Consider making changes in your lifestyle possibly through diet changes or increasing exercise.

Source : Data from Columbia University (New York) & Tanita Institute (Tokyo)

Note:

• Even if you have a low body fat rate, you may have a high visceral fat level.
• For medical diagnosis, consult a physician.

VISCERAL FAT TREND

The arrow ( ) indicates if your visceral fat level is on the increase or decrease.

The trend indication is displayed only when you take measurements at least 5 times in 2 weeks. Please be sure to take measurement everyday under same conditions.


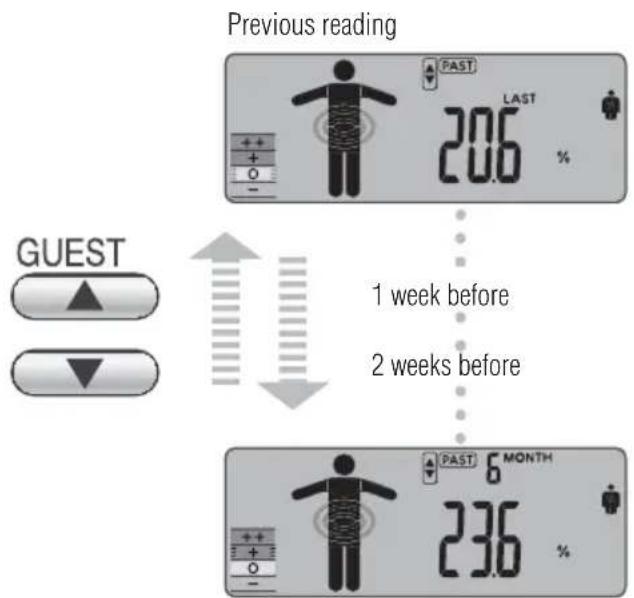

RECALL FUNCTION

The previous readings of the following features can be obtained using the recall function.

To obtain previous readings, press PAST while the current readings are displayed.

To see other previous readings, press ▲ ▼ for each desired reading. Press SET again to go back to the current result display.

You can also see your past readings without taking measurement by pressing your personal key and FAST.

6 months before

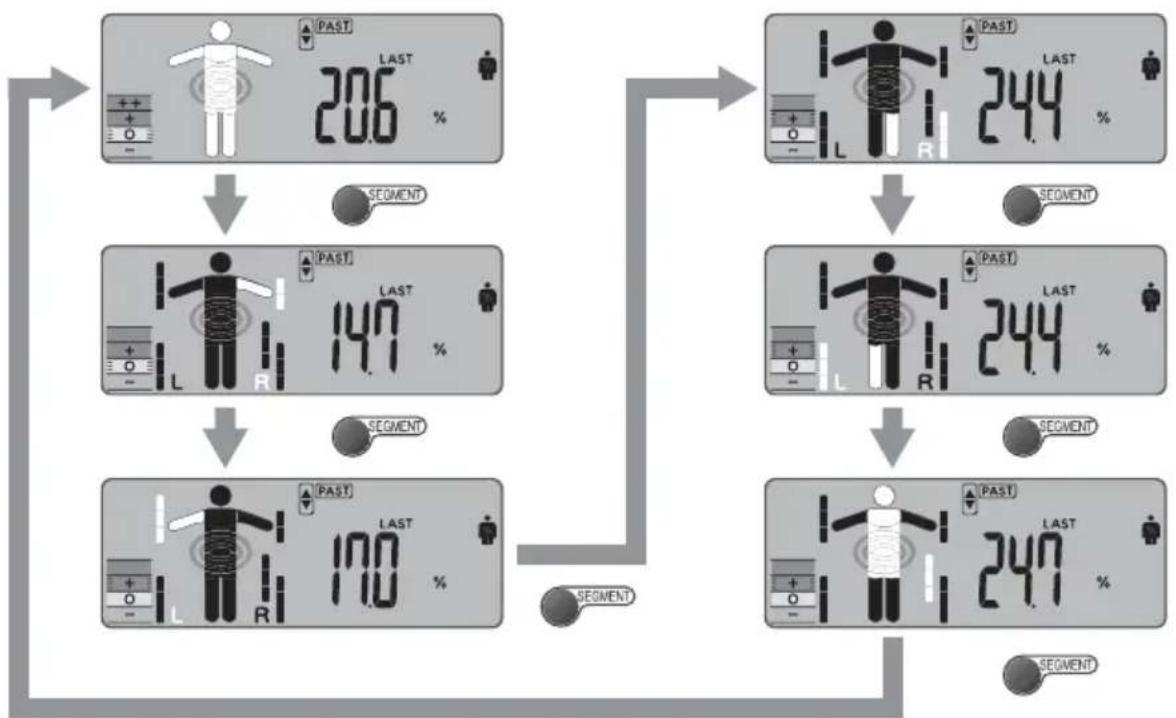

Press SEGMENT to show reading of each segment while previous readings are displayed.

Press RESULT to choose Body fat percentage or Muscle Mass to be displayed.

Note: For children (age 5-17), the unit will only display the Weight, the Body fat % and the BMI.

PROGRAMMING THE GUEST MODE

Guest mode allows you to programme the unit for a one-time use without resetting a Personal data number.

Press △/OFF or [GUEST] and step on to the platform holding the hand-electrodes. Press GUEST to start measurement.

After the measurement, the unit will beep once, and now step off the plat form. To obtain your readings, input your personal information such as Age, Sex, Height, and Activity Level. Please see page 4 for more details.

SET GUEST 35 Age

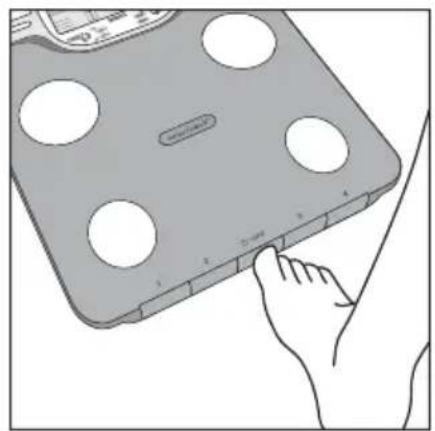

Select Weight-Only Key

Press △/OFF. After 2 or 3 seconds, "0.0" will appear in the display and the unit will beep. When "0.0" appears in the display, step onto the platform. The body weight value will appear. The power will then shut down automatically.

Illustration of a hand pressing down on a gray digital scale with four circular holes (no text or symbols visible)

SWITCHING THE WEIGHT MODE

Note: For use only with models containing the weight mode switch.

You can switch the unit indication by using the switch on the back of the hand-electrodes (kg/lb/st lb).

TROUBLESHOOTING

If the following problems occur ...then...

- appears on the display, or all the data appears and immediately disappears.

Batteries are low. When this message appears, be sure to replace the batteries immediately, since weak batteries will affect the accuracy of your measurements. Change all the batteries at the same time with new batteries.

Note: Your settings and past memory will not be erased from the memory when you remove the batteries.

- Err appears while measuring.

Please stand on the platform keeping movement to a minimum.

The unit cannot accurately measure your weight if it detects movement.

The Body Fat Percentage is more than 75%, readings cannot be obtained from the unit.

• The Body Fat Percentage reading does not appear.

Make sure socks or stockings are removed, and the soles of your feet are clean and properly aligned with the guides on the measuring platform.

- OL appears while measuring.

Reading cannot be obtained if the weight capacity is exceeded.

Specifications

BC-601

Weight Capacity

150kg (330lb) (23st 8lb)

Weight Increments

0.1kg (0.2lb) (0.2lb)

Body Fat Increments

0.1%

Personal Data

4 memories

Power Supply

4 AA batteries (included)

Power Consumption

150 mA maximum

Measuring Current

50 kHz, 100 μA

Notice:

These marks can be found out on contaminant-containing

Batteries: Pb Pb = Battery contains lead,

Cd Cd = Battery contains cadmium,

Hg Hg = Battery contains mercury.

Not allowed to mix batteries with consumer wastes!

As consumer you are legally bound to return used or discharged batteries. You can deposit your old batteries at the public collecting points in your town, or wherever the corresponding batteries are sold and specifically marked collecting boxes have been set up. In case of scrapping the apparatus, the batteries should be removed from it and deposited at the collecting points as well.

The device features radio interference suppression in compliance with EC regulation 2004/108/EC

Federal Communications Commission and Canadian ICES Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules and Canadian ICES-003. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio or television technician for help.

Modifications

The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Tanita Corporation may void the user's authority to operate the equipment.

EINLEITUNG

SET MONTH DAY TAKITA VENTA QUEST SET METHALI BROWN PAST SO-MIN

4. Tag einstellen

SET 000 TARITA GUEST SET HUST PAST VALUET RD-801 BOMEN RICH

SET 19:00 TAKITA VOUT QUEST SET HUST PAST BIO-50% BIO-50%

SET YEAR 2009 TAKITA VISU-LET QUEST 20-801 SET RESULT Response OFF

SET MONTH DAY TANITA Volume Question Response DG-901

SET 7:12 MONTH DAY TAKITA QUEST SET HEIGHT STRAWN GO-INT

SET 19:00 TAKITA VIS-FAT QUEST B2-BOX1 SET 12:30 AM B2-BOX1 B2-BOX1

SET 1945 TANITA QUEST SET RESIGN RESIGN BG-B01 First hh:mm:ssed kamplett

SET TAKITA SET HOLD OK/AN START DCAM

SET GUEST 35 Age

Illustration of a hand pressing down on a gray electronic device with four circular holes (no text or symbols visible)

DEN WIEGEMODUS ANDERN

0.1kg (0.2lb) (0.2lb)

SET YEAR 2009 TARITA VILLI QUEST SET INSUL BUSHEN SCHIN PAST SC-801

2. Entrez l'année

SET MONTH DAY TAJITA VILLI GUEST NET HES.AT. PAST . BC-80%

3. Entrez l'année

SET MONTH DAY TAKITA VALTA QUEST SET NORMAL BACK SO-BOX BACKDAY

4. Entrez l'année

SET 000 TARITA QUI SET QUEST SET HIS-3L1 PAGE SUB-3L1 RD-301

5. Entrez l'année

SET 19:00 TAKITA VOLTAGE GUEST SET HUSTAVI FAST BID-80%

SET YEAR 2009 TANITA Vcc-54 QUEST SET H:3.1 REVIEW 20-801

SET MONTH DAY TANITA VOLTAGE QUEST SET MONTH OFFICE DC-901

SET 7:12 MONTH DAY TANITA QUEST SELECT SELECT GO-INT

SET 19:00 TAKITA VIS-FAT QUEST SET 19:00 SELL-OUT DG-BUY

SET 1945 TANITA QUEST PVG-FAT BQ-001 SET H23M L BQ-001 BQ-001 Re-generation transfer

TARETA SET1 SET2 OK/SET START OFF/SET 30-40 OK/SET2 OK/SET3 OK/SET4 OK/SET5 OK/SET6 OK/SET7 OK/SET8 OK/SET9 OK/SET10 OK/SET11 OK/SET12 OK/SET13 OK/SET14 OK/SET15 OK/SET16 OK/SET17 OK/SET18 OK/SET19 OK/SET20 OK/SET21 OK/SET22 OK/SET23 OK/SET24 OK/SET25 OK/SET26 OK/SET27 OK/SET28 OK/SET29 OK/SET30 OK/SET31 OK/SET32 OK/SET33 OK/SET34 OK/SET35 OK/SET36 OK/SET37 OK/SET38 OK/SET39 OK/SET40 OK/SET41 OK/SET42 OK/SET43 OK/SET44 OK/SET45 OK/SET46 OK/SET47 OK/SET48 OK/SET49 OK/SET50

YEAR 1972 TARETA

37 Aps TAHUTA OK/OK ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFTP ON/OFTP ON/OFTP ON/OFTP ON/OFTP ON/OFTP ON/OFTP ON/OFTP ON/OFTP ON/OFTP ON/OFTP ON/OFTP ON/OFTP ON/OFTP ON/OFTP ON/OFTP ON/OFTP ON/OFTP ON/OFTP ON/OFTP ON/OFTP ON/OFTP ON/OFTP ON/OFTP ON/OFTP ON/OOTP

SET 37 Age TAKETA START SPREAD INPUT QUIST SPREAD SPREAD SPREAD

1. Entrez la taille

E 170 cm TACIITA RIGHT LEFT RIGHT DCAM

SET 171 cm TAQU TA SET 171 cm SET 171 cm OK/SET OK/SET OK/SET OK/SET OK/SET OK/SET OK/SET OK/SET OK/SET OK/SET OK/SET OK/SET OK/SET OK/SET OK/SET OK/SET OK/SET OK/SET OK/SET OK/SET OK/SET OK/SET OK/SET OK/SET OK/SET OK/ET

SET A-LV TARTA SET B-SET OK/AT S R3-0m B3-0m B3-12 Dowson's function is S

695 kg TARITA Viso FAT QUEST SET HESIPT FX SEGMENT BC NOT

1540 kcal DCI

236

SET GUEST 35 Age

MESURE DU POIDS SEULEMENT

Illustration of a hand pressing down on a gray electronic device with four circular holes (no text or symbols visible)

CHANGEMENT DE MODE POIDS

0.1kg (0.2lb) (0.2lb)

Piles AA (4) (fournies)

SET MONTH DAY TAJITA VEGET SET HESLA1 BEEMON DC-80%

3. Dag instellen

SET MONTH DAY TAKITA VENTA QUEST SET HUMAN PAST SC-801 SC-MAY

4. Uur instellen

SET 000 TAKITA VOLTAGE QUEST SET HUSTAIN PAST NO-801

SET YEAR 2009 TANITA Vcc SET QUEST SET H:3.11 REVIEW 20-801

SET MONTH DAY TANITA QD-801 VENTURE QUEST SET MONTH QD-801

SET 7:12 MONTH DAY TAKITA QUEST SELECT SELECT GO-01

SET 19:00 TAKITA VIS-LET QUEST SET 12:00 AM SELL-OUT BQ-BOX

SET 1945 TANITA Vcc-SET QUEST BQ-B01 SET BQ-B01 BQ-B01 Instellen valhrecht

Instellen volbracht.

Tijd resetten

Aanduiden met ▲ en ▼ 1234 TANITA OK/OKT OK/OKT OK/OKT OK/OKT OK/OKT OK/OKT OK/OKT OK/OKT OK/OKT OK/OKT OK/OKT OK/OKT OK/OKT OK/OKT OK/OKT OK/OKT OK/OKT OK/OKT OK/OKT OK/OKT OK/OK

Druk SET om te bevestigen.

TAKITA RESET RESET RESET RESET ON: FAT CUST RIGHT RETURN

SET YEAR 1972 TAKITA QUEST SET HAPPY STOP/RESET BC-400

SET 37 Age TAKITA SET AVERAGE SET AVERAGE OK START SELECT ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD APP

695 kg TARITA Vac FAT QUEST SET HESHT FX SEGMENT BC NOT

1540 kcal DCI

236

    L["Person with 40.6 kg weight"] --> M["Segment: + + + -"]
    M --> N["Person with 2.0 kg weight"]
    N --> O["Segment: + + + -"]
    O --> P["Person with 2.0 kg weight"]
    P --> Q["Segment: + + + -"]
    Q --> R["Person with 6.4 kg weight"]
    R --> S["Segment: + + + -"]
    S --> T["Person with 6.6 kg weight"]
    T --> U["Segment: + + + -"]
    U --> V["Person with 23.6 kg weight"]

    W["Person with 20.6% weight"] --> X["Result: + + + -"]
    X --> Y["Result: + + + -"]
    Y --> Z["Result: + + + -"]
    Z --> AA["Result: + + + -"]
    AA --> AB["Result: + + + -"]
    AB --> AC["Result: + + + -"]
    AC --> AD["Result: + + + -"]
    AD --> AE["Result: + + + -"]
    AE --> AF["Result: + + + -"]
    AF --> AG["Result: + + + -"]

Niveau indicator

DE TOETS VISCERAAL VET BEDIENEN

SET GUEST 35 Age

ENKEL GEWICHTSMETING UITVOEREN

Illustration of a hand pressing down on a gray electronic device with four circular holes (no text or symbols visible)

0.1kg (0.2lb) (0.2lb)

Lichaamsvet Increment

0.1%

SET 000 TAKITA QUIST SET HOLD FAST NO-80%

SET MONTH DAY TANITA VOLTAO QUEST SET HOT SELL DG-901

SET 7:12 MONTH DAY TANITA POST SELECT SELECT SELECT GO-01

SET 19:00 TAKITA VEST SET BEG-01 BEG-01

SET 1945 TAKITA QUEST SET 20:00:00 20:00:00 20:00:00 20:00:00 20:00:00 20:00:00 20:00:00 20:00:00 20:00:00 20:00:00 20:00:00 20:00:00

SET YEAR 1979 TARITA WHIP 0.251 251 MORARY 350 SCHOOL 80-851

YEAR BHIN 1972 TAKITA ON FAT QUIFY RIGHT RETURN STATION

1540 kcal DCI

236

SET GUEST 35 Age

RILEVAMENTO DEL SOLO PESO

Illustration of a hand pressing down on a gray electronic device with circular holes (no text or symbols visible)

CAMBIO DELLA MODALITÀ DI PESATURA

0.1 kg (0.2lb) (0.2lb)

50 kHz, 6.25 kHz, 100 μA

Avviso:

SET MONTH DAY TAKITA VALTA QUEST SELL SET HOLD PAST DOWN SO-MAIN

SET YEAR 2009 TAKITA Vig-Set QUEST SET HUNT REF/SET 20-801

SET MONTH DAY TANITA QD-901 VOLATOR QUEST SET MONTH DAY QD-901

SET 7:12 MONTH DAY TANITA QUEST SET BEET BEET DO-01

SET 19:00 TAKITA QUEST SET 12:50 AM SECOND DG-BOX

SET 1945 TANITA QUEST SET 2000 3000 3000 DG-BD1 OK Configuration Complete

1234 TARITA NEAST QUEST SET RESULT PROPOSED FAST NO-NET

Pulse SET (Configurar) para confirmar.

TAKITA OK ZAT GUEST HOLD BELOW BELOW

SET YEAR Birth 1979 TARITA SET BUST BUST BUST BUST

SET YEAR BH-TH 1972 TAKITA ON: FAT GUEST RIGHT RIGHT RETURN RETURN RETURN RETURN

SET 170 cm TANITA QUEST SET FEEFLET FAST MOSTENT OKOUT

SET 111 cm TAKITA RESET RESET RESET OK 250 OK 250 OK 250

A B C D E F G H

0.0 kg

1540 kcal DCI

236

Indicador de nivel

SET GUEST 35 Age

Illustration of a hand pressing down on a gray electronic device with four circular holes (no text or symbols visible)

CAMBIAR EL MODO DE PESO

0.1 kg (0.2lb) (0.2lb)

Incrementos de grasa corporal

0.1%

Datos personales

4 memorias

Alimentación

2 baterias lition CR2032 (incluídas)

Consumo de energía

Máximo de 150 mA

50 kHz, 6.25 kHz, 100 μA

Nota:

Note: An accurate reading will not be possible if the soles of your feet are not clean, or if your knees are bent or you are in a sitting position.

ФУНКЦИЯ АВТОМАТИЧЕСКОГО ОТКЛЮЧЕНИЯ

SET YEAR 2009 TARITA VOUT QUEST SET INSULT BATH SEASON

2. Установите месяц

SET MONTH DAY TAHITA VAC-EST GUEST NET HES.AI BROWN BC-BIN PAST.

3. Установите день

SET MONTH DAY TAKITA SELECT SET HOLD PAST CHANGE SC-MIN

4. Установите час

SET 000 TARITA VISTAT QUEST SET HUSTA PAGE RD-801

5. Установите минуты

SET 19:00 TAKITA QUIST UEST SET RISK FAST BID-80%

SET YEAR 2009 TAKITA Vcc-FAT QUEST 2D-801 SET H:3.4 L RE:657 T 2009 SET H:3.4 L RE:657 2D-801

SET MONTH DAY TANITA VOLTAO QUEST DC-901 SET HOLD SELLON DG-901

SET 7:12 MONTH DAY TAKITA QUEST SET HEIGHT RETURN GO-ROI

SET 19:00 TAKITA Vcc-TR QUEST SET LOG-BOX LOG-BOX

SET 1945 TANITA Vcc SET QUEST BG-801 SET RESTA RESTANT RSS RSS RSS

Установка завершена

Сброс времени

A SET YEAR 1979 BUTY TANITA 0.251 SET 0.251 SOUT 0.251 SOUT

SET YEAR BH-TH 1972 TAKITA Vinc FAT QUEST REC RET RETAIL RETURN RETURN RETURN RETURN

37 Ape TAKITA OFF SET APOUT MINI MINI MINI MINI MINI

SET 170 cm TAKITA QUEST SET FULL FAST MOSTENT

SET 111 cm TAKITA OK SET SELECT OK OK OK OK

A-1V 123 TAKITA U-EXT SET OFFICE SQUISI OK/INT OK/INT

1540 kcal DCI

SET GUEST 35 Age

Illustration of a hand pressing down on a gray electronic device with circular holes (no text or symbols visible)

Tanita Corporation of America Inc.

2625 South Clearbrook Drive

Arlington Heights, IL 60005 USA.

Tel : [phone]

Fax: [phone]

www.tanita.com

Business Location in UK

The Barn, Philpots Close, Yiewsley,

Middlesex, UB7 7RY,

United Kingdom

Tel : [phone]

Fax: [phone]

Tanita Health Equipment H.K. Ltd.

Unit 301-303 3/F Wing On Plaza,

62 Mody Road, Tsimshatsui East,

Kowloon, Hong Kong

Tel: [phone]

Fax : [phone]

Manufacturer

Tanita Corporation

1-14-2, Maeno-Cho, Itabashi-ku,

Tokyo, Japan 174-8630

Tel: [phone]

Fax: [phone]

www.tanita.co.jp

ISO 9001 Certified

TANITA India Private Limited

Level 9, Platina, C-59, G Block,

Bandra Kurla Complex, Bandra East,

Mumbai 400051, INDIA

Tel: [phone]

Fax: [phone]
