USER MANUAL W55TM 4110 W UK 1 WHIRLPOOL

Freezer - Fridge Instructions for use

Congelador - Frigoríco Instruções de utilização DUBBELDEURKOELKAST Vriezer - Koelkast Gebruiksaanwijzing3 ENGLISH Instructions for use Page 4 DEUTSCH Gebrauchsanweisung Seite 16 ESPAÑOL Instrucciones para el uso Página 27 FRANÇAIS Mode d’emploi Page 37 ITALIANO Istruzioni per l’uso Pagina 49 ΕΛΛΑΣ Οδηγίες χρήοης Σελίδα 60 PORTUGUÊS Manual de utilização Página 71 NEDERLANDS Gebruiksaanwijzing Pagina 82EN - 4 SAFETY INSTRUCTIONS IMPORTANT to be read and observed Before using the appliance, read these safety instructions. Keep them nearby for future reference. These instructions and the appliance itself provide important safety warnings, to be observed at all times. The manufacturer declines any liability for failure to observe these safety instructions, for inappropriate use of the appliance or incorrect setting of controls. Very young children (0-3 years) should be kept away from the appliance. Young children (3-8 years) should be kept away from the appliance unless continuously supervised. Children from 8 years old and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge can use this appliance only if they are supervised or have been given instructions on safe use and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. PERMITTED USE CAUTION: The appliance is not intended to be operated by means of an external switching device, such as a timer, or separate remote controlled system. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, ofces and other working environments; farm houses; by clients in hotels, motels, bed & breakfast and other residential environments. This appliance is not for professional use. Do not use the appliance outdoors. The bulb used inside the appliance is specically designed for domestic appliances and is not suitable for general room lighting within the home (EC Regulation 244/2009). The appliance is designed for operation in places where the ambient temperature comes within the following ranges, according to the climatic class given on the rating plate. The appliance may not work properly if it is left for a long time at a temperature outside the specied range. Climatic Class Amb. T. (°C) SN: From 10 to 32 °C ST: From 16 to 38 °C; N: From 16 to 32 °C T: From 16 to 43 °C This appliance does not contain CFCs. The refrigerant circuit contains R600a (HC). Appliances with Isobutane (R600a): isobutane is a natural gas without environmental impact, but is ammable. Therefore, make sure the refrigerant circuit pipes are not damaged, especially when emptying the refrigerant circuit.

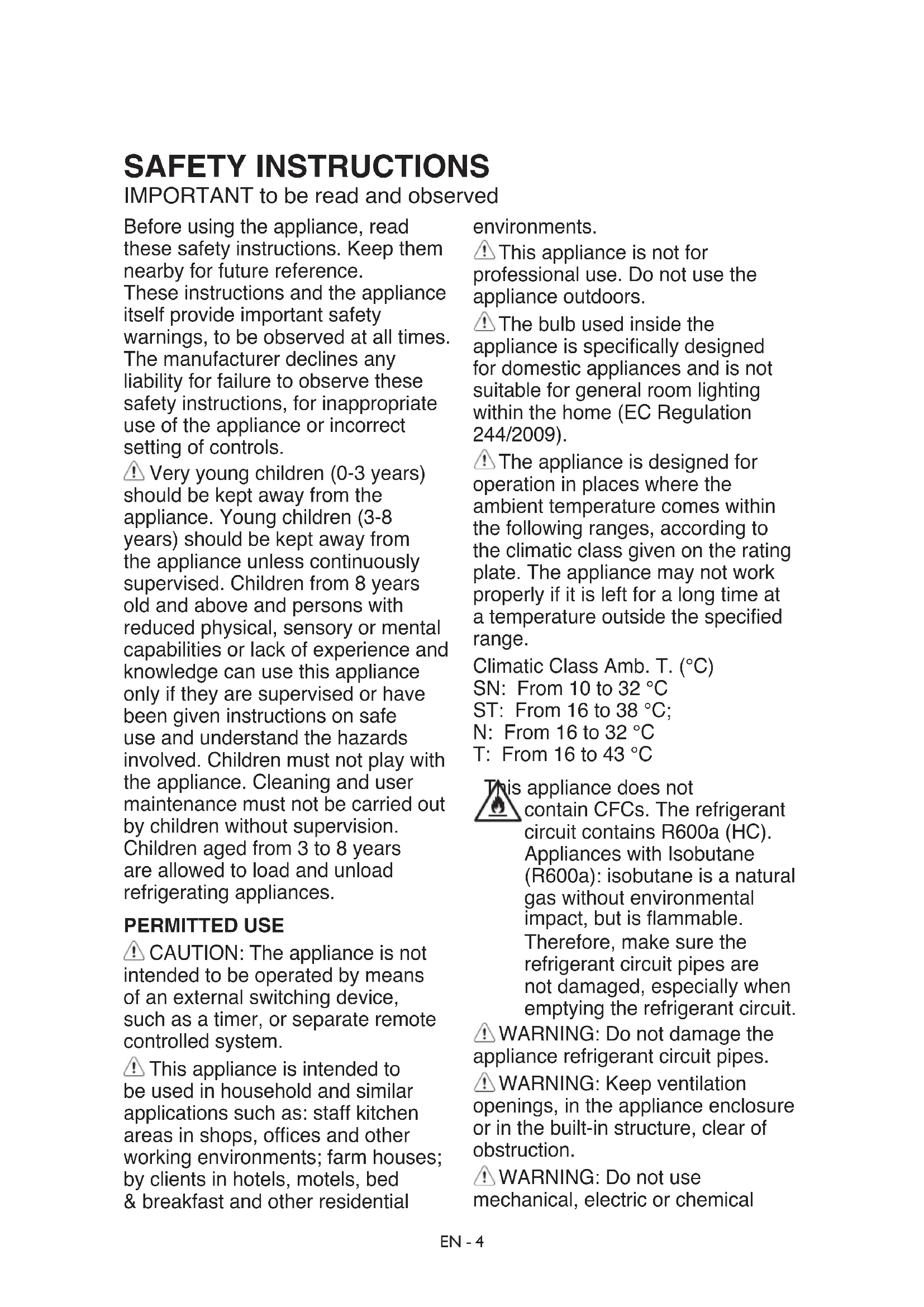

WARNING: Do not damage the

openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

mechanical, electric or chemicalEN - 5 means other than those recommended by the Manufacturer to speed up the defrost process.

WARNING: Do not use or

place electrical devices inside the appliance compartments if they are not of the type expressly authorised by the Manufacturer.

WARNING: Ice makers and/

or water dispensers not directly connected to the water supply must be lled with potable water only.

WARNING: Automatic ice-makers

and/or water dispensers must be connected to a water supply that delivers potable water only, with mains water pressure between 0.17 and 0.81 MPa (1.7 and 8.1 bar). Do not store explosive substances such as aerosol cans and do not place or use gasoline or other ammable materials in or near the appliance. Do not swallow the contents (non- toxic) of the ice packs (provided with some models). Do not eat ice cubes or ice lollies immediately after taking them out of the freezer since they may cause cold burns. For products designed to use an air lter inside an accessible fan cover, the lter must always be in position when the refrigerator is in function. Do not store glass containers with liquids in the freezer compartment since they may break. Do not obstruct the fan (if included) with food items. After placing the food check that the door of compartments closes properly, especially the freezer door. Damaged gaskets must be replaced as soon as possible. Use the refrigerator compartment only for storing fresh food and the freezer compartment only for storing frozen food, freezing fresh food and making ice cubes. Avoid storing unwrapped food in direct contact with internal surfaces of the refrigerator or freezer compartments. Appliances could have special compartments (Fresh Food Compartment, Zero Degree Box,...). Unless differently specied in the specic booklet of product, they can be removed, maintaining equivalent performances. C-Pentane is used as blowing agent in the insulation foam and it is a ammable gas. The most appropriate compartments of the appliance where specic types of food are to be stored, taking into account different temperature distribution in different compartments in the appliance, are as follows: - Refrigerator compartment:

1) Upper area of the refrigerator

compartment & door - temperature zone: Store tropical fruit, cans, drinks, eggs, sauces, pickles, butter, jam

2) Middle area of the refrigerator

compartment - cool zone: Store cheese, milk, dairy food, deli food, yoghurt

3) Lower area of the refrigerator

compartment - coldest zone: Store cold cuts, desserts, meat and sh, cheesecake, fresh pasta, sour cream, pesto/salsa, home-cooked food, pastry cream, pudding and cream cheese

4) Fruit & vegetable drawer at

the bottom of the refrigerator compartment: Store vegetables and fruits (excluding tropical fruits)

5) Chiller compartment: Only storeEN - 6

meat and sh in the coldest drawer - Freezer compartment: 4 star zone (****) compartment is suitable for freezing foodstuffs from ambient temperature and for storing frozen food as the temperature is evenly distributed throughout the entire compartment. Purchased frozen food has the storage expiration date stated on the packaging. This date takes into account the type of food being stored and therefore this date should be respected. Fresh food should be stored for the following time periods: 1-3 months for cheese, shellsh, ice cream, ham/sausage, milk, fresh liquids; 4 months for steak or chops (beef, lamb, pork); 6 months for butter or margarine, poultry (chicken, turkey); 8-12 months for fruits (except citrus), roast meat (beef, pork, lamb), vegetables. Expiration dates on the packaging of foods in the 2-star zone must be respected. To avoid food contamination, please observe the following: - Opening the door for long periods can cause a signicant increase of the temperature in the compartmen

ts of the appliance. - Regularly clean surfaces that may come into contact with food and accessible drainage systems. - Clean water tanks if they have not been used for 48 h; ush the water system connected to a water supply if water has not been drawn for 5 days. - Store raw meat and sh in suitable containers in the refrigerator, so that it does not come into contact with or drip onto other food. - Two-star frozen food compartments are suitable for storing pre-frozen food, storing or making ice cream and ice cubes. - Do not freeze fresh food in one, two or three-star compartments. - If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould develo

ping inside the appliance. INSTALLATION The appliance must be handled and installed by two or more persons - risk of injury. Use protective gloves to unpack and install - risk of cuts. Installation, including water supply (if any), electrical connections and repairs must be carried out by a qualied technician. Do not repair or replace any part of the appliance unless specically stated in the user manual. Keep children away from the installation site. After unpacking the appliance, make sure that it has not been damaged during transport. In the event of problems, contact the dealer or your nearest Aftersales Service. Once installed, packaging waste (plastic, styrofoam parts etc.) must be stored out of reach of children - risk of suffocation. The appliance must be disconnected from the power supply before any installation operation - risk of electric shock. During installation, make sure the appliance does not damage the power cable - risk of re or electric shock. Only activate the appliance when the installation has been completed. Be careful not to damage the oors (e.g. parquet) when moving the appliance. Install the appliance on a oor or support strong enough to take its weight and in a place suitable for its size and use. Make sure the appliance is not near a heat source and that the four feet are stable andEN - 7 resting on the oor, adjusting them as required, and check that the appliance is perfectly level using a spirit level. Wait at least two hours before switching the appliance on, to ensure that the refrigerant circuit is fully efcient.

WARNING: When positioning the

appliance, ensure the supply cord is not trapped or damaged.

WARNING: To avoid a hazard

due to instability, positioning or xing of the appliance must be done in accordance with the manufacturer instructions. It’s forbidden to place the refrigerator in such way that the metal hose of gas stove, metal gas or water pipes, or electrical wires are in contact with the refrigerator back wall (condenser coil). To guarantee adequate ventilation, leave a space on both sides and above the appliance. The distance between the rear of the appliance and the wall behind the appliance should be 50 mm, to avoid access to hot surfaces. A reduction of this space will increase the Energy consumption of product. Please remove the power cord from condenser hook during installation before connecting product to power supply. ELECTRICAL WARNINGS It must be possible to disconnect the appliance from the power supply by unplugging it if plug is accessible, or by a multi-pole switch installed upstream of the socket in accordance with the wiring rules and the appliance must be earthed in conformity with national electrical safety standards. Do not use extension leads, multiple sockets or adapters. The electrical components must not be accessible to the user after installation. Do not use the appliance when you are wet or barefoot. Do not operate this appliance if it has a damaged power cable or plug, if it is not working properly, or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced with an identical one by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard - risk of electric shock.

WARNING: Do not locate multiple

portable socket-outlets or portable power supplies at the rear of the appliance.

CLEANING AND MAINTENANCE

WARNING: Ensure that the

appliance is switched off and disconnected from the power supply before performing any maintenance operation. To avoid risk of personal injury use protective gloves (risk of laceration) and safety shoes (risk of contusion); be sure to handle by two persons (reduce load); never use steam cleaning equipment (risk of electric shock). Non-professional repairs not authorised by the manufacturer could result in a risk to health and safety, for which the manufacturer cannot be held liable. Any defect or damage caused from non-professional repairs or maintenance will not be covered by the guarantee, the terms of which are outlined in the document delivered with the unit.EN - 8 Do not use abrasive or harsh cleaners such as window sprays, scouring cleansers, ammable uids, cleaning waxes, concentrated detergents, bleaches or cleansers containing petroleum products on plastic parts, interior and door liners or gaskets. Do not use paper towels, scouring pads, or other harsh cleaning tools.

DISPOSAL OF PACKAGING

MATERIALS The packaging material is 100% recyclable and is marked with the recycle symbol . The various parts of the packaging must therefore be disposed of responsibly and in full compliance with local authority regulations governing waste disposal.

DISPOSAL OF HOUSEHOLD

APPLIANCES This appliance is manufactured with recyclable or reusable materials. Dispose of it in accordance with local waste disposal regulations. For further information on the treatment, recovery and recycling of household electrical appliances, contact your local authority, the collection service for household waste or the store where you purchased the appliance. This appliance is marked in compliance with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent negative consequences for the environment and human health. The symbol on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection centre for the recycling of electrical and electronic equipment.

Install the appliance in a dry, well ventilated room far away from any heat source (eg. radiator, cooker, etc.) and in a place not exposed directly to the sun. If required, use an insulating plate. To guarantee adequate ventilation follow installation instructions. Insufcient ventilation at the back of the product increases energy consumption and decreases cooling efciency. Frequent door opening might cause an increase in Energy Consumption. The internal temperature of the appliance and the Energy Consumption may be affected also by the ambient temperature, as well as location of the appliance. Temperature setting should take into consideration these factors. Reduce door opening to minimum. When thawing frozen food, place it in the refrigerator. The low temperature of the frozen products cools the food in the refrigerator. Allow warm food and drinks to cool down before placing in the appliance. Positioning of the shelves in the refrigerator has no impact on the efcient usage of energy. Food should be placed on the shelves in such way to ensure proper air circulation (food should not touch each other and distance between food and rear wall should be kept). You can increase storage capacity of frozen food by removing baskets and, if present, Stop Frost shelf. Do not worry about noises coming from the compressor which are normal operation noises.EN - 9 Information on Less Frost Technology Thanks to the wrap around evaporator, LessFrost technology offers more efcient cooling, less manual defrost requirement, and more exible storage room. Super freezing: This switch is the super freeze switch. For maximum freezing capacity, please turn on this switch 24h before placing fresh food. After placing fresh food in the freezer, 24 ON position is generally sufcient. In order to save energy, please turn off the switch 24 hours after placing fresh food. Thermostat setting The fridge freezer thermostat automatically regulates the inside temperature of the compartments. By rotating the knob from position 1 to 5, colder temperatures can be obtained. Important note: Do not try to rotate knob beyond 1 position it will stop your appliance. 1 – 2 : For short-term storage of food in the freezer compartment, you can set the knob between the minimum and medium position. 3 – 4 : For long-term storage of food in the freezer compartment, you can set the knob to the medium position. 5 : For freezing fresh food. The appliance will work for longer. So, after the desired condition is reached, return the knob to the previous setting. Warnings about Temperature Adjustments

• The ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the refrigerator compartment. If required,change the temperature setting.

• It is not recommended that you operate your fridge in environments colder than 10°C in terms of its efciency.

• The thermostat setting should be done by taking into consideration how often the fresh food and freezer doors are opened and closed, how much food is stored in the refrigerator, and the environment in which the refrigerator is located.

• Your fridge should be operated up to 24 hours according to the ambient temperature without interruption after being plugged in to be completely cooled. Do not open doors of your fridge frequently and do not place much food inside it in this period.

• A 5 minute delaying function is applied to prevent damage to the compressor of your fridge, when you take the plug off and then plug it on again to operate it or when an energy breakdown occurs. Your fridge will start to operate normally after 5 minutes.

• Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. It is not recommended that your fridge is operated in the environments which are out of the stated temperature intervals in terms of cooling efciency.

• This appliance is designed for use at an ambient temperature within the 16°C - 32°C range. Accessories Ice tray

• Fill the ice tray with water and place in the freezer compartment.

• After the water has completely turned into ice, you can twist the tray as shown below to remove the ice cubes. Plastic scraper After a period of time frost will build up in certain areas in the freezer compartment. The frost accumulated in the freezer should be removed periodically. Use the plastic scraper provided if necessary. Do not use sharp metal objects for this operation. They could puncture the refrigerator circuit and cause irreparable damage to the unit. All written and visual descriptions in the accessories may vary according to the appliance model. Climatic Class Amb. T. (°C) SN: From 10 to 32 °C ST: From 16 to 38 °C; N: From 16 to 32 °C T: From 16 to 43 °C

THE VARIOUS FUNCTION AND POSSIBILITIESEN - 10

Putting food in the coldest area of the refrigerator Your foods will be better stored if you put them in the most appropriate cooling area. The coldest area is just above the crisper. To be sure to have a low temperature in this area, make sure the shelf is located at the level of this symbol, as shown in the illustration. Temperature indicator (In some models) In order to help you better set your refrigerator, we have equipped it with a temperature indicator located in the coldest area. You can easily check that the temperature of the coldest area is appropriate: when the indicator shows “OK”, it means the thermostat is set properly and the inside temperature is correct. Since “OK” appears in black, it will be difcult to see this indication if the temperature indicator is badly lit. To be able to see this indication properly, there should be enough light. If the “OK” symbol does not appear, it means that the temperature is too high: you will then have to modify the thermostat setting, and wait 12 hours before visually checking the temperature again. NOTE: Following repeated openings (or prolonged opening) of the door or after putting fresh food into the appliance, it is normal for the indication “OK” not to appear in the temperature setting indicator. If there is an abnormal ice crystals build up (bottom wall of the appliance) on the refrigerator compartment evaporator (overloaded appliance, high room temperature, frequent door openings), put the temperature setting device on a lower position until compressor off periods are obtained again. The upper limit of the coldest area is indicated by the lower side of the sticker (head of the arrow). The coldest area upper shelf must be at the same level with the arrow head. The coldest area is below this level. As these shelves are removable, make sure they are always at the same level with these zone limits described on the stickers, in order to guarantee temperatures in this area. Each type of food has an ideal conservation temperature and consequently a particular location to follow. Locations Products Upper shelves Cooked foods, desserts and all foods to be eaten fast enough Coldest area Meat, poultry, game and raw sh Maximum conservation tim e : 1 to 2 days. Fresh fruits, cooked pork meat. Crisper Fresh vegetables and fruits. Door-liner Door trays shall contain bottles at the bottom side and, in their upper parts, low volume and currently used products like yoghurt, fresh cream, etc. Butter, cooked cheese and eggs shall be introduced in appropriate holders.

KEN - 11 Refrigerator Compartment

• To reduce humidity and consequent increase of frost never place liquids in unsealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporator and in time will require more frequent defrosting.

• Never place warm food in the refrigerator. Warm food should be allowed to cool at room temperatu- re and should be arranged to ensure adequate air circulation in the refrigerator compartment.

• Nothing should touch on the back wall as it will cause frost and the packages can stick on the back wall. Do not open the refrigerator door too frequently.

• Arrange the meat and cleaned sh(wrapped in packages or sheets of plastic) which you will use in 1-2 days,in the bottom section of the refrigerator compartment(that is above the crisper) as this is the coldest section and will ensure the best storing conditions.

• You can put the fruits and vegetables into crisper without packing. Freezer Compartment

• The use of freezer is, storing of deep-frozen or frozen foods for long periods of time and making ice cubes.

• To freeze fresh food, ensure that as much of the surface as possible of food to be frozen is in con- tact with the cooling surface.

• Do not put fresh food with frozen on side by side as it can thaw the frozen food.

• While freezing fresh foods(i.e meat,sh and mincemeat), divide them in parts you will use in one time.

• Once the unit has been defrosted replace the foods into freezer and remember to consume them in as short period of time.

• Never place warm food in the freezer compartment. As it will disturb the frozen foods.

• For storing the frozen foods;the instructions shown on frozen food packages should always be followed carefully and if no information is provided food should not be stored for more than 3 months from the purchased date.

• When buying frozen foods ensure that these have been frozen at suitable temperatures and that the packing is intact.

• Frozen foods should be transported in appropriate containers to maintain the quality of the food and should be returned to the freezing surfaces of the unit in the shortest possible time.

• If a package of frozen food shows the sign of humidity and abnormal swelling it is probable that it has been previously stored at an unsuitable temperature and that the contents have deteriorated.

• The storage life of frozen foods depends on the room temperature, thermostat setting, how often the door is opened, the type of food and the length of time required to transport the product from the shop to your home. Always follow the instructions printed on the package and never exceed the maximum storage life indicated. Not that; if you want to open again immediately after closing the freezer door, it will not be opened easily. It’s quite normal! After reaching equilibrium condition, the door will be opened easily.

ARRANGING FOOD IN THE APPLIANCEEN - 12

• Disconnect the unit from the power supply before cleaning.

• Do not clean the appliance by pouring water.

• Make sure that no water enters the lamp housing and other electrical components.

• The appliance should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.

• Clean the accessories separately with soap and water. Do not clean them in the dishwasher.

• Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When you have nished cleaning, reconnect the plugto the mains supply with dry hands.

• Never use ammable, explosive or corrosive material like thinner, gas, acid for cleaning.

• The condenser (black part with black wings at the rear of the appliance) should be cleaned using a vacuum cleaner or a dry brush at least once a year. This will help your appliance to operate more efciently and will enable you to save energy.

• Make sure that no water contacts the electrical connections of the thermostat or internal lighting. Regularly check the door seal and clean it whenever necessary. Defrosting Refrigerator Compartment;

• Defrosting occurs automatically in refrigerator compartment during operation ; the defrost water is collected by the evapo- rating tray and evaporates automatically.

• The evaporating tray and the defrost water drain hole should be cleaned periodically with defrost drain plug to prevent the water from collecting on the bottom of the refrigerator instead of owing out.

• You can also pour 1/2 glass of the water to drain hole to clean inside. Freezer Compartment;

• The frost, accumulated in the freezer compartment, should be removed periodically. (Use the plastic scraper provided) The freezer compartment should be cleaned in the way as the refrigerator com- partment, with the defrost operations of the compartment at least twice a year. For this;

• The day before you defrost, set the thermostat dial to “5” position to freeze the foods completely.

• During defrosting, frozen foods should be wrapped in several layers of paper and kept in a cool place. The inevitable rise in temperature will shorten their storage life. Remember to use these foods within a relatively short period of time.

• Set thermostat knob to position “•” or unplug the unit; leave the door open until completely defro- sted.

• To accelerate the defrosting process one or more basins of warm water can be placed in the freezer compartment.

• Dry the inside of the unit carefully and set the thermostat knob to MAX position. Replacing The Light Bulb To replace the bulb in freezer and fridge departments;

1. Unplug your fridge.

2. Remove the cover of the box from the claws using a screwdriver.

3. Replace with a bulb of maximum 15 Watts.

4. Install the cover.

5. Wait for 5 minutes before re-plugging and bring the thermostat to its original position.

Replacing LED Lighting If your refrigerator has LED lighting contact the help desk as this should be changed by authorized personnel only.

CLEANING AND MAINTENANCEEN - 13

Transportation and changing of Installation position

• Original package and foam may be kept for re-transportation (optionally).

• You should fasten your fridge with thick package, bands or strong cords and follow the instructions for transportation on the package for re-transportation.

• Remove movable parts (shelves, accessories, vegetable bins etc.) or x them into the fridge against shocks using bands during re-positioning and transportation. Carry your fridge in the upright position. Reversing the door opening direction

• It is possible to change the opening direction of your appliance’s doors. If you want to do this, plea- se contact your nearest authorized service.

SHIPMENT AND REPOSITIONING

If your refrigerator is not working properly,it may be a minor problem, therefore check the following, before calling an electrician to save time and money. What to do if your refrigerator does not operate ; Check that ;

• The general switch in your home is disconnected ,

• The thermostat setting is on “•” position ,

• The socket is not sufcient. To check this, plug in another appliance that you know which is working into the same socket. What to do if your refrigerator performs poorly ; Check that:

• You have not overloaded the appliance ,

• The doors are closed perfectly ,

• There is no dust on the condenser ,

• There is enough place at the rear and side walls. If there is noise ; The cooling gas which circulates in the refrigerator circuit may make a slight noise(bubbling sound) even when the compressor is not running. Do not worry this is quite normal. If these sounds are different check that ;

• The appliance is well levelled ,

• Nothing is touching the rear.

• The stuffs on the appliance are vibrating. If there is water in the lower part of the refrigerator ; Check that ;

• The drain hole for defrost water is not clogged(Use defrost drain plug to clean the drain hole) Recommendations

• W hile power cut, to prevent any compressor problem you should plug out the refrigerator. You should delay plugging in 5 – 10 minutes after you power supply. If you plug out the refrigerator for a reason you should wait at least 5 min to replug. It is important for avoiding damage to refrigerator’s components.

• The cooling unit of your refrigerator is hidden in the rear wall. Therefore, water droplets or icing may occur on the rear surface of your fridge due to the operation of the compressor in specied intervals. This is normal. There is no need to perform a defrosting operation unless the icing is excessive.

• If you will not use your fridge for a long time (e.g. in summer holidays), put the thermostat to “•” position. After defrosting, clean your fridge and leave the door open to prevent humidity and smell. If the problem persists after you have followed all the instructions above, please consult to the nearest Authorised Service.

• The appliance you have purchased is designed for home type use and can be used only at home and for the stated purposes. It is not suitable for commercial or common use. If the consumer use the appliance in a way that does not comply with these features, we emphasise that the producer and the dealer shall not be responsible for any repair and failure within the guarantee period. Tips For Saving Energy

1. Install the appliance in a cool, well ventilated room , but not in direct sunlight and not near heat sour-

ce (radiator, cooker.. etc). Otherwise use an insulating plate.

2. Allow ward food and drinks to cool down outside the appliance.

3. When thawing frozen food, place it in the refrigerator compartment. The low temperature of the

frozen food will help to cool the refrigerator compartment when it is thawing. So it causes energy saving. If the frozen food is put out, it causes wastage of energy.

4. When placing, drinks and slops they must be covered. Otherwise humidity increases at the applian-

ce. Therefore the working time gets longer. Also covering drinks and slops helps to save smell and taste.

5. When placing food and drinks, open the appliance door as briey as possible.

6. Keep close the covers of any different temperature compartment in the appliance (crisper, chiller

8. It is possible to store more food by removing freezer shelf. Energy consumption is declared with

maximum load and without freezer shelf. Electrical information (For UK type plug) Warning! This appliancemust be earthed. The mains lead of this appliance has been tted with a specially earthed plug. Impotant: Do not use the appliance without the fuse cover in position. Should the fuse need to be replaced, it must be replaced with a 13A fuse, ASTA approved to BS1362. The plug must be used with a specially easrthed socker of 13 amperes. If there is no such socket in your house, please have one installed by an authorised electrician. The mains lead of this appliance has been tted with a BS 1363A 13A fused plug. To change a fuse in this type of plug, of plug, follow the steps below:

1. Remove the fuse cover and fuse.

2. Fit replacement 13A fuse, ASTA apptoved to BS1362 type, into the fuse cover.

A. FRIDGE COMPARTMENT

5. Refrigerator shelves

10. Butter / Cheese shelves
