Manila - Bed DHP - Free user manual and instructions

Product Type	Daybed with Trundle (Chaise Lounge)
Brand	DHP
Model	Manila
Frame Material	Metal and Plastic
Maximum Weight Capacity (Daybed)	181 kg (400 lb)
Maximum Weight Capacity (Trundle)	102 kg (225 lb)
Recommended Mattress Size (Daybed)	74-75 in long × 37.5-38.5 in wide
Recommended Mattress Size (Trundle)	74-75 in long × 37.5-38.5 in wide, max thickness 8 in
Number of People for Assembly	2 people
Estimated Assembly Time	1.5 hours
Recommended Age	From 4 years
Intended Use	Residential
Care and Cleaning	Clean with a damp cloth. Do not use abrasive cleaners.
Safety	Do not jump on the bed. Keep away from children under 4 years of age.
Replacement Parts Available	Yes, through customer service (references provided in the manual)
Repairability	Can be disassembled and reassembled for moving
Warranty	Limited warranty against defects in materials and workmanship
Customer Service	1-800-267-1739 (Mon-Fri, 9am-5pm ET)

Frequently Asked Questions - Manila DHP

What are the exact dimensions of the DHP Manila daybed?

The manual does not provide exact external dimensions, but the bed is designed for a standard mattress 74 to 75 inches long and 37.5 to 38.5 inches wide. The external dimensions are slightly larger.

What is the maximum weight capacity of the daybed and trundle?

The daybed can support up to 181 kg (400 lb), and the trundle up to 102 kg (225 lb).

Can I use a mattress thicker than 8 inches in the trundle?

No, the manual recommends a mattress with a maximum thickness of 8 inches for the trundle to ensure proper operation.

How many people are needed to assemble this bed?

It is recommended to have 2 people for assembly. The estimated time is 1.5 hours.

What should I do if a part is missing or damaged?

Do not return to the store. Contact DHP customer service at 1-800-267-1739 or visit www.dhpfurniture.com/support-home for free replacement parts.

Is this bed safe for young children?

The bed is not designed for children under 4 years of age. It is forbidden to jump or roughhouse on the bed to avoid injury.

How to clean and maintain the DHP Manila bed?

Use a damp cloth to clean the frame. Avoid abrasive or harsh chemical cleaners.

Can I disassemble the bed for moving?

Yes, DHP furniture can be disassembled and reassembled for easier moving. Keep the instructions and parts.

What is the warranty on the product?

DHP offers a limited warranty against defects in materials and workmanship from the original purchase date. It covers repair or replacement of defective parts.

Where to find replacement part numbers?

Part numbers are listed in the manual (e.g., T947280 for the side rail). You can order through the DHP website or contact customer service.

USER MANUAL Manila DHP

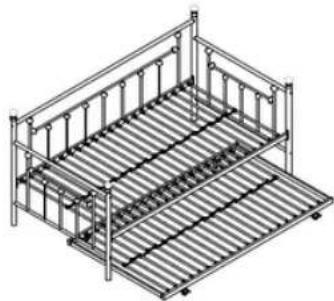

Manila Daybed and Trundle

Twin Pink

Weight Limit: Daybed: 400 Lb / 181 Kg Trundle: 225 Lb / 102 Kg

Thank you for purchasing from DHPI!

DO NOT RETURN TO THE STORE!
If parts are missing or damaged, we will gladly ship your replacement parts free of charge.
Visit www.dhfurniture.com/eng/support-home or call Toll-Free 1-800-267-1739

Date of Purchase

Lot Number

THIS INSTRUCTION BOOKLLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

E.L. - 2017-05-09

B34401573900-10125-M

© 2014 Dorni Home Products All Rights Reserved

Warranty Information

DHP warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers one year from the date of original purchase. This is solely limited to the repair or replacement of defective parts and assembly labor is not included.

This warranty does not apply to any product which has been improperly assembled, subjected to misuse or abuse or which has been altered or repaired in any way. Liability for consequential damages is excluded to the extent exclusion is permitted by law and where applicable to you for specific legal rights and you may also have other rights which vary from state to state.

To obtain warranty service, purchaser must present original bill of sale. Components repaired or replaced are warranted through the remainder of the original warranty period only. The defective components will be repaired or replaced without charge, subject to the terms and conditions described above.

Visit www.dhfgfurniture.com to view the limited warranty valid in the U.S. and Canada.

Contact Us!

For help with assembly, identifying parts, product information or to order parts, please contact us:

[e-mail]

1-800-267-1739

Monday-Friday,9:00am-5:00pm(Eastem Time)

Read Before Beginning Assembly

Call our toll free number if you need assistance.
- Work in a spacious area and near where the unit will be used, preferably on a carpet, or use a piece of the cardboard packaging to protect your floor and product. - Recommended if # of people needed for assembly: 2 (however it is always better to have an extra hand). Estimated assembly time is 1.5 hours.
- Make sure all parts are included. Most parts are labeled or stamped on the raw edge.
- Read each step carefully. It is very important that each step of the instructions is performed in the correct order. If these steps are not followed in sequence, assembly difficulties will occur.

Caution

• This product is designed for home use and not intended for commercial use.
• This product contains small components. Please ensure that they are kept as from small children.
• Do not use power tools to assemble your furniture. Power tools may strip or damage the parts.

834401573900

Register your product and enter to win!

By registering your product with us, you will automatically be entered in our quarterly contest for a chance to win some amazing prizes.

Benefits:

Take a few minutes to register your product to improve your experience with DHP and receive the following:

• Exclusive information on new products
• Special offers and promotions
• Helpful tips on how to make the most of your product

Register your product to see what the prize for this quarter is!

How to register:

Follow us:

For easy access to updates on trends, new products, contests and promotions from DHP, follow us on:

www.facebook.com/ DorelHomeProducts

www.pinterest.com/dhfpfund.com

Thank you for purchasing a DHP product. We hope it provides many years of service to you.

Note: Product must be registered in the same quarter as the purchase. See www.dhpfurniture.com/eng/register for contest rules.

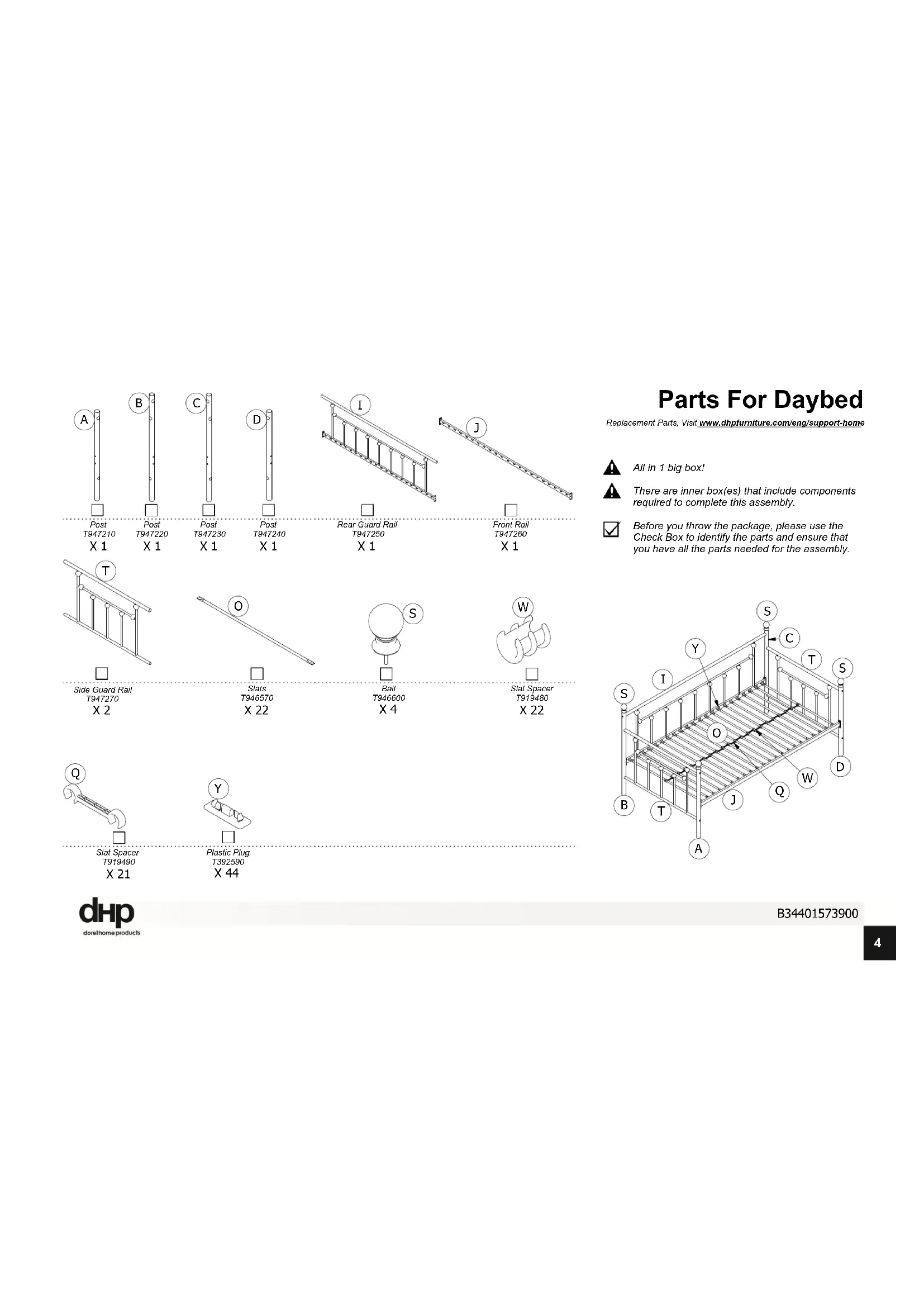

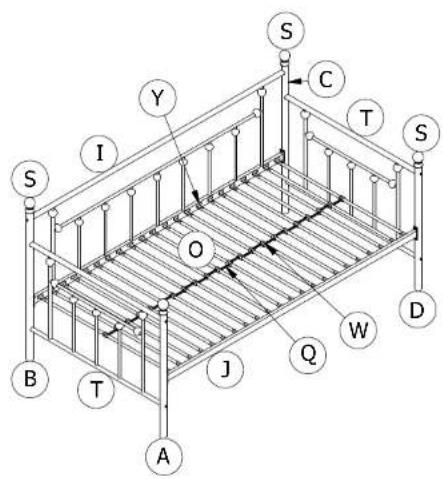

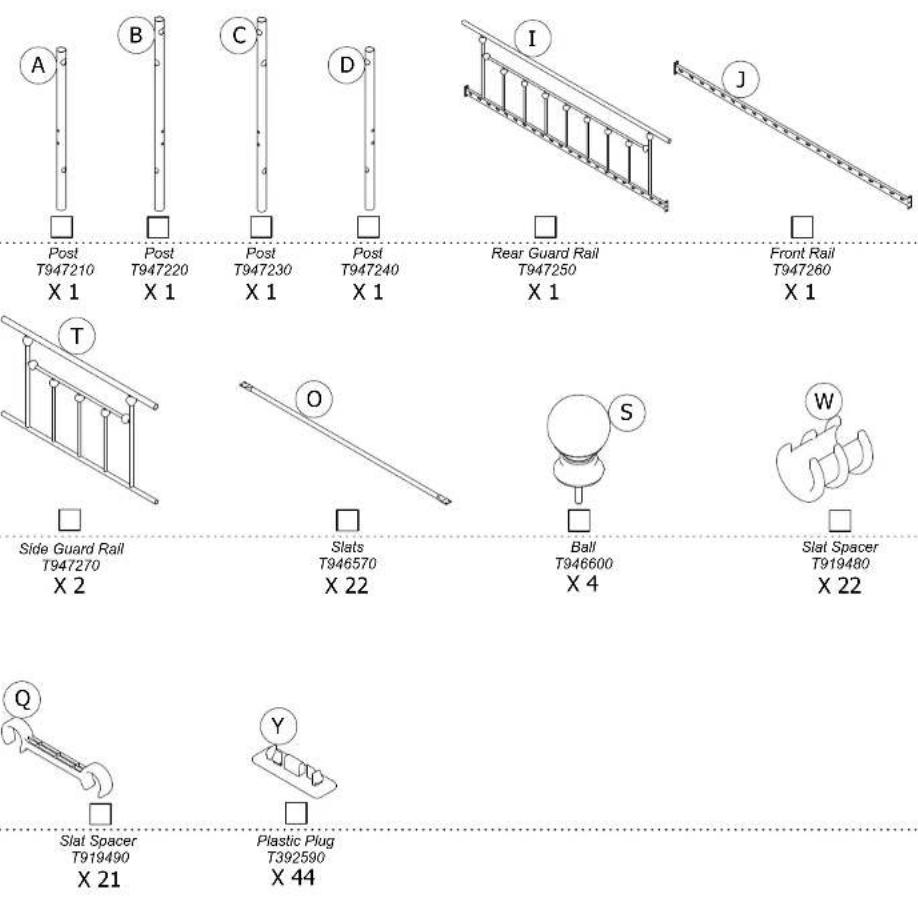

Parts For Daybed

Replacement Parts, Visit www.dhpfurniture.com/eng/support-home

All in 1 big box!

There are inner box(es) that include components required to complete this assembly.

Before you throw the package, please use the Check Box to identify the parts and ensure that you have all the parts needed for the assembly.

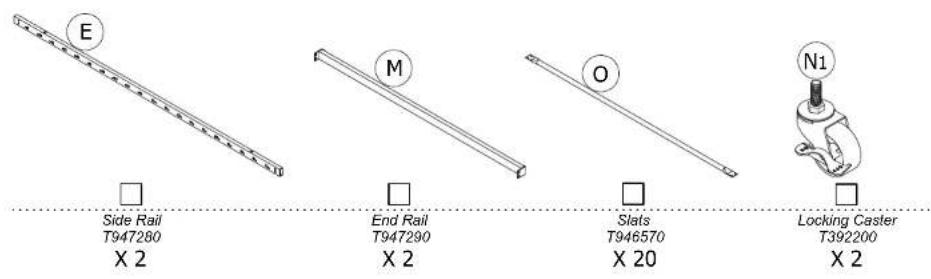

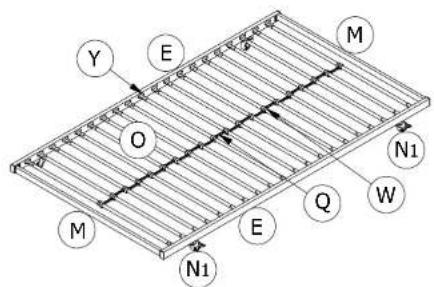

Parts For Trundle

Replacement Parts, Visit www.dhpfurniture.com/eng/support-home

All in 1 big box!
There are inner box(es) that include components required to complete this assembly.
Before you throw the package, please use the Check Box to identify the parts and ensure that you have all the parts needed for the assembly.

Hardware Pack For Daybed

Hardware Pack #: T4015159-00

Please do not completely tighten all the hardware, until the entire assembly is complete, unless otherwise indicated in the step-by-step instructions.
The screw(s), bolt(s) to be used at each step are shown in actual size in the lower right corner of the page.

1/4"X9/16" X8

Wrench X1

Hardware Pack For Trundle

Hardware Pack #: T5560096K-00

Please do not completely tighten all the hardware, until the entire assembly is complete, unless otherwise indicated in the step-by-step instructions.
The screw(s), bolt(s) to be used at each step are shown in actual size in the lower right corner of the page.

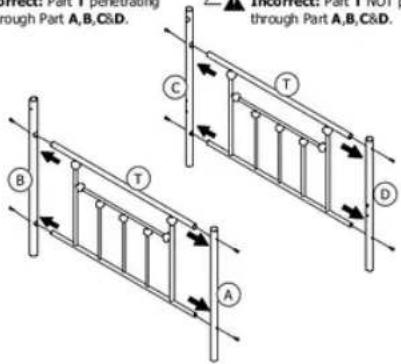

Step 1

The following instructions will illustrate how to assemble the Daybed from Step 1 to Step 6. Please use the Daybed Hardware Pack: T4015159-00.

Insert T X 2 into A/B and C/D with

834401573900

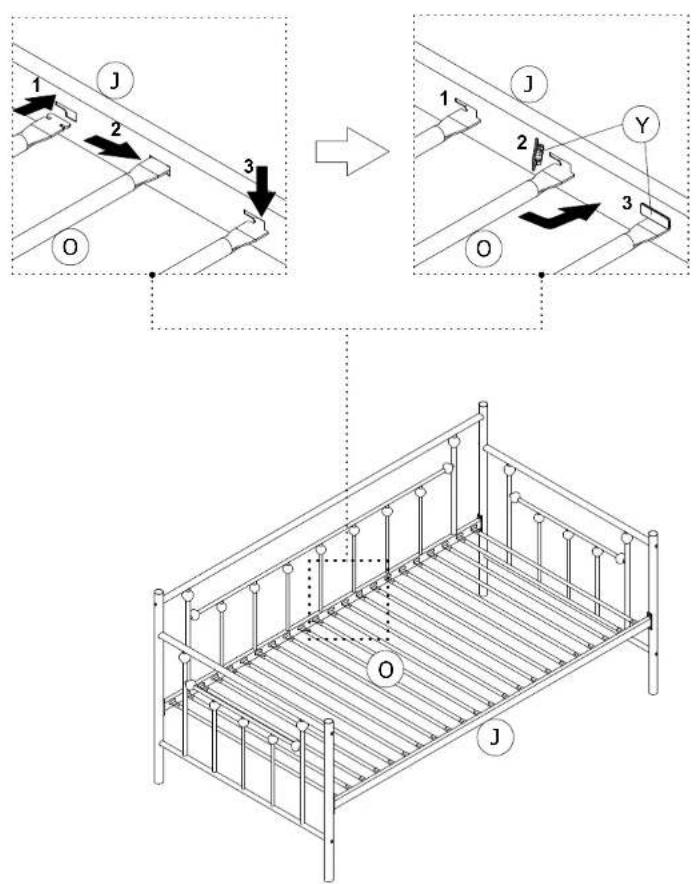

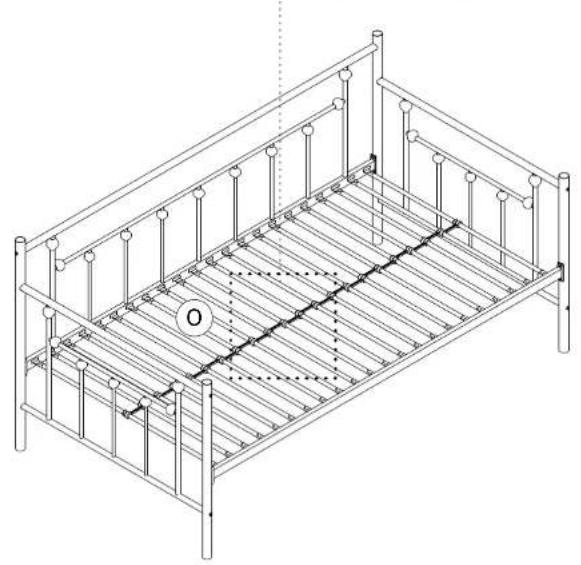

Step 4

Insert O into I & J as illustrated, then lock O into place with Y.

Step 5

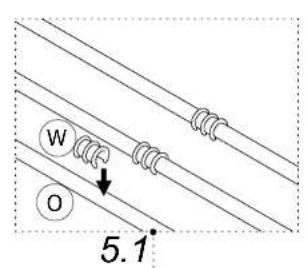

5.1 Press W onto O approximately in the middle of O as illustrated.

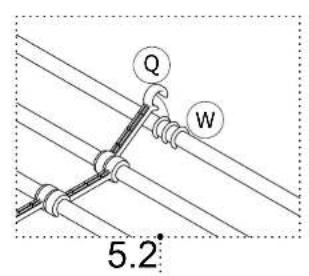

5.2 Attach Q to W alternating left and right as illustrated.

Step 7

The following instructions will illustrate how to assemble the Trundle from Step 7 to Step 11. Please use the Trundle Hardware Pack: T5560096K-00.

Attach N x 2 to E using Wrench

dhp

834401573900

Step 8

Attach N1 x 2 to E using Wrench

dhp

834401573900

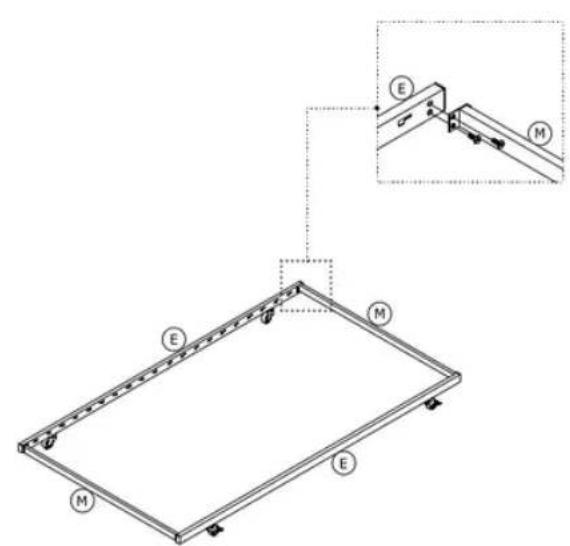

Step 9

Attach M X 2 to E X 2 with 0

dhp

834401573900

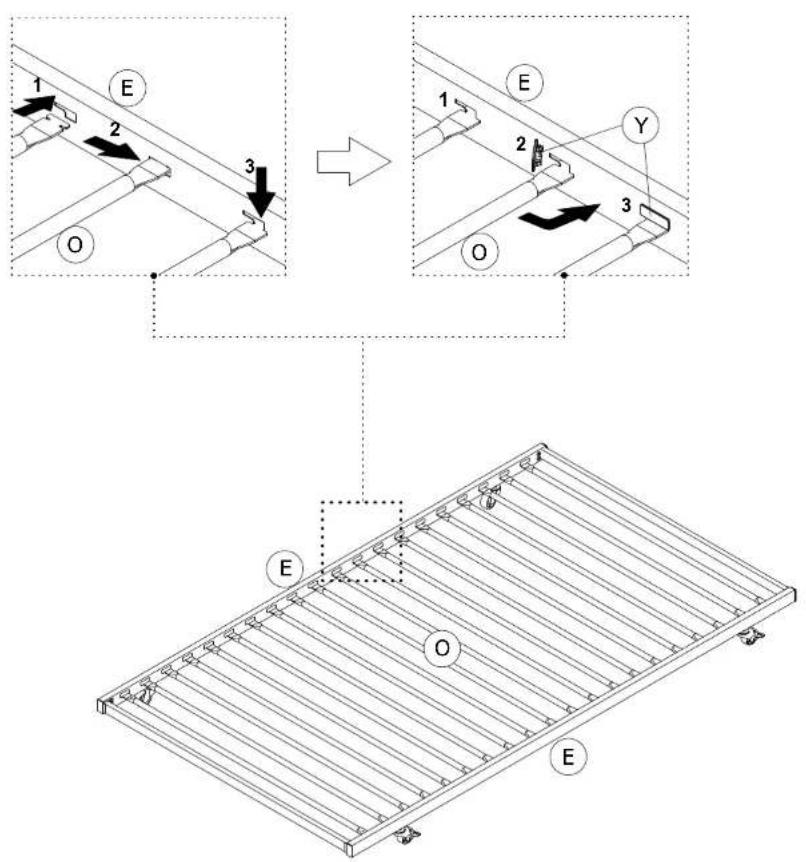

Step 10

Insert O into E X2 as illustrated, then lock O into place with Y.

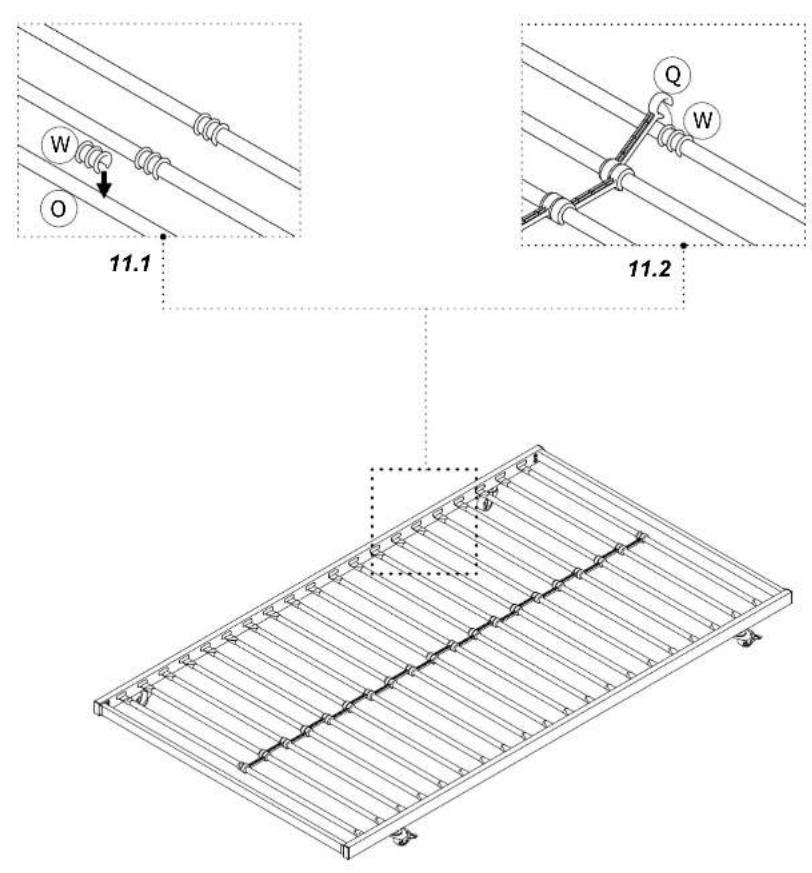

Step 11

11.1 Press W onto O approximately in the middle of O as illustrated.
11.2 Attach Q to W alternating left and right as illustrated.

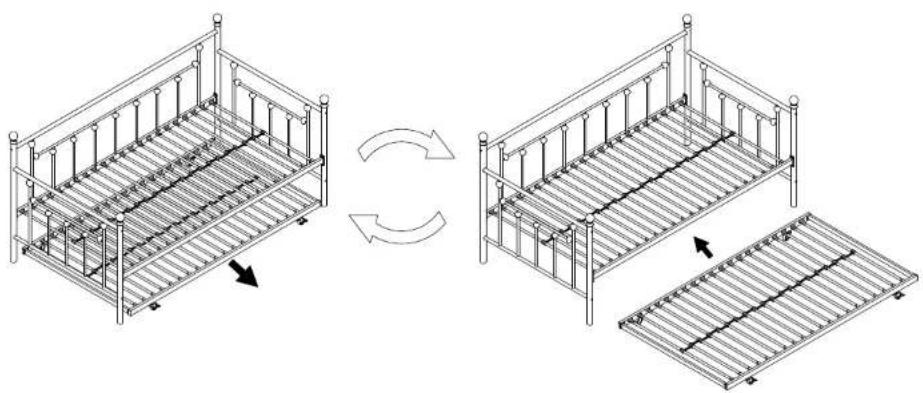

Helpful Hints

To use Trundle:

Pull out the trundle completely from underneath daybed. Once positioned, make sure casters are locked by pushing down the lever "ON" as illustrated "How to lock caster!"

To store Trundle:

Unlock the casters by pushing down the lever "OFF" as illustrated "How to unlock caster!" and push in the Trundle underneath the Daybed.

WARNINGS:

Keep casters in lock condition under normal use to prevent unintentional movement which may lead to instability and tipping.

Weight Limit:

Daybed: Daybed: 400 Lb / 181 Kg Trudle: Trudle: 225 Lb / 102 Kg

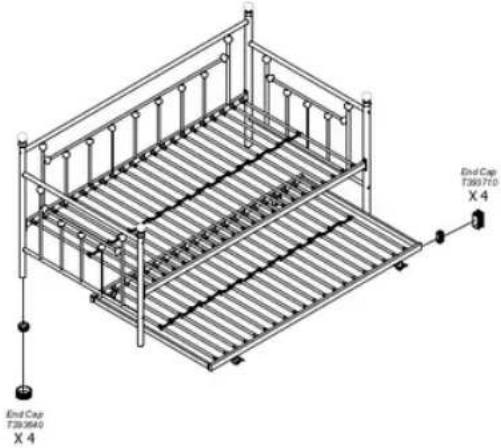

Helpful Hints

• Move your new furniture carefully, with two people lifting and carrying the unit to its new
• Your DHP furniture can be disassembled and reassembled to move.
  Some parts have been pre-assembled for this. This is illustrated on this page and available for replacement.

WARNING:

For safety reasons and to prevent injuries:
This bed is not intended for use by children under 4 years old.
Prohibit jumping and horseplay on this bed.
- Use mattress which is 74^ - 75^ long and 3712 - 3812 wide.
To optimize use of bundle, use a standard twin size mattress, no thicker than 8.

4015739

Manila Daybed and Trundle

Twin Rosa

Fecha de compra

Numero de lote

Visit www.thofurniture.com/spa/support-home/ o如期 gifts al-1800-267-1739

ESTE INSTRUMENTIVO CONTINUENEFINORMACIONIMPORTANTE DE

SEGURIDAD POR FAVOR LEAY GUARDE PARA SU REFERENCEFUTURA

Garantia

Piesas de reemplazo, vishe www.dhpfurniture.com/spa/support-home

Uma M X 2 coe unanda is LAVE

Page 1

UnaN1X2conEusando laLLAVE

PAs09

Unalax2conEX2con 0

Pano 10

4015739 Manila Daybed and Trundle

Twin Rose

Date d'achat

Numero de lot

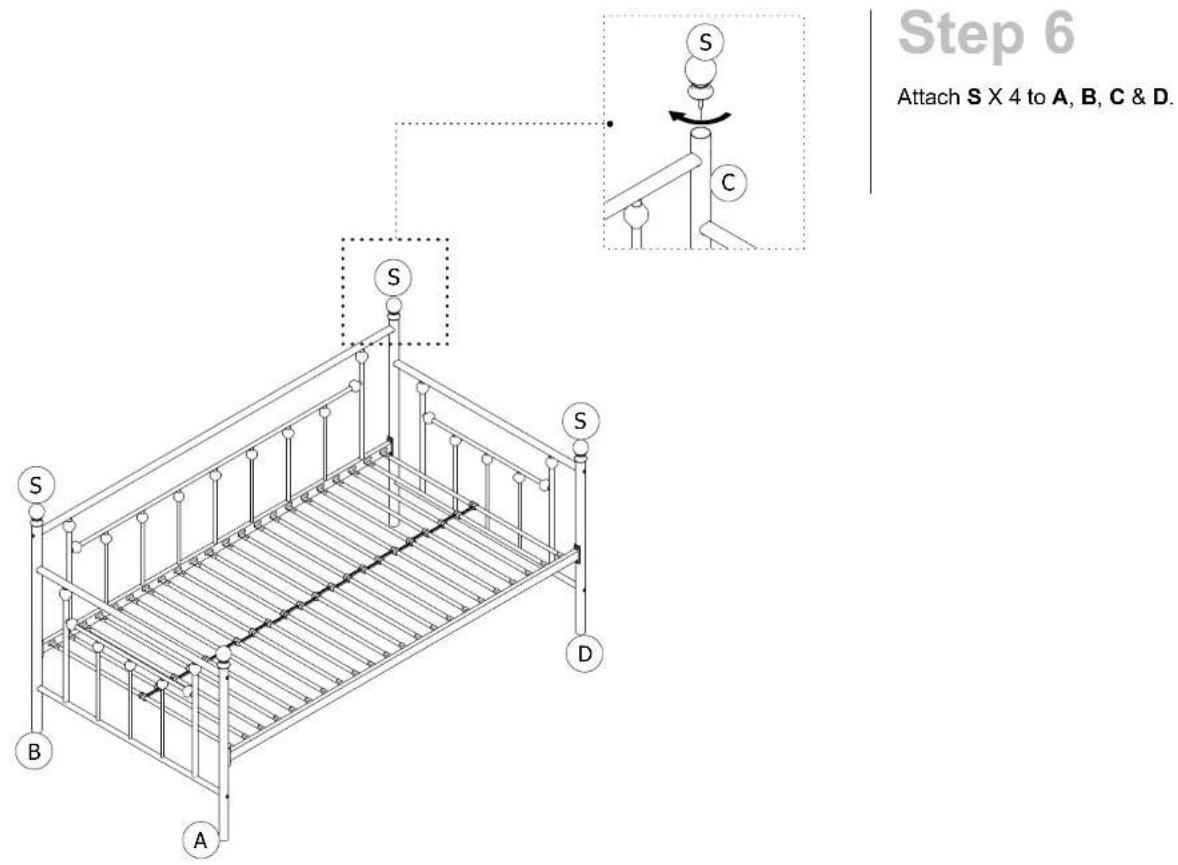

Atacher S X 4 a A, B, C & D
