USER MANUAL Maven DHP

Upholstered Platform Twin Bed

Black

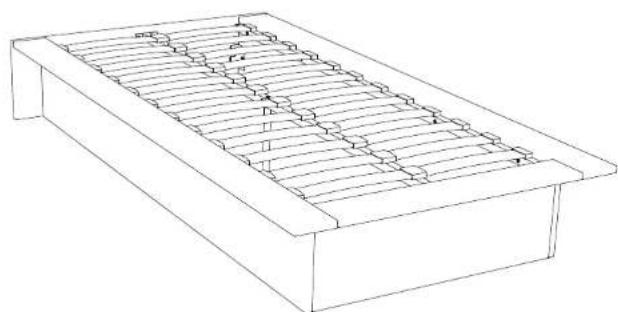

Line drawing of a rectangular structure with slatted top and bottom edges, no text or symbols present

Thank you for purchasing from DHP!

DO NOT RETURN TO THE STORE!

If parts are missing or damaged, we will gladly ship your replacement parts free of charge.

Call Toll-Free 1-800-267-1739

or visit www.dhpfurniture.com

Date of Purchase

Lot Number

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

X.P. - 9/17/2014

B34402500900 - 10125 - M

Warranty Information

DHP warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers one year from the date of original purchase. This is solely limited to the repair or replacement of defective parts and assembly labor is not included.

This warranty does not apply to any product which has been improperly assembled, subjected to misuse or abuse or which has been altered or repaired in any way. Liability for consequential damages is excluded to the extent exclusion is permitted by law. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

To obtain warranty service, purchaser must present original bill of sale. Components repaired or replaced are warranted through the remainder of the original warranty period only. The defective components will be repaired or replaced without charge, subject to the terms and conditions described above.

Visit www.dhpfurniture.com to view the limited warranty valid in the U.S. and Canada.

Contact Us!

For help with assembly, identifying parts, product information or to order parts, please contact us:

1-800-267-1739

Monday - Friday 9:00 am - 5:00 pm (Central Time)

www.dhpfurniture.com

1-636-745-1005

(FAX) Available 24 hours a day, 7 days a week

DHP 410E, First Street South, Wright City, MO 63390, USA Attention: Consumer Service.

Read Before Beginning Assembly

• Call our toll free number if you need assistance.
  ■ Work in a spacious area, preferably on a carpet, near where the unit will be used.
• Recommended # of people needed for assembly: 2 (however it is always better to have an extra hand). Estimated assembly time is 2 hours.
  ■ Make sure all parts are included. Most parts are labeled or stamped on the raw edge.
• Read each step carefully. It is very important that each step of instruction is performed in the correct order. If these steps are not followed in sequence, assembly difficulties will occur.

Caution

■ This product is designed for home use and not intended for commercial use.
This product contains small components. Please ensure that they are kept away from small children.
- Do not use power tools to assemble your furniture. Power tools may strip or damage the parts.

Register your product and enter to win!

By registering your product with us, you will automatically be entered in our quarterly contest for a chance to win some amazing prizes.

Benefits:

Take a few minutes to register your product to improve your experience with DHP and receive the following:

• Exclusive information on new products
• Special offers and promotions
- Helpful tips on how to make the most of your product

Register your product to see what the prize for this quarter is!

How to register:

Scan me to take me there! www.dhpfurniture.com/eng/register

Follow us:

For easy access to updates on trends, new products, contests and promotions from DHP, follow us on:

f www.facebook.com/ DorelHomeProducts www.twitter.com/ DHPIfurniture p www.pinterest.com/ dhPIfurniture

Thank you for purchasing a DHP product. We hope it provides many years of service to you.

Note: Product must be registered in the same quarter as the purchase. See www.dhpfurniture.com/eng/register for contest rules.

Parts

Replacement Parts, Call 1-800-267-1739

All in 1 big box!

There are inner boxe(s) that include components required to complete this assembly.

Before you throw the package, please use the Check Box to identify the parts and ensure that you have all the parts needed for the assembly.

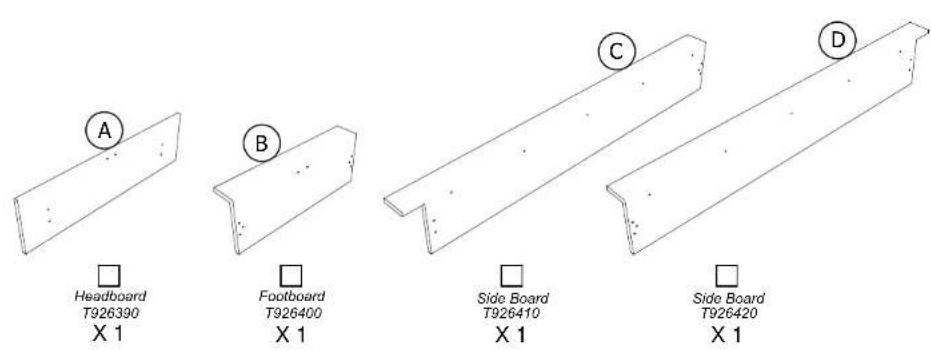

E F Side Rail T926430 X 2 Center Brace T926440 X 1

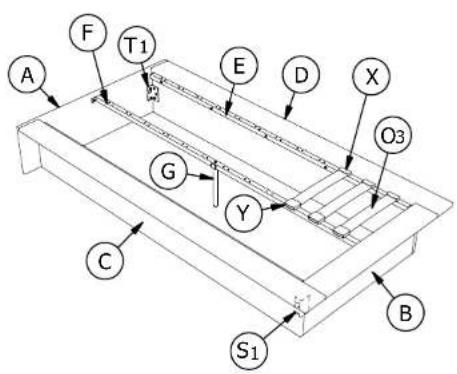

A F T1 E D X O3 G Y C S1 B

B34402500900

1/4" X 3/4" X 24

1/4" X 1 9/16" X 11

4mm ×1

Hardware Pack

Hardware Pack #: T4025009-00

Hardware Note:

Please do not completely tighten all the hardware, until the entire assembly is complete, unless indicated otherwise in the step-by-step instructions.

T1 B S1

Step 1

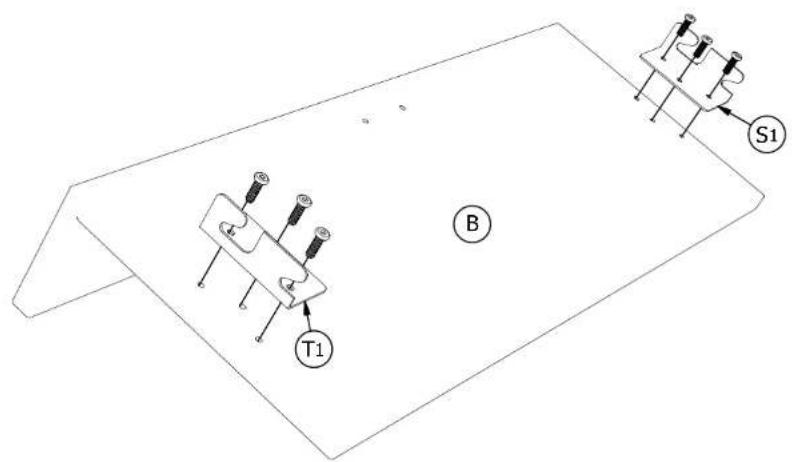

Attach (S1) & (T1) to (B) with BOLTS 1 as shown.

B34402500900

E C D E Slat holes to be facing upward.

Step 2

Attach (E) to (C) & (D) with BOLTS 2 as shown.

B34402500900

T1 D C S1

Step 3

Attach (S1) & (T1) to (C) & (D) with BOLTS 1 as shown.

B34402500900

A 4.1 A 4.2 A 4.3 D C B

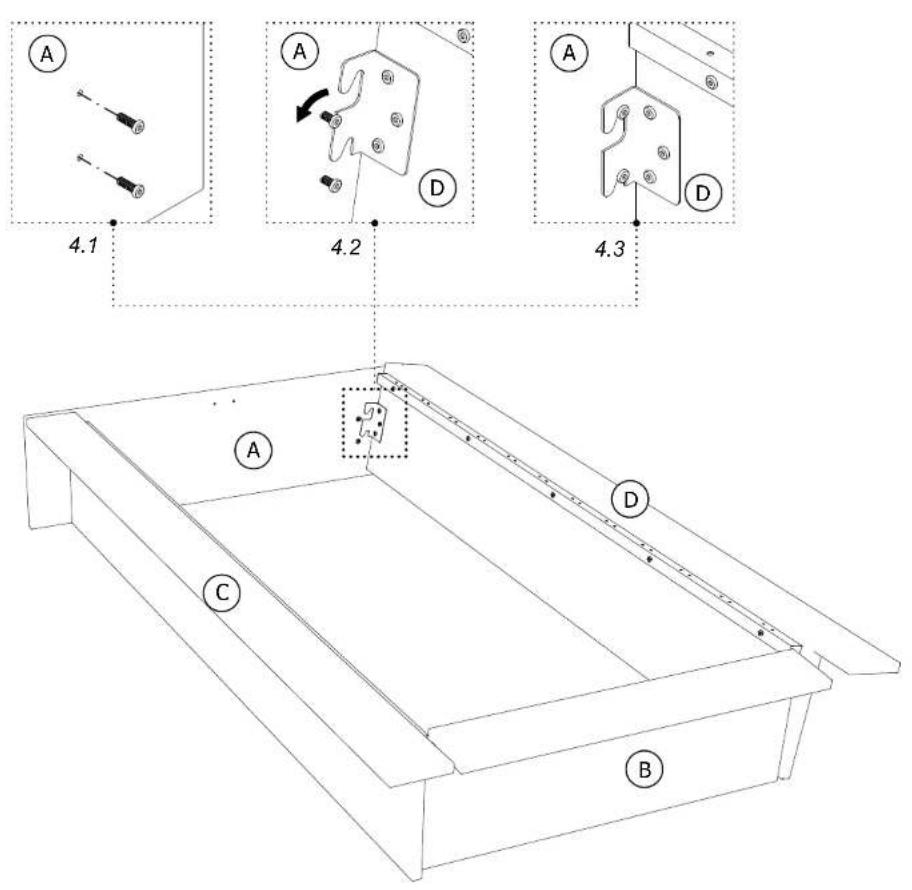

Step 4

4.1 Screw BOLTS 1 into (A) and leave half the bolt exposed.
4.2 Hook (C) & (D) to (A). Repeat the same procedure to attach (B) to (C) & (D).
4.3 Tighten all the bolts to assure the Platform is secure and solid.

B34402500900

Step 5

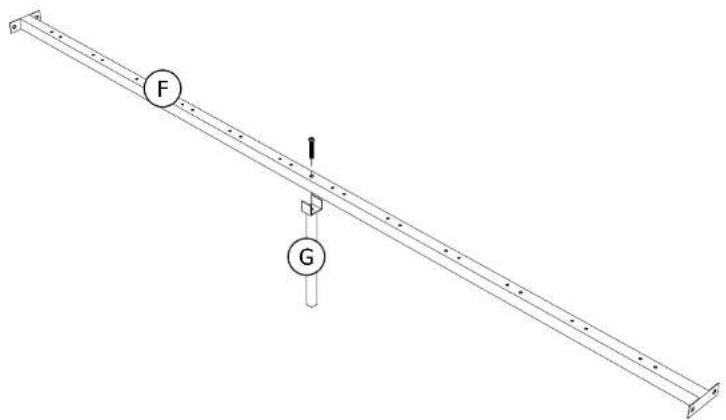

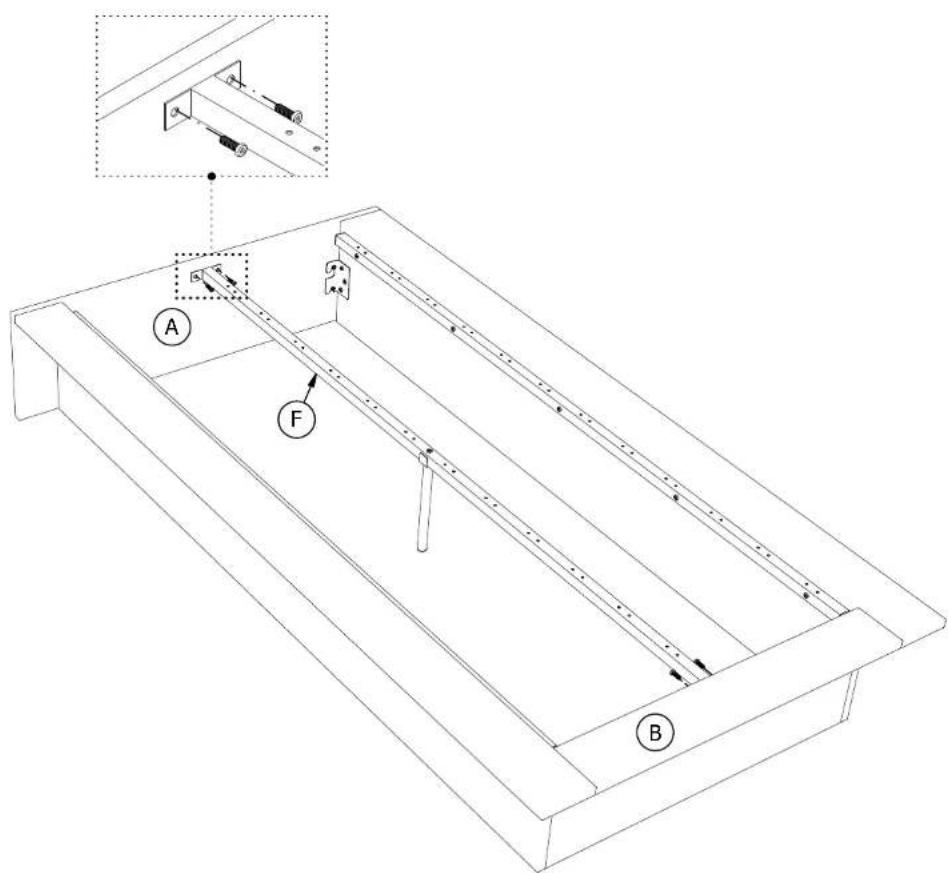

Attach (G) to (F) with BOLT 2.

F G

B34402500900

Technical diagram of a mechanical assembly with labeled parts A, B, and F, showing structural components and assembly details.

Step 6

Attach (F) to (A) & (B) with BOLTS 1 as shown.

B34402500900

O3 X E 7.1 7.2 Y O3 F 7.3 E F

Step 7

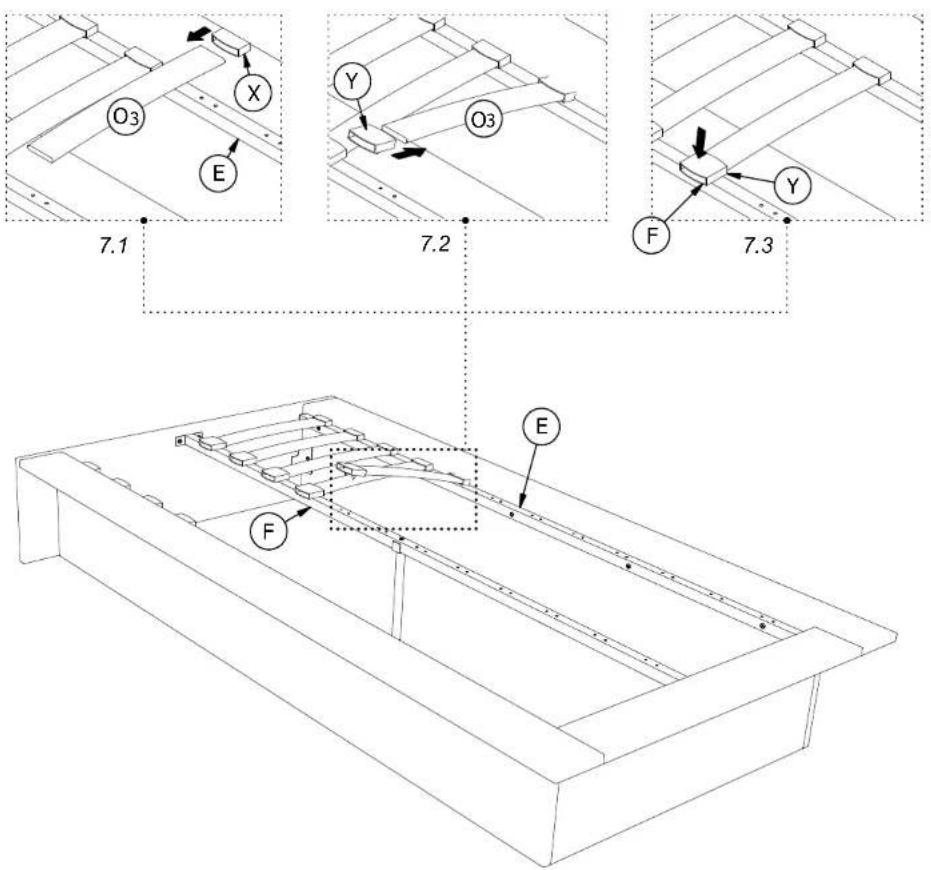

For the first row of Slats:

7.1 Insert (O3) into (X), then press (X) into (E);
7.2 Slide (Y) on (O3);
7.3 Press (Y) into (F) as shown.

O3 X Y 8.1 Y O3 8.2 8.3 X O3 E

Step 8

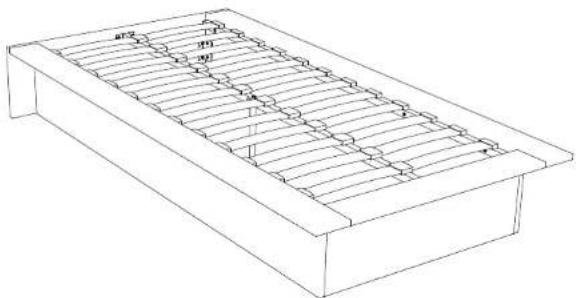

For the second row of Slats:

8.1 Insert (O3) into (Y);
8.2 Slide (X) on (O3);
8.3 Press (X) into (E) as shown.

Weight Limit: 225 Lbs / 102 Kgs

Technical line drawing of a rectangular structure with slatted top and bottom panels, no text or symbols present.

E T392510 X 4

Helpful Hints

■ Move your new furniture carefully, with two people lifting and carrying the unit to it's new location.

• Your DHP furniture can be disassembled and reassembled to move.
• Some parts have been pre-assembled for this item. They are illustrated on this page and available for replacement.

WARNINGS:

For safety reasons and to prevent injuries:

■ This bed is intended for use by children aged 4 years or older.
■ Prohibit jumping and horseplay on this bed.
■ Only use a mattress which is 74"-75" long and 37 1/2" - 38 1/2" wide.
