QP 6000 - Lint remover Orbegozo - Free user manual and instructions

Product type	Lint shaver
Brand	Orbegozo
Model	QP 6000
Power supply	Rechargeable battery, 230 V AC
Charging time	12 hours (do not exceed 24 h)
Use while charging	Possible after 30 seconds of charging (green indicator)
Main functions	Shaving lint and fluff, integrated brush to remove dust
Lint reservoir	Transparent, removable for easy emptying
Grid and blades	Metal grid, rotating blades
Included accessories	Cleaning brush, power cable
Cleaning	Clean the reservoir and grid with the provided brush; do not use water or chemicals
Safety	Do not use on silk, lambswool or uneven surfaces; do not immerse in water; do not lubricate; keep out of reach of children under 8 years
Recommended use	Garment placed flat on a smooth surface; move the device in the direction of the fabric
Compatible fabric types	Wool, cotton, synthetics (except very fine fabrics like silk or lambswool)
Dimensions (estimated)	Approximately 15 x 8 x 5 cm
Weight (estimated)	Approximately 250 g
Warranty	Compliant with current legislation; contact Orbegozo technical service
Spare parts	Grid, reservoir, cleaning brush

Frequently Asked Questions - QP 6000 Orbegozo

How to charge the battery of the lint shaver?

Turn off the device, plug in the power cord and insert the plug into a 230 V socket. The red light indicates charging is in progress. Unplug once the battery is charged (green light). The normal charging time is 12 hours.

Can I use the device on delicate fabrics like silk?

No, it is not recommended to use the lint shaver on fine materials like silk, lambswool or uneven surfaces. Use it on fabrics like cotton, wool or synthetics.

How to clean the lint reservoir and the grid?

Set the switch to 'Off' and unplug the device. Remove the transparent reservoir and empty the lint. Use the provided brush to clean the reservoir and the grid. Never clean with water or chemicals.

What to do if the device does not turn on?

First check that the battery is charged. If the indicator does not light up, plug the device into a power outlet. After 30 seconds of charging, turn on the switch: the indicator should turn green. If the problem persists, contact technical support.

How to remove the grid to clean the blades?

To clean the inside of the grid and the blade area, remove the grid support by pressing on it so that it stays in place. Use the brush to remove accumulated fibers.

Can I use the device on wet clothes?

No, it is not recommended to use the lint shaver on wet clothes. Make sure the fabric is dry and laid flat for optimal results.

What to do if the power cord is damaged?

If the power cord is damaged, contact an authorized technical service. Do not use the device with a damaged cord.

How to extend battery life?

Avoid charging the battery for more than 24 hours. Do not charge at temperatures above 40°C or below 0°C. Use the device regularly to keep the battery in good condition.

Can I use the shaver without the lint reservoir?

No, do not use the device without its grid or lint compartment. These parts are essential for proper operation and safety.

Where to find spare parts for the QP 6000?

Spare parts (grid, reservoir, brush) can be obtained by contacting Orbegozo technical service via the website https://orbegozo.com/assistencia-technica/ or by email indicated in the manual.

USER MANUAL QP 6000 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or

way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

1. Children should be supervised to ensure that they do not play with the appliance.

2. Keep the appliance and the cable cord out of the reach of children less than 8 years old.

3. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
4. If the supply cord is damaged it must be repaired by the Authorized Service Agent.
5. Never pull on the cord when unplugging.
6. Do not use the unit with a damaged cord or plug, or if it is not working properly.
7. Do not handle the appliance with wet hands.
8. Never immerse the appliance in water or any other liquid.
9. Make sure the appliance has been unplugged before cleaning.
10. This appliance must be installed following the national regulations for electrical installations.
11. This appliance is for household use only.
12. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com
13. WARNING: In case of misuse, there is a risk of possible injury.

Specific:

• Do not use it without the grid or without the lint tank.

• Do not lubricate.

• Do not immerse in water.
• Keep out of the reach of children.
• Do not use the fabric shaver for any other purpose than that for which was designed.
• Do not use it for every thin material such as silk, lamb's wool or irregular surface.
• Do not press hard against the clothes / fabrics
• Do not clean this item with water or other chemical solutions

Recharging the batteries

1. This appliance can be charged among the right voltage printed on the rating label.
2. Turn off switch, connect with power cord, and insert the plug into power supply receptacle. When the charging indicate lamp turns red, charge is processing.
3. Unplug the appliance after recharging is completed.
4. Standard recharging time is 8-12 hours.
5. Try to avoid charging for last more than two times normal charge time. When the room temperature is above 40 degree Celsius or below 0 degree Celsius, charging the battery will be inefficient and shorten the battery life.
6. When the power of trimmer is used up, insert the plug into 230VAC power supply, turn on the switch (better after 30 seconds charging), When the indicate lamp turns green, it can trim cloth fluff directly.

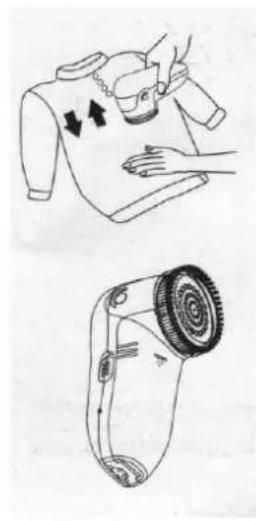

DIRECTIONS FOR USE

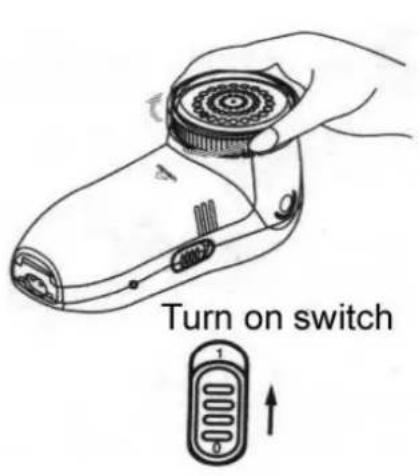

1. Drive the foil tightly (Do not turn on trimmer when the foil is loosen).
   2.Trun on the switch.
2. Move the trimmer on flat cloth gently.
   4.Dust brush attached, sweep dust inside cloth, with fluff trimming simultaneous.

Lay your clothes on a flat level surface, preferably an ironing board or pad. Push the "ON" switch and begin to shave lint or fuzz off your clothes. The clear fluff box will collect lint and fibbers removed from clothes and can be easily removed to discard the lint and fibbers.

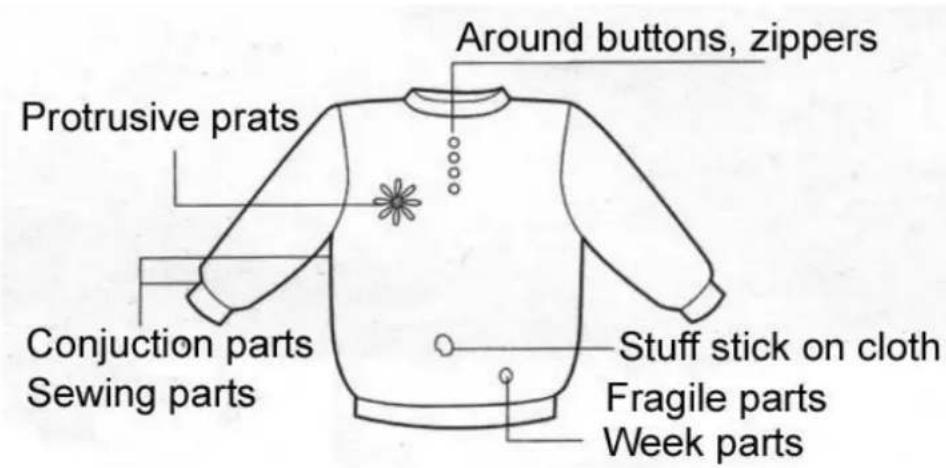

Tips for better use

How to remove lint faster

Move the device following the pattern of the fabric

Scroll from left to right

With protruding parts

Avoid protruding parts

Scroll the pattern vertically and horizontally

Fine fabric

Fold the garment and remove lint on an ironing board

CLEANING

Before cleaning, turn the On/Off switch to the 'stop' position and remove the batteries. To empty the transparent fluff box, remove and clean using the brush provided. Clean the grille using the brush provided.

To clean the inside of the grille and the cutters zone, proceed as follows: Pull the grille support and press down to secure.

When storage box is filled about 80% , clean storage box and inside cutter should be performed.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the

environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/assistencia-technica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.

DECLARATION DE CONFORMITE:
