ZUHE30FW1 - Freezer ZANUSSI - Free user manual and instructions

Product Type	No-Frost Freezer
Brand	Zanussi
Model	ZUHE30FW1
Technology	No-Frost with Freezer Shield
Freezing Capacity	25 kg/24h (at 25°C ambient)
Climate Class	T (16-43°C), ST (16-38°C), N (16-32°C), SN (10-32°C)
Power Supply	220-240 V ~ 50 Hz
Estimated Net Volume	250 L (freezer)
Approximate Dimensions (H x W x D)	180 x 60 x 65 cm
Estimated Weight	70 kg
Refrigerant	R600a (flammable, eco-friendly)
Special Functions	Super Freeze (SF), step temperature setting
Display	Control panel with indicator lights
Alarm	Visual alarm (red indicator) in case of malfunction
Defrost	Automatic (No-Frost)

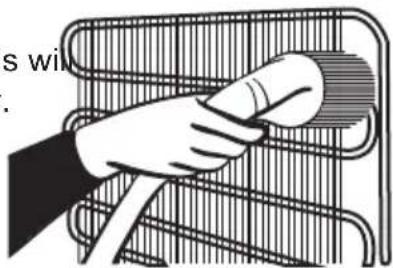

Cleaning	Soapy water, condenser to be cleaned annually
Included Accessories	Ice cube tray, storage drawers
Safety	Ventilation must be kept clear, use of R600a, child safety
Repairability	Spare parts available for 7 years (10 years for door gaskets)
Installation	Minimum distance: 50 cm from heat sources, 2 cm from other refrigerators

Frequently Asked Questions - ZUHE30FW1 ZANUSSI

How to adjust the freezer temperature?

Press the freezer temperature setting button to cycle through the levels: -16°C, -18°C, -20°C and Super Freeze. The default temperature is -18°C.

How to activate the Super Freeze function?

Press the temperature setting button until the Super Freeze indicator lights up. Activate it 24 hours before adding fresh food for optimal freezing.

What to do if the red alarm lights up?

The alarm indicates a temperature problem. Check that the door is properly closed. If it is and the alarm persists, contact customer service.

The freezer is making noise, is this normal?

Yes, some noises are normal: crackling (defrosting), gurgling (refrigerant), fan noise (forced air). A slight compressor noise is also normal.

How to clean the freezer?

Unplug the appliance. Clean the interior and exterior with warm soapy water and a soft cloth. Do not use abrasive products. Clean the rear condenser once a year.

Can I freeze large quantities of food?

Yes, the maximum capacity is 25 kg in 24 hours. Activate Super Freeze mode 24 hours before and distribute the food to avoid obstructing air circulation.

How long do frozen foods keep?

Generally, up to 3 months for purchased frozen foods, but it depends on the type. Follow the packaging instructions. Meat and fish can last 6 to 8 months depending on preparation.

What to do in case of a power outage?

Do not open the door. Food stays frozen for several hours. If the outage is prolonged, use the food quickly. After power returns, wait 5 minutes before reconnecting to protect the compressor.

How to save energy with this freezer?

Place the appliance in a cool location, avoid frequent openings, let food cool before storing, and use Super Freeze mode only when necessary.

Where can I find spare parts?

Parts such as thermostat, sensors, electronic boards, handles and hinges are available for 7 years after production stops. Door gaskets are available for 10 years. Contact an authorized service.

USER MANUAL ZUHE30FW1 ZANUSSI

PART 6 TROUBLESHOOTING

EN FIRE Warning; Risk of fire / flammable materials

CONTENTS

BEFORE USING THE APPLIANCE 25

General warnings 25 Old and out-of-order fridges or freezer. 29 Safety warnings 29 Installation warnings 30 Before using your freezer 31

THE VARIOUS FUNCTION AND POSSIBILITIES 31

Information on No-Frost technology 31 Display and Control Panel. 32 Operating your Freezer 32 Super Freezer Mode 32 Freezer Temperature Settings 32

Warnings about temperature adjustments 33

Accessories 34 Ice Tray 34 The Icemic 34

ARRANGING FOOD IN THE APPLIANCE 34

CLEANING AND MAINTENANCE 38

Defrosting 38

TRANSPORTATION AND CHANGING OF INSTALLATION POSITION 39

Repositioning the Door 39

Before Calling Your After-Sales Service 40

Hints for Energy Saving 41

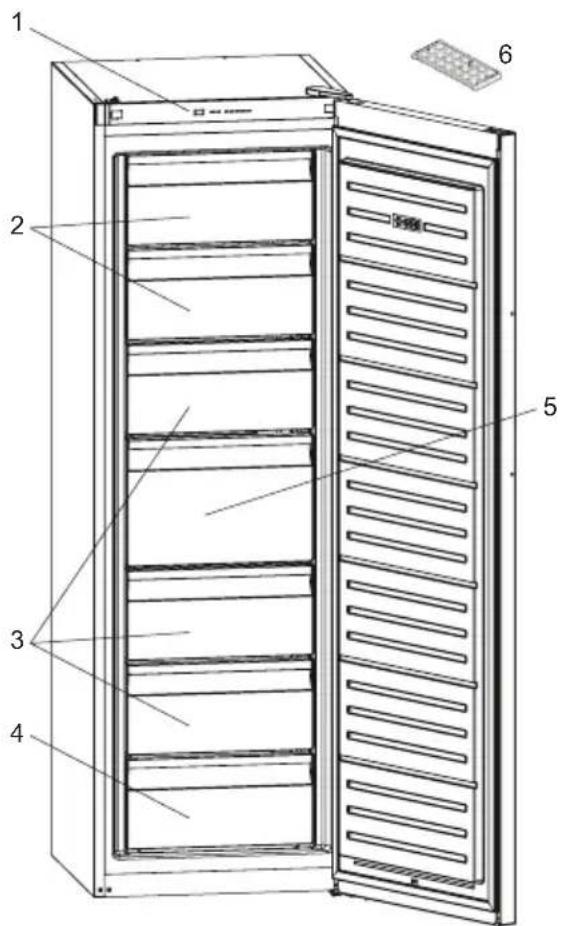

The Parts of the Appliance and the Compartments 42

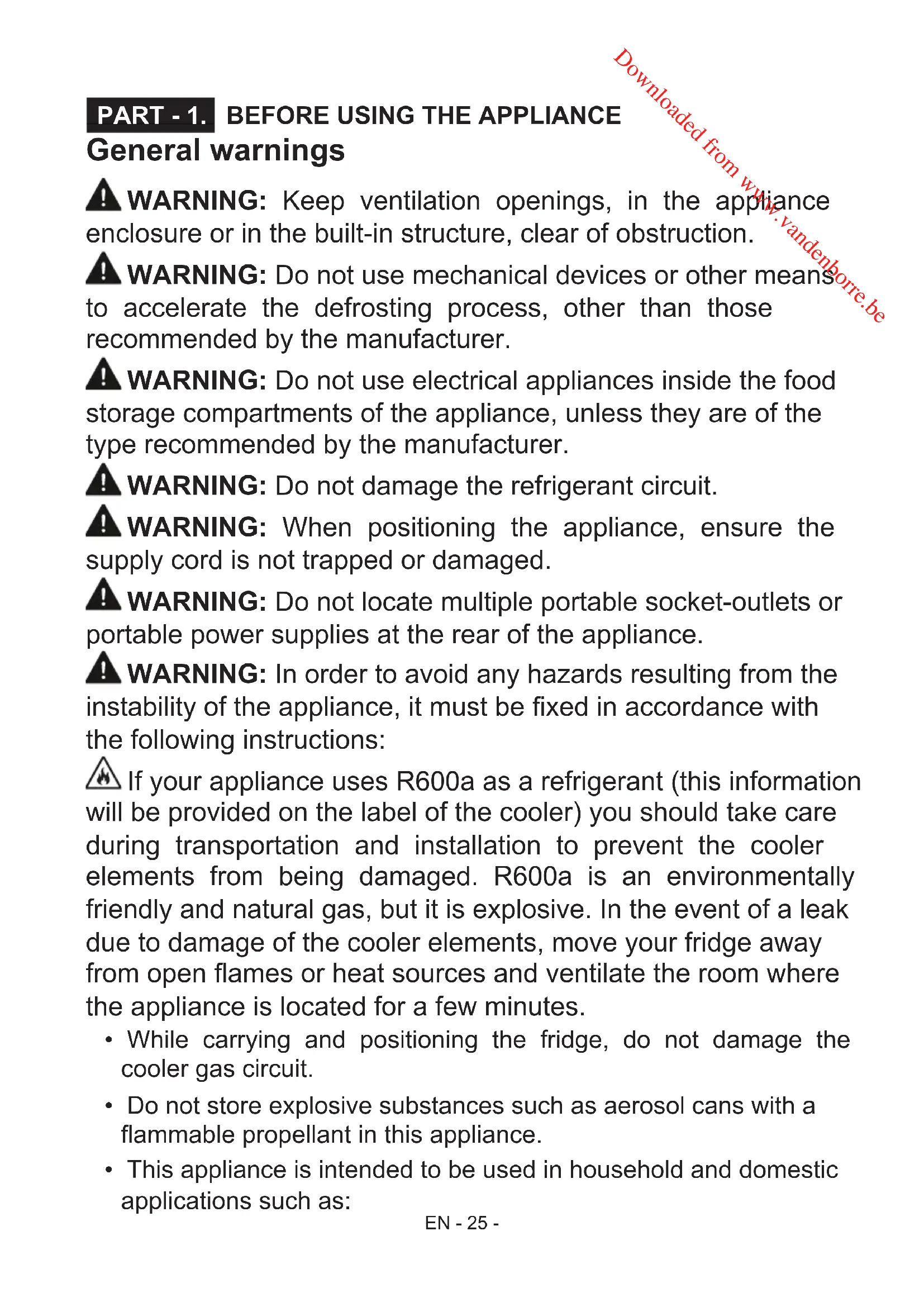

Part 1: Before Using the Appliance - General Warnings

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

WARNING: In order to avoid any hazards resulting from the instability of the appliance, it must be fixed in accordance with the following instructions:

If your appliance uses R600a as a refrigerant (this information will be provided on the label of the cooler) you should take care during transportation and installation to prevent the cooler elements from being damaged. R600a is an environmentally friendly and natural gas, but it is explosive. In the event of a leak due to damage of the cooler elements, move your fridge away from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.

• While carrying and positioning the fridge, do not damage the cooler gas circuit.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• This appliance is intended to be used in household and domestic applications such as:
• staff kitchen areas in shops, offices and other working environments.
• farm houses and by clients in hotels, motels and other residential type environments.
• bed and breakfast type environments;
• catering and similar non-retail applications.
• If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, a service agent or similarly qualified persons in order to avoid a hazard.
• A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have one installed by an authorised electrician.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Children are not expected to perform cleaning or user maintenance of the appliance, very young children (0-3 years old) are not expected to use appliances, young children (3-8 years old) are not expected to use appliances safely unless continuous supervision is given, older children (8-14 years old) and vulnerable people can use appliances safely after they have been given appropriate supervision or instruction concerning use of the appliance. Very vulnerable people are not expected to use appliances safely unless continuous supervision is given.
• If the supply cord is damaged, it must be replaced by the manufacturer, an authorised service agent or similar qualified persons, in order to avoid a hazard.
• This appliance is not intended for use at altitudes exceeding 2000 m.

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for the freezing of fresh food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Service

• To repair the appliance contact the Authorised Service Centre. Use original spare parts only.
• Please note that self-repair or nonprofessional repair can have safety consequences and might void the guarantee.
• The following spare parts will be available for 7 years after the model has been discontinued: thermostats, temperature sensors, printed circuit boards, light sources, door handles, door hinges, trays and baskets.
• Please note that some of these spare parts are only available to professional repairers, and that not all spare parts are relevant for all models.
• Door gaskets will be available for 10 years after the model has been discontinued.

Old and out-of-order fridges or freezers

• If your old fridge or freezer has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.
• Old fridges and freezers contain insulation material and refrigerant with CFC. Therefore, take care not to harm the environment when you are discarding your old fridges.

Disposal of your old appliance

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more

detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for any losses incurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for any losses incurred by inappropriate usage of the appliance.

Safety warnings

• Do not connect your freezer to the mains electricity supply using an extension lead.
• Do not use damaged, torn or old plugs.
• Do not pull, bend or damage the cord.

• Do not use plug adapter.
• This appliance is designed for use by adults. Do not allow children to play with the appliance or hang off the door.
• Never touch the power cord/plug with wet hands. This may cause short circuit or electric shock.

• Do not place glass bottles or cans in the ice-making compartment as they will burst when the contents freeze.
• Do not place explosive or flammable material in your freezer.
• When removing ice from the ice-making compartment, do not touch it. Ice may cause frost burns and/or cuts.
• Do not touch frozen goods with wet hands. Do not eat ice-cream or ice cubes immediately after they are removed from the ice-making compartment.
• Do not re-freeze thawed frozen food. This may cause health issues such as food poisoning.

When the door of the freezer is closed, a vacuum seal will form. Wait for 1 minute before reopening it. This application is optional for easy opening of the door. With this application, a little condensation may occur around this area and you may remove it.

Installation warnings

Before using your freezer for the first time, please pay attention to the following points:

• The operating voltage for your freezer is 220-240V at 50Hz.
• The plug must be accessible after installation.
• Your freezer may have an odour when it is operated for the first time. This is normal and the odour will fade when your freezer starts to cool.
• Before connecting your freezer, ensure that the information on the data plate (voltage and connected load) matches that of the mains electricity supply. If in doubt, consult a qualified electrician.
• Insert the plug into a socket with an efficient ground connection. If the socket has no ground contact or the plug does not match, we recommend you consult a qualified electrician for assistance.
• The appliance must be connected with a properly installed fused socket. The power supply (AC) and voltage at the operating point must match with the details on the name plate of the appliance (the name plate is located on the inside left of the appliance).
• We do not accept responsibility for any damages that occur due to ungrounded usage.
• Place your freezer where it will not be exposed to direct sunlight.
• Your freezer must never be used outdoors or exposed to rain.
• Your appliance must be at least 50 cm away from stoves, gas ovens and heater cores, and at least 5 cm away from electrical ovens.
• If your freezer is placed next to a deep freezer, there must be at least 2 cm between them to prevent humidity forming on the outer surface.
• Do not cover the body or top of freezer with lace. This will affect the performance of your freezer.
• Clearance of at least 150 mm is required at the top of your appliance. Do not place anything on top of your appliance.
• Do not place heavy items on the appliance.
• Clean the appliance thoroughly before use (see Cleaning and Maintenance).

• Before using your freezer, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate. Then, rinse with clean water and dry. Return all parts to the freezer after cleaning.
• Use the adjustable front legs to make sure your appliance is level and stable. You can

adjust the legs by turning them in either direction. This must be done before placing food in the appliance.

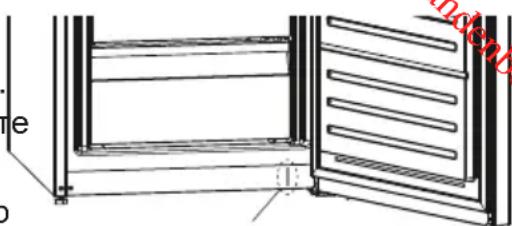

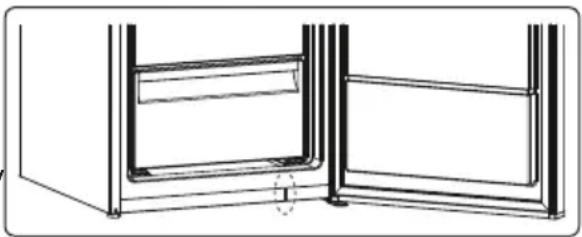

• Install the two plastic distance guides (the parts on the black vane-condenser at the rear) by turning them 90° (as shown in the figure) to prevent the condenser from touching the wall.

• The distance between the appliance and back wall must be a maximum of 75 mm.

Before using your freezer

• When using your freezer for the first time, or after transportation, keep it in an upright position for at least 3 hours before plugging into the mains. This allows efficient operation and prevents damage to the compressor.

• Your freezer may have a smell when it is operated for the first time. This is normal and the smell will fade away when your freezer starts to cool.

PART - 2. THE VARIOUS FUNCTION AND POSSIBILITIES

Information on No-Frost technology

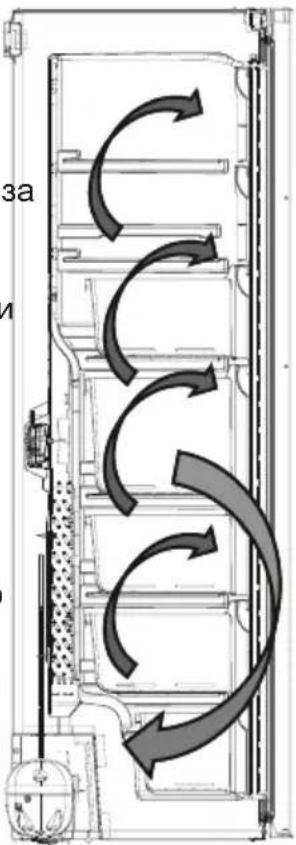

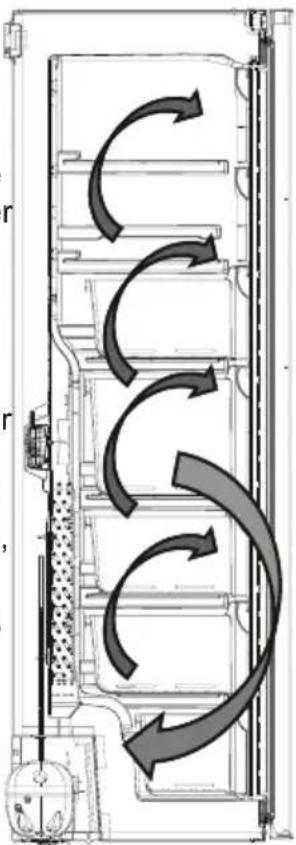

No-frost freezers differ from other static freezers in their operating principle.

In normal freezers, the humidity entering the freezer due to opening the door and the humidity inherent in the food causes freezing in the freezer compartment. To defrost the frost and ice in the freezer compartment, you are periodically required to turn off the freezer, place the food that needs to be kept frozen in a separately cooled container and remove the ice gathered in the freezer compartment.

The situation is completely different in no-frost freezers. Dry and cold air is blown into the freezer compartment homogeneously and evenly from several points via a blower fan. Cold air dispersed homogeneously and evenly between the shelves cools all of your food equally and uniformly, thus preventing humidity and freezing.

Therefore your no-frost freezer allows you ease of use, in addition to its huge capacity and stylish appearance.

Display and Control Panel

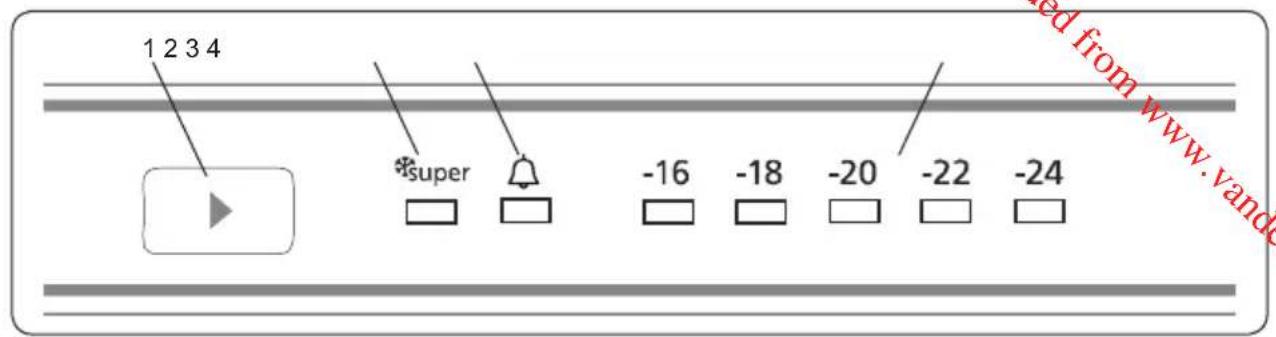

Using the Control Panel

1. Freezer temperature set button
2. Super freeze symbol (Super freeze LED)
3. Alarm symbol (Alarm LED)
4. Freezer adjusted temperature indicator

Operating your Freezer

Alarm light

In case of a problem within the freezer, the alarm LED will emit a red light.

Freezer Temperature Set Button

This button allows setting the temperature of the freezer. To set values for the freezer compartment, press this button. Use this button also to activate super freeze mode.

Super Freeze Mode

When Should It Be Used?

• To freeze large quantities of food.
• To freeze fast food. To freeze food quickly.
• To store seasonal food for a long time.

How To Use?

• Press the temperature set button until the super freezing light comes on.
• The super freezing LED will light during this mode. The maximum amount of fresh food (in kilograms) to be frozen within 24 hours is shown on the appliance label.
• For optimal appliance performance in maximum freezer capacity, set the appliance to active super freeze mode 24 hours before you put the fresh food into the freezer.

During This Mode:

If you press the temperature set button, the mode will be cancelled and the setting will be restored from -16.

Freezer Temperature Settings

The initial temperature of the setting display is -18°C. Press the freezer setting button once. Every time you press the button, the setting temperature will decrease. (-16°C, -18°C, -20°C, ... super freezing)

• If you press the freezer setting button until the super freezer symbol is displayed on the freezer.
• Settings display and you do not press any button within the following 3 seconds, super freezing will blink.
• If you keep on pressing, it will restart from the last value.

Warnings about temperature adjustments

• It is not recommended that you operate your freezer in environments colder than 10°C in terms of its efficiency.
• Do not start another adjustment while you are already making an adjustment.
• Temperature adjustments should be made according to the frequency of door openings, the quantity of food kept inside the freezer and the ambient temperature in the location of your freezer.
• In order to allow your freezer to reach the operating temperature after being connected to mains, do not open the door frequently or place large quantities of food in the freezer. Please note that, depending on the ambient temperature, it may take 24 hours for your freezer to reach the operating temperature.
• A 5 minute delay function is applied to prevent damage to the compressor of your freezer when connecting or disconnecting to mains, or when an energy breakdown occurs. Your freezer will begin to operate normally after 5 minutes.
• Your appliance is designed to operate in the ambient temperature (T/SN = 10°C - 43°C) intervals stated in the standards, according to the climate class displayed on the information label. We do not recommend operating your appliance out of the stated temperature limits in terms of cooling effectiveness.

Climate Class	Ambient Temperature (°C)
T Between 16 and 43 (°C)
ST Between 16 and 38 (°C)
N Between 16 and 32 (°C)
SN Between 10 and 32 (°C)
T/SN Between 10 and 43 (°C)

Important installation instructions

This appliance is designed to work in difficult climate conditions (up to 43 degrees C or 110 degrees F) and is powered with 'Freezer Shield' technology which ensures that the frozen food in the freezer will not defrost even if the ambient temperature falls as low as -15 °C. So you may then install your appliance in an unheated room without having to worry about frozen food in the freezer being spoilt. When the ambient temperature returns to normal, you may continue using the appliance as usual.

Accessories

Ice Tray (In some models)

• Fill the ice tray with water and place in the freezer compartment.
• After the water has completely frozen, you can twist the tray as shown below to remove the ice cubes.

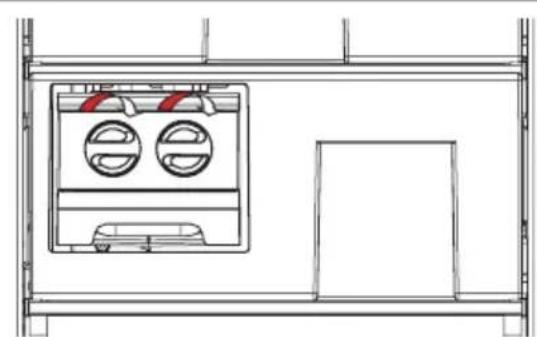

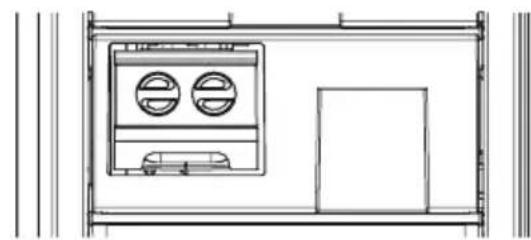

The Icemicatic (In some models)

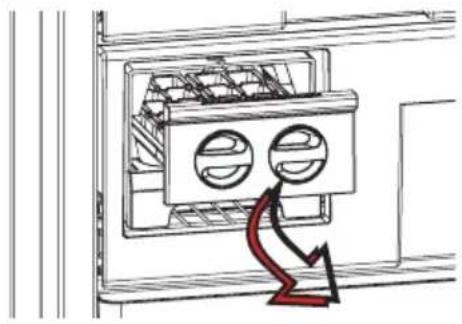

Pull the lever towards you and remove the ice maker tray. Fill with water to the marked level. Hold the left end of the lever and set the ice tray on the icebox. When ice cubes have formed, twist the lever to drop the ice cubes into the icebox.

Do not fill the icebox with water in order to make ice. It will break.

Visual and text descriptions in the accessories section may vary according to the model of your appliance.

ARRANGING FOOD IN THE APPLIANCE

• The freezer is used for storing frozen food, freezing fresh food, and making ice cubes.
• For freezing fresh food, wrap and seal fresh food properly; the packaging should be air tight and shouldn't leak. Special freezer bags, aluminum foil polythene bags, and plastic containers are ideal.
• Do not store fresh food next to frozen food as it can thaw the frozen food.
• Before freezing fresh food, divide it into portions that can be consumed in one sitting.
• Consume thawed frozen food within a short period of time after defrosting.
• Never place warm food in the freezer compartment as it will thaw the frozen food.
• Always follow the manufacturer's instructions on food packaging when storing frozen food. If no information is provided, food should not be stored for more than 3 months from the date of purchase.
• When purchasing frozen food, make sure that it has been stored under appropriate conditions and that the packaging is not damaged.
• Frozen food should be transported in appropriate containers and placed in the freezer as soon as possible.
• Do not purchase frozen food if the packaging shows signs of humidity and abnormal swelling. It is probable that it has been stored at an unsuitable temperature and that the contents have deteriorated.
• The storage life of frozen food depends on the room temperature, the thermostat setting, how often the door is opened, the type of food, and the length of time required to transport the product from the shop to your home. Always follow the instructions printed on the packaging and never exceed the maximum storage life indicated.
• The maximum amount of fresh food (in kg) that can be frozen in 24 hours is indicated on the appliance label.
• Use the fast freezing shelf to freeze home cooking (and any other food which needs to be frozen quickly) more quickly because of the freezing shelf's greater freezing power. Fast freezing shelf is the bottom drawer of the freezer compartment.

If you would use maximum freezing capacity of your freezer:

• While freezing fresh foods, the maximum amount of fresh food (in kg) that can be frozen in 24 hours is indicated on the appliance label.
• For optimum appliance performance to reach maximum freezing capacity, activate Super Freeze (SF) mode 24 hours before placing fresh food into the freezer.
• After placing fresh food into the freezer, 24 hours is generally sufficient for freezing. "Super Freeze" mode will be deactivated automatically in 2-3 days to save energy.

If you would freeze a small amount (up to 3 kg) in your freezer:

• Place your food without touching already frozen food and activate "Fast Freezing" mode. You can put your food next to other frozen food after it is completely frozen (after minimum 24 hours).
• Do not re-freeze frozen food after it has thawed. This may cause health issues, such as food poisoning.
• Allow hot food to completely cool down before placing it in the freezer.
• When buying frozen food ensure that these have been frozen at suitable temperatures and that the packing is intact.

NOTE: If you attempt to open the freezer door immediately after closing it, you will find that it will not open easily. This is normal. Once equilibrium has been reached, the door will open easily.

Important note:

• Never refreeze thawed frozen food.
• The taste of some spices found in cooked dishes (anise, basilica, watercress, vinegar, assorted spices, ginger, garlic, onion, mustard, thyme, marjoram, black pepper, etc.) changes and they assume a strong taste when they are stored for a long period of time. Therefore, add small amounts of spices to food to be frozen, or the desired spice should be added after the food has thawed.
• The storage time of food is dependent on the type of oil used. Suitable oils are margarine, calf fat, olive oil and butter. Unsuitable oils are peanut oil and pig fat.
• Food in liquid form should be frozen in plastic cups and other food should be frozen in plastic folios or bags.

The table below is a quick guide to show you the most efficient way to store the major food groups in your freezer compartment.

Meat and fish Preparation	Maximum storage time (months)
Steak Wrap in foil 6 - 8
Lamb meat Wrap in foil 6 - 8
Veal roast Wrap in foil 6 - 8
Veal cubes In small pieces 6 - 8
Lamb cubes In pieces 4 - 8
Minced meat In packaging without using spices 1 - 3
Giblets (pieces) In pieces 1 - 3
Bologna sausage/salami Should be kept packaged even if it has a membrane
Chicken and turkey Wrap in foil 4 - 6
Goose and duck Wrap in foil 4 - 6
Deer, rabbit, wild boar In 2.5 kg portions or as fillets	6 - 8
Freshwater fish (Salmon, Carp, Crane, Catfish) After cleaning the bowels and scales of the fish, wash and dry it. If necessary, remove the tail and head.	2
Lean fish (Bass, Turbot, Flounder)
Fatty fishes (Tuna, Mackerel, Bluefish, Anchovy)
Shellfish Clean and in a bag	4 - 6
Caviar In its packaging, or in an aluminium or plastic container	2 - 3
Snails In salty water, or in an aluminium or plastic container	3
NOTE: Thawed frozen meat should be cooked as fresh meat. If the meat is not cooked after defrosting, it must not be re-frozen.

Vegetables and Fruits	Preparation	Maximum storage time (months)
String beans and beans	Wash, cut into small pieces and boil in water	10 - 13
Beans	Hull, wash and boil in water	12
Cabbage	Clean and boil in water	6 - 8
Carrot	Clean, cut into slices and boil in water	12
Pepper	Cut the stem, cut into two pieces, remove the core and boil in water	8 - 10
Spinach	Wash and boil in water	6 - 9
Cauliflower	Remove the leaves, cut the heart into pieces and leave it in water with a little lemon juice for a while	10 - 12
Eggplant	Cut into pieces of 2cm after washing	10 - 12

Vegetables and Fruits Preparation	Maximum storage time (months)
Corn Clean and pack with its stem or as sweet corn 12
Apple and pear Peel and slice 8 - 10
Apricot and Peach Cut into two pieces and remove the stone 4 - 6
Strawberry and Blackberry	Wash and hull 8 - 12
Cooked fruits Add 10 % of sugar to the container 12
Plum, cherry, sourberry Wash and hull the stems 8 - 12

	Maximum storage time (months)	Thawing time at room temperature (hours)	Thawing time in oven (minutes)
Bread 4 - 6 2 - 3 4-5 (220-2	25 °C)
Biscuits 3 - 6 1 - 1,5	5-8 (190-200	°C)
Pastry	1 - 3 2 - 3 5-10 (200-225 °C)
Pie	1 - 1,5	3 - 4	5-8 (190-200 °C)
Phyllo dough	2 - 3	1 - 1,5	5-8 (190-200 °C)
Pizza	2 - 3 2 - 4 15-20 (200 °C)

Dairy products	Preparation	Maximum storage time (months)	Storage conditions
Packet (Homogenized) Milk	In its own packet	2 - 3 Pure Milk	in its own packet
Cheese - excluding white cheese	In slices	6 - 8	Original packaging may be used for short-term storage. Keep wrapped in foil for longer periods.
Butter, margarine	In its packaging	6

PART-4. CLEANING AND MAINTENANCE Disconnect the unit from the power supply before cleaning. ! Do not wash your appliance by pouring water on it.

Do not use abrasive products, detergents or soaps for cleaning the appliance. After washing, rinse with clean water and dry carefully. When you have finished cleaning, reconnect the plug to the mains supply with dry hands.

• Make sure that no water enters the lamp housing and other electrical components.
• The appliance should be cleaned regularly using a solution of bicarbonate of soda and lukewarm water.

• Clean the accessories separately by hand with soap and water. Do not wash accessories in a dishwasher.

• Clean the condenser with a brush at least twice a year. This will help you save on energy costs and increase productivity.

The power supply must be disconnected during cleaning.

Defrosting

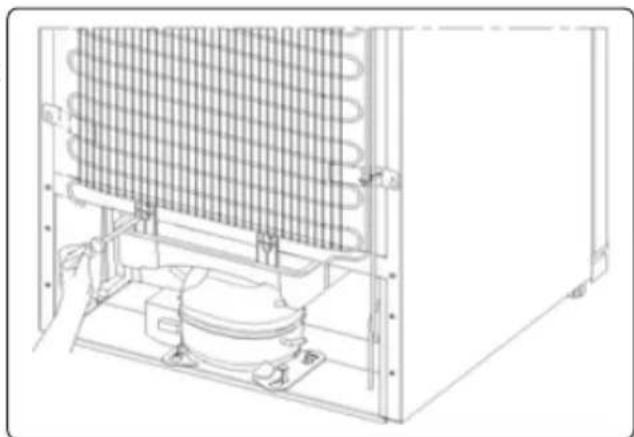

• Your appliance performs automatic defrosting. The water formed as a result of defrosting passes through the water collection spout, flows into the vaporisation container behind your appliance and evaporates there.
• Make sure you have disconnected the plug of your appliance before cleaning the vaporisation container.

• Remove the vaporisation container from its position by removing the screws as indicated. Clean it with soapy water at specific time intervals. This will prevent odours from forming.

Replacing LED Lighting

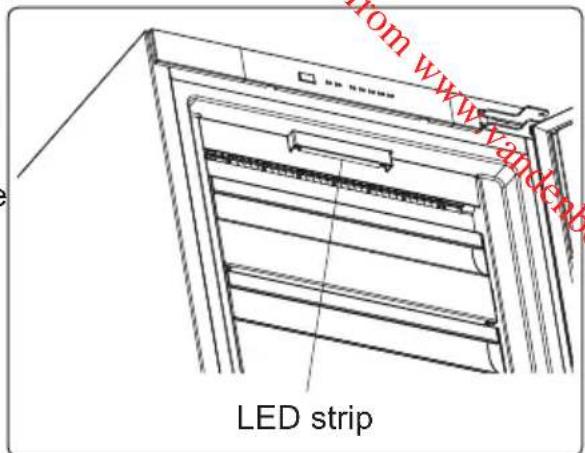

Depending on the model, one LED strip in the freezer is used to illuminate the interior of your appliance.

To replace any of the LEDs, please contact the nearest Authorised Service Centre.

Some versions may not include freezer illumination.

PART - 5.

TRANSPORTATION AND CHANGING OF INSTALLATION POSITION

Transportation and Changing Positioning

• The original packaging and foam may be kept for re-transportation (optional).
• Fasten your appliance with thick packaging, bands or strong cords and follow the instructions for transportation on the packaging.
• Remove all movable parts (drawers, ice trays and so on) or fix them into the appliance against shocks using bands when re-positioning or transporting.

Always carry your appliance in the upright position.

Repositioning the Door

• It is not possible to change the opening direction of your appliance door if door handles are installed on the front surface of the appliance door. It is possible to change the opening direction of the door on models without handles.
• If the door-opening direction of your appliance can be changed, contact the nearest Authorised Service Centre to change the opening direction.

BEFORE CALLING YOUR AFTER SALES SERVICE

Errors

Your freezer will warn you if the temperatures for the freezer is at improper levels or if a problem occurs with the appliance. In case of a problem within the freezer, the alarm led will release red light.

Alarm indicator LED is turning on	MEANING WHY WHAT TO DO
	"Failure" Warning	There is/are some part(s) out of order or there is a failure in the cooling process. The product is plugged for the first time or a long-time power interruption for 1 hour.	Check the door is open or not and check if the product working 1 hour. If the door is not open and the product had worked 1 hour, call service for assistance as soon as possible.

If you are experiencing a problem with your freezer, please check the following before contacting the after-sales service.

Your freezer is not operating

Check if:

There is power - The plug is correctly placed in the socket - The plug fuse or the mains fuse has blown - The socket is faulty. Examine this by plugging your freezer into a working socket.

What to do if your appliance performs poorly;

Check that;

• You have not overloaded the appliance, The freezer temperature set to -16, The doors are closed perfectly,
• There is no dust on the condenser,
• There is enough place at the rear and side walls.

Your freezer is operating noisily

Normal noises

Cracking (ice cracking) noise occurs:

During automatic defrosting - When the appliance is cooled or warmed (due to expansion of appliance material).

Short cracking noise occurs: When the thermostat switches the compressor on/off.

Motor noise: Indicates the compressor is operating normally. The compressor may cause more noise for a short time when it is first activated.

Bubbling noise and splash occurs: Due to the flow of the refrigerant in the tubes of the system.

Water flowing noise occurs: Due to water flowing to the evaporation container. This noise is normal during defrosting.

Air blowing noise occurs: In No-Frost freezers during normal operation of the system due to the circulation of air.

The edges of the freezer in contact with the door joint are warm

Especially during summer (warm seasons), the surfaces in contact with the door joint may become warmer during the operation of the compressor; this is normal.

The door does not open or close properly

Check if:

• There is food or packaging preventing the door from closing
• The door joints are broken or torn
• Your freezer is on a level surface.

Important Notes:

• In the case of a power failure, or if the appliance is unplugged and plugged in again, the gas in the cooling system of your freezer will destabilize, causing the compressor protective thermal element to open. Your freezer will start to operate normally after 5 minutes.
• If the appliance will not be used for a long period of time (such as during holidays), disconnect the plug. Defrost and clean the freezer, leaving the door open to prevent the formation of mildew and odor.
• If the problem persists after you have followed all the instructions above, please consult the nearest Authorized Service Centre.
• This appliance is designed for domestic use and for the stated purposes only. It is not suitable for commercial or common use. If the consumer uses the appliance in a way that does not comply with these instructions, we emphasize that the manufacturer and the dealer will not be responsible for any repair or failure within the guarantee period.

Hints for Energy Saving

1. Install the appliance in a cool, well-ventilated room, but not in direct sunlight and not near a heat source (such as a radiator or oven); otherwise, an insulating plate should be used.
2. Allow warm food and drinks to cool before placing them inside the appliance.
3. Drinks or other liquids should be covered when inside the appliance. If left uncovered, the humidity inside the appliance will increase, therefore the appliance uses more energy. Keeping drinks and other liquids covered helps preserve their smell and taste.
4. Avoid keeping the doors open for long periods and opening the doors too frequently, as warm air will enter the appliance and cause the compressor to switch on unnecessarily often.
5. The door gasket must be clean and pliable. In case of wear, if your gasket is detachable, replace the gasket. If not detachable, you have to replace the door.
6. Eco mode / default setting function preserves frozen foods while saving energy.
7. Frozen Compartment (Freezer): The internal configuration of the appliance is the one that ensures the most efficient use of energy.
8. Do not remove the cold accumulators from the freezer basket (if present).

PART - 7.

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

1. Control panel
2. Freezer flaps
3. Freezer drawers
4. Freezer bottom drawer
5. Freezer big drawer
6. Ice tray (In some models)

In some models there is a shelf with icematic in the top basket

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

Super Freeze Mode

When to use it?

ВＧＰＯχＡＰ ＿рＥＤυnp%EДне; Рис OT пожар / заразиму Матерпалу

Contents

Instructions for use of the appliance 90

General safety instructions 96 Safety instructions 94 Remote control.. 95 Installation and connection of the appliance. 95 Before using the refrigerator 96 Normal operation and self-defrosting. 96

DIFFERENT FUNCTIONS AND POSSIBILITIES 96

Control panel. 97 Control panel display 97

Button for setting the temperature in the freezer compartment. 97 Light indicator for alarm. 97 Mode "Fast Freeze" 97 Temperature settings for the freezer 98

Warning regarding temperature settings 98 Accessories 99

STORING FOOD IN THE APPLIANCE 100

CLEANING AND MAINTENANCE 104

Defrosting 105

Table of contents 105

Instructions for opening the door 106

BEFORE CONTACTING YOUR SERVICE 106

Energy saving tips 109

APPLIANCE COMPONENTS AND PARTS 110

Do not use adapters or extension cords that could cause interruption or fire. Do not connect old/damaged cables. Do not bend or twist the cables.

Do not allow children to play with the appliance. Children should never sit on the drawers or stand on the door. Do not use sharp metal objects to scrape ice from the freezer compartment; they may puncture or damage the electrical wiring of the refrigerator and cause malfunction of the appliance. Use the provided plastic scraper. - Do not touch the appliance with wet hands. Do not place glass bottles or cans (especially carbonated drinks) in the freezer, as they may burst during freezing. - Bottles containing high-proof alcohol must be well sealed and placed vertically in the refrigerator. Do not touch the cooling surface, especially with wet hands, as you may

get burned or injured.

Do not consume ice cubes that have just been removed from the freezer. - If the power cord is damaged, it must be replaced by the manufacturer or a service agent. Do not use an extension cord.

Remote control

The refrigerator door is vacuum-sealed when closed. Wait about 1 minute before opening it again. - This accessory can be optionally installed for easy opening of the door. Near the place where the remote control is installed, condensation may appear.

Remote control

Installation and connection of the appliance

• Before connecting the appliance, make sure that the voltage and frequency indicated on the rating plate match your electrical supply. This appliance is designed for 220-240V and 50 Hz.
• You may seek assistance from the service to install and connect the appliance.
• The appliance must be installed so that it is accessible.
• Do not use the appliance for purposes other than those described in this manual. Do not expose the appliance to direct sunlight. Do not use the appliance outdoors.
• Place the refrigerator away from heat sources and in a well-ventilated position. The refrigerator must be at least 50 cm from radiators, gas or electric stoves, and 5 cm from electric stoves.
• Leave the top part free at a distance of at least 15 cm. Do not place heavy objects on top.
• If the appliance is installed next to another refrigerator or freezer, you must leave a minimum distance of 2 cm to allow for condensation.
• The appliance must stand stable and level on the floor. Use the two front leveling feet. To ensure proper air circulation under the appliance, the space under it must be open. Do not cover it with anything.
• Clean the outside of the refrigerator and the door seals with a solution of water and mild detergent; the inside of the appliance with a solution of water and baking soda. After drying, put all accessories back in place.
• Install the rear spacer (the part with the screw) at a distance, turning it 90°, to prevent the condenser from touching the wall. The refrigerator must be placed against the wall, with a free distance of no less than 75 mm.

Before using the refrigerator

After the appliance has been switched on for the first time or after transport, keep the refrigerator in an upright position for 3 hours before switching it on, to ensure efficient operation. Otherwise, you may damage the compressor. There may be frost in the refrigerator when you switch it on for the first time; the frost will disappear once the refrigerator starts cooling.

DIFFERENT FUNCTIONS AND POSSIBILITIES

Information about the No-Frost technology

No-Frost freezers differ from ordinary freezers in their operating principle.

In ordinary freezers, the moisture that forms when the door is opened or when food is introduced freezes on the food, which is why ice forms in the freezer compartment. To remove the ice, you must periodically switch off the freezer, place frozen food in a special refrigerated container, and remove the ice that has formed.

The situation is completely different with No-Frost technology in freezers. In the freezer compartment, dry and cold air is supplied by several fans through a ventilator to achieve even distribution. The cold air is distributed evenly among all shelves and compartments, preventing the formation of moisture on food products.

The appliance is designed for use in accordance with the instructions for use in the household and similar applications.

Do not place hot food in the freezer before it has cooled down, as this will increase the temperature of the freezer.

When freezing fresh food (i.e., meat, fish, and poultry), divide it into portions that you will use for one meal.

For storing frozen food: The information on the packaging of the frozen food must be followed. If no information is provided, the food should not be stored for more than 3 months from the date of purchase.

Maximum loading: If you want to store a large quantity of food and use the maximum freezing capacity of the freezer, you can remove all the drawers, but leave the lower drawers in place. This way, it is possible to store bulky items directly on the shelves.

When buying frozen food, make sure it was frozen at the appropriate temperature and that the packaging is intact.

Frozen food should be transported in suitable containers to maintain the quality of the food and to be returned to the freezer as quickly as possible.

• If the packaging of the frozen food is damp and smells strange, it is likely that the food was not stored at the proper temperature and the contents have deteriorated.

The storage time of frozen food depends on the room temperature, the thermostat setting, how often the door is opened, the type of food, and the time it takes to transport the food from the store to your home. Always follow the instructions printed on the packaging and never exceed the recommended maximum storage time.

If you use the maximum freezing capacity of your freezer:

When freezing fresh food: The maximum amount of fresh food (in kg) that can be frozen in 24 hours is shown on the rating plate. (Your refrigerator has a freezing capacity of 25 kg at an ambient temperature of 25°C

For optimal performance of the appliance and to achieve the maximum freezing capacity, 24 hours before placing the food in the freezer, activate the "Super Freeze" (SF) mode.

After placing the fresh food in the freezer, 24 hours are usually sufficient for freezing. The "Super Freeze" mode will be automatically deactivated within 2-3 days to save energy.

If you freeze a small amount of food (up to 3 kg) in the freezer:

• Place the food in the freezer, making sure it does not touch already frozen food, and activate the "Fast Freeze" mode. You can place the food next to other frozen food, after it has been completely frozen (after at least 24 hours).

He has re-frozen the product after it has been completely thawed. This

can cause health problems such as food poisoning.

Leave the frozen food to cool completely before putting it in the freezer. When you buy frozen food, make sure it has been frozen at the appropriate temperature and that the packaging is intact. The taste of some seasonings (anise, basil, pepper, vinegar, bouillon cubes, dill, garlic, onion, turmeric, marjoram, oregano, thyme, etc.) changes and becomes stronger after prolonged storage. Therefore, only a very small amount of seasoning should be added to frozen food, or seasoning should be added after thawing. The storage time of food depends on the oil or fat used. Suitable oils or fats are margarine, beef fat, olive oil, while butter and lard are unsuitable. Food in sauce should be frozen in plastic containers, and dry food in foil or plastic bags.

If the appliance does not work:

• Is there a power failure?
• Is the plug correctly inserted into the socket?
• Is the fuse of the plug or the main fuse blown?
• Is the socket damaged? To check this, plug another appliance into the socket, which you know works.

The appliance does not cool sufficiently:

Is the temperature correctly set? Is the freezer door opened frequently or left open for extended periods? Is the freezer door properly closed? It is possible that you have placed food in the appliance that touches the back wall, blocking the air circulation. - Is the freezer overloaded? - Is there enough space around the appliance for proper air circulation? - Is the ambient temperature within the limits described in the operating instructions?

Food in the freezer is excessively thawed:

• Is the temperature correctly set?
• Is there a large quantity of food placed in the freezer at once?

The appliance is unusually noisy:

To maintain the set cooling level, the compressor will activate from time to time. The noise the freezer makes during this time is perfectly normal. Once the required cooling level is reached, the noise will decrease or stop by itself. If the noise does not stop:

• Is the device level? Adjust the legs if necessary.
• Is there anything for the dispenser?
• Place / insert the shelves correctly. In such a case, swap the positions of the shelves and/or the drawers.
• The items placed on the freezer or dispenser?

Normal noises:

Cracking (popping) sounds:

• During automatic defrosting. When the device cools down or warms up (due to expansion of materials).

Short pause: Occurs when the thermostat switches the compressor on/off.

Compressor noise (normal motor noise): This noise indicates that the compressor is working normally. For a short time, after it turns on, the compressor may make a louder noise.

Bubbling sounds: This noise is caused by the flow of refrigerant through the system.

Hot water: Normal noise from the hot water to the evaporator during defrosting. This noise is heard during defrosting.

Airflow noise (normal fan noise): This noise is normal for freezers with No-Frost technology and is due to the air circulation.

Increasing humidity in the device:

Is the food well and properly packaged? Are the drawers well and tightly closed before being placed in the freezer? Does the door of the appliance close properly and completely? When opening the door, humidity from the air in the room enters the interior of the device. If the humidity level in the room is high, the more often the door is opened, the faster the appliance will become humid.

The doors do not open or close properly:

Is it possible that the door of the freezer is not closed properly, or that the quantities and items placed for the first time are not correct? Is it possible that the door seals are damaged or worn? - Is the freezer positioned on a flat surface?

The ribs of the freezer are warm at the spot where they touch the door:

During operation (in hot weather), the surfaces that are touched may become hot until the compressor works. This is normal.

IMPORTANT:

• The thermal protection of the compressor switches off only in case of sudden power interruptions or switching off of the device from the mains, as the pressure in the cooling system is not stabilized. This is quite normal and the device will resume operation after 4 - 5 minutes.
• The cooling block of the freezer is hidden in the back wall. Due to the principle of operation, the back surface of the device may become covered with water droplets. This is a result of the compressor working at certain intervals of time. This is normal. It is not necessary to wipe it off, unless the water is dripping excessively.
• If you do not intend to use the device for a longer period of time (e.g., summer holidays, etc.), disconnect it from the electrical mains. Clean the device according to Section 4 and leave the door open to prevent moisture and odors. The device you have purchased is designed for use in household conditions and can be used only in such, or in similar conditions as described above. It is not suitable for use in commercial or industrial conditions. If the device is used in a manner that is not in accordance with the above, we declare that the manufacturer or the commercial representative will not be responsible for repairs in case of damage within the warranty period. If the problems persist, after you have followed all the instructions above, please consult an authorized service provider.

Energy saving tips

1. Install the device in a cool and well-ventilated room, but it should not be exposed to direct sunlight or placed near sources of heat or fire (radiator, stove, etc.). In the opposite case, use insulation material.
2. Allow hot food and drinks to cool down outside the device.
3. When you defrost frozen food, place it in the refrigerator compartment. The low temperature of the frozen food will help cool the refrigerator compartment while it defrosts. In this way, electricity is saved. If the frozen food is left outside, it will lead to increased electricity consumption.
4. Drinks should be covered. Otherwise, moisture will form in the device. This will also increase the operating time. Covered drinks help preserve their aroma and taste.
5. When you place food or drinks, open the device door as little as possible.
6. Keep the lids of the compartments with different temperatures (compartment for fruits and vegetables, etc.) tightly closed.
7. Clean the door gasket. It must be clean and dry. Replace the gasket if it is damaged. When closing, if the door gasket is not sealing, replace the gasket. If it is not sealing, you must replace the door.
8. If the refrigerator/freezer function for setting the temperature is not working, the food may not be stored properly.
9. Freezer compartment: The internal configuration of the appliance is such as to ensure the most efficient use of energy.
10. Do not block the ventilation openings in the freezer compartment (if any).

COMPONENTS AND APPLIANCE PARTS

Some models have a shelf for storing bottles in the door.

1. Control panel 2. Door shelf 3. Freezer compartment 4. Ice cube tray 5. Large ice cube tray 6. Lower ice cube tray

*On some models

The illustration is typical and shows the different parts and accessories of the appliance. Some parts may vary depending on the model of the appliance.

WWW.ZANUSSI.COM/SHOP
